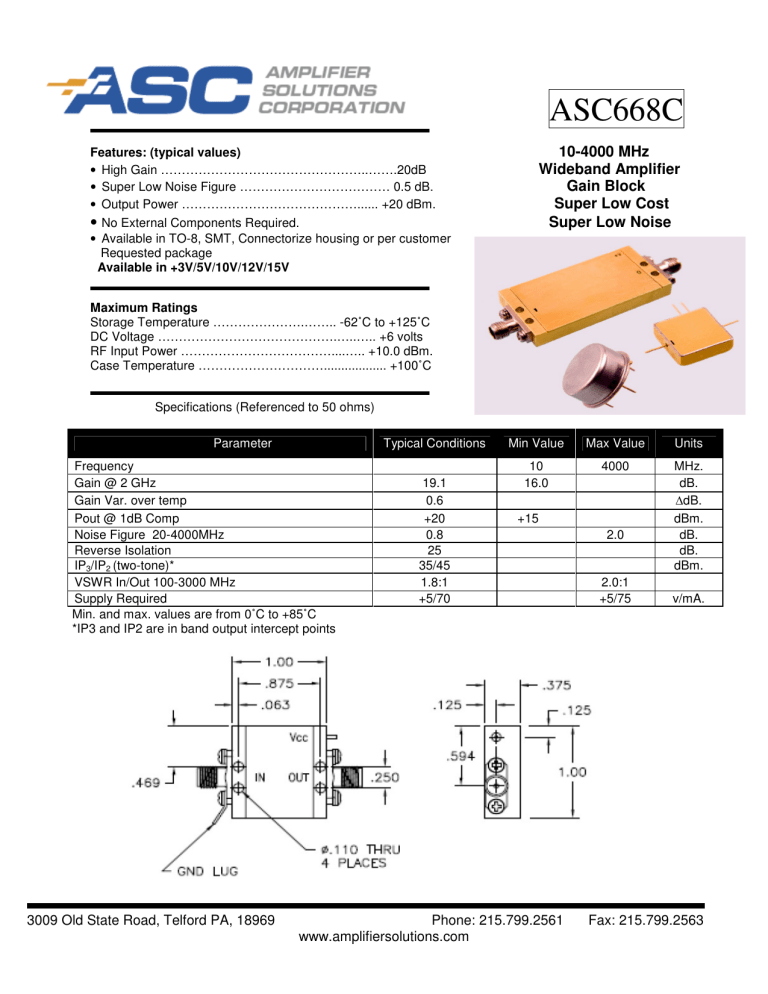

ASC668C - Amplifier Solutions
ASC668C
Features: (typical values)
• High Gain …………………………………………..…….20dB
• Super Low Noise Figure ……………………………… 0.5 dB.
• Output Power ……………………………………...... +20 dBm.
• No External Components Required.
• Available in TO-8, SMT, Connectorize housing or per customer
Requested package
Available in +3V/5V/10V/12V/15V
10-4000 MHz
Wideband Amplifier
Gain Block
Super Low Cost
Super Low Noise
Maximum Ratings
Storage Temperature ………………….…….. -62˚C to +125˚C
DC Voltage …………………………………….…..….. +6 volts
RF Input Power ………………………………....….. +10.0 dBm.
Case Temperature ………………………….................. +100˚C
Specifications (Referenced to 50 ohms)
Parameter
Typical Conditions
Frequency
Gain @ 2 GHz
Gain Var. over temp
Pout @ 1dB Comp
Noise Figure 20-4000MHz
Reverse Isolation
IP3/IP2 (two-tone)*
VSWR In/Out 100-3000 MHz
Supply Required
Min. and max. values are from 0˚C to +85˚C
*IP3 and IP2 are in band output intercept points
3009 Old State Road, Telford PA, 18969
19.1
0.6
+20
0.8
25
35/45
1.8:1
+5/70
Min Value
Max Value
Units
10
16.0
4000
MHz.
dB.
∆dB.
dBm.
dB.
dB.
dBm.
+15
Phone: 215.799.2561
www.amplifiersolutions.com
2.0
2.0:1
+5/75
v/mA.
Fax: 215.799.2563
ASC668C
Typical Performance Curves @ +25c
NF vs. Frequency
Gain vs. Frequency
1.8
1.5
1.2
0.9
0.6
0.3
0
NF (dB.)
Gain (dB.)
30
20
10
0
20
1000
2000
3000 4000
5000
20
6000
1000
Pout vs. Frequency
3000
4000
VSWR vs. Frequency
22
Input
Output
6
5
4
3
2
1
20
VSWR
Pout (dBm.)
2000
18
16
14
20
1000
2000
3000
4000
20
200 1000 2000 3000 4000 5000 6000
IP 3/IP2 & HIP2 vs. Frequency
Intercepts (dBm.)
IP 3
50
45
40
35
30
25
20
20
3009 Old State Road, Telford PA, 18969
1000
2000
3000
4000
5000
6000
Phone: 215.799.2561
www.amplifiersolutions.com
Fax: 215.799.2563
