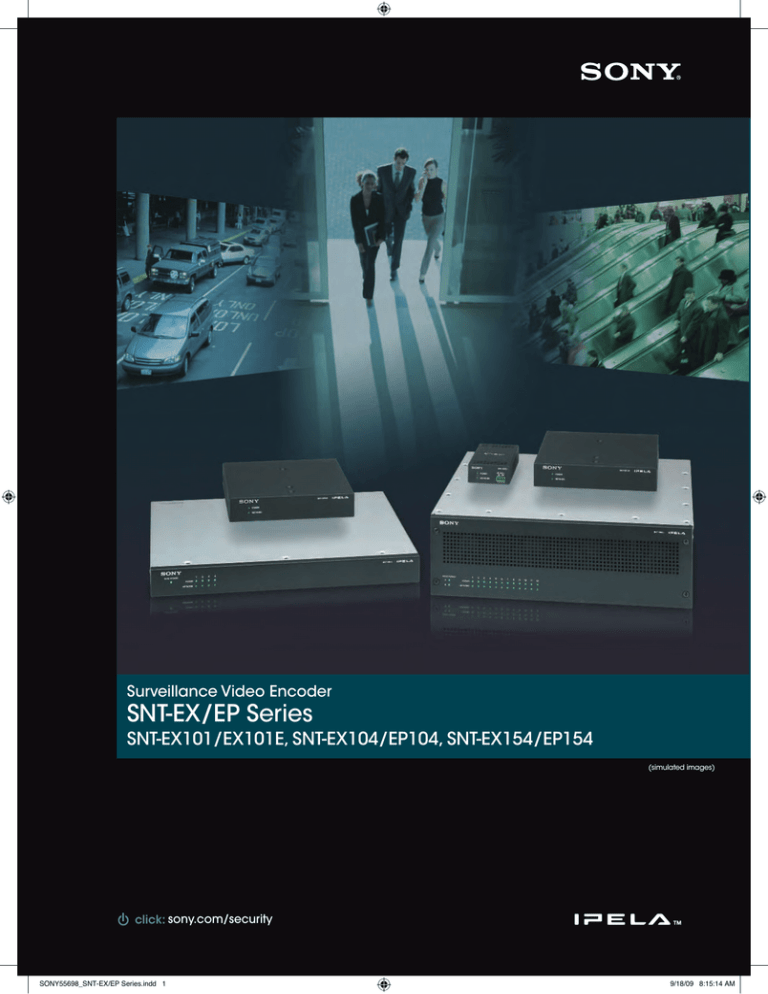

Surveillance Video Encoder
SNT-EX/EP Series
SNT-EX101/EX101E, SNT-EX104/EP104, SNT-EX154/EP154
(simulated images)
click: sony.com/security
sony.com/sonysports
click: sony.com/sonysports
SONY55698_SNT-EX/EP Series.indd 1
9/18/09 8:15:14 AM
SNT-EX/EP Series
Stunning video and audio brought to you by the IPELA series of
visual communication products that encompass the three-pronged
Reality
concept of “Reality,” “Intelligence,” and “Usability.” IPELA is
• High Frame Rate
the identity symbolizing the Sony vision for the workplace of the
• Visibility Enhancer
future, connecting people, places, and information with reality
that has never before been achieved. IPELA products let you
• XDNR
share, understand, and experience as if you are actually there,
when in fact, you are miles away. It allows you to quickly grasp a
situation to make better business decisions.
Intelligence
• Audio Detection
• Voice Alert
• Tamper Alarm
• DEPA Advanced
Usability
• 3 codecs with Dual
Streaming
• 4 IP & MAC Address
Support*
Real audiovisual communication over networks – this is business communication of the future, this is business communication brought to you today, this is “IPELA.”
* Available on SNT-EX104/EP104/EX154/EP154
With the SNT-EX/EP Series,
Your Analog Cameras Will Be Reborn
Sony is pleased to introduce the SNT-EX/EP Series, a full lineup of video encoders designed to meet
various system requirements. There’s a choice of 1-channel and 4-channel standalone models, as
well as 1U and 3U Rack Stations that accept 4-channel blades − all of which can dual-stream H.264/
JPEG, H.264/MPEG-4, or MPEG-4/JPEG video at full 30/25 fps (NTSC/PAL) in up to D1 resolution.
These video encoders not only convert analog video signals to a digital video stream for IP-based
networks, but also improve the picture quality of the original signals with state-of-the-art imageenhancing technology. What’s more, the SNT-EX Series also incorporates advanced security features
such as DEPA Advanced™ intelligent video and audio analytics.
The SNT-EX/EP Series is the ideal choice when migrating from an existing analog camera system to an
IP-based monitoring system with intelligence technology, even in the most demanding application
environments, such as education, transportation, factories, healthcare facilities, public venues, and airports.
Scalability
Full
Basic
Blade Type Encoder
SNT-EX154
(4CH)
Full
Full Function
Blade Type Encoder
Basic Function
SNT-EP154
(4CH) Basic
Blade Type
Encoder Rack
SNT-RS3U (Up to 48CH)
Blade Type Encoder
(Space saving,
scalable solution)
SNT-EX154
(4CH) Full
Blade Type Encoder
Encoder Rack
SNT-EP154
(4CH) Basic
Box Type
(Standalone,
quick solution)
SNT-RS1U (Up to 16CH)
Box Type Encoder Full
SNT-EX101 (1CH)
Full
Box Type Encoder
SNT-EX104 (4CH)
Full
SNT-EX101E (1CH)
Box Type Encoder Basic
SNT-EP104 (4CH)
Box Type Encoder
1CH
4CH
16CH
Full Function
Key Features
XDNR
Visibility Enhancer
DFI
Super-Impose
Privacy Masking
DEPA Advanced
Voice Alert
Local Storage
PTZ Control
RS422
RS485
Coaxitron
AC24V power
PoE
1CH Box
SNT-EX101
SNT-EX101E
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
48CH
Number of
Channels
Basic Function
4CH Box
SNT-EX104
l
l
l
l
l
l
l
l
l
4CH Blade
SNT-EX154
l
l
l
l
l
l
l
l
l
l
l
4CH Box
SNT-EP104
l
l
l
l
l
4CH Blade
SNT-EP154
l
l
l
l
l
l
2
SONY55698_SNT-EX/EP Series.indd 2
9/18/09 8:15:15 AM
Features
High-quality Images Based on Advanced
Technology
System Flexibility
The SNT-EX/EP Series delivers clearer and brighter, high-quality
images thanks to state-of-the-art image-enhancing
technology.
Each model supports the H.264, MPEG-4, and JPEG
compression formats at full 30/25 fps in D1 resolution. The
industry-standard JPEG compression format is the best choice
for high-quality still images. MPEG-4 provides clear moving
images efficiently over networks when bandwidth and storage
are limited. While H.264 provides twice the efficiency of
MPEG-4, for when bandwidth and storage is even more limited.
Visibility Enhancer
The SNT-EX/EP Series includes Visibility Enhancer technology.
This tone-correction technology optimizes the visibility of a
scene by increasing brightness in darker areas of the scene
and compressing the brighter areas. The result is sharper,
clearer images and a higher level of visibility − all of which are
critical for security surveillance.
OFF
ON
(Actual images)
Three Codecs − H.264, MPEG-4, and JPEG Support
Dual-encoding Capability
With its dual-encoding capability, the SNT-EX/EP Series can
generate any two formats from H.264, MPEG-4, and JPEG
simultaneously. This flexibility allows you to maximize your
network and storage resources.
1st Stream
Codec
2nd Stream
Codec
H.264
H.264
MPEG-4
MPEG-4
2nd at low frame rate stream for recording
that needs to meet storage capability.
MPEG-4
H.264
For the system that has limited decoding
capability
JPEG
H.264
JPEG
MPEG-4
XDNR (eXcellent Dynamic Noise Reduction)
Incorporating newly developed XDNR technology, these video
encoders can provide clear images while at the same time
minimizing motion blur under low illumination. What’s more,
when both XDNR and Visibility Enhancer are turned on, the
video encoders can achieve four times the sensitivity compared to when they are off.
This technology is ideal for any outdoor surveillance
monitoring, such as a car parked at night.
Examples
1st stream at high frame rate for live
monitoring that requires clear moving.
For the system that requires JPEG Images
Intelligence
DEPA Advanced − Intelligent Video and Audio
Analytics*1 (SNT-EX Series)
Incorporating DEPA Advanced technology, the SNT-EX Series
offers intelligent video and audio analytics. With this feature,
the video encoders can trigger an alarm based on userdefined rules. This allows users to further refine the criteria for
triggering an alarm, making the overall system more efficient.
OFF
ON
(Actual images)
Dynamic Frame Integration (DFI)
Alarm!
Incorporating Dynamic Frame Integration (DFI) technology,
the SNT-EX/EP Series can reproduce clear images that
contain both still and moving objects. DFI technology detects
movement within the image and reproduces those areas with
minimal blurring, while − at the same time − areas with little
or no movement are displayed naturally with minimal jagged
edges. DFI also ensures clear images in low light conditions.
Images +
Camera
Pre Filter
Post Filter
Alarm!
Recorder
(Simulated images)
• Intelligent Motion Detection
Without DFI
With DFI
(Actual images)
With this feature, the SNT-EX Series can trigger an alarm
based on up to three user-defined rules, such as intrusion
across a virtual border utilizing edge VMF or a beam
intrusion detector*7
3
SONY55698_SNT-EX/EP Series.indd 3
9/28/09 12:09:25 PM
• Tamper Alarm
When an attempt is made to tamper with the camera, such
as spray-painting the lens, the SNT-EX Series detects this and
triggers an alarm. This event can be used to activate the
camera relays, or even to start the Voice Alert function.
Tampered
Alarm!
REC
Network Recorder
Alarm
Detected
Alarm!
REC
PC
(simulated images)
Easy Installation
Supports Four IP and Four MAC Addresses*2
The four-channel models, including the blade encoders,
support four IP and four MAC addresses. This enables you to
monitor your video cameras via the SNT-EX/EP Series using
each camera’s unique IP address. Furthermore, defining an IP
address for each camera is very simple, so system setup can
be achieved quickly.
Remember Function*3
MAC address information is stored on the 1U and 3U rack
stations. After installing the blade and assigning the IP
address, the IP address is then stored in the rack station.
In the event of a failure on a blade encoder, you can simply
replace the card with a new one and be up and running very
quickly.
ONVIF Conformance
(Open Network Video Interface Forum)
• Advanced Audio Detection*7
External Device
Unlike conventional audio detection where an alarm is
triggered based on a simple preset audio level, the SNT-EX
Series takes into account the ambient sound levels as well as
its associated frequencies to establish a threshold where any
audio level above this is treated as an alarm.
In line with Sony’s commitment to open standards, the
SNT-EX/EP Series conforms to ONVIF™ software specifications.
ONVIF defines a common protocol for the exchange of
information between different network video devices
regardless of manufacturer, and realizes greater
interoperability in multi-vendor network video systems.
Support for IPv6
The SNT-EX/EP Series supports Internet Protocol Version 6 (IPv6).
Microphone
Alarm!
REC
Alarm
Level
Network Recorder
Alarm
Detected
Alarm!
REC
PC
Third-party PTZ Control via Serial Interface RS-422*4/485*5
The SNT-EX Series has an RS-422/485 serial interface. It also
has built-in protocols to support the control of third-party
analog Pan/Tilt/Zoom (PTZ) cameras, plus support of some
setting adjustments. For further ease of installation, the
camera ID of the PTZ camera can be set on the SNT-EX Series,
so there is no need to manually change or set the camera
address.
Coaxitron Protocol Support*1
Audio
Sensor
(simulated images)
Versatile Interfaces
External Device
Audio Functions*1 (SNT-EX Series)
Voice Alert
The SNT-EX Series can store up to three pre-recorded audio
files. Upon initiation, either manually or via an alarm, these
video encoders can play out one of the three pre-recorded
audio files via a locally connected active speaker.
Ambient Sound Filter
The SNT-EX Series is capable of learning ambient sound and
suppressing extraneous noise.
Dynamic Range Compressor*7
To prevent audio clipping from occurring due to high audio
levels, these video encoders employ the dynamic range
compressor, which dynamically controls the gain to maintain
incoming audio at a proper level.
Echo Cancellation
The SNT-EX Series has an echo-cancellation capability. This
feature cancels the echo that would otherwise occur
between the operator site and the video encoder site, when
speakers and microphones are used in the system.
The SNT-EX Series supports the Coaxitron Protocol, which
allows both video and command signals to be transmitted
with just a single BNC cable. This means the SNT-EX Series
can support a wider variety of monitoring environments.
Local Storage*6
Stream Support*7
Video can be stored on optional USB memory and then
streamed by using RTP/RTCP/RTSP protocol.
USB Port for External Data Storage
Data storage capacity is available with USB flash memory,
onto which all the compressed video formats − MPEG-4, JPEG,
and H.264 − can be recorded. Periodic recording is possible
and pre-/post-alarm images can also be recorded.
*1 Available
on SNT-EX Series
*3 Available
on SNT-EX154/EP154
*5 Available
on SNT-EX101/EX101E/EX154
*7 These
*2 Available
on SNT-EX104/EP104/EX154/EP154
*4 Available
on SNT-EX101/EX101E
*6 Available
on SNT-EX101/EX101E/EX104
functions are available with software version 1.1 or later.
4
SONY55698_SNT-EX/EP Series.indd 4
9/18/09 8:15:18 AM
SYSTEM CONFIGURATIONS
Microphone
Speaker
HDMI/
RGB Monitor
NSR-1000 Series
System Controller
RM-NS1000
Video out
(Coaxial cable)
RS-485
PTZ Camera
IMZ-NS100 Series
Video out
(Coaxial cable)
Analog
Video
Cameras
Video out
(Coaxial cable)
LAN
SNT-EX104
Ethernet
Ethernet
PC
Video out
(Coaxial cable)
Remote Control Unit
RM-NS1000
HDMI/
RGB Monitor
NSR-1000 Series
Microphone
Speaker
System Controller
RM-NS1000
IMZ-NS100 Series
Video out
(Coaxial cable)
RS-422/RS-485
PTZ Camera
LAN
SNT-EX101
Ethernet
Ethernet
PC
Remote Control Unit
RM-NS1000
peripherals
SNT-RS1U
Rack Station
OPTIONAL ACCESSORY
SNT-RS3U
Rack Station
SNTA-RP1
Redundant Power Supply Unit
5
SONY55698_SNT-EX/EP Series.indd 5
9/18/09 8:15:20 AM
REAR PANELS
■ SNT-EX101/EX101E
■ SNT-EX104
■ SNT-EX154
■ SNT-EP154
■ SNT-EP104
■ SNT-RS1U with SNT-EX154
6
SONY55698_SNT-EX/EP Series.indd 6
9/18/09 8:15:21 AM
DIMENSIONS
1 3/8
(34)
6 1/8 (155)
■ SNT-RS3U
■ SNT-EX101
1 3/8
(34)
18 1/8 (461)
2 7/8
(73)
■ SNT-EX101E
2 7/8
(73)
■ SNT-EX104
■ SNT-EP104
9 7/8 (250)
5 1/4 (132)
17 3/8 (440)
9 3/4
(44)
8 1/4 (210)
■ SNT-RS1U
15 (382)
402 (15 7/8)
3 (77)
■ SNT-EP154
1 3/8
(34)
3 1/8 (78)
1 3/4
(44)
17 3/8 (440)
■ SNT-EX154
1 3/8
(34)
3 1/8 (78)
Unit: inches (mm)
7
SONY55698_SNT-EX/EP Series.indd 7
9/18/09 8:15:30 AM
SPECIFICATIONS
SNT-EX101
Encoder Features
Visibility Enhancer
XDNR
Coaxitron control
Interface
Analog video input
Composite buffered
through out
Ethernet
Serial Interface
USB Memory slots
Sensor input
Alarm output
Audio interface
(IN/OUT)
External microphone
input
Audio line output
Codec image size (HxV)
Video compression
format
Maximum frame rate
Audio
Audio compression
Scene analytics
Intelligent motion
detection
Motion detection
Advanced audio
detection
Network
Protocols
Number of clients
Authentication
Number of IP address/
Mac Address
General
Weight
SNT-EX101E
SNT-EX104
SNT-EP104
SNT-EX154
SNT-EP154
No
Yes
No
–
–
–
–
–
RS-485
–
x4
x4
IN x 1, OUT x 1
–
–
–
Mini-jack (Monaural), MIC IN/LINE IN: over 2.2kohm,
2.45VDC plug-in power
–
Mini-jack (Monaural), Max output level: 1.5Vp-p
–
Mini-jack(Monaural), –
MIC IN/LINE IN: over
2.2kohm, 2.45VDC
plug-in power
Mini-jack(Monaural), –
Max output level:
1.5Vp-p
Yes
Yes
Yes
x1
x1
x4
–
10BASE-T/100BASE-TX (RJ-45)
RS-422/RS-485
x1
x2
x2
IN x 1, OUT x 1
RS-485
x4
x4
x4
IN x 4, OUT x 4
D1 (NTSC: 720 x 480, PAL: 720 x 576), VGA (640 x 480), CIF (384 x 288), QVGA (320 x 240)
H.264, MPEG-4, JPEG
H.264/MPEG-4/JPEG: 30fps (NTSC: 720 x 480, PAL: 720 x 576)
G.711/G.726
–
G.711/G.726
Yes (with built-in Post Filter)
No
Yes
Yes
Yes
No
Approx. 2 lb 3 oz
Approx. 2 lb 3 oz
(1.4 kg)
(1.3 kg)
3
3
7
8 /8 × 1 /4 × 9 /8 inches
(210 × 44 × 250 mm)
DC12 V
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/security
click: sony.com/sonysports
Approx. 14 oz
(0.4 kg)
3 1/8 × 1 3/8 × 15 1/8 inches
(78 × 34 × 382 mm)
From Rack Station
14.4W max.
12W max.
32 to 113 ˚F (0 to 45 °C)
CD-ROM (User’s Guide and supplied
programs) (1),
Installation Manual (1),
B&P Warranty Booklet (1),
AC adaptor (AC-NB12A) (1),
Power cord (1),
I/O port connector (SNT-EX104 only) (1)
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
SONY55698_SNT-EX/EP Series.indd 8
Yes
No
(with built-in Post Filter)
Yes
Yes
Yes
No
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
10
IEEE802.1x
x1
x4
Approx. 14 oz
(0.4 kg)
Dimensions (W x H x D) 2 7/8 ×1 3/8 × 6 1/8 inches
(73 × 34 × 155 mm)
Power requirements
AC24 V
PoE
(In ±20%, Out)
(802.af)
Power consumption
9.6W max.
Operating temperature 32 to 122 ˚F (0 to 50 °C)
Storage temperature
-4 to 140 ˚F (-20 to 60 °C)
System Requirements
Operating system
Microsoft Windows® XP, Windows Vista™
Processor
Intel Core2 Duo, 1.8GHz or higher
Memory
1GB or more
Web brower
Microsoft Internet Explorer Ver.6.0, Ver.7.0
Supplied accessories
CD-ROM (User’s Guide and supplied
programs) (1),
Installation Manual (1),
B&P Warranty Booklet (1),
I/O port connector (1),
24 V AC connector (1),
Attachment brackets (4),
Attachment screws (8)
S-IP2047 (MK10602V1)
–
Installation Manual (1),
B&P Warranty Booklet (1),
I/O port connector (Only SNT-EX154) (1),
Attachment screws (2)
(software version 1.1 or later)
© 2009 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permissions is prohibited.
Features and specifications are as of software version 1.1 or later,
and subject to change without notice.
All non-metric weights and measurements are approximate.
Sony, the Sony logo, ONVIF, IPELA and DEPA Advanced are the trademarks of Sony.
Windows XP and Windows Vista are trademarks of Microsoft Corporation.
Printed in USA (09/09)
9/18/09 8:15:32 AM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
