Sony D-NE920, Atrac3/MP3, D-NE920LS User's manual

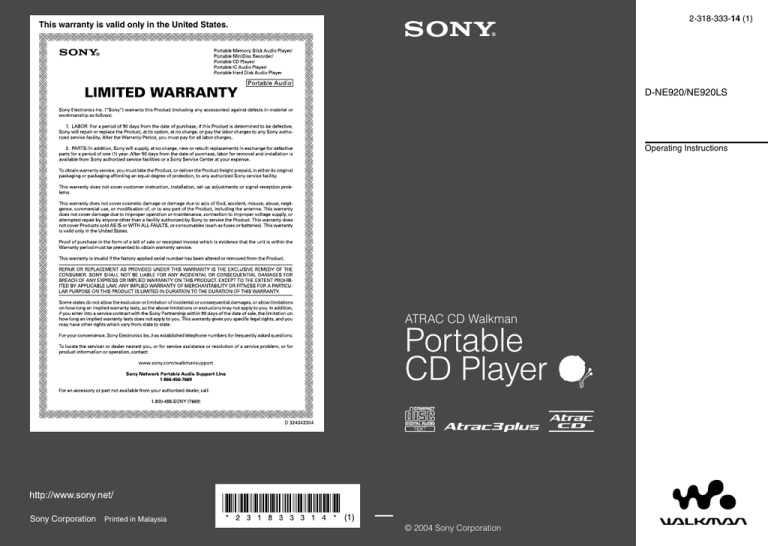

2-318-333-14 (1) This warranty is valid only in the United States. D-NE920/NE920LS Operating Instructions ATRAC CD Walkman Portable CD Player Sony Corporation Printed in Malaysia © 2004 Sony Corporation WARNING To prevent ﬁre or shock hazard, do not expose the unit to rain or moisture. Do not install the appliance in a conﬁned space, such as a bookcase or built-in cabinet. To prevent ﬁre, do not cover the ventilation of the apparatus with newspapers, tablecloths, curtains, etc. And don’t place lighted candles on the apparatus. To prevent ﬁre or shock hazard, do not place objects ﬁlled with liquids, such as vases, on the apparatus. RECYCLING NICKEL METAL HYDRIDE BATTERIES Nickel Metal Hydride batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.rbrc.org/. Caution: Do not handle damaged or leaking Nickel Metal Hydride batteries. For customers who purchased this product in the USA Product registration Please register this product on line at www.sony. com/walkmanreg <http://www.sony.com/walkmanreg> CAUTION The use of optical instruments with this product will increase eye hazard. Proper registration will enable us to send you periodic mailings about software upgrades, new products, services and other important announcements. Thank you. Certain countries may regulate disposal of the battery used to power this product. Please consult with your local authority. If you have any questions about this product, contact: www.sony.com/walkmansupport CAUTION • INVISIBLE LASER RADIATION WHEN OPEN • DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS • CLASS 1M INVISIBLE LASER RADIATION WHEN OPEN • DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area). Owner’s Record The model number is located at the rear and the serial number is located inside the lid of the CD player. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. __________________________ Serial No. __________________________ 2 For the customers in the USA and Canada Sony Network Portable Audio Support Line 1-(866)-456-7669 Sony Customer Information Services Center 12451 Gateway Blvd., Ft. Myers, FL 33913 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different fro m that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modiﬁcations not expressly approved in this manual could void your authority to operate this equipment Table of Contents Create Your Own ATRAC CDs ...............4 Which discs can you play on this CD player? .......................................................5 Precautions ...........................................7 On safety ....................................................7 On the CD player .......................................7 On handling CDs ........................................7 On headphones/earphones ..........................7 Getting Started Checking the Supplied Accessories....8 Guide to Parts and Controls.................9 Preparing a Power Source (Rechargeable Battery) ......................11 When using a dry battery .........................13 Checking the remaining power of the battery ......................................................14 When using the AC power adaptor ...........15 Changing Sound Quality ....................26 Selecting the sound quality ......................26 Customizing sound quality .......................27 SOUND items .........................................28 Changing Optional Settings ...............29 Setting various functions ..........................29 OPTION items ........................................30 Connecting Other Devices .................33 Additional Information Troubleshooting ..................................34 Maintenance ........................................38 Speciﬁcations......................................38 Optional Accessories .........................39 Index ....................................................40 Playback Playing a CD ........................................16 Basic playback operations (Play, stop, search) .....................................................17 Locking the controls (HOLD) ..................18 Searching for Your Favorite Track/File .18 Searching by viewing groups (File View) 18 Searching by viewing a list of groups/ﬁles (List View) ...............................................19 Checking CD information on the display .20 Changing Playback Options (PLAY MODE) .................................................22 Playback options (PLAY MODE) ...........23 Playing groups..........................................24 Playing your favorite tracks (Bookmark play).........................................................24 Playing your favorite play lists (m3u play list play) ...................................................25 Playing tracks in your favorite order (PGM play).........................................................25 Playing tracks repeatedly (Repeat play) ...26 This manual describes how to use the CD player. For the supplied software SonicStage, please see “Installation/Operating Guide.” Notice for users On the supplied software Depending on the type of the text and characters, the text shown on SonicStage may not be displayed properly on the device. This is due to: – The limitations of the connected player. – The player is not functionning normally. Instructions in this manual mainly describe the controls on the remote. Depending on the region in which you use the player, indications displayed on your remote may be slightly different from those shown in the Operating Instructions. ATRAC3plus is a trademark of Sony Corporation. “WALKMAN” is a registered trademark of Sony Corporation to represent Headphone Stereo products. is a trademark of Sony Corporation. 3 Create Your Own ATRAC CDs In addition to the usual audio CDs, you can play an original CD, called “ATRAC CD,” that you create with the supplied software, SonicStage. Using SonicStage, about 30 audio CDs* can be recorded on one CD-R or CD-RW. The following is a quick overview of how you listen to music on your ATRAC CD. Install SonicStage on your computer. SonicStage is software that takes music downloaded from audio CDs on your computer and creates original CDs. It can be installed from the supplied CD-ROM. ATRAC CD Create an ATRAC CD. After selecting your favorite songs from music stored on your computer, record them on a CD-R/CD-RW using SonicStage. Audio CDs, MP3 ﬁles Listen to them with this CD player. You can take lots of songs wherever you go on your original CD. Please see the supplied “Installation/Operating Guide” for how to install SonicStage and how to create ATRAC CDs. * When the total playing time of one CD (album) is estimated at 60 minutes and you are recording on a 700 MB CD-R/CD-RW at 48 kbps in ATRAC3plus format. 4 Which discs can you play on this CD player? Audio CDs: CD-DA format CDs CD-DA (Compact Disc Digital Audio) is a recording standard used for Audio CDs. ATRAC CDs: CD-R/CD-RW on which audio data compressed in the ATRAC3plus format has been recorded by using SonicStage* ATRAC3plus (Adaptive Transform Acoustic Coding3plus) is audio compression technology that satisﬁes the demand for high sound quality and high compression rates. ATRAC3plus can compress audio ﬁles to about 1/20 of their original size at 64 kbps. Bit rates and sampling frequencies this CD player can play are: Bit rates Sampling frequencies ATRAC3 66/105/132 kbps 44.1 kHz ATRAC3plus 48/64/256 kbps 44.1 kHz Up to 62 characters can be displayed on this CD player. MP3 CDs: CD-R/CD-RW on which audio data compressed in the MP3 format has been recorded by using a software other than SonicStage* Bit rates and sampling frequencies this CD player can play are shown below. Variable Bit Rate (VBR) ﬁles can also be played. Bit rates Sampling frequencies MPEG-1 Layer3 32 - 320 kbps 32/44.1/48 kHz MPEG-2 Layer3 8 - 160 kbps 16/22.05/23 kHz MPEG-2.5 Layer3 8 - 160 kbps 8/11.025/12 kHz This CD player conforms to Version 1.0/1.1/2.2/2.3/2.4 of the ID3 tag format. ID3 tag is a format for adding certain information (track name, album name, artist name, etc.) to MP3 ﬁles. Up to 64 characters of ID3 tag information can be displayed on this CD player. CD-Extra and Mix-Mode CDs: CD-R/CD-RW on which CD-DA format data and CD-ROM format data are recorded together.* If you cannot play your CD, change the “CD-EXTRA” setting in the OPTION menu ( page 32). Then you may play your CD. An ATRAC CD on which audio data compressed in the MP3 format has been recorded using software other than SonicStage can also be played. With SonicStage, you cannot create a CD on which mixed format audio data is recorded. * Only ISO 9660 Level 1/2 and Joliet extension format discs can be played. Continued 5 Music discs encoded with copyright protection technologies This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. Note on DualDiscs A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed. Difference in File structures of ATRAC CDs and MP3 CDs ATRAC CDs and MP3 CDs consist of "ﬁles" and "groups." A "ﬁle" is equivalent to a "track" of an audio CD. A "group" is a bundle of ﬁles and is equivalent to an "album." For MP3 CDs, this CD player recognizes an MP3 folder as a "group" so that ATRAC CDs and MP3 CDs can be operated in the same way. The usable number of groups and ﬁles • Maximum number of groups: 256 • Maximum number of ﬁles: 999 Playing order of ATRAC CDs and MP3 CDs For ATRAC CDs, ﬁles are played in the order selected in SonicStage. For MP3 CDs, the playing order may differ depending on the method used to record MP3 ﬁles on the disc. A "play list" which contains an MP3 ﬁle playing order can also be played. In the following example, ﬁles are played in order of to . 6 MP3 Group File (Maximum directory levels: 8) Notes • If ATRAC3plus ﬁles and MP3 ﬁles are recorded on the same CD, this CD player plays the ATRAC3plus ﬁles ﬁrst. • The playback capability of this CD player may vary depending on the quality of the disc and the condition of the recording device. • Acceptable characters are A to Z, a to z, 0 to 9, and _ (underscore). • On a disc that has ATRAC3plus/MP3 ﬁles, do not save ﬁles in other formats and do not make unnecessary folders. About ATRAC CDs • CD-Rs/CD-RWs recorded in the ATRAC3plus format cannot be played on your computer. About MP3 CDs • Be sure to add the ﬁle extension "mp3" to the ﬁle name. However, if you add the extension "mp3" to a ﬁle other than an MP3 ﬁle, the player will not be able to recognize the ﬁle properly. • To compress a source in an MP3 ﬁle, we recommend setting the compression parameters to "44.1 kHz," "128 kbps," and "Constant Bit Rate." • To record up to the maximum capacity, set the writing software to "halting of writing." • To record up to the maximum capacity at one time on media that has nothing recorded on it, set the writing software to "Disc at Once." Precautions On safety • Should any solid objects or liquid fall into the CD player, unplug it and have it checked by qualiﬁed personnel before operating it any further. • Do not put any foreign objects in the DC IN 3 V (external power input) jack. On the CD player • Keep the lens on the CD player clean and do not touch it. If you do so, the lens may be damaged and the CD player will not operate properly. • Do not put any heavy object on top of the CD player. The CD player and the CD may be damaged. • Do not leave the CD player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or sand, moisture, rain, mechanical shock, unleveled surface, or in a car with its windows closed. • If the CD player causes interference to the radio or television reception, turn off the CD player or move it away from the radio or television. • Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this CD player. Attempting to do so may damage the CD player. Do not use such discs. On headphones/earphones Road safety Do not use headphones/earphones while driving, cycling, or operating any motorized vehicle. It may create a trafﬁc hazard and is illegal in some areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations. Preventing hearing damage Avoid using headphones/earphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use. Consideration for others Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you. On handling CDs • To keep the CD clean, handle it by its edge. Do not touch the surface. • Do not stick paper or tape onto the CD. • Do not expose the CD to direct sunlight or heat sources such as hot air ducts. Do not leave the CD in a car parked under direct sunlight. 7 Getting Started Checking the Supplied Accessories • AC power adaptor (AC-ES3010K2) • Charging stand • External battery case with cover • Rechargeable battery • Battery carrying case • Carrying pouch • Earphones • Remote control (Remote) (For this CD player only) • CD-ROM (SonicStage) Do not play this CD-ROM on an audio CD player including this player. • Operating instructions (This book) • Installation/Operating Guide • AC plug adaptor (Supplied with tourist model) Note Use only the supplied remote. You cannot operate this player with any other remote. 8 To connect your earphones/headphones to the remote Connect the plug of your earphones/ headphones to the remote securely. To use the clip of the remote You can change the direction of the clip. Turn the clip as shown below. You can also reverse the direction of the track name, etc. (page 29, 31). For customers in the US The AC power adaptor supplied with this unit is not intended to be serviced. Should the AC power adaptor cease to function in its intended manner during the warranty period, the adaptor should be returned to your nearest Sony Service Center or Sony Authorized Repair Center for replacement, or if a problem occurs after the warranty period has expired, the adaptor should be discarded. Guide to Parts and Controls (group) – button ( page 17-19) / buttons ( page 17, 22, 26, 27) (group) + button ( page 17, 18) OPR (Operation) lamp ( page 11, 12, 16, 18) DSPL (Display)/MENU button ( page 21, 22, 24, 26) SEARCH button ( page 18, 19) Getting Started CD player (stop)/CHG button ( page 12, 17, 25, 27, 28, 30) Jog lever VOL (Volume) +/– ( page 16) / ( page 18, 19, 22, 24-27) (play/pause)( page 16-19, 22, 24-27) HOLD switch (on the back of the CD player) ( page 18) (headphones)/LINE OUT (OPTICAL) jack ( page 16, 33) OPEN switch ( page 11, 16) Terminals for the charging stand/external bettery case ( page 11, 14, 15) Operation dial ( page 17, 19, 24-27, 29) Remote VOL (Volume) +/– control ( page 16, 19, 24) Function button ( page 20, 22, 25-27) Function dial ( page 20, 22, 25-27) (play/pause)* button ( page 16, 17, 19, 22, 24-27) (stop) button ( page 17, 25, 28, 30) Clip ( page 8) * This button has a tactile dot. Continued 9 CD player display Remote display Character information display ( page 20, 21) Atrac3plus/MP3 indicator ( page 5) Disc indicator ( page 16) Battery indicator ( page 11, 14) Play list indicator ( page 23, 25) Group indicator ( page 23, 24) Bookmark indicator ( page 23, 24) wj Play mode indicator ( page 23, 25) wk Timer indicator ( page 31) wl Sound indicator ( page 27) 10 Preparing a Power Source (Rechargeable Battery) 1 Connect the AC power adaptor to the supplied charging stand. Then insert the player into the charging stand. The OPR lamp on the CD player ﬂashes, then lights up. On the display of the CD player, “Charging” ﬂashes, and the indicator sections of (battery) light up in succession as charging progresses. When the remote is connected, “Charging” ﬂashes and the indicator sections of (battery) light up in succession in the remote display. Getting Started Charge the rechargeable battery before using it for the ﬁrst time or when it is depleted. To maintain the original battery capacity longer, charge the battery only when it is completely depleted (“Lo Batt” appears on the display). Since the supplied charging stand is for this player only, you cannot charge any other model using this stand. 4 to an AC outlet Squeeze the OPEN switch from both sides to open the lid of your player. AC power adaptor OPR lamp OPEN switch 2 Open the battery compartment lid inside the player. Charging stand Raise Terminals Battery compartment lid 3 Press Insert the NH-14WM rechargeable battery (supplied) by matching the to the diagram in the battery compartment and close the lid until it clicks into place. to DC IN 3V When the battery is completely charged, the OPR lamp goes off and “Charging” disappears. Continued Insert the end ﬁrst. 11 Notes • Do not charge any rechargeable battery other than an NH-14WM (supplied) using this charging stand. • If you press on the jog lever during charging, charging stops and playback of the CD starts. • If you insert the player into the charging stand during playback, play stops and charging starts. • During charging, the player and the rechargeable battery become hot. This poses no danger. • Insert the player into the charging stand securely. Make sure that the OPR lamp on the player lights up. Wrong insertion interrupts charging or play. • Do not place coins or other metallic objects on the charging stand. If the terminal on the charging stand is accidentally brought into contact with a metallic object, it may short-circuit and begin to heat up. • Take out the rechargeable battery when the player is not to be used for a long time. • The lengths of the charging stand terminals are different from each other. This, however, presents no problem. To charge the rechargeable battery without using the supplied charging stand OPR lamp /CHG Cover to DC IN 3V AC power adaptor to an AC outlet 1 Perform steps 1 and 2 of “When using a dry battery” ( page 13) to attach the external battery case to the player. 2 While sliding and holding the cover on the external battery case in the direction of , connect the AC power adaptor. 3 Press /CHG. Charging starts. To remove the rechargeable battery Push the end of the rechargeable battery. 12 When using a dry battery You can extend the power available by using a dry battery, together with a rechargeable battery by attaching the external battery case. The battery in the player and that in the external battery case are discharged simultaneously. When using the rechargeable battery and dry battery together to extend power, use a fully charged rechargeable battery and new dry battery. 1 Remove the case cover. 2 Insert an LR6 (size AA) alkaline battery (not supplied) by matching the to the diagram inside the battery case and close the battery case lid. Getting Started Note on the useful life of the rechargeable battery and when to replace it If the battery is new or has not been used for a long time, it may not charge completely. In that case, charge it until the OPR lamp goes off and then use the player until the battery is completely depleted (“Lo Batt” appears on the display). Repeat this procedure several times. When the battery life is still shorter by about half of a normal charge after trying this procedure, replace the battery with a new rechargeable battery. Note on carrying the rechargeable battery Use the supplied battery carrying case to protect against unexpected heat. If the rechargeable battery comes into contact with the metallic objects, heat or ﬁre may occur due to a short circuit. Continued 13 3 Attach the battery case to the player securely and fasten the screw in the direction of LOCK. Note If the cover on the external battery case is slid in the direction of during play, playback may stop. Checking the remaining power of the battery The remaining power of the battery is indicated in the display as shown below. As the black indicator section decreases, the remaining power is depleted further. “Lo Batt” * * Beep sounds. When the battery is depleted, charge the rechargeable battery or replace the dry battery with a new one. Notes • The display shows the approximate battery power remaining. For example, one section does not always indicate one-fourth of the battery power. • Depending on the operating conditions, the display may increase or decrease relative to the actual power remaining. 14 Battery life 1) When using one NH-14WM rechargeable battery (charged for about 5 hours 2)) G-PROTECTION “1” “2” 18 17 Audio CD 40 40 ATRAC CD 3) 22 22 MP3 CD 4) When using the external battery case (one alkaline battery 5)) G-PROTECTION “1” “2” 30 27 Audio CD 60 60 ATRAC CD 3) 33 33 MP3 CD 4) When using one NH-14WM rechargeable battery and the external battery case (one alkaline battery 5)) G-PROTECTION “1” “2” 48 44 Audio CD 100 100 ATRAC CD 3) 55 55 MP3 CD 4) 1)Measured value using the JEITA standard (Japan Electronics and Information Technology Industries Association) Playing time shown is approximate hours, when you use the player on a ﬂat and stable surface and “POWER SAVE” is set to “2” (page 31). This value varies depending on how the player is used. 2)Charging time varies depending on how the rechargeable battery is used. 3)Recorded at 48 kbps 4)Recorded at 128 kbps 5)When using a Sony LR6 (SG) alkaline battery (produced in Japan) Notes on rechargeable batteries and dry batteries When using the AC power adaptor You can use the player powered by the AC power adaptor without batteries. to an AC outlet Connect the AC power adaptor to the charging stand. 2 Insert the player into the charging stand. Make sure that the OPR lamp ﬂashes, then lights up. Notes on the AC power adaptor Getting Started • Do not charge dry batteries. • Do not throw the batteries into a ﬁre. • Do not carry batteries in a pocket, etc. with coins or other metallic objects. The battery can generate heat if its positive and negative terminals are accidentally allowed to come into contact with a metallic object. • Do not mix rechargeable batteries with dry batteries. • Do not mix new batteries with old ones. • Do not use different types of batteries together. • When the batteries are not to be used for a long time, remove them. • If battery leakage occurs, wipe off any deposit left in the battery compartment, and install new batteries. If the deposit adheres to your skin, wash it off thoroughly. 1 • Disconnect all power sources when the player is not to be used for a long time. • Use only the AC power adaptor supplied. If your player is not supplied with the one, use an AC-E30HG AC power adaptor (not available in Australia). If you use any other AC power adaptor, malfunction may occur. Polarity of the plug • Do not touch the AC power adaptor with wet hands. • Connect the AC power adaptor to an easily accessible AC outlet. Should you notice an abnormality in the AC power adaptor, disconnect it from the AC outlet immediately. AC power adaptor OPR lamp Charging stand to DC IN 3V 15 Playback 4 Playing a CD 1 Squeeze the OPEN switch from both sides to open the player lid. Connect the headphones/earphones with the remote to the player beforehand. to (headphones) OPEN switch Headphones/earphones with the remote 2 Place the CD on the tray and close the lid. Adjust the volume by turning the VOL +/– control on the remote. VOL +/– control On the CD player After placing the CD on the tray in step 2, press on the jog lever and adjust the volume by ﬂicking the jog lever toward VOL +/–. Flick toward VOL+. Press . Flick toward VOL–. To remove the CD Remove the CD while pressing the pivot in the center of the tray. Label side up The OPR lamp lights up repetitively in red, green and orange, in turn. 3 Press on the remote. (disc) moves, and the player starts playback. Color of the OPR lamp changes according to the format type of the music source (page 5) being played. Red: CD-DA format, Green: ATRAC3plus format and Orange: MP3 format. 16 Basic playback operations CD player (Play, stop, search) Remote +/ – buttons / buttons Operation dial , / /CHG button button button To Operation on the remote (Operation on the player is in parentheses) Play Play from the ﬁrst track From stop, press and hold until playback starts. (From stop, press and hold on the jog lever until playback starts.) Stop Pause/Resume play after pausing Press . (Press on the jog lever.) Stop playback Press (stop). (Press /CHG.) Find the beginning of the current track 1) Turn the operation dial toward once. (Press once.) Find the beginning of previous tracks 1) Turn the operation dial toward repeatedly. (Press repeatedly.) Find the beginning of the next track 1) Turn the operation dial toward once. (Press once.) Find the beginning of succeeding tracks 1) Turn the operation dial toward repeatedly. (Press repeatedly.) Go backwards quickly Turn the operation dial toward and hold it. (Press and hold .) Go forward quickly Turn the operation dial toward and hold it. (Press and hold .) Jump to succeeding groups 2) Turn the operation dial toward pressed in the direction of . (Press (group) + repeatedly.) repeatedly while you keep the dial Jump to previous groups 2) Turn the operation dial toward pressed in the direction of . (Press (group) – repeatedly.) repeatedly while you keep the dial Search 1) 3) 1) 3) Playback Jog lever 1)You can operate during both play and pause. 2)You can operate during play of a CD other than audio CDs. 3)You cannot operate when using an MP3 ﬁle recorded on a CD-R/CD-RW in a packet write format. Continued 17 Locking the controls (HOLD) You can prevent accidental button presses while carrying the player by locking the controls. The OPR lamp ﬂashes if you press any button when the HOLD function on the player is activated. 1 Slide the HOLD switch on the remote or on the player (on the back) in the direction of the arrow. You can use the HOLD function for the remote and the player separately. For example, even if the HOLD function on the player is activated, you can operate the player by using the remote unless you set HOLD on the remote to on, too. HOLD Searching for Your Favorite Track/File Jog lever Press to enter + Flick to select SEARCH – Searching by viewing groups (File View) On a CD such as an ATRAC CD or an MP3 CD on which a number of ﬁles are recorded, you can search for a ﬁle by checking the names of groups (except on an audio CD) or ﬁles around the ﬁle being played. The File View search feature is available for the CD player only. 1 To unlock the controls Slide the HOLD switch in the direction opposite to that of arrow. Press SEARCH on the CD player repeatedly. The names of groups and ﬁles around the current ﬁle appear on the display. MR.SNO The Train Where do If that's Countries Note Even if the HOLD function is working, “HOLD” will not appear on the display of the remote. Yo Group names File names 2 Press 3 Flick the jog lever toward / to select a ﬁle. 4 Press on the jog lever. The ﬁle you selected starts playing. + or – to select a group. To cancel searching Press on the remote (/CHG on the CD player). 18 Searching by viewing a list of groups/ﬁles (List View) You can search for a track/ﬁle by checking the format type of the music source and the names of groups and ﬁles. The List View search is available for the remote as well as the CD player. 1 Press SEARCH on the CD player repeatedly. 3 Turn the VOL +/– control to select a ﬁle, and then press . The ﬁle you have selected starts playing. To return to the previous screen On the remote, turn the operation dial toward , or turn the operation dial toward while you keep the dial pressed in the direction of . (On the CD player, press or –.) Playback To cancel searching Press on the remote (/CHG on the CD player). Continued If you play a CD on which mixed audio data has been recorded: The screen for selecting the format type such as “ATRAC” and “MP3” appears ﬁrst. Press on the jog lever. 2 Flick the jog lever toward / to select a group and press . 3 Flick the jog lever toward / to select a ﬁle. 4 Press on the jog lever. The ﬁle you have selected starts playing. On the remote 1 Press SEARCH. 2 Turn the VOL +/– control to select a group, and then press . If you select a group on an MP3 CD, etc. by searching through all the directories, turn the operation dial toward or . 19 Checking CD information on the display You can check CD information on the display of both the player and the remote. Depending on the region in which you purchased your CD player, the default language may not be “ENGLISH.” Change the LANGUAGE setting, if necessary ( page 30). When you are playing an MP3 CD containing ﬁles with an ID3 tag, ID3 tag information is displayed. (When there is no ID3 tag information, ﬁle name or group name is displayed.) ( page 5) Notes • The characters A-Z, a-z, 0-9, and _ can be displayed on this player. • Before playing a ﬁle, the player reads all ﬁle and group (or folder) information on the CD. “Reading” is displayed. Depending on the content of the CD, it may take some time to accomplish this reading. • If the ﬁle does not belong to any group, “MP3 ROOT” appears on the display. To check information on the remote display Align Function button Function dial Turn the function dial on the remote to select DSPL/MENU and press the function button repeatedly. Audio CD Track number, elapsed playing time (Track name, artist name)1) Total number of the ﬁles on the CD, time remaining on the CD (Album name)1) Animation screen ATRAC CD/MP3 CD File number, ﬁle name, artist name, elapsed playing time File number, album name, CODEC information 2), remaining time of the current ﬁle Animation screen 20 To check information on the CD player display Press DSPL/MENU on the player repeatedly. ATRAC CD/MP3 CD Group name 4), artist name 4), ﬁle name, ﬁle number, elapsed playing time Audio CD Track number, elapsed playing time (Album name, artist name, track name)1) CODEC information 2), total number of ﬁles, total number of groups, ﬁle number, remaining time of the current ﬁle Playback Total number of tracks on the CD, total playing time of the CD, number of tracks left 3), time remaining on the CD 3) File view screen File view screen 1)When you are playing an audio CD containing text informatin such as CD-TEXT, information in parentheses is displayed. 2)Bit rate and sampling frequencies are displayed. While an MP3 ﬁle made at VBR (variable bit rate) is being played, “VBR” appears on the display instead of a bit rate. In some cases, “VBR” appears halfway through playback, rather than from the beginning. 3)The displays appear only during normal play. 4)During play, “artist name” is not displayed if the disc does not have ID3 tag information. When the list of group names/ﬁle names appears on the display, “artist name” and “group name” are not displayed. 21 Changing Playback Options (PLAY MODE) You can use various playback options such as selecting songs you want to listen to, and playing songs in your favorite order. For details about playback options, see page 23. You can also play songs repeatedly using the playback options you choose (repeat play, page 26). 3 Flick the jog lever toward / to select the playback option. The default setting is “ALL” (normal play). 4 Press on the jog lever. 5 When “REPEAT” appears, select “ON” or “OFF” and press on the jog lever. Align Function button Function dial 1 During play, turn the function dial on the remote to select P MODE/ and press the function button repeatedly to select a playback option. The playback option you selected lights up or ﬂashes. If the playback option ﬂashes , press . On the CD player 1 Press DSPL/MENU until the menu screen appears. : PLAYMODE : SOUND : OPTION 2 Flick the jog lever toward / to select “ PLAY MODE” and press . 22 To return to normal play On the remote, turn the function dial to select P MODE/ and press the function button repeatedly until the playback option disappears. (On the CD player, select “ALL” in the PLAY MODE menu.) Playback options Display on the remote/ on the CD player No display/ALL /GROUP Explanation All tracks on the CD are played in a track number order. For the ATRAC CD/MP3 CD, a playing order is different according to the setting of the “PLAY ORDER” in the OPTION menu. All ﬁles in the selected group or all groups are played (ATRAC CD/MP3 CD only) ( page 24). The current track is played once. SHUF/SHUFFLE SHUF/GROUP SHUFFLE /BOOKMARK /PLAYLIST a00/AUTO RANKING a00 SHUF/RANKING SHUF PGM/PROGRAM INTRO All tracks on the CD are played once in random order. All ﬁles in the selected group are played once in random order (ATRAC CD/MP3 CD only) ( page 24). Tracks to which Bookmarks have been added are played. The play of tracks with Bookmarks starts in track number order, not in the order you added the Bookmarks ( page 24). Tracks in the selected m3u play list* are played (MP3 CD only) ( page 25). The tracks you have played most frequently from the CD are played from the 10th to the ﬁrst. Up to 32 tracks, which the player has automatically memorized as the most frequently played ones, are played in random order. Playback 1 (PLAY MODE) Up to 64 tracks are played in your favorite order ( page 25). About the ﬁrst 10 seconds of all tracks which follow the current track are played once. If you turn the function dial to select P MODE/ , and press the function button during INTRO play, you can listen to the current track to the end. * An m3u play list is a ﬁle in which an MP3 ﬁle playing order has been encoded. To use the play list function, record MP3 ﬁles on a CD-R/CD-RW using encoding software that supports the m3u format. You can play the top 8 lists (listed by ﬁle name) on your screen on the CD player. Continued 23 Playing groups 1 In step 1 of “Changing Playback Options (PLAY MODE)” ( page 22), select “ ” or “ SHUF.” 2 Turn the VOL +/– control to select a group. If you select a group on an MP3 CD, etc. by searching through all the directories, turn the operation dial toward or . If you select a group within the same directory, turn the VOL +/– control. 3 Press for 2 seconds or more. The player starts playback of all ﬁles in the group you have selected. On the CD player 1 Perform steps 1 and 2 of “Changing Playback Options (PLAY MODE)” ( page 22). In step 3, select “GROUP” or “GROUP SHUFFLE” and press on the jog lever. 2 Flick the jog lever toward / to select a group. 3 Press on the jog lever for 2 seconds or more. 4 When “REPEAT” appears, select “ON” or “OFF” and press on the jog lever. Note If the group has no tracks, “Invalid” appears on the display. Playing your favorite tracks (Bookmark play) 1 24 During play of the track to which you want to add a Bookmark, press and hold on the remote until ﬂashes slowly. 2 If you want to add a Bookmark to two or more tracks, repeat step 1. You can add Bookmarks to up to 10 CDs for audio CDs (up to 99 tracks for each CD) and up to 5 CDs for ATRAC CDs/ MP3 CDs (up to 999 tracks for each CD). 3 In the step 1 of “Changing Playback Options (PLAY MODE)” (page 22), select (BOOKMARK). 4 Press . On the CD player 1 During play of the track to which you want to add a Bookmark, press on the jog lever until ﬂashes slowly. 2 If you want to add a Bookmark to two or more tracks, repeat step 1. 3 Press DSPL/MENU until the menu screen appears. 4 Flick the jog lever toward / to select “PLAY MODE,” and press . 5 Flick the jog lever toward / to select “BOOKMARK,” and then press . To remove Bookmarks During play of a track with a Bookmark, press and hold on the remote until disappears. (On the player, press and hold on the jog lever.) Notes • If you try to add Bookmarks to tracks on an 11th CD (on a 6th CD when playing ATRAC CDs/MP3 CDs), the Bookmarks of the CD you played ﬁrst will be erased. • All Bookmarks stored in memory will be erased if you remove all power sources, or if you continue playing the player on the rechargeable battery while “Lo Batt” is displayed, without charging the battery. Playing your favorite play lists (m3u play list play) 1 In the step 1 of “Changing Playback Options (PLAY MODE)” (page 22), select (play list). 2 Turn the operation dial on the remote toward or to select a play list you want. Press . On the CD player 1 In the step 3 of “Changing Playback Options (PLAY MODE)” on the CD player (page 22), select “PLAYLIST.” 2 Flick the jog lever toward / to select a play list. 3 Press on the jog lever. Playing tracks in your favorite order (PGM play) 1 While the player stopped, turn the function dial on the remote to select P MODE/ and press the function button repeatedly until “PGM” (program) ﬂashes. Playing order 2 Track name or ﬁle name Turn the VOL +/– control to select a track, and then press and hold until the display changes. When playing an ATRAC CD/MP3 CD: You can also select a ﬁle in another group by turning the operation dial toward or while you keep the dial pressed in the direction of . Repeat step 2 to select tracks in your favorite order. You can select up to 64 tracks. When you ﬁnish entering the 64th track, the track number selected ﬁrst (audio CD)/ﬁle name (ATRAC CD/MP3 CD) appears on the display. If you select 65 tracks or more, the tracks selected ﬁrst are erased one by one. 4 Press on the remote. Playback starts in the selected order. On the CD player 1 Select “PROGRAM” in step 3 of the player operation for “Changing Playback Options (PLAY MODE)” ( page 22), and then press on the jog lever. 2 Turn the jog lever toward / to select your tracks, and press and hold until the display changes. 3 After selecting your favorite order, press on the jog lever. Playback 3 3 To check the program 1 While the player is stopped, turn the function dial to select P MODE/ and press the function button repeatedly until “PGM” ﬂashes. Then, press and hold on the remote until the display changes. Whenever you press and hold , the tracks are displayed in playing order. (On the CD player: While the player is stopped, select “PROGRAM” in step 3 of the player operation for “Changing Playback Options (PLAY MODE)” ( page 22), and press and hold until the display changes. Whenever you press and hold , the tracks are displayed in playing order.) To cancel the PGM play Press on the remote (/CHG on the CD player). Continued 25 Playing tracks repeatedly (Repeat play) 1 2 Turn the function dial on the remote to select P MODE/ and press the function button repeatedly to select the playback option you want to repeat (page 23). Press and hold the function button until (repeat) appears. The playback option you have selected repeats. On the CD player Select “ON” in step 5 of the player operation for “Changing Playback Options (PLAY MODE)” (page 22). To return to normal play Turn the function dial on the remote to select P MODE/ , and then press and hold the function button until disappears. (On the CD player, select “OFF”.) Changing Sound Quality For details about the setting of SOUND items, see page 28. Selecting the sound quality You can set up the “EQUALIZER” setting and/or “CLEARBASS” setting. If you set both at the same time, you can enjoy more bass sound along with the sound quality you want. 1 Turn the function dial on the remote to select SOUND. 2 Press the function button repeatedly until “EQUALIZER” or “CLEARBASS” appears. 3 Press . 4 Turn the operation dial toward or to select the sound quality you want. 5 Press . On the CD player 1 Press DSPL/MENU until the menu screen appears. 2 Flick the jog lever toward / to select “ SOUND” and press . 3 Flick the jog lever toward / to select the item you want to set up and press . 4 Flick the jog lever toward / to select an option and press . 26 Customizing sound quality You can adjust sound quality for each frequency range individually, checking the shape of the wave on the display. 1 Turn the function dial on the remote to select SOUND, and then press the function button repeatedly until “EQUALIZER” appears and press . Turn the operation dial toward or repeatedly to select “CUSTOM” and press . 3 Turn and hold the operation dial toward or for 2 seconds or more until the frequency range you want to set up appears. “Low” is displayed ﬁrst. There are 3 frequency ranges; “Low” (low range audio), “Mid” (middle range audio), and “Hi” (high range audio). 4 Turn the operation dial toward or repeatedly to select the shape of the wave. There are 3 shapes stored in memory for each frequency range. Frequency range 5 Turn the VOL +/– control repeatedly to select the sound volume. The sound volume can be adjusted in 7 levels. Repeat steps 3 to 5 to make adjustment for the remaining 2 frequency ranges. 7 Press . On the CD player 1 Select “EQUALIZER” in step 3 and “CUSTOM” in step 4 of the player operation for “Selecting the sound quality” (page 26). 2 Press or for 2 seconds or more to select the frequency range. 3 Press or repeatedly to select the shape of the wave. 4 Flick the jog lever toward / to select the sound volume. 5 Repeat steps 2 to 4 to make adjustments for the remaining 2 frequency ranges, and then press on the jog lever. Playback 2 6 To return to the previous screen Press on the remote (/CHG on the CD player). To cancel the adjustment operation Press on the remote (/CHG on the CD player) for 2 seconds or more. Notes • If the sound is distorted by your sound settings when you turn up the volume, turn the volume down. • If you feel a difference in sound volume between the “CUSTOM” sound setting and other sound settings, adjust the volume to your preference. Continued Sound volume 27 SOUND items To return to the previous screen, press on the remote (/CHG on the CD player). To cancel the setting operation, press on the remote (/CHG on the CD player) for 2 seconds or more. Item EQUALIZER (Equalizer setting) CLEARBASS (Bass sound setting) Options (: Default setting) Normal sound quality OFF SOFT ACTIVE HEAVY For vocal, stressing middle range audio Lively sounds, emphasizing high and low range audio Powerful sounds, further emphasizing high and low ranges compared with ACTIVE sound CUSTOM Customized sound (see page 27 for details) Normal sound quality. OFF BASS 11) BASS 21) BASS 31) Emphasizing bass sound. Emphasizing bass sound more than BASS 1. Emphasizing bass sound more than BASS 2. 1)“1,” “2” or “3” appears on the display on the CD player. Note If you change the setting of the EQUALIZER item after you have set the CLEARBASS item, the setting of the EQUALIZER item gets priority. When you set both the EQUALIZER item and the CLEARBASS item, set the EQUALIZER item ﬁrst. 28 Changing Optional Settings For details about the setting of OPTION items, see page 30. Setting various functions 1 Turn the function dial on the remote to DSPL/MENU, and then press and hold the function button until the function item ﬂashes on the display. 2 Turn the operation dial toward or to select the item you want to set up, and then press . 3 Turn the operation dial toward or to select an option, and then press . When you are setting the “LANGUAGE” or “PLAY ORDER,” repeat step 3. Playback You can set the various functions such as the language for the menu and the playback order of the groups/ﬁles. On the CD player 1 Press DSPL/MENU until the menu screen appears. 2 Flick the jog lever toward / to select “ OPTION” and press . 3 Flick the jog lever toward / to select the item you want to set up and press . 4 Flick the jog lever toward / to select an option and press . Continued 29 OPTION items To return to the previous screen, press on the remote (/CHG on the CD player). To cancel the setting operation, press on the remote (/CHG on the CD player) for 2 seconds or more. Items LANGUAGE (Language for menu, etc.) Options (: Default settings) MENU 1) ENGLISH TEXT 2) 6) 30 G-PROTECTION 3) 6) (To prevent sound skipping) 1 AVLS 4) (Limiting volume) OFF 2 ON Select the language for menu text, warning message, etc. FRENCH GERMAN ITALIAN JAPANESE* KOREAN* PORTUGUESE RUSSIAN S.CHINESE* SPANISH * D-NE920LS only T.CHINESE* Select the language for CD-TEXT, ID3 AUTO tag, etc. ENGLISH If you select “AUTO,” you can read the text FRENCH in the following language. GERMAN ITALIAN JAPANESE* KOREAN* PORTUGUESE RUSSIAN S.CHINESE* SPANISH * D-NE920LS only T.CHINESE* Protection against sound skipping is provided with high quality CD sound. Enhanced protection against sound skipping is provided. The volume changes without limiting the volume level. The maximum volume is limited to protect your hearing. Items TIMER (Off timer) Options (: Default settings) The timer does not work. OFF ON 1-99 min Playback is displayed on the player. You can check the remaining playback time by selecting this option during play. Turn the VOL +/– control on the remote repeatedly to increase or decrease the length of time by 5 minutes, or keep turning the VOL +/– control to increase or decrease by 1 minute. The default setting is “10 min” AUDIO OUT 6) HEADPHONE Select this when you connect the supplied headphones or earphones. (External audio output) LINE OUT Select this when you connect other devices such as active speakers with an audio cord ( page 33). The beep sounds when you operate the player. BEEP ON (Sound of operation) OFF The beep is turned off. The CD is played as recorded on the disc, including spaces SEAMLESS 5) 6) OFF between tracks. (Playing tracks continuously) The CD is played without space between tracks. ON The display lights up on both the remote and the CD player for POWER SAVE OFF about 10 seconds, then turns off. The OPR lamp on the player (The LCD backlight remains lit. on the remote/ player and the The display does not light up on either the remote or the CD 1 OPR lamp on the player. player) 6) 2 The display does not light up on either the remote or the CD player. Furthermore, the SOUND settings are not effective. TRACK Play back the music source in the order of PLAY ORDER NORMAL recording. (Playback order) 6) ID3tagTNO Play back in the order of ID3 tag number. FILE NAME Play back in the alphabetical order of the ﬁle names. Play back the music source in the order of GROUP OFF recording. Play back the music source in the order of ON group names. The characters appear on the display in the normal direction. DIRECTION NORMAL (Inverting the REVERSE The characters appear on the display of the remote in the reverse characters on the direction so that you can read them from the opposite side. display) When you set the CUSTOM item of the EQUALIZER setting or perform the File View searching, VOL +/– on the remote operates in an opposite way. Continued 31 Items CD-EXTRA 6) 7) (Playback by disc format) ANIMATION (Selecting animation screen) Options (: Default settings) Set to “OFF” as long as you can play your CD normally. OFF ON OFF ON If you cannot play your CD-Extra, set to “ON.” You may play it. The ordinary playback screen is displayed when you have not used any controls for a speciﬁed period of time. Animation screen appears when you have not used any controls for a speciﬁed period of time. 1)For D-NE920 only: Even if you select “S. CHINESE” or “T. CHINESE” on the menu screen of the CD player, menu text appears in English on the remote. 2)For D-NE920 only: Even if you select “S. CHINESE” or “T. CHINESE” on the menu screen of the CD player, “----” appears on the remote. 3)Depending on the model you purchased, “G-PRO” is displayed on the remote. 4)AVLS is an abbreviation of the Automatic Volume Limiter System. 5)This function works only for ATRAC CDs. 6)You can set this up only while the player is stopped. 7)This function works only for Audio CDs and CD-Extra CDs. Notes • Even if “G-PROTECTION” is set to “2,” sound may skip: – when the CD player receives stronger continuous shock than expected, – when a dirty or scratched CD is played, or – for CD-Rs/CD-RWs, when a poor-quality disc is played or there is a problem with the original recording device or application software. • Even if “SEAMLESS” is set to “ON,” the tracks may not play continuously depending on how the source music was recorded. 32 Connecting Other Devices Setting HEADPHONE LINE OUT When you connect another device, set this to “LINE OUT.” When the setting is “LINE OUT,” volume cannot be adjusted using either the player or the remote, and the sound function does not work. * When you connect another device using the optical digital connecting cord, you do not have to make those settings. The setting changes automatically. Notes to (headphones)/ LINE OUT (OPTICAL) Optical digital connecting cord (not supplied) Connecting cord (minijack, not supplied) Left (white) Right (red) MiniDisc recorder, AV ampliﬁer, active speaker, cassette recorder, etc. Playback You can listen to CDs through a stereo system and record CDs on a MiniDisc or a cassette tape. See the instruction manual that comes with the device you want to connect. Be sure to turn off all devices before making the connections and changing the settings explained below. Connected device* Headphones Device connected using the connecting cord • Before you play a CD, turn down the volume of the connected device to avoid damaging the connected speaker. • Use the AC power adaptor for recording. If you use the rechargeable battery or a dry battery as a power source, the battery may become completely depleted in the middle of recording. • This CD player uses the Serial Copy Management System, which allows only ﬁrst generation digital copies to be made. • When playing an ATRAC CD/MP3 CD, optical digital signals are not output from the /LINE OUT (OPTICAL) jack. When recording or playing an ATRAC CD/MP3 CD using a connected device, use only an analog connecting cord. • When using an optical digital connecting cord, make sure that the CD player is paused before you start to record a CD on a MiniDisc, DAT, etc. • To record high quality CD sound, set “G-PROTECTION” to “1” in the OPTION menu. “LINE OUT” or “HEADPHONE” blinks for about 5 seconds on the display of the player when a connecting cord is connected. You need to change the setting for “AUDIO OUT” in the OPTION menu so that sound is output to the connected device. The settings of “AUDIO OUT” are shown below. To make those settings, see page 29, 31. 33 Additional Information Troubleshooting Should any problem persist after you have checked these symptoms, consult your nearest Sony dealer. Power Symptom The rechargeable battery cannot be charged. Cause and/or corrective action The rechargeable battery is not inserted in the battery compartment. Insert the rechargeable battery ( page 11). The terminals of the charging stand are dirty. Wipe them with a soft, dry cloth ( page 38). The CD is playing. Turn it off ( page 17). The CD player is not placed correctly on the charging stand. Place the player on the stand securely and make sure that the OPR lamp lights up ( page 11). Sound 34 Symptom The volume does not increase even if you turn the VOL +/– control on the remote in the + direction repeatedly (even if you ﬂick the jog lever toward repeatedly on the player). No sound, or noise is heard. Cause and/or corrective action The volume cannot be adjusted. “AUDIO OUT” is set to “LINE OUT.” Adjust the volume using the volume control on the connected device, or set “AUDIO OUT” to “HEADPHONE” ( page 31). A rustling noise is heard from the CD. Close the lid of the battery compartment ﬁrmly ( page 11). When using the player with a stereo system connected, the sound is distorted or noisy. “AUDIO OUT” is set to “LINE OUT.” Adjust the volume of the connected device ( page 31). “AUDIO OUT” is set to “HEADPHONE.” Adjust the volume on the player ( page 31). EQUALIZER items cannot be set up. “POWER SAVE” is set to “2” ( page 31). “AVLS” is set to “ON.” Set it to “OFF” ( page 30). “AUDIO OUT” is set to “LINE OUT.” Set it to “HEADPHONE” ( page 31). Connect the headphones/earphones plugs ﬁrmly. The plugs are dirty. Clean the headphones/earphones plugs with a dry soft cloth periodically. Operation/Playback Symptom The playing time is too short. The CD does not play. Cause and/or corrective action Certain tracks cannot be played. You tried to play ﬁles saved in a format that is not compatible with this player ( page 5). Change the setting of “CD-EXTRA” in the OPTION menu. You may play your CD ( page 32). “Lo Batt” appears on the display, and the CD does not play. The rechargeable battery is used up completely. Charge the battery ( page 11). Replace the dry battery with a new LR6 (size AA) alkaline battery ( page 13). “Hi DC in” appears on the display. An AC power adaptor which is rated higher than the one supplied or recommended is being used. Use only the supplied AC power adaptor or the car battery cord recommended in “Optional Accessories” ( page 39). The CD does not play, or “No Disc” appears on the display when a CD is placed in the player. The CD is dirty or defective. Clean it or change it. Check that the CD is inserted with the label side up ( page 16). Moisture condensation has occurred. Leave the CD player aside for several hours until the moisture evaporates. Close the lid of the battery compartment ﬁrmly ( page 11). Make sure the battery is inserted correctly ( page 11, 13). Connect the AC power adaptor to an AC outlet securely ( page 15). Press on the remote (on the player, press of the jog lever) after one second or more has passed since the AC power adaptor was connected. The CD-R/CD-RW in the player is blank. There is a problem with the quality of the CD-R/CD-RW, recording device, or application software. The OPR lamp ﬂashes on the player when you press a button, and the CD does not play. The buttons are locked. Slide the HOLD switch back ( page 18). Check that you are using an alkaline battery and not a manganese battery. Replace the dry battery with a new LR6 (size AA) alkaline battery ( page 13). Charge and discharge the rechargeable battery several times ( page 11). Additional Information Continued 35 36 Symptom Playback starts from the point you stopped (resume function). Cause and/or corrective action During playback of an ATRAC CD or MP3 CD, the CD does not rotate but you can hear the sound normally. This player is designed to stop the rotation of an ATRAC CD or MP3 CD during playback to reduce the power consumption. The player is not malfunctioning. “No File” appears on the display after you press on the remote (on the player, after you press on the jog lever) or when the lid of the player is closed. There are no ATRAC3plus/MP3 ﬁles on the CD-R/CD-RW. A CD-R/CD-RW from which the data has been erased is being used. The CD is dirty. The LCD display becomes hard to see or slows down. You are using your CD player at high temperatures (above 40°C/104°F) or at low temperatures (below 0°C/32°F). At room temperature, the display will return to its normal operating condition. is ﬂashing quickly on the display of the remote control, and you cannot locate the beginning of the track or a speciﬁc point in the track. The CD player has entered the preparation stage of Bookmark play. Change the PLAY MODE setting to “ALL” ( page 23). Even though you have not selected “BOOKMARK,” (Bookmark) ﬂashes. If you have selected a playback option other than (Bookmark) ﬂashes. “BOOKMARK,” Play stopped abruptly. The off timer has been set. Change the setting of “TIMER” to “OFF” ( page 31). The rechargeable battery or the dry battery is used up completely. Charge the rechargeable battery ( page 11), or replace the dry battery with a new LR6 (size AA) alkaline battery ( page 13). You cannot operate the player, and a sequence of 8 numbers or letters appear on the display of the CD player and the remote. This phenomenon may occur, depending on the CD you are using. Remove all power sources, and then insert the battery or reconnect the AC power adaptor. Try to operate the player again. If the problem persists, consult your nearest Sony dealer. The resume function is working. To start play from the ﬁrst track, press on the remote while the player is stopped (on the player, press and hold on the jog lever) until the ﬁrst track starts playing, or open the lid of the player ( page 17). Or, remove all power sources, and then insert the battery or connect the AC power adaptor again. Others Symptom During recording with an optical digital connection, the track number cannot be recorded correctly. Cause and/or corrective action When closing the lid of the CD player, the CD starts to rotate. The player is reading the information on the CD, not malfunctioning. You cannot operate the CD player properly using the remote. The buttons on the player are kept pressed by mistake. The remote is not connected securely. Record the track number again using a MiniDisc recorder, DAT recorder, etc. See the instruction manual that comes with the recording device. Adjust the volume on the player. Additional Information 37 Maintenance Speciﬁcations To clean the casing Use a soft cloth slightly moistened in water or a mild detergent solution. Do not use alcohol, benzine or thinner. System To clean the terminals If the terminals on the charging stand become dirty, the battery may not be charged properly. Clean the terminals with a cotton swab or a dry cloth periodically as illustrated below. Terminals Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 770 - 800 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20 000 Hz +1 –2 dB (measured by JEITA) Output (at 3 V input level) Line output (stereo minijack) Output level 0.7 V rms at 47 kΩ Recommended load impedance over 10 kΩ Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 Ω (Approx. 1.5 mW + Approx. 1.5 mW at 16 Ω)* *For the customers in Europe Optical digital output (optical output connector) Output level: –21 - –15 dBm Wavelength: 630 - 690 nm at peak level Power requirements • Sony NH-14WM rechargeable battery: 1.2 V DC × 1 • LR6 (size AA) battery: 1.5 V DC × 1 • AC power adaptor (DC IN 3 V jack): 220 V, 50 Hz (Model for China) 120 V, 60 Hz (Model for Mexico) • Rated current: 1 A Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 127 × 20.6 × 136.4 mm (5 × 13⁄16 × 5 3⁄8 in.) Mass (excluding accessories) Approx. 160 g (5.7 oz.) US and foreign patents licensed from Dolby Laboratories. MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson. 38 Design and speciﬁcations are subject to change without notice. Optional Accessories AC power adaptor AC-E30HG* Active speaker system SRS-Z1 SRS-Z30 DCC-E345 Car battery cord Car battery cord with car connecting pack DCC-E34CP Car connecting pack CPA-9C Connecting cord RK-G129 RK-G136 MDR-EX71SL MDR-Q55SL Earphones (except for the customers in France) MDR-E0931SP * Speciﬁcations for AC power adaptors vary for each area. Check your local voltage and the shape of the plug before purchasing. Your dealer may not handle some of the accessories listed above. Please ask the dealer for detailed information about the accessories in your country/region. Additional Information Earphones (for the customers in France) 39 E Index Earphones 8 EQUALIZER 26, 28 External battery case 8, 13 Symbols (Battery) 11, 14 (disc) 16 1 23 a00 23 a00 SHUF 23 (BOOKMARK) 23, 24 (GROUP) 23 PGM 23 (PLAYLIST) 23 SHUF 23 (Repeat play) 26 (Timer) 31 A ACTIVE 28 AC power adaptor 8 ALL 23 ANIMATION 32 ATRAC3plus 5 ATRAC CD 5 AUDIO OUT 31, 33 AUTO RANKING 23 AVLS 30 B Battery carrying case 8 Battery compartment lid 11 Battery life 14 BEEP 31 BOOKMARK 23, 24 C Carrying pouch 8 CD-DA format 5 CD-EXTRA 32 CD-Extra 5 CD-ROM (SonicStage) 8 CD-TEXT 21 CD player display 10, 21 Charging stand 8, 11, 15, 38 CLEARBASS 26, 28 Clip on the remote 8 CUSTOM 28 D DIRECTION 40 31 F File View 18 G G-PROTECTION 30 GROUP 23, 24, 31 Group 6, 24 GROUP SHUFFLE 23, 24 H HEADPHONE HEAVY 28 HOLD function 31, 33 18 I ID3 tag INTRO 20 23 L LANGUAGE 30 LINE OUT 31, 33 List View 19 M m3u play list play 25 MENU 30 Mix-Mode CD 5 MP3 CD 5 O OPTION 30 Optional Accessories 39 P Pause 17 Play 17 PLAYLIST 23 PLAY MODE 22 PLAY ORDER 31 POWER SAVE 31 PROGRAM 23, 25 R RANKING SHUF 23 Rechargeable battery 8, 11 Remote control 8 Remote display 10, 20 Repeat play 26 S SEAMLESS 31 Search 17 SHUFFLE 23 SOFT 28 SonicStage 4 SOUND 28 Stop 17 T TEXT 30 TIMER 31 TRACK 31 Additional Information 41 This warranty is only valid in Canada.
