Sony D-NF420, Atrac3/MP3, D-NF421 User's manual

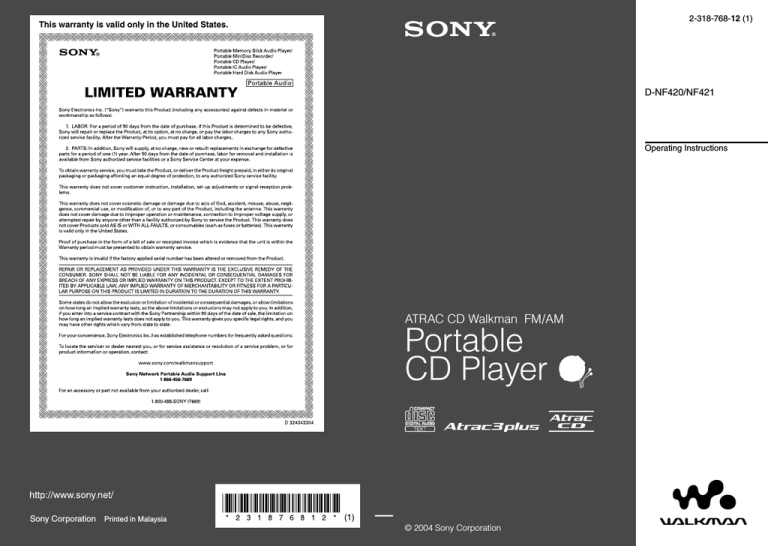

2-318-768-12 (1) This warranty is valid only in the United States. D-NF420/NF421 Operating Instructions ATRAC CD Walkman FM/AM Portable CD Player Sony Corporation Printed in Malaysia © 2004 Sony Corporation WARNING To prevent ﬁre or shock hazard, do not expose the unit to rain or moisture. Do not install the appliance in a conﬁned space, such as a bookcase or built-in cabinet. To prevent ﬁre, do not cover the ventilation of the apparatus with newspapers, tablecloths, curtains, etc. And don’t place lighted candles on the apparatus. To prevent ﬁre or shock hazard, do not place objects ﬁlled with liquids, such as vases, on the apparatus. CAUTION The use of optical instruments with this product will increase eye hazard. Certain countries may regulate disposal of the battery used to power this product. Please consult with your local authority. CAUTION • INVISIBLE LASER RADIATION WHEN OPEN • DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS • CLASS 1M INVISIBLE LASER RADIATION WHEN OPEN • DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic Area). Owner’s Record The model number and the serial number are located at the rear of the CD player. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. __________________________ Serial No. __________________________ 2 For customers who purchased this product in the USA Product registration Please register this product on line at www.sony. com/walkmanreg <http://www.sony.com/walkmanreg> Proper registration will enable us to send you periodic mailings about software upgrades, new products, services and other important announcements. Thank you. If you have any questions about this product, you may call; Sony Customer Information Services Center 1-866-456-7669 or http://www.sony.com/ Declaration of Conformity Trade Name: Model No.: Responsible Party: Address: SONY D-NF420 Sony Electronics Inc. 16450 W. Bernardo Dr, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modiﬁcations not expressly approved in this manual could void your authority to operate this equipment. Table of Contents Create Your Own ATRAC CDs ................ 4 Which discs can you play on this CD player? .......................................................5 Precautions ............................................ 7 On safety ....................................................7 On the CD player .......................................7 On handling CDs ........................................7 On headphones/earphones ..........................7 Getting Started Checking the Supplied Accessories..... 8 Guide to Parts and Controls.................. 8 Preparing a Power Source (Dry Battery) ........................................ 10 Checking the remaining power of the battery ......................................................10 When using the AC power adaptor ...........11 Playback Playing a CD ......................................... 12 Basic playback operations (Play, stop, search) .....................................................13 Locking the controls (HOLD) ..................14 Searching for Your Favorite Track/File 14 Searching by viewing groups (File View) 14 Searching by viewing a list of groups/ﬁles (List View) ...............................................15 Checking CD information on the display .15 Changing Playback Options (PLAY MODE) .................................................. 17 Playback options (PLAY MODE) ............18 Playing groups..........................................19 Playing your favorite tracks (Bookmark play).........................................................19 Playing your favorite play lists (m3u play list play) ...................................................19 Playing tracks in your favorite order (PGM play).........................................................20 Playing tracks repeatedly (Repeat play) ...20 Changing Sound Quality ..................... 21 Selecting the sound quality ......................21 Customizing sound quality .......................21 SOUND items ..........................................22 Changing Optional Settings ................ 23 Setting various functions ..........................23 OPTION items .........................................24 Using the Radio Listening to the Radio ......................... 27 Emphasizing the bass sound .....................27 If it is hard to hear the FM/TV/WB broadcast due to interference from strong radio waves ..............................................27 If it is hard to hear the FM broadcast due to poor reception ..........................................28 Protecting your hearing ............................28 Turning off the radio automatically ..........28 When listening to the radio on the battery 28 Presetting Radio Stations ................... 29 Presetting stations manually .....................29 Playing Preset Radio Stations ............ 31 Changing the Tuning Interval (Except European models) ............................... 31 Additional Information Troubleshooting ................................... 32 Maintenance ......................................... 35 Speciﬁcations....................................... 35 Optional Accessories .......................... 36 Index ..................................................... 37 This manual describes how to use the CD player. For the supplied software SonicStage, please see “Installation/Operating Guide.” Notice for users On the supplied software Depending on the type of the text and characters, the text shown on SonicStage may not be displayed properly on the device. This is due to: – The limitations of the connected player. – The player is not functionning normally. ATRAC3plus is a trademark of Sony Corporation. “WALKMAN” is a registered trademark of Sony Corporation to represent Headphone Stereo products. is a trademark of Sony Corporation. 3 Create Your Own ATRAC CDs In addition to the usual audio CDs, you can play an original CD, called “ATRAC CD,” that you create with the supplied software, SonicStage. Using SonicStage, about 30 audio CDs* can be recorded on one CD-R or CD-RW. The following is a quick overview of how you listen to music on your ATRAC CD. Install SonicStage on your computer. SonicStage is software that takes music downloaded from audio CDs on your computer and creates original CDs. It can be installed from the supplied CD-ROM. ATRAC CD Create an ATRAC CD. After selecting your favorite songs from music stored on your computer, record them on a CD-R/CD-RW using SonicStage. Audio CDs, MP3 ﬁles Listen to them with this CD player. You can take lots of songs wherever you go on your original CD. Please see the supplied “Installation/Operating Guide” for how to install SonicStage and how to create ATRAC CDs. * When the total playing time of one CD (album) is estimated at 60 minutes and you are recording on a 700 MB CD-R/CD-RW at 48 kbps in ATRAC3plus format. 4 Which discs can you play on this CD player? Audio CDs: CD-DA format CDs CD-DA (Compact Disc Digital Audio) is a recording standard used for Audio CDs. ATRAC CDs: CD-R/CD-RW on which audio data compressed in the ATRAC3plus format has been recorded by using SonicStage* ATRAC3plus (Adaptive Transform Acoustic Coding3plus) is audio compression technology that satisﬁes the demand for high sound quality and high compression rates. ATRAC3plus can compress audio ﬁles to about 1/20 of their original size at 64 kbps. Bit rates and sampling frequencies this CD player can play are: Bit rates Sampling frequencies ATRAC3 66/105/132 kbps 44.1 kHz ATRAC3plus 48/64/256 kbps 44.1 kHz Up to 62 characters can be displayed on this CD player. MP3 CDs: CD-R/CD-RW on which audio data compressed in the MP3 format has been recorded by using a software other than SonicStage* Bit rates and sampling frequencies this CD player can play are shown below. Variable Bit Rate (VBR) ﬁles can also be played. Bit rates Sampling frequencies MPEG-1 Layer3 32 - 320 kbps 32/44.1/48 kHz MPEG-2 Layer3 8 - 160 kbps 16/22.05/23 kHz MPEG-2.5 Layer3 8 - 160 kbps 8/11.025/12 kHz This CD player conforms to Version 1.0/1.1/2.2/2.3/2.4 of the ID3 tag format. ID3 tag is a format for adding certain information (track name, album name, artist name, etc.) to MP3 ﬁles. Up to 64 characters of ID3 tag information can be displayed on this CD player. CD-Extra and Mix-Mode CDs: CD-R/CD-RW on which CD-DA format data and CD-ROM format data are recorded together.* If you cannot play your CD, change the “CD-EXTRA” setting in the OPTION menu ( page 25). Then you may play your CD. An ATRAC CD on which audio data compressed in the MP3 format has been recorded using software other than SonicStage can also be played. With SonicStage, you cannot create a CD on which mixed format audio data is recorded. * Only ISO 9660 Level 1/2 and Joliet extension format discs can be played. Continued 5 Music discs encoded with copyright protection technologies This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. Difference in ﬁle structures of ATRAC CDs and MP3 CDs ATRAC CDs and MP3 CDs consist of "ﬁles" and "groups." A "ﬁle" is equivalent to a "track" of an audio CD. A "group" is a bundle of ﬁles and is equivalent to an "album." For MP3 CDs, this CD player recognizes an MP3 folder as a "group" so that ATRAC CDs and MP3 CDs can be operated in the same way. The usable number of groups and ﬁles • Maximum number of groups: 256 • Maximum number of ﬁles: 999 Playing order of ATRAC CDs and MP3 CDs For ATRAC CDs, ﬁles are played in the order selected in SonicStage. For MP3 CDs, the playing order may differ depending on the method used to record MP3 ﬁles on the disc. A "play list" which contains an MP3 ﬁle playing order can also be played. In the following example, ﬁles are played in order of to . 6 MP3 Group File (Maximum directory levels: 8) Notes • If ATRAC3plus ﬁles and MP3 ﬁles are recorded on the same CD, this CD player plays the ATRAC3plus ﬁles ﬁrst. • The playback capability of this CD player may vary depending on the quality of the disc and the condition of the recording device. • Acceptable characters are A to Z, a to z, 0 to 9, and _ (underscore). • On a disc that has ATRAC3plus/MP3 ﬁles, do not save ﬁles in other formats and do not make unnecessary folders. About ATRAC CDs • CD-Rs/CD-RWs recorded in the ATRAC3plus format cannot be played on your computer. About MP3 CDs • Be sure to add the ﬁle extension "mp3" to the ﬁle name. However, if you add the extension "mp3" to a ﬁle other than an MP3 ﬁle, the player will not be able to recognize the ﬁle properly. • To compress a source in an MP3 ﬁle, we recommend setting the compression parameters to "44.1 kHz," "128 kbps," and "Constant Bit Rate." • To record up to the maximum capacity, set the writing software to "halting of writing." • To record up to the maximum capacity at one time on media that has nothing recorded on it, set the writing software to "Disc at Once." Precautions On safety • Should any solid objects or liquid fall into the CD player, unplug it and have it checked by qualiﬁed personnel before operating it any further. • Do not put any foreign objects in the DC IN 3 V (external power input) jack. On the CD player • Keep the lens on the CD player clean and do not touch it. If you do so, the lens may be damaged and the CD player will not operate properly. • Do not put any heavy object on top of the CD player. The CD player and the CD may be damaged. • Do not leave the CD player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or sand, moisture, rain, mechanical shock, unleveled surface, or in a car with its windows closed. • If the CD player causes interference to the radio or television reception, turn off the CD player or move it away from the radio or television. • Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this CD player. Attempting to do so may damage the CD player. Do not use such discs. On headphones/earphones Road safety Do not use headphones/earphones while driving, cycling, or operating any motorized vehicle. It may create a trafﬁc hazard and is illegal in some areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations. Preventing hearing damage Avoid using headphones/earphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use. Consideration for others Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you. On handling CDs • To keep the CD clean, handle it by its edge. Do not touch the surface. • Do not stick paper or tape onto the CD. • Do not expose the CD to direct sunlight or heat sources such as hot air ducts. Do not leave the CD in a car parked under direct sunlight. 7 Getting Started Checking the Supplied Accessories Guide to Parts and Controls • Earphones • CD-ROM (SonicStage) Do not play this CD-ROM on an audio CD player including this player. • AC power adaptor (not supplied with USA/Canadian/Argentine models) • Operating instructions (This book) • Installation/Operating Guide Display 8 Operation button (play/pause)*/ENTER ( page •RADIO OFF button ( page 13, 15, Getting Started 12-15, 17, 19-21, 23, 27, 28, 30, 31) / ( page 13, 15, 21, 30) */ ( page 14, 15, 17, 19-21, 23, 27, 28, 30, 31) VOL +/– ( page 12) –•TUNE – button ( page 13, 14, 20, 27, 29) 20, 22, 24, 27, 30) SEARCH button ( page 14, 15, 29) RADIO ON/BAND•MEMORY button ( page 27, 29-31) DISPLAY/MENU button ( page 16, 17, 19, 21, 23, 27, 28, 30, 31) +•TUNE + button ( page 13, 14, 20, 27, 29) (headphones) jack ( page 12) DC IN 3 V jack ( page 11) HOLD switch (on the back of the CD player) ( page 14) OPEN switch ( page 10, 12) Character information display ( page 16) Atrac3plus/MP3 indicator ( page 5) Disc indicator ( page 12) Battery indicator ( page 10) Play list indicator Group indicator Bookmark indicator ( page 19) Play mode indicator Timer indicator ( page 24) Sound indicator * This button has a tactile dot. 9 4 Preparing a Power Source (Dry Battery) Close the lid until it clicks into place. Use only the following dry battery type for your CD player: • LR6 (size AA) alkaline battery 1 Press here. Slide the OPEN switch to open the lid of your player. To remove the dry battery Remove the battery as illustrated below. OPEN switch 2 Open the battery compartment lid inside the player. Raise Battery compartment lid 3 Press Insert the LR6 (Size AA) battery (not supplied) by matching the to the diagram in the battery compartment. Checking the remaining power of the battery The remaining power of the battery is indicated in the display as shown below. As the black indicator section decreases, the remaining power is depleted further. “Low Battery” * * Beep sounds. When the battery is depleted, replace it with a new one. Notes Insert the end ﬁrst. 10 • The display shows the approximate battery power remaining. For example, one section does not always indicate one-fourth of the battery power. • Depending on the operating conditions, the display may increase or decrease relative to the actual power remaining. Battery life 1) You can use the player powered by the AC power adaptor without the battery. Getting Started When using a Sony alkaline battery LR6 (SG) (produced in Japan) G-PROTECTION “1” “2” 22 20 Audio CD 41 38 ATRAC CD 2) 26 24 MP3 CD 3) 30 RADIO ON When using the AC power adaptor to DC IN 3V 1)Measured value using the JEITA standard (Japan Electronics and Information Technology Industries Association) Playing time shown is approximate hours, when you use the player on a ﬂat and stable surface and “POWER SAVE” is set to “ON” ( page 25). This value varies depending on how the player is used. 2)Recorded at 48 kbps 3)Recorded at 128 kbps AC power adaptor to AC outlet Notes on dry batteries • Do not throw the batteries into a ﬁre. • Do not carry batteries in a pocket, etc. with coins or other metallic objects. The battery can generate heat if its positive and negative terminals are accidentally allowed to come into contact with a metallic object. • When the batteries are not to be used for a long time, remove them. • If battery leakage occurs, wipe off any deposit left in the battery compartment, and install new batteries. If the deposit adheres to your skin, wash it off thoroughly. 1 Connect the AC power adaptor to the DC IN 3V jack of your CD player and an AC outlet. Notes on the AC power adaptor • Disconnect all power sources when the player is not to be used for a long time. • Use only the AC power adaptor supplied. If your player is not supplied with the one, use an AC-E30HG AC power adaptor (not available in Australia and Argentina). If you use any other AC power adaptor, malfunction may occur. Polarity of the plug • Do not touch the AC power adaptor with wet hands. • Connect the AC power adaptor to an easily accessible AC outlet. Should you notice an abnormality in the AC power adaptor, disconnect it from the AC outlet immediately. 11 Playback 4 Playing a CD Adjust the volume by pressing VOL +/–. VOL +/– 1 Slide the OPEN switch to open the player lid. Connect the headphones/earphones to the player beforehand. to (headphones) OPEN switch Headphones/earphones 2 Place the CD on the tray and close the lid. Label side up 3 Press /ENTER. (disc) moves, and the player starts playback. /ENTER 12 To remove the CD Remove the CD while pressing the pivot in the center of the tray. Basic playback operations (Play, stop, search) To Play Play from the ﬁrst track Operation From stop, press and hold /ENTER until playback starts. Stop Pause/Resume play after pausing Press /ENTER. Stop playback Press (stop). Search Find the beginning of the current track 1) Press once. Press repeatedly. Find the beginning of the next track 1) Press once. Playback Find the beginning of previous tracks 1) Find the beginning of succeeding tracks 1) Press repeatedly. Go backwards quickly 1) 3) Press and hold . Go forward quickly 1) 3) Jump to succeeding groups 2) Press and hold . Press (group) + repeatedly. Jump to previous groups 2) Press (group) – repeatedly. 1)You can operate during both play and pause. 2)You can operate during play of a CD other than audio CDs. 3)You cannot operate when using an MP3 ﬁle recorded on a CD-R/CD-RW in a packet write format. Continued 13 Locking the controls (HOLD) You can prevent accidental button presses while carrying the player by locking the controls. 1 Slide the HOLD switch on the back of the player in the direction of the arrow. “HOLD” ﬂashes if you press any button when the HOLD function is activated. To unlock the controls Slide the HOLD switch in the direction opposite to that of arrow. Searching for Your Favorite Track/File Searching by viewing groups (File View) On a CD such as an ATRAC CD or an MP3 CD on which a number of ﬁles are recorded, you can search for a ﬁle by checking the names of groups (except on an audio CD) or ﬁles around the ﬁle being played. 1 Press SEARCH repeatedly. The names of groups and ﬁles around the current ﬁle appear on the display. MR.SNO The Train Where do Yo Group names File names 2 Press 3 Press or to select a ﬁle. 4 Press /ENTER. The ﬁle you have selected starts playing. + or To cancel searching Press . 14 – to select a group. Checking CD information on the display You can search for a track/ﬁle by checking the format type of the music source and the names of groups and ﬁles. You can check CD information on the display. Depending on the region in which you purchased your CD player, the default language may not be “ENGLISH.” Change the LANGUAGE setting, if necessary ( page 24). When you are playing an MP3 CD containing ﬁles with an ID3 tag, ID3 tag information is displayed. (When there is no ID3 tag information, ﬁle name or group name is displayed.) ( page 5) 1 Press SEARCH repeatedly. If you play a CD on which mixed audio data has been recorded: The screen for selecting the format type such as “ATRAC ROOT” and “MP3 ROOT” appears ﬁrst. Press /ENTER. 2 Press or to select a group and press /ENTER. 3 Press or to select a ﬁle. 4 Press /ENTER. The ﬁle you have selected starts playing. Playback Searching by viewing a list of groups/ﬁles (List View) Notes • The characters A-Z, a-z, 0-9, and _ can be displayed on this player. • Before playing a ﬁle, the player reads all ﬁle and group (or folder) information on the CD. “Reading” is displayed. Depending on the content of the CD, it may take some time to accomplish this reading. • If the ﬁle does not belong to any group, “MP3 ROOT” appears on the display. Continued To return to the previous screen Press or –. To cancel searching Press . 15 To check information on the display Press DISPLAY/MENU repeatedly. ATRAC CD/MP3 CD File name, artist name 3), ﬁle number, elapsed playing time Audio CD Track number, elapsed playing time (Artist name, track name)1) Group name 3), CODEC information 4), total number of ﬁles Total number of tracks on the CD, total remaining time of the CD, remaining time of the current track 2) File view screen File view screen 1)When you are playing an audio CD containing text informatin such as CD-TEXT, information in parentheses is displayed. 2)The displays appear only during normal play. 3)During play, “artist name” is not displayed if the disc does not have ID3 tag information. When the list of group names/ﬁle names appears on the display, “artist name” and “group name” are not displayed. 4)Bit rate and sampling frequencies are displayed. While an MP3 ﬁle made at VBR (variable bit rate) is being played, “VBR” appears on the display instead of a bit rate. In some cases, “VBR” appears halfway through playback, rather than from the beginning. 16 Changing Playback Options (PLAY MODE) 1 Press DISPLAY/MENU until the menu screen appears. When “REPEAT” appears, select “ON” or “OFF” and press / ENTER. To return to normal play Select “ALL” in the PLAY MODE menu. Continued Playback You can use various playback options such as selecting songs you want to listen to, and playing songs in your favorite order. For details about playback options, see page 18. You can also play songs repeatedly using the playback options you choose (repeat play, page 20). 5 : PLAY MODE : SOUND : OPTION 2 Press or to select “ MODE.” 3 After pressing /ENTER, press or to select the playback option. The default setting is “ALL” (normal play). 4 Press /ENTER. PLAY 17 Playback options Display on the CD player ALL GROUP 1 SHUFFLE GROUP SHUFFLE BOOKMARK PLAYLIST AUTO RANKING RANKING SHUF PROGRAM INTRO (PLAY MODE) Explanation All tracks on the CD are played in a track number order. For the ATRAC CD/MP3 CD, a playing order is different according to the setting of the “PLAY ORDER” in the OPTION menu. All ﬁles in the selected group or all groups are played (ATRAC CD/MP3 CD only) ( page 19). The current track is played once. All tracks on the CD are played once in random order. All ﬁles in the selected group are played once in random order (ATRAC CD/MP3 CD only) ( page 19). Tracks to which Bookmarks have been added are played. The play of tracks with Bookmarks starts in track number order, not in the order you added the Bookmarks ( page 19). Tracks in the selected m3u play list* are played (MP3 CD only) ( page 19). The tracks you have played most frequently from the CD are played from the 10th to the ﬁrst. Up to 32 tracks, which the player has automatically memorized as the most frequently played ones, are played in random order. Up to 64 tracks are played in your favorite order ( page 20). About the ﬁrst 10 seconds of all tracks which follow the current track are played once. * An m3u play list is a ﬁle in which an MP3 ﬁle playing order has been encoded. To use the play list function, record MP3 ﬁles on a CD-R/CD-RW using encoding software that supports the m3u format. You can play the top 8 lists (listed by ﬁle name) on your screen on the CD player. 18 Playing groups 1 2 Perform steps 1 and 2 of “Changing Playback Options (PLAY MODE)” ( page 17). In step 3, select “GROUP” or “GROUP SHUFFLE” and press /ENTER. 3 Press /ENTER for 2 seconds or more. The player starts playback of all ﬁles in the group you have selected. 4 When “REPEAT” appears, select “ON” or “OFF” and press / ENTER. Note If the group has no tracks, “Invalid” appears on the display. Playing your favorite tracks (Bookmark play) 1 During play of the track to which you want to add a Bookmark, press /ENTER until ﬂashes slowly. 2 If you want to add a Bookmark to two or more tracks, repeat step 1. You can add Bookmarks to up to 10 CDs for audio CDs (up to 99 tracks for each CD) and up to 5 CDs for ATRAC CDs/ MP3 CDs (up to 999 tracks for each CD). 3 Press DISPLAY/MENU until the menu screen appears. Press or to select “PLAY MODE,” and press /ENTER. 5 Press or to select “BOOKMARK,” and then press /ENTER. 6 When “REPEAT” appears, select “ON” or “OFF” and press / ENTER. To remove Bookmarks During play of a track with a Bookmark, press and hold /ENTER until disappears. Playback Press or to select a group. If you select a group on an MP3 CD, etc. by searching through all the directories, press or . If you select a group within the same directory, press or . 4 Notes • If you try to add Bookmarks to tracks on an 11th CD (on a 6th CD when playing ATRAC CDs/MP3 CDs), the Bookmarks of the CD you played ﬁrst will be erased. • All Bookmarks stored in memory will be erased if you remove all power sources. Playing your favorite play lists (m3u play list play) 1 In step 3 of “Changing Playback Options (PLAY MODE)” (page 17), select “PLAYLIST.” 2 Press or to select a play list. 3 Press /ENTER. Continued 19 Playing tracks in your favorite order (PGM play) Playing tracks repeatedly 1 1 While the player is stopped, select “PROGRAM” in step 3 of “Changing Playback Options (PLAY MODE)” ( page 17), and then press / ENTER. 2 Press or to select a track, and press and hold /ENTER until display changes. When playing an ATRAC CD/MP3 CD: You can also select a ﬁle in another group by pressing + or –. 3 Repeat step 2 to select tracks in your favorite order. You can select up to 64 tracks. When you ﬁnish entering the 64th track, the track number selected ﬁrst (audio CD)/ﬁle name (ATRAC CD/MP3 CD) appears on the display. If you select 65 tracks or more, the tracks selected ﬁrst are erased one by one. 4 Press /ENTER. Playback starts in the selected order. To check the program 1 While the player is stopped, select “PROGRAM” in step 3 of “Changing Playback Options (PLAY MODE) ( page 17), and then press /ENTER. 2 Press and hold /ENTER until the display changes. Whenever you press /ENTER, the tracks are displayed in playing order. To cancel the PGM play Press . 20 (Repeat play) Select “ON” in step 5 of “Changing Playback Options (PLAY MODE)” (page 17). To return to normal play Select “OFF”. Changing Sound Quality For details about the setting of SOUND items, see page 22. 2 Press or for 2 seconds or more to select the frequency range. 3 Press or repeatedly to select the shape of the wave. There are 3 shapes stored in memory for each frequency range. Selecting the sound quality 1 Press DISPLAY/MENU until the menu screen appears. 2 Press or to select “ SOUND.” Low Frequency range 4 Press or to select the sound volume. The sound volume can be adjusted in 7 levels. Sound volume Low 3 After pressing /ENTER, press or to select the item you want to set up and press /ENTER. 4 Press or to select an option and press /ENTER. Customizing sound quality You can adjust sound quality for each frequency range individually, checking the shape of the wave on the display. 1 Mid High Playback You can set up the “EQUALIZER” setting and/or “CLEARBASS” setting. If you set both at the same time, you can enjoy more bass sound along with the sound quality you want. Mid High 5 Repeat steps 2 to 4 to make adjustments for the remainig 2 frequency ranges. 6 Press /ENTER. To return to the previous screen Press . To cancel the adjustment operation Press for 2 seconds or more. Notes Select “EQUALIZER” in step 3 and “CUSTOM” in step 4 of “Selecting the sound quality”. “Low” is displayed ﬁrst. There are 3 frequency ranges; “Low” (low range audio), “Mid” (middle range audio), and “High” (high range audio). • If the sound is distorted by your sound settings when you turn up the volume, turn the volume down. • If you feel a difference in sound volume between the “CUSTOM” sound setting and other sound settings, adjust the volume to your preference. Continued 21 SOUND items To return to the previous screen, press . To cancel the setting operation, press for 2 seconds or more. Item EQUALIZER (Equalizer setting) CLEARBASS (Bass sound setting) Options (: Default setting) Normal sound quality OFF SOFT ACTIVE HEAVY For vocal, stressing middle range audio Lively sounds, emphasizing high and low range audio Powerful sounds, further emphasizing high and low ranges compared with ACTIVE sound CUSTOM Customized sound (see page 21 for details) Normal sound quality. OFF 1 2 3 Emphasizing bass sound. Emphasizing bass sound more than 1. Emphasizing bass sound more than 2. Note If you change the setting of the EQUALIZER item after you have set the CLEARBASS item, the setting of the EQUALIZER item gets priority. When you set both the EQUALIZER item and the CLEARBASS item, set the EQUALIZER item ﬁrst. 22 Changing Optional Settings For details about the setting of OPTION items, see page 24. Setting various functions 1 Press DISPLAY/MENU until the menu screen appears. 2 Press or to select “ 3 After pressing /ENTER, press or to select the item you want to set up and press /ENTER. 4 Press or to select an option and press /ENTER. When you are setting the “LANGUAGE” or “PLAY ORDER,” repeat step 3. Playback You can set the various functions such as the language for the menu and the playback order of the groups/ﬁles. OPTION.” Continued 23 OPTION items To return to the previous screen, press . To cancel the setting operation, press for 2 seconds or more. Items LANGUAGE 1) (Language for menu, etc.) Options (: Default settings) MENU ENGLISH FRENCH GERMAN ITALIAN PORTUGUESE RUSSIAN SPANISH TEXT 2) 6) 24 G-PROTECTION 2) (To prevent sound skipping) 1 AVLS 1) 3) (Limiting volume) OFF TIMER 1) (Off timer) OFF 2 ON 1-99 min Select the language for menu text, warning message, etc. Select the language for CD-TEXT, ID3 tag, etc. ENGLISH If you select “AUTO,” you can read the text FRENCH in the following language. GERMAN ITALIAN PORTUGUESE RUSSIAN SPANISH Protection against sound skipping is provided with high quality CD sound. Enhanced protection against sound skipping is provided. The volume changes without limiting the volume level. AUTO The maximum volume is limited to protect your hearing. The timer does not work. is displayed on the player. You can check the remaining playback time by selecting this option during play. Press or repeatedly to increase or decrease the length of time by 5 minutes, or keep pressing or to increase or decrease by 1 minute. The default setting is “10 min.” Items Options (: Default settings) The beep sounds when you operate the player. BEEP 1) ON (Sound of operation) OFF OFF POWER SAVE (Saving power) OFF PLAY ORDER 2) (Playback order) The beep is turned off. The CD is played as recorded on the disc, including spaces between tracks. The CD is played without space between tracks. The POWER SAVE function does not work. ON ON TRACK Setting of the SOUND items is not effective. Play back the music source in the order of NORMAL recording. ID3TAG TNO Play back in the order of ID3 tag number. FILE NAME Play back in the alphabetical order of the ﬁle names. Play back the music source in the order of OFF recording. ON Play back the music source in the order of group names. Set to “OFF” as long as you can play your CD normally. GROUP CD-EXTRA 2) 5) (Playback by disc format) OFF TUNE STEP 6) (Changing the tuning interval) AREA1 AREA2 7) ON Playback SEAMLESS 2) 4) (Playing tracks continuously) If you cannot play your CD-Extra, set to “ON.” You may play it. 7) Tuning interval is set to “9 kHz.” Tuning interval is set to “10 kHz.” Continued 25 Items PRESET CLEAR 6) (Canceling all preset stations) Options (: Default settings) Clear? Select this when you cancel all preset stations. 1)You can also set this up while listening to the radio. 2)You can set this up only while the player is stopped. 3)AVLS is an abbreviation of the Automatic Volume Limiter System. 4)This function works only for ATRAC CDs. 5)This function works only for Audio CDs and CD-Extra CDs. 6)You can set this up only when the radio is turned off. 7)Default settings vary for each area you purchased the CD player. Notes • Even if “G-PROTECTION” is set to “2,” sound may skip: – when the CD player receives stronger continuous shock than expected, – when a dirty or scratched CD is played, or – for CD-Rs/CD-RWs, when a poor-quality disc is played or there is a problem with the original recording device or application software. • Even if “SEAMLESS” is set to “ON,” the tracks may not play continuously depending on how the source music was recorded. 26 Using the Radio Listening to the Radio Improving broadcast reception For FM, extend the earphones cord. You can enjoy FM and AM programs. 1 Press RADIO ON/BAND•MEMORY to turn on the radio. 2 Press RADIO ON/BAND•MEMORY until the band you want appears. Each time you press the button, the display changes as follows: USA and Canadian models: FM AM TV WB Earphones Other models: FM AM Press TUNE + or – to tune in the station you want and adjust the volume. Turning off the radio Press •RADIO OFF. Tuning in the station quickly Press an hold TUNE + or – in step 3 until the frequency digits begin to change on the display. The CD player automatically scans the radio frequencies and stops when it ﬁnds a clear station. Emphasizing the bass sound 1 While listening to the radio, press DISPLAY/MENU until the menu screen appears. 2 Press or to select “SOUND,” then press /ENTER. 3 Press or to select “BASS,” then press /ENTER. 4 Press or to select “ON,” then press /ENTER to enter the selection. Note Keep the earphones connected to the jack of the CD player. The earphones cord works as the FM antenna. If it is hard to hear the FM/ TV/WB broadcast due to interference from strong radio waves Using the Radio 3 For AM, reorient the CD player itself. 1 While listening to the radio, press DISPLAY/MENU until the menu screen appears. 2 Press or to select “OPTION,” then press /ENTER. 3 Press or to select “LOCAL/DX,” then press /ENTER. 4 Press or to select “LOCAL,” then press /ENTER. Continued 27 If it is hard to hear the FM broadcast due to poor reception 1 While listening to the radio, press DISPLAY/MENU until the menu screen appears. 2 Press or to select “OPTION,” then press /ENTER. 3 Press or to select “MONO/ST,” then press /ENTER. 4 Press or to select “MONO,” then press /ENTER. The noise will be reduced but the radio will play in monaural. Protecting your hearing The AVLS (Automatic Volume Limiter System) function keeps the maximum volume down to protect your hearing. 1 While listening to the radio, press DISPLAY/MENU until the menu screen appears. 2 Press or to select “OPTION,” then press /ENTER. 3 Press or to select “AVLS,” then press /ENTER. 4 Press or to select “ON,” then press /ENTER. To cancel the AVLS function Perform steps 1 - 4, changing the AVLS setting to “OFF.” 28 Turning off the radio automatically You can set the radio to turn off automatically within a range of 1 minute to 99 minutes by 1 minute. 1 While listening to the radio, press DISPLAY/MENU until the menu screen appears. 2 Press or to select “OPTION,” then press /ENTER. 3 Press or to select “TIMER,” then press /ENTER. 4 Press or to select the length of time you want to set from “1 min” to “99 min,” then press /ENTER. To check the length of time before the radio is automatically turned off During play, perform steps 1 - 4. To cancel the TIMER function The TIMER function for the radio will be canceled: • When you select “OFF” in step 4 of “Turning off the radio automatically.” • When you turn off the radio. • When you start playing a CD. When listening to the radio on the battery If you connect the external power source plug to the DC IN 3 V jack of your CD player, the CD player will turn off. Turn it on by pressing RADIO ON/BAND•MEMORY to continue listening to it. Presetting Radio Stations You can preset up to 51 stations (for USA and Canadian models) : 7 for TV, 4 for WB, 30 for FM and 10 for AM or 40 stations (for other models) : 30 for FM and 10 for AM. Press RADIO ON/BAND•MEMORY to turn on the radio. 2 Press RADIO ON/BAND•MEMORY to select the band. 3 Press SEARCH for 3 seconds or more. The CD player starts scanning the stations from the lower frequencies and stops for about 5 seconds when a station is received. 4 5 If you want to preset the received station, press /ENTER until the preset number appears. The received station is preset on the preset number 1 and the CD player starts scanning for the next receivable station. If you do not press /ENTER within 5 seconds, the CD player will start scanning the next receivable station without storing the station. Presetting stations manually 1 Press RADIO ON/BAND•MEMORY to turn on the radio. 2 Press RADIO ON/BAND•MEMORY to select the band. 3 Press TUNE + or – to tune in the station you want. 4 Press and hold RADIO ON/BAND• MEMORY until the preset number appears on the display. When the station is preset successfully, the beep is heard. The preset number increases by one. 5 Repeat steps 3 and 4 when you preset the stations in the same band. When you preset the stations in the different band, press RADIO ON/ BAND•MEMORY to select the band. Repeat steps 3 and 4 until the preset number appears on the display. Using the Radio 1 Note Presetting will not be completed until scanning of all receivable stations is ﬁnished. If you cancel presetting before scanning of all receivable stations is ﬁnished, the stations you preset are not stored in the CD player’s memory. Note Preset number is selected automatically. You cannot select the preset number. Continued Repeat step 4 until all receivable stations are preset. If the stations have already been stored, the newly preset stations will replace the old ones. 29 To change a preset station 1 Perform steps 1 and 2 of “Presetting stations manually” ( page 29). 2 Press or to select the preset number of the station you want to change. 3 Press RADIO ON/BAND•MEMORY for 2 seconds or more. 4 Press TUNE + or – to tune in the station you want. Start this operation within 30 seconds after you ﬁnished the previous operation. If 30 seconds pass with nothing done, start from step 2. 5 Press and hold /ENTER. The beep is heard and the preset station has been changed. To cancel a preset station 1 Perform steps 1-3 of “To change a preset station.” 2 Press •RADIO OFF. The station preset last is canceled, and the next preset number decreases by one. 30 To cancel all preset stations 1 While the radio is turned off and CD play is stopped, press DISPLAY/ MENU until the menu screen appears. 2 Press or to select “OPTION,” then press /ENTER. 3 Press or to select “PRESET CLEAR,” then press /ENTER. “Clear?” appears in the display. When you press /ENTER, all the preset stations are canceled. Playing Preset Radio Stations You can tune in the station easily by pressing or button. 1 Press RADIO ON/BAND•MEMORY to select the band. 2 Press or to tune in a stored station. Changing the Tuning Interval (Except European models) When using the CD player abroad, change the AM tuning interval on the menu, if necessary. 9 kHz area: Asia and Europe 10 kHz area: the U.S.A., Canada and Latin America Change it while the radio is turned off and CD play is stopped, as follows. Press DISPLAY/MENU until the menu screen appears. 2 Press or to select “OPTION,” then press /ENTER. 3 Press or to select “TUNE STEP,” then press /ENTER. 4 Press or to select “AREA1” or “AREA2,” then press /ENTER. Using the Radio 1 Note After changing the tuning interval, you need to preset radio stations again. 31 Additional Information Troubleshooting Should any problem persist after you have checked these symptoms, consult your nearest Sony dealer. Sound Symptom The volume does not increase even if you press VOL + repeatedly. No sound, or noise is heard. Cause and/or corrective action A rustling noise is heard from the CD. Close the lid of the battery compartment ﬁrmly ( page 10). SOUND items cannot be set up. “POWER SAVE” is set to “ON.” Set it to “OFF” ( page 25). “AVLS” is set to “ON.” Set it to “OFF” ( page 24). Connect the headphones/earphones plugs ﬁrmly. The plugs are dirty. Clean the headphones/earphones plugs with a dry soft cloth periodically. Operation/Playback 32 Symptom The playing time is too short. The CD does not play. Cause and/or corrective action Certain tracks cannot be played. You tried to play ﬁles saved in a format that is not compatible with this player ( page 5). Change the setting of “CD-EXTRA” in the OPTION menu. You may play your CD ( page 25). “Low Battery” appears on the display, and the CD does not play. Replace the dry battery with a new LR6 (size AA) alkaline battery ( page 10). “Hi DC in” appears on the display. An AC power adaptor which is rated higher than the one supplied or recommended is being used. Use only the supplied AC power adaptor or the car battery cord recommended in “Optional Accessories” ( page 36). Check that you are using an alkaline battery and not a manganese battery. Replace the dry battery with a new LR6 (size AA) alkaline battery ( page 10). Symptom The CD does not play, or “No Disc” appears on the display when a CD is placed in the player. Cause and/or corrective action “HOLD” ﬂashes on the display when you press a button, and the CD does not play. The buttons are locked. Slide the HOLD switch back ( page 14). Playback starts from the point you stopped (resume function). The resume function is working. To start play from the ﬁrst track, press and hold /ENTER while the player is stopped until the ﬁrst track starts playing, or open the lid of the player ( page 13). Or, remove all power sources, and then insert the battery or connect the AC power adaptor again. During playback of an ATRAC CD or MP3 CD, the CD does not rotate but you can hear the sound normally. This player is designed to stop the rotation of an ATRAC CD or MP3 CD during playback to reduce the power consumption. The player is not malfunctioning. “No File” appears on the display after you press /ENTER or when the lid of the player is closed. There are no ATRAC3plus/MP3 ﬁles on the CD-R/CD-RW. A CD-R/CD-RW from which the data has been erased is being used. The CD is dirty. The LCD display becomes hard to see or slows down. You are using your CD player at high temperatures (above 40°C/104°F) or at low temperatures (below 0°C/32°F). At room temperature, the display will return to its normal operating condition. The CD is dirty or defective. Clean it or change it. Check that the CD is inserted with the label side up ( page 12). Moisture condensation has occurred. Leave the CD player aside for several hours until the moisture evaporates. Close the lid of the battery compartment ﬁrmly ( page 10). Make sure the battery is inserted correctly ( page 10). Connect the AC power adaptor to an AC outlet securely ( page 11). Press /ENTER after one second or more has passed since the AC power adaptor was connected. The CD-R/CD-RW in the player is blank. There is a problem with the quality of the CD-R/CD-RW, recording device, or application software. Additional Information Continued 33 Symptom Even though you have not selected “BOOKMARK,” (Bookmark) ﬂashes. Play stopped abruptly. Cause and/or corrective action The TIMER function is canceled. The TIMER function for the CD is canceled if you start listening to the radio. The TIMER function for the radio is canceled if you start playing a CD. You cannot operate the player, and a sequence of 8 numbers or letters appear on the display of the CD player. This phenomenon may occur, depending on the CD you are using. Remove all power sources, and then insert the battery or reconnect the AC power adaptor. Try to operate the player again. If the problem persists, consult your nearest Sony dealer. If you have selected a playback option other than “BOOKMARK,” (Bookmark) ﬂashes. The off timer has been set. Change the setting of “TIMER” to “OFF” ( page 24). The dry battery is used up completely. Replace the dry battery with a new LR6 (size AA) alkaline battery ( page 10). Radio Symptom The radio is weak or has poor quality. Cause and/or corrective action Replace the battery with a new LR6 (size AA) alkaline battery ( page 10). Move the CD player away from electric appliances (TVs, PCs, etc.) Keep the AC power adaptor away from the CD player. Others Symptom When closing the lid of the CD player, the CD starts to rotate. 34 Cause and/or corrective action The player is reading the information on the CD, not malfunctioning. Maintenance To clean the casing Use a soft cloth slightly moistened in water or a mild detergent solution. Do not use alcohol, benzine or thinner. Speciﬁcations CD player System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 770 - 800 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20 000 Hz +1 –2 dB (measured by JEITA) Output (at 3 V input level) Radio Frequency range • CED, CEK, EE9* models FM: 87.5 - 108.0 MHz AM: 531 - 1 602 kHz Additional Information Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 Ω (Approx. 1.5 mW + Approx. 1.5 mW at 16 Ω)* *For the customers in Europe • E19/2,E92, MX2, E/4* models 9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz 10 kHz step: FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz • AU2, E19* models 9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 602 kHz 10 kHz step: FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz Continued 35 • U, CA* models 9 kHz step: TV: 2 - 13 ch WB (weather band): 1 - 7 ch FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz 10 kHz step: TV: 2 - 13 ch WB (weather band): 1 - 7 ch FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz * For the area code of the model you purchased, check the upper left side of the bar code on the package. Antenna FM: Earphones cord antenna AM: Built-in ferrite bar antenna General Power requirements • LR6 (size AA) battery: 1.5 V DC × 1 • AC power adaptor (DC IN 3 V jack): 220 V, 50 Hz (Model for China) 120 V, 60 Hz (Model for Mexico) Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 137.8 × 30.9 × 137.8 mm (5 1⁄2 × 1 1⁄4 × 5 1⁄2 in.) Mass (excluding accessories) Approx. 196 g (6.9 oz.) US and foreign patents licensed from Dolby Laboratories. Design and speciﬁcations are subject to change without notice. 36 Optional Accessories AC power adaptor 1) AC-E30HG Active speaker system SRS-Z1 SRS-Z30 DCC-E345 Car battery cord 2) Car battery cord with car connecting pack 2) DCC-E34CP Car connecting pack 2) CPA-9C Earphones (except for the customers in France) MDR-EX71SL MDR-G04SL MDR-J20SP MDR-E808LP Earphones (for the customers in France) 1) Speciﬁcations for AC power adaptors vary for each area. Check your local voltage and the shape of the plug before purchasing. 2) When listening to the radio using these accessories, noise may occur. We recommend only playing CDs when you use them. Your dealer may not handle some of the accessories listed above. Please ask the dealer for detailed information about the accessories in your country/region. H Index HEAVY 22 HOLD function Symbols I (Battery) 10 (disc) 12 1 18 (Timer) 24 ID3 tag INTRO LANGUAGE 24 List View 15 LOCAL/DX 27 8 M m3u play list play 19 MENU 24 Mix-Mode CD 5 MONO/ST 28 MP3 CD 5 18 O OPTION 24 Optional Accessories B 10 C CD-DA format 5 CD-EXTRA 25 CD-Extra 5 CD-ROM (SonicStage) CD-TEXT 16 CLEARBASS 21, 22 CUSTOM 22 8 D Display 8 Dry battery 10 E Earphones 8 EQUALIZER 21, 22 F 14 G G-PROTECTION 24 GROUP 18, 19, 25 Group 6 GROUP SHUFFLE 18, 19 36 P Pause 13 Play 13 PLAYLIST 18 PLAY MODE 17 PLAY ORDER 25 POWER SAVE 25 Preset 29 PRESET CLEAR 30 PROGRAM 18, 20 Additional Information BASS 27 Battery compartment lid Battery life 11 BEEP 25 BOOKMARK 18, 19 File View FM 27 15 18 L A ACTIVE 22 AC power adaptor ALL 18 AM 27 AREA 31 ATRAC3plus 5 ATRAC CD 5 AUTO RANKING AVLS 24, 28 14 R RANKING SHUF Repeat play 20 18 S SEAMLESS 25 Search 13 SHUFFLE 18 SOFT 22 SonicStage 4 SOUND 22 Stop 13 T TEXT 24 TIMER 24, 28 TRACK 25 TUNE STEP 31 37 This warranty is only valid in Canada.
