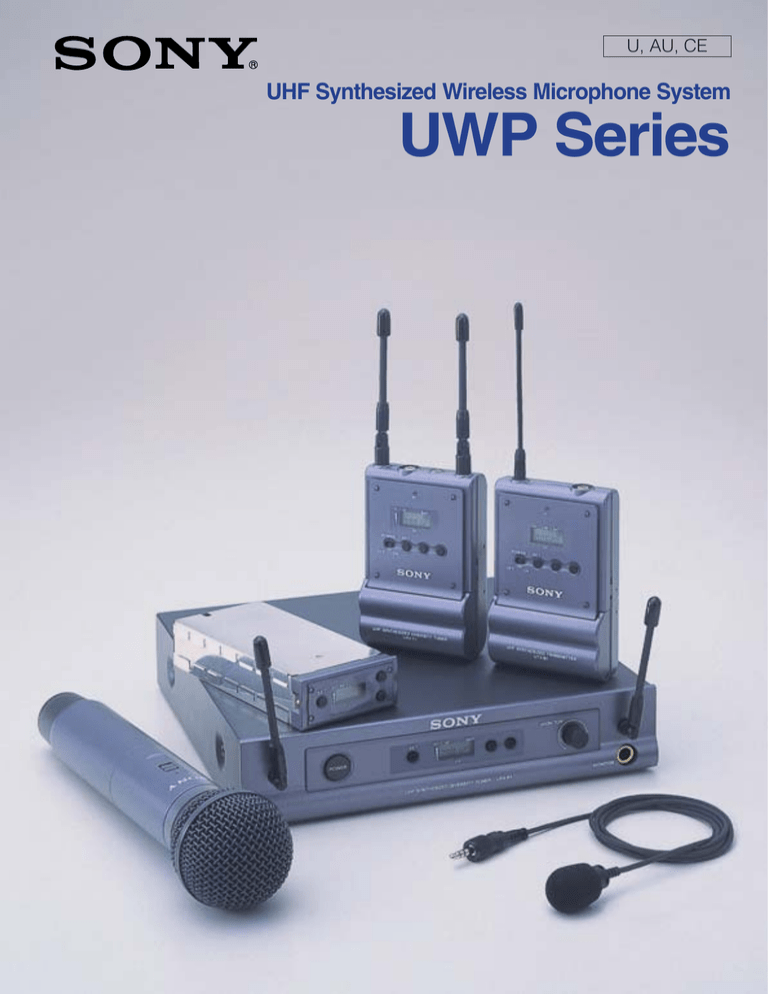

U, AU, CE
UHF Synthesized Wireless Microphone System
UWP Series
Interference-free, Affordable Operations
— with the Sony UWP Series
UHF Synthesized Wireless Microphone System
As the use of wireless microphone systems has increased dramatically for diverse applications, low-cost systems have
become more popular, but transmission stability and noise problems have often been overlooked.
Sony presents the ideal solution for budget-conscious users seeking rock-steady wireless operations — the UWP Series
UHF Synthesized Wireless Microphone System.
The UWP Series consists of five core elements — a lavalier/bodypack transmitter, a wireless handheld microphone,
a portable tuner, a half-rack-size tuner, and a tuner module. These are available in six turnkey packages, each comprising
a microphone, transmitter and tuner, for a ready-to-go system straight out of the box. Each package has been carefully
compiled to address specific operational needs, meaning the UWP Series can virtually adapt to almost any application.
The UWP Series excels in transmission stability. Sophisticated wireless technologies, developed for top-of-the-line Sony
wireless microphone systems, have been incorporated, including the UHF PLL-synthesized system, space-diversity
reception and a tone squelch function. These capabilities are typically found only on high-end wireless systems.
Whether you use it with low-cost ENG, EFP or PA systems, the UWP Series delivers the convenience of noncompromised wireless microphone operation at a very affordable price.
UWP Series Common Features
Stable Transmission and Reception
The UWP Series Wireless Microphone
System uses three core technologies to
provide stable transmission and reception:
PLL Synthesized System
Key to achieving stable transmission and
reception is the use of a stable carrier
signal to avoid interference with other
frequency channels and to allow the
selection of a preferred channel from
multiple frequencies. The UWP Series
achieves this by using a UHF PLL (Phase
Locked Loop) frequency synthesized
system, which provides accurate carrier
signal frequencies.
This system is used in both the
transmitters and tuners, so that a stable
carrier is generated at the transmitter, and
accurately tuned in at the tuner.
This PLL-controlled system provides
highly stable, user-selectable frequencies
in increments of 125 kHz.
Space Diversity Reception System
Typically, wireless microphone
transmission systems can be subject to
reception interruptions (signal dropout),
but the UWP Series reduces this to a
minimum. By utilizing a space-diversity
reception system, it achieves stable
reception by using dual-antenna
inputs/reception circuits. These receive
signals over two different paths and
automatically select the stronger RF
signal for output. The space diversity
reception system is adopted in all UWP
tuners – the portable tuner, half rack-size
tuner and tuner module alike. What’s
more, the antennas of the portable and
half-rack-size tuners each allow for angle
adjustments, which helps to further
eliminate signal dropout.
Tone Squelch Circuitry
When operating a wireless microphone
system, it is essential that the tuner not
pick up carrier signals transmitted from
other systems. In order to avoid this, the
UWP Series handheld microphone and
portable transmitter transmit a 32 kHz
pilot-tone signal along with the audio
signal. The tuner’s squelch circuit
recognizes this tone signal, and outputs
the audio signal only when this tone
signal is received. This function prevents
the output of unwanted signals and noise
from other signal transmissions in the air,
as well as the RF noise and popping
noise that occur when the transmitter is
powered on or off.
Pre-Programmed Operating
Frequencies
The transmitters and tuners included in
the UWP Series incorporate preprogrammed frequencies that meet the
wireless-communication regulations of
each country. The UWP Series operates
within the following frequency ranges:
• U models: 758 MHz to 782 MHz or 782
MHz to 806 MHz
(188 selectable frequencies)
• CE models: 798 MHz to 822 MHz or
838 MHz to 862 MHz
(189 selectable frequencies)
• AU models: 792 MHz to 806 MHz
(102 selectable frequencies)
Simultaneous Multi-Channel
Operation
The UWP Series allows simultaneous
operation of up to 16 wireless
microphones.
Optimum combinations of practically
tested, interference-free frequencies are
stored in the UWP tuners. By using the
pre-programmed frequency groups,
users can easily choose interference-free
frequencies for the transmitters and
tuners, simplifying the task of system
setup.
Package Line-up
UWP-C1
• Consists of an omni-directional
lavalier microphone, bodypack transmitter and portable tuner
• Suitable for a wide range of applications, from news gathering
and interviews to talk shows and conferences
• The lavalier microphone is supplied with a microphone
windscreen and microphone-holder clip
• The bodypack transmitter is supplied with a belt clip
• The portable tuner is supplied with a microphone stand
adaptor, screw adaptor, shoe-mount adaptor for mounting on
a camcorder and output cables (3-pole mini-plug/XLR-type,
3-pole mini-plug/stereo mini-plug)
UWP-S1
• Consists of a uni-directional lavalier microphone, bodypack
transmitter and half-rack-size tuner
• Suitable for use in PA systems
• The lavalier microphone is supplied with a microphone
windscreen and microphone-holder clip
• The bodypack transmitter is supplied with a belt clip
• The half-rack-size tuner is supplied with an AC/DC adaptor
UWP-X1
• Consists of a uni-directional lavalier microphone, bodypack
transmitter and tuner module
• Suitable for use in PA systems
• The lavalier microphone is supplied with a microphone
windscreen and microphone-holder clip
• The bodypack transmitter is supplied with a belt clip
UWP-C2
• Consists of a handheld
microphone and portable tuner
• Suitable for news gathering and for use in PA systems
• The handheld microphone is supplied with a microphone
holder and screw adaptor
• The portable tuner is supplied with a microphone stand
adaptor, screw adaptor, shoe-mount adaptor for mounting on
a camcorder, belt clip and output cables (3-pole miniplug/XLR-type, 3-pole mini-plug/stereo mini-plug)
UWP-S2
• Consists of a handheld microphone and half-rack-size tuner
• Suitable for use in PA systems
• The handheld microphone is supplied with a microphone
holder and screw adaptor
• The half-rack-size tuner is supplied with an AC/DC adaptor
UWP-X2
• Consists of a handheld microphone and tuner module
• Suitable for use in PA systems
• The handheld microphone is supplied with a microphone
holder and screw adaptor
Transmitter/Tuner Features
L a v a l i e r M i c r o p h o n e a n d B o d y p a c k Tr a n s m i t t e r
Lavalier Microphones:
• Omni-directional type for the UWP-C1
package
• Approximately six hours of continuous
operation with two AA-size alkaline
(LR6) batteries
• Uni-directional type for the UWP-S1 and
UWP-X1 packages
• An LCD screen provides extensive
information, including the operating
channel number and its frequency in
MHz, attenuator level, RF-output level
setting (High/Low), audio-input status,
RF-output status, transmitter-battery
status, and accumulated operating time
• 1.2 m (3.9 feet) microphone cable
• Supplied with a microphone windscreen
and microphone-holder clip
Bodypack Transmitter:
• Compact and lightweight design
• Attenuator function allows adjustment of
the microphone-input level to suit each
user’s voice
• Selectable RF-output level: 5 mW output
is suitable for simultaneous multi-channel
operation, while 30 mW output is
intended for long-distance transmission
• A 3.5-mm dia., 3-pole mini-jack input
connector with lock mechanism
accepts the output of any lavalier
microphones equipped with a 3.5 mm
dia. mini plug, as well as the output of
the supplied lavalier microphone
• Supplied with a belt clip
Handheld Microphone
• Uni-directional, dynamic microphone capsule
• Internal antenna design
• Attenuator function allows adjustment of the
audio-input level to suit each user’s voice
• Selectable RF-output level: 5 mW output
is suitable for simultaneous multi-channel
operation, while 30 mW output is intended
for long-distance transmission
• Approximately six hours of continuous
operation with two AA-size alkaline
(LR6) batteries
• An internal LCD screen provides
extensive information, including the
operating channel number and its
frequency in MHz, attenuator level,
RF-output level setting (High/Low),
audio-input status, RF-output status,
transmitter-battery status, and
accumulated operating time
• Supplied with a microphone holder and
a screw adaptor
H a l f 1 9 - I n c h R a c k - S i z e Tu n e r
• Space diversity reception system for
stable RF reception
• Angle-adjustable antennas to help
eliminate signal dropout
• RF squelch function virtually eliminates
ambient noise and unwanted signals
from other wireless microphone systems
• Equipped with both XLR (balanced)
and 1/4-inch phone (unbalanced) type
output connectors. The output level on
the XLR-type connector can be
switched between MIC and LINE levels.
• An LCD screen displays the operating channel
number and its frequency in MHz, plus the
audio-output status and RF-input level
• A green LED indicator illuminates when RFinput signals are appropriately received
• Stereo headphone jack with monitor
volume-control on the front panel
Rear Panel
• Supplied with an AC/DC adaptor
P o r t a b l e Tu n e r
• Space diversity reception system for
stable RF reception
• A green LED indicator illuminates when
RF-input signals are appropriately received
• Angle-adjustable antennas to help
eliminate signal dropout. This feature
additionally provides mounting-position
flexibility when the portable tuner is
mounted on a camcorder.
• Approximately six hours of continuous
operation with two AA-size alkaline
(LR6) batteries
• Stereo mini jack with monitor-volume control
• RF squelch function virtually eliminates
ambient noise and unwanted signals
from other wireless microphone systems
• An LCD screen provides extensive
information, including the operating channel
number and its frequency in MHz, audiooutput status, RF-input level, tuner-battery
status, and accumulated operating time
• Supplied shoe-mount adaptor enables
easy mounting on Sony camcorders.
A microphone-stand adaptor, screw
adaptor, belt clip and two output cables
(3-pole mini-plug/XLR-type, 3-pole miniplug/stereo mini-plug) are also
provided.
Photo shows portable tuner mounted
on a microphone stand.
Photo shows portable tuner mounted
on a HVR-Z1 HDV™ camcorder.
W i r e l e s s M i c r o p h o n e Tu n e r a n d C a m c o r d e r C o m b i n a t i o n s
Camcorder/Tuner Interfaces
Mic Input
Connector
Audio Input
Connector
—
XLR 3-pin (x2)
—
XLR 3-pin (x2)
Stereo
mini-jack
(x1)
XLR 3-pin (x2)
HDCAM
HDV
Camcorder
Camcorders
HVR-Z1 Series
HDCAM Camcorders
DVCAM™
Camcorders
DSR-PD170/PD170P
DSR-PDX10/PDX10P
Applicable Wireless Microphone Tuners
UWP-C1
UWP-C2
Transmitter/Tuner Features
Tu n e r M o d u l e
• Compact, plug-in diversity tuner module:
up to two tuner modules can be installed
into a Sony all-in-one type presentation
mixer/amplifier
(SRP-X700P or SRP-X500P), while a
maximum of six modules can be installed
in the Sony MB-806A tuner base unit
• An backlight LCD screen displays the
operating channel number and its
frequency in MHz, plus the audio-output
status and RF-input level
• Space diversity reception system for
stable RF reception
• An auto channel search function
automatically selects unoccupied
channels
• A green LED indicator illuminates when
RF-input signals are appropriately
received
• RF squelch function virtually eliminates
ambient noise and unwanted signals
from other wireless microphone systems
Photo shows tuner module installed in the MB-806A.
Photo shows tuner module installed in the SRP-X500P.
Optional Accessories
ECM-77BMP Lavalier Microphone
• High-performance, miniature
microphone
• Omni-directional, electret condenser
microphone
• Frequency response: 40 Hz to 20 kHz
• Sensitivity: -39.0 dB (11.2 mV)
(0 dB = 1 V/Pa, at 1 kHz)
• Supplied with 3-pole mini-jack with a
stable lock mechanism for use with the
UWP series
• Supplied accessories:
Single/horizontal-type tie clip (1), metalmesh type windscreen (1), operating
instructions (1)
• Microphone head: 5.6 mm (1/4 inch)
dia. x 12.5 mm (1/2 inches), approx.
1.5 g (0.05 oz)
• Cable length: 1.2 m (3.9 feet)
ECM-44BMP Lavalier Microphone
• Omni-directional, electret condenser
microphone
• Superior sound quality
• Frequency response: 40 Hz to 15 kHz
• Sensitivity: -40 dB (10 mV)
(0 dB = 1 V/Pa, at 1 kHz)
• Microphone head: 8.5 mm (11/32 inch)
dia. x 14.5 mm (19/32 inches), approx.
2 g (0.07 oz)
• Cable length: 1.2 m (3.9 feet)
• Supplied with 3-pole mini-jack with a
stable lock mechanism for use with the
UWP series
• Supplied accessories:
Single/horizontal-type tie clip (1),
urethane type windscreen (1), operating
instructions (1)
ECM-166BMP Lavalier Microphone
• Uni-directional, electret condenser
microphone
• Resistant to howing by rejecting indirect
sound
• Frequency response: 100 Hz to 10 kHz
• Sensitivity: -45 dB (5.6 mV)
(0 dB = 1 V/Pa, at 1 kHz)
• Microphone head: 12.5 mm (1/2 inch)
dia. x 23.5 mm (15/16 inches), approx.
3.5 g (0.12 oz)
• Cable length: 1.2 m (3.9 feet)
• Supplied with 3-pole mini-jack with a
stable lock mechanism for use with the
UWP series
• Supplied accessories:
Single/horizontal-type tie clip (1),
urethane type windscreen (1), operating
instructions (1)
ECM-310BMP Headset Microphone
• Lightweight, headset-style microphone
• Cable length: 1.2 m (3.9 feet)
• Wide-cardioid, electret condenser
microphone provides crisp and clear
sound while isolating desired sound
from surrounding ambience
• Supplied with 3-pole mini-jack with a
stable lock mechanism for use with the
UWP series
• Adjustable hinge and goose-neck
• Frequency response: 70 Hz to 12 kHz
• Sensitivity: -44 dB (6.3 mV) ± 3 dB
(0 dB = 1 V/Pa, at 1 kHz)
• Microphone head: 12.5 mm (1/2 inch)
dia. x 23.5 mm (15/16 inches), approx.
3.5 g (0.12 oz)
• Supplied accessories:
Urethane type windscreen (1),
operating instructions (1)
Specifications
0 dBV = 1 Vrms
B o d y p a c k Tr a n s m i t t e r
Oscillator:
Type of emission:
Carrier frequencies:
AU model:
CE model:
Crystal-controlled PLL synthesizer
F3E
792 MHz to 806 MHz (TV channels 66 to 67) Users may choose from 102 frequencies.
798 MHz to 822 MHz (TV channels 62 to 64) or 838 MHz to 862 MHz (TV channels 67 to 69)
Users may choose from 189 frequencies on each model.
U model:
758 MH to 782 MHz (TV channels 62 to 65) or 782 MHz to 806 MHz (TV channels 66 to 69)
Users may choose from 188 frequencies on each model.
RF power output:
30 mW or 5 mW (selectable)
1/4
Antenna:
wave length wire
Pilot tone signal:
32 kHz
Frequency response: 50 Hz to 18 kHz (typical)
Reference deviation: ±5 kHz (-60 dBV, 1kHz input)
Signal-to-noise ratio: 60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted)
Audio attenuator
adjustment range:
Audio input level:
Audio input connector:
Indicators
LCD:
LED:
Power requirements:
Battery life:
Dimensions (W x H x D):
Mass:
Supplied accessories:
0 dB SPL = 20µ Pa.
0 to 21 dB (in 3 dB steps)
-60 dBV (at 0 dB attenuator level)
3.5 mm (5/32 inch) dia., 3-pole mini jack
Operating channel number/frequency, attenuator level, RF-output level (High/Low), audioinput status, RF-output status, transmitter battery status, and accumulated operating time
Power status
DC 3.0 V (with two AA-size alkaline (LR6) batteries)
Approx. 6 hours with Sony AA-size alkaline (LR6) batteries at 25 °C (77 °F) at 30 mW output
63 x 100 x 27 mm (2 1/2 x 4 x 1 1/8 inches)
Approx. 140 g (4.9 oz) including batteries
Omni-directional (UWP-C1)/Uni-directional (UWP-S1/X1) lavalier microphone (x 1),
windscreen (x 1), microphone-holder clip (x 1), belt clip (x 1)
Handheld Microphone
Oscillator:
Type of emission:
Carrier frequencies:
AU model:
CE model:
Crystal-controlled PLL synthesizer
F3E
792 MHz to 806 MHz (TV channels 66 to 67) Users may choose from 102 frequencies.
798 MHz to 822 MHz (TV channels 62 to 64) or 838 MHz to 862 MHz (TV channels 67 to 69)
Users may choose from 189 frequencies on each model.
U model:
758 MH to 782 MHz (TV channels 62 to 65) or 782 MHz to 806 MHz (TV channels 66 to 69)
Users may choose from 188 frequencies on each model.
RF power output:
30 mW or 5 mW (selectable)
1/4
Antenna:
wave length wire (internal)
Pilot tone signal:
32 kHz
Frequency response: 100 Hz to 18 kHz (typical)
Reference deviation: ±5 kHz (94 dB SPL, 1 kHz input)
Signal-to-noise ratio: 60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted)
Microphone capsule: Dynamic capsule (uni-directional)
Audio attenuator
0 to 21 dB (in 3 dB steps)
adjustment range:
Max. input sound
151 dB SPL (at 21 dB attenuator level)
pressure level:
Indicators
LCD:
Operating channel number/frequency, attenuator level, RF-output level (High/Low), audioinput status, RF-output status, transmitter battery status, and accumulated operating time
LED:
Power status
Power requirements: DC 3.0 V (two AA-size alkaline (LR6) batteries)
Battery life:
Approx. 6 hours with Sony AA-size alkaline (LR6) batteries at 25 °C (77 °F) at 30 mW output
Dimensions:
ø52 x 240 mm (ø2 1/8 x 9 1/2 inches)
Mass:
Approx. 300 g (10.6 oz) including batteries
Supplied accessories: Microphone holder (x 1), screw adaptor (x 1)
P o r t a b l e Tu n e r
Oscillator:
Crystal-controlled PLL synthesizer
Type of reception: Space diversity
Receiving frequencies:
AU model:
792 MHz to 806 MHz (TV channels 66 to 67) Users may choose from 102 frequencies.
CE model:
798 MHz to 822 MHz (TV channels 62 to 64) or 838 MHz to 862 MHz (TV channels 67 to 69)
Users may choose from 189 frequencies on each model.
U model:
758 MH to 782 MHz (TV channels 62 to 65) or 782 MHz to 806 MHz (TV channels 66 to 69)
Users may choose from 188 frequencies on each model.
1/4… wave length wire
Antenna:
Pilot-tone signal:
32 kHz
RF squelch level:
15 dBµ
Frequency response: 50 Hz to 18 kHz (typical)
Reference deviation: ±5 kHz (at 1kHz modulation)
Signal-to-noise ratio: 60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted)
Audio output connector: 3.5 mm (5/32 inch) dia., 3-pole mini jack (x 1), unbalanced
Audio output level: -58 dBm
Monitor output connector: 3.5 mm (5/32 inch) dia., stereo mini jack (x 1)
Monitor output level: 5 mW (at 16 Ω)
Indicators
LCD:
Operating channel number/frequency, audio-output status, RF-input level, tuner battery
status, and accumulated operating time
LED:
RF-input status
Power requirements: DC 3.0 V (two AA-size alkaline (LR6) batteries)
Battery life:
Approx. 6 hours with Sony AA-size alkaline (LR6) batteries at 25 °C (77 °F)
Dimensions (W x H x D): 63.0 x 100.0 x 30.0 mm (2 1/2 x 4 x 1 3/16 inches)
Mass:
Approx. 180 g (6 oz) including batteries
Supplied accessories: Microphone stand adaptor (x 1), screw adaptor (x 1), shoe-mount adaptor (x 1),
belt clip (x 1), output cable (x 2, 3-pole mini-plug/XLR-type, 3-pole mini-plug/stereo mini-plug)
H a l f 1 9 - I n c h R a c k - S i z e Tu n e r
Oscillator:
Crystal-controlled PLL synthesizer
Type of reception: Space diversity
Receiving frequencies:
AU models:
792 MHz to 806 MHz (TV channels 66 to 67) Users may choose from 102 frequencies.
CE models:
798 MHz to 822 MHz (TV channels 62 to 64) or 838 MHz to 862 MHz (TV channels 67 to 69)
Users may choose˜ from 189 frequencies.
U models:
758 MH to 782 MHz (TV channels 62 to 65) or 782 MHz to 806 MHz (TV channels 66 to 69)
Users may choose from 188 frequencies.
1/4
Antenna:
wave length wire
Pilot-tone signal:
32 kHz
RF squelch level:
25 dBµ
Frequency response: 50 Hz to 18 kHz (typical)
Reference deviation: ±5 kHz (at 1kHz modulation)
Signal-to-noise ratio: 60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted)
Audio output connector: 1/4-inch phone jack (unbalanced) or XLR-3-32 type (balanced)
Audio output level
XLR-3-32:
-28 dBm (LINE level) or -58 dBm (MIC level)
1/4-inch phone jack: -30 dBm
Monitor output connector: 1/4-inch stereo mini jack (x 1)
Monitor output level: 5 mW (at 16 Ω)
Indicators
LCD:
Operating channel number/frequency, audio-output status, RF-input level
LED:
RF-input status
Power requirements: DC 9.0 V
Dimensions (W x H x D): 212.0 x 44.0 x 209.0 mm (8 3/8 x 1 3/4 x 8 1/4 inches)
Mass:
Approx. 1.3 kg (2 lb 14 oz)
Supplied accessory: AC/DC adaptor (x 1)
Tu n e r M o d u l e
Oscillator:
Crystal-controlled PLL synthesizer
Type of reception: Space diversity
Receiving frequencies:
AU models:
792 MHz to 806 MHz (TV channels 66 to 67)
Users may choose from 102 frequencies.
CE models:
798 MHz to 822 MHz (TV channels 62 to 64) or 838 MHz to 862 MHz (TV channels 67 to 69)
Users may choose from 189 frequencies.
U models:
758 MH to 782 MHz (TV channels 62 to 65) or 782 MHz to 806 MHz (TV channels 66 to 69)
Users may choose from 188 frequencies.
1/4
Antenna:
wave length wire
Pilot tone signal:
32 kHz
RF squelch level:
25 dBµ
Frequency response: 50 Hz to 18 kHz (typical)
Reference deviation: ±5 kHz (at 1kHz modulation)
Signal-to-noise ratio: 60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted)
Indicators
LCD:
Operating channel number/frequency, audio-output status, RF-input level
LED:
RF-input status
Power requirements: DC 9.0 V
Dimensions (W x H x D): 56.6 x 25.5 x 121.0 mm (2 1/2 x 1 1/16 x 4 7/8 inches)
Mass:
Approx. 150 g (5.3 oz)
Supplied accessory: —
Use of Sony wireless devices in the United States of America is regulated by the Federal Communications Commission
as described in Parts 15 and 74 of the FCC regulations.
Users authorized thereby are required to obtain an appropriate license.
Distributed by
MK10223V1TC05APR
© 2005 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permissions is prohibited.
Features, design and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Sony and DVCAM are registered trademarks of Sony Corporation.
HDV and HDV logo are trademarks of Sony Corporation and Victor Company of Japan, Limited (JVC).
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
