Sony BDP-BX1 Quick start guide

Sony BDP-BX1 Quick start guide
3-452-887-11 (2)

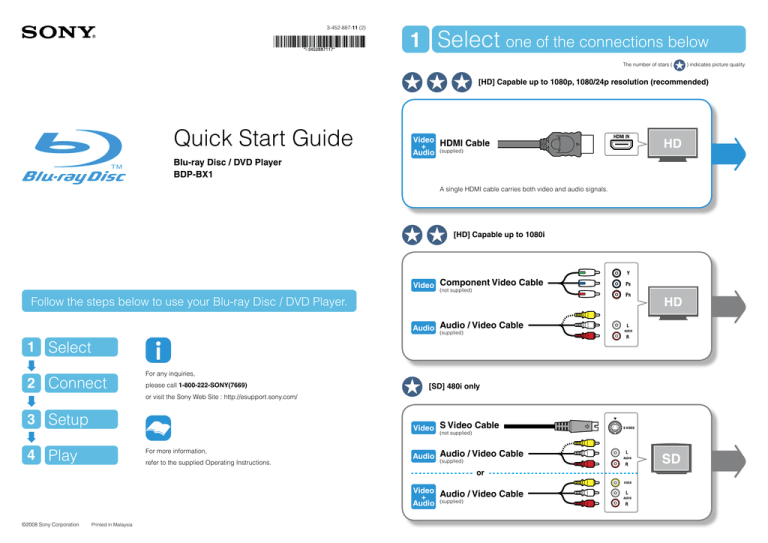

1 Select one of the connections below
The number of stars (
) indicates picture quality.
[HD] Capable up to 1080p, 1080/24p resolution (recommended)
Quick Start Guide
Blu-ray Disc / DVD Player
Video HDMI Cable
Audio (supplied)
A single HDMI cable carries both video and audio signals.
[HD] Capable up to 1080i
Video Component Video Cable
(not supplied)
Follow the steps below to use your Blu-ray Disc / DVD Player.
Audio Audio / Video Cable
1 Select
2 Connect
For any inquiries,
please call 1-800-222-SONY(7669)
[SD] 480i only
or visit the Sony Web Site :
3 Setup
Video S Video Cable
(not supplied)
4 Play
For more information,
refer to the supplied Operating Instructions.
Audio Audio / Video Cable
Video Audio / Video Cable
Audio (supplied)
©2008 Sony Corporation
Printed in Malaysia
2 Connect
HDMI Cable
3 Setup
4 Play
After all of the other connections are
complete, connect the supplied AC power
Press  (open/close), and place a disc on
the tray.
Playback side facing down
to AC outlet
 Carefully align the HDMI OUT jack on the rear of the
player and the HDMI connector by checking their
shapes. Make sure the connector is not upside down
or tilted.
Insert two Size AA (R6) batteries.
Turn on your TV and switch the input
Press / to turn on the player.
Component Video Cable and Audio / Video Cable
Press  (open/close) to close the disc tray.
When you insert a commercially available BD‑ROM
or DVD VIDEO, playback automatically starts
depending on the disc.
Refer to “Playback” in the Operating Instructions for
more details on playback, or when playback does
not start automatically.
Useful Functions
Wait for a short while before the player turns on.
The OSD language selection display appears.
S Video Cable and Audio / Video Cable
Perform basic settings by following the onscreen instructions in “Easy Setup” using
Audio / Video Cable
Shows the original menu
provided with the disc.
Shows the pop-up menu,
which can be displayed
during playback.
Shows the XMB™
(XrossMediaBar) menu that
allows you to operate disc
playback and setups.
Shows the optional menu
available in each case.
When “Easy Setup” is complete, the player is ready.
To shorten the startup time from standby mode, set
“Standby Mode” to “Quick Start” in the “System
Settings” setup. Refer as well to “Standby Mode” in
the Operating Instructions.
To enjoy more BD functions, the following steps in the
supplied Operating Instructions are necessary.
– Step 3: Inserting the External Memory
– Step 4: Connecting to the Network
