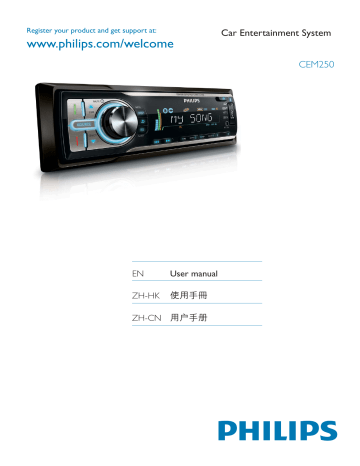

Car Entertainment System CEM250
Register your product and get support at:
Car Entertainment System
CEM250
EN
User manual
ZH-HK
Ԛ͂ʹ˫
ZH-CN Ⴌ߀൱Ҭ
1 Important
Safety
Notice
2 Your car audio system
Introduction
What’s in the box
Overview of the main unit
Overview of the remote control
3 Get started
Install the car audio
Install remote control battery
Turn on
Set clock
4 Listen to radio
Tune to a radio station
Store radio stations in memory
Tune to a preset station
5 Use bluetooth devices
Pairing bluetooth devices
Play audio files
Voice dialing
Make a call
Call waiting
Call transfer
Terminate call
6 Play audio files
Play a disc
Play from USB/SD/SDHC/MMC device
Control play
Search for an MP3/WMA track
View play information
Intro play
Shuffle play
Repeat play
Connect external sound source
2
2
2
4
4
4
5
6
8
8
12
13
13
14
14
14
14
15
15
15
15
15
15
16
16
7 Adjust sound
20
Adjust volume
20
Mute
20
Turn Dynamic Bass Boost (DBB) on/off 20
Select preset equalizer
20
Other sound settings
20
8 Adjust system settings
21
21
21
21
21
21
21
22
22
22
22
Set PIN code
Set bluetooth connection
Select blackout setting
Turn demo mode on/off
Change button backlight color
Select start volume
Turn beep sound on/off
Turn display scroll on/off
Select shock-protect setting
Reset
9 Additional information
23
23
23
23
Detach the front panel
Replace fuse
Remove the unit
10 Product information
24
11 Troubleshooting
25
12 Glossary
26
17
17
17
18
18
18
18
19
19
19
EN
1
English
Contents
1 Important
Notice
Safety
•
•
•
•
•
•
•
•
•
•
•
•
Read and understand all instructions
before you use your apparatus. If damage is
caused by failure to follow instructions, the
warranty does not apply.
This apparatus is designed for negative
ground (earth) 12 V DC operation only.
To ensure safe driving, adjust the volume to
a safe and comfortable level.
Improper fuses can cause damage or
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware
for a safe and secure installation.
To avoid short circuit, do not expose the
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation
slots or other openings on the apparatus.
Clean the apparatus and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
Never place any objects other than discs
into the apparatus.
Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
Visible and invisible laser radiation when
open. Avoid exposure to beam.
Risk of damage to the apparatus screen!
Never touch, push, rub or strike the screen
with any object.
Caution
• Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
2
EN
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
This apparatus includes these labels:
Class II equipment symbol
This symbol indicates that the apparatus has a
double insulation system.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
English
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2009 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
EN
3
2 Your car audio
system
l Quick start guide
m Standard connector
a
b
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the in-car audio system, you can enjoy
your drive while you listen to:
• FM or AM (MW) radio
• Audio from CD or MP3 disc
• Audio from your mobile phone
• Audio from a USB drive
• Audio from a SD/SDHC/MMC card
• Audio from external devices
Besides, you can make a call, answer and hang
up a call on the audio system.
c
Check and identify the contents of your
package:
a Car audio system
b Remote control
c Microphone
d Microphone hold
e Rubber cushion
f Disassembly tool (2 pieces)
g Front panel
h Carrying case for front panel
i Trim plate
j Screw (4 pieces)
k User manual
4
EN
e
g
h
i
j
k
What’s in the box
d
l
f
m
a
b c d
s
x w v
a
•
•
•
•
b
e
f
r
g
q
(green/red)
Answer phone (green).
Dial number (green).
View call log (green).
Terminate call (red).
/ DBB
• Select tuner band.
• Select MP3/WMA folder.
• Scroll up menu.
• Turn on or off Dynamic Bass Boost
(DBB) sound.
c SOURCE
• Select audio source.
• Connect or disconnect bluetooth
connection.
h i
p o n m l
u
English
Overview of the main unit
k j
t
d
•
•
•
•
•
•
/MUTE
Turn the unit on or off.
Adjust volume.
Confirm selection.
Enter characters for search.
Dial phone number.
Mute or restore the volume.
e MENU / DISP
• Display radio frequency, clock and
radio program type (if available).
• Display track, elapsed time, artist,
album, title, folder, file and clock.
• Access system menu.
EN
5
f
u Disc slot
•
•
•
Return to previous menu.
Stop search.
Disable screen blackout.
g Display panel
h
•
Unlock the panel
v
•
Take disc out.
w RESET
• Restore default settings
x SD/MMC card slot
i USB socket
j External device socket
k 6
•
Select preset station 6.
l 5
•
Select preset station 5.
m SHUF, 4
• Set shuffle play mode.
• Select preset station 4.
n 3, REP
• Set repeat play mode.
• Select preset station 3.
j
a
k
b
l
c
m
o INTRO, 2
• Turn intro play on or off.
• Select preset station 2.
d
p 1,
•
•
•
e
q
Start play
Pause or resume play.
Select preset station 1.
Tune to a radio station
Skip/search for MP3/WMA track.
r EQ/Audio
• Select equalizer (EQ) setting.
• Access audio setting menu.
s
f
n
o
p
q
r
/
•
•
/SEARCH
• Select tuner band.
• Store radio stations automatically.
• Scroll up or down menu.
• Select MP3/WMA folder.
• Search a track or folder.
t Panel power connection
6
Overview of the remote
control
EN
g
s
h
t
i
u
/
•
•
Tune to a radio station
Skip/search for a track.
•
Mute or restore volume.
b
c
PWR
• Turn the unit on or off.
d MENU
• Access system menu.
e AUDIO
• Access audio setting menu.
f 5/6/7/8/9/0+
• Select track or preset radio station.
• Enter phone number.
g
o EQ
• Select EQ setting.
p DBB
• Turn on or off Dynamic Bass Boost
(DBB) sound.
q SEARCH
• Set radio station memory
automatically.
• Search a track or folder.
r DISP
• Display radio frequency, clock and
radio program type (if available).
• Display MP3/WMA elapsed time, last
listened radio frequency, and clock.
s
•
•
•
Answer phone.
Dial number.
h 1,
•
•
•
•
Start play from the beginning of the
first track.
Pause or resume play.
Select preset station 1.
Enter phone number.
i SHUF, 4
• Set shuffle play mode.
• Select preset station 4.
• Enter phone number.
English
a
Terminate call
t 3, REP
• Set repeat play mode.
• Select preset station 3.
• Enter phone number.
u INTRO, 2
• Turn intro play on or off.
• Select preset station 2.
• Enter phone number.
j SEL
• Confirm selection.
k
/
•
•
Tune for radio station
Skip/search for MP3/WMA track.
•
•
Return to previous menu.
Disable screen blackout.
l
m SOURCE
• Select audio source.
n VOLUME +/• Adjust volume.
EN
7
3 Get started
Caution
• Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of your apparatus. The
model number and serial number are on the
bottom of your apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Note on the power supply lead (yellow)
• When you connect other devices to this
apparatus, ensure that the rating of the car
circuit is higher than the total fuse value of
all the connected devices.
Notes on speaker connection
• Never connect speaker wires to the metal
body or chassis of the car.
• Never connect speaker wires with stripes
to one another.
Overview of parts
These are the supplied parts needed to
connect and install this unit.
a In-car audio system
b Sleeve
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
c Front panel
d Standard connector
e Trim plate
f Rubber cushion
g Disassembly tools
h Screws (4 pieces)
a
b
• This unit is designed for negative ground (earth) 12 V DC
operation only.
• Always install this unit in the car dashboard. Other
•
•
•
•
•
•
•
8
locations can be dangerous as the rear of the unit heats
up during use.
To avoid short-circuit: before you connect, ensure that
the ignition is off.
Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
Ensure that all loose leads are insulated with electrical
tape.
Ensure that the leads do not get caught under screws
orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to a common
ground (earth) point.
Use only the supplied mounting hardware for a safe and
secure installation.
Improper fuses can cause damage or fire. When you
need to change the fuse, consult a professional.
EN
c
d
e
f
g
h
3
Connect the antenna and amplifier as
illustrated, if applicable.
English
Connection: for cars with ISO
connectors
Caution
• Ensure that all loose leads are insulated with electrical
A
tape.
1
Pull out the ISO connectors from car
dashboard and connect them to the bigger
end of the supplied standard connector.
B
A
a
2
A1 A2 A3 A4 A5 A6 A7 A8
B1 B2 B3 B4 B5 B6 B7 B8
Connect the other end of the supplied
standard connector to the unit.
b
c
d
e
Connector
Connect to
1
MIC
Microphone
2
REAR LINE
OUT R
Rear right
speaker
3
REAR LINE
OUT L
Rear left speaker
4
SUB OUT
Subwoofer
5
ANTENNA
Antenna
Connection: for cars without ISO
connectors
Caution
• Be sure to connect the black ground (earth) lead first.
EN
9
1
Connect the antenna and amplifier as
illustrated, if applicable.
3
Check the car’s wiring carefully and connect
them to the supplied standard connector.
B
A
B
A1 A2 A3 A4 A5 A6 A7 A8
B1 B2 B3 B4 B5 B6 B7 B8
A
a
a
b
c
a
c
d
a
a
b
b
c
c
d
d
d
f
i
e
Connector
Connect to
1
MIC
Microphone
2
REAR LINE OUT R
Rear right
speaker
3
REAR LINE OUT L
Rear left speaker
4
SUB OUT
Subwoofer
5
ANTENNA
Antenna
2
10
b
h
c
d
e
g
b
1
Green/black
strip
Left speaker (Rear)
2
White/black
strip
Left speaker (Front)
3
Gray/black
strip
Right speaker (Front)
4
Purple/black
strip
Right speaker (Rear)
Cut off the bigger end of the supplied
standard connector.
EN
e
RED
Ignition key +12V DC
when ON/ACC
f
BLUE
Motor/electric antenna relay
control lead/Amplifier relay
control lead
g
BLACK
Ground
h
ORANGE/
WHITE
Illumination switch
i
YELLOW
To the +12V car battery which
is energized at all times
Mount in the dashboard
1
2
If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
• If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
• If the car battery is not disconnected,
to avoid short-circuit, ensure that bare
wires do not touch each other.
Remove the two screws on the top of the
unit.
3
Remove the mounting sleeve with the
supplied disassembly tools.
4
Ensure that car dashboard opening is
within these measurements:
English
Connect the supplied standard connector
to the unit.
m
5m
183
mm
53mm
4
EN
11
5
Install the sleeve into the dashboard and
bend the tabs outward to fix the sleeve.
Attach the front panel
1
Attach the trim plate.
2
Insert the right side of the panel in the
chassis until it is correctly engaged.
3
Press the left side of the panel and point
the left hole at the left pillar.
4
Release the panel to engage the left side.
Note
• Skip this step if the unit is not fixed by sleeve but by
supplied screws.
m
5m
6
Place the supplied rubber cushion over the
end of the mounting bolt.
Install remote control battery
Caution
• Risk of explosion! Keep batteries away from heat,
7
8
sunshine or fire. Never discard batteries in fire.
Slide the unit into the dashboard until you
hear a click sound.
• Risk of decreased battery life! Never mix different brands
Reconnect the negative terminal of the car
battery.
• Risk of product damage! When the remote control is not
or types of batteries.
used for long periods, remove the batteries.
• Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
12
EN
For first-time use:
View clock
Remove the protective tab to activate the
remote control battery.
To replace the remote control battery:
1
2
3
1
Press MENU/DISP repeatedly until the
clock is displayed.
English
1
Open the battery compartment.
Insert 1 CR2025 batteries with correct
polarity (+/-) as indicated.
Close the battery compartment.
Turn on
1
Press to turn on the unit.
• To turn off the unit, press
seconds.
for 3
Set clock
1
2
3
4
5
6
Press MENU/DISP for 3 seconds.
Press or repeatedly until the currently
time is displayed.
Turn
clockwise to set hour.
Press
to confirm.
Turn
anti-clockwise to set minute.
Press
to confirm.
EN
13
4 Listen to radio
Store radio stations in
memory
Tune to a radio station
You can store up to 6 stations in each band.
1
2
Press SOURCE repeatedly to select Tuner.
Store stations automatically
Press or to select band: [FM1], [FM2],
[FM3], [AM1], or [AM2] .
1
3
Press
or
to tune to a radio station
manually.
» The radio station is broadcast.
» To search for a radio station
automatically, press SEARCH for 3
seconds.
Store stations manually
1
2
Select tuner sensitivity
You can adjust the tuner sensitivity if you want
to receive more radio stations or only stations
with strong signal.
1
2
Press MENU/DISP for over 2 seconds.
Press or repeatedly until [LOCAL] or
[DX] is displayed.
3
Rotate to select a setting:
•
[LOCAL] (local): Only stations with
strong signal can be broadcast.
•
[DX] (distance): Stations with strong
and weak signals can be broadcast.
4
Press
to confirm the selection.
Select stereo/mono broadcasting
For stations with weak signals: to improve the
reception, change to monoaural sound.
1
2
Press MENU/DISP for 3 seconds.
Press or repeatedly until [STEREO]
or [MONO] is displayed.
3
Turn to select a setting:
• [STEREO]: stereo broadcast.
• [MONO]: mono broadcast.
4
Press
14
EN
to confirm the selection.
Press SEARCH for 3 seconds.
» The six strongest stations of the
selected band are saved in preset
channels 1-6 automatically.
Tune to a station that you want to store.
Press one of the numbered buttons 1 to 6
for 3 seconds.
» The station is saved in the selected
channel.
Tune to a preset station
1
2
Press
or
to select band.
Press the number button 1 to 6 to select
the preset station.
English
» [NO MATCH] is displayed if the unit
does not recognize a number.
5 Use bluetooth
devices
Make a call
With this car audio system, you can listen
to audio files from a player or make a call
if bluetooth connection is available on your
phone or player.
1
Press SOURCE repeatedly to select [BT
MUSIC].
2
3
Press .
Pairing bluetooth devices
You can pair your bluetooth device with the
unit as follows:
1
2
3
4
Turn on bluetooth function on the device.
Setup bluetooth fuction on your device.
Select “CEM250” in the pairing list.
Enter default password “0000”.
» “[CONNECT]” is displayed on the
panel if pairing succeeds.
Press or to select from the following
list:
• [DIAL NUM]: dial a number directly
• [DIALLED]: dialled number
• [MISSED]: missed call
• [RECEIVED]: received call
• [ME PBK]: Phone directory
• [SIM PBK]: SIM card directory
4
Press to confirm the selection.
To dial a number directly, select [DIAL NUM].
1
Press 0-9 to enter phone number.
• Press /
to change a number.
• Press
to reset entered numbers.
2
Play audio files
You can listen to audio from a bluetooth device
and control playback with the unit.
1
•
•
Press SOURCE repeatedly to select [BT
MUSIC].
To play, press 1,
.
To pause, press 1,
again.
Voice dialing
Press to dial.
To use a number in call log or directory, select
the options other than [DIAL NUM].
1
Turn to select a number from call log or
directory.
2
Press
to dial.
Call waiting
If there is another incoming call during call,
[CALL WAITING] flashes on the display panel.
1
You can dial a number by voice if your mobile
phone supports voice dialing.
Press to terminate the present call.
» The other call is automatically
answered.
1
Press for 3 seconds.
» [VOIC DIAL] is displayed.
» The first call is terminated.
2
Speak a name stored in contact list stored
in the phone.
» The unit repeats the number and calls
out.
EN
15
Call transfer
You can transfer voice from loudspeaker to
mobile phones during call.
1
Press .
» [TRANSFER] is displayed.
Terminate call
a Press
16
EN
to terminate call.
Play from USB/SD/SDHC/
MMC device
Note
English
6 Play audio files
Note
• Ensure that the disc or device contains playable files.
• Ensure that the USB or SD/SDHC/MMC device contains
playable music.
Play a disc
Insert the USB device
1
Open the cover marked
front panel.
2
Insert the USB device into the USB socket.
» The unit starts playing from the USB
device automatically.
Note
on the
• You cannot play CDs encoded with copyright protection
technologies.
You can play commercially available audio CDs
and these discs:
• CD-Recordables (CD-R)
• CD-Re-writables (CD-RW)
• MP3 CDs
• WMA CDs
1
Press
panel.
2
3
4
Insert a CD with the printed side facing up.
1
2
Press
.
Press
beside the disc slot.
on the front panel to release the
Close the panel.
Press 1,
to start play.
• To pause CD play, press 1 .
• To resume CD play, press 1
again.
Remove the CD
To take out the CD,
Remove the USB device
1
2
Press and hold
to turn off the unit.
Remove the USB device.
EN
17
Insert a card
Note
• This unit supports SD, SDHC, and MMC cards.
1
2
Press
Search for an MP3/WMA
track
1
» [FILE]: search by track name.
to release the panel.
Insert the SD or MMC card into the card
slot.
» The unit starts playing from the SD/
MMC card automatically.
Press SEARCH for 3 seconds.
» Search menu is displayed.
» [FOLDER]: search by folder sequence.
2
Turn to select [FILE] and then press
to confirm.
3
Turn
press
4
Repeat step 3 until the search term is
complete.
5
Press for 3 seconds to start search.
» When search is finished, a list of
matching tracks are displayed.
6
7
Turn
to skip over the list.
Press
to select a track.
to enter a character and then
.
View play information
1
Remove the card
1
2
3
Press
to turn off the unit.
Press the card until you hear a click sound.
» The card is now disengaged.
Remove the card.
During play USB/SD/MMC device, press
MENU/DISP repeatedly to view:
• Track number and elapsed play time
• Artist
• Album
• Title
• Folder
• File
• Clock
Control play
Intro play
•
•
You can play the first 10 seconds of each track.
•
•
•
18
To select a folder, press or .
To skip to the previous/next track, press
or
.
To search backward/forward rapidly within
the current track, press
or
for 3
seconds.
To pause, press 1, .
To resume play, press 1,
again.
EN
1
During play, press INTRO, 2 to select:
• [INT ON] : After the first 10 seconds
of each track have been played, play
stops.
• [INT OFF] : Cancel intro play and
start normal play.
English
Shuffle play
You can play the tracks in random order.
1
During play, press SHUF, 4 to select:
• [SHUF ON]: start shuffle play for all
tracks.
• [SHUF OFF]: cancel shuffle play.
Repeat play
1
•
•
•
During play, press 3, REP repeatedly to
select:
[RPT 1] (repeat one track): play the
current track repeatedly.
[RPT FOLD] (repeat a folder): play all
tracks in the current folder repeatedly.
[RPT ALL] (repeat all tracks): play all tracks
repeatedly.
Connect external sound
source
1
Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
2
Press SOURCE repeatedly until [MP3
LINK] is displayed.
3
Operate the external component (refer to
the instructions supplied with the external
component).
EN
19
7 Adjust sound
Other sound settings
You can also edit user preset EQ.
Adjust volume
1
1
2
Turn clockwise/anticlockwise to
increase/decrease volume.
Mute
You can turn off the sound of your audio.
1
During play, press MUTE .
• To turn the sound back on, press
MUTE again.
Turn Dynamic Bass Boost
(DBB) on/off
1
Press DBB for 3 seconds, the current
setting is displayed:
» [DBB ON] : The Dynamic Bass Boost
(DBB) function is on.
» [DBB OFF] : The DBB function is off.
2
Press DBB again for 3 seconds to change
the DBB setting.
Select preset equalizer
1
Press EQ/Audio.
» The current Equalizer setting is displayed.
2
Press EQ/Audio again repeatedly to select
a preset EQ:
• [USER] (user)
• [FLAT] (flat)
• [POP] (pop)
• [TECHNO] (techno)
• [ROCK] (rock)
• [CLASSIC] (classic)
• [JAZZ] (jazz)
• [OPTIMAL] (optimal)
20
EN
3
4
Press EQ/Audio for 3 seconds.
Press or repeatedly to select the item
to be adjusted:
• [BAS] (bass) range: -7 to +7.
• [MID] (bass) range: -7 to +7.
• [TRE] (treble) range: -7 to +7.
• [BAL] (balance) range: 12L to 12R. (L
= left speaker, R = right speaker)
• [FAD] (fader) range: 12R to 12F. (R =
rear speaker, F = front speaker)
• [LPF] (low pass filter) range: 60, 80,
100, 200.
• [MPF] (mid pass filter) range: 500, 1K,
1.5K, 2.5K.
• [HPF] (high pass filter) range:10K,
12.5K, 15K, 17.5K.
• [SW ON]/[SW OFF] (subwoofer
volume on or off)
• [SW VOL] (subwoofer volume) range:
0 to 15.
Turn
to select a value.
Press
to confirm.
Turn demo mode on/off
When demo mode is on, when the unit is idle for
more than 2 minutes, all functions are displayed.
1
2
Set PIN code
You can set a password for bluetooth connection.
1
2
3
4
5
Press MENU/DISP for 3 seconds.
Press or repeatedly to until [PIN
CODE] is displayed.
Press
to confirm selection.
Turn
and then press
Set bluetooth connection
You can set whether the set connects to last
bluetooth device automatically.
1
2
Press MENU/DISP for 3 seconds.
Press or repeatedly to until [AUTO
ON] or [AUTO OFF] is displayed.
• [AUTO ON]: The unit connects to
last bluetooth device automatically.
• [AUTO OFF]: does not connect
automatically
Press or repeatedly to until [DEMO]
is displayed.
» The screen shows current Demo
mode setting.
3
Turn to select a setting:
• [DEMO ON] : Turn on the demo
mode.
• [DEMO OFF] : Turn off the demo
mode.
4
Press
to enter a digit.
Repeat step 4 to enter other three digits.
Press MENU/DISP for 3 seconds.
to confirm.
Select start volume
Each time you turn on the unit, it can play at the
last listened volume or at the preset volume.
1
2
Press MENU/DISP for 3 seconds.
Press or repeatedly to until [V LAST] or [V - ADJ] is displayed.
3
Turn to select a setting:
• [V - LAST] : Each time you turn on
the unit, the volume remains from its
previous use.
• [V - ADJ] : Each time you turn on the
unit, the volume is at the preset level.
Select blackout setting
4
Press
You can set the screen to turn off automatically
after the unit is idle for 10 or 20 seconds.
Store preset volume
3
1
2
3
Press
to confirm selection.
Press MENU/DISP for 3 seconds.
Turn to select a setting:
• [BKO 10 S] : Turn off the screen
automatically 10 seconds after last
operation.
• [BKO 20 S] : Turn off the screen
automatically 20 seconds after last
operation.
• [BKO OFF] : Never turn off the screen.
Press
to confirm.
You can turn on the unit at a preset volume.
1
2
3
4
5
Select [V - ADJ] as the start volume.
Press MENU/DISP for 3 seconds.
Press or repeatedly to until [A-VOL]
is displayed.
Turn
to select a value: 0 - 47.
Press
to confirm.
to confirm.
EN
21
English
8 Adjust system
settings
Turn beep sound on/off
Select shock-protect setting
Each time you press a button, the unit beeps.
You can turn off/on this beep sound.
You can select the shock protection setting,
depending on the stability of your car and the
condition of the road.
1
2
3
4
Press MENU/DISP for3 seconds.
Press or repeatedly to until [BEEP
ON] or [BEEP OFF] is displayed.
1
2
Rotate to select a setting:
• [BEEP ON]: Turn on the beep sound.
• [BEEP OFF]: Turn off the beep sound.
3
Press
to confirm.
Turn display scroll on/off
For track information that is longer than the
display panel: you can select to cut off the
remainder of the text, or scroll to display the
full text.
• If any special characters are present in the MP3 track
•
1
2
name or album name, it may not display correctly on the
screen because these characters are not supported.
Some WMA is protected by Digital Rights Management
(DRM), it cannot be played on the unit.
Folders/files exceed the supported limit of the unit are
not displayed or played.
Press MENU/DISP for 3 seconds.
Press or repeatedly to until [ROLL
ON] or [ROLL OFF] is displayed.
3
Turn to select a setting:
• [ROLL ON] (scroll on): Auto scroll
during play.
• [ROLL OFF] (scroll off): No auto
scroll display.
4
Press
22
EN
to confirm.
Press or
displayed.
repeatedly until [ESP] is
Turn to select a setting:
• [ESP 12]: select this when the road is
smooth and there are few bumps.
• [ESP 45] select this when the road is
bumpy and unstable.
Press to confirm the selection.
Reset
You can reset the unit to its default setting.
1
2
Note
•
4
Press MENU/DISP for 3 seconds.
Detach the front panel.
Press the reset button by using a ball-point
pen or a similar tool.
» Preset adjustments such as preset
channels and sound adjustments are
erased.
3
Replace the fuse.
English
9 Additional
information
A1 A2 A3 A4 A5 A6 A7 A8
B1 B2 B3 B4 B5 B6 B7 B8
Detach the front panel
You can detach the front panel to deter theft.
1
2
Press
to release the panel.
Press the left side of the panel rightward.
FUSE 15A
Note
• If the new fuse gets damaged again, there may be an
internal malfunction. Consult your Philips dealer.
Remove the unit
You can remove the unit from the dashboard.
1
2
3
Pull the panel towards you to detach it
from the chassis.
4
Store the panel in the supplied carry case
to protect it from dirt or damage.
Detach the front panel.
Pull out the unit by using the removal keys.
Replace fuse
If the fuse is damaged,
1
2
Check the electric connection.
Buy a fuse that matches the voltage of the
damaged fuse.
EN
23
10 Product
information
Note
• Product information is subject to change without prior
notice.
Power supply
12 V DC (11 V - 16 V),
negative ground
Fuse
15 A
Suitable speaker
impedance
4-8
Maximum power
output
50 W x 4 channels
Continuous power
output
24 W x 4 channels
(4 10% T.H.D.)
Pre-Amp output
voltage
2.0 V ( USB play mode; 1
kHz, 0 dB, 10 k load)
Subwoofer output
voltage
2.0 V (USB play mode:
61 Hz, 0 dB, 10 k load)
Aux-in level
500 mV
Dimensions (W x H
x D)
188 x 58 x 190 mm
Weight
1.36 kg
Radio
Frequency range
- FM
87.5 - 108.0 MHz (Europe)
87.5 - 107.9 MHz
(American)
Frequency range - 522 - 1620 KHz (Europe)
AM(MW)
530 - 1710 KHz
(American)
Usable sensitivity
- FM
8 —V
Usable sensitivity AM(MW) (S/N =
20 dB)
30 —V
24
EN
Compatible USB devices:
• USB flash memory (USB 2.0 or USB1.1)
• USB flash players (USB 2.0 or USB1.1)
• memory cards (SD / MMC / SDHC)
Supported formats:
• USB or memory file format: FAT16, FAT32
• MP3 bit rate (data rate): 32-320 Kbps and
variable bit rate
• WMA v9 or earlier
• Directory nesting up to a maximum of 8
levels
• Number of albums/ folders: maximum 99
• Number of tracks/titles: maximum 999
• ID3 tag v2.0 or later
• File name in Unicode UTF8 (maximum
length: 128 bytes)
Unsupported formats:
• Empty albums: an empty album is an album
that does not contain MP3/WMA files, and
is not be shown in the display.
• Unsupported file formats are skipped. For
example, Word documents (.doc) or MP3
files with extension .dlf are ignored and
not played.
• AAC, WAV, PCM audio files
• DRM protected WMA files (.wav, .m4a,
.m4p, .mp4, .aac)
• WMA files in Lossless format
• ISO9660, Joliet
• Maximum title number: 512 (depending on
file name length)
• Maximum album number: 255
• Supported sampling frequencies: 32 kHz,
44.1kHz, 48 kHz
• Supported Bit-rates: 32~256 (kbps),
variable bit rates
Caution
• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/support). When you contact Philips,
ensure that your apparatus is nearby and the
model number and serial number are available.
No power or no sound.
•
Car engine is not on. Turn the car engine
on.
•
Cable is not correctly connected. Check
connections.
•
Fuse is burnt. Replace fuse (see ‘Reset’ on
page 22).
•
Volume is too low. Adjust volume.
•
If the above solutions cannot help, press
the RESET button.
•
Ensure that the track played is of a
compatible format.
Noise in broadcasts.
•
Signals are too weak. Select other stations
with stronger signals.
•
Check the connection of the car antenna.
•
Change broadcast from Stereo to mono
(see ‘Select stereo/mono broadcasting’ on
page 14).
Cannot play disc
•
Ensure that the disc label is inserted with
the printed side facing up.
•
Wipe the disc with fibre cleaning cloth
from the centre to the edge in a straight
line.
•
This disc may be defective. Play another
disc.
•
Ensure that the CD is a finalised CD/
CD-R/CD-RW.
•
Ensure that the CD is not encoded with
copyright protection technologies.
The CD skips tracks
•
Ensure that the CD is not damaged or
dirty.
•
Ensure that random mode is deactivated.
Disc cannot be ejected
•
Press and hold .
Preset stations lost.
•
Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
Display show ERR-1
•
The disc, USB or SD device cannot be
read in two minutes.
Display show ERR-3
•
USB/SD/MMC data error.
•
Disc is upside down. Ensure the printed
side is facing up.
Display show ERR-5
•
Communication error or component is
damaged.
EN
25
English
11 Troubleshooting
12 Glossary
M
MMC
MultimediaCard. A type of memory card with a
flash memory.
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more data
than a regular CD.
S
SD
Secure Digital. A type of memory card with a
flash memory.
SDHC
Secure Digital High Capacity (SDHC) is a type
of flash memory card based on the SDA 2.00
specification. The SDA 2.00 specification enables
SD cards to reach higher capacities from 4GB
to 32GB, and growing.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
26
EN
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number:
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
