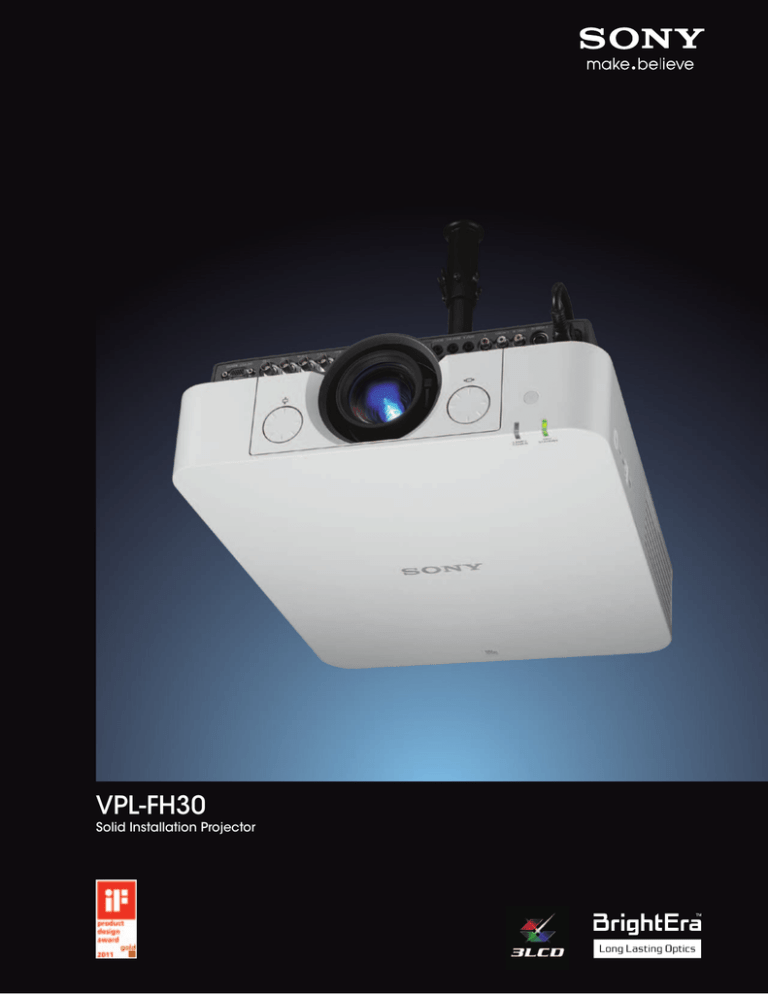

VPL-FH30
Solid Installation Projector
High Picture Quality in WUXGA Projection
Delivering an Outstanding Brightness of 4,300 Lumens
Packing the most advanced projector technologies into
a low-profile design, the VPL-FH30 is an excellent choice,
delivering an outstanding brightness of 4,300 lumens* and
ultra high-quality images with WUXGA resolution.
It also delivers amazing installation flexibility and hassle-free
maintenance in a stylish design that blends into any decor.
This projector is equipped with an excellent lens shift function
and a standard 1.6x zoom lens, making image adjustment
easy. It is also compatible with the optional lenses designed
for Sony’s VPL-F40 Series, extending the range of installation
choices. The maintenance cycles of the lamp and cleaning
filters are synchronized and exceptionally long, which cuts
maintenance time and cost.
Overall, the VPL-FH30 delivers a low total cost of ownership, and additionally includes eco-friendly features such
as a long-lasting lamp and low power consumption.
*ISO 21118
Ultra-high WUXGA Resolution
with Full-HD Compatibility
The VPL-FH30 delivers an amazing resolution of WUXGA (1920
x 1200), which exceeds Full-HD resolution (1920 x 1080).
WXGA picture quality
WUXGA picture quality
simulated images
Licensed by Tokyo Tower
High Picture Quality
The VPL-FH30 allows projection in a wider display range.
More information can be displayed on the screen, so the user
can see the whole page without scrolling.
WXGA 1280 x 800
WUXGA 1920 x 1200
Brilliant Color Performance
By combining an optical system that uses Sony’s BrightEra with
Long Lasting Optics™ technology* and a 3LCD projection
system, the VPL-FH30 offers a high brightness of 4,300 lumens.
* BrightEra with Long Lasting Optics is the Sony brand name for this optical
system, which uses a more advanced version of Sony's original BrightEra™
technology. In addition to adopting LCD panels that have pixels with large
aperture ratios and inorganic alignment layers, BrightEra with Long Lasting
Optics technology also uses an inorganic layer for polarization plates to
greatly enhance reliability.
100%
Need to scroll
during discussion
100%
simulated images
Extremely clear and detailed high-quality images are
projected, even on a large screen, and native Full-HD images
can be projected full screen. The VPL-FH30 is the ultimate tool
for projecting images in a range of applications requiring
exceptional detail.
2
3LCD Projection Offers Brilliant Color Performance
The VPL-FH30 adopts a 3LCD projection system incorporating
three LCD panels. This
system enables the projector
to present bright and natural
images.
simulated images
Installation Advantages
Lens Shift Function
The VPL-FH30 has a Lens Shift function which is controlled
from the projector control panel or the supplied Remote
Commander® unit. Using this function, the position of the
projected image can be moved vertically by up to 60% and
horizontally from -32% through to +32%. Images can be easily
adjusted to the desired settings during installation.
"Blend-in" Design
The VPL-FH30 showcases a newly designed low-profile chassis,
so the projector appears to blend into the ceiling or wall on
which it is mounted. The connector panel is located on the
front of the unit so its cables cannot be seen by the audience.
Convenient, Simple Projector Replacement
The standard 1.6x zoom lens enables installation flexibility
when replacing an existing projector with the VPL-FH30 –
there’s no need to change ceiling mount positions. For
applications where more than a standard lens is needed,
the VPL-FH30 is compatible with the optional VPLL-Z1024 and
VPLL-Z1032 accessory lenses designed for Sony’s current
VPL-F40 Series.
Good TCO and ECO-friendly Design
Long-lasting Lamp
By incorporating a newly developed high-performance lamp
and advanced lamp-control technology, the VPL-FH30 offers a
recommended lamp replacement time of approximately 4000
hours.*1
VPL-FH30
4000 hours
Conventional 1
Shorter throw ratio
VPL-FH30
Conventional 2
VPL-FW41
Longer throw ratio
2500 hours
Conventional
model
Broad throw ratio simplifies projector replacement
Centered Lens Design
The centered lens provides symmetry for a balanced
installation, and makes setup very simple.
Recommended lamp replacement time*2
*1 in standard mode. Expected maintenance time, not guaranteed. Lamp
performance will vary based on operating environment and use.
*2 The values are approximate
Low Power Consumption
The VPL-FH30 offers remarkably low power consumption,
allowing users to make significant savings on their electricity
expenses.
ECO MODE Key
With a single push of the ECO MODE key on either the
projector or the supplied Remote Commander® unit, users
can select an energy-saving setting from the ECO Mode
ECO MODE key
Balanced and symmetrical installation
3
Lamp and Filter Synchronized Maintenance
When the air filter must be cleaned, a timely message is
displayed on screen. The lamp and the filter are accessible
from the same side, so their maintenance can be performed
without uninstalling the projector. With typical usage, the
filters have an approximate
15000-hour cleaning
cycle. This is achieved by
a Quad Filter system which
means the filters only need
to be cleaned when the
lamp is changed, even in
harsh conditions, saving
maintenance time and
cost.
Air flow direction
Screen Aspect
When screen and image aspect ratios do not match*, this
function fits the projected image to the screen. So, even when
images are switched between different aspect signals, the
projected image can always fit the screen.
* Using the same aspect ratio between screen and projector is ideal.
Quiet Noise Operation
Low noise fans designed to produce lower frequency sounds
to be less obtrusive
Closed Captioning
Official teletext broadcasting, developed by the NCI, USA
Security Pack
Security lock (password and mechanical), security bar, panel
key lock, and security label
Test Pattern Key
For easy screen adjustment
ID Mode
For individual control of multiple projectors
Normal mesh filters
Freeze Function
Freezes the projected image
Fine mesh filters
Hybrid element
Quad Filter System
Smart APA
Auto pixel alignment
Other Features
Picture-by-Picture
With this feature, users
can project two different
images at the same
time, greatly expanding
creative possibilities and
enabling exciting new
applications.
Direct Power On/Off
Direct power control using the circuit breaker on the switch
board
High Altitude Mode
For projector operation at high altitude
simulated images
* Follows GSDF (Grayscale
Standard Display
Function) medical
standards for DICOM
(Digital Imaging and
Communications in
Medicine).
* This function is for training
and reference only, and
cannot be used for
medical diagnosis.
Output luminance [%]
DICOM GSDF Simulation*
The VPL-FH30 is equipped with a new gamma mode, called
DICOM GSDF Simulation. This is ideal for viewing digital
medical imagery for non-diagnostic applications.
100
90
80
70
60
50
40
30
20
10
0
Network and Control
Controls and monitors projector status
Compatible with various control systems
Standard 2.2
DICOM GSDF sim.
0
200
400
600
Input level
800
1000
Gamma curve*
*Based on internal testing.
Standard 2.2
4
DICOM GSDF simulation
simulated images
OPTIONAL ACCESSORIES
LMP-F272
PAM-600
Projector Lamp (for replacement)
Projector Suspension Support
VPLL-Z1024
VPLL-Z1032
PK-F30LA1
Projector Lens
Projector Lens
Projector Lens Adapter
OPTIONAL LENSES
VPLL-Z1024
Projection lens
VPLL-Z1032
Throw ratio
2.34 to 3.19
3.18 to 4.84
Zoom / Focus
Manual / Manual
Manual / Manual
Lens shift
Vertical: Upward 60% to Downward 0%
Horizontal: Right 32% to Left 32%
Vertical: Upward 60% to Downward 0%
Horizontal: Right 32% to Left 32%
Aperture
f/2.00 to 2.30
f/2.00 to 2.40
Screen size*
40” to 600”
40” to 600”
Dimensions
W 3 13/16 x H 3 7/16 x D 7 3/32 in (W 97 x H 87 x D 180 mm)
W 3 13/16 x H 3 7/16 x D 6 31/32 in (W 97 x H 87 x D 177 mm)
Weight
2 lb 7 oz / 1.1 kg
2 lb 7 oz / 1.1 kg
Required projection lens adapter
PK-F30LA1
PK-F30LA1
* Viewable area, measured diagonally.
5
PRESET SIGNAL CHART
Computer Signal
Resolution
Digital TV Signal
Input connector
RGB*1
DVI-D*2/HDMI*3
—
—
—
—
fH [kHz]/
fV [Hz]
31.5/70
37.9/85
31.5/70
37.9/85
31.5/60
35.0/67
37.9/73
37.5/75
43.3/85
35.2/56
37.9/60
48.1/72
46.9/75
53.7/85
49.7/75
48.4/60
56.5/70
60.0/75
68.7/85
64.0/70
67.5/75
77.5/85
61.8/66
60.0/60
75.0/75
64.0/60
80.0/75
91.1/85
65.3/60
75.0/60
47.8/60
45.0/60
67.5/60
47.7/60
55.9/60
65.3/60
49.7/60
74.0/60
60.0/60
640 x 350
640 x 400
640 x 480
800 x 600
832 x 624
1024 x 768
1152 × 864
1152 x 900
1280 x 960
1280 x 1024
1400 x 1050
1600 x 1200
1280 x 768
1280 x 720
1920 x 1080
1360 x 768
1440 x 900
1680 x 1050
1280 x 800
1920 x 1200
1600 x 900
—
—
—
—
—
—
—
—
—
480i
576i
480p
576p
1080i
1080i
720p
720p
1080p
1080p
1080p
60
50
60
50
60
50
60
50
60
50
24
—
—
Signal
fV [Hz]
NTSC
PAL/SECAM
60
50
*6
*6
*5
*5
INSTALLATION DIAGRAM
Projection Distance
Unit: inches (m)
Projection image size
Projection distance L
Diagonal
Width x Height
Standard lens
VPLL-Z1024
VPLL-Z1032
80-inch
(2.03 m)
1.72 x 1.08
(68 x 42)
2.39 – 3.83
(95 – 150)
4.00 – 5.48
(158 – 215)
5.45 – 8.32
(215 – 327)
100-inch
(2.54 m)
2.15 x 1.35
(85 x 53)
3.00 – 4.80
(119 – 189)
5.03 – 6.87
(198 – 270)
6.84 – 10.43
(270 – 410)
120-inch
(3.05 m)
2.58 x 1.62
(102 x 64)
3.61 – 5.77
(143 – 227)
6.05 – 8.27
(238 – 325)
8.24 – 12.55
(325 – 494)
150-inch
(3.81 m)
3.23 x 2.02
(127 x 79)
4.53 – 7.22
(179 – 284)
7.59 – 10.36
(299 – 408)
10.33 – 15.72
(407 – 619)
200-inch
(5.08 m)
4.31 × 2.69
(170 × 106)
6.05 – 9.64
(238 – 379)
10.15 – 13.85
(400 – 545)
13.82 – 21.00
(544 – 827)
Projection distance L
Projected image
6
Front of the lens
Input connector
RGB/YPBPR*4 DVI-D*2/HDMI*3
*6
—
—
—
*6
Input connector
VIDEO/S VIDEO
*1: INPUT A, INPUT B
*2: INPUT C
*3: INPUT D
*4: INPUT A
*5: Available for VESA Reduced Blanking signals only.
*6: INPUT C is determined as a computer signal;
INPUT D is determined as a digital TV signal.
• When a signal other than the signals listed in the table is input, the picture
may not be displayed properly.
• An input signal meant for a screen resolution different to that of the panel
will not be displayed in its original resolution. Text and lines may be uneven.
• Some actual values may differ slightly from the design values given in the
table.
—
*5
*5
fV [Hz]
Analog TV Signal
—
—
—
—
—
—
—
—
Signal
Front
Unit: inches (mm)
3 3/16 (81)
5 9/32 (134)
5 13/16 (148)
15 11/32 (390)
Center of the lens
7 11/16 (195)
Bottom
Center of the lens
5 9/32 (134)
5 9/32 (134)
3
(18)
7/32
7 11/16 (195)
(81.5) 3 7/32 (81.5)
Ø23/32 (18)
4 13/16 (122)
3 3/8 (86)
Ø23/32
19/32
(15)
18 7/32 (463)
10 23/32 (272.6)
VPL-FH30
3 LCD system
Size of effective display area 0.76” (19.3 mm) x 3, BrightEra, Aspect ratio: 16:10
Number of pixels
6,912,000 (1920 x 1200 x 3) pixels
Projection lens
Zoom
Manual (Approx. 1.6 x)
Focus
Manual
Lens shift
Manual, Vertical: Upward 60% to Downward 0%
Horizontal: Right 32% to Left 32%
Light source
High-pressure mercury lamp, 275 W type
Recommended lamp replacement time*1
3000 H (Lamp mode: High)
4000 H (Lamp mode: Standard)
Filter cleaning cycle
Max. 15000 H*1
Same time as the lamp replacement is recommended
Screen size
40” to 600” (1.02 m to 15.24 m)*2
Light output
4300 lm (Lamp mode: High)
3400 lm (Lamp mode: Standard)
Color light output
4300 lm (Lamp mode: High)
3400 lm (Lamp mode: Standard)
2000:1
Contrast ratio (full white / full black)*2
Displayable
Horizontal
14 kHz to 93 kHz
scanning frequency Vertical
47 Hz to 93 Hz
Display resolution Computer signal input
Maximum display resolution: 1920 x 1200 dots*3
Panel display resolution: 1920 x 1200 dots
Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p,
720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p
Color system
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction
Vertical: Max. +/- 5 degrees
OSD language
20-languages (English, Dutch, French, Italian, German, Spanish,
Portuguese, Turkish, Polish, Russian, Swedish, Norwegian,
Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai,
Vietnamese, Arabic, Persian)
Computer and
INPUT A
RGB / Y PB PR input connector: 5BNC (female)
Audio input connector: Stereo mini jack
video signal
input/output
INPUT B
RGB input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack (shared with INPUT C)
INPUT C
DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
Audio input connector: Stereo mini jack (shared with INPUT B)
INPUT D
HDMI input connector: Digital RGB/Y PB PR
Digital Audio: PCN (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz)
S VIDEO IN
S video input connector: Mini DIN 4-pin
Audio input connector: Pin jack (x2) (shared with VIDEO IN)
VIDEO IN
Video input connector: Pin jack
Audio input connector: Pin jack (x2) (shared with S VIDEO IN)
OUTPUT
Monitor output connector*4: Mini D-sub 15-pin (female)
Audio output connector*5: Stereo mini jack (variable out)
Control signal input/output
RS-232C connector: D-sub 9-pin (female)
LAN connector: RJ45, 10BASE-T/100BASE-TX
Control S input connector: Stereo mini jack, Plug in power DC 5 V
Operating temperature (Operating humidity)
32°F to 104°F / 0°C to 40°C (35% to 85%; no condensation)
Storage temperature (Storage humidity)
-4°F to +140°F / -20°C to +60°C (10% to 90%)
Power requirements
AC 100 V to 240 V, 4 A to 1.6 A, 50/60 Hz
Power
AC 100 V to 120 V
400 W
consumption
AC 220 V to 240 V
380 W
Standby mode
AC 100 V to 120 V
9 W (Standby mode: Standard) / 0.15 W (Standby mode: Low)
power consumption AC 220 V to 240 V
10 W (Standby mode: Standard) / 0.3 W (Standby mode: Low)
Heat dissipation
AC 100 V to 120 V
1365 BTU
AC 220 V to 240 V
1297 BTU
Outside dimensions
W 15 11/32 x H 5 13/16 x D 18 25/32 in
(W 390 x H 148 x D 477 mm)
W 15 11/32 x H 5 9/32 x D 18 7/32 in
(W 390 x H 134 x D 463 mm) (without protrusions)
Weight
17 lb 14 oz / 8.1 kg
Supplied accessories
RM-PJ19 Remote Commander (1), Size AA (R6) batteries (2),
AC Power Cord (1), Cable ties (2), Quick Reference Manual (1),
Security Label (1), Operating Instructions (1)
Display system
Display device
DIMENSIONS
14 7/32 (361)
SPECIFICATIONS
1 31/32 (50) 1 31/32 (50)
The distance L’ is between the front of the lens
(center) and the front of the cabinet
Unit: inches (mm)
Lens
L’
Type
Standard lens
15/32 (12.2)
1
VPLL-Z1024
1/16 (1.6)
2
VPLL-Z1032
1/32 (0.3)
1
1
2
Front of the cabinet
Front of the lens
*1 The figures are expected maintenance time and not guaranteed. They will depend on
the environment or how the projector is used.
*2 This value is average.
*3 Available for the VESA Reduced Blanking signal.
*4 From INPUT A and INPUT B.
*5 Works as an audio switcher function. Output from a selected channel; not available in
standby.
7
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/professional
DI-0225 (MK10802V1)
©2011 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
The values for mass and dimension are approximate.
Sony, the Sony logo, the Sony Make.Believe logo, BrightEra, “BrightEra with long lasting Optics”
and its logo and Remote Commander are Trademarks of Sony Corporation.
Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of
America and other countries and areas.
HDMI is a trademark of HDMI Licensing LLC.
All other trademarks are the property of their respective owners.
Printed in USA (3/11)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
