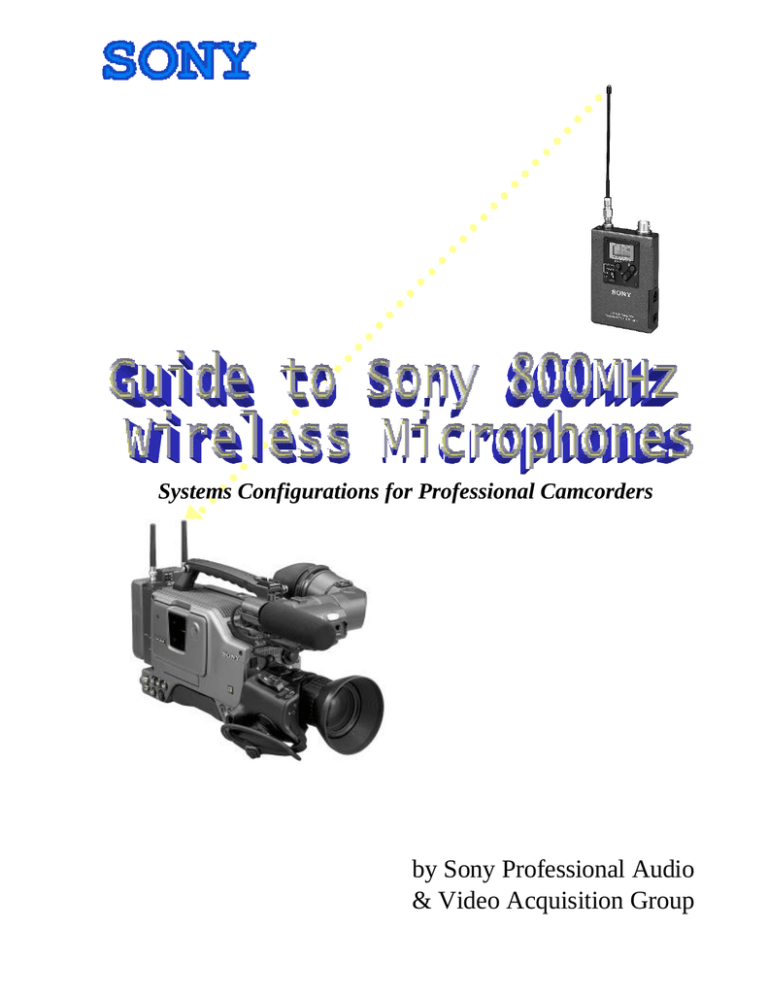

Systems Configurations for Professional Camcorders
by Sony Professional Audio
& Video Acquisition Group
-Table of Contents -
Overview of Sony Wireless Guide ………………..………………. 1-4
Configuration #1 WRR-855A/810A UHF Diversity Tune………….... 5
Configuration #2 Single WRR-855A / 810A / 805A UHF Tuner …. 6, 7
Configuration #3 WRR-855A UHF Diversity Tuner ……………..… 7
Configuration #4 WRR-855A UHF Diversity Tuner ………………... 8
Sony Mounting Standards…………………………………….……….. 9
Optional Mounting Hardware & Accessories …………..….……..…... 9
Portable UHF Tuners ……………………………………………..… 10
UHF Body-Pack Transmitters ……………………….……………..... 11
Handheld UHF Transmitters …………………….………………..… 12
Suggested Application Packages ………………….…………….….. 13
Frequency Selection and Coordination Chart …………….…….. 15-18
Wireless Optional Accessories - Sales Models ………….…….. 19-21
Camcorder / Wireless Microphone Configuration Chart ….…….. 22-24
How to specify a complete wireless system:-Overview
1. Select a suitable wireless receiver for the camcorder.
• Use Overview of Camcorders for Wireless as help
(Pages 1-4)
• Use Suggested Applications Packages as Guide
(Pg. 13)
• Use Camcorder / Wireless Microphone Configuration Chart
as a guide.
(Pg. 22-24)
• Select wireless receiver and transmitter using Wireless
Product overview as a guide
(Pg. 10-12)
2. Select the required mounting accessories
• Use the Configuration #1 to #4 as guide
• Select optional accessories using the tables on
(Pg. 5-9)
(Pg. 8, 9, 19-21)
3. Select the channel allocation.
Since wireless use is a secondary use of the spectrum it is necessary to choose operating
frequencies not in (primary) use in a given area. If it is desired to use multiple wireless system
at once, it is recommended that the user consult the Regional Audio Manager for help in
choosing channels.
• Use Frequency Selection and Allocation Chart as first guide. (Pg. 15)
• Use Frequency Selection and Allocation Chart as a more detailed guide
(Pg.16-18)
-I-
OVERVIEW OF CAMCORDERS FOR WIRELESS:
Summary of Sony Camcorders and Wireless Capability:
1A. Sony Digital Camcorders with Built-in Wireless Slot
(Camcorder as shipped - See Page 5 of Wireless Guide for details)
Camcorder Model
Wireless Models
Second Wireless
DNW-7; DNW-9WS
DNW-90; DNW-90WS
DNV-5
WRR-855A
WRR-855A w/BTA-801
or WRR-810
or WRR-805A
1B. Sony Digital Camcorders with Built-in Wireless Slot
(Camcorders retrofitted (w/QR-SDH) for Anton Bauer Ni-Cad Batteries)
See Page 5 of Wireless Guide for details.
Camcorder Model
Wireless Models
Second Wireless
DNW-7; DNW-9WS
DNW-90; DNW-90WS
DNV-5
WRR-855A
WRR-855A w/BTA-801
or WRR-810
or WRR-805A
2A. Sony Digital Camcorders
(Camcorders as shipped. - See Page 6 of Wireless Guide for details.)
Camcorder Model
DVW-700; DVW-700WS
DVW-707;DVW-709WS
DVW-790WS
HDW-700(A)
HDW-F900
Wireless Models
Second Wireless
WRR-855A w/BTA-801
or WRR-810A
or WRR-805A
No Provision
2B. Sony Digital Camcorders
(Camcorders retrofitted (w/QR-SDH) for Anton Bauer Ni-Cad Batteries.)
See Page 6 of Wireless Guide for details
Camcorder Model
DVW-700; DVW-700WS
HDW-700(A)
HDW-F900
Wireless Models
Second Wireless
WRR-855A w/BTA-801
or WRR-810
or WRR-805A
No Provision
-2-
2C. Sony Digital Camcorders
(Camcorders as shipped. - See Page 7 of Wireless Guide for details)
Camcorder Model
Wireless Models
DSR-500WS; DSR-300
WRR-855A w/CA-WR855
Second Wireless
No Provision
2D. Sony Digital Camcorders
Camcorders retrofitted (w/QR-DSR) for Anton Bauer Ni-Cad Batteries
See Page 9 of Wireless Guide for details
Camcorder Model
Wireless Models
DSR-500WS; DSR-300
WRR-855A w/BTA-801
Second Wireless
No Provision
3A. Sony Analog Camcorders - BetacamSP
(Camcorder as shipped w/NP-1 battery box , or retro fitted w/BP-90 battery box)
See Page 7 of Wireless Guide for details
Camcorder Model
Wireless Models
BVW-D600 / D-600WS
BVW-400(A); BVW-300(A)
BVW-200; BVV-5
UVW-100B; PVV-3
WRR-855A w/BTA-801
or WRR-810A
or WRR-805A
Second Wireless
No Provision
3B. Sony Analog Camcorders - BetacamSP
(Camcorder retrofitted with V-wedge mount (w/BKW-L601) for Li-Ion batteries. )
See Page 6 of Wireless Guide for details
Camcorder Model
Wireless Models
Second Wireless
BVW-D600 / D-600WS
BVW-400(A); BVW-300A
BVW-200; BVV-5
UVW-100B; PVV-3
WRR-855A w/BTA-801
or WRR-810A
or WRR-805A
No Provision
3C. Sony Analog Camcorders - BetacamSP
(Camcorders retrofitted (w/QRSP-200A or QRSP-400A) for use with Anton Bauer
Ni-Cad Batteries.)
See Page 6 of Wireless Guide for details.
Camcorder Model
BVW-D600 / D-600WS
BVW-400(A); BVW-300(A)
BVW-200; BVV-5
UVW-100B; PVV-3
Wireless Models
WRR-855A w/BTA-801
or WRR-810A
or WRR-805A
Second Wireless
No Provision
-3-
SONY
-Professional Camcorder/Wireless System Configuration GuideThe following is a comprehensive guide for setting up the right Sony wireless system with
your camcorder. All configurations shown represent all current Sony professional camcorders and all
current Sony wireless microphone models. Here are a few easy steps to configuring the proper
system. Together with the details provided in this guide, these should help you to select the proper
wireless equipment for use with your camcorder.
In general, a diversity system tuner (such as the WRR-855A) is better for more
demanding applications. Especially where distance, or a lot of motion is a consideration,
since it will provide greater freedom from “dropouts” due to multi-path signals.
In most other applications (where the environment is more predictable or where distance is
not a factor), models such as the WRR-810A and WRR-805A will work very well and will
provide a more cost-effective solution.
In any case, the choice of a system is based on the following criteria:
A) Budget
B) Size and weight requirements
C) Application requirements (lavaliere or hand-held microphone) &
D) Working distance (RF output between 5mW and 50mW)
*Note: Any Sony 800MHz transmitter can be used with any model Sony 800MHz
receiver, as long as they are frequency matched (*See Frequency Selection.)
Please use the following as a guideline for determining your system’s requirements:
1) First, look at your camera: Is it a consumer model or broadcast model? What type of
battery mounting system does it have (V-wedge, NP-1, BKW-L601)? Does it have an
accessory DC power output? What type of audio connections does it have?
-This will help you determine which wireless models are directly compatible.
2) What mounting hardware comes with, or is available (optionally) for your camcorder?
-This will determine what (if any) additional hardware or accessories you will need to use
a wireless system with your camcorder.
3) What is your application? (ENG, Broadcast Production, Event Videography, etc…?)
-This will determine which is the right wireless system for you, once you have decided
your overall direction (*See Suggested Application Systems). Certainly, budget may also be a
consideration. That is why Sony has a wide selection of wireless components for every
application and budget.
-4-
SONY
Configuration # 1: WRR-855A/810A UHF Diversity Tuners
(Betacam SX drop-in configuration)
Models:
DNW-7
DNW-9WS
DNW-90
DNW-90WS
DNV-5 (dockable VTR)
Fig. 1
Fig.2
DNW-9WS, shown with
WRR-855A (above) in
breakaway. BPL-60 battery is
mounted via “V”-mount to rear
of camera. WRR-855A power
and audio connections are
automatically made via multipin connector inside camera
slot.
Typical Package:
Required part:
WRR-855A (tuner)
Transmitter
Option ( for 2 nd tuner)
A8278-057-A bracket 1
WRR-855A
BTA-801 (ADAPTER)
Transmitter
1
Qty
1
1
1
1
1
1
The A8278-057-A bracket
Is supplied with all Digital Betacam
and HDW-700A camcorders, as well
as with the Optional BKW-L601
DNW-9WS, shown
with WRR-855A in same
configuration (installed-rear angle
view)
Fig.4
Fig. 3
DNW-9WS, shown with one
WRR-855A installed in same
configuration, plus a second
WRR-855A mounted to rear with
A-8278-057-A mount and BTA801A adapter. WRR-855A power
is via 4-pin DC connector
(supplied with BTA-801) to
camera accessory power jack
(shown) and audio via 12” XLR to
XLR connection (user supplied).
*SX camcorder shown with internally
mounted WRR-855A and WRR-810A
mounted externally with the optional
A-8278-057-A bracket.
Note: As below in configuration # 2, an Anton Bauer battery adapter,
with their optional ABWMKKIT bracket, may be added for mounting
of an additional tuner with the above listed models. WRR-810A or
WRR-805A may also be used as a second tuner with the existing
bracket (plus X-0248-167-1 dual plate adapter for WRR-805A).
-5-
Configuration #2: Single WRR-855A / 810A / 805A UHF Tuners
Works with: Camcorders equipped with a NP-1 box, BP-90 (DC-500 box) BKW-L601 bracket -or- Anton Bauer battery
adapter
This configuration applies to the following models:
Digital Betacam: Has Integrated Li-Ion Battery Mount (Vmount)
(Supplied w/ A8278-057-A bracket)
• Option: DC-L1 and DC-L90 Sony NiCad Box w/ V-wedge
Mounts
• Option: Anton Bauer QR-SDH Battery Mount w/
ABWMKKIT wireless adapter plate
Models:
DVW-700
DVW-700WS
DVW-707
DVW-709WS
DVW-790WS
This configuration applies to the following models:
Betacam/Betacam SP: Supplied with NP-1 box
• Option: BKW-L601 Li-Ion Battery Bracket
(Includes A8278-057-A wireless bracket)
• Option: Anton Bauer QRSP-200/400A Battery Mount
with ABWMKKIT wireless adapter plate (*see below)
Models:
BVW-300/300A*
BVW-400/400A*
BVW-D600
BVW-D600WS
UVW-100B
DXC-D30/PVV-3*
DXC-D35/PVV-3
BVV-5
(*discontinued models)
HD-CAM: Has Integrated LiIon Battery Mount (V-mount)
(Supplied w/ A8278-057-A bracket)
• Option: DC-L1 and DC-L90 Sony Ni-Cad Mounts
• Option: Anton Bauer QR-SDH Battery Mount with
ABWMKKIT wireless adapter plate
Models:
HDW-700
HDW-700A
HDW-F900
* A-8278-057-A may be required for some models. See Configuration Chart.
Fig. 5
WRR-855A shown inserted in
BTA-801A adapter mounted to
BVW-D600 or BVW-600WS
(fitted with a BKW-L601 and
supplied A-8278-057-A
bracket). Battery is BPL-90.
Power via camcorder 4 pin DC
connector. (Supplied w/BTA801). Audio connection is via
user supplied 12” XLR-XLR
cable.
Fig. 6
WRR-810A shown
mounted to BVW-600WS
with A-8278-057-A
bracket. Battery is BPL60. Power via WRR-810A
internal “AA” batteries.
Audio is via XLR
connector to camcorder
audio input (user
supplied).
(QRSP-200A w/ ABWMKKIT)
(QRSP-400A w/ ABWMKKIT)
(QRSP-400A w/ ABWMKKIT)
(QRSP-400A w/ ABWMKKIT)
(QRSP-200A w/ ABWMKKIT)
(QRSP-200A w/ ABWMKKIT)
(QRSP-200A w/ ABWMKKIT)
(QRSP-200A w/ ABWMKKIT)
Fig. 7
WRR-805A shown mounted to
BVW-600WS with supplied case
on A-8278-057-A bracket and
optional X-0248-167-1 plate
adapter. Battery is BPL-60.
Power via WRR-805A internal
“AA” batteries. Audio is via
optional K-1334 XLR connector
to camcorder audio input.
-6-
Fig. 8
WRR-855A inserted
into BTA-801 adapter
and mounted to a
BVW-600WS via the
NP-1 battery box.
Power is provided via
a 4-pin DC connector
on camcorder (cable
supplied with BTA801). A WRR-810A
or WRR-805A may
also be mounted to
the NP-1. The WRR805A also requires
the optional X-0248167-1 dual bracket.
Typical package:
Required part
QTY
WRR-855A, WRR-810A or WRR-805A
BTA-801 (for WRR-855A only)
* Optional X-0248-167-1bracket (for
WRR-805A only)
1
1
1
* Transmitter
1
Configuration #3: WRR-855A UHF Diversity Tuner
Works with: DVCAM models w/ CA-WR855 (optional adapter), or *Anton Bauer QR-DSR optional adapter with
ABWMKKIT wireless adapter plate.
Fig. 9
Fig. 10
Fig. 11
DVCAM/CAWRR-855A
ass’ly shown in breakout with
BPL-60A battery
DVCAM/CAWR-855A
(Shown assembled)
DVCAM/CAWR-855A
Shown assembled
(rear angle)
DVCAM
Models:
DSR-500WS
DSR-300 (A)
DSR-200(/A) 1 2
DSR-130WS 2
* A WRR-810A or WRR-805A may also be mounted to
DVCAM models. WRR-810A requires the use of the
optional A-8278-057-A bracket. The WRR-805A also
requires this, plus the X-0248-167-1 dual bracket. These
may not be mounted in additional to the CA-WR855
adapter box, as this leaves no additional space on the rear
of the camcorder to mount the A-8278-057-A bracket.
1
Requires DABK-L201 adapter
2
Supplied with NP-1 box. Requires optional BTA-801 adapter.
Typical Package:
(DSR-300 / 500WS)
QTY
Required Part
WRR-855A (ch)
1
CA-WR855
1
1
*Transmitter
-7-
Configuration # 4 WRR-805A UHF Tuner
Works with: Any consumer camcorder. Mount via supplied case/mount and 1/8” stereo mini-plug connector. For
camcorder models using the A-8278-057-A or BKW-L601 bracket, the WRR-805A may be mounted using an optional,
dual mounting adapter (X-0248-167-1).
Fig. 12
The WRR-805A
Tuner shown
mounted to a DCRVX100 0camcorder.
Using a locking
Velcro strap,
mounting to the
camcorder is very
easy. The mount
also rotates to
facilitate the proper
angle for reliable
reception.
Fig. 13
Balanced mic/line inputs 1 & 2 (left) and 4-pin DC
connector (right) on back of DSR-500 camcorder.
Standard connectors on all Broadcast model Sony
camcorders BETACAM, BetaSP, Digital Beta,
HDCAM, DV (located opposite side on some models).
Sony Wireless Mounting Standards
The ”4-hole” mount is used
by several Sony professional
camcorder bracket systems,
including:
• A-8278-057-A (included
with: BKW-L601, BKWL201, BKW-L403)
• X-0248-167-1
• BTA-801
• NP-1
• DC-500
• Anton Bauer QR-SDH or
QR-DSR with ABWMKKIT
Fig. 14
The ”V-Wedge” mount is
used by:
• CA-WR855 (for DSR300 & 500 only)
The 4 rear-mounting screw
holes will allow attachment
of the A-8278-057-A bracket,
alternatively.
Anton Bauer Adapter System (for use with compatible Anton Bauer NiCad
batteries).
Anton Bauer QR-SDH
Shown again with just the
side plate portion of the
ABWMK-KIT. This side
plate has three screw
positions for mounting at
various distances from the
battery.
*Note : The BTA 801A
may be mounted to either
of these two plates.
However, the user will
need to provide a slightly
longer DC cable, as the
one supplied with the
BTA-801A
Anton Bauer QR-SDH
battery adapter shown
with ABWMK-KIT
mounted. The ABWMKKIT comes supplied with
a side mount and rearmount plate adapter.
These are both configured
like the 4-hole mounting
system above and allows
mounting of the BTA801, WRR-810A or X0248-167-1 mounting
adapter.
Fig. 15
Fig. 16
-8-
Optional Mounting Hardware & Accessories
X-0248-167-1 Dual Mount
Will mount 1 or 2 WRR-805As
(screws supplied) to a camcorder
supplied with an NP-1, DC-500
or an A-8278-057-A bracket. The
clip on back of WRR-805A case
slides on.
NP-1 Box
A-8278-057-A Mounting Bracket. CA-WR855 Adapter.
For mounting of any Sony UHF
portable tuner (with tuner
supplied hardware shown) to
most Sony professional
camcorder models. Included with
BKW-L601 battery mount.
DC-500 Box
Using the “V” wedge mount
system allows WRR-855A to
be mount to DVCAM models
and provides power and audio
connections to/from the
camcorder
Supplied Hardware.
BTA-801 Adapter.
Allows WRR-855A to be
mounted to Sony
camcorders equipped with
an A-8278-057-A or
NP-1, DC-500
K-1334 Adapter Cable
Top
Piece
Bottom
Piece
Battery case/ mount. Supplied
with Betacam, Betacam SP
and some DVCAM models.
Allows mounting of BTA801A, WRR-810A or X0248-167-1 bracket
WRR-805A Case / mount.
For the BP-L90 battery.
Optional battery case/mount for
Betacam, Betacam SP and some
DVCAM models. Allows
mounting of BTA-801A, WRR810A or X-0248-167-1 bracket
Included with the BTA-801A
and WRR-810A. Mounts to 4hole system on NP-1, A-8278057-A, etc… Clips on the BTA801A & WRR-810A insert into
these.
Converts the locking 1/8”
mini-plug output of WRR805A to balanced male XLR.
This allows the WRR-805A
to be connected to any
professional camcorder.
Anton Bauer Battery Adapters/Brackets *
* For all other broadcast
models
* For DVCAM
(supplied accessory ).
Main case (left) can be
mounted to optional dual
bracket. Detached Velcro
strap (right) allows
mounting to handle of
consumer camcorders.
-9Fig. 16
* Illustration shown provided by Anton Bauer
Portable UHF Tuners
WRR-855A (CH) Diversity UHF Tuner
•
•
•
Di vers ity UHF s ynt hes ized tu ner (9 4 ch an nels )
LCD dis pl ay o f s ta tus ( A F, R F, C H, GROP , ba ttery )
Fits directl y int o Be tac a m S X ca mc or ders
• Retur ns au di o back to ca mc or der
• Tra ns mits dis pla y in for mati on t o S X mo del vie wfin der
Fits mos t S on y br o a dc as t ca mc or ders wi th B TA-8 0 1 or
CA -W R8 5 5 a da pter
Recei ves po wer fro m ca mer a:
• S X mo dels directl y vi a multi- pi n c on nect or
• DV C A M Via C A -WR R8 5 5
• All ot her mo dels via B TA -8 0 1 a da pter bo x
(4 - pin acces s ory c a mera po wer )
A vaila ble f or ch an nels 6 4 /65 , 6 6 /67 & 6 8 /69
•
•
•
WRR-810A (CH) UHF Tuner
•
•
•
•
•
•
UHF s y nt hes ized t uner (9 4 ch annels )
LCD dis pl ay o f s ta tus ( A F, R F, C H, GROP , ba ttery )
Fits mos t S on y br o a dc as t ca mc or ders wi th:
• NP-1
• BBKW- L6 0 1
• DS BK-2 0 1
• BKW- L4 0 3 , or
• Ant o n Ba uer Q R D-7 0 0
Recei ves po wer fro m ca mer a via 4 - pin D C acces s ory
ou t pu t
Balance d XLR a u dio o ut plug s int o ca mc or der mic in put
A vaila ble f or ch an nels 64/65, 66/67 & 68/69
WRR-805A UH F Non-Dive rs ity Tune r
•
•
•
•
•
•
•
•
•
Lig ht - weig ht a n d lo w-c os t
UHF s y nt hes ized t uner (9 4 ch annels )
LCD dis pl ay o f s ta tus ( A F, R F, C H, GROP , ba ttery )
Fits mos t S on y c ons u mer / pro -s u mer ca mc or ders vi a e as y
Velcro® s tra p- mou nt ( mou nts t o c a mcor der h an dle ).
6 ho urs of c on tinu ous po wer (2 -“ AA” alk aline bat teries ).
Au di o ou t put via bala nce d 1 /8 ” mini -j ack or via o pti on al
X LR a da pter c a ble.
Vari a ble he a dph one mo nit or out pu t
O pti on al bala nce d X LR a u di o c onnec ting ca ble plug s int o
ca mcor der a u di o in put
A vaila ble f or ch an nels 64/65, 66/67 & 68/69
-10-
UHF Transmitter Options:
UHF Body-Pack Transmitters :
WRT-805A (CH)
•
•
•
•
•
•
Low-cost
Light weight
10mW output
6 hrs w/ 1 “AA” batteries
Channels: 64/65, 66/67 & 68/69
Accepts:
• ECM-121BMP- Same as above with short cord.
• ECM-44BMP- Omni lav. General purpose
• ECM-166BMP- Uni lavalier. Instrumental/vocal use
• ECM-77BMP- Omni lavalier. High-quality vocal/instrumental
• ECM-310BMP- Headset. Vocal/announcer
WRT-822A (CH)
•
•
•
•
•
Sturdy and light-weight magnesium-alloy case
10mW RF output
8 hrs w/2 “AA” batteries
Channels 64/65, 66/67 & 68/69
Accepts:
• ECM-44BC Omni lav. General purpose
• ECM-55BC Omni lav. General Purpose
• ECM-66BC Uni lav. Instrumental/vocal use
• ECM-166BC Uni lav. Instrumental/vocal use
• ECM-77BC Omni lav. High-quality vocal/instrumental
• ECM-310BC Headset. Vocal/announcer
• ECM-350BC Headset. Vocal/announcer
• EC-1.5CF 1.5m Microphone adapter cable
WRT-860A (CH)
•
•
•
•
•
•
Rugged, all-metal case
Ultra-compact, lightweight
20mW RF output
6 hrs. of continuous operation w/2 “AA”
batteries
Channels 64/65, 66/67 & 68/69
Accepts:
• ECM-44BC Omni lav. General purpose
• ECM-55BC Omni lav. General Purpose
• ECM-66BC Uni lav. Instrumental/vocal use
• ECM-166BC Uni lav. Instrumental/vocal use
• ECM-77BC Omni lav. High-quality vocal/instrumental
• ECM-310BC Headset. Vocal/announcer
• ECM-350BC Headset. Vocal/announcer
• EC-1.5CF 1.5m Microphone adapter cable
-11-
Hand-held UHF Transmitters:
WRT-800A68
•
•
•
•
•
•
Electret condenser element
Designed for general purpose / speech applications
Low-cost UHF transmitter
5mW RF output
12 hrs w/1 “AA” battery
Channel 68/69
WRT-807A (CH)
•
•
•
•
•
•
•
High-quality dynamic element (same as F-780) for
demanding vocal applications
Rugged, all-metal construction
Integrated LCD display of transmitter function
Locking on/off switch
5 hours of continuous operation w/ single “AA”
alkaline battery
10 mW RF output
Available on Channels 64/65, 66/67 & 68/69
WRT-867A(CH)/X
•
•
•
•
•
High-quality dynamic hyper-cardioid element
(same as F-780/X)
For critical vocal applications
10mW RF output
4 hrs w/1 “AA” battery
Available on Channels 64/65, 66/67 & 68/69
•
•
•
•
•
•
Plug-on UHF transmitter for ENG applications
Converts almost any mic* to wireless operation
Mic or line level (variable)
10mW/50mW RF output (switchable)
4 hrs continuous operation w/2 “AA” batteries
Available on Channels 64/65, 66/67 & 68/69
WRT-808A (CH)
*Works with:
Any low-impedance XLR-balanced, non-phantom powered
microphone or balanced, line-level source
-12-
Suggested Application Packages
Package #1 News/ENG
WRR-855A
F-780/9X
(or other dynamic
microphone).
+
WRT-808A
+
-OR-
DNW-9WS
(Plus ECM
lavalier
microphone)
WRT-822A
Package #2 Production
WRT-807A
WRR-855A
-OR-
+
CA-WR855
WRT-822A
(Plus ECM
lavalier
microphone)
DSR-500WS
Package #3 Event Videography
WRT-800A68
+
+
DSR-PD100A
WRR-805A
(includes mount)
-OR-
WRT-805A
(Plus ECM
lavalier
microphone)
-13-
(Page intentionally left blank)
-14-
• Frequency Selection and
Coordination Charts
*A Note about Frequency Selection –
Sony’s wireless systems operate across 6 TV channels (64-69). Each
system operates across a single pair of these channels: 64 operates on 64 &
65; 66 operates on 66 & 67; and 68 operates on 68 & 69. Each of these
systems is tunable to any of 47 frequencies on each TV channel. After each
model number is the designation (CH). This refers to 64, 66 or 68 versions
of this model.
Make sure to match the order frequency number (64, 66 or 68) on both
the transmitter and receiver, as these each have a channel designation
(e.g.- WRT822A66 with WRR-855A66). Choice of order frequency is
arbitrary, unless otherwise determined by a particular requirement (such as
available frequencies in a given location. eg.: A TV station operating on
channel 68 in your area would cause potential interference for wireless
systems. However, channel 69 should still function properly, as should other
channels. If you have any questions regarding order frequency selection,
please consult your Regional Audio Account Manager.
•
Features and specifications are subject to change without notice
-15-
GROUP Channels
00
64/65
CH
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
GROUP 11
CH
64
05
64
14
64
25
64
41
64
47
65
12
65
16
65
30
65
37
65
40
65
42
FREQUENCY
CH
770.125
770.250
770.375
770.500
770.625
770.750
770.875
771.000
771.125
771.250
771.375
771.500
771.625
771.750
771.875
772.000
772.125
772.250
772.375
772.500
772.625
772.750
772.875
773.000
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
64
FREQUENCY
770.625
771.750
773.125
775.125
775.875
777.500
778.000
779.750
780.625
781.000
781.250
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
GROUP 12
CH
65
01
65
05
65
11
65
25
65
28
65
36
65
41
65
43
FREQUENCY
CH
773.125
773.250
773.375
773.500
773.625
773.750
773.875
774.000
774.125
774.250
774.375
774.500
774.625
774.750
774.875
775.000
775.125
775.250
775.375
775.500
775.625
775.750
775.875
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
FREQUENCY
776.125
776.625
777.375
779.125
779.500
780.500
781.125
781.375
11-Channel Group. Use when both 8-channel Group. Use when
channels 65 & 65 are available
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
GROUP 13
CH
64
03
64
13
64
18
64
26
64
37
64
40
64
44
64
46
FREQUENCY
CH
776.125
776.250
776.375
776.500
776.625
776.750
776.875
777.000
777.125
777.250
777.375
777.500
777.625
777.750
777.875
778.000
778.125
778.250
778.375
778.500
778.625
778.750
778.875
779.000
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
FREQUENCY
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
779.125
779.250
779.375
779.500
779.625
779.750
779.875
780.000
780.125
780.250
780.375
780.500
780.625
780.750
780.875
781.000
781.125
781.250
781.375
781.500
781.625
781.750
781.875
782.000
FREQUENCY
770.375
771.625
772.250
773.250
774.625
775.000
775.500
775.750
8-channel Group. Use when channel 65 is on air
channel 64 is on air
GROUP A1
CH
FREQUENCY
64
05
770.625
64
12
771.500
64
15
771.875
65
24
779.000
65
33
780.125
GROUP A2
CH
FREQUENCY
65
02
776.250
65
19
778.375
65
43
781.375
For 19-Channel Group. Used in
conjunction with tuners in other
versions (66, 68) when all TV
channels are available (64-69)
For 13-channel Group. Used in
conjunction with tuners in other
versions (66,68) when all odd
numbered TV channels are
available (65, 67, 69)
GROUP A3
CH
FREQUENCY
64
01
770.125
64
18
772.250
64
42
775.250
For 13-channel Group. Used in conjunction with tuners in other versions
(66,68) when all even numbered TV channels are available (64, 66, 68)
-16-
GROUP Channels
00
66/67
CH
FREQUENCY
66
01
782.125
66
02
782.250
66
03
782.375
66
04
782.500
66
05
782.625
66
06
782.750
66
07
782.875
66
08
783.000
66
09
783.125
66
10
783.250
66
11
783.375
66
12
783.500
66
13
783.625
66
14
783.750
66
15
783.875
66
16
784.000
66
17
784.125
66
18
784.250
66
19
784.375
66
20
784.500
66
21
784.625
66
22
784.750
66
23
784.875
66
24
785.000
GROUP 11
CH
FREQUENCY
66
05
782.625
66
14
783.750
66
25
785.125
66
41
787.125
66
47
787.875
67
12
789.500
67
16
790.000
67
30
791.750
67
37
792.625
67
40
793.000
69
42
793.250
CH
66
25
66
26
66
27
66
28
66
29
66
30
66
31
66
32
66
33
66
34
66
35
66
36
66
37
66
38
66
39
66
40
66
41
66
42
66
43
66
44
66
45
66
46
66
47
66
GROUP 12
CH
67
01
67
05
67
11
67
25
67
28
67
36
67
41
67
43
FREQUENCY
785.125
785.250
785.375
785.500
785.625
785.750
785.875
786.000
786.125
786.250
786.375
786.500
786.625
786.750
786.875
787.000
787.125
787.250
787.375
787.500
787.625
787.750
787.875
FREQUENCY
788.125
788.625
789.375
791.125
791.500
792.500
793.125
793.375
11-Channel Group. Use when both 8-channel Group. Use when
channels 68 & 69 are available
CH
FREQUENCY
CH
67
01
788.125
67
02
788.250
67
03
788.375
67
04
788.500
67
05
788.625
67
06
788.750
67
07
788.875
67
08
789.000
67
09
789.125
67
10
789.250
67
11
789.375
67
12
789.500
67
13
789.625
67
14
789.750
67
15
789.875
67
16
790.000
67
17
790.125
67
18
790.250
67
19
790.375
67
20
790.500
67
21
790.625
67
22
790.750
67
23
790.875
67
24
791.000
GROUP 13
CH
FREQUENCY
66
03
782.375
66
13
783.625
66
18
784.250
66
26
785.250
66
37
786.625
66
40
787.000
66
44
787.500
66
46
787.750
67
67
67
67
67
67
67
67
67
67
67
67
67
67
67
67
67
67
67
67
67
67
67
67
FREQUENCY
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
791.125
791.250
791.375
791.500
791.625
791.750
791.875
792.000
792.125
792.250
792.375
792.500
792.625
792.750
792.875
793.000
793.125
793.250
793.375
793.500
793.625
793.750
793.875
8-channel Group. Use when channel 69 is on air
channel 68 is on air
GROUP A1
CH
FREQUENCY
66
02
782.250
66
24
785.000
66
29
785.625
67
16
790.000
67
18
790.250
67
39
792.875
For 19-Channel Group. Used in
conjunction with tuners in other
versions (64, 68) when all TV
channels are available (64-69)
GROUP A2
GROUP A3
CH
FREQUENCY CH
FREQUENCY
67
07
788.875
66
06
782.750
67
33
792.125
66
32
786.000
67
45
793.625
66
44
787.500
For 13-channel Group. Used in
conjunction with tuners in other
versions (64,68) when all odd
numbered TV channels are
available (65, 67, 69)
For 13-channel Group. Used in conjunction with tuners in other versions
(64,68) when all even numbered TV channels are available (64, 66, 68)
-17-
GROUP Channels
00
68/69
CH
FREQUENCY
CH
68
01
794.125
68
02
794.250
68
03
794.375
68
04
794.500
68
05
794.625
68
06
794.750
68
07
794.875
68
08
795.000
68
09
795.125
68
10
795.250
68
11
795.375
68
12
795.500
68
13
795.625
68
14
795.750
68
15
795.875
68
16
796.000
68
17
796.125
68
18
796.250
68
19
796.375
68
20
796.500
68
21
796.625
68
22
796.750
68
23
796.875
68
24
797.000
GROUP 11
CH
FREQUENCY
68
05
794.625
68
14
795.750
68
25
797.125
68
41
799.125
68
47
799.875
69
12
801.500
69
16
802.000
69
30
803.750
69
37
804.625
69
40
805.000
69
42
805.250
68
68
68
68
68
68
68
68
68
68
68
68
68
68
68
68
68
68
68
68
68
68
68
11-Channel Group. Use when
both channels 68 & 69 are
available
GROUP A1
CH
FREQUENCY
68
06
794.750
68
20
796.500
68
24
797.000
68
40
799.000
69
04
800.500
69
17
802.125
69
23
802.175
69
47
805.875
For 19-Channel Group. Used in
conjunction with tuners in other
versions (64,66) when all TV
channels are available (64-69)
FREQUENCY
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
GROUP 12
CH
69
01
69
05
69
11
69
25
69
28
69
36
69
41
69
43
797.125
797.250
797.375
797.500
797.625
797.750
797.875
798.000
798.125
798.250
798.375
798.500
798.625
798.750
798.875
799.000
799.125
799.250
799.375
799.500
799.625
799.750
799.875
FREQUENCY
800.125
800.625
801.375
803.125
803.500
804.500
805.125
805.375
8-channel Group. Use when
channel 68 is on air
GROUP A2
CH
69
11
69
22
69
30
69
36
69
40
69
43
69
45
CH
FREQUENCY
CH
69
01
800.125
69
02
800.250
69
03
800.375
69
04
800.500
69
05
800.625
69
06
800.750
69
07
800.875
69
08
801.000
69
09
801.125
69
10
801.250
69
11
801.375
69
12
801.500
69
13
801.625
69
14
801.750
69
15
801.875
69
16
802.000
69
17
802.125
69
18
802.250
69
19
802.375
69
20
802.500
69
21
802.625
69
22
802.750
69
23
802.875
69
24
803.000
GROUP 13
CH
FREQUENCY
68
03
794.375
68
13
795.625
68
18
796.250
68
26
797.250
68
37
798.625
68
40
799.000
68
44
799.500
68
46
799.750
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
69
FREQUENCY
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
803.125
803.250
803.375
803.500
803.625
803.750
803.875
804.000
804.125
804.250
804.375
804.500
804.625
804.750
804.875
805.000
805.125
805.250
805.375
805.500
805.625
805.750
805.875
8-channel Group. Use when channel 69 is on air
GROUP A3
FREQUENCY CH
FREQUENCY
801.375
68
10
795.250
802.750
68
21
796.625
803.750
68
29
797.625
804.500
68
35
798.375
805.000
68
39
798.875
805.375
68
42
799.250
805.625
68
44
799.500
For 13-channel Group. Used in
For 13-channel Group. Used in conjunction with tuners in other versions
conjunction with tuners in other
(64,66) when all even numbered TV channels are available (64, 66, 68)
versions (64,66) when all odd
numbered TV channels are available
(65, 67, 69)
-18-
WIRELESS OPTIONAL ACCESSORIESSALES MODELS
MODEL #
BTA-801
DESCRIPTION
CAMCORDER ADAPTER
FOR WRR-855A
AN-820A
ACTIVE ANTENNA
ALL RACK-MOUNT TUNERS
& DIVIDERS EXCEPT FOR
WRR-800A/WRR-802A
$192.00
DSR-300/500 CAMCORDER
ADPTER FOR WRR-855A
WRR-855A WITH DSR-300,
AND DSR-500
CAMCORDERS ONLY
$475.00
EC.04CM
XLR MALE > SMC-9-4P
ADAPTER CABLE
WRR-810A
$44.00
EC-15CF
XLR FEMALE > SMC-9-4P
ADAPTER CABLE
WRT-820A, WRT-822A, WRT860A
$65.00
ECM-121BMP
ECM-122BMP
ECM-166BC
OMNI LAVALIER MIC
OMNI LAVALIER MIC
UNI LAVALIER MIC
WRT-805A
WRT-805A
WRT-820A, WRT-822A, WRT860A
$28.00
$28.00
$142.00
ECM-166BMP
ECM-310BC
UNI LAVALIER MIC
UNI HEADSET MIC
WRT-805A
WRT-820A, WRT-822A, WRT860A
$132.00
$105.00
ECM-310BMP
ECM-350BC
UNI HEADSET MIC
UNI HEADSET MIC
WRT-805A
WRT-820A, WRT-822A, WRT860A
$105.00
$495.00
ECM-44BMP, BC
OMNI LAVALIER MIC
BMP-WRT-805A, BC-WRT820A, WRT-822A, WRT-860A
$168.00
ECM-55BC
OMNI LAVALIER MIC
WRT-820A, WRT-822A, WRT860A
$285.00
ECM-66BC
UNI LAVALIER MIC
WRT-820A, WRT-822A, WRT860A
$360.00
ECM-77BC
OMNI LAVALIER MIC
WRT-820A, WRT-822A, WRT860A
$360.00
ECM-77BMP
GC-0.7MP/1
OMNI LAVALIER MIC
1/8" MINPLUG TO PHONE
PLU ADAPTER CABLE
WRT-805A
WRT-805A
$345.00
$55.00
K-1161
PHONE PLUG >SMC-9-4P
ADAPTER CABLE
ALL RACK-MOUNT TUNERS
& DIVIDERS EXCEPT FOR
WRR-800A/WRR-802A
$95.00
K-1314
1/4 WAVE ANTENNAS (Pr.)
ALL SONY RACK-MOUNT
TUNERS
$27.00
K-1324
SOLDERABLE 1/8" MINIPLUG
WRR-805A, WRT-805A
$24.00
K-1334
1/8' LOCKING MINIPLUG TO
XLR MALE ADAPTER CABLE
WRR-805A
$40.00
LCS-T805
RK-800A
SC-M800
GUITAR STRAP SOFT CASE
Rack-mount adapter kit
CARRYING CASE
WRT-805A
WRR-800A, WRR-802A
FREEDOM PACKAGED
SYSTEMS
$48.00
$37.00
$100.00
CA-WR855
WORKS WITH MODELS:
ALL BROADCAST MODEL
CAMCORDERS (MAY REQUIRE
OPTIONAL BKW-L601 BATTERY
ADAPTER OR ANTON BAUER
EQUIVELENT)
LIST PRICE
$500.00
-19-
WBC-0.6B-P
50 OHM COAXIAL ANTENNA
CABLE (.6M)
ALL RACK-MOUNT TUNERS
& DIVIDERS EXCEPT FOR
WRR-800A/WRR-802A
$25.00
WBC-10B-5P
50 OHM COAXIAL ANTENNA
CABLE (10M)
ALL RACK-MOUNT TUNERS
& DIVIDERS EXCEPT FOR
WRR-800A/WRR-802A
$98.00
WBC-20B-5P
50 OHM COAXIAL ANTENNA
CABLE (20M)
ALL RACK-MOUNT TUNERS
& DIVIDERS EXCEPT FOR
WRR-800A/WRR-802A
$122.00
WBC-30B-5P
50 OHM COAXIAL ANTENNA
CABLE (30M)
ALL RACK-MOUNT TUNERS
& DIVIDERS EXCEPT FOR
WRR-800A/WRR-802A
$165.00
WBC-50B-5P
50 OHM COAXIAL ANTENNA
CABLE (50M)
ALL RACK-MOUNT TUNERS & DIVIDERS
EXCEPT FOR WRR-800A/WRR-802A
WIRELESS SUPPLIED ACCESSORIES- REPLACEMENT PARTS
WORKS WITH MODELS:
MB-806A, WRR-801A
WRR-800A, WRR-822A
WRT-800A
WRT-800A
WRT-800A
DESCRIPTION
MODULE PANEL COVER
AC ADAPTER
WINDSCREEN CAGE
WINDSCREEN
ADJUSTMENT
SCREWDRIVER
KCP PART/ORDER #
2-545-750-01
1-467-114-22
X-3679-322-2
3-603-339-01
3-603-337-02
WRT-800A, WRT-805A, WRR805A, WRT-807A
RATTAIL ANTENNA
1-467-301-11
WRT-805A
WRR-805A, WRT-820A, WRT822A, WRT-860A, WRR-810A
BELT-MOUNT SPRING
AA BATTERY CAGE ASSL'Y
2-545-245-01
A-4521-033-D
1/8" CONNECTION CABLE
SOFT CASE/MOUNT
ADAPTER
1-790-935-11
2-545-716-01
WINDSCREEN CAGE
WINDSCREEN
MIC HOLDER
HOLDER SCREW ADAPTER
MIC HOLDER
HOLDER SCREW ADAPTER
SOFT BELT CASE w/mount
ANTENNA
RF FILTER CLAMP
AC ADAPTER (AC-S500)
HELICAL ANTENNA
EARPHONE
SERIAL INTERFACE CABLE
BELT CLIP
CD-ROM
FREQUENCY GUIDE
MANUAL
SOFT CASE/MOUNT
ADAPTER
X-3678-174-2
3-682-258-01
A-4508-029-A
2-525-614-11
A-4508-029-A
2-100-952-00
2-540-964-01
1-501-458-12
1-469-089-11
1-475-527-11
1-501-969-11
1-504-116-11
1-783-377-11
3-020-642-01
3-023-743-01
3-026-187-01
3-861-712-11
2-540-964-01
HELICAL ANTENNA
CASE/MOUNT ASSEMBLY
DC-POWER CABLE
1-501-612-11
A-8265-089-A
1-751-484-11
WRR-805A
WRR-805A
WRT-807A
WRT-807A
WRT-807A
WRT-807A
WRT-830A, WRT-810A
WRT-830A, WRT-810A
WRT-820A, WRT-822A
WRT-820A, WRT-822A
ICF-SC1PC
ICF-SC1PC
ICF-SC1PC
ICF-SC1PC
ICF-SC1PC
ICF-SC1PC
ICF-SC1PC
ICF-SC1PC
ICF-SC1PC
WRT-820A, WRT-822A
WRR-855A
WRR-810A
BTA-801
PRICE
-20-
BTA-801, WRR-810A
ADAPTER PLATE-TOP
MOUNT
2-540-028-01
BTA-801, WRR-810A
BTA-801, WRR-810A
SCREWS FOR ABOVE (X2)
ADAPTER PLATE-BOTTOM
MOUNT
7-682-547-09
X-316-708-01
BTA-801, WRR-810A
WRR-805A
SCREWS FOR ABOVE (X2)
DUAL CAMCORDER MOUNT
PLATE
7-682-560-09
X-0248-167-1
CAMCORDER MOUNTING
BRACKET
A-8278-057-A
ADAPTS BTA-801A & WRR810A TO ALL PROFESSIONAL
CAMCORDERS
SAD700
Stand Adapter for Handheld Wireless Microphones
$25.00
-21-
Camcorder / Wireless Microphone Configuration Chart
CAMCORDERS
CAMERA MODEL #
SUPPLIED MOUNTING
HDWRE
WIRELESS TUNERS
OPTIONAL
MOUNTING
HDWRE
(CAMCORDER)
WIRELESS
RECEIVER
POWER VIA:
Anton Bauer
QR-SDH,
w/ABWMKKIT
adapter
WRR-855A-4PIN 12V DC
(w/BTA-801)
WRR-810A,
WRR-805Ainternal "AA"
batteries (x2)
AUDIO INPUT
CONNECTOR TYPE
AUDIO OUTPUT
CONNECTOR TYPE
XLR (X2).
BTA-801A,
WRR-810A
supplied XLR
connector,
WRR-805Aoptional K-1334 XLR
cable required
COMPATIBLE UHF
SUPPLIED HDWRE
TUNER
SUGGESTED WIRELESS PACKAGES
OPTIONAL
MOUNTING
HDWRE (TUNER)
PACKAGE #1
Hand-held
PACKAGE #2
Body-pack/lavalier
PACKAGE #3
Plug-on transmitter
WRR-855A(CH)
(tuner)
WRR-855A(CH) (tuner)
WRR-855A(CH) (tuner)
WRT-807A(CH)
(transmitter)
WRT-860A(CH)
w/ECM-77BC
lavalier microphone
WRT-808A(CH)
(plus any dymamic handheld mic)
WRR-855A(CH)
(tuner)
WRR-855A(CH) (tuner)
WRR-855A(CH) (tuner)
WRT-807A
(transmitter)
WRT-860A(CH)
w/ECM-77BC
lavalier microphone
WRT-808A68
(plus any dymamic handheld mic)
WRT-800A68
or
WRT-807A(CH)
WRT-805A(CH)
w/ECM-44BMP
-orWRT-822A(CH)
w/ECM-77BC
Suggested microphones:
F-740/9X
F-780/X
ECM-510
WRR-855A(CH)
(tuner)
WRR-855A(CH) (tuner)
WRR-855A(CH) (tuner)
WRT-807A
(transmitter)
WRT-860A(CH)
w/ECM-77BC
lavalier microphone
WRT-808A(CH)
(plus any dymamic handheld mic)
HDCAM
HDW-500
HDW-700
HDW-700A
V-wedge for Li-Ion
batteries (Includes
A8278-057-A bracket)
WR-855A
(64, 66, 68)
WRR-810A
(64,66,68)
WRR-805A
(64, 66, 68)
BTA-801
WRR-855A(Include plate
1/4 WAVE
adapter)
ANTENNAS (x2)
(REQUIRED for
WRR-810AWRR-855A)
1/4 WAVE (x1)
X-0248-167-1,
WRR-805Adual plate
antenna, soft
adpter required
case, 1/8" cable
for WRR-805A
HDW-F900
BETACAM
UVW-100B
PVW-D30
NP-1
BKW-L601
(INCLUDES
A-8278-057-A
bracket )
-orAnton Bauer
QRSP-200A,
w/ABWMKKIT
adapter
WRR-855A-4PIN 12V DC
(w/BTA-801)
WRR-810A,
WRR-805Ainternal "AA"
batteries (x2)
XLR (X2).
BTA-801A,
WRR-810A
supplied XLR
connector,
WRR-805Aoptional K-1334 XLR
cable required
WR-855A
(64, 66, 68)
WRR-810A
(64,66,68)
WRR-805A
(64, 66, 68)
WRR-855ABTA-801
1/4 WAVE
(Include plate
ANTENNAS (x2)
adapter)
(REQUIRED for
WRR-810AWRR-855A)
1/4 WAVE (x1),
case, XLR cable X-0248-167-1,
WRR-805Adual plate
antenna, soft
adpter required
case, 1/8" cable for WRR-805A
PVW-D35
BETCAM SP
BVW-300
BVW-300A
BVW-400
BVW-400A
BVW-D600WS
NP-1
BVW-D600
PVV-3
BVV-5
BETACAM SX
BKW-L601
-orBKW-L403
(INCLUDES A8278-057-A
bracket )
-orAnaton Bauer
QRSP200A/400A
w/ABWMK KIT
adapter
WRR-855A-4PIN 12V DC
(w/BTA-801)
WRR-810A,
WRR-805Ainternal "AA"
batteries (x2)
NONE
4-PIN 12V DC
XLR (X2).
BTA-801A,
WRR-810A
supplied XLR
connector,
WRR-805Aoptional K-1334 XLR
cable required
WR-855A
(64, 66, 68)
WRR-810A
(64,66,68)
WRR-805A
(64, 66, 68)
WRR-855ABTA-801
1/4 WAVE
(Include plate
ANTENNAS (x2)
adapter)
(REQUIRED for
WRR-810AWRR-855A)
1/4 WAVE (x1),
case, XLR cable X-0248-167-1,
WRR-805Adual plate
adpter required
antenna, soft
case, 1/8" cable for WRR-805A
WRT-800A68
or
WRT-807A(CH)
WRT-805A(CH)
w/ECM-44BMP
-orWRT-822A(CH)
w/ECM-77BC
Suggested microphones:
F-740/9X
F-780/X
ECM-510
Camcorder / Wireless Microphone Configuration Chart
DNW-7
DNW-9WS
DNW-90
DNW-90WS
A-8278-057-A
bracket (For 2nd
WL unit only)
V-wedge for Li-Ion
-orbattery Included. BuiltAnton Bauer
in slot for WRR-855A
QR-SDH
w/ABWMK KIT
adapter
DNV-5
DIGITAL BETACAM
WRR-855A
supplied
internally from
camera
4-PIN 12V DC
(w/BTA-801,
FOR 2ND WL
ONLY)
WRR-810A,
WRR-805Ainternal "AA"
batteries (x2)
XLR (X2)
(For externally
mounted WL unit
ONLY )
BTA-801A,
WRR-810A
supplied XLR
connector,
WRR-805Aoptional K-1334 XLR
cable required
WRR-855A(CH)
(tuner)
WRR-855A(CH) (tuner)
WRR-855A(CH) (tuner)
WRT-807A
or
WRT-800A68
WRT-805A(CH)
w/ECM-44BMP
-orWRT-822A(CH)
w/ECM-77BC
WRT-808A(CH)
(plus any dymamic handheld mic)
Suggested microphones:
F-740/9X
F-780/X
ECM-510
WRR-855A(CH)
(tuner)
WRR-855A(CH) (tuner)
WRR-855A(CH) (tuner)
WRT-807A(CH)
or
WRT-800A68
WRT-805A(CH)
w/ECM-44BMP
-orWRT-822A68
w/ECM-77BC
WRT-808A(CH)
(plus any dymamic handheld mic)
Suggested microphones:
F-740/9X
F-780/X
ECM-510
BTA-801
(Include plate
adapter)
WRR-855A(CH)
(tuner)
WRR-855A(CH) (tuner)
WRR-855A(CH) (tuner)
BTA-801
(Include plate
adapter)
_
_
_
WRT-807A(CH)
or
WRT-800A68
WRT-805A(CH)
w/ECM-44BMP
-orWRT-822A(CH)
w/ECM-77BC
WRT-808A68
(plus any dymamic handheld mic)
Suggested microphones:
F-740/9X
F-780/X
ECM-510
_
*SEE BELOW
*SEE BELOW
*SEE BELOW
_
WRR-805A(CH)
(Tuner)
plus
WRT-800A68
or
WRT-807A(CH)
(Transmitter)
WRR-805A(CH) (Tuner)
plus
WRT-805A(CH)
(Transmitter) + mic
(ECM-44BMP or ECM77BMP)
WRR-805A(CH) (Tuner)
plus
WRT-808A(CH)
(Transmitter)
+ mic
(F-740/9X or
F-780/X)
WR-855A
(64, 66, 68)
WRR-810A
(64,66,68)
WRR-805A
(64, 66, 68)
WRR-855A1/4 WAVE
ANTENNAS (x2)
BTA-801
WRR-810A(REQUIRED
1/4 WAVE (x1),
FOR SECOND
case, XLR cable
WR-855A)
WRR-805Aantenna, soft
case, 1/8" cable
WR-855A
(64, 66, 68)
WRR-810A
(64,66,68)
WRR-805A
(64, 66, 68)
WRR-855A1/4 WAVE
ANTENNAS (x2)
WRR-810A1/4 WAVE (x1),
case, XLR cable
WRR-805Aantenna, soft
case, 1/8" cable
4-PIN 12V DC
DVW-700
DVW-700WS
DVW-707
Anton Bauer
V-wedge for Li-Ion
QR-SDH
battery & A8278-057w/ABWMK KIT
A bracket included
adapter
DVW-709WS
WRR-855A4-PIN 12V DC
(w/BTA-801)
WRR-810A,
WRR-805Ainternal "AA"
batteries (x2)
XLR (X2).
BTA-801A,
WRR-810A
supplied XLR
connector,
WRR-805Aoptional K-1334 XLR
cable required
BTA-801
(REQUIREDIncludes
mounting
hardware)
DVW-790WS
DVCAM
DSR-130WS
DSR-200
DSR-200A
NP-1
_
Anaton Bauer
QRSP-200A
w/ABWMK KIT
adapter
WRR-855A4-PIN 12V DC
WRR-810A,
WRR-805Ainternal "AA"
batteries (x2)
DSBK-201
WRR-810A,
WRR-805Ainternal "AA"
batteries (x2)
CA-WR855
WRR-855A
powered
through CAWR855
WRR-810A,
WRR-805A
internal "AA"
batteries (x2)
DSR-300
DSR-300A
_
DSR-500WS
DSR-PD1
DSR-PD100
DSR-PD100A
_
_
BTA-801A,
XLR (X2)
WRR-810A
Not used for DSRsupplied XLR
300 and 500WS
connector,
with WRR855A / CAWRR-805AWR855
optional K-1334 XLR
cable required
WR-855A
(64, 66, 68)
WRR-810A
(64,66,68)
WRR-805A
(64, 66, 68)
WRR-855A1/4 WAVE
ANTENNAS (x2)
WRR-810A1/4 WAVE (x1),
case, XLR cable
WRR-805Aantenna, soft
case, 1/8" cable
CA-WR855
CA-WR855 or
BTA-801 / A8728-057-A
1/4 WAVE
ANTENNA (x1),
1/8"-1/8" CABLE
(x1). VINYL
CASE
_
WRR-805A
internal "AA"
batteries (x2)
1/8" MINIPLUGBALANCED
WRR-805ASupplied 1/8" minplug
or optional K-1334
XLR cable
_
WRR-810A
WRR-805AInternal "AA"
batteries (x2)
1/8" MINIPLUGBALANCED OR
XLR BALANCED
(x1)
WRR-810A- XLR
WRR-805A
audio connector,
WRR-805ASupplied 1/8" minplug
(64,66,68)
antenna, case
or optional K-1334 WRR-810A (64, WRR-805A- 1/8"XLR cable
66 & 68)
audio CABLE ,
case
WRR-805A
(64,66,68)
Camcorder / Wireless Microphone Configuration Chart
DSR-PD150
_
_
WRR-810A
WRR-805AInternal "AA"
batteries (x2)
1/8" MINIPLUGBALANCED (x1)
OR XLR
BALANCED (x2)
WRR-810ASupplied XLR cable
WRR-805ASupplied 1/8" minplug
or optional K-1334
XLR cable
WRR-805A
(64,66,68)
1/4 WAVE
ANTENNA (x1),
1/8"-1/8" CABLE
(x1). VINYL
CASE
_
SEE ABOVE
SEE ABOVE
SEE ABOVE
_
WRR-805AInternal "AA"
batteries (x2)
1/8" MINIPLUGBALANCED
WRR-810ASupplied XLR cable
WRR-805ASupplied 1/8" minplug
or optional K-1334
XLR cable
WRR-805A
(64,66,68)
1/4 WAVE
ANTENNA (x1),
1/8"-1/8" CABLE
(x1). VINYL
CASE
_
SEE ABOVE
SEE ABOVE
SEE ABOVE
DV
DCR-VX1000
DCR-VX2000
_
1) *The WRR-855A with the BTA-801, WRR-810A and the X-0248-167-1, use the same mounting system. These are all compatible with camcorder models using the BKW-L601, DSBK201, BKW-L403, NP-1, BP-90B and Anton Bauer adapters. However, whereas the WRR-810A operates on it's own internal battery power, the WRR-855A will ONLY operate with power
received from the camcorder battery.
2) **The WRR-855A with the CA-WR855 adapter works ONLY with the DSR-300 & 500(WS). The WRR-855A with no bracket or adapter, works ONLY with Betacam SX models (plug-in
slot).
Download PDF

advertising
