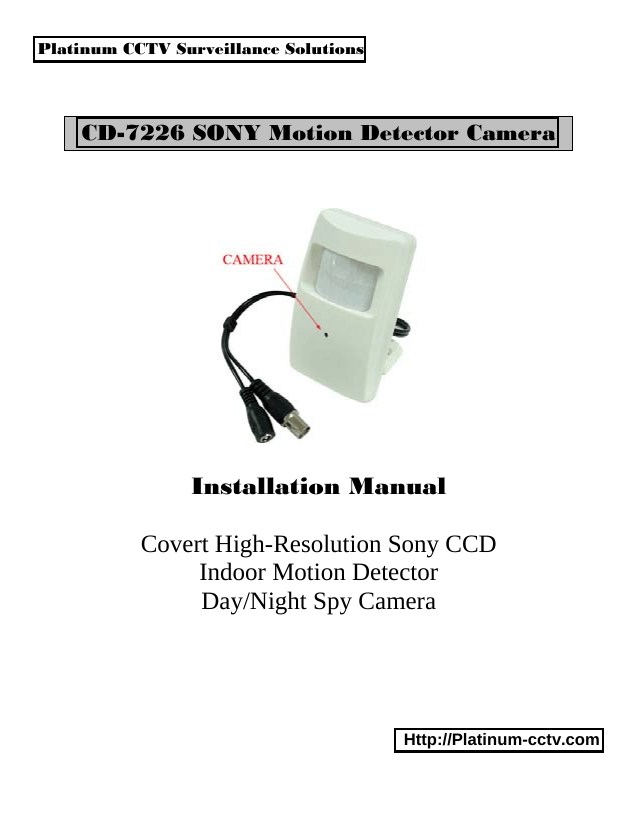

Platinum CCTV Surveillance Solutions
CD-7226 SONY Motion Detector Camera
Installation Manual
Covert High-Resolution Sony CCD
Indoor Motion Detector
Day/Night Spy Camera
Http://Platinum-cctv.com
Platinum CCTV Surveillance Solutions
CD-7226 SONY Motion Detector Camera
Image Sensor
1/3” SONY CCD Sensor
Number of Pixels
NTSC: 568 (H) x 494 (V)
Lens
3.7mm Wideangle Pinhole
Sync System
Internal Synchronization
Resolution
420 TVL
Picture Area
4.9 x 3.7mm
Video Output
1.0Vp-p75Ω
S/N Ratio
More than 48 dB
Scan Frequency
60 Hz
Exposure
Automatic
White Balance
Automatic
Useable
Illumination
Power Source
0.05 Lux (F:1.2)
DC 12V 90mA
Installation Notes
•
•
•
•
•
•
•
For Indoor Use Only
Disassembly of camera is not recommended
Handle lens carefully with gloves to prevent damage
from oil on your hands
Handle with care
To prevent shock, do not plug in camera with dome
removed
Never touch lens directly
Clean the lens occasionally with a dry micro-fiber
cloth, or plastic cleaner only – Do not use abrasivetype cleaners as they will scratch lens
