Platinum CCTV Surveillance Solutions

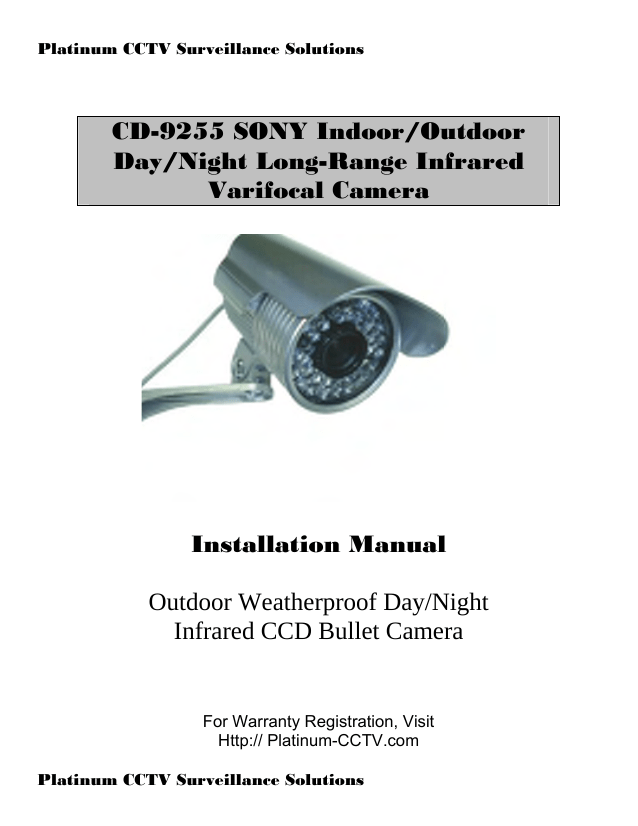

CD-9255 SONY Indoor/Outdoor
Day/Night Long-Range Infrared
Varifocal Camera
Installation Manual
Outdoor Weatherproof Day/Night
Infrared CCD Bullet Camera
For Warranty Registration, Visit
Http:// Platinum-CCTV.com
Platinum CCTV Surveillance Solutions
Platinum CCTV Surveillance Solutions
Camera Installation
1. Camera Mounting:
Items Needed:
Screwdriver, Drill, Mounting Hardware (not
included), Pencil
2. For Wall Mount bracket
a.
Assemble 2 pieces of camera support
bracket and secure with 4 screws
b.
Attach support bracket to Camera body
Platinum CCTV Surveillance Solutions
Camera Installation
c.
Attach support bracket to camera bracket
d.
Push cable through holes in bracket
e.
For Ceiling mount bracket, simply thread bracket
to camera (top or bottom)
Platinum CCTV Surveillance Solutions
Adjusting the Lens
The Lens of the CD-9255 camera is an externally
adjustable 4-9mm varifocal lens. The lens can be
easily adjusted after mounting the camera.
WARNING! – Failure to follow these
instructions carefully can result in damage
to the camera and will void the warranty
On the back of the camera, you will find 2
weatherproof caps. These caps hide the zoom
and focus adjustments for the camera.
1.
Carefully remove the zoom cap from the
camera
Do NOT lose the cap, you will need to replace the
weather-proof cap after adjustment
Platinum CCTV Surveillance Solutions
Camera Installation
2.
Use a small screwdriver to adjust the zoom of the
lens. The CD-9255 camera will adjust between
4mm (wide-angle) and approx. 9mm (fixed
zoom).
When making Zoom and Focus adjustments,
STOP when there is a slight resistance.
Forcing the camera’s adjustment will void
the warranty and damage the camera
Platinum CCTV Surveillance Solutions
Camera Installation
3.
Next, remove the weatherproof cap for the focus
adjustment..
4.
Then use a small standard screwdriver to adjust
the focus of the camera.
When making Zoom and Focus adjustments,
STOP when there is a slight resistance.
Forcing the camera’s adjustment will void
the warranty and damage the camera
Platinum CCTV Surveillance Solutions
Camera Installation
5.
You may have to repeat the zoom and focus
adjustments to achieve the width of view that is
desired.
6.
Once you have completed the adjustments,
replace the weatherproof caps, making sure they
are completely seated to ensure the camera
remains weatherproof.
DO NOT OVERTORQUE
WEATHERPROOF CAPS
Platinum CCTV Surveillance Solutions
CD-9255 Long Range IR CCD Camera
Image Sensor
1/3” SONY CCD
Number of Pixels
NTSC: 540 (H) x 491 (V)
Scanning System
15.7343Khz (H), 60 Hz (V)
Sync System
Internal Synchronization
Resolution
420 TVL
Lens
4-9mm Varifocal Lens (Ext. Adjust)
Video Output
1.0Vp-p75Ω
S/N Ratio
>52dB
Shutter Time
1/60-1/100,000 Sec.
Operation Temp.
-20°C ~ +50°C
Storage Temp.
-30°C ~ +60°C
Useable
Illumination
Power Source
0.5 Lux (F:2.0), 0 Lux (IR On)
DC 12V 1000mA
Installation Notes
•
•
•
•
•
•
For Indoor or Outdoor Use
Disassembly of camera will void warranty
Remove protective film from lens before use
Handle with care
Never touch lens directly
Clean the lens occasionally with a dry micro-fiber
cloth, or plastic cleaner only – Do not use abrasivetype cleaners as they will scratch lens
