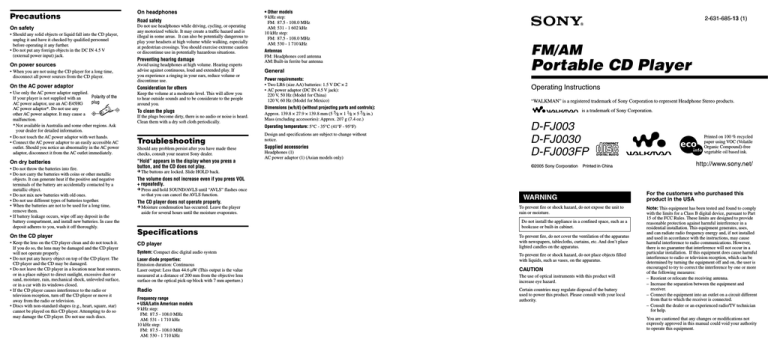

Precautions
On headphones
On safety
Do not use headphones while driving, cycling, or operating
any motorized vehicle. It may create a traffic hazard and is
illegal in some areas. It can also be potentially dangerous to
play your headsets at high volume while walking, especially
at pedestrian crossings. You should exercise extreme caution
or discontinue use in potentially hazardous situations.
• Should any solid objects or liquid fall into the CD player,
unplug it and have it checked by qualified personnel
before operating it any further.
• Do not put any foreign objects in the DC IN 4.5 V
(external power input) jack.
On power sources
• When you are not using the CD player for a long time,
disconnect all power sources from the CD player.
On the AC power adaptor
• Use only the AC power adaptor supplied.
Polarity of the
If your player is not supplied with an
plug
AC power adaptor, use an AC-E45HG
AC power adaptor*. Do not use any
other AC power adaptor. It may cause a
malfunction.
* Not available in Australia and some other regions. Ask
your dealer for detailed information.
• Do not touch the AC power adaptor with wet hands.
• Connect the AC power adaptor to an easily accessible AC
outlet. Should you notice an abnormality in the AC power
adaptor, disconnect it from the AC outlet immediately.
On dry batteries
• Do not throw the batteries into fire.
• Do not carry the batteries with coins or other metallic
objects. It can generate heat if the positive and negative
terminals of the battery are accidentally contacted by a
metallic object.
• Do not mix new batteries with old ones.
• Do not use different types of batteries together.
• When the batteries are not to be used for a long time,
remove them.
• If battery leakage occurs, wipe off any deposit in the
battery compartment, and install new batteries. In case the
deposit adheres to you, wash it off thoroughly.
On the CD player
• Keep the lens on the CD player clean and do not touch it.
If you do so, the lens may be damaged and the CD player
will not operate properly.
• Do not put any heavy object on top of the CD player. The
CD player and the CD may be damaged.
• Do not leave the CD player in a location near heat sources,
or in a place subject to direct sunlight, excessive dust or
sand, moisture, rain, mechanical shock, unleveled surface,
or in a car with its windows closed.
• If the CD player causes interference to the radio or
television reception, turn off the CD player or move it
away from the radio or television.
• Discs with non-standard shapes (e.g., heart, square, star)
cannot be played on this CD player. Attempting to do so
may damage the CD player. Do not use such discs.
Road safety
Preventing hearing damage
Avoid using headphones at high volume. Hearing experts
advise against continuous, loud and extended play. If
you experience a ringing in your ears, reduce volume or
discontinue use.
• Other models
9 kHz step:
FM: 87.5 - 108.0 MHz
AM: 531 - 1 602 kHz
10 kHz step:
FM: 87.5 - 108.0 MHz
AM: 530 - 1 710 kHz
Antennas
FM: Headphones cord antenna
AM: Built-in ferrite bar antenna
General
Consideration for others
Power requirements:
• Two LR6 (size AA) batteries: 1.5 V DC × 2
• AC power adaptor (DC IN 4.5 V jack):
220 V, 50 Hz (Model for China)
120 V, 60 Hz (Model for Mexico)
To clean the plugs
Dimensions (w/h/d) (without projecting parts and controls):
Approx. 139.8 × 27.9 × 139.8 mm (5 5⁄8 × 1 1⁄8 × 5 5⁄8 in.)
Mass (excluding accessories): Approx. 207 g (7.4 oz.)
Keep the volume at a moderate level. This will allow you
to hear outside sounds and to be considerate to the people
around you.
If the plugs become dirty, there is no audio or noise is heard.
Clean them with a dry soft cloth periodically.
Troubleshooting
Should any problem persist after you have made these
checks, consult your nearest Sony dealer.
“Hold” appears in the display when you press a
button, and the CD does not play.
Operating temperature: 5°C - 35°C (41°F - 95°F)
Design and specifications are subject to change without
notice.
Supplied accessories
Headphones (1)
AC power adaptor (1) (Asian models only)
2-631-685-13 (1)
FM/AM
Portable CD Player
Operating Instructions
“WALKMAN” is a registered trademark of Sony Corporation to represent Headphone Stereo products.
is a trademark of Sony Corporation.
D-FJ003
D-FJ0030
D-FJ003FP
©2005 Sony Corporation
Printed on 100 % recycled
paper using VOC (Volatile
Organic Compound)-free
vegetable oil based ink.
Printed in China
 The buttons are locked. Slide HOLD back.
The volume does not increase even if you press VOL
+ repeatedly.
 Press and hold SOUND/AVLS until “AVLS” flashes once
so that you can cancel the AVLS function.
The CD player does not operate properly.
 Moisture condensation has occurred. Leave the player
aside for several hours until the moisture evaporates.
Specifications
CD player
System: Compact disc digital audio system
Laser diode properties:
Emission duration: Continuous
Laser output: Less than 44.6 µW (This output is the value
measured at a distance of 200 mm from the objective lens
surface on the optical pick-up block with 7 mm aperture.)
Radio
Frequency range
• USA/Latin American models
9 kHz step:
FM: 87.5 - 108.0 MHz
AM: 531 - 1 710 kHz
10 kHz step:
FM: 87.5 - 108.0 MHz
AM: 530 - 1 710 kHz
WARNING
To prevent fire or shock hazard, do not expose the unit to
rain or moisture.
Do not install the appliance in a confined space, such as a
bookcase or built-in cabinet.
To prevent fire, do not cover the ventilation of the apparatus
with newspapers, tablecloths, curtains, etc. And don’t place
lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects filled
with liquids, such as vases, on the apparatus.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
Certain countries may regulate disposal of the battery
used to power this product. Please consult with your local
authority.
For the customers who purchased this
product in the USA
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician
for help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
Remaining battery power
SOUND/AVLS
Display
Bookmark
 (headphones)
jack
DC IN 4.5 V
Play mode
to an AC outlet
MONO
LOCAL
Headphones**
PRESET
P MODE/
AC power adaptor
VOL +*/–
Band
Track number/
Preset number
Playing time/Frequency
Sound mode
/ • TUNE –/+
OPEN
*(play/pause)/
ENTER
 (stop) • RADIO OFF
HOLD (rear)
RADIO ON/ BAND
* The button has a tactile dot.
** The plug shape of the headphones supplied varies depending on the model you purchased.
Power Sources
Playing a CD
To use the batteries (not supplied)
1 Slide OPEN to open the player lid and open the battery
compartment lid inside the CD player.
2 Insert two LR6 (size AA) alkaline batteries by matching
the  to the diagram inside the CD player and close the
lid until it clicks into place. Insert the  end first (for
both batteries).
Battery life* (approx. hours)
(When the CD player is used on a flat and stable place.)
Playing time varies depending on how the CD player is used.
G-PROTECTION
Two Sony alkaline batteries LR6
(SG) (produced in Japan)
G-on G-off RADIO
ON
16
11
35
* Measured value by the standard of JEITA (Japan
Electronics and Information Technology Industries
Association).
• The indicator sections of
roughly show the
remaining battery power. One section does not always
indicate one-fourth of the battery power.
To use the AC power adaptor
Connect the AC power adaptor as illustrated.
1 Slide OPEN to open the lid and fit the CD to the pivot,
then close the lid.
2 Press .
To play from the first track, press  for 2 seconds or
more while the CD player is stopped.
• This CD player can play CD-Rs/CD-RWs recorded in
the Compact Disc Digital Audio (Audio CD) format,
but playback capability may vary depending on the
quality of the disc and the condition of the recording
device.
• This product is designed to play back discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with copyright
protection technologies are marketed by some record
companies. Please be aware that among those discs,
there are some that do not conform to the CD standard
and may not be playable by this product.
AMS* / search function
Tuning in the station quickly
*Automatic Music Sensor
To find the beginning of the previous/current/next/
succeeding track(s): Press / repeatedly.
To go backward/forward quickly: Press and hold /.
Press and hold TUNE + or – in step 3 until the frequency
digits begin to change on the display. The CD player
automatically scans the radio frequencies and stops when it
finds a clear station.
Play mode function
Improving broadcast reception
During play, press P MODE/
repeatedly:
No indication (normal play)  “1”(single track play) 
“SHUF”(shuffle play)  “ ”(Bookmark play)
To repeat the play mode you selected, press and hold
P MODE/
until “ ” appears.
For FM, extend the headphones cord.
G-PROTECTION function
The function provides protection against sound skipping
during many active uses.*
The default setting is “G-on.” To select “G-off,” press 
while you keep pressing  during stop. To enjoy high
quality CD sound, select “G-off”.
* Sound may skip: if the CD player receives stronger
continuous shock than expected / if a dirty or scratched
CD is played / when using poor-quality CD-Rs/CD-RWs
or if there is a problem with the recording device or
application software.
Bookmark play
Digital MEGA BASS function
During play, press SOUND/AVLS repeatedly to select
”SND 1” or “SND 2.”
If the sound is distorted, turn down the volume.
While listening to the radio, this function is disabled.
AVLS* function
*Automatic Volume Limiter System
Press and hold SOUND/AVLS.
If “AVLS” flashes three times, the function is enabled.
If “AVLS” flashes once, the function is disabled.
You can also use this function while listening to the radio.
Note
Keep the headphones connected to the  jack of the CD
player. The headphones cord works as the FM antenna.
If it is hard to hear the FM broadcast due to
interference from strong radio waves
If you add Bookmarks to your favorite tracks, you can listen
to these tracks only from the track with the lowest number.
1 During playback of the track where you want to add a
Bookmark, press and hold  until “ (Bookmark)”
flashes on the display.
2 Repeat step 1 to add Bookmarks to the tracks you want.
3 Press P MODE/
repeatedly until “ ” flashes.
4 Press .
1 While listening to the FM broadcast, press SOUND/
AVLS.
“LOCAL” flashes.
2 Press /ENTER within 10 seconds after you finished
the previous operation.*
“LOCAL” stops flashing.
* If “LOCAL” disappears from the display, start from
Step 1.
To remove the Bookmarks
To cancel the LOCAL setting, press SOUND/AVLS, and
then press /ENTER so that “LOCAL” disappears from
the display.
During playback of the track with a Bookmark, press and
hold  until “ ” disappears from the display.
If you change CDs and start playing, all the Bookmarks
added for the previous CD will be erased.
Note on DualDiscs
A DualDisc is a two sided disc product which mates DVD
recorded material on one side with digital audio material on
the other side. However, since the audio material side does
not conform to the Compact Disc (CD) standard, playback
on this product is not guaranteed.
Headphones
For AM, reorient the CD player itself.
Listening to the Radio
1 Press RADIO ON/BAND to turn on the radio.
If “PRESET” appears on the display, press P MODE/
to make “PRESET” disappear from the display.
2 Press RADIO ON/BAND until the band you want
appears.
Each time you press the button, the display changes as
follows:
 FM  AM
3 Press TUNE + or – to tune in the station you want and
adjust the volume.
Turning off the radio
Press  • RADIO OFF.
If it is hard to hear the FM broadcast due to
poor reception
1 While listening to the FM broadcast, press SOUND/
AVLS.
“LOCAL” flashes.
2 Press SOUND/AVLS again.
“MONO” flashes.
3 Press /ENTER within 10 seconds after you finished
the previous operation.*
“MONO” stops flashing.
* If “MONO” disappears from the display, start from Step 1.
To cancel the MONO setting, press SOUND/AVLS twice,
and then press /ENTER so that “MONO” disappears
from the display.
Presetting Radio Stations
You can preset up to 30 stations: 20 for FM and 10 for AM.
1 While listening to the radio, press P MODE/
to enter
the preset mode.
“PRESET” appears on the display.
2 Press TUNE + or – repeatedly until the preset number
you want appears on the display.
3 Press and hold P MODE/
until “PRESET” flashes on
the display.
From this step on, start the next operation within 30
seconds after you finished the previous operation. If
“PRESET” stops flashing, start from step 3.
4 Press TUNE + or – repeatedly to tune in the station you
want.
5 Press /ENTER.
To cancel all preset stations
1 While the radio is turned off and CD play is stopped,
press RADIO ON/BAND while you are pressing .
“CLEAr” flashes.
2 Press /ENTER.
Playing Preset Radio
Stations
1 Press RADIO ON/BAND to select the band.
2 When “PRESET” does not appear on the display, press
P MODE/
to enter the preset mode.
“PRESET” appears on the display.
3 Press TUNE + or – to tune in a stored station.
Changing the Tuning
Interval
When using the CD player abroad, change the AM tuning
interval, if necessary.
9 kHz area: Asia and Europe
10 kHz area: the U.S.A., Canada and Latin America
1 While the radio is turned off and CD play is stopped,
press RADIO ON/BAND while you are pressing .
If the current setting is “9 kHz,” “10 kHz” flashes on the
display.
If the current setting is “10 kHz,” “9 kHz” flashes on the
display.
2 Press /ENTER.
Note
After changing the tuning interval, you need to preset radio
stations again.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
