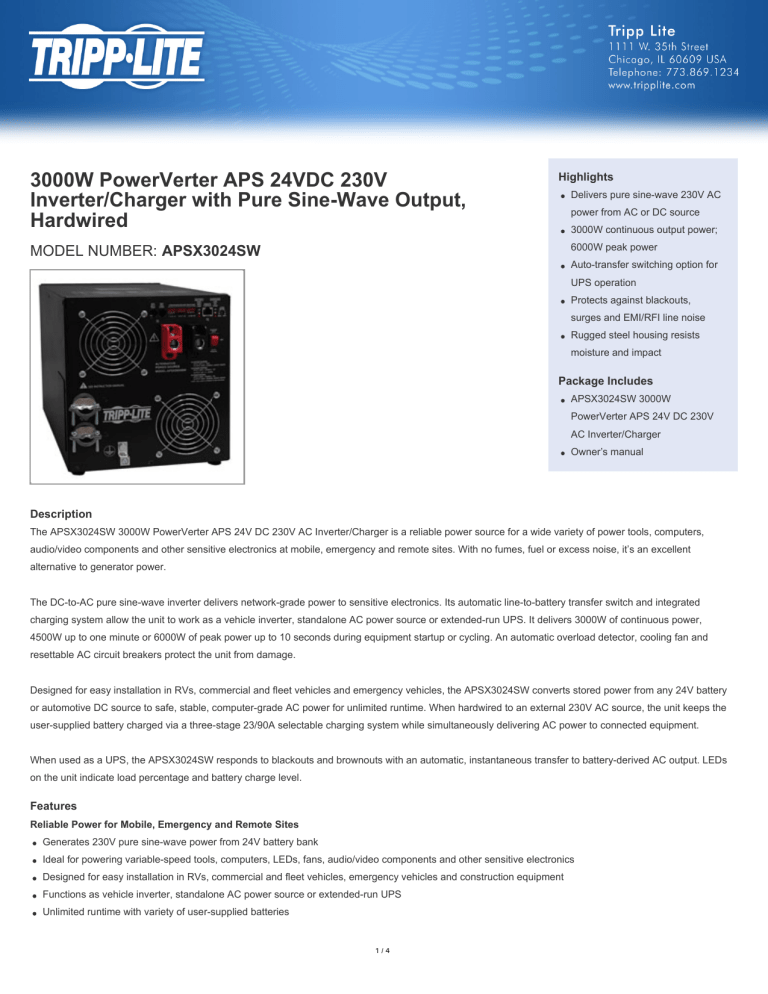

3000W PowerVerter APS 24VDC 230V Inverter/Charger with Pure
3000W PowerVerter APS 24VDC 230V
Inverter/Charger with Pure Sine-Wave Output,
Hardwired
Highlights
Delivers pure sine-wave 230V AC
power from AC or DC source
3000W continuous output power;
6000W peak power
MODEL NUMBER: APSX3024SW
Auto-transfer switching option for
UPS operation
Protects against blackouts,
surges and EMI/RFI line noise
Rugged steel housing resists
moisture and impact
Package Includes
APSX3024SW 3000W
PowerVerter APS 24V DC 230V
AC Inverter/Charger
Owner’s manual
Description
The APSX3024SW 3000W PowerVerter APS 24V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of power tools, computers,
audio/video components and other sensitive electronics at mobile, emergency and remote sites. With no fumes, fuel or excess noise, it’s an excellent
alternative to generator power.
The DC-to-AC pure sine-wave inverter delivers network-grade power to sensitive electronics. Its automatic line-to-battery transfer switch and integrated
charging system allow the unit to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 3000W of continuous power,
4500W up to one minute or 6000W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and
resettable AC circuit breakers protect the unit from damage.
Designed for easy installation in RVs, commercial and fleet vehicles and emergency vehicles, the APSX3024SW converts stored power from any 24V battery
or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the
user-supplied battery charged via a three-stage 23/90A selectable charging system while simultaneously delivering AC power to connected equipment.
When used as a UPS, the APSX3024SW responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs
on the unit indicate load percentage and battery charge level.
Features
Reliable Power for Mobile, Emergency and Remote Sites
Generates 230V pure sine-wave power from 24V battery bank
Ideal for powering variable-speed tools, computers, LEDs, fans, audio/video components and other sensitive electronics
Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment
Functions as vehicle inverter, standalone AC power source or extended-run UPS
Unlimited runtime with variety of user-supplied batteries
1/4
Pure Sine-Wave Power for Normal and Peak Power Demands
3000W of continuous power
4500W of reserve power up to 1 min.
6000W of peak power up to 10 sec. to accommodate surge power demands during equipment startup and cycling
Automatic overload detector, built-in cooling fan and resettable AC circuit breakers protect unit from damage
High-current DC input terminals for simple hardwired installation
Automatic Voltage Regulation
Corrects brownouts and overvoltages without using battery power during battery charging and UPS standby modes
Automatic Transfer Switching
Transfer relay switches to inverter power during blackout in 20 ms
3-position switch enables Auto, Charge Only or System Off mode
3-Stage 23/90A Selectable Battery Charger
Serves as battery charger when external 230V AC power is supplied and powering connected equipment
Protects battery from overcharging and overdischarging
Low-battery protection prevents excessive battery depletion
DIP switches configure wet/gel charging profiles
External Ports
Battery temperature port allows connection of optional battery temperature sensor
RJ45 communication port allows connection of optional remote control module, such as Tripp Lite’s APSRM4
Front-Panel LEDs
Indicate load percentage and battery charge level
Rugged Steel Housing
Resists moisture, vibration, impact and high-humidity environments
Built-in mounting feet for installation on any rigid horizontal surface
Specifications
OUTPUT
Frequency Compatibility
50 / 60 Hz
Output Receptacles
Hardwire
Output (Watts)
3000
Continuous Output Capacity (Watts)
3000
Peak Output Capacity (Watts)
6000
Output Nominal Voltage
230V
Output Voltage Regulation
LINE POWER (AC): Maintains 230V nominal sine wave output from line power source. INVERTER POWER (AC):
Maintains sine wave output voltage of 230 VAC (+/-5%).
2/4
Output Frequency Regulation
50/60 Hz (+/- 0.3 Hz)
INPUT
Nominal Input Voltage(s) Supported
120/208V 3-PH Wye
Recommended Electrical Service
DC INPUT: Requires 24VDC input source capable of delivering 145A for the required duration (when used at full
continuous capacity - DC requirements increase during OverPower and DoubleBoost operation).
Maximum Input Amps
28
Input Connection Type
DC INPUT: Set of DC bolt-down terminals. AC INPUT: Hardwire via built in terminal strip with cover plate
Voltage Compatibility (VAC)
230
Voltage Compatibility (VDC)
24
BATTERY
Expandable Battery Runtime
Runtime is expandable with any number of user supplied wet or gel type batteries
DC System Voltage (VDC)
24
Battery Pack Accessory (Optional)
98-121 sealed lead acid battery(optional)
Battery Charge
Selectable 23 / 90 amp
Expandable Runtime
Yes
VOLTAGE REGULATION
Voltage Regulation Description
Includes automatic voltage regulation to correct brownouts and overvoltages back to usable levels
Overvoltage Correction
Overvoltages are automatically reduced by 10%
Brownout Correction
Brownouts are automatically boosted by 10% and 20%
USER INTERFACE, ALERTS & CONTROLS
Front Panel LEDs
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7
levels reported). See manual for sequences.
Switches
3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant
on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in
inverter mode. In AC uninterrupt
PHYSICAL
Shipping Dimensions (hwd / in.)
20.080 x 18.430 x 22.520
Shipping Dimensions (hwd / cm)
51.00x46.81 x 57.20
Shipping Weight (lbs.)
87
Shipping Weight (kg)
39.46
Unit Dimensions (hwd / in.)
10.08 x 8.90 x 12.40
Unit Dimensions (hwd / cm)
25.60 x22.606 x 31.496
Unit Weight (lbs.)
64.8
3/4
Unit Weight (kg)
29.39
Material of Construction
Metal
ENVIRONMENTAL
Relative Humidity
0-95% non-condensing
Operating Temperature
32-104 Fahrenheit / 0-40 Celcius
LINE / BATTERY TRANSFER
Transfer Time (Line Power to
Battery Mode)
Dip-switch selectable 20 millisecond (full cycle) / 10 millisecond (half-cycle) transfer times which are compatible with
many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications
Low Voltage Transfer to Battery
Power
In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 170V AC (user
adjustable to 180V).
High Voltage Transfer to Battery
Power
In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 260V (user
adjustable to 270 - see manual).
SPECIAL FEATURES
Remote Control Capability
Yes
TVSS Grounding
Main grounding lug connects inverter/charger to earth or vehicle chassis ground
WARRANTY
Product Warranty Period (U.S. &
Canada)
2-year limited warranty
Product Warranty Period
(International)
2-year limited warranty
Product Warranty Period (Mexico)
2-year limited warranty
Product Warranty Period (Puerto
Rico)
2-year limited warranty
© 2015 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
http://www.tripplite.com/products/product-certification-agencies
4/4
