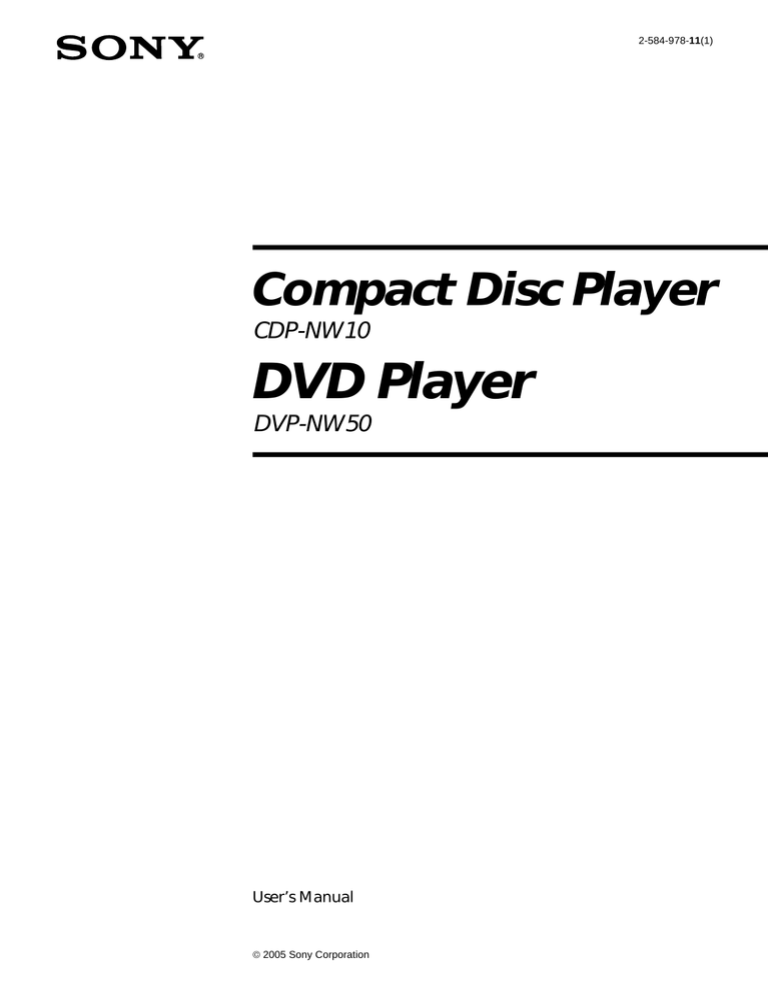

2-584-978-11(1)
Compact Disc Player
CDP-NW10
DVD Player
DVP-NW50
User’s Manual
 2005 Sony Corporation
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
Note to CATV system installer:
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
This reminder is provided to call the CATV
system installer’s attention to Article 820-40
of the NEC that provides guidelines for
proper grounding and in particular,
specifies that the cable ground shall be
connected to the ground system of the
building, as close to the point of cable entry
as practical.
If you have any questions about this
product, you may call;
Sony Customer Information Service Center
1-800-222-7669 or
http://www.sony.com/
The number below is for the FCC related
matters only.
Regulatory Information
Declaration of Conformity
Trade name: SONY
Model No.: CDP-NW10/DVP-NW50
Responsible Party: Sony Electronics
Inc.
Address: 16450 W. Bernardo Dr.
San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
WARNING
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment to an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
2US
Important Safety Instruction
1
2
3
4
5
6
7
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
8 Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers)
that produce heat.
9 Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third
grounding prong. The wide blade or the
third prong are provided for your safety.
If the provided plug does not fit into
your outlet, consult an electrician for
replacement of the obsolete outlet.
10Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and the
point where they exit from the
apparatus.
11Only use attachments/accessories
specified by the manufacturer.
12 Use only with the cart, stand,
tripod, bracket, or table
specified by manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the
cart/apparatus combination
to avoid injury from tip-over.
13Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.
Welcome!
Thank you for purchasing the Sony Custom
Integrated AV System. Before operating the
unit, please read this manual thoroughly
and retain it for future reference.
TABLE OF CONTENTS
About This Manual 5
Notes About the Discs 5
Features 6
Quick Guide to Disc Type 8
Chapter 1 Getting Started
Setting up the System 10
Connecting a TV (DVP-NW50 only) 10
Connecting audio Equipment 10
Selecting a method for using the remote 11
Setting up the Units 11
Setting an IP Address 11
Naming the Unit 12
Setting the time 13
Setting a remote code on the Unit 13
Selecting the time interval for automatic return to the Home Menu 13
Chapter 2 Parts and Controls
Parts and Controls
14
Key operation on the Unit 15
Key operation on the remote 16
Preparing the remote 18
Setting a remote code on the remote
Menu operation 18
Menu tree 19
18
Chapter 3 Playing Discs (CDP-NW10 only)
Playing a CD Disc 20
Various play mode functions (Shuffle play, Repeat play)
Searching for a particular point on a disc (Search/Scan)
21
21
Chapter 4 Playing Discs (DVP-NW50 only)
Playing a CD Disc 22
Various play mode functions (Shuffle play, Repeat play)
23
Playing a DVD/VCD/MP3 Disc 23
Using the DVD´s menu 24
Playing VIDEO CDs with PBC functions (VIDEO CD Ver. 2.0 or higher )
Playing an MP3 audio track 25
24
Searching for a Scene 25
Searching for a particular point on a disc (Search/Scan) 25
Searching for a title/chapter/track/scene, etc. (Search mode)
25
Using Various Additional Functions 26
Selecting the audio 26
Selecting the subtitles 26
Selecting the angle 26
Parental control (limited playback)
27
Using the Setup Display (DVD Settings) 28
Setting the display (General Setup) 28
Setting the language and playback restriction (Preference)
29
Continue to the next page l
3US
TABLE OF CONTENTS (continued)
Chapter 5 Enjoying Radio and Other Component
Listening to the Radio
31
Listening to a preset station 31
Listening to a non-preset station
31
Presetting Radio Stations 33
Naming the Preset Stations 33
Listening to Sound from a Component Connected to LINE IN 34
Chapter 6 Using the System Network
Playing Music on Other Units 35
Playing back music from “NETWORK” 35
Playing back music from “MY MUSIC” 36
Various play mode functions (Shuffle play, Repeat play)
36
Enjoying Music in All Rooms Simultaneously (Party mode) 37
Excluding the Unit from a Party mode (Party Privacy) 37
Talking with Persons in Other Rooms (INTERCOM) 38
Excluding a Unit from INTERCOM (Intercom Privacy) 38
Changing the call sound of the INTERCOM 38
Monitoring Other Rooms (MONITOR) 39
Excluding a Unit from MONITOR (Monitor Privacy) 39
Chapter 7 Setting the Timer
Setting the Alarm 40
Setting the Sleep Timer 41
Chapter 8 Other Functions
Using the Setup Display 42
Selecting the surround mode (DVP-NW50 only) 42
Adjusting the contrast of the front panel display (DIMMER) 43
Presetting the volume when the power is turned on (VOL PRESET) 43
Adjusting the front speaker balance (BALANCE) (CDP-NW10 only) 43
Settings for Speakers (DVP-NW50 only) 44
Selecting a speaker size 44
Setting the speaker distance 45
Setting a speaker level 45
Adjusting the speaker volume – TEST TONE 46
Setting the dynamic range compressor 46
Operating a Sony TV with the Remote 47
Controlling your TV with the remote
Chapter 9 Other Information
Precautions 48
Troubleshooting 49
Error Messages 53
Specifications 54
Language Code List 55
Index 56
4US
47
About This Manual
Notes About the Discs
• Some operations and displays may differ slightly,
depending on the model you use.
• “DVD” may be used as a general term for DVD
VIDEOs, DVD+RWs/DVD+Rs and DVD-RWs/
DVD-Rs.
• The meaning of the icons used in this manual is
described below:
To keep the disc clean, handle the disc by its edge. Do not
touch the surface.
Icon
• Do not expose the disc to direct sunlight or heat sources such as
hot air ducts, or leave it in a car parked in direct sunlight as the
temperature may rise considerably inside the car.
Meaning
Functions available for DVD VIDEOs and
DVD+RWs/DVD+Rs or DVD-RWs/
DVD-Rs in video mode.
Functions available for VIDEO CDs
(including Super VCDs or CD-Rs/
CD-RWs in video CD format or Super
VCD format encoding).
• After playing, store the disc in its case.
• Clean the disc with a cleaning cloth.
Wipe the disc from the center out.
Functions available for music CDs or
CD-Rs/CD-RWs in music CD format.
Functions available for DATA CDs
(CD-ROMs/CD-Rs/CD-RWs containing
MP3* audio tracks).
• Do not use solvents such as benzine, thinner, commercially
available cleaners, or anti-static spray intended for vinyl LPs.
• If you have printed the disc’s label, dry the label before
playing.
* MP3 (MPEG1 Audio Layer 3) is a standard format defined by
ISO (International Organization for Standardization)/MPEG
which compresses audio data.
5US
Features
The CDP-NW10/DVP-NW50 (referred to as the Unit in
this manual) is a home audio component system based
on network connections. A Unit is installed into the wall
of a room and connected to other Units using an Ethernet
connection (100Base-TX.)
The system consists of:
– Up to 12 Units (CDP-NW10 or DVP-NW50)
– A personal computer (if necessary)
– Audio output components, such as a CD Changer
– A monitor or a projector (DVP-NW50)
– Two speakers (2CH) (CDP-NW10)/Five speakers
and a sub woofer (5.1CH) (DVP-NW50)
This product incorporates copyright protection
technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright
protection technology must be authorized by
Macrovision, and is intended for home and other limited
viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is
prohibited.
The main features of the Unit are the following:
*
• Two types of conventional CD player model and a DVD player
model with a simple timer clock and 2ch audio input
• The Unit can play back MP3-format audio files stored on a
computer via a network (An exclusive application of PC is
needed)
• The Unit can play back CDs mounted in other Units via a
network
• The Unit can play back the audio contents in all the rooms
simultaneously from the following sources (Party mode)
– CDs in any Units
– MP3 discs (DVP-NW50 only) and LINE IN in the
lead operating Unit
– FM or AM tuner
– MP3-format audio files stored on a computer (a
Playlist feature in the Unit is available)
• INTERCOM and MONITOR functions via a network
• 2ch to 5.1ch sound produced from connected speakers for
DVP-NW50, or 2ch sound produced from connected speakers
for CDP-NW10
6US
Trademarks and Copyrights
This Unit incorporates Dolby* Digital and Pro Logic
surround and the DTS** Digital Surround System.
Manufactured under license from Dolby Laboratories.
“Dolby,”“Pro Logic,” and the double-D symbol are
trademarks of Dolby Laboratories.
** Manufactured under licence from Digital Theater System,
Inc. “DTS” and “DTS Digital Surround” are registered
trademarks of Digital Theater System, Inc.
Gracenote/CDDB
Corporate description
Music recognition technology and related data are provided by
GracenoteR. Gracenote is the industry standard in music
recognition technology and related content delivery. For more
information visit www.gracenote.com.
Proprietary legends
CD and music-related data from Gracenote, Inc., copyright ©
2000-2005 Gracenote. Gracenote CDDBR Client Software,
copyright 2000-2005 Gracenote. This product and service may
practice one or more of the following U.S. Patents: #5,987,525;
#6,061,680; #6,154,773, #6,161,132, #6,230,192, #6,230,207,
#6,240,459, #6,330,593, and other patents issued or pending.
Services supplied and/or device manufactured under license for
following Open Globe, Inc. United States Patent 6,304,523.
Gracenote and CDDB are registered trademarks of Gracenote.
The Gracenote logo and logotype, and the “Powered by
Gracenote” logo are trademarks of Gracenote.
CDP-NW10/DVP-NW50 system network
The diagram below illustrates an entire system network made up of multiple Units.
The configuration shown below is for illustrative purposes only. It may differ from an actual system network.
Contact your nearest installer for details on making the required connections for the system network.
KITCHEN
GUEST ROOM
BEDROOM
CDP-NW10
CDP-NW10
CDP-NW10
INTERNET
Router
Hub
Computer
LIVING ROOM
Front Speaker
Front Speaker
DVP-NW50
TV/Projector
Rear
Speaker
CD Changer
Center Sub Woofer
Speaker
Rear
Speaker
Example of a DVP-NW50 system network
7US
Quick Guide to Disc Type
Discs that can be played back on the Unit differ,
depending on the model you are using. The kinds of disc
that you can use on the Unit are as follows.
CDP-NW10
DVP-NW50
Format of discs
Format of discs
Music CD
CD-R
CD-RW
Also, the Unit can play CD-Rs/CD-RWs recorded in the
following format:
– Music CD format
– CD Extra format*
DVD VIDEO
DVD-R
DVD-RW
VIDEO CD
Music CD
* Only a music session can be played back.
The kinds of disc that cannot be played back
– CD-Rs/CD-RWs other than those recorded in the formats listed
above
– CD-ROM
– Data part of CD-Extras
– VIDEO CD
– DVD+R/DVD-R/DVD-RW/DVD+RW
– DVD-ROM
– DVD Audio
– MP3 format
– Super Audio CD
CD-R
CD-RW
The “DVD VIDEO” logo, the “DVD-R” and the “DVDRW” logo are trademarks.
Also, the Unit can play CD-Rs/CD-RWs recorded in the
following formats:
– Music CD format
– CD Extra format*
– VIDEO CD format
– MP3 format conforming to ISO 9660* Level 1/Level 2,
or its extended format, Joliet
* A logical format or files and folder on CD-ROMs, defined by
ISO (International Organization for Standardization)
The kinds of disc that cannot be played back
– CD-Rs/CD-RWs other than those recorded in the formats listed
above
– CD-ROM recorded in PHOTO CD format
– Data part of CD-Extras
– DVD-ROM
– DVD Audio
– Super Audio CD
– DVD VIDEO with a different region code
– DVD-R/DVD-RW´s inVR (Video Recording) mode
– DVD+R/DVD-R of double layer disc
8US
Example of discs that the Unit cannot play
The Unit cannot play the following discs:
– A disc that has a non-standard shape (e.g., card, heart)
– A disc with paper or stickers on it
– A disc that has the adhesive of cellophane tape or a sticker still
left on it.
Note about CD-R/CD-RW/DVD-R/DVD-RW (Video mode)/DVD+R/
DVD+RW
In some cases, CD-R/CD-RW/DVD-R/DVD-RW
(Video mode)/DVD+R/DVD+RW cannot be played
on the Unit due to the recording quality or physical
condition of the disc, or the characteristics of the
recording device and authoring software.
The disc will not play if it has not been correctly
finalized. For more information, see the operating
instructions of the recording device.
Note that discs created in the Packet Write format
cannot be played.
Region code
This Unit is designed and manufactured to respond to the
Region Management information that is recorded on. a
DVD VIDEO. The region code of this Unit is “1.”
This Unit will play DVD VIDEO labelled 1 or
ALL
If you try to play any other DVD VIDEO, the message
“wrong region” will appear on the TV screen. Depending
on the DVD VIDEO, there may be no region code
indication, even though playing the DVD VIDEO is
prohibited by area restrictions.
Music discs encoded with copyright protection
technologies
This product is designed to play back discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with copyright
protection technologies are marketed by some record
companies. Please be aware that among those discs,
there are some that do not conform to the CD standard
and may not be playable by this product.
Note on DualDisc
A DualDisc is a two sided disc product which mates DVD
recorded material on one side with digital audio material on the
other side.
However, since the audio material side does not conform to the
Compact Disc (CD) standard, playback on this product is not
guaranteed.
Note on playback operations of DVDs and
VIDEO CDs
Some playback operations of DVDs and VIDEO CDs may
be intentionally set by software producers. Since this Unit
plays DVDs and VIDEO CDs according to the disc
contents the software producers designed, some playback
features may not be available. Also, refer to the
instructions supplied with the DVDs or VIDEO CDs.
9US
Chapter 1
Getting
Started
This chapter provides you with
information how to connect and setup
the Unit.
Setting up the System
Your system has already been installed by an installer.
If you want to change the configuration, the TV or the
audio equipment, check the location of the VIDEO out
jack, the LINE IN jack, and the IR IN/OUT jack. Contact
your nearest installer for details on the connections
required by the system.
Connecting a TV (DVP-NW50 only)
Connections between the Unit and each device are made
via cables or cords coming through the wall.
Connect the VIDEO OUT of the Unit to a TV.
Select one of the ways of connection methods shown
below, according to the input jack on your TV.
VIDEO cord (not supplied)
VIDEO OUT
of Unit
TV
or
S VIDEO cord (not supplied)
Note
Do not connect a VCR, etc., between your TV and the
Unit. If you pass the Unit signals via the VCR, you may
not receive a clear image on the TV screen. If your TV has
only one video input jack, connect the Unit to this jack.
X
X
VCR
VIDEO OUT
of Unit
TV
Connect directly
Connecting audio Equipment
Connections between the Unit and each of devices are
made via cables or cords coming through the wall.
The Unit can input sound from external audio equipment
via the audio connectors on the Unit. Connect the
OUTPUT jacks (L/R) of the audio equipment to the LINE
IN (L/R) jacks of the Unit using the proper audio cords
(optional).
Unit
LINE IN
10US
CD Changer
LINE OUT
Setting up the Units
Selecting a method for using the remote
1
Press the “V” SELECT on the HOME Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “IR ROUTE”
appears on the front panel display.
3
Press the “IR ROUTE” SELECT.
The IR route setup Menu appears.
4
Select a method for using the remote.
The default setting is underlined.
Method
Operates
EYE
The Unit directly from the remote.
JACK
The Unit through the IR IN jack using signals
from the remote.
Both
The Unit directly and through the IR IN
jack using signals from the remote.
Setting an IP Address
There are two ways to acquire an IP address.
The default setting is underlined.
• AUTO:
You can acquire the IP address
automatically.
Normally, select this setting.
• MANUAL: You can set up the IP address manually.
Because some knowledge of networking is
required to use this setting, we recommend
you normally to select “AUTO.”
1
Press the “V” SELECT on the HOME Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “LAN”
appears on the front panel display.
3
Press the “LAN” SELECT.
The LAN setup Menu appears.
4
Press the “IP ADDRESS” SELECT.
The IP address setup Menu appears.
Continue to the next page l
11US
Chapter 1 Getting Started
Connections between the Unit and each device are made
via cables or cords coming through the wall.
You can operate a component using the remote if the IR
IN/OUT terminal of the Unit and the component are
connected. For example, if you connect IR IN of the Unit
and IR OUT of a TV, you can operate the Unit with the
Remote by aiming it at the TV.
Contact your nearest installer for details on the default
setting for each parameters.
For details on how to make a selection in the Menu, see
page 18.
Setting up the Units (continued)
5
Chapter 1 Getting Started
Press “AUTO” or “MANUAL” SELECT.
If you select “AUTO,” setting an IP address is
completed.
If you select “MANUAL,” go to the step 6.
Naming the Unit
You can change the name of each room to something more
recognizable and have it displayed on the front panel
display.
1
Press the “V” SELECT on the HOME Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the A SELECT to set an IP address.
“i” appears, and the first three numbers can be
entered.
Press the “V” SELECT repeatedly until “NAME”
appears on the front panel display.
3
Press the “NAME” SELECT.
The Room name list appears.
7
Enter the IP address using numeric buttons on the
remote, then press ENTER.
4
8
Press the B SELECT to set a Sub-net mask.
“i” appears, and the first three numbers can be
entered.
Press the “KITCHEN,” “BEDROOM,” “DEN,” or
“PATIO” SELECT that you want to change the name
by pressing the corresponding SELECT.
5
If you want to name the room as you like, press
the “EDIT” SELECT.
The Text edit setup Menu appears.
Enter the name in the text box using the function
SELECT.
See the table below for details on the function of each
of the buttons.
6
9
Enter the Sub-net mask using numeric buttons on
the remote, then press ENTER.
10 Press BACK.
The display returns to the LAN setup Menu.
11 Press the “DIAGNOSIS” SELECT.
A Moves the cursor to the left in the text being edited
(Text Edit).
B Changes characters in reverse alphabetical order.
The confirmation display appears.
Confirm the following items.
C Clears the character on which the cursor is placed
in the text being edited (Text Edit).
IP Assign
OK
IP address is assigned correctly.
NG
Illegal address has been assigned.
D Cancels editing and returns to the Room name list.
IP Conflict
E Moves the cursor to the right in the text being
edited (Text Edit).
OK
IP address has no conflict.
F Changes characters in alphabetical order.
NG
Two or more Units are using the same IP
address.
G Enters the selected character into the text box.
H Stores the name and returns to the Room name list.
Cable Connect
OK
Ethernet cable is inserted correctly.
NG
Ethernet cable is not inserted correctly.
12US
Tip
You can input up to eight characters for the name of each room.
Setting the time
1
2
If the supplied remote interferes with an other, set the
remote code for this Unit and the remote to one that
differs from the other Unit.
The defalt remote code setting for the Unit and the
supplied remote is CIS2.
1
Press the “V” SELECT on the HOME Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “SIRCS”
appears on the front panel display.
3
4
Press the “SIRCS” SELECT.
Press the “V” SELECT on the HOME Menu, then
press the “CLOCK” SELECT.
The Clock Menu appears.
Press the “TIME SET” SELECT.
The Time set Menu appears.
Press the “CIS2” (or “CIS3”) SELECT.
The remote code is set to the same one used by RM
SETUP on the remote.
Note
You cannot operate the Unit using the remote when the remote
code of the Unit and the remote are different.
Selecting the time interval for automatic
return to the Home Menu
3
Press the “24H” (or the “12H”) SELECT on the Time
set Menu to select the time display mode.
The time display mode toggles between 24H and 12H
as you press the button.
4
Set the hour and minute using the “HOUR” and the
“MIN” SELECT.
5
Press HOME to return to Home Menu.
The time is displayed on the right side of the upper
line on the HOME Menu.
The front panel display automatically returns to the Home
Menu when the selected time has elapsed.
The defalt time setting for the Unit is 30 seconds.
1
Press the “V” SELECT on the HOME Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “TIME OUT”
appears on the front panel display.
3
4
Press the “TIME OUT” SELECT.
Note
The clock is not displayed when the Unit is in the Edit Menu or
Party mode.
Press the “30sec,” “5sec,” “10sec,” or “No”
SELECT.
Note
If you select “No,” the front panel display does not return to the
Home Menu automatically.
13US
Chapter 1 Getting Started
You must set the time to make functions available, such as
an alarm or a sleep timer. Display the Home Menu as
shown below beforehand (see page 18).
Setting a remote code on the Unit
Chapter 2
Parts and
Controls
This chapter provides you with
information on the parts and controls
of each component, and information
on menu operation.
14US
Parts and Controls
Key operation on the Unit
Chapter 2 Parts and Controls
1 REMOTE SENSOR
2 SPEAKER (for INTERCOM/MONITOR) (page 38, 39)
Receives the sound while INTERCOM or MONITOR
is set to ON.
3 X/1 (POWER) (page 20, 22, 23)
Press to turn the power on/off.
4 SELECT (page 18)
Press to select an item on the front panel display, such
as menu items, settings, tracks, etc.
5 MODE
Press to jump to the Mode Menu of each function.
6 BACK (page 12, 42)
Press to return to the previous menu or to view the
current status of the disc title list or the Preset station
list.
7 m/M (SCROLL DOWN/UP)
Press to scroll the LCD menu.
When you listen to the radio, you can adjust the
frequency by all kinds of tuning.
8 HOME
Press to return to the Home Menu.
9 MUTING (page 20, 22)
Press to mute the speaker output from the Unit, or to
cancel muting when it is set to ON.
0 +/– VOLUME (page 38, 39)
Press to adjust the volume of the speaker output from
the Unit.
qa OPEN/CLOSE (page 20, 22, 23)
Press to open/close the door on the Unit.
qs MICROPHONE
Picks up the sound while INTERCOM is set to ON.
qd OPERATIONAL BUTTONS (page 20, 22, 23)
N(PLAY): Press to play the selected source
X (PAUSE) : Press to pause playback
x (STOP) : Press to stop playback
./> : Locates a specific track
qf Display (page 18)
Displays the Home Menu and the Setup Menu, etc.
You can operate the Home Menu and the Setup Menu,
etc., using any SELECT (4).
Continue to the next page l
15US
Parts and Controls (continued)
Key operation on the remote
Chapter 2 Parts and Controls
RM SETUP TV/VIDEO
TV
1
2
3
4
5
6
7
8
9
0
ENTER
CLEAR
SELECT
MODE
BACK
HOME
DOWN
UP
DVD
TOP MENU
MENU
MUTING
F
MASTER VOL
G
O
ENTER
f
RETURN
TV VOL
16US
g
DISPLAY
TV CH
AUDIO
ANGLE
SUBTITLE
DVD SETUP
1 RM SETUP (page 18)
Press to preset the remote code, and switch between
CIS2/CIS3.
3 Numeral buttons
Press to select a number, representing, for example, a
desired track of the audio source.
4 SELECT (page 18)
Press to select an item on the front panel display, such
as menu items, settings, tracks, etc.
5 MODE
Press to jump to Mode Menu of each function.
6 HOME
Press to return to the Home Menu on the display.
7 DOWN/UP
Press to scroll the LCD menu.
When you listen to the radio, you can adjust the
frequency by all kinds of tuning.
8 ./> (page 21, 25)
Press to locate a specific track of the source or to select
a preset station.
9 X (PAUSE)
Press to pause the playback of the source.
0 H (PLAY) (page 20, 22, 23)
Press to operate the selected source.
H (PLAY) button has a tactile dot.**
qa TOP MENU* (page 24)
Press to display the top menu while using
DVP-NW50.
qs G/ F/f /g*
Press to select a DVD setup menu on the TV screen.
qd ENTER*
Press to confirm the selection while using DVP-NW50.
qf RETURN*
Press to return to the specified position defined by
DVD or VIDEO CD.
ql TV ?/1 (page 47)
Press to turn the Sony TV on/off.
w; CLEAR
Press to clear a number which you entered.
wa ENTER
Press to set the number you entered using the numeric
buttons.
ws BACK (page 12, 42)
Press to return to the previous menu or to view the
current status of the disc title list or the Preset station
list.
wd m/M (page 21, 25)
Press to locate a portion you want to play within a
track of the source.
wf x (STOP) (page 20, 22, 23)
Press to stop the current playback.
wg MENU* (page 24)
Press to display a menu while using DVP-NW50.
wh MUTING (page 20, 22)
Press to mute the speaker output from the Unit on/off.
wj MASTER VOL +/–
Press to adjust the volume of the speaker output from
the Unit.
MASTER VOL + button has a tactile dot.**
wk ANGLE (page 26)*
Press to change the viewing angle.
wl DVD SETUP (page 27, 28, 29, 30)*
Press to display the Setup display on the TV screen.
e; AUDIO (page 26)*
Press to select the language of the sound track.
ea SUBTITLE (page 26)*
Press to display subtitles or turn them on/off.
* Used for operating a DVP-NW50 only
** Use the tactile dot as a reference when operating the system.
qg DISPLAY* (page 26)
Press to display a search menu.
qh TV VOL +/– (page 47)
Press to adjust the Sony TV volume.
TV VOL + button has a tactile dot.**
qj TV CH +/– (page 47)
Press to change the Sony TV channel.
TV CH + button has a tactile dot.**
Continue to the next page l
17US
Chapter 2 Parts and Controls
2 TV/VIDEO (page 47)
Press to switch signals between TV input and Video
input for the Sony TV monitor.
qk ?/1 (page 20, 22, 23)
Press to turn the Unit on/off.
Parts and Controls (continued)
Preparing the remote
Chapter 2 Parts and Controls
Insert two R06 (size-AA) batteries into the battery compartment
with the + and – correctly oriented to the markings. When using
the remote, point it at the IR sensor on the Unit.
Press the A or B SELECT while “RM SETUP” is being
pressed on the remote.
The default setting is CIS2.
When you press the A SELECT, remote code is set to
CIS2.
When you press the B SELECT, remote code is set to
CIS3.
Note
You cannot operate the Unit using the remote when the remote
code of the Unit and the remote are different.
Menu operation
The Home Menu is displayed on the Unit (A).
Using the Home Menu, you can select the sound and
make various adjustments to items.
Notes
• Under normal conditions, the batteries should last for about six
months. When the remote no longer operates the Unit, replace
both batteries with new ones.
• Do not leave the remote in an extremely hot or a humid place.
• Do not drop any foreign object into the remote casing,
particularly when replacing the batteries.
• Do not use a new battery with an old one.
• Do not expose the IR sensor to direct sunlight or lighting
equipment. Doing so may cause a malfunction.
• If you do not intend to use the remote for an extended period
of time, remove the batteries to avoid possible damage from
battery leakage and corrosion.
Setting a remote code on the remote
You can switch the remote code (CIS2 or CIS3) on the
remote. If the remote code of the Unit and the remote are
different, you cannot use the remote to operate the Unit.
Make sure that the remote code of the remote and the Unit
is the same. For details on setting a remote code on the
Unit, see page 13.
RM SETUP TV/VIDEO
Using any SELECT (B), you can select an item on the
front panel display.
When the item is displayed on the left side, press a
SELECT on the left side.
When the item is displayed on the right side, press a
SELECT on the right side.
For example, when you want to select “DVD,” press the
F SELECT.
When you want to see items below those currently
displayed, press the “H” SELECT.
(When there are additional items, “V” is displayed).
When you want to see items above those currently
displayed, press the “G” SELECT.
(When there are additional items, “v” is displayed).
For details on the Menu tree, see the next page.
TV
C Press to jump to the Mode Menu of each function.
1
2
3
4
D Press to return to the previous menu.
5
6
7
8
E Press to return to the top menu.
9
0
ENTER
CLEAR
SELECT
MODE
BACK
HOME
DOWN
18US
UP
Menu tree
HOME
MODE MENU
CD/DVD/VCD/MP3 (pages 20 to 30)
CD/DVD PLAYER
CD/DVD
Track list (CD only)
Play mode*3 - Continue, Shuffle, Repeat
Party mode- On, Off
Party Join/Quit
Surround mode*4
TUNER (pages 31 to 33)
Preset station list
TUNER
LINE IN (page 34)
NETWORK (page 35)
Room list
(All disc play)
TRACK LIST*1 (CD only)
TITLE*2
Title List
2
ARTIST*
Artist List
ALBUM*2
Album List
GENRE*2
Genre List
Playlist*2
MY MUSIC (page 36)
INTERCOM (page 38)
Room list
(All room connection)
Title List
TITLE
Title List
ARTIST
Artist List
ALBUM
Album List
GENRE
Genre List
Playlist
Title List
Title List
LINE IN
Party mode- On, Off
Party Join/Quit
Surround mode
NETWORK
Play mode- Continue, Shuffle, Repeat
Party mode- On, Off
Party Join/Quit
Surround mode *4
Title List
MY MUSIC
MONITOR (page 39)
Room list
CLOCK (page 40 to 41)
Mono/Stereo
Band (FM/AM)
Party mode- On, Off
Party Join/Quit
Surround mode*4
ALARM
Play mode*3 - Continue, Shuffle, Repeat
Party mode- On, Off
Party Join/Quit
Privacy mode- On, Off
Surround mode*4
SLEEP
TIME SET
SETUP (pages 43 to 46)
DIMMER
DRC*4
TEST TONE*4
SP. SIZE*4
SP. DISTANCE*4
LEVEL*4
BALANCE*5
VOL. PRESET- On, Off
VOL. LEVEL
IR ROUTE- Eye, Jack, Both
INTERCOM PRIVACY- On, Off
INTERCOM RING
MONITOR PRIVACY- On, Off
PARTY PRIVACY- On, Off
SIRCS- CIS2, CIS3
LAN- IP address, Diagnosis
NAME
TIME OUT- 5sec, 10sec, 30sec, No
*1 When you select an Unit in the Room list.
*2 When you select a computer in the Room list.
*3 Available play mode is different for disc.
DVD/VCD/MP3 : Continue, Repeat
CD : Continue, Shuffle, Repeat
*4 DVP-NW50 only
*5 CDP-NW10 only
19US
Chapter 2 Parts and Controls
You can set the following items from Home Menu.
When you press MODE on each of the displays, the Mode Menus shown on the right side appear on the front panel display.
Chapter 3
Playing a CD Disc
Playing Discs
1
(CDP-NW10 only)
2
Press X/1 (POWER).
The Unit turns on.
Press OPEN/CLOSE to open the door, then place a
disc on the spindle firmly.
This chapter describes how to play a
CD disc or how to play audio in
various modes using the CDP-NW10.
Playback side
facing the Unit
3
Press OPEN/CLOSE.
The door closes.
4
Press the “CD” SELECT on the Home Menu.
The track list appears on the front panel display.
When the Unit has been connected to the Internet via a
computer, the track titles are downloaded from the
Gracenote CDDBR server, and the track titles appear
on the front panel display. You can select and play
back desired tracks from these lists. When the Unit is
not connected to a computer or your computer is not
connected to the Internet, only “TRACK1,”
“TRACK2,” etc., appear on the front panel display.
5
Press N.
When CD information is downloaded from Gracenote
CDDBR, you can also press the “TRACK” SELECT.
To stop playing a disc
Press x.
Additional operations
To
Press
Mute the sound
MUTING. To cancel muting,
press it again or press VOLUME +
to adjust the sound volume.
Select a track number
Numeric buttons (0-9).
When the track number
is between 1 and 9:
press the corresponding numeric
button, then press N.
When the track number is
10 or higher:
press the corresponding numeric
buttons in sequence.
e.g.: Playback of the 14th track
Press 1 t 4 in order.
Note
20
US
If there is no disc in the Unit or a disc that cannot be read by the
Unit, “NO DISC” appears on the front panel display.
Various play mode functions
(Shuffle play, Repeat play)
Shuffle play
You can play back tracks in random order.
2 Press the “SHUF” SELECT.
“SHUF” is highlighted.
3 Press N to start Shuffle play.
Shuffle Play starts.
Repeat play
1 Press MODE on the CD display.
The following display appears.
Press “REP-OFF” (repeat off), “REP1” (repeat one), or “REP”
(repeat all) SELECT repeatedly on Mode Menu.
The playback range may be different depending on the play
mode.
SHUF (shuffle)
If you select
Plays
“REP-OFF”
All tracks on a disc
randomly once.
“REP1”
A single track repeatedly.
“REP”
All tracks on a disc play
repeatedly.
Chapter 3 Playing Discs (CDP-NW10 only)
1 Press MODE on the CD display.
The Mode Menu appears.
About the playback range
CONT (continue)
If you select
Plays
“REP-OFF”
All tracks on a disc play
once.
“REP1”
A single track repeatedly.
“REP”
All tracks on a disc play
repeatedly.
Searching for a particular point on a disc
(Search/Scan)
You can quickly locate a particular point on a disc.
2 Press the A SELECT repeatedly.
Repeat play starts from the selected track.
Each time you press the button, the play mode
changes as shown below.
REP-OFF t REP1 t REP
To locate a point quickly using the previous/next
buttons (Search)
You can search for the next or previous track using ./
> on the Unit.
Press . or > lightly once to go to the next or
previous track during playback.
To locate a point quickly by playing a disc in fast
forward or fast reverse (Scan)
1 Press m or M during playback on the remote.
2 When you find the point you want to play back
while scanning, press N to return to normal speed.
Fast forwarding or reversing stops and returns to the
normal playback when the track goes to the next track
or previous track.
21US
Chapter 4
Playing a CD Disc
Playing Discs
1
(DVP-NW50 only)
2
Press X/1 (POWER).
The Unit turns on.
Press OPEN/CLOSE to open the door, then place a
disc on the spindle firmly.
This chapter describes how to play
CD or DVD discs, and the settings
and functions related to a DVD
player.
Playback side
facing the Unit
3
Press OPEN/CLOSE.
The door closes.
4
Press the “DVD” SELECT on the Home Menu.
The track list appears on the front panel display.
When the Unit has been connected to the Internet via
a computer, the track titles are downloaded from the
Gracenote CDDBR server, and the track titles appears
on the front panel display. You can select and play
back desired tracks from these lists. When the Unit is
not connected to a computer or your computer is not
connected to the Internet, only “TRACK1,”
“TRACK2,” etc., appear on the front panel display.
5
Press N.
When CD information is downloaded from Gracenote
CDDBR, you can also press the “TRACK” SELECT.
To stop playing a disc
Press x twice.
Additional operations
To
Press
Mute the sound
MUTING. To cancel muting,
press it again or press +VOLUME
to adjust the sound volume.
Select a track number
Numeric buttons (0-9).
When the track number
is between 1 and 9:
press the corresponding
numeric button, then press N.
When the track number is
10 or higher:
press the corresponding
numeric buttons in sequence.
e.g.: Playback of the 14th track
Press 1 t 4 in order.
Note
22
US
If there is no disc in the Unit or a disc that cannot be read by the
Unit, “NO DISC” appears on the front panel display.
Playing a DVD/VCD/MP3
Disc
Various play mode functions
(Shuffle play, Repeat play)
Shuffle play
You can play back tracks in random order.
1 Press MODE on the CD display.
The Mode Menu appears.
Depending on the disc used, some operations may be
different or restricted.
For details, refer to the instructions supplied with your
disc.
1
2
Turn on your TV.
3
Switch the input selector on your TV so that the
signal from the Unit appears on the TV screen.
4
Press OPEN/CLOSE on the Unit, and place a disc on
the disc spindle firmly.
Press X/1 (POWER).
The Unit turns on.
3 Press N to start Shuffle play.
Shuffle Play starts.
Playback side
facing the Unit
Repeat play
1 Press MODE on the CD display.
The following display appears.
2 Press the A SELECT repeatedly.
Repeat play starts from the selected track.
Each time you press the button, the play mode
changes as shown below.
REP-OFF t REP1 t REP
About the playback range
Press “REP-OFF” (repeat off), “REP1” (repeat one), or “REP”
(repeat all) SELECT repeatedly on Mode Menu.
The playback range may be different depending on the play
mode.
5
Press OPEN/CLOSE.
The door closes.
6
7
Press the “DVD” on the Home Menu.
Press N.
The Unit starts playback.
Adjust the volume on the Unit.
Depending on the disc, a menu may appear on the TV
screen, and playback may start automatically even if
you do not press N.
For DVD VIDEOs and VIDEO CDs, see page 24.
SHUF (shuffle)
If you select
Plays
“REP-OFF”
All tracks on a disc
randomly once.
“REP1”
A single track repeatedly.
“REP”
All tracks on a disc play
repeatedly.
CONT (continue)
If you select
Plays
“REP-OFF”
All tracks on a disc play
once.
“REP1”
A single track repeatedly.
“REP”
All tracks on a disc play
repeatedly.
To stop playing the disc
Press x twice.
To resume playback from the point where you
stopped the disc
1 Press x during playback.
2 Press N.
The Unit starts playback from the point where you
stopped the disc in step 1.
Continue to the next page l
23US
Chapter 4 Playing Discs (DVP-NW50 only)
2 Press the “SHUF” SELECT.
“SHUF” is highlighted.
Playing a DVD/VCD/MP3 Disc (continued)
Repeat play
Using the DVD´s menu
1 Press MODE on the DVD display.
The following display appears.
Chapter 4 Playing Discs (DVP-NW50 only)
2 Press the A SELECT repeatedly.
A DVD is divided into long sections of a movie or a music
feature called “titles.”
When you play DVDs which contains several titles, you
can select the title using the TOP MENU on the remote.
When you play DVDs that allow you to select items such
as language for the sound and subtitles, select these items
using the MENU on the remote.
1
Press TOP MENU or MENU on the remote.
The disc menu appears on the TV screen.
The contents of the menu differ from disc to disc.
2
Press F/f on the remote to select the item you
want to play or change.
3
Press ENTER on the remote.
When playing a DVD
If you select
Plays
“REP-OFF”
All tracks on a disc once.
“REP-CHAP”
A single chapter repeatedly.
“REP-TITL”
A single title repeatedly.
“REP”
All chapters on a disc
repeatedly.
When playing a MP3 file
If you select
Plays
“REP-OFF”
All MP3 files in the current
folder once.
“SINGLE”
The current MP3 file once.
“REP1”
The current MP3 file repeatedly.
“REP”
All MP3 files in the current
folder repeatedly.
When playing a VIDEO CD (Ver. 1.1) without PBC functions
If you select
Plays
“REP-OFF”
All tracks on a disc once.
“REP1”
A single track repeatedly.
“REP”
All tracks on a disc repeatedly.
Playing VIDEO CDs with PBC functions
(VIDEO CD Ver. 2.0 or higher )
PBC (PlayBack Control) allows you to play VIDEO CDs
interactively by following the menu on the TV screen.
1
Press N.
If you insert a VIDEO CD (Ver.2.0 or higher), the
VIDEO CD starts playing with PBC functions.
The menu used by your selection appears.
2
Press the numeric buttons on the remote to select
the item number you want.
3
4
Press ENTER on the remote.
Follow the instructions on the menu for interactive
operations.
Refer to the instructions supplied with the disc, as the
operating procedure may differ, depending on the
VIDEO CD.
Note
3 Press N to start Repeat Play.
Repeat Play starts.
Note
When you play a VIDEO CD (Ver. 2.0) with PBC functions,
repeat play does not work.
24US
Depending on the VIDEO CD, “Press ENTER on the remote” in
step 3 may appear as “Press SELECT” in the instructions
supplied with the disc, In this case, press N.
Searching for a Scene
Playing an MP3 audio track
You can play MP3 audio tracks on CD-ROMs, CD-Rs, or
CD-RWs. However, the discs must be recorded according
to ISO9660 level 1, or Joliet format for the Unit to
recognize the tracks.
1
Insert a data disc recorded in MP3 format into the Unit.
A folder list is displayed on the TV screen.
Searching for a particular point on a disc
(Search/Scan)
You can quickly locate a particular point on a disc by
monitoring the picture or playing it back slowly.
Note
Depending on the disc, you may not be able to do some of the
operations described here.
Press . or > lightly once to go to the next or
previous chapter/track/scene during playback.
To locate a point quickly by playing a disc in fast
forward or fast reverse (Scan)
2
Press F/f to select the folder you want to play,
then press ENTER on the remote.
File list is appears under the folder.
1 Press m or M during playback on the remote.
2 When you find the point you want to play back
while scanning, press N to return to normal speed.
Fast forwarding or reversing stops and returns to the
normal playback when the track goes to the next track
or previous track.
Each time you press m or M while scanning, the
scanning speed changes. With each press, the indication
changes as shown below. Actual speeds may differ
between discs.
Playback direction
3
Press F/f to select the file you want to play, then
press ENTER on the remote.
The Unit starts playing the first MP3 audio track on the
disc.
Notes
• The Unit can play MP3 (MPEG1 Audio Layer3) audio. The Unit
cannot play audio tracks in MP3PRO format.
• If an MP3 file of VBR (variable bit rate) is played, indicated the
elapsed time may be different from the actual time.
• If you add the extension “.MP3” to data that is not in MP3
format, the Unit cannot recognize the data properly and will
generate a loud noise which could damage your speakers.
• You can enter up to 50 characters as a file name including an
extension.
• A file or folder name that is not based on the ISO level 1 or
Joliet format may not be displayed properly.
• The total number of file or folder names should be 128, or
fewer.
• There should be no more than 128 levels in the folder tree.
• Do not use characters such as <, >, &, |, “, /, ?, *, ’, \, :, etc.
x2M t x4M t x8 M t x16Mt x32M
N(PLAY)
Opposite direction
x2m t x4m t x8m t x16mt x32m
N(PLAY)
Searching for a title/chapter/track, etc.
(Search mode)
You can search a DVD by title or chapter, and you can
search a VIDEO CD by track. As titles and tracks are
assigned unique numbers on the disc, you can select the
desired one by entering its number.
Continue to the next page l
25US
Chapter 4 Playing Discs (DVP-NW50 only)
To locate a point quickly using the previous/next
buttons (Search)
You can search for the next or previous chapter, track, or
scene using ./> on the Unit.
Searching for a scene (continued)
1
Press DISPLAY on the remote.
The following display appears. The number in
parentheses indicates the total number of titles, tracks,
etc., of the disc.
Using Various Additional
Functions
The following operations are set up using the remote
while looking at a TV screen.
Selecting the audio
Switches the language of the sound track.
Chapter 4 Playing Discs (DVP-NW50 only)
Press AUDIO on the remote while playing a disc.
Each time you press AUDIO on the remote, the language
of the sound track changes.
Press G /g/F/f repeatedly to select a search
method on the remote.
When playing a DVD VIDEO/DVD-RW
Note
Depending on the DVD VIDEO, you cannot change the audio
setting even if multilingual audio are recorded on the disc. In this
case, use the DVD’s menu (page 24).
TITLE
CHAPTER
When playing a VIDEO CD
TRACK
3
Select the number of the title, chaper, track, time
code, etc. you want by pressing the numeric
buttons to select the digit.
The Unit starts playback from the selected number or
time.
To turn off the display
Press DISPLAY on the remote repeatedly until the
display is turned off.
Notes
• The title, chapter, or track number displayed is the same
number as that of recorded on the disc.
• You cannot search for a scene on a DVD+RW using the time
code.
Selecting the subtitles
If subtitles are recorded on the disc, you can change the
subtitles, or display or hide them whenever you want,
while playing a DVD.
Press SUBTITLE on the remote while playing a disc.
Each time you press SUBTITLE on the remote, the subtitle
of the DVD changes.
If you want to hide the subtitle from the TV screen,
press SUBTITLE on the remote until the display shows
SUBTITLE OFF on the TV screen.
Note
Depending on the DVD VIDEO, you cannot change subtitles
even if multilingual subtitles are recorded on the disc. In this
case, use the DVD’s menu (page 24).
Selecting the angle
You can change the angles even if various angles (multiangles) for a scene are recorded on the DVD VIDEO.
When “Angle Mark” is set to “ON” in the setup display,
angle mark is displayed on the TV screen (page 29).
Press ANGLE on the remote while playing a disc.
Each time you press ANGLE on the remote, the angle of
the DVD changes.
26US
Parental control (limited playback)
The following operations are set up using the remote
while looking at a TV screen.
The “PARENTAL CONTROL” function allows you to set
a playback limitation level.
Playback of some DVD VIDEOs can be limited according
to a predetermined level, such as the age of the users.
Press DVD SETUP on the remote when the Unit is in
stop mode.
The Setting Menu appears.
Enter or re-enter your 4-digit password using the
numeric buttons, then press ENTER on the remote.
When the level is not changed, the display does not
appear.
To turn off the parental control function
1 Press F/f to select “OFF” in step 4 above, then press
ENTER on the remote.
2 Enter your 4-digit password using the numeric
buttons, then press ENTER on the remote.
To play a disc for which parental control is set
1 Insert the disc for which Parental Control is set.
2 Enter your 4-digit password using the numeric
buttons, then press ENTER on the remote.
The Unit is ready for playback.
To change the password
1 Press F/f to select “Password” on the Preference
Display, then press ENTER on the remote.
2
3
4
Press G/g to select
(Preference,) then press
ENTER or f on the remote.
The options for “Preference” appear.
Press F/f to select “Parental,” then press ENTER or
f on the remote.
The items for “Parental level” are displayed.
2 “Change” is highlighted, then press ENTER on the
remote.
The display used for entering the password appears.
3 Enter your 4-digit password using numeric buttons
on the remote.
4 Enter a new 4-digit password using numeric buttons
on the remote.
Press F/f to select level items, then press ENTER on
the remote.
The lower the value, the stricter the limitation.
Continue to the next page l
27US
Chapter 4 Playing Discs (DVP-NW50 only)
1
5
Using Various Additional Functions
(continued)
Using the Setup Display
(DVD Settings)
5 To confirm your password, re-enter the new 4-digit
password using the numeric buttons on the remote.
If you make a mistake entering your password,
re-enter your correct password.
By using the Setup Display, you can make various
adjustments to items such as picture and sound. You can
also set a language for the subtitles and the Setup Display.
For details on each Setup Display item, see pages from 28
to 30.
Setting the display (General Setup)
Chapter 4 Playing Discs (DVP-NW50 only)
Choose settings according to the TV to be connected.
6 Press ENTER on the remote.
1
Press DVD SETUP on the remote when the Unit is in
stop mode.
The Setting Menu appears.
2
Press G/g to select
(General Setup,) then press
ENTER or f on the remote.
The options for “General Setup” appear.
3
Press F/f to select an option, then press ENTER on
the remote.
The options for the selected item appear.
4
Press F/f to select an item, then press ENTER on
the remote.
Tip
If you forget your password, or the first time you change the
password, enter the 4-digit number “9703” as old password using
the numeric buttons.
Notes
• When you play discs which have the parental control function,
playback of the disc is limited on the Unit.
• Depending on the disc, you may be asked to enter your
password when playback starts. In this case, enter the
password.
TV Type
Select the color system of the TV to be connected.
The setup may be different in depending on regions or
countries.
The default setting is underlined.
28US
NTSC
Outputs the NTSC color system.
PAL
Outputs the PAL color system.
AUTO
Outputs the color system that is recorded
on the disc.
TV Display
Selects the aspect ratio of the connected TV screen (4:3
standard or wide).
Depending on the disc, “Normal/LB” may be selected
automatically instead of “Normal/PS” or vice versa.
The default setting is underlined.
Normal/PS
(4:3 PAN SCAN)
Setting the language and playback
restriction (Preference)
Choose settings according to the TV to be connected.
Press DVD SETUP on the remote when the Unit is in
stop mode.
The Setting Menu appears.
2
Press G/g to select
(Preference,) then press
ENTER or f on the remote.
The options for “Preference” appear.
3
Press F/f to select an option, then press ENTER on
the remote.
The options for the selected item appear.
4
Press F/f to select an item, then press ENTER on
the remote.
Select this when you connect a 4:3
screen TV. Automatically displays
a wide picture on the entire screen
and cuts off the portions that do not fit.
Normal/LB
(4:3 LETTER BOX)
Select this when you connect a 4:3 screen
TV. Displays a wide picture with bands
on the upper and lower portions of the
screen.
16:9 Wide
Select this when you connect a widescreen TV or a TV with a wide mode
function.
Angle Mark (page 26)
When you select “ON,” and various angles (multi-angles)
for a scene are recorded on the DVD VIDEO, an angle
mark is displayed on the TV screen.
The default setting is “ON.”
OSD Lang (On-Screen Display Language)
Switches the display language on the screen.
Audio (page 26)
Switches the language of the sound track.
Subtitle (page 26)
Captions
Switches the language of the subtitle.
The hidden subtitle is displayed or turn off.
The default setting is “ON.”
Disc Menu
Screen Saver
The screen saver image appears when you leave the Unit
in pause or stop mode for five minutes. The screen saver
will help prevent your display device from becoming
damaged (ghosting). Press any button to turn off the
screen saver.
The default setting is underlined.
ON
Turns on the screen saver.
OFF
Turns off the screen saver.
Select the desired language for the disc menu.
Parental (page 27)
Playback of some DVD VIDEOs can be limited according
to a predetermined level, such as the age of the users.
Password (page 27)
Set the 4-digit password in parental control.
Continue to the next page l
29US
Chapter 4 Playing Discs (DVP-NW50 only)
1
Using the Setup Display (DVD Settings) (continued)
Default (this page)
All the settings explained on pages from 28 to 29 return to
the default settings.
Tip
If you select “OTHERS” in “Audio,” “Subtitle,” or “Disc Menu,”
select and enter a language code from the language code list
(page 55) using the numeric buttons.
Chapter 4 Playing Discs (DVP-NW50 only)
To reset all of the settings
1 Press DVD SETUP on the remote when the Unit is in
stop mode.
The Setting Menu appears.
2 Press G/g to select
(Preference,) then press
ENTER on the remote.
The options for “Preference” appear.
3 Press F/f to select “Default,” then press ENTER on
the remote.
30US
4 Select “Reset,” then press ENTER on the remote.
All the settings explained on pages from 28 to 29 return
to the default settings. Do not press X/1 (POWER)
while resetting the Unit. It may take a few seconds to
complete.
Chapter 5
Enjoying Radio
and Other
Component
You can tune in stations on the Unit by preset tuning or
manual, automatic, or direct tuning.
Listening to a preset station
Preset FM/AM radio stations in the Unit’s memory first.
For details on how to preset radio stations in the Unit, see
page 33.
1
Press “TUNER” SELECT on the Home Menu.
The display changes to the Tuner display, then the
Preset station list appears.
2
Press any SELECT.
The display changes to the current station display.
Listening to a non-preset station
1
Press the “TUNER” SELECT on the Home Menu.
The display changes to the Tuner display, then the
Preset station list appears.
Continue to the next page l
31US
Chapter 5 Enjoying Radio and Other Component
This chapter describes how to receive
FM/AM stations, and listen to sound
from a component connected to LINE
IN using the Unit.
Listening to the Radio
Listening to the Radio (continued)
2
Press MODE to switch the band to AM (or FM).
The Tuner mode Menu appears.
Tip
You can tune in the station in 100 kHz steps for the FM band and
10 kHz steps for the AM band.
Notes
Chapter 5 Enjoying Radio and Other Component
3
Press the “AM” (or “FM”) SELECT, then press
BACK.
The display returns to the current frequency.
4
Press any SELECT.
The display changes to the current frequency.
5
Press DOWN/UP on the remote to adjust the
frequency.
DOWN/UP
Changes the current frequency to
a frequency 1 step lower or higher.
(Manual tuning)
DOWN/UP
(press and hold)
Scans a particular station toward a
lower or higher frequency. Scanning
stops automatically when the station
is tuned in. (Automatic tuning)
When you know the frequency of the station
Press the numeric buttons on the remote to enter the
frequency (Direct tuning).
Example: FM 105.70 MHz
1t0t5t7t0
32US
• When you press the “8” or “9” numeric button, the number
appears in the second entry position.
• When you enter invalid numbers, the direct tuning is cancelled
and the screen returns to the current station display.
• Tuning interval for direct tuning is:
FM: 78.50 MHz to 108.00 MHz
AM: 530 MHz to 1710 MHz
Presetting Radio Stations
Naming the Preset Stations
After you have tuned in stations using direct tuning or
Automatic tuning, you can preset them to the Unit.
Up to 20 FM or AM stations can be preset.
You can edit the name of the preset stations in the Preset
station list.
1
Press the “TUNER” SELECT on the Home Menu.
The display changes to the Tuner display, then the
Preset station list appears.
2
Press and hold any SELECT of the station of which
you want to edit the name.
The display changes to the Text edit display.
Press any SELECT that corresponds to the station
you want to tune in.
The display changes to the current station display.
3
Enter the name in the text box using the function
SELECT.
See the table below for details on the function of each
of the buttons.
3
Tune in to the station that you want to preset
(page 31).
4
Press the “MEM” (memory) SELECT to enter your
selection.
A Moves the cursor to the left in the text being edited
(Text Edit).
B Changes characters in reverse alphabetical order.
C Clears the character on which the cursor is placed
in the text being edited (Text Edit).
D Cancels editing and returns to the Preset station
list.
E Moves the cursor to the right in the text being
edited (Text Edit).
F Changes characters in alphabetical order.
G Enters the selected character into the text box.
H Stores the name and returns to the Preset station
list.
4
Press the “RETURN” SELECT.
The name of the preset station is stored, then the
display returns to the Preset station list.
33US
Chapter 5 Enjoying Radio and Other Component
2
1
Press “TUNER” SELECT on the Home Menu.
The display changes to the Tuner display, then the
Preset station list appears.
Listening to Sound from a
Component Connected to LINE IN
You can listen to music from an external source if the Unit
is connected to another playback component, such as a CD
changer, etc.
Chapter 5 Enjoying Radio and Other Component
1
Press the “LINE IN” SELECT on the Home Menu.
The LINE IN display appears.
2
Play back the component connected to the Unit.
The sound from the component is output via the Unit.
You can adjust the volume of the Unit with + VOLUME
and – VOLUME on the Unit.
To edit the name of the LINE IN source
You can change “LINE IN” to something more recognizable
and have it displayed on the front panel display.
1 Press and hold the “LINE IN” SELECT.
The Text edit Menu appears.
2 Enter the name in the editing text box using the
SELECT.
See “Naming the Unit” on page 12 for details on how to
enter characters.
34US
Chapter 6
Using the
System Network
You can play back and share the music content in all Units
and computers via an Ethernet cable. There are two types
of source used to play back music content. One is
“NETWORK,” and the other is “MY MUSIC.”
If a computer is connected to the Internet, you can get the
CD information from the Gracenote CDDBR server.
Playing back music from “NETWORK”
When you select “NETWORK,” audio CDs on other Units
and MP3-format music files on your computer are played
back.
1
Press the “NETWORK” SELECT on the Home Menu.
The Room list appears.
2
Press any SELECT to select a Unit or a computer.
If the source you select is allocated to a Unit, the Track
list appears.
If the source you select is allocated to a computer, the
Browse Menu appears. Go to step 2 in “Playing back
music from “MY MUSIC” on page 36.
3
Press any SELECT to select a track to be played
back.
The playback display appears, and playback starts.
Notes
• Each Unit appears with an original name if you have changed
the name of the Unit. See “Naming the Unit” on page 12 for
details on how to change the names of Units.
• When using network music, some of the functions or the access
to the other Units are restricted.
• Some music files stored on the hard disk of your computer may
not be able to be played back on the Unit. For example,
depending on file format, some music files may not be played
back on the Unit.
Continue to the next page l
35US
Chapter 6 Using the System Network
This chapter describes how to use
network functions among Units and
computers, etc. You can enjoy music,
and use the intercom and the monitor
function connecting each of the Units
via an Ethernet cable.
Playing Music on Other
Units
Playing Music on Other Units (continued)
Playing back music from “MY MUSIC”
Chapter 6 Using the System Network
When you select “MY MUSIC,” audio CDs in other Units
and MP3-format music files from your computers are
played back.
When the Unit has been connected to the Internet via a
computer, CD information, such as artist name, album
and track titles, or genre, are downloaded from the
Gracenote CDDBR server, and sorted into “TITLE,”
“ARTIST,” “ALBUM,” and “GENRE.” These information
appear on the front panel display.
You can select and play back desired tracks from these
lists. When the Unit is not connected to a computer or
your computer is not connected to the Internet, only
“TRACK1,” “TRACK2,” etc., appear on the front panel
display.
1
Press the “MY MUSIC” SELECT on the Home Menu.
The Browse list appears.
2
Press any SELECT to select a list from “TITLE,”
“ARTIST,” “ALBUM,” “GENRE,” or “PLAYLIST.”*
The selected list appears.
If you select “TITLE,” a Track list appears. Skip to step
4.
* If you press “TITLE,” “ARTIST,” “ALBUM” or “GENRE”
SELECT, each list is sorted and appears based on the CDDB
information. If you press “PLAYLIST” SELECT, the playlist
registered using the Utility In-Wall Unit software on the
computer appears.
3
Press any SELECT to select an artist, genre, or a
playlist title according to the list you select in step
2.
4
Press any SELECT to select a track to be played
back.
The playback display appears, and playback starts.
36US
Various play mode functions
(Shuffle play, Repeat play)
“NETWORK” and “MY MUSIC” have two play modes.
Shuffle play
You can play back tracks in random order.
For details on “Shuffle play” see page 21.
Repeat play
For details on “Repeat play” see page 21.
Tip
If you select “ALL DISC” during NETWORK playback, the Unit
plays tracks on the disc randomly. When the disc finishes, it
selects the next disc to be played back at random.
Enjoying Music in All Rooms
Simultaneously (Party mode)
Using the Party mode function, you can share the music
content among multiple Units simultaneously. You can
also exclude a selected room from the Party mode (Party
Privacy).
Source and play modes available in the Party mode are
the following:
1
Press MODE after selecting a source on the Home
Menu.
The Mode Menu appears.
e.g.
When you press MODE
while playing a CD.
2
If you set the Party Privacy in a selected Unit, you can
operate that Unit individually even if other Unit is in the
Party mode.
The setting is retained even if you turn off the Unit.
1
Press the “V” SELECT on the Home Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “PRIVACY” SELECT.
“PRIVACY” is highlighted.
The Unit enters the Party Privacy mode.
Tips
• When you want to join the Party mode, press MODE, then the
“JOIN” SELECT on the Mode Menu. If the Unit has already
joined in the Party mode, “QUIT” is displayed on the Mode
Menu.
• When you want to quit the Party mode, press MODE, then the
“QUIT” SELECT on the Mode Menu. If the Unit has not joined
in the Party mode, “JOIN” is displayed on the Mode Menu.
Press the “PARTY” SELECT.
“Party” appears on the right side of the top line on the
front panel display.
The Unit enters the Party mode, and music is output
to the rooms.
Tip
In the Party mode, some playback operations such as stop, play,
etc., are operable on all of the Units.
To cancel the Party mode
You can cancel the Party mode from any of the Units even
if the Unit is not in the Party mode.
Press the highlighted “PARTY” SELECT on the Mode
Menu using the same procedure you used when you
activate the Party mode.
37US
Chapter 6 Using the System Network
• NETWORK/MY MUSIC
– CDs inserted into Units in which the Party Privacy is
set to off.
– MP3-format music files stored on the hard disc drive
of a computer.
• CD/DVD
– CDs (when using a CDP-NW10)
– CDs, Data CDs (MP3) (when using a DVP-NW50)
• A device connected via LINE IN
– Sound output from a device connected via LINE IN.
• Tuner
– A station currently tuning in.
Excluding the Unit from a Party mode
(Party Privacy)
Talking with Persons in
Other Rooms (INTERCOM)
You can talk with person in any room using the Intercom
function. While INTERCOM is set to ON, the internal
speaker is activated and speakers connected to the Unit
are muted. The streaming on the network stops until the
intercom connection is terminated on both of the sending
and receiving rooms.
1
Press the “INTERCOM” SELECT on the Home Menu.
The Room list appears.
To adjust the speaker level during INTERCOM
The volume of the INTERCOM function is independent
from that in audio control.
Adjust the volume with + VOLUME and – VOLUME on
the Unit while the INTERCOM connection is established.
Excluding a Unit from INTERCOM
(Intercom Privacy)
Any room in which the Intercom Privacy is set to ON,
does not receive the Intercom signal.
Chapter 6 Using the System Network
2
Press any SELECT to select the room you want to
contact.
If the room you want to contact is not displayed on the
front panel display, press the “V” SELECT to display
the next page.
The INTERCOM display appears, and connection is
established after the receiving room answers.
1
Press the “V” SELECT on the Home Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “INTERCOM
PRIVACY” appears on the front panel display.
3
Press the A or B SELECT to activate Intercom
Privacy mode.
“PRIVACY” is highlighted and the Intercom Privacy is
set to ON.
A
B
Press the A or B SELECT to exit the Intercom Privacy.
3
To cancel the intercom connection, press the “OFF”
SELECT on the Intercom display.
To answer INTERCOM
Press the “ANSWER” SELECT in the receiving room.
Notes
• If there is no answer from the room you are trying to contact,
the connection is terminated automatically in 10 seconds.
• Connection between rooms terminates automatically 30
seconds after the receiving room answers.
• Connection can be terminated by pressing the “OFF” SELECT
from either the sending or receiving room.
• A Unit can call up all the rooms using the INTERCOM
function, but only one room can answer the call. Connections to
rooms other than the answering room are disconnected.
38US
Changing the call sound of the INTERCOM
You can change the call sound heard when the room
receives an intercom signal.
1
Press the “V” SELECT on the Home Menu, then
press “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “INTERCOM
RING” appears on the front panel display.
3
Press the A or B SELECT to select the sound.
A
B
Monitoring Other Rooms
(MONITOR)
You can monitor other rooms via the Unit. While
MONITOR is set to ON, the internal speaker is activated
and speakers connected to the Unit are muted. The
streaming on the network stops until the monitor
connection is terminated on the both of monitoring and
monitored Units.
1
3
Press any SELECT to select the room you want to
monitor.
If the room you want to monitor is not displayed on
the front panel display, press the “V” SELECT to
display the next page.
The Monitoring display appears, and a connection
with the room is established.
You cannot monitor a room, for which the Monitor
Privacy is set to ON.
1
Press the “V” SELECT on the Home Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “MONITOR
PRIVACY” appears on the front panel display.
3
Press the A or B SELECT to activate Monitor
Privacy mode.
“PRIVACY” is highlighted and the Monitor Privacy
mode is set to ON.
A
B
Press the A or B SELECT again to exit the Monitor
Privacy.
To cancel monitoring, press the “OFF” SELECT.
Note
Monitoring continues until MONITOR is canceled.
To adjust the speaker level during MONITOR
The volume of the Monitor function is independent from
that in audio control.
Adjust the volume with + VOLUME and – VOLUME on
the Unit while MONITOR connection is established.
39US
Chapter 6 Using the System Network
2
Press the “V” SELECT on the Home Menu, then
press “MONITOR” SELECT.
The Room list appears.
Excluding a Unit from MONITOR
(Monitor Privacy)
Chapter 7
Setting the
Timer
Setting the Alarm
You can set the Unit to turn on automatically at a
specified time.
1
Press the “V” SELECT on the Home Menu, then
press the “CLOCK” SELECT.
The Clock Menu appears.
2
Press the “ALARM” SELECT.
The Alarm set Menu appears.
3
Check to see if the desired source for the alarm is
selected and displayed in the upper right on the
front panel display. If not, press the “FUNC” SELECT
repeatedly to select a source.
The playback source changes as shown below.
This chapter provides you with
information on setup of the timer.
CD/DVD t TUNER t LINE
4
Set the hour and minute with the “HOUR” and
“MIN” SELECT.
5
Press the “ON” SELECT.
The default setting is “OFF.”
The alarm is set up, and “ON” is displayed.
6
Press X/1 (POWER) to turn off.
To set the alarm “OFF”
Press the “OFF” SELECT in step 5.
40US
Setting the Sleep Timer
You can set the Unit to turn off automatically at a
specified time.
Press the “V” SELECT on the Home Menu, then
press the “CLOCK” SELECT.
The Clock Menu appears.
2
Press the “SLEEP” SELECT.
The Sleep timer Menu appears.
3
Press the “SELECT” SELECT.
Each time you press the button, the time changes as
shown below.
Chapter 7 Setting the Timer
1
OFF t 1:30 t 1:00 t 0:30
41US
Chapter 8
Other
Functions
This chapter describes the setup of the
front panel display, sound field, and
speakers.
Using the Setup Display
You can set up the sound on the Unit.
Selecting the surround mode
(DVP-NW50 only)
1
Press MODE on the DVD display.
The following display appears.
2
Press the “SURR” SELECT.
The following display appears.
3
Press any SELECT to select the desired surround
mode from the following selections.
See the explanations given for each item in the
following section.
2CH STEREO (2CH)
Outputs the sound from the front left and right speakers
only. Standard two channel (stereo) sources completely
bypass any processing. Multi channel surround formats
are downmixed to two channels.
A.F.D. (AUTO FORMAT DIRECT)
Surround mode is decoded as it is recorded on the disc,
without adding any effects (e.g. reverbertaion).
DOLBY PL (Dolby Pro Logic)
Performs Dolby Pro Logic decoding. A source recorded in
2 channels is decoded into 4 channels.
DOLBY PL II (Dolby Pro Logic II)
Performs Dolby Pro Logic II Movie decoding. This setting
is ideal for movies encoded in Dolby Surround. In
addition, this mode can reproduce sound in 5.1 channel
when watching videos of old movies or with dubbed
language.
To return to the previous display
Press BACK.
Note
When an input signal (e.g., multi channel, etc.) other than from a
2 channels source is input, “DOLBY PL” and “DOLBY PL II” are
decoded into “A.F.D.”
42US
Adjusting the contrast of the front panel
display (DIMMER)
Adjusting the front speaker balance
(BALANCE) (CDP-NW10 only)
Press the “V” SELECT on the Home Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
1
Press the “V” SELECT on the Home Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “DIMMER” SELECT to activate DIMMER.
“ON” and “OFF” are toggled as you press the
“DIMMER” SELECT.
The default setting is “OFF.”
2
Press the A or B SELECT to adjust the front
speaker balance between the left and right
speakers.
The balance can be adjusted ±8 steps in left and right
position.
Presetting the volume when the power is
turned on (VOL PRESET)
1
Press the “V” SELECT on the Home Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “VOL.
PRESET” appears on the front panel display.
3
Press the “VOL. PRESET” SELECT to activate VOL.
PRESET.
“ON” and “OFF” are toggled as you press the “VOL.
PRESET” SELECT.
The default setting is “OFF.”
4
Adjust the volume by pressing the A or B SELECT.
The volume increases or decreases by 1(vol) step as
you press the A or B SELECT.
The default setting is set to “MIN.”
43US
Chapter 8 Other Functions
1
Settings for Speakers (DVP-NW50 only)
To obtain the best possible surround sound, set the size of
the speakers you have connected and their distance from
your listening position. Then use the test tone to adjust
the volume of the speakers to the same level.
Selecting a speaker size
1
Press the “V” SELECT on the Home Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “SP. SIZE”
appears.
3
Press the “SP. SIZE” SELECT.
The Speaker size setup Menu appears.
4
Select the corresponding SELECT to select the
speaker to be setup.
The size of speaker is toggled as you press any
SELECT as shown above.
5
Repeat step 4 until you have selected all of the
speakers.
Set the speaker size to match the size of the speakers you
are using. This setting is concerned with bass
management and downmix function. The list below
describes the available settings for each of the speakers.
Sub Woofer (S.WOOFER)
Chapter 8 Other Functions
Speaker Size
Function
YES
Select this if you have connected a sub
woofer speaker.
NONE
Select this if you have not connected a sub
woofer speaker.
Front Speakers (FRONT)
Notes
Speaker Size
Function
LARGE
Normally select this position. SMALL cannot
be selected if sub woofer is set to “NONE.”
SMALL
Select this when the speaker cannot
reproduce adequate bass frequencies.
Center Speakers (CENTER)
• If you connect large speakers that will effectively
reproduce bass frequencies, select “LARGE.” Normally,
select “LARGE.”
• If the sound is distorted, or you feel a lack of surround
effects when using multi channel surround sound,
select “SMALL” to activate the bass redirection circuitry
and output the front channel bass frequencies from the
sub woofer.
Speaker Size
Function
About speaker sizes
LARGE
Normally select this position. LARGE cannot
be selected if front speaker is set to
“SMALL.”
SMALL
Select this when the speaker cannot
reproduce adequate bass frequencies.
NONE
Select this if you have not connected a center
speaker.
Internally, the LARGE and SMALL settings for each speaker
determine whether or not the internal sound processor will cut
the bass signal from that channel. When the bass is cut from a
channel the bass redirection circuitry sends the corresponding
bass frequencies to the sub woofer or other “LARGE” speaker.
However, since bass sounds have a certain amount of
directionality it is best not to cut them, if possible. Therefore,
even when using small speakers, you can set them to “LARGE” if
you want to output the bass frequencies from that speaker. On
the other hand, if you are using a large speaker, but prefer not to
have bass frequencies output from that speaker, set it to
“SMALL.” If the overall sound level is lower than you prefer, set
all speakers to “LARGE.”
Rear Speakers (SURROUND)
Speaker Size
Function
LARGE
Normally select this position. LARGE cannot
be selected if front speaker is set to
“SMALL.”
SMALL
Select this when the speaker cannot
reproduce adequate bass frequencies.
NONE
Select this if you have not connected a
surround speaker.
44US
Setting the speaker distance
You must set the distance from your listening position to
the speakers.
The available distance for a center and a surround speaker
depends on that of the front speaker.
The next list shows the selectable distance value of each
speaker. The list below describes the available setting for
each of speakers. The default adjustments are in
parentheses.
Setting a speaker level
The Level Menu contains parameters that let you adjust
the balance and speaker volumes of each speaker. The
settings available in this menu are applied to all sound
fields. Be sure to set “TEST TONE” to “ON” for easy
adjustment.
The default adjustments are in parentheses.
Speaker
Speaker level
SUB WOOFER (0 dB)
Set this between –6 dB and +6 dB in 0.5
dB increments.
Distance
FRONT (10 ft/3.0m)
Set this between 3 and 20 ft (0.9 m and
6.0 m) in 1 ft (0.3 m) increments
FRONT (BALANCE)
The balance can be adjusted 8 steps in
left and right position.
CENTER (10 ft/3.0m)
Set this between 3 and 20 ft* (0.9 m and
6.0 m) in 1 ft (0.3 m) increments.
CENTER (0 dB)
Set this between –6 dB and +6 dB in 0.5
dB increments.
SURROUND
(10 ft/3.0m)
Set this between 3 and 20 ft* (0.9 m and
6.0 m) in 1 ft (0.3 m) increments.
SURROUND L (0 dB)
Set this between –6 dB and +6 dB in 0.5
dB increments.
SURROUND R (0 dB)
Set this between –6 dB and +6 dB in 0.5
dB increments.
* The setup value may be different depending on the setup value
of the front speaker.
1
Press the “V” SELECT on the Home Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “SP.
DISTANCE” appears.
3
Press the “SP. DISTANCE” SELECT.
The Speaker distance setup Menu appears.
4
Select the distance between the Unit and the
speaker by pressing the “+” and “–” SELECT.
The distance gets longer or shorter by 1 foot each time
you press each of the “+” or “–” SELECT .
“No Exist” appears on the front panel display if you
set the size of the speaker to “NONE” in “Selecting a
speaker size.” (page 44)
1
Press the “V” SELECT on the Home Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “V” SELECT repeatedly until “LEVEL”
appears on the front panel display.
3
Press the “LEVEL” SELECT.
The Level setup Menu appears.
4
Adjust the speaker level by pressing each of the
“+,” “–,” “L,” or “R” SELECT.
The SELECT on the left side decrease the level in 0.5
dB steps. For front speaker adjustment, the SELECT
on the left side moves the speaker balance toward the
left.
The SELECT on the right side increase the level in 0.5
dB steps. For front speaker adjustment, the SELECT
on the right side moves the speaker balance toward
the right.
Continue to the next page l
45US
Chapter 8 Other Functions
Speaker
Settings for Speakers (DVP-NW50 only) (continued)
Adjusting the speaker volume – TEST
TONE
The speakers will emit a test tone.
Use the remote while seated in your listening position to
adjust the volume of each speaker.
The default setting is underlined.
Test Tone
Function
OFF
The test tone is not emitted from the
speakers.
ON
The test tone is emitted from each speaker in
sequence while you are adjusting the level.
However, when the speaker sizes set to
“NONE,” the speakers do not emit the test
tone.
Chapter 8 Other Functions
1
Press the “V” SELECT on the Home Menu, then
press the “SETUP” SELECT.
The Setup Menu appears.
2
Press the “TEST TONE” SELECT to activate the TEST
TONE.
“ON” and “OFF” are toggled as you press “TEST
TONE” SELECT.
You will hear the test tone from each speaker for two
seconds each in sequence as follows.
Front speaker (L) t Center speaker t Front speaker
(R) t Surround speaker (R) t Surround speaker (L)
t Sub woofer
3
4
Adjust the volume level so that the volume of the
test tone from each speaker sounds the same when
you are in your main listening position.
To adjust
Use
balance of the front
right/front left
speakers
front balance parameter on the
Speaker level Menu (page 45)
volume level of the
center/surround/
sub woofer
surround balance parameter on the
Speaker level Menu (page 45)
Press the “TEST TONE” SELECT again to turn off the
TEST TONE.
46US
Setting the dynamic range compressor
You can compress the dynamic range of the sound track.
This may be useful when you want to watch movies at
low volumes late at night.
The default setting is underlined.
DRC
Function
OFF
Reproduces the sound track with no
compression.
STD
Reproduces the sound track with the
dynamic range intended by the recording
engineer.
MAX
Provides dramatic compression of the
dynamic range.
1
Press the “V” SELECT on the Home Menu, then
press “SETUP” SELECT.
The Setup Menu appears.
2
Press the “DRC” SELECT to activate the Dynamic
range compressor.
3
Press the “DRC” SELECT again to select the sound.
“OFF,” “STD,” and “MAX” are toggled as you press
the button.
Note
Dynamic range compression works with Dolby Digital sources
only.
Operating a Sony TV with
the Remote
Controlling your TV with the remote
You can operate a Sony TV using the remote without
presetting remote codes.
RM SETUP TV/VIDEO
TV
TV/VIDEO
TV ?/1
1
2
3
4
5
6
7
8
9
0
ENTER
CLEAR
SELECT
MODE
BACK
HOME
DOWN
UP
MENU
Chapter 8 Other Functions
DVD
TOP MENU
MUTING
F
MASTER VOL
G
O
ENTER
f
RETURN
TV VOL
g
DISPLAY
TV CH
TV VOL +/–
AUDIO
ANGLE
SUBTITLE
DVD SETUP
TV CH +/–
Press TV ?/1.
Operate your TV using the buttons below.
Buttons
Function
TV ?/1
Turn the TV on or off
TV/VIDEO
Switch the TV input source between TV and
other input sources
TV VOL +/–
Adjust the TV volume
TV CH +/–
Select the TV channel
Note
Depending on the Unit connected, you may not be able to control
your TV using some of the buttons above.
47US
Chapter 9
Other
Information
This chapter provides you with
additional information that will help
you understand and maintain your
system.
Precautions
On safety
• CAUTION – The use of optional instruments with this product
will increase eye hazard.
• To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
• Should any solid object or liquid fall into the cabinet,
unplug the Unit and have it checked by qualified
personnel before operating it any further.
• Unauthorized substitutions may result in fire, electric
shock, causing death or serious injury.
Attachment to a wall should not be performed by
ungualifield persons.
Attachment and adjustment by ungualifield persons is
dangerous and may cause an accident or cause the unit
to fall.
Be sure to consign installation attachment and removal
to a gualifield service technician.
On power sources
• The Unit is not disconnected from the AC power source
as long as it is connected to the wall outlet, even if the
Unit itself has been turned off.
• If you are not going to use the Unit for a long time, be
sure to disconnect the Unit from the wall outlet. To
disconnect the AC power cord, grasp the plug itself;
never pull the cord.
On placement
• Place the Unit in a location with adequate ventilation to
prevent heat build-up in the Unit.
• Do not place the Unit on a soft surface such as a rug.
• Do not place the Unit in a location near heat sources, or
in a place subject to direct sunlight, excessive dust, or
mechanical shock.
• Do not install the Unit in an inclined position. It is
designed to be operated in a horizontal position only.
• Keep the Unit and the discs away from equipment with
strong magnets, such as microwave ovens, or large
loudspeakers.
• Do not place heavy objects on the Unit.
On cleaning
Clean the cabinet, panel, and controls with a soft cloth
slightly moistened with a mild detergent solution. Do not
use any type of abrasive pad, scouring powder or solvent
such as alcohol or benzine.
On cleaning discs
Do not use a commercially available cleaning disc. It may
cause a malfunction.
48US
Troubleshooting
IMPORTANT NOTICE
Caution: This Unit is capable of holding a still video
image or on-screen display image on your television
screen indefinitely. If you leave the still video image or onscreen display image displayed on your TV for an
extended period of time, you risk permanent damage to
your television screen. Plasma display panel televisions
and projection televisions are susceptible to this.
If you have any questions or problems concerning your
Unit, please consult your nearest Sony dealer.
If you experience any of the following difficulties while
using the Unit, use this troubleshooting guide to help you
to remedy the problem. Should any problem persist,
consult your nearest installer.
Power
The power is not turned on.
, Check that the AC power cord is connected
securely.
Picture noise appears.
, The disc is dirty or flawed.
, If the picture output from your Unit goes through
your VCR to get to your TV, the copy-protection
signal applied to some DVD programs could affect
picture quality. If you still experience problems
even when you connect your Unit directly to your
TV, try connecting your Unit to your TV's S VIDEO
input (page 10).
Even though you set the aspect ratio in “TV
Type” of “General Setup,” the picture does not
fill the screen.
, The aspect ratio on the disc is fixed.
The picture is not displayed correctly.
The Unit and the TV are not synchronized.
, Check the “TV Type” setting in “General Setup”
(page 28).
(TV in North America uses the NTSC color
system).
Continue to the next page l
49US
Chapter 9 Other Information
There is no picture.
, The video connecting cords are not connected
securely.
, The video connecting cords are damaged.
, The Unit is not connected to the correct TV input
jack (page 10).
, The video input on the TV is not set so that you
can view pictures from the Unit.
, Check the connection to your TV (page 10) and
switch the input selector on your TV so that the
signal from the Unit appears on the TV screen.
Troubleshooting (continued)
Sound
There is no sound.
, The speaker cord is not connected securely.
, Check the speaker settings (Installer’s manual).
, The connecting cord is damaged. Replace it with a
new one.
, Press MUTING on the remote if “MUTING” is
displayed on the front panel display.
, Fast forward or fast reverse is performed. Press N
to return to normal play mode.
, The Unit input is not correctly set.
, The Intercom function or the Monitor function is
active. Cancel the Intercom function or the Monitor
function (page 38, 39).
Chapter 9 Other Information
The left and right sounds are unbalanced or
reversed.
, Check that the speakers and components are
connected correctly and securely.
, Adjust the balance parameter on the Setup Menu
(page 43).
There is no sound from the sub woofer.
, Check the speaker connections and settings
(Installer’s manual).
, Make sure that sub woofer is set to “YES” in the
speaker setting (page 44).
, Set the surround mode to “A.F.D” (AUTO
FORMAT DIRECT) (page 42).
The surround effect is difficult to hear when you
are playing a multi channel source such as Dolby
Digital sound track.
, Check the speaker connections and settings
(Installer’s manual).
, Depending on the DVD, the output signal may not
be the entire 5.1 channel. It may be monaural or
stereo even if the sound track is recorded in Dolby
Digital format.
The sound comes from the center speaker only.
, Depending on the disc, the sound may come from
the center speaker only.
No sound is heard from the center speaker.
, Check the speaker connections and settings.
No sound or only a very low-level sound is heard
from the surround speakers.
, Check the speaker connections and settings.
, Make sure the rear speakers are set to either
“SMALL” or “LARGE” (page 44).
, Make sure the surround mode function is on
(page 42).
, Depending on the source, the effect of the
surround speakers may be less noticeable.
, The sound volume is low on some DVDs. The
sound volume may improve if you set “DRC” on
the Setup Menu to “OFF” (page 46).
Network
Severe hum or noise is heard.
, Check that the speakers and components are
connected securely.
, Check that the connecting cords are away from a
transformer or motor, and at least 3 meters (10 feet)
away from your TV set or a fluorescent light.
, Move your TV away from the audio components.
, The plugs and jacks are dirty. Wipe them with a
cloth slightly moistened with alcohol.
, Clean the disc.
The sound loses stereo effect when you play a
VIDEO CD, a CD, or an MP3.
, Make sure the Unit is connected appropriately.
50US
The Unit cannot detect any other Units nor
computers.
, Network cable is disconnected. Check the network
cable connections.
, An IP address or a Sub-net mask is not set
properly. Check the LAN settings on the IP address
setup Menu (page 11).
, A router is turned off. Check the router power
condition.
Cannot talk with other room during Intercom.
, Intercom Privacy is set to on. Set it to off.
, Connection has not been established. Press the
“ANSWER” SELECT (page 38).
, The volume level is low. Press +VOLUME to adjust
the volume.
, Other Units have been using Intercom. Wait for a
while until Intercom is available.
Cannot monitor other rooms.
, Monitor Privacy is set to on. Set it to off.
, The volume level is low. Press +VOLUME to adjust
the volume.
, Other Units have been using Intercom. Wait for a
while until Monitor is available.
Cannot get track title while listening to music
from NETWORK or MY MUSIC.
, The PC application is not running. Start the PC
application on your computer.
Audio reception is interrupted or distorted.
, The network does not have enough bandwidth.
Check to see if the network cable supports
100BASE-TX or not.
, The network cable, network switch, or router
device may not support 100BASE-TX. Check to see
if the router device supports 100BASE-TX or not.
The remote does not function.
, The batteries in the remote are weak.
, There are obstacles between the remote and the
Unit.
, The distance between the remote and the Unit is
too far.
, The remote is not pointed at the remote sensor on
the Unit.
, The remote code switch setting on the remote does
not match the setting on the Unit.
Radio stations cannot be tuned in.
, Check that the antennas are connected securely.
Adjust the antennas or connect an external antenna
if necessary.
, The signal strength of the stations is too weak
(when tuning in with automatic tuning). Use direct
tuning.
, No stations have been preset or the preset stations
have been cleared (when tuning by scanning preset
stations). Preset the stations (page 31).
The remote does not function.
, There are obstacles between the remote and the
Unit.
, The distance between the remote and the Unit is
too far.
, The remote is not pointed at the remote sensor on
the Unit.
, The batteries in the remote are weak.
The MP3 audio track cannot be played.
, The DATA CD is not recorded in an MP3 format
that conforms to ISO 9660 Level 1/Level 2 or
Joliet.
, The MP3 audio track does not have the extension
“.MP3.”
, The data is not formatted in MP3 even though it
has the extension “.MP3.”
, The Unit can only play MP3 (MPEG1 Audio
Layer3) audio.
, The Unit cannot play audio tracks in MP3PRO
format.
The disc does not start playing from the
beginning.
, Shuffle Play, or Repeat Play has been selected
(page 21, 23, 24).
Cancel Shuffle Play, or Repeat Play (page 21, 23,
24).
, Resume Play has been selected.
During stop, press x on the remote and then start
playback (page 22, 23).
, The title, DVD or PBC menu automatically
appears on the TV screen.
Playback stops automatically.
, Some discs may contain an auto pause signal.
While playing such a disc, the Unit stops playback
at the auto pause signal.
The Unit turns off during DVD playback.
, The Sleep Timer turned off the Unit at the preset
time (page 41).
Some functions such as Stop, Search, Repeat
Play, or Shuffle Play cannot be performed.
, Depending on the disc, you may not be able to
perform some of the operations above. See the
operating manual that came with the disc.
Continue to the next page l
51US
Chapter 9 Other Information
Operation
The disc does not play.
, There is no disc inserted.
, The disc is upside down.
Insert the disc with the playback side facing the
Unit.
, The disc is skewed.
, The Unit cannot play certain discs (page 8).
, The region code on the DVD does not match the
Unit.
, Moisture has condensed inside the Unit.
Remove the disc and leave the Unit turned on for
about half an hour.
Troubleshooting (continued)
The language for the sound track cannot be
changed.
, Multilingual tracks are not recorded on the DVD
being played.
, The DVD prohibits changing the language for the
sound track.
The subtitle language cannot be changed.
, Multilingual subtitles are not recorded on the DVD
being played.
, The DVD prohibits changing subtitles.
The subtitle cannot be turned off.
, The DVD prohibits turning off subtitles.
The angles cannot be changed.
, Multi-angles are not recorded on the DVD being
played (page 29).
, The DVD prohibits changing angles.
Chapter 9 Other Information
A disc cannot be ejected and “LOCKED” appears
on the front panel display.
, Contact your Sony dealer or local authorized Sony
service facility.
“PROTECT” appears on the front panel display.
, The speaker protection circuit is functioning.
, Check the speaker connections.
The Unit does not work normally.
, If the Unit’s operation becomes effected, press
X/1 (POWER) on the Unit to turn off the power,
then turn on the power again.
52US
Error Messages
If any of the messages below appear on the front panel display of the Unit, check the following table to solve the problem. If
any problem persists, consult your nearest Sony dealer.
Category
Cause
Corrective action
PROTECTOR
Circuit protector is working
Irregular current is output from speakers. Turn off
the power and check the speaker connections, then
turn on the power again.
CD/DVD
NO DISC
A disc is not inserted or
correspondent to the Unit.
Insert a disc that is correspondent to the Unit.
NETWORK/
MY MUSIC
IN USE BY xxx
xxx is using the disc in the specific
Unit.
xxx is the name of the Unit.
Turn off the Main Unit and check the
speaker hookup.
Access inhibit
Party Privacy is set to ON on the
specific Unit.
Quit Party Privacy.
INTERCOM
Access inhibit
Intercom Privacy is set to ON on
the specific Unit.
Quit Intercom Privacy.
MONITOR
Access inhibit
Monitor Privacy is set to ON on
the specific Unit.
Quit Monitor Privacy.
Other
Invalid
Cannot use a specific key on the
remote or enter the Party mode.
This operation is not currently enabled.
Chapter 9 Other Information
Message
53US
Specifications
CDP-NW10/DVP-NW50
Video section (DVP-NW50 only)
Laser
Semiconductor laser
Composite video out:
1Vp-p 75ohms
(CD: λ = 780nm)
S1 video out:
Y: 1Vp-p 75ohms
(DVD: λ = 650nm)
Emission duration:
continuous
Signal format system
NTSC
C: 0.286 Vp-p 75ohms
General
DC power consumption:
CDP-NW10: DC 29.5 V/1A
DC 14V/1.5A
Audio section
DVP-NW50: DC 29.5 V/1A
Frequency response
20 Hz to 20 kHz (± 1 dB)
Signal-to-noise ratio
95 dB
Rated output power 1kHz into 8ohms THD: 3%
CDP-NW10: 30 W + 30 W
DVP-NW50: 50 W + 50 W
DC 29.5 V/1A
DC 14V/1.5A
Power consumption:
Operating temperature: 0˚C to 40˚C (– 32˚F to 104˚F)
Dimensions:
Input sensivity (LINE IN)
Chapter 9 Other Information
Less than 0.1 %
Wow and flutter
Less than detected value
(± 0.001 % W PEAK)
(w/h/d)
Mass:
Frequency range
87.5 Hz to 108 kHz (100kHz step)
54 dB
76 dB (MONO)
70 dB (STEREO)
THD at 400Hz
0.5 %
THD at 1kHz
0.3 % (MONO)
0.5 % (STEREO)
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Antenna (aerial)
AM loop antenna (aerial)
Intermediate frequency
450 kHz
54US
For details on this see “Installer’s manual”
Design and specifications are subject to change without notice.
530 kHz to 1710 kHz (10kHz step)
Signal-to-noise ratio
CDP-NW10: 2.5 kg (5 lbs 8 oz)
DVP-NW50: 2.7 kg (5 lbs 15 oz)
Supplied accessories :
Tuner section
230 ✕ 266 ✕ 104 mm
(9 1/8 ✕ 10 1/2 ✕ 4 1/8 inches)
500 mVrms
Harmonic distortion
540 W
Language Code List
Language
Code
Language
Code
Lamguage
6565
Afar
7285
Hungarian
8084
Portuguese
6566
Abkhazian
7289
Armenian
8185
Quechua
6570
Afrikaans
7365
Interlingua
8277
Rhaeta-Romance
6577
Amharic
7378
Indonesian
8279
Romanian
6582
Arabic
7383
Icelandic
8285
Russian
6583
Assamese
7384
Italian
8365
Kinyarwanda
6588
Aymara
7387
Hebrew
8368
Sanskrit
6590
Azerbaijani
7465
Japanese
8372
Serbo-Croatian
6665
Bashkir
7473
Yiddish
8373
Singhalese
6669
Byelorussian
7487
Javanese
8375
Slovak
6671
Bulgarian
7565
Georgian
8376
Slovenian
6672
Bislama
7575
Kazakh
8377
Samoan
6678
Bengali
7576
Greenlandic
8378
Shona
6679
Tibetan
7577
Cambodian
8379
Somali
6682
Breton
7578
Kannada
8381
Albanian
6765
Catalan
7579
Korean
8382
Serbian
6779
Corsican
7583
Kashmiri
8385
Sundanese
6783
Czech
7585
Kurdish
8386
Swedish
6789
Welsh
7589
Kirghiz
8387
Swahili
6865
Danish
7665
Latin
8465
Tamil
6869
German
7678
Lingala
8469
Tegulu
6890
Bhutani
7679
Laothian
8471
Tajik
6976
Greek
7684
Lithuanian
8472
Thai
6978
English
7686
Latvian/Lettish
8473
Tigrinya
6979
Esperanto
7771
Malagasy
8475
Turkmen
6983
Spanish
7773
Maon
8476
Tagalog
6984
Estonian
7775
Macedonian
8479
Tonga
6985
Basque
7776
Malayalam
8482
Turkish
7065
Persian
7778
Mongolian
8484
Tatar
7073
Finnish
7779
Moldavian
8487
Twi
7074
Fiji
7782
Marathi
8575
Ukrainian
7079
Faeroese
7783
Malay
8582
Urdu
7082
French
7784
Maltese
8590
Uzbek
7089
Frisian
7789
Burmese
8673
Vietnamese
7165
Irish
7865
Nauru
8679
Volapuk
7168
Scots/Gaelic
7869
Nepali
8779
Wolof
7176
Galician
7876
Dutch
8872
Xhosa
7178
Guarani
7879
Norwegian
8979
Yoruba
7185
Gujarati
7982
Oriya
9072
Chinese
7265
Hausa
8065
Punjabi
9085
Zulu
7273
Hindi
8076
Polish
7282
Croatian
8083
Pashto/Pushto
Chapter 9 Other Information
Code
55US
Index
Numerics
F
P
16:9 Wide
Fast forward 25
Parental
Fast reverse 25
Parental Control
29
2CH STEREO
42
A
H
A.F.D
42
ALARM
40
ANGLE
17, 26
HOME
17
AUDIO
17, 26
INTERCOM PRIVACY
Audio
29
IP ADDRESS 11
IR ROUTE
Play Mode
38
BACK
15, 17
L
BALANCE
43, 45
Language code list
Batteries
18
LEVEL
45
LINE IN
34
55
Chapter 9 Other Information
MASTER VOL
Captions
29
MENU
17
15, 17
26
39
17
MONITOR PRIVACY
DATA CD
5
Default
30
MUTING
15, 17
MY MUSIC
36
12
DIMMER
43
NETWORK
35
Disc Menu
29
Normal/LB 29
DISPLAY
17, 26
Normal/PS
DOLBY PL
42
Numeral Buttons
DRC
46
DVD
5, 23
Dynamic range
E
56US
17
30
OSD Lang
RETURN
17
RM SETUP
17, 18
39
Screen Saver 29
Search
21, 25
SELECT
15, 17, 18
28
29
SIRCS
13
SLEEP
41
Sleep timer
41
SPEAKER DISTANCE
29
OPEN/CLOSE
46
11, 16, 18, 47
Setup Display
17
O
DVD SETUP 17
Remote
Shuffle Play 21, 23, 36
NAME
DOWN/UP 17
31
Scan 21, 25
N
DOLBY PLII 42
Radio
S
25
DIAGNOSIS 12
ENTER
17
MONITOR
D
21, 23, 36
Preset station 33
RESET
MODE
MP3
24
Resume Play 23
38
Component 34
29
Repeat Play 21, 23, 24, 36
M
Call sound
CLEAR
37
Remote code 13
C
CHAPTER
27
R
11
B
5, 20, 22
37
PBC Playback
INTERCOM 38
CD
37
Party mode
Password
I
10
Party Join
PARTY PRIVACY
Angle Mark 29
Cable connect
29
15
SPEAKER SIZE
SUBTITLE
17, 26
Subtitle
29
Surround mode
44
42
45
T
TEST TONE 46
TIME OUT
13
TITLE
26
TOP MENU 17
TRACK
26
Troubleshooting
TUNER
31
TV
47
TV CH
17, 47
TV Type
28
TV/VIDEO
17, 47
TV VOL
17, 47
TV ?/1
17, 47
49
U
Unit Name
12
VIDEO CD
5, 24
VOL PRESET
VOLUME
Chapter 9 Other Information
V
43
15, 17, 38, 39
Symbols
?/1
15, 17
m/M
17
./>
15, 17
X(PAUSE)
15, 17
N(PLAY)
15, 17
m/M(SCROLL DOWN/UP) 15
G/ F/f /g
17
x (STOP)
15, 17
57US
© 2005 Sony Corporation Printed in Korea
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
