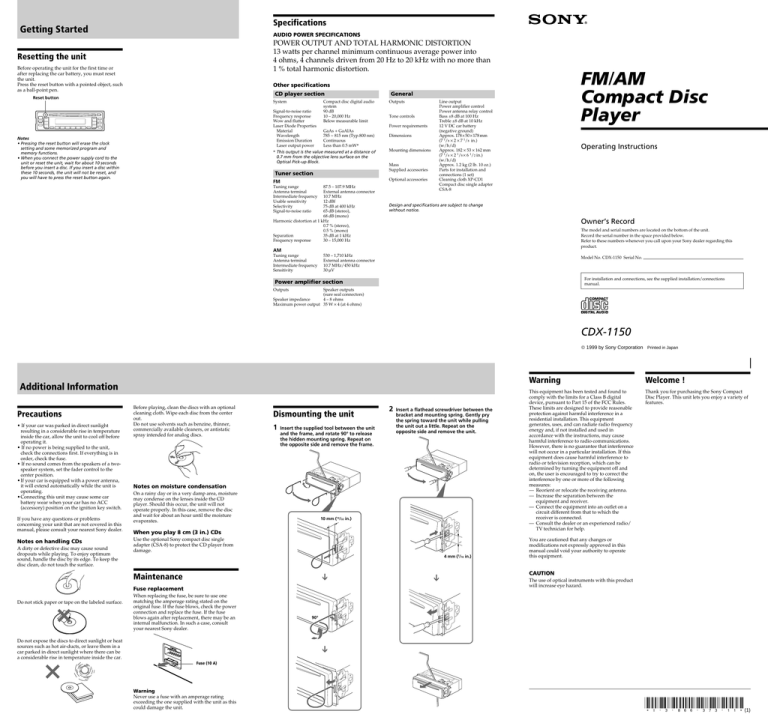

Specifications
Getting Started
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
13 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than
1 % total harmonic distortion.
Resetting the unit
Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Press the reset button with a pointed object, such
as a ball-point pen.
FM/AM
Compact Disc
Player
Other specifications
CD player section
Reset button
System
Signal-to-noise ratio
Frequency response
Wow and flutter
Laser Diode Properties
Material
Wavelength
Emission Duration
Laser output power
Notes
• Pressing the reset button will erase the clock
setting and some memorized program and
memory functions.
• When you connect the power supply cord to the
unit or reset the unit, wait for about 10 seconds
before you insert a disc. If you insert a disc within
these 10 seconds, the unit will not be reset, and
you will have to press the reset button again.
Compact disc digital audio
system
90 dB
10 – 20,000 Hz
Below measurable limit
General
Outputs
Tone controls
Power requirements
GaAs + GaAlAs
785 ~ 815 nm (Typ.800 nm)
Continuous
Less than 0.5 mW*
* This output is the value measured at a distance of
0.7 mm from the objective lens surface on the
Optical Pick-up Block.
Tuner section
Dimensions
Mounting dimensions
Mass
Supplied accessories
Line output
Power amplifier control
Power antenna relay control
Bass ±8 dB at 100 Hz
Treble ±8 dB at 10 kHz
12 V DC car battery
(negative ground)
Approx. 178 × 50 × 178 mm
(7 1/8 × 2 × 7 1/8 in.)
(w/h/d)
Approx. 182 × 53 × 162 mm
(7 1/4 × 2 1/8 × 6 1/2 in.)
(w/h/d)
Approx. 1.2 kg (2 lb. 10 oz.)
Parts for installation and
connections (1 set)
Cleaning cloth XP-CD1
Compact disc single adapter
CSA-8
FM
Optional accessories
Tuning range
Antenna terminal
Intermediate frequency
Usable sensitivity
Selectivity
Signal-to-noise ratio
Design and specifications are subject to change
without notice.
87.5 – 107.9 MHz
External antenna connector
10.7 MHz
12 dBf
75 dB at 400 kHz
65 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
0.7 % (stereo),
0.5 % (mono)
Separation
35 dB at 1 kHz
Frequency response
30 – 15,000 Hz
Operating Instructions
Owner’s Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.
AM
Tuning range
Antenna terminal
Intermediate frequency
Sensitivity
530 – 1,710 kHz
External antenna connector
10.7 MHz/450 kHz
30 µV
Model No. CDX-1150␣ ␣ Serial No.
For installation and connections, see the supplied installation/connections
manual.
Power amplifier section
Outputs
Speaker outputs
(sure seal connectors)
Speaker impedance
4 – 8 ohms
Maximum power output 35 W × 4 (at 4 ohms)
CDX-1150
 1999 by Sony Corporation Printed in Japan
Additional Information
Precautions
• If your car was parked in direct sunlight
resulting in a considerable rise in temperature
inside the car, allow the unit to cool off before
operating it.
• If no power is being supplied to the unit,
check the connections first. If everything is in
order, check the fuse.
• If no sound comes from the speakers of a twospeaker system, set the fader control to the
center position.
•If your car is equipped with a power antenna,
it will extend automatically while the unit is
operating.
•Connecting this unit may cause some car
battery wear when your car has no ACC
(accessory) position on the ignition key switch.
If you have any questions or problems
concerning your unit that are not covered in this
manual, please consult your nearest Sony dealer.
Notes on handling CDs
A dirty or defective disc may cause sound
dropouts while playing. To enjoy optimum
sound, handle the disc by its edge. To keep the
disc clean, do not touch the surface.
Before playing, clean the discs with an optional
cleaning cloth. Wipe each disc from the center
out.
Do not use solvents such as benzine, thinner,
commercially available cleaners, or antistatic
spray intended for analog discs.
Dismounting the unit
1
Insert the supplied tool between the unit
and the frame, and rotate 90° to release
the hidden mounting spring. Repeat on
the opposite side and remove the frame.
Insert a flathead screwdriver between the
bracket and mounting spring. Gently pry
the spring toward the unit while pulling
the unit out a little. Repeat on the
opposite side and remove the unit.
Notes on moisture condensation
On a rainy day or in a very damp area, moisture
may condense on the lenses inside the CD
player. Should this occur, the unit will not
operate properly. In this case, remove the disc
and wait for about an hour until the moisture
evaporates.
10 mm (13/32 in.)
When you play 8 cm (3 in.) CDs
Use the optional Sony compact disc single
adapter (CSA-8) to protect the CD player from
damage.
4 mm (3/16 in.)
Welcome !
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
Thank you for purchasing the Sony Compact
Disc Player. This unit lets you enjoy a variety of
features.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
CAUTION
Maintenance
The use of optical instruments with this product
will increase eye hazard.
Fuse replacement
Do not stick paper or tape on the labeled surface.
2
Warning
When replacing the fuse, be sure to use one
matching the amperage rating stated on the
original fuse. If the fuse blows, check the power
connection and replace the fuse. If the fuse
blows again after replacement, there may be an
internal malfunction. In such a case, consult
your nearest Sony dealer.
90°
Do not expose the discs to direct sunlight or heat
sources such as hot air-ducts, or leave them in a
car parked in direct sunlight where there can be
a considerable rise in temperature inside the car.
Fuse (10 A)
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as this
could damage the unit.
*I-3-866-373-11*
(1)
Location of controls
Setting the clock
The clock has a 12-hour digital indication.
Radio
Example: To set the clock to 10:08
SOURCE
1
Press (DSPL) during operation.
2
Press (DSPL) for two seconds.
BTM
MODE
ATT
REPEAT
1
SOUND
LOUD
The hour indication flashes.
SHUF
2
3
4
5
6
DSPL
Memorizing only the
desired stations
— Best Tuning Memory (BTM)
SENS
SEEK
AMS
Memorizing stations
automatically
OFF
1 Set the hour.
This unit selects the stations with the strongest
signals and memorizes them in the order of their
frequencies. You can store up to 6 stations on
each band (FM I, FM II, FM III, and AM).
Caution
CDX-1150
To go forward
When tuning in stations while driving, use Best
Tuning Memory to prevent accidents.
If you cannot tune in a preset
station
Press either side of (SEEK/AMS) to search
for the station (automatic tuning).
Scanning stops when the unit receives a
station. Press either side of (SEEK/AMS)
repeatedly until the desired station is
received.
You can store up to 6 stations on each band (a
total of 18 for FM I, FM II, and FM III, and 6 for
AM) in the order of your choice.
1
Press (SOURCE) repeatedly to select the
tuner.
2
Press (MODE) repeatedly to select the
band.
Note
If the automatic tuning stops too frequently, press
(SENS/BTM) repeatedly until “LOCAL” (local seek
mode) is displayed. Only the stations with relatively
strong signals will be tuned in.
3
press and hold either side of (SEEK/AMS)
to tune in the station that you want to
store on the number button.
Tip
If you know the frequency of the station you want
to listen to, press and hold either side of (SEEK/AMS)
until the desired frequency appears (manual tuning).
4
Press and hold the desired number button
((1) to (6)) until “MEM” appears.
The number button indication appears in the
display.
To go backward
1
1 MODE (band select) button
0 SOUND button
2 SOURCE (source select) button
! ¡ During radio reception:
Number buttons
3 Reset button
4 (+) (–) (volume/bass/treble/left-right/
front-rear control) button
5 Display window
6 SEEK/AMS (seek/Automatic Music Sensor/
manual search) button
7 6 (eject) button
8 SENS/BTM (sensitivity adjust/Best Tuning
Memory) button
CD ˜ TUNER
2 Press (SOUND).
During CD playback:
(1) REPEAT button
(2) SHUF button
2
!™ DSPL (display mode change/time set)
button
The minute indication flashes.
! ¢ LOUD (loudness) button
To go forward
To go backward
9 ATT (attenuate) button
3
Press (DSPL).
The clock starts.
Press (MODE) repeatedly to select the
band.
Each time you press (MODE), the band
changes as follows:
” FM I
3 Set the minute.
! £ OFF button
Press (SOURCE) repeatedly to select the
tuner.
Each time you press (SOURCE), the mode
changes as follows:
3
” FM II
” FM III
” AM
Press (SENS/BTM) for two seconds.
The unit stores stations in the order of their
frequencies on the number buttons.
A beep sounds when the setting is stored.
Notes
• The unit does not store stations with weak signals.
If only a few stations can be received, some
number buttons will retain their former setting.
• When a number is indicated in the display, the unit
starts storing stations from the one currently
displayed.
• If a CD is not in the unit, only the tuner band
appears even if you press (SOURCE).
Note
If you try to store another station on the same
number button, the previously stored station will be
erased.
If FM stereo reception is poor
— Monaural Mode
Press (SENS/BTM) repeatedly until
“MONO” appears.
The sound improves, but becomes monaural
(“STEREO” disappears).
To return to normal mode, press again until
“MONO” disappears.
Changing the display item
Receiving the memorized
stations
1
Press (SOURCE) repeatedly to select the
tuner.
2
Press (MODE) repeatedly to select the
band.
3
Press the number button ((1) to (6)) on
which the desired station is stored.
Each time you press (DSPL), the item changes
as follows:
Frequency ˜ Clock
Troubleshooting guide
CD Player
The following checklist will help you remedy the problems you may encounter with your unit.
Before going through the checklist below, check the connection and operating procedures.
Other Functions
General
Locating a specific track
— Automatic Music Sensor (AMS)
Listening to a CD
Insert a CD.
Playback starts automatically.
During CD playback, press either side of
(SEEK/AMS) for each track you want to
skip.
Label side up
SEEK
AMS
To locate succeeding tracks
To locate preceding tracks
Adjusting the sound
characteristics
You can adjust the bass, treble, balance, and
fader. You can store the bass and treble levels.
Each source can store the bass and treble level
independently.
1
Locating a specific point in a track
— Manual Search
If a CD is already inserted, press (SOURCE)
repeatedly until “CD” appears to start playback.
CD
MIN
SEC
Elapsed playing time
During playback, press and hold either
side of (SEEK/AMS) for about two seconds.
Release when you have found the desired
point.
SEEK
AMS
Note
To play back an 8 cm (3 in.) CD, use the optional
Sony compact disc single adapter (CSA-8).
To search forward
Adjust the selected item by pressing (+)
or (–).
Adjust within three seconds after selecting
the item. (After three seconds, the buttons
function reverts to volume control buttons.)
To search backward
Note
If “
” or “
” appears in the display,
you have reached the beginning or the end of the
disc and you cannot go any further.
To
Press
Stop playback
6 or (OFF)
Enjoy bass and treble even
at low volume
Eject the CD
6
— Loudness Function
Changing the display item
Each time you press (DSPL) during CD
playback, the item changes as follows:
z Elapsed playing time
Clock Z
z Track number
Playing a CD in various
modes
Playing tracks repeatedly
— Repeat Play
Press (1) during playback.
“REPEAT” appears in the display.
When the current track is over, it will play again
from the beginning.
To return to normal playback mode, press again.
Playing tracks in random order
— Shuffle Play
Press (2) during playback.
“SHUF” appears in the display.
To return to normal playback mode, press again.
Press (ATT).
“ATT” lights up.
To restore the previous volume level, press
(ATT) again.
Cause/Solution
No sound.
•Adjust the volume with (+).
•Set the fader control to the center position for two-speaker
systems.
The contents of the memory
have been erased.
•The power cord or battery has been disconnected.
•The reset button has been pressed.
n Store the settings again into the memory.
No beep sound.
•An optional power amplifier is connected and you are not using
the built-in amplifier.
•The beep sound is cancelled.
Select the item you want to adjust by
pressing (SOUND) repeatedly.
BAS (bass) n TRE (treble) n
BALANCE (left-right) n FADER (front-rear)
n VOL (volume)
2
Attenuating the sound
Problem
Press (LOUD) until “LOUD” appears.
Bass and treble will be reinforced.
To return to normal mode, press again until
“LOUD” disappears.
CD playback
Problem
Cause/Solution
CD cannot be loaded.
•Another CD is already loaded.
•The CD was forcibly inserted upside down.
Play does not begin.
Dirty disc.
CD is automatically ejected.
The ambient temperature exceeds 50°C (122°F).
CD will not eject.
Press the 6 button for two seconds.
The operation buttons do not
function.
Press the reset button.
The sound skips due to
vibration.
•The unit is installed at an angle of more than 60°.
•The unit is not installed in a sturdy part of the car.
Radio reception
Problem
Cause/Solution
Preset tuning is not possible.
•Memorize the correct frequency.
•The broadcast signal is too weak.
Automatic tuning is not
possible.
The broadcast signal is too weak.
n Use manual tuning.
The “STEREO” indication
flashes.
•Tune in the frequency accurately.
•The broadcast signal is too weak.
n Set to the MONO mode.
Cancel the beep sound
Press (6) while pressing (SOUND).
To obtain the beep sound again, press these
buttons again.
Note
If you connect an optional power amplifier and do
not use the built-in amplifier, the beep sound will be
deactivated.
Error displays
The following indications will flash for about five seconds.
Display
Cause
Solution
A CD is dirty or inserted upside
down.
Clean or insert the CD correctly.
The CD player cannot be operated
because of some problem.
Press the reset button or 6.
If the above-mentioned solutions do not help improve the situation, consult your nearest Sony
dealer.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
