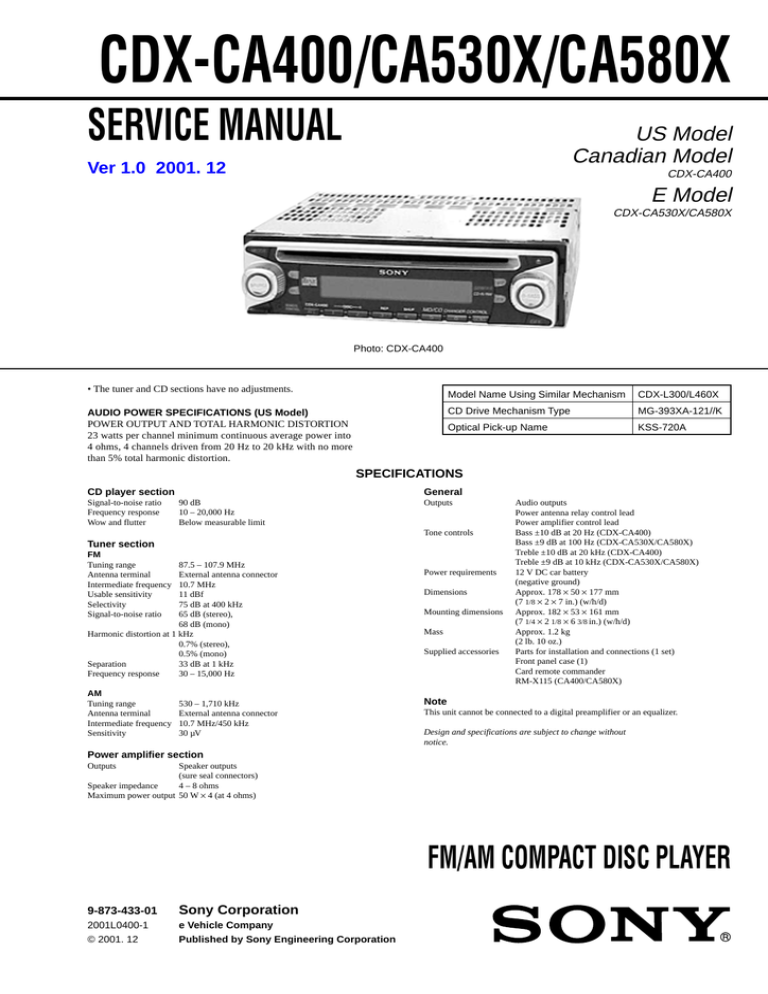

CDX-CA400/CA530X/CA580X

SERVICE MANUAL

Ver 1.0 2001. 12

US Model

Canadian Model

CDX-CA400

E Model

CDX-CA530X/CA580X

Photo: CDX-CA400

• The tuner and CD sections have no adjustments.

AUDIO POWER SPECIFICATIONS (US Model)

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

23 watts per channel minimum continuous average power into

4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5% total harmonic distortion.

CD player section

Signal-to-noise ratio

Frequency response

Wow and flutter

90 dB

10 – 20,000 Hz

Below measurable limit

Tuner section

FM

Tuning range

Antenna terminal

Intermediate frequency 10.7 MHz

Usable sensitivity 11 dBf

Selectivity

Signal-to-noise ratio

87.5 – 107.9 MHz

External antenna connector

75 dB at 400 kHz

65 dB (stereo),

68 dB (mono)

Harmonic distortion at 1 kHz

0.7% (stereo),

0.5% (mono)

Separation

Frequency response

33 dB at 1 kHz

30 – 15,000 Hz

Model Name Using Similar Mechanism CDX-L300/L460X

CD Drive Mechanism Type MG-393XA-121//K

Optical Pick-up Name KSS-720A

SPECIFICATIONS

General

Outputs

Tone controls

Audio outputs

Power antenna relay control lead

Power amplifier control lead

Bass ±10 dB at 20 Hz (CDX-CA400)

Bass ±9 dB at 100 Hz (CDX-CA530X/CA580X)

Treble ±10 dB at 20 kHz (CDX-CA400)

Treble ±9 dB at 10 kHz (CDX-CA530X/CA580X)

Power requirements 12 V DC car battery

Dimensions

(negative ground)

Approx. 178

×

50

×

177 mm

(7

1/8

×

2

×

7 in.) (w/h/d)

Mounting dimensions Approx. 182

×

53

×

161 mm

(7

1/4

×

2

1/8

×

6

3/8 in.) (w/h/d)

Mass Approx. 1.2 kg

Supplied accessories

(2 lb. 10 oz.)

Parts for installation and connections (1 set)

Front panel case (1)

Card remote commander

RM-X115 (CA400/CA580X)

AM

Tuning range 530 – 1,710 kHz

Antenna terminal External antenna connector

Intermediate frequency 10.7 MHz/450 kHz

Sensitivity 30 µV

Note

This unit cannot be connected to a digital preamplifier or an equalizer.

Design and specifications are subject to change without notice.

Power amplifier section

Outputs Speaker outputs

(sure seal connectors)

Speaker impedance 4 – 8 ohms

Maximum power output 50 W

×

4 (at 4 ohms)

FM/AM COMPACT DISC PLAYER

9-873-433-01

2001L0400-1

© 2001. 12

Sony Corporation

e Vehicle Company

Published by Sony Engineering Corporation

1

CDX-CA400/CA530X/CA580X

SERVICE NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK

OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body.

During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts.

The flexible board is easily damaged and should be handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.

Notes on Chip Component Replacement

Never reuse a disconnected chip component.

Notice that the minus side of a tantalum capacitor may be damaged by heat.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

If the optical pick-up block is defective, please replace the whole optical pick-up block.

Never turn the semi-fixed resistor located at the side of optical pick-up block.

optical pick-up block semi-fixed resistor

TEST DISCS

This set can playback CD-R and CD-ROM discs. The following test discs should be used to check the capability:

CD-R test disc TCD-R082LMT (Part No. J-2501-063-1)

CD-RW test disc TCD-W082L (Part No. J-2501-063-2)

Notes on CD-R/CD-RW discs

You can play CD-Rs (recordable CDs)/CD-RWs (rewritable CDs) designed for audio use on this unit.

Look for these marks to distinguish CD-Rs/CD-RWs for audio use.

These marks denote that a disc is not for audio use.

Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit.

You cannot play a CD-R/CD-RW that is not finalized

.

A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK

0

OR DOTTED LINE

WITH MARK

0

ON THE SCHEMATIC DIAGRAMS AND IN

THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE

PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR

IN SUPPLEMENTS PUBLISHED BY SONY.

2

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!!

LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE

0

SUR LES

DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES

SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.

NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES

SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL

OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

CDX-CA400/CA530X/CA580X

TABLE OF CONTENTS

1. GENERAL

Location of controls (CDX-CA400) ........................................ 4

Location of controls (CDX-CA530X/CA580X) ..................... 4

Connections (CDX-CA400) .................................................... 5

Connections (CDX-CA530X/CA580X) .................................. 6

2. DISASSEMBLY

2-1. Panel (1) Assy, Sub ............................................................. 7

2-2. CD Mechanism Block ......................................................... 8

2-3. Main Board ......................................................................... 8

2-4. Heat Sink ............................................................................. 9

2-5. Chassis (T) Sub Assy .......................................................... 9

2-6. Lever Section .................................................................... 10

2-7. Servo Board ....................................................................... 10

2-8. Shaft Roller Assy .............................................................. 11

2-9. Floating Block Assy .......................................................... 11

2-10. Optical Pick-up Block ....................................................... 12

3. DIAGRAMS

3-1. IC Pin Description ............................................................. 13

3-2. Block Diagram –CD Section– ........................................... 15

3-3. Block Diagram –Tuner Section– ....................................... 16

3-4. Block Diagram –Display Section– .................................... 17

3-5. Circuit Boards Location .................................................... 17

3-6. Printed Wiring Boards –CD Mechanism Section– ............ 18

3-7. Schematic Diagram –CD Mechanism Section– ................ 20

3-8. Printed Wiring Board –Main Section– .............................. 21

3-9. Schematic Diagram –Main Section (1/2)– ........................ 22

3-10. Schematic Diagram –Main Section (2/2)– ........................ 23

3-11. Printed Wiring Board –Display Section– .......................... 24

3-12. Schematic Diagram –Display Section– ............................. 25

4. EXPLODED VIEWS

4-1. Chassis Section ................................................................. 28

4-2. Front panel Section ........................................................... 29

4-3. CD Mechanism Section (1) ............................................... 30

4-4. CD Mechanism Section (2) ............................................... 31

4-5. CD Mechanism Section (3) ............................................... 32

5. ELECTRICAL PARTS LIST

........................................ 33

EXTENSION CABLE AND SERVICE POSITION

When repairing or servicing this set, connect the jig (extension cable) as shown below.

• Connect the MAIN board (CNP701) and the SERVO board (CN1) with the extension cable (Part No. J-2502-062-1).

MAIN BOARD CNP701

SERVO BOARD CN1

3

CDX-CA400/CA530X/CA580X

(CDX-CA400)

SECTION 1

GENERAL

This section is extracted from instruction manual.

(CDX-CA530X/CA580X)

(CDX-CA400)

(CDX-CA530X/CA580X)

4

Connections (CDX-CA400)

CDX-CA400/CA530X/CA580X

5

CDX-CA400/CA530X/CA580X

Connections (CDX-CA530X/CA580X)

6

SECTION 2

DISASSEMBLY

Note : This set can be disassemble according to the following sequence.

CDX-CA400/CA530X/CA580X

SET

2-1.

PANEL (1) ASSY, SUB

(Page 7)

2-2.

CD MECHANISM BLOCK

(Page 8)

2-5.

CHASSIS (T) SUB ASSY

(Page 9)

2-6.

LEVER SECTION

(Page 10)

2-7.

SERVO BOARD

(Page 10)

2-3.

MAIN BOARD

(Page 8)

2-4.

HEAT SINK

(Page 9)

2-8.

SHAFT ROLLER ASSY

(Page 11)

2-9.

FLOATING BLOCK ASSY

(Page 11)

2-10.

OPTICAL PICK-UP BLOCK

(Page 12)

Note : Follow the disassembly procedure in the numerical order given.

2-1. PANEL (1) ASSY, SUB

claws

1

PTT 2.6x6

3

claw

4 claws

2 PTT 2.6x6

5 panel (1) assy, sub

7

CDX-CA400/CA530X/CA580X

2-2. CD MECHANISM BLOCK

5 CD mechanism block

7

bracket (CD)

6 PTT 2.6x6

2

PTT 2.6x6

3

4 CNP701

2-3. MAIN BOARD

4 screws (+BTT)

5 MAIN board

3 screw (+BTT)

1 PTT 2.6x6

2 PTT 2.6x8

1 PTT 2.6x8

8

2-4. HEAT SINK

2-5. CHASSIS (T) SUB ASSY

2 P 2x3

1 Unsolder the

lead wires.

black red white

CDX-CA400/CA530X/CA580X

6 heat sink

5 PTT 2.6x8

4 PTT 2.6x8

3 PTT 2.6x12

2 PTT 2.6x8

1 PTT 2.6x8

3 P 2x3

4 chassis (T) sub assy

9

CDX-CA400/CA530X/CA580X

2-6. LEVER SECTION

5 guide (disc)

6

lever (R)

3 tension spring (LR)

7

lever (L)

1

special screw

2

IN SELF SW board

4

claws

2-7. SERVO BOARD

5 special screws

2 Removal the solders.

7

SERVO board

6 special screw

8 connector

3 P 2x3

1

CN3

4 loading motor assy optical pick-up block

10

2-8. SHAFT ROLLER ASSY

When installing, take note of the positions

arm (roller) and washers. (Fig. 1)

3 retaing ring (RA)

4

shaft retainer shaft retainer retaing ring (RA) arm washer

CDX-CA400/CA530X/CA580X

washer arm shaft retainer

Fig. 1

5

shaft roller assy

2 arm (roller)

2-9. FLOATING BLOCK ASSY

7 compression spring (FL)

1

tension spring (KF1)

1 tension spring (RA)

6 floating block assy

8 compression spring (FL)

4

Fit lever (D) in the

direction of the arrow.

5 Turn loading ring in the

direction of the arrow.

3 damper (T)

2 damper (T)

11

CDX-CA400/CA530X/CA580X

2-10. OPTICAL PICK-UP BLOCK

1 P 2x3

2

sled motor assy

6 shaft (feed) assy

4

P 2x3

5 spring (feed), plate

3

optical pick-up block

12

CDX-CA400/CA530X/CA580X

SECTION 3

DIAGRAMS

3-1. IC PIN DESCRIPTION

• IC801 µPD780076GK-520-9ET (SYSTEM CONTROLLER)

Pin No.

Pin Name I/O

1

2

3

PH1

D SW

IN SW/PH2

I

I

I

Pin Description

PH1 detection input (Not used in this set.)

Down switch detection input

Disc in switch detection input

BUS CLK

BUS CK GEN

AM ON

FM ON

VDD1

AVSS

ST IND

PH3

S METER

KEY0

KEY1

ROTARY (AD)

DST SEL

TEST

AVREF

LCD INH

LM LD

LM EJ

ATT

A ATT

PLL DI

VSSO

VDDO

PLL CLK

PLL DO

PLL CE

BEEP

L V CE

L V DO

L V CLK

BUS SI

BUS SO

RESET

XT2

XT1

IC

X2

X1

VSS1

KEY ACK

SIRCS

SELF SW

BU IN

NOSE

ILL ON

A REMO

CDM ON

XCD ON

32

33

34

35

28

29

30

31

24

25

26

27

20

21

22

23

16

17

18

19

12

13

14

15

8

9

10

11

6

7

4

5

48

49

50

51

44

45

46

47

40

41

42

43

36

37

38

39

O Loading motor drive output (Loading)

O Loading motor drive output (Eject)

O Line out mute control output

O Power amplifier mute control output

I PLL IC data input

— Ground pin

— Power supply pin (+5 V)

O PLL IC clock output

O PLL IC data output

O PLL IC chip enable output

O BEEP output of key beep, caution alarm

O Electric volume, LCD chip enable output

O Electric volume, LCD data output

O Electric volume, LCD clock output

I BUS interface serial input

O BUS interface serial output

I BUS interface serial clock input

O BUS interface serial clock output

O Tuner AM power supply control output

O Tuner FM power supply control output

I

I

— Power supply pin (+5 V)

— Ground pin

FM stereo detection input

PH3 detection input (Not used in this set.)

I

I

I

I S meter signal input

A/D key input 0

A/D key input 1

Not used in this set.

I

I Destination select input (Connect to ground in this set.)

Force test mode input

— A/D converter power supply pin (+5 V)

O INHIBIT control output of LCD

I Reset input (“L”: reset detection)

O Sub clock output (32.768 kHz)

I Sub clock input (32.768 kHz)

— Connect to ground in this set.

O Master clock output (8.38 MHz)

I Master clock input (8.38 MHz)

— Ground pin

I Key acknowledge detection input

I

I

I

I Wireless remote control signal input

Self switch detection input

Backup power supply detection input

Front panel attachment detection input

O Illumination power supply control output

O External amplifier remote control output

O CD mechanism deck power supply control output

O CD DSP IC 16 MHz X’tal on/off control output

13

CDX-CA400/CA530X/CA580X

Pin No.

52

53

54

59

60

61

55

56

57

58

62

63

64

Pin Name

SHIFT

BUS ON

SB RST

PW ON

X SO

X SI

X SCK

RFOK

CD RST

ACC IN

X AO

STB

L SW

I

O

I

O

O

I

O

I/O

— Not used in this set.

O Enable output of bus IC

O Reset output of bus IC

Pin Description

System power supply control output

CD DSP IC serial data output

CD DSP IC serial data input

CD DSP IC serial clock output

CD servo IC RFOK signal input

CD DSP IC reset control output

Accessory power supply detection input

CD servo IC command/parameter discrimination signal output

O

O

I

“L”: Command, “H”: Parameter

CD servo IC data strobe signal output

CD sled limit switch detection input

14

CDX-CA400/CA530X/CA580X

3-2. BLOCK DIAGRAM — CD SECTION —

E

F

PD

LD

A

C

B

D

OPTICAL PICK-UP

KSS-720A

I-V

CONV.

FOCUS

COIL

TRACKING

COIL

RF AMP,DIGITAL SERVO

DIGITAL SIGNAL PROCESSOR

IC1

84

B

85

D

82

A

83

C

E

87

86

F

97

PD

LD

DRIVE

Q1

A5V

98

LD

TRACKING

APC

ERROR

FOCUS/TRACKING COIL DRIVE,

SLED/SPINDLE/LOADING MOTOR DRIVE

IC2

FCS-

15

FCS+

16

FOCUS

COIL

DRIVE

26

FD

TRK+

17

TRK-

18

TRACKING

COIL

DRIVE

23

TD

FORCUS

ERROR

RF

EQ

SERVO

CTL

EFM

DEMOD

62 63 64 65

M902

(SLED)

M901

(SPINDLE)

M903

(LOADING)

M

SL-

13

SL+

14

M

SP+

11

SP-

12

M

LD-

9

LD+

10

SLED

MOTOR

DRIVE

SPINDLE

MOTOR

DRIVE

LOADING

MOTOR

DRIVE

5

SD

6

MD

1

LOAD

EJECT

2

A_5V

AU_5V

D_5V

DR_6V

CD+5V

REG

Q910,D910

D/A

CONV

DSUB CODE

PROCESS

I/F

LOUT

ROUT

16

12

PACK

TSTB

TSCK

TSI

52

56

55

54

SI

8

SO

7

SCK

6

STB

5

AO

4

RST

3

RFOK

2

OSC

XTALEN

9

R-CH

CDL

(Page 16)

TUNER

SECTION

A

X EN

B

TUNER

SECTION

(Page 16)

SYSTEM CONTROL

IC801(1/3)

56 X_SO

57 X_SI

58

X_SCK

63

STB

62

X A0

60

CD_RST

59

RFOK

23 24

X1

16.9344MHz

SW1

(DOWN)

SW2

(SELF)

SW3

(DISC IN)

SW4

(LIMIT)

2 D_SW

45 SELF_SW

3

IN_SW

64 L_SW

RESET 36

CD DRIVE

+6V REG

Q907,D908

D909

CD MECHANISM

ON SWITCH

Q905,906

CD ON

SWITCH

Q921

BATT

4 LM _LD

5 LM_ EJ

50

CDM ON

51 XCD_ON

IC902

1 RESET 2

S901

(RESET)

U_COM+5V

• Signal path

:CD

• R-ch is omitted due to

same as L-ch.

15 15

CDX-CA400/CA530X/CA580X

3-3. BLOCK DIAGRAM — TUNER SECTION —

CNJ601

(ANTENNA)

TU+8V

TUNER UNIT

TU601

2

1

FM_ANT

AM_ANT

L-CH

16

R-CH

17

DET_OUT 24

AM_DX/LCL

FM_DX/LCL

3

4

FM/AM_OSC

11

FM_VT

6

AM_VT

14

OSC-IN

19

IF_COUNT

20

13

25

FM/AM_VCC

FM POWER

CONTROL

Q605,606

12 FM_VCC

S_METER

21

SD/ST_IND 22

AM POWER

CONTROL

Q603,604

9 AM_VCC

(Page 15)

A

CD

SECTION

CDL

R-CH

R-CH

DISPLAY

SECTION

(Page 17)

C

LCD CE

LCD DO

LCD CLK

PLL

IC601

8 LCL

15 FM_VCO

16 AM_VCO

18

19

20

FM_CP

VT

AM_CP

D_OUT 6

D_IN 4

CK 5

CE 3

2 OSC

10 SEEK

13 IFC

11 MONO

XO

XI

1

24

ELECTRONIC VOLUME

IC401

15 BUS L

23 BUS R

14 AU-L

FL OUT 5

18 L1 RL OUT 4

17

21

L2

R2

2

1

CE

DI

36 CL

FR OUT

RR OUT

33

34

SYSTEM CONTROL

IC801 (2/3)

17

16

LV CLK

LV DO

15 LV CE

ATT

6

BEEP 14

PW ON 55

A_ATT

7

ACC IN

61

8

12

PLL_DI

PLL_DO

11 PLL_CLK

13 PLL_CE

TEST 33

A REMO

49

X601

10.25MHz

28

26

S_METER

SD_IND

BUS SI

18

BUS SO 19

BUS CLK 20

BUS CK GEN

21

32

DST_SEL

BUS ON

53

SB RST

54

BU IN

FM_ON

46

23

AM_ON

22

R-CH

LINE MUTE

Q102

LINE MUTE

CONTROL

Q401,402

LINE MUTE

Q101

R-CH

D931

D932

TU+8V

X EN

B

CD

SECTION

(Page 15)

TUNER ON

CONTROL

Q909,912

TUNER +8V

REG

Q913,D913

BATT

BATT

BATT

DET

Q904,D907

BATT

ACC

CHECK

Q902

AMP/ANT

REMOTE CONTROL

Q911,917

12

POWER AMP

IC101

5

3

11

16 AUX-IN

4 STBY

22 MUTE

9

7

R-CH

R-CH

R-CH

PJ401

-3

L

-4

R

-1

L

-2

R

BUS AUDIO IN

AUDIO OUT REAR

CNP901

1

9

FL+

FL–

2

10

RL+

RL–

4

12

FR+

FR–

3

11

RR+

RR–

COM+8V

COM+8V REG

Q918,919,929,D923

U_COM+5V

U_COM+5 V REG

Q920,D930,D999

BUS INTERFACE

IC802

BUS ON OUT 1

8

9

11

DATA OUT

DATA IN

DATA IN/OUT

CLK IN

CLK OUT

6

4

12

BUS ON IN

13 RST OUT

RST OUT 2

10 BATT CHECK

BATT 3

D854

6

5

4

CNJ801

BUS

CONTROL IN

8

3

2

1

7

BATT

BATT

BATT

F901

10A

19

17

7 ACC

15 TEST

5 AMP REM

6 ANT REM

8

GND

18

16 +B (BATT)

• Signal path

:FM

:AM

:CD

• R-ch is omitted due to

same as L-ch.

16 16

3-4. BLOCK DIAGRAM — DISPLAY SECTION —

KEY MATRIX

S501-519

TUNER

SECTION

(Page 16)

C

LCD DO

LCD CLK

LCD CE

KEY 0

KEY 1

SYSTEM CONTROL

IC801 (3/3)

29 KEY 0

30

KEY 1

LCD INH

35

43 KEY ACK

62

61

60

LCD DRIVE

IC551

SEG1

|

SEG52

1

|

23

25

|

53

57

INH

COM1

COM2

64

63

LCD

LCD501

REMOTE CONTROL

RECEIVER

IC552

1 OUT

3

VCC

X802

32.768kHz

37 XT2

38

XT1

SIRCS 44

ILL B+

ILL ON

48

X2

40

X1 41

ILL POWER

CONTROL

Q914

BATT

ILL B+

SWITCH

Q915

X801

8.38MHz

D561-587

PL551,552

KEY

(

ILLUMINATION

)

(

LCD BACK

LIGHT

)

CDX-CA400/CA530X/CA580X

3-5. CIRCUIT BOARDS LOCATION

IN SELF SW board

SERVO board

SPEAKER board

DISPLAY board

17 17

• Waveforms

— Servo Board —

(MODE: CD PLAY)

1

2Vp-p

16.9344MHz

IC1 wd

(XTAL)

2

3

3.2msec

IC1 ts

(PACK)

5Vp-p

1.2Vp-p

IC1 uj

(RFO)

4

0V

Approx. 100mVp-p

IC1 oa (FEO)

5

0V

Approx. 100mVp-p

IC1 od

(TEO)

SL SW board tuner unit

(TU601)

MAIN board

Main Board

1

32.768kHz

IC801 ej (XT2)

5Vp-p

2

3Vp-p

8.38MHz

IC801 r;

(X2)

CDX-CA400/CA530X/CA580X

3-6. PRINTED WIRING BOARDS — CD MECHANISM SECTION — • Refer to page 17 for Circuit Boards Location.

12 11 10 9 8 7 6 5

THIS NOTE IS COMMON FOR PRINTED WIRING

BOARDS AND SCHEMATIC DIAGRAMS.

(In addition to this, the necessary note is printed in each block.) for schematic diagram:

• All capacitors are in µF unless otherwise noted. pF: µµF

50 WV or less are not indicated except for electrolytics and tantalums.

• All resistors are in

and 1 /

4

W or less unless otherwise specified.

• % : indicates tolerance.

• f

: internal component.

C

: panel designation.

Note:

The components identified by mark

0

or dotted line with mark

0

are critical for safety.

Replace only with part number specified.

Note:

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

A

: B+ Line.

• Power voltage is dc 14.4V and fed with regulated dc power supply from ACC and BATT cords.

• Voltages are taken with a VOM (Input impedance 10 M

).

Voltage variations may be noted due to normal production tolerances.

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal production tolerances.

• Circled numbers refer to waveforms.

• Signal path.

F

: FM f

: AM

J

: CD

for printed wiring boards:

• X : parts extracted from the component side.

• Y : parts extracted from the conductor side.

• x

: parts mounted on the conductor side.

• a

: Through hole.

: Pattern from the side which enables seeing.

(The other layer’s patterns are not indicated.)

Caution:

Pattern face side: Parts on the pattern face side seen from the

(Side B) pattern face are indicated.

Parts face side: Parts on the parts face side seen from the

(Side A) parts face are indicated.

CN2

4 3

SW1

2 1

D

E

C

A

B

F

G

H

I

J

18 18

D

E

F

G

A

B

C

H

I

J

1 2 3 4 5 6 7 8 9

TP66

TP73

TP53

TP64

TP47

R22

FB6

R21

TP76

TP48

FB7

TP50

TP51

TP52

TP56

TP58

TP61

TP74

TP62

CN1

TP7

TP63

TP77

TP78

C1

C5

TP80

C4

TP9

TP60

R26

TP59

TP8

R30

R29

Q1

C6

R3

TP71

TP70

R17

TP72

R19

R18

C40

FB1

C25

C27

C41

C34

C45

C29

C17

C43

TP11

TP12

C9 C10

C8

C15

C16

IC1

TP82

TP81

TP84

TP83

R5

TP10

C11

C14

C18

R9

TP23

TP89

C20

C19

C23

R8

C24

TP22

TP24

TP25

TP88

TP75

TP69

TP68

TP57

R20

FB3

TP49

C44

C26

X1

TP92

C36

TP34

TP35

TP46

C38

TP36

FB2

TP39

TP45

TP37

TP38

C35

TP44

TP43

TP41

TP18

FB4

TP85

TP55

R24

R25

TP30

TP32

TP21

TP6

R7

R6

R15

TP86

TP91

C37

C22

IC2

TP5

TP87

TP90

TP19

TP20

C21

TP26

TP29

C30

TP28

TP3

TP4

TP54

CN3

TP17

TP2

TP27

TP16

TP1

(Page 21)

10 11 12

CDX-CA400/CA530X/CA580X

13 14

• Semiconductor

Location

Ref. No.

Location

IC1

IC2

E-7

H-7

Q1 C-6

SW3

SW2

SW4

19 19

CDX-CA400/CA530X/CA580X

• Refer to page 17 for Waveforms.

3-7. SCHEMATIC DIAGRAM — CD MECHANISM SECTION — • Refer to page 26 for IC Block Diagrams.

M902

M901

SW4

SW2

SW3

CN13

CN2

TP77

TP78

R29

R30

C1

TP81

TP82

TP83

TP84

C5

TP79

TP80

C43

CN3

TP85

C3

Q1 TP9 TP8

R3 R26

C4

C6

C14

TP10

C13

C11

R5

C19

C20

C23

R9

C24

TP89

C18

TP7

TP92

C15

C10

TP12 C9

TP11

C8

C16

IC B/D

C40 C17

IC1

TP6

R7

R6

TP21

TP18

R24

R25

C22

C21

TP17

TP20

TP16

TP19

IC2

FB4 FB2

C35

TP45

TP44

TP43

TP42

TP41

TP40

TP39

TP38

TP37

TP46

TP36 C38

C29

C25

C34

R12

TP30

R15

R14

R10

TP32

C30

TP27

TP29

TP26

TP28

TP91

TP90

C37

IC B/D

TP35

TP34

C36

C44

FB3

R21 FB6

R18

R19

R20

R17

R22 FB7

TP66

TP73

TP57

TP72

TP56

TP71

TP55

TP70

TP61

TP76

TP60

TP75

TP59

TP74

TP58

TP54

TP69

TP53

TP68

TP52

TP51

TP50

TP64

TP49

TP48

TP63

TP47

TP62

CN1

M903

Note:

• Voltage is dc with respect to ground under no-signal conditions.

no mark : CD PLAY

TP87

TP86

TP4

TP2

TP3

SW1

TP1

TP5

20 20

(Page 22)

CDX-CA400/CA530X/CA580X

3-8. PRINTED WIRING BOARD — MAIN SECTION — • Refer to page 17 for Circuit Boards Location.

A

B

C

D

E

F

G

H

I

J

1 2 3

PJ401

4 5 6 7 8 9 10

CNJ601

CNJ801

C605

C606

C620

C603

C604

C848

L669

R602

JW36

TU601

R121

R122

CP601

R620

R622

R628

C608

C669

R604

C672

C671

JW72

C407

JW70

IC101

R206

C101

C426

JW69

R222

R221

R107

R105

R108

R106

JW40

R208

R207

C201

C202

JW64

JW63

JW67

JW66

JW68

JW65

JW62

JW73

JW74

JW39

C401

R408

JW75

C103

JW34

C104 C204

JW60

D401

R407

R410

C432

R115

R113

R617

C108

C110

C111

C113

JW35

IC401

C435

C208

C213

C210

C211

R213

R811

R812

JW12

JW11

JW10

JW9

JW58

JW57

JW56

JW55

R605

L604

C214

R444

C847

C116

C216

C115

JW31

JW26

R603

R601

C651

JW28

JW27

C120

JW30

C220

C119

C218

JR607

JR606

R613

L603

JW29

R612

C631

C610

C612

C613

C614

R607

C611 R606 R611

C633

IC601

R619

C219

R215

C215

JW54

JW50

JR110

JW47

JW46

JW45

R609

R608

X601

C625

C626

C623

JW44

JW43

JW42

JW41

JW51

R809

JW53

JW52

JW48

C706

R714

R716

C707

R849

R848

R847

R810

R845

R840

R846

R844

JW122

C701

CNP701

JW107

C703

R704

JW108

IC801

R404

C907

D910

L703

C702

R708

R709

X802

C704

R706

R707

R710

R711

L701

IC802

JW105

X801

CNP901

C931

D933

Q910

C919

D923

R934

Q919

JW106

Q905

C901

R906

JW77

D903

JW99

Q911

R854

JW98

JW104

JW89

JW90

Q909

JW101

Q912

D930

R913

C909

R919

JW78

JW79

JW80

JW88

JW103

JW112

JW82

JW83

JW81

R907

R931

D851

D852

Q920

C851

TH851

D854

D907

C904

JW100

Q921

Q915

D909

R932

R912

C905

Q913

R917

D999

R930

Q917

R852

R851

R911

Q907

JW102

TH901

D913

C913

L901

D908

C914

R933

D931

JW8

JW7

R814

R813

C810

R920

JW4

C809

R835

JW3

R923

C801

R819

C916

JR903

JW117

CNP801

S901

11 12

JW149

JW148

JW147

JW146

(Page 19)

13

JW153

JW152

JW151

JW150

14

• Semiconductor Location

Ref. No.

Location Ref. No.

Location

D916

D917

D918

D919

D920

D921

D922

D923

D901

D903

D907

D908

D909

D910

D913

D915

D930

D931

D932

D933

D999

D806

D807

D808

D809

D851

D852

D853

D854

D401

D402

D444

D604

D802

D803

D804

D805

D-6

D-6

D-6

B-7

B-7

C-6

C-5

F-8

D-9

D-8

E-10

E-10

G-10

E-7

G-10

D-6

H-9

I-4

H-4

D-8

G-10

I-3

I-3

I-3

I-3

D-9

D-9

D-9

E-10

I-4

I-3

I-3

I-3

D-4

D-7

E-6

E-2

IC101

IC401

IC601

IC801

IC802

IC902

B-6

E-4

G-3

H-7

D-7

I-9

Q909

Q910

Q911

Q912

Q913

Q914

Q915

Q917

Q918

Q919

Q920

Q921

Q929

Q101

Q102

Q201

Q202

Q401

Q402

Q603

Q604

Q605

Q606

Q902

Q904

Q905

Q906

Q907

F-9

E-8

H-8

G-9

G-10

H-8

H-9

F-10

F-8

G-8

H-9

F-9

F-8

H-4

H-2

H-3

E-9

E-10

G-8

H-8

C-10

C-3

C-3

C-4

C-4

D-6

E-6

H-2

(Page 24)

21 21

15

CDX-CA400/CA530X/CA580X

3-9. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 17 for Waveforms.

IC802

R851

R853

R852

D854

R911

D907

Q904

CNJ801

C869

R854

TH851

D851

D853

D852

C851

C847

L703

C701

L702

L701

C702

C703

C704

R707

R704

R705

R706

R708

CNP801

CNP701

(Page

20)

R712

R711

R710

R709

Q910

Q907

JR929

R913

C907

R912

Q906

D909

Q905

Q921

C905

D930

C909

R931

Q920

R930

D999

Q909

Q912

R917

Q913

C913

D913

C914

C846

R918

Q914

R919

Q915

R920

IC902

C916

JR903

C915

S901

R824

JR904

R932

R933

TH901

Q917

R905

Q911

R923

R922

IC801

Q919

Q918

Q929

R934

C919

D923

R821

X801

X802

C801

C802

R819

R844

R845

R846

R812

R815

R814

R813

R840

C810

R835

(Page 25)

C809

22 22

R714

R716

C706

C707

R408

R407

R809

D931

D932

(Page 23)

Note:

• Voltage is dc with respect to ground under no-signal

(detuned) condition.

no mark : FM

(

<

) : AM

> : CD PLAY

CDX-CA400/CA530X/CA580X

3-10. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 26 for IC Block Diagrams.

(Page22)

F901

Q902

CNP901

L901

D901

C901

D933

C931

R909

R908 R901

R907

C904

R906

D903

D922

D921

D920

D919

D917

D918

D915

D916

IC101

C426

C401

C201

R401

D444

R444

C202

C102

C101

R410

D402

C432

R105

R206

Q101

Q102

R106

R205

Q201

Q202

Q401

Q402

R107

R109

C103

R108

R110

C104

R207

R209

C203

R208

R210

C204

C407

R404

Note:

• Voltage is dc with respect to ground under

(

< no-signal (detuned) condition.

no mark : FM

) : AM

> : CD

C671

R122

R222

C205

C105

R121

C121

C221

R221

PJ401

CNJ601

C672

CP601

L669

L601 C669

TU601

JR110

IC B/D

IC401

R113 C110

R115

C115

C108

C111

C113

C114

C117

C116

C120

C119

D401

R612

C435

C208

C211

C210

R213

R215

C213

C214

C216

C217

C215

C220

C218

C219

C631

C633

JR606

R613

JR605

R610

R611

R619

C626

C625 L604

IC B/D

IC601

C624

R606

C611

C610

L603

C612

C613

C614

C618

C615

R607

R608

C621

C617

C620

R609

C609

C619

X601

C622

C623

R601

C605

R602

R603

C606

C603

C604

R620

C650

C651

R622

C848

R605 R604

C118

JR607

JR603

R618

R617

C842

Q605

Q606

C841

Q603

R616

R615

Q604

R614

C627 D604

C652

R628

C608

23 23

CDX-CA400/CA530X/CA580X

3-11. PRINTED WIRING BOARD — DISPLAY SECTION — • Refer to page 17 for Circuit Boards Location.

1 2 3 4 5 6 7

A

D567

D570

D571 D575 D574

B

D564

D568

D572

C

D569

D561

D565

D566

D563

D

D562

8

D573

9

D576

10

D577

11 12 13 14

D578

R554

IC552

D555

D579

D580

D582

D583

D586

D585

D584

D587

D581

E

F

G

H

S501

JR503

R513

S513

S511

PL552

D556

D551

S502

S512

R511

R515

S514

CNP552

S515

JR506

R516

D553

JR507

S516

D554

R517

S517

R518

S518

I

(Page 21)

LCD501

IC551

S519

R519

S509 S508

PL551

S507

S505

S506

R502

S503

S510

S504

• Semiconductor Location

Ref. No.

D551

D553

D554

D555

D556

D561

D562

D563

D564

Location

G-5

H-5

H-6

A-13

G-5

C-1

D-1

C-3

B-2

Ref. No.

Location

D565

D566

D567

D568

D569

D570

D571

D572

D573

C-2

C-2

A-1

B-1

C-1

A-5

A-4

B-3

A-8

Ref. No.

Location

D574

D575

D576

D577

D578

D579

D580

D581

D582

A-7

A-6

A-9

A-10

A-11

B-12

C-12

D-13

B-13

Ref. No.

Location

D583

D584

D585

D586

D587

B-14

C-14

C-13

C-13

C-14

IC551

IC552

G-8

A-13

24 24

CDX-CA400/CA530X/CA580X

3-12. SCHEMATIC DIAGRAM — DISPLAY SECTION —

(Page 22)

CNP552

JR507

JR508

JR505

R552

S501

S502

S503

S504

S505

R501

R502

R503

R504

R505

S506

R506

S507

R507

R508

S508

R509

S509

R510

S510

R554

PL551

CNP551

D561 D564

D567 D570 D573 D576 D579 D582

D571 D574 D577 D580 D585

D553

PL552

D562 D565 D568

D563 D566 D569 D572

D575 D578 D583 D586

D581 D584 D587

IC552

JR506

R555

D555

D556

JR503

S511

S512

R511

R512

S513

R513

S514

R514

R515

S515

R516

S516

R517

S517

R518

S518

R519

S519

C553

LCD501

D551

IC551

R551

C552

C551

Note:

• Voltage is dc with respect to ground under no-signal

(detuned) condition.

no mark : FM

25 25

CDX-CA400/CA530X/CA580X

• IC BLOCK DIAGRAMS

IC1 µPD63711GC-8EU

AGCI 76

RFO 77

EQ2 78

EQ1 79

RF-

80

AGND

81

A

82

C

83

B

84

D

85

F 86

E 87

AVDD 88

REFOUT 89

FE90

FEO 91

TE92

TEO 93

TE2 94

TEC 95

AGND

96

PD 97

LD 98

PN 99

AVDD

100

75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

EFM

COMPARATOR

EFM D/A

AUTO GAIN

CONTROLLER

FD/TD/SD/MD

CONTROLLER

ADDER

RF

FEOFS

TEOFS

AMP BLOCK

SVDRAM

MULTIPLIER

SVCRAM

SVROM

ROM

DECODER

EFM

CLV

PROCESSOR

DEFECT

FOK

A3T

MIRR

FEO

TEO

SWITCH

COMPARATOR

DEFECT

COMPARATOR

RFENV

MIRENV

TRACKING

REGISTER

FOCUS

REGISTER

MEMORY

PROCESSOR

16K

SRAM

MICROCOMPUTER INTERFACE

CD-TEXT DECODER

SUB-CODE PROCESSOR

EFM DEMODULATOR

TIMING GENERATOR

D/A

INTERFACE

CIRCUIT

DE-EMPHASIS CIRCUIT

OCTUPLED

OVERSAMPLING DIGITAL FILTER

NOISE SHAVER NOISE SHAVER

OUTPUT BUFFER OUTPUT BUFFER

DIGITAL PLL

DIGITAL

AUDIO

INTERFACE

MICROCOMPUTER INTERFACE

SCF

OSC

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

50 C2D3

49 C2D2

48 C2D1

47 C1D2

46 C1D1

45 DGND

44 PLCK

43 MIRR/WFCK

42 RFCK

41 LOCK

40 DVDD

39 TSOI

38 C16M

37 DGND

36 TX

35 HOLD/WDCK

34 LRCK

33 LRCKIN

32 SCKO

31 SCKIN

30 DOUT

29

DIN

28 FLAG

27 EMPH

26 DVDD

26 26

IC2 BA5810FP-E2

FWD 1

REV

2

LOADING PRE

FWD REV

LDCONT 3

PS

4

IN1

5

IN2 6

X3

POWER

SAVE

PREVCC

7

PREVCC

(PRE.LOADING)

POWVCC12

(CH1.CH2)

POWVCC

8

+

+

VOL–

VOL+

9

10

VO2–

11

10k

VO2+ 12

10k

VO1– 13

10k

VO1+ 14

10k

10k

10k

10k

LEVEL

SHIFT

10k

LEVEL

SHIFT

+

28

27

26

25

24

23

22

BIAS

OPIN4+

OPIN4–

OPOUT4

OPIN3+

OPIN3–

OPOUT3

+

10k

LEVEL

SHIFT

LEVEL

SHIFT

10k

10k

10k

CH1-4

MUTE

POWVCC34

(CH3,CH4)

21 MUTE

20

POWVCC

19

GND

10k

18

VO3–

10k

17 VO3+

10k

16 VO4–

10k

15

VO4+

IC601 TB2118F-EL-S

XO

OSC

1

2

CE

D_IN

CK

D_OUT

3

4

5

6

SERIAL

INTERFACE

SR

LCL

I/O-2

SEEK 10

MONO

11

7

8

9

VDD2

12

VDD2

I/O

PORT

OUTPUT

PORT

BUFFER

ON/OFF

40BIT SHIFT

REGISTER

18BIT

18BIT

22BIT

OSCILLATOR

REFERENCE

DIVIDER

REGULATOR

SEEK/RECP

VCC

24

23

22

XI

A-GND

REG

21

20

VCC

AM_CP

PHASE

COMPARATOR SEEK/RECP

19 VT

18

17

FM_CP

D-GND

12BIT

PROGRAMMABLE

COUNTER

PRESCALLER

4BIT SWALLOW

COUNTER

20BIT

IF COUNTER

AMP

AMP

AMP

VDD

16 AM_VCO

15 FM_VCO

14 VDD

13 IFC

CDX-CA400/CA530X/CA580X

LTRE 11

LIN 12

LSELO

13

L5

14

L4

15

L3 16

L2 17

L1 18

LFIN

LOUT

6

7

LSB 8

LBASS2

9

LBASS1 10

DI 1

CE 2

VSS

3

LROUT

LFOUT

4

5

IC401 LC75421M-TLM-E

+ +

+

CCB

INTERFACE

+

CONTROL

CIRCUIT

LOGIC

CIRCUIT

CONTROL

CIRCUIT

+

+ +

LVREF

+

RVREF

+

– –

+

+ +

36 CL

35

VDD

34

33

RROUT

RFOUT

27 RTRE

26 RIN

25 RSELO

24

R5

23

R4

22 R3

21

R2

20 R1

19

VREF

32 RFIN

31

ROUT

30 RSB

29

RBASS2

28 RBASS1

27

CDX-CA400/CA530X/CA580X

SECTION 4

EXPLODED VIEWS

NOTE:

• The mechanical parts with no reference number in the exploded views are not supplied.

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• Color Indication of Appearance Parts

Example :

KNOB, BALANCE (WHITE) ... (RED)

R R

Parts Color Cabinet’s Color

• Accessories are given in the last of this parts list.

4-1. CHASSIS SECTION

3

5

MG-393XA-121//K

4

2

13

7

6

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

#1

11

10

9

#2

#2

#2

#3

#2

8

#2

#2

TU601

F901

12

6

#1

#1

#1

15

1

#1

14

* 1

2

3

* 4

* 5

Ref. No.

Part No.

Description

3-224-612-01 CHASSIS (CD)

3-224-309-21 COVER

1-776-206-21 CORD (WITH CONNECTOR) (POWER)

3-024-285-01 CUSHION (RUBBER)

3-041-173-11 BRACKET (CD)

Remark

6

7

8

* 9

10

3-922-535-11 SCREW (+BTT)

A-3283-245-A MAIN BOARD, COMPLETE

3-236-922-01 HEAT SINK

3-019-565-01 BRACKET (IC)

1-683-830-11 SPEAKER BOARD

Ref. No.

Part No.

11

* 12

13

14

15

Description

3-041-261-11 BRACKET (TR)

3-048-259-01 SHEET (E)

X-3380-594-3 LOCK ASSY (S)

X-3381-269-1 PANEL (1) ASSY, SUB

3-231-472-01 SCREW (+B 2X4)

F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A

TU601 A-3220-835-A TUNER UNIT (TUX-010)

#1

#2

#3

7-685-792-09 SCREW +PTT 2.6X6 (S)

7-685-793-09 SCREW +PTT 2.6X8 (S)

7-685-795-09 SCREW +PTT 2.6X12 (S)

Remark

28

CDX-CA400/CA530X/CA580X

4-2. FRONT PANEL SECTION

70

#4

71

LCD501

67

72

#4

60

61

58

59

56

62

57

64

63

54

66

55

68

65

not supplied

(DISPLAY board)

53

52

51

69

59

60

61

62

54

55

56

57

58

Ref. No.

Part No.

51

51

51

52

53

Description

X-3381-640-1 PANEL (S) ASSY, FRONT (CA400)

X-3381-641-1 PANEL (S) ASSY, FRONT (CA530X)

X-3381-642-1 PANEL (S) ASSY, FRONT (CA580X)

3-236-909-01 BUTTON (OFF)

3-236-912-01 BUTTON (EJECT)

3-236-908-01 BUTTON (MBP)

3-236-910-01 BUTTON (1-6)

3-236-905-01 BUTTON (D-BASS)

X-3381-356-1 RING (SEEK) ASSY

3-236-904-01 BUTTON (SOURCE)

X-3381-355-1 RING (VOL) ASSY

3-236-911-01 BUTTON (RELEASE)

3-229-774-01 SPRING (RELEASE)

3-236-907-01 BUTTON (MODE)

Remark Ref. No.

Part No.

63

64

* 65

66

67

Description

3-236-906-01 BUTTON (SEL)

3-236-921-01 PLATE (LCD), GROUND

3-229-751-01 SHEET (LCD.UP)

3-236-920-01 SHEET (LCD), DIFFUSION

X-3381-357-1 HOLDER (LCD) ASSY

Remark

68

69

70

70

70

3-236-902-01 PANEL, FRONT BACK

X-3380-054-2 CASE ASSY (for FRONT PANEL)

A-3337-073-A PANEL COMPLETE ASSY, FRONT (CA400)

A-3337-074-A PANEL COMPLETE ASSY, FRONT (CA530X)

A-3337-075-A PANEL COMPLETE ASSY, FRONT (CA580X)

* 71

72

3-227-293-01 SHEET (LCD)

3-236-926-01 CUSHION (LCD)

LCD501 1-804-626-11 DISPLAY PANEL, LIQUID CRYSTAL

#4 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT

29

CDX-CA400/CA530X/CA580X

4-3. CD MECHANISM SECTION (1)

(MG-393XA-121//K)

#8

102

#8

104

103

107

109

101

116

115

114

106

114

105

111

117 105

113

C

C

110

Ref. No.

Part No.

101

102

103

104

105

Description

1-683-283-11 IN SELF SW BOARD

3-040-039-02 CHASSIS (T)

3-040-038-01 SPRING (LR), TENSION

3-040-050-01 LEVER (L)

3-040-022-01 RETAINER (ROLLER), SHAFT

106

107

108

109

110

111

3-040-044-01 ROLLER (S)

3-040-067-01 LEVER (R)

A-3301-980-A SHAFT ROLLER ASSY

3-040-037-01 GUIDE (DISC)

3-040-040-02 ARM (ROLLER)

A-3283-233-A SERVO BOARD, COMPLETE

30

108

#7

#7

M903

#8

#9

112

Remark Ref. No.

Part No.

112

113

114

115

116

Description

3-221-779-01 BRACKET (MOTOR)

3-040-034-01 SPRING (RA), TENSION

3-040-042-01 WASHER

3-043-880-01 RING (RA), RETAINING

3-044-206-11 SCREW, SPECIAL

117 1-683-284-11 FLEXIBLE BOARD

M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)

#7

#8

#9

7-628-253-00 SCREW, SPECIAL

7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3

7-627-553-17 SCREW, PRECISION +P 2X2 TYPE3

Remark

CDX-CA400/CA530X/CA580X

4-4. CD MECHANISM SECTION (2)

(MG-393XA-121//K)

154

157

158

D

160

162

163

156

151

157

155

164

not supplied

153

161

D

152

152

152

159

Ref. No.

Part No.

151

152

153

154

155

Description

3-040-025-01 ARM, CHUCKING

3-040-031-01 DAMPER (T)

3-040-056-01 LEVER (D)

3-040-024-01 RETAINER (DISC)

3-040-054-01 WHEEL (LW), WORM

156

157

3-040-026-01 SPRING (CH), TENSION

3-040-032-01 SPRING (FL), COMPRESSION

Remark Ref. No.

Part No.

158

159

160

161

162

Description

3-040-033-01 SPRING (KF1), TENSION

A-3307-422-A CHASSIS (M) COMPLETE ASSY

3-040-059-01 SPRING (TR), TENSION

3-040-057-01 LEVER (LOCK)

3-040-058-01 GEAR (MDL)

163

164

3-040-052-01 WHEEL (U), WORM

3-040-051-02 LEVER (TR)

Remark

31

CDX-CA400/CA530X/CA580X

4-5. CD MECHANISM SECTION (3)

(MG-393XA-121//K)

201

M901

207

202

M902

208

203

#10

209

210

205

#8

204

206

#11

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

Ref. No.

Part No.

201

202

203

204

205

Description

X-3378-480-1 CHASSIS (OP) ASSY (including M901)

3-040-029-01 SPRING (SL), TORSION

3-040-045-01 BASE (DRIVING)

3-040-194-01 GEAR (MIDWAY)

A-3301-983-A SHAFT (FEED) ASSY

Remark Ref. No.

Part No.

208

209

0 210

Description

1-683-282-11 SL SW BOARD

3-909-607-01 SCREW

8-820-103-11 PICK-UP, OPTICAL KSS-720A/C-RP

M902 A-3301-985-A MOTOR ASSY, SLED (SLED)

#8 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3

Remark

206

207

3-040-030-01 SPRING (FEED), PLATE

1-823-641-11 CABLE, FLEXIBLE FLAT (6 CORE)

#10

#11

7-627-850-28 SCREW, PRECISION +P 1.4X3

7-685-780-01 SCREW +PTT 2X3 (S)

32

NOTE:

• Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set.

• -XX and -X mean standardized parts, so they may have some difference from the original one.

• RESISTORS

All resistors are in ohms.

METAL:Metal-film resistor.

METAL OXIDE: Metal oxide-film resistor.

F:nonflammable

CDX-CA400/CA530X/CA580X

SECTION 5

ELECTRICAL PARTS LIST

DISPLAY

• Items marked “*” are not stocked since they are seldom required for routine service.

Some delay should be anticipated when ordering these items.

• SEMICONDUCTORS

In each case, u : µ, for example: uA.. : µA..

uPA.. : µPA..

uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..

• CAPACITORS uF : µF

• COILS uH : µH

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

When indicating parts by reference number, please include the board.

Ref. No.

*

*

Part No.

Description

DISPLAY BOARD

**************

3-227-293-01 SHEET (LCD)

3-229-751-01 SHEET (LCD.UP)

3-236-920-01 SHEET (LCD), DIFFUSION

3-236-921-01 PLATE (LCD), GROUND

X-3381-357-1 HOLDER (LCD) ASSY

< CAPACITOR >

C551 1-164-315-11 CERAMIC CHIP 470PF

C552 1-164-156-11 CERAMIC CHIP 0.1uF

C553 1-162-927-11 CERAMIC CHIP 100PF

< CONNECTOR >

5%

5%

Remark

50V

25V

50V

* CNP551 1-779-131-11 PIN, CONNECTOR 2P

CNP552 1-794-312-21 PIN, CONNECTOR 12P

< DIODE >

D551 8-719-073-15 DIODE SDZ5V1

D553 8-719-067-70 DIODE SDZ6V2

D554 8-719-068-68 DIODE SDZ6V2WA

D555 8-719-073-15 DIODE SDZ5V1

D556 8-719-067-70 DIODE SDZ6V2

D561 8-719-053-09 LED SML-310VTT86 (SEEK2)

(CA530X/CA580X)

D561 8-719-078-21 LED SML-310PTT86 (SEEK2) (CA400)

D562 8-719-053-09 LED SML-310VTT86 (Z) (CA530X/CA580X)

D562 8-719-038-05 LED CL-190FG-CD-T (Z) (CA400)

D563 8-719-053-08 LED SML-310DTT86 (MBP) (CA530X/CA580X)

D563 8-719-053-09 LED SML-310VTT86 (MBP) (CA400)

D564 8-719-053-09 LED SML-310VTT86 (SEEK5)

(CA530X/CA580X)

D564 8-719-078-21 LED SML-310PTT86 (SEEK5) (CA400)

D565 8-719-053-09 LED SML-310VTT86 (DSO) (CA530X/CA580X)

D565 8-719-078-21 LED SML-310PTT86 (DSO) (CA400)

D566 8-719-053-09 LED SML-310VTT86 (SEEK1)

(CA530X/CA580X)

D566 8-719-078-21 LED SML-310PTT86 (SEEK1) (CA400)

D567 8-719-038-05 LED CL-190FG-CD-T (OFF) (CA400)

D567 8-719-053-09 LED SML-310VTT86 (OFF) (CA530X/CA580X)

D568 8-719-053-09 LED SML-310VTT86 (SEEK4)

(CA530X/CA580X)

D568 8-719-078-21 LED SML-310PTT86 (SEEK4) (CA400)

D569 8-719-053-09 LED SML-310VTT86 (SEEK3)

(CA530X/CA580X)

Ref. No.

Part No.

Description Remark

D569 8-719-078-21 LED SML-310PTT86 (SEEK3) (CA400)

D570 8-719-038-05 LED CL-190FG-CD-T (6) (CA400)

D570 8-719-053-09 LED SML-310VTT86 (6) (CA530X/CA580X)

D571 8-719-038-05 LED CL-190FG-CD-T (SENS) (CA400)

D571 8-719-053-09 LED SML-310VTT86 (SENS)

(CA530X/CA580X)

D572 8-719-053-08 LED SML-310DTT86 (BTM) (CA530X/CA580X)

D572 8-719-053-09 LED SML-310VTT86 (BTM) (CA400)

D573 8-719-038-05 LED CL-190FG-CD-T (3/REP) (CA400)

D573 8-719-053-09 LED SML-310VTT86 (3/REP)

(CA530X/CA580X)

D574 8-719-038-05 LED CL-190FG-CD-T (4/SHUF) (CA400)

D574 8-719-053-09 LED SML-310VTT86 (4/SHUF)

(CA530X/CA580X)

D575 8-719-038-05 LED CL-190FG-CD-T (5) (CA400)

D575 8-719-053-09 LED SML-310VTT86 (5) (CA530X/CA580X)

D576 8-719-038-05 LED CL-190FG-CD-T (2/DISC +) (CA400)

D576 8-719-053-09 LED SML-310VTT86 (2/DISC +)

(CA530X/CA580X)

D577

D577

D578

D578

D579

D579 8-719-053-09 LED SML-310VTT86 (DSPL) (CA400)

D580 8-719-053-08 LED SML-310DTT86 (SEL) (CA530X/CA580X)

D580 8-719-053-09 LED SML-310VTT86 (SEL) (CA400)

D581 8-719-038-05 LED CL-190FG-CD-T (MODE) (CA400)

D581 8-719-053-09 LED SML-310VTT86 (MODE)

(CA530X/CA580X)

D582

D583

D584

8-719-038-05 LED CL-190FG-CD-T (1/DISC –) (CA400)

8-719-053-09 LED SML-310VTT86 (1/DISC –)

8-719-038-05 LED CL-190FG-CD-T (ATT) (CA400)

8-719-053-09 LED SML-310VTT86 (ATT) (CA530X/CA580X)

8-719-053-08 LED SML-310DTT86 (DSPL)

8-719-053-09 LED SML-310VTT86 (VOL3)

8-719-053-09 LED SML-310VTT86 (VOL4)

8-719-053-09 LED SML-310VTT86 (VOL5)

(CA530X/CA580X)

(CA530X/CA580X)

(CA530X/CA580X)

D582 8-719-078-21 LED SML-310PTT86 (VOL3) (CA400)

(CA530X/CA580X)

D583 8-719-078-21 LED SML-310PTT86 (VOL4) (CA400)

(CA530X/CA580X)

D584 8-719-078-21 LED SML-310PTT86 (VOL5) (CA400)

D585 8-719-053-09 LED SML-310VTT86 (SOURCE)

(CA530X/CA580X)

D585 8-719-078-21 LED SML-310PTT86 (SOURCE) (CA400)

D586 8-719-053-09 LED SML-310VTT86 (VOL2)

(CA530X/CA580X)

D586 8-719-078-21 LED SML-310PTT86 (VOL2) (CA400)

33

CDX-CA400/CA530X/CA580X

DISPLAY IN SELF SW

Ref. No.

Part No.

Description

< IC >

Remark Ref. No.

Part No.

D587 8-719-053-09 LED SML-310VTT86 (VOL1)

(CA530X/CA580X)

D587 8-719-078-21 LED SML-310PTT86 (VOL1) (CA400)

R561

R562

R563

Description

1-216-806-11 RES-CHIP

1-216-806-11 RES-CHIP

1-216-817-11 METAL CHIP

R564 1-216-817-11 METAL CHIP

R565 1-216-817-11 METAL CHIP

IC551 8-759-369-90 IC LC75822ED

IC552 8-749-017-35 IC KSM-401N

< JUMPER RESISTOR >

JR503

JR504

JR505

JR506

JR507

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

0

0

0

0

0

5%

5%

5%

5%

5%

JR508 1-216-864-11 METAL CHIP 0

< LIQUID CRYSTAL DISPLAY >

5%

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

R566

R567

R568

R569

1-216-817-11 METAL CHIP

1-216-817-11 METAL CHIP

1-216-817-11 METAL CHIP

1-216-817-11 METAL CHIP

R570 1-216-817-11 METAL CHIP

R571 1-216-817-11 METAL CHIP

R572 1-216-817-11 METAL CHIP

R573 1-216-817-11 METAL CHIP

R574 1-216-817-11 METAL CHIP

R575 1-216-817-11 METAL CHIP

LCD501 1-804-626-11 DISPLAY PANEL, LIQUID CRYSTAL

PL551 1-518-753-11 LAMP, PILOT (LCD BACK LIGHT) (CA400)

PL551 1-518-754-11 LAMP, PILOT (LCD BACK LIGHT)

(CA530X/CA580X)

PL552 1-518-753-11 LAMP, PILOT (LCD BACK LIGHT) (CA400)

PL552 1-518-754-11 LAMP, PILOT (LCD BACK LIGHT)

(CA530X/CA580X)

R501 1-219-286-11 RES-CHIP

R502 1-219-286-11 RES-CHIP

R503 1-219-286-11 RES-CHIP

R504 1-218-847-11 RES-CHIP

R505 1-218-851-11 RES-CHIP

R506

R507

R508

R509

R510

R511 1-219-286-11 RES-CHIP

R512 1-219-286-11 RES-CHIP

R513 1-219-286-11 RES-CHIP

R514 1-218-847-11 RES-CHIP

R515 1-218-851-11 RES-CHIP

R516

R517

R518

R519

R551

< PILOT LAMP >

< RESISTOR >

1-218-851-11 RES-CHIP

1-218-855-11 RES-CHIP

1-218-859-11 RES-CHIP

1-218-863-11 RES-CHIP

1-218-867-11 RES-CHIP

1-218-851-11 RES-CHIP

1-218-855-11 RES-CHIP

1-218-859-11 RES-CHIP

1-218-863-11 RES-CHIP

1-218-331-11 RES-CHIP

R552 1-216-819-11 METAL CHIP

R554 1-216-807-11 METAL CHIP

R555 1-216-819-11 METAL CHIP

R559 1-216-806-11 RES-CHIP

R560 1-216-806-11 RES-CHIP

680

680

680

1K

1.5K

1.5K

2.2K

3.3K

4.7K

6.8K

680

680

680

1K

1.5K

1.5K

2.2K

3.3K

4.7K

51K

680

68

680

56

56

2%

2%

2%

2%

2%

2%

2%

2%

2%

2%

2%

2%

2%

2%

2%

2%

2%

2%

2%

5%

5%

5%

5%

5%

5%

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

R576 1-216-817-11 METAL CHIP

R577 1-216-817-11 METAL CHIP

R578 1-216-817-11 METAL CHIP

R579 1-216-817-11 METAL CHIP

R580 1-216-817-11 METAL CHIP

< SWITCH >

S501

S502

S503

S504

S505

S506 1-771-290-11 SWITCH, SLIDE (VOL)

S507 1-572-704-31 SWITCH, KEYBOARD (ATT)

S508 1-572-704-31 SWITCH, KEYBOARD (1/DISC –)

S509 1-572-704-31 SWITCH, KEYBOARD (2/DISC +)

S510 1-572-704-31 SWITCH, KEYBOARD (DSPL)

S511

S512

S513

S514

S515

1-572-704-31 SWITCH, KEYBOARD (MBP)

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1-572-704-31 SWITCH, KEYBOARD (D-BASS)

1-771-290-11 SWITCH, SLIDE (SEEK/AMS)

1-572-704-31 SWITCH, KEYBOARD (BTM)

1-572-704-31 SWITCH, KEYBOARD (SENS)

S516 1-572-704-31 SWITCH, KEYBOARD (6)

S517 1-572-704-31 SWITCH, KEYBOARD (5)

S518 1-572-704-31 SWITCH, KEYBOARD (4/SHUF)

S519 1-572-704-31 SWITCH, KEYBOARD (3/REP)

*************************************************************

SW2

SW3

56

56

470

470

470

470

470

470

470

470

470

470

470

470

470

470

470

470

470

470

1-572-704-31 SWITCH, KEYBOARD (Z)

1-572-704-31 SWITCH, KEYBOARD (OFF)

1-572-704-31 SWITCH, KEYBOARD (MODE)

1-572-704-31 SWITCH, KEYBOARD (SEL)

1-683-283-11 IN SELF SW BOARD

****************

< SWITCH >

1-529-566-31 SWITCH, PUSH (1 KEY) (SELF)

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1-572-704-31 SWITCH, KEYBOARD (SOURCE)

1-529-566-31 SWITCH, PUSH (1 KEY) (DISC IN)

Remark

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

*************************************************************

34

CDX-CA400/CA530X/CA580X

MAIN

Ref. No.

Part No.

Description Remark

A-3283-245-A MAIN BOARD, COMPLETE (including

SPEAKER BOARD)

*********************

*

Ref. No.

Part No.

Description

C608 1-164-156-11 CERAMIC CHIP 0.1uF

C609 1-162-970-11 CERAMIC CHIP 0.01uF

C610 1-104-396-11 ELECT 10uF

C611 1-162-927-11 CERAMIC CHIP 100PF

C612 1-162-927-11 CERAMIC CHIP 100PF 3-019-565-01 BRACKET (IC)

3-041-261-11 BRACKET (TR)

3-236-922-01 HEAT SINK

7-685-793-09 SCREW +PTT 2.6X8 (S)

7-685-795-09 SCREW +PTT 2.6X12 (S)

< CAPACITOR >

C613

C614

C615

1-162-927-11 CERAMIC CHIP

1-164-174-11 CERAMIC CHIP

1-165-176-11 CERAMIC CHIP

100PF

0.0082uF 10%

0.047uF

5%

10%

Remark

25V

10% 25V

20% 16V

5% 50V

5% 50V

50V

25V

16V

C617 1-165-176-11 CERAMIC CHIP 0.047uF

10% 16V

C618 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C101 1-164-346-11 CERAMIC CHIP 1uF

C102 1-164-346-11 CERAMIC CHIP 1uF

C103 1-104-396-11 ELECT

C104 1-104-396-11 ELECT

10uF

10uF

20%

20%

16V

16V

16V

16V

C105 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C108 1-109-982-11 CERAMIC CHIP 1uF

C110 1-164-156-11 CERAMIC CHIP 0.1uF

10% 10V

25V

C111 1-164-156-11 CERAMIC CHIP 0.1uF

25V

C113 1-164-677-11 CERAMIC CHIP 0.033uF

10% 16V

C114 1-124-257-00 ELECT 2.2uF

20% 50V

C619 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C620 1-104-665-11 ELECT 100uF 20% 10V

C621 1-104-396-11 ELECT 10uF

C622 1-162-911-11 CERAMIC CHIP 6PF

C623 1-162-912-11 CERAMIC CHIP 7PF

C624 1-162-915-11 CERAMIC CHIP 10PF

C625 1-162-963-11 CERAMIC CHIP 680PF

C626 1-164-315-11 CERAMIC CHIP 470PF

C627 1-164-156-11 CERAMIC CHIP 0.1uF

C631 1-104-396-11 ELECT 10uF

20%

0.5PF

0.5PF

0.5PF

10%

5%

20%

16V

50V

50V

50V

50V

50V

25V

16V

C115 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V

C116 1-109-982-11 CERAMIC CHIP 1uF 10% 10V

C117 1-109-982-11 CERAMIC CHIP 1uF

C118 1-164-346-11 CERAMIC CHIP 1uF

C119 1-164-346-11 CERAMIC CHIP 1uF

10% 10V

16V

16V

C120 1-164-346-11 CERAMIC CHIP 1uF 16V

C121 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C201 1-164-346-11 CERAMIC CHIP 1uF

C202 1-164-346-11 CERAMIC CHIP 1uF

C203 1-104-396-11 ELECT 10uF 20%

16V

16V

16V

C204 1-104-396-11 ELECT 10uF 20% 16V

C205 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C208 1-109-982-11 CERAMIC CHIP 1uF

C210 1-164-156-11 CERAMIC CHIP 0.1uF

C211 1-164-156-11 CERAMIC CHIP 0.1uF

10% 10V

25V

25V

C213 1-164-677-11 CERAMIC CHIP 0.033uF

10% 16V

C214 1-124-257-00 ELECT 2.2uF

20% 50V

C215 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V

C216 1-109-982-11 CERAMIC CHIP 1uF 10% 10V

C217 1-109-982-11 CERAMIC CHIP 1uF 10% 10V

C633 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C650 1-164-245-11 CERAMIC CHIP 0.015uF

10% 25V

C651 1-164-245-11 CERAMIC CHIP 0.015uF

10% 25V

C652 1-164-227-11 CERAMIC CHIP 0.022uF

10% 25V

C669 1-162-919-11 CERAMIC CHIP 22PF

C671 1-162-970-11 CERAMIC CHIP 0.01uF

C672 1-162-970-11 CERAMIC CHIP 0.01uF

C701 1-124-584-00 ELECT

C702 1-124-584-00 ELECT

C703 1-124-584-00 ELECT

100uF

100uF

100uF

5%

10%

10%

20%

20%

20%

50V

25V

25V

10V

10V

10V

C704 1-124-584-00 ELECT 100uF 20% 10V

C706 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C707 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C801 1-104-396-11 ELECT 10uF 20% 16V

C802 1-164-156-11 CERAMIC CHIP 0.1uF

25V

C803 1-162-918-11 CERAMIC CHIP 18PF

C804 1-164-160-11 CERAMIC CHIP 20PF

5%

5%

50V

50V

C809 1-164-156-11 CERAMIC CHIP 0.1uF

25V

C810 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C841 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C218 1-164-346-11 CERAMIC CHIP 1uF

C219 1-124-234-00 ELECT 22uF

16V

20% 16V

C220 1-164-346-11 CERAMIC CHIP 1uF 16V

C221 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C401 1-126-163-11 ELECT 4.7uF

20% 50V

C407 1-104-396-11 ELECT 10uF 20% 16V

C426 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C432 1-124-589-11 ELECT

C435 1-124-589-11 ELECT

47uF

47uF

20%

20%

16V

16V

C603 1-164-227-11 CERAMIC CHIP 0.022uF

10% 25V

C604 1-162-970-11 CERAMIC CHIP 0.01uF

C605 1-104-665-11 ELECT 100uF

C606 1-104-665-11 ELECT 100uF

10% 25V

20% 10V

20% 10V

C842 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C846 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C847 1-164-346-11 CERAMIC CHIP 1uF 16V

C848 1-162-964-11 CERAMIC CHIP 0.001uF

10% 50V

C851 1-124-119-00 ELECT 330uF 20% 16V

C869 1-162-970-11 CERAMIC CHIP 0.01uF

C901 1-135-473-21 ELECT 3300uF

10%

20%

25V

16V

C904 1-126-160-11 ELECT 1uF

C905 1-164-156-11 CERAMIC CHIP 0.1uF

C907 1-164-156-11 CERAMIC CHIP 0.1uF

20% 50V

25V

25V

C909 1-164-156-11 CERAMIC CHIP 0.1uF

C913 1-164-156-11 CERAMIC CHIP 0.1uF

C914 1-104-665-11 ELECT 100uF

25V

25V

20% 10V

35

CDX-CA400/CA530X/CA580X

MAIN

Ref. No.

Part No.

Description

C915 1-110-654-11 DOUBLE LAYERS 0.047F

C916 1-164-156-11 CERAMIC CHIP 0.1uF

C919 1-124-229-00 ELECT 33uF

C931 1-164-156-11 CERAMIC CHIP 0.1uF

< JACK >

CNJ601 1-793-598-11 JACK (ANTENNA)

Remark

5.5V

25V

20% 10V

25V

< CONNECTOR >

CNJ801 1-580-907-31 PLUG, CONNECTOR (BUS CONTROL IN)

CNP701 1-815-260-11 CONNECTOR, BOARD TO BOARD 30P

CNP801 1-794-311-21 PLUG, CONNECTOR 12P

CNP901 1-774-701-11 PIN, CONNECTOR 16P

< SURGE ABSORBER >

CP601 1-803-335-21 ABSORBER, CHIP SURGE

< DIODE >

D401 8-719-991-33 DIODE 1SS133T-77

D402 8-719-988-61 DIODE 1SS355TE-17

D444 8-719-988-61 DIODE 1SS355TE-17

D604 8-719-109-85 DIODE RD5.1ES-B2

D802 8-719-109-97 DIODE RD6.8ES-B2

D803 8-719-109-97 DIODE RD6.8ES-B2

D804 8-719-109-97 DIODE RD6.8ES-B2

D805 8-719-109-97 DIODE RD6.8ES-B2

D806 8-719-109-97 DIODE RD6.8ES-B2

D807 8-719-109-97 DIODE RD6.8ES-B2

D808 8-719-109-97 DIODE RD6.8ES-B2

D809 8-719-109-97 DIODE RD6.8ES-B2

D851 8-719-420-51 DIODE MA729

D852 8-719-017-95 DIODE MA8180-TX

D853 8-719-017-95 DIODE MA8180-TX

D854 8-719-109-97 DIODE RD6.8ES-B2

D901 8-719-049-38 DIODE 1N5404TU

D903 8-719-977-12 DIODE DTZ6.8B

D907 8-719-110-49 DIODE RD18ES-B2

D908 8-719-921-63 DIODE MTZJ-7.5B

D909 8-719-109-97 DIODE RD6.8ES-B2

D910 8-719-109-89 DIODE RD5.6ES-B2

D913 8-719-110-14 DIODE RD9.1ES-B3

D915 8-719-110-49 DIODE RD18ES-B2

D916 8-719-110-49 DIODE RD18ES-B2

D917 8-719-110-49 DIODE RD18ES-B2

D918 8-719-110-49 DIODE RD18ES-B2

D919 8-719-053-18 DIODE 1SR154-400TE-25

D920 8-719-053-18 DIODE 1SR154-400TE-25

D921 8-719-110-49 DIODE RD18ES-B2

D922 8-719-110-49 DIODE RD18ES-B2

D923 8-719-110-14 DIODE RD9.1ES-B3

D930 8-719-109-89 DIODE RD5.6ES-B2

D931 8-719-988-61 DIODE 1SS355TE-17

D932 8-719-988-61 DIODE 1SS355TE-17

Ref. No.

Part No.

Description

D933 8-719-074-47 DIODE CRS02(TE85L)

D999 8-719-991-33 DIODE 1SS133T-77

< IC >

IC101 8-759-827-14 IC TA8268AH

IC401 8-759-827-11 IC LC75421M-TLM-E

IC601 8-759-586-59 IC TB2118F-EL-S

IC801 6-801-302-01 IC uPD780076GK-520-9ET

IC802 8-759-096-16 IC MM1175XFF

IC902 8-759-837-07 IC S7139SF

< JUMPER RESISTOR >

Remark

L601

L603

L604

L669

L701

L702

L703

L901

JR110 1-216-864-11 METAL CHIP

JR603 1-216-864-11 METAL CHIP

JR605 1-216-864-11 METAL CHIP

JR606 1-216-864-11 METAL CHIP

JR607 1-216-864-11 METAL CHIP

JR903 1-216-864-11 METAL CHIP

JR904 1-216-864-11 METAL CHIP

JR929 1-216-864-11 METAL CHIP

< COIL >

1-410-508-11 INDUCTOR

1-412-006-31 INDUCTOR

1-410-750-41 INDUCTOR

1-424-759-21 COIL (AM ANT)

1-410-513-11 INDUCTOR

1-410-513-11 INDUCTOR

1-410-513-11 INDUCTOR

1-419-476-31 COIL, CHOKE

0

0

0

0

0

0

0

0

8.2uH

10uH

0.47uH

22uH

22uH

22uH

250uH

5%

5%

5%

5%

5%

5%

5%

5%

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

< JACK >

PJ401 1-774-699-12 JACK, PIN 4P (AUDIO OUT REAR,

BUS AUDIO IN)

< TRANSISTOR >

Q101 8-729-920-21 TRANSISTOR DTC314TK-T-146

Q102 8-729-920-21 TRANSISTOR DTC314TK-T-146

Q201 8-729-920-21 TRANSISTOR DTC314TK-T-146

Q202 8-729-920-21 TRANSISTOR DTC314TK-T-146

Q401 8-729-055-92 TRANSISTOR SRA2203SF

Q402 8-729-055-96 TRANSISTOR SRC1203SF

Q603 8-729-030-51 TRANSISTOR 2SA1515S-R-TP

Q604 8-729-055-96 TRANSISTOR SRC1203SF

Q605 8-729-030-51 TRANSISTOR 2SA1515S-R-TP

Q606 8-729-055-96 TRANSISTOR SRC1203SF

Q902 8-729-049-40 TRANSISTOR 2SC5343SFG

Q904 8-729-055-96 TRANSISTOR SRC1203SF

Q905 8-729-055-96 TRANSISTOR SRC1203SF

Q906 8-729-055-92 TRANSISTOR SRA2203SF

Q907 8-729-019-00 TRANSISTOR 2SD2394-G

Q909 8-729-055-96 TRANSISTOR SRC1203SF

36

Ref. No.

Part No.

Description

Q910 8-729-920-85 TRANSISTOR 2SD1664-QR

Q911 8-729-055-96 TRANSISTOR SRC1203SF

Q912 8-729-055-92 TRANSISTOR SRA2203SF

Q913 8-729-019-00 TRANSISTOR 2SD2394-G

Q914 8-729-055-96 TRANSISTOR SRC1203SF

Q915 8-729-049-43 TRANSISTOR STB1132Y

Q917 8-729-820-46 TRANSISTOR 2SB1202FAS

Q918 8-729-055-92 TRANSISTOR SRA2203SF

Q919 8-729-920-85 TRANSISTOR 2SD1664-QR

Q920 8-729-920-85 TRANSISTOR 2SD1664-QR

Q921 8-729-055-96 TRANSISTOR SRC1203SF

Q929 8-729-055-96 TRANSISTOR SRC1203SF

< RESISTOR >

R107 1-216-841-11 METAL CHIP

R108 1-216-841-11 METAL CHIP

R109 1-216-809-11 METAL CHIP

R110 1-216-809-11 METAL CHIP

R113 1-218-867-11 RES-CHIP

R115 1-216-834-11 METAL CHIP

R121 1-216-821-11 METAL CHIP

R122 1-216-841-11 METAL CHIP

R207 1-216-841-11 METAL CHIP

R208 1-216-841-11 METAL CHIP

12K

1K

47K

47K

47K

47K

47K

100

100

6.8K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

R209 1-216-809-11 METAL CHIP

R210 1-216-809-11 METAL CHIP

R213 1-218-867-11 RES-CHIP

R215 1-216-834-11 METAL CHIP

R221 1-216-821-11 METAL CHIP

R222 1-216-841-11 METAL CHIP

R401 1-216-833-11 METAL CHIP

R404 1-216-821-11 METAL CHIP

R407 1-249-437-11 CARBON

R408 1-218-867-11 RES-CHIP

R410 1-216-805-11 METAL CHIP

R444 1-216-864-11 METAL CHIP

R601 1-249-417-11 CARBON

R602 1-216-821-11 METAL CHIP

R603 1-249-407-11 CARBON

R604 1-216-821-11 METAL CHIP

R605 1-216-841-11 METAL CHIP

R606 1-216-841-11 METAL CHIP

R607 1-216-827-11 METAL CHIP

R608 1-216-833-11 METAL CHIP

R609 1-216-809-11 METAL CHIP

R610 1-216-809-11 METAL CHIP

R611 1-218-867-11 RES-CHIP

R612 1-216-833-11 METAL CHIP

R613 1-216-833-11 METAL CHIP

R614 1-247-807-31 CARBON

R615 1-216-825-11 METAL CHIP

R616 1-216-845-11 METAL CHIP

R617 1-216-825-11 METAL CHIP

47

0

1K

1K

150

1K

47K

47K

3.3K

10K

100

100

6.8K

12K

1K

47K

10K

1K

47K

6.8K

100

100

6.8K

10K

10K

100

2.2K

100K

2.2K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/16W

1/16W

1/16W

1/16W

1/16W

1/4W

1/16W

1/16W

1/16W

1/16W

1/16W

1/4W

1/16W

1/4W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/4W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

Remark Ref. No.

Part No.

Description

R618 1-216-845-11 METAL CHIP

R619 1-216-817-11 METAL CHIP

R620 1-216-817-11 METAL CHIP

R622 1-216-817-11 METAL CHIP

R628 1-216-829-11 METAL CHIP

R704 1-216-821-11 METAL CHIP

R705 1-216-821-11 METAL CHIP

R706 1-216-864-11 METAL CHIP

R707 1-247-887-00 CARBON

R708 1-216-821-11 METAL CHIP

R709 1-216-821-11 METAL CHIP

R710 1-216-821-11 METAL CHIP

R711 1-216-821-11 METAL CHIP

R712 1-216-821-11 METAL CHIP

R714 1-216-825-11 METAL CHIP

R716 1-216-825-11 METAL CHIP

R806 1-216-821-11 METAL CHIP

R807 1-216-821-11 METAL CHIP

R808 1-216-821-11 METAL CHIP

R809 1-216-821-11 METAL CHIP

R810 1-216-813-11 METAL CHIP

R811 1-249-409-11 CARBON

R812 1-249-409-11 CARBON

R813 1-216-837-11 METAL CHIP

R814 1-216-809-11 METAL CHIP

R815 1-216-809-11 METAL CHIP

R819 1-216-864-11 METAL CHIP

R821 1-216-849-11 METAL CHIP

R824 1-216-849-11 METAL CHIP

R835 1-216-821-11 METAL CHIP

R840 1-216-821-11 METAL CHIP

R844 1-216-809-11 METAL CHIP

R845 1-216-809-11 METAL CHIP

R846 1-216-809-11 METAL CHIP

R847 1-216-809-11 METAL CHIP

R848 1-216-809-11 METAL CHIP

R849 1-216-809-11 METAL CHIP

R851 1-249-421-11 CARBON

R852 1-216-809-11 METAL CHIP

R853 1-247-807-31 CARBON

R854 1-216-841-11 METAL CHIP

R855 1-216-821-11 METAL CHIP

R901 1-249-425-11 CARBON

R905 1-216-864-11 METAL CHIP

R906 1-216-821-11 METAL CHIP

R907 1-216-841-11 METAL CHIP

R908 1-216-841-11 METAL CHIP

R909 1-216-828-11 METAL CHIP

R911 1-249-417-11 CARBON

R912 1-249-413-11 CARBON

R913 1-249-417-11 CARBON

R917 1-249-409-11 CARBON

R918 1-216-845-11 METAL CHIP

CDX-CA400/CA530X/CA580X

MAIN

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/4W

1/4W

1/16W

1/16W

Remark

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/4W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/4W

1/4W

1/4W

1/4W

1/16W

1/16W

1/16W

1/4W

1/16W

1/4W

1/16W

1/16W

1/4W

1/16W

1/16W

1K

100

100

100

100

100

100

2.2K

100

100

220

220

220

22K

100

100

0

220K

220K

1K

1K

1K

1K

1K

2.2K

2.2K

1K

1K

1K

1K

100K

470

470

470

4.7K

1K

1K

0

220K

1K

47K

1K

4.7K

0

1K

47K

47K

3.9K

1K

470

1K

220

100K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

37

CDX-CA400/CA530X/CA580X

MAIN SERVO

C8

C9

C10

C11

C13

C1

C3

C4

C5

C6

Ref. No.

Part No.

R919

R920

R922

R923

R924

Description

1-249-421-11 CARBON

1-216-849-11 METAL CHIP

1-208-806-11 RES-CHIP

1-208-806-11 RES-CHIP

1-249-404-00 CARBON

R925 1-249-404-00 CARBON

R926 1-249-404-00 CARBON

R927 1-249-404-00 CARBON

R928 1-249-404-00 CARBON

R929 1-249-404-00 CARBON

R930

R931

R932

R933

R934

1-249-395-11 CARBON

1-218-867-11 RES-CHIP

1-249-421-11 CARBON

1-216-821-11 METAL CHIP

1-249-409-11 CARBON

15

6.8K

2.2K

1K

220

< SWITCH >

S901 1-762-638-11 SWITCH, TACTILE (RESET)

82

82

82

82

82

2.2K

220K

10K

10K

82

< THERMISTOR (POSITIVE) >

TH851 1-801-792-21 THERMISTOR, POSITIVE

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

Remark Ref. No.

Part No.

5%

5%

1/4W

1/16W

0.5% 1/10W

0.5% 1/10W

5% 1/4W

C19

C20

C21

C22

C23

Description

1-107-826-11 CERAMIC CHIP

1-107-826-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

0.1uF

0.1uF

0.01uF

0.01uF

0.01uF

1/4W

1/4W

1/4W

1/4W

1/4W

1/4W

1/16W

1/4W

1/16W

1/4W

TH901 1-809-148-11 THERMISTOR PTH8L07AR2R0M1B510

C24

C25

C26

C27

C29

C30

C34

C35

C36

C37

C38

C40

C41

C43

C44

C45

1-162-970-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

1-126-391-11 ELECT CHIP

1-162-970-11 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

0.01uF

0.01uF

47uF

0.01uF

0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-126-393-11 ELECT CHIP 33uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-162-970-11 CERAMIC CHIP 0.01uF

10% 16V

10% 16V

10% 25V

10% 25V

10% 25V

10%

10%

20%

10%

10%

Remark

25V

25V

6.3V

25V

25V

10% 25V

10% 25V

10% 25V

10% 25V

20% 10V

1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V

1-125-837-91 CERAMIC CHIP

1-162-970-11 CERAMIC CHIP

< CONNECTOR >

1uF

0.01uF

10% 25V

10% 16V

10% 25V

10% 6.3V

10% 25V

< TUNER >

TU601 A-3220-835-A TUNER UNIT (TUX-010)

CN1

CN3

1-815-352-11 CONNECTOR, BOARD TO BOARD 30P

1-816-275-11 CONNECTOR, FFC/FPC 6P

< JUMPER RESISTOR > < VIBRATOR >

X601 1-781-246-21 VIBRATOR, CRYSTAL (10.25MHz)

X801 1-795-259-11 VIBRATOR, CERAMIC (8.38MHz)

X802 1-567-098-41 VIBRATOR, CRYSTAL (32kHz)

*************************************************************

A-3283-233-A SERVO BOARD, COMPLETE

**********************

FB1

FB2

FB3

FB4

FB6

FB7

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

< IC > 1-683-284-11 FLEXIBLE BOARD

< CAPACITOR >

IC1

IC2

8-759-699-98 IC uPD63711GC-8EU

8-759-658-87 IC BA5810FP-E2

0

0

0

0

0

0

5%

5%

5%

5%

5%

5%

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

C14

C15

C16

C17

C18

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-104-609-11 ELECT CHIP 100uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-107-826-11 CERAMIC CHIP 0.1uF

1-162-924-11 CERAMIC CHIP 56PF

1-162-924-11 CERAMIC CHIP 56PF

1-162-909-11 CERAMIC CHIP 4PF

1-162-916-11 CERAMIC CHIP 12PF

1-125-837-91 CERAMIC CHIP 1uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

1-162-970-11 CERAMIC CHIP 0.01uF

10% 25V

10% 25V

20% 4V

10% 25V

10% 25V

10% 16V

5% 50V

5% 50V

0.25PF 50V

5% 50V

10%

10%

10%

10%

6.3V

25V

25V

25V

1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V

Q1

R3

R5

R6

R7

R8

R9

R10

R12

R14

R15

< TRANSISTOR >

8-729-904-87 TRANSISTOR 2SB1197K-R

< RESISTOR >

1-216-797-11 METAL CHIP

1-218-344-11 RES-CHIP

1-216-837-11 METAL CHIP

1-216-839-11 METAL CHIP

1-216-833-11 METAL CHIP

1-216-840-11 METAL CHIP

1-216-835-11 METAL CHIP

1-216-837-11 METAL CHIP

1-216-841-11 METAL CHIP

1-216-841-11 METAL CHIP

10

7.5K

22K

33K

10K

39K

15K

22K

47K

47K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

38

CDX-CA400/CA530X/CA580X

SERVO

SL SW SPEAKER

Ref. No.

R17

R18

R19

R20

R21

R22

R24

R25

R26

R29

R30

Part No.

Description

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-809-11 METAL CHIP

1-216-821-11 METAL CHIP

1-216-821-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-864-11 METAL CHIP

1-216-797-11 METAL CHIP

1-216-833-11 METAL CHIP

1K

0

0

10

10K

100

100

100

100

1K

10K

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

5%

Remark

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

1/16W

Ref. No.

Part No.

Description

ACCESSORIES

************

Remark

1-476-526-31 REMOTE COMMANDER (RM-X115)

(CA400/CA580X)

3-230-047-01 LID, BATTERY CASE (for RM-X115)

(CA400/CA580X)

3-238-717-11 MANUAL, INSTRUCTION, INSTALL

(ENGLISH,FRENCH) (CA400)

3-238-719-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)

(CA400)

3-238-722-11 MANUAL, INSTRUCTION, INSTALL

(ENGLISH,SPANISH) (CA530X/CA580X)

SW1

1-216-833-11 METAL CHIP

< SWITCH >

1-762-944-12 SWITCH, DETECTION (SMALL TYPE) (DOWN)

< VIBRATOR >

X1 1-795-520-21 VIBRATOR, CERAMIC (16.9344MHz)

*************************************************************

1-683-282-11 SL SW BOARD

************

< SWITCH >

3-238-723-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH)

(CA530X/CA580X)

X-3380-054-2 CASE ASSY (for FRONT PANEL)

*************************************************************

PARTS FOR INSTALLATION AND CONNECTIONS

**************************************

251

252

253

254

255

3-014-370-21 FRAME, FITTING

X-3366-405-1 SCREW ASSY (EXP), FITTING

3-934-325-01 SCREW (+K 5X8 TP)

3-030-929-04 SPRING, FITTING

3-236-923-01 COLLAR

(CA530X/CA580X)

SW4 1-529-565-41 SWITCH, PUSH (1 KEY) (LIMIT)

************************************************************* 256 1-776-206-21 CORD (WITH CONNECTOR) (POWER)

1-683-830-11 SPEAKER BOARD (supplied with

MAIN BOARD, COMPLETE)

**************

*************************************************************

3

201

207

0 210

F901

MISCELLANEOUS

***************

1-776-206-21 CORD (WITH CONNECTOR) (POWER)

X-3378-480-1 CHASSIS (OP) ASSY (including M901)

1-823-641-11 CABLE, FLEXIBLE FLAT (6 CORE)

8-820-103-11 PICK-UP, OPTICAL KSS-720A/C-RP

1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A

M902 A-3301-985-A MOTOR ASSY, SLED (SLED)

M903 A-3315-039-A MOTOR SUB ASSY, LO (LOADING)

*************************************************************

251

253 254

252

255 256

The components identified by mark 0 or dotted line with mark

0 are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque 0 sont critiques pour la sécurité.

Ne les remplacer que par une piéce portant le numéro spécifié.

39

CDX-CA400/CA530X/CA580X

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page.

Ver.

1.0

Date

2001. 12 New

Description of Revision

40

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
