Sony CDX-GT260MP Specification

Sony CDX-GT260MP Specification

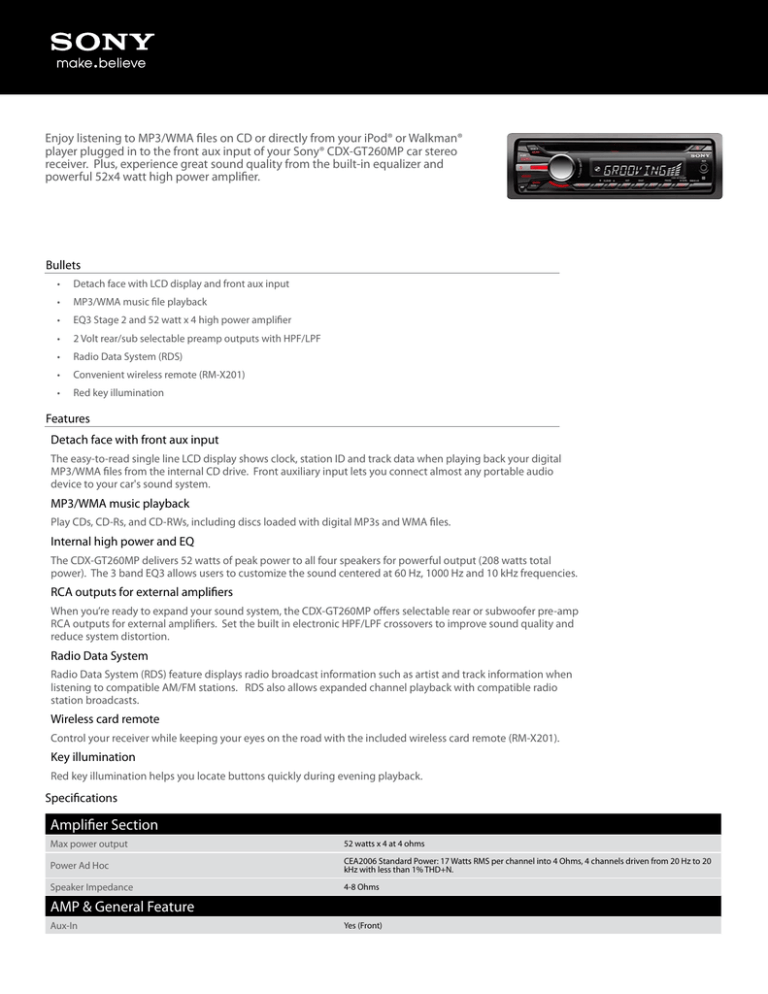

CDX-GT260MP
CDX-GT40U CD Receiver with USB input
Enjoy listening to MP3/WMA files on CD or directly from your iPod® or Walkman®
player plugged in to the front aux input of your Sony® CDX-GT260MP car stereo
receiver. Plus, experience great sound quality from the built-in equalizer and
powerful 52x4 watt high power amplifier.
Bullets
•
Detach face with LCD display and front aux input
•
MP3/WMA music file playback
•
EQ3 Stage 2 and 52 watt x 4 high power amplifier
•
2 Volt rear/sub selectable preamp outputs with HPF/LPF
•
Radio Data System (RDS)
•
Convenient wireless remote (RM-X201)
•
Red key illumination
Features
Detach face with front aux input
The easy-to-read single line LCD display shows clock, station ID and track data when playing back your digital
MP3/WMA files from the internal CD drive. Front auxiliary input lets you connect almost any portable audio
device to your car's sound system.
MP3/WMA music playback
Play CDs, CD-Rs, and CD-RWs, including discs loaded with digital MP3s and WMA files.
Internal high power and EQ
The CDX-GT260MP delivers 52 watts of peak power to all four speakers for powerful output (208 watts total
power). The 3 band EQ3 allows users to customize the sound centered at 60 Hz, 1000 Hz and 10 kHz frequencies.
RCA outputs for external amplifiers
When you’re ready to expand your sound system, the CDX-GT260MP offers selectable rear or subwoofer pre-amp
RCA outputs for external amplifiers. Set the built in electronic HPF/LPF crossovers to improve sound quality and
reduce system distortion.
Radio Data System
Radio Data System (RDS) feature displays radio broadcast information such as artist and track information when
listening to compatible AM/FM stations. RDS also allows expanded channel playback with compatible radio
station broadcasts.
Wireless card remote
Control your receiver while keeping your eyes on the road with the included wireless card remote (RM-X201).
Key illumination
Red key illumination helps you locate buttons quickly during evening playback.
Specifications
Amplifier Section
Max power output
52 watts x 4 at 4 ohms
Power Ad Hoc
CEA2006 Standard Power: 17 Watts RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to 20
kHz with less than 1% THD+N.
Speaker Impedance
4-8 Ohms
AMP & General Feature
Aux-In
Yes (Front)
EQ
EQ3:3 band EQ with +/- 10 dB adjustment at 60 Hz, 1 kHz and 10 kHz.
High Pass Filter
Selectable on/off at: 80, 100, 120, 140 or 160 Hz.
Loudness
Yes
Low Pass Filter
Selectable on/off at: 80, 100, 120, 140 or 160 Hz.
Output Power (4ohm, 1kHz,16V)(W)
52 watts x 4
Pre Out
(1) Rear / Sub switchable
Rear/Sub initial
Sub
Audio
Band
AM / FM
Equalizer
EQ3: 3 band EQ with +/- 10 dB adjustment at 60 Hz, 1 kHz and 10 kHz.
Format(s) Supported
MP3/WMA files
Preout Impedance
220 ohms
Preout Voltage
2 volt
S/N Ratio
Audio Power: CEA2006 S/N 80 dBA
Signal-to-Noise Ratio (dB)
CD: 120 dB
Station Preset(s)
18 FM / 12 AM
Tuner Frequency Range
FM (MHz): 87.5-107.9
AM (kHz): 530-1710
Tuner Type
SSIR-EXA with RDS
Wow and Flutter
Below measurable limit
AUX in Feature
Level Adjustment
Yes (-8dB / +18dB)
Convenience
Tilt Range
0-45° mounting angle
Convenience Features
Dimmer Adjust
Manual
Key Illumination
Red
On-Screen Clock
12H
Display
Display Color
Black / Negative Color
Display Technology
LCD
Text Displayed
Source, artist, track, playback time, menu and clock
Text Lines
1 line of information
Display Panel
Auto off mode
Yes
Dimmer Adjust
Manual
Panel Design
Display color (Color Variation/Nega or Posi)
Black color / Negative
Display Device (LCD/FL/OEL/TFT)
LCD
Key Illumination
Red
Panel finish color
Black (Bare)
General
CEA2006 output power
17
CEA2006 S/N
80
Dimensions (WxHxD) (mm)
178x50x180
Maximum output power (4ohm, 1kHz, 16V)(W)
52
Mounting dimensions (WxHxD)(mm)
182 x 53 x 162
Preout impedance (ohms)
220
Preout output level (V)
2
Weight (kg)
1.2
Inputs and Outputs
12V Trigger Output(s)
Power amplifier turn on
Antenna Terminal(s)
AM/FM Antenna Input Terminal
Audio In
Front Aux in with variable level
Infrared Port
Wireless remote
RCA Audio Output(s)
Rear/Subwoofer selectable RCA pre-amp outputs
Remote Jack
Optional wired remote terminal
Other Features
Card Remote ( ): Option
RM-X201
CD lock mode
Yes
Clock
12H
Rotary commander ( ):Option
(RM-X4S)
Security
Detachable
Tuner
FM Usable Sensitivity
8 dBf
Frequency Response
FM: 20-15,000 Hz
S/N Ratio
80 dB (stereo)
Selectivity
75 dB at 400 kHz
Stereo Separation
50 dB at 1 KHz
FM: Channel separation (dB)
50 dB at 1 kHz
FM: Frequency response (Hz)
20 - 15k
FM: Intermediate frequency (MHz)
25KHz
FM: S/N ratio (mono) (dB)
80 dB stereo
FM: Selectivity (400 kHz) (dB)
75 dB
FM: Tuning range (MHz)
87.5-107.9
FM: Usable sensitivity (75 ohm) (dBf )
8 dBf
MW: Tuning range(kHz)
530-1710
MW/LW/SW: Sensitivity (75 ohm) MW/LW/SW(uV)
26/-/-
Tuner Feature
Preset
FM18/AM12
RDS/EON (NA Only:RBDS, Others:RDS)
Yes (RBDS)
Weights and Measurements
Dimensions (Approx.)
178 x 50 x 180 mm, 7.125 x 2 x 7.125 inch (w/h/d)
Dimensions (Approx) Depth
7.125" (180 mm)
Dimensions (Approx) Height
2" (50 mm)
Dimensions (Approx) Width
7.125" (178 mm)
Weight (Approx.)
1.2 kg (2 lb. 11 oz.)
Supplied Accessories
Supplied Accessories
Parts for installation and connections (1 set)
RM-X201 wireless remote
© 2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony and the Sony logo are trademarks of Sony. iPod is a trademark of Apple Inc. Features and
specifications are subject to change without notice. Updated: September 8, 2011
