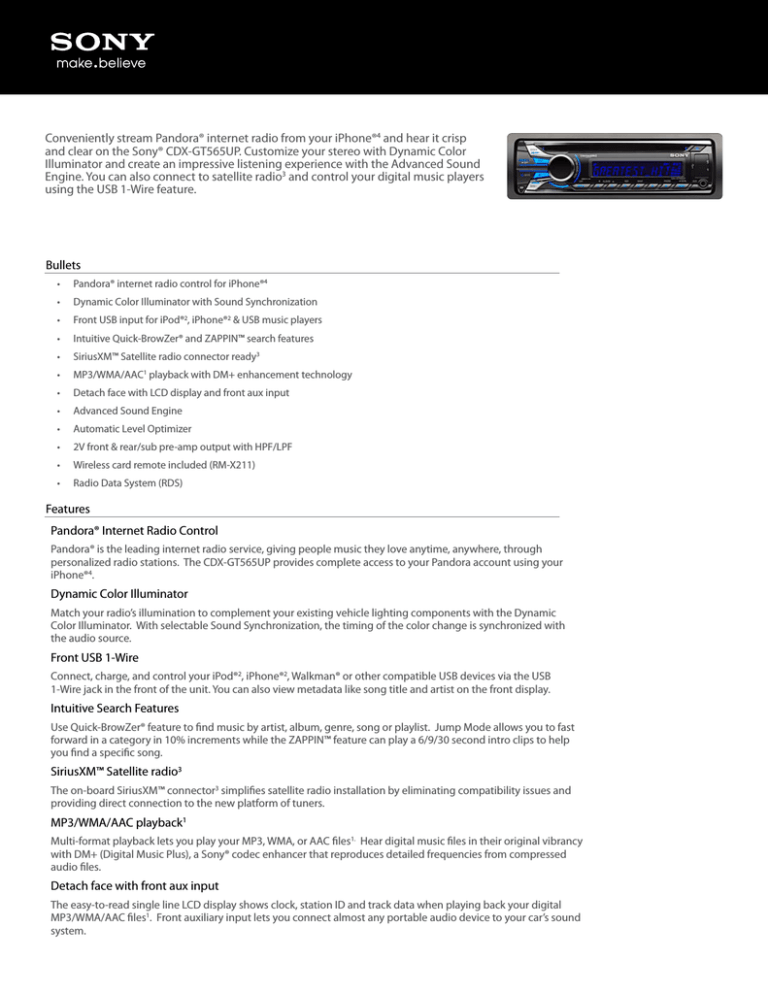

CDX-GT565UP
CDX-GT565UP Receiver w/ Pandora® control
Conveniently stream Pandora® internet radio from your iPhone®4 and hear it crisp
and clear on the Sony® CDX-GT565UP. Customize your stereo with Dynamic Color
Illuminator and create an impressive listening experience with the Advanced Sound
Engine. You can also connect to satellite radio3 and control your digital music players
using the USB 1-Wire feature.
Bullets
•
Pandora® internet radio control for iPhone®4
•
Dynamic Color Illuminator with Sound Synchronization
•
Front USB input for iPod®2, iPhone®2 & USB music players
•
Intuitive Quick-BrowZer® and ZAPPIN™ search features
•
SiriusXM™ Satellite radio connector ready3
•
MP3/WMA/AAC1 playback with DM+ enhancement technology
•
Detach face with LCD display and front aux input
•
Advanced Sound Engine
•
Automatic Level Optimizer
•
2V front & rear/sub pre-amp output with HPF/LPF
•
Wireless card remote included (RM-X211)
•
Radio Data System (RDS)
Features
Pandora® Internet Radio Control
Pandora® is the leading internet radio service, giving people music they love anytime, anywhere, through
personalized radio stations. The CDX-GT565UP provides complete access to your Pandora account using your
iPhone®4.
Dynamic Color Illuminator
Match your radio’s illumination to complement your existing vehicle lighting components with the Dynamic
Color Illuminator. With selectable Sound Synchronization, the timing of the color change is synchronized with
the audio source.
Front USB 1-Wire
Connect, charge, and control your iPod®2, iPhone®2, Walkman® or other compatible USB devices via the USB
1-Wire jack in the front of the unit. You can also view metadata like song title and artist on the front display.
Intuitive Search Features
Use Quick-BrowZer® feature to find music by artist, album, genre, song or playlist. Jump Mode allows you to fast
forward in a category in 10% increments while the ZAPPIN™ feature can play a 6/9/30 second intro clips to help
you find a specific song.
SiriusXM™ Satellite radio3
The on-board SiriusXM™ connector3 simplifies satellite radio installation by eliminating compatibility issues and
providing direct connection to the new platform of tuners.
MP3/WMA/AAC playback1
Multi-format playback lets you play your MP3, WMA, or AAC files1. Hear digital music files in their original vibrancy
with DM+ (Digital Music Plus), a Sony® codec enhancer that reproduces detailed frequencies from compressed
audio files.
Detach face with front aux input
The easy-to-read single line LCD display shows clock, station ID and track data when playing back your digital
MP3/WMA/AAC files1. Front auxiliary input lets you connect almost any portable audio device to your car’s sound
system.
Advanced Sound Engine
The Advanced Sound Engine uses EQ7 equalizer, adjustable LPF/HPF crossovers, Listener Position calibration,
DM+ advanced sound restoration, Rear Bass Enhancer, and Dynamic Loudness volume leveler to deliver an
impressive listening experience.
Automatic Level Optimizer
Automatic Level Optimizer analyzes each tracks playback levels and adjusts output level to optimize transitions
between tracks and sources.
RCA outputs for external amplifiers
When you’re ready to expand your system, the CDX-GT565UP offers front and selectable rear or subwoofer preamp RCA outputs for external amplifiers. Set the built in electronic HPF/LPF crossovers to improve sound quality
and reduce system distortion.
Wireless Remote Included
The included wireless remote lets you control the basic functions of your CDX-GT565UP while keeping your eyes
on the road.
Radio Data System
Radio Data System (RDS) feature displays radio broadcast information such as artist and track information when
listening to compatible AM/FM stations.
Specifications
Amplifier Section
Max power output
52 watts x 4 at 4 ohms
Power Ad Hoc
CEA2006 Standard Power: 17 Watts RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to 20
kHz with less than 1% THD+N.
Speaker Impedance
4-8 Ohms
AMP & General Feature
Automatic Level Optimizer
Yes
Aux-In
Yes (Front)
DM+ (Codec enhancer)
Yes(Gen2.1)
EQ
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16
kHz.
High Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Loudness
Dynamic Loudness
Low Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Output Power (4ohm, 1kHz,16V)(W)
52 watts x 4
Pre Out
(2) Front and Rear/Sub switchable
Rear/Sub initial
Sub
Rear Bass Enhancer
Yes
Sirius/XM Connector
Yes
Time Alignment Custom
Yes (Adjustment)
Time Alignment Preset
Yes
USB
Yes (Front)
Audio
Band
AM / FM
Equalizer
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16
kHz.
Format(s) Supported
MP3/WMA/AAC files1
Preout Impedance
220 ohms
Preout Voltage
2 volt
S/N Ratio
Audio Power: CEA2006 S/N 80 dBA
Signal-to-Noise Ratio (dB)
CD: 120 dB
Station Preset(s)
18 FM / 12 AM
Tuner Frequency Range
FM (MHz): 87.5-107.9
AM (kHz): 530-1710
Tuner Type
SSIR-EXA with RDS
Wow and Flutter
Below measurable limit
AUX in Feature
Level Adjustment
Yes (-8dB / +18dB)
Convenience
Tilt Range
0-45° mounting angle
Convenience Features
Dimmer Adjust
Selectable Auto adjust or manual on/off
Key Illumination
Variable color illumination
On-Screen Clock
12H
Display
Display Color
Black / Variable color
Display Technology
LCD
Text Displayed
Source, artist, track, playback time, menu, clock and Pandora® data
Text Lines
1 line of information
Display Panel
Auto off mode
Yes
Dimmer Adjust
Auto
Key Illumination Initial
RAINBOW
Panel Design
Display color (Color Variation/Nega or Posi)
Black color/Negative
Display Device (LCD/FL/OEL/TFT)
LCD
Key Illumination
Variable
Panel finish color
Dark Titanium
USB Shutter
Yes
Feature
CODEC (for USB)
MP3, WMA, AAC1
Jump Mode
Yes
List Browsing (Folders/Files)
Yes
Pause
Yes
Repeat
OFF/ TRACK/ ALBUM
Resume Play
Yes
Shuffle
OFF/ALBUM/DEVICE
ZAPPIN
Yes
General
CEA2006 output power
17
CEA2006 S/N
80
Dimensions (WxHxD) (mm)
178x50x180
Maximum output power (4ohm, 1kHz, 16V)(W)
52
Mounting dimensions (WxHxD)(mm)
182 x 53 x 162
Preout impedance (ohms)
220
Preout output level (V)
2
Weight (kg)
1.2
Inputs and Outputs
12V Trigger Output(s)
Power antenna and amplifier turn on
Antenna Terminal(s)
AM/FM Antenna Input Terminal
Audio In
Front Aux in with variable level
Front USB input
SiriusXM connector
Ability to use all forms of USB devices may vary as not all devices are compatible. This unit is compliant
with MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the
USB standard. This unit cannot recognize USB devices via a USB hub.
Digital Audio Input(s)
This unit can be connected to the following iPods. Update your iPod to the latest software before you
use it.
iPod Nano 1st - 6th generation
iPod Touch 1st - 4th generation
iPod Classic
iPod with video
iPhone
iPhone 3G
iPhone 3GS
iPhone 4
If you have any questions or problems concerning your unit that are not covered in the owners
manual, consult your nearest Sony dealer.
Infrared Port
Wireless remote
RCA Audio Output(s)
Front and selectable Rear/Subwoofer RCA pre-amp outputs
Remote Jack
Optional wired remote terminal
USB Port(s)
Front
iPod Control Feature
Accessory Information
Yes
CODEC (for iPod)
depend on iPod content
List Browsing (Folders / Files)
Quick-BrowZer®
Pandora Link (USB)
Yes
Passenger Control
Yes
Pause
Yes
Repeat
Yes (Track, Album, Artist, Playlist, Genre, Podcast)
Resume Play
Yes
Shuffle
Yes (Genre, Album, Artist, Playlist, Device, Podcast)
ZAPPIN
Yes
USB Capable
USB Mass Storage Device
Yes
Other Features
Card Remote ( ): Option
RM-X211
CD lock mode
Yes
Clock
12H
Rotary commander ( ):Option
(RM-X4S)
Security
Detachable
Tuner
FM Usable Sensitivity
8 dBf
Frequency Response
FM: 20-15,000 Hz
S/N Ratio
80 dB (stereo)
Selectivity
75 dB at 400 kHz
Stereo Separation
50 dB at 1 KHz
FM: Channel separation (dB)
50 dB at 1 kHz
FM: Frequency response (Hz)
20 - 15k
FM: Intermediate frequency (MHz)
25 KHz
FM: S/N ratio (mono) (dB)
80 dB stereo
FM: Selectivity (400 kHz) (dB)
75 dB
FM: Tuning range (MHz)
87.5-107.9
FM: Usable sensitivity (75 ohm) (dBf )
8 dBf
MW: Tuning range(kHz)
530-1710
MW/LW/SW: Sensitivity (75 ohm) MW/LW/SW(uV)
26/-/-
Tuner Feature
Preset
FM18/AM12
RDS/EON (NA Only:RBDS, Others:RDS)
Yes (RBDS)
Weights and Measurements
Dimensions (Approx.)
178 x 50 x 180 mm, 7.125 x 2 x 7.125 inch (w/h/d)
Dimensions (Approx) Depth
7.125" (180 mm)
Dimensions (Approx) Height
2" (50 mm)
Dimensions (Approx) Width
7.125" (178 mm)
Weight (Approx.)
1.2 kg (2 lb. 11 oz.)
Supplied Accessories
Supplied Accessories
Parts for installation and connections (1 set)
RM-X211 wireless remote
Optional Accessories
Optional Accessories
USB Connection Cable for iPod®: RC-100IP
1. Copy-protected content not supported.
2. Works with iPod touch® 1st - 4th generation, iPod nano® 1st - 6th generation, iPod classic®, iPod® with video, and iPhone®, 3G, 3GS and 4.
3. Requires antenna and tuner, both sold sep.
4. Works with iPhone® 3G, 3GS, and 4 via front USB port.
© 2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, ZAPPIN, SensMe, Walkman, Quick-BrowZer and their respective logos are trademarks of
Sony. iPod, iPod classic, iPod nano, iPod mini, and iPhone are trademarks of Apple Inc. PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used
with permission. All other trademarks are trademarks of their respective owners. Features and specifications are subject to change without notice. Updated: September 8, 2011
