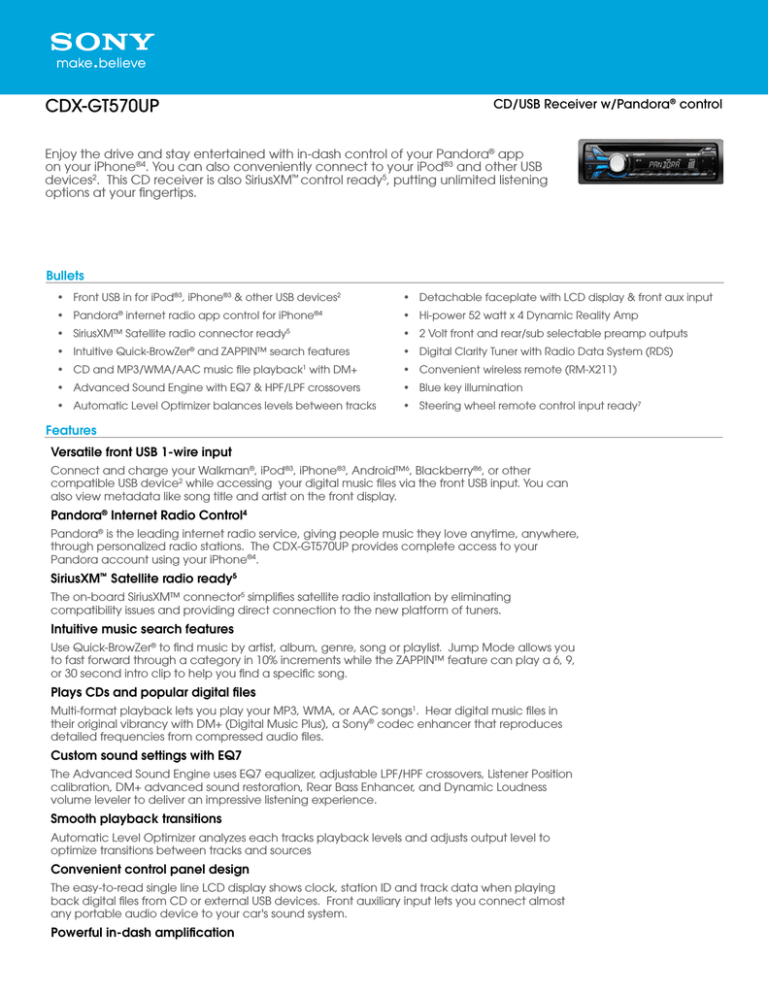

CDX-GT570UP
CD/USB Receiver w/Pandora® control
Enjoy the drive and stay entertained with in-dash control of your Pandora® app
on your iPhone®4. You can also conveniently connect to your iPod®3 and other USB
devices2. This CD receiver is also SiriusXM™ control ready5, putting unlimited listening
options at your fingertips.
Bullets
• Front USB in for iPod®3, iPhone®3 & other USB devices2
• Detachable faceplate with LCD display & front aux input
• Pandora® internet radio app control for iPhone®4
• Hi-power 52 watt x 4 Dynamic Reality Amp
• SiriusXM™ Satellite radio connector ready
• 2 Volt front and rear/sub selectable preamp outputs
5
• Intuitive Quick-BrowZer® and ZAPPIN™ search features
• Digital Clarity Tuner with Radio Data System (RDS)
• CD and MP3/WMA/AAC music file playback with DM+
• Convenient wireless remote (RM-X211)
• Advanced Sound Engine with EQ7 & HPF/LPF crossovers
• Blue key illumination
• Automatic Level Optimizer balances levels between tracks
• Steering wheel remote control input ready7
1
Features
Versatile front USB 1-wire input
Connect and charge your Walkman®, iPod®3, iPhone®3, Android™6, Blackberry®6, or other
compatible USB device2 while accessing your digital music files via the front USB input. You can
also view metadata like song title and artist on the front display.
Pandora® Internet Radio Control4
Pandora® is the leading internet radio service, giving people music they love anytime, anywhere,
through personalized radio stations. The CDX-GT570UP provides complete access to your
Pandora account using your iPhone®4.
SiriusXM™ Satellite radio ready5
The on-board SiriusXM™ connector5 simplifies satellite radio installation by eliminating
compatibility issues and providing direct connection to the new platform of tuners.
Intuitive music search features
Use Quick-BrowZer® to find music by artist, album, genre, song or playlist. Jump Mode allows you
to fast forward through a category in 10% increments while the ZAPPIN™ feature can play a 6, 9,
or 30 second intro clip to help you find a specific song.
Plays CDs and popular digital files
Multi-format playback lets you play your MP3, WMA, or AAC songs1. Hear digital music files in
their original vibrancy with DM+ (Digital Music Plus), a Sony® codec enhancer that reproduces
detailed frequencies from compressed audio files.
Custom sound settings with EQ7
The Advanced Sound Engine uses EQ7 equalizer, adjustable LPF/HPF crossovers, Listener Position
calibration, DM+ advanced sound restoration, Rear Bass Enhancer, and Dynamic Loudness
volume leveler to deliver an impressive listening experience.
Smooth playback transitions
Automatic Level Optimizer analyzes each tracks playback levels and adjusts output level to
optimize transitions between tracks and sources
Convenient control panel design
The easy-to-read single line LCD display shows clock, station ID and track data when playing
back digital files from CD or external USB devices. Front auxiliary input lets you connect almost
any portable audio device to your car's sound system.
Powerful in-dash amplification
The internal Dynamic Reality Amp delivers 52 watts x 4 to your interior speakers, allowing you to
crank up the volume while maintaining low distortion, low noise levels and smooth frequency
response. Your music isn’t just louder, its clearer too.
RCA outputs for system expansion
When you’re ready to expand your system, the CDX-GT570UP offers 2 volt front and rear/sub
selectable pre-amp RCA outputs for external amplifiers. The adjustable subwoofer level control
lets you dial in the bass when you’re ready to pump it up.
The immaculate reception
The Digital Clarity Tuner delivers industry leading signal to noise ratios, lower interference, better
multipath rejection and better stereo separation. The RDS feature displays broadcast information
when listening to compatible AM/FM stations.
Convenient wireless remote included
Control your receiver while keeping your eyes on the road with the included wireless card remote
(RM-X211).
Button illumination
Blue key illumination helps you locate buttons quickly during evening playback.
Steering wheel control ready input7
This receiver is compatible with aftermarket remote control adapters7 designed to utilize the
vehicles existing, primary radio controls directly from the steering wheel. The 1/8” rear panel
mounted remote input jack allows for simple connectivity.
Specifications
Amplifier Section
USB
Front
Max power output
52 watts x 4 at 4 ohms
Audio
Power Ad Hoc
CEA2006 Standard Power: 17 Watts RMS per channel
into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with
less than 1% THD+N.
Band
AM / FM
Equalizer
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160
Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16 kHz.
4-8 Ohms
Format(s)
Supported
MP3/WMA/AAC files1
Speaker
Impedance
AMP & General Feature
Automatic Level
Optimizer
Preout Impedance
220 ohms
Yes
Preout Voltage
2 volt
Aux-In
Front
S/N Ratio
Audio Power: CEA2006 S/N 80 dBA
DM+ (Codec
enhancer)
Gen2.1
Signal-to-Noise
Ratio (dB)
CD: 120 dB
EQ
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160
Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16 kHz.
Station Preset(s)
18 FM / 12 AM
High Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Tuner Frequency
Range
Loudness
Dynamic
FM (MHz): 87.5-107.9
AM (kHz): 530-1710
Low Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Tuner Type
Digital clarity tuner with RDS
Wow and Flutter
Below measurable limit
Output Power
(4ohm, 1kHz,16V)
(W)
52W
Pre Out
(2) Front+Rear/Sub switchable
Rear/Sub initial
Sub
Rear Bass
Enhancer
Yes
Sirius/XM
Connector
Yes
Subwoofer Direct
Connection
Yes
Time Alignment
Custom
Adjustable
Time Alignment
Preset
Yes
AUX in Feature
Level Adjustment
-8dB - +18dB
Convenience
Tilt Range
0-45° mounting angle
Convenience Features
Dimmer Adjust
Manual on/off
Key Illumination
Blue
On-Screen Clock
12H
Display
Display Color
Black /Negative
Display
Technology
LCD
Text Displayed
Source, artist, track, playback time, menu, clock and
Pandora® data
Text Lines
1 line of information
Ability to use all forms of USB devices may vary as not all
devices are compatible. This unit is compliant with MSC
(Mass Storage Class) and MTP (Media Transfer Protocol)
type USB devices compliant with the USB standard. This
unit cannot recognize USB devices via a USB hub.
Display Panel
Auto off mode
Yes
Dimmer Adjust
Manual on/off
Digital Audio
Input(s)
Panel Design
This unit can be connected to the following iPods.
Update your iPod to the latest software before you use
it.
iPod Nano 1st - 6th generation
iPod Touch 1st - 4th generation
iPod Classic
iPod with video
iPhone
iPhone 3G
iPhone 3GS
iPhone 4
iPhone 4S
If you have any questions or problems concerning your
unit that are not covered in the owners manual, consult
your nearest Sony dealer.
Display color
(Color Variation/
Nega or Posi)
Black color/Negative
Display Device
(LCD/FL/OEL/TFT)
LCD
Key Illumination
Blue
Knob finish
Plating + Rubber
Infrared Port
Wireless remote
Panel finish color
Black (Bare)
USB Shutter
Yes
RCA Audio
Output(s)
Front and selectable Rear/Subwoofer RCA pre-amp
outputs
Remote Jack
Optional wired remote terminal
USB Port(s)
Front
Feature
CODEC (for USB)
MP3, WMA, AAC
Jump Mode
Yes
List Browsing
(Folders/Files)
Yes
Pause
Yes
Repeat
iPod Control Feature
Accessory
Information
Yes
CODEC (for iPod)
Depend on iPod® content
OFF/ TRACK/ ALBUM
List Browsing
(Folders / Files)
Quick-BrowZer®
Resume Play
Yes
Pandora Link (USB)
Yes
Shuffle
OFF/ALBUM/DEVICE
Passenger Control
Yes
ZAPPIN
Yes
Pause
Yes
General
Repeat
Track, Album, Artist, Playlist, Genre, Podcast
CEA2006 output
power
17
Resume Play
Yes
CEA2006 S/N
80
Shuffle
Track, Album, Artist, Playlist, Genre, Podcast
Dimensions
(WxHxD) (mm)
178 x 50 x 177
ZAPPIN
Yes
Maximum output
power (4ohm,
1kHz, 16V)(W)
52
Mounting
dimensions
(WxHxD)(mm)
182 x 53 x 160
Preout impedance
(ohms)
220
Preout output
level (V)
2
Card Remote ( ):
Option
RM-X211
Weight (kg)
1.2
USB Capable
USB Mass Storage
Device
Yes
Instruction Manual Language
English
Yes
French
Yes
Other Features
CD lock mode
Yes
Inputs and Outputs
Clock
12H
12V Trigger
Output(s)
Power remote on
Optional wired remote input
Antenna
Terminal(s)
AM/FM Antenna Input Terminal
Rotary
commander (
):Option
Security
Detachable
Audio In
Front Aux in with variable level
Front USB input
SiriusXM™ connector
Tuner
FM Usable
Sensitivity
8 dBf
Frequency
Response
FM: 20-15,000 Hz
S/N Ratio
80 dB (stereo)
Selectivity
75 dB at 400 kHz
Stereo Separation
50 dB at 1 KHz
FM: Channel
separation (dB)
50 dB at 1 kHz
FM: Frequency
response (Hz)
20 - 15k
FM: Intermediate
frequency (MHz)
25KHz
FM: S/N ratio
(mono) (dB)
80 dB stereo
FM: Selectivity (400
kHz) (dB)
75 dB
FM: Tuning range
(MHz)
87.5-107.9
FM: Usable
sensitivity (75 ohm)
(dBf)
8 dBf
MW: Tuning
range(kHz)
530-1710
MW/LW/SW:
Sensitivity (75 ohm)
MW/LW/SW(uV)
26/-/-
Tuner Feature
Preset
FM18/AM12
RDS/EON (NA
Only:RBDS,
Others:RDS)
RBDS
Weights and Measurements
Dimensions
(Approx.)
178 x 50 x 177 mm, 7 x 1.9 x 6.9 inch (w/h/d)
Dimensions
(Approx) Depth
7.125" (179 mm)
Dimensions
(Approx) Height
2" (50 mm)
Dimensions
(Approx) Width
7 po (177 mm)
Weight (Approx.)
1.2 kg (2 lb. 11 oz.)
Supplied Accessories
Supplied
Accessories
RM-X211
Optional Accessories
Optional
Accessories
USB connection cable for iPod®: RC-100IP
SiriusXM™ Connect tuner: SXV100
1. Not all files may playback due to file variations. Copyright protected ACC-LC files not supported.
2. Not all USB devices are compatible. Consult www.esupport.sony.com for complete details.
3. Works with iPod touch® (1st – 4th generations), iPod nano® (1st – 6th generations), iPod classic®, iPod with video and iPhone, 3G, 3GS, 4 and 4S.
4. Works with iPhone® 3G, 3GS, 4 and 4S via USB port.
5. Requires tuner and subscription, sold separately.
6. Compatible with Android™or Blackberry® smartphones supporting Mass Storage Class (MSC) devices, users required to manually select MSC/USB connection in smartphone menu for
proper functionality.
7. Compatibility varies as not all vehicles are compatible; please consult with each interface manufacturer for details.
© 2012 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, ZAPPIN, Walkman, Quick-BrowZer and their respective logos
are trademarks of Sony. iPod, iPod classic, iPod nano, iPod mini, and iPhone are trademarks of Apple Inc. PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks
or registered trademarks of Pandora Media, Inc., Android and the Android logo are trademarks of Google, Inc., used with permission. All other trademarks are trademarks of their
respective owners. Third-party features are subject to change or termination without notice. Subscription fee and/or PC registration may be required. Updated: November 12, 2012
