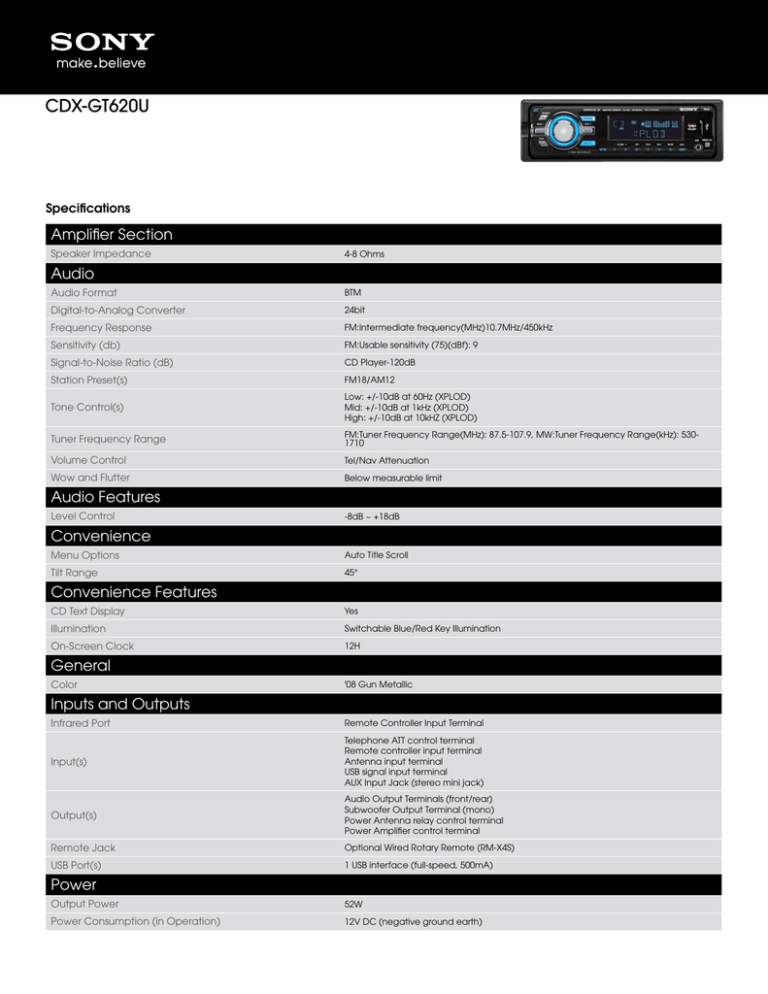

Sony CDX-GT620U Specification

Sony CDX-GT620U Specification
CDX-GT620U
Specifications
Amplifier Section
Speaker Impedance
4-8 Ohms
Audio
Audio Format
BTM
Digital-to-Analog Converter
24bit
Frequency Response
FM:Intermediate frequency(MHz)10.7MHz/450kHz
Sensitivity (db)
FM:Usable sensitivity (75)(dBf): 9
Signal-to-Noise Ratio (dB)
CD Player-120dB
Station Preset(s)
FM18/AM12
Tone Control(s)
Low: +/-10dB at 60Hz (XPLOD)
Mid: +/-10dB at 1kHz (XPLOD)
High: +/-10dB at 10kHZ (XPLOD)
Tuner Frequency Range
FM:Tuner Frequency Range(MHz): 87.5-107.9, MW:Tuner Frequency Range(kHz): 5301710
Volume Control
Tel/Nav Attenuation
Wow and Flutter
Below measurable limit
Audio Features
Level Control
-8dB ~ +18dB
Convenience
Menu Options
Auto Title Scroll
Tilt Range
45°
Convenience Features
CD Text Display
Yes
Illumination
Switchable Blue/Red Key Illumination
On-Screen Clock
12H
General
Color
'08 Gun Metallic
Inputs and Outputs
Infrared Port
Remote Controller Input Terminal
Input(s)
Telephone ATT control terminal
Remote controller input terminal
Antenna input terminal
USB signal input terminal
AUX Input Jack (stereo mini jack)
Output(s)
Audio Output Terminals (front/rear)
Subwoofer Output Terminal (mono)
Power Antenna relay control terminal
Power Amplifier control terminal
Remote Jack
Optional Wired Rotary Remote (RM-X4S)
USB Port(s)
1 USB interface (full-speed, 500mA)
Power
Output Power
52W
Power Consumption (in Operation)
12V DC (negative ground earth)
Speaker
Speaker Terminal Type
Sure Seal Connectors
Tape Player
Frequency response
CD: 10-20,000Hz
Video Features
Display Technology
1-Color, Bluish White, Fluorescent, 13-Segment Display
Weights and Measurements
Weight (Approx.)
1.2Kg (2lb 11oz)
Supplied Accessories
Supplied Accessories
Supplied Wireless Card Remote (RM-X151)
Parts for installation and connection (1 set)
Optional Accessories
Wired Rotary Remote (RM-X4S)
Optional Accessories
compatible.
Design and specifications are subject to change without notice.
Your dealer may not handle some of the above listed accessories. Please ask the dealer
©2008 Sony Electronics Inc.
for detailed information.
Reproduction in whole or in part without written permission is prohibited.
US and foreign patents licensed from Dolby Laboratories.
Sony is a trademark of Sony. All other trademarks are property of their respective owners.
MPEG Layer-3 Audio Coding technology and patents licensed from Fraunhofer IIS and
Features and specifications are subject to change without notice. Non-metric weights and
Thomson.
measures are approximate /Updated: December 15, 2011
This unit cannot be connected to a digital preamplifier or an equalizer which is Sony BUS
