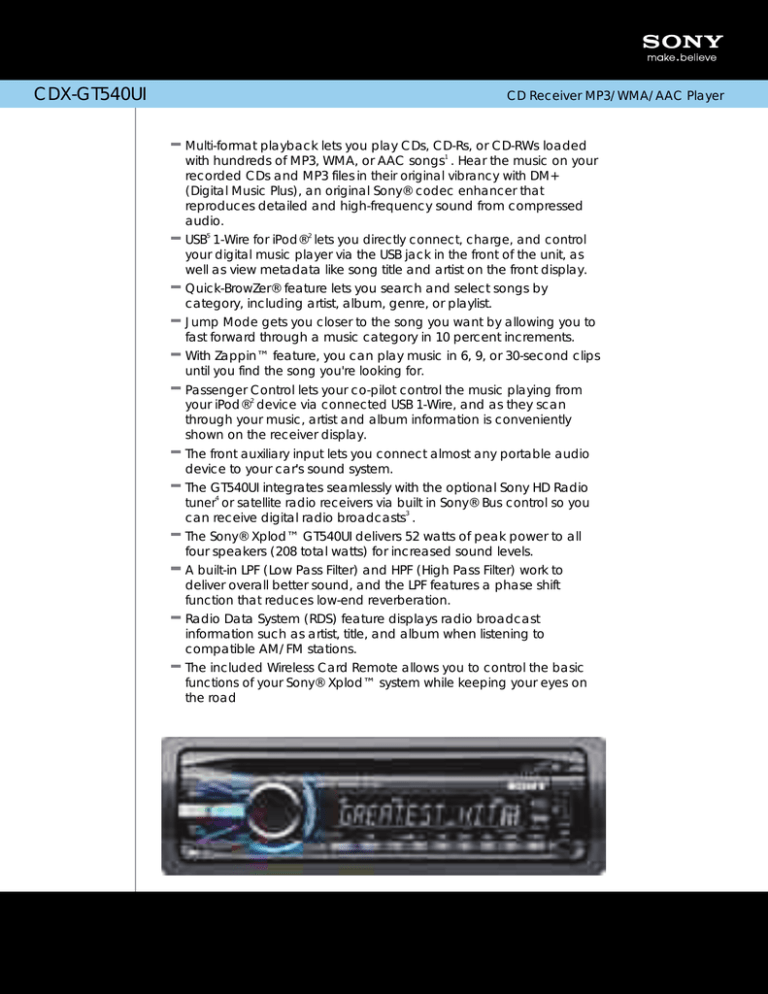

CDX-GT540UI
CD Receiver MP3/WMA/AAC Player
Multi-format playback lets you play CDs, CD-Rs, or CD-RWs loaded
with hundreds of MP3, WMA, or AAC songs1 . Hear the music on your
recorded CDs and MP3 files in their original vibrancy with DM+
(Digital Music Plus), an original Sony® codec enhancer that
reproduces detailed and high-frequency sound from compressed
audio.
5
2
USB 1-Wire for iPod® lets you directly connect, charge, and control
your digital music player via the USB jack in the front of the unit, as
well as view metadata like song title and artist on the front display.
Quick-BrowZer® feature lets you search and select songs by
category, including artist, album, genre, or playlist.
Jump Mode gets you closer to the song you want by allowing you to
fast forward through a music category in 10 percent increments.
With Zappin™ feature, you can play music in 6, 9, or 30-second clips
until you find the song you're looking for.
Passenger Control lets your co-pilot control the music playing from
your iPod®2 device via connected USB 1-Wire, and as they scan
through your music, artist and album information is conveniently
shown on the receiver display.
The front auxiliary input lets you connect almost any portable audio
device to your car's sound system.
The GT540UI integrates seamlessly with the optional Sony HD Radio
tuner4 or satellite radio receivers via built in Sony® Bus control so you
can receive digital radio broadcasts3 .
The Sony® Xplod™ GT540UI delivers 52 watts of peak power to all
four speakers (208 total watts) for increased sound levels.
A built-in LPF (Low Pass Filter) and HPF (High Pass Filter) work to
deliver overall better sound, and the LPF features a phase shift
function that reduces low-end reverberation.
Radio Data System (RDS) feature displays radio broadcast
information such as artist, title, and album when listening to
compatible AM/FM stations.
The included Wireless Card Remote allows you to control the basic
functions of your Sony® Xplod™ system while keeping your eyes on
the road
CDX-GT540UI
Features
MP3/WMA/AAC playback1 with DM+ enhancement technology Multiformat playback lets you play CDs, CD-Rs, or CD-RWs loaded with
hundreds of MP3, WMA, or AAC so Multi-formatngs1 . Hear the music on
your recorded CDs and MP3 files1 in their original vibrancy with DM+
(Digital Music Plus), an original Sony® codec enhancer that reproduces
detailed and high-frequency sound from compressed audio.
USB5 1-Wire for iPod® 2 , iPhone® 2 and other USB Digital Music
Players USB5 1-Wire for iPod® 2 lets you directly connect, charge, and
control your digital music player via the USB jack in the front of the unit,
as well as view metadata like song title and artist on the front display.
ADDITIONAL FEATURES
Quick-BrowZer® feature with Jump Mode and Zappin™ feature
Passenger Control with iPod® 2 Display Function
SAT Radio3 / HD Radio® ready4
Front Auxiliary input
EQ3 Stage 2, DSO and 52 Watts x 4 High Power (208 watts total power)
Front, Rear/Sub pre-amp output with selectable LPF/HPF
Radio Data System (RDS)
Supplied Wireless Card Remote included
Blue key illumination
Specifications
Convenience Features
CD Text Display: CD and MP3 / WMA data displayed
Illumination: Blue
On-Screen Clock: 12H
Video Features
Display Technology: LCD
General
Disc Capacity: 1
Color: Gun Metallic / Black
Audio
Preout Impedance: 220 ohms
Preout Voltage: 2 volt
Frequency Response: CD: 10-20,000 Hz
Wow and Flutter: Below measurable limit
Station Preset(s): 18 FM / 12 AM
Digital-to-Analog Converter: 24 bit
Tuner Frequency Range: FM:Tuner Frequency Range(MHz): 87.5-107.9,
AM:Tuner Frequency Range(kHz): 530-1710
Tone Control(s): Low +/- 10 dB at 60 Hz
Mid +/- 10 dB at 1 kHz
High +/- 10dB at 10 kHz
Tuner Type: SSIR-EXA with RDS
Volume Control: Tel/Nav Attenuation Circuitry
CD Playback: CD, CD-R / CD-RW (MP3/WMA/AAC files)
Band: AM / FM
Signal-to-Noise Ratio (dB): CD: 120 dB
Convenience
Tilt Range: 45°
Amplifier Section
Speaker Impedance: 4-8 Ohms
Max power output: 52 watts x 4 at 4 ohms
Tuner
FM Usable Sensitivity: 10 dBf
Selectivity: 75 dB at 400 kHz
S/N Ratio: 70 dB (mono)
Frequency Response: FM: 20-15,000 Hz
CD Receiver MP3/WMA/AAC Player
Stereo Separation: 40 dB at 1 KHz
Power
Power Consumption (in Operation): 45w
Output Power: 52W x4 High Power - 17 watts per channel minimum
continuous average power into 4 Ohms, 4 channels driven from 20 Hz to
20 kHz with no more than 5% total harmonic distortion.
Current Drain: 3 - 5 amps
Input Power: 12 V DC car battery (negative ground (earth))
Input Voltage: 12 V DC car battery (negative ground)
Inputs and Outputs
RCA Audio Output(s): Front and Rear/Sub selectable RCA pre-amp outputs
Digital Audio Input(s): -Ability to use all forms of USB devices may vary as
not all devices are compatible.
This unit can be connected to the following iPods. Update your iPod to
the latest software before you use it.
-iPod Nano 1st generation*
-iPod Nano 2nd generation (aluminum)
-iPod Nano 3rd generation (video)
-iPod 5th generation (video)*
-iPod Classic
-iPod Touch
-iPhone
When you connect iPod Nano1st generation or iPod 5th generation,
Passenger Control is not available.
-This unit is compliant with MSC (Mass Storage Class) and MTP (Media
Transfer Protocol) type USB devices compliant with the USB standard.
-This unit cannot recognize USB devices via a USB hub.
If you have any questions or problems concerning your unit that are not
covered in this manual, consult your nearest Sony dealer.
USB Port(s): Front USB - Full Speed
Antenna Terminal(s): Aerial Input Terminal
12V Trigger Output(s): Power antenna
Amplifier turn on
Remote Jack: Optional wired remote terminal
Audio In: Front Aux input with variable level: -8dB ∼ +18dB
Front USB input
Sony Bus audio/control terminal
Infrared Port: Wireless remote
Dimensions
Weight: 1.3Kg
Measurements: 178 x 50 x 179mm
Supplied Accessories
Parts for installation and connections (1 set)
RM-X151 wireless remote
Optional Accessories
Replacement remote: RM-X151
CD changer (10 discs): CDX-757MX
CD changer (6 discs): CDX-T69
Source selector: XA-C40
Aux-in selector: XA-300
HD Radio® tuner: XT-100HD
USB Connectivity Cable for iPod®: RC-100IP
Color: Gun Metallic / Black
UPC Code: 027242774124
1. Not all MP3, WMA, AAC files may playback due to file variations. Copyright protected ACC-LC files cannot
be played back.
2. Ability to use all generations of iPod products may vary as not all products are compatible.
3. Satellite radio service requires a satellite radio tuner and service subscription, sold separately.
4. HD Radio® capability requires an optional HD Radio tuner (XT-100HD).
5. Ability to use all forms of USB devices may vary as not all devices are compatible.
© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is
prohibited. Sony, Quick-BrowZer, Walkman, Xplōd, ZAPPIN, and the Sony and Xplōd logos are trademarks of
Sony. iPod is a trademark of Apple Inc. All other trademarks are trademarks of their respective owners.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate and may vary.
Please visit the Dealer Source for current information at
www.sony.com/dealersource
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Last Updated: 04/13/2011
