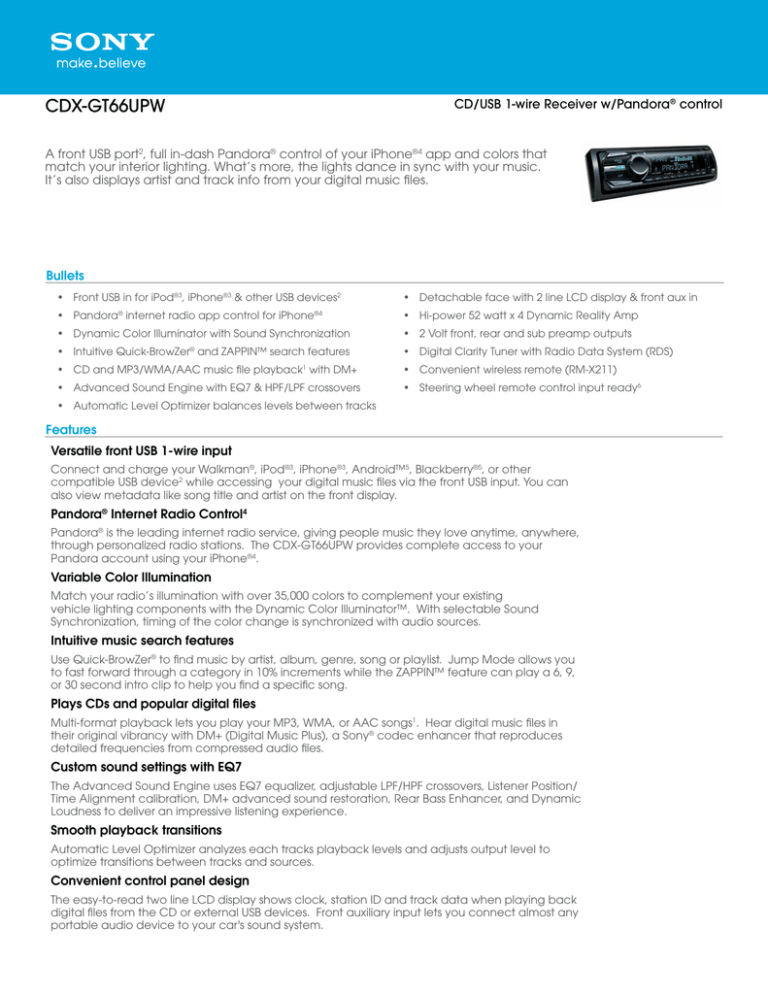

CDX-GT66UPW
CD/USB 1-wire Receiver w/Pandora® control
A front USB port2, full in-dash Pandora® control of your iPhone®4 app and colors that
match your interior lighting. What’s more, the lights dance in sync with your music.
It’s also displays artist and track info from your digital music files.
Bullets
• Front USB in for iPod®3, iPhone®3 & other USB devices2
• Detachable face with 2 line LCD display & front aux in
• Pandora® internet radio app control for iPhone®4
• Hi-power 52 watt x 4 Dynamic Reality Amp
• Dynamic Color Illuminator with Sound Synchronization
• 2 Volt front, rear and sub preamp outputs
• Intuitive Quick-BrowZer® and ZAPPIN™ search features
• Digital Clarity Tuner with Radio Data System (RDS)
• CD and MP3/WMA/AAC music file playback with DM+
• Convenient wireless remote (RM-X211)
• Advanced Sound Engine with EQ7 & HPF/LPF crossovers
• Steering wheel remote control input ready6
1
• Automatic Level Optimizer balances levels between tracks
Features
Versatile front USB 1-wire input
Connect and charge your Walkman®, iPod®3, iPhone®3, Android™5, Blackberry®5, or other
compatible USB device2 while accessing your digital music files via the front USB input. You can
also view metadata like song title and artist on the front display.
Pandora® Internet Radio Control4
Pandora® is the leading internet radio service, giving people music they love anytime, anywhere,
through personalized radio stations. The CDX-GT66UPW provides complete access to your
Pandora account using your iPhone®4.
Variable Color Illumination
Match your radio’s illumination with over 35,000 colors to complement your existing
vehicle lighting components with the Dynamic Color Illuminator™. With selectable Sound
Synchronization, timing of the color change is synchronized with audio sources.
Intuitive music search features
Use Quick-BrowZer® to find music by artist, album, genre, song or playlist. Jump Mode allows you
to fast forward through a category in 10% increments while the ZAPPIN™ feature can play a 6, 9,
or 30 second intro clip to help you find a specific song.
Plays CDs and popular digital files
Multi-format playback lets you play your MP3, WMA, or AAC songs1. Hear digital music files in
their original vibrancy with DM+ (Digital Music Plus), a Sony® codec enhancer that reproduces
detailed frequencies from compressed audio files.
Custom sound settings with EQ7
The Advanced Sound Engine uses EQ7 equalizer, adjustable LPF/HPF crossovers, Listener Position/
Time Alignment calibration, DM+ advanced sound restoration, Rear Bass Enhancer, and Dynamic
Loudness to deliver an impressive listening experience.
Smooth playback transitions
Automatic Level Optimizer analyzes each tracks playback levels and adjusts output level to
optimize transitions between tracks and sources.
Convenient control panel design
The easy-to-read two line LCD display shows clock, station ID and track data when playing back
digital files from the CD or external USB devices. Front auxiliary input lets you connect almost any
portable audio device to your car's sound system.
Powerful in-dash amplification
The internal Dynamic Reality Amp delivers 52 watts x 4 to your interior speakers, allowing you to
crank up the volume while maintaining low distortion, low noise levels and smooth frequency
response. Your music isn’t just louder, its clearer too.
RCA outputs for system expansion
When you’re ready to expand your system, the CDX-GT66UPW offers 2 volt front, rear and sub
pre-amp RCA outputs for external amplifiers. The adjustable subwoofer level control lets you dial
in the bass when you’re ready to pump it up.
The immaculate reception
The Digital Clarity Tuner delivers industry leading signal to noise ratios, lower interference, better
multipath rejection and better stereo separation. The RDS feature displays broadcast information
when listening to compatible AM/FM stations.
Convenient wireless remote included
Control your receiver while keeping your eyes on the road with the included wireless card remote
(RM-X211).
Steering wheel control ready input6
This receiver is compatible with aftermarket remote control adapters6 designed to utilize the
vehicles existing, primary radio controls directly from the steering wheel. The 1/8” rear panel
mounted remote input jack allows for simple connectivity.
Specifications
Amplifier Section
Max power output
52 watts x 4 at 4 ohms
Power Ad Hoc
CEA2006 Standard Power: 17 Watts RMS per channel
into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with
less than 1% THD+N.
Speaker
Impedance
4-8 Ohms
AMP & General Feature
Equalizer
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160
Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16 kHz.
Format(s)
Supported
MP3/WMA/AAC files
Preout Impedance
220 ohms
Preout Voltage
2 volt
S/N Ratio
Audio Power: CEA2006 S/N 80 dBA
Signal-to-Noise
Ratio (dB)
CD: 120 dB
Station Preset(s)
18 FM / 12 AM
Automatic Level
Optimizer
Yes
Aux-In
Front
DM+ (Codec
enhancer)
Gen2.1
Tuner Frequency
Range
FM (MHz): 87.5-107.9
AM (kHz): 530-1710
EQ
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160
Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16 kHz.
Tuner Type
Digital Clarity Tuner with RDS
High Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Wow and Flutter
Below measurable limit
Loudness
Dynamic
Low Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Output Power
(4ohm, 1kHz,16V)
(W)
52 watts x 4
Pre Out
(3) Front, Rear and Subwoofer
Rear Bass
Enhancer
Yes
Sub Out
AUX in Feature
Level Adjustment
-8dB - +18dB
Convenience
Tilt Range
0-45° mounting angle
Convenience Features
Dimmer Adjust
Selectable Auto adjust or manual on/off
Key Illumination
Variable color illumination
Yes
On-Screen Clock
12H
TEL ATT/Navi ATT
Yes
Display
Time Alignment
Custom
Adjustment
Display Color
Black / Variable color
Time Alignment
Preset
Yes
Display
Technology
LCD
USB
Front
Text Displayed
Source, artist, track, playback time, menu, clock and
Pandora® data
Text Lines
2 lines of information
AM / FM
Display Panel
Audio
Band
Auto off mode
Yes
Dimmer Adjust
Auto
Key Illumination
Initial
Variable
Ability to use all forms of USB devices may vary as not all
devices are compatible. This unit is compliant with MSC
(Mass Storage Class) and MTP (Media Transfer Protocol)
type USB devices compliant with the USB standard. This
unit cannot recognize USB devices via a USB hub.
Panel Design
Display color
(Color Variation/
Nega or Posi)
Black color / Negative
Display Device
(LCD/FL/OEL/TFT)
LCD
Key Illumination
Variable
Knob finish
Cap + Rubber
Panel finish color
Dark Titanium
USB Shutter
Yes
Digital Audio
Input(s)
Feature
This unit can be connected to the following iPods.
Update your iPod to the latest software before you use
it.
iPod Nano 1st - 6th generation
iPod Touch 1st - 4th generation
iPod Classic
iPod with video
iPhone
iPhone 3G
iPhone 3GS
iPhone 4
iPhone 4S
If you have any questions or problems concerning your
unit that are not covered in the owners manual, consult
your nearest Sony dealer.
Infrared Port
Wireless remote
Yes
RCA Audio
Output(s)
Front, Rear, and Subwoofer RCA pre-amp outputs
Yes
Remote Jack
Optional wired remote terminal
USB Port(s)
Front
CODEC (for USB)
MP3, WMA, AAC
Jump Mode
List Browsing
(Folders/Files)
Pause
Yes
Repeat
OFF/ TRACK/ ALBUM
Resume Play
Yes
Accessory
Information
Yes
SensMe™
channels
Yes (MSC)
CODEC (for iPod)
Depend on iPod® content
Shuffle
OFF/ALBUM/DEVICE
List Browsing
(Folders / Files)
Quick-BrowZer®
ZAPPIN
Yes
Pandora Link (USB)
Yes
Passenger Control
Yes
Pause
Yes
Repeat
Track, Album, Artist, Playlist, Genre, Podcast
Resume Play
Yes
Shuffle
Genre, Album, Artist, Playlist, Device, Podcast
ZAPPIN
Yes
General
CEA2006 output
power
CEA2006 S/N
Dimensions
(WxHxD) (mm)
17
80
178 x 50 x 180
Maximum output
power (4ohm,
1kHz, 16V)(W)
52
Mounting
dimensions
(WxHxD)(mm)
182 x 53 x 162
Preout impedance
(ohms)
220
Preout output
level (V)
2
Weight (kg)
1.3
iPod Control Feature
USB Capable
USB Mass Storage
Device
Yes
Instruction Manual Language
English
Yes
Spain
Yes
Other Features
Inputs and Outputs
Card Remote ( ):
Option
RM-X211
12V Trigger
Output(s)
Power remote on
CD lock mode
Yes
Antenna
Terminal(s)
AM/FM Antenna Input Terminal
Clock
12H
Rotary
commander (
):Option
Optional wired remote input
Security
Detachable
Sub panel
illumination color
Red
Audio In
Front Aux in with variable level
Front USB input
SiriusXM™ connector
Tuner
FM Usable
Sensitivity
8 dBf
Frequency
Response
FM: 20-15,000 Hz
S/N Ratio
80 dB (stereo)
Selectivity
75 dB at 400 kHz
Stereo Separation
50 dB at 1 KHz
FM: Channel
separation (dB)
50 dB at 1 kHz
FM: Frequency
response (Hz)
20 - 15k
FM: Intermediate
frequency (MHz)
25 KHz
FM: S/N ratio
(mono) (dB)
80 dB stereo
FM: Selectivity (400
kHz) (dB)
75 dB
FM: Tuning range
(MHz)
87.5-107.9
FM: Usable
sensitivity (75 ohm)
(dBf)
8 dBf
MW: Tuning
range(kHz)
530-1710
MW/LW/SW:
Sensitivity (75 ohm)
MW/LW/SW(uV)
26/-/-
Tuner Feature
Preset
FM18 / AM12
RDS/EON (NA
Only:RBDS,
Others:RDS)
RBDS
Weights and Measurements
Dimensions
(Approx.)
178 x 50 x 180 mm, 7.125 x 2 x 7.125 inch (w/h/d)
Dimensions
(Approx) Depth
7.125" (180 mm)
Dimensions
(Approx) Height
2" (50 mm)
Dimensions
(Approx) Width
7.125" (178 mm)
Weight (Approx.)
1.3 kg (2 lb. 14 oz.)
Supplied Accessories
Supplied
Accessories
Parts for installation and connections (1 set)
RM-X211 wireless remote
Optional Accessories
Optional
Accessories
USB Connection Cable for iPod®: RC-100IP
1. Not all files may playback due to file variations. Copyright protected ACC-LC files not supported.
2. Not all USB devices are compatible. Consult www.esupport.sony.com for complete details.
3. Works with iPod touch® (1st – 4th generations), iPod nano® (1st – 6th generations), iPod classic®, iPod with video and iPhone, 3G, 3GS, 4 and 4S.
4. Works with iPhone® 3G, 3GS, 4 and 4S via USB port.
5. Compatible with Android or Blackberry smartphones supporting Mass Storage Class (MSC) devices, users required to manually select MSC/USB connection in smartphone menu for
proper functionality.
6. Compatibility varies as not all vehicles are compatible; please consult with each interface manufacturer for details.
© 2012 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, ZAPPIN, SensMe, Walkman, Quick-BrowZer, Dynamic Color
Illuminator and their respective logos are trademarks of Sony. iPod, iPod classic, iPod nano, iPod mini, and iPhone are trademarks of Apple Inc. PANDORA, the PANDORA logo, and the
Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission. All other trademarks are trademarks of their respective owners. Features and
specifications are subject to change without notice.
Updated: November 12, 2012
