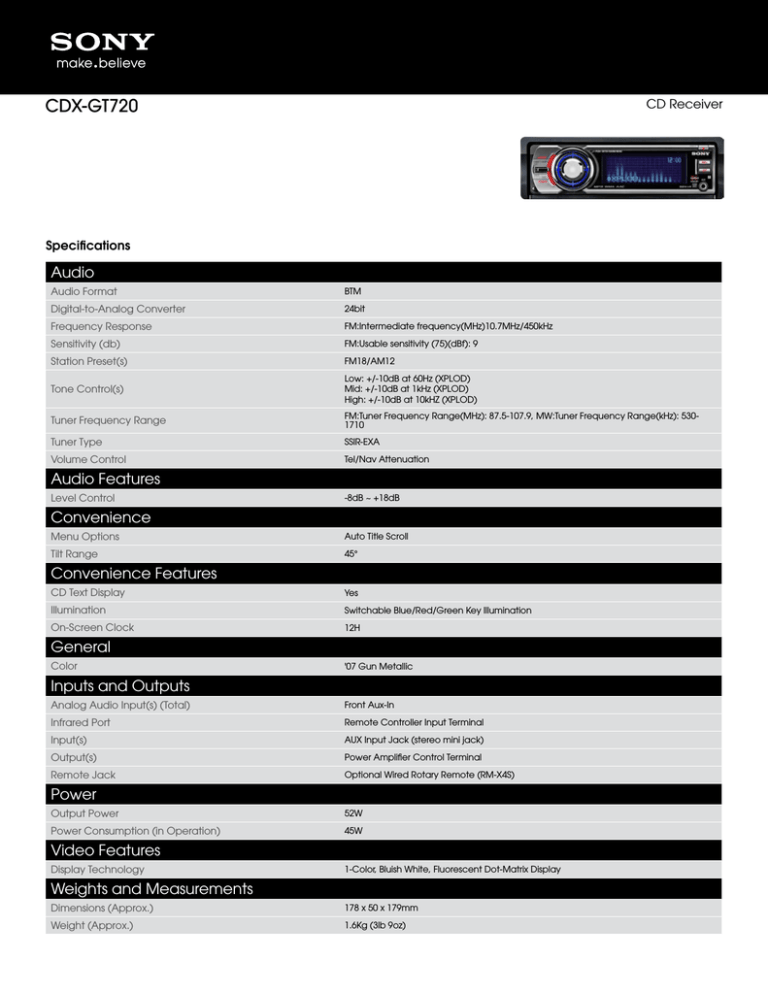

Sony CDX-GT720 Specification

Sony CDX-GT720 Specification
CDX-GT720
CD Receiver
Specifications
Audio
Audio Format
BTM
Digital-to-Analog Converter
24bit
Frequency Response
FM:Intermediate frequency(MHz)10.7MHz/450kHz
Sensitivity (db)
FM:Usable sensitivity (75)(dBf): 9
Station Preset(s)
FM18/AM12
Tone Control(s)
Low: +/-10dB at 60Hz (XPLOD)
Mid: +/-10dB at 1kHz (XPLOD)
High: +/-10dB at 10kHZ (XPLOD)
Tuner Frequency Range
FM:Tuner Frequency Range(MHz): 87.5-107.9, MW:Tuner Frequency Range(kHz): 5301710
Tuner Type
SSIR-EXA
Volume Control
Tel/Nav Attenuation
Audio Features
Level Control
-8dB ~ +18dB
Convenience
Menu Options
Auto Title Scroll
Tilt Range
45°
Convenience Features
CD Text Display
Yes
Illumination
Switchable Blue/Red/Green Key Illumination
On-Screen Clock
12H
General
Color
'07 Gun Metallic
Inputs and Outputs
Analog Audio Input(s) (Total)
Front Aux-In
Infrared Port
Remote Controller Input Terminal
Input(s)
AUX Input Jack (stereo mini jack)
Output(s)
Power Amplifier Control Terminal
Remote Jack
Optional Wired Rotary Remote (RM-X4S)
Power
Output Power
52W
Power Consumption (in Operation)
45W
Video Features
Display Technology
1-Color, Bluish White, Fluorescent Dot-Matrix Display
Weights and Measurements
Dimensions (Approx.)
178 x 50 x 179mm
Weight (Approx.)
1.6Kg (3lb 9oz)
Supplied Accessories
Supplied Accessories
Supplied Wireless Card Remote (RM-X152)
Parts for installation and connection (1 set)
Optional Accessories
Optional Accessories
Wired Rotary Remote (RM-X4S)
BUS Cable (supplied with RCA pin cord): RC-61 (1m), RC-62 (2m)
CD Changer (10 discs): CDX-757MX
CD CHanger (6 discs): CDX-T69
Source Selector: XA-C40
Aux-In Selector: XA-300
Interface Adaptor for iPod®: XA-120IP
HD Radio Tuner: XT-100HD
1. Requires satellite radio subscription and antenna, sold separately.
compatible.
2. Requires iPod® controller, sold separately.
Design and specifications are subject to change without notice.
Your dealer may not handle some of the above listed accessories. Please ask the dealer
for detailed information.
©2007 Sony Electronics Inc.
US and foreign patents licensed from Dolby Laboratories.
Reproduction in whole or in part without written permission is prohibited.
MPEG Layer-3 Audio Coding technology and patents licensed from Fraunhofer IIS and
Sony is a trademark of Sony. All other trademarks are property of their respective owners.
Thomson.
Features and specifications are subject to change without notice. Non-metric weights and
This unit cannot be connected to a digital preamplifier or an equalizer which is Sony BUS
measures are approximate /Updated: December 16, 2011
