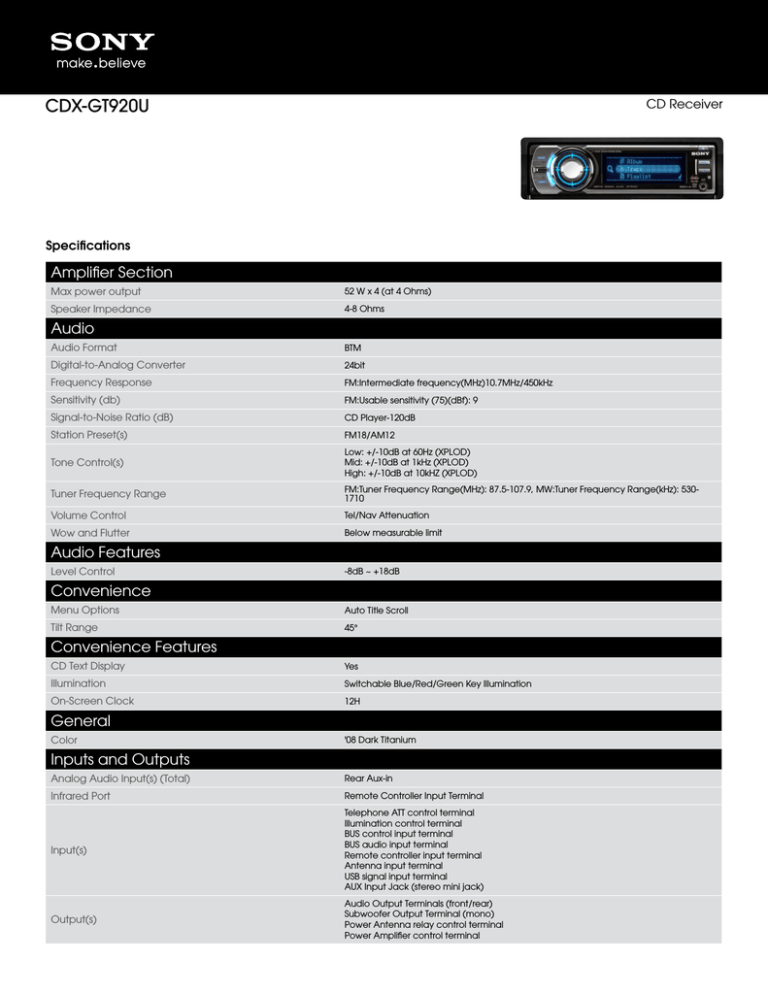

Sony CDX-GT920U Specification

Sony CDX-GT920U Specification
CD Receiver
Amplifier Section
Max power output
52 W x 4 (at 4 Ohms)
Speaker Impedance
4-8 Ohms
Audio Format
Digital-to-Analog Converter
Frequency Response
FM:Intermediate frequency(MHz)10.7MHz/450kHz
Sensitivity (db)
FM:Usable sensitivity (75)(dBf): 9
Signal-to-Noise Ratio (dB)
CD Player-120dB
Station Preset(s)
Tone Control(s)
Low: +/-10dB at 60Hz (XPLOD)
Mid: +/-10dB at 1kHz (XPLOD)
High: +/-10dB at 10kHZ (XPLOD)
Tuner Frequency Range
FM:Tuner Frequency Range(MHz): 87.5-107.9, MW:Tuner Frequency Range(kHz): 5301710
Volume Control
Tel/Nav Attenuation
Wow and Flutter
Below measurable limit
Audio Features
Level Control
-8dB ~ +18dB
Menu Options
Auto Title Scroll
Tilt Range
Convenience Features
CD Text Display
Switchable Blue/Red/Green Key Illumination
On-Screen Clock
'08 Dark Titanium
Inputs and Outputs
Analog Audio Input(s) (Total)
Rear Aux-in
Infrared Port
Remote Controller Input Terminal
Telephone ATT control terminal
Illumination control terminal
BUS control input terminal
BUS audio input terminal
Remote controller input terminal
Antenna input terminal
USB signal input terminal
AUX Input Jack (stereo mini jack)
Audio Output Terminals (front/rear)
Subwoofer Output Terminal (mono)
Power Antenna relay control terminal
Power Amplifier control terminal
Remote Jack
Optional Wired Rotary Remote (RM-X4S)
USB Port(s)
1 USB interface cable (full-speed, 500mA)
Output Power
Power Consumption (in Operation)
12V DC (negative ground earth)
Speaker Terminal Type
Sure Seal Connectors
Tape Player
Frequency response
CD: 10-20,000Hz
Video Features
Display Technology
1-Color, Bluish White, Fluorescent Dot-Matrix Display
Weights and Measurements
Weight (Approx.)
1.6Kg (3lb 9oz)
Supplied Accessories
Supplied Accessories
Supplied Wireless Card Remote (RM-X152)
Parts for installation and connection (1 set)
Optional Accessories
Optional Accessories
Wired Rotary Remote (RM-X4S)
BUS Cable (supplied with RCA pin cord): RC-61 (1m), RC-62 (2m)
CD Changer (10 discs): CDX-757MX
CD CHanger (6 discs): CDX-T69
Source Selector: XA-C40
Aux-In Selector: XA-300
Interface Adaptor for iPod®: XA-120IP
HD Radio Tuner: XT-100HD
1. Requires satellite radio subscription and antenna, sold separately.
2. Requires iPod® controller, sold separately.
Design and specifications are subject to change without notice.
Your dealer may not handle some of the above listed accessories. Please ask the dealer
©2008 Sony Electronics Inc.
for detailed information.
Reproduction in whole or in part without written permission is prohibited.
US and foreign patents licensed from Dolby Laboratories.
Sony is a trademark of Sony. All other trademarks are property of their respective owners.
MPEG Layer-3 Audio Coding technology and patents licensed from Fraunhofer IIS and
Features and specifications are subject to change without notice. Non-metric weights and
measures are approximate /Updated: December 15, 2011
This unit cannot be connected to a digital preamplifier or an equalizer which is Sony BUS
