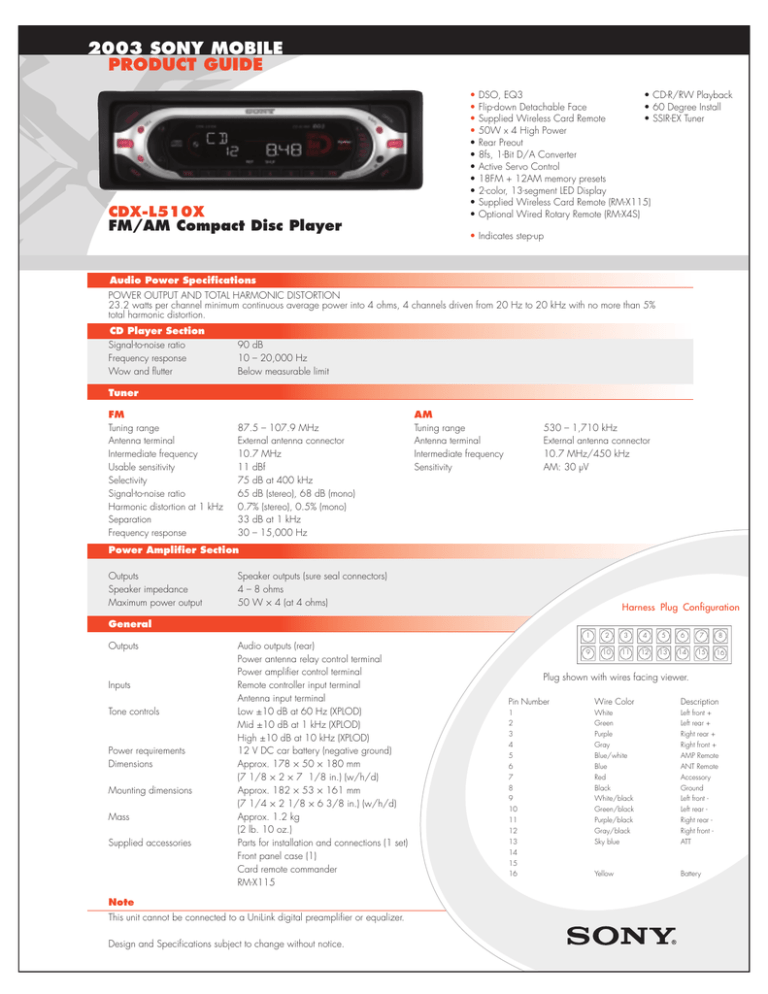

2003 SONY MOBILE
PRODUCT GUIDE
CDX-L510X
FM/AM Compact Disc Player
•
•
•
•
•
•
•
•
•
•
•
• CD-R/RW Playback
DSO, EQ3
• 60 Degree Install
Flip-down Detachable Face
• SSIR-EX Tuner
Supplied Wireless Card Remote
50W x 4 High Power
Rear Preout
8fs, 1-Bit D/A Converter
Active Servo Control
18FM + 12AM memory presets
2-color, 13-segment LED Display
Supplied Wireless Card Remote (RM-X115)
Optional Wired Rotary Remote (RM-X4S)
• Indicates step-up
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5%
total harmonic distortion.
CD Player Section
Signal-to-noise ratio
Frequency response
Wow and flutter
90 dB
10 – 20,000 Hz
Below measurable limit
Tuner
FM
Tuning range
Antenna terminal
Intermediate frequency
Usable sensitivity
Selectivity
Signal-to-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
87.5 – 107.9 MHz
External antenna connector
10.7 MHz
11 dBf
75 dB at 400 kHz
65 dB (stereo), 68 dB (mono)
0.7% (stereo), 0.5% (mono)
33 dB at 1 kHz
30 – 15,000 Hz
AM
Tuning range
Antenna terminal
Intermediate frequency
Sensitivity
530 – 1,710 kHz
External antenna connector
10.7 MHz/450 kHz
AM: 30 µV
Power Amplifier Section
Outputs
Speaker impedance
Maximum power output
Speaker outputs (sure seal connectors)
4 – 8 ohms
50 W × 4 (at 4 ohms)
Harness Plug Configuration
General
Outputs
Inputs
Tone controls
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Audio outputs (rear)
Power antenna relay control terminal
Power amplifier control terminal
Remote controller input terminal
Antenna input terminal
Low ±10 dB at 60 Hz (XPLOD)
Mid ±10 dB at 1 kHz (XPLOD)
High ±10 dB at 10 kHz (XPLOD)
12 V DC car battery (negative ground)
Approx. 178 × 50 × 180 mm
(7 1/8 × 2 × 7 1/8 in.) (w/h/d)
Approx. 182 × 53 × 161 mm
(7 1/4 × 2 1/8 × 6 3/8 in.) (w/h/d)
Approx. 1.2 kg
(2 lb. 10 oz.)
Parts for installation and connections (1 set)
Front panel case (1)
Card remote commander
RM-X115
Note
This unit cannot be connected to a UniLink digital preamplifier or equalizer.
Design and Specifications subject to change without notice.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug shown with wires facing viewer.
Pin Number
Wire Color
Description
1
2
3
4
5
White
Green
Purple
Gray
Blue/white
Left front +
Left rear +
Right rear +
Right front +
AMP Remote
6
7
8
9
10
11
12
13
14
15
16
Blue
Red
Black
White/black
Green/black
Purple/black
Gray/black
Sky blue
ANT Remote
Accessory
Ground
Left front Left rear Right rear Right front ATT
Yellow
Battery
2003 SONY MOBILE
PRODUCT GUIDE
CDX-L510X
FM/AM Compact Disc Player
50 mm (2”)
178 mm (7”)
From car antenna
Audio OUT Rear
Fuse (10A)
178 mm (7”)
88 mm (3 7/16”)
53 mm ( 2 1/16”)
47 mm (1 7/8”)
33 mm (1 5/16”)
50 mm (2”)
27 mm (1 1/16”)
153 mm (6”)
Design and Specifications subject to change without notice.
Remote IN
