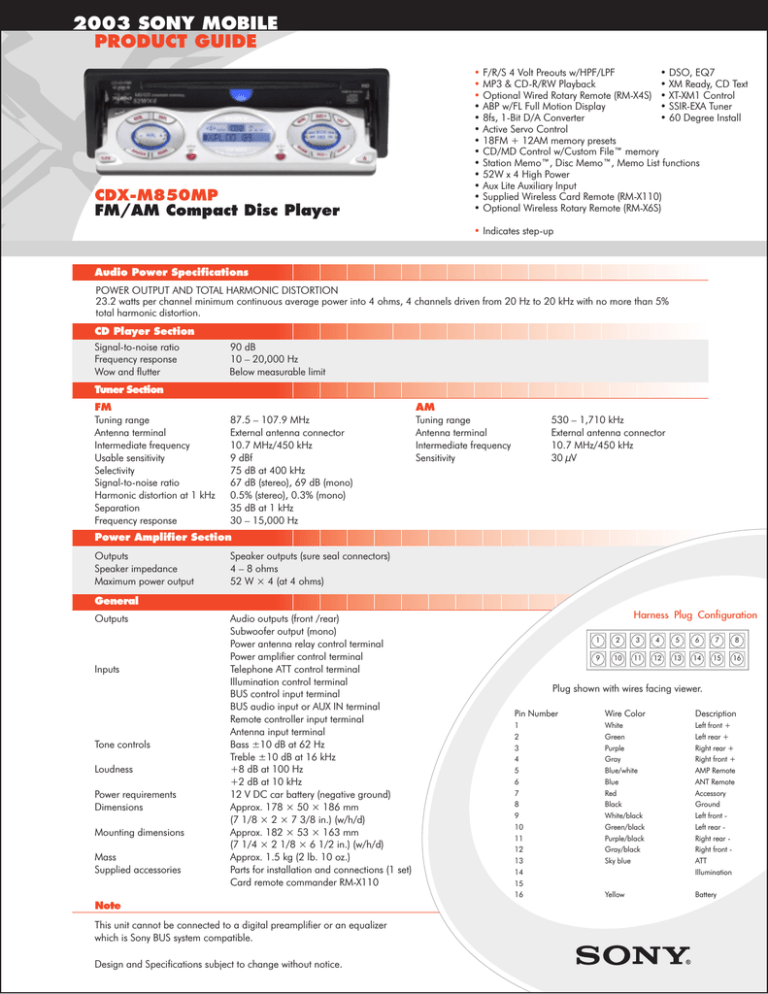

2003 SONY MOBILE
PRODUCT GUIDE
CDX-M850MP
FM/AM Compact Disc Player
• F/R/S 4 Volt Preouts w/HPF/LPF
• DSO, EQ7
• MP3 & CD-R/RW Playback
• XM Ready, CD Text
• Optional Wired Rotary Remote (RM-X4S) • XT-XM1 Control
• ABP w/FL Full Motion Display
• SSIR-EXA Tuner
• 8fs, 1-Bit D/A Converter
• 60 Degree Install
• Active Servo Control
• 18FM + 12AM memory presets
• CD/MD Control w/Custom File™ memory
• Station Memo™, Disc Memo™, Memo List functions
• 52W x 4 High Power
• Aux Lite Auxiliary Input
• Supplied Wireless Card Remote (RM-X110)
• Optional Wireless Rotary Remote (RM-X6S)
• Indicates step-up
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5%
total harmonic distortion.
CD Player Section
Signal-to-noise ratio
Frequency response
Wow and flutter
90 dB
10 – 20,000 Hz
Below measurable limit
Tuner Section
FM
Tuning range
Antenna terminal
Intermediate frequency
Usable sensitivity
Selectivity
Signal-to-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
87.5 – 107.9 MHz
External antenna connector
10.7 MHz/450 kHz
9 dBf
75 dB at 400 kHz
67 dB (stereo), 69 dB (mono)
0.5% (stereo), 0.3% (mono)
35 dB at 1 kHz
30 – 15,000 Hz
AM
Tuning range
Antenna terminal
Intermediate frequency
Sensitivity
530 – 1,710 kHz
External antenna connector
10.7 MHz/450 kHz
30 µV
Power Amplifier Section
Outputs
Speaker impedance
Maximum power output
Speaker outputs (sure seal connectors)
4 – 8 ohms
52 W × 4 (at 4 ohms)
General
Outputs
Inputs
Tone controls
Loudness
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Audio outputs (front /rear)
Subwoofer output (mono)
Power antenna relay control terminal
Power amplifier control terminal
Telephone ATT control terminal
Illumination control terminal
BUS control input terminal
BUS audio input or AUX IN terminal
Remote controller input terminal
Antenna input terminal
Bass ±10 dB at 62 Hz
Treble ±10 dB at 16 kHz
+8 dB at 100 Hz
+2 dB at 10 kHz
12 V DC car battery (negative ground)
Approx. 178 × 50 × 186 mm
(7 1/8 × 2 × 7 3/8 in.) (w/h/d)
Approx. 182 × 53 × 163 mm
(7 1/4 × 2 1/8 × 6 1/2 in.) (w/h/d)
Approx. 1.5 kg (2 lb. 10 oz.)
Parts for installation and connections (1 set)
Card remote commander RM-X110
Note
This unit cannot be connected to a digital preamplifier or an equalizer
which is Sony BUS system compatible.
Design and Specifications subject to change without notice.
Harness Plug Configuration
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug shown with wires facing viewer.
Pin Number
Wire Color
Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
White
Green
Purple
Gray
Blue/white
Blue
Red
Black
White/black
Green/black
Purple/black
Gray/black
Sky blue
Left front +
Left rear +
Right rear +
Right front +
AMP Remote
ANT Remote
Accessory
Ground
Left front Left rear Right rear Right front ATT
Illumination
Yellow
Battery
2003 SONY MOBILE
PRODUCT GUIDE
CDX-M850MP
FM/AM Compact Disc Player
178 mm (7”)
SUB OUT
(mono)
Audio OUT Front
50 mm (2”)
From car antenna
BUS Control IN
Remote IN
Audio OUT Rear
Fuse (10A)
BUS Audio IN/Aux IN
182 mm (7 1/4”)
88 mm (3 7/16”)
53 mm ( 2 1/16”)
47 mm (1 7/8”)
33 mm (1 5/16”)
50 mm (2”)
27 mm (1 1/16”)
163 mm (6 1/2”)
Design and Specifications subject to change without notice.
