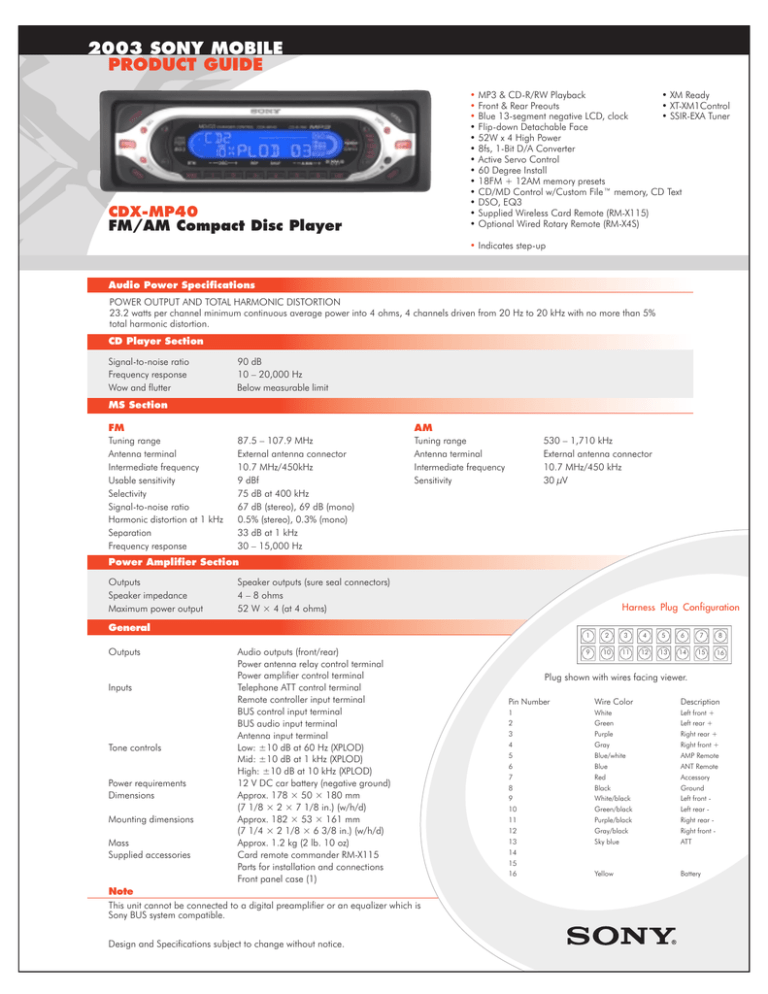

2003 SONY MOBILE
PRODUCT GUIDE
• MP3 & CD-R/RW Playback
• XM Ready
• Front & Rear Preouts
• XT-XM1Control
• Blue 13-segment negative LCD, clock
• SSIR-EXA Tuner
• Flip-down Detachable Face
• 52W x 4 High Power
• 8fs, 1-Bit D/A Converter
• Active Servo Control
• 60 Degree Install
• 18FM + 12AM memory presets
• CD/MD Control w/Custom File™ memory, CD Text
• DSO, EQ3
• Supplied Wireless Card Remote (RM-X115)
• Optional Wired Rotary Remote (RM-X4S)
CDX-MP40
FM/AM Compact Disc Player
• Indicates step-up
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5%
total harmonic distortion.
CD Player Section
Signal-to-noise ratio
Frequency response
Wow and flutter
90 dB
10 – 20,000 Hz
Below measurable limit
MS Section
FM
Tuning range
Antenna terminal
Intermediate frequency
Usable sensitivity
Selectivity
Signal-to-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
87.5 – 107.9 MHz
External antenna connector
10.7 MHz/450kHz
9 dBf
75 dB at 400 kHz
67 dB (stereo), 69 dB (mono)
0.5% (stereo), 0.3% (mono)
33 dB at 1 kHz
30 – 15,000 Hz
AM
Tuning range
Antenna terminal
Intermediate frequency
Sensitivity
530 – 1,710 kHz
External antenna connector
10.7 MHz/450 kHz
30 µV
Power Amplifier Section
Outputs
Speaker impedance
Maximum power output
Speaker outputs (sure seal connectors)
4 – 8 ohms
52 W × 4 (at 4 ohms)
Harness Plug Configuration
General
Outputs
Inputs
Tone controls
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Audio outputs (front/rear)
Power antenna relay control terminal
Power amplifier control terminal
Telephone ATT control terminal
Remote controller input terminal
BUS control input terminal
BUS audio input terminal
Antenna input terminal
Low: ±10 dB at 60 Hz (XPLOD)
Mid: ±10 dB at 1 kHz (XPLOD)
High: ±10 dB at 10 kHz (XPLOD)
12 V DC car battery (negative ground)
Approx. 178 × 50 × 180 mm
(7 1/8 × 2 × 7 1/8 in.) (w/h/d)
Approx. 182 × 53 × 161 mm
(7 1/4 × 2 1/8 × 6 3/8 in.) (w/h/d)
Approx. 1.2 kg (2 lb. 10 oz)
Card remote commander RM-X115
Parts for installation and connections
Front panel case (1)
Note
This unit cannot be connected to a digital preamplifier or an equalizer which is
Sony BUS system compatible.
Design and Specifications subject to change without notice.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug shown with wires facing viewer.
Pin Number
Wire Color
Description
1
2
3
4
5
White
Green
Purple
Gray
Blue/white
Left front +
Left rear +
Right rear +
Right front +
AMP Remote
6
7
8
9
10
11
12
13
14
15
16
Blue
Red
Black
White/black
Green/black
Purple/black
Gray/black
Sky blue
ANT Remote
Accessory
Ground
Left front Left rear Right rear Right front ATT
Yellow
Battery
2003 SONY MOBILE
PRODUCT GUIDE
CDX-MP40
FM/AM Compact Disc
178 mm (7”)
50 mm (2”)
Audio OUT Front
Remote IN
BUS Control IN
Audio OUT Rear
Fuse (10A)
BUS Audio IN
178 mm (7 1/4”)
88 mm (3 7/16”)
53 mm ( 2 1/16”)
47 mm (1 7/8”)
33 mm (1 5/16”)
50 mm (2”)
27 mm (1 1/16”)
162 mm (6 3/8”)
