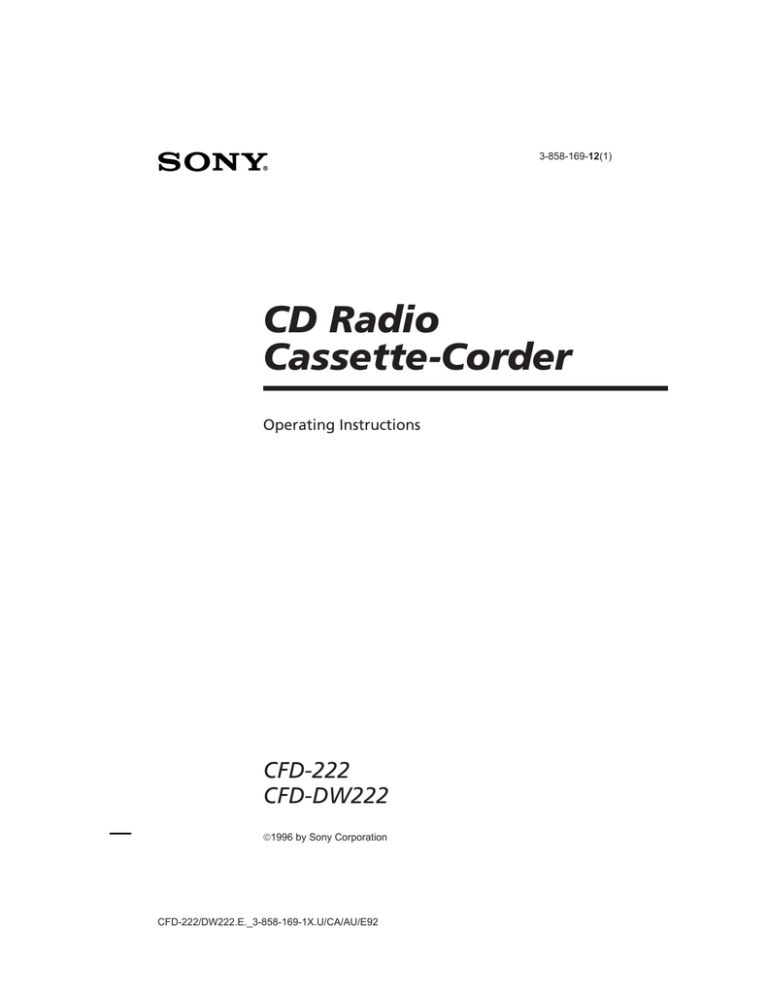

3-858-169-12(1)
CD Radio
Cassette-Corder
Operating Instructions
CFD-222
CFD-DW222
1996 by Sony Corporation
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Warning
Information
To prevent fire or shock hazard, do
not expose the player to rain or
moisture.
For customers in the United States
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced
radio/TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the product's enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
For customers in Canada
To prevent electric shock, match wide blade
of plug to wide slot, fully insert.
Owner's Record
The model number is located at the bottom
and the serial number is located in the battery
compartment.
Record the serial number in the space
provided below. Refer to these numbers
whenever you call upon your Sony dealer
regarding this product.
Warning
Do not install the appliance in a confined
space, such as a bookcase or built-in cabinet.
The FUNCTION selector is located on the top
exterior.
When you turn on the player, the OPR/BATT
indicator lights up.
2
Introduction
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Model No. CFD-222
Serial No. ________________________
Table of contents
Basic Operations
Basic Operations
4 Playing a CD
6 Listening to the radio
8 Playing a tape
10 Recording on a tape
The CD Player
12 Using the display
13 Locating a specific point in a
track
14 Playing tracks repeatedly
(Repeat Play)
15 Creating your own program
(Program Play)
Additional Information
18 Precautions
20 Troubleshooting
22 Maintenance
23 Specifications
Back cover
Index
Setting Up
16 Choosing the power sources
17 Adjusting the sound emphasis
(TONE/MEGA BASS)
Introduction
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
3
Basic Operations
Playing a CD
1
2,3
4
Connect the supplied AC power cord (see page 16).
1
Set FUNCTION to CD.
2
/CL
EN
OP
OS
E
Press OPEN/CLOSE down to
open the CD compartment and
place the CD on the CD
compartment.
With the label side up
3
Close the CD compartment.
/CL
EN
OP
4
OS
E
Basic Operations
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
4
Display
Press ^ .
Track number Playing time
Use these buttons for additional operations
VOLUME
^
FUNCTION
=/+
OPEN/CLOSE
AMS/SEARCH
To
Do this
Adjust the volume
Turn VOLUME.
Basic Operations
The player plays all the tracks
once.
p
Stop playback
Press p.
Pause playback
Press ^.
Press again to resume play
after pause.
Go to the next track
Press + AMS/SEARCH.
Go back to the previous track
Press =AMS/SEARCH.
Remove the CD
Press OPEN/CLOSE.
Turn off the player
Set FUNCTION to TAPE
(CD/RADIO OFF).
Basic Operations
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
5
Listening to the radio
1
2 3
Connect the supplied AC power cord (see page 16).
1
Set FUNCTION to RADIO.
2
Set BAND to FM or AM.
3
Turn TUNING to tune in a radio
station.
If the received FM stereo is too
weak, the reception becomes
monaural.
6
Basic Operations
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Use these buttons for additional operations
VOLUME
FUNCTION
Basic Operations
To
Do this
Adjust the volume
Turn VOLUME.
Turn off the radio
Set FUNCTION to TAPE
(CD/RADIO OFF).
To improve broadcast reception
Reorient the antenna for FM. Reorient the player itself
for AM.
For FM
For AM
Basic Operations
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
7
Playing a tape
1 3 2
3 2
Connect the supplied AC power cord (see page 16).
1
2
Set FUNCTION to TAPE(CD/
RADIO OFF).
Press p6 to open the tape
compartment on deck A or deck B
and insert a recorded tape. Use
TYPE I (normal) tape only. Close
the compartment.
With the side you want
to play facing forward
3
8
Press (.
Basic Operations
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Use these buttons for additional operations
P 0/) P
VOLUME 0/)
Note
During playback, do not
press buttons on the
other deck. Otherwise
the playback speed may
change.
p6
Basic Operations
p6
To
Do this
Adjust the volume
Turn VOLUME.
Stop playback
Press p6
Fast-forward or rewind the tape
Press ) or 0
Pause playback
Press P.
Press the button again to
resume play after pause.
Eject the cassette
Press p6.
Basic Operations
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
9
Recording on a tape
3
1
Connect the supplied AC power cord (see page 16).
1
Press p6 to open the tape
compartment on deck B and
insert a blank tape. Use TYPE I
(normal) tape only.
With the side you want to
record on facing forward
2
Select the program source you
want to record.
To record from the CD player, set
FUNCTION to CD and insert a
CD (see page 4).
To record from the radio, set
FUNCTION to RADIO, select the
band, and tune in the station you
want (see page 6).
To record from the tape, insert a
recorded tape into deck A (see
page 8) and set FUNCTION to
DUBBING.
10
Basic Operations
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Display
3
Start recording.
To record from the CD player or
the radio, press r on deck B (( is
depressed automatically.)
Deck A
To record from the tape, press P
and ( on deck A. (For high speed
dubbing, press HIGH SPEED
DUBBING instead.) Then press r
on deck B (( is depressed
automatically).
Deck B
Tips
• Adjusting the volume or
the audio emphasis (see
page 17) will not affect
the recording level.
• For the best results, use
the AC power as a
power source for
recording.
• If the AM program
makes a whistling
sound after you’ve
pressed r in step 3, set
the ISS (Interference
Suppress Switch) at the
rear to the position that
most decreases the
noise. Normally set the
switch to “2”.
• To erase a recording,
proceed as follows:
1 Insert the tape whose
recording you want to
erase into the tape
compartment on deck
B.
2 Set FUNCTION to
TAPE (CD/RADIO
OFF).
3 Press r on deck B.
Basic Operations
Deck B
Use these buttons for additional operations
p6
P
To
Press
Stop recording
p6 on deck B
Pause recording
P on deck B
Press the button again to
resume recording.
Basic Operations
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
11
The CD Player
Using the display
DISPLAY/ENT
You can check information about the CD
using the display.
Checking the total track numbers and playing
time
Press DISPLAY/ENT in stop mode.
Total playing time
Total track numbers
Checking the remaining time
Press DISPLAY/ENT while playing a CD.
To display
Press DISPLAY/ENT
Remaining time on the
current track*
Once
Remaining time on the CD
and the number of tracks left
Twice
Playing time and the current
track number
Three times
* For a track whose number is more than 20, the remaining
time appears as “- -:- -” in the display.
12
The CD Player
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Locating a specific
point in a track
=/+
AMS/SEARCH
The CD Player
You can locate a specific point in a track
while playing a CD using + or =
AMS/SEARCH.
To locate
Press
a point while listening to
the sound
+ (forward) or =
(backward) AMS/SEARCH
while playing and hold
down until you find the
point.
a point while observing
the display
+ (forward) or =
(backward) AMS/SEARCH
in pause and hold down
until you find the point.
The CD Player
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
13
Playing tracks
repeatedly
PLAY
=/+
^
MODE
AMS/SEARCH
FUNCTION
(Repeat Play)
You can play tracks repeatedly in
normal, shuffle or program play modes
(see page 15 ).
1
2
3
Set FUNCTION to CD.
Press PLAY MODE until the repeat mode you
want appears in the display.
To repeat
Select
a single track
REP 1
all tracks
REP ALL
tracks in random order
SHUF REP
programed tracks
PGM REP
Do either of the following to start repeat play:
• When you’ve selected REP1, select the track by
pressing + or = AMS/SEARCH and press
^.
• When you’ve selected REP ALL and SHUF REP,
press ^.
• When you’ve selected PGM REP, program
tracks (see step 3 on page 15), then press ^.
To cancel Repeat Play
Press PLAY MODE until “REP” disappears in the
display.
14
The CD Player
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Creating your
own program
FUNCTION DISPLAY/ENT
=/+
PLAY MODE
^
AMS/
SEARCH
(Program Play)
p
The CD Player
You can arrange the playing order of
the tracks on a CD.
Tips
• You can play the same
program again, since
the program is saved
until you open the CD
compartment or switch
FUNCTION.
• The current program
will be erased if you
switch FUNCTION or
open the CD
compartment.
• You can record your
own program. After
you’ve created the
program, insert a blank
tape into deck B and
press r on deck B to
start recording.
1
2
Set FUNCTION to CD.
3
Press + or = AMS/SEARCH then press
DISPLAY/ENT for the tracks you want to
program in the order you want. You can program
up to 20 tracks.
PressPLAY MODE until “PGM” appears in the
display.
Programed track
Playing order
4
Press ^ to start program play.
To cancel Program Play
Press PLAY MODE until “PGM” disappears in the
display.
To change the current program
Press p once if the CD is stopped and twice if the CD
is playing. The current program will be erased. Then
create a new program following the programing
procedure.
The CD Player
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
15
Setting Up
Choosing the
power sources
AC IN
You can use the AC power or batteries as
a power source.
Use the AC power source whenever you
record since recording consumes much
power.
Battery compartment
To a wall outlet
Connecting the AC power cord
Insert one end of the supplied AC power cord to the
AC IN socket located at the rear of the player, and the
other end to the wall outlet.
Tip
Replace the batteries
when the OPR/BATT
indicator dims or when
the player stops
operating. Replace all
the batteries with new
ones. Before you
replace the batteries, be
sure to take out the CD
from the player.
16
Using the player on batteries
Insert eight size D (R20) batteries (not supplied) into
the battery compartment.
To use the player on batteries, disconnect the AC
power cord from the player.
Setting Up
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Adjusting the
sound emphasis
TONE
MEGA BASS
(TONE/MEGA BASS)
You can adjust the tone and reinforce the
bass sound.
Setting Up
Adjusting the tone
Turn TONE.
Turn the control clockwise to enhance the high tone
and counterclockwise to enhance the low tone.
Reinforcing the bass sound
Press MEGA BASS.
To return to normal sound, press the button again.
Setting Up
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
17
Additional Information
Precautions
On safety
• As the laser beam used in the CD
player section is harmful to the eyes,
do not attempt to disassemble the
casing. Refer servicing to qualified
personnel only.
• Should any solid object or liquid fall
into the player, unplug the player, and
have it checked by qualified personnel
before operating it any further.
On power sources
• For AC operation, use the supplied
AC power cord; do not use any other
type.
• The player is not disconnected from
the AC power source (mains) as long
as it is connected to the wall outlet,
even if the player itself has been
turned off.
• Unplug the player from the wall outlet
when it is not to be used for an
extended period of time.
• For battery operation, use eight size D
(R20) batteries.
• When the batteries are not to be used,
remove them to avoid damage that
can be caused by battery leakage or
corrosion.
• The nameplate indicating operating
voltage, power consumption, etc. is
located at the bottom.
On placement
• Do not leave the player in a location
near heat sources, or in a place subject
to direct sunlight, excessive dust or
mechanical shock.
• Do not place the player on an inclined
or unstable place.
• Do not place anything within 10 mm
of the side of the cabinet. The
ventilation holes must be
unobstructed for the player to operate
properly and prolong the life of its
components.
• If the player is left in a car parked in
the sun, be sure to choose a location in
the car where the player will not be
subjected to the direct rays of the sun.
• Since a strong magnet is used for the
speakers, keep personal credit cards
using magnetic coding or springwound watches away from the player
to prevent possible damage from the
magnet.
On operation
• If the player is brought directly from a
cold to a warm location, or is placed in
a very damp room, moisture may
condense on the lenses inside the CD
player section. Should this occur, the
player will not operate properly. In
this case, remove the CD and wait
about an hour for the moisture to
evaporate.
• If the player has not been used for a
long time, set it in the playback mode
to warm it up for a few minutes before
inserting a cassette.
If you have any questions or problems
concerning your player, please consult
your nearest Sony dealer.
18
Additional Information
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Notes on CDs
• Before playing, clean the CD with a
cleaning cloth. Wipe the CD from the
center out.
Notes on cassettes
• Break off the cassette tab from side A
or B to prevent accidental recording. If
you want to reuse the tape for
recording, cover the broken tab with
adhesive tape.
Side A
• Do not use solvents such as benzine,
thinner, commercially available
cleaners or anti-static spray intended
for vinyl LPs.
• Do not expose the CD to direct
sunlight or heat sources such as hot
air ducts, nor leave it in a car parked
in direct sunlight as there can be a
considerable rise in temperature
inside the car.
Tab for side B
Tab for side A
• To record on a tape with its tab broken
off, cover the respective tab hole for
side A or B with adhesive tape.
• The use of a cassette with more than
90 minutes of play time is not
recommended except for long,
continuous recording or playback.
• Do not stick paper or sticker on the
CD, nor scratch the surface of the CD.
• After playing, store the CD in its case.
If there is a scratch, dirt or fingerprints
on the CD, it may cause tracking error.
Additional Information
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
19
Tape Player
CD Player
Radio
General
Troubleshooting
20
Symptom
Remedy
The power does not come on.
• Connect the AC power cord securely.
• Make sure the batteries are inserted correctly.
• Replace all the batteries with new ones if they
are weak.
There is no audio.
• Make sure the FUNCTION selector is set to the
function you want to operate.
• Adjust the volume.
• Unplug the headphones when listening through
speakers.
The audio is weak or has poor
quality.
• Replace all the batteries with new ones if they
are weak.
• Move the player away from the TV.
The picture of your TV becomes
unstable.
• If you are listening to an FM program near the
TV with an indoor antenna, move the player
away from the TV.
The CD does not play/“00 -- --”
lights in the display even when a
CD is in place.
•
•
•
•
The sound drops out.
• Reduce the volume.
• Clean the CD, or replace it if the CD is badly
damaged
• Place the player in a location free from
vibration.
The tape does not move when you
press an operation button.
• Close the cassette compartment securely.
The REC r button does not
function/The tape does not play.
• Make sure the safety tab on the cassette is in
place.
The tape does not erase completely.
• Clean the erasing heads (see page 22.)
• Replace all the batteries with new ones if they
are weak.
Make sure that the disc compartment is closed.
Place the CD with the label surface up.
Clean the CD.
Take out the CD and leave the disc
compartment open for about an hour to dry
moisture condensation.
• Make sure the FUNCTION selector is set to CD.
Additional Information
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Tape Player
Symptom
Remedy
The tape does not record.
• Make sure the tape is inserted properly.
• Make sure the safety tab of the cassette is
in place.
The audio is weak/The audio
quality is poor.
• Clean the heads, pinch roller and capstan
(See page 22).
• Demagnetize the heads using a
demagnetizer (see page 22).
The sound is distorted.
• The TYPE II (high position) or TYPE IV
(metal) tape is being used. Use TYPE I
(normal) tape only.
After trying the above remedies, if you still have problems, unplug the AC power cord and
remove all the batteries. After all the indications in the display disappear, plug the power cord
and insert the batteries again. If the problem persists, please consult your nearest Sony dealer.
Additional Information
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
21
Maintenance
Cleaning the lens
If the lens becomes dirty, it may cause a
skipping of sound during CD operation.
Clean with a commercially available
blower.
Cleaning the tape heads and tape path
Wipe the heads, the pinch roller and the
capstan with a cleaning swab slightly
moistened with cleaning fluid or alcohol
after every 10 hours of operation for
optimum playback and recording
quality. To make the best possible
recording, however, we recommend that
you clean all surfaces over which tape
travels before each recording.
Deck B
Capstan
Record/playback head
Erase head
Pinch roller
Lens
Deck A
Playback head
Capstan
Pinch roller
After cleaning, insert a tape when the
areas cleaned are completely dry.
22
Additional Information
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
Demagnetizing the tape heads
After 20 to 30 hours of use, enough
residual magnetism will have built up
on the tape heads to begin to cause loss
of high frequency sound and hiss. At
this time, you should demagnetize the
heads and all metal parts in the tape
path with a commercially available tape
head demagnetizer.
Cleaning the cabinet
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder, or solvent, such as alcohol or
benzine.
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION
With 4-ohm loads, both channels driven from
150 - 10,000 Hz; rated 2 W per channelminimum RMS power, with no more than
10 % total harmonic distortion in AC
operation.
Other Specifications
CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20 - 20,000 Hz +1/-2 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM: 87.6 - 107 MHz (Korean model)
87.6 - 108 MHz (Other models)
AM: 530 - 1,605 kHz (Australian model)
531 - 1,602 kHz (Korean model)
530 - 1,710 kHz (Other models)
Aerials
FM: Telescopic aerial
AM: Built-in ferrite bar aerial
Cassette-corder section
Recording system
4-track 2 channel stereo
Fast winding time
Approx. 140 s (sec.) with Sony cassette C-60
Frequency response
TYPE I (normal): 70 - 10,000 Hz
General
Speaker
Full range: 10 cm dia., 4 ohms, cone type (2)
Outputs
Headphones jack (stereo minijack)
For 16 - 68 ohms impedance headphones
Power output (excluding US model)
3 W + 3 W (at 4 ohms, 10 % harmonic
distortion in AC operation) (Korean model)
3 W + 3 W (at 4 ohms, 10 % harmonic
distortion) (Other models)
Power requirements
230 - 240 V AC, 50 Hz (Australian model)
220 V AC, 60 Hz (Korean model)
120 V AC, 60 Hz (Other models)
12 V DC, 8 size D (R20) batteries
Power consumption
AC 20 W (Korean model)
AC 26 W (Other models)
Battery life
For CD radio cassette-corder:
FM recording
Sony R20P: approx. 13.5 h
Sony alkaline LR20: approx. 19 h
Tape playback
Sony R20P: approx. 7.5 h
Sony alkaline LR20: approx. 12 h
CD playback
Sony R20P: approx. 2.5 h
Sony alkaline LR20: approx. 4.5 h
Dimensions
Approx. 580 × 164 × 250 mm (w/h/d)
(22 7⁄8 × 6 1⁄2 × 9 7⁄8 inches) (incl. projecting parts)
Mass
Approx. 5 kg (11 lb.) (incl. batteries)
Supplied accessory
AC power cord (1)
Design and specifications are subject to change without
notice.
Optional accessories
Sony MDR headphone series
Additional Information
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
23
Index
A
I, J, K
R
Adjusting
sound emphasis 17
tone 17
Improving broadcast
reception 7
Recording on a tape 10
Repeat Play 14
L
S
Listening to the radio 6
Locating a specific point in a
track 13
Selecting tracks 5
Setting up 16
Sound emphasis 17
M, N, O
T
MEGA BASS 17
Troubleshooting 20
TONE 17
B
Batteries for player 16
C
CD player 12
Choosing power sources 16
Cleaning
cabinet 22
tape heads and tape path
22
Creating your own
program 15
D, E, F, G, H
P, Q
Playing
a CD 4
a tape 8
tracks repeatedly 14
Power sources 16
Program Play 15
Demagnetizing the tape
heads 22
Display 12
Sony Corporation Printed in China
CFD-222/DW222.E._3-858-169-1X.U/CA/AU/E92
U, V, W, X, Y, Z
Using the display 12
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
