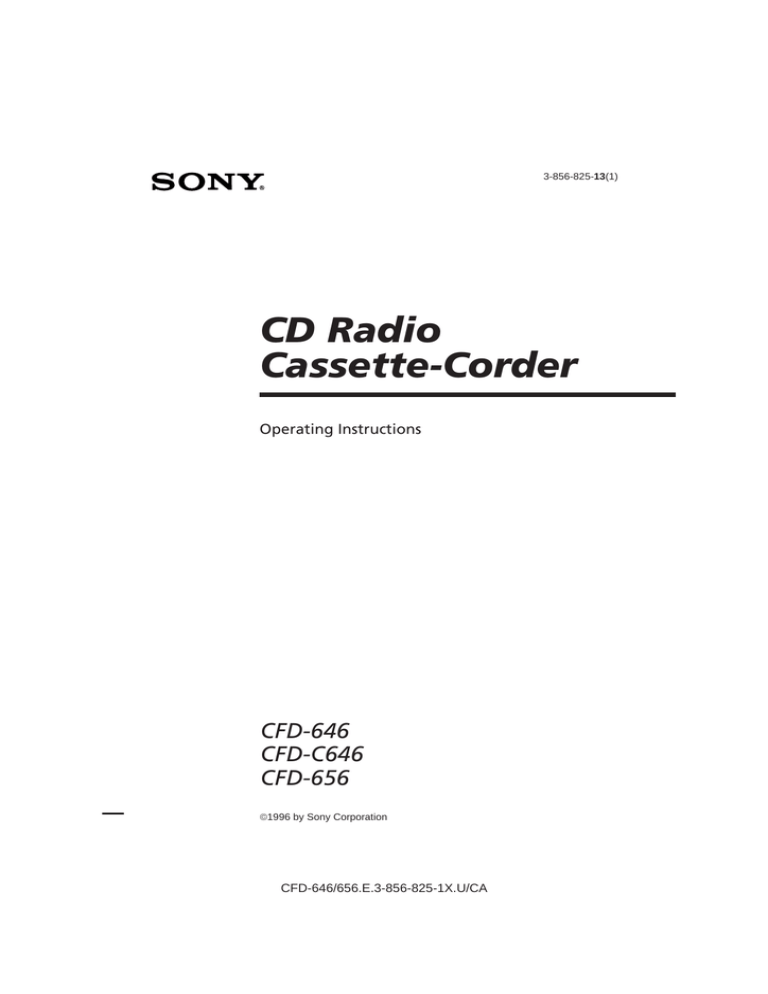

3-856-825-13(1)
CD Radio
Cassette-Corder
Operating Instructions
CFD-646
CFD-C646
CFD-656
1996 by Sony Corporation
CFD-646/656.E.3-856-825-1X.U/CA
Warning
Information
To prevent fire or shock hazard, do
not expose the player to rain or
moisture.
For customers in the United States
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced
radio/TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the product's enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
Warning
Do not install the appliance in a confined
space, such as a bookcase or built-in cabinet.
The model and serial numbers are located at
the rear of the CD radio cassette-corder.
Record these numbers in the spaces provided
below. Refer to these numbers whenever you
call upon your Sony dealer regarding this
product.
For customers in Canada
To prevent electric shock, match wide blade
of plug to wide slot, fully insert.
Model No. _______________________
CAUTION
About This Manual
The instructions in this manual are for
the CFD-646 and CFD-656. Before you
start reading, check your model number.
The CFD-646 is the model used for
illustration purposes.
You can use this player on AC power source
only. You cannot use it on batteries.
When you disconnect the AC power cord, the
memory data for the preset memory for radio
will be erased after about 60 minutes.
Re-enter them when you use the player again.
2
Owner's Record
Serial No. ________________________
Introduction
CFD-646/656.E.3-856-825-1X.U/CA
Table of contents
Basic Operations
Basic Operations
4
Playing a CD
6
Listening to the radio
8
Playing a tape
10 Recording on a tape
The CD Player
Setting Up
12 Using the display
13 Locating a specific track
14 Playing tracks repeatedly
(Repeat Play)
16 Playing tracks in random order
(Shuffle Play)
17 Creating your own program
(Program Play)
The Radio
21 Hooking up the system
24 Adjusting the audio emphasis
(Sound Mode/MEGA BASS)
Additional Information
25
27
29
30
31
Precautions
Troubleshooting
Maintenance
Specifications
Index
19 Presetting radio stations
20 Playing preset radio stations
Introduction
CFD-646/656.E.3-856-825-1X.U/CA
3
Basic Operations
Playing a CD
4
2
1,3
For hookup instructions, see pages 21 – 23.
1
Press OPEN/CLOSE (direct
power-on) and place the CD on
the CD tray. Be sure to align the
center of the CD with the center
of the CD tray.
Notes
• You can’t play 3-inch (8 cm)
CDs even with an adaptor for
single-CDs.
With the label side up
• Place one CD each only on the
CD tray. If you place one CD
over another and close the CD
tray, you will not be able to pull
out the tray.
2
3
4
Press DISC CHANGE to turn the
CD tray, and place second and
third CD on the CD tray.
Press OPEN/CLOSE to close the
CD tray.
Basic Operations
CFD-646/656.E.3-856-825-1X.U/CA
4
Press ^ .
Display
CD
Track Playing
number number time
Use these buttons for additional operations
POWER
DISC
1–3
Basic Operations
The player plays all the tracks of
all the CDs in the CD tray once.
OPEN/CLOSE
VOLUME +/–
AMS/SEARCH
=/+
p
^
Tips
• You can change a CD
while playing another.
Press OPEN/CLOSE to
pull out the CD tray
and change the CD.
Press OPEN/CLOSE
again to close the CD
tray. Do not close the
CD tray by hand, as
that may cause trouble.
• Next time you want to
listen to a CD, just
press ^. The player
turns on automatically
and starts playing the
CD.
To
Press
Adjust the volume
VOLUME +/–
Stop playback
p
Pause playback
^
Press again to resume play
after pause.
Go to the next track
AMS/SEARCH +
Go back to the previous track
AMS/SEARCH =
Remove the CD
OPEN/CLOSE
Turn on/off the player
POWER
Play only one CD
DISC 1, DISC 2 or DISC 3
(desired DISC SELECT)
Basic Operations
CFD-646/656.E.3-856-825-1X.U/CA
5
Listening to the radio
1
2
For hookup instructions, see pages 21 – 23.
1
2
Display
Press BAND until the band you
want appears in the display
(direct power-on).
Hold down TUNING +/– until
the frequency digits begin to
change in the display.
Indicates an FM stereo
broadcast.
The player automatically scans
the radio frequencies and stops
when it finds a clear station.
If you can't tune in a station,
press the button once at a time.
6
Basic Operations
CFD-646/656.E.3-856-825-1X.U/CA
Use these buttons for additional operations
POWER
VOLUME +/–
To
Basic Operations
Tips
• If the FM broadcast is
noisy, press PLAY
MODE/MONO/ST
until “Mono” appears
in the display and the
radio will play in
monaural.
• Next time you want to
listen to the radio, just
press RADIO or BAND.
The player turns on
automatically and
starts playing the
previous station.
PLAY MODE/
MONO/ST
Press
Adjust the volume
VOLUME +/–
Turn on/off the radio
POWER
To improve broadcast reception
Reorient the aerial for FM.
Reorient the AM loop aerial (supplied). Locate it
away from the player during AM program reception.
for FM
for AM
Basic Operations
CFD-646/656.E.3-856-825-1X.U/CA
7
Playing a tape
2 1
2 1
For hookup instructions, see pages 21 – 23.
1
Press p6 to open the tape
compartment and insert a
recorded tape. Close the
compartment.
With the side you want
to play facing forward
2
Press (.
Display
The player turns on (direct
power-on) and starts playing.
8
Basic Operations
CFD-646/656.E.3-856-825-1X.U/CA
Use these buttons for additional operations
POWER
VOLUME +/–
p6
P
0/)
p6
P
Note
During playback, do
not press buttons on
the other deck.
Otherwise the playback
speed may change.
To
Press
Adjust the volume
VOLUME +/–
Stop playback
p6
Fast-forward or rewind the tape
) or 0
Tips
• Next time you want to
listen to a tape, just
press (. The player
turns on automatically
and starts playing the
tape.
• For the best results, use
TYPE I (normal) tape.
Pause playback
P
Press the button again to
resume play after pause.
Eject the cassette
p6
Turn on/off the player
POWER
Basic Operations
CFD-646/656.E.3-856-825-1X.U/CA
Basic Operations
0/)
9
Recording on a tape
2
2
3
1
2
For hookup instructions, see pages 21 – 23.
1
Press p6 to open the tape
compartment on deck B and
insert a blank tape.
With the side you want to
record on facing forward
2
Select the program source you
want to record.
Display
To record from the CD player,
insert a CD (see page 4) and press
p on the CD section.
To record from the radio, press
BAND and tune in the station
you want (see page 6.)
Deck A
10
To record from a tape,
insert a recorded tape into
deck A and press P and
( simultaneously on
deck A.
Basic Operations
CFD-646/656.E.3-856-825-1X.U/CA
3
Deck B
Start recording.
Tips
• Adjusting the volume
or the audio emphasis
(see page 24) will not
affect the recording
level.
• For the best results, use
TYPE I (normal) tape
for recording.
• When recording from
two or three CDs, the
player pauses
recording and makes a
blank between the
tracks while CDs are
being changed, When
changing of CDs is
finished, recording
resumes automatically.
• To erase a recording,
proceed as follows:
1 Insert the tape whose
recording you want
to erase into the tape
compartment on deck
B.
2 Press TAPE until
“TAPE” appears in
the display window.
3 Press r on deck B.
Use these buttons for additional operations
POWER
p6
P
To
Press
Stop recording
p6 on deck B
Pause recording
P on deck B
Press the button again to
resume recording.
Turn on/off the player
POWER
Basic Operations
To record, press r on deck B ((
is depressed automatically).
Notes
• Do not press ) or
0 while recording on
a tape.
• If the AM program
makes a whistling
sound after you’ve
pressed r in step 3,
move the AM loop
aerial connected to the
player as far as
possible.
Basic Operations
CFD-646/656.E.3-856-825-1X.U/CA
11
The CD Player
Using the display
DISPLAY
You can check information about the CD
using the display.
Tip
When two or three CDs
are placed, select the
CD you want to check
information about by
pressing DISC 1, DISC
2 or DISC 3.
Checking the total track numbers and playing
time of the current CD
Press DISPLAY in stop mode.
Current CD number
Total track numbers
Total playing
time
Checking the remaining time of the current
CD
Press DISPLAY while playing a CD.
To display
Press DISPLAY
The current track number
and the remaining time
on the current track*
Once
Remaining time on the CD
and the number of tracks left
Twice
The current track number
and playing time
Three times
* For a track whose number is more than 16, the remaining
time appears as “– –:– –”.
12
The CD Player
CFD-646/656.E.3-856-825-1X.U/CA
Locating a specific
track
You can quickly locate any track using
the number buttons. You can also find a
specific point in a track while playing a
CD.
DISC 1 – 3
The CD Player
Number
buttons
=/+
Note
You cannot locate a
specific track if
“SHUF” or “PGM” is lit
in the display. Turn off
the indication by
pressing p.
Tip
When you locate a
track numbered over
10, press >10 first, then
the corresponding
number buttons.
Example:
To play track number
23, press >10 first, then
2 and 3.
To locate
Press
a specific track directly
one of the DISC 1 to 3
buttons to select the CD
and a number button of the
track.
a point while listening to
the sound
+ (forward) or =
(backward) while playing
and hold down until you
find the point.
a point while observing
the display
+ (forward) or =
(backward) in pause and
hold down until you find
the point.
The CD Player
CFD-646/656.E.3-856-825-1X.U/CA
13
Playing tracks
repeatedly
(Repeat Play)
PLAY MODE/
DISC
MONO/ST
1–3
REPEAT ^
You can play tracks repeatedly in
normal, shuffle or program play modes
(see pages 16 – 18.).
Playing a single CD repeatedly
1
Press REPEAT to display “REPEAT” in the
display.
2
Press DISC 1, 2, or 3 to select the CD to be played.
Playing two or three CDs repeatedly
1
Press REPEAT to display “ALL DISCS REPEAT”
in the display.
2
Press ^ to start repeat play.
Playing tracks of a single CD in random order
repeatedly
14
1
Press PLAY MODE/MONO/ST until “SHUF”
appears in the display.
2
Press REPEAT to display “REPEAT” in the
display.
3
Press DISC 1, 2, or 3 to select the CD to be played.
The CD Player
CFD-646/656.E.3-856-825-1X.U/CA
Playing tracks of two or three CDs in random
order repeatedly
Press PLAY MODE/MONO/ST until “ALL DISCS
SHUF” appears in the display.
2
Press REPEAT to display “REPEAT” in the
display.
3
Press ^ to start repeat play.
The CD Player
1
Playing programmed tracks repeatedly
1
2
Program tracks (see page steps 1 – 3 on page 17).
3
Press ^ to start repeat play.
Press REPEAT to display “REPEAT” in the
display.
To cancel repeat play
Press REPEAT until “REPEAT” disappears in the
display.
The CD Player
CFD-646/656.E.3-856-825-1X.U/CA
15
Playing tracks in
random order
(Shuffle Play)
PLAY MODE/ DISC 1 – 3 ^
MONO/ST
You can play tracks in random order.
Playing tracks of a single CD in random order
1
Press PLAY MODE/MONO/ST until “SHUF”
appears in the display.
2
Press DISC 1, 2, or 3 to select the CD to be played.
Playing tracks of two or three CDs in random
order
1
Press PLAY MODE/MONO/ST until “ALL DISCS
SHUF” appears in the display.
2
Press ^ to start shuffle play.
To cancel shuffle play
Press PLAY MODE/MONO/ST until “SHUF”
disappears in the display.
16
The CD Player
CFD-646/656.E.3-856-825-1X.U/CA
Creating your
own program
(Program Play)
MODE
DISC 1– 3
Number
buttons
The CD Player
You can make a program of up to 20
tracks from all the CDs in the order you
want them to be played.
CLEAR
(
Tips
• You can select the track
on the player. Press
AMS/SEARCH =/
+ then press
ENTER/ MEMORY
instead of the number
buttons.
• You can play the same
program again, since
the program is saved
until you open the CD
tray.
• You can record your
own program. After
you’ve created the
program, insert a blank
tape into deck B and
press r on deck B to
start recording.
1
Press MODE until “ALL DISCS PGM” appears in
the display.
2
3
Press DISC 1 to 3 to select the CD.
Press the number buttons for the tracks you want
to program in the order you want. You can
program up to 20 tracks.
CD number
Track number
Playing order
If you made a mistake, press CLEAR and re-enter
the track number.
To program additional tracks from another CD,
repeat steps 2 and 3.
4
Press ( to start program play.
continued
The CD Player
CFD-646/656.E.3-856-825-1X.U/CA
17
Creating your own program (Program Play) (continued)
To cancel Program Play
Press MODE until “PGM” disappears in the display.
To check the order of tracks before play
Press ENTER/MEMORY on the player.
Every time you press the button, the track number
appears in the programed order.
To change the current program
18
To
Do this
Erase the last track in
the program
1 Press CLEAR. Every time you
press the button, the last track
in the program is cleared.
2 Re-enter the track numbers.
Change the whole
program completely.
Press p . Then create a new
program following the
programing procedure.
The CD Player
CFD-646/656.E.3-856-825-1X.U/CA
The Radio
Presetting radio
stations
Number
buttons
The Radio
You can store radio stations into the
player's memory. You can preset up to
20 radio stations, 10 for each FM or AM
in any order.
TUNE +/–
BAND
Tip
To preset radio stations
on the player, proceed
as follows:
1 Select the band and
tune in a station you
want.
2 Hold down ENTER/
MEMORY for about
2 seconds.
3 Decide on a preset
number for the
station (1 to 10) by
pressing PRESET
+/–.
4 Press ENTER/
MEMORY.
1
Press BAND until the band you want appears in
the display.
2
3
Tune in a station you want.
Hold down the number buttons that you want to
preset the new station for about 2 seconds.
The new station replaces the old one.
The Radio
CFD-646/656.E.3-856-825-1X.U/CA
19
Playing preset
radio stations
Once you've preset the stations, use the
number buttons to tune in your favorite
stations.
Number
buttons
BAND
Tip
You can tune in a
preset station with the
player. Use PRESET
+/– instead of the
number buttons.
20
1
2
Press BAND to select FM or AM.
Press the number buttons to tune in a stored
station.
The Radio
CFD-646/656.E.3-856-825-1X.U/CA
Setting Up
Hooking up the
Surround speaker
system
(CFD-656 only)
AM loop
aerial
Make sure you turn off the
power before making any
connections.
Surround speaker
(CFD-656 only)
2 AM aerial terminal
Setting Up
Right
speaker
1 Speaker terminals
Speaker cords
CFD-656
Tips
• To detach the speakers,
slide the speaker box all
the way up and away
from the player.
• Connect the speakers
for this unit only to the
speaker terminals of
this unit. If you connect
any other speakers or
equipment,
malfunction may occur.
Left speaker
3 To a wall outlet
1 Hooking up the speakers
1
Align the grooves and slide the speaker box down
until it snaps into place.
Note
When transporting, make
sure to carry the player.
Do not carry the speakers
since they are not locked.
continued
Setting Up
CFD-646/656.E.3-856-825-1X.U/CA
21
Hooking up the system (continued)
2
Connect the black wires to (–) minus and the red
wires to (+) plus terminals; the right speaker wires
to the R and the left speaker wires to the L
terminals.
Connecting surround speakers (CFD-656 only)
You can enjoy a rich and spacious effect by connecting
surround speakers.
Connect the black wires to (–) minus and the grey
wires to (+) plus terminals.
To turn off the surround effect, disconnect the
surround speakers.
2 Hooking up the aerial
AM loop aerial (supplied)
Reorient the aerial to improve broadcast reception.
Setting up the AM loop aerial
22
Setting Up
CFD-646/656.E.3-856-825-1X.U/CA
3 Connecting the AC power cord
Insert the AC power cord to the wall outlet.
The POWER STANDBY indicator lights up to indicate
when the player is connected to the power source. The
indicator lights regardless of whether the power is on
or off (Australian model only).
4 Inserting batteries into the remote
Setting Up
Insert two size AA (R6) batteries (not supplied)
Replacing batteries
With normal use, the batteries should last for about six
months. When the remote no longer operates the
player, replace all the batteries with new ones.
Setting Up
CFD-646/656.E.3-856-825-1X.U/CA
23
Adjusting the
audio emphasis
(Sound Mode/MEGA BASS)
MEGA BASS SOUND
You can adjust the audio emphasis of the
sound you are listening to.
Selecting the sound characteristic
Press SOUND to select the audio emphasis you want.
Choose
To get
Normal mode
(no indication)
The whole dynamic range for music
such as classical music
Powerful, clean sounds, emphasizing
low and high range audio.
The presence of vocals, stressing
middle range audio.
Light, bright suonds emphasizing
high and middle range audio.
Reinforcing the bass sound
Press MEGA BASS.
“MEGA BASS” appears in the display. To return to
normal sound, press the button again.
24
Setting Up
CFD-646/656.E.3-856-825-1X.U/CA
Additional Information
Precautions
On safety
• As the laser beam used in the CD
player section is harmful to the eyes,
do not attempt to disassemble the
casing. Refer servicing to qualified
personnel only.
• Should any solid object or liquid fall
into the player, unplug the player, and
have it checked by qualified personnel
before operating it any further.
On power sources
• For AC operation use the supplied AC
power cord; do not use any other type.
• The player is not disconnected from
the AC power source (mains) as long
as it is connected to the wall outlet,
even if the player itself has been
turned off.
• Unplug the player from the wall outlet
when it is not to be used for an
extended period of time.
• When the batteries are not to be used,
remove them to avoid damage that
can be caused by battery leakage or
corrosion.
• The nameplate indicating operating
voltage, power consumption, etc. is
located at the rear.
On placement
• Do not leave the player in a location
near heat sources, or in a place subject
to direct sunlight, excessive dust or
mechanical shock.
• Do not place the player on an inclined
or unstable place.
• Do not place anything within 10 mm
of the side of the cabinet. The
ventilation holes must be
unobstructed for the player to operate
properly and prolong the life of its
components.
• If the player is left in a car parked in
the sun, be sure to choose a location in
the car where the player will not be
subjected to the direct rays of the sun.
• Since a strong magnet is used for the
speakers, keep personal credit cards
using magnetic coding or springwound watches away from the player
to prevent possible damage from the
magnet.
• When you move the player, be sure to
first remove the CD(s), otherwise, you
may not be able to take out the CD(s)
later or trouble with the unit may
occur.
continued
Additional Information
CFD-646/656.E.3-856-825-1X.U/CA
25
Precautions (continued)
On operation
• If the player is brought directly from a
cold to a warm location, or is placed in
a very damp room, moisture may
condense on the lens inside the CD
player section. Should this occur, the
player will not operate properly. In
this case, remove the CD and wait
about an hour for the moisture to
evaporate.
• If the player has not been used for a
long time, set it in the playback mode
to warm it up for a few minutes before
inserting a cassette.
If you have any questions or problems
concerning your player, please consult
your nearest Sony dealer.
Notes on CDs
• Before playing, clean the CD with a
cleaning cloth. Wipe the CD from the
center out.
• Do not stick paper or sticker on the
CD, nor scratch the surface of the CD.
• After playing, store the CD in its case.
If there is a scratch, dirt or fingerprints
on the CD, it may cause tracking error.
Notes on cassettes
• Break off the cassette tab from side A
or B to prevent accidental recording. If
you want to reuse the tape for
recording, cover the broken tab with
adhesive tape.
Side A
Tab for side B
• To record on a tape with its tab broken
off, cover the respective tab hole for
side A or B with adhesive tape.
• The use of a cassette with more than
90 minutes of play time is not
recommended except for long,
continuous recording or playback.
• Do not use solvents such as benzine,
thinner, commercially available
cleaners or anti-static spray intended
for vinyl LPs.
• Do not expose the CD to direct
sunlight or heat sources such as hot
air ducts, nor leave it in a car parked
in direct sunlight as there can be a
considerable rise in temperature
inside the car.
26
Tab for side A
Additional Information
CFD-646/656.E.3-856-825-1X.U/CA
Symptom
Remedy
The power is not on.
• Connect the AC power cord to a wall outlet
securely.
There is no audio.
• Make sure the function you want to use appears
in the display window.
• Adjust the volume.
• Unplug the headphones when listening through
speakers.
“no disc“ lights in the display even
when a CD is in place.
• Insert the CD with the label surface up.
The CD does not play.
•
•
•
•
The sound drops out.
• Reduce the volume.
• Clean the CD, or replace it if the CD is badly
damaged
• Place the player in a location free from
vibration.
The audio is weak or has poor
quality.
• Move the player away from the TV.
• If you are using the remote while listening to
AM radio, noise may be heard. This is
unavoidable.
The picture of your TV becomes
unstable.
• If you are listening to an FM program near the
TV with an indoor antenna, move the player
away from the TV.
Radio
CD Player
General
Troubleshooting
Make sure that the CD tray is closed.
Place the CD with the label surface up.
Clean the CD.
Take out the CD and leave the CD tray open for
about an hour to dry moisture condensation.
• Make sure “CD” appears in the display.
continued
Additional Information
CFD-646/656.E.3-856-825-1X.U/CA
27
Symptom
Remedy
The tape does not move when you
press an operation button.
• Close the cassette compartment securely.
The REC r button does not
function/The tape does not play.
• Make sure the safety tab on the cassette is in
place.
• Make sure “TAPE” appears in the display.
The tape does not erase completely.
• Clean the erasing head (see page 29.)
The tape does not record.
• Make sure the tape is inserted properly.
• Make sure the safety tab of the cassette is in
place.
The audio is weak/The audio
quality is poor.
• Clean the heads, pinch rollers and capstans (See
page 29).
• Demagnetize the heads using a demagnetizer
(see page 29).
The sound is distorted.
• The TYPE II (high position) or TYPE IV (metal)
tape is being used. Use TYPE I (normal) tape
only.
The remote does not function.
• Replace all the batteries in the remote with new
ones if they are weak.
• Make sure that you are pointing the remote at
the remote sensor on the player.
• Remove any obstacles in the path of the remote
and the player.
• Make sure the remote sensor is not exposed to
strong light such as direct sunlight or
fluorescent lamp light.
• Move closer to the player when using the
remote.
There is no surround effect (CFD656 only).
• Connect two supplied surround speakers.
Others
Remote
Tape Player
Troubleshooting (continued)
The player uses a built-in micro computer for its various operations. Due to change in power
supply conditions, etc., operation way sometimes become unstable. After trying the above
remedies, if the player still does not function properly, press RESET at the rear with a pointed
material. If the problem persists, please consult your nearest Sony dealer.
28
Additional Information
CFD-646/656.E.3-856-825-1X.U/CA
Maintenance
Cleaning the tape heads and tape
path
Wipe the heads, the pinch rollers and
the capstans with a cleaning swab
slightly moistened with cleaning fluid or
alcohol after every 10 hours of operation
for optimum playback and recording
quality. To make the best possible
recording, however, we recommend that
you clean all surfaces over which tape
travels before each recording.
Deck A
Playback head
Capstan
Demagnetizing the tape heads
After 20 to 30 hours of use, enough
residual magnetism will have built up
on the tape heads to begin to cause loss
of high frequency sound and hiss. At
this time, you should demagnetize the
heads and all metal parts in the tape
path with a commercially available tape
head demagnetizer.
Cleaning the cabinet
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder, or solvent, such as alcohol or
benzine.
Pinch roller
Deck B
Record/playback head
Erase head
Capstan
Pinch roller
After cleaning, insert a tape when the
areas cleaned are completely dry.
Additional Information
CFD-646/656.E.3-856-825-1X.U/CA
29
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION
With 3.2-ohm loads, both channel driven
from 150 – 8,000 Hz; rated 4 W per channelminimum RMS power, with no more than
10 % total harmonic distortion in AC
operation.
Other Specifications
CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of channels
2
Frequency response
20 – 20,000 Hz +1/–2 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM: 87.6 – 108 MHz
AM: 531 – 1,602 kHz (Australian model)
530 – 1,710 kHz (Other models)
Aerials
FM: Telescopic aerial
AM: External aerial terminal
General
Speaker
Full range: 10 cm (4 in.) dia.,
3.2 ohms, cone type (2)
Surround speaker (CFD-656 only)
10 cm (4 in.) dia., 8 ohms, cone type (2)
Outputs
Headphones jack (stereo minijack):
For 16 – 64 ohms impedance headphones
Speaker terminals: For supplied 3.2 homs
impedance speaker
Surround speaker terminals (CFD-656 only):
Terminals for supplied 8 ohms impedance speaker
Power output (excluding US model)
4.3 W + 4.3 W (at 3.2 ohm, 10 % harmonic
distortion)
Power requirements
For CD radio cassette-corder:
230-240 V AC, 50 Hz (Australian model)
120 V AC, 60 Hz (Other models)
For remote:
3 V DC, 2 size AA (R6) batteries
Power consumption
AC 27 W
Dimensions
Approx. 646 × 286.5 × 355 mm (w/h/d)
(25 1⁄2× 11 3⁄8 × 14 inches) (incl. projecting parts)
Mass
Approx. 10.5 kg (23 lb. 2 oz)
Supplied accessories
Remote control (1)
AM loop aerial (1)
Surround speakers (2) (CFD-656 only)
Design and specifications are subject to change without
notice.
Optional accessories
Sony MDR headphone series
Cassette-corder section
Recording system
4-track 2 channel stereo
Fast winding time
Approx. 140 s (sec.) with Sony cassette C-60
Frequency response
TYPE I (normal): 80 – 10,000 Hz
30
Additional Information
CFD-646/656.E.3-856-825-1X.U/CA
Index
A
L
S
Audio emphasis 24
Listening to the radio 6
Locating a specific track 13
Selecting
audio emphasis 24
tracks 13
Setting up 21
Shuffle Play 16
Sound mode 24
SORROUND 22
B
M, N, O
Batteries for remote 23
MEGA BASS 24
C
CD player 12
Cleaning
cabinet 29
tape heads and tape
path 29
Connecting
AC power cord 23
speakers 21
Creating your own program
17
D, E, F, G, H
Demagnetizing the tape
heads 29
Display 12
P, Q
Playing
a CD 4
a tape 8
preset radio stations 20
tracks repeatedly 14
Presetting radio stations 19
Program Play 17
T
Troubleshooting 27
U, V, W, X, Y, Z
Using the display 12
R
Radio stations
playing 20
presetting 19
Recording
on a tape 10
Repeat Play 14
I, J, K
Improving broadcast
reception 7
Additional Information
CFD-646/656.E.3-856-825-1X.U/CA
31
Sony Corporation Printed in China
CFD-646/656.E.3-856-825-1X.U/CA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
