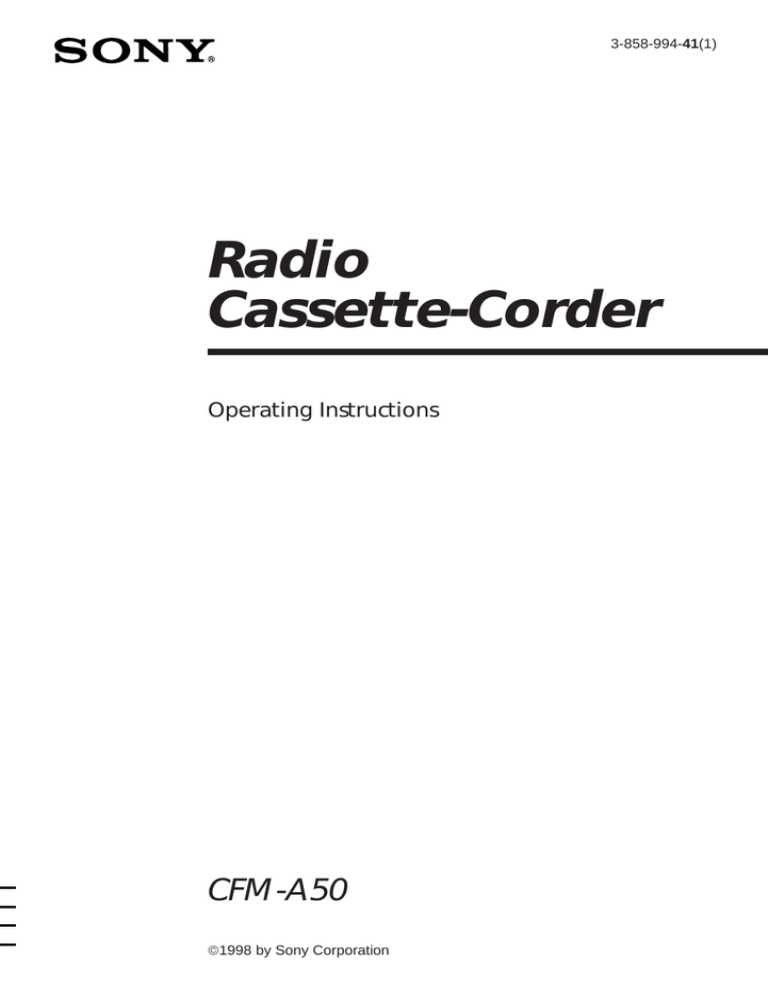

3-858-994-41(1)
Radio
Cassette-Corder
Operating Instructions
CFM-A50
1998 by Sony Corporation
WARNING
To prevent fire or shock
hazard, do not expose
the player to rain or
moisture.
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
Owner's Record
The model number is located at the
bottom and the serial number is located
in the battery compartment lid. Record
the serial number in the space provided
below. Refer to them whenever you call
upon your Sony dealer regarding this
product.
Model No. CFM-A50
Serial No.
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric shock
to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
WARNING
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
The FUNCTION selector is located at
the top panel.
When you turn on the player,
the OPR/BATT indicator lights up.
2
Introduction
Table of contents
Basic Operations
4 Listening to the radio
6 Playing a tape
8 Recording on a tape
Useful Functions
10 Easy listening adjustment
10 Slow playback
Setting Up
11 Choosing the power sources
Additional Information
12
13
14
14
15
16
Precautions
Troubleshooting
Maintenance
Specifications
Location and function of controls
Index
Introduction
3
Basic Operations
Listening to the radio
Dial scale
2 3
1
Connect the supplied AC power cord (see page 11).
1
Set FUNCTION to RADIO.
FUNCTION
RADIO
2
BAND
FM
AM
3
4
TUNING
Basic Operations
Set BAND to FM or AM.
The dial scale switches to the
band you have chosen.
FM
AM
Turn TUNING to tune in a radio
station.
88
92
96
100
104
108
53 60 70 80 100 120 140 170
MHz
x10kHz
Use these buttons for additional operations
LIGHT
Marker
Tips
• To listen by the
earphone, connect the
earphone to the @
(earphone) jack.
• There is a earphone box
on the left side of this
equipment. You may
keep the supplied
earphone in this box.
FUNCTION
VOLUME
To
Do this
Adjust the volume
Turn VOLUME.
Turn off the radio
Set FUNCTION to
TAPE (RADIO OFF).
Basic Operations
Dial scale
To improve broadcast reception
Reorient the antenna for FM. Reorient the player itself
for AM.
For AM
For FM
To mark the broadcast station you often listen to
If you set the marker to the frequency you often listen
to, you can easily tune in to this frequency after
listening to other stations.
2
3
4
5
6
70 80 100 120 140
Using the light
If the dial scale is hard to see, press LIGHT. The light
will be lit for 7 seconds.
Basic Operations
5
Playing a tape
2
3
1
Connect the supplied AC power cord (see page 11).
1
Set FUNCTION to TAPE (RADIO
OFF).
FUNCTION
TAPE
(RADIO OFF)
2
STOP/EJECT
3
6
Press p6 STOP/EJECT to open
the tape compartment and insert
a recorded tape. Use TYPE I
(normal) tape only. Close the
compartment.
Press 9 PLAY.
PLAY
Basic Operations
With the side you want
to play facing forward
Use these buttons for additional operations
P PAUSE
VOLUME
0 FF/) REW
Tip
When a cassette is
inserted, the cassette
sensor button (Ø/TAPE
IN) comes out. You can
touch the cassette
compartment lid to find
out if the cassette is
inserted or not.
Basic Operations
p6 STOP/EJECT
Cassette
sensor
button
To
Do this
Adjust the volume
Turn VOLUME.
Stop playback
Press p6 STOP/EJECT
Fast-forward or
rewind the tape*
Press 0 FF or ) REW
Pause playback
Press P PAUSE
Press the button again to
resume play after pause.
Eject the cassette
Press p6 STOP/EJECT
*For the side facing forward
Basic Operations
7
Recording on a tape
1
3 2
Built-in
microphone
Connect the supplied AC power cord (see page 11).
1
STOP/EJECT
2
Select the program source you
want to record.
FUNCTION
RADIO
FUNCTION
TAPE
(RADIO OFF)
3
8
Press p6 STOP/EJECT to open With the side you want to
the tape compartment and insert record on facing forward
a blank tape. Use TYPE I
(normal) tape only.
REC
Basic Operations
To record from the radio, set
FUNCTION to RADIO, set
BAND to FM or AM and tune in
the station you want (see page 4).
To record from the built-in
microphone, set FUNCTION to
TAPE (RADIO OFF).
Press REC to start recording.
(9 PLAY is depressed
automatically).
Notes
• If the SLOW
PLAYBACK button is
pressed during
recording the tape speed
will not change and
recording will stay at
normal speed.
• You cannot listen
through the earphone
when recording from
the built-in microphone.
Use these buttons for additional operations
P PAUSE
p6 STOP/EJECT
Basic Operations
Tips
• Adjusting the volume or
the tone will not affect
the recording level.
• If the AM program
makes a whistling
sound after you have
pressed the REC button
in step 3, set the ISS
(Interference Suppress
Switch) at the rear to the
position that most
decreases the noise.
• For the best results, use
the AC power as a
power source for
recording.
To
Press
Stop recording
p6 STOP/EJECT
Pause recording
P PAUSE
Press the button again to
resume recording.
Basic Operations
9
Useful Functions
Easy listening
adjustment
Slow playback
This function lets you adjust the sound
to hear the main subject easier.
You can slow down the tape speed by
about 15% to the normal tape speed.
EASY LISTENING ADJUSTMENT switch
EASY LISTENING
ADJUSTMENT control
SLOW PLAYBACK
1
2
Playback a tape or turn on the radio.
To slow down the tape speed
Set the EASY LISTENING
ADJUSTMENT switch to ON.
Press SLOW PLAYBACK to “ØON” during
playback.
3
Turn the EASY LISTENING
ADJUSTMENT control to adjust to
the tone of your choice.
To cancel the slow tape speed
Set the EASY LISTENING
ADJUSTMENT switch to OFF to cancel
Easy Listening.
How the easy listening
adjustment works
Sounds could be distinguished
by their frequencies. When you
have recorded voices of three
people mixed together, for
example, you will be able to
hear the voice of a certain
person better by emphasizing
the frequency range matching
to the tone of his/her voice.
Press SLOW PLAYBACK again to “øOFF”.
Note
You cannot use SLOW PLAYBACK on other
modes.
EASY LISTENING ADJUSTMENT switch is set to OFF:
Normal
Sound
Intensity
PERSON
PERSON
PERSON
A
B
C
Sound
Frequency
EASY LISTENING ADJUSTMENT switch is set to ON:
Adjusted to match person B.
Sound
Intensity
The voice of person B
becomes larger for easy
listening
PERSON
PERSON
A
10
SettingFunctions
Useful
Up
B
PERSON
C
Sound
Frequency
Setting Up
Choosing the
power sources
AC IN
You can use the AC power or
batteries as a power source.
Battery compartment
To the mains
Connecting the AC power cord
Insert one end of the supplied AC power cord to the
AC IN socket located at the rear of the player, and the
other end to the mains.
Useful Functions/Setting Up
Use the AC power source whenever
you record, since recording
consumes much power.
Using the player on batteries
Insert four R20 (size D)
batteries (not supplied)
into the battery
compartment.
To use the player on
batteries, disconnect the
AC power cord from the
player.
When to replace batteries
Replace the batteries when the OPR/BATT indicator
dims or when the player stops operating. Replace all
the batteries with new ones.
Setting Up
11
Additional Information
Precautions
On safety
Should any solid object or liquid fall into
the player, unplug the player, and have
it checked by qualified personnel before
operating it any further.
On power sources
• For AC operation, use the supplied
AC power cord; do not use any other
type.
• The player is not disconnected from
the mains as long as it is connected to
the mains, even if the player itself has
been turned off.
• For battery operation, use four R20
(size D) batteries.
• When the batteries are not to be used,
remove them to avoid damage that
can be caused by battery leakage or
corrosion.
• The nameplate indicating operating
voltage, power consumption, etc. is
located at the bottom.
On placement
• Do not leave the player in a location
near heat sources, or in a place subject
to direct sunlight, excessive dust or
mechanical shock.
• Do not place the player on an inclined
or unstable place.
• Do not place anything within 10 mm
of the side of the cabinet. The
ventilation holes must be
unobstructed for the player to operate
properly and prolong the life of its
components.
• If the player is left in a car parked in
the sun, be sure to choose a location in
the car where the player will not be
subjected to the direct rays of the sun.
12
Additional Information
• Since a strong magnet is used for the
speakers, keep personal credit cards
using magnetic coding or springwound watches away from the player
to prevent possible damage from the
magnet.
On operation
If the player has not been used for a long
time, set it in the playback mode to
warm it up for a few minutes before
inserting a cassette.
If you have any questions or problems
concerning your player, please consult
your nearest Sony dealer.
Notes on cassettes
• Break off the cassette tab from side A
or B to prevent accidental recording.
If you want to reuse the tape for
recording, cover the broken tab with
adhesive tape.
Side A
Tab for side A
Tab for side B
• To record on a tape with its tab broken
off, cover the respective tab hole for
side A or B with adhesive tape.
• The use of a cassette with more than
90 minutes of play time is not
recommended except for long,
continuous recording or playback.
Troubleshooting
• Connect the AC power cord securely.
• Make sure the batteries are inserted correctly.
• Replace all the batteries with new ones if they
are weak.
• Adjust the volume.
• Unplug the earphone when listening through
speakers.
The audio is weak or has poor
quality.
• Replace all the batteries with new ones if they
are weak.
• Move the player away from the TV.
The picture of your TV becomes
unstable.
• If you are listening to an FM program near the
TV with an indoor antenna, move the player
away from the TV.
The tape does not move when you
press an operation button.
• Close the cassette compartment securely.
The REC button does not function/
The tape does not move.
• Make sure the safety tab on the cassette is in
place.
The tape does not erase completely.
• Clean the erasing head (see page 14).
The audio is weak/The audio
quality is poor.
• Press SLOW PLAYBACK to “øOFF”.
• Replace all the batteries with new ones if they
are weak.
• Clean the heads, pinch roller and capstan (see
page 14).
• Demagnetize the heads using a demagnetizer
(see page 14).
The sound is distorted.
• The TYPE II (high position) or TYPE IV (metal)
tape is being used. Use TYPE I (normal) tape
only.
Tape Player
Radio
General
Remedy
There is no audio.
Additional Information
Additional Information
Symptom
13
Maintenance
Specifications
Cleaning the tape heads and tape
path
Wipe the heads, the pinch roller and the
capstan with a cleaning swab slightly
moistened with cleaning fluid or alcohol
after every 10 hours of operation for
optimum playback and recording
quality. To make the best possible
recording, however, we recommend that
you clean all surfaces over which tape
travels before each recording.
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 4.0-ohm loads, from 125-8,000Hz;
rated 2.1 W minimum RMS power,
with no more than 10% total harmonic distortion in AC
operation.
Radio section
Frequency range
FM 87.6 - 108 MHz
AM 530 - 1,710 kHz
Aerials
FM: Telescopic aerial
AM: Built-in ferrite bar aerial
Cassette-corder section
Pinch roller
Erase head
Recording system
2-track 1 channel monaural
Fast winding time
Approx. 120 s (sec.) with Sony cassette C-60
Frequency response
TYPE I (normal): 100- 8,000 Hz
General
Record/playback head
Capstan
Cotton swab
After cleaning, insert a tape when the
areas cleaned are completely dry.
Demagnetizing the tape heads
After 20 to 30 hours of use, enough
residual magnetism will have built up
on the tape heads to begin to cause loss
of high frequency sound and hiss. At
this time, you should demagnetize the
heads and all metal parts in the tape
path with a commercially available tape
head demagnetizer.
Cleaning the cabinet
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder, or solvent, such as alcohol or
benzine.
14
Additional Information
Speaker
Full range: 9.2 cm dia., 4 ohms, cone type (1)
Outputs
Earphone jack (minijack)
For 32 ohms impedance earphone
Power requirements
120 V AC, 60 Hz
6 V DC, four R20 (size D) batteries
Power consumption
AC 6 W
Battery life
FM recording
Sony R20P:
approx. 13 h
Sony alkaline LR20:
approx. 35 h
Tape playback
Sony R20P:
approx. 7 h
Sony alkaline LR20:
approx. 20 h
Dimensions
Approx. 289 × 200 × 123 mm
(w/h/d) (11 1⁄2 × 7 7⁄8 × 4 7⁄8 inches)
(incl. projecting parts)
Mass
Approx. 2.4 kg (5 lb. 5 oz) (incl. batteries)
Supplied accessory
AC power cord (1)
Earphone (1)
Design and specifications are subject to change without
notice.
Location and Function of controls
2
3
4
5
6
7
8
!¶
!•
9
1 FM telescopic aerial (5)
2 Carrying handle
3 Dial scale (4, 5)
4 @ (earphone) jack (mini jack) (5)
5 LIGHT (Dial scale light) button
(5)
6 Tape operation buttons (6, 7)
7 EARPHONE POCKET box (5)
8 SLOW PLAYBACK button (10)
9 Cassette compartment lid (7)
Additional Information
!º
!¡
!™
!£
!¢
!∞
!§
1
!ª
0 Frequency marker (5)
!¡ OPR/BATT indicator (11)
!™ EASY LISTENING
ADJUSTMENT switch (10)
!£ EASY LISTENING
ADJUSTMENT control (10)
!¢ BAND switch (4)
!∞ TUNING control (4)
!§ VOLUME control (5, 7)
!¶ FUNCTION switch (4, 6, 8)
!• Built-in microphone (8)
!ª Speaker
Additional Information
15
Index
A, B
E, F, G, H
Batteries for player 11
Easy listening adjustment 10 Recording on a tape 8
C
I, J, K
S
Choosing power sources 11
Improving broadcast
reception 5
Setting up 11
Cleaning
cabinet 14
tape heads and
tape path 14
D
Demagnetizing the tape
heads 14
L, M, N, O
Listening to the radio 4
P, Q
Playing a tape 6
Sony Corporation Printed in China
R
Slow playback 10
T, U, V, W, X, Y, Z
Troubleshooting 13
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
