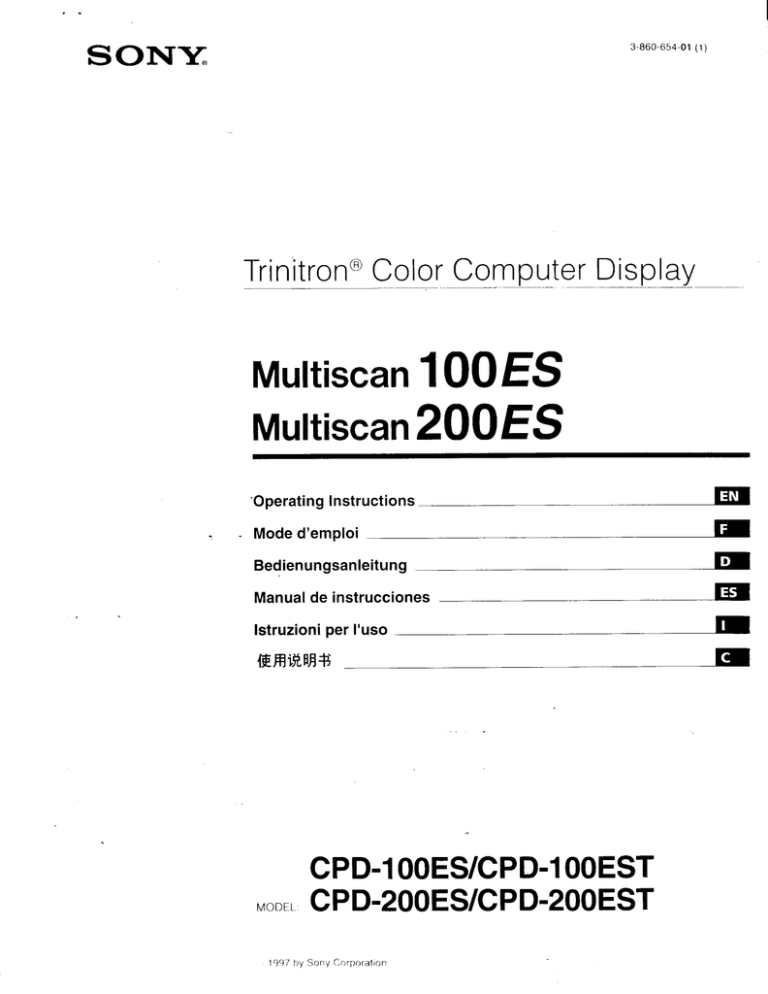

Trinitron® Color Computer Display
Multiscan 100ES
Multiscan 200ES
‘Operating Instructions
Bedienungsanleitung
Manual de instrucciones
Istruzioni per l'uso
{ERAS
digENE
CPD-100ES/CPD-100EST
MODEL CPD-200ES/CPD-200EST
‚ 1997 by Sony Corporation
Owner's Record
The model and serial numbers are located at the rear of the unit.
Record the serial number in the space provided below. Refer to
these numbers whenever you call upon your dealer regarding this
product.
Model No. __ Serial No.
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
Dangerously high voltages are present
inside the set. Do not open the cabinet.
Refer servicing to qualified personnel only.
FCC Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
~ Consult the dealer qr an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
INFORMATION
This product complies with Swedish National Council for
Metrology (MPR) standards issued in December 1990 (MPR II) for
very low frequency (VLF) and extremely low frequency (ELF).
INFORMATION
Ce produit est conforme aux normes du Swedish National Council
for Metrology de décembre 1990 (MPR II) en ce qui concerne les
fréquences très basses (VLF) et extrémement basses (ELF).
Hinweis
Dieses Gerät erfüllt bezüglich tieffrequenter (very low frequency)
und tiefstfrequenter (extremely low frequency) Strahlung die
Vorschriften des „Swedish National Council for Metrology (MPR)“
vom Dezember 1990 (MPR ID.
INFORMACION
Este producto cumple las normas del Consejo Nacional Sueco para
Metrología (MPR) emitidas en diciembre de 1990 (MPR II) para
frecuencias muy bajas (VLF) y frecuencias extremadamente bajas
(ELF).
Hinweise
* Aus ergonomischen Griinden wird empfohlen, die
Grundfarbe Blau nicht auf dunklem Untergrund zu
verwenden (schlechte Erkennbarkeit, Augenbelastung bei zu
geringem Zeichenkontrast).
* Aus ergonomischen Griinden flimmern sollten nur
Darstellungen bei Vertikalfrequenzen ab 70 Hz (ohne
Zeilensprung) benutzt werden.
NOTICE
This notice is applicable for USA/Canada only.
If shipped to USA/Canada, install only a UL LISTED /CSA
LABELLED power supply cord meeting the following
specifications:
SPECIFICATIONS
Plug Type Nema-Plug 5-15p
Cord Type SVT or SIT, minimum 3 x 18
AWG
Length Maximum 15 feet
Rating Minimum 7 A, 125 V
NOTICE
Cette notice s'applique aux Etats-Unis et au Canada
uniquement.
Si cet appareil est exporté aux Etats-Unis ou au Canada, utiliser
le cordon d'alimentation portant la mention UL LISTED/CSA
LABELLED et remplissant les conditions suivantes:
SPECIFICATIONS
Type de fiche Fiche Nema 5-15 broches
Cordon Type SVT ou SIT, minimum 3 x 18
AWG
Longueur Maximum 15 pieds
Tension Minimum 7 A, 125 V
=>
For CPD-100EST and CPD-200EST only
ANA
GNE?,
> la)
A This monitor complies with the TCO
р 1992 guidelines for power saving when
das
used with a computer equipped with
VESA Display Power Management
% Signaling (DPMS).
Je Ur
This monitor is ENERGY STAR
Compliant when used with a
computer equipped with VESA
Display Power Management Signaling
(DPMS). As an International ENERGY
STAR Partner, Sony Corporation has
determined that this product meets
the International ENERGY STAR
Program for efficiency.
Dieses Gerät entspricht den folgenden europäischen EMV-
Vorschriften für Betrieb in Wohngebieten, gewerblichen
Gebieten und Leichtindustriegebieten.
EN55022/1994 Klasse B
EN50082-1/1992
EN60555-2/1987
к
2
Table of Contents
Introduction Le ee 3 Power Saving Function... ere re 8
Precautions ...............e ere e iio nena a are rene 3 Plug and Play ................. ene ers 8
Getting Started ...............2 e 4 Use of the Tilt-Swivel oo... anar eeri area ióas 8
Using Your MOnIitOr ee na na 4 Damper Wire …..…........ aaa aaa ee 8
Adjustments неее Теннннннннененннеененнннннненееноние: 5 Specifications... cesse scene 9
(mére New TIMINgs....…crresceceec eee cree a see ec ce 8 Troubleshooting eee 10
и
Introduction
Congratulations on vour purchase of a Sony Multiscan
100ES/200ES!
This monitor incorporates over 25 years of Sony experience
with Trinitron display technology, ensuring excellent
performance and outstanding reliability. The Multiscan
100ES/200ES's wide scan range (30 — 70 kHz), together with
Digital Multiscan Technology, allows it to sync to any video
mode from standard VGA through VESA 1024 x 768 at 85
Hz.
Precautions
In addition, its two factory preset color modes and one user
adjustable color mode give vou unprecedented flexibility in
matching on-screen colors to hard copy printouts.
Furthermore, the Multiscan 100ES/200ES feature digital
controls, raster rotation, power saving, low emissions, and
much more. All together, it delivers incredible performance
with the quality and support you can expect from Sony.
Installation
Prevent internal heat build-up by allowing adequate air
circulation. Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials (curtains, draperies) that
may block the ventilation holes.
e Do not install the unit near heat sources such as radiators
or air ducts, nor in a place subject to direct sunlight,
excessive dust, mechanical vibration or shock.
* Do not place the unit near equipment which generates
magnetism, such as a converter or high voltage power
lines.
Maintenance
Clean the cabinet, glass panel and controls with a soft cloth
lightly moistened with a mild detergent solution. Do not
use any type of abrasive pad, scouring powder or solvent,
such as alcohol or benzine.
* Do not rub, touch, or tap the surface of the screen with
sharp or abrasive items, like a ball point pen or a screw
driver. This type of contact may result in a scratched
picture tube. -
Transportation
When you transport this monitor for repairing or shipping,
use the original carton box and packing materials.
Warning on Power Connection Г
* Use the supplied power cord.
For the customers in U.S.A.
If you do not do this, this monitor will not conform to
mandatory FCC standards.
7/0
~~
CE 9
"for 100 to 120 VAC for 220to 240 V AC for 240 V only
* Before disconnecting the power cord, wait for at least
30 seconds after turning off the power switch to allow for
the discharging of static electricity on the CRT display
surface.
e After the power has been turned on, the CRT is
demagnetized for approximately 5 seconds. This generates
a strong magnetic field around the bezel which may affect
the data stored on magnetic tape or disks near the bezel.
Place such magnetic recording equipment and tapes/disks
at a distance from this unit.
The socket-outlet shall be installed near the equipment
and shall be easily accessible.
Getting Started
Before using this monitor, please make sure that the following
items are included in your package: Multiscan 100ES/200ES
monitor (1), power cord (1), warranty card (1), "Windows95
Monitor Information Disk" (1), and this operating instruction
manual (1).
This monitor will sync with any ¡BM or compatible system
equipped with VGA or greater graphics capability. Although
this monitor will sync to other platforms running at horizontal
frequencies between 30 and 70 kHz, including Macintosh and
Power Macintosh system, a cable adapter is required. Please
consult your dealer for advice on which adapter is suitable for
your needs.
Step 1: With the computer switched off, attach the video
signal cable to the video output.
IBM or compatible
computer
to video output
Apple computer
to video output
ЭГ leo of
N=
Macintosh adapter (not supplied)
o
Step 2: Attach the power cord to the monitor and the other
end to a power outlet.
- -
Power cord (supplied)
+ — —— a -
- to a power outlet -
Step 3: Turn on the monitor and computer.
Step 4: If necessary, adjust the user controls according to
your personal preference.
The installation of your Multiscan 100ES/200ES is complete.
Enjoy your monitor.
1) VGA is a trademark of IBM Corporation.
2) VESA is a trademark of the non-profit organization, Video .
Electronics Standard Association.
3) Macintosh is a trademark of Apple Computer Inc.
4) Windows" is a registered trademark of Microsoft
Corporation in the United States and other countries.
Using Your Monitor
Preset and User Modes
The Multiscan 100ES/200ES has factory preset modes for the 8 most
popular industry standards for true “plug and play” capability.
For less common modes, the Multiscan 100ES/200ES's Digital
Multiscan Technology will perform all of the complex adjustments
necessary to ensure a high quality picture for any timing between
30 and 70 kHz.
CPD-100ES/100EST and CPD-200ES/200EST _
No. Resolution - Horizontal Vertical
Gra phics
{dots x lines)
Frequency Frequency Mode
1 640x480 315kHz 60 Hz VGA Graphic
2 640x480 433kH; 85H/ VESA”
3 800x600 469kHz 75H7 VESA?”
4 “800x600 537kHz 85112 VESA?
5 832x624 497kHz 75Hz Macintosh
t6” Color —'
6 1024x768 .600kHz 75H7 VESA”
7 1024x768 687kHz 85H; VESA >
8 1280x1024 640kHz 60H7 VESA”
For the customers using the Windows”95
Install the new model information of the Sony computer display
from “Windows95 Monitor Information Disk” into your PC. (To
install the file, refer to the attached “About the Windows95 Monitor
Information Disk/File”.)
This monitor complies with “VESA DDC”, the standards of
Plugé&Play. If your PC/graphic board complies with DDC,
select “Plug and Play Monitor (VESA DDC)” or this
monitor’s model name (CPD-100ES/100EST or CPD-200ES /
200EST) as “Monitor type” from “Control Panel” on
Windows95. Some PC/graphic boards do not comply with
DDC. Even if they comply with DDC, they may have some
problems on connecting to this monitor. In this case, select
this monitor's model name (CPD-100ES/100EST or CPD-
200ES/200EST) as “Monitor type” on Windows95.
Recommended horizontal timing conditions
Horizontal sync width should be: >1.0 psec.
Horizontal blanking width should be: >3.6 psec. (Multiscan 100ES)/
>3.0 usec. (Multiscan 200ES).
Vertical sync width should be: < 560 psec.
Note -
CPD-100ES/100EST and CPD-200ES/200EST does not apply to
-Macirtosh 217 color mode.
Adjustments
When one of the preset-type signals is input, no picture EH Before adjusting the items, turn on thie umt and teed the
adjustment is necessary. video signal from the connected computer/ work station.
You can, however, adjust the picture to your preferences by Ш Adjustments will be stored automatically.
following the procedure described below.
You can adjust all items on the OSD (On Screen Display).
Control Panel
— O +
— » + :
RESET COLOR GEOM se CENTER о | à | («]e) E
J 9) Coy I) J
Adjusting the Picture Contrast Adjusting the Picture Centering
The adjustment data becomes the common setting for all input The adjustment data becomes the individual setting for cach
signals. | input signal received.
1 Press the Y <=/=> button. 1 Press the CENTER button.
The “BRIGHTNESS/CONTRAST” OSD appears. The “CENTER” OSD appears.
-
BRIGHTNESS/CONTRAST с СЕМТЕВ
О (D
ана | n ml) [(— |
« 50 = | № 32 + В 68 >
31.5kHz/70Hz |
7 т 2 for vertical adjustment
Horizontal Vertical Press the O f / $ buttons.
frequency: frequency: — © +
2 Press the 0 <= /=b buttons to adjust picture contrast. | 5 ©
=p for more contrast
<=... for less contrast №
The “BRIGHTNESS /CONTRAST” OSD disappears 3 seconds
after you release the buttons. $... to move up
$... to move down
To reset, press the RESET button while the OSD is on.
For horizontal adjustment
» » . . Press the Y <=/ "> buttons.
Adjusting the Picture Brightness o
The adjustment data becomes the common setting for all input | <Q > |
signals.
1 Press the © À / $ button. M
The “BRIGHTNESS/CONTRAST” OSD appears. «==... to move left
N = to move right-
BRIGHTNESS/CONTRAST | , €
[о [|<] O | To erase the “CENTER” OSD, press the CENTER button -..-
С° again.
4 100 (# - The “CENTER” OSD automatically disappears 10 seconds after
- you release the buttons.
31.5kHz/7OHz
— +4 4 To reset, press the RESET button while the OSD is on.
Horizontal Vertical
frequency: frequency:
2 Press the O 4/4 buttons to adjust picture brightness.
4... for less brightness
4 . for more brightness
+ The horizontal and vertical frequencies for each input signal
The “BRIGHTNESS/CONTRAST” OSD) disappears 3 seconds received appear on the “BRIGHTNESS /CONTRAST” OSD:
after you release the buttons. >
To reset, press the RESET button while the OSD is on.
Adjustments
LS
Adjusting the Picture Size
The adjustment data becomes the individual setting for each
input signal received.
1 Press the SIZE button.
The “SIZE” OSD appears.
SIZE
Lo) SIZE
1) ©
me) aaa. O)
[hy a 32 Y № 68 M
2 For vertical adjustment
Press the O- À / $ buttons.
GT)
0
$ ...toenlarge
$ ...to diminish
For horizontal adjustment
Press the Y <= / > buttons.
M.
<€=...to diminish
=> ...toenlarge
To erase the “SIZE” OSD, press the SIZE button again.
~The “SIZE” OSD automatically disappears 10 seconds after
you release the buttons.
To reset, press the RESET button while the OSD 1s on.
Adjusting the Picture Rotation
The adjustment data becomes the common setting for all
input signals.
1 Press the GEOM button.
The “GEOMETRY” OSD appears.
GEOM
GEOMETRY
_ JJ
O Do
== 00 | Ba asd
(y [4] 32 Le - ©.
2 Press the O: 4 / $ buttons.
$ .. torotate clockwise
$ ...torotate counterclockwise
cr
0
To erase the “GEOMETRY” OSD, press the GEOM button
again.
The “GEOMETRY” OSD automatically disappears 10
seconds after you release the buttons.
To reset, press the RESET button while the OSD is on.
Adjusting the Pincushion
The adjustment data becomes the individual setting for each
input signal received.
1 Press the GEOM button.
The "GEOMETRY" OSD appears.
GEOM
J GEOMETRY
| « 68 №
2 Press the D <= / > buttons.
- 0 +
Cl]
o
<=... to diminish the picture sides
. to expand the picture sides
To erase the “GEOMETRY” OSD, press the GEOM button
again.
The “GEOMETRY” OSD automatically disappears 10
seconds after you release the buttons.
To reset, press the RESET button while the OSD is on.
Setting the Color Temperature
The selected color temperature becomes the common setting
for all input signals.
1 Press the COLOR button.
The “COLOR TEMPERATURE” OSD appears.
COLOR
COLOR TEMPERATURE
VARTABLE
mn] 5O00K 9300K
+ 50 №: = >
To select 5000K or 9300K
Press the Y <=/ > buttons.
The selected color temperature is indicated in yellow.
0
«= to select 5000K
=p to select 9300K
To obtain the desired color temperature between
5000K and 9300K |
Press the O- 4 / $ buttons.
— ©: +
0
$ ...for higher temperature
$ ... for lower temperature
Your most recent adjusted color temperature will be
recalled by pressing the O 4/4 button.
To erase the “COLOR TEMPERATURE” OSD, press the
COLOR button again.
The “COLOR TEMPERATURE” OSD automatically
disappears 10 seconds after you release the buttons.
To reset, press the RESET button while the OSD is on.
Resetting the Adjustment
Data to Factory-preset Levels
To reset an adjustment item
Press the button of the adjustment item you want to reset,
and then press the RESET button before the OSD (On
Screen Display) disappears.
To reset all adjustment data at once (for
the received signal)
Press the RESET button when no OSD is shown,
RESET
J
5)
To reset all adjustment data to factory-
preset levels
Press and hold the RESET button for more than 2 seconds.
All adjustment data are reset to factory-preset levels.
RESET
СЭ
5
Entering New Timings
When using a video mode that is not one of the factory
preset modes, some fine tuning may be required to optimize
the display to your preferences. Simply adjust the monitor
according to the preceding adjustment instructions. The
adjustments will be stored automatically and recalled
whenever that mode is used.
A total of 8 user-defined modes can be stored in memory.
If the 9th mode is entered, it will replace the first.
Power Saving Function
Plug and Play
This monitor meets the power saving guidelines set by the
International ENERGY STAR Program as well as the more
stringent TCO92 803299 (NUTEK) guidelines. It is capable
of reduced power consumption when used with a computer
equipped with Display Power Management Signaling
(DPMS). By sensing the absence of the sync signal coming
from the computer, it will reduce the power consumption as
follows:
CAUTION: The Power Saving function will automatically
put the monitor into Active-off state if the power
switch is turned on without any video signal
input. Once the horizontal and vertical syncs are
sensed, the monitor will automatically return to
its Normal operation state.
Required |
P
State wer. resumption © POWER
consumption time indicator
1 Normal <110W — green on
operation
Stand-by Orange and
2 | {lst step of <15 W approx. green flashes
power saving) 3 sec. alternately
Suspend O d
3 | (2nd step of <15W approx. green lashes
power saving) 3 sec. alternately
Active-off
4 | (3rd step of <8W approx. Orange on
power saving) 10 sec.
5 Power-off 0 W — off
This monitor complies with DDC™1 and DDC2B, which are
the Display Data Channel (DDC) standards of VESA.
When a DDC1 host system is connected, the monitor
synchronizes with the V. CLK in accordance with the VESA
standards and outputs the EDID (Extended Display
Identification Data) to the data line.
When a DDC2B host system 15 connected, the monitor
automatically switches to the DDC2B communication.
DDC™ is a trademark of the Video Electronics Standard
Association.
Use of the Tilt-Swivel
With the tilt-swivel, this unit can be adjusted to be viewed at
your desired angle within 180° horizontally and 20° vertically.
To turn the unit vertically and horizontally, hold it at its
bottom with both hands.
Damper Wire
Using a white background, very thin horizontal stripes on
the screen are visible as shown on the illustration. These
stripes are damper wires. These wires are attached to the
aperture grille inside the Trinitron tube and are there to
dampen vibrations of the aperture grille in order to prevent
them from influencing the picture quality.
| Damper wire
A
VA ] Approx. 6 cm
в (CPD-200ES/
a y
/ | y 200EST only)
Approx. e cm
\ DA
Specifications
CPD-100ES/100EST
Picture tube 0.25 mm aperture grille pitch
15 inches measured diagonally
90-degree deflection
Viewable image size Approx. 285 x 214 mm (w/h)
(11 1/4x 8 1/2 inches)
14.0" viewing image
Horizontal: Max. 1280 dots
Vertical: Max. 1024 lmes
Logical resolution
Physical resolution Horizontal: Max. 1024 dots
Vertical: Max. 768 lines
Standard image area Approx. 270 x 202 mm (w/h)
(10 3/4 x 8 inches)
Deflection frequency Horizontal: 30 to 70 kHz
Vertical: 50 to 120 Hz
AC input voltage / current
100 to 120 V, 50/60 Hz, 1.8 A
220 to 240 V, 50-60 Hz, 1A
Dimensions Approx. 368 x 392 x 389 mm (w/h/d)
(14 1/2 x 15 1/2 x 15 3/8 inches)
Mass | Approx. 14 kg (30 1b 14 az)
CPD-200ES/200EST
-
Picture tube 0.25 mm aperture grille pitch
17 inches measured diagonally
90-degree deflection
Viewable image size Approx. 327 X 243 mm (w/h)
(127/8x 9 5/8 inches)
16.0” viewing image
Horizontal: Max. 1280 dots
Vertical: Max. 1024 lines
Logical resolution
Physical resolution Horizontal: Max. 1280 dots
Vertical: Max. 1024 lines
Standard image area Approx. 312 234 mm (w/h)
-(12 9/32 x 9 7/32 inches)
Deflection frequency Horizontal: 30 to 70 kHz
Vertical: 50 to 120 Hz
AC input voltage/current
` 100 to 240 V, 50/60 Hz, 1.8 А
220 to 240V, 50-60 Hz, 1 A
Dimensions Approx. 406 x 431.5 x 420 mm (w/h/d)
(16 x 17 x 16 5/8 inches)
Mass Approx. 18.5 kg (40 1b 13 oz)
Pin No. | Signal - Pin No. | Signal |
Pin assignment
Video signal cable (HD15) (Male)
The cable accepts RGB video signals (0.714 Vp-p, positive),
and SYNC signals.
8 Blue Ground
J Red
2 Green | 9 —
(Composite | 10 Ground
Sync on Green) |
2 2 8 TN Ground
3 (Blue | N Bi-Directional
4 Ground | — Data (SDA):
5 Ground 13 H. Sync
6 Red Ground 14 V. Sync
|7 Green Ground 15 Data Clock (SCL)=
+ Display Data Channel (DDC) Standard by VESA.
Design and specifications are subject to change without
notice.
Troubleshooting
—
This section may help you isolate a problem and as a result,
eliminate the need to contact technical support, allowing
continued productivity.
No picture
=> If the OD POWER indicator is not lit.
— Check that the power cord is properly
connected.
— Check that the C) POWER switch is in the
“ON” position.
=> If the () POWER indicator is flashing in green
and orange alternately.
— Check that your computer power switch is in
the “ON” position. -
— The monitor will recover when you press any
key on the keyboard of the computer.
— Check that the video cable is properly
connected.
— Ensure that no pins are bent or pushed in the
HD15 connector of the cable.
— Check that the video card is seated
completely in a proper bus slot.
— Check that the video sync signal is within
that specified for the monitor.
— If using a Macintosh system, check that a
proper HD15 - D15 adapter 1s provided to
work correctly with your Macintosh.
— The monitor has a self-diagnose function.
After disconnecting the video signal cable
from the computer, turn on the O POWER
switch of the monitor. Press and hold the "+"
side of the O button for 2 seconds, then color
bars will appear. The monitor is operating
normally if the red, green, and blue color bars
appear. Contact the maker of the computer to
which the monitor is connected.
=> If the () POWER indicator is flashing.
— There is a potential monitor failure. Contact
your dealer.
If the message of “OUT OF SCAN RANGE” appears on the
screen ;
æ Check that the video sync signal is specified for
the monitor.
Picture is scrambled
=> Check your graphics board manual for the
proper monitor setting on your Multiscan 100ES/
200ES.
=p Check this manual and confirm that the graphic
mode and the frequency at which you are trying
to operate is supported. Even within the proper
range some video boards may have a sync pulse
thatis too narrow for the monitor to sync
correctly.
Color is not uniform
=p If the monitor is close to any potential sources of
magnetic fields such as a speaker, or you turn the
monitor while the () POWER switch is in the
` “ON” position, color may not be uniform. Trip
the O POWER switch once to activate the Auto-
degauss cycle*.
Picture is flickering
=p If the refresh rate is not appropriate, the picture
may flicker. Set the refresh rate of the
non-interlace mode as high as possible on the
computer. For detailes on how to set the refresh
rate, consult the dealer of your computer or
video board.
10
Screen image is not centered or sized properly
=p Adjust the “CENTER,” “SIZE,” or "GEOMETRY"
on the OSD (pages 5, 6).
=p Some video modes do not fill the screen to the
edge of the monitor. There is no single answer to
solve the problem. There is a tendency to have
this problem on higher refresh timings and
Macintosh video timings.
Picture is fuzzy
=p Adjust the “CONTRAST” and “BRIGHTNESS”
on the OSD (page 5). We have come across
several brands of SVGA boards that have an
excessive video output level which creates a
fuzzy picture at max contrast.
=> Trip the O POWER switch once to activate the
Auto-degauss cycle*.
Picture bounces or has wavy oscillations
=p [solate and eliminate any potential sources of
electric or magnetic fields. Common causes for
this symptom are electric fans, fluorescent
lighting, laser printers, and so on.
=> !f you have another monitor close to this
monitor, increase the distance between them to
reduce the interference.
=p Try plugging the monitor into a different AC
outlet, preferably on a different circuit.
=p Try the monitor on a completely different
computer in a different room.
Picture appears to be ghosting
=p Eliminate the use of video cable extension cables
and/or video switch boxes if this symptom
occurs. Excessive cable length or weak
connections can produce this symptom.
A fine horizontal line (wire) is visible
=p This wire stabilizes the vertically striped
Aperture Grille (page 8). This Aperture Grille
allows more light to pass through to the screen
giving the Trinitron CRT more color and
brightness.
Wavy or elliptical (moire) pattern is visible
=» Due to the relationship between resolution,
monitor AG pitch and the pitch of some image
patterns, certain screen backgrounds, especially
gray, sometimes show moire. This can only be
eliminated by changing your desktop pattern.
Just after turning the monitor on, a “boon” noise is heard
=p Just after turning the monitor on, a noise may be
heard for about 3 seconds.
This noise is not failure, it is caused by the Auto-
degauss cycle*.
* The Auto-degauss function demagnetizes the metal frame of
the CRT to obtain a neutral field for uniform color
reproduction. If a second degauss cycle is needed, allow a
minimum interval of 20 minutes for the best result.
* If the problem persists, call your authorized Sony dealer from
a location near your monitor.
* Note the model name and the serial number of your monitor.
Also note the make and name of your computer and video
board.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
