=> IN Yo

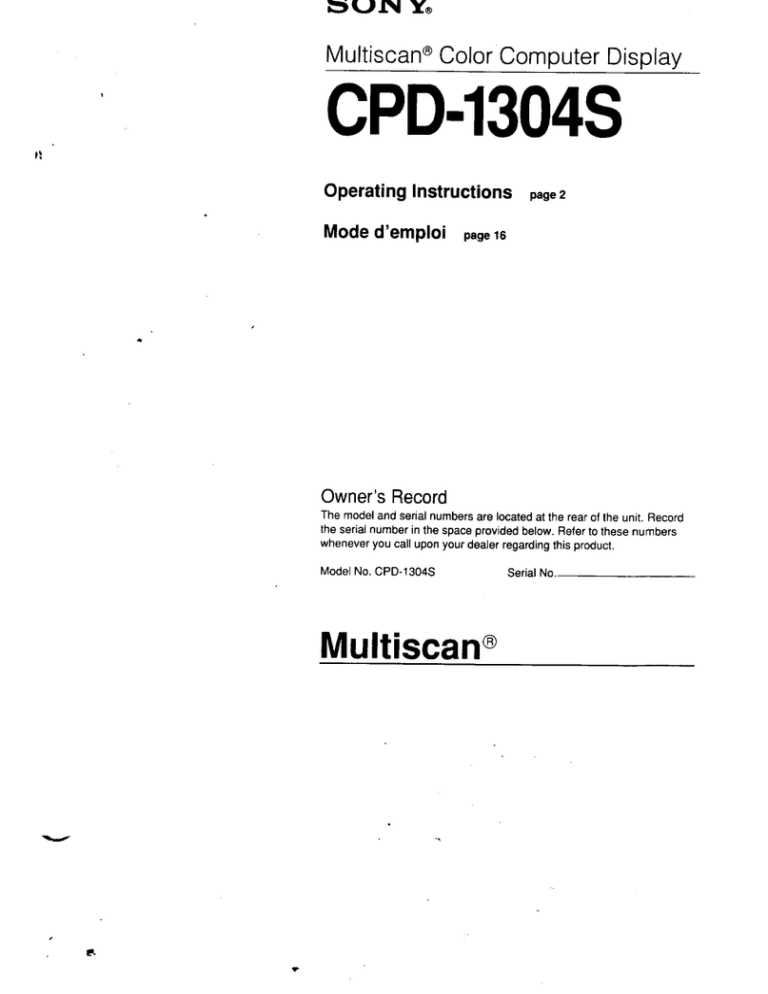

Multiscan® Color Computer Display
CPD-1304S
Operating Instructions page 2
Mode d'emploi page 16
Owner's Record
The model and serial numbers are located at the rear of the unit. Record
the serial number in the space provided below. Refer to these numbers
whenever you call upon your dealer regarding this product.
Model No. CPD-1304S Serial No
Multiscan®
English
WARNING
To prevent fire or shock hazard, do not expose the unit
to rain or moisture.
Dangerously high voltage is present inside the unit. Do
not open the cabinet. Refer servicing to qualified
personnel only.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
For the customers in Canada
This apparatus complies with the Class B limits for radio noise
emissions set out in Radio Interference Regulations.
Trademark. registered or otherwise, used in this manual are:
IBM, IBM PS/2, VGA — International Business Machines Corporation.
The CPD-1304S is a high resolution computer display designed for use
with microcomputers, or computers having analog RGB output.
Features
e Super Fine Pitch Trinitron computer display with an anti-glare dark
screen.
* RGB terminal which allows equipment with analog RGB output to be
connected.
Compatible with the PS/2 microcomputers using VGA.
Multiscan capacity which makes it compatible with a variety of
computer graphics standards.
Table of Contents
EOS aaa esrrrirreerereene reer 5
Location and Function of Controls ...... Pee enn rara reee. 6
Connections STE nn, ee, 8
30 OT NO TM SAVE LL a a es ...... 9
Specifications 7 GPS iia rene aer onios „еее, 10
TT а ee eran 11
Appendix .......... PEE R EEE RER REEL re Era ea een, 14
4
Precautions
On safety
* Operate the unit only al 100 to 120V AC, 50-60 Hz.
* Should any liquid or solid object fall into the cabinet, unplug the unit and
have it checked by qualified personnel before operating it any further.
* Unplug the unit from the wall outlet if it is not to be used for several
days.
* To disconnect the AC Power cord, pull it out by the plug. Never pull the
cord itself,
On installation
* Allow adequate air circulation to prevent internal heat build-up.
Do not place the unit on surfaces (rugs, blankets, etc.) or near materials
(curtains, draperies) that may block the ventilation holes.
* Do not install the unit in à location near heat sources such as radiators
or air ducts, or in places subject to direct sunlight, excessive dust,
mechanical vibration or shoc .
On cleaning
To keep the unit looking brand-new, periodically clean it with a soft cloth,
Stubborn stains may be removed with a cloth lightly dampened with a mild
On repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it as illustrated on the carton.
If you have any questions about this unit, contact your authorized Sony
dealer.
Location and Function of Controls
Front | Rear |
© ©
=) o
~~ N
ww” — о o
= = a |
Г. À DL
ed
N
Color monitor cable
[3][2) 0 [4]
Three-row D-sub 15 pin
(1] POWER switch and indicator
To turn on the power of the unit, press this switch. The indicator will
light up. To turn off the unit, press it again.
[2] CONTRAST control (8)
Turn clockwise to increase contrast, or counterclockwise to decrease
contrast.
[3] BRIGHTNESS control (0)
Turn clockwise for a brighter display, or turn counterclockwise for a
darker display.
[4] AC IN connector
Connect to an AC outlet with the supplied AC power cord.
To obtain the same horizontal and vertical sizes of 48 kHz or 57 kHz frequency
with those of VGA mode
Adjust the H SIZE and V SIZE while receiving 48 kHz or 57 kHz to the same sizes with
that of VGA mode, and set the AUTO SIZE switch to LOCK if it is set to ADJ.
When the display receives the 48 kHz or 57 kHz frequency the next time, the horizontal
and vertical sizes become the same as those of VGA mode.
6
5
(6]— —
7} — — 19]
[5] AUTO SIZE switch
Depending on the microcomputer connected to the display, set this
switch to the appropriate position.
LOCK: For the IBM PS/2 microcomputer using the VGA mode.
When this switch is set to LOCK, the timing is automatically
adjusted to the VGA mode, and the H SIZE, H SHIFT, V SIZE
and V CENT controls will have no effect.
ADJ: For other microcomputers having analog RGB output.
When this switch is set to ADJ, adjust the display with the H
SIZE, H SHIFT, V SIZE and V CENT controls.
+ To adjust the horizontal frequencies of less than 40 kHz, set the
AUTO SIZE switch to ADJ.
+ To adjust the horizontal frequencies of 40 kHz or more. set the
AUTO SIZE switch to either LOCK or ADJ.
[6] H SIZE (horizontal size) control
Turn this control to adjust the horizontal size of the display.
[7] H SHIFT (horizontal shift) control
Turn this control to adjust the center of the display horizontally.
[8] V CENT (vertical center) control |
Turn this control to adjust the center of the display vertically.
[8] V SIZE (vertical size) control
Turn this control to adjust the vertical size of the display.
Connections
Connect the power cord and the color monitor cable.
Be sure to turn the power of the unit off before making the connection.
Microcomputer
to RGB OUT
AC power cord
(supplied)
— UB
to AC IN
Three-row D-sub 15 pin (male)
Rear of the CPD-1304S
Color monitor cable
ces
mr
1 Align the plug with the receptacle.
RGB Input Pin Assignment
2 Plug in and tighten the
screws by a hand.
To disconnect the plug, loosen the screws.
1 2 3 4 5 6 7 8
R G B GND | FLG { GND {| GND | GND
| 10 11 12 13 14 15
GND | GND — |HSYNC|[VSYNC| —
Use of the Tilt-Swivel
With the tilt-swivel, this unit can be adjusted to be viewed at your desired
angie within 90° horizontally and 13° vertically.
To turn the unit horizontally, hold it at its bottom with both hands as
illustrated below.
LS i |
>>> / 3.
Specifications Timing Chart
Picture tube Super Fine Pitch Trinitron color tube The following timing chart shows approximate values.
14-inch picture tube measured diagonally MONITOR ACCEPTABLE TIMING EXAMPLE
90 degrees deflection
Anti-glare dark screen
Faceplate: non glare
Conductive Silica Coating
Phosphor P22
0.25 mm Aperture Grille Pitch
VIDEO
Viewable pixels 1024 x 768
Scanning frequency Vertical sync signal frequency: J | |
55 — 110 Hz |
Horizontal sync signal frequency: | $
28 — 57 kHz | SYNC
; ; ; e |
Video input signal Analog RGB positive 110 ACTIVE o
0.714 Vp-p/75€) terminated BACK PORCH(B.P) tete Penn MM po!
Video band width: 60 MHz +3 dB a SYNC
Sync input TTL level. Polarity free.
Composite sync is acceptable at Pin # 13.
Sync on green is acceptable.
Power requirements 100-120 V AC, Max. 1.8 A, 50-60 Hz
Dimensions 355(H) x 348(W) x 411(D) mm [1] VGA
(14 x 134 x 16'/4 inches) 1 2 3
— y 7 FREQ. H (kHz) 31.47 31.47 31.47
—£ —rm —Á- -— 1 N Y (Hz) 70.1 70.1 59.9
H PERIOD (LS) 31.78
— e - Е SYNC 3.81 + +
i o BP 1.91
' со 5 ACTIVE — 25.42
E ! у PERIOD (H) 449 449 525
Е — A
E ome a
4E |- | B.P 34 59 32
| ` ACTIVE 400 350 480
| 238 mm - 1; ="
” | SYNC Ho [NEGA [POS NEGA
mm РОЦАВПУ {v POSI NEGA NEGA
CLOCK FREQ. 7
Weight Approx. 13.1 kg (30 Ib 14 02) (MHz}| 25075] 25175] _ 25.175)
Including the tilt-swivel
Supplied accessory AC power cord (1)
Design and specifications subject to change without notice.
10 1
Timing Chart
[2] 1024 x 768 interace (th = 35.52 kHz/fv = 87 Hz)
11), [2]:
[4] 48 kHz
1024 x 768
FREQ. H (kHz) 35.52
у (Hz) 87.0
H PERIOD (uS) 28.15
SYNC 3.92
B.P 1.25
ACTIVE 22.81
у PERIOD (H) 408.5
SYNC 4
BP 20/20.5|
ACTIVE 384
SYNC POLARITY| H POSI
\ РОЗ!
CLOCK FREQ. (MHz) 44.900
When the AUTO SIZE switch is in the LOCK position, picture size
© automaticaly adjusted for the above listed video modes ([1],
All sizing controls on the left side of the monitor are therefore
ineffective.
To adjust sizing for other video modes, change the switch to ADJ
and adjust the controls.
Polarity free with the timing [1], [2] if the AUTO SIZE switch is not
used.
non-interace (example)
[5] 57 kHz
1024 x 768
[3] 35kHz
800 x 600
FREQ. H (kHz) 35.16
VO (Hz) 56.0
H PERIOD (us) 28.44
SYNC 3.11
B.P 2.67
DISPLAY 22.22
у PERIOD (H) 628
SYNC 14
BP 7
ACTIVE 600
CLOCK FREQ. (MHz) 36.000
12
non-interace (example)
FREQ. H (kHz) 48.780
V (Hz) 60.00
H PERIOD (nS) 20.500
SYNC 1.500
B.P 2.000
DISPLAY 16.000
у PERIOD (H) B13
SYNC 3
B.P 39
ACTIVE 768
CLOCK FREQ. (MHz) 64.000]
[3), [4]: SYNC POLARITY FREE
non-interace
FREQ. H (kHz) 56.476
\ (Hz) 70.069
H PERIOD (uS) 17.707
SYNC 1.813
В.Р 1.920
ACTIVE 13.653
Vv PERIOD (H) 806
SYNC 6
BP 29
ACTIVE 758 .
SYNC H NEGA
POLARITY у NEGA
CLOCK FREQ. ; (MHz) 75.000
13
Appendix
Sony Trinitron System
Sony used its skilled research and development teams to create the first
Trimitron TV, introduced 20 years ago. Some 40 million Trinitrons have
been sold worldwide so far, and Sony won the Emmy Award for technical
quality in 1977, Its Super Fine Pitch (the narrowest dot pitch in the industry
for each CRT size class) provides images that are just as sharp and clear
as prints, making it most suitable for computer graphics, not to mention TV
broadcasts.
Features
Clear, crisp, and easy-to-read screen
Trinitron's black screen increases the contrast by 50 percent, and its 1-
gun, 3-beam system with one large lens allows more precise color beam
focusing. Thus colors are reproduced more distinctly. Higher contrast also
recreates computer graphics and characters that are crisp, clear, and easy
to read.
Trinitron's 1-gun, 3-beam System Shadow mask
14
Display with less glare and distortion
Only Trinitron incorporates a cylindrical screen with a completely straight.
vertically flat surface.
The cylindrical screen delivers a clear undistorted picture. and also
eliminates ambient light reflection, for long viewing without fatigue.
IT1TTATI
\\
Trinitron's Flat Screen Shadow mask
Brighter picture and more accurate colors
Sony
color and brightness to the screen.
The result is a brighter and more beautiful picture.
This Grille is stabilized with a damper wire. When viewing images with
light backgrounds, this wire is sometimes visible as a fine line.
Trinitron's Aperture Grille
System
Shadow mask
s exclusive Aperture Grille with long and unbroken slits delivers more
15
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
