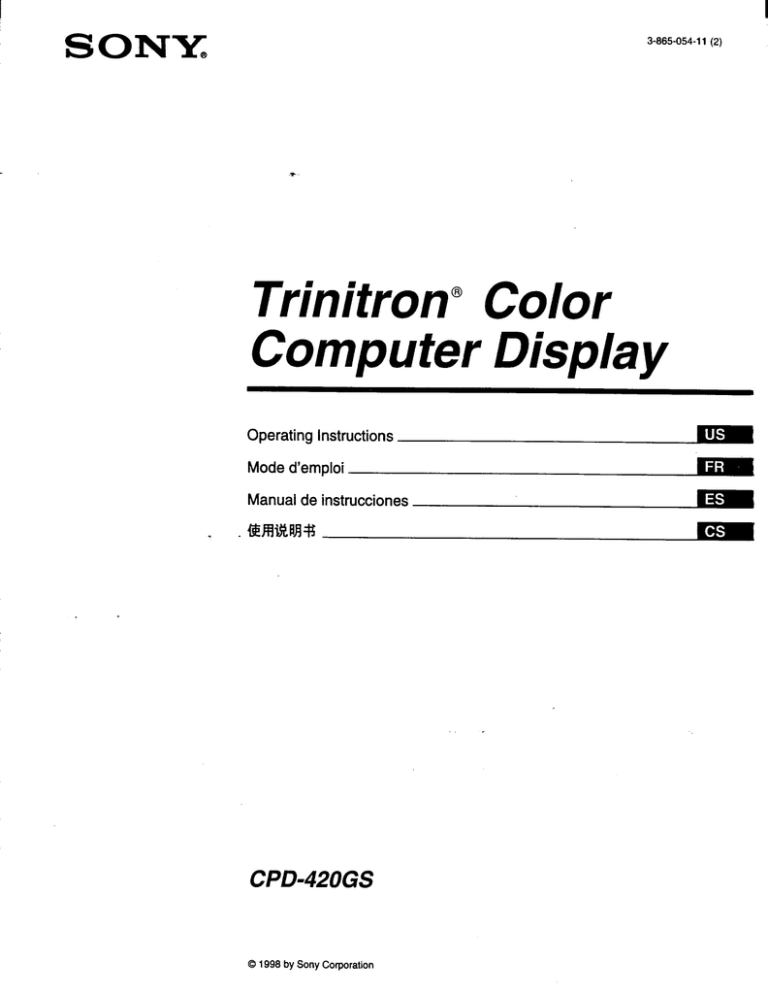

SONY.
Trinitron Color
3-865-054-11 (2)
Computer Display
Operating Instructions IER
Mode d'emploi MERO
Manual de instrucciones MES |
— EMOS
CPD-420GS
© 1998 by Sony Corporation
Owner's Record
The model and serial numbers are located at the rear of the unit.
Record these numbers in the spaces provided below. Refer to them
whenever you call upon your dealer regarding this product.
Model No. Serial No.
To reduce fire or shock hazard, do not expose the
unit to rain or moisture. +
Dangerously high voltages are present inside the
unit. Do not open the cabinet. Refer servicing to
qualified personnel only.
FCC Notice
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
INFORMATION
This product complies with Swedish National Council for Metrology
(MPR) standards issued in December 1990 (MPR H) for very low
frequency (VLF) and extremely low frequency (ELF).
INFORMATION + -
Ce produit est conforme aux normes du Swedish National Council
for Metrology de décembre 1990 (MPR II) en ce qui concerne les
fréquences trés basses (VLF) et extrémement basses (ELF).
Hinweis
Dieses Gerát erfúllt bezúglich tieffrequenter (very low frequency)
und tiefstfrequenter (extremely low frequency) Strahlung die
Vorschriften des Swedish National Council for Metrology (MPR)“
vom Dezember 1990 (MPR lI).
INFORMACION
Este producto cumple las normas dei Consejo Nacional Sueco
para Metrologia (MPR) emitidas en diciembre de 1990 (MPR |!)
para frecuencias muy bajas (VLF) y frecuencias extremadamente
bajas (ELF).
IMPORTADOR (Para Mexico unicamente/For Mexico only)
Sony Electronicos de Mexico, S.A. de C.V.
Henry Ford No. 29
Fraccionamiento San Nicolas, Tlalnepantla
Estado de Mexico, CP54030
Tel: 321-1000
R.F.C. SEM-941001-BJA
Hinweise
* Aus ergonomischen Gründen wird empfohlen, die
Grundfarbe Blau nicht auf dunklem Untergrund zu verwenden
(schlechte Erkennbarkeit, Augenbelastung bei zu geringem
Zeichenkontrast).
* Aus ergonomischen Grúnden (flimmern) sollten nur
Darstellungen bei Vertikalfrequenzen ab 70 Hz (ohne
Zeilensprung) verwendet werden.
e Die Konvergenz des Bildes kann sich auf Grund des
Magnetfeldes am Ort der Aufstellung aus der korrekten
Grundeinsteliung verándern. Zur Korrektur empfiehlt es sich
deshalb, die Regler an der Frontseite fúr Konvergenz so
einzustellen, daß die getrennt sichtbaren Farblinien für Rot,
Grün und Blau bei z.B. der Darstellung eines Buchstabens
zur Deckung (Konvergenz) gelangen.
Siehe hierzu auch die Erklärungen zu Konvergenz.
NOTICE
This notice is applicable for USA/Canada only.
If shipped to USA/Canada, install only a UL LISTED/CSA
LABELLED power supply cord meeting the following
specifications:
SPECIFICATIONS
Piug Type Nema-Plug 5-15p
Cord Type SVT or SIT, minimum 3 x 18 AWG
Length Maximum 15 feet
Rating Minimum 7 A, 125 V
NOTICE
Cette notice s'applique aux Etats-Unis et au Canada
uniquement.
Si cet appareil est exporté aux Etats-Unis ou au Canada,
utiliser le cordon d'alimentation portant la mention UL LISTED/
CSA LABELLED et remplissant les conditions suivantes:
SPECIFICATIONS
Type de fiche Fiche Nema 5-15 broches
Cordon Type SVT ou SJT, minimum 3 x 18 AWG
Longueur Maximum 15 pieds
Tension Minimum 7 A, 125 V
E azi
As an ENERGY STAR Partner, Sony
Corporation has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
This monitor complies with the
TCO'95 guidelines.
IMPORTANTE
Para prevenir cualquier mai funcionamiento y evitar daños,
por favor, lea detalladamente este manual de instrucciones
antes de conectar y operar este equipo.
Declaration of Conformity
Trade Name: Sony
Model No.: CPD-420GS
Responsible Party: Sony Electronics Inc.
Address: 1 Sony Drive, Park Ridge, NJ. 07656 USA
Telephone No.: 201-930-6970
This device complies with Part 15 of the FCC Rules. Operation
is subject to the foliowing two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
Trinitron® is a registered trademark of
Sony Corporation.
Macintosh is a trademark licensed to
Apple Computer, Inc., registered in the
U.S.A. and other countries.
Windows® and MS-DOS are registered
trademarks of Microsoft Corporation in
the United States and other countries.
IBM PC/AT and VGA are registered
trademarks of IBM Corporation of the
U.S.A.
VESA and DDC are trademarks of the
Video Electronics Standard
Association.
ENERGY STAR is a U.S. registered
mark.
All other product names mentioned
herein may be the trademarks or
registered trademarks of their respective
companies.
Furthermore, “TM” and “BG” are not
mentioned in each case in this manual.
Table of Contents
Precautions...........o e. ———eeecreceroca ra neracaararero 4
Identifying parts and controls ...................2.... 5
SU EEE 6
Step 1: Connect your monitor to your computer ............... 6
Step 2: Connect the power cord. .......... ee ea a a ea sa eee 6
Step 3: Turn on the monitor and computer ................... 7
Selecting the on-screen menu language (OPTION). ............ 7
Selecting the inputsignal ...................... ........... 8
Automatically sizing and centering the picture . . ............... 8
Selecting the Graphic Picture Enhancement (GPE) Mode. ....... 8
Customizing Your Monitor .............10000000000 9
Navigating the menu.............1010101000 2024 a aa a a a a een 0 9
Adjusting the brightness andcontrast. ...................... 10
Adjusting the centering of the picture (CENTER) .............. 10
Adjusting the size of the picture (SIZE) ..................... 10
Adjusting the shape of the picture (GEOM) .................. 10
Enlarging or reducing the picture (ZOOM) ................... 10
Adjusting the color of the picture (COLOR) .................. 11
Adjusting the quality of the picture (CONV) .................. 11
Adjusting the OSD position (OSD) ..............—...e.econos 11
Additional settings (OPTION) ................._eeerevcvccoo 11
Resettingthe adjustments .................... ccc... 12
Technical Features ..... ecrccsarereonesa ........13
Preset and user modes........... Lea aa a 0 ee ee ea a a 0 000 0 13
Power savingfunction. . .................... i... 13
Troubleshooting. ........................ .……....13
If thin lines appear on your screen (damper wires). . ........... 13
On-screen messages ............... eee 13
Trouble symptoms and remedies ..............._eeereeo.. .14
Self-diagnosis function ................._.c.. RAA 16
Specifications. ............ eue seu seu nu» nana. 16
2 oT 0 =o Lo | ов овввьввенвввевева я |
Preset mode timingtable ................ ...... ............
TCO'S5 Eco-document. . ................. iin. i
3
Precautions
Warning on power connections
* Use the supplied power cord. If you use a different power cord,
be sure that it is compatible with your local power supply.
For the customers in the US
If you do not use the appropriate cord, this monitor will not
conform to mandatory FCC Standards.
Example of plug types
CE
py ww
for 100 to 120 V AC
for 200 to 240 V AC
* Before disconnecting the power cord, wait at least 30 seconds
after turning off the power to allow the static electricity on the
screen’s surface to discharge.
* After the power is turned on, the screen is demagnetized
(degaussed) for about 3 seconds. This generates a strong
magnetic field around the screen, which may affect data stored
on magnetic tapes and disks placed near the monitor. Be sure to
keep magnetic recording equipment, tapes and disks away from
the monitor.
The equipment should be installed near an easily accessible
outlet.
Installation
Do not install the monitor in the following places:
* on surfaces (rugs, blankets, etc.) or near materials (curtains,
draperies) that may block the ventilation holes
* near heat sources such as radiators or air ducts, or in a place
subject to direct sunlight
* in a place subject to severe temperature changes
* in a place subject to mechanical vibration or shock
* on an unstable surface
* near equipment which generates magnetism, such as a
transformer or high voltage power lines
* near or on an electrically charged metal surface
Maintenance
* Clean the screen with a soft cloth. If you use a glass cleaning
liquid, do not use any type of cleaner containing an anti-static
solution or similar additive as this may scratch the screen's
coating.
* Do not rub, touch, or tap the surface of the screen with sharp or
abrasive items such as a ball point pen or screwdriver. This type
of contact may result in a scratched picture tube.
* Clean the cabinet, panel and controls with a soft cloth lightly
moistened with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder or solvent, such as alcohol or
benzene.
Transportation
When you transport this monitor for repair or shipment, use the
original carton and packing materials.
Use of the tilt-swivel
This monitor can be adjusted within the angles shown below. To
turn the monitor vertically or horizontally, hold it at the bottom
with both hands.
Identifying parts and controls
See the pages in parentheses for further details.
Front
SONY
soem | PEAD
- 7
N \ [ |
7
1 aaa
[1] Front Video Input connector (HD15) (page 6)
Pull open this connector to connect a laptop or second
computer. This connector inputs RGB video signals and sync
signals from your computer.
OO
(0 9 676
UBB
Pin No. Signal
1 Red
2 | Green
(Composite Syne on Green)
3 Blue
4 ID (Ground)
5 Ground |
6. . Red Ground
7 Green Ground
8 Blue Ground
9 Not used
10 Ground
11 ID (Ground)
12 Bi-Directional Data (SDA)*
13 H. Sync
14 V. Sync
15 Data Clock (SCL)*
* DDC (Display Data Channel) is a standard of VESA.
[2] RESET (reset) button (page 9)
This button resets the adjustments to the factory settings.
Rear
[3] INPUT (input) button (page 8)
This button selects the Front or Rear Video Input signal. The
input signal and corresponding on-screen messages change
each time you press this button.
[4] GPE (graphic picture enhancement) button (page 8)
This button selects the Graphic Picture Enhancement (GPE)
Mode.
[5] ASC (auto sizing and centering) button (page 8)
This button automatically adjusts the size and centering of the
picture.
[6] MENU button (page 9)
This button displays the MENU OSD.
[7] @ (contrast) («/#) buttons (page 10)
These buttons adjust the contrast and function as the (€/»)
buttons when adjusting other items.
[8] + (brightness) (¥#/+4) buttons (page 10)
These buttons adjust the picture brightness and function as the
(4/4) buttons when adjusting other items.
[9] O (power) switch and indicator (page 7)
This button turns the monitor on or off. The indicator lights up
in green when the monitor is turned on, and either flashes in
green and orange, or lights up in orange when the monitor is _
in power saving mode. |
AC IN connector (page 6)
This connector provides AC power to the monitor.
M1] Rear Video Input connector (HD15) (page 6)
This connector inputs RGB video signals and sync signals
from your computer.
DODWO
© (2 ® © ©
0 2 3 14 6
Refer to [1] for pin assignment.
E
Setup
Before using your monitor, check that the following accessories
are included in your carton:
* Power cord (1)
* HD15 video signal cable (1)
* Macintosh adapter (1)
* Windows Monitor Information Disk (1)
* Warranty card (1)
* Notes on cleaning the screen's surface (1)
* This instruction manual (1)
Step 1:Connect your monitor to
your computer
Turn off the monitor and computer before connecting.
E Connecting to an IBM PC/AT or compatible
computer
hd
‘ 1
| „ (Dem Г UTE
HD15 video signal
IBM PC/AT or to video cable
compatible . output
computer
E Connecting to a Macintosh or compatible
computer
Use the supplied Macintosh adapter.
Г
Le
Macintosh adapter re
(supplied)* — ]
ae HD15 video signal
| | peo pare cable
Macintosh or to video
compatible output
computer
* Connect the supplied Macintosh adapter to the computer before
connecting the cable. This adapter is compatible with Macintosh LC,
Performa, Quadra and Power Macintosh, G3 series computers.
Macintosh II series and some older versions of PowerBook models may
need an adapter with micro switches (not supplied).
NM Connecting to a laptop or second computer
|
Front Video
Input
connector
to front
video input
J connector
to video
HD15 video signal
cable (supplied)
Open the Front Video Input connector on the left side of the front
panel to connect a laptop or a second computer using the supplied
HD15 video signal cable. Use the supplied Macintosh adapter to
connect a Macintosh laptop or second computer.
Step 2:Connect the power cord
With the monitor and computer switched off, first connect the
power cord to the monitor, then connect it to a power outlet.
AC IN connector
a Г
- =,
1 J
to a power outlet
power cord (supplied)
Step 3:Turn on the monitor and Selecting the on-screen menu
computer language (OPTION)
First turn on the monitor, then turn on the computer. English, French, German, Spanish, Italian, Dutch, Swedish,
Russian and Japanese versions of the on-screen menus are
available. The default setting is English.
> 1 Press the MENU button
TN
The installation of your monitor is complete. ®
If necessary, use the monitor’s controls to adjust the picture.
If no picture appears on your screen | Ч Eo] EE
* Check that the monitor is correctly connected to the computer.
If NO INPUT SIGNAL appears on the screen, try changing the
input signal (page 8), and confirm that your computer’s graphic
video board is completely seated in the correct bus slot.
* If you are replacing an old monitor with this model and OUT 2 Press the © 4/4 and O «/» buttons to select “ES
OF SCAN RANGE appears on the screen, re-connect the old OPTION”, and press the MENU button again.
monitor. Then adjust the computer’s graphic video board so
that the horizontal frequency is between 30-96 kHz, and the 3 Press the 4/4 buttons to select “@ (LANGUAGE)”,
vertical frequency is between 48-120 Hz. then press the «/# buttons to select the desired
* If you are using a laptop computer, make sure it is set up to language.
output a signal to an external monitor.
For more information about the on-screen messages, see “Trouble
symptoms and remedies” on page 14.
For customers using Windows 95/98
To maximize the potential of your monitor, install the new model
information file from the supplied Windows Monitor Information Disk
onto your PC. (Refer to the “Readme” file for further instruction.) * ENG: English
This monitor complies with the “VESA DDC” Plug & Play standard. If * FRA: French
your PC/Graphic video board complies with DDC, select “Plug & Play * DEU: German
Monitor (VESA DDC)” or this monitor's model name as the monitor type * ESP: Spanish
in the “Control Panel” of Windows 95/98. If your PC/Graphic video board ITA: Italian
has difficulty communicating with this monitor, load the Windows * NLD: Dutch
Monitor Information Disk and select this monitor's model name as the « SWE: Swedish
monitor type. * RUS: Russian
* JPN: Japanese
For customers using Windows NT4.0 To close the menu
Monitor setup in Windows NT4.0 is different from Windows 95/98 and e
. Press the MENU button once to retum to the main menu, and twice to
does not involve the selection of monitor type. (Refer to the Windows pu
. , , CL. return to normal viewing. If no buttons are pressed, the menu closes
NT4.0 instruction manual for further details on adjusting the resolution,
automatically after about 10 seconds.
refresh rate, and number of colors.)
To reset to English”
Press the RESET button while “YY (LANGUAGE) is highlighted in the
OPTION menu.
Selecting the input signal
You can connect two computers to this monitor using the Front
and Rear Video Input connectors. Switch between the two
computers using the INPUT button.
Press the INPUT button.
The input signal and corresponding df-screen messages (FRONT
INPUT/REAR INPUT) change each time you press this button.
INPUT
©
Automatically sizing and centering
the picture
You can easily adjust the picture to fill the screen by pressing the
— ASC (auto sizing and centering) button.
Press the ASC button.
The picture automatically fills the screen.
®
Note - ‘
« This function is intended for use with a computer running Windows or
similar graphic user interface software that provides a full-screen
picture. It may not work properly if the background color is dark or if
the input picture does not fill the screen to the edges (such as an MS-
DOS prompt).
Selecting the Graphic Picture
Enhancement (GPE) Mode
The Graphic Picture Enhancement (GPE) button allows you to
automatically change the characteristics of the picture on the
screen to match the way you use your monitor. Simply press the
GPE button to scroll between the three modes.
1 Turn on the monitor and computer.
2 Press the GPE button to set the mode.
©
Each time you press the GPE button, the mode changes
and appears on the screen as follows.
—» STANDARD MODE
PRESENTATION MODE
GRAPHICS/VIDEO MODE
The STANDARD MODE is ideal for spreadsheets, word
processing, and other text oriented applications.
The PRESENTATION MODE is useful for presentation
programs that require vivid colors.
The GRAPHICS/VIDEO MODE gives movies and games
enhanced visual appeal by increasing the sharpness and
brightness.
The selected mode indication appears on the screen for about
three seconds.
If the screen appears too white, adjust the color temperature as
explained in “Adjusting the color of the picture (COLOR)” on
page 11.
Note -
+ The PRESENTATION MODE and GRAPHICS/VIDEO MODE may
produce ghost images when displaying text oriented applications.
These modes change the brightness of the picture dynamically
according to changes in moving pictures. If ghost images appear, set the
GPE to STANDARD MODE.
Customizing Your Monitor
You can make numerous adjustments to your monitor using the
on-screen menus.
Navigating the menu
>
Press the MENU button to display the main MENU on your screen.
E] = . TIO N
[2 55 kHz/85 Hz*
1024 x 768
[9H OLOR
=
Use the © (brightness) 4/4 or O (contrast) €/» buttons to
select the desired function.
[1] CENTER (page 10)
Select the CENTER menu to adjust
the picture’s centering.
[2] SIZE (page 10)
Select the SIZE menu to adjust the -
picture’s horizontal and vertical
size.
[3] GEOM (page 10)
Select the GEOM menu to adjust the
picture’s rotation and shape.
ROTATION
[4] ZOOM (page 10)
Select the ZOOM menu to enlarge cts
or reduce the picture. ©
е e
[5] COLOR (page 11)
Select the COLOR menu to adjust
the picture’s color temperature. You
can use this to match the monitor's
colors to a printed picture’s colors.
[6] CONV (page 11)
Select the CONV menu to adjust the
picture’s quality. You can adjust the
vertical and horizontal
convergence.
OSD (page 11)
Select the OSD menu to move the
on-screen menu position.
OPTION (page 11)
Select the OPTION menu to adjust
the monitor’s options. The options
include:
* degaussing the monitor
* locking the controls
* changing the OSD language
* restoring the color image (Image
Restoration)
* adjusting the moire
[9] EXIT
Select EXIT to close the menu.
* The horizontal and vertical frequencies of the current input signal are
displayed below the main MENU. When receiving a VESA input
signal, the resolution is also displayed.
NM Resetting the adjustments
Press the RESET button while the adjustment item is displayed on
the screen. See page 12 for more information on resetting the
adjustments.
RESET
© —
Adjusting the brightness and
contrast
Brightness and contrast settings are made using a separate
BRIGHTNESS/CONTRAST menu.
These settings are stored in memory for all input signals.
1 Press any of the O: (brigtítness) +/+ or O (contrast)
<«/% buttons.
The BRIGHTNESS/CONTRAST menu appears on the
screen.
BRIGHTNESS/CONTRAST
o a
|. JUE KE
25d 0 26 @
2 Press the -O- 4/4 buttons to adjust the brightness,
and the O </» buttons to adjust the contrast.
The OSD automatically disappears after about 3 seconds.
Adjusting the centering of the
picture (CENTER)
This setting is stored in memory for the current input signal.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the © 4/4 buttons to highlight CS: CENTER
and press the MENU button again.
The CENTER menu appears on the screen.
3 Press the © +/+ buttons to adjust the vertical
centering, and the O </» buttons to adjust the
horizontal centering.
The OSD automatically disappears after about 30 seconds. To
close the OSD, press the MENU button again.
Adjusting the size of the picture
(SIZE)
This setting is stored in memory for the current input signal.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the O: 4/4 buttons to highlight +3 SIZE and
press the MENU button again.
The SIZE menu appears on the screen.
3 Pressthe O: 4/4 buttons to adjust the vertical size,
and the D «/+ buttons to adjust the horizontal size.
The OSD automatically disappears after about 30 seconds. To
close the OSD, press the MENU button again.
10
Adjusting the shape of the picture
(GEOM)
The GEOMETRY settings allow you to adjust the rotation and
shape of the picture.
The rotation setting is stored in memory for all input signals. Ali
other settings are stored in memory for the current input signal.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the O «/+ buttons to highlight } { GEOM anc
press the MENU button again.
The GEOMETRY menu appears on the screen.
3 First press the © 4/4 buttons to select the desirec
adjustment item. Then press the 0 </» buttons to
adjust the setting. -
The OSD automatically disappears after about 30 seconds. T«
close the OSD, press the MENU button again.
Select To
O ROTATION
7 { PINCUSHION expand or contract the picture sides
rotate the picture
7) PIN BALANCE shift the picture sides to the left or righ
[\ KEYSTONE
adjust the picture width at the top of
the screen
O KEY BALANCE Shift the picture to the left or right at
the top of the screen
Enlarging or reducing the picture
(ZOOM)
This setting is stored in memory for the current input signal.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the 0 </» buttons to highlight «> ZOOM an:
press the MENU button again.
The ZOOM menu appears on the screen.
3 Press the right ® + button to enlarge the picture o
the left O « button to reduce the picture.
The OSD automatically disappears after about 30 seconds. T
- close the OSD, press the MENU button again.
Note
* Adjustment stops when either the horizontal or vertical size reaches 1
maximum or minimum value,
Adjusting the color of the picture
(COLOR)
The COLOR settings allow you to adjust the picture's color
temperature by changing the color level of the white color field.
Colors appear reddish if the temperature is low, and bluish if the
temperature is high. This adjustment is useful for matching the
monitor's colors to a printed picture's colors. +
This setting is stored in memory for all input signals.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the О: +/+ апа О €</» buttons to highlight [.]
COLOR and press the MENU button again.
The COLOR menu appears on the screen.
3 Pressthe © 4/4 buttons to select a color
temperature.
The preset color temperatures are «e 1 (9300K) and e. 2
(5000K). Since the default setting is 9300K, the whites
change from a bluish hue to a reddish hue as the temperature
is lowered to S000K.
You can also fine tune the color temperature by selecting [J
in step 2 above, and using the J «/# buttons to adjust the
color temperature manually.
If you are using the Presentation or Graphic/Video mode, the
following COLOR OSD appears when “[?% COLOR” is
selected.
ee)
a В
VARIABLE
This OSD allows you to adjust the color temperature between
11,000K to 9,300K.
Press the Y <«/» buttons to adjust the color temperature.
The OSD automatically disappears after about 30 seconds. To
close the OSD, press the MENU button again.
Adjusting the quality of the picture
(CONV)
The CONV settings allow you to adjust the quality of the picture
by eliminating red or blue shadows around letters, characters and
lines.
Both settings are stored in memory for all input signals.
1 Press the MENU button.
The main MENU appears on the screen.
2 Pressthe © 4/4 and 0 </» buttons to highlight (i)
CONV and press the MENU button again.
The CONVERGENCE menu appears on the screen.
3 Press the 9 <«/» buttons to adjust the horizontal
convergence, or the C' 4/4 buttons to adjust the
vertical convergence.
The OSD automatically disappears after about 30 seconds. To
close the OSD, press the MENU button again.
Adjusting the OSD position (OSD)
This setting is stored in memory for the current input signal.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the {tf 4/4 and 0 </» buttons to highlight £3
OSD and press the MENU button again.
The OSD POSITION menu appears on the screen.
3 Press the © 4/4 buttons to adjust the vertical
position or the 0 €/» buttons to adjust the
horizontal position.
The OSD automatically disappears after about 30 seconds. To
close the OSD, press the MENU button again.
Additional settings (OPTION)
You can manualiy degauss (demagnetize) the screen, lock the
controls, change the OSD language, restore the color image, and
cancel the moire.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the ©& +/4 and 0 +/» buttons to highlight ==
OPTION and press the MENU button again.
- The OPTION menu appears on the screen.
3 Press the © +/+ buttons to highlight the desired
adjustment item.
Adjust the selected item according to the following
instructions.
The OSD automatically disappears after about 30 seconds. To
close the OSD, press the MENU button again.
11
MA
Degaussing the monitor
The monitor is automatically degaussed (demagnetized) when the
power is tumed on.
To manualiy degauss the monitor, first press the
CO 4/4 buttons to highlight t+ (MANUAL
DEGAUSS). Then press only the right O » button
The monitor is degaussed for about three seconds. If a second
degauss cycle 1s needed, allow a minimum interval of 20
minutes for the best result. *-
Locking the controls
To protect adjustment data by locking the controls,
first press the © 4/4 buttons to highlight Om
(CONTROL LOCK). Then press the right 0 » button
to turn the tock ON.
Only the (5 (power) switch, EXIT and On (CONTROL
LOCK) of the £2 OPTION menu will operate. If any other
items are selected, the On mark appears on the screen.
To cancel the control lock
Repeat the procedure above and set Om (CONTROL LOCK) to OFF.
Changing the OSD language
This setting allows you to change the language of the OSD (see page 7).
Restoring the Color Image
The color of most display monitors tend to gradually lose
brilliance after several years of service. The Image Restoration
feature allows you to restore the color to the original factory
preset levels.
To restore the image, first press the 1 4/4 buttons
to select += (IMAGE RESTORATION). Then press
the right O » button.
A white rectangle appears in the center of the screen while the
image is being restored (about two seconds).
OPTION
Le
Ow
A | ON 9
o
RESTORATION
Note
* Before using this feature, the monitor must be in normal operation
mode (Green power indicator) for at least 30 minutes. If the monitor
goes into power saving mode, you must return the monitor to normal
operation mode and wait for 30 minutes for the monitor to be ready.
You may need to adjust your computer's power saving settings to help
keep the monitor in normal operation mode for the full 30 minutes. If
the monitor is not ready, the following message will appear.
OPTION
AVAILABLE
] AFTER
WARM UP
RESTORATION
* The monitor may gradualiy lose 1ts ability to perform this function due
to the natural aging of the picture tube.
12
Cancelling the moire
To turn the moire cancellation function on or off,
first press the © +/+ buttons to highlight (7
(CANCEL MOIRE). Then press the O «/# buttons tc
turn the moire cancellation ON or OFF.
Adjusting the amount of the moire cancellation
Before you can adjust this setting, the Cancel Moire setting mus
be tumed ON.
To adjust the amount of moire cancellation, first
press the © 4/4 buttons to highlight {0 (MOIRE
ADJUST). Then press the O </» buttons to adjust
the amount of moire cancellation until the moire
effect is at a minimum.
* Moire is a type of natural interference which produces soft, wavy line
on your screen. It may appear due to interference between the pattern c
the picture on the screen and the phosphor pitch pattern of the monito
Example of moire
Resetting the adjustments
This monitor has the following four reset methods. Use the
RESET button to reset the adjustments.
RESET
Lu
Resetting a single adjustment item
Navigate through the on-screen menus to select the adjustment
item you want to reset, and press the RESET button. You can d
this while you are adjusting an item.
Resetting all of the adjustment data for the
current input signal
Press the RESET button when no menu is displayed on the scree
Note that the following items are not reset by this method:
e on-screen menu language (page 7)
* on-screen menu position (page 11)
* control lock (page 12)
Resetting all of the adjustment data for all input
signals
Press and hold the reset button for more than two seconds whe:
no menu is displayed on the screen. This resets everything to tt
factory preset mode.
Resetting all of the adjustment data to the factor
presets
Press and hold the reset button for more than five seconds. This
resets everything to the factory presets including the input selectic
Note
+ The RESET button does not function when Om (CONTROL
LOCK) is set to ON.
Technical Features
Preset and user modes
When the monitor receives an input signal, it automatically
matches the signal to one of the 26 factory preset modes stored in
the monitor's memory to provide a high quality picture at the
center of the screen. (See the Appendix for a list of the factory
preset modes.) For input signals that do not match one of the
factory preset modes, the digital Multiscan technology of this
monitor ensures that a clear picture appears on the screen for any
timing in the monitor's frequency range (horizontal: 30-96 kHz,
vertical: 48-120 Hz). If the picture is adjusted, the adjustment
data is stored as a user mode and automatically recalled whenever
the same input signal is received.
Note for Windows users
For Windows users, check your graphic video board manual or
the utility program which comes with your graphic video board
and select the highest available refresh rate to maximize monitor
performance.
Power saving function
This monitor meets the power-saving guidelines set by VESA,
ENERGY STAR, and NUTEK. If the monitor is connected to a
computer or graphic video board that is DPMS (Display Power
Management Signaling) compliant, the monitor will
automatically reduce power consumption in three stages as shown
below.
Power mode Power ' (power) Indicator
consumption
normal < 140 W green
operation
1 standby <15W green and orange
a - alternate
2 suspend <15W green and orange
alternate
3 active off* <a W orange
Troubleshooting
This section may help you find the cause of a problem so you can
solve the problem yourself.
If thin lines appear on your screen
(damper wires)
The lines you may be seeing on your screen are normal for the
Trinitron monitor and are not a malfunction. These are shadows
from the damper wires that stabilize the aperture grille, and are
most noticeable when the screen's background is light (usually
white).
The aperture grille is the essential element that makes a Trinitron
picture tube unique by allowing more light to reach the screen,
resulting in a brighter, more detailed picture.
Damper wires
On-screen messages
If there is something wrong with the input signal, one of the
following messages will appear on the screen. To solve the
problem, see “Trouble symptoms and remedies” on page 14.
INFORMATION
[OUT OF SCAN RANGE
| REAR INPUT |
Sa
[1] The input signal condition
QUT OF SCAN RANGE |
Indicates that the input signal is not supported by the
monitor’s specifications.
NO INPUT SIGNAL
Indicates that no signal is input, or that no signal is input from
the selected connector (Front or Rear).
[2] The connector indicator
This message indicates which connector (Front or Rear) 1s
receiving the wrong signal.
13
Trouble symptoms and remedies
[f the problem is caused by the connected computer or other equipment, please refer to the connected equipment's instruction manual.
Use the self-diagnosis function (page 16) if the following do not resolve the problem.
Symptom
No picture
>
If the O (power) indicator is not lit
the NO INPUT SIGNAL message
appears on the screen, or if the ©
(power) indicator is either orange or
‘alternating between green and
orange
If the OUT OF SCAN RANGE
message appears on the screen
If no message is displayed and the ©
(power) indicator is green or flashing
orange
If using Windows 95/98
If using a Macintosh system
-
Picture flickers, bounces,
oscillates, or is scrambled
Picture is fuzzy
Picture is ghosting
Check these items
Check that the power cord is properly connected. .
Check that the ©) (power) switch is in the “on” position.
Check that the video signal cable is properly connected and all plugs are firmly seated in
their sockets. .
Check that the input select setting 1s correct (page 8).
Check that the HD15 video input cable's pins are not bent or pushed in.
E Problems caused by the connected computer or other equipment
The computer is in power saving mode. Try pressing any key on the computer keyboard.
Check that the computer's power is “on.”
Check that the graphic video board is completely seated in the proper bus slot.
EProblems caused by the connected computer or other equipment
Check that the video frequency range is within that specified for the monitor. If you
replaced an old monitor with this monitor, reconnect the old monitor and adjust the
frequency range to the following: |
Horizontal: 30-96 kHz
Vertical: 48-120 Hz
Use the Self-diagnosis function (page 16).
If you replaced an old monitor with this monitor, reconnect the old monitor and do the
following: Install the Windows Monitor Information Disk (page 7) and select “CPD-
420GS” from among the Sony monitors in the Windows 95/98 monitor selection screen.
Check that the Macintosh adapter and the video signal cable are properly connected
(page 6).
Isolate and eliminate any potential sources of electric or magnetic fields such as other
monitors, laser printers, electric fans, fluorescent lighting and televisions.
Move the monitor away from power lines or place a magnetic shield near the monitor.
Try plugging the monitor into a different AC outlet, preferably on a different circuit.
Try turning the monitor 90° to the left or right.
HProblems caused by the connected computer or other equipment
Check your graphic video board manual for the proper monitor setting.
Confirm that the graphics mode (VESA, Macintosh 21” Color, etc.) and the frequency o
the input signal are supported by this monitor (Appendix). Even if the frequency is withi
the proper range, some graphic video boards may have a sync pulse that is too narrow fc
the monitor to sync correctly.
Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible pictur
Adjust the brightness. and contrast (page 10).
Degauss the monitor* (page 12).
If CANCEL MOIRE is ON, the picture may become fuzzy. Decrease the moire
cancellation effect (page 12) or set CANCEL MOIRE to OFF.
Eliminate the use of video cable extensions and/or video switch boxes.
Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized
properly
14
Press the ASC button (page 8).
Adjust the size (page 10) or centering (page 10). Note that some video modes do not fil!
the screen to the edges.
Symptom Check these items
Edges of the image are curved Adjust the geometry (page 10).
Wavy or elliptical pattern (moire) + Cancel the moire (page 12).
is visible
Problems caused by the connected computer or other equipment
* Change your desktop pattern.
Color is not uniform * Degauss the monitor* (page 12). If you place equipment that generates a magnetic field,
p g
‚such as a speaker, near the monitor, or if you change the direction the monitor faces, color
may lose uniformity.
White does not look white Adjust the color temperature (page 11).
Letters and lines show red or blue + Adjust the convergence (page 11).
shadows at the edges
Monitor buttons do not operate * If the control lock is set to ON, set it to OFF (page 12).
Image Restoration does not Image restoration does not work unless the monitor has been in normal operation (Green
function
Restoration.
AVAILABLE
AFTER of the picture tube.
WARM UP
power indicator) for at least 30 minutes. See page 12 for detailed information about Image
In order to keep the monitor “on”, you may need to check the PC's power saving setting.
* The monitor may gradually lose its ability to perform this function due to the natural aging
RESTORATION
A hum is heard right after the * This is the normal sound of the auto-degauss cycle. When the power is turned on, the
power is turned on monitor is automatically degaussed for three seconds.
* Tf a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a
malfunction.
Displaying this monitor's name, serial number, If the problem persists, call your authorized Sony dealer and give
and date of manufacture. the following information:
* Model name: CPD-420GS
While the monitor is receiving a video signal, press and hold the + Serial number: (see back of monitor)
MENU button for more than three seconds to display this
monitor’s information box.
board.
Example
INFORMATION
mm) MODEL : CPD-420GS
- - SER NO : 1234567
MANUFACTURED : 1998-52
* Name and specifications of your computer and graphic video
15
Self-diagnosis function
This monitor is equipped with a self-diagnosis function. If there is
a problem with your monitor or computer(s), the screen will go
blank and the () (power) indicator will either light up green or
flash orange. If the O (power) indicator is lit in orange, the
computer is in power saving mode. Try pressing any key on the
keyboard.
© (power) indicator
If the O (power) indicator is green
1 Remove any plugs from the Front and Rear Video
Input connectors, or turn off the connected
computer(s).
2 Press the () (power) button twice to turn the monitor
off and on.
3 Press and hold the right @ » button for two seconds
before the monitor enters power saving mode.
If all four color bars appear (white, red, green, blue), the monitor
is working properly. Reconnect the video input cables and check
the condition of your computer(s).
If the color bars do not appear, there is a potential monitor failure.
Inform your authorized Sony dealer of the monitor’s condition.
If the ©) (power) indicator is flashing orange
Press the () (power) button twice to turn the monitor off
and on.
If the © (power) indicator lights up green, the monitor is working
properly.
HF the Y (power) indicator is still flashing, there 1s a potential
monitor failure. Count the number of seconds between orange
flashes of the O) (power) indicator and inform your authorized
Sony dealer of the monitor” s condition. Be sure to note the model
name and serial number of your monitor. Also note the
manufacturer and model name of your computer and graphic
video board.
16
Specifications
CPD-420GS
CRT
Viewable image size
Resolution
Standard image area
Deflection frequency*
AC input voltage/current
Power consumption
Dimensions
Mass
Plug and Play
Supplied accessories
0.25 — 0.27 mm aperture grille pitct
19 inches measured diagonally
90-degree deflection
Trinitron
Approx. 365 x 274 mm (w/h)
(14 3/8 x 10 7%s inches)
Horizontal: Max. 1600 dots
Vertical: Max. 1200 lines
Approx. 352 x 264 mm (w/h)
(137 x 10 1/ inches)
Horizontal: 30 to 96 kHz
Vertical: 48 to 120 Hz
100 to 240 Y, 50-60 Hz, 1.7-1.2 A
Max. 140 W |
Approx. 444 x 467 x 455 mm (w/h/d
(17 1/2 x 18 1/2 x 18 inches)
Approx. 26 kg (57 1b 5 07)
DDC/DDC2B, GTF
(Front/Rear input)
DDC2Bi (Rear input only)
See page 6
* Recommended horizontal and vertical timing condition
Horizontal sync width duty should be more than 4.8% of tot:
horizontal time or 0.8 ps, whichever 1s larger.
Horizontal blanking width should be more than 2.5 psec.
Vertical blanking width should be more than 450 usec.
Design and specifications are subject to change without notice.
Appendix
Preset mode timing table
No. Resolution Horizontal Vertical Graphics
| (dots x lines) Frequency Frequency Modë-
1 640x350 31.5 kHz 70 Hz MCGA
2 640x480 31.5 kHz 60 Hz VGA-G
3 640x480 375kHz 175Hz EVGA
4 640x480 43.3 kHz 85 Hz VESA
5 720x400 31.5kHz 70 Hz VGA-Text
6 720x400 37.9 kHz 85 Hz VESA
7 800x600 37.9 kHz 60 Hz SVGA
8 800x600 46.9 kHz 75 Hz ESVGA
9 800x600 53.7 kHz 85 Hz VESA
10 832x624 - 49.7 kHz 75 Hz Macintosh 16”
Color
11 1024x768 48.4 kHz 60 Hz VESA
12 1024 x 768 56.5 kHz 70 Hz VESA
13 1024 х 768 60.0 kHz 75 Hz EUVGA
14 1024 x 768 60.2 kHz 75 Hz Macintosh 19”
Color
15 1024 x 768 68.7 kHz 85 Hz _. VESA
16 1152x864 67.5 kHz 75 Hz VESA
17 1152 x870 68.7 kHz 75 Hz Macintosh 21”
Color
18 1280x960 60.0 kHz 60 Hz VESA
19 1280 x 960 85.9 kHz 85 Hz VESA
20 1280x1024 64.0 kHz 60 Hz VESA
21 1280x 1024 380.0 kHz 75 Hz VESA
22 1280x1024 91.1kHz 85 Hz VESA
23 1600x1200 75.0kHz 60 Hz VESA
24 1600 х 1200 381.3 kHz 65 Hz VESA
25 1600x1200 327.5 kHz 70 Hz VESA
26 1600x1200 93.8kHz 75 Hz VESA
TCO'95 Eco-document
Ш Congratulations!
You have just purchased a TCO’95 approved and labelled
product! Your choice has provided you with a product developed
for professional use. Your purchase has also contributed to
reducing the burden on the environment and also, to the further
development of environmentally adapted electronics products.
ME Why do we have environmentally labelled
computers?
In many countries, environmental labelling has become an
established method for encouraging the adaptation of goods and
services to the environment. The main problem, as far as
computers and other electronics equipment are concerned, is that
environmentally harmful substances are used both in the products
and during the manufacturing. Since it has not been possible for
the majority of electronics equipment to be recycled in a
satisfactory way, most of these potentially damaging substances
sooner or later enter Nature. |
There are also other characteristics of a computer, such as energy
consumption levels, that are important from the viewpoints of
both the work (internal) and natural (external) environments.
Since all methods of conventional electricity generation have a
negative effect on the environment (acidic and climate-
influencing emissions, radioactive waste, etc.), it is vital to
conserve energy. Electronics equipment in offices consume an
enormous amount of energy since they are often left running
continuously.
+
Ш What does labelling involve?
This product meets the requirements for the TCO’95 scheme
which provides for international and environmental labelling of
personal computers. The labelling scheme was developed as a
joint effort by the TCO (The Swedish Confederation of
Professional Employees), Naturskyddsforeningen (The Swedish
Society for Nature Conservation) and NUTEK (The National
Board for Industrial and Technical Development in Sweden).
The requirements cover a wide range of issues: environment,
ergonomics, usability, emission of electrical and magnetic fields,
energy consumption and electrical and fire safety.
(continued)
SE a a A e sop
aa aa ama
a
Sony Corporation Printed in U.S.A.
The environmental demands concern restrictions on the presence
and use of heavy metals, brominated and chlorinated flame
retardants, CFCs (freons) and chlorinated solvents, among other
things. The product must be prepared for recycling and the
manufacturer is obliged to have an environmental plan which
must be adhered to in each country where the company
implements its operational policy.
The energy requirements include a demand that the computer and/
or display, after a certain period of inactivity, shall reduce its
power consumption to a lower level in one or more stages. The
length of time to reactivate the computer shall be reasonable for
the user.
Labelled products must meet strict environmental demands, for
example, in respect of the reduction of electric and magnetic
fields, physical and visual ergonomics and good usability.
On this page, you will find a brief summary of the environmental
requirements met by this product. The complete environmental
criteria document may be ordered from:
TCO Development Unit
S-114 94 Stockholm
Sweden
Fax: +46 8 782 92 07
Email (Internet): development @tco.se
Current information regarding TCO'95 approved and
labelled products may also be obtained via the Internet,
using the address:
http://www.tco-info.com/
TCO'95 is a co-operative project between TCO (The Swedish
Confederation of Professional Employees),
Naturskyddsforeningen (The Swedish Society for Nature
Conservation) and NUTEK (The National Board for Industrial
and Technical Development ir Sweden).
E Environmental Requirements
Brominated flame retardants
Brominated flame retardants are present in printed circuit boards,
cables, wires, casings and housings. In turn, they delay the spread
of fire. Up to thirty percent of the plastic in a computer casing can
consist of flame retardant substances. These are related to another
group of environmental toxins, PCBs, which are suspected to give
rise to similar harm, including reproductive damage in fisheating
birds and mammals, due to the bio-accumulative* processes.
Flame retardants have been found in human blood and researchers
fear that disturbances in foetus development may occur.
TCO'95 demand requires that plastic components weighing more
than 25 grams must not contain organically bound chlorine and
bromine.
Lead**
Lead can be found in picture tubes, display screens, solders and
capacitors. Lead damages the nervous system and in higher doses,
causes lead poisoning.
ТСО’95 requirement permits the inclusion of lead since no
replacement has yet been developed.
Cadmium**
Cadmium is present in rechargeable batteries and in the
colourgenerating layers of certain computer displays. Cadmium
damages the nervous system and is toxic in high doses.
TCO’95 requirement states that batteries may not contain more
than 25 ppm (parts per million) of cadmium. The colour-
generating layers of display screens must not contain any
cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches.
Mercury damages the nervous system and is toxic in high doses.
TCO’95 requirement states that batteries may not contain more
than 25 ppm (parts per million) of mercury. It also demands that
no mercury is present in any of the electrical or electronics
components concerned with the display unit.
CFCs (freons)
CFCs (freons) are sometimes used for washing printed circuit
boards and in the manufacturing of expanded foam for packaging.
CFCs break down ozone and thereby damage the ozone layer in
the stratosphere, causing increased reception on Earth of
ultraviolet light with consequent increased risks of skin cancer
(malignant melanoma).
The relevant TCO’95 requirement: Neither CFCs nor HCFCs
may be used during the manufacturing of the product or its
packaging.
* Bio-accumulative is defined as substances which accumulate
within living organisms
** Lead, Cadmium and Mercury are heavy metals which are Bio-
accumulative. -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
