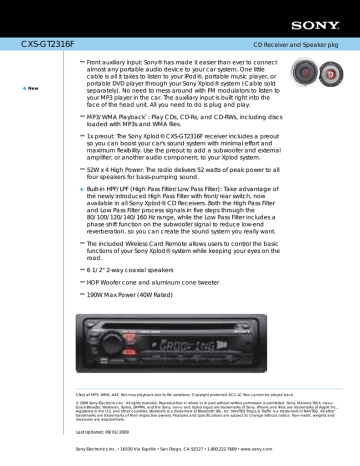

Sony CXS-GT2316F Specification

Sony CXS-GT2316F Specification
CD Receiver and Speaker pkg
Front auxiliary input: Sony® has made it easier than ever to connect
almost any portable audio device to your car system. One little
cable is all it takes to listen to your iPod®, portable music player, or
portable DVD player through your Sony Xplod® system (Cable sold
separately). No need to mess around with FM modulators to listen to
your MP3 player in the car. The auxiliary input is built right into the
face of the head unit. All you need to do is plug and play.
MP3/WMA Playback1 : Play CDs, CD-Rs, and CD-RWs, including discs
loaded with MP3s and WMA files.
1x preout: The Sony Xplod® CXS-GT2316F receiver includes a preout
so you can boost your car's sound system with minimal effort and
maximum flexibility. Use the preout to add a subwoofer and external
amplifier, or another audio component, to your Xplod system.
52W x 4 High Power: The radio delivers 52 watts of peak power to all
four speakers for bass-pumping sound.
Built-in HPF/LPF (High Pass Filter/Low Pass Filter): Take advantage of
the newly introduced High Pass Filter with front/rear switch, now
available in all Sony Xplod® CD Receivers. Both the High Pass Filter
and Low Pass Filter process signals in five steps through the
80/100/120/140/160 Hz range, while the Low Pass Filter includes a
phase shift function on the subwoofer signal to reduce low-end
reverberation, so you can create the sound system you really want.
The included Wireless Card Remote allows users to control the basic
functions of your Sony Xplod® system while keeping your eyes on the
6 1/2" 2-way coaxial speakers
HOP Woofer cone and aluminum cone tweeter
190W Max Power (40W Rated)
1.Not all MP3, WMA, AAC files may playback due to file variations. Copyright protected ACC-LC files cannot be played back.
© 2009 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, Memory Stick, nav-u,
Quick-BrowZer, Walkman, Xplod, ZAPPIN, and the Sony, nav-u and Xplod logos are trademarks of Sony. iPhone and iPod are trademarks of Apple Inc.,
registered in the U.S. and other countries. Bluetooth is a trademark of Bluetooth SIG, Inc. NAVTEQ Maps & Traffic is a trademark of NAVTEQ. All other
trademarks are trademarks of their respective owners. Features and specifications are subject to change without notice. Non-metric weights and
measures are approximate.
Last Updated: 09/01/2009
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •
