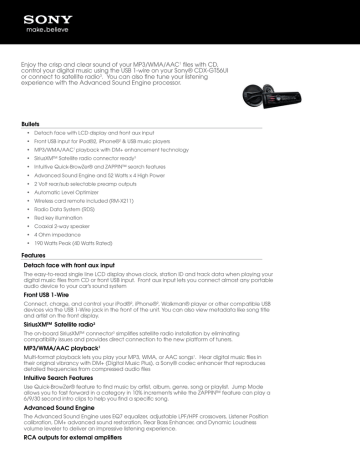

Sony CXS-GT5616F Specification

Sony CXS-GT5616F Specification
CXS-GT5616F
CDX-GT56UI CD Receiver with speakers
Enjoy the crisp and clear sound of your MP3/WMA/AAC1 files with CD,
control your digital music using the USB 1-wire on your Sony® CDX-GT56UI
or connect to satellite radio3. You can also fine tune your listening
experience with the Advanced Sound Engine processor.
Bullets
• Detach face with LCD display and front aux input
• Front USB input for iPod®2, iPhone®2 & USB music players
• MP3/WMA/AAC1 playback with DM+ enhancement technology
• SiriusXM™ Satellite radio connector ready3
• Intuitive Quick-BrowZer® and ZAPPIN™ search features
• Advanced Sound Engine and 52 Watts x 4 High Power
• 2 Volt rear/sub selectable preamp outputs
• Automatic Level Optimizer
• Wireless card remote included (RM-X211)
• Radio Data System (RDS)
• Red key illumination
• Coaxial 2-way speaker
• 4 Ohm impedance
• 190 Watts Peak (40 Watts Rated)
Features
Detach face with front aux input
The easy-to-read single line LCD display shows clock, station ID and track data when playing your
digital music files from CD or front USB input. Front aux input lets you connect almost any portable
audio device to your car's sound system
Front USB 1-Wire
Connect, charge, and control your iPod®2, iPhone®2, Walkman® player or other compatible USB
devices via the USB 1-Wire jack in the front of the unit. You can also view metadata like song title
and artist on the front display.
SiriusXM™ Satellite radio3
The on-board SiriusXM™ connector3 simplifies satellite radio installation by eliminating
compatibility issues and provides direct connection to the new platform of tuners.
MP3/WMA/AAC playback1
Multi-format playback lets you play your MP3, WMA, or AAC songs1. Hear digital music files in
their original vibrancy with DM+ (Digital Music Plus), a Sony® codec enhancer that reproduces
detailed frequencies from compressed audio files
Intuitive Search Features
Use Quick-BrowZer® feature to find music by artist, album, genre, song or playlist. Jump Mode
allows you to fast forward in a category in 10% increments while the ZAPPIN™ feature can play a
6/9/30 second intro clips to help you find a specific song.
Advanced Sound Engine
The Advanced Sound Engine uses EQ7 equalizer, adjustable LPF/HPF crossovers, Listener Position
calibration, DM+ advanced sound restoration, Rear Bass Enhancer, and Dynamic Loudness
volume leveler to deliver an impressive listening experience.
RCA outputs for external amplifiers
When you’re ready to expand your system, the CDX-GT56UI offers selectable rear or subwoofer
pre-amp RCA outputs for connecting external amplifiers. Set the built in electronic HPF/LPF
crossovers to improve sound quality and reduce system distortion
Automatic Level Optimizer
Automatic Level Optimizer analyzes each tracks playback levels and adjusts output level to
optimize transitions between tracks and sources.
Radio Data System
Radio Data System (RDS) feature displays radio broadcast information such as artist and track
information when listening to compatible AM/FM stations. RDS also allows expanded channel
playback with compatible radio station broadcasts.
Wireless card remote
Control your receiver while keeping your eyes on the road with the included wireless card remote
(RM-X211).
Key illumination
Red key illumination helps you locate buttons quickly during evening playback.
2-Way Speaker
The included 2-way 6.5" co-axial speakers deliver crisp and clear sound.
Impedance Rating
The speakers are rated at 4 Ohm to ensure system compatibility and optimize power handling.
Power Handling
Peak Power handling of 190 Watts and Rated Power of 40 Watts.
Specifications
Amplifier Section
Max power output
52 watts x 4 at 4 ohms
Power Ad Hoc
CEA2006 Standard Power: 17 Watts RMS per channel into 4 Ohms, 4 channels driven
from 20 Hz to 20 kHz with less than 1% THD+N.
Speaker Impedance
4-8 Ohms
AMP & General Feature
Automatic Level Optimizer
Yes
Aux-In
Yes (Front)
DM+ (Codec enhancer)
Yes(Gen2.1)
EQ
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3
kHz and 16 kHz.
High Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Loudness
Dynamic Loudness
Low Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Output Power (4ohm, 1kHz,16V)(W)
52 watts x 4
Pre Out
(1) Rear / Sub switchable
Rear/Sub initial
Sub
Rear Bass Enhancer
Yes
Sirius/XM Connector
Yes
Time Alignment Custom
Yes (Adjustment)
Time Alignment Preset
Yes
USB
Yes (Front)
Audio
Band
AM / FM
Equalizer
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3
kHz and 16 kHz.
Format(s) Supported
MP3/WMA/AAC files1
Preout Impedance
220 ohms
Preout Voltage
2 volt
S/N Ratio
Audio Power: CEA2006 S/N 80 dBA
Sensitivity (db)
Speaker: 91 dB/W/m
Signal-to-Noise Ratio (dB)
CD: 120 dB
Station Preset(s)
18 FM / 12 AM
Tuner Frequency Range
FM (MHz): 87.5-107.9
AM (kHz): 530-1710
Tuner Type
SSIR-EXA with RDS
Wow and Flutter
Below measurable limit
AUX in Feature
Level Adjustment
Yes (-8dB / +18dB)
Convenience
Tilt Range
0-45° mounting angle
Convenience Features
Dimmer Adjust
Manual
Key Illumination
Red
On-Screen Clock
12H
Display
Display Color
Black / Negative Color
Display Technology
LCD
Text Displayed
Source, artist, track, playback time, menu and clock
Text Lines
1 line of information
Display Panel
Auto off mode
Yes
Dimmer Adjust
Manual
Panel Design
Display color (Color Variation/Nega or Posi)
Black color / Negative
Display Device (LCD/FL/OEL/TFT)
LCD
Key Illumination
RED
Panel finish color
Black (Bare)
Feature
CODEC (for USB)
MP3, WMA, AAC1
Jump Mode
Yes
List Browsing (Folders/Files)
Yes
Pause
Yes
Repeat
OFF/ TRACK/ ALBUM
Resume Play
Yes
Shuffle
OFF/ALBUM/DEVICE
ZAPPIN
Yes
General
CEA2006 output power
17
CEA2006 S/N
Dimensions (WxHxD) (mm)
Maximum output power (4ohm, 1kHz, 16V)(W)
Mounting dimensions (WxHxD)(mm)
80
Receiver: 178x50x180
52
Receiver: 182 x 53 x 162
Preout impedance (ohms)
220
Preout output level (V)
2
Inputs and Outputs
12V Trigger Output(s)
Power amplifier turn on
Antenna Terminal(s)
AM/FM Antenna Input Terminal
Audio In
Front Aux in with variable level
Front USB input
SiriusXM connector
Ability to use all forms of USB devices may vary as not all devices are compatible. This
unit is compliant with MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type
USB devices compliant with the USB standard. This unit cannot recognize USB devices
via a USB hub.
Digital Audio Input(s)
This unit can be connected to the following iPods. Update your iPod to the latest
software before you use it.
iPod Nano 1st - 6th generation
iPod Touch 1st - 4th generation
iPod Classic
iPod with video
iPhone
iPhone 3G
iPhone 3GS
iPhone 4
If you have any questions or problems concerning your unit that are not covered in the
owners manual, consult your nearest Sony dealer.
Infrared Port
Wireless remote
RCA Audio Output(s)
Rear/Subwoofer selectable RCA pre-amp outputs
Remote Jack
Optional wired remote terminal
USB Port(s)
Front
iPod Control Feature
Accessory Information
Yes
CODEC (for iPod)
depend on iPod content
List Browsing (Folders / Files)
Quick-BrowZer®
Passenger Control
Yes
Pause
Yes
Repeat
Yes (Track, Album, Artist, Playlist, Genre, Podcast)
Resume Play
Yes
Shuffle
Yes (Genre, Album, Artist, Playlist, Device, Podcast)
ZAPPIN
Yes
USB Capable
USB Mass Storage Device
Yes
Other Features
Card Remote ( ): Option
RM-X211
CD lock mode
Yes
Clock
12H
Rotary commander ( ):Option
(RM-X4S)
Security
Detachable
Tuner
FM Usable Sensitivity
8 dBf
Frequency Response
FM: 20-15,000 Hz
S/N Ratio
80 dB (stereo)
Selectivity
75 dB at 400 kHz
Stereo Separation
50 dB at 1 KHz
FM: Channel separation (dB)
50 dB at 1 kHz
FM: Frequency response (Hz)
20 - 15k
FM: Intermediate frequency (MHz)
25KHz
FM: S/N ratio (mono) (dB)
80 dB stereo
FM: Selectivity (400 kHz) (dB)
75 dB
FM: Tuning range (MHz)
87.5-107.9
FM: Usable sensitivity (75 ohm) (dBf)
8 dBf
MW: Tuning range(kHz)
530-1710
MW/LW/SW: Sensitivity (75 ohm) MW/LW/SW(uV)
26/-/-
Tuner Feature
Preset
FM18/AM12
RDS/EON (NA Only:RBDS, Others:RDS)
Yes (RBDS)
Supplied Accessories
Supplied Accessories
Parts for installation and connections (1 set)
RM-X211 wireless remote
Speakers
Optional Accessories
Optional Accessories
USB Connection Cable for iPod®: RC-100IP
1. Copy-protected content not supported.
2. Works with iPod touch® 1st - 4th generation, iPod nano® 1st - 6th generation, iPod classic®, iPod® with video, and iPhone® 3G, 3GS and 4.
3. Requires antenna and tuner, both sold sep.
© 2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, ZAPPIN, Walkman, Quick-BrowZer and their respective logos
are trademarks of Sony. iPod is a trademark of Apple Inc. All other trademarks are trademarks of their respective owners. Features and specifications are subject to change without
notice. Updated: February 1, 2012
