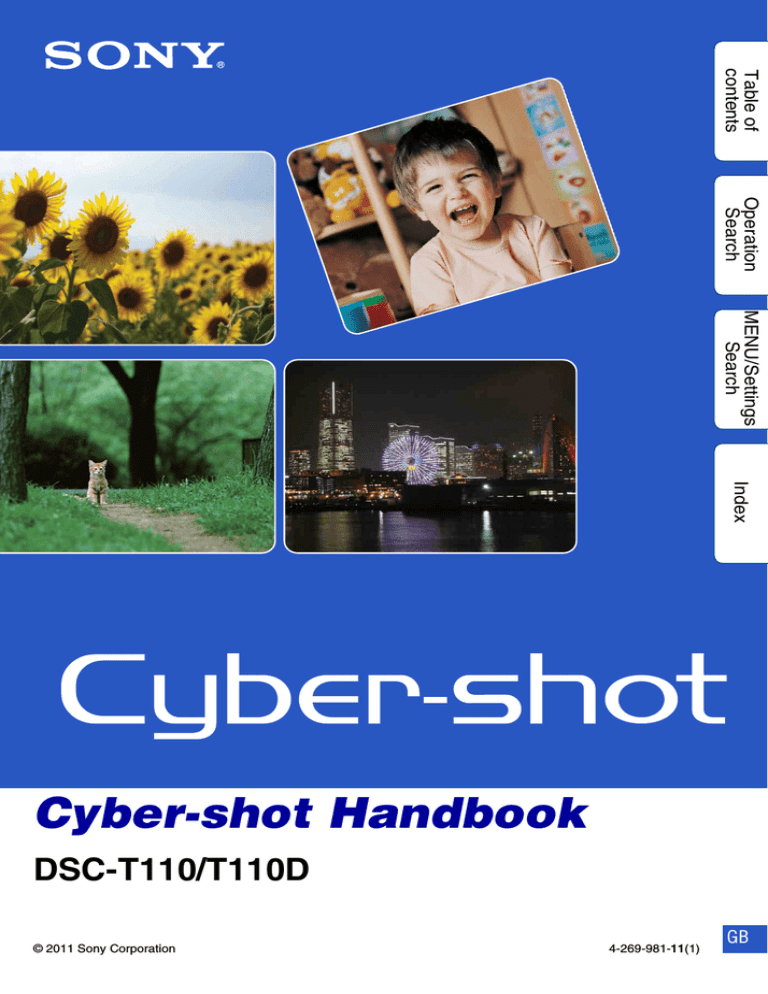

Cyber-shot Handbook
DSC-T110/T110D
© 2011 Sony Corporation
4-269-981-11(1)
GB
Table of
contents
How to use this handbook
Click on a button at upper right to jump to the corresponding page.
This is convenient when searching for a function you want to view.
Operation
Search
Search for information by operation.
MENU/Settings
Search
Search for information in a listing of
MENU/Settings items.
Marks and notations used in this handbook
MENU/Settings
Search
Index
Search for information by keyword.
Operation
Search
Table of
contents
Search for information by function.
The default setting is indicated by
Index
In this handbook, the sequence of
operations is shown by arrows (t). You
should touch the items on the screen in the
order indicated. Marks are shown as they
appear in the camera’s default setting.
.
Indicates cautions and limitations relevant
to the correct operation of the camera.
z Indicates information that is useful to
know.
2GB
Notes on the battery pack
• Charge the battery pack (supplied) before using
the camera for the first time.
• You can charge the battery pack even if it is not
completely discharged. In addition, even if the
battery pack is not fully charged, you can use the
partially charged capacity of the battery pack as
is.
• If you do not intend to use the battery pack for a
long time, use up the existing charge and
remove it from the camera, then store it in a
cool, dry place. This is to maintain the battery
pack functions.
• For details on the usable battery pack, see
page 155.
Carl Zeiss lens
The camera is equipped with a Carl Zeiss lens
which is capable of reproducing sharp images
with excellent contrast. The lens for the
camera has been produced under a quality
assurance system certified by Carl Zeiss in
accordance with the quality standards of Carl
Zeiss in Germany.
Index
When using a “Memory Stick Duo”
media with standard sized “Memory
Stick” media slot
You can use the “Memory Stick Duo” media
by inserting it into the “Memory Stick Duo”
media Adaptor (sold separately).
• This manual describes each of the functions of
TransferJet-compatible/incompatible devices.
To check if your camera supports the
TransferJet function, check for the following
mark on the bottom of the camera.
TransferJet-compatible device:
(TransferJet)
MENU/Settings
Search
• “Memory Stick Duo” media with a capacity up
to 32 GB and SD card up to 64 GB have been
confirmed to operate properly with the camera.
• When recording movies, it is recommended that
you use the following memory cards:
–
(Mark2) (“Memory Stick
PRO Duo” (Mark2) media)
–
(“Memory Stick PROHG Duo” media)
– SD memory card, SDHC memory card or
SDXC memory card (Class 4 or faster)
• For details on “Memory Stick Duo” media, see
page 153.
Functions built into this camera
Operation
Search
Notes on the types of memory cards
that you can use (sold separately)
The following memory cards are compatible
with this camera: “Memory Stick PRO Duo”
media, “Memory Stick PRO-HG Duo”
media, “Memory Stick Duo” media, SD
memory card, SDHC memory card and
SDXC memory card.
MultiMediaCard cannot be used.
In this manual, the term “Memory Stick Duo”
media is used to refer to “Memory Stick PRO
Duo” media, “Memory Stick PRO-HG Duo”
media and “Memory Stick Duo” media, and
the term “SD card” is used to refer to SD
memory card, SDHC memory card and
SDXC memory card.
Table of
contents
Notes on using the camera
“Memory Stick Duo”
media Adaptor
3GB
Continued r
Notes on the LCD screen and lens
MENU/Settings
Search
Index
• If water droplets or other liquids splash on the
LCD screen and make it wet, immediately wipe
off the screen with a soft cloth. Leaving liquids
on the LCD screen surface can harm the quality
and cause a malfunction.
• Exposing the LCD screen or the lens to direct
sunlight for long periods may cause
malfunctions. Be careful when placing the
camera near a window or outdoors.
• Do not press against the LCD screen. The screen
may be discolored and that may cause a
malfunction.
• Images may trail across on the LCD screen in a
cold location. This is not a malfunction.
• Be careful not to bump the lens, and be careful
not to apply force to it.
Operation
Search
Black, white, red, blue or
green dots
Table of
contents
• The LCD screen is manufactured using
extremely high-precision technology so over
99.99% of the pixels are operational for
effective use. However, some tiny black and/or
bright dots (white, red, blue or green) may
appear on the LCD screen. These dots are a
normal result of the manufacturing process and
do not affect the recording.
On moisture condensation
• If the camera is brought directly from a cold to a
warm location, moisture may condense inside or
outside the camera. This moisture condensation
may cause a malfunction of the camera.
• If moisture condensation occurs, turn off the
camera and wait about an hour for the moisture
to evaporate. Note that if you attempt to shoot
with moisture remaining inside the lens, you
will be unable to record clear images.
The images used in this Handbook
The images used as examples in this
Handbook are reproduced images, and are not
actual images shot using this camera.
4GB
Notes on using the camera
Operation
Search
MENU/Settings
Search
How to use this handbook····································· 2
Notes on using the camera ··································· 3
Operation Search ·················································· 8
MENU/Settings Search ······································· 11
Names of parts···················································· 16
List of icons displayed on the screen ·················· 17
Using the touch panel ········································· 19
Customizing MENU items ··································· 21
Using the internal memory ·································· 22
In-Camera Guide················································· 23
Table of
contents
Table of contents
Shooting
Index
REC Mode··························································· 25
Intelligent Auto ···················································· 26
Sweep Panorama················································ 27
Movie Mode························································· 29
Program Auto ······················································ 30
Scene Selection ·················································· 31
Underwater Sweep Panorama
(DSC-T110 only) ················································· 34
Zoom ··································································· 35
Viewing
Viewing still images············································· 36
Playback Zoom ··················································· 37
Wide Zoom·························································· 38
Temporarily Rotated Display······························· 39
Viewing movies ··················································· 40
5GB
MENU items (Shooting) ······································ 11
Table of
contents
MENU (Shooting)
MENU (Viewing)
Operation
Search
MENU items (Viewing) ········································ 13
Settings
TV
Index
Viewing an image on a Standard Definition (SD)
TV······································································ 128
Viewing an image on a High Definition (HD)
TV······································································ 129
MENU/Settings
Search
Setting items ······················································· 14
Computer
Using with your computer·································· 131
Using the software ············································ 132
Connecting the camera to the computer···············134
Uploading images to a media service ··············· 136
Printing
Printing still images ··········································· 138
Troubleshooting
Troubleshooting ················································ 139
Warning indicators and messages ···················· 147
6GB
Index ································································· 161
MENU/Settings
Search
Index
Operation
Search
Using the camera abroad·································· 152
Memory card ····················································· 153
Battery pack ······················································ 155
Battery charger·················································· 156
TransferJet standard ········································· 157
Number of still images and recordable time of
movies······························································· 158
Precautions ······················································· 160
Table of
contents
Others
Index
7GB
Leaving the settings to Intelligent Auto······················································ 26
the camera
Scene Selection ··················································· 31
Table of
contents
Operation Search
Scene Recognition ·············································· 64
Soft Skin ································································· 31
Soft Snap ······························································· 31
Twilight Portrait ···················································· 31
Smile Shutter ························································ 43
Scene Recognition ·············································· 64
Face Detection ····················································· 67
Anti Blink ································································ 70
Red Eye Reduction ··········································· 100
Shooting panoramic
images
Sweep Panorama ················································ 27
Shooting close to
objects
Macro ······································································ 55
Close Focus ·························································· 55
Shooting moving
objects
Movie Mode··························································· 29
Hi-Speed Shutter ················································· 32
Burst Settings ······················································· 54
Shooting without blur
High Sensitivity····················································· 31
Hi-Speed Shutter ················································· 32
2-second delay self-timer ·································· 47
ISO ··········································································· 57
Index
Shooting portraits
MENU/Settings
Search
Movie Mode··························································· 29
Operation
Search
Shooting movies
Shooting with backlight Forced Flash ························································· 45
Scene Recognition ·············································· 64
DRO········································································· 69
8GB
Shooting in dark places High Sensitivity····················································· 31
Image Size/Panorama Image Size ················· 51
Deleting images
Delete ······································································ 79
Format ·································································· 120
Displaying enlarged
images
Playback Zoom ···················································· 37
Trimming (Resize) ··············································· 84
Displaying full-screen
images
Wide Zoom ···························································· 38
Temporarily Rotated Display ···························· 39
Image Size/Panorama Image Size ················· 51
Editing images
Paint ········································································ 83
Retouch ·································································· 84
Index
Changing image size
MENU/Settings
Search
Focus ······································································ 61
Face Detection ····················································· 67
Operation
Search
Changing focus
position
Table of
contents
Slow Synchro ························································ 45
ISO ··········································································· 57
Playing back a series of Slideshow ······························································ 76
images in order
Printing images with
the date
“PMB (Picture Motion Browser)” ··················· 132
Changing date and
time settings
Area Setting ························································ 126
Date & Time Setting·········································· 127
Initializing settings
Initialize································································· 107
Viewing the In-Camera In-Camera Guide ················································· 72
Guide
9GB
Printing still images ··········································· 138
Viewing on TVs
Viewing an image on a Standard Definition
(SD) TV································································· 128
Viewing an image on a High Definition
(HD) TV ································································ 129
Table of
contents
Printing images
Operation
Search
MENU/Settings
Search
Index
10GB
Table of
contents
MENU/Settings Search
MENU items (Shooting)
You can easily select the various shooting functions from
.
1 Lower the lens cover to switch to shooting mode.
to display the MENU screen.
The four menu items displayed below
the MENU screen.
Operation
Search
2 Touch
do not appear in
3 Touch the menu item t desired mode.
MENU/Settings
Search
In the table below, indicates settings that can be changed, while – indicates settings that cannot
be changed. A setting may be fixed or restricted depending on the shooting mode. For details,
see the page for each item.
The icons below
and
indicate the available modes.
REC Mode
—
Easy Mode
Movie shooting scene (DSCT110 only)
—
—
—
—
—
—
Smile Shutter
—
—
—
Flash
—
—
—
Self-Timer
Shooting Direction
—
—
Index
Menu items
—
—
—
—
Image Size/Panorama Image
Size
Burst Settings
—
—
—
Macro
—
—
—
—
—
—
EV
ISO
—
White Balance
—
Underwater White Balance
(DSC-T110 only)
—
Focus
—
Metering Mode
—
Scene Recognition
Soft Skin Effect
—
Face Detection
DRO
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
11GB
Continued r
REC Mode
Anti Blink
—
—
—
—
—
Display Settings
—
In-Camera Guide
—
Table of
contents
Menu items
Notes
Operation
Search
• [Underwater Sweep Panorama] is displayed only when [Housing] is set to [On] (DSC-T110 only).
• Only the items that are available for each mode are displayed on the screen.
• The four menu items displayed below
differ according to each mode.
•
(Underwater) mode in Scene Selection is available only for DSC-T110.
MENU/Settings
Search
Index
12GB
MENU items (Viewing)
Table of
contents
You can easily select the various viewing functions from
.
1 Press the
(Playback) button to switch to
playback mode.
2 Touch
to display the MENU screen.
do not appear in
Operation
Search
The four menu items displayed below
the MENU screen.
3 Touch the menu item t desired mode.
indicates settings that can be changed, while – indicates settings that cannot
View Mode
Internal
Memory
Memory card
Date View
Menu items
Folder view
(Movie)
Folder View
—
—
—
(Easy Mode)
(Calendar)
(Image Index)
(Slideshow)
Index
Folder view
(Still)
MENU/Settings
Search
In the table below,
be changed.
—
(Delete)
(Send by TransferJet)
—
(Paint)
—
(Retouch)
—
(View Mode)
—
—
(Protect)
DPOF
—
(Rotate)
—
—
(Volume Setting)
(Display Settings)
(Exposure data)
(Number of images in index)
(Select Folder)
—
—
In-Camera Guide
Notes
• Only the items that are available for each mode are displayed on the screen.
• The four menu items displayed below
differ according to each mode.
13GB
Setting items
1 Touch
Table of
contents
You can change the settings on the
(Settings) screen.
to display the MENU screen.
Operation
Search
2 Touch
(Settings) t desired category t
desired item t desired setting.
Shooting Settings
MENU/Settings
Search
Categories
Items
AF Illuminator
Grid Line
Disp. Resolution
Digital Zoom
Auto Orientation
Scene Recog. Guide
Index
Red Eye Reduction
Blink Alert
Main Settings
Beep
LCD Brightness
Language Setting
Display color
Demo Mode
Initialize
COMPONENT
Video Out
Housing (DSC-T110 only)
USB Connect
LUN Setting
Download Music
Empty Music
Power Save
TransferJet
Eye-Fi*
Calibration
14GB
Continued r
Categories
Format
Create REC.Folder
Change REC.Folder
Delete REC.Folder
Table of
contents
Memory Card Tool
Items
Copy
File Number
Format
File Number
Clock Settings
Area Setting
Date & Time Setting
Operation
Search
Internal Memory Tool
* [Eye-Fi] appears only when an Eye-Fi card (commercially available) is inserted in the camera.
MENU/Settings
Search
Notes
• [Shooting Settings] appears only when settings have been entered from shooting mode.
• [Memory Card Tool] appears only when a memory card is inserted in the camera, while [Internal
Memory Tool] appears only when a memory card is not inserted.
Index
15GB
A Zoom (W/T) lever (35, 37)
B Shutter button
Table of
contents
Names of parts
C Microphone
D ON/OFF (Power) button/Power lamp
E Flash
G Lens
H Lens cover
Operation
Search
F Self-timer lamp/Smile Shutter lamp/
AF illuminator
I LCD screen/Touch panel
K
(Playback) button (36)
L Hook for wrist strap*
M Battery insertion slot
N Tripod receptacle
O Battery/Memory card cover
MENU/Settings
Search
J Speaker
P Multi-connector (Type3a)
Q Battery eject lever
S Access lamp
T
(TransferJet™) mark (81, 116)
Index
R Memory card slot
* Using the wrist strap
Attach the strap and place your hand through the
loop to prevent the camera from being dropped.
Hook
Cover panel
* Using the paint pen
The paint pen is used when operating the touch
panel. It attaches to the wrist strap. Do not carry
the camera by holding the paint pen. The camera
may fall off.
16GB
Icons are displayed on the screen to indicate the camera status. The displayed icon positions may
differ according to the shooting mode.
When shooting still images
Table of
contents
List of icons displayed on the
screen
1
Indication
Scene Recognition icon
DRO
Destination
Scene Recognition
Vibration warning
When shooting movies
MENU/Settings
Search
White balance
•
(Underwater White
Balance) are displayed only on
DSC-T110.
Operation
Search
Display
Movie shooting scene (DSCT110 only)
Playback zoom
Eye-Fi Mode display
8/8
Index
Recording/Playback Media
(Memory card, internal memory)
Image number/Number of
images recorded in date range,
selected folder
Image size/Panorama image size
When playing back
TransferJet settings
Database file full/Database file
error warning
Recording folder
Playback folder
Changing folder
Protect
Print order (DPOF) mark
Anti Blink
17GB
Continued r
2
Indication
Display
Indication
Battery remaining
Focus
Low battery warning
Red-eye reduction
AF illuminator
z
Recording folder
AE/AF lock
NR slow shutter
125
Shutter speed
F3.5
Aperture value
Eye-Fi Mode display
ISO400
ISO number
+2.0EV
Exposure Value
Close focus
Flash mode
Flash
Flash charging
White balance
•
(Underwater White
Balance) are displayed only on
DSC-T110.
3
Display
Recording a movie/Standby
0:12
Recording time (m:s)
N
Playback
Playback bar
Indication
Burst settings
Self-diagnosis display
Temperature increase warning
Self-timer
96
Number of recordable images
100 Min
Recordable time
0:00:12
Counter
101-0012
Folder-file number
2010 1 1
9:30 AM
Recorded date/time of the
playback image
Index
C:32:00
Metering mode
REC
Standby
MENU/Settings
Search
Metering mode
Operation
Search
Recording/Playback Media
(Memory card, internal memory)
Zoom scaling
Table of
contents
Display
4
Face Detection
Soft Skin Effect
Database file full/Database file
error warning
Image size/Panorama image size
AF range finder frame
Spot metering cross-hairs
ISO400
ISO number
+2.0EV
Exposure Value
125
Shutter speed
F3.5
Aperture value
18GB
The camera allows you to perform operations and make settings by touching the buttons or
dragging the LCD screen with your finger.
Button
/
Table of
contents
Using the touch panel
Action
/
/
Displays the hidden items so that the items
you want to set are shown on the screen.
Notes
• To operate the touch panel, press it lightly with your finger or the supplied paint pen. Pressing hard or
using a pointed object other than the supplied paint pen could damage the touch panel.
• If you touch the top right of the screen during shooting, the buttons and icons will momentarily
disappear. The buttons and icons will reappear when you take your finger off the screen.
MENU/Settings
Search
Displays the description of functions for
each setting on the selection screens for
MENU (shooting), REC Mode or Scene
Selection mode.
Touch
t the items whose description
you want to view.
Operation
Search
Returns to the previous screen.
Touching the screen to set the focus
Button/Operation method
Action
Touch the subject
Adjusts the focus.
Index
Touching the subject on the touch panel displays a frame, and then pressing the shutter button
halfway down brings the frame into focus. If there is a face in the frame, in addition to the focus,
the brightness and hue are also automatically optimized.
Cancels the function.
Notes
• You cannot use this function when using the Digital Zoom, shooting in close focus mode or in Easy
Mode.
• You cannot use this function when
(Landscape), (Twilight), (Fireworks) or
(Underwater)
(DSC-T110 only) mode is selected in the Scene Selection.
19GB
Touch the left side of the LCD screen and drag
right to display the MENU screen; drag right
to left to hide the MENU screen.
Displays/hides
the operation
buttons
Touch the left side of the LCD screen and drag
left to hide the operation buttons; drag from left
to right to display the operation buttons.
Displays the
next/previous
Drag the LCD screen to the right or left during
playback. To change the image continuously,
drag to the right or left and continue pressing
that side.
Displays the
image index
screen
Drag up on the LCD screen.
Displays the
next/previous
page in index
mode
Drag down or up on the LCD screen.
Index
Displays/hides
the MENU
screen
MENU/Settings
Search
Operation method
Operation
Search
Action
Table of
contents
Operating the camera by dragging the LCD
screen
20GB
During shooting/playback, the four MENU items appear below
on the LCD screen. You
can customize these four buttons to the desired MENU items and layout, letting you
conveniently locate frequently used buttons.
These buttons can be customized and the settings saved for each recording mode during
shooting, and for internal memory and the memory card during playback.
2
to display the MENU screen.
Operation
Search
1 Touch
Table of
contents
Customizing MENU items
MENU/Settings
Search
(Customize) t [OK]
3 Select a MENU icon and drag it to the desired
position on the left side of the LCD screen.
The MENU icon in the customization area is replaced.
4 To cancel, touch
.
Index
Customization area
Note
• You cannot customize the MENU icon in Easy Mode.
z Taking advantage of customization
Not only can you swap MENU icons, but you can also swap MENU icons inside the
customization area and reduce the number of MENU icons.
Swapping MENU icons inside the customization
area
While touching a MENU icon inside the customization
area, move it to the desired location.
Reducing the number of icons in the
customization area
While touching a MENU icon inside the customization
area, move it to the area on the right.
21GB
The camera has approximately 23 MB of internal memory. This memory is not removable. Even
when there is no memory card inserted in the camera, you can record images using this internal
memory.
B
When there is no memory card inserted
[Recording]: Images are recorded using the internal memory.
B
Internal
memory
[Playback]: Images stored in the internal memory are played
back.
[Menu, Settings, etc.]: Various functions can be performed
on images in the internal memory.
MENU/Settings
Search
• You cannot record movies to the internal memory when the movie
image size is [1280×720(Fine)] or [1280×720(Standard)].
Operation
Search
When a memory card is inserted
[Recording]: Images are recorded on the memory card.
[Playback]: Images on the memory card are played back.
[Menu, Settings, etc.]: Various functions can be performed
on images on the memory card.
Table of
contents
Using the internal memory
On image data stored in the internal memory
To copy (back up) data on a hard disk of your computer
Perform the procedure on page 134 without a memory card inserted in the camera.
Index
We recommend that you copy (back up) data using one of the following methods.
To copy (back up) data on a memory card
Prepare a memory card with sufficient free capacity, then perform the procedure explained in
[Copy] (page 124).
Notes
• You cannot import image data on a memory card to the internal memory.
• By making a USB connection between the camera and a computer with a cable, you can import data
stored in the internal memory to a computer. However you cannot export data on a computer to the
internal memory.
22GB
This camera contains an internal function guide. This allows you to search the camera's
functions according to your needs.
You can use the selected function after reading the guide.
(In-Camera Guide).
When the buttons are not displayed on the left side of the LCD screen, touch
.
2 Select a search method.
This is explained in the Shoot/playback guide.
3 Select the desired mode.
Functions available in the selected mode are displayed.
MENU/Settings
Search
1 Touch
Operation
Search
An operation guide is displayed so that you can operate
the camera following the instructions on the screen.
Table of
contents
In-Camera Guide
Index
4 Select the desired function.
The operation guide for the selected function is displayed.
5 Use
/
to switch the display from summary to
operation to details.
• The operation guide and details may not be displayed, depending on
the selected function.
• When you select [Use this function], the camera switches to the
selected mode automatically.
6 To close In-Camera Guide, touch
.
Search method
Description
Shoot/playback guide
Search for various operation functions in shooting/viewing mode.
Icon guide
Search the function and meaning of displayed icons.
Troubleshooting
Search common problems and their solution.
Objective guide
Search functions according to your needs.
Keyword
Search functions by key words.
History
Display the last 10 items displayed in the In-Camera Guide.
23GB
Continued r
Notes
(In-Camera Guide) is not available in the following situations:
– In Easy Mode
– When [Housing] is set to [On] (DSC-T110 only)
• [Use this function] may not be available, depending on the selected functions.
Table of
contents
•
Operation
Search
MENU/Settings
Search
Index
24GB
You can select the shooting mode based on condition and objective.
1 Lower the lens cover to switch to shooting mode.
2
Table of
contents
REC Mode
(REC Mode) t desired mode
Allows you to shoot still images with the setting adjusted
automatically.
Allows you to shoot a panoramic image after composing images.
(Movie Mode)
Allows you to record movies.
(Program Auto)
(Scene Selection)
Allows you to shoot with preset settings according to the scene.
Allows you to shoot panoramic images underwater.
[Underwater Sweep Panorama] is available when [Housing] is set to
[On].
Index
(Underwater Sweep
Panorama) (DSC-T110
only)
Allows you to shoot with the exposure adjusted automatically (both
the shutter speed and the aperture value). Also you can select various
settings using the menu.
MENU/Settings
Search
(Sweep Panorama)
Operation
Search
(Intelligent Auto)
25GB
Allows you to shoot still images with the setting adjusted automatically.
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
Table of
contents
Intelligent Auto
(Intelligent Auto)
3 Press the shutter button to shoot an image.
• [Flash] is set to [Auto] or [Off].
zOn Scene Recognition
Scene Recognition icon and guide
Index
The camera recognizes (Twilight),
(Twilight Portrait),
(Twilight using a tripod),
(Backlight), (Backlight Portrait),
(Landscape), (Macro),
(Close Focus) or
(Portrait), and displays the corresponding icon and guide on the screen when the scene is
recognized.
For details, see page 64.
MENU/Settings
Search
Scene Recognition operates in Intelligent Auto mode. This function lets the camera
automatically recognize the shooting conditions and shoot the image.
Operation
Search
Note
zIf you shoot a still image of a subject that is difficult
to focus on
• The shortest shooting distance is approximately 8 cm (3 1/4 inches) (1 cm (13/32 inches) in
Intelligent Auto or Easy Mode) (W), 50 cm (1 ft 7 3/4 inches) (T) (from the lens). Shoot in the
Close focus mode when you shoot a subject closer than the shooting distance.
• When the camera cannot focus on the subject automatically, the AE/AF lock indicator changes to
flash slowly and the beep does not sound. Either recompose the shot or change the focus setting
(page 61).
• Focusing may be difficult in the following situations:
– It is dark and the subject is distant.
– The contrast between the subject and the background is poor.
– The subject is seen through glass.
– The subject is moving quickly.
– There is reflective light or shiny surfaces.
– The subject is backlit or there is a flashing light.
26GB
Table of
contents
Sweep Panorama
Allows you to create a panoramic image from composite images.
Operation
Search
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
(Sweep Panorama)
MENU/Settings
Search
3 Align the camera with the end of the subject to be
shot and press the shutter button.
This part will not be taken
Index
4 Pan the camera to the end of the guide,
following the indication on the LCD
screen.
Guidance
bar
Notes
• If you cannot pan the camera across the entire subject within the given time, a gray area occurs in the
composite image. If this happens, move the camera faster to record a full panoramic image.
• Since several images are stitched together, the stitched part will not be recorded smoothly.
• Under low light conditions, panoramic images may be blurred or the shooting may not be successful.
• Under lights that flicker, such as fluorescent lights, the brightness or color of the combined image will
not always be the same.
• When the whole angle of panoramic shooting and the AE/AF locked angle are very different in
brightness, color and focus, the shooting will not be successful. If this happens, change AE/AF locked
angle and shoot again.
• Sweep Panorama is not suitable for the following situations:
– Subjects are moving
– Subjects are too close to the camera
– Images with little contrast, such as sky, sandy beach or lawn
– Images with constant changes, such as waves or waterfalls
• You cannot create panoramic images in the following situations:
– You pan the camera too quickly or too slowly.
– There is too much camera shake.
27GB
Continued r
panoramic image
Shooting Direction:
Panorama Image
Size:
(Shooting Direction) t [Right], [Left], [Up] or [Down]
(Image Size) t [Standard] or [Wide]
Pan the camera in an arc at a constant velocity in the direction indicated on the LCD screen.
Subjects at rest are more suited for panorama shots than moving subjects.
Vertical direction
Operation
Search
zTips for shooting a panoramic image
Table of
contents
zChanging the shooting direction or image size of a
Horizontal direction
MENU/Settings
Search
Radius as short as possible
Index
• First, press the shutter button halfway so that you can lock the focus, exposure and white balance.
Then, press the shutter button fully down and pan or tilt the camera.
• If a section with greatly varied shapes or scenery is concentrated along a screen edge, the image
composition may fail. In such case, adjust the frame composition so that the section is in the center
of the image, then shoot again.
zScrolling the panoramic images for display
Scroll panoramic images by touching
while panoramic images are being displayed.
Touch the LCD screen during playback to display the operation buttons.
Shows the displayed area of
the whole panoramic image
Operation button/
Operation method
Action
Touch
screen
Scrolling playback/pauses scrolling
images
or the LCD
Touch
/ / /
or drag up/down/right/
left
Scrolls images
• Panoramic images can also be played back using the supplied software “PMB” (page 132).
• Panoramic images recorded using another camera may not scroll correctly when played.
28GB
Allows you to record movies.
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
Table of
contents
Movie Mode
(Movie Mode)
3 Press the shutter button.
Operation
Search
4 To stop shooting, press the shutter button again.
MENU/Settings
Search
Index
29GB
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the
aperture value). Also you can select various settings using the menu.
Table of
contents
Program Auto
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
(Program Auto)
Operation
Search
3 Press the shutter button.
MENU/Settings
Search
Index
30GB
Table of
contents
Scene Selection
Allows you to shoot with preset settings according to the scene.
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
desired mode
(Scene Selection) t
(Soft Snap)
Allows you to shoot images with a softer atmosphere for
portraits and flowers, etc.
(Landscape)
Allows easy shooting of distant scenes by focusing in
the distance. Shoots the clear sky and trees and flowers
in vivid colors.
MENU/Settings
Search
Allows you to shoot faces for smoothness.
Operation
Search
(Soft Skin)
(Twilight Portrait) Allows you to shoot sharp images of people with the
(Twilight)
Index
night view in the background without compromising the
atmosphere.
Allows you to shoot night scenes at far distance without
losing the dark atmosphere of the surroundings.
(High Sensitivity) Allows you to shoot images without a
flash under low light conditions,
reducing blur.
(Gourmet)
(Pet)
(Beach)
Selects Macro mode, allowing you to shoot food
arrangements in delicious and bright colors.
Allows you to shoot images of your pet with the best
settings.
Allows you to shoot images with the proper settings for
seaside or lakeside scenes.
31GB
Continued r
(Snow)
Allows you to record fireworks in all their splendor.
(Underwater)
(DSC-T110 only)
Allows you to shoot underwater in natural colors in
housing (such as Marine Pack).
(Hi-Speed Shutter) Allows you to capture fast moving subjects outdoors or
Note
• When you shoot images using
(Twilight Portrait), (Twilight) or
(Fireworks) mode, the shutter
speed is slower and the images tend to blur. To prevent blurring, the use of a tripod is recommended.
MENU/Settings
Search
in other bright places.
• The shutter speed becomes faster, so images shot in
dark places become darker.
Operation
Search
(Fireworks)
Table of
contents
Allows you to record clear images preventing sunken
colors in snowy scenes or other places where the whole
screen appears white.
Index
32GB
Functions you can use in Scene Selection
Table of
contents
For shooting an image appropriately according to the scene condition, a combination of
functions is determined by the camera. indicates settings that can be changed, while –
indicates settings that cannot be changed.
For “Flash” and “Self-Timer,” the icons indicate modes that are available. Some functions are
not available, depending on the Scene Selection mode.
*5
—
—
—
Operation
Search
Flash
—
Self-Timer
Smile Shutter
—
Close Focus
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
ISO
—
—
—
—
—
—
White Balance
—
—
—
—
—
Focus
—
—
—
—
—
—
—
Metering Mode
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
EV
Soft Skin Effect
*3
Face Detection
*4
Anti Blink
*1
*2
*3
*4
*5
*4
—
—
—
—
—
*1
—
—
—
—
—
—
—
—
—
—
*2
—
—
Index
—
—
MENU/Settings
Search
Burst Settings
[Flash] for [White Balance] cannot be selected.
You can use [Underwater White Balance] instead of [White Balance].
[Off] for [Soft Skin Effect] is not available.
[When touched] for [Face Detection] cannot be selected.
(Underwater) is available only for DSC-T110.
33GB
When the camera is installed in a housing (such as the Marine Pack), the camera takes multiple
shots during a sweep, and allows you to create a panoramic image from composite images.
Table of
contents
Underwater Sweep Panorama
(DSC-T110 only)
1 Lower the lens cover to switch to shooting mode.
t
(Settings) t
t [Housing] t [On]
Operation
Search
2
(Main Settings)
3 Put the camera in the housing.
4
(Underwater Sweep
5 Align the camera with the end of the subject to be
shot and press the shutter button.
This part will not be taken
Guidance
bar
Index
6 Pan the camera to the end of the guide,
following the indication on the LCD
screen.
MENU/Settings
Search
(REC Mode) t
Panorama)
Notes
• If you cannot pan the camera across the entire subject within the given time, a gray area occurs in the
composite image. If this happens, move the camera faster to record a full panoramic image.
• Since several images are stitched together, the stitched part will not be recorded smoothly.
• Under low light conditions, panoramic images may be blurred or the shooting may not be successful.
• Under lights that flicker, the brightness or color of the combined image will not always be the same.
• When the whole angle of panoramic shooting and the AE/AF locked angle are very different in
brightness, color and focus, the shooting will not be successful. If this happens, change AE/AF locked
angle and shoot again.
• Underwater Sweep Panorama is not suitable for the following situations:
– When objects are too close to the camera
– Images with little contrast
– Images with constant change
• You cannot create panoramic images in the following situations:
– You pan the camera too quickly or too slowly.
– There is too much camera shake.
34GB
You can enlarge the image when shooting. The camera’s optical zoom function can enlarge
images up to 4×.
1 Lower the lens cover to switch to shooting mode.
Table of
contents
Zoom
T side
2 Move the zoom (W/T) lever.
• When the zoom scale exceeds 4×, see page 97.
W side
MENU/Settings
Search
Notes
Operation
Search
Move the zoom (W/T) lever to the T side to zoom in and move
to the W side to zoom out.
• The camera zooms slowly while shooting a movie.
• Zoom is locked to the W side in Sweep Panorama and Underwater Sweep Panorama (DSC-T110 only)
modes.
Index
35GB
Table of
contents
Viewing still images
1 Press the
(Playback) button to switch to
playback mode.
2 Select an image with
/
.
You can perform the following actions by dragging the LCD screen during playback.
Operation method
Displays the next/previous
Drag right or left
Continuously changes the
image (next/previous image)
Drag right or left, and continue
pressing
Displays the image index
screen during playback
Drag up
MENU/Settings
Search
Action
Operation
Search
zTips for dragging operations
zViewing images taken with a different camera
Index
This camera creates an Image Database File on the memory card for recording and playing
images. If the camera detects images not registered in the Image Database File on the
memory card, a registration screen with the message “Files found which were not
recognized Import files” will be displayed. To view unregistered images, register them by
selecting [OK].
• Use a sufficiently charged battery to register images. If a battery with a low charge is used to
register images, it may not be possible to register all of the data or the data may be corrupted if the
battery charge runs out.
36GB
Table of
contents
Playback Zoom
Plays back the enlarged image.
1 Press the
(Playback) button to switch to
playback mode.
2 Touch the area you want to enlarge.
Shows the displayed area of
the whole image
3 Adjust the zoom scale and position.
Operation
Search
The image is enlarged to twice the previous size, with
the area you touched at the center. You can also enlarge
the image by moving the zoom (W/T) lever to the T
side.
The image is further enlarged each time you touch the screen.
Action
Drag up/down/right/left
Changes the zoom position.
/
MENU/Settings
Search
Button/Operation method
Changes the zoom scale.
Cancels playback zoom.
zTo save enlarged images
t [Retouch] t
Index
You can save an enlarged image by using the Trimming function (
[Trimming (Resize)]).
37GB
In single-image mode, still images at a 4:3 aspect ratio are played over the entire LCD screen. In
this case, the top and bottom of the image will be slightly cropped.
2 Touch
Operation
Search
1 Press the
(Playback) button to switch to
playback mode.
Table of
contents
Wide Zoom
(Wide Zoom).
(Wide Zoom)
Note
• Wide Zoom is not available for the following image files:
– Movies
– Panoramic images
– 16:9 images
MENU/Settings
Search
3 To cancel Wide Zoom, touch
again.
Index
38GB
This is used in the single-image mode to temporarily rotate an image and enlarge it on the screen.
Operation
Search
1 Press the
(Playback) button to switch to
playback mode.
Table of
contents
Temporarily Rotated Display
2 Select a vertically oriented image t touch
(Temporarily Rotated Display).
(Temporarily
Notes
• Temporarily Rotated Display is not available for the following images:
– Movies
– Panoramic images
– Horizontal orientation images
• Touching / cancels Temporarily Rotated Display.
MENU/Settings
Search
3 To cancel the display, touch
Rotated Display) again.
Index
39GB
Table of
contents
Viewing movies
1 Press the
(Playback) button to switch to
playback mode.
2 Select a movie with
3 Touch
/
.
on the LCD screen.
Action
.
Jumps to the start of the movie
m
Fast rewind
Touch u or the LCD screen
Normal playback/Pause
M
Fast forward
Volume control
Adjust the volume with
or
MENU/Settings
Search
Button/Operation method
Operation
Search
When you touch the LCD screen during playback, operation
buttons are displayed.
.
Note
• You may not be able to play back some images shot using other cameras.
zTo display only movies on the index screen
t
(View
• When a movie file is played back to the end, the camera automatically starts playing back the next
movie file.
Index
You can view only movie thumbnails on the index screen by touching
Mode) t
(Folder view (Movie)).
40GB
Allows you to shoot still images using the minimum necessary functions.
The text size increases and indicators become easier to see.
Table of
contents
Easy Mode
1 Lower the lens cover to switch to shooting mode.
2
t
(Easy Mode) t [OK]
Operation
Search
Notes
• The battery power may decrease faster because the screen brightness increases automatically.
• The playback mode also changes to [Easy Mode].
Smile Shutter: Touch (Smile).
Image Size:
t [Image Size] t Select [Large] or
[Small]
Flash:
t [Flash] t Select [Auto] or [Off]
Self-Timer:
t [Self-Timer] t Select [Off] or [On]
Exit Easy Mode:
t [Exit Easy Mode] t [OK]
Index
zOn Scene Recognition
MENU/Settings
Search
zFunctions available in Easy Mode (Shooting)
Scene Recognition operates in Easy Mode. This function lets the camera automatically
recognize the shooting conditions and shoot the image.
Scene Recognition icon
• The camera recognizes (Twilight),
(Twilight Portrait),
(Twilight using a tripod),
(Backlight),
(Backlight Portrait),
(Landscape),
(Macro),
(Close Focus) or
(Portrait), and displays an icon on the LCD screen when the scene is recognized.
For details, see page 64.
41GB
Allows you to shoot with preset settings according to the scene when the camera is in Movie
Mode.
Table of
contents
Movie shooting scene (DSC-T110
only)
1 Lower the lens cover to switch to shooting mode.
3
(REC Mode) t
(Movie Mode)
Operation
Search
2
(Movie shooting scene) t desired mode
(Auto)
Adjusts the setting automatically.
(Underwater) Allows you to shoot a movie underwater in natural colors using the
MENU/Settings
Search
When the buttons are not displayed on the left side of the LCD
screen, touch
.
housing (such as Marine Pack).
Index
42GB
Table of
contents
Smile Shutter
When the camera detects a smile, the shutter is released automatically.
1 Lower the lens cover to switch to shooting mode.
2 Touch
(Smile Shutter).
Operation
Search
When the buttons are not displayed on the left side of the LCD
screen, touch
.
3 Wait detecting a smile.
4 To end the Smile Shutter, touch
Shutter) again.
(Smile
Smile Detection
Sensitivity indicator
Face Detection frame
Notes
Index
• Shooting using the Smile Shutter ends automatically when either the memory card or internal memory
becomes full.
• Smiles may not be detected correctly depending on the conditions.
• You cannot use the Digital Zoom function.
• The [Smile Shutter] function is not available in the following situations:
– In Sweep Panorama mode
– In Underwater Sweep Panorama mode (DSC-T110 only)
– In Movie Mode
MENU/Settings
Search
When the smile level exceeds the V point on the indicator, the
camera records images automatically.
If you press the shutter button during Smile Shutter, the
camera shoots the image, and then returns to Smile Shutter
mode.
zSetting the Smile Detection Sensitivity
In Smile Shutter mode, a button that sets the Smile Detection Sensitivity is displayed.
: Detects a big smile.
: Detects a normal smile.
: Detects even a slight smile.
• The Smile Detection Sensitivity is fixed to [Normal Smile] in Easy Mode.
• When [Display Settings] is set to [Off], the Smile Detection Sensitivity is not displayed.
43GB
Continued r
Do not cover the eyes with the bangs.
Do not obscure the face by hat, masks, sunglasses, etc.
2 Try to orient the face in front of the camera and be as
level as possible. Keep the eyes narrowed.
3 Give a clear smile with an open mouth. The smile is
easier to detect when the teeth are showing.
1
Operation
Search
• The shutter operates when any person whose face is being detected smiles.
• You can select a face to be given priority for smile detection using [Face Detection]. If you select a
priority face, Smile Detection is performed only for that face. To perform smile detection for a
different face, touch that face (page 68).
• If the camera cannot detect a smile, set the Smile Detection Sensitivity to [Slight Smile].
Table of
contents
zHints for better capturing of smiles
MENU/Settings
Search
Index
44GB
1 Lower the lens cover to switch to shooting mode.
2
(Flash) t desired mode
Table of
contents
Flash
When the buttons are not displayed on the left side of the LCD
screen, touch
.
(On)
(Slow
Synchro)
Flash always operates.
Flash always operates.
The shutter speed is slow in a dark place to clearly shoot the
background that is out of flash light.
Flash does not operate.
Notes
•
•
•
•
•
The flash strobes twice. The first flash adjusts the light quantity.
While charging the flash,
is displayed.
You cannot use the flash during burst shooting.
[On] or [Slow Synchro] is not available when the camera is in Intelligent Auto mode.
In Sweep Panorama and Underwater Sweep Panorama (DSC-T110 only) modes, [Flash] is set to [Off].
photos
Index
zWhen the “White circular spots” appears in flash
MENU/Settings
Search
(Off)
Flashes when shooting in low light or backlit conditions.
Operation
Search
(Auto)
This is caused by particles (dust, pollen, etc.) floating close to the lens. When they are
accentuated by the camera’s flash, they appear as white circular spots.
Camera
Subject
Particles (dust, pollen, etc.)
in the air
How can the “White circular spots” be reduced?
• Light the room and shoot the subject without a flash.
• Select
(High Sensitivity) mode in Scene Selection. ([Flash] is set to [Off].)
45GB
In Easy Mode, select the Flash setting from
.
1 Lower the lens cover to switch to shooting mode.
2
t
3
t [Flash] t desired mode
Table of
contents
Flash
(Easy Mode) t [OK]
Off
Flash does not operate.
MENU/Settings
Search
Flashes when shooting in low light or backlit conditions.
Operation
Search
Auto
Index
46GB
Table of
contents
Self-Timer
1 Lower the lens cover to switch to shooting mode.
2
(Self-Timer) t desired mode
When the buttons are not displayed on the left side of the LCD
screen, touch
.
Does not use the self-timer.
Sets the self-timer to a 10-second delay.
When you press the shutter button, the self-timer lamp flashes and a
beep sounds until the shutter operates.
To cancel, touch
.
(2sec)
Sets the self-timer to a 2-second delay.
(Self-portrait
One Person)
(Self-portrait
Two People)
Sets the self-timer to Self-portrait timer.
When the camera detects the specified number of faces, a beep
sounds, and the shutter operates 2 seconds later.
Notes
z Automatic shooting with Self-portrait timer
Index
• In Movie Mode, [Self-portrait One Person] or [Self-portrait Two People] is not available.
• The self-timer is not available for Sweep Panorama and Underwater Sweep Panorama (DSC-T110 only)
modes.
MENU/Settings
Search
(10sec)
Operation
Search
(Off)
Point the lens at yourself so your face is reflected in the LCD screen. The camera detects the
subjects, and then the shutter operates. The camera determines the optimal composition and
prevents faces from being cut out of the LCD screen. Do not move your camera after the
beep sounds.
• You can also shoot an image by pressing the shutter button during this
operation.
47GB
Continued r
If your hands or body moves while holding the camera and pressing the shutter button,
“Camera shake” occurs. Camera shake occurs frequently under low-light or slow shutter
speed conditions, such as those encountered in
(Twilight Portrait) or (Twilight) mode.
In such a case, shoot with the below tips in mind.
Operation
Search
• Shoot with a 2-second delay self-timer and
stabilize the camera by holding your arms firmly at
your side after pressing the shutter button.
• Use a tripod or place the camera on a flat surface
to hold the camera steady.
Table of
contents
z Hints for preventing blur
MENU/Settings
Search
Index
48GB
In Easy Mode, select the Self-Timer setting from
.
1 Lower the lens cover to switch to shooting mode.
2
t
3
t [Self-Timer] t desired mode
Table of
contents
Self-Timer
(Easy Mode) t [OK]
On
Sets the self-timer to a 10-second delay.
When you press the shutter button, the self-timer lamp flashes and a
beep sounds until the shutter operates.
To cancel, touch
.
MENU/Settings
Search
Does not use the self-timer.
Operation
Search
Off
Index
49GB
Set the direction in which the camera will be panned when shooting in Sweep Panorama or
Underwater Sweep Panorama (DSC-T110 only) modes.
Table of
contents
Shooting Direction
1 Lower the lens cover to switch to shooting mode.
(Shooting Direction) t desired direction
Pan from left to right.
(Left)
Pan from right to left.
(Up)
Pan from down to up.
(Down)
Pan from up to down.
MENU/Settings
Search
(Right)
Operation
Search
2
Index
50GB
The image size determines the size of the image file that is recorded when you take a image.
The larger the image size, the more detail will be reproduced when the image is printed on largeformat paper. The smaller the image size, the more images can be recorded.
Table of
contents
Image Size/Panorama Image Size
1 Lower the lens cover to switch to shooting mode.
t
(Image Size) t desired size
Operation
Search
2
When shooting still images
(4608×3456)
Usage guidelines
LCD screen
For prints up to A3+ size
(3648×2736)
For prints up to L/2L/A4 size
(640×480)
For e-mail attachments
(4608×2592)
For viewing on a high-definition TV
and printing up to A3 size
(1920×1080)
For viewing on a high-definition TV
Images are displayed in 4:3
aspect ratio.
Index
(2592×1944)
MENU/Settings
Search
Image size
Images will fill the entire
screen.
Note
• When you print still images recorded at a 16:9 aspect ratio or panoramic images, both sides may be cut
off.
In Easy Mode
Large
Shoots images in [16M] size.
Small
Shoots images in [5M] size.
51GB
(Standard)
Shoots at 4912 × 1080 (Horizontal).
Shoots at 3424 × 1920 (Vertical).
(Wide)
Shoots at 7152 × 1080 (Horizontal).
Shoots at 4912 × 1920 (Vertical).
1
(Image Size) t desired mode
When the buttons are not displayed on the left side of the LCD screen, touch
Movie image size
.
Usage guidelines
1280×720(Fine)
9 Mbps
Shoots highest quality movies for
display on High Definition TV.
1280×720(Standard)
6 Mbps
Shoots standard quality movies for
display on High Definition TV.
VGA
3 Mbps
Shoots an image size suitable for WEB
upload.
Index
Average bit rate
MENU/Settings
Search
The larger the size of the movie image, the higher the image quality. The higher the amount of
data used per second (average bit-rate), the smoother the playback image.
The movies shot with this camera will be recorded in MPEG-4, Approx. 30 fps, Progressive,
AAC, mp4 format.
Operation
Search
When shooting movies
Table of
contents
When shooting in Sweep Panorama/Underwater
Sweep Panorama (DSC-T110 only) modes
Note
• A telephoto image is produced when the [VGA] image size is selected.
52GB
Continued r
A digital image is made up of a collection of small dots called pixels.
If it contains a large number of pixels, the image becomes large, it takes up more memory,
and the image is displayed in fine detail. “Image size” is shown by the number of pixels.
Although you cannot see the differences on the screen of the camera, the fine detail and data
processing time differ when the image is printed or displayed on a computer screen.
Image size: 16M
4608 pixels × 3456 pixels = 15,925,248 pixels
2 Image size: VGA
640 pixels × 480 pixels = 307,200 pixels
1
Pixels
Many pixels
(Fine image quality and large file size)
Few pixels
(Rough image quality but small file size)
MENU/Settings
Search
Pixel
Operation
Search
Description of the pixels and the image size
Table of
contents
zOn “image quality” and “image size”
Index
53GB
You can select single-image mode or burst mode.
1 Lower the lens cover to switch to shooting mode.
2
t
(Burst)
(Burst Settings) t desired mode
Shoots a single image.
Shoots up to 100 images in succession when you press and hold
down the shutter button.
Index
• The Burst mode is not available in Easy Mode, Sweep Panorama, Movie
Mode, or Smile Shutter.
• The flash is set to [Off].
• When recording with the self-timer, only a single image can be shot.
• The recording interval becomes longer, depending on the setting for the
image size.
• When the battery level is low, or when the internal memory or the
memory card is full, the Burst stops.
• [Focus], [White Balance] and [EV] are adjusted for the first image, and
these settings are also used for the other images.
MENU/Settings
Search
Notes
Operation
Search
(Single)
Table of
contents
Burst Settings
54GB
Use this setting to capture beautiful close-up images of small subjects such as insects or flowers.
1 Lower the lens cover to switch to shooting mode.
2
t
Table of
contents
Macro
(Macro) t desired mode
The camera adjusts the focus automatically from distant subjects to
close-up.
(Close
Focus)
Use this mode to shoot at close distances.
Locked to the W side: Approximately 1 cm to 20 cm (13/32 inches
to 7 7/8 inches)
Notes
Index
• [Macro] is set to [Auto] in the following situations:
– In Sweep Panorama mode
– In Underwater Sweep Panorama mode (DSC-T110 only)
– In Movie Mode
– When the Smile Shutter function is activated
– In Easy Mode
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
• Note the following points when using the Close focus mode.
– You cannot use the Scene Recognition or Face Detection functions.
– This mode is cancelled if you turn off the power or switch the shooting mode to another one.
– The flash mode settings you can use in this mode are [On] or [Off] only.
– The focus speed becomes slower.
MENU/Settings
Search
(Auto)
Operation
Search
Depending on the REC mode, this is set using buttons
displayed on the left side of the screen.
55GB
You can adjust the exposure manually in 1/3 EV steps in a range of –2.0 EV to +2.0 EV.
1 Lower the lens cover to switch to shooting mode.
2
t
(EV)
/
to adjust exposure t [OK].
You can also adjust the exposure by touching z of the
adjustment bar and dragging to the right or left.
• If you shoot a subject in extremely bright or dark conditions, or when you use the flash, the exposure
adjustment may not be effective.
zAdjusting the exposure for better looking images
MENU/Settings
Search
Note
Operation
Search
Depending on the REC mode, this is set using buttons
displayed on the left side of the screen.
3 Touch
Table of
contents
EV
Overexposure = too much light
Whitish image
Index
Lower EV setting –
Correct exposure
Higher EV setting +
Underexposure = too little light
Darker image
56GB
Sets the luminous sensitivity when the camera is in Program Auto mode or when Scene
Selection is set to
(Underwater) (DSC-T110 only).
Table of
contents
ISO
1 Lower the lens cover to switch to shooting mode.
2
t
(ISO) t desired number
/
/
/
/
You can reduce image blurring in dark locations or with moving
subjects by increasing the ISO sensitivity (select a larger number).
Note
• You can select only from [ISO AUTO], [ISO 80] to [ISO 800] when the shooting mode is set to burst
mode, or when [DRO] is set to [DRO plus].
zAdjusting ISO Sensitivity (Recommended Exposure
MENU/Settings
Search
/
/
Sets the ISO sensitivity automatically.
Operation
Search
(Auto)
Index)
High ISO sensitivity
Records a bright image even in dark locations while increasing shutter
speed to reduce blur.
However, the image tends to become noisy.
Index
ISO sensitivity is a speed rating for recording media that incorporates an image sensor that
receives light. Even when the exposure is the same, images differ depending on the ISO
sensitivity.
Low ISO sensitivity
Records a smoother image.
However, when the exposure is insufficient, the image may become
darker.
z Hints for preventing blur
Even though the camera is steady, the subject moves during the exposure and is captured
blurred when the shutter button is pressed. Camera shake is reduced automatically,
however, the function does not effectively reduce subject blur. Subject blur occurs
frequently under low-light or slow shutter speed conditions.
In such a case, shoot with the below tips in mind.
• Select a higher ISO sensitivity so that the shutter
speed is faster.
• Select
(High Sensitivity) mode in Scene
Selection.
57GB
Adjusts color tones according to the surrounding light conditions. Use this function if image
color appears unnatural.
Table of
contents
White Balance
1 Lower the lens cover to switch to shooting mode.
2
t
(White Balance)
Operation
Search
Depending on the REC mode, this is set using buttons
displayed on the left side of the screen.
3 Touch the desired mode t [OK]
Adjusts the white balance automatically so that the colors appear
natural.
(Daylight)
Adjusts for outdoors conditions on a fine day, evening views, night
scenes, neon signs, fireworks, etc.
(Cloudy)
Adjusts for a cloudy sky or a shady location.
[Fluorescent White Balance 1]: Adjusts for white fluorescent
lighting.
[Fluorescent White Balance 2]: Adjusts for natural white
fluorescent lighting.
[Fluorescent White Balance 3]: Adjusts for day white fluorescent
lighting.
n
(Incandescent)
Adjusts for places under incandescent lamp, or under bright
lighting, such as in a photo studio.
(Flash)
Adjusts for the flash conditions.
(One Push)
Adjusts the white balance depending on the light source. The white
color memorized in [One Push Set] mode becomes the basic white
color. Use this mode when [Auto] and other settings don’t provide
accurate colors.
(One Push
Set)
Memorizes the basic white color which will be used in [One Push]
mode.
Index
(Fluorescent
White Balance 1)
(Fluorescent
White Balance 2)
(Fluorescent
White Balance 3)
MENU/Settings
Search
(Auto)
58GB
Continued r
Notes
2
t
(White Balance) t [One Push Set] t [Capture]
MENU/Settings
Search
1 Frame a white object such as a piece of paper filling the screen under the
same lighting conditions as you will shoot the subject.
Operation
Search
To capture the basic white color in [One Push
Set] mode
Table of
contents
• [White Balance] is not available in the following situations:
– In Intelligent Auto mode
– In Underwater Sweep Panorama mode (DSC-T110 only)
– In Easy Mode
• [Flash] in [White Balance] is not available in the following situations:
– In Sweep Panorama mode
– In Movie Mode
– When Scene Selection is set to
(High Sensitivity) mode
• Under fluorescent lights that flicker, the white balance function may not work correctly even though you
select [Fluorescent White Balance 1], [Fluorescent White Balance 2] or [Fluorescent White Balance 3].
• When shooting with a flash in other than [Flash] mode, [White Balance] is set to [Auto].
• When [Flash] is [On] or [Slow Synchro], the white balance can only be adjusted to [Auto], [Flash], [One
Push], or [One Push Set].
• [One Push Set] cannot be selected while charging the flash.
The screen momentarily turns black, and when the white balance has been adjusted and stored
in the memory, the recording screen is displayed again.
• If the
indicator flashes while shooting, the white balance is either not set or cannot be set. Use
automatic white balance.
• Do not shake or strike the camera while [One Push Set] is in progress.
• When [Flash] is set to [On] or [Slow Synchro], the white balance is adjusted to the condition with the
flash emitting.
• The white references loaded using [White Balance] and [Underwater White Balance] (DSC-T110 only)
are stored separately.
Index
Notes
zEffects of lighting conditions
The apparent color of the subject is affected by the lighting conditions.
The color tones are adjusted automatically, but you can adjust color tones manually using
the White Balance function.
Weather/lighting
Daylight
Cloudy
Fluorescent
Incandescent
Characteristics of
light
White (standard)
Bluish
Green-tinged
Reddish
59GB
Adjusts the color tone when the camera is set to
(Underwater) mode in Scene Selection,
(Underwater) mode in [Movie shooting scene] or
(Underwater Sweep Panorama) mode.
Table of
contents
Underwater White Balance
(DSC-T110 only)
1 Lower the lens cover to switch to shooting mode.
t
(Underwater White Balance)
Operation
Search
2
3 Desired mode t [OK]
Automatically adjusts the color tones for underwater conditions to
make the colors appear natural.
MENU/Settings
Search
(Auto)
(Underwater 1) Adjusts for underwater conditions where blue is strong.
(Underwater 2) Adjusts for underwater conditions where green is strong.
Adjusts the white balance depending on the light source. The white
color memorized in [One Push Set] mode becomes the basic white
color. Use this mode when [Auto] and other settings don’t provide
accurate colors.
(One Push
Set)
Memorizes the basic white color which will be used in [One Push]
mode (page 59).
Index
(One Push)
Notes
• Depending on the color of the water, the Underwater White Balance may not work correctly even though
you select [Underwater 1] or [Underwater 2].
• When [Flash] is [On], the underwater white balance can only be adjusted to [Auto], [One Push], or [One
Push Set].
• [One Push Set] is unable to be selected while charging the flash.
• The white references loaded using [White Balance] and [Underwater White Balance] are stored
separately.
60GB
You can change the focus method. Use the menu when it is difficult to get the proper focus in
auto focus mode.
AF stands for “Auto Focus,” a function that adjusts the focus automatically.
Table of
contents
Focus
1 Lower the lens cover to switch to shooting mode.
t
(Focus) t desired mode
Operation
Search
2
Depending on the REC mode, this is set using buttons
displayed on the left side of the screen.
(Multi AF)
AF range finder frame
• When the Face Detection function is active, AF
operates with priority on faces.
• When Scene Selection is set to
(Underwater) (DSC-T110 only),
focus operation is adjusted to underwater shooting. When focus is
achieved by half-pressing the shutter button, a large frame is displayed in
green.
Focuses on a subject in the center of the
finder frame automatically. Using the AF
lock function together, you can compose the
image the way you want.
Index
(Center AF)
MENU/Settings
Search
Focuses on a subject in all ranges of the
finder frame automatically.
When you press the shutter button halfway
down in still image shooting mode, a green
frame is displayed round the area that is in
focus.
AF range finder frame
(Spot AF)
Focuses on an extremely small subject or a
narrow area automatically. Using the AF
lock function together, you can compose the
image the way you want. Hold the camera
steady so as not to misalign the subject and
the AF range finder frame.
AF range finder frame
Notes
• When you use [Digital Zoom] or [AF Illuminator], the AF range finder frame setting is disabled and AF
range finder frame is displayed as a dotted line instead. In this case, the camera works to focus on the
subjects at the center of the screen.
• If you set the focus mode to other than [Multi AF], [Face Detection] is fixed to [When touched].
• [Focus] is set to [Multi AF] in the following situations:
– In Intelligent Auto mode
– In Movie Mode
– When the Smile Shutter function is activated
– In Easy Mode
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
– When you adjust focus by touching the LCD screen
61GB
Continued r
Touching the screen displays a frame, and then pressing
the shutter button halfway down brings the frame into
focus.
Touch
to release the focus.
Table of
contents
zQuickly choosing the priority subject
Operation
Search
MENU/Settings
Search
Index
62GB
Selects the metering mode that sets which part of the subject to measure to determine the
exposure.
Table of
contents
Metering Mode
1 Lower the lens cover to switch to shooting mode.
2
t
(Metering Mode) t desired mode
(Center)
Measures the center of the image, and determines the exposure
based on the brightness of the subject there (Center-weighted
metering).
(Spot)
Measures only a part of the subject
(Spot metering). This function is useful
when the subject is backlit or when
there is strong contrast between the
subject and the background.
Positions on the subject
Index
Spot metering crosshairs
MENU/Settings
Search
Divides into multiple regions and measures each region. The
camera determines a well-balanced exposure (Multi-pattern
metering).
Operation
Search
(Multi)
Notes
• In Movie Mode, [Spot] cannot be selected.
• If you set Metering mode to other than [Multi], [Face Detection] is fixed to [When touched].
• [Metering Mode] is set to [Multi] in the following situations:
– In Intelligent Auto mode
– When the Smile Shutter function is activated
– In Easy Mode
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
63GB
The camera automatically detects shooting conditions, and then takes the shot.
When a motion is detected, the ISO sensitivity is increased according to the movement to reduce
subject blur (Motion Detection).
MENU/Settings
Search
1 Lower the lens cover to switch to shooting mode.
2
(REC Mode) t
3
t
Operation
Search
Example of an image
when
(Backlight) is
activated.
Scene Recognition icon and guide
The camera recognizes the following types of
scenes. When the camera determines the
optimal scene, it displays the corresponding
icon and the guide.
(Twilight),
(Twilight Portrait),
(Twilight using a tripod),
(Backlight),
(Backlight Portrait),
(Landscape),
(Macro),
(Close Focus),
(Portrait)
Table of
contents
Scene Recognition
(Intelligent Auto)
(Scene Recognition) t desired
mode
Index
(Auto)
When the camera recognizes the scene, it switches to the optimal
settings and shoots the image.
(Advanced) When the camera recognizes the scene, it switches to the optimal
settings. When the camera recognizes (Twilight), (Twilight
Portrait),
(Twilight using a tripod), (Backlight) or
(Backlight Portrait), it automatically changes the settings and
shoots another image.
• When you shoot two images consecutively, the + mark on the
icon
will turn green.
• When two frames are shot, the two images are displayed side by side
immediately after shooting.
• When [Anti Blink] is displayed, 2 images are taken automatically and
the image with the eyes open is selected automatically. For details on the
Anti Blink function, see “What is the Anti Blink function?”.
64GB
Continued r
Notes
In [Advanced] mode, the camera shoots two images consecutively with the settings
differing as follows when it recognizes (Twilight), (Twilight Portrait),
(Twilight
using a tripod), (Backlight) or (Backlight Portrait) scenes, which tends to blur.
You can select the desired image from the two images shot.
Second Image
Shoots in Slow Synchro
Shoots with sensitivity increased and shake
reduced
Shoots in Slow Synchro with the face
which the flash strobes on as guide
Shoots with sensitivity increased with the face as
guide and shake reduced
Shoots in Slow Synchro
Shoots with even slower shutter speed without
increasing sensitivity
Shoots with the flash
Shoots with the brightness and contrast of the
background adjusted (DRO plus)
Shoots with the face which the flash
strobes on as guide
Shoots with the brightness and contrast of the
face and the background adjusted (DRO plus)
Index
First Image*
MENU/Settings
Search
selecting the one you like (Advanced mode)
Operation
Search
zShooting two images with different settings and
Table of
contents
• The Scene Recognition function does not operate when you shoot images using Digital Zoom.
• [Scene Recognition] is set to [Auto] in the following situations:
– In Easy Mode
– When the Smile Shutter function is activated
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
– During burst shooting
•
(Portrait),
(Twilight Portrait) or
(Backlight Portrait) are not recognized when [Face Detection]
is set to [When touched].
• The available flash settings are [Auto] and [Off].
•
(Twilight using a tripod) scenes sometimes cannot be recognized in an environment where vibrations
are transferred to the camera even though it is fixed on a tripod.
(Twilight using a tripod). Keep the
• Sometimes a slow shutter results when a scene is recognized as a
camera still during shooting.
• The Scene Recognition icon appears regardless of the [Display Settings].
• These scenes may not be recognized depending on the situation.
* When [Flash] is set to [Auto].
zWhat is the Anti Blink function?
When set to [Advanced], the camera automatically shoots two images consecutively* when
it recognizes
(Portrait). The camera will select, display, and record the image which the
eyes are not blinked automatically. If the eyes are closed in both images, the message
“Blinked eye detected” is displayed.
* except when the flash strobes/when the shutter speed is slow
65GB
When the Face Detection function is activated, sets whether to use the Soft Skin effect, and the
effect level.
Table of
contents
Soft Skin Effect
1 Lower the lens cover to switch to shooting mode.
2
t
(Soft Skin Effect) t desired mode
(Off)
Does not use the Soft Skin Effect.
(Low)
Adds light Soft Skin Effect.
(High)
Adds moderate Soft Skin Effect.
Adds strong Soft Skin Effect.
Notes
• [Off] is not available when Scene Selection is set to
(Soft Skin) mode.
• The [Soft Skin Effect] may not be visible depending on the subject.
MENU/Settings
Search
(Mid)
Operation
Search
Depending on the REC mode, this is set using buttons
displayed on the left side of the screen.
Index
66GB
Detects the faces of your subjects and adjusts the focus, flash, exposure, white balance and redeye reduction settings automatically.
Face Detection frame (White)
1 Lower the lens cover to switch to shooting mode.
2
t
(Face Detection) t desired mode
(Auto)
Detects the face when an area with a face is touched on the screen.
Selects the face the camera is to automatically focus on.
Detects and shoots with priority on child’s face.
(Adult
Priority)
Detects and shoots with priority on adult’s face.
Index
(Child
Priority)
MENU/Settings
Search
Depending on the REC mode, this is set using buttons
displayed on the left side of the screen.
(When
touched)
Operation
Search
Face Detection frame (Orange)
When the camera detects more than one subject, the camera will judge
which is the main subject and set focus by priority. The Face Detection
frame for the main subject will changes to an orange-colored
. The
frame for which the focus is set will turn green when the shutter button is
pressed halfway down.
Table of
contents
Face Detection
Notes
• [Face Detection] is not available in the following situations:
– In Sweep Panorama mode
– In Underwater Sweep Panorama mode (DSC-T110 only)
– In Movie Mode
– In Easy Mode
• [When touched] is not available when [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait
Two People].
• You can select [Face Detection] only when the Focus mode is set to [Multi AF] or the Metering Mode is
set to [Multi].
• The Face Detection function does not work when using the Digital Zoom.
• Up to 8 faces of your subjects can be detected.
• Adults and children may not be recognized correctly depending on the conditions.
• During Smile Shutter shooting, [Face Detection] is automatically set to [Auto] even if it is set to [When
touched].
67GB
Continued r
Normally the camera automatically selects the face to focus on according to the [Face
Detection] setting, but you can also select a face to be given priority.
1Touch a face you want to set as the priority face during Face
Detection.
The touched face is selected as the priority face, and the
frame changes to an orange-colored
.
3To cancel face registration, touch
.
MENU/Settings
Search
• It may not be possible to detect the selected face correctly depending on the surrounding brightness,
the subject’s hairstyle, etc.
• When the Smile Shutter function is used with the Face Detection frame selected, Smile Detection is
performed only on the selected face.
• In Easy Mode or when [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two
People], the priority face cannot be selected.
Operation
Search
2Each time you touch a different face, that face is selected as
the priority face.
Table of
contents
zSelecting the priority face
Index
68GB
The camera analyzes the shooting scene and automatically corrects the brightness and contrast to
improve the image quality.
DRO stands for “Dynamic Range Optimizer”, a function that automatically optimizes the
difference between the light and dark parts of an image.
Table of
contents
DRO
1 Lower the lens cover to switch to shooting mode.
(REC Mode) t
3
t
(Program Auto)
Operation
Search
2
(DRO) t desired mode
(DRO
standard)
(DRO plus)
Does not adjust.
Adjusts the brightness and contrast of the images automatically.
MENU/Settings
Search
(Off)
Adjusts image brightness and contrast automatically and strongly.
• Depending on shooting conditions, it may not be possible to obtain correction effects.
• Only [ISO AUTO] or values from [ISO 80] to [ISO 800] can be set for the ISO value when [DRO plus] is
set.
Index
Notes
69GB
When Scene Selection is set to
(Soft Skin) or
(Soft Snap) while you are shooting an
image, the camera automatically shoots two images consecutively. The camera will select,
display and record the image which the eyes are not blinked automatically.
Table of
contents
Anti Blink
1 Lower the lens cover to switch to shooting mode.
(REC Mode) t
(Scene Selection) t
(Soft Skin) or
(Soft Snap)
3
t
(Anti Blink) t desired mode
When Face Detection is active, the Anti Blink function operates so
that images with the subject’s eyes open are recorded.
(Off)
Does not use the Anti Blink function.
MENU/Settings
Search
(Auto)
Operation
Search
2
Notes
Index
• Anti Blink does not function in the following situations.
– When using the flash
– During burst shooting
– When the Face Detection function does not work
– When the Smile Shutter function is activated
• Sometimes Anti Blink function does not work depending on the situation.
• When the Anti Blink function is set to [Auto] but only images with the subject’s eyes closed are
recorded, the message “Blinked eye detected” is displayed on the LCD screen. Shoot again as necessary.
70GB
Sets whether to display the operation buttons on the LCD screen in shooting mode.
1 Lower the lens cover to switch to shooting mode.
2
(On)
Displays the operation buttons.
(Off)
Does not display the operation
buttons.
Settings] is set to [Off]
Index
zTo display the operation buttons when [Display
MENU/Settings
Search
(Display Settings) t desired mode
Operation
Search
t
Table of
contents
Display Settings
Touch the left side of the LCD screen and drag right to
display the operation buttons.
71GB
This camera contains an internal function guide. This allows you to search the camera's
functions according to your needs.
You can use the selected function after reading the guide.
Operation
Search
1 Touch
(In-Camera Guide).
When the buttons are not displayed on the left side of the LCD screen, touch
Table of
contents
In-Camera Guide
.
Description
Shoot/playback guide
Search for various operation functions in shooting/viewing mode.
Icon guide
Search the function and meaning of displayed icons.
Troubleshooting
Search common problems and their solution.
Objective guide
Search functions according to your needs.
Keyword
Search functions by key words.
History
Display the last 10 items displayed in the In-Camera Guide.
Index
Search method
MENU/Settings
Search
2 Select a search method from the In-Camera Guide.
72GB
When viewing still images in Easy Mode, the playback screen text becomes larger, indicators
become easier to see, and fewer functions can be used.
Table of
contents
Easy Mode
1 Press the
(Playback) button to switch to
playback mode.
t
(Easy Mode) t [OK]
Notes
Operation
Search
2
• The battery charge is used up more quickly because the screen brightness increases automatically.
• The shooting mode also changes to [Easy Mode].
(Delete) : Deletes the currently displayed image.
(Zoom) : Enlarges the displayed image.
• Drag up, down, right or left, or touch / / / to change the
zoom position. Touch / to change the zoom magnification.
Index
:
Touch [Delete Single Image] to delete the currently
displayed image.
Touch [Delete All Images] to delete all images in that date
range or folder.
Touch [Exit Easy Mode] to exit Easy Mode.
MENU/Settings
Search
zFunctions available in Easy Mode (Viewing)
• When a memory card is inserted in the camera, [View Mode] is set to [Date View].
73GB
This feature selects the date to be played back on the calendar when using Date View.
Step 2 is unnecessary when [Date View] is already set.
Table of
contents
Calendar
1 Press the
(Playback) button to switch to
playback mode.
t
3 Touch
(View Mode) t
(Date View)
Operation
Search
2
(Calendar).
When the buttons are not displayed on the left side of the LCD
screen, touch
.
/
MENU/Settings
Search
4 Select the month you want to display with
then touch the desired date.
,
Drag the thumbnails of images for the selected date up or
down to change the page. Touch an image to return to the
single-image screen for that image.
Images for the selected date
• This item is not displayed when the internal memory is used to record images.
Index
Note
zDisplaying calendar by dragging the LCD screen
While playing back images in Date View mode, you can also
display the calendar by touching the upper side of the LCD
screen and dragging down.
74GB
Displays multiple images at the same time.
1 Press the
(Playback) button to switch to
playback mode.
2 Touch
Table of
contents
Image Index
(Image Index).
3 Touch the screen and drag up or down to change
the page.
Operation
Search
When the buttons are not displayed on the left side of the LCD
screen, touch
.
Touch an image on the index screen to return to the singleimage screen for that image.
In single-image mode, you can change the number of image thumbnails by touching
t [Number of images in index] t [12-up] or [28-up].
MENU/Settings
Search
zChanging the number of images in index
Index
75GB
Images are automatically played back in succession.
1 Press the
(Playback) button to switch to
playback mode.
2
t
Table of
contents
Slideshow
(Slideshow) t desired mode
Plays back all the images in succession from the displayed image to
the very last image.
(Slideshow with
music)
Plays back still images in succession along with effects and music.
• [Slideshow] is not available when [View Mode] is set to [Folder view (Movie)].
Continuous Playback
MENU/Settings
Search
Note
Operation
Search
(Continuous
Playback)
1 Select the image to start playback.
2
t
(Slideshow) t [Continuous Playback]
• Touch
or
Index
3 To end continuous playback, touch the LCD screen, and then touch [Exit
Continuous Playback].
on the LCD screen to adjust the movie volume.
zViewing panoramic images during continuous
playback
The whole panoramic image is displayed for 3 seconds.
You can scroll a panoramic image by touching .
76GB
Slideshow with music
t
Table of
contents
1 Touch
(Slideshow) t [Slideshow with music].
2 Touch desired mode t [Start].
3 To exit slideshow, touch the screen, then select [Exit Slideshow].
Note
Selects the group of images to be shown. This setting is fixed to [Folder] when the internal
memory is used to record images.
Plays a slideshow of all the images in order.
This Date
Plays a slideshow of images with the currently selected date range
when View Mode is
(Date View).
Folder
Plays a slideshow of images in the currently selected folder in
Folder View.
Effects
Selects the playback speed and mood for slideshows. If the playback time of a movie is long,
an image is taken from it and displayed.
A simple slideshow switching images at a preset interval.
The playback interval is adjustable in [Interval] and you can
thoroughly enjoy your images.
Nostalgic
A moody slideshow reproducing the atmosphere of a movie scene.
Stylish
A stylish slideshow proceeding at a middle tempo.
Active
A high-tempo slideshow suitable for active scenes.
Index
Simple
MENU/Settings
Search
All
Operation
Search
• [Slideshow with music] is not available for panoramic images.
Music
Specifies the music to be played during slideshows. You can select more than one background
music track. Touch
to listen to each BGM. Touch or to adjust the BGM volume.
Music1
The default setting for a [Simple] slideshow.
Music2
The default setting for a [Nostalgic] slideshow.
Music3
The default setting for a [Stylish] slideshow.
Music4
The default setting for an [Active] slideshow.
Mute
Does not use BGM.
Note
• The movies are played back without their audio.
77GB
Continued r
1 sec
Sets the display interval of images for a [Simple] slideshow.
3 sec
Table of
contents
Interval
Sets the screen switching interval. The setting is fixed to [Auto] when [Simple] is not selected
as the [Effects].
5 sec
10 sec
The interval is set to suit the selected [Effects] item.
Note
• The interval setting is invalid for movie playback.
On
Plays back images in a continuous loop.
Off
After all the images have been played back, the slideshow ends.
zSelecting background music
• You can record up to four pieces of music on the camera. (The 4 preset pieces (Music1 – Music4)
can be replaced with the ones you transferred.)
• The maximum length of each music file for music playback of the camera is about 5 minutes.
• If you cannot play back a music file due to damage or other malfunctions of the file, execute [Empty
Music] (page 114) and transfer the music again.
Index
You can transfer a desired music file from your CDs or MP3 files to the camera to play back
during slideshow. To transfer music, install the “Music Transfer” software (supplied) to
your computer. For details, see pages 132 and 133.
MENU/Settings
Search
Repeat
Turns slideshow repeat on or off.
Operation
Search
Auto
78GB
Table of
contents
Delete
Allows you to select unwanted images for deletion.
1 Press the
(Playback) button to switch to
playback mode.
2
(Delete) t desired mode
Deletes the currently displayed image in single-image
mode.
(Multiple Images)
Allows you to select and delete multiple images.
Do as the following after step 2.
2Touch [OK] t [OK].
(All Images on This
Date)
(All in This Folder)
MENU/Settings
Search
1Touch the image you want to delete.
Repeat the above steps until there are no more images to
be deleted.
Touch an image with a
mark again to release the
mark.
Operation
Search
(This Image)
Deletes all images in the selected date range or folder at
once.
After step 2, touch [OK].
Index
Note
• When the internal memory is used to record images, View Mode is set to Folder View and still images
and movies are displayed in the same folder.
In Easy Mode
Delete Single Image
Deletes the currently displayed image.
Delete All Images
Deletes all images in that date range or folder.
79GB
Continued r
mode when selecting images
• You can also switch between index and single-image modes in
[Protect], [Send by TransferJet] or [DPOF].
Operation
Search
When you select
(Multiple Images), you can switch
the single-image screen and the index screen by touching
/ .
Touch
on the index screen to return to the single-image
screen, and touch
on the single-image screen to return to
the index screen.
Table of
contents
zYou can switch between index and single-image
MENU/Settings
Search
Index
80GB
1 Insert a Memory Stick with TransferJet into the
camera and press the
(Playback) button.
2
t
Operation
Search
TransferJet is a close-up, wireless transfer technology that allows data to be transferred by
closely aligning two products that you want to communicate with each other.
To find out whether your camera is equipped with the TransferJet function, check for the
(TransferJet) mark on the bottom of the camera.
Using a Memory Stick with TransferJet (sold separately) allows images to be transferred
between TransferJet-compatible devices.
For more details on TransferJet, see the operating instructions supplied with Memory Stick with
TransferJet.
Table of
contents
Send by TransferJet
(Send by TransferJet) t desired
3 Transfer images by closely aligning the
(TransferJet) marks on the camera and other device.
A notification sound is emitted when connection is made.
(This Image)
Sends the currently displayed image in single-image mode.
(Multiple Images)
You can select and send multiple images.
After step 2, perform the following.
Index
1Select an image to be sent, then touch it.
Repeat the above steps until there are no more images to
be sent.
Touch an image with a
mark again to release the
mark.
MENU/Settings
Search
mode
2Touch [OK] t [OK].
Notes
•
•
•
•
Only still images can be transferred.
Up to 10 images can be transferred at once.
t
(Settings) t (Main Settings) (page 116).
First, set [TransferJet] to [On] by selecting
While aboard an airplane, set [TransferJet] to [Off] by selecting
t
(Settings) t (Main
Settings) (page 116). In addition, always follow all regulations governing the location in which the
camera is being used.
• The connection is cut if transfer cannot be made within about 30 seconds. If this happens, select [Yes]
and realign the two
(TransferJet) marks on the camera and another device.
• Memory Stick with TransferJet and camera models with TransferJet are not sold in some countries and
regions due to local laws and regulations.
• Set the [TransferJet] function to [Off] in countries and regions other than where you purchased your
camera. Depending on the country or region, if you use the TransferJet function, you may be liable due to
local restrictions on transmission of electromagnetic waves.
81GB
Receiving images using TransferJet
(Playback) button to turn on the camera.
2 Closely align the
(TransferJet) marks on the camera and sending
device to receive images.
Table of
contents
1 Press the
A notification sound is emitted when connection is made.
Notes
Operation
Search
• Only images that can be played back on the camera can be sent or received.
• If an Image Database File error occurs during saving, a Recover Image Database File screen will appear.
• Play images that cannot be registered in the Image Database File using [Folder view (Still)].
z Tips for sending and receiving data successfully
(TransferJet) mark on the camera and other device.
• The transfer rate and range differ depending on the angle at which the
(TransferJet) marks are aligned.
• It may be necessary to alter the position/angle of the camera until
communication can be obtained.
• Sending and receiving data is easier if the
(TransferJet) marks are
aligned with both cameras parallel to each other as shown in the figure.
devices
Index
z Using separately sold TransferJet-compatible
MENU/Settings
Search
Closely align the
Using separately sold TransferJet-compatible devices allows you to transfer images to a PC
and can broaden your enjoyment of transferring data.
For details, see the operating instructions supplied with your TransferJet-compatible device.
• Note the following points when using TransferJet-compatible devices.
– Before use, set the camera to playback mode.
– If an image does not display, select
t
(Settings) t
(Main Settings) and then set
[LUN Setting] to [Single].
– While connected, data cannot be written to or deleted from the camera.
– Do not disconnect while importing images to “PMB”.
82GB
Table of
contents
Paint
Paints or adds stamps to a still image and saves it as a new file.
The original image is retained.
Operation
Search
1 Press the
(Playback) button to switch to
playback mode.
2
t
MENU/Settings
Search
(Paint)
When using the internal memory, touch
side of the LCD screen.
(Paint) on the left
3 Draw on the image using the paint pen
(supplied).
/
4 Touch the
image size.
button t select the saved
Index
Button
1
Save
Saves the image in VGA or 5M format in the
internal memory or on a memory card.
2
Pen
Paint characters or graphics.
3
Eraser
Make corrections.
4
Stamp
Apply a stamp to the image.
Thickness/Stamps
Select the pen or eraser thickness, or the stamp.
6
Color
Select the color.
7
Exit
Exit paint mode.
8
Frame
Add a frame.
Select the desired frame with
5
/
Action
/
9
Revert
Undo the last action.
0
Clear all
Erase all painting.
/ .
Note
• You cannot paint or put stamps on panoramic images and movies.
83GB
Retouches a recorded image and records it as a new file.
The original image is retained.
Table of
contents
Retouch
1 Press the
(Playback) button to switch to
playback mode.
t
(Retouch) t desired mode
3 Perform retouching according to the operation
method in each mode.
(Trimming
(Resize))
Records the zoomed playback
image.
Corrects the red-eye phenomenon
caused by flash.
(Unsharp
masking)
Sharpens the image within a
chosen frame.
Index
After red eye correction is completed,
touch [OK].
• You may not be able to correct the
red-eye phenomenon depending on the image.
MENU/Settings
Search
Touch / t set the point with
v/V/b/B t
t select an image
size to save with / t
t
[OK]
• The quality of trimmed images may deteriorate.
• The image size that you can trim may vary depending on the image.
(Red Eye
Correction)
Operation
Search
2
Touch the area (frame) of the desired
image to retouch t
t [OK]
• Depending on the image, sufficient
correction may not be applied and
the image quality may deteriorate.
Note
• You cannot retouch panoramic images and movies.
84GB
Allows you to select the display format for viewing images.
1 Press the
(Playback) button to switch to
playback mode.
2
t
Table of
contents
View Mode
(View Mode) t desired mode
Displays images by date.
Displays still images.
(Folder view
(Movie))
Displays movies.
Note
• When the internal memory is used to record images, View Mode is set to Folder View and still images
and movies are displayed in the same folder.
MENU/Settings
Search
(Folder view
(Still))
Operation
Search
(Date View)
zViewing images taken with a different camera
Index
This camera creates an Image Database File on the memory card for recording and playing
images. If the camera detects images not registered in the Image Database File on the
memory card, a registration screen with the message “Files found which were not
recognized Import files” will be displayed.
To view unregistered images, register them by selecting [OK].
• Use a sufficiently charged battery to register images. If a battery with a low charge is used to
register images, it may not be possible to transfer all of the data or the data may be corrupted if the
battery charge runs out.
85GB
Protects recorded images against accidental erasure.
The
mark is displayed for registered images.
Table of
contents
Protect
1 Press the
(Playback) button to switch to
playback mode.
t
(Protect) t desired mode
(This Image)
(Multiple
Images)
Protects the currently displayed image in single-image mode.
You can select and protect multiple images.
After step 2, perform the following.
2Touch [OK] t [OK].
(Set All on This
Protects all images in the date range or folder.
Touch [OK] after step 2.
(Remove All on
This Date)
Unlocks all images in the date range or folder.
Touch [OK] after step 2.
Index
(Set All in This
Folder)
MENU/Settings
Search
1Select an image to be protected, then touch it.
Repeat the above steps until there are no more images to be
protected.
Touch an image with a
mark again to release the
mark.
Date)
Operation
Search
2
(Remove All in
This Folder)
Note
• When using internal memory, a Folder View is used with still images and movies displayed in the same
folder.
86GB
DPOF (Digital Print Order Format) is a function that allows you to specify the images of the
memory card that you want to print out later.
The
(Print order) mark is displayed for registered images.
Table of
contents
DPOF
1 Press the
(Playback) button to switch to
playback mode.
t
t desired mode
(This Image)
Orders printing the currently displayed image in single-image
mode.
You can select and order printing multiple images.
After step 2, perform the following.
1Select an image to be printed, then touch it.
Repeat the above steps until there are no more images to be
printed.
Touch an image with a
mark again to release the
mark.
2Touch [OK] t [OK].
(Set All on This
Date)
Sets print order for all images in the date range or folder.
Touch [OK] after step 2.
Index
(Set All in This
Folder)
(Remove All on
This Date)
MENU/Settings
Search
(Multiple
Images)
Operation
Search
2
Cancels print order for all images in the date range or folder.
Touch [OK] after step 2.
(Remove All in
This Folder)
Notes
• The
(Print order) mark cannot be added to movies or to images in the internal memory.
• You can add a
(Print order) mark to a maximum 999 images.
87GB
Rotates a still image. Use this function to display a horizontal orientation image in vertical
orientation.
2
/
(Rotate)
t [OK]
Notes
• You cannot rotate movies and protected still images.
• You may not be able to rotate images shot with other cameras.
• When viewing images on a computer, the image rotation information may not be reflected depending on
the software.
MENU/Settings
Search
3
t
Operation
Search
1 Press the
(Playback) button to switch to
playback mode.
Table of
contents
Rotate
Index
88GB
Adjusts the volume for slideshow and movie playback.
1 Press the
(Playback) button to switch to
playback mode.
2
t
Table of
contents
Volume Setting
(Volume Setting)
or
t
You can also adjust the volume by touching z on the volume
adjustment bar and dragging to the right or left.
slideshow
Movie playback: Touch the LCD screen to display the operation buttons, touch and
then
or
to adjust the volume.
Slideshow:
Touch the screen to display the volume control screen, then touch or
to adjust the volume.
MENU/Settings
Search
zAdjusting the volume during playback of a movie or
Operation
Search
3 Adjust the volume by touching
Index
89GB
Sets whether to display the operation buttons on the LCD screen in viewing mode.
1 Press the
(Playback) button to switch to
playback mode.
2
t
Table of
contents
Display Settings
(Display Settings) t desired
Displays the operation buttons.
(Off)
Does not display the operation
buttons.
Settings] is set to [Off]
Index
zTo display the operation buttons when [Display
MENU/Settings
Search
(On)
Operation
Search
mode
Touch the left side of the LCD screen and drag right to
display the operation buttons.
90GB
This sets whether or not to display the exposure data of the currently displayed file.
Table of
contents
Exposure data
Exposure data
2
t
(Exposure data) t desired mode
Displays the exposure data on the LCD screen.
(Off)
Does not display the exposure data.
MENU/Settings
Search
(On)
Operation
Search
1 Press the
(Playback) button to switch to
playback mode.
Index
91GB
Sets the number of images displayed in the index screen.
1 Press the
(Playback) button to switch to
playback mode.
2
(12-up)
Displays 12-up images.
(28-up)
Displays 28-up images.
Operation
Search
t
(Number of images in index) t
desired mode
Table of
contents
Number of images in index
MENU/Settings
Search
Index
92GB
When multiple folders are created in a memory card, this function selects the folder containing
the image you want to play back.
Step 2 is unnecessary when [Folder View] is already set.
Table of
contents
Select Folder
1 Press the
(Playback) button to switch to
playback mode.
t
(View Mode) t [Folder view
(Still)] or [Folder view (Movie)]
3
with
t
(Select Folder) t select the folder
/ t [OK]
• This item is not displayed when the internal memory is used to record images.
zViewing images across multiple folders
Index
When multiple folders are created and the first or last image in the folder is displayed, the
following indicators appear.
: Moves to the previous folder
: Moves to the next folder
: Moves to either the previous or next folders
MENU/Settings
Search
Note
Operation
Search
2
93GB
The AF illuminator supplies fill light to focus more easily on a subject in dark surroundings.
The AF illuminator emits red light allowing the camera to focus easily when the shutter button is
pressed halfway, until the focus is locked. The
indicator appears at this time.
Table of
contents
AF Illuminator
1 Lower the lens cover to switch to shooting mode.
t
(Settings) t
(Shooting
Settings) t [AF Illuminator] t desired mode
Auto
Uses the AF illuminator.
Off
Does not use AF illuminator.
Index
• Focus is achieved as long as the AF illuminator light reaches the subject, regardless of whether light fails
to reach the center of the subject.
• You cannot use the AF illuminator in the following situations:
– In Sweep Panorama mode
– In Underwater Sweep Panorama mode (DSC-T110 only)
– When
(Landscape), (Twilight),
(Pet), (Fireworks) or (Hi-Speed Shutter) mode is
selected in Scene Selection.
– When [Housing] is set to [On] (DSC-T110 only).
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People].
• When you use AF illuminator, the normal AF range finder frame is disabled and a new AF range finder
frame is displayed by a dotted line. AF operates with priority on subjects located near the center of the
frame.
• The AF illuminator emits very bright light. Although there is no health hazard, do not look directly into
the AF illuminator emitter at close range.
MENU/Settings
Search
Notes
Operation
Search
2
94GB
With reference to the grid lines, you can easily set a subject in a horizontal/vertical position.
1 Lower the lens cover to switch to shooting mode.
2
Table of
contents
Grid Line
t
(Settings) t
(Shooting
Settings) t [Grid Line] t desired mode
Displays the grid lines. The grid lines are not recorded.
Off
Does not display the grid lines.
Operation
Search
On
MENU/Settings
Search
Index
95GB
Adjusts the level of the image resolution on the LCD screen. If you select [High], the power runs
out faster than in standard mode.
Table of
contents
Disp. Resolution
1 Lower the lens cover to switch to shooting mode.
2
Displays an image on the LCD screen in a standard image
resolution.
High
Displays an image on the LCD screen in a high-quality image
resolution.
MENU/Settings
Search
Standard
Operation
Search
t
(Settings) t
(Shooting
Settings) t [Disp. Resolution] t desired mode
Index
96GB
Selects the Digital Zoom mode. The camera enlarges the image using optical zoom (up to 4×).
When the zoom scale is exceeded, the camera uses either smart or precision Digital Zoom.
Table of
contents
Digital Zoom
1 Lower the lens cover to switch to shooting mode.
2
Smart (
)
Precision (
)
Enlarges all image sizes by the total zoom scale of approximately
8×, including the optical zoom 4×. However, note that the image
quality deteriorates when the optical zoom scale is exceeded.
(Precision digital zoom)
Does not use the Digital Zoom.
Notes
Index
• The Digital Zoom function does not operate in the following situations:
– In Sweep Panorama mode
– In Underwater Sweep Panorama mode (DSC-T110 only)
– In Movie Mode
– When the Smile Shutter function is activated
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People]
• The smart zoom is not available when the image size is set to [16M] or [16:9(12M)].
• The Face Detection function does not work when using the Digital Zoom.
MENU/Settings
Search
Off
Enlarges the image digitally within the range where the image will
not be distorted, according to the image size. (Smart zoom)
Operation
Search
t
(Settings) t
(Shooting
Settings) t [Digital Zoom] t desired mode
Total zoom scale when using Smart zoom
(including optical zoom 4×)
The supported zoom ratio differs depending on the image size.
Size
Total zoom scale
10M
Approx. 5.1×
5M
Approx. 7.1×
VGA
Approx. 28×
16:9(2M)
Approx. 9.6×
97GB
When the camera is rotated to shoot a portrait (vertical) image, the camera records its position
change and displays the image in the portrait position.
Table of
contents
Auto Orientation
1 Lower the lens cover to switch to shooting mode.
2
On
Records the image with the correct orientation.
Off
Does not use Auto Orientation.
• Black is displayed to the left and right of vertical orientation images.
• Depending on the shooting angle of the camera, the orientation of the image may not be recorded
correctly.
• You cannot use [Auto Orientation] when
(Underwater) (DSC-T110 only) is selected in Scene
Selection or when shooting movies.
MENU/Settings
Search
Notes
Operation
Search
t
(Settings) t
(Shooting
Settings) t [Auto Orientation] t desired mode
zRotating images after recording
Index
If the orientation of an image is incorrect, you can use the [Rotate] on the MENU screen to
display the image in portrait position.
98GB
You can select whether or not the guide is displayed next to the Scene Recognition icon when
Scene Recognition is activated.
Table of
contents
Scene Recog. Guide
Scene Recognition Guide
2
On
Displays the Scene Recognition Guide.
Off
Does not display the Scene Recognition Guide.
MENU/Settings
Search
t
(Settings) t
(Shooting
Settings) t [Scene Recog. Guide] t desired
mode
Operation
Search
1 Lower the lens cover to switch to shooting mode.
Index
99GB
The flash strobes two or more times before shooting to reduce the red-eye phenomenon when
using the flash.
Table of
contents
Red Eye Reduction
1 Lower the lens cover to switch to shooting mode.
2
When the Face Detection function is activated, the flash strobes
automatically to reduce the red-eye phenomenon.
On
The flash always strobes to reduce the red-eye phenomenon.
Off
Does not use Red Eye Reduction.
Notes
zWhat causes the red-eye phenomenon?
Index
• To avoid blurring of images, hold the camera firmly until the shutter is released. It usually takes a second
until the shutter is released, and also be sure not to allow the subject to move during this period.
• Red Eye Reduction may not produce the desired effects. It depends on individual differences and
conditions, such as distance to the subject, or if the subject looked away from the pre-strobe.
• If you do not use the Face Detection function, Red Eye Reduction does not work, even when you select
[Auto].
• [Red Eye Reduction] is set to [Off] when
(High Sensitivity) mode is selected in Scene Selection or
when the Smile Shutter function is activated.
MENU/Settings
Search
Auto
Operation
Search
t
(Settings) t
(Shooting
Settings) t [Red Eye Reduction] t desired
mode
Pupils become dilated in dark environments. Flash light is reflected off the blood vessels at
the back of the eye (retina), causing the “red-eye” phenomenon.
Camera
Eye
Retina
Other ways to reduce red-eye
• Select
(High Sensitivity) mode in Scene Selection. (The flash is automatically turned to [Off].)
• When the eyes of the subject turn out red, correct the image with [Retouch] t [Red Eye
Correction] on the viewing menu or with the supplied software “PMB”.
100GB
When an image with the subject’s eyes closed is recorded while Face Detection is activated, the
message “Blinked eye detected” is displayed.
Table of
contents
Blink Alert
1 Lower the lens cover to switch to shooting mode.
2
Auto
Displays the “Blinked eye detected” message.
Off
Does not display the message.
Operation
Search
t
(Settings) t
(Shooting
Settings) t [Blink Alert] t desired mode
MENU/Settings
Search
Index
101GB
Changes the settings of the sound produced when you operate the camera.
1
t
(Settings) t
t [Beep] t desired mode
(Main Settings)
High
Low
Turns on the beep/shutter sound when you operate the touch panel/
press the shutter button.
If you want to lower the beep volume, select [Low].
Off
Turns off the beep/shutter sound.
MENU/Settings
Search
Turns on the shutter sound when you press the shutter button.
Operation
Search
Shutter
Table of
contents
Beep
Index
102GB
This sets the brightness of the LCD screen.
1
t
(Settings) t
(Main Settings)
t [LCD Brightness] t desired mode
Sets the LCD screen to normal brightness.
Bright
Sets the LCD screen to high brightness.
Operation
Search
Normal
Table of
contents
LCD Brightness
• This function is useful when viewing images in bright outside light.
• In [Bright] mode, the battery power may decrease faster.
• If you do not operate the camera for a certain period of time while the power is on, the LCD screen
becomes dark.
• If the camera temperature rises when shooting movies, [LCD Brightness] is set to [Normal].
MENU/Settings
Search
Notes
Index
103GB
Selects the language to be used in the menu items, warnings and messages.
1
t
(Settings) t
(Main Settings)
t [Language Setting] t desired mode
Table of
contents
Language Setting
Operation
Search
MENU/Settings
Search
Index
104GB
Sets the color of the screen display.
1
t
(Settings) t
(Main Settings)
t [Display color] t desired mode
White
Sets the background color of the LCD screen.
Operation
Search
Black
Table of
contents
Display color
Pink
MENU/Settings
Search
Index
105GB
You can set whether to use a demonstration of the shooting functions or Smile Shutter. When
there is no need to view a demonstration, set to [Off].
1
Table of
contents
Demo Mode
t
(Settings) t
(Main Settings)
t [Demo Mode] t desired mode t [OK]
Demo Mode2
Automatically starts the Smile Shutter demonstration when no
operation is performed for 15 seconds.
Off
Does not perform a demonstration.
Notes
• Pressing the shutter button during the Smile Shutter demonstration operates the shutter, but no image is
recorded.
• During a demonstration, if the number of images saved in the internal memory increases, the camera may
automatically delete the images.
MENU/Settings
Search
A demonstration of the shooting functions will be performed.
Operation
Search
Demo Mode1
Index
106GB
Initializes the setting to the default setting.
Even if you execute [Initialize], the images are retained.
1
t
(Settings) t
t [Initialize] t [OK]
Table of
contents
Initialize
(Main Settings)
Operation
Search
Note
• Be sure not to turn off the camera while initializing.
MENU/Settings
Search
Index
107GB
Selects the video signal output type from either SD or HD (1080i) in accordance with the type of
TV you connect to the camera using an HD Output Adaptor Cable (sold separately).
Use a Type3a-compliant HD Output Adaptor Cable (sold separately).
1
Table of
contents
COMPONENT
t
(Settings) t
(Main Settings)
t [COMPONENT] t desired mode
Operation
Search
Select this item to connect the camera to a 1080i-capable High
Definition TV.
SD
Select this item to connect the camera to a TV that is not
compatible with an HD(1080i) signal.
MENU/Settings
Search
HD(1080i)
Index
108GB
Sets the video signal output according to the TV color system of the connected video equipment.
The TV color systems differ depending on the country and region.
To view images on a TV screen, check the TV color system of the country or region of use
(page 152).
1
Sets the video output signal to NTSC mode (e.g., for the USA,
Japan).
PAL
Sets the video output signal to PAL mode (e.g., for Europe, China).
MENU/Settings
Search
NTSC
Operation
Search
t
(Settings) t
(Main Settings)
t [Video Out] t desired mode
Table of
contents
Video Out
Index
109GB
Displays the dedicated operation buttons when the camera is installed in the housing (Marine
Pack). Refer also to the operating instructions supplied with the housing.
1
Table of
contents
Housing (DSC-T110 only)
t
(Settings) t
(Main Settings)
t [Housing] t desired mode
Changes the function of the buttons.
Off
Does not change any functions.
• Objects cannot be brought into focus by touching the screen.
• Some functions are limited, and the icon positions on the LCD screen change.
• When [Housing] is set to [On], [View Mode] is set to [Date View].
MENU/Settings
Search
Notes
Operation
Search
On
Index
110GB
Sets the mode when the camera is connected to a computer or a USB device using the USB
cable.
1
Table of
contents
USB Connect
t
(Settings) t
(Main Settings)
t [USB Connect] t desired mode
PTP/MTP
When you connect the camera to a computer, the AutoPlay Wizard
appears, and the still images in the recording folder on the camera
are imported to the computer (with Windows 7/Vista/XP,
Mac OS X).
Note
• You cannot import movies when [PTP/MTP] is selected. To import movies to the computer, select [Mass
Storage].
MENU/Settings
Search
Establishes a Mass Storage connection between the camera and a
computer or other USB device.
Operation
Search
Mass Storage
Index
111GB
Sets the display method for the recording media displayed on a computer screen or other monitor
when the camera is connected with a computer or AV component using a USB connection.
1
Table of
contents
LUN Setting
t
(Settings) t
(Main Settings)
t [LUN Setting] t desired mode
Single
When the memory card is inserted into the camera, the images on
the memory card are displayed; when it is not inserted, the images
in the internal memory are displayed. Select this setting in cases
where the images of both the memory card and the internal memory
are not displayed when the camera is connected to a device other
than a computer.
MENU/Settings
Search
The images both on the memory card and in the internal memory
are displayed. Select this setting when you connect the camera to a
computer.
Operation
Search
Multi
Note
• Set [LUN Setting] to [Multi] when uploading images to a media service using “PMB Portable”.
Index
112GB
You can use “Music Transfer” in the CD-ROM (supplied) to change background music tracks.
1
t
(Settings) t
t [Download Music]
(Main Settings)
2 Make a USB connection between the camera
and a computer, then start “Music Transfer”.
3 Follow the instructions on the screen to change
music files.
Operation
Search
The message “Change slideshow music Connect to PC” is
displayed.
Table of
contents
Download Music
MENU/Settings
Search
Index
113GB
You can delete all the background music files stored in the camera. It can be used in cases such
as when the background music files are damaged and cannot be played.
1
t
(Settings) t
t [Empty Music] t [OK]
Table of
contents
Empty Music
(Main Settings)
Operation
Search
zRestoring the music preset at the factory to the
camera
1Execute [Download Music], then make a USB connection between the camera and a
computer.
2Start “Music Transfer”, then restore the default music.
• For details on using “Music Transfer”, see the help in “Music Transfer”.
MENU/Settings
Search
You can use “Music Transfer” in the CD-ROM (supplied) to reset music files to the preset
ones.
Index
114GB
Sets the length of time until the LCD screen goes dark and the time until the camera turns off. If
you do not operate the camera for a certain period of time while the power is on using the battery
pack, the screen goes dark and the camera later turns off automatically to prevent wearing down
the battery pack (Auto power-off function).
1
Proactively saves the battery power.
If the camera is not operated for a certain period of time, the power
turns off automatically. In shooting mode, the LCD screen
automatically goes dark before the power turns off.
Standard
If the camera is not operated for a certain period of time, the power
turns off automatically. In shooting mode, the LCD screen
automatically goes dark before the power turns off.
It takes longer before the power turns off than when set to
[Stamina].
Off
Does not use the Auto power-off function.
Index
Note
• The camera does not turn off automatically in the following situations:
– During slideshow
– When playing back movies
– During Eye-Fi connection
MENU/Settings
Search
Stamina
Operation
Search
t
(Settings) t
(Main Settings)
t [Power Save] t desired mode
Table of
contents
Power Save
115GB
You can select TransferJet communication settings. TransferJet is a close-up, wireless transfer
technology that allows data to be transferred by closely aligning two products that you want to
communicate with each other. To find out whether your camera is equipped with the TransferJet
function, check for the
(TransferJet) mark on the bottom of the camera.
Using a Memory Stick with TransferJet (sold separately) allows images to be transferred
between TransferJet-compatible devices.
1
t
(Settings) t
(Main Settings)
t [TransferJet] t desired mode
Communicates using TransferJet.
Off
Does not communicate using TransferJet.
Notes
Index
• [TransferJet] is always set to [Off] during Easy Mode.
• While aboard an airplane, set [TransferJet] to [Off]. In addition, always follow all regulations governing
the location in which the camera is being used.
• The connection is cut if transfer cannot be made within about 30 seconds. If this happens, select [Yes]
and again align two
(TransferJet) marks on the camera and another device.
• Memory Stick with TransferJet and camera models with TransferJet are not sold in some countries and
regions due to local laws and regulations.
• Set the [TransferJet] function to [Off] in countries and regions other than where you purchased your
camera. Depending on the country or region, if you use the TransferJet function, you may be liable due to
local restrictions on transmission of electromagnetic waves.
MENU/Settings
Search
On
Operation
Search
For more details on TransferJet, see the Operating Instructions supplied with Memory Stick with
TransferJet.
Table of
contents
TransferJet
zWhat is TransferJet?
TransferJet allows you to share images by sending and receiving
image data. Insert a Memory Stick with TransferJet in your camera
and align two
(TransferJet) marks of the camera and another
device that supports this function.
For details on image transfer, see page 81.
116GB
Sets whether to use the upload function of an Eye-Fi card (commercially available), when you
use the Eye-Fi card with this camera. [Eye-Fi] is displayed only when the Eye-Fi card is inserted
in the camera.
1
t
(Settings) t
t [Eye-Fi] t desired mode
Table of
contents
Eye-Fi
(Main Settings)
Operation
Search
Uses the upload function.
The Eye-Fi mode display icon on the LCD screen will change
depending on the communication mode of the Eye-Fi card.
Eye-Fi card is in standby mode. There is no image to be sent.
Eye-Fi card is in upload standby mode.
Eye-Fi card is in connecting mode.
Eye-Fi card is uploading images.
An error has occurred.
Off
Does not use the upload function.
MENU/Settings
Search
On
Notes
Index
• As of December 2010, Eye-Fi cards are sold in the U.S.A., Canada, Japan and some countries in the
European Union.
• For more information on the Eye-Fi card, contact the manufacturer or seller of Eye-Fi cards directly.
• Eye-Fi cards are permitted only in the countries and regions in which they were purchased. You may be
held liable due to local restrictions.
• The Eye-Fi card has a wireless LAN function. Do not insert the Eye-Fi card where wireless LAN is
prohibited, such as while aboard an airplane. If the Eye-Fi card is inserted, set [Eye-Fi] to [Off]. When
the uploading function of the Eye-Fi card is set to [Off],
is displayed on the LCD screen.
Transferring image data using the Eye-Fi card
1 Set the wireless LAN access point settings or the transferring direction
settings of the Eye-Fi card.
For details, refer to the operating instructions supplied with the Eye-Fi card.
2 After the settings are finished, insert the Eye-Fi card into the camera, and
shoot the images.
The recorded images are automatically transferred via the wireless LAN to the PC, etc.
117GB
Continued r
Notes
Table of
contents
Operation
Search
MENU/Settings
Search
• When you use a new Eye-Fi card for the first time, copy the install file of the PC application written in
the Eye-Fi card first, then format the card.
• Before using the Eye-Fi card, upgrade the firmware of the Eye-Fi card to the latest version. For details on
version upgrades, refer to the operating instructions supplied with the Eye-Fi card.
• When uploading image data, [Power Save] is not available.
• If the
(error) icon is displayed, eject and re-insert the Eye-Fi card, or turn the power of the camera
off and on again. If the
(error) icon is still displayed, the Eye-Fi card may be corrupted. For details,
contact Eye-Fi, Inc.
• Wireless LAN communication may be interrupted by the other communication devices. If data reception
is insufficient, move the camera closer to the access point.
• For details on content that can be uploaded, refer to the operating instructions supplied with the Eye-Fi
card.
• Some Eye-Fi cards have an “Endless Memory Mode.” This product does not support “Endless Memory
Mode.” Make sure that Eye-Fi cards that you insert into this product have “Endless Memory Mode”
turned off. For details on setting “Endless Memory Mode”, refer to the operating instructions supplied
with the Eye-Fi card.
Index
118GB
Enables you to perform calibration when the touch panel buttons do not react at the appropriate
points where you touch.
1
t
(Settings) t
t [Calibration]
Table of
contents
Calibration
(Main Settings)
MENU/Settings
Search
Notes
• If you touch [Cancel] to stop calibration mid-way, any adjustments made up to that point are not applied.
• If you fail to touch the right spot, the calibration is not performed. Touch the center of the × mark again.
Operation
Search
2 Using the paint pen, touch the center of the ×
mark displayed on the screen in order.
Index
119GB
Formats the memory card or the internal memory. To ensure stable operations of the memory
card, we recommend that you use this camera to format any memory card being used with this
camera for the first time. Note that formatting will erase all data recorded on the memory card.
This data cannot be restored. Be sure to backup any important data to a PC or other storage
location.
t
Tool) or
t [OK]
(Settings) t
(Memory Card
(Internal Memory Tool) t [Format]
• Note that formatting permanently erases all data including even protected images.
MENU/Settings
Search
Note
Operation
Search
1
Table of
contents
Format
Index
120GB
Creates a folder in a memory card to store recorded images.
Images are recorded in the newly created folder until you create another folder or select another
recording folder.
1
Table of
contents
Create REC.Folder
t
(Settings) t
(Memory Card
Tool) t [Create REC.Folder] t [OK]
zOn the folders
MENU/Settings
Search
• This item is not displayed when the internal memory is used to record images.
• When you insert a memory card that was used with other equipment into the camera and shoot images, a
new folder may be automatically created.
• Up to 4,000 images can be stored in one folder. When the folder capacity is exceeded, a new folder is
automatically created.
Operation
Search
Notes
After a new folder is created, you can change the storage destination folder (page 122) and
select the folder for viewing images (page 93).
Index
121GB
Changes the folder in the memory card that is currently used to store recorded images.
1
t
(Settings) t
(Memory Card
Tool) t [Change REC.Folder]
• This item is not displayed when the internal memory is used to record images.
• You cannot select the following folder as a recording folder.
– “100” folder
– A folder with a number that has either “sssMSDCF” or “sssMNV01” only
• You cannot move recorded images to another folder.
MENU/Settings
Search
Notes
Operation
Search
2 Select the folder in which you want to store
images using / t [OK].
Table of
contents
Change REC.Folder
Index
122GB
Deletes the folder in a memory card that is used to store recorded images.
1
t
(Settings) t
Tool) t [Delete REC.Folder]
(Memory Card
/
MENU/Settings
Search
Notes
• This item is not displayed when the internal memory is used to record images.
• If you delete the folder set as the recording folder using [Delete REC.Folder], the folder that has the
largest folder number is selected as the next recording folder.
• You can delete only empty folders. If a folder contains images, or even files that cannot be played back
by the camera, first delete these images and files with a computer, and then delete the folder.
Operation
Search
2 Select the folder you want to delete using
t [OK].
Table of
contents
Delete REC.Folder
Index
123GB
Copies all images in the internal memory to a memory card.
1 Insert a memory card with sufficient free capacity
into the camera.
2
(Memory Card
Notes
MENU/Settings
Search
• Use a fully charged battery pack. If you attempt to copy image files using a battery pack with little
remaining charge, the battery pack may run out, causing copying to fail or possibly corrupting the data.
• You cannot copy images individually.
• The original images in the internal memory are retained even after copying. To delete the contents of the
internal memory, remove the memory card after copying, then format the internal memory ([Format] in
[Internal Memory Tool]).
• A new folder is created on the memory card and all the data will be copied to it. You cannot choose a
specific folder and copy images to it.
Operation
Search
t
(Settings) t
Tool) t [Copy] t [OK]
Table of
contents
Copy
Index
124GB
Selects the method used to assign file numbers to images.
1
t
(Settings) t
(Memory Card
Tool) or
(Internal Memory Tool) t [File
Number] t desired mode
Reset
Starts from 0001 each time the folder is changed. (When the
recording folder contains a file, a number one higher than the
largest number is assigned.)
MENU/Settings
Search
Assigns numbers to files in sequence even if the recording folder or
the memory card is changed. (When the replaced memory card
contains a file with a number higher than the last assigned number,
a number one higher than the largest number is assigned.)
Operation
Search
Series
Table of
contents
File Number
Index
125GB
Table of
contents
Area Setting
Adjusts the time to the local time of a selected area.
1
t
(Settings) t
(Clock Settings)
t [Area Setting] t desired mode
Destination
You use the camera set to the time at your destination.
Set the destination area.
zChanging Area Setting
Setting a frequently visited destination lets you easily adjust the time when you visit that
destination.
MENU/Settings
Search
You use the camera in your area.
When the currently set area differs from your home area, you must
make the Area Setting.
Operation
Search
Home
Index
Daylight Savings icon
1Touch the “Destination” area.
2Select the area using
/ .
3Touch Daylight Savings icon, then select Daylight Savings On/Off.
4Touch [OK].
126GB
Sets the date and time again.
1
t
(Settings) t
(Clock Settings)
t [Date & Time Setting] t desired mode
You can select the date and time display format.
Daylight Savings
You can select Daylight Savings [On]/[Off].
Date & Time
You can set the date and time.
• The camera does not have a feature for superimposing dates on images. By using “PMB” in the CDROM (supplied), you can print or save images with the date.
MENU/Settings
Search
Note
Operation
Search
Date & Time Format
Table of
contents
Date & Time Setting
Index
127GB
You can view images recorded on the camera in standard picture quality by connecting the
camera to a Standard Definition (SD) TV. Refer also to the operating instructions supplied with
the TV.
2 Connect the camera to the TV with the cable for multi-use terminal
(supplied).
Operation
Search
1 Turn off both the camera and the TV.
Table of
contents
Viewing an image on a Standard
Definition (SD) TV
(Playback) button
2 To audio/video
input jacks
MENU/Settings
Search
1 To the multi connector
Cable for multi-use terminal (supplied)
Index
3 Turn on the TV and set the input.
4 Press
(Playback) button to turn on the camera.
Images shot with the camera appear on the TV. Touch
this camera to select the desired image.
/
displayed on the LCD screen of
Notes
• When you play back a single image, no icons are displayed on the TV.
• You cannot play back images in [Easy Mode] during TV output.
• When you shoot movies while the camera and a TV are connected, the image being shot is not displayed
on the TV.
128GB
You can view images recorded on the camera in high picture quality by connecting the camera to
a High Definition (HD) TV using the HD Output Adaptor Cable (sold separately). Use a Type3acompliant HD Output Adaptor Cable. Refer also to the operating instructions supplied with the
TV.
2 Connect the camera to the TV using an HD Output Adaptor Cable (sold
separately).
Green/Blue/Red
(Playback) button
AUDIO
2 To the multi
connector
White/Red
Conversion
adaptor*
1 To audio/video input jacks
Index
HD Output Adaptor
Cable (sold separately)
MENU/Settings
Search
COMPONENT
VIDEO IN
Operation
Search
1 Turn off both the camera and the HD TV.
Table of
contents
Viewing an image on a High
Definition (HD) TV
* The conversion adaptor is supplied with a Type3a-compliant HD Output Adaptor Cable (sold
separately).
3 Turn on the TV and set the input.
4 Press
(Playback) button to turn on the camera.
Images shot with the camera appear on the TV. Touch
this camera to select the desired image.
/
displayed on the LCD screen of
Notes
• Before you use this function, select
t
(Settings) t (Main Settings) to select [HD(1080i)]
for [COMPONENT].
• When you play back a single image, no icons are displayed on the TV.
• Images shot in [VGA] image size cannot be played back in HD format.
• You cannot play back images in [Easy Mode] during TV output.
• When you shoot movies in the condition where the camera and a TV are connected using an HD Output
Adaptor Cable (sold separately), the image being shot is not displayed at the TV side.
• When using the camera abroad, it may be necessary to switch the video signal output to match that of
your TV system (page 109).
129GB
Continued r
This camera is compatible with the “PhotoTV HD” standard.
By connecting a Sony TV compatible with “PhotoTV HD” using an HD Output Adaptor
Cable (sold separately), a whole new world of photos can be comfortably enjoyed in
breathtaking Full HD quality.
Table of
contents
z“PhotoTV HD”
• “PhotoTV HD” allows for a highly-detailed, photo-like expression of subtle textures and colors.
• For details, see the operating instructions of the TV.
Operation
Search
MENU/Settings
Search
Index
130GB
“PMB” and other applications are contained on the CD-ROM (supplied) to allow more versatile
use of images shot with your Cyber-shot camera.
Table of
contents
Using with your computer
Recommended computer environment (Windows)
Microsoft Windows XP*1 SP3/Windows Vista*2 SP2/
Windows 7
Others
CPU: Intel Pentium III 800 MHz or faster (For playing/
editing the High Definition movies: Intel Core Duo
1.66 GHz or faster/ Intel Core 2 Duo 1.20 GHz or faster)
Memory: 512 MB or more (For playing/editing the High
Definition movies: 1 GB or more)
Hard Disk: Disk space required for installation—
approximately 500 MB
Display: Screen resolution: 1,024 × 768 dots or more
*1 64-bit editions and Starter (Edition) are not supported.
*2 Starter (Edition) is not supported.
Index
Recommended computer environment
(Macintosh)
MENU/Settings
Search
OS (pre-installed)
Operation
Search
The following computer environment is recommended when using the supplied software
“PMB”, “Music Transfer” and “PMB Portable” or importing images via a USB connection.
The following computer environment is recommended when using the supplied software “Music
Transfer” and “PMB Portable” or importing images via a USB connection.
OS (pre-installed)
USB Connection: Mac OS X (v10.3 to v10.6)
Music Transfer/PMB Portable: Mac OS X* (v10.4 to
v10.6)
* The model with an Intel processor
Notes
• Operation is not assured in an environment based on an upgrade of the operating systems described
above or in a multi-boot environment.
• If you connect two or more USB devices to a single computer at the same time, some devices, including
the camera, may not operate, depending on the types of USB devices you are using.
• Connecting the camera using a USB interface that is compatible with Hi-Speed USB (USB 2.0
compliant) allows advanced transfer (high speed transfer), as the camera is compatible with Hi-Speed
USB (USB 2.0).
• When your computer resumes activity from suspend or sleep mode, communication between the camera
and your computer may not recover at the same time.
131GB
Installing “PMB (Picture Motion Browser)” and
“Music Transfer” (Windows)
The installation menu screen appears.
• If it does not appear, double-click [Computer] (in Windows XP, [My Computer]) t
(SONYPMB).
• If the AutoPlay screen appears, select “Run Install.exe” and follow the instructions that appear on the
screen to proceed with the installation.
Operation
Search
1 Turn on your computer and insert the CD-ROM (supplied) into the CDROM drive.
Table of
contents
Using the software
2 Click [Install].
3 Select the desired language, then proceed to the following screen.
The “License Agreement” screen appears.
4 Carefully read the agreement, click the radio button (
the terms of the agreement, and then click [Next].
t
) to accept
5 Follow the instructions on the screen to complete the installation.
6 Remove the CD-ROM after the installation is complete.
Index
• Restarting of the computer may be required. When the restarting confirmation message appears,
restart the computer following the instructions on the screen.
• DirectX may be installed depending on the system environment of your computer.
• For the installation, connect the camera to the computer during the procedure (page 134).
MENU/Settings
Search
The “Choose Setup Language” screen appears.
7 Start up the software.
• To start up “PMB,” click
(PMB) on the desktop.
For the detailed operation method, see the following PMB support page (English only):
http://www.sony.co.jp/pmb-se/
or click
(PMB Help).
• To start up “PMB” from the Start menu, select [Start] t [All Programs] t
(PMB).
• If “PMB” was installed on your computer and if you re-install “PMB” using the supplied CD-ROM,
you can start up all the applications from “PMB Launcher.” To start up “PMB Launcher,” doubleclick
(PMB Launcher) on the desktop.
Notes
• Log on as Administrator.
• When “PMB” is started up for the first time, the confirmation message of the Information tool appears on
the screen. Select [Start].
• If “PMB” has been already installed on your computer and that “PMB” version number is lower than that
of the supplied CD-ROM, re-install “PMB” using the supplied CD-ROM.
• If the version number is higher than that of the supplied CD-ROM, you do not need to re-install “PMB”.
When you connect the camera and the computer via USB cable, the available “PMB” function is
activated.
• If “PMB” has already been installed on your computer and that “PMB” version number is lower than 5.0,
some functions may become invalid after you install “PMB” using the supplied CD-ROM. Also, you can
start up “PMB” or other various software from “PMB Launcher” installed at the same time. To start up
“PMB Launcher,” double-click
(PMB Launcher) on the desktop.
132GB
Installing “Music Transfer” (Macintosh)
2 Double-click
(SONYPMB).
Table of
contents
1 Turn on your Macintosh computer, and insert the CD-ROM (supplied) into
the CD-ROM drive.
3 Double-click the [MusicTransfer.pkg] file in the [Mac] folder.
The installation of the software starts.
Operation
Search
Notes
• “PMB” is not compatible with Macintosh computers.
• Shut down all other application software before you install “Music Transfer”.
• For installation, you need to log on as Administrator.
Index
• “PMB” allows you to import images shot with the camera to a computer for display. Make a USB
connection between the camera and your computer, and click [Import].
• Images on a computer can be exported to a memory card, and displayed on the camera. Make a USB
connection between the camera and your computer, click [Export] t [Easy Export (PC Sync)] in
the [Manipulate] menu, and click [Export].
• You can save and print images with the date.
• You can display images stored on a computer by shooting date in a calendar display.
• You can correct (Red Eye Reduction, etc.) still images, and change the shooting date and time.
• You can upload images to a network service. (An internet connection environment is required.)
• For other details, see
(PMB Help).
MENU/Settings
Search
zIntroduction to “PMB”
zIntroduction to “Music Transfer”
“Music Transfer” allows you to replace the Music files provided in the camera at the factory
with your favorite tracks, and to delete and add Music files.
You can also restore the tracks stored at the factory to your camera.
• The following track types can be imported using “Music Transfer”.
– MP3 files stored on the hard disk of your computer
– Music CD tracks
– Preset-music saved on the camera
• Before starting up “Music Transfer,” perform
t
(Settings) t
[Download Music], and connect the camera to the computer.
(Main Settings) t
For other details, see the help in “Music Transfer”.
133GB
• Use a Type3a-compliant USB/AV/DC IN Cable (sold separately).
2 Turn on the computer, then press
(Playback) button.
3 Connect the camera to your computer.
Operation
Search
1 Insert a sufficiently charged battery pack into the camera, or connect the
camera to a wall outlet (wall socket) using the AC-LS5K/AC-LS5 AC
Adaptor (sold separately) and the USB/AV/DC IN Cable for multi-use
terminal (sold separately).
Table of
contents
Connecting the camera to the
computer
• When a USB connection is established for the first time, your computer automatically runs a program
to recognize the camera. Wait for a while.
MENU/Settings
Search
1 To a USB jack of
the computer
Index
2 To the multi
connector
Cable for multi-use terminal (supplied)
Importing images to a computer (Windows)
“PMB” allows you to easily import images.
For details on “PMB” functions, see the “PMB Help”.
Importing images to a computer without using “PMB”
When the AutoPlay Wizard appears after making a USB connection between the camera and a
computer, click [Open folder to view files] t [OK] t [DCIM] t copy the desired images to
the computer.
134GB
Importing images to a computer (Macintosh)
Table of
contents
1 Connect the camera to your Macintosh computer first. Double-click the
newly recognized icon on the desktop t the folder where the images you
want to import are stored.
2 Drag and drop the image files to the hard disk icon.
The image files are copied to the hard disk.
The image is displayed.
Operation
Search
3 Double-click the hard disk icon t the desired image file in the folder
containing the copied files.
Deleting the USB connection
•
•
•
•
Disconnecting the USB cable.
Removing a memory card.
Inserting a memory card into the camera after copying images from the internal memory.
Turning off the camera.
1 Double-click the disconnect icon on the
tasktray.
2 Click
Windows Vista
(USB Mass Storage Device) t [Stop].
Index
Windows XP
3 Confirm the device on the confirmation
window, then click [OK].
Note
MENU/Settings
Search
Perform the procedures from step 1 to 3 below before:
Disconnect icon
• Drag and drop the icon of the memory card or the drive icon to the “Trash” icon beforehand when you
use a Macintosh computer, and the camera is disconnected from the computer.
135GB
This camera has a built-in application “PMB Portable”.
You can use this application to do the following:
For details on “PMB Portable”, see the “PMB Portable” help.
Starting up “PMB Portable” (Windows)
1 Make a USB connection between the camera and a computer.
When you connect the camera and your computer, AutoPlay Wizard appears.
Click [×] to close the AutoPlay Wizard for any unnecessary drives.
MENU/Settings
Search
When using “PMB Portable” for the first time, you must select the language. Follow the
procedure below to make the selection. Once the language selection has been made, steps 3 to 5
are unnecessary the next time you use “PMB Portable”.
Operation
Search
• You can easily upload images to a blog or other media service.
• You can upload images from a computer connected to the Internet even when you are away from home or
the office.
• You can easily register the media services (such as blogs) you use frequently.
Table of
contents
Uploading images to a media
service
• If the desired AutoPlay Wizard does not appear, click [Computer] (in Windows XP, [My Computer])
t [PMBPORTABLE], then double-click [PMBP_Win.exe].
• If [PMB Portable] is not displayed within the AutoPlay Wizard, click [Computer] t
[PMBPORTABLE], then double-click [PMBP_Win.exe].
Index
2 Click “PMB Portable”.
(In Windows XP, click [PMB Portable] t [OK].)
The Language Selection screen appears.
3 Select the desired language, then click [OK].
The Region Selection screen appears.
4 Select the appropriate [Region] and [Country/Area], and then click [OK].
The User Agreement screen appears.
5 Read the agreement carefully. If you accept the terms of the agreement,
click [I Agree].
“PMB Portable” starts up.
136GB
Starting up “PMB Portable” (Macintosh)
When you connect the camera and your computer, [PMBPORTABLE] appears on the
desktop. Click [×] for any unnecessary drives.
Table of
contents
1 Make a USB connection between the camera and a computer.
2 Click [PMBP_Mac] in the [PMBPORTABLE] folder.
The Region Selection screen appears.
The User Agreement screen appears.
4 Read the agreement carefully. If you accept the terms of the agreement,
click [I Agree].
Operation
Search
3 Select the appropriate [Region] and [Country/Area], and then click [OK].
“PMB Portable” starts up.
• Set [LUN Setting] in [Main Settings] to [Multi].
• Always connect to a network when using “PMB Portable”.
• When uploading images over the Internet, the cache may remain in the computer being used depending
on the service provider. This is also true when this camera is used for this purpose.
• When a bug occurs in “PMB Portable” or you delete “PMB Portable” by mistake, you can repair “PMB
Portable” by downloading the PMB Portable installer from the web site.
MENU/Settings
Search
Notes
Notes on “PMB Portable”
Index
“PMB Portable” makes it possible to download the URLs of a number of websites from the
server administered by Sony (the “Sony server”).
In order to use “PMB Portable” to enjoy the benefits of the image uploading service or other
services (the “services”) provided by these and other websites, you must consent to the
following.
• Some websites require registration procedures and/or fees to use their services. In using such services,
you must comply with the terms and conditions established by the websites concerned.
• Services may be terminated or changed in accordance with the convenience of the website operators.
Sony will not be held responsible for any trouble occurring between the users and third parties or any
inconvenience caused to users relating to the utilization of the services inclusive of the termination of or
changes to such services.
• To view a website, you will be redirected to it by the Sony server. There may be times when you cannot
access the website because of server maintenance or for other reasons.
• If the operation of the Sony server is to be terminated, you will be notified of the termination ahead of
time on Sony website, etc.
• The URLs to which you are redirected by the Sony server and other information may be recorded for the
purposes of improving Sony future products and services. However, no personal data will be recorded on
such occasions.
137GB
Notes
• When you print images shot in 16:9 mode, both edges may be cut off.
• You cannot print panoramic images depending on the printer.
You can take a memory card containing images shot with the camera to a photo printing service
shop. As long as the shop supports photo printing services conforming to DPOF, you can make a
(Print order) mark on images in advance on the viewing menu so that you do not have to
reselect them when you print them out at the shop.
MENU/Settings
Search
Printing at a shop
Operation
Search
You can print still images using the following methods.
• Printing directly using a memory card-compliant printer
For details, see the operating instructions supplied with the printer.
• Printing using a computer
You can import images to a computer using the supplied “PMB” software and print the
images. You can insert the date on the image and print it.
For details, see the “PMB Help”.
• Printing at a shop
Table of
contents
Printing still images
Notes
Index
• You cannot print images stored in the internal memory at a print shop directly from the camera. Copy the
images to a memory card (page 124), then take the memory card to the print shop.
• Consult your photo printing service shop as to what types of memory card they can process.
• A memory card adaptor (sold separately) may be necessary. Consult your photo printing service shop.
• Before you take image data to a shop, always copy (back up) your data to a disk.
• You cannot set the number of prints.
• If you want to superimpose dates on images, consult your photo printing service shop.
138GB
If you experience trouble with the camera, try the following solutions.
1 Check the items on pages 139 to 146.
Table of
contents
Troubleshooting
If a code such as “C/E:ss:ss” appears on the screen, see
page 147.
4 Consult your Sony dealer or local authorized Sony service
facility.
Be aware that by sending the camera for repair, you give consent that the contents of the internal
memory, music files may be checked.
Index
Additional information on this product and answers to frequently asked questions can
be found at our Customer Support Website.
http://www.sony.net/
MENU/Settings
Search
3 Initialize the settings (page 107).
Operation
Search
2 Remove the battery pack, wait for about one minute, re-insert
the battery pack, then turn on the power.
Battery pack and power
Cannot insert the battery pack.
• Make sure the direction of the battery is correct, and insert it until the battery eject lever is locked.
Cannot turn on the camera.
• After inserting the battery pack into the camera, it may take a few moments for the camera to power
up.
• Insert the battery pack correctly.
• The battery pack is discharged. Insert a charged battery pack.
• The battery pack terminals are dirty. Gently wipe away any dirt with a soft cloth.
• Use a recommended battery pack.
The power turns off suddenly.
• Depending on the camera and battery temperature, the power may turn off automatically to protect
the camera. In this case, a message is displayed on the LCD screen before the power turns off.
• If you do not operate the camera for a certain period of time while the power is on and [Power Save]
is set to [Standard] or [Stamina], the camera turns off automatically to prevent wearing down the
battery pack. Turn on the camera again.
139GB
The remaining charge indicator is incorrect.
Table of
contents
• This is caused when you use the camera in an extremely hot or cold location.
• A discrepancy arose between the remaining charge indicator and the actual remaining battery charge.
Fully discharge the battery pack once, then charge it to correct the indication. Depending on
conditions of use, the display may remain incorrect.
• The battery pack is dead (page 155). Replace it with a new one.
Cannot charge the battery pack.
The CHARGE lamp flashes while charging the battery.
Index
Shooting still images/movies
MENU/Settings
Search
• Check that the battery pack type is NP-BN1.
• The CHARGE lamp flashes infrequently when you use a battery pack that has not been used for a
long time.
• The CHARGE lamp (on the supplied battery charger) has two flash patterns, fast flash (approx. 0.15second intervals) and slow flash (approx. 1.5-second intervals). If the lamp flashes quickly, remove
the battery pack being charged, and then insert the same battery pack into the battery charger again
(until it clicks). If the lamp flashes quickly again, this may indicate a battery pack problem.
If the lamp flashes slowly, the charger is in standby mode and charging has temporarily stopped.
Charging stops temporarily and standby mode results when the temperature is outside the range
suitable for charging. Charging resumes and the CHARGE lamp lights when the temperature returns
to the range suitable for charging.
It is recommended to charge the battery pack within the proper charging temperature range between
10°C to 30°C (50°F to 86°F).
• For details, see page 156.
Operation
Search
• You cannot charge the battery pack using the AC Adaptor (sold separately). Use the battery charger
to charge the battery.
Cannot record images.
• When images cannot be recorded into a memory card but are recorded into the internal memory, even
though a memory card has been inserted into the camera, make sure that the memory card has been
fully inserted.
• Check the free capacity of the internal memory or the memory card. If it is full, do one of the
following:
– Delete unnecessary images (page 79).
– Change the memory card.
• You cannot record images while charging the flash.
• For recording movies, it is recommended that you use the following memory cards:
– “Memory Stick PRO Duo” (Mark2) media, “Memory Stick PRO-HG Duo” media
– SD memory card, SDHC memory card or SDXC memory card (Class 4 or faster)
• Set [Demo Mode] to [Off] (page 106).
Smile Shutter function does not work.
• No image is shot if a smiling face is not detected.
• Set [Demo Mode] to [Off] (page 106).
140GB
Anti-blur function does not work.
Recording takes a long time.
Table of
contents
• The anti-blur function may not work properly when shooting night scenes.
• Shoot after pressing the shutter button halfway down.
• When the shutter speed becomes slower than a certain speed, for example, when you shoot images in
dark locations, the camera automatically reduces the image noise. This function is called NR (noise
reduction) slow shutter and the shooting time takes longer.
Zoom does not work.
Cannot select the Face Detection function.
Index
• You cannot use the zoom during Sweep Panorama or Underwater Sweep Panorama (DSC-T110 only)
mode.
• You cannot use the Smart zoom depending on the image size (page 97).
• You cannot use the Digital Zoom in Movie Mode or when the Smile Shutter function is activated.
MENU/Settings
Search
• The subject is too close. When shooting, make sure to position the lens farther away from the subject
than the following minimum shooting distances:
– In Intelligent Auto and Easy Mode: Approximately 1 cm (13/32 inches) (W)/ 50 cm (1 ft 7 3/4
inches) (T) from the lens.
– In other recording modes: Approximately 8 cm (3 1/4 inches) (W)/ 50 cm (1 ft 7 3/4 inches) (T)
from the lens. Or set to Close focus mode and shoot about 1 cm to 20 cm (13/32 inches to 7 7/8
inches) from the W side distance.
•
(Landscape) mode or (Twilight) mode or (Fireworks) mode is selected in the Scene Selection
when shooting still images.
Operation
Search
The image is out of focus.
• You can select Face Detection only when the focus mode is set to [Multi AF] and the Metering Mode
is set to [Multi].
• You cannot select Face Detection when the Close focus mode is activated.
The flash does not work.
• You cannot use the flash in the following situations:
– When shooting burst images
– When (Twilight) mode,
(High Sensitivity) mode or (Fireworks) mode is selected in Scene
Selection.
– In Sweep Panorama mode
– In Underwater Sweep Panorama mode (DSC-T110 only)
– In Movie Mode
• Set the flash to [On] (page 45) in Close focus mode or when the Scene Selection mode is set to
(Landscape), (Gourmet),
(Pet),
(Beach), (Snow),
(Underwater) (DSC-T110 only)
or (Hi-Speed Shutter).
Fuzzy white circular spots appear in images shot using the flash.
• Particles (dust, pollen, etc.) in the air reflected the flash light and appeared in the image. This is not a
malfunction.
141GB
The close-up shoot function (Macro/Focus On) does not work.
Operation
Search
Macro shooting cannot be turned off.
Table of
contents
•
(Landscape) mode, (Twilight) mode or (Fireworks) mode is selected in the Scene Selection.
• When Close focus mode is selected, the shooting distance is approximately 1 cm to 20 cm (13/32
inches to 7 7/8 inches).
• [Macro] is set to [Auto] in the following situations:
– In Sweep Panorama mode
– In Underwater Sweep Panorama mode (DSC-T110 only)
– In Movie Mode
– When the Smile Shutter function is activated.
– In Easy Mode
– When [Self-Timer] is set to [Self-portrait One Person] or [Self-portrait Two People].
• There is no function for forcibly turning off macro shooting. In [Auto] mode, you can even shoot a
distant subject.
• While shooting, the date and time are not displayed. They are displayed only during playback.
Cannot insert dates on images.
• This camera does not have a feature for superimposing dates on images. By using “PMB”, you can
print or save images with the date (page 132).
• The exposure is incorrect. Correct the exposure (page 56).
Index
The F value and shutter speed flash when you press and hold the shutter button
halfway down.
MENU/Settings
Search
The date and time are not displayed on the LCD screen.
The image colors are not correct.
• Adjust the [White Balance] (page 58).
White or purple streaks appear in bright areas of the subject, or the whole screen
of the image becomes reddish.
• This phenomenon is called smearing. This is not a malfunction. Smearing is not recorded on still
images, but is recorded as streaks or uneven colors on Sweep Panorama images or movies. (“Bright
areas” refers to the sun or electric lights which are much brighter than surroundings.)
Noise appears in the image when you view the screen in a dark place.
• The camera is attempting to increase the visibility of the screen by temporarily brightening the image
under conditions of low illumination. There is no effect on the recorded image.
The eyes of the subject come out red.
• Set [Red Eye Reduction] to [Auto] or [On] (page 100).
• Shoot the subject at a distance closer than the flash range using the flash.
• Light the room and shoot the subject.
• Retouch the image using [Retouch] t [Red Eye Correction] on the viewing menu, or correct using
“PMB”.
Dots appear and remain on the screen.
• This is not a malfunction. These dots are not recorded.
142GB
Cannot shoot images in succession.
Table of
contents
• You cannot shoot images in succession while the Smile Shutter function is activated.
• The internal memory or the memory card is full. Delete unnecessary images (page 79).
• The battery level is low. Insert charged battery pack.
The same image is shot several times.
• Set [Burst Settings] to [Off] (page 54).
• [Scene Recognition] is set to [Advanced] (page 64).
Cannot play back images.
The date and time are not displayed.
• [Display Settings] is set to [Off].
MENU/Settings
Search
• Make sure that the memory card is fully inserted into the camera.
• The folder/file name has been changed on your computer.
• No guarantees are made for playing back, on this camera, files containing images which were
processed on a computer or images which were shot using other cameras.
• The camera is in USB mode. Delete the USB connection (page 135).
Operation
Search
Viewing images
Left and right sides of the screen are shown in black.
• [Auto Orientation] is set to [On] (page 98).
Index
The buttons and icons no longer appear.
• If you touch the top right of the screen during shooting, the buttons and icons will momentarily
disappear. The buttons and icons will reappear when you take your finger off the screen.
• [Display Settings] in shooting or viewing menu is set to [Off]. Touch the left side of the LCD screen
and drag to the right.
Cannot hear music during slideshow.
• Transfer music files to the camera with “Music Transfer” (pages 132, 133).
• Confirm that the volume setting and slideshow setting are correct (pages 77, 89).
• Slideshow is played back with [Continuous Playback]. Select [Slideshow with music] and play back.
The image does not appear on the TV.
• The camera and television must use the same color television system (page 152).
• Check whether the connection is correct (pages 128, 129).
• If the USB cable is connected to the USB terminal, disconnect the cable (page 135).
Deleting
Cannot delete an image.
• Cancel the protection (page 86).
143GB
Computers
Your computer does not recognize the camera.
Cannot import images.
• Connect the camera and your computer correctly making a USB connection (page 134).
• When you shoot images with a memory card formatted by a computer, you may not be able to import
the images to a computer. Shoot using a memory card formatted by the camera (page 120).
• Make the USB connection after the computer is turned on.
Index
After making a USB connection, “PMB” does not start automatically.
MENU/Settings
Search
• When the battery level is low, insert the charged battery pack or use the AC adaptor (sold separately).
• Set [USB Connect] to [Mass Storage] (page 111).
• Use the USB cable for connection between the computer and the camera.
• Disconnect the USB cable from both the computer and the camera, and firmly connect it again.
• Disconnect all equipment other than the camera, the keyboard and the mouse from the USB
connectors of your computer.
• Connect the camera directly to your computer without passing through a USB hub or other device.
Operation
Search
• Check that the computer and the “Memory Stick” media Reader/Writer support a “Memory Stick
PRO Duo” media. Users of computers and the “Memory Stick” media Readers/Writers made by
manufacturers other than Sony should contact those manufacturers.
• If a “Memory Stick PRO Duo” media is not supported, connect the camera to the computer
(page 134). The computer recognizes the “Memory Stick PRO Duo” media.
Table of
contents
A “Memory Stick PRO Duo” media is not recognized by a computer with a
“Memory Stick” media slot.
After making a USB connection, “PMB Portable” does not start.
• Set [LUN Setting] to [Multi].
• Set [USB Connect] to [Mass Storage].
• Connect the computer to the network.
Cannot play back images on your computer.
• If you are using “PMB”, refer to “PMB Help” (page 132).
• Consult the computer or software manufacturer.
The image and sound are interrupted by noise when you view a movie on a
computer.
• You are playing back the movie directly from the internal memory or the memory card. Use “PMB”
and import the movie to your computer, then play back the movie (page 132).
Images once exported to a computer cannot be viewed on the camera.
• Use “PMB” to play images stored on a PC with this camera.
• Register the image in the Image Database File and play in [Date View] (page 85).
• Event View is not available on this camera.
144GB
Memory card
• Insert it in the correct direction.
Table of
contents
Cannot insert a memory card.
You have formatted a memory card by mistake.
• All the data on the memory card is deleted by formatting. You cannot restore it.
• Check that the memory card has been securely inserted as far as it will go.
Operation
Search
Data is being recorded to internal memory even though you inserted a memory
card.
Internal memory
• There is a memory card inserted in the camera. Remove it.
Cannot copy the data stored in the internal memory to a memory card.
• The memory card is full. Copy to a memory card with sufficient capacity.
MENU/Settings
Search
Cannot playback or record images using the internal memory.
Cannot copy the data on the memory card or the computer to the internal
memory.
Printing
Index
• This feature is not available.
Cannot print an image.
• Refer to the operation manual of the printer.
Images are printed with both edges cut off.
• Depending on your printer, all the edges of the image may be cut off. Especially when you print an
image shot with the image size set to [16:9], the lateral end of the image may be cut off.
• When printing images using your printer, cancel the trimming or borderless settings. Consult the
printer manufacturer as to whether the printer provides these functions or not.
• When having images printed at a digital print shop, ask the shop whether they can print the images
without cutting off both edges.
Cannot print images with the date.
• Using “PMB”, you can print images with date (page 132).
• The camera does not have a feature for superimposing dates on images. However, because the images
shot with the camera include information on the recording date, you can print images with the date
superimposed if the printer or the software can recognize Exif information. For compatibility with
Exif information, consult the manufacturer of the printer or the software.
• If you use a photo printing service, ask them to superimpose the dates on images.
145GB
Touch panel
• Perform [Calibration] (page 119).
• [Housing] is set to [On] (DSC-T110 only) (page 110).
Table of
contents
Cannot operate the touch panel buttons correctly or fully.
The paint pen operation reacts at inappropriate points.
• Perform [Calibration] (page 119).
The lens gets fogged.
The camera becomes warm when you use it for a long time.
• This is not a malfunction.
The Clock Set screen appears when you turn on the camera.
• Set the date and time again (page 127).
• The internal rechargeable backup battery has discharged. Insert a charged battery, and set aside for
24 hours or more with the power left off.
• The Area Setting is set to a different location than your current location. Change the setting by
t
(Settings) t (Clock Settings) t [Area Setting].
Index
The date or time is incorrect.
MENU/Settings
Search
• Moisture condensation has occurred. Turn off the camera and leave it for about an hour before using
it.
Operation
Search
Others
146GB
Table of
contents
Warning indicators and
messages
Self-diagnosis display
Operation
Search
If a code starting with a letter of the alphabet appears, the self-diagnosis function on the camera
is working. The last two digits (indicated by ss) will differ depending on the state of the
camera.
If you cannot solve the problem even after trying the following corrective actions a few times,
the camera may need repair. Contact your Sony dealer or local authorized Sony service facility.
C:32:ss
C:13:ss
• The camera cannot read or write data on the memory card. Try turning off and on the camera again, or
taking out and inserting the memory card several times.
• The internal memory has experienced a format error, or an unformatted memory card is inserted.
Format the internal memory or the memory card (page 120).
• The inserted memory card cannot be used with the camera, or the data is damaged. Insert a new
memory card.
E:62:ss
Index
E:61:ss
MENU/Settings
Search
• There is trouble with the camera’s hardware. Turn the power off and on again.
E:91:ss
• A camera malfunction has occurred. Initialize the camera (page 107), then turn the power on again.
E:94:ss
• There is a malfunction when writing or deleting data. Repair is required. Contact your Sony dealer or
local authorized Sony service facility. Be prepared to give all numbers in the error code beginning
from the E.
Messages
If the following messages appear, follow the instructions.
• The battery level is low. Charge the battery pack immediately. Depending on the conditions of use or
the type of battery pack, the indicator may flash even though there are still 5 to 10 minutes of
remaining battery time left.
For use with compatible battery only
• The battery inserted is not an NP-BN1 (supplied) battery pack.
147GB
System error
Camera overheating
Allow it to cool
Table of
contents
• Turn the power off and then on again.
• The camera temperature has risen. The power may turn off automatically, or you may be unable to
record movies. Leave the camera in a cool location until the temperature goes down.
• Turn the power off and then on again.
Reinsert the memory card
Memory card type error
• The inserted memory card cannot be used in the camera (page 3).
This memory card may not record or play
MENU/Settings
Search
• The inserted memory card cannot be used in the camera (page 3).
• The terminal section of the memory card is dirty.
• The memory card is damaged.
Operation
Search
Internal memory error
• The inserted memory card cannot be used in the camera (page 3).
• Format the media again (page 120).
Index
Error formatting internal memory
Error formatting memory card
Buffer overflow
• If you use a memory card that has been recorded and erased repeatedly, or that was formatted on a
different camera, the data writing speed may be too slow. First back up any data on the card to a
computer, and then reformat the card before using it (page 120).
• The writing speed of the memory card you are using is not sufficient for movie recordings. Use a
“Memory Stick PRO-HG Duo” media, “Memory Stick PRO Duo” (Mark2) media, or an SD card
(Class 4 or faster).
Memory card locked
• You are using the memory card with the write-protect switch, and the switch is set to the LOCK
position. Set the switch to the recording position.
Read only memory card
• The camera cannot record or delete images on this memory card.
Writing to the memory card was not completed correctly
Recover data
• Reinsert the memory card, and follow the instructions on the screen.
No images
• No images that can be played back have been recorded in the internal memory.
• No images that can be played back have been recorded in the memory card.
148GB
No still images
File found which was not recognized
• You tried to delete a folder containing a file that cannot be played on this camera. Delete the file on a
computer and then delete the folder.
Table of
contents
• The selected folder or date does not contain a file that can be played back in a slideshow.
Folder error
Cannot create more folders
Operation
Search
• A folder with the same first three digit number already exists on the memory card (for example:
123MSDCF and 123ABCDE). Select another folder, or create a new folder (pages 121, 122).
• The folder with a name beginning with “999” exists on the memory card. You cannot create any
folders if this is the case.
• You tried to delete a folder containing one or more files. Delete all of the files and then delete the
folder.
Folder protected
MENU/Settings
Search
Empty folder contents
• You tried to delete a folder that is protected as read only on a computer.
Cannot display file
Index
• An error occurred while the image was playing back.
No guarantees are made for playing back, on this camera, files containing images which were
processed on a computer or images which were shot using other cameras.
Read only folder
• You have selected a folder that cannot be set as a recording folder on the camera. Select another
folder (page 122).
File protected
• Release the protection (page 86).
Image size over limit
• You are playing back an image with size that cannot be played back on the camera.
Unable to detect face for retouch
• You may not be able to retouch the image depending on the image.
(Vibration warning indicator)
• Camera shake may occur due to insufficient light. Use the flash, or mount the camera on a tripod to
secure the camera.
1280×720 (Fine) is not supported with this memory card
1280×720 (Standard) is not supported with this memory card
• For recording movies, it is recommended that you use a “Memory Stick PRO Duo” (Mark2) media, a
“Memory Stick PRO-HG Duo” media or an SD memory card (Class 4 or faster).
149GB
• Up to 10 files can be selected when using [TransferJet].
• Up to 100 files can be selected when using [Multiple Images].
• Up to 999 files can be selected when using [All Images on This Date] or [All in This Folder] for
DPOF or Protect.
• You can add
(Print order) marks to up to 999 files.
• Delete the Music file, or replace it with a normal Music file.
• Execute [Empty Music], then download a new Music file.
Error Formatting Music
Operation
Search
Error Playing Music
Table of
contents
Maximum number of
images already selected
• Execute [Empty Music].
• Processing and other editing functions of the camera cannot be performed on image files that have
been processed using a computer or images that were recorded with other cameras.
Preparing Image Database File Please wait
MENU/Settings
Search
Operation cannot be executed
in unsupported files
• The camera restores the date information, etc., in cases where images have been deleted on a PC, etc.
• The necessary Image Database File is created after the memory card is formatted.
Index
• The number of images exceeds that for which date management in a database file by the camera is
possible. To register additional images in the Image Database File, delete images in [Date View].
• It is not possible to record to the camera’s Image Database File or play back using [Date View]. Use
“PMB” to back up all images to a PC and use it to restore a memory card or internal memory.
Image Database File error Cannot recover
• Import all of the images to the computer with “PMB”, and format the memory card or the internal
memory (page 120).
To view the images again with the camera, export the imported images to the camera with “PMB”.
Recording function unavailable
due to high internal temperature
• The camera temperature has risen. You cannot record images until the temperature has gone down.
Recording has stopped due to
increased camera temperature
• Recording has stopped due to a rise in temperature while recording a movie. Please wait until the
temperature goes down.
150GB
Connection failed
Table of
contents
• When you record movies for a long time, the camera temperature rises. In this case, stop recording
movies.
• Check the TransferJet reception port and transfer data correctly (page 16).
• Either communication was cut off during image transfer, or transfer was cut off because device
memory is full. Check the available memory capacity and try transferring data using TransferJet
again.
Operation
Search
Some files were not sent
Some files were not received
MENU/Settings
Search
Index
151GB
You can use the battery charger (supplied), and the AC-LS5 AC Adaptor (sold separately) in any
country or region where the power supply is within 100 V to 240 V AC, 50/60 Hz.
Table of
contents
Using the camera abroad
Note
• An electronic voltage transformer is unnecessary and its use may cause a malfunction.
If you want to view images on a TV screen, you need a TV with a video input jack and the cable
for multi-use terminal. The color system of the TV must match that of the digital still camera.
Check the following lists for the TV color system of the country or region where the camera is
used.
PAL system
Australia, Austria, Belgium, China, Croatia, Czech Republic, Denmark, Finland, Germany,
Holland, Hong Kong, Hungary, Indonesia, Italy, Kuwait, Malaysia, New Zealand, Norway,
Poland, Portugal, Romania, Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand,
Turkey, United Kingdom, Viet Nam, etc.
Index
PAL-M system
Brazil
MENU/Settings
Search
NTSC system
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica, Japan,
Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A., Venezuela, etc.
Operation
Search
On TV color systems
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Greece, Guiana, Iran, Iraq, Monaco, Russia, Ukraine, etc.
152GB
The types of memory cards that can be used with the camera are “Memory Stick PRO Duo”
media, “Memory Stick PRO-HG Duo” media, “Memory Stick Duo” media, SD memory card,
SDHC memory card and SDXC memory card.
MultiMediaCard cannot be used.
Table of
contents
Memory card
Notes
Index
• When inserting a memory card into a memory card adaptor, make sure the memory card is inserted
facing in the correct direction, then insert it all the way in. Incorrect insertion may result in a malfunction.
MENU/Settings
Search
Note on using the memory card adaptor (sold separately)
Operation
Search
• A memory card formatted with a computer is not guaranteed to operate with the camera.
• Data read/write speeds differ depending on the combination of the memory card and the equipment used.
• Data may be corrupted in the following cases:
– When the memory card is removed or the camera is turned off during a read or write operation
– When the memory card is used in locations subject to static electricity or electrical noise
• We recommend backing up important data.
• Do not attach a label on the memory card itself nor on a memory card adaptor.
• Do not touch the terminal section of the memory card with your hand or a metal object.
• Do not strike, bend or drop the memory card.
• Do not disassemble or modify the memory card.
• Do not expose the memory card to water.
• Do not leave the memory card within the reach of small children. They might accidentally swallow it.
• Insert a memory card that fits the memory card slot size. Otherwise, it will cause a malfunction.
• Do not use or store the memory card under the following conditions:
– High temperature locations such as the hot interior of a car parked in direct sunlight
– Locations exposed to direct sunlight
– Humid locations or locations with corrosive substances present
“Memory Stick” media
The types of “Memory Stick Duo” media that can be used with the camera are listed in the table
below. However, proper operation cannot be guaranteed for all “Memory Stick Duo” media
functions.
“Memory Stick” media type
Recording/Playback
Memory Stick Duo (without MagicGate)
Memory Stick Duo (with MagicGate)
a*1
a*2
MagicGate Memory Stick Duo
Memory Stick PRO Duo
a*1*2
a*2*3
Memory Stick PRO-HG Duo
a*2*3*4
*1 High-speed data transfer using a parallel interface is not supported.
*2 “Memory Stick Duo” media, “MagicGate Memory Stick Duo” media, “Memory Stick PRO Duo” media
and “Memory Stick PRO-HG Duo” media are equipped with MagicGate functions. MagicGate is
copyright protection technology that uses encryption technology. Data recording/playback that requires
MagicGate functions cannot be performed with the camera.
*3 [1280×720] size movies can be recorded.
*4 This camera does not support 8-bit parallel data transfer. It performs the same 4-bit parallel data transfer
as the “Memory Stick PRO Duo” media.
153GB
Continued r
Operation
Search
• This product is compatible with “Memory Stick Micro” media (“M2”). “M2” is an abbreviation for
“Memory Stick Micro” media.
• To use a “Memory Stick Micro” media with the camera, be sure to insert the “Memory Stick Micro”
media into an “M2” Adaptor as large as of Duo size. If you insert a “Memory Stick Micro” media into the
camera without an “M2” Adaptor as large as of Duo size, you might not be able to remove it from the
camera.
• Do not leave the “Memory Stick Micro” media within the reach of small children. They might
accidentally swallow it.
Table of
contents
Notes on using a “Memory Stick Micro” media (sold
separately)
MENU/Settings
Search
Index
154GB
On charging the battery pack
• We recommend charging the battery pack in an ambient temperature of between 10°C to 30°C (50°F to
86°F). The battery pack may not be fully charged in temperatures outside this range.
Table of
contents
Battery pack
Effective use of the battery pack
Index
• Fully discharge the battery pack before storing and store it in a cool, dry place. To maintain the battery
pack’s function, fully charge the battery pack and then fully discharge it on the camera at least once a
year while storing.
• To use the battery pack up, leave the camera in slideshow (page 76) playback mode until the power goes
off.
• To keep clean battery pack terminal and prevent short-circuiting, place the battery pack in a plastic bag,
etc. when carrying and storing to isolate it from other metal objects, etc.
MENU/Settings
Search
How to store the battery pack
Operation
Search
• Battery performance decreases in low temperature surroundings. So in cold places, the operational time
of the battery pack is shorter. We recommend the following to ensure longer battery pack use:
– Put the battery pack in a pocket close to your body to warm it up, and insert it in the camera
immediately before you start shooting.
• The battery pack will run out quickly if you use the flash or zoom frequently.
• We recommend having spare battery packs handy for two or three times the expected shooting time, and
making trial shots before taking the actual shots.
• Do not expose the battery pack to water. The battery pack is not water-resistant.
• Do not leave the battery pack in extremely hot places, such as in a car or under direct sunlight.
• When the battery pack terminals become dirty, the camera may not turn on, the battery pack may not
charge, or other symptoms may occur. In these cases, gently wipe away any dirt with a soft cloth.
On battery life
• The battery life is limited. Battery capacity decreases over time and through repeated use. If decreased
usage time between charges becomes significant, it is probably time to replace it with a new one.
• The battery life varies according to how it is stored and the operating conditions and environment in
which each battery pack is used.
Compatible battery pack
• The NP-BN1 battery pack (supplied) can be used only in N type compatible Cyber-shot models.
155GB
Operation
Search
MENU/Settings
Search
• Only NP-BN1-type battery packs (and no others) can be charged in the battery charger (supplied).
Batteries other than the specified kind may leak, overheat, or explode if you attempt to charge them,
posing a risk of injury from electrocution and burns.
• The CHARGE lamp on the supplied battery charger has the following two flash patterns.
Fast flash: The lamp repeatedly flashes on and off at approximately 0.15-second intervals.
Slow flash: The lamp repeatedly flashes on and off at approximately 1.5-second intervals.
• Remove the charged battery pack from the battery charger. If you leave the charged battery pack in the
charger, battery life may be shortened.
• When the CHARGE lamp flashes, remove the battery pack being charged, and then insert the same
battery pack into the battery charger again until it clicks. When the CHARGE lamp flashes again, this
may indicate a battery error or that a battery pack other than the specified type has been inserted. Check
that the battery pack is the specified type. If the battery pack is the specified type, remove the battery
pack, replace it with new one or another one and check if the battery charger operates correctly. If the
battery charger operates correctly, a battery error may have occurred.
• If the CHARGE lamp is flashing slowly, the charger is in standby mode and charging has temporarily
stopped. Charging stops temporarily and standby mode results when the temperature is outside the range
suitable for charging. Charging resumes and the CHARGE lamp lights when the temperature returns to
the range suitable for charging. We recommend charging the battery pack in an ambient temperature of
between 10°C to 30°C (50°F to 86°F).
Table of
contents
Battery charger
Index
156GB
TransferJet communications conform to the standard given below.
TransferJet standard:
Conforms to PCL Spec. Rev. 1.0
• Use the “SCSI” communication protocol above when connecting to a TransferJet-compatible device
(sold separately). Or, use the “OBEX” communication protocol when sharing data between cameras.
Operation
Search
Protocol Class Name (communication type):
SCSI Block Device Target
OBEX Push Server
OBEX Push Client
Table of
contents
TransferJet standard
MENU/Settings
Search
Index
157GB
The number of still images and recordable time may vary depending on the shooting conditions
and the memory card.
(Units: Images)
Capacity
Internal
memory
Memory card formatted with this camera
Size
2 GB
4 GB
8 GB
16 GB
32 GB
16M
3
265
530
1050
2100
4250
10M
5
395
790
1600
3200
6400
5M
7
570
1100
2300
4650
9300
145
11500
23000
46500
94000
188000
VGA
16:9(12M)
4
325
650
1300
2600
5200
16:9(2M)
23
1800
3600
7300
14500
29000
• When the number of remaining shootable images is greater than 99,999, the “>99999” indicator appears.
• When an image shot with other cameras is played back on this camera, the image may not appear in the
actual image size.
Index
Notes
MENU/Settings
Search
Approx.
23 MB
Operation
Search
Still images
Table of
contents
Number of still images and
recordable time of movies
Movies
The table below shows the approximate maximum recording times. These are the total times for
all movie files. Continuous shooting is possible for approximately 29 minutes or up to
approximately 2 GB of data at one time.
(h (hour), m (minute), s (second))
Capacity
Size
Internal
memory
Approx.
23 MB
Memory card formatted with this camera
2 GB
4 GB
8 GB
16 GB
32 GB
1280×720(Fine)
—
0 h 25 m
(0 h 20 m)
0 h 55 m
(0 h 40 m)
1 h 50 m
(1 h 20 m)
3 h 40 m
(2 h 45 m)
7 h 25 m
(5 h 30 m)
1280×720(Standard)
—
0 h 40 m
(0 h 25 m)
1 h 20 m
(0 h 55 m)
2 h 40 m
(1 h 50 m)
5 h 25 m
(3 h 40 m)
10 h 50 m
(7 h 25 m)
0 m 52 s
(0 m 39 s)
1 h 20 m
(1 h 0 m)
2 h 40 m
(2 h 0 m)
5 h 25 m
(4 h 0 m)
10 h 50 m
(8 h 5 m)
21 h 45 m
(16 h 20 m)
VGA
The number in ( ) is the minimum recordable time.
158GB
Continued r
Note
Table of
contents
• Your camera uses the VBR (Variable Bit Rate) format to automatically adjust image quality to suit the
recording scene. This technology causes fluctuations in the recording time of the media.
• Movies containing fast-moving images are recorded at a higher bit-rate requiring larger memory
capacity, which reduces the overall recording time.
Recordable time may vary depending on the recording conditions, subject, and image size.
Operation
Search
MENU/Settings
Search
Index
159GB
Do not use/store the camera in the following places
Operation
Search
• In an extremely hot, cold or humid place
In places such as in a car parked in the sun, the camera body may become deformed and this may cause a
malfunction.
• Under direct sunlight or near a heater
The camera body may become discolored or deformed, and this may cause a malfunction.
• In a location subject to rocking vibration
• Near strong magnetic place
• In sandy or dusty places
Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in
some cases this malfunction cannot be repaired.
Table of
contents
Precautions
On carrying
On cleaning
Cleaning the LCD screen
Wipe the screen surface with an LCD cleaning kit (sold separately) to remove fingerprints, dust, etc.
Cleaning the lens
Wipe the lens with a soft cloth to remove fingerprints, dust, etc.
Index
Cleaning the camera surface
Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry
cloth. To prevent damage to the finish or casing:
– Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths,
insect repellent, sunscreen or insecticide.
– Do not touch the camera with any of the above on your hand.
– Do not leave the camera in contact with rubber or vinyl for a long time.
MENU/Settings
Search
Do not sit down in a chair or other place with the camera in the back pocket of your trousers or skirt, as this
may cause malfunction or damage the camera.
On operating temperatures
Your camera is designed for use under the temperatures between 0°C and 40°C (32°F and 104°F). Shooting
in extremely cold or hot places that exceed this range is not recommended.
On the internal rechargeable backup battery
This camera has an internal rechargeable battery for maintaining the date and time and other settings
regardless of whether the power is on or off.
This rechargeable battery is continually charged as long as you are using the camera. However, if you use
the camera for only short periods, it discharges gradually, and if you do not use the camera at all for about
one month it becomes completely discharged. In this case, be sure to charge this rechargeable battery before
using the camera.
However, even if this rechargeable battery is not charged, you can still use the camera, but the date and time
will not be indicated.
Charging method of the internal rechargeable backup battery
Insert charged battery pack in the camera, and then leave the camera for 24 hours or more with the power
off.
160GB
A
Display color ....................................................................105
AF Illuminator ...................................................................94
Display Settings
Shooting ........................................................................71
Anti Blink ............................................................................70
Viewing .........................................................................90
Area Setting ......................................................................126
Download Music .............................................................113
Auto Orientation ...............................................................98
DPOF .....................................................................................87
DRO .......................................................................................69
B
Battery charger ................................................................156
Battery pack ......................................................................155
E
Easy Mode
Shooting ........................................................................41
Beach .....................................................................................31
Viewing .........................................................................73
Blink Alert .........................................................................101
Empty Music ....................................................................114
Burst Settings .....................................................................54
EV ...........................................................................................56
Exposure ...............................................................................56
C
Exposure data .....................................................................91
Calendar ................................................................................74
Eye-Fi ..................................................................................117
Center AF .............................................................................61
F
Face Detection ...................................................................67
Change REC.Folder.......................................................122
File Number ......................................................................125
Clock Settings ..................................................................127
Fireworks .............................................................................32
Close Focus .........................................................................55
Flash .................................................................................45, 46
COMPONENT ................................................................108
Focus ......................................................................................61
Computer
Folder
Importing images.............................................134, 135
Changing .....................................................................122
Macintosh computer...............................................131
Creating .......................................................................121
Recommended environment ...............................131
Deleting .......................................................................123
Windows computer.................................................131
Selecting ........................................................................93
Computer ....................................................................134
TV ..................................................................................128
Copy .....................................................................................124
Create REC.Folder .........................................................121
Format .................................................................................120
G
Gourmet ................................................................................31
Grid Line ..............................................................................95
Customize ............................................................................21
H
D
HD(1080i) ..........................................................................108
Date & Time Setting .....................................................127
Delete .....................................................................................79
Delete REC.Folder .........................................................123
Demo Mode ......................................................................106
Digital Zoom ......................................................................97
Disp. Resolution ................................................................96
Index
Center-weighted metering ............................................63
Connecting
MENU/Settings
Search
Beep ......................................................................................102
Calibration .........................................................................119
Operation
Search
AF range finder frame ....................................................61
Table of
contents
Index
High Sensitivity .................................................................31
Hi-Speed Shutter ...............................................................32
Housing ...............................................................................110
I
Image Index ........................................................................75
161GB
Pet ............................................................................................31
In-Camera Guide ........................................................23, 72
Pixel ........................................................................................53
Initialize ..............................................................................107
Playback
Intelligent Auto..................................................................26
Movies............................................................................40
Internal memory ................................................................22
Still images...................................................................36
ISO ..........................................................................................57
Playback Zoom ..................................................................37
Table of
contents
Image Size ...........................................................................51
PMB .....................................................................................132
PMB Portable ...................................................................136
Landscape ............................................................................31
Power Save ........................................................................115
Language Setting ............................................................104
Precision digital zoom ....................................................97
LCD Brightness ...............................................................103
Print ................................................................................87, 138
LUN Setting ......................................................................112
Print order mark ..............................................................138
Operation
Search
L
Program Auto .....................................................................30
M
Protect ....................................................................................86
PTP .......................................................................................111
Macro .....................................................................................55
Mass Storage ....................................................................111
R
Memory card ................................................................3, 153
REC Mode ...........................................................................25
MENU screen ...............................................................11, 13
Red Eye Correction .........................................................84
Metering Mode ..................................................................63
Red Eye Reduction ........................................................100
Movie Mode
Retouch .................................................................................84
Shooting ........................................................................29
Rotate .....................................................................................88
S
MTP ......................................................................................111
Scene Recog. Guide ........................................................99
Multi AF ...............................................................................61
Scene Recognition............................................................64
Multi connector ...............................................128, 129, 134
Scene Selection..................................................................31
Multi-pattern metering ...................................................63
SD ..........................................................................................108
Music Transfer .................................................................132
Select Folder .......................................................................93
Self-diagnosis display ...................................................147
Self-portrait .........................................................................47
Names of parts ...................................................................16
Self-Timer ......................................................................47, 49
NTSC ...................................................................................109
Send by TransferJet .........................................................81
Number of images in index ..........................................92
Settings ..................................................................................14
Number of still images .................................................158
Shooting
O
Movies............................................................................29
Still images...................................................................26
Optical zoom ................................................................35, 97
Shooting Direction ...........................................................50
OS ..........................................................................................131
Slideshow .............................................................................76
P
Index
Viewing .........................................................................40
Movie shooting scene .....................................................42
N
MENU/Settings
Search
Macintosh computer ......................................................131
Slow Synchro .....................................................................45
Smart zoom .........................................................................97
Paint ........................................................................................83
Smile Shutter ......................................................................43
PAL.......................................................................................109
Snow.......................................................................................32
Panorama ..............................................................................27
Soft Skin ...............................................................................31
Panorama Image Size .....................................................51
Soft Skin Effect .................................................................66
PC ..........................................................................................131
Soft Snap ..............................................................................31
162GB
Software ..............................................................................132
Spot metering .....................................................................63
Sweep Panorama ...............................................................27
T
Table of
contents
Spot AF .................................................................................61
Temporarily Rotated Display ......................................39
Touch panel .........................................................................19
TransferJet standard ......................................................157
Trimming (Resize) ...........................................................84
Troubleshooting ..............................................................139
Operation
Search
TransferJet .........................................................................116
TV .................................................................................128, 129
Twilight.................................................................................31
U
Underwater ..........................................................................32
Underwater Sweep Panorama .....................................34
Underwater White Balance ..........................................60
MENU/Settings
Search
Twilight Portrait ................................................................31
Unsharp masking ..............................................................84
USB Connect ....................................................................111
Using the camera abroad .............................................152
Index
USB jack ............................................................................134
V
VGA .......................................................................................51
Video Out ...........................................................................109
View Mode ..........................................................................85
Volume Setting ..................................................................89
W
Warning indicators and messages ...........................147
White Balance ....................................................................58
Wide Zoom..........................................................................38
Windows computer ........................................................131
Z
Zoom ......................................................................................35
163GB
Notes on the License
Operation
Search
MENU/Settings
Search
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO
LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR
(i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD
(“MPEG-4 VIDEO”)
AND/OR
(ii)DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE.
ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL,
INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM
MPEG LA, LLC.
SEE
HTTP://WWW.MPEGLA.COM
Table of
contents
“C Library”, “Expat”, “zlib”, “dtoa”, “pcre” and “libjpeg” software are provided in the camera.
We provide this software based on license agreements with their owners of copyright. Based on
requests by the owners of copyright of these software applications, we have an obligation to
inform you of the following. Please read the following sections.
Read “license1.pdf” in the “License” folder on the CD-ROM. You will find licenses (in English)
of “C Library”, “Expat”, “zlib”, “dtoa”, “pcre” and “libjpeg” software.
On GNU GPL/LGPL applied software
Index
The software that is eligible for the following GNU General Public License (hereinafter referred
to as “GPL”) or GNU Lesser General Public License (hereinafter referred to as “LGPL”) are
included in the camera.
This informs you that you have a right to have access to, modify, and redistribute source code for
these software programs under the conditions of the supplied GPL/LGPL.
Source code is provided on the web. Use the following URL to download it.
http://www.sony.net/Products/Linux/
We would prefer you do not contact us about the contents of source code.
Read “license2.pdf” in the “License” folder on the CD-ROM. You will find licenses (in English)
of “GPL”, and “LGPL” software.
To view the PDF, Adobe Reader is needed. If it is not installed on your computer, you can
download it from the Adobe Systems web page:
http://www.adobe.com/
On the license of “Music Transfer” in the CD-ROM (supplied)
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and
Thomson.
164GB
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
