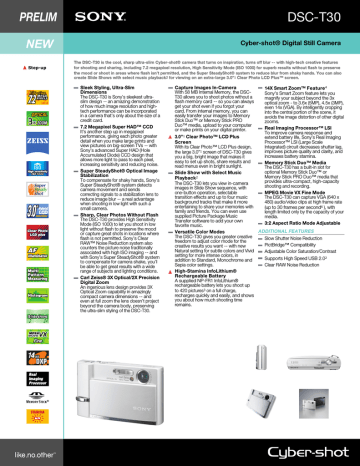

DSC-T30
NEW
Step-up
Cyber-shot® Digital Still Camera
The DSC-T30 is the cool, sharp ultra-slim Cyber-shot® camera that turns on inspiration, turns off blur -- with high-tech creative features
for shooting and sharing, including 7.2 megapixel resolution, High Sensitivity Mode (ISO 1000) for superb results without flash to preserve
the mood or shoot in areas where flash isn’t permitted, and the Super SteadyShot® system to reduce blur from shaky hands. You can also
create Slide Shows with select music playback2 for viewing on an extra-large 3.0” 1 Clear Photo LCD Plus™ screen.
Sleek Styling, Ultra-Slim
Dimensions
The DSC-T30 is Sony’s sleekest ultraslim design -- an amazing demonstration
of how much image resolution and hightech performance can be incorporated
in a camera that’s only about the size of a
credit card.
7.2 Megapixel Super HAD™ CCD
It’s another step up in megapixel
performance, giving each photo greater
detail when you make large prints and
view pictures on big-screen TVs -- with
Sony’s advanced Super HAD (Hole
Accumulated Diode) CCD design that
allows more light to pass to each pixel,
increasing sensitivity and reducing noise.
Super SteadyShot® Optical Image
Stabilization
To compensate for shaky hands, Sony’s
Super SteadyShot® system detects
camera movement and sends
correcting signals to a stabilization lens to
reduce image blur -- a real advantage
when shooting in low light with such a
small camera.
Sharp, Clear Photos Without Flash
The DSC-T30 provides High Sensitivity
Mode (ISO 1000) to let you shoot in low
light without flash to preserve the mood
or capture great shots in locations where
flash is not permitted. Sony’s Clear
RAW™ Noise Reduction system also
counters the picture noise traditionally
associated with high ISO imaging -- and
with Sony’s Super SteadyShot® system
to compensate for camera shake, you’ll
be able to get great results with a wide
range of subjects and lighting conditions.
Carl Zeiss® 3X Optical/2X Precision
Digital Zoom
An ingenious lens design provides 3X
Optical Zoom capability in amazingly
compact camera dimensions -- and
even at full zoom the lens doesn’t project
beyond the camera body, preserving
the ultra-slim styling of the DSC-T30.
Capture Images In-Camera
With 58 MB Internal Memory, the DSCT30 allows you to shoot photos without a
flash memory card -- so you can always
get your shot even if you forgot your
card. From internal memory, you can
easily transfer your images to Memory
Stick Duo™ or Memory Stick PRO
Duo™ media, upload to your computer
or make prints on your digital printer.
14X Smart Zoom™ Feature 4
Sony's Smart Zoom feature lets you
magnify your subject beyond the 3x
optical zoom - to 3.6x (5MP), 4.5x (3MP),
even 14x (VGA). By intelligently cropping
into the central portion of the scene, it
avoids the image distortion of other digital
zooms.
Real Imaging Processor™ LSI
To improve camera response and
extend battery life, Sony’s Real Imaging
Processor™ LSI (Large Scale
Integrated) circuit decreases shutter lag,
improves picture quality and clarity, and
increases battery stamina.
Memory Stick Duo™ Media
The DSC-T30 has a built-in slot for
optional Memory Stick Duo™ or
Memory Stick PRO Duo™ media that
provides ultra-compact, high-capacity
shooting and recording.
MPEG Movie VX Fine Mode
The DSC-T30 can capture VGA (640 x
480) audio/video clips at high frame rate
(up to 30 frames per second6 ), with
length limited only by the capacity of your
media.
3:2 Aspect Ratio Mode Adjustable
3.0” 1 Clear Photo™ LCD Plus
Screen
With its Clear Photo™ LCD Plus design,
the large 3.0” 1 screen of DSC-T30 gives
you a big, bright image that makes it
easy to set up shots, share results and
read menus even in bright sunlight.
Slide Show with Select Music
Playback2
The DSC-T30 lets you view in-camera
images in Slide Show sequence, with
one-button operation, selectable
transition effects and up to four music
background tracks that make it more
entertaining to share your memories with
family and friends. You can even use
supplied Picture Package Music
Transfer software to add your own
favorite music.
ADDITIONAL FEATURES
Versatile Color Modes
The DSC-T30 gives you greater creative
Slow Shutter Noise Reduction
freedom to adjust color mode for the
PictBridge™ Compatibility
creative results you want -- with new
Natural setting for subtle colors and Vivid
Adjustable Color Saturation/Contrast
setting for more intense colors, in
Supports High Speed USB 2.02
addition to Standard, Monochrome and
Sepia color settings.
Clear RAW Noise Reduction
High-Stamina InfoLithium®
Rechargeable Battery
A supplied NP-FR1 InfoLithium®
rechargeable battery lets you shoot up
to 420 pictures3 on a full charge,
recharges quickly and easily, and shows
you about how much shooting time
remains.
DSC-T30
Cyber-shot® Digital Still Camera
Specifications
Exposure Compensation: ±2.0 EV, 1/3 EV
Steps
General
Megapixel: 7.2 MP
Imaging Device: 1/2.5" Super HAD™ CCD
Recording Media: 58MB2 internal Flash Memory,
Memory Stick® Duo Media, Memory Stick PRO
Duo™ Media
Convenience
White Balance: Automatic, Cloudy, Daylight, Flash,
Fluorescent, Incandescent
Self Timer: Yes (10 seconds, 2 seconds, Off)
Focal Distance: 19 3/4" (50cm) (Minimum), 3
1/4" (8cm) (Minimum Macro W), 9 7/8" (25cm)
(Minimum Macro T), 13/32" (1cm) (Minimum
Magnifying Glass Mode)
Focal Length: 6.33-19.0mm
Focus: 5 Area Multi-Point AF, 5 Step Manual
Preset
ISO: Auto, 80, 100, 200, 400, 800, 1000
Shutter Speed: 1/4-1/1000 sec. (Auto), 1"-1/1000
sec. (Program Auto)
Memory Stick PRO™ Media Compatibility:
Tested to support up to 2GB media capacity2 ;
does not support Access Control security
function
Filter Diameter: N/A
Still Image Mode(s): Auto Bracketing, Burst,
JPEG (Fine/Standard), Multi-Burst
Battery Capacity: CIPA standard: approx. 420
pictures with supplied NP-FR1 InfoLithium Ion
battery3
Red-Eye Reduction: Yes (On/Off)
Movie Mode(s): MPEG VX Fine with Audio
(640x480, 30 fps) (MPEG VX Fine Requires
Memory Stick PRO™ media), MPEG VX
Standard with Audio (640x480, 16.6 fps), Video
Mail with Audio (160x112, 8.3fps)
Burst Mode: 5 Shot at 1.11 fps (7.2 MP JPEG
fine), 100 Shot VGA at 1.3 fps (Fine)
Power
Battery Type: InfoLithium® Ion (NP-FR1)
Service and Warranty Information
Limited Warranty: 1 Year Parts & Labor
Software
Supplied Software: Cyber-shot® Viewer Vers 1.0
+ USB Driver,(Windows®)
Erase/Protect: Yes/ Yes
Operating System Compatibility: Microsoft®
Windows® 98, 98SE, 2000 Professional, ME, XP
Home and Professional, Macintosh® OS X (v
10.1.5 or later) (OS must be installed at the
factory)
Date/Time Stamp: No/No
Dimensions
Media/Battery Indicator: Yes/ Yes
Weight: 4.9 oz. (134g) Body; 6.2 oz. (169g) incl
battery & media
Power Save Mode: Yes (after approx. 3 min. of
inactivity)
Picture Effect(s): Black & White, Sepia
Scene Mode(s): Beach, Fireworks, High Sensitivity,
High Speed Shutter, Landscape, Snow, Soft
Snap, Twilight, Twilight Portrait
Color Mode(s): Black & White, Natural, Rich,
Sepia
Inputs and Outputs
Measurements: 3-3/4 x 2-1/4 x 15/16” (95 x 56.5 x
23.3mm)
Supplied Accessories
Rechargeable InfoLithium® Battery (NP-FR1)
Battery Charger (BC-CS3)
A/V, USB, DC-in Multi-connector Cable
Accessory Terminal: N/A
Wrist Strap
Audio/Video Output(s): Yes (via Supplied Multiconnector Cable)
Software CD-ROM
Input(s): Yes (DC Power-in via Multi-connector
cable, Note: optional ACL-S5 AC adaptor is
required. No in-camera battery recharging
function)
Optional Accessories
USB Port(s): Yes (via Supplied Multi-connector
Cable, Supports USB 2.0 Hi-speed5 )
NOTE: No Memory Stick media or adapters are
included.
InfoLithium® Rechargeable Battery (NP-FR1)
Travel Battery Charger (BC-TR1)
Hardware
Soft Carrying Case (LCS-THG, LCS-CSG, LCS-CST,
LCS-CSD)
LCD: 3.0" (230K pixels Hybrid TFT LCD Screen)
Active Marine Sports Pak (SPK-THC)
Viewfinder: N/A
Travel Tripod (VCT-MTK)
Lens Construction: 11 Elements in 9 Groups, 3
Aspheric Elements, 1 Prism
Lightweight Tripod (VCT-1500L)
Microphone/Speaker: Yes/Yes
Lens Type: Carl Zeiss® Vario-Tessar®
Docking Station: N/A
Flash Effective Range: Flash Effective Range :
ISO Auto: 4” to 11.2' (0.1-3.4m), ISO 1000: 4” to
19' 8" (0.1-6m)
Flash Mode(s): Auto, Forced Flash, No Flash, Slow
Synchro
Optics
Optical Zoom: 3X
Digital Zoom: 0-2.0X (Precision)
Smart Zoom® Technology: Up to 3.6X (5MP),
4.5X (3MP), 5.6X (2MP), 14X (VGA Resolution)4
Aperture Range: f3.5-f10
Memory Stick PRO Duo™ Media (512S)
Memory Stick PRO Duo™ Media (1GN)
Memory Stick PRO Duo™ Media (2GN)
Memory Stick PRO™ Media USB Adaptor (MSACUS30)
Multi-Slot Memory Stick Adaptor (MSAC-USM1)
Color: Black, Silver
Total Zoom: 6X
Aperture: Auto, f3.5-8(W), f4.3-f10(T)
Memory Stick PRO Duo™ Media (MSX-256S)
Memory Stick PRO Duo™ Media (1GS)
Operating Conditions
35mm Equivalent: 38-114mm
Memory Stick Duo™ Media (MSH-128A)
1. Viewable area, measured diagonally.
2. Maximum playback length of each music file is 180 seconds.
3. Based on the CIPA battery life standard, shooting in normal mode at JPEG Fine picture quality shooting at
30-second intervals, with flash used for every other shot and power turned off/on after every 10 shots.
Actual battery life may vary based on usage patterns.
4. Smart Zoom® feature will not work at highest resolution setting.
5. Not all products with USB connectors may communicate with each other due to chipset variations.
6. Shooting at high frame rate of up to 30 frames per second requires Memory Stick PRO Duo™ media.
©2006 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Clear
Photo LCD Plus, Clear RAW, Cyber-shot, Cyber-shot Station, Handycam, InfoLithium, Memory Stick Duo, Real
Imaging Processor, Smart Zoom, SteadyShot, Super HAD, Trinitron, and Walkman are trademarks of Sony.
Carl Zeiss and Vario-Tessar are trademarks of Carl Zeiss. Microsoft and Windows are trademarks of
Microsoft Corporation. Macintosh is a trademark of Apple Computer, Inc. All other trademarks are the
property of their respective owners.
Features and specifications subject to change without notice. Non-metric weights and measures are
approximate.
All screen images simulated.
Please visit the Dealer Network for more information at www.sony.com/dn
Please visit the Dealer Network for more information at
www.sony.com/dn
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com
Last Updated: 03/28/2006
