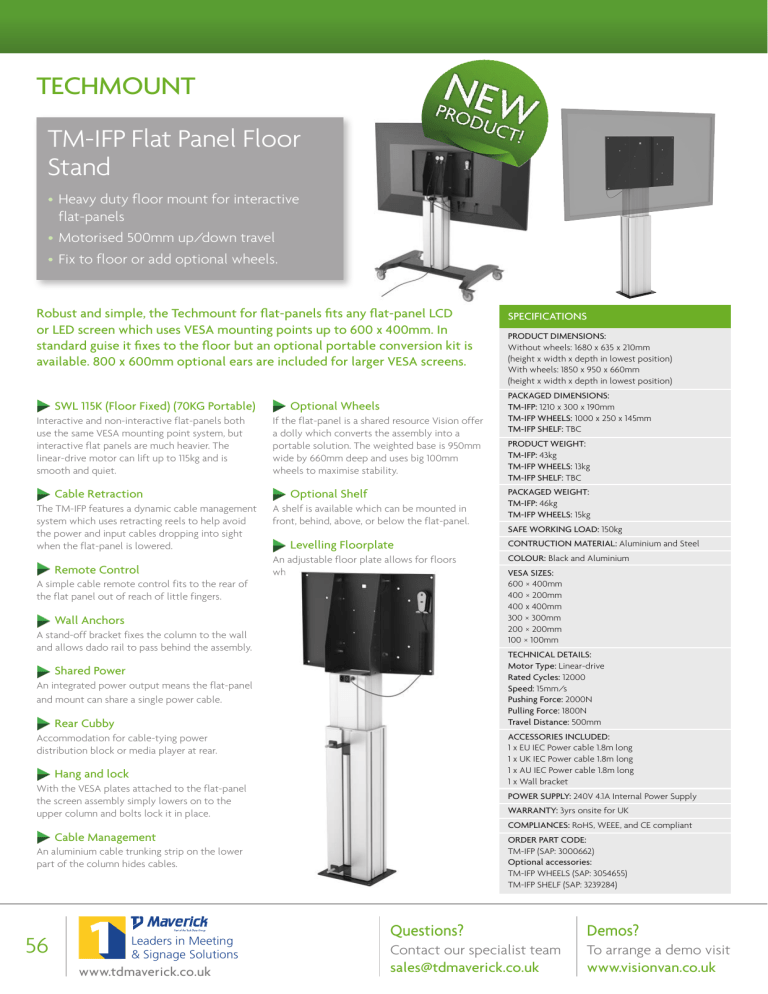

TECHMOUNT TM-IFP Flat Panel Floor Stand

TECHMOUNT TM-IFP Flat Panel Floor Stand
TECHMOUNT
TM-IFP Flat Panel Floor
Stand
• Heavy duty floor mount for interactive
flat-panels
• Motorised 500mm up/down travel
• Fix to floor or add optional wheels.
Robust and simple, the Techmount for flat-panels fits any flat-panel LCD
or LED screen which uses VESA mounting points up to 600 x 400mm. In
standard guise it fixes to the floor but an optional portable conversion kit is
available. 800 x 600mm optional ears are included for larger VESA screens.
SWL 115K (Floor Fixed) (70KG Portable)
Interactive and non-interactive flat-panels both
use the same VESA mounting point system, but
interactive flat panels are much heavier. The
linear-drive motor can lift up to 115kg and is
smooth and quiet.
Cable Retraction
The TM-IFP features a dynamic cable management
system which uses retracting reels to help avoid
the power and input cables dropping into sight
when the flat-panel is lowered.
Remote Control
Optional Wheels
If the flat-panel is a shared resource Vision offer
a dolly which converts the assembly into a
portable solution. The weighted base is 950mm
wide by 660mm deep and uses big 100mm
wheels to maximise stability.
Optional Shelf
A shelf is available which can be mounted in
front, behind, above, or below the flat-panel.
Levelling Floorplate
An adjustable floor plate allows for floors
which are not flat or level.
A simple cable remote control fits to the rear of
the flat panel out of reach of little fingers.
Wall Anchors
A stand-off bracket fixes the column to the wall
and allows dado rail to pass behind the assembly.
An integrated power output means the flat-panel
and mount can share a single power cable.
Rear Cubby
Hang and lock
With the VESA plates attached to the flat-panel
the screen assembly simply lowers on to the
upper column and bolts lock it in place.
PRODUCT WEIGHT:
TM-IFP: 43kg
TM-IFP WHEELS: 13kg
TM-IFP SHELF: TBC
PACKAGED WEIGHT:
TM-IFP: 46kg
TM-IFP WHEELS: 15kg
SAFE WORKING LOAD: 150kg
CONTRUCTION MATERIAL: Aluminium and Steel
COLOUR: Black and Aluminium
VESA SIZES:
600 × 400mm
400 × 200mm
400 x 400mm
300 × 300mm
200 × 200mm
100 × 100mm
POWER SUPPLY: 240V 4.1A Internal Power Supply
WARRANTY: 3yrs onsite for UK
COMPLIANCES: RoHS, WEEE, and CE compliant
Cable Management
ORDER PART CODE:
TM-IFP (SAP: 3000662)
Optional accessories:
TM-IFP WHEELS (SAP: 3054655)
TM-IFP SHELF (SAP: 3239284)
An aluminium cable trunking strip on the lower
part of the column hides cables.
www.tdmaverick.co.uk
PACKAGED DIMENSIONS:
TM-IFP: 1210 x 300 x 190mm
TM-IFP WHEELS: 1000 x 250 x 145mm
TM-IFP SHELF: TBC
ACCESSORIES INCLUDED:
1 x EU IEC Power cable 1.8m long
1 x UK IEC Power cable 1.8m long
1 x AU IEC Power cable 1.8m long
1 x Wall bracket
Accommodation for cable-tying power
distribution block or media player at rear.
Leaders in Meeting
& Signage Solutions
PRODUCT DIMENSIONS:
Without wheels: 1680 x 635 x 210mm
(height x width x depth in lowest position)
With wheels: 1850 x 950 x 660mm
(height x width x depth in lowest position)
TECHNICAL DETAILS:
Motor Type: Linear-drive
Rated Cycles: 12000
Speed: 15mm/s
Pushing Force: 2000N
Pulling Force: 1800N
Travel Distance: 500mm
Shared Power
56
SPECIFICATIONS
Questions?
Demos?
Contact our specialist team
[email protected]
To arrange a demo visit
www.visionvan.co.uk
