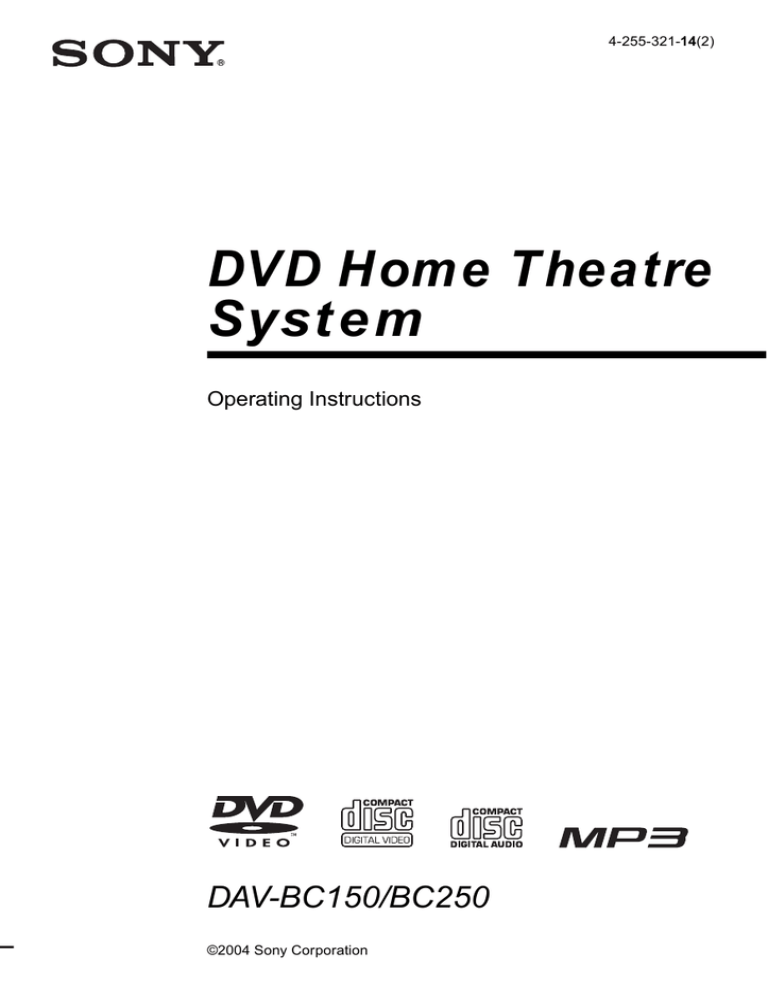

4-255-321-14(2)
DVD Home Theatre
System
Operating Instructions
DAV-BC150/BC250
©2004 Sony Corporation
3
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
Caution – The use of optical instruments
with this product will increase eye
hazard.
For the customers in the U.S.A
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
Note to CATV system installer:
This symbol is intended to alert the user to
the presence of uninsulated “dangerous
voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Owner’s Record
The model and serial numbers are located at the rear of
the unit. Record the serial number in the space
provided below. Refer to them whenever you call upon
your Sony dealer regarding this product.
Model No. DAV-BC150/BC250
Serial No.______________
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
For the customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
Except for North American
models
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
To prevent fire, do not cover the ventilation of the
apparatus with news papers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
2GB
Don’t throw away the battery with
general house waste, dispose of it
correctly as chemical waste.
This appliance is
classified as a CLASS 1
LASER product. This
marking is located on the
rear of the unit.
Precautions
Safety
• If anything falls into the cabinet, unplug the unit and
have it checked by qualified personnel before
operating it any further.
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the mains
outlet, even if the unit itself has been turned off.
• Unplug the unit from the wall outlet if you do not
intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never by
the cord.
Welcome!
Thank you for purchasing Sony DVD Home
Theatre System. Before operating this system,
please read this manual thoroughly and retain it
for future reference.
Installing
• Allow adequate air circulation to prevent internal
heat buildup.
• Do not place the unit on surfaces (rugs, blankets, etc.)
or near materials (curtains, draperies) that may block
the ventilation slots.
• Do not install the unit near heat sources such as
radiators, or air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration, or
shock.
• Do not install the unit in an inclined position. It is
designed to be operated in a horizontal position only.
• Keep the unit and discs away from equipment with
strong magnets, such as microwave ovens, or large
loudspeakers.
• Do not place heavy objects on the unit.
• If the unit is brought directly from a cold to a warm
location, moisture may condense inside the DVD
Home Theatre System and cause damage to the
lenses. When you first install the unit, or when you
move it from a cold to a warm location, wait for about
30 minutes before operating the unit.
ENERGY STAR® is a U.S.
registered mark.
As an ENERGY STAR® partner,
Sony Corporation has determined
that this product meets the
ENERGY STAR® guidelines for
energy efficiency.
Precautions
On power sources
AC power cord must be changed only at the qualified
service shop.
On placement
• Place the system in a location with adequate
ventilation to prevent heat build-up in the system.
• At high volume, over long periods of time, the cabinet
becomes hot to the touch. This is not a malfunction.
However, touching the cabinet should be avoided. Do
not place the unit in a confined space where
ventilation is poor as this may cause overheating.
• Do not block the ventilation slots by putting anything
on the system. The system is equipped with a high
power amplifier. If the ventilation slots are blocked,
the unit can overheat and malfunction.
• Do not place the system on a soft surface such as a rug
that might block the ventilation holes on the bottom.
• Do not place the system in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
On operation
• If the system is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture
may condense on the lenses inside the system. Should
this occur, the system may not operate properly. In
this case, remove the disc and leave the system turned
on for about half an hour until the moisture
evaporates.
• When you move the system, take out any disc. If you
don’t, the disc may be damaged.
On adjusting volume
Do not turn up the volume while listening to a section
with very low level inputs or no audio signals. If you
do, the speakers may be damaged when a peak level
section is suddenly played.
continued
3GB
On cleaning
Clean the cabinet, panel, and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any questions or problems concerning your
system, please consult your nearest Sony dealer.
On cleaning discs
Do not use a commercially available CD/DVD
cleaning disc. It may cause a malfunction.
On your TV’s colour
If the speakers should cause the TV screen to have
colour irregularity, turn off the TV at once then turn it
on after 15 to 30 minutes. If colour irregularity should
persist, place the speakers farther away from the set.
The nameplate is located on the rear of the unit.
IMPORTANT NOTICE
Caution: This system is capable of holding a still
video image or on-screen display image on your
television screen indefinitely. If you leave the still
video image or on-screen display image displayed
on your TV for an extended period of time you risk
permanent damage to your television screen.
Projection televisions are especially susceptible to
this.
On moving the system
When you carry the system, use the following
procedure to protect the inner mechanism.
4GB
1
Make sure that all discs are removed from
the system.
2
Press FUNCTION repeatedly to select
“DVD.”
3
Press ., >, and DISC 1 A
simultaneously.
The front panel display is changed to
“MECH LOCK.”
4
Remove the AC power cord from the wall
outlet.
Table of Contents
Welcome! ................................................ 3
Precautions .............................................. 3
About this Manual................................... 7
This System Can Play the Following
Discs ................................................. 7
Terms for discs........................................ 7
Notes about the Discs.............................. 9
Note on DVD 5-DISC Changer ............10
Guide to the Control Menu Display...... 11
Getting Started
Unpacking ............................................. 13
Inserting Batteries into the Remote....... 13
Step 1: Speaker System Hookup........... 14
Step 2: Antenna Hookups ..................... 19
Step 3: TV and Audio Component
Hookups.......................................... 20
Step 4: Connecting the AC
Power Cord .....................................23
Speaker Setup........................................ 24
Playing Discs
Playing Discs ........................................ 28
Resuming Playback from the Point Where
You Stopped the Disc ..................... 31
(Resume Play)
Using the DVD’s Menu ........................ 32
Playing VIDEO CDs with PBC Functions
(Ver.2.0).......................................... 32
(PBC Playback)
Playing an MP3 Audio Track ............... 33
Playing JPEG Image Files .................... 35
Playing Repeatedly ............................... 37
(Repeat Play)
Searching for a Particular Point on a
Disc ................................................. 38
(Scan, Slow-motion Play)
Searching for a Title/Chapter/Track/
Index/Album/File............................ 39
Viewing Information in the Front Panel
Display............................................ 41
Sound Adjustments
Changing the Sound.............................. 46
Enjoying Surround Sound .................... 48
Using the Sound Effect......................... 50
Using Various Additional
Functions
Changing the Angles ............................ 51
Displaying the Subtitles........................ 51
Locking Discs ....................................... 52
(PARENTAL CONTROL)
Other Operations
Controlling the TV with the Supplied
Remote ........................................... 55
Using the SONY TV DIRECT
Function.......................................... 56
Using the Video or Other Unit ............. 57
Enjoying the Radio ............................... 59
Using the Sleep Timer .......................... 61
Changing the Brightness of the Front
Panel Display.................................. 62
Returning to the Default Settings ......... 62
Settings and Adjustments
Using the Setup Display ....................... 63
Setting the Display or Sound Track
Language ........................................ 64
(LANGUAGE SETUP)
Settings for the Display ........................ 65
(SCREEN SETUP)
Custom Settings.................................... 66
(CUSTOM SETUP)
continued
5GB
Additional Information
Troubleshooting .................................... 67
Specifications........................................ 70
Glossary ................................................ 72
Index to Parts and Controls................... 74
Language code list ................................ 78
DVD Setup Menu List .......................... 79
AMP Menu List .................................... 80
Index ..................................................... 81
Quick reference for Remote Commander
..........................................Back cover
6GB
About this Manual
• The instructions in this manual describe the
controls on the remote. You can also use the
controls on the system if they have the same or
similar names as those on the remote.
• The following symbols are used in this
manual.
Symbol
Meaning
Functions available in VIDEO CD
mode
Functions available in CD mode
Functions available for MP3* audio
tracks
Functions available for JPEG files
* MP3 (MPEG1 Audio Layer 3) is a standard format
defined by ISO/MPEG which compresses audio
data.
This System Can Play the
Following Discs
DVD VIDEO
VIDEO CD
Audio CD
Disc logo
CD-R/CD-RW
(audio data)
(MP3 files)
(JPEG files)
The “DVD VIDEO” logo is a trademark.
Functions available for DVD
VIDEOs and DVD-Rs/DVD-RWs
in video mode or DVD+Rs/
DVD+RWs
Format of
discs
Format of
discs
Disc logo
Terms for discs
• Title
The longest section of a picture or music
feature on a DVD, movie, etc., in video
software, or the entire album in audio
software.
• Chapter
Section of a picture or a music piece that is
smaller than titles. A title is composed of
several chapters. Depending on the disc, no
chapters may be recorded.
• Album
Section of a music piece or an image on a data
CD containing MP3 audio tracks or JPEG
files.
• Track
Section of a picture or a music piece on a
VIDEO CD, CD, or MP3.
• Index (CD) / Video Index (VIDEO CD)
A number that divides a track into sections to
easily locate the point you want on a VIDEO
CD or CD. Depending on the disc, no indexes
may be recorded.
• Scene
On a VIDEO CD with PBC functions
(page 32), the menu screens, moving pictures
and still pictures are divided into sections
called “scenes.”
• File
Section of a picture on a data CD containing
JPEG image files.
continued
7GB
DVD
structure
Disc
Region code
Disc
Your system has a region code printed on the
back of the unit and will only play DVDs
labelled with the same region code.
Title
Chapter
VIDEO
CD, or CD
structure
Track
MP3
structure
Album
Index
Disc
Track
Disc
JPEG
structure
Album
File
Note on PBC (Playback Control)
(VIDEO CDs)
This system conforms to Ver. 1.1 and Ver. 2.0 of
VIDEO CD standards. You can enjoy two kinds
of playback depending on the disc type.
Disc type
You can
VIDEO CDs
without PBC
functions
(Ver. 1.1 discs)
Enjoy video playback (moving
pictures) as well as music.
VIDEO CDs
with PBC
functions
(Ver. 2.0 discs)
Play interactive software using
menu screens displayed on the
TV screen (PBC Playback), in
addition to the video playback
functions of Ver. 1.1 discs.
Moreover, you can play highresolution still pictures, if they
are included on the disc.
About Multi Session CD
• This system can play Multi Session CDs when
an MP3 audio track is contained in the first
session. Any subsequent MP3 audio tracks
recorded in later sessions can also be played
back.
• This system can play Multi Session CDs when
a JPEG image file is contained in the first
session. Any subsequent JPEG image files
recorded in later sessions can also be played
back.
• If audio tracks and images in music CD format
or video CD format are recorded in the first
session, only the first session will be played
back.
8GB
DVDs labelled ALL will also play on this system.
If you try to play any other DVD, the message
[Playback prohibited by area limitations.] will
appear on the TV screen. Depending on the
DVD, no region code indication may be given
even though playing the DVD is prohibited by
area restrictions.
Examples of discs that the
system cannot play
The system cannot play the following discs:
• CD-ROMs (except for extension “.MP3,”
“.JPG,” or “.JPEG”)
• CD-Rs/CD-RWs other than those recorded in
the following formats:
– music CD format
– video CD format
– MP3/JPEG format that conforms to
ISO9660* Level 1/Level 2, or its extended
format, Joliet
• Super Audio CD
• Data part of CD-Extras
• DVD-ROMs
• DVD Audio discs
• DVD-RAMs
• DVD-RWs in VR (Video Recording) mode
• Progressive JPEG file
* A logical format of files and folders on CD-ROMs,
defined by ISO (International Organization for
Standardization)
Do not load the following discs:
• A DVD with a different region code (page 8,
73).
• A disc that is neither standard nor circular
(e.g., card, heart, or star shape).
• A disc with paper or stickers on it.
• A disc that has adhesive or cellophane tape still
left on it.
Notes about CD-R/CD-RW/DVD-R/DVD-RW
(Video mode)
In some cases, CD-R/CD-RW/DVD-R/DVD-RW
(Video mode) cannot be played on this player due to
the recording quality or physical condition of the disc,
or the characteristics of the recording device and
authoring software.
The disc will not play if it has not been correctly
finalized. For more information, see the operating
instructions for the recording device.
Note that discs created in the Packet Write format
cannot be played.
Music discs encoded with copyright
protection technologies
This product is designed to play back discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with copyright
protection technologies are marketed by some record
companies. Please be aware that among those discs,
there are some that do not conform to the CD standard
and may not be playable by this product.
Note on playback operations
of DVDs and VIDEO CDs
Some playback operations of DVDs and VIDEO
CDs may be intentionally set by software
producers. Since this system plays DVDs and
VIDEO CDs according to the disc contents the
software producers designed, some playback
features may not be available. Also, refer to the
instructions supplied with the DVDs or VIDEO
CDs.
* Manufactured under license from Dolby
Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are
trademarks of Dolby Laboratories.
** Manufactured under license from Digital Theater
Systems, Inc.
“DTS” and “DTS Digital Surround” are trademarks
of Digital Theater Systems, Inc.
Notes about the Discs
On handling discs
• To keep the disc clean, handle the disc by its
edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it in
a car parked in direct sunlight as the
temperature may rise considerably inside the
car.
• After playing, store the disc in its case.
On cleaning
• Before playing, clean the disc with a cleaning
cloth.
Wipe the disc from the centre out.
Copyrights
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this
copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
This system incorporates with Dolby* Digital
and Dolby Pro Logic (II) adaptive matrix
surround decoder and the DTS** Digital
Surround System.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, or anti-static
spray intended for vinyl LPs.
This system can only play back a standard
circular disc. Using neither standard nor circular
discs (e.g., card, heart, or star shape) may cause
a malfunction.
Do not use a disc that has a commercially
available accessory attached, such as a label or
ring.
9GB
Note on DVD 5-DISC
Changer
Disc changer system
Sub Tray
Stocker
DISC 1
Disc
DISC 2
DISC 3
DISC 4
DISC 5
Main Tray
Playing unit
The disc changer consists of a playing unit, trays
which hold the discs and a stocker which
transports the discs to the disc tray and the
playing unit.
For example, if you press DISC 3, the stocker
moves until the DISC 3 comes to the position of
the playing unit and then moves the DISC 3 over
the playing unit.
Note
Noise may come from the disc changer when changing
discs or turning the system on and off.
However, this is just noise produced by the operation
of the internal mechanisms and does not indicate a
malfunction.
10GB
Guide to the Control Menu Display
Use the Control Menu to select a function that you would like to use. The Control Menu display appears
when the
DISPLAY button is pressed. For details, refer to the page in parentheses.
Total number of
Currently playing title number (Video CD/ titles or tracks
Total number of chapters or indexes recorded
recorded
CD: track number)
Currently playing
Playback status
title number
(NPlayback, XPause, xStop, etc.)
Currently playing chapter
number (Video CD/CD: index
(
)
1 2 2 7 TITLE12
number)
Type of disc being
DVD
18(34)
played back
Playing time
T
1:32:55
Current setting
Icon of selected
1: ENGLISH
2: FRENCH
Control Menu item
Options
3:
SPANISH
Control Menu items
Function name of selected
Control Menu item
AUDIO
Select:
ENTER
Operation message
List of Control Menu Items
TITLE (DVD only) (page 39)/
SCENE (only VIDEO CD in PBC playback) /
TRACK (VIDEO CD only) (page 39)
Selects the title (DVD), or the track (VIDEO CD) to be
played.
Displays the scene (VIDEO CD in PBC playback).
CHAPTER (DVD only) (page 40)/ Selects the chapter (DVD) or the index (VIDEO CD) to be
played.
INDEX (VIDEO CD only) (page 40)
ALBUM (MP3 only) (page 34, 39) Selects the album (MP3) to be played.
TRACK (CD/MP3 only)
Selects the track (CD/MP3) to be played.
(page 34, 39)
INDEX (CD only)
Displays the index to be played.
TIME (page 40)
Checks the elapsed time and the remaining playback time.
Inputs the time code for picture and music searching.
AUDIO (DVD only) (page 46)
Changes the audio setting.
ALBUM (JPEG only) (page 35)
Selects the album (JPEG) to be played.
FILE (JPEG only) (page 35)
Selects the file (JPEG) to be played
DATE (JPEG only) (page 45)
Displays the date information.
REPEAT (page 37)
Plays the entire disc (all titles/all tracks), one title/chapter/
track.
continued
11GB
SETUP (page 52, 63)
Sets various adjustments, such as picture and sound.
Tips
• Each time you press
DISPLAY, the Control Menu display changes as follows:
Control Menu display
m
Control Menu display off
The Control Menu items vary depending on the disc.
• The Control Menu icon indicator lights up in green
[OFF].
12GB
t
unless you set the [REPEAT] setting to
Getting Started
Check that you have the following items:
• Speakers (5)
• Subwoofer (1)
• AM loop antenna (1)
• FM wire antenna (1)
• Speaker cords (3.5 m × 3, 10 m × 2)
(11.5 ft. × 3, 33 ft. × 2)
• Video Cord (1)
• Remote Commander (remote) RM-SS250 (1)
• Size AA (R6) batteries (2)
• Foot pads
DAV-BC150 (15)
DAV-BC250 (10)
• Operating Instructions
• Speakers-connection and Installation (card)
(1)
You can control the system using the supplied
remote. Insert two Size AA (R6) batteries by
matching the 3 and # ends on the batteries to
the markings inside the compartment. When
using the remote, point it at the remote sensor
on the system.
Getting Started
Unpacking
Inserting Batteries into
the Remote
Notes
• Do not leave the remote in an extremely hot or humid
place.
• Do not use a new battery with an old one.
• Do not drop any foreign object into the remote casing,
particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from
the sun or lighting apparatus. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an extended
period of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
13GB
Step 1: Speaker System Hookup
Connect the supplied speaker system using the supplied speaker cords by matching the colours of the
jacks to those of the cords. Do not connect any speakers other than those supplied with this system.
To obtain the best possible surround sound, specify the speaker parameters (distance, level, etc.) on
page 24.
Required cords
Speaker cords
The connector and the colour tube of the speaker cords are the same colour as the label of the jacks to
be connected.
(–)
(–)
(+)
(+)
colour tube
To attach the foot pads
To prevent speaker vibration or movement while listening, attach the supplied foot pads to the speaker,
as shown.
x BC150 Front/Center/ Surround
BC250 Surround
x BC250 Center
14GB
Terminals for connecting the speakers
To the
Front speakers
SPEAKER FRONT L (white) and R (red) jacks
Surround speakers
SPEAKER SURR L (blue) and R (grey) jacks
Center speaker
SPEAKER CENTER (green) jack
Subwoofer
SPEAKER WOOFER (purple) jack
Getting Started
Connect the
DAV-BC150
Front speaker (R)
Center speaker
Front speaker (L)
colour label
AUDIO IN
R
VIDEO/SAT
FRONT R
CENTER
FRONT L
SURR R
WOOFER
SURR L
L
Y
P B /C B
P R /C R
S VIDEO (DVD ONLY)
COMPONENT VIDEO OUT
VIDEO
MONITOR OUT
COAXIAL
AM
FM 75
SPEAKER
Surround speaker (R)
Subwoofer
Surround speaker (L)
continued
15GB
DAV-BC250
Front speaker (L)
Front speaker (R)
Center speaker
colour label
AUDIO IN
R
VIDEO/SAT
FRONT R
CENTER
FRONT L
SURR R
WOOFER
SURR L
L
Y
P B /C B
P R /C R
S VIDEO (DVD ONLY)
COMPONENT VIDEO OUT
VIDEO
MONITOR OUT
COAXIAL
AM
FM 75
SPEAKER
colour label
Surround speaker (R)
Subwoofer
Surround speaker (L)
Notes on placing speakers
• Do not set the speakers in an inclined position.
• Do not place the speakers in locations that are:
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Subject to vibrations
– Subject to direct sunlight
• Use caution when placing the subwoofer or a speaker stand (not supplied) that is attached with the front/surround
speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or discolouration may result.
16GB
• Do not lean or hang on the speaker, as the speaker may fall down.
Getting Started
Note
Do not catch the speaker cable insulation in the SPEAKER jack.
Tip
Connect the speaker cable after bending the speaker wire at the end of the insulation. This prevents the speaker cable
from being caught in the SPEAKER jack.
To avoid short-circuiting the speakers
Short-circuiting of the speakers may damage the system. To prevent this, be sure to follow these
precautions when connecting the speakers. Make sure the bare wire of each speaker cord does not touch
another speaker jack or the bare wire of another speaker cord.
Examples of poor conditions of the speaker cord
Stripped speaker cord is
touching another speaker
terminal.
Stripped cords are touching
each other due to excessive
removal of insulation.
After connecting all the components, speakers, and AC power cord, output a test tone to check that all
the speakers are connected correctly. For details on outputting a test tone, see page 27.
If no sound is heard from a speaker while outputting a test tone, or a test tone is output from a speaker
other than the one currently displayed in the front panel display, the speaker may be short-circuited. If
this happens, check the speaker connection again.
Note
Be sure to match the speaker cord to the appropriate terminal on the components: 3 to 3, and # to #. If the cords
are reversed, the sound will lack bass and may be distorted.
continued
17GB
To change the speaker cables
If you want to use a different speaker cable, you can detach the plug for attachment to another cable.
Detaching
Catcher
With the catcher facing down, press and hold the plug down against a flat surface and remove the cords
from the plug.
Attaching
While pressing the plug down against a flat surface, insert the new speaker cords.
Note that the cord marked with a line should be attached to the minus (-) side of the plug.
Note
Be careful not to damage the surface you use (desk, etc.) when attaching/detaching the speaker cords.
Tips
• You can use any commercially sold speaker cable of gauge cord AWG #18 - AWG #24.
• Before attaching a new cable, strip off 10 mm (13/32 in.) of its insulation and twist the bare wires of both cords.
10 mm
18GB
Step 2: Antenna Hookups
Getting Started
Connect the supplied AM/FM antennas for listening to the radio.
Terminals for connecting the antennas
Connect the
To the
AM loop antenna
AM terminal
FM wire antenna
FM 75Ω COAXIAL jack
AM loop antenna
AUDIO IN
L
R
VIDEO/SAT
FRONT R
CENTER
FRONT L
SURR R
WOOFER
SURR L
Y
P B /C B
P R /C R
S VIDEO (DVD ONLY)
COMPONENT VIDEO OUT
VIDEO
MONITOR OUT
COAXIAL
AM
FM 75
SPEAKER
FM wire antenna
Notes
• To prevent noise pickup, keep the AM loop antenna away from the system and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
• When you connect the supplied AM loop antenna, cord (A) or cord (B) can be connected to either terminal.
A
AM
B
Tip
If you have poor FM reception, use a 75-ohms coaxial cable (not supplied) to connect the system to an outdoor FM
antenna as shown below.
System
Outdoor FM
antenna
COAXIAL
AM
FM 75
19GB
Step 3: TV and Audio Component Hookups
Required cords
Video cord for connecting a TV
Audio cords (not supplied)
When connecting a cord, be sure to match the colour-coded sleeves to the appropriate jacks on the
components.
White (L/audio)
Red (R/audio)
Terminals for connecting video and audio components
Connect the
To the
TV
MONITOR OUT jacks
VCR/Digital satellite receiver
VIDEO/SAT jacks
Notes
•When the system is set to “DVD” mode, the signal is output from the S VIDEO OUT jack or COMPONENT VIDEO
OUT jacks.
•When the system is set to “DVD,” and progressive format is selected, the signal is output only from the
COMPONENT VIDEO OUT jacks.
•When you connect a VCR or digital satellite receiver to the VIDEO/SAT jacks of this system, change the function
to VIDEO (page 57).
Tips
•When using the S video jack instead of the video jack, your TV monitor must also be connected via an S video jack.
S video signals are on a separate bus from the video signals and will not be output through the video jacks.
•When using the COMPONENT VIDEO OUT jacks (Y, PB/CB, PR/CR) instead of the video jacks, your TV monitor
must also be connected via COMPONENT VIDEO OUT jacks (Y, PB/CB, PR/CR). If your TV accepts progressive
format signals, use this connection and set to progressive format (page 55).
20GB
AUDIO IN
CENTER
FRONT L
SURR R
WOOFER
SURR L
P B /C B
S VIDEO (DVD ONLY)
P R /C R
COMPONENT VIDEO OUT
COAXIAL
VIDEO
AM
MONITOR OUT
FM 75
SPEAKER
OUT
IN
OUTPUT
AUDIO
OUT
Getting Started
VIDEO/SAT
FRONT R
Y
L
R
IN
IN
COMPONENT
VIDEO IN
INPUT
INPUT
Y
S VIDEO
IN
VIDEO
IN
L
PB/CB
R
PR/CR
VCR or Digital
satellite receiver
TV with COMPONENT
VIDEO IN jacks
TV with S VIDEO jack
TV
Notes
• Make connections securely to prevent unwanted noise.
• Refer to the instructions supplied with the TV.
• The system cannot output an audio signal to the connected TV. Only the audio signal of the TV is output from the
system speakers.
Setup for the system (for Asian, Australian, and Saudi Arabian
models)
Setup is necessary for the system, depending on the TV to be connected.
The factory setting for Australian and Saudi Arabian models are PAL.
The factory setting for Asian models is NTSC.
If the colour system of the TV is NTSC*
To set the system to NTSC, turn on the system by pressing "/1 while pressing the X button on the
system. You need to hold the X button until “HELLO” appears on the display. To reset to PAL, turn
off the system and then turn on again using the remote while press and hold the X button on the system,
and turn the system off and then on again.
* If the colour system of the TV is PAL, do the same operation above to set the system to PAL.
When connecting to a standard 4:3 screen TV
Depending on the disc, the image may not fit your TV screen.
If you want to change the aspect ratio, please refer to page 65.
continued
21GB
Does your TV accept progressive signals?
Progressive is the method for displaying TV images which reduces flickering, and sharpens the image.
To display using this method, you need to connect to a TV that accepts progressive signals.
PROGRESSIVE
FUNCTION
1
2
1
2
3
4
5
6
7
8
9
10
0
Press FUNCTION repeatedly to select “DVD.”
Press PROGRESSIVE.
The current output signal “-NORMAL-” appears in the front panel display.
When “-PROGRE-” appears in the front panel display, the output signal is already set to
progressive format.
3
Press PROGRESSIVE again while “-NORMAL-” appears in the front panel display.
The output signal is changed to progressive format and “PROGRE” appears in the front panel
display.
Tip
To return the setting to interlace format repeat the procedure above. When the output signal is changed to interlace
format, “NORMAL” appears in the front panel display.
See page 73 for more information about the different signal types.
Notes
• If your TV does not accept progressive signals and progressive format is set by mistake, the image may not
appear, or will appear distorted. In this case, return the setting to interlace format (the default setting).
• If your TV accepts progressive signals, connect COMPONENT VIDEO OUT of the system to the TV
using a component video cord (not supplied), and set progressive format.
22GB
Output the TV or VCR sound from the speakers
Connect audio cords.
Connect the AUDIO OUT (L/R) jacks of TV or VCR to the VIDEO/SAT jacks (AUDIO IN L/R) of
this system with audio cords.
*
AUDIO
OUT
L
Getting Started
1
R
TV
AUDIO IN
R
VIDEO/SAT
FRONT R
CENTER
FRONT L
SURR R
WOOFER
SURR L
L
Y
P B /C B
P R /C R
S VIDEO (DVD ONLY)
COMPONENT VIDEO OUT
VIDEO
MONITOR OUT
COAXIAL
AM
FM 75
SPEAKER
* AUDIO OUT (L/R) jacks
If your TV does not have AUDIO OUT (L/R) jacks, you cannot output the TV sound from the speakers of this
system.
2
Change the mode of this system.
Press FUNCTION repeatedly to select “VIDEO” or “SAT,” (When you select “ATT ON,” SAT
appears in the front panel display instead of “VIDEO.” (page 58))
Tip
When you want to output the TV sound or stereo sound of a 2 channel source from the 6 speakers, select any sound
field other than “AUTO FORMAT DIRECT AUTO” or “2CH STEREO” (page 48).
Step 4: Connecting the AC Power Cord
Before connecting the AC power cord of this system to a wall outlet, connect the speakers to the system
(page 14).
23GB
Speaker Setup
Positioning the speakers
For the best possible surround sound, all the
speakers other than the subwoofer should be the
same distance from the listening position (A).
However, this system allows you to place the
center speaker up to 1.6 metresa) closer (B) and
the surround speakers up to 4.6 metresb) closer
(C) to the listening position.
The front speakers can be placed from 1.0 to
7.0 metresc) (A) from the listening position.
North American numerical equivalents:
a) 5 feet (1.5 metres)
b) 15 feet (4.5 metres)
c) 3 to 23 feet (0.9 to 6.9 metres)
Place speakers as illustrated below
Note
Do not place the center and surround speakers farther
away from the listening position than the front
speakers.
24GB
About magnetically shielded
speakers (to prevent colour
irregularity occurring on the TV
screen)
The subwoofer in this system is magnetically
shielded to prevent magnetic leakage. However,
some leakage may occur, as a high-strength
magnet is employed. If the subwoofer is used
with a CRT-based TV or projector, install the
subwoofer at least 0.3 metre (1.0 foot) from the
TV set. If it is installed too close, colour
irregularity may occur on the screen. If colour
irregularity occurs, turn off the TV set once, then
turn it on after 15 to 30 minutes. If colour
irregularity occurs again, place the subwoofer
farther away from the TV set. If colour
irregularity still occurs after performing the
above, make sure that no magnetic object is
placed near the subwoofer. Colour irregularity
may occur as a result of interaction between the
subwoofer and the magnetic object.
Examples of possible sources of magnetic
interference include: magnetic latches on a TV
stand, etc., healthcare devices, toys, etc.
4
5
6
7
8
9
10
0
You can set speaker settings using the AMP
menu displayed in the front panel.
AMP MENU
AMP menu List
C/X/x/c
ENTER
Getting Started
Adjusting the speaker
settings by using the front
panel display on the system
SP SETUP
CENTER SP
F DIST
CEN DIST
CENTER Y
CENTER N
SURR Y
SURR N
1.0 m - 7.0 m/3ft - 23ft
1.0 m - 7.0 m/3ft - 23ft
SURR DIST
1.0 m - 7.0 m/3ft - 23ft
SURR SP
1
2
LEVEL
T.TONE
Press AMP MENU.
Press X/x until the item you want to set
appears in the front panel display, then
press ENTER or c.
x SP SETUP
F BALANCE
T.TONE OFF
T.TONE ON
6 steps left or right
CEN LEVEL
–6 dB - +6 dB
SL LEVEL
–6 dB - +6 dB
SR LEVEL
–6 dB - +6 dB
SW LEVEL
–6 dB - +6 dB
AUDIO DRC
DRC OFF
DRC STD
DRC MAX
Sets the speaker size and distance.
x LEVEL
Sets the balance and level of each speaker,
sets AUDIO DRC and the test tone (on or
off).
3
4
Press X/x to select the desired item,
then press ENTER or c to select the
desired setting.
Press X/x to select each setting of the
desired item.
You can set the following items. The default
settings are underlined.
Note
CUSTOMIZE
DIMMER
ATTENUATE
DIM OFF
DIM ON
ATT OFF
ATT ON
You can set the item of “SP SETUP” and “LEVEL,”
only when the system is set to “DVD” and in the stop
mode or the tray is opened.
continued
25GB
x SP SETUP
x LEVEL
If you do not connect center or surround
speakers, or move the surround speakers, set the
parameters for CENTER and SURROUND.
The speakers will emit a test tone to adjust
“LEVEL” items.
T.TONE
(test tone)
CENTER Y: Select this if you use a
center speaker.
CENTER N: Select this if no center
speaker is used.
SURR SP
(surround
speaker)
SURR Y: Select this if you use
surround speakers.
SURR N: Select this if no surround
speaker is used.
F DIST
(front
distance)
F D 3.0 M
F D 10F*
Front speaker distance from the
listening position can be set in
0.2 metre (1 ft) increments from
1.0 to 7.0 metres (3 to 23 ft).
You can vary the balance of the left and right
speakers as follows. Be sure to set “T.TONE” to
“T.TONE ON” for easy adjustment.
CEN DIST
(center
distance)
C D 3.0 M
C D 10F*
Center speaker distance can be set up
to 1.6 metres (5 ft) forward closer to
the listening position, in 0.2 metre
(1 ft) increments.
F BALANCE
(front
balance)
F BAL 0
SURR DIST
(surround
distance)
S D 3.0 M
S D 10F*
Surround speaker distance can be set
up to 4.6 metres (15 ft) closer to your
listening position from the front
speaker position, in 0.2 metre (1 ft)
increments.
You can vary the level of each speaker as
follows. Be sure to set “T.TONE” to “T.TONE
ON” for easy adjustment.
* Only for North American models.
• In SP SETUP, the North American model’s OSD
displays both metric and imperial measurements. The
other model displays metric measurements only. The
manual shows both.
• When you set the distance, the sound cuts off for a
moment.
• If all front and surround speakers are not placed at an
equal distance from your listening position, set the
distance according to the closest speaker.
• Do not place the surround speakers farther away from
your listening position than the front speakers.
• Depending on the settings of other speakers, the
subwoofer may output excessive sound.
Adjusts the balance between the
front left and right speakers. (You
can adjust from the center 6 steps left
(F BAL L6) or right (F BAL R6).)
CEN LEVEL Adjusts the level of the center
(center level) speaker (–6 dB to +6 dB, 1 dB
increments).
Notes
26GB
T.TONE OFF: The test tone is not
emitted from the speakers.
T.TONE ON: The test tone is
emitted from both left and right
speakers simultaneously while
adjusting balance. When you select
one of the “LEVEL” items, the test
tone is emitted from each speaker in
sequence.
CENTER SP
(center
speaker)
SL LEVEL
Adjusts the left level of the surround
(surround left speakers (–6 dB to +6 dB, 1 dB
level)
increments).
SR LEVEL
(surround
right level)
Adjusts the right level of the
surround speakers (–6 dB to +6 dB,
1 dB increments).
SW LEVEL
(subwoofer
level)
Adjusts the level of subwoofer
(–6 dB to +6 dB, 1 dB increments).
AUDIO DRC
DRC OFF: No compression of
DYNAMIC range.
DRC STD: Reproduces the sound
track with the kind of DYNAMIC
range that the recording engineer
intended.
DRC MAX: Fully narrows the
DYNAMIC range.
9
Press AMP MENU when you have
finished making adjustments.
Note
When you adjust the speaker settings, the sound cuts
off for a moment.
Getting Started
Narrows the DYNAMIC range of the sound
track.
Useful for watching movies at low volume late
at night.
Note
DYNAMIC range compression only applies to Dolby
Digital sources.
Adjusting the speaker
balance and level by using the
test tone
1
2
Press AMP MENU.
Press X/x until “LEVEL” appears in the
front panel display, then press ENTER
or c.
The system enters the Level Menu mode.
3
4
Press X/x repeatedly to select
“T.TONE” in the front panel display,
then ENTER or c.
Press X or x to select “T.TONE ON” in
the front panel display.
You will hear the test tone from each
speaker in sequence.
When you select “T.TONE OFF,” this
operation will be cancelled.
5
6
7
Press C to return “T.TONE”.
Press X/x to select the item you want to
set, then press ENTER or c.
Press X/x to adjust the speaker setting
value.
Press C to return step 6 and follow steps 6
and 7 to adjust other speaker setting values.
8
Set “T.TONE” to “T. TONE OFF” to
cancel the test tone function.
Test tone sound stops emitting.
27GB
4
Press the button of the disc number you
want.
Playing Discs
5
Playing Discs
DISC 1-5 A
Disc tray
DISC1
DISC2
DISC3
DISC4
Load a disc.
Place one disc on the tray, and then press A.
The disc is drawn into the selected disc
stocker automatically and “READING”
appears in the front panel display.
Depending on the DVD or VIDEO CD, some
operations may be different or restricted.
Refer to the operation details supplied with your
disc.
"/1
Press DISC 1-5 A.
Adjust the
volume
FUNCTION
DISC5
When you play an 8 cm disc, place it on the
inner circle of the tray. Be careful that the disc
is not skewed on the inner circle of the tray.
H
STANDBY indicator
Connect
headphone
To load other discs, press DISC 1-5 A (that
is not loaded with a disc) and load the disc.
Note
"/1
Do not place more than two discs on the tray.
DISC SKIP
FUNCTION
1
2
3
4
5
6
7
8
9
10
0
H
1
2
3
Turn on your TV.
Switch the input selector on the TV to
this system.
Press "/1.
The system turns on.
Unless the system is set to “DVD,” press
FUNCTION to select “DVD.”
28GB
6
Press H.
The system starts playback (continuous
play) of the disc whose DISC indicator is
green.
To play back other discs, press DISC SKIP
on the remote or DISC 1-DISC 5
of the system. Adjust the volume on the
system.
After following Step 6
Saving power in standby mode
Depending on the disc, a menu may appear on
the TV screen. You can play the disc
interactively by following the instructions on the
menu. (DVD: page 32), (VIDEO CD: page 32).
Press "/1.
To remove the disc
To cancel standby mode
Press DISC 1-5 A on the system. Remove the
disc after it is ejected from the system. “OPEN”
appears in the front panel display.
Press "/1.
Tip
To turn on the system
Playing Discs
While the system is in standby mode, the STANDBY
indicator on the system lights up.
Press "/1.
To turn off the system
Press "/1. The system enters standby mode and
the STANDBY indicator lights up in red. To
turn off the system completely, remove the AC
power cord from a wall outlet.
While playing a disc, do not turn off the system
by pressing "/1. Doing so may cancel the menu
settings. When you turn off the system, first
press x to stop playback and then press "/1.
Tip
The DISC 1-5 indicators change colour as follows:
– green: the disc is selected, or the disc is being
played back.
– off: there is no disc.
– orange: a disc is loaded in the disc stocker but not
selected.
continued
29GB
Tip
Additional operations
If a DVD has more than two titles, you cannot go to the
next title or go back to the preceding title by pressing
. or >. These buttons work only within a single
title. If you want to go to the next title or go back to
preceding title, press TOP MENU or MENU and then
select the title you want to go to from the control menu.
MUTING
DISC SKIP
1
2
3
4
5
6
7
8
9
10
0
./>
X
x
H
VOLUME +/–
To
Press
Stop
x
Pause*
X
Resume play after pause
X or H
Go to the next chapter,
track, scene, or file
>
Go back to the preceding
.
chapter, track, scene, or file
Mute the sound
MUTING. To cancel
muting, press it again
or VOLUME + to
adjust the sound
volume.
Change a disc while playing DISC SKIP
another disc
Play the desired disc directly DISC 1-5 on the
system.
Stop play and remove the
desired disc
DISC 1-5 A on the
system.
* You cannot pause during JPEG playback.
Notes
• If there is no disc in the system, “NO DISC” appears
in the front panel display.
• If DVD playback is paused for approximately one
hour, the system automatically turns off.
30GB
Tip
(Resume Play)
When you stop the disc, the system remembers
the point where you pressed x and “RESUME”
appears in the front panel display. Providing you
do not remove the disc or change other disc
pressing DISC SKIP on the remote or DISC 1 –
DISC 5 of the system, Resume Play will work
even if the system enters standby mode by
pressing [/1 (except MP3).
H
1
4
5
6
7
8
9
10
0
To play from the beginning of the disc, press x twice,
then press H.
Playing Discs
Resuming Playback from
the Point Where You
Stopped the Disc
x
While playing a disc, press x to stop
playback.
“RESUME” appears in the front panel
display, so you can restart the disc from the
point where you stopped the disc.
If “RESUME” does not appear, Resume
Play is not available.
2
Press H.
The system starts playback from the point
where you stopped the disc in Step 1.
Notes
• Depending on where you stop the disc, the system
may not resume playback from exactly the same
point.
• The point where you stopped playing is cleared if
you change the setting on the Setup Menu.
31GB
Using the DVD’s Menu
A DVD is divided into a lot of sections, which
make up a picture or music feature. These
sections are called “titles.” When you play a
DVD which contains several titles, you can
select the title you want using TOP MENU.
When you play DVDs that allow you to select
items such as the language for the subtitles and
the language for the sound, select these items
using MENU.
Number
buttons
1
2
3
4
5
6
7
8
9
10
0
Playing VIDEO CDs with
PBC Functions (Ver.2.0)
(PBC Playback)
With PBC (Playback Control) functions, you
can enjoy simple interactive operations, search
functions, and other such operations.
PBC playback allows you to play VIDEO CDs
interactively by following the menu on the TV
screen.
Number
buttons
1
2
3
4
5
6
7
8
9
10
0
./>
TOP
MENU
C/X/x/c
H
ENTER
ENTER
X/x
1
Press TOP MENU or MENU.
The disc’s menu appears on the TV screen.
The contents of the menu vary from disc to
disc.
2
3
Press C/X/x/c or the number buttons to
select the item you want to play or
change.
Press ENTER.
Note
If the DVD top menu or a DVD menu is displayed
during DVD playback for approximately one hour, the
system automatically turns off.
1
O RETURN
Start playing a VIDEO CD with PBC
functions.
The menu for your selection appears.
2
3
4
Select the item number you want by
pressing X/x or the number buttons.
Press ENTER.
Follow the instructions in the menu for
interactive operations.
Refer to the operation details supplied with
the disc, as the operating procedure may
differ depending on the VIDEO CD.
To go back to the menu
Press O RETURN.
32GB
x
MENU
Notes
Tip
To play without using PBC, press ./> or the
number buttons while the system is stopped to select a
track, then press H or ENTER.
“Play without PBC” appears on the TV screen and the
system starts continuous play. You cannot play still
pictures such as a menu. To return to PBC playback,
press x twice, then press H.
Playing an MP3 Audio
Track
You can play MP3 audio tracks on CD-ROMs,
CD-Rs, or CD-RWs. However, the discs must be
recorded according to ISO9660 Level 1,
Level 2, or Joliet format for the system to
recognize the tracks. You can also play discs
recorded in Multi Session. See the instructions
of the CD-R/RW device or recording software
(not supplied) for details on the recording
format.
1
2
Playing Discs
• Depending on the VIDEO CD, the menu does not
appear in Step 1.
• Depending on the VIDEO CD, “Press ENTER” in
Step 3 may appear as “Press SELECT” in the
instructions supplied with the disc. In this case, press
H.
Load a data disc recorded in MP3 into
the system.
Press H.
The system starts to play the first MP3
audio track in the first album on the disc.
Notes
• The system can play MP3 (MPEG1 Audio Layer3)
audio. The system cannot play audio tracks in
MP3PRO format.
• This system can play Multi Session CDs when an
MP3 audio track is located in the first session. Any
subsequent MP3 audio tracks, recorded in the later
sessions, can also be played back.
• Maximum number of albums on a disc: 99 (The
maximum number of MP3 audio tracks that can be
contained on an album is 250.)
• An album that does not include an MP3 audio track is
skipped.
• If you put the extension “.MP3” to data not in MP3
format, the system cannot recognize the data properly
and will generate a loud noise which could damage
your speaker system.
• If the system cannot play MP3, remove the disc and
select [CUSTOM SETUP] from the setup items.
Then select [DATA CD PRIORITY] and set to
[MP3] (page 66) and insert the disc again.
• The system can play to a depth of 8 directories,
including a ROOT directory.
continued
33GB
Selecting an album and track
4
5
6
7
8
9
10
0
4
Select
(TRACK) using X/x
and press ENTER.
The list of tracks contained in the current
album appears.
ROCK BEST HIT
ENTER
C/X/x/c
O RETURN
DISPLAY
1
Press
DISPLAY.
Press X/x to select
then press ENTER or c.
(ALBUM)
3
34GB
5
Select a track using X/x and press
ENTER.
The selected track starts playing.
To return to the previous display
The list of albums contained on the disc
appears.
ROCK BEST HIT
KARAOKE
JAZZ
R&B
MY FAVORITE SONGS
CLASSICAL
SALSA OF CUBA
BOSSANOVA
MP3
When the list of all tracks or albums cannot
be displayed on the window, the jump bar
appears. Press c to select the jump bar icon,
and then scroll the jump bar to display the
rest of the list using X/x. Press C or O
RETURN to return to the track or the album
list.
The Control Menu and name of the MP3
data disc appear.
2
1.HIGHWAY
2.VIEW POINT
3.MY CHILDREN
4.DANCING
5.GOOD TASTE
6.DESTINATION
7.MARATHON
8.PLACE-KICK
9.TAKE IT EASY
10.PORT TOWER
11.STANDARD
Press O RETURN or C.
MP3
Select an album you want to play using
X/x and press ENTER.
To turn off the display
Press
DISPLAY.
Notes
• Only alphabetical letters and numbers can be used for
album or track names. Anything else is displayed as
“ ”.
• If an MP3 file of VBR (variable bit rate) is played,
indicated elapsed time may be different from the
actual time.
• Until playing the disc or selecting an album in step 2,
album name is displayed as “**Album” (** refers to
a number) in the Control Menu, after which the album
name is displayed.
Playing JPEG Image Files
1
2
4
5
6
7
8
9
10
0
ENTER
C/X/x/c
O RETURN
DISPLAY
Playing Discs
You can play JPEG image files on CD-ROMs,
CD-Rs, or CD-RWs. However, the discs must be
recorded according to ISO9660 Level 1, Level 2
or Joliet format for the system to recognize the
files. You can also play discs recorded in Multi
Session. See the instructions of the CD-R/RW
device or recording software (not supplied) for
details on the recording format.
Selecting an album and file
Load a data disc recorded in JPEG into
the system.
Press H.
The system starts to play the first JPEG
image file in the first album on the disc.
1
• The system can play the extension “.JPG” or
“.JPEG.”
• The system can play Multi Session CDs.
• Maximum number of albums on a disc: 99 (The
maximum number of JPEG image files that can be
contained on an album is 250.)
• An album that does not include a JPEG file is
skipped.
• If the system cannot play JPEG, remove the disc and
select [CUSTOM SETUP] from the setup items.
Then select [DATA CD PRIORITY] and set to
[JPEG] (page 66) and insert the disc again.
• A JPEG image file of a length or width of more than
4,720 dots cannot be played.
• A JEPG image file with a high width to length ratio
cannot be displayed.
• Some CD-Rs or CD-RWs cannot be played on this
system depending on file format.
• The system can play to a depth of 8 directories,
including a ROOT directory.
• Progressive JPEG image files cannot be played on
this system.
Tip
When you go to the next file or to go back to the
previous file, press .or >.
Press
DISPLAY.
The Control Menu and name of the JPEG
data disc appears.
Notes
2
Press X/x to select
then press ENTER or c.
(ALBUM)
The list of albums contained in the disc
appears.
FAMILY
FLOWER
GARDEN
TRAIN
CAR
3
4
JPEG
Select an album you want to play using
X/x and press ENTER.
Select
press ENTER.
(FILE) using X/x and
The list of files contained in the current
album appears.
FAMILY
1.HAPPY
2.BIRTHDAY
3.CELEBRATION
4.CHRISTMAS
5.MOM
6.BASEBALL
7.PARTY
8.DAD
9.TRAVEL
10.FRIEND
11.DRIVE
JPEG
continued
35GB
When the list of all files or albums cannot
be displayed on the window, the jump bar
appears. Press c to select the jump bar icon,
and then scroll the jump bar to display the
rest of the list using X/x. Press C or O
RETURN to return to the file or the album
list.
5
To rotate the current image
4
5
6
7
8
9
10
0
Select a file using X/x and press
ENTER.
The selected file starts playing.
C/c
To return to the previous display
Press O RETURN or C.
To turn off the display
Press
DISPLAY.
Notes
• Only alphabetical letters and numbers can be used for
album or file names. Anything else is displayed as “ ”.
• Until playing the disc or selecting an album in step 2,
album name is displayed as “**Album” (** refers to
a number) in the Control Menu, after which the album
name is displayed.
36GB
Rotate the current image using C/c
Each time you press c, the image turns
clockwise by 90º.
Each time you press C, the image turns
counterclockwise by 90º.
x When playing a DVD
Playing Repeatedly
(Repeat Play)
You can play all the titles/tracks/files or a single
title/chapter/track on a disc.
You cannot perform Repeat Play during PBC
playback of VIDEO CDs (page 32).
x When playing a VIDEO CD/CD/MP3
• OFF: does not play repeatedly.
• ALL: repeats all track of all discs.
• TRACK: repeats the current track.
Playing Discs
• OFF: does not play repeatedly.
• ALL: repeats all titles of all discs.
• TITLE: repeats the current title on a
disc.
• CHAPTER: repeats the current
chapter.
Notes
• Depending on the DVD disc, Repeat Play does not
work.
• If [ALL] is selected, Repeat Play is limited to 5 times.
REPEAT/
FM MODE
1
2
3
4
5
6
Tips
7
8
9
10
0
• You can set Repeat Play during stop mode.
After selecting the [REPEAT] item, press H.
The system starts Repeat Play.
• You can quickly display the [REPEAT] status.
Press REPEAT/FM MODE on the remote.
• You can perform Repeat Play for DVD titles that
contain chapters.
• Repeat Play is not available for JPEG, but its setting
cannot be changed.
H
ENTER
C/X/x/c
DISPLAY
1
Press
DISPLAY.
The Control Menu appears.
2
Press X/x to select
(REPEAT), then press ENTER.
If you do not select [OFF], the [REPEAT]
indicator lights in green.
3
Select the Repeat Play setting, then
press ENTER.
1 2 ( 2 7 ) TITLE12
18(34)
T
1:32:55
DVD
OFF
ALL
TITLE
CHAPTER
37GB
(Scan, Slow-motion Play)
You can locate a particular point on a disc
quickly by monitoring the picture or by playing
back slowly.
5
6
7
8
9
10
0
Each time you press m or M during scan, the
playback speed changes. Two speeds are
available. With each press, the indication
changes as follows:
Playback direction
FF1M t FF2M
Opposite direction
FR1m t FR2m
SLOW
m/M
/
t
4
To change the scan speed (DVD/
VIDEO CD only)
t
Searching for a Particular
Point on a Disc
H
The FF2M/FR2m playback speed is faster
than FF1M/FR1m.
Watching frame by frame
(Slow-motion Play)
(DVD/VIDEO CD only)
Press
or
pause mode.
when the system is in the
To return to normal speed, press H.
• Depending on the DVD/VIDEO CD, you may not be
able to perform some of the operations described.
• During Scan or Slow-motion Play, no sound is
output.
Locating a point quickly by
playing a disc in fast forward
or fast reverse (Scan)
Press m or M while playing a disc.
When you find the point you want,
press H to return to normal speed.
Each time you press
or
during Slowmotion Play, the playback speed changes. Two
speeds are available. With each press, the
indication changes as follows:
Playback direction
SLOW 2 t SLOW 1
Opposite direction (DVD only)
SLOW 2 t SLOW 1
t
1
2
To change the speed of Slowmotion play
t
Notes
The SLOW 2 /SLOW 2 playback speed is
slower than SLOW 1 /SLOW 1 .
38GB
x When playing a DVD
Searching for a Title/
Chapter/Track/Index/
Album/File
(TITLE)
x When playing a VIDEO CD
(TRACK)
Playing Discs
x When playing a CD
(TRACK)
x When playing an MP3
You can search a title (DVD), chapter (DVD),
track (CD, VIDEO CD, MP3), index (VIDEO
CD), album (MP3, JPEG), and file (JPEG). As
titles, tracks, albums, and files are assigned
unique names on the disc, you can select the
desired one from the Control Menu. Also
chapters and indexes are assigned unique
numbers on the disc, so you select the desired
one by entering its number. Or you can search a
particular point using the time code (TIME
SEARCH) (DVD only).
Number
buttons
1
2
3
4
5
6
7
8
9
10
0
(ALBUM) or
(TRACK)
x When displaying a JPEG file
(ALBUM) or
Example: when you select
(TRACK)
The list of tracks contained on the disc
appears.
ROCK BEST HIT
1.HIGHWAY
2.VIEW POINT
3.MY CHILDREN
4.DANCING
5.GOOD TASTE
6.DESTINATION
7.MARATHON
8.PLACE-KICK
9.TAKE IT EASY
10.PORT TOWER
11.STANDARD
12.LADY
ORETURN
DISPLAY
ROCK BEST HIT
13.STAY
14.BAD
15.BEAUTIFUL
16.HOLD.ME
17.FIRST TIME
18.BLUE SKY
19.OUR EARTH
20.NO NAME
21.SWEETEST
22.KISS ME
23.FIRE
24.ANGEL
CLEAR
Searching for a title/track/
album/file
1
Press
DISPLAY.
The Control Menu appears.
2
Press X/x to select the search method,
then press ENTER.
MP3
When the list of all tracks or albums cannot
be displayed on the window, the jump bar
appears. Press c to select the jump bar icon,
and then scroll the jump bar to display the
rest of the list using X/x. Press C or O
RETURN to return to the track or the album
list.
ENTER
C/X/x/c
(FILE)
3
MP3
Press X/x to select the desired track,
then press ENTER.
The system starts playback from the
selected track.
continued
39GB
Searching for a chapter/index
1
2
Press
Note
Press X/x to select the search method.
When you play a VIDEO CD with PBC functions, the
index search function does not work.
To turn off the Control Menu
x When playing a VIDEO CD (Without
PBC functions)
(INDEX)
Example: when you select
(CHAPTER)
“** (**)” is selected (** refers to a
number).
The number in parentheses indicates the
total number of chapters or indexes.
1 2 ( 2 7 ) TITLE12
18(34)
T
1:32:55
DVD
1 2 ( 2 7 ) TITLE12
––(34)
T
1:32:55
Press
DISPLAY repeatedly until the Control
Menu is turned off.
To search for a particular point
using the time code (TIME
SEARCH) (DVD only)
Example: If you search for the playing time of
the current title on a DVD
1
In Step 2, select
(TIME).
“T **:**:**” (playing time of the current title)
is selected.
2
Press ENTER or c.
“T--:--:--” appears above “T**:**:**.”
3
Input the time code using the number
buttons, then press ENTER.
For example, to find a desired point at 2
hours, 10 minutes, and 20 seconds after the
beginning, just enter “2:10:20.”
Note
Press ENTER or c.
The title, chapter or track number displayed is the same
number recorded on the disc.
“** (**)” changes to “-- (**).”
DVD
Press X/x or the number buttons to
select the chapter or index number you
want to search.
If you make a mistake
Cancel the number by pressing CLEAR,
then select another number.
40GB
The system starts playback from the
selected number.
The Control Menu appears.
(CHAPTER)
4
Press ENTER.
DISPLAY.
x When playing a DVD
3
5
Tip
You can change the display to show playing time or
remaining time. For details, see “Checking the Playing
Time and Remaining Time” (page 44).
Viewing Information in the
Front Panel Display
When playing a DVD
Playing time and number of the current title
Playing Discs
Remaining time of the
current title
Viewing the Playing Time and
Remaining Time in the Front
Panel Display
You can check disc information, such as the
remaining time, total number of titles in a DVD,
tracks in a VIDEO CD, CD or MP3, or files in a
JPEG using the front panel display (page 75).
4
5
6
7
8
9
10
0
Playing time and number
of the current chapter
Remaining time of the
current chapter
Disc name
TIME/TEXT
Press TIME/TEXT.
Each time you press TIME/TEXT while playing
the disc, the display changes as shown in the
charts.
continued
41GB
When playing a VIDEO CD
(without PBC functions) or CD
When playing a JPEG
Current file number
Playing time and current track number
(when playing a CD)
File name
Remaining time of the
current track
Notes
Playing time of the disc
Remaining time of the
disc
• Depending on the type of disc being played and the
playing mode, the disc information may not be
displayed.
• Only alphabetical letters and numbers can be used for
file names. Anything else is displayed as “ ”.
• In the following cases, elapsed playing time and
current track remaining time may not be displayed
accurately.
– during fast-forward/reverse.
Tips
Disc name
When playing an MP3
Playing time and current track number
Track (file) name
42GB
• When playing VIDEO CDs with PBC functions, only
the playing time of the scene is displayed.
• The playing time and remaining time of the current
chapter, title, track, scene, or disc will also appear on
your TV screen. See the following section “Checking
the Playing Time and Remaining Time” for details on
how to read this information.
Viewing the Sound Field,
Volume Level, or Frequency in
the front panel display
4
5
6
7
8
9
10
0
Station name*3
Playing Discs
You can check the current sound field, volume
level, frequency, or station name using the front
panel display.
When the system is set to
“TUNER AM” or “TUNER FM”
Frequency*1
Current sound field*1
DISPLAY
Volume*1
Press DISPLAY.
Each time you press DISPLAY, the display
changes as shown in the charts.
When the system is set to “DVD”
or “VIDEO”
*1 Returns to the original display when indicated time
has elapsed.
*2 When the disc name is displayed in “DVD” mode.
*3 This is displayed if you have entered a name for a
preset station (page 60).
Current sound field*1
Volume*1
Current function display,
before pressing DISPLAY
*2
continued
43GB
• C–**:**:**
Remaining time of the current chapter
• **:**:**
Playing time of the menu or current
title without a chapter
Checking the Playing Time
and Remaining Time
You can check the playing time and remaining
time of the current title, chapter, or track, and the
total playing time or remaining time of the disc.
You can also check the DVD text and MP3
folder name/file name recorded on the disc.
4
5
6
7
8
9
10
0
x When playing a VIDEO CD (with PBC
functions)
• **:**
Playing time of the current scene
x When playing a VIDEO CD (without
PBC functions) or CD
• T **:**
Playing time of the current track
• T–**:**
Remaining time of the current track
• D **:**
Playing time of the current disc
• D–**:**
Remaining time of the current disc
DISPLAY
TIME/TEXT
x When playing an MP3
• T **:**
Playing time of the current track
1
Press
DISPLAY during playback.
Press
The Control Menu appears.
1 2 ( 2 7 ) TITLE12
18(34)
T
1:32:55
Time information
2
DISPLAY.
Notes
DVD
Disc type
Press TIME/TEXT repeatedly to change
the time information.
The display and the kinds of time that you
can check depend on the disc you are
playing.
x When playing a DVD
• T **:**:**
Playing time of the current title
• T–**:**:**
Remaining time of the current title
• C **:**:**
Playing time of the current chapter
44GB
To turn off the Control Menu
• Only alphabetical letters and numbers can be
displayed.
• Depending on the type of disc being played, the
system can only display a limited number of
characters. Also, depending on the disc, not all text
characters will be displayed.
Checking the date
information (JPEG only)
4
5
6
7
8
9
10
0
Playing Discs
You can check the date information during
playback when the Exif* tag is recorded in the
JPEG image data.
DISPLAY
Press
DISPLAY during playback.
The Control Menu appears.
FAMILY
1 ( 2 0 ) BIRTHDAY
JPEG
01/ 01/ 2003
Date information
* “Exchangeable Image File Format” is a digital
camera image format defined by the Japan
Electronics and Information Technology Industries
Association (JEITA).
Tip
Date information is “MM/DD/YYYY.”
MM: Month
DD: Day
YYYY: Year
Note
If there is no date information or data is damaged on
the disc, the system cannot display the date
information.
45GB
1
Press
DISPLAY during playback.
The Control Menu is displayed.
Sound Adjustments
Changing the Sound
2
Press X/x to select
then press ENTER.
(AUDIO),
The options for [AUDIO] appear.
If a DVD is recorded with multilingual tracks,
you can select the language you want while
playing the DVD.
If the DVD is recorded in multiple audio formats
(PCM, Dolby Digital, MPEG audio, or DTS),
you can select the audio format you want while
playing the DVD.
With stereo CDs, VIDEO CDs, or MP3, you can
select the sound from the right or left channel
and listen to the sound of the selected channel
through both the right and left speakers (in this
case, the sound loses its stereo effect). For
example, when playing a disc containing a song
with the vocals on the right channel and the
instruments on the left channel, you can select
the left channel and hear only the instruments
from both speakers.
AUDIO
4
5
6
7
8
9
10
0
C/X/x/c
ENTER
DISPLAY
x When playing a DVD
Depending on the DVD, the choice of language
varies.
When 4 digits are displayed, they represent the
language code. Refer to the language code list
on page 78 to see which language the code
represents. When the same language is
displayed two or more times, the DVD is
recorded in multiple audio formats.
46GB
11 2 ( 2 7 ) TITLE12
18(34)
T
1:32:55
1: ENGLISH
2: FRENCH
3: SPANISH
3
4
DVD
Press X/x to select the desired audio
signal.
Press ENTER.
To turn off the Control Menu
Press
DISPLAY repeatedly until the Control
Menu is turned off.
x When playing a VIDEO CD, CD, or MP3
Press AUDIO repeatedly.
The default setting is underlined.
• STEREO: The standard stereo sound
• 1/L: The sound of the left channel
(monaural)
• 2/R: The sound of the right channel
(monaural)
Notes
• If you insert a DVD disc, the [AUDIO] icon appears
in the Control Menu Display and you can select the
audio format using the Control Menu. You can also
select [AUDIO] directly by pressing AUDIO. Each
time you press the button, the item changes.
• When you insert any other format disc, such as
VIDEO CD, CD, or MP3, you can only select
[AUDIO] by pressing AUDIO.
• For discs not in multiple audio format, you cannot
change the sound.
• During DVD playback, the sound may change
automatically.
The display examples are as
follows:
Displaying the audio
information of the disc
(DVD only)
• PCM (stereo)
Current audio format*
1 2 ( 2 7 ) TITLE12
18(34)
T
1:32:55
1: ENGLISH
PROGRAM FORMAT
PCM 48kHz 24bit
• Dolby Surround
PROGRAM FORMAT
DOLBY DIGITAL 2/0
DOLBY SURROUND
• Dolby Digital 5.1ch
DVD
PROGRAM FORMAT
DOLBY DIGITAL 3/2.1
Sound Adjustments
When you select [AUDIO], the channels being
played are displayed on the screen.
For example, in Dolby Digital format, multiple
signals ranging from monaural to 5.1 channel
signals can be recorded on a DVD. Depending
on the DVD, the number of recorded channels
may differ.
• DTS
PROGRAM FORMAT
PROGRAM FORMAT
DOLBY DIGITAL 3/2.1
DTS 3/2.1
* [PCM], [MPEG], [DTS], or [DOLBY
DIGITAL] is displayed.
For [DOLBY DIGITAL], the channels in the
playing track are displayed numerically as
follows:
For Dolby Digital 5.1 ch:
Tips
• When the signal contains surround signal
components such as LS, RS, or S, the surround effect
is enhanced.
• If you play MPEG AUDIO sound tracks, the system
outputs PCM (stereo) signals.
Surround component 2
DOLBY DIGITAL 3 / 2 . 1
Front component 2 +
Center component 1
LFE (Low Frequency
Effect) component 1
47GB
Enjoying Surround Sound
Using only the front speakers
and subwoofer (2 CHANNEL
STEREO)
You can take advantage of surround sound
simply by selecting one of the system’s preprogrammed sound fields. They bring the
exciting and powerful sound of movie theatres
into your home.
To select sound field, press AUTO FORMAT
DIRECT or MODE on the remote repeatedly
until the sound field you want appears in the
front panel display.
This mode outputs the sound from the front left
and right speakers and subwoofer. Standard two
channel (stereo) sources completely bypass the
sound field processing. Multi channel surround
formats are downmixed to two channels.
This allows you to play any source using only
the front left and right speakers and subwoofer.
MODE
Automatic decoding of the
audio input signal (AUTO
FORMAT DIRECT AUTO)
The auto decoding function automatically
detects the type of audio signal being input
(Dolby Digital, DTS, or standard 2 channel
stereo) and performs the proper decoding if
necessary. This mode presents the sound as it
was recorded/encoded, without adding any
effects (e.g. reverberation).
However, if there are no low frequency signals
(Dolby Digital LFE, etc.), it will generate a low
frequency signal for output to the subwoofer.
AUTO
FORMAT
DIRECT
1
2
3
4
5
6
7
8
9
10
0
Press AUTO FORMAT DIRECT on the
remote repeatedly until “A.F.D. AUTO”
appears in the front panel display.
48GB
Sound field
Display
AUTO FORMAT DIRECT
AUTO
A.F.D. AUTO
1
2
3
4
5
6
7
8
9
10
0
Press MODE on the remote repeatedly until
“2CH ST” appears in the front panel
display.
Sound field
Display
2CHANNEL STEREO
2CH ST
Selecting a sound field (AUTO
FORMAT DIRECT button)
Selecting a sound field
(MODE button)
AUTO FORMAT
DIRECT
MODE
2
3
1
2
3
4
5
6
4
5
6
7
8
9
7
8
9
10
0
10
0
Press AUTO FORMAT DIRECT on the
remote repeatedly until the sound field you
want appears in the front panel display.
Press MODE on the remote repeatedly until
the sound field you want appears in the
front panel display.
Display
Sound field
Display
AUTO FORMAT DIRECT
AUTO
A.F.D. AUTO
2CHANNEL STEREO
2CH ST
ROCK
ROCK
AUTO FORMAT DIRECT
PRO LOGIC
DOLBY PL
AUTO FORMAT DIRECT
PRO LOGICII MOVIE
PLII MOVIE
AUTO FORMAT DIRECT
PRO LOGICII MUSIC
PLII MUSIC
Sound field
POP
POP
JAZZ
JAZZ
CLASSIC
CLASSIC
NEWS
NEWS
SPORTS
SPORTS
MOVIE
MOVIE
Sound Adjustments
1
x AUTO FORMAT DIRECT PRO LOGIC
Dolby Pro Logic produces five output channels
from two-channel sources. This mode performs
Pro Logic decoding to the input signal and
output to front, center, and surround speakers.
Meanwhile, the surround channel becomes
monaural.
x ROCK, POP, JAZZ, CLASSIC, NEWS,
SPORTS, MOVIE
x AUTO FORMAT DIRECT PRO LOGICII
MOVIE/MUSIC
Sound field
Display
HEADPHONE
2 CHANNEL STEREO
HP 2CH
HEADPHONE SURROUND
HP SURR
Dolby Pro LogicII produces five full-bandwidth
output channels from two-channel sources. This
is done using an advanced, high-purity matrix
surround decoder that extracts the spatial
properties of the original recording without
adding any new sounds or tonal colorations.
The each mode provided sound to suit the
source.
When using the headphones
x HEADPHONE 2CHANNEL STEREO
This mode outputs the sound from the
headphone L/R. Standard 2 channel (stereo)
sources completely bypass the sound field
processing. Multi channel surround formats are
downmixed to two channels.
x HEADPHONE SURROUND
This mode outputs the sound as surround from
headphone L/R.
continued
49GB
To turn the surround effect off
Press AUTO FORMAT DIRECT on the remote
repeatedly until “A.F.D. AUTO” appears in the
front panel display, or press MODE on the
remote to display “2CH ST.”
Note
When the input signal is multi channel source, AUTO
FORMAT DIRECT PRO LOGIC, AUTO FORMAT
DIRECT PRO LOGICII MOVIE/MUSIC are
cancelled and the multi channel source is output
directly.
Using the Sound Effect
This system provides you with 2 types of sound
effect, simply by pressing a button. Choose the
sound to suit your needs.
DSGX
NIGHT MODE
1
2
3
4
5
6
7
8
9
10
0
Press NIGHT MODE or DSGX on the
remote.
The sound effect is activated.
x NIGHT MODE
In this mode, you can enjoy sound effects or
dialogue, as you would in a movie theatre, even
at low volume. It is useful for watching movies
at night.
x DSGX
With DSGX on, bass frequencies are effectively
reinforced.
To turn off the sound effect
Press NIGHT MODE or DSGX on the remote
again.
Note
These two types of sound effect cannot be activated at
the same time.
50GB
Using Various Additional Functions
Displaying the Subtitles
Changing the Angles
ANGLE
1
2
3
4
5
6
7
8
9
10
0
SUBTITLE
1
2
3
4
5
6
7
8
9
10
0
Press SUBTITLE.
Press ANGLE.
Each time you press SUBTITLE, the subtitle
language changes.
Each time you press ANGLE, the angle changes.
Note
Note
Depending on the DVD, you may not be able to change
the subtitles, even if multilingual subtitles are recorded
on it.
Depending on the DVD, you may not be able to change
the angle, even if multi-angles are recorded on the
DVD.
Using Various Additional Functions
If various angles (multi-angles) for a scene are
recorded on a DVD, you can change the viewing
angle.
For example, while playing a scene of a train in
motion, you can display the view from either the
front of the train, the left window of the train, or
from the right window without having the train’s
movement interrupted.
If subtitles are recorded on a disc, you can turn
the subtitles on or off while playing. If
multilingual subtitles are recorded on the disc,
you can change the subtitle language while
playing, or turn the subtitles on or off whenever
you want. You can select a language you are
learning, for example, and turn on the subtitles
for better understanding.
51GB
2
Locking Discs
Press X/x to select
then press ENTER or c.
(SETUP),
1 2 ( 2 7 ) TITLE12
18(34)
T
1:32:55
(PARENTAL CONTROL)
DVD
CUSTOM
You can set a playback restriction for a disc.
Parental Control
You can set a playback limit some DVDs
according to a predetermined level, such as the
age of the viewer.
3
The Setup Display appears.
4
Limiting playback for children
(Parental Control)
(DVD only)
Playback of some DVDs can be limited
according to a predetermined level, such as the
age of the viewer. The “Parental Control”
function allows you to set a playback limitation
level.
A scene that is limited is not played, or it is
replaced by a different scene.
Press ENTER.
Press X/x to select [CUSTOM SETUP],
then press ENTER or c.
[CUSTOM SETUP] is displayed.
CUSTOM SETUP
PARENTAL CONTROL
TRACK SELECTION
DATA CD PRIORITY:
5
OFF
MP3
Press X/x to select [PARENTAL
CONTROL t], then press ENTER or c.
x If you have not entered a password
The display for registering a new password
appears.
Number
buttons
1
2
3
4
5
6
7
8
9
10
0
CUSTOM SETUP
PARENTAL CONTROL
Enter a new 4-digit password,
then press ENTER .
H
ENTER
C/X/x/c
O RETURN
DISPLAY
1
In stop mode, press
DISPLAY.
The Control Menu appears.
52GB
Enter a 4-digit password using the number
buttons, then press ENTER.
The display for confirming the password
appears.
x When you have already registered a
password
9
The display for entering the password
appears.
The selection items for [LEVEL] are
displayed.
CUSTOM SETUP
PARENTAL CONTROL
Enter password, then press
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
STANDARD:
8:
CHANGE PASSWORD 7:
6:
5:
4:
3:
2:
1:
.
Enter your password using the number
buttons, then press ENTER.
7
PG13
PG
G
10 Select the level you want using X/x,
then press ENTER.
The display for setting the playback
limitation level and changing the password
appears.
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
STANDARD:
CHANGE PASSWORD
OFF
NC17
R
The Parental Control setting is complete.
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
4:
STANDARD:
CHANGE PASSWORD
PG13
USA
OFF
USA
The lower the value, the more strict the
limitation.
Press X/x to select [STANDARD], then
press ENTER or c.
The selection items for [STANDARD] are
displayed.
Using Various Additional Functions
6
ENTER
Press X/x to select [LEVEL], then press
ENTER or c.
If you make a mistake
Press O RETURN or C to go back to the
previous screen.
To turn off the Setup Display
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
OFF
STANDARD:
USA
CHANGE PASSWORD OTHERS
8
Press
DISPLAY repeatedly until the Setup
Display is turned off.
To turn off the Parental Control
function and play the DVD after
entering your password
Set [LEVEL] to [OFF] in Step 10.
Press X/x to select a geographic area
as the playback limitation level, then
press ENTER.
The area is selected.
If you select [OTHERS t], select and
enter the standard code in the table on
page 54 using the number buttons.
To change the password
1
In Step 7, select [CHANGE PASSWORD
t] using x, then press ENTER.
The display for entering the password
appears.
2
Follow Step 7 to enter a new password.
continued
53GB
Playing the disc for which
Parental Control is set
Standard
Code number
Argentina
2044
Insert the disc and press H.
Australia
2047
The [PARENTAL CONTROL] display
appears.
Austria
2046
Belgium
2057
Enter your 4-digit password using the
number buttons, then press ENTER.
Brazil
2070
Canada
2079
The system starts playback.
Chile
2090
Notes
China
2092
• If you play a DVD which does not have the Parental
Control function, playback cannot be limited on this
system.
• Depending on the DVD, you may be asked to change
the parental control level while playing the disc. In
this case, enter your password, then change the level.
If the Resume Play mode is cancelled, the level
returns to the original level.
Denmark
2115
Tip
1
2
If you forget your password, remove the disc and
repeat Step 1 to 5 of “Limiting playback for children.”
When you are asked to enter your password, enter
“199703” using the number buttons, then press
ENTER. The display will ask you to enter a new 4-digit
password. After you enter a new 4-digit password in
Step 5, replace the disc in the system and press H.
When the [PARENTAL CONTROL] display appears,
enter your new password.
54GB
Area Code
Finland
2165
France
2174
Germany
2109
Hong Kong
2219
India
2248
Indonesia
2238
Italy
2254
Japan
2276
Korea
2304
Malaysia
2363
Mexico
2362
Netherlands
2376
New Zealand
2390
Norway
2379
Pakistan
2427
Philippines
2424
Portugal
2436
Russia
2489
Singapore
2501
Spain
2149
Sweden
2499
Switzerland
2086
Taiwan
2543
Thailand
2528
United Kingdom
2184
Using the number buttons for controlling
the TV
Other Operations
Controlling the TV with the
Supplied Remote
You can control your TV (SONY only) with the
supplied remote.
Controlling TVs with the
remote
TV
Number
buttons
Press the TV button.
The TV button turns red and the remote is set to
the TV mode. You can select the TV channels by
using the number buttons.
>10 is for selecting a channel number greater
than 10.
To cancel the TV mode, press the TV button
again.
Notes
• The TV button turns off when you do not operate the
remote for 10 seconds.
• Depending on the TV, you may not be able to control
your TV or to use some of the buttons above.
1
2
3
4
5
6
7
8
9
10
0
Tip
ENTER
Depending on the TV manufacturer, the following
method also works. Press >10, then the number. (For
example, for channel 25, press >10, then 2 and 5.)
Other Operations
TV ?/1
When you set the remote to the TV mode, you
can use the number buttons for controlling the
TV.
Changing the type of signal
output
TV/VIDEO
TV VOL –/+
TV CH +/–
Controlling the TV
You can control your TV using the buttons
below.
By pressing
You can
TV [/1
Turn the TV on or off.
TV/VIDEO
Switch the TV’s input source
between the TV and other input
sources.
TV VOL +/–
Adjust the TV volume.
TV CH +/–
Select the TV channel.
This will change the type of signal output from
the COMPONENT VIDEO OUT jacks on the
system. See page 73 for more information about
the different signal types.
PROGRESSIVE
FUNCTION
1
1
2
3
4
5
6
7
8
9
10
0
Press FUNCTION repeatedly to select
“DVD.”
continued
55GB
2
Press PROGRESSIVE.
The current output signal “-NORMAL-”
appears in the front panel display.
When “-PROGRE-” appears in the front
panel display, the output signal is already
set to progressive format.
3
Press PROGRESSIVE again while
“-NORMAL-” appears in the front panel
display.
Using the SONY TV DIRECT
Function
SONY TV DIRECT allow you to turn on your
SONY TV and this system, change the system
mode to “DVD,” and then switch the TV’s input
source you set with one button push.
The output signal is changed to progressive
format and “PROGRE” appears in the front
panel display.
SONY TV
DIRECT
Tip
To return the setting to interlace format repeat the
procedure above. When the output signal is changed to
interlace format, “NORMAL” appears in the front
panel display.
Number
buttons
1
2
3
4
5
6
7
8
9
10
0
Notes
• When progressive format is selected, no signal is
output from the MONITOR OUT (VIDEO/S
VIDEO) jacks.
• Progressive format does not work for PAL signals.
Even if you set progressive format, the output signal
is automatically switched to interlace format for PAL
signal.
• If you set progressive format, but your TV cannot
accept the signal in progressive format. In this case,
return the setting to interlace format (the default
setting).
TV CH +
TV/VIDEO
Preparation
Register the TV’s input source connected to this
system.
1
Press and hold TV/VIDEO while
entering the code for the TV’s input
source connected to this system (see
following table) using the number
buttons.
The TV’s input source is selected.
If you successfully set the TV’s input
source code, the TV button flashes twice
slowly. If the setting is unsuccessful, the
TV button flashes five times quickly.
56GB
TV’s input source
TV/VIDEO
0
No input source
(Default)
1
VIDEO1
2
VIDEO2
3
VIDEO3
4
VIDEO4
5
VIDEO5
6
VIDEO6
7*
COMPONENT 1
INPUT
8*
COMPONENT 2
INPUT
* Except for North American models.
2
Press and hold TV CH + while entering
the code for transmit time (see table
below) using the number buttons.
The transmit time from the remote is
selected.
If you successfully set the transmit time
code, the TV button flashes twice slowly. If
the setting is unsuccessful, the TV button
flashes five times quickly.
Using the Video or Other
Unit
You can use a VCR or other unit(s) connected to
the VIDEO/SAT jacks. Refer to the operation
manual supplied with the unit for further
information on the operation.
FUNCTION
1
2
3
4
5
6
7
8
9
10
0
Press FUNCTION repeatedly until “VIDEO”
appears in the front panel display.
Other Operations
By pressing Number
Each time you press FUNCTION, the mode of
the system changes in the following sequence.
When “ATTENUATE” is set to “ATT OFF.”
By pressing Number
Transmit time
TV CH +
1
0.5 (Default)
TUNER FM t TUNER AM t VIDEO t
DVD t TUNER FM t ...
2
1
When “ATTENUATE” is set to “ATT ON.”
3
1.5
4
2
TUNER FM t TUNER AM t SAT t
DVD t TUNER FM t …
5
2.5
6
3
7
3.5
8
4
For details on “ATTENUATE”, see 58 page.
Operation
Point the remote to the direction of TV and
this system, then press SONY TV DIRECT
once.
While transmitting the code from the remote, the
TV button flashes.
Notes
• This function is only for the SONY TV series,
however, some TV products may also not work.
• If this function does not work, change the transmit
time. The transmit time varies depending on the TV.
• If distance between the TV and this system is too far,
this function may not work. Install the system near
the TV.
• Keep the remote pointed in the direction of the TV
and this system while the TV button is flashing.
continued
57GB
To use a digital satellite
receiver or other components
with a high audio output level
Connect the satellite receiver to the VIDEO/
SAT jacks of this system. You can also connect
the components with a high audio output level
(including 2V r.m.s components, such as MD,
etc.) to the VIDEO/SAT jacks, and perform the
following to prevent distortion occurring.
FUNCTION
1
2
3
4
5
6
7
8
9
10
0
AMP MENU
C/X/x/c
1
2
3
ENTER
Press FUNCTION repeatedly until
VIDEO appears in the front panel
display.
Press AMP MENU.
Press X or x until “CUSTOMIZE”
appears in the front panel display, then
press ENTER or c.
The system enters the Customize Menu
mode.
4
5
Press X or x repeatedly to select
“ATTENUATE” in the front panel
display, then press ENTER or c.
Press X or x to select “ATT ON” in the
front panel display.
The output level is changed.
When you select “ATT OFF” and press x,
this operation will be cancelled.
58GB
6
Press ENTER or AMP MENU.
Turns off the AMP menu.
The function name in the front panel
display changes to “SAT.”
Tip
To return to the VIDEO function, select “ATT
OFF” at step 5.
5
Enjoying the Radio
Press ENTER.
A preset number appears in the front panel
display.
Presetting Radio Stations
You can preset 20 FM stations, and 10 AM
stations. Before tuning, make sure to turn down
the volume to minimum.
6
Press X/x to select the preset number
you want.
"/1
FUNCTION
1
2
3
4
5
6
7
8
9
10
0
7
Other Operations
TUNER/
BAND
TUNER
MENU
Press ENTER.
The station is stored.
TUNING –/+
C/X/x/c
1
2
ENTER
Press TUNER/BAND repeatedly until
the band you want appears in the front
panel display.
8
Each time you press TUNER/BAND, the
band toggles between FM and AM.
Restart from step 1.
Press and hold TUNING + or – until the
auto scanning starts.
To change the AM tuning interval
(except for Austlarian and Middle
Eastern model)
Scanning stops when the system tunes in a
station. “TUNED” and “ST” (for stereo
program) appear in the front panel display.
3
4
m
Press TUNER MENU.
Press C/c or X/x repeatedly until
“MEMORY” appears in the front panel
display.
Repeat 1 to 7 to store other stations.
To change the preset number
The AM tuning interval can be set to either
9 kHz (default) or 10 kHz (for some areas).
To change the AM tuning interval, first tune in
any AM station, then turn off the system by
pressing "/1 on the remote, or press "/1 on the
system. While holding down VOLUME – (on
the system), press "/1 on the system to turn on
the power. If you change the interval, AM preset
stations will be erased.
To reset the interval, repeat the same procedure.
continued
59GB
Listening to the Radio
Preset radio stations in the system’s memory
first (see “Presetting Radio Stations” on page
59).
"/1
REPEAT/
FM MODE
TUNER/
BAND
FUNCTION
1
2
3
4
5
6
7
8
9
10
0
PRESET
–/+
TUNING –/+
x
DISPLAY
Press FUNCTION repeatedly until FM
or AM appears in the front panel
display.
The last received station is tuned in.
2
• If an FM program is noisy, press REPEAT/
FM MODE on the remote so that “MONO” appears
in the front panel display. There will be no stereo
effect, but the reception will improve. Press the
button again to restore the stereo effect.
• To improve reception, reorient the supplied antennas.
Press DISPLAY repeatedly.
Each time you press DISPLAY, the front panel
display changes as follows:
index name of the station* t frequency t
sound field t volume t index name of the
station...
* This is displayed if you have entered a name
for a preset station (page 60).
Naming Preset Stations
You can enter a name of up to 9 characters for
preset stations. These names (for example,
“XYZ”) appear in the system’s front panel
display when a station is selected.
Note that no more than one name can be entered
for each preset station.
Press PRESET + or – repeatedly to
select the preset station you want.
Each time you press the button, the system
tunes in one preset station.
Every time you press TUNER/BAND, the
band toggles between FM and AM.
3
Tips
To check the frequency or sound
field
VOLUME +/–
1
For automatic tuning, press and hold TUNING +
or – on the remote. Press x when you stop the
automatic tuning.
Adjust the volume by pressing
VOLUME +/–.
TUNER
MENU
FUNCTION
1
2
3
4
5
6
7
8
9
10
0
PRESET –/+
To turn off the radio
Press "/1.
To listen to non-preset radio
stations
Use manual or automatic tuning in Step 2.
For manual tuning, press TUNING + or – on the
remote repeatedly.
60GB
C/X/x/c
ENTER
1
Press FUNCTION repeatedly until FM
or AM appears in the front panel
display.
The last station you received is tuned in.
Each time you press FUNCTION, the mode
of the system changes in the following
sequence:
TUNER FM t TUNER AM t VIDEO
(SAT) t DVD t TUNER FM…
2
You can set the system to turn off at a preset
time, so you can fall asleep listening to music.
You can preset the time in 10 minutes
decrements.
SLEEP
Press TUNER MENU.
Press C or c repeatedly until “NAME
IN” appears.
1
2
3
4
5
6
7
8
9
10
0
Press SLEEP.
5
6
Press ENTER.
Each time you press this button, the minutes
display (the remaining time) changes as follows:
Create an index name by using the
cursor buttons:
t SLEEP 90M
Press X/x to select a character, then press c
to move the cursor to the next position.
If you make a mistake
7
Press ENTER.
r
SLEEP 80M
r
SLEEP 70M
····
Press C or c repeatedly until the character
to be changed flashes, then press X/x to
select the desired character. Capital letters,
numbers, and 9 symbols (’ - / , + < > _ blank
space) can be input for a radio station name.
Other Operations
3
4
Press PRESET+ or – repeatedly to
select the preset station you want to
create an index name for.
Using the Sleep Timer
SLEEP 10M
r
SLEEP OFF
The station name is stored.
To check the remaining time
Press SLEEP once.
To change the remaining time
Press SLEEP repeatedly to select the desired
time.
To cancel the Sleep Timer
function
Press SLEEP repeatedly until “SLEEP OFF”
appears in the display.
61GB
Changing the Brightness
of the Front Panel Display
The brightness of the front panel display can be
set to either of two levels.
4
5
6
7
8
9
10
0
Returning to the Default
Settings
You can return the system parameters, such as
speaker settings and preset stations, to the
default settings.
DISC 1 A
DISC1
DISC2
DISC3
H
DISC4
>
DISC5
AMP MENU
C/X/x/c
ENTER
Press >, H and DISC 1 A on the system
at the same time.
“ColdRESET” appears in the front panel display
and the default settings are returned.
1
2
Press AMP MENU.
Press X or x until “CUSTOMIZE”
appears in the front panel display, then
press ENTER or c.
The system enters the Customize Menu
mode.
3
4
5
Press X or x repeatedly to select
“DIMMER” in the front panel display,
then press ENTER or c.
Press X or x to select the brightness of
the front panel display.
Press AMP MENU.
Turns off the AMP menu.
62GB
3
The Setup Display appears.
Settings and Adjustments
Using the Setup Display
Main
item
By using the Setup Display, you can make
various adjustments to items, such as picture and
sound. You can also set the subtitle language
and the Setup Display, among other things. For
details on each Setup Display item, see page 6466. For an overall list of Setup Display items,
see page 79.
4
6
8
9
10
0
ENGLISH
ENGLISH
ENGLISH
ENGLISH
Press X/x to select the setup item from
the displayed list: [LANGUAGE
SETUP], [SCREEN SETUP], [CUSTOM
SETUP] and [RESET]*. Then press
ENTER or c.
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
4:3 LETTER BOX
ON
JACKET PICTURE
ENTER
C/X/x/c
DISPLAY
O
RETURN
5
Select an item using X/x, then press
ENTER or c.
Settings and Adjustments
5
7
LANGUAGE SETUP
OSD :
DVD MENU :
AUDIO :
SUBTITLE :
The selected Setup item appears.
Example: [SCREEN SETUP]
How to use the Setup Display
4
Press ENTER.
The options for the selected item appear.
Example: [TV TYPE]
1
In stop mode, press
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
DISPLAY.
4:3 LETTER BOX
4:3 PAN SCAN
16:9
The Control Menu appears.
2
Press X/x to select
then press ENTER or c.
1 2 ( 2 7 ) TITLE12
18(34)
T
1:32:55
CUSTOM
(SETUP),
DVD
Options
Press C or O RETURN to return to setup
items.
continued
63GB
6
Select a setting using X/x, then press
ENTER.
The setting is selected and setup is
complete.
Example: [4:3 PAN SCAN]
Setting the Display or
Sound Track Language
(LANGUAGE SETUP)
Selected setting
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
4:3 PAN SCAN
ON
JACKET PICTURE
[LANGUAGE SETUP] allows you to set
various languages for the on-screen display or
sound track.
Select [LANGUAGE SETUP] in the Setup
Display. For details on using the display, see
“Using the Setup Display” (page 63).
To turn off the Setup Display
LANGUAGE SETUP
OSD :
DVD MENU :
AUDIO :
SUBTITLE :
Press
DISPLAY repeatedly until the Setup
Display is turned off.
* When you select [RESET]
in step 4, the
following items are returned to the default settings.
• Setup Menu (except for [PARENTAL CONTROL])
(page 79)
After you select [RESET] and press ENTER, select
[YES] to reset the settings (it takes a few seconds to
complete). Select [NO] and press ENTER to cancel.
Do not press "/1 on the system, when resetting the
system.
ENGLISH
ENGLISH
ENGLISH
ENGLISH
x OSD (On-Screen Display)
Selects the display language on the screen.
Selects the language from the displayed list.
x DVD MENU (DVD only)
Selects the desired language for the DVD menu.
Selects the language from the displayed list.
x AUDIO (DVD only)
Selects the language of the sound track.
Selects the language from the displayed list.
x SUBTITLE (DVD only)
Selects the language of the subtitle.
Selects the language from the displayed list.
Note
If you select a language that is not recorded on the
DVD, one of the recorded languages will be
automatically selected (except for [OSD]).
Tip
If you select [OTHERS t] in [DVD MENU],
[AUDIO], or [SUBTITLE], select and enter the
language code from the list using the number buttons
(page 78).
After you have made a selection, the language code
(4 digits) is displayed the next time you select
[OTHERS t].
64GB
Settings for the Display
4:3 LETTER BOX
(SCREEN SETUP)
4:3 PAN SCAN
Choose settings according to the TV to be
connected.
Select [SCREEN SETUP] in the Setup Display.
For details on using the display, see “Using the
Setup Display” (page 63).
The default settings are underlined.
Note
4:3 LETTER BOX
ON
JACKET PICTURE
Depending on the DVD, [4:3 LETTER BOX] may be
selected automatically instead of [4:3 PAN SCAN] or
vice versa.
x SCREEN SAVER
x TV TYPE (DVD only)
Selects the aspect ratio of the connected TV (4:3
standard or wide).
The default settings vary, depending on the
country model.
4:3
LETTER
BOX
Select this when you connect a 4:3
screen TV. Displays a wide picture
with bands on the upper and lower
portions of the screen.
4:3
PAN SCAN
Select this when you connect a 4:3
screen TV. Automatically displays
the wide picture on the entire
screen and cuts off the portions
that do not fit.
16:9
Select this when you connect a
wide-screen TV or a TV with a
wide mode function.
Turns the screen saver on and off so that the
screen saver image appears when you leave the
system in pause or stop mode for 15 minutes, or
when you playback a CD, an MP3, or a JPEG for
more than 15 minutes. The screen saver will
help prevent your display device from becoming
damaged (afterimage). Press H to turn off the
screen saver.
ON
Turns on the screen saver.
OFF
Turns off the screen saver.
Settings and Adjustments
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
16:9
x BACKGROUND
Selects the background colour or picture on the
TV screen in stop mode or while playing a CD.
JACKET
The jacket picture (still picture)
appears in the background, but
only when the jacket picture is
already recorded on the disc
(CD-EXTRA, etc.). If the disc
does not contain a jacket picture,
the [GRAPHICS] picture appears.
GRAPHICS
A preset picture stored in the
system appears in the background.
BLUE
The background colour is blue.
BLACK
The background colour is black.
65GB
x TRACK SELECTION (DVD only)
Custom Settings
(CUSTOM SETUP)
Gives the sound track having the highest number
of channels priority when you play a DVD on
which multiple audio formats (PCM, MPEG
audio, DTS, or Dolby Digital format) are
recorded.
Allows setting up Parental Control and other
settings.
OFF
No priority given.
AUTO
Priority given.
Select [CUSTOM SETUP] in the Setup Display.
For details on using the display, see “Using the
Setup Display” (page 63).
The default settings are underlined.
CUSTOM SETUP
PARENTAL CONTROL
TRACK SELECTION
DATA CD PRIORITY:
OFF
MP3
x VCD COLOR SYSTEM (Asian, Australian,
and Saudi Arabian models only)
Select the colour system when you play a
VIDEO CD.
AUTO
Outputs the video signal in the
system of the disc, either PAL or
NTSC. If your TV uses a DUAL
system, select AUTO.
PAL
Changes the video signal of an
NTSC disc and outputs it in the
PAL system.
NTSC
Changes the video signal of a PAL
disc and outputs it in the NTSC
system.
Notes
• When you set the item to [AUTO], the language may
change. The [TRACK SELECTION] setting has
higher priority than the [AUDIO] settings in
[LANGUAGE SETUP] (page 64).
• If PCM, DTS, MPEG audio, and Dolby Digital sound
tracks have the same number of channels, the system
selects PCM, DTS, Dolby Digital, and MPEG audio
sound tracks in this order.
• Depending on the DVD, the audio channel with
priority may be predetermined. In this case, you
cannot give priority to the DTS, Dolby Digital, or
MPEG audio format by selecting [AUTO].
x DATA CD PRIORITY (MP3, JPEG only)
Set priority data you want to play, when you play a
DATA CD (CD-ROM/CD-R/CD-RW) containing
MP3 audio tracks and JPEG image files.
MP3
If an MP3 file exists on a disc, the
system recognises the disc as an
“MP3 Disc.” If only JPEG files
exist on the disc, the system
recognises the disc as a “JPEG
Disc.”
JPEG
If a JPEG file exists on the disc,
the system recognises the disc as a
“JPEG Disc.” If only MP3 files
exist on the disc, the system
recognises the disc as an “MP3
Disc.”
Notes
• You cannot change the colour system of the disc
itself.
• On Asian, Australian, and Saudi Arabian models, you
can change the colour system of this unit according to
the connected TV (page 21).
x PARENTAL CONTROL t (DVD only)
Sets a password and playback limitation level
for DVDs with playback limitation for children.
For details, see “Limiting playback for children
(Parental Control)” (page 52).
66GB
Notes
• When you play multi session CDs, the system decides
a target to play for the last session or session linked
with the last session.
• If you change this setting, reinsert the disc.
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the system, use this
troubleshooting guide to help remedy the
problem before requesting repairs. Should any
problem persist, consult your nearest Sony
dealer.
Power
The power is not turned on.
• Check that the AC power cord is connected
securely.
There is no picture.
• The video connecting cords are not connected
securely.
• The video connecting cords are damaged.
• The system is not connected to the correct TV
input jack (page 20).
• The video input on the TV is not set so that you
can view pictures from the system.
• You have set progressive format but your TV
cannot accept the signal in progressive format. In
this case, return the setting to interlace format (the
default setting) (page 22).
• Even if your TV is compatible with progressive
format (480p) signals, the image may be affected
when you set progressive format. In this case,
return the setting to interlace format (the default
setting) (page 22).
• When progressive format is selected, the signal is
output only from the COMPONENT VIDEO
OUT jacks.
Even though you set the aspect ratio in [TV
TYPE] of [SCREEN SETUP], the picture does
not fill the screen.
• The aspect ratio on the disc is fixed.
Sound
There is no sound.
• The speaker cord is not connected securely.
• Press MUTING on the remote if “MUTING ON”
is displayed in the front panel display.
• The system is in pause mode or in Slow-motion
Play mode. Press H to return to normal play
mode.
• Fast forward or fast reverse is performed. Press
H to return to normal play mode.
• Check the speaker settings (pages 24, 25).
The left and right sounds are unbalanced or
reversed.
• Check that the speakers and components are
connected correctly and securely.
• Adjust the balance parameter using the AMP
MENU (page 25).
Additional Information
If the STANDBY indicator flashes.
Immediately unplug the power cord and check the
following items.
• Are the + and – speaker cords short-circuited?
• Are you using only the specified speakers?
• Is anything blocking the ventilation holes of the
system?
After checking the above items and fixing any
problems, connect the AC power cord again and
turn on the system. If the indicator still flashes, or if
the cause of the problem cannot be found even after
checking all the above items, consult your nearest
Sony dealer.
Picture noise appears.
• The disc is dirty or flawed.
• If the picture output from your system goes
through your VCR to get to your TV, the copyprotection signal applied to some DVD programs
could affect picture quality. If you still experience
problems even when you connect your system
directly to your TV, try connecting your system to
your TV’s S video input (page 20).
There is no sound from the subwoofer.
• Check the speaker connections and settings
(page 24, 25).
• Set the sound field to “AUTO FORMAT DIRECT
AUTO” (page 48).
Severe hum or noise is heard.
• Check that the speakers and components are
connected securely.
• Check that the connecting cords are away from a
transformer or motor, and at least 3 metres (10 ft)
away from your TV set or a fluorescent light.
• Move your TV away from the audio components.
• The plugs and jacks are dirty. Wipe them with a
cloth slightly moistened with alcohol.
• Clean the disc.
The sound loses stereo effect when you play a
VIDEO CD, a CD, or an MP3.
• Set “AUDIO” to “STEREO” by pressing AUDIO
in the front panel display.
• Make sure the system is connected properly.
continued
67GB
The surround effect is difficult to hear when
you are playing a Dolby Digital, DTS, or MPEG
audio sound track.
• Make sure the sound field function is on
(page 48).
• Check the speaker connections and settings (pages
24, 25).
• Depending on the DVD, the output signal may not
be the entire 5.1 channel. It may be monaural or
stereo even if the sound track is recorded in Dolby
Digital or MPEG audio format.
The sound comes from the center speaker
only.
• Depending on the disc, the sound may come from
the center speaker only.
No sound is heard from the center speaker.
• Check the speaker connections and settings.
• Make sure the sound field function is on
(page 48).
• Depending on the source, the effect of the
surround speakers may be less noticeable.
No sound or only a very low-level sound is
heard from the surround speakers.
• Check the speaker connections and settings.
• Make sure the sound field function is on
(page 48).
• Depending on the source, the effect of the
surround speakers may be less noticeable.
Operation
Radio stations cannot be tuned in.
• Check that the antenna is connected securely.
Adjust the antenna or connect an external antenna
if necessary.
• The signal strength of the stations is too weak
(when tuning in with automatic tuning). Use direct
tuning.
• No stations have been preset or the preset stations
have been cleared (when tuning by scanning
preset stations). Preset the stations (page 59).
• Press DISPLAY so that the frequency appears in
the front panel display.
The remote does not function.
• There are obstacles between the remote and the
system.
• The distance between the remote and the system is
too far.
• The remote is not pointed at the remote sensor on
the system.
• The batteries in the remote are weak.
68GB
The disc does not play.
• There is no disc inserted.
• The disc is upside down.
Insert the disc with the playback side facing down
on the disc tray.
• The disc is skewed on the disc tray.
• The system cannot play CD-ROMs, etc. (page 8).
• The region code on the DVD does not match the
system.
• Moisture has condensed inside the system.
Remove the disc and leave the system turned on
for about half an hour (page 3).
The MP3 audio track cannot be played.
• The DATA CD is not recorded in an MP3 format
that conforms to ISO9660 Level 1/ Level 2 or
Joliet.
• The MP3 audio track does not have the extension
“.MP3.”
• The data is not formatted in MP3 even though it
has the extension “.MP3.”
• The system can only play MP3 (MPEG1 Audio
Layer3) audio.
• Remove the disc and select [CUSTOM SETUP]
from the setup items. Then select [DATA CD
PRIORITY] and set to [MP3] again.
• The album contains more than 250 MP3 audio
tracks.
• Directory level is more than 8.
The title of the MP3 audio album or track is not
correctly displayed.
• The system can only display alphabetical letters
and numbers. Other characters are displayed as “ ”.
The JPEG image file cannot be played.
• The DATA CD is not recorded in a JPEG format
that conforms to ISO9660 Level 1/Level 2 or
Joliet.
• The JPEG image file does not have the extension
“.JPG” or “.JPEG.”
• The data is not formatted in JPEG even though it
has the extension “.JPG” or “JPEG.”
• Image length or width is more than 4720 dots.
• A JEPG image file with a high width to length
ratio cannot be displayed.
• Remove the disc and select [CUSTOM SETUP]
from the setup items. Then select [DATA CD
PRIORITY] and set to [JPEG] again.
• Directory level is more than 8.
• The album contains more than 250 JPEG image
files.
• You cannot play the Progressive JPEG files.
The title of the JPEG album or file is not
correctly displayed.
• The system can only display alphabetical letters
and numbers. Other characters are displayed as “ ”.
A disc does not start playing from the
beginning.
• Repeat Play has been selected (pages 37).
Cancel Repeat Play before playing a disc.
• Resume Play has been selected.
During stop, press x on the system or the remote
and then start playback (page 31).
• The title, DVD or PBC menu automatically
appears on the TV screen.
A disc cannot be ejected and “LOCKED”
appears in the front panel display.
• Contact your Sony dealer or local authorized Sony
service facility.
The system does not work normally.
• If the system’s operation becomes effected, press
"/1 on the system to turn off the power, then turn
on the power again.
The system starts playing the disc
automatically.
• The DVD features an auto playback function.
Playback stops automatically.
• Some discs may contain an auto pause signal.
While playing such a disc, the system stops
playback at the auto pause signal.
You cannot perform some functions such as
Stop, Search, Slow-motion Play, or Repeat
Play.
• Depending on the disc, you may not be able to
perform some of the operations above. See the
operating manual that came with the disc.
Messages do not appear on the screen in the
language you want.
• In the Setup Display, select the desired language
for the on-screen display in [OSD] under
[LANGUAGE SETUP] (page 64).
Additional Information
The system turns off during DVD playback.
• If approximately one hour passes with DVD
playback paused or with the DVD top menu or a
DVD menu displayed during DVD playback, the
system automatically turns off.
The language for the sound track cannot be
changed.
• Multilingual tracks are not recorded on the DVD
being played.
• The DVD prohibits changing the language for the
sound track.
The subtitle language cannot be changed.
• Multilingual subtitles are not recorded on the
DVD being played.
• The DVD prohibits changing the subtitles.
The subtitle cannot be turned off.
• The DVD prohibits turning off subtitles.
The angles cannot be changed.
• Multi-angles are not recorded on the DVD being
played (51 page).
• The DVD prohibits changing the angles.
69GB
Inputs
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND
TOTAL HARMONIC
DISTORTION:
With 4 ohm loads, both
channels driven, from
200 – 20,000 Hz; rated
65 watts per channel
minimum RMS power,
with no more than 0.7 %
total harmonic distortion
from 250 milli watts to
rated output.
Amplifier section
BC150
Stereo mode (rated)
65W + 65W (4 ohms at 1
kHz, DIN)
Surround mode (reference)
North American models: Front: 108 W + 108 W
(with SS-TS10)
Center*: 108 W
(with SS-TS10)
Surround*: 108 W + 108 W
(with SS-TS10)
Subwoofer*: 110 W
(with SS-WS10)
Other models:
Front: 85 W + 85 W
(with SS-TS10)
Center*: 85 W
(with SS-TS10)
Surround*: 85 W + 85 W
(with SS-TS10)
Subwoofer*: 85 W
(with SS-WS10)
Phones
DVD system
Laser
Semiconductor laser
(DVD: λ = 650 nm)
(CD: λ = 780 nm)
Emission duration:
continuous
Signal format system
NTSC (North American
models)
NTSC/PAL (Other
models)
Frequency response (at 2 CH STEREO mode)
DVD (PCM): 2 Hz to 22
kHz (±1.0 dB)
CD: 2 Hz to 20 kHz (±1.0
dB)
Tuner section
System
FM tuner section
Tuning range
North American models:
Other models:
Antenna
Antenna terminals
Intermediate frequency
AM tuner section
Tuning range
North American models:
BC250
65 W + 65 W (4 ohms at 1
kHz, DIN)
Surround mode (reference) Front: 113 W + 113 W
(with SS-TS11)
Center*: 113 W
(with SS-CT11)
Surround*: 113 W + 113 W
(with SS-TS10)
Subwoofer*: 115 W
(with SS-WS10)
Stereo mode (rated)
* Depending on the sound field settings and the source,
there may be no sound output.
70GB
VIDEO/SAT
(AUDIO IN):
Sensitivity: 250/400 mV
Impedance: 50 kilohms
Accepts low-and highimpedance headphones.
Middle Easten models:
Other models:
antenna
Intermediate frequency
PLL quartz-locked digital
synthesizer system
87.5 – 108.0 MHz
(100 kHz step)
87.5 – 108.0 MHz
(50 kHz step)
FM wire antenna
75 ohms, unbalanced
10.7 MHz
531 – 1,710 kHz (with the
interval set at 9 kHz)
530 – 1,710 kHz (with the
interval set at 10 kHz)
531 – 1,602 kHz (with the
interval set at 9 kHz)
531 – 1,602 kHz (with the
interval set at 9 kHz)
530 – 1,710 kHz (with the
interval set at 10 kHz)
AM loop antenna
450 kHz
Video section
Outputs
Subwoofer (DAV-BC150/BC250)
Video: 1 Vp-p 75 ohms
S video:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
PB/CB, PR/CR: 0.7 Vp-p
75 ohms
Speakers (DAV-BC150)
Front/Center/Surround
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Bass reflex
70 mm (2 7/8 inches) dia.
cone type
4 ohms
97 × 100 × 105 mm
(3 7/8 × 4 × 4 1/4 inches)
(w/h/d)
0.6 kg (1 lb 6 oz)
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Bass reflex
70 mm (2 7/8 inches) dia.
cone type
4 ohms
260 × 1107 × 78 mm
(10 1/4 × 43 5/8 × 3 1/8
inches)
(w/h/d)
3.5 kg (7 lb 12 oz)
Rated impedance
Dimensions (approx.)
Mass (approx.)
Bass reflex
160 mm (6 3/8 inches) dia.
cone type
4 ohms
177 × 380 × 402 mm
(7 × 15 × 15 7/8 inches)
(w/h/d)
6.7 kg (14 lb 13 oz)
General
Power requirements
North American and Mexican models:
120 V AC, 60 Hz
Taiwan model:
120V AC, 50/60 Hz
Other models:
220 – 240 V AC, 50/60 Hz
Power consumption
100 W
0.3 W (at the Power Saving
Mode)
Dimensions (approx.)
430 × 90 × 403 mm
(17 × 3 5/8 × 15 7/8 inches)
(w/h/d) incl. projecting
parts incl. projecting parts
Mass (approx.)
5.5 kg (12 lb 3 oz)
Supplied accessories
See page 13.
Design and specifications are subject to change
without notice.
Additional Information
Speakers (DAV-BC250)
Front
Speaker system
Speaker unit
Center
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Bass reflex
70 mm (2 7/8 inches) dia.
cone type
4 ohms
291 × 97 × 78 mm
(11 1/2 × 3 7/8 × 3 1/8 inches)
(w/h/d)
0.8 kg (1 lb 13 oz)
Surround
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Bass reflex
70 mm (2 7/8 inches) dia.
cone type
4 ohms
97 × 100 × 105 mm
(3 7/8 × 4 × 4 1/4 inches)
(w/h/d)
0.6 kg (1 lb 6 oz)
71GB
Dolby Surround Pro Logic
Glossary
Album
Section of a music piece or an image on a data
CD containing MP3 audio tracks or JPEG files.
Chapter
Subdivision of a title on a DVD. A title is
composed of several chapters.
Dolby Digital
This movie theatre sound format for is more
advanced than Dolby Surround Pro Logic. In
this format, the surround speakers output stereo
sound with an expanded frequency range, and a
subwoofer channel for deep bass is
independently provided. This format is also
called “5.1” with the subwoofer channel
designed as the 0.1 channel (since it functions
only when a deep bass effect is needed). All six
channels in this format are recorded separately
for superior channel separation. Furthermore,
since all the signals are processed digitally, less
signal degradation occurs.
Dolby Pro Logic II
Dolby Pro Logic II creates five full-bandwidth
output channels from two-channel sources. This
is done using an advanced, high-purity matrix
surround decoder that extracts the spatial
properties of the original recording without
adding any new sounds or tonal colourations.
x Movie mode
The Movie mode is for use with stereo television
shows and all programs encoded in Dolby
Surround. The result is enhanced soundfield
directionality that approaches the quality of
discrete 5.1-channel sound.
x Music mode
The Music mode is for use with any stereo music
recordings, and provides a wide and deep sound
space.
As one method of decoding Dolby Surround,
Dolby Surround Pro Logic produces four
channels from two-channel sound. Compared
with the former Dolby Surround system, Dolby
Surround Pro Logic reproduces left-to-right
panning more naturally and localizes sounds
more precisely. To take full advantage of Dolby
Surround Pro Logic, you should have one pair of
surround speakers and a center speaker. The
surround speakers output monaural sound.
DTS
Digital audio compression technology
developed by Digital Theater Systems, Inc. This
technology conforms to 5.1-channel surround.
This format comprises of stereo rear channel and
there is discrete subwoofer channel in this
format. DTS provides the same 5.1 discrete
channels of high quality digital audio. The good
channel separation is realized due to the all
channel data being recorded discretely and
processed in digitally.
DVD
A disc that contains up to 8 hours of moving
pictures even though its diameter is the same as
a CD.
The data capacity of a single-layer and singlesided DVD, at 4.7 GB (Giga Byte), is 7 times
that of a CD. Furthermore, the data capacity of a
dual-layer and single-sided DVD is 8.5 GB, a
single-layer and double-sided DVD 9.4 GB, and
a dual-layer and double-sided DVD 17 GB.
The picture data uses the MPEG 2 format, one of
a worldwide standard of digital compression
technology. The picture data is compressed to
about 1/40 of its original size. The DVD also
uses the variable rate coding technology that
processes allocated data according to the status
of the picture.
The audio data is recorded in Dolby Digital as
well as in PCM, allowing you to enjoy more
realistic audio presence.
Furthermore, various advanced functions such
as the multi-angle, multilingual, and Parental
Control functions are provided with the DVD.
File
Section of a picture on a data CD containing
JPEG image files.
72GB
Film based software, Video based
software
DVDs can be classified as Film based or Video
based software. Film based DVDs contain the
same images (24 frames per second) that are
shown at movie theatres. Video based DVDs,
such as television dramas or sit-coms, displays
images at 30 frames (or 60 fields) per second.
Interlace format
(Interlaced scanning)
Region Code
This system is used to protect copyrights. A
region number is allocated on each DVD system
or DVD disc according to the sales region. Each
region code is shown on the system as well as on
the disc packaging. The system can play discs
that match its region code. The system can also
play discs with the “ ALL ” mark. Even when the
region code is not shown on the DVD, the region
limit may still apply.
The Interlace format is the NTSC standard
method for displaying TV images at 30 frames
per second. Each frame is scanned twice alternately between the even numbered scanning
lines and then odd numbered scanning lines, at
60 times per second.
Scene
Multi-angle function
Various angles of a scene, or viewpoints of the
video camera are recorded on some DVDs.
The longest section of a picture or music feature
on a DVD, movie, etc., in video software, or the
entire album in audio software.
Multilingual function
Track
Several languages for the sound or subtitles in a
picture are recorded on some DVDs.
Section of a picture or a music piece on a
VIDEO CD, CD, or MP3. An album is
composed of several tracks (MP3 only).
A function of the DVD to limit playback of the
disc by the age of the users according to the
limitation level in each country. The limitation
varies from disc to disc; when it is activated,
playback is completely prohibited, violent
scenes are skipped or replaced with other scenes
and so on.
Playback Control (PBC)
Signals encoded on VIDEO CDs (Version 2.0)
to control playback.
By using menu screens recorded on VIDEO
CDs with PBC functions, you can enjoy playing
simple interactive programs, programs with
search functions, and so on.
Progressive format
(sequential scanning)
In contrast to the Interlace format, the
progressive format can reproduce 60 frames per
second by reproducing all scanning lines (525
lines for the NTSC system). The overall picture
quality increases and still images, text and
horizontal lines appear sharper. This format is
compatible with the 525 progressive format.
Title
VIDEO CD
A compact disc that contains moving pictures.
The picture data uses the MPEG 1 format, one of
a worldwide standard of digital compression
technology. The picture data is compressed to
about 1/140 of its original size. Consequently, a
12 cm VIDEO CD can contain up to 74 minutes
of moving pictures.
VIDEO CDs also contain compact audio data.
Sounds outside the range of human hearing are
compressed while sounds we can hear are not
compressed. VIDEO CDs can hold 6 times the
audio information of conventional audio CDs.
There are 2 versions of VIDEO CDs.
• Version 1.1: You can play only moving
pictures and sounds.
• Version 2.0: You can play high-resolution still
pictures and enjoy PBC functions.
This system conforms to both versions.
Additional Information
Parental Control
On a VIDEO CD with PBC (playback control)
functions, the menu screens, moving pictures
and still pictures are divided into sections called
“scenes.”
73GB
Index to Parts and Controls
For more information, refer to the pages indicated in parentheses.
Front Panel
DISC1
DISC2
DISC3
DISC4
DISC5
PRESET
VOLUME
FUNCTION
STANDBY
PHONES
A "/1 (power) (28)
H FUNCTION (28, 57, 60)
B Disc tray (28)
I VOLUME +/– (28)
C DISC 1-5 A (eject) indicators (28, 62)
J PHONES jack (28)
D H (play) (28, 62)
K Front panel display (75)
E X (pause) (30)
L STANDBY indicator (28)
F x (stop) (30)
M
G ./>, PRESET –/+
(30, 60, 62)
74GB
(remote sensor) (13)
Front Panel Display
When playing back a DVD
Playing status
Current mode
Lights up when title or
chapter names are
contained in the disc
Current title or
chapter number
Current surround format
Current sound effect
Playing time
When playing back a VIDEO CD, CD, or MP3
Playing status
Current surround format
Current mode
Current sound effect
Lights up during PBC
playback (VIDEO CD only)
Playing time
When listening to the radio
Monaural/Stereo effect
Current band
Current sound effect
Preset number
Additional Information
Lights up when track
names are contained
in the disc
Current track number
Current station
When playing back a JPEG
Current mode
Playing Status
Current file number
continued
75GB
Rear Panel
AUDIO IN
L
R
VIDEO/SAT
FRONT R
CENTER
FRONT L
SURR R
WOOFER
SURR L
Y
P B /C B
P R /C R
S VIDEO (DVD ONLY)
COMPONENT VIDEO OUT
VIDEO
MONITOR OUT
SPEAKER
A SPEAKER jacks (14)
E AM terminal (19)
B VIDEO/SAT AUDIO IN jacks (20, 58)
F FM 75Ω COAXIAL jack (19)
C COMPONENT VIDEO OUT jacks (20)
D MONITOR OUT (VIDEO / S VIDEO) jacks
(20)
76GB
COAXIAL
AM
FM 75
L SUBTITLE (51)
Remote
M ./>, PRESET –/+ (30, 32, 60)
N H PLAY (28, 30, 31, 32, 36, 37, 38)
O X PAUSE (30)
P TOP MENU (32)
Q C/X/x/c/ENTER (25, 32, 34, 35, 36, 37,
39, 46, 52, 58, 59, 60, 62, 63)
R
DISPLAY (34, 35, 37, 39, 44, 45, 46,
52, 63)
S TV CH +/– (55, 56)
1
2
3
T TV VOL +/– (55)
4
5
6
U TV [/1 (on/standby) (55)
7
8
9
V "/1 (standby) (28, 59, 60)
10
0
W DSGX (50)
X AUTO FORMAT DIRECT (48, 49)
Y MODE (48, 49)
wj FUNCTION (22, 28, 55, 57, 58, 59, 60)
wk Number buttons (32, 39, 52, 55, 56)
wl ENTER (55)
e; m/M/
59, 60)
/
SLOW, TUNING –/+ (38,
ea x STOP (30, 31, 32)
es AMP MENU (25, 58, 62)
Additional Information
wh NIGHT MODE (50)
ed MENU (32)
ef VOLUME +/– (30, 60)
eg O RETURN (32, 34, 35, 39, 52, 63)
eh TV/VIDEO (55, 56)
ej DISPLAY (43, 60)
ek TIME/TEXT (41, 44)
el CLEAR (39)
A SONY TV DIRECT (56)
B PROGRESSIVE (22, 55)
C DISC SKIP (28, 30)
D MUTING (30)
E REPEAT/FM MODE (37, 60)
F SLEEP (61)
G TUNER/BAND (59, 60)
H TUNER MENU (59, 60)
I TV (55)
J AUDIO (46)
K ANGLE (51)
77GB
Language code list
The language spellings conform to the ISO 639: 1988 (E/F) standard.
78GB
Code
Language
Code
Language
Code
Language
1027
1028
1032
1039
1044
1045
1051
1052
1053
1057
1059
1060
1061
1066
1067
1070
1079
1093
1097
1103
1105
1109
1130
1142
1144
1145
1149
1150
1151
1157
1165
1166
1171
1174
1181
1183
1186
1194
1196
1203
1209
1217
1226
1229
1233
1235
1239
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali; Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
1245
1248
1253
1254
1257
1261
1269
1283
1287
1297
1298
1299
1300
1301
1305
1307
1311
1313
1326
1327
1332
1334
1345
1347
1349
1350
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
1417
1428
1435
1436
1463
1481
1482
1483
Inupiak
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian; Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan) Oromo
Oriya
Punjabi
Polish
Pashto; Pushto
Portuguese
Quechua
Rhaeto-Romance
Kirundi
Romanian
1489
1491
1495
1498
1501
1502
1503
1505
1506
1507
1508
1509
1511
1512
1513
1514
1515
1516
1517
1521
1525
1527
1528
1529
1531
1532
1534
1535
1538
1539
1540
1543
1557
1564
1572
1581
1587
1613
1632
1665
1684
1697
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tonga
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volap k
Wolof
Xhosa
Yoruba
Chinese
Zulu
1703
Not specified
DVD Setup Menu List
You can set the following items with the DVD Setup menu.
The order of the displayed items may be different from the actual display.
LANGUAGE SETUP
SCREEN SETUP
OSD
(Select the language you
want to use from the
displayed language list.)
TV TYPEb)
DVD MENU
(Select the language you
want to use from the
displayed language list.)
SCREEN SAVER
AUDIO
BACKGROUND
(Select the language you
want to use from the
displayed language list.)
4:3 LETTER
BOX
4:3 PAN SCAN
16:9
ON
OFF
JACKET
GRAPHICS
BLUE
BLACK
PARENTAL
CONTROL
LEVEL
OFF
8.
7. NC17
6.
R
5.
4. PG13
3.
PG
2.
1.
G
STANDARD USA
OTHERSt
CHANGE PASSWORD
TRACK
OFF
SELECTION AUTO
DATA CD
MP3
PRIORITY
JPEG
b)
models.
The default setting varies, depending on the
country model.
Additional Information
(Select the language you
want to use from the
displayed language list.) RESET
YES
NO
CUSTOM SETUP
VCD
AUTO
PAL
COLOR
a) Only for Asian, Australian, and Saudi Arabian
SYSTEMa)
NTSC
SUBTITLE
79GB
AMP Menu List
You can set the following items with AMP MENU on the remote.
SP SETUP
CENTER SP
SURR SP
CENTER Y
CENTER N
SURR Y
SURR N
F DIST
CEN DIST
1.0m - 7.0m/3ft - 23ft
1.0m - 7.0m/3ft - 23ft
SURR DIST
1.0m - 7.0m/3ft - 23ft
LEVEL
T.TONE
F BALANCE
T.TONE OFF
T.TONE ON
6 steps left or right
CEN LEVEL
–6 dB - +6 dB
SL LEVEL
–6 dB - +6 dB
SR LEVEL
–6 dB - +6 dB
SW LEVEL
–6 dB - +6 dB
AUDIO DRC
DRC OFF
DRC STD
DRC MAX
CUSTOMIZE
DIMMER
ATTENUATE
80GB
DIM OFF
DIM ON
ATT OFF
ATT ON
Index
Numerics
I
S
16:9 65
4:3 LETTER BOX 65
4:3 PAN SCAN 65
INDEX 40
Index 7
S VIDEO 20
Scan 38
SCENE 11
Scene 7, 73
SCREEN SAVER 65
SCREEN SETUP 65
Setup Display 63
SLEEP 61
Slow-motion 38
SONY TV DIRECT 56
Sound Field 48
Speaker System Hookup 14
SUBTITLE 51, 64
A
ALBUM 34, 39
Album 7, 72
AMP MENU 25, 58, 62
ANGLE 51
Antenna Hookups 19
AUDIO 46, 64
B
BACKGROUND 65
Batteries 13
J
JPEG 35
L
LANGUAGE SETUP 64
M
C
N
CHAPTER 40
Chapter 7, 72
COMPONENT VIDEO OUT
22, 55
Continuous play
CD/VIDEO CD/DVD/MP3 28
Control Menu 11
CUSTOM SETUP 66
NIGHT MODE 50
D
PARENTAL CONTROL 52, 66,
73
PBC Playback 32, 73
Power Saving 29
Preset Station 59
PROGRESSIVE 22, 55
DATA CD PRIORITY 66
DISC SKIP 28
Dolby Digital 72
Dolby Surround Pro Logic 72
DSGX 50
DTS 72
DVD 72
F
Fast forward 38
Fast reverse 38
File 7, 72
Front Panel 74
Front panel display 75
O
On-screen display
Control Menu display 11
OSD 64
P
T
TIME SEARCH 39
TIME/TEXT 41
TITLE 39
Title 7, 73
TRACK 39
Track 7, 73
TRACK SELECTION 66
Troubleshooting 67
TUNER MENU 59
TV and Video Component
Hookups 20, 23
TV TYPE 65
Additional Information
MENU DVD 64
MP3 33
Multi-angle function 51, 73
Multilingual function 46, 73
MUTING 30
U
Usable discs 7
V
VIDEO CD 73
R
Radio 60
Rear Panel 76
Region Code 8, 73
Remote 55, 77
REPEAT/FM MODE 37, 60
Resume Play 31
H
Handling discs 9
81GB
Quick reference for Remote Commander
1
2
3
4
5
6
7
8
9
10
0
Note
The remote control of the unit employs
command signals in common with other
Sony DVD products.
Thus, depending on the button, other Sony
DVD products may respond.
A Turns a SONY TV and the
system on and changes the
TV’s input source.
B Selects the output signal,
progressive format or
interlace format.
C Changes a disc while playing
another disc.
D Mutes the sound.
E Disc: Displays the [REPEAT]
display on the TV screen.
Radio: Switches monaural or
stereo of FM stereo reception.
F Sets the system to turn off at a
preset time.
G Selects AM or FM band.
H Stores a preset station.
I Switches the TV’s input source
between TV and SYSTEM.
Sets the remote to TV mode.
Normal mode: turns off.
TV mode: turns red.
Sony Corporation Printed in Korea
J Changes the sound while
playing a DVD or VIDEO CD.
K Changes the angles when
playing a DVD.
L Changes the subtitle language
when playing a DVD.
M ./>: Press to go to the
next chapter or track or to go
back to the previous chapter or
track. PRESET –/+: Scan all
preset stations.
N Plays a disc.
O Pauses playing a disc.
P Displays the title menu on the
TV screen.
Q Selects and executes the items
or settings.
R Displays the Control Menu
display on the TV screen to set
or adjust the items.
S Selects the TV Channel.
T Adjusts the TV volume.
U Turns the TV on and off.
V Turns on and off the power of
the system.
W Reinforces bass sound.
X Selects the sound field.
Y Selects the sound field.
wh Makes sound clear at low
volume.
wj Selects the component you
want to use.
wk Selects the items of settings.
TV: Selects channel numbers.*
wl Executes the items or settings.
TV: Press after selecting a
channel number
e; m/M (SCAN): Locates a
point while monitoring the
picture while playing disc.
/
SLOW: Plays a disc in
slow motion in the pause mode.
TUNING –/+: Scans all
available radio stations.
ea Stops playing a disc.
es Displays the setup in the front
panel display to set or adjust
items.
ed Displays the DVD menu on the
TV screen.
ef Adjust the SYSTEM volume.
TV: Adjust the TV volume.
eg Returns to the previously
selected screen, etc.
eh Changes the input mode of the
TV.
ej Displays the sound field and
volume level.
ek Switches the item displayed on
the front panel display.
el Cancel the number you select.
* Depending on the TV manufacturer,
the following method may also work.
Press >10, then the number. (For
example, for channel 25, press >10,
then 2 and 5.)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
