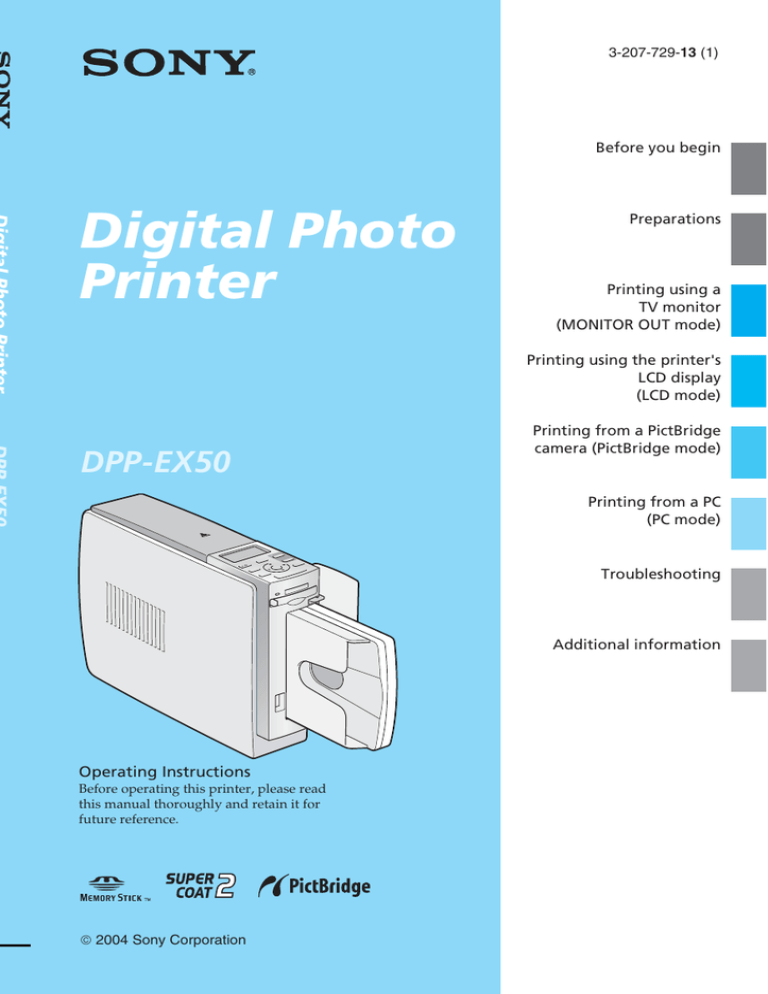

3-207-729-13 (1)
Before you begin
Digital Photo
Printer
Preparations
Printing using a
TV monitor
(MONITOR OUT mode)
Printing using the printer's
LCD display
(LCD mode)
DPP-EX50
Printing from a PictBridge
camera (PictBridge mode)
Printing from a PC
(PC mode)
Troubleshooting
Additional information
Operating Instructions
Before operating this printer, please read
this manual thoroughly and retain it for
future reference.
 2004 Sony Corporation
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
To avoid electrical shock, do not open
the cabinet. Refer servicing to
qualified personnel only.
CAUTION
Pictures and/or Sound distortion may occur if
this product is positioned in close proximity to
equipment emitting electromagnetic radiation.
CAUTION
Sony shall assume no responsibility for any
accidental or consequential damages or loss of the
recording contents which may be caused by use
or malfunction of the printer or “Memory Stick”.
Owner’s Record
The model and serial numbers are located on
the bottom. Record the serial number in the
space provided below. Refer to these
numbers whenever you call upon your Sony
dealer regarding this product.
Model No. DPP-EX50
Serial No.
WARNING
This unit has no power switch.
When installing the unit, incorporate a
readily accessible disconnect device in the
fixed wiring, or connect the power cord to
socket-outlet which must be provided near
the unit and easily accessible. If a fault should
occur during operation of the unit, operate
the disconnect device to switch the power
supply off, or disconnect the power cord.
2 GB
For the customers in the U.S.A.
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
The shielded interface cable recommended in this
manual must be used with this equipment in order to
comply with the limits for a digital device pursuant to
Subpart B of Part 15 of Fcc Rules.
If you have any questions about this product, you
may contact:
Sony’s Customer Information Services Center (CISC)
at 1-866-328-SONY (7669)
or Sony Web site at www.sony.com
Declaration of Conformity
Trade Name: SONY
Model No.:
DPP-EX50
Responsible Party:
Sony Electronics Inc.
Address:
16450 W. Bernardo Dr, San
Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Duplication, edition, or printing of a CD, TV
programs, copyrighted materials such as
pictures or publications, or any other
materials except for your own recording or
creation is limited to private or domestic use
only. Unless you hold copyright or have
permission of copyright holders for the
materials to be duplicated, use of those
materials beyond this limit may infringe the
provisions of the copyright law and be
subject to the copyright holder’s claim for
damages.
When using photo images with this printer,
pay special attention not to infringe the
provisions of the copyright law. Any
unauthorized use or modification of others’
portrait may also infringe their rights.
For some demonstrations, performances, or
exhibits, photography may be forbidden.
Backup recommendations
To avoid potential risk of data loss caused by
accidental operation or malfunction of the
printer, we recommend that you save a backup
copy of your data.
Information
IN NO EVENT SHALL SELLER BE LIABLE
FOR ANY DIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY
NATURE, OR LOSSES OR EXPENSES
RESULTING FROM ANY DEFECTIVE
PRODUCT OR THE USE OF ANY PRODUCT.
On trademarks and copyrights
•VAIO is the trademark of Sony Corporation.
•Microsoft and Windows® are registered
trademarks or trademarks of Microsoft
Corporation in the United States and other
countries.
•IBM and PC/AT are registered trademarks
of International Business Machines
Corporation.
•MMX and Pentium are registered
trademarks of Intel Corporation.
”, “MagicGate
• “Memory Stick“, “
Memory Stick“, “Memory Stick Duo”,
“Memory Stick PRO” and “Memory StickROM”are trademarks of Sony Corporation.
•“MagicGate” is the trademark of Sony
Corporation.
•The raster process of true type fonts is based
on the FreeType Team software.
•This software is based in part on the work of
the independent JPEG Group.
•Libtiff
Copyright © 1998-1997 Sam Leffler
Copyright © 1991-1997 Silicon Graphics,
Inc.
•Lib png
Copyright © 1995, 1996 Guy Eric Schalnat,
Group 42, Inc.
Copyright © 1996, 1997 Andreas Dilger
Copyright © 1998, 1999 Glenn RandersPehrson
• Zlib
© 1995- 2002 Jean-loup Gailly and Mark
Adler
•This product uses “Exif Toolkit For
Windows Ver.2.4 (Copyright © 1998 FUJI
PHOTO FILM CO., LTD. All rights
reserved).” Exif is the exchangeable image
file format for digital still cameras specified
by the JEIDA (Japan Electronics Industrial
Development Association).
•All other companies and product names
mentioned herein may be the trademarks or
registered trademarks of their respective
companies. Furthermore, “™” and “®” are
not mentioned in each case in this manual.
3 GB
Notice for users
Program © 2004 Sony Corporation
Documentation ©2004 Sony Corporation
All rights reserved. This manual or the software
described herein, in whole or in part, may not
be reproduced, translated or reduced to any
machine readable form without prior written
approval from Sony Corporation.
IN NO EVENT SHALL SONY CORPORATION
BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
WHETHER BASED ON TORT, CONTACT, OR
OTHERWISE, ARISING OUT OF OR IN
CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
By breaking the seal of the envelope of the CDROM package, you accept all the terms and
conditions of this agreement. If you do not
accept these terms and conditions, please
return this disk envelope unopened, along with
the rest of the package, immediately to the
dealer where you obtained it.
Sony Corporation reserves the right to make
any modification to this manual or the
information contained herein at any time
without notice.
The software described herein may also be
governed by the terms of a separate user license
agreement.
User Registration
To receive customer services, complete and
return the registration card included in your
package.
Any design data such as sample pictures
provided in this software cannot be modified or
duplicated except for the purpose of personal
use. Any unauthorized duplication of this
software is prohibited under copyright law.
Please note that unauthorized duplication or
modification of others’ portraits or copyrighted
work could infringe the rights reserved by right
holders.
4 GB
Table of contents
Before you begin
Overview ................................................ 6
What you can do with this printer .............. 6
Operation flows ........................................ 8
Features .................................................... 9
Preparations
1 Checking the contents of the
package .......................................... 11
2 Preparing the printing pack (not
supplied) ......................................... 12
Sizes of print paper ................................. 12
Optional printing packs ........................... 12
3 Loading the print cartridge ............. 13
4 Inserting the print paper ................. 15
Printing using a TV monitor
(MONITOR OUT mode)
Connections .......................................... 18
Connecting to a TV monitor ..................... 18
Connecting the AC power cord ................ 19
Inserting a memory card ....................... 19
Inserting a “Memory Stick” ..................... 19
Inserting a CompactFlash card ................. 20
Displaying the images on a
TV monitor ...................................... 20
Basic printing operations ...................... 22
Printing a selected image ........................ 22
Printing multiple images .......................... 24
AUTO printing (INDEX/DPOF/ALL) ............ 27
Editing an image .................................. 30
Displaying the EDIT menu ........................ 31
Editing an image ..................................... 32
Saving and printing the edited image ....... 40
Making various prints (Creative Print) .. 42
Displaying the Creative Print menu .......... 43
Making a Creative print ........................... 43
Saving and printing a
Creative print image ................................ 58
Printing from a PC (PC mode)
Installing the software .......................... 85
Changing the print settings (SET UP) .... 60
System requirements ............................... 85
Installing the printer driver ...................... 87
Installing the PictureGear Studio .............. 92
Changing the printer preferences
(OPTION) ........................................ 63
Printing photos from the PictureGear
Studio ............................................. 96
Viewing a slideshow ............................. 65
Printing from other
application software .............................. 102
Deleting images .................................... 67
Deleting selected images ......................... 67
Formatting a “Memory Stick” .................. 69
Searching for an image ......................... 69
Troubleshooting
If trouble occurs .................................. 104
If an error message appears ............... 120
Printing using the printer‘s LCD
display (LCD mode)
If paper jams ...................................... 124
Cleaning the inside of the printer ....... 124
Connections .......................................... 72
Connecting the AC power cord ................ 72
Inserting a memory card ....................... 73
Inserting a “Memory Stick” ..................... 73
Inserting a CompactFlash card ................. 73
Printing images .................................... 74
Printing a selected image ........................ 74
AUTO printing (INDEX/DPOF/ALL) ............ 76
Changing the print settings .................. 79
Additional information
Precautions ......................................... 126
About the “Memory Stick” ................. 127
What is “Memory Stick”? ...................... 127
Types of “Memory Stick” ....................... 127
Types of “Memory Stick” that the
printer can use ...................................... 128
Notes on use ......................................... 129
About the CompactFlash card ............ 130
Printing from a PictBridge
camera (PictBridge mode)
Printing images from the
digital camera ................................. 81
Changing the print settings .................. 83
Notes on use ......................................... 130
Specifications ..................................... 131
Printing range ....................................... 133
Glossary .............................................. 135
Lists of templates and patterns in
Creative Print
(MONITOR OUT mode only) .......... 136
Identifying the parts ........................... 139
Index .................................................. 141
5 GB
Before you begin
Overview
What you can do with this printer
The Digital Photo Printer DPP-EX50 provides the following four operation modes,
depending on the medium or device you use for printing.
When you print an image on a “Memory Stick” or a CompactFlash card
Printing using a TV monitor (MONITOR OUT mode) c Page 18
Connect the printer to a TV monitor to view the images and monitor operations
for printing an image. You can enjoy a variety of printing and editing features.
A variety of prints you can make
Basic one-image
prints (p.22)
Free layout
prints (p.43)
6 GB
INDEX/DPOF/ALL Enlarged/Reduced/
prints (p.27)
Moved/Rotated
image prints
(pp.32, 33)
Calendar prints
(p.50)
Card prints (p.53)
Superimposed
images (p. 36)
Split images
prints (p.56)
When you print an image on a “Memory Stick” or a CompactFlash card
Printing using the printer‘s LCD display (LCD mode) c Page 72
Print images while checking the image number and conduct operations on the
printer‘s LCD display.
Before you begin
Prints you can make
Basic one-image
prints (p.74)
Printing from a PictBridge
camera (PictBridge mode)
INDEX/DPOF/
ALL prints (p.76)
Printing from a PC
(PC mode) c Page 85
c Page 81
Connect a PictBridge-compliant
digital camera to the printer to print
images using the camera.
Connect the printer to your
computer to print images using the
computer.
7 GB
Operation flows
Depending on the operation mode you choose, follow the operation flow below:
MONITOR
OUT mode
LCD mode
PictBridge mode
PC mode
Get the printer ready for printing
• Prepare the printing pack (not supplied) (page 12)
• Load the print cartridge (page 13)
• Insert the print paper (page 15)
Install the supplied
software on the PC
(page 87)
Connect to a TV
monitor (page 18)
Connect to a PC
(page 89)
Connect to an AC outlet
Insert the “Memory Stick” (pages 19,
73) or CompactFlash card (pages 20, 73)
Connect to a
camera (page 82)
Print an image
Print an image
Use the camera
Use the PC to
while viewing it
using the
printer‘s LCD
to print an
image (page 81)
print an image
on a TV monitor
(page 22)
8 GB
display (page 74)
(page 96)
Features
xSupreme picture quality functions
enabling photo-realistic printing
The printer employs the professional
dye sublimation printing systems. With
its professional digital filter, the printer
eliminates color deterioration that may
occur because of the heated head, and
reproduces photo-realistic prints.
Super Coat 2
The Super Coat 2 feature enables high
durability and moisture or fingerprint
resistance, keeping your prints in good
condition for an extended period of
time.
Auto Fine Print 3
The Auto Fine Print 3 analyses the
picture information of an image,
including the Exif data, and corrects the
resulting picture. You can select a
correction option from “Vivid” to
improve the vividness of an image, or
“Photographical” to make an image
look more natural and beautiful. Thanks
to the heat-resistance process and a
high-speed CPU, Auto Fine Print 3
realizes even higher-definition
reproduction and quicker adjustments
than the previous Auto Fine Print 2
could.
• The printer supports Exif 2.2.
Coupled with the Auto Fine Print 3
feature, the printer automatically
adjusts an image of an Exif Printcompliant digital camera and prints it
with optimal picture quality.
• When you use the supplied
PictureGear Studio software to print
an image from your PC, you can
choose Exif Print picture correction in
addition to the conventional OS
picture correction. In Exif Print
correction, the supplied printer driver
uses the Exif data of an image and the
printer‘s color processing to adjust
and reproduce an image with
supreme picture quality.
Red-eye reduction and other
adjustments (MONITOR OUT/PC
modes only, page 35)
You can adjust an image to reduce the
red-eye phenomenon that may occur
when the subject was shot with flash.
Adjustments of brightness, hue, and
other elements of picture quality are
also possible.
* Exif (Exchangeable image file format for
digital cameras) Print is a global standard
for digital photo printing. A digital
camera supporting Exif Print stores data
relevant to the shooting conditions as
each shot is taken. The printer utilises the
Exif Print data stored in each image file to
ensure the printed result matches the
original shot as closely as possible.
9 GB
Before you begin
High performance heat-resistant
technology for dye sublimation
printing
Exif 2.2* (Exif Print)
support (page 61)
x Convenient printing operations
High-speed CPU enabling quick
adjustment and printing
The printer employs a high-speed CPU,
which allows you to process, preview,
and print an image quickly.
3D animation interface (MONITOR
OUT mode only)
The printer’s 3D animation interface
will allow you to figure out the next
step easily, learn what the icon or cursor
means, and enjoy operating the printer.
Paper tray allowing bulk printing of
25/30 sheets (page 15)
With the supplied paper tray, you can
print up to 25 sheets for Post Card size
and 30 sheets for 3.5 x 5 inch size or
Small size print paper, at one time.
x Versatile of printing
A choice of print sizes (page 12)
You can select from Post Card size, 3.5 x
5 inch size, and Small size prints.
Border or borderless prints (page
61)
You can select a borderless or border
print for the Post Card and 3.5 x 5 inch
size prints.
A wide variety of image filters
(MONITOR OUT mode only, page
34)
A variety of image processing functions
allows you to add a special effect to the
picture to produce sepia, monochrome,
or paint effects. By applying the GUI
3D engine to the printing data process,
you can enjoy the look of a fish-eye filter
or other interesting 3D print effects.
Slideshow feature (MONITOR OUT
mode only, page 65)
You can view a slide show of the images
on the memory card. You can also print
the image displayed on the monitor.
PictBridge-compliant**
(page 81)
The printer supports the PictBridge
standard, so that you can print an image
easily from a PictBridge-compliant
digital camera.
Windows PC support with a
convenient USB connection (page
85)
By connecting the printer to your
computer via a USB connector and
installing the supplied printer driver,
you can print images from your
computer.
A choice of print finish (page 61)
You can select from either glossy or
texture print finish.
** PictBridge is a standard that allows you
to connect a digital camera directly to a
printer without a PC, enabling direct
printing on the spot.
10 GB
Preparations
This section explains how to prepare
your printer. Follow the procedures in
this section to get the printer ready for
printing.
1Checking the
contents of the
package (this page)
2 Prepare the printing
pack (not supplied)
(page 12)
Make sure that the following accessories
are supplied with your printer.
Paper tray (1)
Preparations
x
1 Checking the
contents of the
package
Video connecting cable (1)
x
3 Loading the print
cartridge (page 13)
CD-ROM (1)
x
– Sony DPP-EX50 Printer Driver
Software for Windows® 98SE/
Me/2000 Professional/XP Home
Edition/XP Professional
– PictureGear Studio V.2.0
4 Inserting the print
paper (page 15)
After you finish preparations, read the
explanations for each operation mode
(pages 6 to 7) to print an image.
Cleaning cartridge (1)
Clamp filter (1)
•
•
•
•
•
Operating Instructions (this booklet, 1)
Quick Start Guide (1)
Warranty (1)
Owner registration card (1)
Sony End User Software License
Agreement (1)
11 GB
2 Preparing the
printing pack (not
supplied)
To print an image, you
need an optional printing
pack designed for the
printer. The pack contains
a set of print paper and a
print cartridge.
For 3.5 x 5 inch size
printing:
bSVM-30MS
• 30 sheets of 3.5 x 5 inch size photo
paper
• Print cartridge for 30 prints
For Small size printing:
bSVM-30SS
• 30 sheets of Small size photo paper
• Print cartridge for 30 prints
Sizes of print paper
You can select the print paper from the
following three sizes:
• Post card (4 x 6 inch) size
• 3.5 x 5 inch size
• Small (3.5 x 4 inch) size
Optional printing packs
Select the printing pack according to the
type of printing you intend to do:
For post card size
printing:
bSVM-25LS
• 25 sheets of Post Card size photo
paper
• Print cartridge for 25 prints
bSVM-75LS
• 3 packages of 25 sheets of Post Card
size photo paper
• 3 print cartridges each for 25 prints
12 GB
To order printing packs, visit the
following web site:
www.sony.com/printers
Notes
• Use the printing pack for this printer only.
• For high quality prints, avoid placing the
printing pack in locations that are subject
to high temperature, high humidity,
excessive dust, or direct sunlight.
• When storing a partially-used pack of the
print cartridge and print paper, store it in
its original bag or in a similar container.
3 Loading the print
cartridge
1
3
Close the cartridge
compartment cover.
Slide open the cartridge
compartment cover.
Cartridge cover
2
Insert the print cartridge.
Insert the print cartridge, with the
Sony logo side up, until it clicks into
place.
When the print cartridge runs out, the
(cartridge error) indicator appears on
the printer‘s LCD display.
Open the cartridge compartment cover,
push the green eject lever outsides, and
remove the used print cartridge.
Eject lever
Sony logo
Continued
13 GB
Preparations
Removing the print cartridge
Notes
• Do not touch the ink ribbon or place the
print cartridge in a dusty location.
Fingerprints or dust on the ink ribbon may
result in imperfect printing.
Ink ribbon
• Never put your hand into the cartridge
compartment. The thermal head reaches
high temperatures, especially after
repeated printing.
• Do not rewind the ink ribbon and use the
rewound print cartridge for printing.
Otherwise, proper printing result will not
be obtained, or even a malfunction may
occur.
• If the print cartridge does not click into
place, remove it and then re-insert it. If the
ink ribbon is too slack to be loaded, wind
the ink ribbon in the direction of the arrow
to remove the slack.
14 GB
• Do not remove the print cartridge while
printing.
Notes on storing the print cartridge
• Avoid placing the print cartridge in a
location subject to high temperatures, high
humidity, excessive dust or direct sunlight
• When you are going to store a partiallyused cartridge, store it in its original bag.
4 Inserting the print
paper
1
Open the paper tray cover.
x To use Post Card size print
paper
Slide the spacer towards outsides
until it clicks into place at the
most outside arrow marker.
Paper feed
direction
Preparations
Spacer
2
Adjust the spacer to the paper
size you want to use.
On the bottom inside of the paper
tray, there are three arrow markers
showing the slider stopper
positions for the three paper sizes.
x To use 3.5 x 5 inch size print
paper
Slide the spacer toward the paper
feed direction until it clicks into
place at the middle arrow marker.
Slide the spacer.
Paper feeding direction
Paper feed
direction
Spacer
Marker for Small size
Marker for 3.5 x 5 inch size
Marker for Post card size
Continued
15 GB
Printing surface
x To use Small size paper
Slide the spacer toward the paper
feed direction until it clicks into
place at the most inside arrow
marker.
Paper feed
direction
Arrows pointing the feed
direction
Note
Do not touch the printing surface.
Fingerprints on the printing surface may
result in imperfect printing.
Spacer
4
Remove the protective sheet.
Note
Make sure to adjust the slider to the
paper size before you install the print
paper. If you insert the print paper and
then adjust the spacer, a trouble may
occur.
3
Set the print paper into the
tray.
Riffle the print paper. Then insert
the print paper and the protection
sheet together with its printing
surface (the side with no imprint)
facing up and the arrow pointing to
the paper feed direction.
You can set up to 25 sheets for Post
Card size and 30 sheets for 3.5 x 5
inch size or Small size print paper.
16 GB
Note
You can use the protective sheet as
cleaning sheet. Make sure to keep it
together with the supplied cleaning
cartridge. (page 124)
5
Close the paper tray cover.
6
– When adding print paper to a partially
full tray, make sure that the total
number of sheets does not exceed 25 for
the Post Card size or 30 for the 3.5 x 5
inch size and Small size print paper.
– Do not place different types or sizes of
paper in the tray.
– Do not print on the used print paper.
Printing an image twice on the same
paper will not make the printed image
thicker.
– Use the print paper for this printer only.
– Do not use the print paper ejected
without printed.
Insert the paper tray into the
printer.
Insert it firmly until it clicks into
place.
Notes on storing the print paper
• Avoid storing the paper with the printed
faces touching each other or in contact
with rubber or plastic products including
vinyl chloride or plasticizer for an
extended period of time; color changes or
deterioration of the printed image may
occur.
• Avoid placing the print paper in a location
subject to high temperatures, high
humidity, excessive dust or direct sunlight.
• When you are going to store partially-used
print paper, store it in its original bag.
Notes
• Do not remove the paper tray during
printing.
• To avoid paper jam or malfunctions of the
printer, make sure the following before
printing:
– Do not write or type on the print paper.
Use the oil ink pen to write on the paper
after printing. You cannot type on the
print paper.
– Do not attach sticker or stamps on the
print paper.
– Do not hold or bend the print paper.
17 GB
Preparations
7
Push and open the printer’s
paper tray compartment
cover.
Printing using a TV monitor (MONITOR OUT mode)
When you connect your printer to a TV
monitor, you can display the images
and check the operations on the TV
monitor. You can perform the following
printing operations:
• Printing a selected
image (page 22)
Connections
Connecting to a TV monitor
Connect the VIDEO OUT (output)
connector of the printer to the video
input of a TV monitor.
• AUTO printing
(INDEX/DPOF/ALL)
(page 27)
• Editing an image
(enlarging/reducing,
moving, rotating,
adjusting, adding a
special filter, red-eye
reduction, entering
characters) (page 30)
• Making various prints
(Creative Print) (free
layout, calendar, card,
split images) (page 42)
• Changing the print settings (page 60)
• Changing the printer preferences
(page 63)
• Viewing the slideshow (page 65)
• Deleting images (page 67)
• Searching an image (page 69)
18 GB
Video connecting
cable (supplied)
Notes
• Before making connections, unplug the AC
power cord of the printer and turn off a TV
monitor.
• When you do not use the supplied video
connecting cable, use a commercially
available video connecting cable shorter
than 3 m.
Connecting the AC power cord
After you have made the connections,
connect the AC power cord to the AC
outlet.
The ON/STANDBY indicator lights in
red.
To the wall outlet
Inserting a memory
card
Inserting a “Memory Stick”
To print an image stored on a “Memory
Stick,” insert it into the “Memory Stick”
slot until it clicks into place.
For the varieties of “Memory Stick” that
you can use with the printer, see page
127.
AC power cord
Insert it so
that the b
mark
is on the
upper left
corner.
Note
The AC power cord in the above illustration
is for 120 V AC only. The plug shape of the
AC power cord for 100 to 240 V is different.
To eject a “Memory Stick”
Push the “Memory Stick” lightly into
the insertion slot. After the “Memory
Stick” pops back out, remove it slowly.
Notes
• When using a “Memory Stick Duo,” be
sure to use the “Memory Stick Duo”
adaptor.
• Do not attempt to insert a “Memory Stick”
forcibly into or out of the slot. If you do so,
the “Memory Stick” or the printer may be
damaged.
19 GB
Printing using a TV monitor (MONITOR OUT mode)
Access
indicator
flashes while
the printer is
on.
Inserting a CompactFlash card
To print an image stored on a
CompactFlash card, insert the
CompactFlash card into the
CompactFlash card slot until it clicks
into place.
For the varieties of CompactFlash card
that you can use with the printer, see
page 130.
Displaying the images
on a TV monitor
This section explains how to display the
images of the memory card on a TV
monitor.
1
Turn on the printer.
The ON/STANDBY indicator of the
printer lights in green.
Access
indicator
flashes while
the printer is
on.
Insert it with
the wider
side facing
the printer.
Eject button
To eject a CompactFlash card
Press the CompactFlash card eject
button. After the card pops back out,
remove it slowly.
Note
Do not attempt to insert a CompactFlash
forcibly into or out of the slot. If you do so,
the CompactFlash or the printer may be
damaged.
On using the memory card
• To avoid potential loss of data, make a
backup copy of the contents of the memory
card. We cannot compensate for any
damage to or loss of data.
• Check the memory card and insert it in the
correct direction. If a memory card is
forcibly inserted in the wrong direction,
the memory card and its slot may be
damaged.
20 GB
2
Turn on a TV monitor and set
its input selector to “VIDEO”.
3
Make sure that the MONITOR
OUT indicator lights.
If not, press MONITOR OUT to
turn on the indicator to select the
MONITOR OUT mode.
4
Press INPUT SELECT repeatedly
to select the memory card
containing the images that
you want to print.
Display the desired memory card
type on the upper left of the TV
monitor (“Memory Stick” or
“CompactFlash”) .
The access indicator flashes, and the
images on the selected memory
card are displayed on the TV
monitor. This is called the image
list.
Memory card type
Yellow frame (cursor) Total number
of images in
Number of the
selected images the card
Image number
Associated file/DPOF/
Protect indications*
To display another page
When multiple pages exist, you can
switch pages. To display the next page,
move the yellow frame to the bottom
line of the image list and press v. To
display the previous page, move the
yellow frame to the top line and press V.
Displaying the printer images
(demonstration mode)
When no memory card is inserted and
no computer or digital camera is
connected to the printer, you can
display and print the printer’s built-in
images. Press INPUT SELECT
repeatedly until “DEMO”
(demonstration) is displayed on the TV
monitor. Among the image list of the
printer’s built-in images, you can select
and print an image.
To exit the demonstration mode, display
the image list of the printer’s built-in
image, and then press INPUT SELECT
again.
Print cartridge type
(L:Postcard/M: 3.5 x 5
inch/S: Small)
21 GB
Printing using a TV monitor (MONITOR OUT mode)
Access
indicator
* On Associated file/DPOF/Protect
indications
• Associated file indication:
The image, in addition to the displayed
image, has an associated file such as a
motion file or a miniature e-mail image
file.
• DPOF indication:
The image is DPOF preset with a digital
camera.
• Protect indication:
The image is protected with a digital
camera.
Basic printing
operations
2
Press PRINT.
Printing of the image selected with
the cursor starts.
Printing a selected image
This section explains
how to select an image
and print it in full size.
Borderless standard print
1
Press the arrow (B/b/V/v)
button to move the yellow
frame (cursor) to the image
you want to print.
During printing, the printing
process is displayed on the TV
monitor.
v
Yellow frame
22 GB
3
When printing is complete and
the print paper automatically
emerges, remove the printed
paper from the paper tray.
Checking the preview image
before printing
You can display and check an image in
full-screen size before printing.
Move the yellow frame (cursor) to the
desired image, then press PICTURE.
• Do not remove the memory card while the
access indicator is flashing; the memory
card or printer may be damaged.
• Never move or turn off the printer while it
is printing; the print cartridge or paper
may become stuck. If this happens, turn
the printer off and then on, and resume
printing from the beginning.
The selected image is displayed in fullscreen size. This is called the preview
image.
Print cartridge type
(L:Postcard/M: 3.5 x
5 inch/S: Small)
Memory
Total number of
card type
images in the
Number of the memory card
selected images
Print quantity indication
Image number
Associated file/
DPOF/Protect
indications (page
21)
Scroll bar indicating the
position of the image
among the total number
of images.
Continued
23 GB
Printing using a TV monitor (MONITOR OUT mode)
Notes
To display the preview of another
Press the arrow (B/b/V/v) button to
display an image positioned left, right,
upper, or below of the selected image in
the image list.
To print the previewed image
Press PRINT. The previewed image is
printed.
Note
Printing multiple images
This section explains how to select
multiple images, specify print quantity
for each of them and print them at a
time.
1
Press the arrow (B/b/V/v)
button to move the yellow
frame (cursor) to the image
you want to print, then press
ENTER.
Even if there are selected images and print
quantity for the images is specified, only the
previewed image is printed. To print
multiple images at a time, print them in the
image list.
To cancel print setting
Press CANCEL for more than two
seconds.
To display the image list again
Press PICTURE.
Note
The displayed picture on a TV monitor is not
identical with the printed picture because
phosphor methods or profiles of each TV
monitor differ. Please regard the displayed
picture as just a reference.
24 GB
The print quantity indication
becomes “01”.
Print quantity indication
2
Press ENTER or CANCEL to set
the print quantity.
• To increase the print quantity one
by one, press ENTER.
• To decrease the print quantity
one by one, press CANCEL.
• To cancel the selection, press
CANCEL for more than two
seconds.
3
Repeat steps 1 and 2 to select
other images and set print
quantity for each of them.
When you move the yellow frame,
the previously selected image is
displayed with the orange frame.
Selected images with orange frame
Press the arrow (B/b/V/v) button
to move the yellow frame (cursor)
to the image you want to cancel in
the image list and press CANCEL
for more than two seconds.
You can set up to 30 copies of print
quantity for an image.
The orange frame disappears.
Print quantity increases or decreases.
Continued
25 GB
Printing using a TV monitor (MONITOR OUT mode)
To cancel the selection
4
5
Press PRINT.
Printing of the images selected with
orange frames starts.
During printing, the printing
process is displayed on the TV
monitor.
v
To stop printing
Press CANCEL. When you are
printing multiple copies, the next
printing after the one currently
printing will be cancelled.
26 GB
When printing is complete and
the print paper automatically
emerges, remove the printed
paper from the paper tray.
Notes
• Do not remove the memory card while the
access indicator is flashing; the memory
card or printer may be damaged.
• Never move or turn off the printer while it
is printing; the print cartridge or paper
may become stuck. If this happens, turn
the printer off and then on, and resume
printing from step 1 on page 24.
AUTO printing (INDEX/DPOF/
ALL)
AUTO (automatic) printing allows you
to print multiple images stored on the
“Memory Stick” or a CompactFlash card
at one time.
The printer provides the following three
AUTO printing methods:
Notes
• For how to preset images for printing, see
the manual of your digital camera.
• Some types of digital camera do not
support the DPOF function, or the printer
may not support some of the functions of
the digital camera.
1
Press AUTO PRINT repeatedly
to display “INDEX,” “DPOF,”
or “ALL” on the TV monitor.
Image number
Date (If Date Print
is on.)
• DPOF preset image printing
The images which are DPOF (Digital
Print Order Format) preset for
printing are displayed with the print
) in the image list. You can
mark (
print those images at one time. The
images are printed with the preset
number of copies in the order they
were displayed.
To make an index print: INDEX
All the images are selected with
orange frames.
INDEX indication
Continued
27 GB
Printing using a TV monitor (MONITOR OUT mode)
• INDEX printing
You can print a list (index) of all the
images contained in the “Memory
Stick” or CompactFlash card in split
panes, which allows you to check the
contents of the memory card easily.
The number of split panes on a sheet
will be calculated automatically.
Images are printed with their
corresponding image numbers.
• ALL images printing
You can print all the images stored in
the “Memory Stick” or CompactFlash
card at one time. The images are
printed one by one in the order of
their image numbers.
To cancel selection (except for
the DPOF printing)
To print DPOF-preset images:
DPOF
Only the DPOF-preset images are
displayed with orange frames, each
with the preset print quantity.
Press the arrow (B/b/V/v) button
to move the yellow frame (cursor)
to the image of which you want to
cancel selection in the image list
and press CANCEL.
DPOF indication
To print all the images in a
memory card: ALL
All the images are selected with
orange frames.
The orange frame disappears and
the selection is canceled.
ALL indication
Note
You cannot cancel the selection of the
DPOF preset images.
2
Press PRINT.
Printing starts.
28 GB
During printing, the printing
process is displayed on the TV
monitor.
To resume the normal printing mode
Press AUTO PRINT repeatedly until
either INDEX, DPOF, or ALL
disappears from the TV monitor.
Tips
v
• Even if the print cartridge runs out in the
middle of printing, you can proceed with
printing. If a message appears, follow the
instructions on a TV monitor to replace the
printing pack (pages 13 through 17).
• When the “Date Print” is set to “ON”, the
recorded date (year, month and day) is
also printed (page 62).
Printing using a TV monitor (MONITOR OUT mode)
To stop printing
Press CANCEL. When you are
printing multiple copies, the next
printing after the one currently
printing will be cancelled.
3
When printing is complete and
the print paper automatically
emerges, remove the printed
paper from the paper tray.
29 GB
Editing an image
You can display the EDIT menu on the
TV monitor and edit or add an effect to
an image.
This section explains how to edit an
image as follows:
Buttons to be used in this section
MENU
ENTER
Arrow (B/b/
V/v) button
PRINT
CANCEL
Displaying the EDIT menu (page
31)
x
Editing an image
• Enlarging or reducing the size
of an image (page 32)
• Moving an image (page 32)
• Rotating an image (page 33)
• Adjusting an image (page 33)
• Adding a special filter to an
image (page 34)
• Reducing red-eye phenomenon
(page 35)
• Superimposing characters (page
36)
x
Saving and printing an edited
image (pages 40 and 41)
30 GB
Cursor
Displaying the EDIT menu
1
EDIT menu
Follow step 1 on page 22 to
select an image that you want
to edit or press PICTURE to
display its preview image.
Items
Procedures
2
Reduces the size of an
image or item (page 32).
Press MENU.
The menu bar is displayed.
EDIT menu icon
Moves an image or item
(page 32).
Menu bar
Rotates an image or item
(page 33).
Adjusts the picture
quality of an image (page
33).
Adds an filter to an image
(page 34).
Corrects the red-eye
phenomenon (page 35).
To exit the menu mode
Superimposes characters
on an image (page 36).
Press MENU again. The previous
window is displayed.
3
Press the arrow (B/b) button
to select
(EDIT) and then
press ENTER.
Reset
Resets the editing (page
40).
Save
Saves the edited image
(page 40).
Exit
Exits the EDIT menu
(page 41).
The EDIT menu is displayed.
31 GB
Printing using a TV monitor (MONITOR OUT mode)
Increases the size of an
image or item (page 32).
Editing an image
Enlarging and reducing the size
of an image
1
Display the EDIT menu (page
31).
2
Press the arrow (B/b/V/v)
button to select
to enlarge
an image or
to reduce the
size of it and then press
ENTER.
Moving an image
1
Display the EDIT menu (page
31).
2
Press the arrow (B/b/V/v)
button to select
(Position)
and then press ENTER.
The image frames become yellow
and you can move an image.
Image frame becomes yellow.
Position tool
Each time you press ENTER, the
image becomes larger or smaller:
: up to 200%
: up to 60%
3
Move the image with the
arrow (B/b/V/v) button.
The image moves to the selected
direction.
Note
The picture quality of an enlarged image may
be deteriorated depending on its size.
32 GB
4
3
Press ENTER.
The image is fixed to the position.
Press the arrow (V/v) button
to select the direction to
rotate the image and then
press ENTER.
• Rotate 90° Clockwise: Each time
you press ENTER, the image
rotates 90° clockwise.
• Rotate 90° Counterclockwise:
Each time you press ENTER, the
image rotates 90°
counterclockwise.
Adjusting an image
You can rotate an image clockwise or
counterclockwise.
1
Display the EDIT menu (page
31).
2
Press the arrow (B/b/V/v)
button to select
(Rotate)
and then press ENTER.
1
Display the EDIT menu (page
31).
2
Press the arrow (B/b/V/v)
button to select
(Adjust)
and then press ENTER.
The Adjust menu is displayed.
Adjust menu
Adjustment tool
The Rotate menu is displayed.
Rotate menu
Rotate tool
Continued
33 GB
Printing using a TV monitor (MONITOR OUT mode)
Rotating an image
3
Press the arrow (V/v) button
to select the desired
adjustment tool and press
ENTER.
Adding a special filter to an
1
Display the EDIT menu (page
31).
2
Press the arrow (B/b/V/v)
button to select
(Filter) and
then press ENTER.
The adjustment slider appears.
When “Brightness” is selected.
The Filter menu is displayed.
Filter menu
Filter tool
Adjustment slider
4
Move the slider to the desired
position to adjust the level.
• Brightness: Press V to brighten
the picture or v to darken it.
• Tint: Press V to make the picture
bluish or v to make it reddish.
• Saturation: Press V to deepen the
colors or v to lighten the colors.
• Sharpness: Press V to sharpen
the outlines or v to reset them.
5
3
Press the arrow (V/v) button
to select the desired filter you
want to add to the image.
• Sepia: Changes the image like an
old photograph with faded
colors.
• Monochrome: Changes the
image into a monochrome
picture.
• Paint: Makes the image look like
a painted picture.
• Fish-eye: Makes the image look
like a photo taken with a fish-eye
lens.
• Clear Filter: Removes the filter
from the image.
Press ENTER.
The adjustment takes effect.
To reset the adjustment
Press the arrow (B/b/V/v) button to
select “Reset” and then press ENTER.
The image resets to the status before the
adjustment is added.
4
Press ENTER.
The filter takes effect.
34 GB
Reducing the red-eye
phenomenon
You can reduce the red-eye
phenomenon of a subject shot using a
flash.
Note
1
Display the EDIT menu (page
31).
2
Press the arrow (B/b/V/v)
(Red-eye
button to select
reduction) and then press
ENTER.
Adjust the position and size of
the adjustment frame.
Make the red-eye reduction
adjustment for the right and left
eyes separately.
To move the adjustment frame
1 Press the arrow (B/b/V/v)
button to select
(Position) and
press ENTER.
2 Move the frame with the arrow
(B/b/V/v) button.
The frame moves in the selected
direction.
Moves the frame.
The adjustment frame appears on
the image, which indicates the
range for red-eye reduction
adjustment.
Adjustment frame
3 Press ENTER.
The frame is fixed in the current
position.
To adjust the size of the
adjustment frame
Press the arrow (B/b/V/v) button
to select
(Enlarge) or
(Reduce) and press ENTER.
Continued
35 GB
Printing using a TV monitor (MONITOR OUT mode)
If you perform editions such as
enlarging, reducing the size of, rotating
or moving an image after the red-eye
reduction adjustment, the red-eye
reduction may not take effect. Perform
the red-eye reduction after these
editorial operations.
3
Each time you press ENTER, the
frame becomes larger or smaller.
5
Press ENTER to execute the
red-eye reduction adjustment.
The adjustment takes place.
Enlarge/reduce the size of the frame
To reset the adjustment
Press CANCEL in step 5. The red-eye
reduction is canceled and the window
of step 2 is displayed.
Superimposing characters
You can enter up to 5 lines of characters
to be superimposed on an image.
1
Display the EDIT menu (page
31).
2
Press the arrow (B/b/V/v)
button to select
(Text) and
then press ENTER.
Tip
Make the size of the adjustment frame
two to seven times as large as the eye
size.
Note
Make sure to perform the red-eye
reduction adjustment for the right and
left eye separately.
4
The keyboard is displayed.
Current line number
Character input box
Press the arrow (B/b/V/v)
button to select “Execute” and
press ENTER.
The range of red-eye reduction
adjustment is enlarged.
Select color and font, and load/
save the messages.
Select a character.
36 GB
3
2 Press the arrow (B/b/V/v)
button to select the desired color
and press ENTER.
Select a font.
The characters are input in the font
displayed in the “FONT” button.
To select a different font, do the
following:
1 Press the arrow (B/b/V/v)
button to select “FONT.”
2 Press ENTER repeatedly until
the desired font is displayed:
You cannot specify multiple fonts and
colors for a sequence of characters input.
All the lines of characters are input in
the identical font and color. You can
change font and color in the middle of
input procedures; The changed font and
color will be applied to all the input
characters.
4
Select a color.
The characters are input in the color
displayed next to “COLOR”. To
apply different color, do the
following:
1 Press the arrow (B/b/V/v)
button to select “COLOR” and
press ENTER.
The color selection window is
displayed.
You cannot apply multiple colors for
each line of characters.
5
Press the arrow (B/b/V/v)
button to select the desired
character, then press ENTER to
input a character.
The selected characters are input in
the character input box. You can
enter up to 50 characters for each
single line.
To change lines
Press the arrow (B/b/V/v) button
to select # and press ENTER.
You can enter the maximum of 5
lines.
To input a capital letter
Press the arrow (B/b/V/v) button
to select “CAPS” and press ENTER.
The capital letters keyboard is
displayed. To return to the small
letters input keyboard, select
“CAPS” again.
To correct characters in the
input box
•To delete a character before the
cursor ( | ) in the input box
Press the arrow (B/b/V/v) button to
select “BS” (Back Space) and press
ENTER. Each time you press ENTER,
a character before the cursor is
deleted.
Continued
37 GB
Printing using a TV monitor (MONITOR OUT mode)
Note
Note
•To insert a character among the
input characters
Items
Re-input The keyboard is displayed.
Input characters again.
Press the arrow (B/b/V/v) button to
select “B” or “b” on the window and
then press ENTER repeatedly until
the cursor (|) moves to the position
where you want to insert a character.
6
Procedures
Each time you press
ENTER, the characters
become larger.
After you finish entering the
remaining characters, press
the arrow (B/b/V/v) button
to select “NEXT”, and then
press ENTER.
Each time you press
ENTER, the characters
become smaller.
Move the characters with
the arrow (B/b/V/v)
button, and then press
ENTER.
The keyboard is closed and the
input characters are superimposed
on the image.
Each time you press
ENTER, the characters
rotate 90° clockwise.
Adjustment tools
Each time you press ENTER,
the characters rotate 90°
counterclockwise.
Note
If a number of input characters is large,
you may not be able to rorate, increase
or decrease the size of characters.
7
Press the arrow (B/b/V/v)
button to select the desired
adjustment tool, then press
ENTER to adjust the size and
position of the characters.
To make multiple adjustments,
repeat this step.
38 GB
8
Press the arrow (v/V) button
to select “Execute”, then
press ENTER.
The characters are fixed to the
image.
Note
Once you select “Execute”, you cannot
move or delete the characters.
Registering commonly-used
characters as a message
You can register commonly-used
characters as a message and can load
them later onto the character input box.
Up to three messages, each message
with the maximum of 80 characters, can
be registered.
2
Follow steps 1 through 5 in
“Superimposing characters”
(pages 36 and 37) to enter
characters that you want to
register as a message in the
input box.
Press the arrow (B/b/V/v)
button to select “LOAD/SAVE”
and press ENTER.
Press the arrow (V/v) button
to select the message box that
you want to save the
characters in and press ENTER.
The input characters are registered
as a message.
To load a registered message
In step 3 above, select “Load” to display
the window used for selecting a
message.
The dialog box to register and save
messages is displayed.
3
Press the arrow (B/b) button
to select “Save” and then
press ENTER.
The message selection screen is
displayed.
Press the arrow (V/v) button to select
the desired message and press ENTER.
The selected message is placed in the
character input box.
Note
The characters having been input in the input
box will be overwritten and replaced with
the message.
Continued
39 GB
Printing using a TV monitor (MONITOR OUT mode)
1
4
Saving and printing the edited
3
Set date.
Press the arrow (V/v) button to
select the number and press the
arrow (B/b) button to select the
day, month or year. Then press
ENTER.
Saving the edited image
After you finish editing, you can save
the edited image under a new file
number.
Tip
The selected image will not be overwritten.
1
Press the arrow (B/b/V/v)
button to select “Save” and
press ENTER.
The dialog box to select the media
to save the image in is displayed.
2
The image is saved. The dialog box
to notify the new file number is
displayed.
Select the destination memory
card.
Press the arrow (V/v) button to
select the “Memory Stick” or
“Compact Flash” and press ENTER.
4
Press ENTER.
Note
While saving the image, do not turn off the
printer or remove the memory card from the
printer. The memory card may be damaged.
The dialog box for setting date is
displayed. You can save the date
with the image.
40 GB
Resetting the editing
You can remove editing done in the
EDIT window and reset the edited
image to its original status.
1
Press the arrow (B/b/V/v)
button to select “Reset” and
press ENTER.
The confirmation dialog box is
displayed.
2
The image is reset to its original
status.
Printing an edited image
1
The image previewed is printed.
To stop printing
Press CANCEL. When you are
printing multiple copies, the next
printing after the one currently
printing will be cancelled.
Displaying other menu while
editing an image
Press MENU.
The menu bar is displayed. Even while
editing an image, you can change some
printer settings or option menu items
such as “Finish,” “Date Print” or
“Beep.”
Press PRINT.
The dialog box to specify the print
quantity is displayed.
2
Press the arrow (B/b/V/v)
button to select “OK” to start
printing.
Exiting the EDIT menu
Press the arrow (B/b/V/v) button to
select “Exit” and press ENTER.
The dialog box for saving an image may
be displayed. To save an edited image,
follow the steps in “Saving an edited
image.”
Set the print quantity.
• To increase the print quantity
one by one, press ENTER
repeatedly.
• To reduce the print quantity one
by one, press CANCEL
repeatedly.
• To reset the print quantity to
one, press CANCEL for more
than two seconds.
41 GB
Printing using a TV monitor (MONITOR OUT mode)
Press the arrow (B/b) button
to select “OK” and press
ENTER.
3
Making various prints
Buttons to be used in this section
(Creative Print)
MENU
You can display the Creative Print
menu on the TV monitor and make a
card, calendar, split images prints using
the image of the “Memory Stick” or
CompactFlash card.
ENTER
Arrow (B/b/
V/v) button
PRINT
CANCEL
This section explains how to make a
print as follows:
Displaying the Creative Print
menu (page 43)
x
Making a Creative print
• Making a free layout print
(page 43)
• Making a calendar (page 50)
• Making a card (page 53)
• Making split images (page 56)
x
Saving and printing a Creative
print image (page 58)
42 GB
Displaying the Creative Print
menu
Making a Creative print
Making a free layout print
1
Press MENU.
The menu bar is displayed.
Creative Print menu icon
Menu bar
You can add an image,
wallpaper, a message,
characters, a calendar, or
stamps to make an
original free layout print.
Tip
For the list of wallpaper, frames, or
templates, see pages 136 and 137.
Press MENU. The previous
window is displayed.
2
Display the Creative Print
menu (page 43).
2
Press the arrow (B/b/V/v)
button to select “Free Layout”
and then press ENTER.
The print size selection window is
displayed.
Press the arrow (B/b) button
to select
(Creative Print)
and then press ENTER.
The Creative Print menu is
displayed.
Continued
43 GB
Printing using a TV monitor (MONITOR OUT mode)
To exit the menu mode
1
3
Press the arrow (B/b) button
to select the print size, then
press ENTER.
5
The wallpaper selection window is
displayed.
Press the arrow (B/b/V/v)
button to select
(Image)
and press ENTER.
The frame selection window is
displayed.
When you select “Postcard size”
4
Press the arrow (B/b/V/v)
button to select the desired
wallpaper, then press ENTER.
If you do not want to place
wallpaper on the image, select “No
Wallpaper.”
The preview window of the selected
wallpaper is displayed.
Selected wallpaper
44 GB
6
Press the arrow (B/b/V/v)
button to select the desired
frame that you want to shape
an image with, then press
ENTER.
If you do not want to use a frame,
select “No Frame.”
The image list is displayed.
7
Press the arrow (B/b/V/v)
button to select the desired
image, then press ENTER.
The window used for adjusting the
image size and position is
displayed.
9
Press the arrow (B/b/V/v)
button to select “Execute” and
press ENTER.
The window used for adjusting the
framed image size and position is
displayed.
Adjustment tools
Press the arrow (B/b/V/v)
button to select the desired
adjustment tool, then press
ENTER.
Items
Procedures
Each time you press
ENTER, the image becomes
larger.
Each time you press
ENTER, the image becomes
smaller.
Move the adjustment frame
with the arrow (B/b/V/v)
button, and then press
ENTER.
Each time you press
ENTER, the image rotates
90° clockwise.
10 Press the arrow (B/b/V/v)
button to select the desired
adjustment tool, then press
ENTER.
Items
Procedures
Each time you press
ENTER, the framed image
becomes larger.
Each time you press
ENTER, the framed image
becomes smaller.
Move the framed image
surrounded by the
adjustment frame with the
arrow (B/b/V/v) button,
and then press ENTER.
Each time you press
ENTER, the image rotates
90° counterclockwise.
Continued
45 GB
Printing using a TV monitor (MONITOR OUT mode)
8
Adjustment tools
11 Press the arrow
(B/b/V/v)
button to select “Execute” and
press ENTER.
The framed image is displayed.
Using the items in this window,
you can add your favorite effects on
the print (pages 46 to 49).
Items you can add to the print
Adding your favorite effects to the
print
x Adding a stamp
1 Press the arrow (B/b/V/v) button
(Stamp) and press
to select
ENTER.
The stamp selection window is
displayed.
Preview of the created print
12 Check the preview, then save
and print your Creative print.
For details, see page 58.
46 GB
2 Press the arrow (B/b/V/v) button
to select the desired stamp, then
press ENTER.
The window used for adjusting the
stamp size and position is displayed.
3 Adjust the size and position of the
stamp.
For information on adjustment, see
step 8 on page 45.
To cancel the operation
2 Press the arrow (B/b/V/v) button
to select the desired message, then
press ENTER.
The character color selection
window is displayed.
Press CANCEL. The window of the
previous step is displayed.
x Adding a message
1 Press the arrow (B/b/V/v) button
to select
(Message) and press
ENTER.
The message selection window is
displayed.
3 Press the arrow (B/b/V/v) button
to select the desired color and then
press ENTER.
The window used for adjusting the
message size and position is
displayed.
To cancel the operation
Press CANCEL. The window of the
previous step is displayed.
4 Adjust the size and position of the
message.
For information on adjustment, see
step 8 on page 45.
5 Press the arrow (B/b/V/v) button
to select “Execute” and then press
ENTER.
The selected message is pasted on
the image.
Continued
47 GB
Printing using a TV monitor (MONITOR OUT mode)
4 Press the arrow (B/b/V/v) button
to select “Execute” and then press
ENTER.
The selected stamp is pasted on the
image.
x Adding a calendar
1 Press the arrow (B/b/V/v) button
to select
(Calendar) and press
ENTER.
The window used for selecting a
calendar type is displayed.
3 Set the calendar.
Press the arrow (V/v) button to
select the following items and then
press the arrow (B/b) to select an
option.
Item
Procedures
Start Month
Set the first month and the year
starting the calendar. Press the
arrow (B/b) to select the month
or year and press the arrow (V/
v) button to set the number.
Press ENTER.
2 Press the arrow (B/b/V/v) button
to select the desired calendar type
and press ENTER.
The calendar setting window is
displayed.
To cancel the operation
Press CANCEL. The window of the
previous step is displayed.
48 GB
Start Day
Set the day of the week (placed
furthest left in the calendar).
Press the arrow (B/b) button to
select “Sunday” or “Monday.”
Then press ENTER.
Color of Day
Set the color of Sunday and
Saturday to be displayed in the
calendar. Press the arrow (b)
button and then the arrow (V/v)
button to select the desired color
for Sunday and Saturday. Then
press ENTER.
4 Press the arrow (B/b/V/v) button
to select “Execute” and then press
ENTER.
The window used for adjusting the
calendar size and position is
displayed.
x Superimposing characters
Press the arrow (B/b/V/v) button to
select
(Text) and press ENTER.
The keyboard is displayed. For how to
enter characters, see “Superimposing
characters” on pages 36 to 39.
Printing using a TV monitor (MONITOR OUT mode)
5 Adjust the size and position of the
calendar.
For information on adjustment, see
step 8 on page 45.
6 Press the arrow (B/b/V/v) button
to select “Execute” and then press
ENTER.
The selected calendar is pasted on
the image.
49 GB
Making a calendar
You can add a selected
calendar to an image
or images to make an
original calendar.
1
Display the Creative Print
menu (page 43).
2
Press the arrow (B/b/V/v)
button to select “Calendar”,
then press ENTER.
4
Press the arrow (B/b/V/v)
button to select the desired
template, then press ENTER.
The preview of the selected
template is displayed.
Image area
Calendar area
The print size selection window is
displayed.
Tip
You can select and set an image area or
calendar area in any order.
5
.
3
Press the arrow (B/b) button
to select the print size, then
press ENTER.
The window used for selecting the
calendar type is displayed.
When you select “Postcard size”
50 GB
Select an image.
When you select a template with
multiple images, repeat the
procedures below to select an image
for each area.
1 Press the arrow (B/b/V/v)
button to select an image area,
then press ENTER.
The image list is displayed.
2 Press the arrow (B/b/V/v)
button to select the desired
image, then press ENTER.
The window used for adjusting
the image size and position is
displayed.
Item
Procedures
Each time you press
ENTER, the image
becomes larger.
Each time you press
ENTER, the image
becomes smaller.
Adjustment tools
Move the image with the
arrow (B/b/V/v) button,
and then press ENTER.
Each time you press
ENTER, the image rotates
90° counterclockwise.
3Press the arrow (B/b/V/v)
button to select the desired
adjustment tool, then press
ENTER.
4Press the arrow (B/b/V/v)
button to select “Execute” and
then press ENTER.
The image is selected and
displayed in the relevant area.
6
Set the calendar.
1 Press the arrow (B/b/V/v)
button to select the calendar area
and press ENTER.
The calendar setting window is
displayed.
Continued
51 GB
Printing using a TV monitor (MONITOR OUT mode)
Each time you press
ENTER, the image rotates
90° clockwise.
Color of Day
Set the color of Sunday and
Saturday to be displayed in the
calendar. Press the arrow (b)
button and then the arrow (V/v)
button to select the desired color
for Sunday and Saturday. Then
press ENTER.
3Press the arrow (B/b/V/v)
button to select “Execute” and
then press ENTER.
The calendar is displayed in the
calendar area.
2 Set the calendar.
Press the arrow (V/v) button to
select the following items and
press the arrow (B/b) to select
an option.
Item
Procedures
Start Month
Set the first month and the
year starting the calendar.
Press the arrow (B/b) to select
the month or year and press
the arrow (V/v) button to set
the number. Press ENTER.
Start Day
Set the day starting the week
(placed furthest left in the
calendar).
Press the arrow (B/b) button
to select “Sunday” or
“Monday”. Then press
ENTER.
52 GB
7
Check the preview, then save
and print your Creative print.
For details, see page 58.
Making a card
You can add a greeting
and your own message
to images and make an
original card like the one
shown below.
4
Press the arrow (B/b/V/v)
button to select the desired
template and press ENTER.
The preview of the selected
template is displayed.
Image area
Message area
1
Display the Creative Print
menu (page 43).
2
Press the arrow (B/b/V/v)
button to select “Card”, then
press ENTER.
Characters input area
Tip
You can select and set an area in any
order.
5
3
Press the arrow (B/b) button
to select the print size, then
press ENTER.
The card templates are displayed.
Select an image.
When you select a template with
multiple images, repeat the
procedures below.
1 Press the arrow (B/b/V/v)
button to select the image area,
then press ENTER.
The image list is displayed.
When you select “Postcard size”
Continued
53 GB
Printing using a TV monitor (MONITOR OUT mode)
The print size selection window is
displayed.
2 Press the arrow (B/b/V/v)
button to select the desired
image, then press ENTER.
The window used for adjusting
the image size and position is
displayed.
Adjustment tools
3Press the arrow (B/b/V/v)
button to select the desired
adjustment tool, then press
ENTER.
Item
Procedures
Each time you press
ENTER, the image
becomes larger.
Each time you press
ENTER, the image
becomes smaller.
Move the image with the
arrow (B/b/V/v) button,
and then press ENTER.
Each time you press
ENTER, the image rotates
90° clockwise.
Each time you press
ENTER, the image rotates
90° counterclockwise.
54 GB
4Press the arrow (B/b/V/v)
button to select “Execute” and
then press ENTER.
The image is selected and
displayed in the relevant area.
6
Enter a message.
1 Press the arrow (B/b/V/v)
button to select the message
area, then press ENTER.
The message selection window is
displayed.
2 Press the arrow (B/b/V/v)
button to select the desired
message, then press ENTER.
The color selection window for
the message is displayed.
3 Press the arrow (B/b/V/v)
button to select the desired color,
then press ENTER.
The selected message is placed in
the message area.
7
9
Check the preview, then save
and print your Creative print.
For details, see page 58.
Enter characters.
8
Printing using a TV monitor (MONITOR OUT mode)
Press the arrow (B/b/V/v) button
to select the characters area, then
press ENTER.
The keyboard is displayed. For
how to enter characters, see
“Superimposing characters” on
pages 36 to 39.
After you enter and adjust the
characters, press the arrow (V/
v) button to select “Execute”,
then press ENTER.
The characters are fixed to the
image.
Continued
55 GB
Making split images
You can make a print
with 2-split, 4-split, 9split, 13-split, or 16split images.
1
Display the Creative Print
menu (page 43).
2
Press the arrow (B/b/V/v)
button to select “Split Image”,
then press ENTER.
4
Press the arrow (B/b/V/v)
button to select the desired
template, then press ENTER.
The preview of the selected
template is displayed.
Image area
The print size selection window is
displayed.
Tip
You can select and set each area in any
order.
5
3
Press the arrow (B/b) button
to select the print size, then
press ENTER.
The split image templates are
displayed.
When you select “Small size”
56 GB
Press the arrow (B/b/V/v)
button to select the desired
area and press ENTER.
When you have selected a template
with frames (a 9-split “Small size”
template), the window for selecting
a frame is displayed. In other cases,
the window for selecting an image
shown in step 6 is displayed.
6
Press the arrow (B/b/V/v)
button to select the desired
frame that you wan to add to
an image, then press ENTER.
Item
Procedures
Each time you press
ENTER, the image becomes
larger.
If you do not want to use any
frame, select “No Frame.”
The image list is displayed.
Each time you press
ENTER, the image becomes
smaller.
Move the image with the
arrow (B/b/V/v) button,
and then press ENTER.
Each time you press
ENTER, the image rotates
90° counterclockwise.
7
Press the arrow (B/b/V/v)
button to select the desired
image, and then press ENTER.
The window used for adjusting the
image position is displayed.
9
Press the arrow (B/b/V/v)
button to select “Execute” and
press ENTER.
The preview image is displayed.
Adjustment tools
8
Press the arrow (B/b/V/v)
button to select the desired
adjustment tool, then press
ENTER.
10 Check the preview, then save
and print your Creative print.
For details, see page 58.
57 GB
Printing using a TV monitor (MONITOR OUT mode)
Each time you press
ENTER, the image rotates
90° clockwise.
Saving and printing a Creative
print image
3
Set date.
Press the arrow (V/v) button to
select the number and press the
arrow (B/b) button to select the
day, month or year. Then press
ENTER.
Saving a Creative print
After you finish making a Creative
print, you can save the image with a
new file number.
Tip
The selected image will not be overwritten.
1
Press the arrow (B/b/V/v)
button to select “Save” and
press ENTER.
The dialog box to select the media
to save the image in is displayed.
2
The image is saved. The dialog box
to notify the new file number is
displayed.
Select the destination memory
card.
Press the arrow (V/v) button to
select the “Memory Stick” or
“Compact Flash” and press ENTER.
4
Press ENTER.
Note
While saving the image, do not turn off the
printer or remove the memory card from the
printer. The memory card may be damaged.
The dialog box for setting date is
displayed. You can save the date
with the image.
58 GB
Printing an edited image
1
Press PRINT.
The dialog box to specify the print
quantity is displayed.
Displaying other menu while
editing an image
Press MENU.
The menu bar is displayed. Even while
editing an image, you can change some
printer settings or option menu items
such as “Finish,” “Date Print” or
“Beep.”
Exiting the Creative Print menu
Set the print quantity.
• To increase the print quantity
one by one, press ENTER
repeatedly.
• To reduce the print quantity one
by one, press CANCEL
repeatedly.
• To reset the print quantity to
one, press CANCEL for more
than two seconds.
3
Press the arrow (B/b/V/v)
button to select “OK” to start
printing.
The image previewed is printed.
To stop printing
Press CANCEL. When you are
printing multiple copies, the next
printing after the one currently
printing will be cancelled.
59 GB
Printing using a TV monitor (MONITOR OUT mode)
2
• Press MENU in the middle of the
operations and select “Creative Print
Complete.”
• Display the preview image and then
press the arrow (B/b/V/v) button to
select “Exit” and press ENTER.
The dialog box for saving an image may
be displayed. To save an edited image,
follow the steps in “Saving a Creative
print.”
Changing the print
settings (SET UP)
2
Press the arrow (B/b) button
to select
(SET UP) and then
press ENTER.
The SET UP menu is displayed.
The SET UP menu allows you to change
various print settings listed on pages 61
and 62.
Cursor
SET UP menu
Buttons to be used in this section
MENU
ENTER
Arrow (B/b/
V/v) button
Note
CANCEL
Setting items which cannot be changed
are displayed in gray and cannot be
selected.
1
3
Press MENU.
The menu bar is displayed.
SET UP menu icon
Menu bar
To exit the menu mode
Press MENU. The previous
window is displayed.
60 GB
Press the arrow (V/v) button
to select the desired setting
item, press the arrow (B/b)
button to change the option,
and then press ENTER.
Item
Settings
Contents
Auto Fine Print 3
Photographical*/ •Photographical: Adjusts an image automatically
Vivid
so that the image is printed with natural and
beautiful pictures.
•Vivid: Adjusts an image automatically so that
the image is printed with stronger sharpness
correction and more vivid pictures than the
Photographical mode.
Notes
Exif Print
Off
Prints an image without any corrections.
On*
Adjusts an image shot by an Exif Print (Exif 2.2)compliant digital camera to its optimum picture
quality.
Note
The image data is not corrected.
Borders
Off
Prints an image without any adjustments.
Yes
Prints an image with borders around the image.
Note
Depending on an image, its top and bottom edges or
right and left edges may be trimmed and printed.
No*
Prints an image without blank space around the image.
Notes
• You cannot make borderless prints with Small (3.5 x 4
inch) size print paper.
• When printing a standard 4:3 picture shot by a digital
camera, the top and bottom edges of the image are cut
and it is printed as a 3:2 picture.
Finish
Glossy*
Prints an image vividly with glossy finish.
Texture
Prints an image softly with a uniform and uneven
finish.
*: Factory settings
Continued
61 GB
Printing using a TV monitor (MONITOR OUT mode)
•The image data is not corrected.
•When printing in PC mode, the Auto Fine Print 3
setting with the printer driver has priority over the
setting here. In the LCD and PictBridge modes, this
setting holds effective.
Item
Settings
Contents
Date Print
On
Prints the date of shooting with an image when
the image is a file recorded in the DCF (Design
rule for Camera File system) format. To make a
print with the date of shooting, shoot an image in
the DCF file format.
When the image is saved with the printer, the date
of saving is printed.
OFF*
Prints an image without the date.
Color Setting
Adjusts the colors and sharpness of a print. Press
the arrow (B/b) button to select a color element (
“R” (red), “G“ (green), or “B” (blue)) or
“Sharpness,” and then press the arrow (V/v)
button to set the level. (*R: 0/G:0/B:0/
Sharpness:0)
R: Adjusts the red and blue elements. The higher
you set the level, the more reddish the picture
becomes as if it receives red light. The lower
you set the level, the darker the picture
becomes as if light blue is added.
G: Adjusts the green and purple elements. The
higher you set the level, the more greenish the
picture becomes as if it receives green light.
The lower you set the level, the darker the
picture becomes as if red purple is added.
B: Adjusts the blue and yellow elements. The
higher you set the level, the more bluish the
picture becomes as if it receives blue light. The
lower you set the level, the darker the picture
becomes as if yellow is added.
Sharpness: The higher you set the level, the more
distinct the outlines become.
*: Factory settings
To cancel settings
Press CANCEL. The settings will be returned to the state they were in before you
made changes.
62 GB
Changing the printer
preferences (OPTION)
2
Press the arrow (B/b) button
to select
(OPTION) and
then press ENTER.
The OPTION menu is displayed.
The OPTION menu allows you to
change the preferences listed on page
64.
Cursor
OPTION menu
Buttons to be used in this section
MENU
ENTER
CANCEL
1
Press MENU.
3
Press the arrow (V/v) button
to select the desired setting
item, press the arrow (B/b)
button to change the option,
and then press ENTER.
The menu bar is displayed.
OPTION menu icon
Menu bar
Note
Items which cannot be changed are
displayed in gray and cannot be
selected.
To exit the menu mode
Press MENU. The previous
window is displayed.
Continued
63 GB
Printing using a TV monitor (MONITOR OUT mode)
Arrow (B/b/
V/v)
item
Settings
Listing Order
Image Without
Thumbnail
Ascending*
In the image list window, the images are
displayed in the order of their image numbers,
starting from the smallest number.
Descending
In the image list window, the images are
displayed in the order of their image numbers,
starting from the largest number.
Icon*
In the image list window, the images without
thumbnail (miniature image used as index) data
will be displayed as an icon.
Generate
In the image list window, the images without
thumbnail (miniature image used as index)
data will be displayed as its original image.
Image data display On
Beep
Contents
In the image list window, image information (file
type, shooting conditions, etc.) will be displayed.
Off*
In the image list window, no image information
will be displayed.
On*
The warning and operation sounds beep.
Off
No warning or operation sounds beep.
*: Factory settings
To cancel settings
Press CANCEL. The settings will be returned to the state they were in before you
made changes.
64 GB
Viewing a slideshow
2
You can perform a slideshow of the
images saved in a “Memory Stick” or
CompactFlash card. You can also
manually print an image being
displayed.
Press the arrow (B/b) button
to select
(SLIDESHOW) and
then press ENTER.
The SLIDESHOW menu is
displayed.
Cursor
SLIDESHOW menu
Buttons to be used in this section
MENU
Arrow (B/b/
V/v) button
CANCEL
1
3
Press the arrow (V/v) button
to select “Switch,” press the
arrow (B/b) button to select
“Automatic” to switch images
automatically, or “Manual” to
switch them manually, and
then press ENTER.
4
Press the arrow (B/b/V/v)
button to select “Execute,”
then press ENTER.
Press MENU.
The menu bar is displayed.
Menu bar
SLIDESHOW menu icon
• When “Automatic” is selected:
The images in the “Memory
Stick” or CompactFlash card are
displayed automatically one after
another.
To exit the menu mode
Press MENU. The previous
window is displayed.
Continued
65 GB
Printing using a TV monitor (MONITOR OUT mode)
ENTER
• When “Manual” is selected:
The image with the cursor in the
image list is displayed. To
switch images, press the arrow
(B/b/V/v) button. The image to
the left, right, above, or below
the current image in the image
list will be displayed.
To stop slideshow
Printing a displayed image
While playing the slideshow manually,
you can print a displayed image.
1
Press PRINT.
The dialog box to specify the print
quantity is displayed.
2
Set the print quantity.
• To increase the print quantity
one by one, press ENTER
repeatedly.
• To reduce the print quantity one
by one, press CANCEL
repeatedly.
• To reset the print quantity to
one, press CANCEL for more
than two seconds.
Press CANCEL.
Notes
• Depending on the image, it may take time
to be displayed.
• You cannot display the images that are not
displayed as thumbnails because they are
damaged or for some other reason.
3
Press the arrow (B/b/V/v)
button to select “OK” to start
printing.
The image previewed is printed.
To stop printing
Press CANCEL. When you are
printing multiple copies, the next
printing after the one currently
printing will be cancelled.
66 GB
Deleting images
1
Press MENU.
The menu bar is displayed.
Menu bar DELETE/FORMAT menu icon
You can delete images in the “Memory
Stick” or CompactFlash card. You can
also format the “Memory Stick.”
Notes
To exit the menu mode
Press MENU. The previous
window is displayed.
2
Press the arrow (B/b) button
to select
Deleting selected images
You can select and delete images on a
“Memory Stick” or CompactFlash card.
Buttons to be used in this section
(DELETE/FORMAT)
and then press ENTER.
The DELETE/FORMAT menu is
displayed.
Cursor
DELETE/FORMAT menu
MENU
ENTER
Arrow (B/b/
V/v) button
CANCEL
Continued
67 GB
Printing using a TV monitor (MONITOR OUT mode)
• During deleting or formatting, do not turn
off the printer or remove the “Memory
Stick” or CompactFlash card from the
insertion slot. The “Memory Stick” or
CompactFlash card may be damaged.
• An image, once deleted, will be lost
forever. Before deleting an image, doublecheck that it is the right one.
• When formatting a “Memory Stick”, all the
files including the image files will be
deleted.
• You cannot format a CompactFlash card.
3
Press the arrow (V/v) button
to select “Delete Image” and
press ENTER.
The image list is displayed. A trash
icon is displayed on the image
selected with the cursor before you
pressed MENU in step 1.
Trash icon
6
Press the arrow (B/b) button
to select “OK” and press
ENTER.
The selected image is deleted. To
delete other images, repeat steps 4
through 6.
Notes
• When you delete an image with the
associated file indication ( ), the
associated motion or e-mail file will be also
deleted.
• You cannot delete the protected image
with the protect indication (
).
4
Press the arrow (B/b/V/v)
button to move the trash icon
to the image you want to
delete, then press ENTER.
5
Press ENTER.
A confirmation dialog box is
displayed.
68 GB
Formatting a “Memory Stick”
Searching for an image
You can format a “Memory Stick”.
1
Press MENU.
The menu bar is displayed.
2
Buttons to be used in this section
The DELETE/FORMAT menu is
displayed.
MENU
Press the arrow (V/v) button
to select “Memory Stick
Format” and press ENTER.
Arrow (B/b/
V/v) button
ENTER
CANCEL
The confirmation dialog box is
displayed.
1
Press MENU.
The menu bar is displayed.
Menu bar
4
IMAGE SEARCH menu icon
Press the arrow (B/b) button
to select “OK” and press
ENTER.
The “Memory Stick” is formatted.
Note
When you format a “Memory Stick”, all the
images inside are deleted.
To exit the menu mode
Press MENU. The previous
window is displayed.
Continued
69 GB
Printing using a TV monitor (MONITOR OUT mode)
3
Press the arrow (B/b) button
to select
(DELETE/FORMAT)
and then press ENTER.
You can search a “Memory Stick” or
CompactFlash card for an image by file
number or date.
2
Press the arrow (B/b) button
to select
(IMAGE SEARCH)
and then press ENTER.
The IMAGE SEARCH menu is
displayed.
You can search for an image by file
number, date, or folder number.
• When you select “By File No.”:
Specify the starting and ending
numbers of the files that you
want to search for:
Starting file number
Ending file number
Cursor
IMAGE SEARCH menu
Tip
To search for a specific file, enter the
same file number in both the boxes.
3
Press the arrow (V/v) button
to select the search key and
press ENTER.
The dialog box used for specifying
the criteria for searching is
displayed.
4
• When you select “By Date”:
Specify the starting and ending
dates of the files that you want to
search for:
Starting date
Ending date
Press the arrow (B/b) button
to select an item and press the
arrow (V/v) button to specify
numbers.
Tip
To search for images of a specific day,
enter the same date in both the boxes.
70 GB
• When you select “By Folder
No.”:
Specify the folder number of the
images you want to search for:
Press ENTER.
The image list is displayed.
• When you have selected “By File
No.” and “By Data,” the images
found are selected with an
orange frame.
• When you have selected “By
Folder No.,” the first image in
the selected folder is selected
with the cursor.
Printing using a TV monitor (MONITOR OUT mode)
5
6
Press ENTER.
Searching starts. When the search is
complete, the search results will be
displayed.
If no images have been found
“No images were found” will be
displayed.
71 GB
Printing using the printer‘s LCD display (LCD mode)
You can use the printer‘s LCD display
to carry out the following printing
operations:
Connections
Connecting the AC power cord
• Printing a selected
image (page 74)
Specify the image
number and print an
image.
After you have made connections (when
necessary), connect the AC power cord
to the AC outlet.
The ON/STANDBY indicator lights in
red.
• AUTO printing
(INDEX/DPOF/ALL)
(page 76)
• Changing the print
settings (page 79)
(You need to connect the printer to a
TV monitor to make settings.)
Image numbers
To print using the printer‘s LCD
display, you need to specify the image
number for each image. To find the
image numbers, make an index print.
Or display the image list on a TV
monitor or check the image numbers
with your digital camera.
The display of characters on the LCD
The following can be displayed on the
printer`s LCD.
(, ), +, -, number 0 to 9 numbers, capital
letters A to Z, _, ˜
Other characters are displayed as “
72 GB
.”
To the wall
outlet
AC power cord
Note
The AC power cord in the above illustration
is for 120 V AC only. The plug shape of the
AC power cord for 100 to 240 V is different.
Inserting a memory
card
Inserting a “Memory Stick”
To print an image stored on a “Memory
Stick,” insert it into the “Memory Stick”
slot until it clicks into place.
For the varieties of “Memory Stick” that
you can use with the printer, see page
127.
Inserting a CompactFlash card
To print an image stored on a
CompactFlash card, insert the
CompactFlash card into the
CompactFlash card slot until it clicks
into place.
For the varieties of CompactFlash card
that you can use with the printer, see
page 130.
Access
indicator
flashes with
the printer
on.
Insert it so
that the b
mark
is on the
upper left
corner.
To eject a “Memory Stick”
Push the “Memory Stick” lightly into
the insertion slot. After the “Memory
Stick” pops back out, remove it slowly.
Notes
• When using a “Memory Stick Duo,” be
sure to use the “Memory Stick Duo”
adaptor.
• Do not attempt to insert a “Memory Stick”
forcibly into or out of the slot. If you do so,
the “Memory Stick” or the printer may be
damaged.
Insert it with
the wider
side facing
the printer.
Eject button
To eject a CompactFlash card
Press the CompactFlash card eject
button. After the card pops out,
remove it slowly.
Note
Do not attempt to insert a CompactFlash
forcibly into or out of the slot. If you do so,
the CompactFlash or the printer may be
damaged.
On using the memory card
• To avoid potential loss of data, make a
backup copy of the contents of the memory
card. We cannot compensate for any
damage to or loss of data.
• Check the memory card and insert it in the
correct direction. If a memory card is
forcibly inserted in the wrong direction,
the memory card and its slot may be
damaged.
73 GB
Printing using the printer‘s LCD display (LCD mode)
Access
indicator
flashes with
the printer on
Printing images
Printing a selected image
This section explains how to specify an
image number and print the image.
1
3
Press INPUT SELECT repeatedly
to select the memory card
containing the images that
you want to print.
Display the desired memory card
type on the LCD display (“Memory
Stick” or “CompactFlash”) .
Turn on the printer.
The ON/STANDBY indicator lights
in green.
Access
indicator
2
Press MONITOR OUT to turn
off the MONITOR OUT
indicator.
The access indicator flashes and the
images are loaded into the printer.
The LCD display of the printer
shows the current image number.
Memory card type
Print quantity
The LCD mode is selected .
Folder name Image number
74 GB
4
Press the arrow (V/v) button
to select the folder (when
multiple folders exist) and
press the arrow (B/b) button
to select the desired image
number.
Print quantity increases
or decreases.
5
Press ENTER or CANCEL to set
the print quantity.
• To increase the print quantity one
by one, press ENTER.
• To decrease the print quantity
one by one, press CANCEL.
• To cancel the selection, press
CANCEL for more than two
seconds.
You can set up to 30 copies of print
quantity for an image.
6
Press PRINT.
Printing starts. During printing,
“PRINT” is displayed on the LCD
display.
Continued
75 GB
Printing using the printer‘s LCD display (LCD mode)
Image number
7
When printing is complete and
the print paper automatically
emerges, remove the printed
paper from the paper tray.
Notes
• Do not remove the memory card while the
access indicator is flashing; the memory
card or printer may be damaged.
• Never move or turn off the printer while it
is printing; the print cartridge or paper
may become stuck. If this happens, turn
the printer off and then on, and resume
printing from the beginning.
AUTO printing (INDEX/DPOF/
ALL)
AUTO (automatic) printing allows you
to print multiple images stored on the
“Memory Stick” or a CompactFlash card
at one time.
The printer provides the following three
AUTO printing methods:
• INDEX printing
You can print a list (index) of all the
images contained in the “Memory
Stick” or CompactFlash card in split
panes, which allows you to check the
contents of the memory card easily.
The number of split panes on a sheet
will be calculated automatically.
Images are printed with their
corresponding image numbers.
Image number
Date (If Date Print
is on.)
• DPOF preset image printing
You can print all the DPOF (Digital
Print Order Format) preset images.
The images are printed with the
preset number of copies in the order
they were displayed.
• ALL images printing
You can print all the images stored in
the “Memory Stick” or CompactFlash
card at one time. The images are
printed one by one in the order of
their image numbers.
76 GB
Notes
• For how to preset images for printing, see
the manual of your digital camera.
• Some types of digital camera do not
support the DPOF function, or the printer
may not support some of the functions of
the digital camera.
1
3
Press INPUT SELECT repeatedly
to select the memory card
containing the images that
you want to print.
Display the desired memory card
type on the LCD display (“Memory
Stick” or “CompactFlash”) .
Turn on the printer.
The ON/STANDBY indicator of the
printer lights in green.
The memory card type
2
Press MONITOR OUT to turn
off the MONITOR OUT
indicator.
The LCD mode is selected.
Continued
77 GB
Printing using the printer‘s LCD display (LCD mode)
Access
indicator
flashes
while
accessing
the data.
4
To stop printing
Press AUTO PRINT repeatedly
to display “INDEX,” “DPOF,”
or “ALL” on the LCD display.
Press CANCEL. When you are
printing multiple copies, the next
printing after the one currently
printing will be cancelled.
6
When printing is complete and
the print paper automatically
emerges, remove the printed
paper from the paper tray.
The selected printing indication
(INDEX, DPOF, or ALL)
Print quantity
Folder name Image number
5
Press PRINT.
Printing starts. During printing,
“PRINT” is displayed in the LCD
display.
To resume the normal printing mode
Press AUTO PRINT repeatedly until
either INDEX, DPOF, or ALL
disappears from the LCD display.
Tips
• Even if the print cartridge or print paper
runs out in the middle of printing, you can
continue printing by replacing the print
cartridge or inserting print paper.
• When the “Date Print” is set to “ON” with
the menu, the recorded date (month, day,
and year) is also printed (page 62).
78 GB
Changing the print
settings
By connecting your printer to a TV
monitor, you can display SET UP and
OPTION menus and change the print
settings.
Auto Fine Print 3 You can select or
disable automatic
picture adjustment
for printing.
(Photographical*/
Vivid/Off)
You can turn on or
off the automatic
adjustments of the
images shot by an
Exif Print-compliant
digital camera to its
optimum picture
quality. (On*/Off)
Borders
You can select border
or borderless prints.
(Yes/No*)
Press the arrow (B/b) button
(SET UP) or
to select
(OPTION) and then press
ENTER.
Finish
You can select a
glossy or an uneven
finish. (Glossy*/
Texture)
The SET UP (page 60) or OPTION
(page 63) menu is displayed. The
settings you make are effective
when you print images in the LCD
mode.
Date Print
You can select
whether or not you
print the shot date
with an image. (On/
Off*)
Color Setting
You can adjust the
colors (R/G/B) and
sharpness of a
printed image (R: 0/
G:0/B:0/
Sharpness:0).
Connect the printer to a TV
monitor (page 18).
2
Turn on the printer and TV
monitor (page 20).
3
Make sure that the MONITOR
OUT indicator lights (page 20).
Press MENU (page 60).
* Factory settings
Continued
79 GB
Printing using the printer‘s LCD display (LCD mode)
Exif Print
1
4
5
SET UP menu
OPTION menu
Listing Order
You can select the
order of the images to
be displayed.
(Ascending*/
Descending)
Beep
You can select
whether or not
operation and
warning beeps
sound. (On*/Off).
* Factory settings
For the details on how to make settings,
see pages 60 and 63.
80 GB
Printing from a PictBridge camera (PictBridge mode)
You can connect a PictBridge-compliant
digital camera and print an image
directly from your digital camera.
• Printing images from the digital
camera (this page)
• Changing the print settings (page 83)
(You need to connect the printer to a
TV monitor to make settings.)
Printing images from
the digital camera
Follow the procedures below to set the
printer to the PictBridge mode and print
images directly from the digital camera.
1
How to attach the clamp filter
If the USB cable supplied with your
PictBridge-compliant digital camera is not
equipped with ferrite cores, be sure to attach
the supplied clamp filter for noise prevention
as illustrated below before using the unit. To
conform to radiation standards, you must
attach ferrite cores to one end of the USB
cable. If no ferrite cores are attached, other
devices may be affected by radiation noise.
Set your digital camera ready
for printing with a PictBridgecompliant printer.
The settings and operations that are
necessary before connection differ
depending on the digital camera.
For details, see the operating
instructions of the digital camera
you use.
2
Connect the AC power cord of
the printer to a wall outlet.
1 Release the lock
of the clamp filter
with a screwdriver
or a similar tool.
To the wall outlet
Wi
t
(4 hin
1
inc
he 0 cm
s)
2 Wind the cable
into the clamp
filter one time.
AC cord
Note
3 Close the clamp
filter.
Attach the clamp filter as close to the plug as
possible (within 10 cm (4 inches)) that is
connected to the printer’s USB connector.
The AC power cord in the above illustration
is for 120 V AC only. The plug shape of the
AC power cord for 100 to 240 V is different.
Continued
81 GB
Printing from a PictBridge camera (PictBridge mode)
The ON/STANDBY indicator lights
in red.
3
Notes
Turn on the printer.
The ON/STANDBY indicator of the
printer lights in green.
• The connector is designed for the
PictBridge only. Never connect a
device other than a PictBridgecompliant digital camera.
• The type of USB connecting cable
you should use may differ
depending on the digital camera.
Use a USB connecting cable with an
A-TYPE connector for the printer
and an appropriate type for your
digital camera.
• Use a commercially available USB
cable shorter than 3m in length.
4
The printer automatically enters the
PictBridge mode. The “PictBridge”
indication appears in the LCD
display.
Connect a PictBridgecompliant digital camera to
the printer.
Use the USB connecting cable
supplied with the digital camera.
To the PictBridge
connector (USB ATYPE)
5
Operate the digital camera to
print an image.
The printer supports the following
prints:
•
•
•
•
•
To the PictBridge
connector (USB)
PictBridge-compliant
digital camera
82 GB
Single-image print.
Index print (INDEX)
All images print (ALL)
Date print
Border/borderless print
Tip
If you do not make settings for print quality
with your digital camera, an image will be
printed according to the print settings with
the SET UP menu (page 60).
Note
• If you replace a print cartridge while the
printer is connected to a digital camera, an
image may not be printed properly. If this
occurs, make the paper size setting of the
digital camera again or disconnect and
then connect the digital camera.
• When you select standard/printer setting
option for the date print or border/
borderless print, the date or border
settings of the printer become effective.
• When the indication lights: The
connection between the printer and
the digital camera is established.
• When the indication blinks: The
connection between the printer and
the digital camera is not established
for the following reasons:
– The printer is not ready for the
PictBridge mode since it is in the
midst of printing, or it is in the
Creative Print or Edit mode.
– The printer is establishing the
connection. Please wait.
– The digital camera does not support
the PictBridge feature.
By connecting your printer to a TV
monitor, you can display SET UP menu
to change the print settings.
1
Connect the printer to a TV
monitor (page 18).
2
Turn on the printer and TV
monitor (page 20).
3
Make sure that the MONITOR
OUT indicator lights (page 20).
4
5
Press MENU (page 60).
Press the arrow (B/b) button
(SET UP) and then
to select
press ENTER.
The SET UP (page 60) menu is
displayed. The settings you make
are effective when you print images
in the PictBridge mode.
Continued
83 GB
Printing from a PictBridge camera (PictBridge mode)
On the “PictBridge” indication
The “PictBridge” indication on the LCD
display shows the connection status
between the printer and the digital
camera as follows:
Changing the print
settings
SET UP menu
Auto Fine Print 3 You can select or
disable automatic
picture adjustment
for printing.
(Photographical*/
Vivid/Off)
Exif Print
You can turn on or
off the automatic
adjustments of the
images shot by an
Exif Print-compliant
digital camera to its
optimum picture
quality. (On*/Off)
Borders
You can select border
or borderless prints.
(Yes/No*)
Finish
You can select a
glossy or an uneven
finish. (Glossy*/
Texture)
Date Print
You can select
whether or not you
print the shot date
with an image. (On/
Off*)
Color Setting
You can adjust the
colors (R/G/B) and
sharpness of a
printed image (R: 0/
G:0/B:0/
Sharpness:0).
* Factory settings
For the details on how to make settings,
see page 60 .
84 GB
Printing from a PC (PC mode)
To print from a PC connected to the
printer, you need to install the supplied
software (printer driver and PictureGear
Studio) to your PC.
This section explains how to install the
supplied software on your PC and how
to use the supplied PictureGear Studio
software to print an image.
Please also refer to the operating
instructions of your PC.
On trademarks and copyrights of
PictureGear Studio
• On copyrights of design materials
System requirements
To use the supplied software, your PC
must meet the following system
requirements:
System requirements for the printer
driver
OS: Microsoft Windows 98SE/Windows
Me/ Windows 2000 Professional/
Windows XP Home Edition/
Windows XP Professional, preinstalled
CPU: Pentium II 400MHz or faster is
recommended.
RAM: 64 MB or more is recommended.
Hard disk space: 200 MB or more is
recommended.
System requirements for PictureGear
Studio
OS: Microsoft Windows 98SE/Windows
Me/ Windows 2000 Professional/
Windows XP Home Edition/
Windows XP Professional, preinstalled (IBM PC/AT compatible)
(Windows 95, Windows 98 Gold
Edition, Windows NT, other
versions (ex. Server, Personal) of
Windows 2000 are not supported.)
CPU: Pentium III 500MHz or faster
(Pentium III 800MHz or faster is
recommended.)
Continued
85 GB
Printing from a PC (PC mode)
The copyrights of the design materials
contained in this software are owned by
Sony Corporation or Sony Music
Communications Corporation. Any
commercial use is prohibited by the
copyrights laws.
• Duplication of copyrighted materials, such
as photographs, is prohibited except for
private or domestic use.
• All other companies and product names
mentioned herein may be the trademarks
or registered trademarks of their respective
companies. Furthermore, “™” and “®” are
not mentioned in each case in this manual.
Installing the
software
RAM: 128 MB or more (256 MB or more
is recommended.)
Hard disk space: 200 MB or more
(Depending on the Windows
version you use, more space will be
required. To handle image data,
you will need additional hard disk
space.)
Display:
Screen area: 800 x 600 pixels or more
Colors: High Color (16-bit) or more
On the supplied CD-ROM
The supplied CD-ROM contains the
following software:
• Printer driver for DPP-EX50: The
software describes the printer’s
requirements and enables printing
from the computer.
• PictureGear Studio: Sony’s original
software application that allows you
to handle still images—capturing,
managing, processing, and printing.
86 GB
Notes
• If a hub is used to connect the printer and
your PC, or if two or more USB devices
including other printers are connected to
your PC, a trouble may occur. If this
occurs, simplify the connections between
your PC and the printer.
• You cannot operate the printer from
another USB device being used
simultaneously.
• Do not remove the USB cable from or
connect it to the printer during data
communication or printing. The printer
may not work properly.
• The printer does not support system
standby/hibernate mode of the computer.
During printing, do not change your PC to
system standby/hibernate mode.
• We cannot guarantee operations with all
personal computers, even though they
may meet or exceed the system
requirements.
Notes
Installing the printer driver
1
• Be sure to close all running
programs before installing the
software.
Make sure that the printer is
disconnected from the
computer.
• The dialog boxes in this section are
those in Windows XP Professional,
unless otherwise specified. The
installation procedures and the
dialog boxes shown differ
depending on the operating system.
Note
If you connect the printer to your PC in
this stage, either of the following dialog
boxes are displayed:
• When using Windows 98SE/Me:
Add New Hardware Wizard
3
• When using Windows 2000/XP:
Found New Hardware Wizard
The setup starts automatically and
the installation window is
displayed.
If this occurs, disconnect the printer
from the PC and then click “Cancel” in
the dialog box.
2
Note
In case the installation window is not
automatically displayed, double-click
the “Setup.exe” of the CD-ROM.
Turn on your computer and
start Windows.
4
Click “Installing Printer
Driver.”
The “Sony DPP-EX50 - InstallShield
Wizard” dialog box appears.
Continued
87 GB
Printing from a PC (PC mode)
• When installing or uninstalling
the software in Windows® 2000
Professional, log on to Windows
as “Administrator” or “Power
user”.
• When installing or uninstalling
the software with Windows® XP
Professional/Home Edition, log
on using a “Computer
administrator” user account.
Insert the supplied CD-ROM
into the CD-ROM drive of your
computer.
5
Click “Next.”
7
The license agreement dialog box is
displayed.
6
Check “I accept the terms of
the license agreement” and
click “Next”.
If you check “I do not accept the
terms of the license agreement”,
you cannot proceed to the next step.
Click “Install”.
The “Printer connection” dialog box
is displayed.
8
Connect the AC power cord of
the printer to the AC outlet.
The ON/STANDBY indicator lights
in red.
To the wall outlet
AC power cord
Note
The “Ready to install the program”
dialog box is displayed.
88 GB
The AC power cord in the above illustration
is for 120 V AC only. The plug shape of the
AC power cord for 100 to 240 V is different.
9
Turn on the printer.
The ON/STANDBY indicator lights
in green.
To USB connector (BTYPE)
To USB connector
Windows PC
10 Click “Next”.
Note
When you connect a PC
11 Connect the USB connectors of
the printer and your
computer.
The printer automatically enters the
PC mode and the “PC” indication
appears on the LCD display of the
printer.
Use a commercially available USB
2.0-compatible connecting cable.
Continued
89 GB
Printing from a PC (PC mode)
Use a commercially available A-B TYPE
USB-compatible connecting cable
shorter than 3m in length. The type of
USB cable you should use may differ
depending on the computer. For details,
see the instructions manual of your
computer.
The printer setup will start
automatically: the printer
connection check, printer driver
registration, and new hardware
found messages will be displayed
as the installation goes on.
When the printer setup is complete,
the “Setup Complete” dialog box is
displayed.
12 Click “Finish”.
The installation of the printer driver
is complete. When you are
prompted to restart your computer,
restart the computer.
13•
To finish installation, click
“Complete” and remove the
CD-ROM from your
computer and keep it for
future use.
• To continue to install the
PictureGear Studio software,
click “Installing the
PictureGear Studio” and
follow the procedures on
pages 92.
90 GB
Notes
• If the printer driver CD-ROM is prompted
during the installation, specify the
following directory:
-When using the Windows 98SE/Me:
D\Driver\Win98.me
-When using the Windows 2000/XP:
D\Driver\Win2000.me
“D” stands for the CD-ROM driver of your
PC and may differ depending on the
system.
• The supplied CD-ROM will be required
when you uninstall or re-install the printer
driver. Keep it in good order for possible
future use.
• If the installation fails, remove the printer
from your computer, restart your
computer, and then do the installation
procedures from the step 3.
• After installation, the “Sony DPP-EX50” is
not set as the default printer. Set the
printer you use for each application.
• Before you use the printer, read the
Readme file (the Readme folder of the CDROMcEnglish foldercReadme.txt).
Checking the installation
Open the “Printers and Faxes”
(Windows XP Home Edition/XP
Professional only) or “Printers” from the
“Control Panel”. When the “Sony DPPEX50” is displayed in the “Printers and
Faxes” or “Printers” window, the
printer driver has been successfully
installed.
Uninstalling the printer driver
4
Click “Next.”
When the printer driver becomes
unnecessary, remove it from your PC
hard disk as follows:
1
Disconnect the USB cable from
your printer and the
computer.
2
Insert the supplied CD-ROM
into the CD-ROM drive of your
computer.
The setup starts automatically and
the installation window is
displayed.
Note
In case the installation window is not
automatically displayed, double-click
the “Setup.exe” of the CD-ROM.
3
Click “Installing Printer
Driver.”
5
Check “I accept the terms of
the license agreement” and
click “Next”.
If you check “I do not accept the
terms of the license agreement”,
you cannot proceed with
uninstallation.
The dialog box used for confirming
uninstallation is displayed.
Continued
91 GB
Printing from a PC (PC mode)
The “Sony DPP-EX50 - InstallShield
Wizard” dialog box appears.
The license agreement dialog box is
displayed.
6
Click “Yes.”
Installing the PictureGear
Studio
Install the PictureGear Studio to your
computer.
The dialog box used for restarting
the computer is displayed.
7
1
Turn on your computer and
start Windows.
• When installing or uninstalling
the software in Windows® 2000
Professional, log on Windows as
the user name of “Administrator”
or “Power user”.
• When installing or uninstalling
the software in Windows® XP
Professional/Home Edition, log
on as a user name with the
“Computer administrator” user
account.
Check “Yes, I want to restart
the computer now.” and click
“OK.”
Notes
After the computer is restarted, the
relevant files will be deleted and
uninstallation is complete.
To check uninstallation
Select “Printers and Faxes” (Windows
XP Home Edition/XP Professional only)
or “Printers” from the “Control Panel”
to check if the “DPP-EX50” is displayed.
If not, the printer driver is successfully
removed.
• Be sure to close all running
programs before installing the
software.
• The dialog boxes in this section are
those in Windows XP Professional,
unless otherwise specified. The
installation procedures and the
dialog boxes shown differ
depending on the operation system.
2
Insert the supplied CD-ROM
into the CD-ROM drive of your
computer.
The setup starts automatically and
the installation window is
displayed.
92 GB
The dialog box to specify the
destination folder is displayed.
Notes
• In case the installation window is
not automatically displayed, doubleclick the “Setup.exe” of the CDROM.
5
To specify a different destination
folder, click “Browse,”
• Depending on the PC system
environments, the Microsoft Data
Access Component 2.7 and Jet 1.0
should be installed during the
PictureGear Studio installation. If
so, the dialog box used for installing
the programs will be displayed
automatically; Follow the on-screen
instructions proceed with the
installation.
3
Check the destination and
then click “Next.”
The “PictureGear Studio media
watch tool” dialog box is displayed.
Double-click “Installing
PictureGear Studio.”
6
To register the Media
Watcher, check “Register the
PictureGear Studio Media
Watcher in the startup folder”
and then click “OK.”
4
Click “Next.”
When the installation is completed,
the installation complete dialog box
is displayed.
Continued
93 GB
Printing from a PC (PC mode)
The “PictureGear Studio Setup”
dialog box appears.
What is “PictureGear Studio
Media Watcher”?
The PictureGear Studio Media
Watcher detects insertion of a
device or medium storing photos
when the PictureGear Studio is
installed in an operating system
other than the Windows XP.
You can also register the
PictureGear Studio Media Watcher
later with the following steps:
1 After you install the PictureGear
Studio software, click “Start”,
“Programs”, “PictureGear
Studio”, “Tools”, and then
“Media Watcher”.
The PictureGear Studio Media
Watcher is started.
2 Click the PictureGear Studio
Media Watcher icon on the
taskbar with the right mouse
button, and click “Settings” from
the menu displayed.
3 Check “Starts the Media Watcher
when you log on Widows”.
7
To display the Readme file,
check “View Readme” and
then click “Finish”.
94 GB
• When you check “View Readme,”
the Readme file is displayed.
When you close the Readme file,
the PictureGear Studio Setup
dialog box is also closed.
• When you do not check “View
Readme,” the PictureGear Studio
Setup dialog box is closed.
8
Remove the CD-ROM from
your computer and keep it for
future use.
Notes
• If the installation fails, do the installation
procedures from step 2.
• The supplied CD-ROM will be required
when you uninstall or re-install the
PictureGear Studio. Keep it in good order
for possible future use.
• The PictureGear Studio supplied with the
DPP-EX50 has the following limitations:
– In PhotoCollection, you cannot select
paper other than “Sony.”
– In PrintStudio, you cannot create or print
“Label.”
– In PrintStudio, you cannot create or print
a “Sticker, name card, or card.”
– In PrintStudio, you cannot print part of
“Postcard” designs.
To delete the above limitations and
upgrade the software to the version
supplied with VAIO computer or CLIE
handheld, execute the “Setup.exe” in the
“pgs.add” folder.
Uninstalling the PictureGear
Studio
4
Click “Next.”
When the software becomes
unnecessary, remove it from your PC
hard disk as follows:
1
Remove the USB cable
between the printer and the
PC.
2
Insert the supplied CD-ROM
into the CD-ROM drive of your
computer.
The setup starts automatically and
the installation window is
displayed.
The dialog box used for confirming
deletion is displayed.
5
Click “OK.”
Note
In case the installation window is not
automatically displayed, double-click
the “Setup.exe” of the CD-ROM.
3
Click “Installing PictureGear
Studio.”
The deletion complete dialog box is
displayed.
6
Click “Finish.”
The relevant files are deleted.
Printing from a PC (PC mode)
The “PictureGear Studio Setup”
dialog box appears.
Continued
95 GB
Printing photos from
the PictureGear
Studio
PictureGear Studio allows you to carry
out a series of procedures for handling a
still image—capturing, managing,
processing, and outputting. You can
use the software to print an image from
your PC in the post card, 3.5 x 5 inch, or
small size print paper.
1
Start the PictureGear Studio.
The PictureGear Studio window is
displayed.
2
4
Click “Print.”
The Print dialog box is displayed.
5
Select the photos that you
want to print, set the number
of copies to be printed for
each photo, and then click
“Apply”.
Click “Photo Collection”.
The “Photo Collection” window is
displayed.
3
Click the desired photo
category folder.
For explanations, “Sample” folder is
selected in the following example.
96 GB
The print paper selection dialog box
is displayed.
Note
Make sure to set the print quantity in
this dialog box. Even if you set the
number of copies in “Paper/Output”
tab of the “Sony DPP-EX50 Properties”
dialog box, the print quantity will not be
reflected.
6
Click “Sony Standard Papers”,
and then select the desired
paper size.
Select either of the following paper
sizes for the DPP-EX series:
Items
Functions
Print All All the photos selected in
the “Select Photo” window
will be printed.
• DPP-EX series 4 x 6“ (Postcard
size)
SVM-25LS/25LW/75LS
• DPP-EX series 3.5 x 5”
SVM-30MS
• DPP-EX series 3.5 x 4“ (Small
size)
SVM-30SS/30SW/30SW09
7
In the “Printer” drop-down list
box, select “Sony DPP-EX50”
and then click “Properties”.
Printer
Select “Sony DPP-EX50.”
Border Free Print
• When checked, an image
will be printed without
margins around it.
• When unchecked, an
image will be printed
with margins around it.
Note
You cannot check when
using the Small size print
paper.
In the “Printer” drop-down list box,
select the printer that you actually
use.
Continued
97 GB
Printing from a PC (PC mode)
When you select the paper size, the
print dialog box is displayed.
Print the selected page only
The image being displayed
in the “Print Preview” will
be printed.
Exif print • When checked, an
image shot with a Exif
Print (Exif 2.2)compliant digital
camera will be adjusted
and printed with its
optimum picture
quality.
8
In the “Paper/Output” tab,
specify the paper size.
Note
The image displayed on
the monitor will not be
adjusted.
• When unchecked, an
image will be printed
without adjustments.
Properties Specifies orientation,
picture quality and other
details.
Margins Click the arrows or enter
the text boxes for the
margins (in 0.1 mm) to
fine adjust the image
position.
Note
You cannot adjust the
margins only when using
the 9-split sticker print
paper.
When you click “Properties”, the
document properties dialog box
for the selected printer is
displayed.
Items
Functions
Paper size From the drop-down list
box, select the paper size
you actually use for
printing:
• Post card
• 3.5x5 inch
• Small
Then check either of the
following to specify the
margins around the image:
• With border: an image is
printed with borders
around it.
• Borderless: an image is
printed without borders
around it.
Note
You cannot check when
using the Small size print
paper.
Orientation Select the orientation of an
image when printed:
• Portrait
• Landscape
• Rotates 180 degrees
98 GB
Finish
Copies
Select the finish of the
printed image:
• Glossy
• Texture
Specify the number of
copies to be printed.
Note
Depending on the
application you use, the
print quantity setting of
the application has
priority over that
specified here.
Enlarge/
Reduce
Specify the percentage to
enlarge or reduce the size
of an image when
printed.
Print preview• When checked, a
preview image will be
displayed before
printed.
•When unchecked, no
preview image will be
displayed before
printed.
In the “Graphics” tab, set the
color reproduction and picture
quality.
Functions
Color reproduction/Picture quality
Select the setting from the
drop-down list box:
•Off: An image will be printed
without adjustment.
•Auto Fine Print 3:From the
“Settings” drop-down list
box, select either of the
following correction method:
– Photographical: An image
will be adjusted
automatically and printed
with natural and beautiful
pictures. (Recommended
option)
–Vivid: An image will be
adjusted automatically and
printed with more vivid
pictures. (In this setting, a
stronger sharpness
correction is given, making
pictures more vivid.)
•ICM (system): From the
“Settings” drop-down list
box, select either of the
following correction method:
– Graphics: when graphics or
vivid colors are used.
– Match: when you want to
match colors.
– Pictures: when a
photograph or pictures are
printed.
Note
The ICM setting is valid only
when you are using an ICMcompliant application. When
printing from an application
software that does not
support the ICM system, an
image may be printed with
incorrect colors.
Continued
99 GB
Printing from a PC (PC mode)
9
Items
Exif Print
Check it to adjust and print an
image shot with a Exif Print
(Exif 2.2)-compliant digital
camera. The printer driver
uses the color conversion and
Exif shooting data to adjust the
image. This option is effective
only with PictureGear Studio.
Red-eye reduction
Check it to automatically
reduce the red-eye
phenomenon of the subject
shot by using a flash light.
Notes
•When you check this option,
make sure to select “Preview”
to display the preview image
before printing and check that
the red-eye reduction has
been correctly processed to
the image.
•Red-eye phenomenon will be
detected automatically, and it
may not be corrected.
•Red-eye reduction is enabled
only when you have installed
the software from
“Setup.exe” in the supplied
CD-ROM. For the details see
the Readme.txt.
Print settings
Adjusts the color elements and
sharpness.
R:Adjusts the red and blue
elements. The higher you set
the level, the ore reddish the
picture becomes as if it
receives red light. The lower
you set the level, the darker
the picture becomes as if light
blue is added.
G:Adjusts the green and purple
elements. The higher you set
the level, the more greenish
the picture becomes as if it
receives green light. The
lower you set the level, the
darker the picture becomes
as if red purple is added.
B:Adjusts the blue and yellow
elements. The higher you set
the level, the more bluish the
picture becomes as if it
receives blue light. The
lower you set the level, the
darker the picture becomes
as if yellow is added.
Sharp (sharpness): The higher
you set the sharpness level,
the more distinct the outlines
become
10 Click “OK”.
The print dialog box is displayed.
100 GB
11 Click “Print All” or “Print the
When “Print preview” is checked in
step 8
selected page only”.
The preview window is displayed.
Check the adjustment results and
then click “Print.”
The confirmation dialog box for
printing is displayed.
12Make sure that the specified
print paper and print cartridge
are loaded and click “OK”.
Printing resumes.
To stop printing
Open the “Print” dialog box
from the desktop.
2
Click the document name that
you want to cancel printing of
and then click “Cancel” from
the “Document” menu.
The dialog box used for confirming
the deletion is displayed.
Continued
101 GB
Printing from a PC (PC mode)
Printing starts.
1
3
Click “Yes.
The printing job is canceled.
Note
Do not cancel the printing job on process,
which may cause a paper jam.
Printing from other
application software
You can use a commercially-available
application software to print an image
from the DPP-EX50. Select “DPP-EX50”
in the print dialog box and select the
print paper size in the page setup dialog
box. For details in print settings, see
steps 8 and 9 on pages 98 and 99.
On “Borderless” setting in the “Paper
size” section
When using an application other than
the PictureGear Studio, an image might
be printed with borders even if you
select borderless print in the “Paper
size” section of the “Paper/Output” tab
in the “DPP-EX50 Properties” dialog
box.
When you select the borderless print
option, the printing rage information for
borderless print will be supplied to the
application. Some applications,
however, may arrange and print the
image with borders within the specified
range.
If this occurs, do either of the following
to print an image without borders:
• When you can set print range with an
application, set an image to be printed
fully in the print range. For example,
select “Full page photo print” or a
similar option.
• Set a larger value in the “Enlarge/
Reduce” text box in the “Paper/
Output” tab of the “DPP-EX50
Properties” dialog box.
In either case, make sure to display and
check the preview image before
printing.
102 GB
Print quantity setting in the
Properties dialog box
Depending on the application you use,
the print quantity setting of the
application you use may have priority
over the setting specified in the printer
driver dialog box.
Exif Print Settings in the “Graphics”
tab
The Exif Print setting in the “Color
reproduction/Picture quality” section
supports the PictureGear Studio only. If
you use other application to print an
image with this option checked, the
image may be printed with incorrect
colors. If this occurs, remove the check.
Printing from a PC (PC mode)
103 GB
Troubleshooting
If trouble occurs
If you run into any problems using the printer, use the following guidelines to solve
the problem. If the problem persists, consult your Sony dealer.
Power
Symptom
Check
Cause/Solutions
The ON/
SYANDBY
button cannot be
turned on.
• Is the AC power cord
properly connected?
c Connect the AC power cord to an AC
outlet securely. (.page 19)
Displaying images (MONITOR OUT mode only)
Symptom
Check
Cause/Solutions
The TV monitor
displays no
images.
• Is “PictBridge” or “PC”
displayed on the LCD
display?
c Press INPUT SELECT to display
“Memory Stick” or “CompactFlash” on
the monitor. (.page 21)
• Is the LCD mode selected?
(The MONITOR OUT
indicator is off.)
c Press MONITOR OUT to turn on the
MONITOR OUT indicator, so that the
printer status will be displayed on the
TV monitor. (.page 20)
• Are any error messages
displayed (cause/
remedies) on the TV
monitor?
c Follow the directions of the messages, if
any, and try to solve the problem.
(.page 120)
• Is the memory card
properly inserted?
c Insert a memory card properly.
(.pages 19, 20)
• Does the memory card
contain images recorded
with a digital camera or
other device?
c Insert a memory card that contains the
recorded images.
104 GB
Symptom
Check
Cause/Solutions
“DEMO” is
displayed on the
TV monitor.
• Did you press INPUT
SELECT when no
memory card is
inserted?
c The images contained in the printer are
displayed (demonstration mode). You can
print these images or use them to create a
print.
To exit the demonstration mode, display the
image list of the printer’s built-in image,
and then press INPUT SELECT again.
Some images in
the image list are
not displayed or
not printed even
if they are
displayed.
• Are thumbnail images
displayed in the image
list?
c If the image is displayed but cannot be
printed, the file used for printing is
damaged.
c If there are no images stored in the
“Memory Stick” or CompactFlash card, the
no file message appears.
c If an image is not compatible with DCF
(Design rule for Camera File system), it may
not be printed with the printer even if it is
displayed on the PC monitor.
• Does the mark displayed c If the mark shown on the left is displayed,
the image is of compatible file format but its
below appear in the
thumbnail data or the data itself cannot be
image list?
opened.
Select the mark and press PICTURE. If a
preview image is displayed, you can print
the image. If the same mark is displayed
again, you cannot print it with the printer.
105 GB
Troubleshooting
• Does the mark displayed c If the mark shown on the left is displayed,
the image may be a JPEG file created with
below appear in the
your computer, or the thumbnail data is not
image list?
contained.
Select the mark and press PICTURE. If a
preview image is displayed, you can print
• Was the image created
the image. If the same mark is displayed
on your PC?
again, the image is of incompatible file
format and you cannot print it with the
printer.
Symptom
Check
Cause/Solutions
Some images in
the image list are
not displayed or
not printed even
if they are
displayed.
• Are there more than 9 999
images saved in the
memory card?
c The printer can display, save, delete or
handle up to 9 999 image files. If there
are more than 9 999 images stored in a
memory card, use the PC or PictBridge
mode to display and handle the
remaining images.
• Did you name or rename
an image file with your
PC?
c When you name or rename an image file
on your computer and its file name
includes characters other than
alphanumeric characters, the file name
may not be displayed correctly or the
image may not be displayed on the
printer (read error).
• Did you specify the print
quantity in the image list?
c Once you have selected images in the
“Printing multiple images” procedures,
you cannot print an image with which
the cursor is just placed. Press ENTER to
select it and specify the print quantity for
the image. (.page 24)
• There are 8 or more
hierarchies in the memory
card.
c The printer cannot display the images
saved in a folder of the 8th or higher
hierarchy.
• Did you change the file
name of the image with
your PC?
c When you name or rename an image file
on your computer and its file name
includes characters other than
alphanumeric characters, the file name
may not be displayed correctly . For a
file created with a PC application, the
first 8 characters of its file name will be
displayed as the file name.
The file name is
not displayed
correctly.
106 GB
Symptom
Check
Cause/Solutions
In the EDIT
menu, there are
blank areas at the
top and bottom
of the previewed
image.
• Is the previewed image
extremely stretched
vertically or horizontally.
c If an image is extremely stretched
vertically or horizontally, blank areas
may appear in the EDIT menu.
c The standard aspect ratio of an image
shot with a digital camera is 3:4. When
an image is edited or printed in the
postcard or 3.5 x 5 inch size, it is saved as
a more horizontal print image and its top
and bottom edges will be cut and
displayed in black.
• Is a PictBridge-compliant
The “PictBridge”
digital camera connected to
indication turns on
the printer?
even after INPUT
SELECT is pressed
to select “Memory
Stick” or
“CompactFlash”
mode.
c As long as the PictBridge-compliant
device is connected to your computer,
the “PictBridge” indication remains.
Disconnect the cable of the PictBridgecompliant device to turn off the
indication. (.page 81)
Printing
Check
Cause/Solutions
Paper does not
feed.
• Is the print paper properly
set in the paper tray?
c If print paper is not properly loaded, the
printer may develop trouble. Check the
following:
• Is the correct set of print paper and
print cartridge loaded? (.page 12)
• Does the arrow on the reverse side of
the print paper point in the same
direction as the arrow in the tray?
(.page 16)
• Did you place print paper exceeding
the limit in the paper tray? (.page
16)
• Does the spacer of the tray match the
print paper? (.page 15)
• Did you riffle the print paper
thoroughly?
• Did you bend or fold the print paper
before printing?
107 GB
Troubleshooting
Symptom
Symptom
Check
Cause/Solutions
Paper does not
feed.
• Are you using print paper
that was not designed for
the printer?
c Use print paper designed for the printer.
If you use incompatible print paper, the
printer may develop trouble. (.page
12)
• Is the print paper jammed?
c When the printer cannot feed the print
paper, the print paper error indicator ( )
will turn on and an error message is
displayed in the MONITOR OUT mode.
Remove the paper tray and check paper
jam. (.page 124)
• Is it in the middle of the
printing process?
c The print paper may emerge partially
during printing. Wait for the print paper
to fully emerge before taking it out.
Symptom
Check
Cause/Solutions
The printed
pictures are
inferior in
quality.
• Did you print preview
image data?
c Depending on the type of digital camera
used, preview images may be displayed
along with the primary images in the
thumbnail list. The printed quality of
the preview images will not be as good
as the primary images. Note that if you
delete the preview images, the data for
the primary images may be damaged.
• Did you print an image
whose size (width or
height) is smaller than 480
dots?
c When the image is displayed as the mark
shown on the left, it is a small image.
The printing quality is rough due to this
small image size.
The print paper
emerges partially
during printing
in process.
Printed results
Is the following mark
displayed in the image list?
108 GB
c Change the image size setting of the
digital camera you are using.
Symptom
Check
Cause/Solutions
The printed
pictures are
inferior in quality.
•Did you use the EDIT menu
to enlarge the image?
c An enlarged image, depending on its
image size, will be printed with
deteriorated picture quality.
• Did you allow dust or
finger prints to get on the
printed surface?
c Do not touch the printing surface (the
shiny-side with no imprint). Fingerprints
on the printing surface may result in
imperfect printing.
• Did you use used print
paper?
c Do not print on used print paper.
Printing an image twice on the same
paper will not make the printed image
thicker.
• Did you shoot an image in
the RAW file format?
c When you shoot an image in the RAW
file format, a highly-compressed JPEG
file may be also recorded. As the printer
does not support the RAW file format, it
may use the JPEG file to print an image.
A RAW file can be printed from a PC.
For details, see the operating
instructions of the digital camera you
are using.
What is a RAW file?
A RAW file is an original image file
format to save uncompressed,
unprocessed still image data captured
from a digital camera.
109 GB
Troubleshooting
For whether or not a digital camera can
capture an image in the RAW file format,
see the operating instructions of the
digital camera.
Symptom
Check
Cause/Solutions
The printed
pictures are
inferior in
quality.
• Did you use an AdobeRGBcompliant digital camera,
not compatible with the
DCF 2.0, to shoot an image
in the AdobeRGB mode?
c An AdobeRGB image file that supports
the DCF 2.0 will undergo color
corrections, but an AdobeRGB image
file that does not support the DCF 2.0
will be printed in vague colors without
color corrections.
What is an AdobeRGB?
An AdobeRGB is a color space that the
Adobe System Incorporated employs
and uses as the default setting for
image processing software including
the Adobe Photoshop. The
AdobeRGB, an optional color space
extended with the DCF 2.0, determines
the color ranges widely used in
printing industry.
For whether or not a digital camera
supports the AdobeRGB, see the
operating instructions of the digital
camera.
The picture
quality and
colors of the
image previewed
on the screen
differs from those
printed.
c Because of differences in the phosphor
method or profiles of a TV monitor,
please regard the image being
displayed on the screen as just a
reference. To adjust picture quality,
do either of the following:
The printed
image differs
when an image is
directly printed
from the memory
card inserted into
the printer’s slot
and when it is
printed via a PC.
c Because of the differences in the
printer’s internal processing and PC
software processing, the printed
images will be different.
110 GB
– Menu - SET UP - Color Setting
(.page 62)
– Menu-EDIT-Adjust (.page 33)
Check
Cause/Solutions
The date cannot
be printed.
• Is “Date Print” set to
“On”?
c Set “Date Print” in the SET UP menu to
“On.” (.page 62)
• Does the image support
DCF?
cThe “Date Print” function of this unit
supports an image that is compatible
with the DCF standards.
• Is “Date Print” set to
“Off”?
c Set “Date Print” in the SET UP menu to
“On.” (.page 62)
• Was the date saved with
the image when it was
shot with the digital
camera.
c Change the camera settings.
• Did you set “Borders” in
the SET UP menu to
“Yes”?
c Set “Borders” to “No” by selecting
Menu - SET UP - Borders. (.page 61)
• Do you feed the print
paper in the correct
direction?
c Place the print paper in the direction of
the arrow. (.page 16)
• Is the aspect ratio of the
image correct?
c Depending on the type of digital camera
used, the aspect ratio of the recorded
image differs, so the image may not be
printed covering the entire printable
area.
Even if I set
“Borders” to
“No,” the image
is printed with
borders on both
sides.
• Is the image edited and
saved with “Borders” set
to “Yes.”
c When you edit and save an image in the
postcard or 3.5 x 5 inch size, it is saved as
a print image including the blank areas.
Even if you print it with “Borders” set to
“No,” you cannot eliminate the borders
on both sides of a print. To print without
borders, edit and save an image with
“Borders” set to “No.” (.page 61)
Only part of an
image is printed.
• Did you set “Borders” in
the SET UP menu to “Yes”?
c Set “Borders” to “Yes” to print the whole
area of an image. (.page 61)
The date is
printed
unintentionally.
The image cannot
be printed fully
in the print
range.
111 GB
Troubleshooting
Symptom
Symptom
Check
Cause/Solutions
The image is
stretched
horizontally
when printed.
• Did you rotate the image
or add other process?
c Depending on the type of digital camera
used, the image may be stretched
vertically if it has been rotated or
processed using your digital camera.
This is not because of trouble with the
printer, but because the image was
rewritten with your digital camera.
There are white
lines or dots on
the printed
pictures.
c The print head or paper path may be
soiled. Use the supplied cleaning
cartridge to clean the head and path.
(.page 124)
The picture is too
bright, dark,
reddish,
yellowish, or
greenish.
c Adjust an image by selecting Menu EDIT - Adjust. (.page 33)
The eyes of the
subject are red.
c Adjust fro the red-eye phenomenon by
selecting Menu - EDIT - Red-eye
reduction. (.page 35)
Red-eye
reduction does
not take effect.
c Set the size of the adjustment frame to be
two to seven times as large as the eye.
(.page 35)
• Did you enlarge, reduce
the size of, rotate, or move
an image after the red-eye
reduction?
112 GB
c Red-eye reduction may not work
properly if other editorial operations
such as enlarging, reducing the size of,
rotating, or moving an image. Perform
these editorial operations first and then
perform red-eye reduction.
Settings
Symptom
Check
Cause/Solutions
The “Borders”
• Are you using the small size cYou cannot print on the small size print
paper without borders. The “Borders”
“Yes/No” setting
print paper?
“Yes/No” setting takes effect only when
does not take
you are using the postcard or 3.5 x 5 inch
effect.
size print paper. (.page 61)
• Are you operating the
Creative Print menu?
c In the Creative Print menu, templates
are used and you cannot select border/
borderless prints.
c Beeps sound to notify you that the
operation is invalid.
Operations are
rejected with
beeps.
Saving or deleting an image
Check
Cause/Solutions
You cannot save
an image.
• Is the memory card
protected?
c Release the protection and try saving
again.
• Is the write-protect switch
of the memory card in the
LOCK position?
c Slide the write-protect switch to the
write enable position. (.page 129)
• Is the memory card full?
c Delete unnecessary images (.page
67), or replace it with a new memory
card with sufficient free memory space.
Save the image again.
• Is the memory card
protected?
c Release the protection with your digital
camera.
• Is the image DPOF-preset?
c Release the DPOF preset with your
digital camera.
• Is the write-protect switch
of the memory card in the
LOCK position?
c Slide the write-protect switch to the
write enable position. (.page 129)
• Are you using a “Memory
Stick-ROM”?
c You cannot delete an image from or
format a “Memory Stick-ROM.”
You cannot
delete an image.
An image was
deleted
accidentally.
c You cannot recover an image once it is
deleted.
113 GB
Troubleshooting
Symptom
Symptom
Check
Cause/Solutions
I cannot format
the “Memory
Stick.”
• Is the write-protect switch
of the memory card is in the
LOCK position?
c Slide the write-protect switch to the
write enable position. (.page 129)
• Is it a “Memory StickROM”?
c You cannot delete an image from or
format a “Memory Stick-ROM.”
c Once the “Memory Stick” is formatted,
all the data is deleted and cannot be
recovered. To prevent accidental format,
set the write -protect switch to the LOCK
position. (.page 129)
The “Memory
Stick” was
formatted
accidentally.
Others
Symptom
Check
Cause/Solutions
I cannot insert
the print
cartridge
smoothly.
c If the print cartridge does not click into
place, remove it and then re-insert it.
Only when the ink ribbon is too slack to
be loaded, wind the ink ribbon in the
direction of the arrow to remove the
slack. (.page 14)
The print
cartridge cannot
be removed.
c Turn off the ON/STANDBY button and
then turn it on. After the motor sound
stops, try to remove the cartridge. If this
does not solve the problem, contact Sony
service facilities or your Sony dealer.
The print paper
jams.
114 GB
• Is the paper/cartridge error
( / ) indicator lit or is an
error message displayed in
the MONITOR OUT mode?
c Paper is jammed. See “If paper jams”
(.page 124) and remove jammed
paper from the printer. If jammed paper
cannot be removed, contact the Sony
service facilities.
Symptom
Check
Cause/Solutions
Printing stops
midway.
• Does the access indicator
light in green?
c The data size of an image is large and it
takes longer to process it for printing.
As soon as the data processing finishes,
the printer starts printing.
• Is the paper error ( )
indicator lit?
c Paper is jammed. See “If paper jams”
(.page 124) and remove jammed
paper from the printer. If jammed paper
cannot be removed, contact the Sony
service facilities.
• Is any indicator lit?
c If no indicator is lit, the thermal head
may be overheated. Leave the printer
until the head cools down and the
printer resumes printing.
Connecting with a digital camera
Check
Cause/Solutions
The PictBridge
mark does not
appear on the
LCD display of
the digital
camera.
• Is the digital camera
connected correctly?
c Connect the cable correctly.
• Is the ON/STANDBY
button turned on?
c Turn on the ON/STANDBY button.
• Does the firmware of your
digital camera support the
printer?
c See the homepage for the digital camera
you are using.
• Is the PictBridge mark on
the LCD display flashing?
c The PictBridge mark is not displayed
while the printer is in the EDIT, Creative
Print, or other menu modes. Exit the
menu and then connect the cable again.
c If a USB mouse or other non-PictBridgecompliant device is connected, remove it
and connect a PictBridge-compliant device.
• Is printing in process?
c Connect the cable again after printing is
complete.
115 GB
Troubleshooting
Symptom
Symptom
Check
Cause/Solutions
I connect and
disconnect the
USB cable, but
nothing happens.
• Is the PictBridge mark on
the LCD display flashing
quickly?
c The printer has developed an overcurrent error. Unplug the AC power
cord of the printer, plug it in again, and
then press the ON/STANDBY button to
recover from the error.
c The next print from the one currently
printed will be canceled.
I cannot stop
printing even if I
pressed
CANCEL.
c Depending on the digital camera you
use, you cannot cancel printing from the
printer. Operate the digital camera to
stop printing. Refer to the operating
instructions of the digital camera.
Connecting with a computer
Symptom
Check
Cause/Solutions
The images of the
memory card
inserted in the
printer are not
displayed on the
PC.
c The printer does not provide the
function for viewing the memory card
images from the printer.
I lost the supplied
CD-ROM and
want to obtain a
new one.
c Please download the printer driver from
the Customer support home page
(.page 132). Or contact your Sony
dealer.
116 GB
Symptom
Check
Cause/Solutions
The printer
driver cannot be
installed.
• Are you sure that you have
followed the installation
procedures correctly?
c Follow the procedures in the operating
instructions to install the driver
(.page 87). If an error occurs, restart
your computer and do the installation
procedures again.
• Is another application
program running?
c Exit all applications and then install the
driver again.
c Double-click My Computer, and then the
• Did you specify the CDCD-ROM icon in the open window.
ROM as the installation CDFollow the procedures in the operating
ROM correctly?
instructions to install the driver.
c The USB driver may not be installed
properly. Follow the operating
instructions to install the USB driver
again.
• Can you read the CD-ROM
with Explorer?
c If there is an error with the CD-ROM,
you may not be able to read it. If an
error message is displayed on your PC,
check the contents and remove the
source of the problem. Then install the
printer driver again. For details on the
error contents, see the operating
instructions of your PC.
• Is there an anti-virus
program or other program
running on the system?
c If there is an anti-virus program or other
program running on the system, exit it
and then start installing the driver.
• Did you log onto Windows
XP/2000 Professional using
an Administrator user
account?
c To install the driver in Windows XP/
2000 Professional, log onto Windows
using an Administrator user account.
117 GB
Troubleshooting
• Is the USB driver installed?
Symptom
Check
Cause/Solutions
c Check the printer status in the print
monitor on the Windows desktop.
If there is no trouble displayed, check
the printer’s indicators.
If the printer shows trouble, do the
following:
The printer does
not respond to
the printing
order from the
PC.
– Turn off the ON/STANDBY button
and then turn it on again.
– Disconnect the power cable, wait
for 5 to 10 seconds, and then
connect the cable again.
– Restart your computer.
If these do not solve the problem,
consult with your Sony dealer or
service facilities.
• Is an error message
c Remove the USB cable and then connect
displayed stating that an
it again.
error was detected in output
of documents via USB?
An image is
printed with
borders even if I
set “Borders” to
“No.”
• Are you using an
application software other
than PictureGear Studio?
c When using an application other than
the PictureGear Studio, an image might
be printed with borders even if you
select borderless print. If this occurs, do
either of the following to print an image
without borders:
– When you can set print range with an
application, set an image to be printed
fully in the print range even if it is
printed over the range.
– Set a larger value in the “Enlarge/
Reduce” text box in the “Paper/
Output” tab of the “DPP-EX50
Properties” dialog box. (.page 99)
118 GB
Symptom
Check
Cause/Solutions
Colors are not
reproduced
correctly.
• Is “Exif Print” checked
in the “Graphics” tab
of the “DPP-EX50
Properties” dialog
box?
c The Exif Print setting in the “Color
reproduction/Picture quality” section
supports the PictureGear Studio only. To
print from other application, uncheck “Exif
Print.”
• Is “ICM” selected in
the “Graphics” tab of
the “DPP-EX50
Properties” dialog box?
c The ICM setting may be valid only when
you are using an ICM-compliant
application. Check to see if the application
software you are using supports ICM.
Preview image does
not reflect the print
settings in the
“Graphics” tab of
the “DPP-EX50
Properties” dialog
box.
c The print settings adjusts the printer itself
Print quantity
• Are you using
specified in the
PictureGear Studio?
“Paper/Output”
tab of the “DPPEX50 Properties”
dialog box does not
take effect.
c Set the print quantity in the “Print” dialog
and cannot influence the preview image.
box of the PictureGear Studio. The print
quantity setting in the “Paper/Output”
tab of the printer driver does not take
effect.
c Depending on the application you use, the
print quantity setting of the application you
use may have priority over the setting
specified in the printer driver dialog box.
Troubleshooting
119 GB
If an error message appears
In the MONITOR OUT mode, the following error messages may be displayed. Follow the
solution described here to solve the problem.
Printer
Error messages
Meaning/Solutions
A printer error has occurred.
c An error has occurred with the printer. Unplug the
AC power cord of the printer, connect it again and
then try operating again. If this occurs again,
consult with your Sony dealer or Sony service
facilities.
Storage media
Error messages
Meaning/Solutions
There is no Memory Stick inserted.
c The “Memory Stick” is not inserted. Insert it into the
“Memory Stick” slot properly. (.pages 19, 73)
There is no CompactFlash card
inserted.
c The CompactFlash is not inserted. Insert it into the
CompactFlash slot properly. (.pages 20, 73)
The Memory Stick is protected.
c A protected “Memory Stick” is inserted. To save or
edit the images with the printer, cancel protection of
the “Memory Stick”.
The Memory Stick is not compatible.
c A “Memory Stick” that the printer does not support
is inserted. Use a “Memory Stick” compatible with
the printer (.page 127).
No image file.
c There are no image files in the memory card that the
printer can handle. Insert a “Memory Stick” or
CompactFlash card that contains images that can be
displayed with the printer.
No DPOF file.
c There are no DPOF-preset image files in the memory
card. Specify the print (DPOF) mark with your
camera.
Protected files cannot be deleted.
c To delete a protected image, cancel protection on
your camera.
DPOF files cannot be deleted.
c To delete a DPOF-preset image, cancel the print
(DPOF) mark on your camera.
120 GB
Error messages
Meaning/Solutions
Protected. Release the protect and
try deleting again.
c The “Memory Stick” is write-protected. Release the
write-protection. (.page 129)
Protected. Release the protect and
try formatting again.
Protected. Release the protect and try
saving again.
The Memory Stick is full.
c There is no free memory space in the “Memory
Stick.” You cannot save additional images. Delete
unnecessary images (.page 67) or replace the
“Memory Stick” with a one having sufficient
memory space.
The CompactFlash card is full.
c There is no free memory space in the CompactFlash
card. You cannot save additional images. Delete
unnecessary images (.page 67) or replace the
CompactFlash card with a one having sufficient
memory space.
An error detected in the Memory
Stick.
c An error may have occurred. If these messages
appear frequently, check the memory card status
with another device.
Memory Stick read error
Memory Stick write error
Memory Stick format error
Troubleshooting
An error detected in the compact
flash card.
CompactFlash card error
Read error in the compact flash card
Write error in the compact flash card
Image data read error
An error occurred during saving.
Failed in saving.
121 GB
Print cartridge
Error messages
Meaning/Solutions
No print cartridge inside.
Set the print cartridge. Press [PRINT]
again.
c The print cartridge is not inserted in the printer. Set
the print cartridge into the printer. (.page 13)
If “for ### size” (###: Postcard, 3.5 x 5 inch, or
Small) appears, set a print cartridge of the specified
size. If “cleaning” is displayed, set the cleaning
cartridge. (.page 124)
No print cartridge inside.
Set the print cartridge for ### size.
Press [PRINT] again.
Print cartridge finished.
Set a new print cartridge. Press
[PRINT] again.
Print cartridge finished.
Set the new print cartridge for ###
size. Press [PRINT] again.
Wrong print cartridge.
Set the print cartridge for ### size.
Press [PRINT] again.
122 GB
c Replace it with a new print cartridge.
If “for ### size” (###: Postcard, 3.5 x 5 inch, or
Small) appears, set a print cartridge of the specified
size. (.page 13)
c The print size you specified in the Creative Print
menu does not match the print cartridge actually
loaded in the printer. Set a print cartridge and print
paper of the displayed size. (.pages 13, 15)
Print paper
Error messages
Meaning/Solutions
No print paper.
Set the print paper. Press [PRINT]
again.
c There is no print cartridge inserted in the printer.
No print paper.
Set the print paper for ### size. Press
[PRINT] again.
– The paper tray is not set in the printer.
– The print paper is not set in the paper tray.
– The print paper has run out.
In either case, set the print paper in the tray.
If “for ### size” (###: Postcard, 3.5 x 5 inch, or
Small) appears, insert print paper of the specified
size into the tray and set the paper tray into the
printer. (.page 15)
No cleaning sheet
Set the cleaning sheet. Press [PRINT]
again.
c There is no cleaning sheet in the paper tray. Insert
cleaning sheet into the paper tray and set the paper
tray into the printer. (.page 15)
Wrong print paper.
Set the print paper for ### size. Press
[PRINT] again.
c The print paper and print cartridge do not match.
Check the print cartridge size actually loaded in the
printer and set the print paper for the identical size.
(.page 15)
Paper jam
Remove the print paper and try
printing again.
c Paper jams. See “If paper jams” (page 124) and
remove jammed paper from the printer. If the
jammed paper cannot be removed, contact the Sony
service facilities.
Troubleshooting
123 GB
If paper jams
If the print paper jams, the / (paper/
cartridge error) indicator lights in the
printer’s LCD display, an error message
is displayed in the MONITOR OUT
mode and printing stops.
Unplug the AC power cord of the
printer and remove the jammed paper
from the paper outlet or take out the
paper tray to remove the jammed paper.
Pull out the
jammed paper
slowly.
Take out the
paper tray to
remove the
jammed paper.
Cleaning the inside of
the printer
If white lines or dots are printed on the
pictures, use the cleaning cartridge
supplied with the printer and the
protective sheet supplied in the printing
pack to clean inside the printer.
1
Open the cartridge
compartment cover and
remove the print cartridge
(page 13).
2
Insert the supplied cleaning
cartridge (white) into the
printer and close the cartridge
compartment cover.
3
Remove the paper tray from
the printer. If there is print
paper in the tray, remove the
print paper from the tray.
Note
If you cannot remove the jammed paper,
contact your Sony dealer.
124 GB
4
5
Adjust the spacer to feed the
protective sheet you will use
for cleaning.
Place the protective sheet
contained in the printing pack
in the paper tray.
Insert the protective sheet with the
no-imprint side facing up and the
arrow pointing in the same direction
as the arrow in the tray. Insert the
paper behind the spacer (toward the
feeding direction).
When cleaning ends
Set the print cartridge and print paper
into the printer.
Notes
• Carry out cleaning only when there are
white lines or dots on the print.
• When you can obtain proper printing
performances, cleaning will not improve
the printed picture quality.
• The maximum cleaning times that you can
carry out is approximately 20. As the
number of cleaning times increases, the
cleaning loses its effect.
• Do not place the protective sheet on the
print paper and carry out cleaning, which
may cause paper jam or other troubles.
• If a cleaning does not improve printed
picture quality, please carry out cleaning a
couple of times.
Arrows in the
reverse side
Spacer
6
Set the paper tray into the
printer and press PRINT.
7
Troubleshooting
The cleaning cartridge and
protective sheet will clean inside the
printer. After the cleaning is
finished, the protective sheet is
automatically ejected.
Remove the cleaning cartridge
and protective sheet from the
printer.
Tips
• Keep the cleaning cartridge and protective
sheet together for future cleaning.
• With a protective sheet, you can carry out
cleaning for the maximum of about 20
times.
125 GB
Additional information
Precautions
On safety
• Be careful not to set or drop any
heavy objects on the power cord, or
to damage the power cord in any
way. Never operate this printer with
a damaged power cord.
• Should any solid object or liquid fall
into the cabinet, unplug the printer
and have it checked by qualified
personnel before operating it any
further.
• Never disassemble the printer.
• To disconnect the power cord, pull it
out by the plug. Never pull the
power cord itself.
• When the printer is not going to be
used for an extended period of time,
disconnect the power cord from the
wall outlet.
• Do not handle the printer roughly.
• To reduce the risk of electrical shock,
always unplug the printer from the
electrical outlet before cleaning and
servicing the printer.
On installation
• Avoid placing the printer in a
location subject to:
– vibration
– high humidity
– excessive dust
– direct sunlight
– extremely high or low
temperatures
126 GB
• Do not use electrical equipment near
the printer. The printer will not work
properly in electromagnetic fields.
• Do not place heavy objects on the
printer.
• Leave enough room around the
printer so that the ventilation holes
are not blocked. Blocking these holes
may cause internal heat build-up.
On moisture condensation
If the printer is brought directly from a
cold location to a warm location or
placed in an extremely warm or humid
room, moisture may condense inside the
unit. In such cases the printer will
probably not work properly and may
even develop a fault if you persist in
using it. If moisture condensation
occurs, unplug the AC power cord of the
printer and do not use the printer for at
least one hour.
On transport
When you transport the printer, remove
the print cartridge, paper tray, the
memory card from the printer and put
the printer and its peripherals in the
original box with the protective
packaging.
If you no longer have the original box
and packing parts, use similar packing
material so that the printer will not be
damaged while being transported.
On cleaning
Clean the cabinet, panel and controls
with a soft dry cloth, or a soft cloth
lightly moistened with a mild detergent
solution. Do not use any type of solvent,
such as alcohol or benzine, which may
damage the finish.
On restrictions on duplication
If duplicating documents with the
printer, pay special attention to the
following:
• Duplication of banknotes, coins, or
securities is against the law.
• Duplication of blank certificates,
licenses, passports, private securities,
or unused postal stamps is also
against the law.
• TV program, films, video tapes,
others’ portraits or other materials
may be copyrighted. Unauthorized
video printing of such materials may
infringe the provisions of the
copyright law.
About the “Memory
Stick”
What is “Memory Stick”?
“Memory Stick” is small, light-weighted,
and next-generation IC storage media
with a larger capacity than a floppy disc.
You can use the “Memory Stick” to
exchange data among “Memory Stick”
compatible devices. In addition, you
can use the “Memory Stick” as a
removable external storage device to
save your data.
Types of “Memory Stick”
Following types of “Memory Stick” are
available for versatile purposes.
Continued
127 GB
Additional information
• “Memory Stick”: “Memory Stick”
can store all types of data except for
the one that requires the
“MagicGate” copyright protection
technology.
• “Memory Stick” (MagicGate/HighSpeed Transfer Compatible):
“Memory Stick” (MagicGate/HighSpeed Transfer Compatible) employs
“MagicGate” copyright protection
technology and supports high-speed
data transfer. It can be used with all
the “Memory Stick”-compatible
devices. (Data transfer speed
depends on the “Memory Stick”compatible device.)
• “Memory Stick” (with memory
select function): “Memory Stick”
(with memory select function)
incorporates multiple 128MB
memory units, which can be selected
by a user via a mechanical switch on
the reverse side of the media. Each
memory unit can be used to
categorize various types of data.
You cannot select multiple memory
units together or continuously.
• “MagicGate Memory Stick” :
“MagicGate Memory Stick ” employs
the “MagicGate” copyright
protection technology.
• “Memory Stick PRO” : “Memory
Stick PRO” employs the
“MagicGate” copyright protection
technology and can be used only
with “Memory Stick PRO” compliant
devices.
• “Memory Stick-ROM”: “Memory
Stick-ROM” is the read-only
“Memory Stick” storing the data.
You cannot save or delete its data.
• Before using the “Memory Stick
Duo”, check the correct direction to
insert the “Memory Stick Duo”. If
you attempt to insert it in a wrong
direction, the “Memory Stick Duo”
and the printer may be damaged.
• Never insert the “Memory Stick
Duo” adaptor that contains no
“Memory Stick Duo” into a
“Memory Stick”-compliant device. If
you do, the device may be damaged.
About “Memory Stick Duo”
“Memory Stick”
(MagicGate/High-Speed
Transfer Compatible)/
/“Memory Stick Duo”
(MagicGate/High-Speed
Transfer Compatible)*2
“Memory Stick Duo” is smaller than the
standard-sized “Memory Stick”. When
inserted into the “Memory Stick Duo”
adaptor, the “Memory Stick Duo” is the
same size as the standard-sized
“Memory Stick”, and can be used with
“Memory Stick” compliant devices.
• When using the “Memory Stick Duo”
on the printer, make sure to insert
the “Memory Stick Duo” into the
“Memory Stick Duo” adaptor and
then insert the adaptor containing
the “Memory Stick Duo” into the
printer.
Types of “Memory Stick” that
the printer can use
With the printer, you can do the
following operations for each type of
“Memory Stick”:
Read
“Memory Stick”/
“Memory Stick” (with
memory select
function)/“Memory
Stick Duo”*2
Write/Delete/
Format
OK
OK
OK*1*3
OK*1*3
OK*1
OK*1
“Memory Stick PRO”
OK*1
“Memory Stick PRO Duo” *2
OK*1
“Memory Stick-ROM”
NO
“MagicGate Memory
Stick”/“MagicGate
Memory Stick Duo”*2
OK
*1 The printer cannot read/write the data subject to
“MagicGate” copyright protection.
*2 Use the adaptor designed for the “Memory Stick
Duo” you use.
*3 It does not support parallel interface high-speed
data transfer.
128 GB
We cannot guarantee the operations of all the
“Memory Stick” media.
On data read/write speed
The data read/write speed differs
depending on the combination of the
“Memory Stick” and the device you use.
What is “MagicGate”?
“MagicGate” is the copyright protection
technology that works when both the
“Memory Stick” and the device employ
the technology. The “MagicGate”compliant device and the “MagicGate
Memory Stick” attest that each other
supports the “MagicGate” technology
and encode the data they exchange.
The printer does not support the
“MagicGate” standards and cannot read
or write the data subject to the
“MagicGate” copyright protection.
Notes on use
• When you slide the write protect
switch to the write protect position,
you cannot record, edit, or delete the
data.
Connector
Write
enable
position
Place the label here.
LOCK
Continued
129 GB
Additional information
LOCK
Write
protect
position
• When you slide the write protect
switch of the “Memory Stick Duo”,
use a thin-pointed device.
• Avoid removing the “Memory Stick”
from the printer while the printer is
reading or writing data.
• Data may be damaged in such
occasions:
– “Memory Stick” is removed or the
ON/STANDBY button is turned off
while the printer is reading or
writing the “Memory Stick” data.
– “Memory Stick is used in a location
subject to electrostatic or electronic
noises.
• We recommend that you save
backup of the important data.
• Attach the label designed for the
“Memory Stick” only to the place for
the label.
• When attaching the label, attach it to
the place specified for the label.
Make sure that the label does not
overlap.
• When storing and carrying the
“Memory Stick”, keep it in its
original case to ensure protection of
important data.
• Avoid touching the connector of the
“Memory Stick” or contacting it with
a metal object.
• Do not drop, bend, or submit the
“Memory Stick” to external shock.
• Do not disassemble or modify the
“Memory Stick”.
• Avoid getting liquids on the
“Memory Stick” or using it in areas
subject to high humidity.
• Avoid using or storing the “Memory
Stick” in a location subject to:
– extremely high temperature such as
the hot inside of a car or the
outdoors exposed to direct sunlight,
or a place near a heater.
– direct sunlight
– high humidity
– corrosive substances
• When formatting a “Memory Stick”,
use the format function of the printer
or your digital camera. If you format
a “Memory Stick” with your
computer, images may not be
displayed properly.
130 GB
About the
CompactFlash card
The printer can read and write a
CompactFlash card (CF+ Type I/Type II
flash memory cards with a power
specification of 5V or 3.3/5V). By using
a commercially available CompactFlash
card adaptor, you can also use SD
Memory Card, xD-Picture Card, and
Smart Media cards.
Notes on use
• You cannot use CompactFlash cards
with a power specification of 3V
(3.3V) only. Do not insert other
types of CompactFlash card into the
printer’s insertion slot. The printer
may be damaged.
• Do not drop, bend, or submit the
CompactFlash card to external
shock.
• Do not disassemble or modify the
CompactFlash card.
• Avoid getting liquids on the
CompactFlash card or using them in
areas subject to high humidity.
Otherwise, data may be rendered
unreadable.
• Avoid using or storing the
CompactFlash card in a location
subject to:
– extremely high temperature such as
the hot inside of a car or the
outdoors exposed to a direct
sunlight, or a place near a heater.
– direct sunlight
– high humidity
– corrosive substances
– excessive dust
– electrostatic or electronic noises
– magnetic fields
• When storing and carrying the
CompactFlash card, keep it in its
original case to ensure protection of
important data.
• Avoid removing the CompactFlash
card from the insertion slot or
turning off the ON/STANDBY
button while the printer is accessing
the CompactFlash card. Otherwise,
data may be rendered unreadable.
• When using an SD Memory Card,
xD-Picture Card, or Smart Media
card, use a commercially available
CompactFlash card adaptor that is
compatible with the card. Insert the
card into the adaptor and then insert
it into the printer. For how to install
the card and adaptor, refer to the
operating instructions of the
CompactFlash card adaptor.
• Avoid inserting or removing the
compact flash card or an SD Memory
Card, xD-Picture Card, or Smart
Media card into or out of the
CompactFlash card adaptor while
the CompactFlash card adaptor is
inserted in the printer. The data may
be rendered unreadable or erased.
Specifications
Printing method
Dye sublimation printing (Yellow/
Magenta/Cyan 3 pass)
Resolution
403 (H) x 403 (V) dpi
Image processing per dot
256 levels (8 bits for each Yellow/
Magenta/Cyan), approx. 16 770 000 colors
Printing size
Post Card (4 x 6 inch) size:
101.6 x 152.4 mm (maximum,
borderless)
3.5 x 5 inch size:
89 x 127 mm (maximum, borderless)
Small (3.5 x 4 inch) size:
71.7 x 95.5 mm (maximum)
Printing time (per sheet)
Post Card (4 x 6 inch) size: approx. 80
seconds
3.5 x 5 inch size: approx. 70 seconds
Small (3.5 x 4 inch) size: approx. 55
seconds
(excluding the time for data
processing and data transferring from
the computer, the “Memory Stick,” or
CompactFlash )
Input/Output connectors
Slot
“Memory Stick” insertion slot (1)
CompactFlash card insertion slot (1)
Continued
131 GB
Additional information
USB connector (1)
PictBridge connector (1)
VIDEO OUT (output) connector (phono
jack x 1)
1 Vp-p, 75 ohms (unbalanced),
sync negative
Compatible image file formats*1
JPEG: DCF*2 1.0 compatible, Exif*3 2.2
compatible, JFIF*a
TIFF*4: Exif 2.2 compatible*b
BMP: 24bit Windows format
*a: Baseline JPEG with 4:4:4, 4:2:2, or
4:2:0 format.
*b: TIFF-RGB, non-compressed
Recording image format
DCF compatible: Exif 2.2, JPEG
compatible
Maximum number of pixels to be
handled
JPEG/BMP/Tiff: 6 400(H) x 4 800(V)
dots
(The minimum number of pixels to be
handled is 80 (H) x 60 (V) dots)
Maximum number of files to be handled
9 999 files for a “Memory Stick” or a
CompactFlash card
Print cartridge/Print Paper
See “Preparing the printing pack (not
supplied)” on page 12.
Power requirements
For USA and Canada: 120V AC, 50/
60Hz, 1A
For other countries: 100-240V AC, 50/
60Hz,1.2-0.6A
Operating temperature
5 ˚C to 35 ˚C (41 ˚F to 95 ˚F)
Dimensions
Approx. 83 x 199 x 290 mm
(3 3/8 x 7 7/8 x 11 1/2 inches)
(w/h/d, excluding protruding parts)
(400 mm (15 3/4 inches) of depth when
the paper tray is installed.)
Mass
Approx. 2.05 kg (4 lb 8 oz)
(excluding the 0.16kg (6 oz) paper tray)
132 GB
Supplied accessories
See “Checking the contents of the
package” on page 11.
Design and specifications are subject to
change without notice.
*1: Some special file types are not
compatible.
*2: “DCF” stands for Design rule for
Camera File system.
*3: “Exif” is an image file format
containing an image data added with its
thumbnail data for viewing, shot date
data and the shooting conditions data.
*4: The printer functions may be limited for
a TIFF file.
Customer support home page
The latest support information is
available at the following homepage
addresses:
For the customers in the U.S.A.:
http://www.sel.sony.com/SEL/
service/conselec/
For the customers in Canada:
http://www.sony.ca/service
For the customers in Europe:
http://www.sonydigitallink.com/
index/index.asp
For the customers in Singapore:
http://www.css.ap.sony.com
Printing range
Postcard size
152.4 mm/6 inch (2 418 dots)
101.6 mm/
4 inch
(1 612 dots)
95.5 mm/
3 7/8 inch
(1 516 dots)
146.3 mm/5 7/8 inch (2 322 dots)
3.5 x 5 inch size
127 mm/5 inch (2 015 dots)
89 mm/3 1/2 inch
(1 412 dots)
83.9 mm/
3 3/8 inch
(1 332 dots)
Small size
122 mm/4 7/8 inch (1 936 dots)
Border print
range
71.7 mm/
2 7/8 inch
(1 136 dots)
Borderless
print range
Perforations
Continued
133 GB
Additional information
95.5 mm/3 7/8 inch (1 516 dots)
The printing range differs for a border or a borderless print as shown in the
illustrations on the previous page.
For a border print, the margin sizes differ depending on the aspect ratio of the image
to be printed as follows. The illustrations of the previous page are those when an
image with a 2:3 aspect ratio is printed.
Margin sizes
Aspect ratio of the image
to be printed
2:3
3:4
4:5
3/
16
4.6 mm/
inch
1/
12.6 mm/
2 inch
16.5 mm/
21/
32 inch
3.1 mm/
3.1 mm/
3.1 mm/
1/
8
1/
1/
Paper size
Postcard size
right/left:
top/bottom:
3.5 x 5 inch size
right/left:
top/bottom:
Small size
right/left:
top:
bottom:
* The sizes in approximate values
134 GB
inch
8
inch
8
inch
1/
8
2.5 mm/
inch
5/
7.6 mm/
16 inch
11.1 mm/
7/
16 inch
3.9 mm/
5/ inch
32
2.5 mm/
1/ inch
8
1/
3.1 mm/
3.1 mm/
6.1 mm/
1/
8
1/
1/
inch
8
inch
2.5 mm/
8 inch
4
inch
8.8 mm/
4.8 mm/
4.8 mm/
3/
8
7/
7/
inch
32
inch
32
inch
17.5 mm/
13.5 mm/
13.5 mm/
23/
32
9/
9/
inch
16
inch
16
inch
Glossary
Auto Fine Print 3
The function automatically corrects
the picture quality so that an image
may be printed in more vivid, clear
and beautiful pictures. It is especially
effective for a darker image with low
contrast. The pictures are corrected to
reproduce natural skin colors, vivid
tree leaf green, or clear sky blue.
DCF (Design rule for Camera File
system)
The standard specified by JEIDA
(Japan Electronic Industry
Development Association) to maintain
the file exchangeability and
compatibilities between digital
cameras and related products.
DPOF (Digital Print Order Format)
The format used to record the
information necessary for
automatically printing images shot by
a digital camera at a printing shop or
with a home-use printer. The printer
supports DPOF printing and can
automatically print the preset number
of copies of the DPOF preset images.
*1 When the “Auto Fine Print 2” is
enabled and an image (JPEG file) is
shot by an Exif Print (Exif 2.2)compliant digital camera, the image is
automatically adjusted to its optimum
picture quality and printed.
“Memory Stick”/CompactFlash card
Compact, light, removable storage
media. For details see pages 127 to
131.
PictBridge
A standard specified by Camera &
Imaging Products Association that
allows you to connect PictBridgecomplaint digital camera directly to
the printer without a PC, enabling
direct printing on the spot.
Thumbnails
Miniature images for representing
the original images that are stored in
the image files taken by a digital
camera. The printer uses thumbnails
in the image list.
Additional information
Exif 2.2 (Exif Print)
Exif (Exchangeable image file format
for digital cameras) Print is a global
standard for digital photo printing. A
digital camera supporting Exif Print
stores the data relevant to the
conditions of shooting as each shot is
taken. The printer utilises the Exif
Print data stored in each image file to
ensure the printed result matches the
original shot as closely as possible*1.
135 GB
Lists of templates and patterns in Creative
Print (MONITOR OUT mode only)
Free layout templates
Calendar patterns
Frames
Stamps
136 GB
Calendar templates
x Postcard size
x 3.5 x 5 inch size
x Small size
Card templates
x Postcard size/3.5 x 5 inch size
Messages
x Small size
Split-image templates
x Postcard size
x 3.5 x 5 inch size
Additional information
137 GB
x Small size
Frames
138 GB
Identifying the parts
For details, see the pages indicated in
the parentheses.
Printer
1 MONITOR OUT button (pages 20,
72)
2 ON/STANDBY button (pages
20, 74, 82, 89)
3 INPUT SELECT button (pages 21,
74)
4 Arrow (B/b/V/v) button
5 ENTER button
6 CANCEL button (page 25)
7 LCD display (page 72)
8 MENU button (pages 31, 43, 60)
9 PICTURE button (page 23)
0 AUTO PRINT button (pages 27, 78)
Each time you press the button, INDEX,
DPOF, ALL, and normal printing modes
switch.
qa PRINT button (pages 22, 75)
qs “MEMORY STICK” insertion slot
(pages 19, 73)
qd CompactFlash card insertion slot
(pages 20, 73)
qf Access indicator (pages 21, 74)
Lights or blinks when the printer accesses
the data of the memory card.
qg CompactFlash card eject button
(pages 20, 73)
qh Paper tray compartment cover
(page 15)
qj PictBridge connector (page 82)
Connect the PictBridge-compliant digital
camera.
(Not supplied)
w; Print cartridge eject lever (page 13)
139 GB
Additional information
qk Cartridge compartment cover
(page 13)
ql Print cartridge (pages 12, 13)
1 Ventilation holes
2 VIDEO OUT (output) connector
(page 18)
Connects to the video input of your TV
monitor.
3
USB connector (pages 82, 89)
Connects to the USB connector of your
computer.
4 AC power cord
Paper tray
140 GB
1 Cover (page 15)
2 Spacer (page 15)
Index
Symbols
3.5 x 5 inch size 12
A
Adding a special filter to
an image 34
Adjusting an image 33
ALL 27, 76
Auto Fine Print 3 61
AUTO PRINT 27, 78
B
Beep 64
Border/borderless print
61
C
L
Date print 62
Deleting an image 67
Displaying
Image list 20
Preview image 23
DPOF 27, 76
LCD mode 72
E
Editing an image 30
Eject lever 13
Enlarging/reducing the
image size 32
Error messages 120
Exif Print 9, 61
F
Features 9
Filter 34
Finish 61
Formatting “Memory
Stick” 69
Frame 44, 56
Free layout print 43
I
INDEX 27, 76
INPUT SELECT 21, 74
Inserting
Paper tray 17
Print cartridge 13
Print paper 15
Installing
Picture Gear Studio 92
Printer driver 87
System requirements
85
M
“Memory Stick”
Note on use 129
Write protect 129
Inserting/Removing
19, 73
Types 127
MENU 31, 43, 60
Messages
Adding to an image 54
Registering/loading
39
Moisture condensation
126
MONITOR OUT button
20, 74
MONITOR OUT mode
6, 18
Moving an image 32
O
ON/STANDBY
20, 74, 82, 89
Operation flows 8
Operation modes 6
OPTION 63
Overview 6
Additional information
Calendar 50
Card 53
Cartridge compartment
cover 13
Cleaning
Inside the printer 124
Outsides the printer
127
Color Setting 62, 100
CompactFlash card
Inserting/removing
20, 73
Notes 130
Types 130
Connecting
Computer 89
PictBridge-compliant
digital camera 82
To AC outlet
19, 72, 81, 88
TV monitor 18
Creative Print 42
D
141 GB
P
S
Paper jams 124
Paper size 12
Paper tray 15, 140
PC mode 7, 89
PictBridge 7, 10, 81, 135
PICTURE 23
Post card size 12
Print cartridge 12, 13
Print paper 12, 15
Print quantity 25
Print settings (SET UP)
60
Printer preferences
(Options) 63
Printing
A selected image
22, 74
ALL images 27, 76
Calendar 50
Card 53
DPOF images 27, 76
Free layout print 43
From a PictBridgecompliant digital
camera 81
From your PC 96
Index images 27, 76
Multiple images 24
PC images 96
Split image 56
Printing pack 12
Printing range 133
Printing surface 15, 109
Saving an image 40, 58
Searching an image 69
SET UP 60
Slideshow 65
Small (3.5 x 4 inch) size
12
Spacer 15
Split images 56
Stamp 46
Superimposing
characters 36
Supplied accessories 11
System requirements 85
R
Red-eye reduction 35
Reset 41
Restrictions on
duplication 127
Rotating an image 33
142 GB
T
Templates 136
Thumbnails 135
Transport 126
Troubleshooting 104
U
Uninstalling
Picture Gear Studio 95
Printer driver 91
USB connector 82, 89
V
VIDEO OUT connector
18
W
Wallpaper 44
Additional information
143 GB
Sony Corporation
Printed in Korea
