Sony | DPP-EX7 | User's Manual | Sony DPP-EX7 User's Manual

3-207-207-13(2)

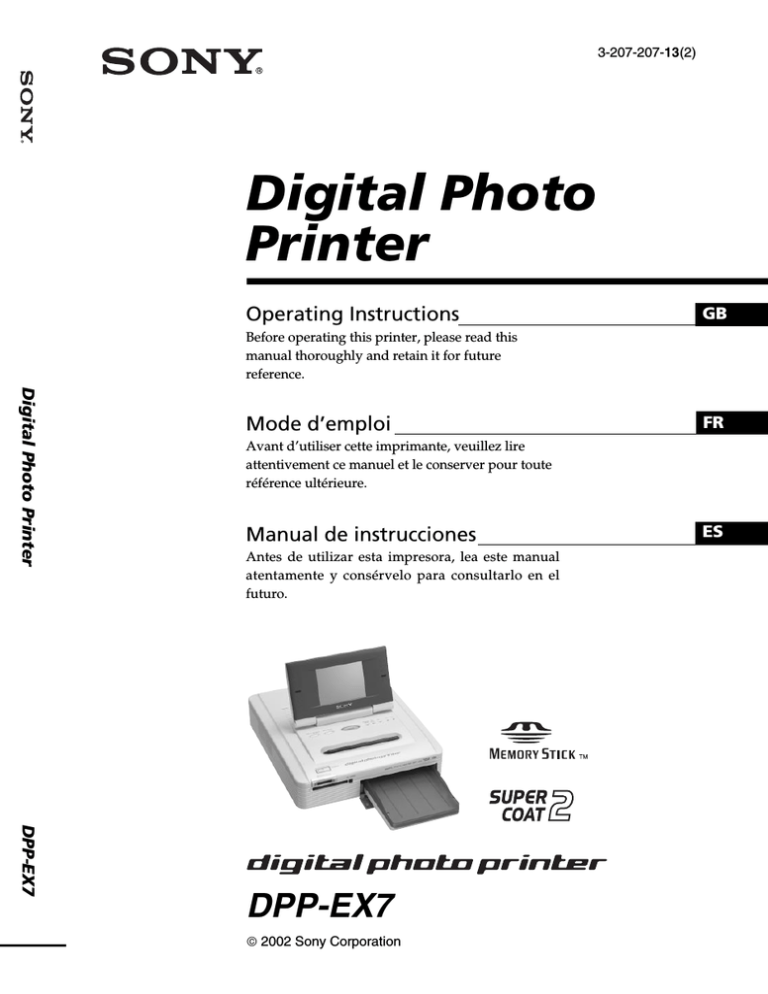

Digital Photo
Printer
Operating Instructions
GB
Before operating this printer, please read this
manual thoroughly and retain it for future
reference.
Digital Photo Printer
Mode d’emploi
FR
Avant d’utiliser cette imprimante, veuillez lire
attentivement ce manuel et le conserver pour toute
référence ultérieure.
Manual de instrucciones
Antes de utilizar esta impresora, lea este manual
atentamente y consérvelo para consultarlo en el
futuro.
DPP-EX7
DPP-EX7
 2002 Sony Corporation
ES
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
To avoid electrical shock, do not open
the cabinet. Refer servicing to
qualified personnel only.
ATTENTION
Pictures and/or Sound distortion may occur if
this product is positioned in close proximity to
equipment emitting electromagnetic radiation.
ATTENTION
Sony shall assume no responsibility for any
accidental or consequential damages or loss
of the recording contents which may be
caused by use or malfunction of the printer,
“Memory Stick” or PC card.
Owner’s Record
The model and serial numbers are located
on the bottom. Record the serial number
in the space provided below. Refer to this
number whenever you call upon your
Sony dealer regarding this product.
Model No. DPP-EX7
Serial No.
WARNING
This unit has no power switch.
When installing the unit, incorporate a
readily accessible disconnect device in the
fixed wiring, or connect the power cord to
socket-outlet which must be provided near
the unit and easily accessible. If a fault should
occur during operation of the unit, operate
the disconnect device to switch the power
supply off, or disconnect the power cord.
2 GB
For the customers in the U.S.A.
WARNING
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
The shielded interface cable recommended in
this manual must be used with this
equipment in order to comply with the limits
for a digital device pursuant to Subpart B of
Part 15 of Fcc Rules.
If you have any questions about this product, you
may contact:
Sony’s Customer Information Services Center
(CISC) at 1-866-328-SONY (7669)
or Sony Web site at www.sony.com
Declaration of Conformity
Trade Name: SONY
Model No.: DPP-EX7
Responsible Party:
Sony Electronics Inc.
Address:
680 Kinderkamarck Road,
Oradell NJ 07649 U.S.A.
Telephone No.: 201-930-6972
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
CAUTION
The nameplate is located on the bottom
enclosure.
Backup recommendations
To avoid potential risk of data loss caused
by accidental operation or malfunction of
the printer, we recommend that you save a
backup copy of your data.
Information
IN NO EVENT SHALL SELLER BE LIABLE
FOR ANY DIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY
NATURE, OR LOSSES OR EXPENSES
RESULTING FROM ANY DEFECTIVE
PRODUCT OR THE USE OF ANY
PRODUCT.
Duplication, edition, or printing of a CD,
TV programs, copyrighted materials such
as pictures or publications, or any other
materials except for your own recording or
creation is limited to private or domestic
use only. Unless you hold copyright or
have permission of copyright holders for
the materials to be duplicated, use of those
materials beyond this limit may infringe
the provisions of the copyright law and be
subject to the copyright holder’s claim for
damages.
When using photo images with this
printer, pay special attention not to
infringe the provisions of the copyright
law. Any unauthorized use or
modification of others’ portrait may also
infringe their rights.
For some demonstrations, performances,
or exhibits, photography may be
forbidden.
•Microsoft, MS, MS-DOS and Windows®
are registered trademarks of Microsoft
Corporation in the United States and
other countries.
•IBM and PC/AT are registered
trademarks of International Business
Machines Corporation.
•MMX and Pentium are registered
trademarks of Intel Corporation.
•Apple, Macintosh, Power Macintosh,
and Mac OS are registered trademarks of
Apple Computer, Inc.
•“Memory Stick“, “
”, “Memory Stick
PRO” and “MagicGate Memory Stick“
are trademarks of Sony Corporation.
•“MagicGate” is the trademark of Sony
Corporation.
•This printer uses Exif Print (Exif 2.2)
technology.
•All other companies and product names
mentioned herein may be the
trademarks or registered trademarks of
their respective companies. Furthermore,
“™” and “®” are not mentioned in each
case in this manual.
3 GB
GB
Notice for users
Program © 2002 Sony Corporation
Documentation ©2002 Sony Corporation
All rights reserved. This manual or the software
described herein, in whole or in part, may not
be reproduced, translated or reduced to any
machine readable form without prior written
approval from Sony Corporation.
IN NO EVENT SHALL SONY CORPORATION
BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
WHETHER BASED ON TORT, CONTACT, OR
OTHERWISE, ARISING OUT OF OR IN
CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
By breaking the seal of the envelope of the CDROM package, you accept all the terms and
conditions of this agreement. If you do not
accept these terms and conditions, please
return this disk envelope unopened, along with
the rest of the package, immediately to the
dealer where you obtained it.
Sony Corporation reserves the right to make
any modification to this manual or the
information contained herein at any time
without notice.
The software described herein may also be
governed by the terms of a separate user license
agreement.
User Registration
To receive customer services, complete and
return the registration card included in your
package.
Any design data such as sample pictures
provided in this software cannot be modified or
duplicated except for the purpose of personal
use. Any unauthorized duplication of this
software is prohibited under copyright law.
Please note that unauthorized duplication or
modification of others’ portraits or copyrighted
work could infringe the rights reserved by right
holders.
4 GB
Table of contents
Getting started
Features .................................................. 6
Unpacking the printer ............................. 8
Identifying the parts ............................... 9
Using the stylus and operation panel ... 12
Opening the operation panel ............ 12
Using the stylus ............................... 13
Setting up
1 Connecting the printer ....................
Inserting a “Memory Stick” or
PC card ............................................
Connecting the AC power cord .........
Connecting to a computer
(optional) .........................................
14
14
15
16
2 Preparing the printing pack ............ 17
3 Loading the print cartridge ............. 18
4 Inserting the print paper ................. 20
Basic printing operations
Printing selected images ....................... 23
Printing all the images or DPOF preset
images at one time ......................... 28
Advanced printing operations
Adding effects to an image (Effect) ......
What you can do with the
Effect menu .....................................
Changing the image size and
position ...........................................
Adjusting the picture quality .............
Adding a special filter to an image ...
Making various prints (Creative Print) ..
What you can do with the Creative
Print menu .......................................
Making a card .................................
Making a calendar ...........................
Making a split print ..........................
Making a sticker ..............................
Making an index print ......................
Adding pictures or characters to an
image (Tool) ....................................
Drawing freehand line art ( ) ..
Typing characters ( ) ...............
Pasting stamps ( ) ...................
Pasting cut out images ( ) ......
Pasting messages ( ) ..............
Setting up the printer (MENU) ..............
What you can do with the Menu ......
Changing the print preferences
(Print Setting) ..................................
Changing the printer preferences
(Options) .........................................
Printing from your computer
30
30
32
33
35
36
36
38
41
43
44
46
48
49
50
53
54
55
57
57
Using your printer with Windows
computers .......................................
System requirements ........................
Installing the printer driver ...............
Printing from an application
software ..........................................
Using your printer with Macintosh
computers .......................................
System requirements ........................
Installing the printer driver ...............
Printing from an application
software ..........................................
66
66
67
70
76
76
77
81
Additional information
Precautions ........................................... 84
About the “Memory Stick” ...................
What is “Memory Stick”? ................
Types of “Memory Stick” .................
Types of “Memory Stick” that the
printer can use .................................
Notes on use ...................................
86
86
86
87
87
About the PC card ................................ 89
Notes on use ................................... 89
58
Troubleshooting ................................... 90
If paper jams .................................... 92
Cleaning the inside of the printer ..... 92
61
Specifications ....................................... 94
Viewing a slide show ............................ 63
Glossary ................................................ 96
Deleting images .................................... 64
Deleting the selected images ............ 64
Formatting a “Memory Stick” .......... 65
Index .................................................... 97
5 GB
Getting started
Features
Photo-realistic printing
With its dye sublimation printing system, the digital photo printer DPP-EX7
can make photo-realistic prints meeting a number of different requirements.
Super Coat 2 feature
The Super Coat 2 enables high durability and moisture or fingerprint
resistance, keeping your prints in good picture quality for an extended
period of time.
Auto Fine Print 2 feature (page 58)
The Auto Fine Print 2 analyses the picture information of an image and
corrects it as vivid, clear, and natural picture.
Exif 2.2* (Exif Print) support (page 58)
The printer supports Exif 2.2. When the Auto Fine Print 2 is effective, the
printer automatically adjusts an image saved by a digital still camera
compatible with the Exif Print standard and then print it with optimal
picture quality (for JPEG files only).
Easy stylus operations on the color LCD screen
With the color touch-sensitive LCD screen, you can easily perform the
operations with the touch of a stylus and preview the images to be printed.
To select an image or an item, just tap the screen lightly with the stylus
supplied with your printer. A series of screen-activated operations will
navigate you though the printing process.
Selection of print sizes and border/borderless print
You can select from a large, dynamic Post Card (4 x 6 inch) size, 3.5 x 5 inch
size print or an economical Small (3.5 x 4 inch) size print. For the Post Card
(4 x 6 inch) size and 3.5 x 5 inch size prints, you can also select a print with or
without border.
Selection of print finish (page 59)
You can select the print finish from either glossy or texture.
* Exif (Exchangeable image file format for digital still cameras) Print is a global
standard for digital photo printing. A digital still camera supporting Exif Print
stores the data relevant to the conditions of shooting as each shot is taken. The
printer utilises the Exif Print data stored in each image file to ensure the printed
result matches the original shot as closely as possible.
6 GB
With the supplied paper tray, you can print up to 25 sheets for Post Card (4 x
6 inch) size and 30 sheets for 3.5 x 5 inch size and Small (3.5 x 4 inch) size
print paper at one time.
A wide variety of image processing and adjustments without
using a computer (page 30)
A variety of image processing functions allow you to magnify/reduce, rotate,
or move the image. You can also enter and overlay characters on an image or
add a special effect to the picture to produce sepia, monochrome, or paint
pictures. Adjustments of brightness, hue, and other elements of picture
quality are possible.
A wider variety of prints of “Memory Stick” or PC card images
without using a computer
x You can view the digital still camera images stored in a “Memory Stick”
or PC card on the LCD screen without using your computer.
x You can print an image placed with the cursor. You can also select
multiple images with specifying the print quantity (page 23).
x All the contained images or all the DPOF (Digital Print Order Format)
preset images can be printed at one time (page 28).
x You can print an image with the recorded or saved date (page 59). You
can also enjoy a slide show of the images (page 63).
x The Creative Print menu allows you to make even more types of prints
such as an original card, calendar, split images, a sticker with framed
images, and an index print of the images stored in a “Memory Stick” or
PC card (page 36). With the Tool function, you can paste characters,
messages, stamps, or drawings onto an image.
For the “Memory Stick”, see page 86. For the PC card, see page 89.
Printing from your computer with a convenient USB connection
(page 66)
By connecting the printer and your computer with the USB cable supplied
and installing the supplied DPP-EX7 printer driver software on your
computer, you can print images from your computer.
7 GB
Getting started
Paper tray allowing bulk printing of 25/30 sheets (page 20)
Unpacking the printer
Make sure that the following accessories are supplied with your printer.
• AC power cord (1)
• Paper tray (1)
• Stylus (1)
• CD-ROM (1)
–Sony DPP-EX5/EX7 Printer
Driver Software
for Windows® 98/98SE/
Me/2000 Professional/XP
Home Edition/XP
Professional
for MAC OS 8.6/9.0/9.1/
9.2/X (v10.1/v10.2)
– Operating Instructions
• Cleaning kit (a set of cleaning paper and cartridge) (1)
• Operating Instructions (1)
• Warranty (1)
• Owner registration card (1)
• Sony End User Software License Agreement (1)
Notes
• The AC power cord illustrated is for 120V only. The plug shape and specifications
change depending on the region you use the printer.
• Never insert the CD-ROM supplied with the printer into a CD player or other audio
player, which may cause serious damage to your ears, speaker system, or
earphones, or malfunctions to the audio device.
8 GB
Identifying the parts
Printer front panel
1 Operation panel cover
2 POWER button (pages 18, 23, 25,
28)
3 “MEMORY STICK” insertion slot
(page 14)
4 PC CARD insertion slot (page 15)
5 PC card eject button (page 15)
6 Paper tray compartment lid (page
21)
7 Cartridge compartment lid (page
18)
8 Print cartridge eject lever (page
18)
9 Print cartridge (pages 17, 18)
(Not supplied)
0 Operation panel (pages 12)
qa INPUT SELECT button (page 23)
Switches the input. (The selected input
indicator qg lights.)
qs ALL/DPOF button (page 28)
Each time you press the button, the
printing mode switches: ALL (printing
all the images b DPOF (printing all the
images with the print mark) b normal
printing mode
qd Stylus/stylus slot (page 12)
qf PRINT button (pages 24, 26)
qg “MEMORY STICK”/PC CARD/PC
input indicators (pages 16, 23)
Paper error indicator (pages 22,
qh
92)
Cartridge error indicator (page
qj
18)
Continued
9 GB
Getting started
For details, see the pages indicated in
the parentheses.
Identifying the parts
Printer rear panel
1 USB connector (page 16)
Connects to the USB connector of your
computer.
2 AC IN connector (page 15)
3 Ventilation holes
Paper tray
1 lid (page 20)
2 Partition (page 20)
3 3.5 x 5 inch paper adaptor (page
20)
Use the adaptor only when you feed 3.5 x
5 inch size paper into the paper tray.
10 GB
1
2
Screen
3
4
5 67
1 Cursor (orange frame)
2 “Memory Stick”/PC Card/Printer
images indication
Indicates that the source of the images
being displayed.
8
9
q;
3 Selection (yellow background)
4 Print mark (DPOF indication)
Indicates that the image is DPOF preset
for printing from a digital still camera.
5 The quantity of selected images/
the total image quantity
When no image is selected, only the total
image quantity is displayed.
qa
Note
The displayed quantity may differ from
the number of images actually saved on
a “Memory Stick” or PC card.
6 Print cartridge indication
Indicates the type of print cartridge
currently loaded:
: Post Card (4 x 6 inch) size
: 3.5 x 5 inch size
: Small (3.5 x 4 inch) size
Preview image
7 Scroll bar
Indicates the position of the image
currently displayed or selected among the
total number of images.
8 Protect indication
Indicates that the image is protected by a
digital still camera.
q;
9
qa
9
0
qa
qs
qd
qf
Image number
Print quantity indication
Operation buttons
Guidance message
Scroll buttons
Image List button
Returns to the image list.
11 GB
Getting started
Image list
Using the stylus and operation panel
Most operations on the DPP-EX7 are carried out by tapping an item or button
on the touchscreen of the operation panel. This section explains how to use
the stylus and touchscreen.
Note on the LCD screen
The LCD is manufactured using high-precision technology. You may, however, see
brighter points or color shifts on the LCD depending on the viewing angle. This is a
normal result of the manufacturing process and does not indicate a malfunction.
Opening the operation panel
Open the operation panel cover.
You can rotate the operation panel up to 180
degrees. Use the panel at an appropriate
angle such that you can view the screen
clearly and can perform the stylus operations
easily.
After you finish
• To keep the touchscreen safe and clean, we recommend you close the operation
panel after you finish using your printer.
• Keep the stylus in the slot on the panel to prevent it from being lost.
• If the screen becomes soiled, wipe it with a soft dry cloth such as a cloth used to
clean your eyeglasses.
12 GB
Press lightly on the button, image or item on the operation panel
screen using the point of the supplied stylus.
This action is referred to as “tapping” in this manual. Tapping allows you to
execute the button function or select an item or image on the screen.
Move the stylus while pressing on an image or item on the
operation panel screen using the point of the supplied stylus.
This action is referred to as “dragging” in this manual. Dragging allows you
to move an image or item or draw a line on the screen.
Notes
•Always use the point of the supplied stylus for tapping the screen. Never use a real
pen, pencil, or other sharp object to write on the screen.
•In case you lost the supplied stylus, contact Sony service facilities.
13 GB
Getting started
Using the stylus
Setting up
1 Connecting the printer
Inserting a “Memory Stick” or PC card
Notes
•Do not attempt to force a “Memory Stick” or a PC card into or out of the slot. If
you do, the “Memory Stick” or the PC card or the printer may be damaged.
•When the printer is accessing the “Memory Stick” or PC card and the relevant
indicator flashes, do not remove the “Memory Stick” or PC card from the printer.
If you do, the “Memory Stick” or the PC card or the printer may be damaged.
Inserting a “Memory Stick”
Insert the “Memory Stick” into the “MEMORY STICK” insertion slot until it
clicks into place.
“Memory Stick”
With the notch facing left and the arrow
facing forward on the left
To eject the “Memory Stick”
Push the “Memory Stick” further into the insertion slot and let it pop out.
Then remove it slowly.
Notes
•Insert the “Memory Stick” only. Do not insert any other objects.
• For the “Memory Stick”, see page 86.
14 GB
Inserting a PC card
Insert the PC card into the PC CARD insertion slot until it clicks into place.
Setting up
PC CARD eject button
PC card
To eject the PC card
Press the PC CARD eject button. After it pops out, remove it slowly.
Notes
•Insert the PC card only. Do not insert any other objects.
•For the PC card, see page 89.
Connecting the AC power cord
Connect the supplied AC power cord to the AC IN connector of the printer
and then to an AC outlet.
The POWER indicator lights in red.
To the wall
outlet
AC power cord
(supplied)
Continued
15 GB
1 Connecting the printer
Connecting to a computer (optional)
Connect the USB connectors of the printer and your computer (Windows PC
or Macintosh) with a commercially available USB cable. By installing the
supplied driver software on your computer, you can print an image from your
computer. For details on how to install and operate the software, see
“Printing from your computer” (pages 66–83).
Windows/Macintosh
computer
To USB connector
To USB connector (B TYPE)
Note
Use a commercially available A-B TYPE USB cable of shorter than 3m in length. The
type of a USB cable you should use may change depending on the computer. For
details, see the instructions manual of your computer.
When you connect a computer that is already powered on to the USB
connector of the printer
The PC input indicator lights and the printer enters the PC mode.
MEMORY PC
STICK CARD
PC
Notes
•Do not remove or connect the USB cable into or from the printer during the data
communication or printing. The printer may not work properly.
•During the PC mode, no pictures are displayed on the LCD screen. This is not due
to trouble with the printer.
•Refer to the instruction manual of your computer for further information.
•You cannot use the printer and the printer driver on a network or with a
commercially available printer buffer.
16 GB
2 Preparing the printing pack
Printing pack
Contents
SVM-25LS
25 sheets of Post Card (4 x 6 inch) size photo paper/Print
cartridge for 25 prints
SVM-25LW
25 sheets of Post Card (4 x 6 inch) size sticker/Print
cartridge for 25 prints
SVM-30MS
30 sheets of 3.5 x 5 inch size photo paper/Print cartridge for
30 prints
SVM-30SS
30 sheets of Small (3.5 x 4 inch) size photo paper/Print
cartridge for 30 prints
SVM-30SW
30 sheets of Small (3.5 x 4 inch) size stickers/Print cartridge
for 30 prints
SVM-30SW09
30 sheets of Small (3.5 x 4 inch) size 9-split stickers/Print
cartridge for 30 prints
Notes
•To avoid a paper jam or malfunction and to obtain proper printed performances,
note the following:
– Do not rewind the ink ribbon and use the rewound print cartridge for
printing. Otherwise, proper printing result will not be obtained, or even a
breakdown may occur.
– Use the printing pack for this printer only.
– Always use the print cartridge designed for the size of the print paper you use.
Do not mix cartridges and paper of different types or sizes.
– Do not print on the used print paper. Printing an image twice on the same paper
will not make the printed image thicker.
– Do not remove the backing from sticker print paper before printing.
•For handling and storing the printing pack, not the following:
– Do not touch the ink ribbon of the print cartridge or the printing surface of the
print paper. Avoid placing the printing pack in locations that are subject to high
temperature, high humidity, excessive dust, or direct sunlight. If there are
fingerprints or dust on the printing surface or the ink ribbon, the printing quality
may deteriorate.
– When storing a partially-used pack of the print cartridge and print paper, store it
in its original bag or in a similar container.
17 GB
Setting up
You need an optional printing pack designed for the printer. The pack contains
a set of print paper and a print cartridge for either Post Card (4 x 6 inch) size,
3.5 x 5 inch size, or Small (3.5 x 4 inch) size prints.
Select the printing pack according to the type of printing you intend to do:
3 Loading the print cartridge
1
Press the POWER button to turn on the printer.
The POWER indicator lights in green.
2
Pull and open the cartridge compartment lid.
3
Insert the print cartridge into the printer firmly until it clicks
into place and close the cartridge compartment lid.
The side with the Sony logo
To replace the print cartridge
When the print cartridge runs out, the
cartridge error indicator lights and
an error message appears on the screen.
Open the cartridge compartment lid, push up the eject lever, remove the used
print cartridge, and then insert a new cartridge.
Eject lever
cartridge error indicator
18 GB
Notes
Setting up
•Never put your hand into the cartridge compartment.
The thermal head reaches high temperatures,
especially after repeated printing.
•Do not rewind the ink ribbon and use the rewound print cartridge for printing.
Otherwise, proper printing result will not be obtained, or even a breakdown may
occur.
•If the print cartridge does not click into place, remove it and then re-insert it. If the
ink ribbon is too slack to be loaded, wind the ink ribbon in the direction of the
arrow to remove the slack.
•If the print cartridge is not loaded when you turn on the printer, the
cartridge
error indicator lights up.
•Do not touch the ink ribbon or place the print cartridge in a dusty location.
Fingerprints or dust on the ink ribbon may result in imperfect printing.
•Do not change the print cartridge while printing.
Notes on storing the print cartridge
•Avoid placing the print cartridge in a location subject to high temperatures, high
humidity, excessive dust or direct sunlight
•When you are going to store a partially-used cartridge, store it in its original bag.
19 GB
4 Inserting the print paper
1
Open the paper tray lid and set the 3.5 x 5 inch paper adaptor
and the partition according to the print paper size you want to
use.
x To use Post Card (4 x 6 inch) size
print paper
Remove the 3.5 x 5 inch paper
adaptor and leave the partition laid
down.
3.5 x 5 inch
paper
adaptor
Partition
x To use 3.5 x 5 inch size print paper
Leave the 3.5 x 5 inch paper adaptor
installed and the partition laid
down.
3.5 x 5 inch
paper
adaptor
Partition
x To use Small (3.5 x 4 inch) size
paper
Remove the 3.5 x 5 inch paper
adaptor and stand the partition up.
The Small (3.5 x 4 inch) size print
paper is to be set behind the
partition.
3.5 x 5 inch
paper
adaptor
Small size
print paper
Partition
20 GB
2
Set the print paper into the tray.
Printing surface
Arrow
Front side
Note
Do not touch the printing surface. Fingerprints on the printing surface may result
in imperfect printing.
3
Close the paper tray lid. Then push and open the printer’s
paper tray compartment lid and insert the paper tray into the
printer.
Insert it firmly until it clicks into place.
Continued
21 GB
Setting up
Riffle the print paper. Then insert the print paper with its printing surface
(the side with no imprint) facing up and the arrow pointing in the same
direction as the arrow in the tray. Insert the protective sheet together with
paper, and then remove it after you have placed the paper.
You can set up to 25 sheets for Post Card (4 x 6 inch) size and 30 sheets for
3.5 x 5 inch size and Small (3.5 x 4 inch) size print paper.
4 Inserting the print paper
Notes
• Do not remove or insert the paper tray during printing.
• If print paper does not feed automatically, the
paper error indicator lights. Pull
out the paper tray and check for a paper jam.
•To avoid paper jam or malfunction on the printer, note the following:
– When adding print paper to a partially full tray, make sure that the total number
of sheets does not exceed 25 for the Post Card (4 x 6 inch) size or 30 for the 3.5 x 5
inch size and Small (3.5 x 4 inch) size print paper.
– Do not place different types or sizes of paper in the tray.
– Do not write or type on the printing surface of the paper before printing. If you
want to write greetings or draw on the printed surface after printing, use an oil
ink pen.
– You cannot print on the reverse side of the print paper (ex. the address side of the
Post Card (4 x 6 inch) size print paper).
– Do not print on the used print paper. Printing an image twice on the same paper
will not make the printed image thicker.
– Do not print on the print paper that is ejected from the printer without being
printed.
– Do not attach stickers or anything else on the printing surface before printing.
– Do not remove the backing from sticker print paper before printing.
– Do not fold or bend the print paper before printing.
– Make sure to use the print paper designed for this printer only.
Notes on storing the print paper
• Avoid placing the print paper in a location subject to high temperatures, high
humidity, excessive dust or direct sunlight.
• Avoid storing the paper with the printed faces touching each other or in contact
with rubber or plastic products including vinyl chloride or plasticizer for an
extended period of time; color changes or deterioration of the printed image may
occur.
• When you are going to store partially-used print paper, store it in its original bag.
22 GB
Basic printing operations
Printing selected images
You can select an image recorded in the
“Memory Stick” or PC card and print it
at full size.
4
5
3
2
1
Insert a “Memory Stick” or PC card with recorded images into
the “Memory Stick” or PC card insertion slot (pages 14, 15).
2
Press the POWER button to turn on the printer.
The POWER indicator lights in green.
3
Press the INPUT SELECT button repeatedly until the “MEMORY
STICK” or PC CARD indicator turns on.
The list of the images stored in the
“Memory Stick” or PC card is
displayed on the screen.
MEMORY PC
STICK CARD
Orange frame (cursor)
PC
When “MEMORY STICK” is selected.
Displaying the printer images
When the USB connector is disconnected and the “Memory Stick” or PC card is
removed from the printer, you can display the images stored in the printer by
pressing the INPUT SELECT button. If you press the PRINT button, you can print
the displayed image.
Note
If you do not want to print the image, do not press the PRINT button.
Continued
23 GB
Basic printing operations
1
Printing the selected image
4
Tap the image you want to print on the screen.
The cursor moves to the tapped image.
Slider and scroll buttons
To display another page
When multiple pages exist, you can
switch pages by dragging the slider on
the scroll bar downwards or upwards.
You can also switch pages by tapping the
lower or upper part of the scroll bar or
the scroll buttons [V]/[v] repeatedly.
5
Press the PRINT button.
Printing starts. During printing, the PRINT indicator lights. The printing
process bar and the approximate remaining time are displayed on the
screen. For notes during or after printing, see page 27.
PRINT
To stop printing
Tap [Cancel] on the screen.
6
When printing ends and the print paper automatically emerges
from the paper outlet, remove the printed paper from the
printer.
To display a preview image
Move the cursor to an image that you
want to view in full screen and tap on
the image again. A preview of the
selected image is displayed.
To display a preview of different
images, tap the scroll buttons [b]/[B]
repeatedly. To display the image list
again, tap [Image List].
Print quantity
24 GB
To print the previewed image
To print a copy of the previewed image, press the PRINT button. To print multiple
copies, tap [+] until the desired print quantity is displayed and then press the PRINT
button. To reduce the print quantity, tap [–].
Notes
Printing multiple images
1
Insert a “Memory Stick” or PC card with recorded images into
the “Memory Stick” or PC card insertion slot (pages 14, 15).
2
Press the POWER button to turn on the printer.
The POWER indicator lights in green.
3
Press the INPUT SELECT button repeatedly until the “MEMORY
STICK” or PC CARD indicator turns on.
The list of the images stored in the “Memory Stick” or PC card is
displayed on the screen.
4
Tap the image you want to print on the screen.
The cursor moves to the tapped image.
5
Tap [+].
Selected image with yellow background
The image is selected and its
background turns to yellow. The
print quantity becomes “1.”
To cancel the selection
Tap [–] repeatedly until the print
quantity becomes “0.” The background
turns yellow to gray and the selection is
canceled.
Continued
25 GB
Basic printing operations
•While the printer is accessing the “Memory Stick” or a PC card, do not eject the
“Memory Stick” or PC card. Otherwise, they may crash.
•The displayed image on the screen is not identical in picture quality and colors with
the printed image because phosphor methods or profiles differ. Please regard the
displayed image as just a reference.
Printing the selected image
6
Tap [+] or [–] to set the number of copies to be printed.
Each time you tap [+] or [–], the
print quantity increases or
decreases. You can set the print
quantity from 0 to 30.
Print quantity
To print multiple images
Repeat steps 4 through 6 to select other
images and set the desired print quantity
for each of them.
7
Press the PRINT button.
Printing starts. During printing, the PRINT indicator lights. The printing
process bar and the approximate remaining time are displayed on the
screen.
When you start printing while the preview image is displayed
Only the preview image is printed.
To stop printing
Tap [Cancel] on the screen. Printing will be canceled from the next print.
8
When printing ends and the print paper automatically emerges
from the paper outlet, remove the printed paper from the
printer.
To edit or process an image
In the image list or preview image screen, tap [Effect] to zoom in and out an
image, move it, adjust the picture quality, or add an special filter to an image
(page 30).
To make a Creative Print of an image
In the image list or preview image screen, tap [Creative Print] to make an
original card, calendar, split images, or stickers (page 36).
26 GB
Notes
27 GB
Basic printing operations
• When the “MEMORY STICK” or PC CARD indicator blinks or the data access message
appears, do not eject the “Memory Stick” or PC card. Otherwise, it may crash.
•While printing, never move or turn off the printer; the print cartridge or paper may
become stuck. If this happens, turn the printer off and on, and resume printing from
the beginning.
•While printing, the print paper is partially ejected from the paper outlet in stages.
Never pull out the paper forcibly until the PRINT indicator turns off and the print
paper emerges automatically.
•When the width or height of an image is smaller than 480 dots, the
image is displayed in a small size. You can print the image but the
printing quality is rough due to its small image size.
•An image without thumbnail data, such as those created with a
computer application, is displayed as the mark shown right. If you
select the mark and the preview image is displayed, you can print the
image. If you cannot print, see “Troubleshooting” on page 90.
•Once you have selected images in the “Printing multiple images” procedures, you
cannot print an image with the cursor that is not selected.
•The time required to display a preview image differs depending on the number of
files contained in a “Memory Stick” or PC card, image size, or the file type.
•The time required to display the image list differs depending on the number of files
contained in a “Memory Stick” or PC card, image size, file type or the digital still
camera type.
•The printer cannot display the images saved in a folder of forth or higher hierarchy.
•The image number displayed in the screen is the same as those displayed in your
digital still camera. For a file created with a computer application, the first 8
characters of its file name will be displayed as its image number with the printer.
•When you name or rename an image file on your computer and its file name includes
characters other than alphanumeric characters, the file name may not be displayed
correctly or the image may not be displayed (read error) on the printer.
•Do not leave more than 20 sheets of the ejected printed paper on the paper tray.
•When using your printer in low ambient temperatures, the black lines may be
displayed on the LCD display, which is not of a printer’s malfunction. You can print
an image without problem.
Printing all the images or DPOF preset images
at one time
You can print all the images stored in a
“Memory Stick” or PC card at one time.
You can also print all the images with
the print mark (
) in the image list
that are DPOF (Digital Print Order
Format) preset for printing with your
digital still camera.
5
4
3
2
1
Notes
• For how to preset images for printing, see the manual of your digital still camera.
• Some types of digital still cameras do not support the DPOF function or the printer
does not support part of the functions of the digital still camera.
1
Insert a “Memory Stick” or PC card with recorded images into
the “Memory Stick” or PC card insertion slot (pages 14, 15).
2
Press the POWER button to turn on the printer.
The POWER indicator lights in green.
3
Press the INPUT SELECT button repeatedly until the “MEMORY
STICK” or PC CARD indicator turns on.
The list of the images stored in the “Memory Stick” or PC card is
displayed on the screen.
4
Press the ALL/DPOF button to select the printing mode.
Each time you press the button, the printing mode changes as follows:
ALL printing mode b DPOF printing mode b normal printing mode
28 GB
When you select DPOF.
5
Press the PRINT button.
Printing starts. When you select the ALL printing mode, all the images in
the “Memory Stick” or PC card are printed one by one in the order of their
image numbers. When you select the DPOF printing mode, all the DPOF
preset images are printed in the order they were displayed.
Note
When you select the ALL printing mode, the print quantity is automatically set to
one copy and you cannot set the print quantity.
To stop printing
Tap [Cancel] on the screen. Printing will be canceled from the next print.
6
When printing ends and the print paper automatically emerges
from the paper outlet, remove the printed paper from the
printer.
For notes during or after printing, see page 27.
Tip
Even if a smaller number of sheets of print paper than the print quantity are
installed in the paper tray, you can proceed with printing. If a message appears,
follow the instructions on the screen to replace the printing pack and proceed with
printing.
29 GB
Basic printing operations
When you select the ALL printing
mode, all the images in the image
list are displayed with yellow
backgrounds.
When you select the DPOF printing
mode, only the preset images with
the print mark are displayed with
yellow background.
Advanced printing operations
Adding effects to an image (Effect)
What you can do with the Effect menu
The Effect menu allows you to edit, adjust or add special filters to an image
that is positioned with the cursor in the image list or displayed in the preview
screen.
To display the main Effect menu,
tap [Effect] below the image list or
preview screen:
Tap the desired item to display the sub menu screen to edit, adjust, or add
special filter to an image.
Item
Functions
Edit
Enlarges, reduces, moves or rotates an image. (Page 32)
Adjust
Adjusts the brightness, saturation, tint, and sharpness of
an image. (Page 33)
Filter
Adds a special filter to an image to print it like painted
pictures, in sepia, or in monochrome. (Page 35)
Save
Displays the dialog box to save the edited image as an
new image.
To return to the previous procedure and redo the operation
Tap [Back]. The screen returns to the preceding procedure; do the procedure
again.
To print the edited image
Tap [+] or [–] to set the copies to be printed and then press the PRINT button.
The currently displayed image will be printed. To cancel printing, tap
[Cancel] in the screen. When multiple copies are printed, printing from the
next print will be canceled.
30 GB
To save the image with the selected effects
You can save the edited image as a new image in the “Memory Stick” or PC
card. The original image remains as it is.
1 Tap [Save].
A dialog box to choose the destination where you save an image either
from “Memory Stick” or PC card is displayed.
2 Tap the desired media to save an image.
3 Tap [OK].
The image is saved in JPEG format without regards to the original image
file format.
To change the printer settings midway
Tap [Menu]. The Menu screen is displayed and you can change the printer
settings (page 57).
To exit the Effect menu
Tap [Exit]. When you have edited an image, the confirmation dialog box for
saving the image is displayed. Tap [Yes] to proceed with the saving
procedures mentioned above or [No] to abandon edition and exit the Effect
menu. Tap [Cancel] to return to the Effect menu.
Notes
•It may take longer to process an edited image after you press the PRINT button.
•Do not remove the “Memory Stick” or PC card while in the Effect mode. If you do,
the Effect mode ends forcibly and any editing you have done is canceled.
•While saving the image, do not turn off the power or remove the “Memory Stick” or
PC card from the insertion slot. The “Memory Stick” or PC card may be damaged.
•If the “Memory Stick” or PC card is in write protect status, you cannot save an image
in the “Memory Stick” or PC card.
•If an extremely oblong image is edited, margins may appear in the upper or bottom
parts of the image.
• For the “Memory Stick”, see page 86. For the PC card, see page 89.
31 GB
Advanced printing operations
The edited image is saved as a new image with a new image number.
When saving completes, the new image number is displayed.
Adding effects to an image (Effect)
Changing the image size and position
The Edit sub menu allows you to enlarge, reduce, rotate, or flip an image.
1
Move the cursor to the desired image in the image list or tap it
again to display its preview.
2
Tap [Effect].
The Effect menu is displayed (page 30).
3
Tap [Edit].
The Edit sub menu is displayed.
4
Tap the desired item to edit the image.
Items
Procedures
#/3
Each time you tap 3 or #, the image is enlarged or
reduced. (When it reaches to its maximum or
minimum size, an image will not be enlarged or
reduced any further.)
$/4/%/5
Tap $/4/%/5 to move the image in the desired
direction. You can also drag the image in the preview
to the desired direction.
/
Each time you tap
/
, the image rates 90°
counterclockwise or clockwise.
b
When you move an image
32 GB
Note
The picture quality of an enlarged image may be deteriorated depending on the size
of the image.
5
Tap [Back].
The Effect menu is displayed again. You can select another Effect sub
menu, save or print the image, or exit the Effect menu (pages 30-31).
Adjusting the picture quality
1
Move the cursor to the desired image in the image list or tap it
again to display its preview.
2
Tap [Effect].
The Effect menu is displayed (page 30).
3
Tap [Adjust].
The Adjustment sub menu is displayed.
4
Tap the desired adjustment item.
The adjustment screen of the selected item is displayed.
b
When you tap [Brightness]
Slider
Continued
33 GB
Advanced printing operations
The Adjustment sub menu allows you to adjust brightness, saturation, tint, or
sharpness levels of the image pictures.
Adding effects to an image (Effect)
5
Drag the slider upwards or downwards, or tap the upper or
lower part or [V]/[v] on the scroll bar repeatedly to adjust the
image.
Items
Procedures
Brightness
Move the slider upwards to brighten the image or
downwards to darken the image.
Saturation
Move the slider upwards to deepen the colors of the
image or downwards to lighten the colors of the image.
Tint
Move the slider upwards to make the image reddish or
downward to make the image bluish.
Sharpness
Move the slider upwards to sharpen the outlines of the
image or downwards to weaken the outlines of the
image.
Note
The picture quality of the image being displayed on the screen may differ from that
of the printed image.
6
Tap [Back] .
The Adjustment sub menu is displayed again. You can select another
adjustment item to proceed with further adjustments.
7
Tap [Back].
The main Effect menu is displayed again. You can select another Effect sub
menu, save or print the image, or exit the Effect menu (pages 30-31).
34 GB
Adding a special filter to an image
The Filter sub menu allows you to add a special effect to an image to print in
monochrome, paint, or sepia tone.
1
Move the cursor to the desired image in the image list or tap it
again to display its preview.
2
Tap [Effect].
The Effect menu is displayed (page 30).
Advanced printing operations
3
Tap [Filter].
The Filter sub menu is displayed.
4
Tap a filter you want to add to an image.
Items
Filters
Paint
Makes the image look like a painted picture.
Sepia
Makes the image look like an old photograph with faded
colors.
Monochrome
Makes the image into a monochrome picture.
Normal
Adds no filter to an image. Removes any added filter(s)
and resets to the original image.
Note
The picture of the image being displayed on the screen may differ from that of the
printed image.
5
Tap [Back].
The main Effect menu is displayed again. You can select another Effect sub
menu, save or print the image, or exit the Effect menu (pages 30-31).
35 GB
Making various prints (Creative Print)
What you can do with the Creative Print menu
The Creative Print menu allows you to make a variety of prints.
To display the Creative Print top
menu, tap [Creative Print] below
the image list or preview screen:
Tap the desired item and make a card, calendar, split image, sticker or index
print.
Items
Functions
Card
Adds a selected message and input characters to make an
original card. (Page 38)
Calendar
Add a calendar of selected month(s) to an image or
images to make an original calendar. (Page 41)
Split Image
Makes 2-, 4-, 9-, 13-, or 16-split images prints. (Page 43)
Sticker
Makes a 9-split framed image sticker. (Page 44)
Index Print
Makes an index print of all the images stored in the
“Memory Stick” or PC card. (Page 46)
To add pictures or characters to an image (Tool)
For all the Creative Print sub menus except for the Index Print, you can tap
[Tool] in a preview screen to display the Tool screen. In the Tool screen, you
can add drawings, stamps, characters, cut out images or messages to an image
(page 48).
To return to the previous procedure and redo the operation
Tap [Back]. The screen returns to the preceding procedure; do the procedure
again.
36 GB
To print the edited image
Tap [+] or [–] to set the copies to be printed and then press the PRINT button.
The currently displayed image will be printed. To cancel printing, tap [Cancel]
in the screen. When multiple copies are printed, printing from the next print
will be canceled.
To save the Creative Print image
You can save the edited image as a new image in the “Memory Stick” or PC
card. The original image remains as it is.
A dialog box to choose the destination where you save an image either
from “Memory Stick” or PC card is displayed.
2 Tap the desired media to save an image.
The edited image is saved as a new image with a new image number.
When saving completes, the new image number is displayed.
3 Tap [OK].
The image is saved in JPEG format without regards to the original image
file format.
To change the printer settings midway
Tap [Menu]. The Menu screen is displayed and you can change the printer
settings (page 57).
To exit the Creative Print menu
Tap [Exit]. When you have edited an image, the confirmation dialog box for
saving the image is displayed. Tap [Yes] to proceed with the saving
procedures mentioned above or [No] to abandon edition and exit the Creative
Print menu. Tap [Cancel] to return to the Creative Print menu.
Notes
•While saving the image, do not turn off the power or remove the “Memory Stick” or
PC card from the insertion slot. The “Memory Stick” or PC card may be damaged.
•If the “Memory Stick” or PC card is in write protect status, you cannot save an image
in the “Memory Stick” or PC card.
• For the “Memory Stick”, see page 86. For the PC card, see page 89.
37 GB
Advanced printing operations
1 Tap [Save].
Making various prints (Creative Print)
Making a card
You can add a selected and your input messages to images
and make an original card like the one shown on the right.
1
Tap [Card] in the Creative Print
top menu (page 36).
The print size selection screen is
displayed. Select the print paper size
you want to use.
2
Tap the desired paper size icon.
The screen used for selecting a
template of the selected paper size is
displayed.
When you select “Postcard Size”
3
Tap the desired template.
A preview of the selected template is
displayed.
Message area
Image area
Character input area
38 GB
4
Tap each area on the preview to enter a message, image(s), or
characters.
You can choose them in any order.
x Entering a message
1 Tap the message area.
The screen used for selecting a
message is displayed.
Advanced printing operations
To change the message color
The messages are printed in the
color displayed in the [Select
Color]. To change the color, tap
[Select Color] to display the color
selection window. Tap the
desired color.
2 Tap the desired message.
A preview is displayed. The selected message is displayed in the
message area in the selected color.
x Selecting an image
When you select a template with multiple images, select an image for each
image area.
1 Insert a “Memory Stick” or PC
card into the printer and tap an
image area.
The image list used for selecting
an image is displayed.
Continued
39 GB
Making various prints (Creative Print)
2 Tap the desired image.
The screen used to adjust the
image size, position, angle, and
brightness is displayed.
3 Tap the desired adjustment
button and make your
adjustments.
Items
Procedures
#/3
Each time you tap 3 or #, the image is enlarged or
reduced. (When it reaches to its maximum or
minimum size, an image will not be enlarged or
reduced any further.)
$/4/%/5
Tap $/4/%/5 to move the image in the desired
direction. You can also drag the image in the preview
to the desired direction.
/
Brightness
Each time you tap
/
, the image rotates 90°
counterclockwise or clockwise.
The brightness adjustment slider is displayed. Drag
the slider upwards to brighten the image or
downwards to darken the image. You can also move
the slider by tapping upper/lower part or [V]/[v] on
the scroll bar. To fix the adjustment and return to the
image adjustment screen, tap [Enter].
4 Tap [Enter].
A preview image is displayed. The selected image is displayed in the
image area. When you choose a template with multiple images, repeat
steps 1 through 4 to select the remaining image(s) for each image
area.
x Entering characters
When you choose a template with characters, you can enter characters.
Tap the character input area to display the character input screen. For
how to input characters, see “Typing characters” on page 50.
40 GB
5
Check the preview.
You can print or save the created
image (pages 36-37).
Advanced printing operations
Making a calendar
You can add a selected calendar to an image or images
to make an original calendar.
1
Tap [Calendar] in the Creative Print top menu (page 36).
The print size selection screen is displayed (page 38).
2
Tap the desired paper size icon.
The screen used for selecting a
calendar template for the selected
print paper size is displayed.
When you select “Postcard Size”
Continued
41 GB
Making various prints (Creative Print)
3
Tap the desired template.
A preview of the selected template is displayed.
Image area
Calendar area
4
Tap each area on the preview to set the calendar and add
image(s).
You can choose them in any order.
x Selecting an image
Tap the image area to select and adjust an image. For details, see
“Selecting an image” on pages 39-40.
x Setting the calendar
1 Tap the calendar area.
The screen used for setting the
calendar is displayed.
2 In the “Start Month” line, set the
month and year to start the
calendar.
Tap the month box and tap [v]/
[V] to set the month. Set the year
in the same way.
3 In the “Start Date” line, set the day starting the week (placed furthest
left in the calendar).
Tap [Sunday] or [Monday].
4 In the “Color of Day” line, set the color of the days.
Tap [Sun.in red/Sat.in blue] (Sundays in red/Saturdays in blue) or
[Sunday in red].
42 GB
5 Tap [Enter].
A preview of the calendar is displayed. The selected calendar is
displayed in the calendar area.
5
Check the preview.
You can print or save the created
image (pages 36-37).
Advanced printing operations
Making a split print
You can make a print with 2-split, 4-split, 9-split, 13-split, or
16-split images.
4-split images
1
Tap [Split Image] in the Creative Print top menu (page 36).
The print size selection screen is displayed (page 38).
2
Tap the desired paper size icon.
The screen for selecting the split
image template for the selected print
paper size is displayed.
When you select “Postcard Size”
Continued
43 GB
Making various prints (Creative Print)
3
Tap the desired template.
The preview of the selected template
is displayed.
4
Insert a “Memory Stick” or PC
card into the printer and tap
an image area.
When you choose a template with
multiple images, you can select from
any image area.
5
Select and adjust an image.
For details on selecting and adjusting an image, see “Selecting an image”
on pages 39-40.
6
Check the preview.
You can print or save the created image (pages 36-37).
Making a sticker
You can add a frame to each of the 9-split images to make a
9-split image sticker.
Note
To make a 9-split image sticker, you can use the Small (3.5 x 4 inch) size print paper
only. Before making a sticker, make sure to feed the Small (3.5 x 4 inch) size 9-split
sticker print paper (SVM-30SW09) into the printer.
1
Tap [Sticker] in the Creative
Print top menu (page 36).
The screen used for selecting a
sticker template for the Small (3.5 x 4
inch) size print paper is displayed.
44 GB
2
Tap the desired 9-split
template.
A preview of the selected template is
displayed.
Advanced printing operations
3
Tap an image area.
When you choose a template with
multiple images, you can select from
any image area. The screen used for
selecting a frame is displayed.
4
Insert a “Memory Stick” or PC
card into the printer and then
tap the desired frame.
The screen used for selecting an
image is displayed.
5
Tap the desired image.
The image is displayed with the frame. The image adjustment screen is
displayed.
6
Adjust the framed image and then tap [Enter].
For how to adjust an image, see page 40.
7
Repeat steps 3 through 6 to add and adjust framed image(s) to
the remaining image area(s).
8
Check the preview.
You can print or save the created image (pages 36-37).
45 GB
Making various prints (Creative Print)
Making an index print
You can make an index print of the images in the “Memory Stick” or PC card.
You can also enter a title of the index print.
1
Tap [Index Print] in the Creative Print top menu (page 36).
The print size selection screen is displayed (page 38).
2
Tap the desired paper size icon.
The window for selecting title and
print pattern is displayed.
When you select “Postcard Size”
3
In the Title line, tap either [On] to add a title or [Off] to add no
title.
4
Tap the desired print pattern.
Patterns differ depending on the paper size and whether you input a title
or not. When you select [10 x 8], for example, 10 (horizontally) by 8
(vertically) images are printed on a sheet of print paper.
5
Tap [Enter].
The preview of the selected pattern is displayed.
Title area (only when you
select [On] for the Title.)
Image area
46 GB
6
Tap each area on the preview to enter a title and image(s).
You can choose them in any order.
x Entering a title
When you choose [On] for the Title, you can enter characters as a title.
Tap the title input area to display the character input screen. For how to
input characters, see “Typing characters” on page 50.
x Selecting an image
7
Check the preview and press the PRINT button.
The index list of the “Memory Stick” or PC card images is printed in the
selected pattern. Each image is printed with corresponding image
number. When the title is input, title is also printed. When “Date Print”
is selected, the date (year, month and day) when the image is taken or
saved is also printed with the image.
To stop printing
Tap [Cancel] in the screen. When multiple copies are printed, printing from
the next print will be canceled.
Notes
•You cannot print the images that are not displayed as thumbnails in the image list
because they are damaged or for some other reason.
•The shot date is printed only when an image is a JPEG file recorded in the DCF
(Design rule for Camera File system) format. To make a print with the shot date,
please shoot an image in the JPEG file format.
47 GB
Advanced printing operations
All the images are by default selected. You can print all the images or
selected images only.
•To print all the image stored in a “Memory Stick” or PC card, do not
tap the image area but skip to step 7.
•To print only selected images, tap the image area to display the image
selection window. Tap and cancel the selection of the images that you
do not want to print. Tap [Back] to return to the preview screen.
Making various prints (Creative Print)
Adding pictures or characters to an image (Tool)
For all the Creative Print sub menus except for the Index Print, you can tap
[Tool] in a preview screen to display the Tool screen. The Tool screen allows
you to add pictures and characters to the desired position on an image. In each
Creative Print sub menu, the same character input screen as in the Tool screen
appears.
1
Tap [Tool] in the Creative Print
preview screen.
The Tool screen is displayed.
2
Tap the desired tool in the
Tools box and draw freehand
lines, put on stamps, input
characters, add cut out images,
or add messages in the
preview.
Icons
Preview
Tools box
Tools
Functions
Pencil
Displays the pencil screen to draw freehand line art on the
preview. (Page 49)
Type
Displays the character input screen to enter characters to
be added to the preview. (Page 50)
Stamp
Displays the stamp selection screen showing stamps to be
pasted to the preview. (Page 53)
Cut out
Displays the shape selection screen to paste a selected
image with or without cut. (Page 54)
Message
Displays the message selection screen showing messages
to be pasted to the preview. (Page 55)
Save
Displays the dialog box to choose the destination media
where you save the edited image.
Exit
Returns to the screen displayed before the Tool screen is
displayed.
For printing, saving and other operations, see pages 36 and 37.
48 GB
Drawing freehand line art (
)
You can use the pencil tool to draw freehand line art on the preview.
1
In the Tool screen (page 48),
tap
(Pencil tool).
The pencil tool screen is displayed.
2
To select the color for the
pencil drawings, tap
(Color).
3
Advanced printing operations
The color selection screen is displayed.
Tap the desired color box.
The color tapped is selected and the
color selection screen is closed.
4
To select the stroke weight for
the pencil drawings, tap
(thin),
(medium), or
(thick).
5
Tap and draw a freehand line
on the preview.
The line formed from the point you
start drawing to the point you lift
the stylus becomes a stroke.
x To erase the drawing
Tap [Cancel]. The drawing just
made is erased from the preview.
x To move the drawing
Tap $/4/%/5 to move the drawing in the desired direction.
Note
There may be restrictions on length of a line or/and number of lines. If this occurs,
a warning beep sounds.
Continued
49 GB
Making various prints (Creative Print)
6
Tap [Enter].
The drawing you made is fixed and pasted to the preview. The Tool top
screen is displayed. You can use another tool, print the created image, or
save it (page 48).
Typing characters (
)
You can use the type tool to input the maximum of 5 lines of characters to be
pasted to the preview.
1
In the Tool screen (page 48),
tap
(Type tool). Or in a
Creative Print preview screen,
tap the character input area.
Select color and font (5 fonts available) for
the characters.
Character input box
The character input screen is
displayed.
2
Tap the characters you want to
input in the keyboard.
The tapped characters are entered in
the input box.
x To select a capital letter
Keyboard
Tap [Caps] to display the capital characters keyboard. Then tap the
desired character. To enter a small letter, tap [Caps] again.
x To select the font
The characters are input in the font displayed next
to [Font]. To select a different font, tap [Font] until
the desired font is displayed:
x To select the color
The characters are input in the color displayed in [Font color]. To select a
different color, tap [Font color] to display the color selection screen. Then
tap the desired color box.
50 GB
x To change lines
Tap # to enter the next line. To return to the previous line, tap [b] in the
side of the character input box repeatedly until the previous line is
displayed. To move to the next line, tap [B] in the side of the character
input box repeatedly until the next line is displayed.
x To enter a message
The maximum of 200 characters that you frequently use can be registered
as a message. You can register and load three messages as follows:
2 Tap [Load/Save].
The dialog box to register and save messages is displayed.
3 Tap [Save].
The message selection screen is displayed.
4 Tap the message as which you want register the characters.
The characters are saved as the selected message.
To insert the message in the input
box, tap the space in the text box
where you want to enter the
message and then tap [Load/
Save]. Tap [Load] and then tap
the desired message. The
selected message is inserted in the
character input box.
x To delete or change characters in the input box
•To delete a character before the cursor
Tap [Delete]. To delete a character in the middle of the input box, tap
the space after the character you want to delete and then tap [Delete].
Each time you tap [Delete], the character before the cursor is deleted.
•To insert characters in the input box
Tap the position you want to insert characters in the input box. Then
enter characters.
Continued
51 GB
Advanced printing operations
1 Enter up to 200 characters in the input box that you want to register as a
message.
Making various prints (Creative Print)
3
Tap [Exit].
The character input screen is closed
and the input characters are pasted
onto the preview.
4
Adjust the size, position and
angle of the characters.
Items
Procedures
#/3
Each time you tap 3 or #, the characters are enlarged
or reduced. (When they reach to their maximum or
minimum size, the characters will not be enlarged or
reduced any further.)
$/4/%/5
Tap $/4/%/5 to move the characters in the
desired direction. You can also drag the characters in
the preview to the desired direction.
/
Cancel
5
Each time you tap
/
, the characters rotate 90°
counterclockwise or clockwise.
The input characters are erased and the Tool top
screen is displayed again.
Tap [Enter].
The characters are fixed to the preview. The Tool top screen is displayed.
You can use another tool, print the created image, or save it (page 48).
Note
Once you tap [Enter], you cannot move or delete the characters.
52 GB
Pasting stamps (
)
You can use the stamp tool to paste a selected stamp to the preview.
1
In the Tool screen (page 48),
tap
(Stamp tool).
The stamp selection screen is
displayed.
2
Tap the desired stamp.
3
Advanced printing operations
The tapped stamp is selected and the
stamp selection screen is closed.
Tap on the preview image
where you want to paste the
stamp.
The selected stamp is pasted onto
the preview.
4
Adjust the size, position and
angle of the stamp.
For how to adjust the stamp, see the
step 4 in page 52.
5
Tap [Enter].
The stamp is fixed to the preview. The Tool top screen is displayed. You
can use another tool, print the created image, or save it (page 48).
Note
Once you tap [Enter], you cannot move or delete the stamp.
Continued
53 GB
Making various prints (Creative Print)
Pasting cut out images (
)
You can use the cut out tool to paste a selected image with or without cut.
1
In the Tool screen (page 48),
tap
(Cut out tool).
The shape selection screen is
displayed.
2
Insert a “Memory Stick” or PC
card into the printer and tap
the desired shape.
The image list used for selecting an
image is displayed.
3
Tap the desired image.
The image is displayed in the
selected shape. The image
adjustment screen is displayed.
54 GB
4
Adjust the cut out image and
then tap [Enter].
For how to adjust an image, see page
40. The cut out image is pasted onto
the preview.
To cancel the operation
Tap [Cancel]. The cut out image is
erased from the preview.
Adjust the size and position of the cut out image.
For how to adjust the cut out image, see the step 4 in page 52.
6
Tap [Enter].
The cut out image is fixed to the preview. The Tool top screen is
displayed. You can use another tool, print the created image, or save it
(page 48).
Note
Once you tap [Enter], you cannot move or delete the cut out image.
Pasting messages (
)
You can use the message tool to paste a selected message to the preview.
1
In the Tool screen (page 48),
tap
(Message tool).
The message selection screen is
displayed.
To change the message color
The messages are printed in the color
displayed in the [Select Color]. To
change the color, tap [Select Color] to
display the color selection window. Tap
the desired color.
Continued
55 GB
Advanced printing operations
5
Making various prints (Creative Print)
2
Tap the desired message.
The selected message in the selected
color is pasted onto the preview.
To cancel the operation
Tap [Cancel]. The message is erased
from the preview.
3
Adjust the size, position and angle of the message.
For how to adjust the stamp, see the step 4 in page 52.
4
Tap [Enter].
The message is fixed to the preview. The Tool top screen is displayed.
You can use another tool, print the created image, or save it (page 48).
Note
Once you tap [Enter], you cannot move or delete the message.
56 GB
Setting up the printer (MENU)
What you can do with the Menu
The Menu allows you to change the printer settings, set up the screen, perform
slide show, or delete images.
To display the Menu screen,
tap [Menu] below the image
list or preview screen:
Items
Functions
Print Setting
Change the printing preferences including the Auto Fine
Print 2, date print, print finish (border/borderless print,
glossy/texture finish), or color settings. (Page 58)
Options
Sets the clock and beep. You can also adjust the LCD display
contrast. (Page 61)
Slide Show
Performs a slide show of the images in the “Memory Stick”
or PC card. (Page 63)
Delete Image
Deletes the selected image in the “Memory Stick” or PC card.
You can also format the “Memory Stick.” (Page 64)
To exit the Menu
Tap [EXIT]. The screen displayed before you entered the Menu screen is
displayed.
Continued
57 GB
Advanced printing operations
Tap the Menu sub menu item and make the settings.
Setting up the printer (MENU)
Changing the print preferences (Print Setting)
The Print Setting screen allows you to change the print preferences including
Auto Fine Print 2, border/borderless print, print finish (glossy/texture), date
print, and color setting.
1
Tap [Print Setting] in the Menu
screen (page 57) .
The Print Setting window is
displayed.
2
Tap the setting items you want
to select.
The yellow circle indicates the
setting item has been selected.
(*: Default settings)
Note
You cannot select the menu items that cannot be changed.
Items
Settings
Contents
Auto Fine Print 2
High/Low* Corrects an image automatically for printing
in better picture quality. You can select the
level of adjustments between “High” or
“Low”. When “High” or “Low” is selected,
an image shot by an Exif Print (Exif 2.2)compatible digital still camera is
automatically adjusted to its optimum
picture quality and printed.
Notes
• The image on the screen is not corrected.
• When printing from a computer, the Auto Fine
Print 2 function does not work.
OFF
58 GB
Prints an image without any corrections.
Items
Settings
Contents
Borders
Yes
Prints an image with borders around the
image.
Note
Depending on an image, its top and bottom edges
or right and left edges may be cut and printed.
No*
Prints an image without blank space around
the image.
Notes
Date Print
Glossy*
Prints an image vividly with glossy finish.
Texture
Prints an image softly with a uniform and
uneven finish.
On
Prints the shot date with an image when the
image is a JPEG file recorded in the DCF
(Design rule for Camera File system) format
(page 96). To make a print with the shot
date, please shoot an image in the JPEG file
format.
When the image is saved after edited with
the printer, the saved date is printed.
Note
To record the date precisely, set the clock in
advance (page 61).
Off*
Prints an image without the date print data.
Continued
59 GB
Advanced printing operations
• You cannot make borderless prints with Small
(3.5 x 4 inch) size print paper.
• When printing a standard 4:3 picture shot by a
digital still camera, the top and bottom edges of
the image are cut and it is printed as a 3:2
picture.
Setting up the printer (MENU)
3
Items
Settings
Color Setting
Adjusts the color reproduction of the printer. Drag the
adjustment slider of each color or tap [+] or [–] to set the
level to a higher value (+1, +2) or a lower value (-1, -2).
(*R: 0/G:0/B:0)
R: Adjusts the red and blue elements. The higher you
set the level, the picture becomes reddish as if it
receives red light. The lower you set the level, the
picture becomes darker with red fading as if light
blue is added.
G: Adjusts the green and purple elements. The higher
you set the level, the picture becomes greenish as if it
receives green light. The lower you set the level, the
picture becomes darker with green fading as if red
purple is added.
B: Adjusts the blue and yellow elements. The higher
you set the level, the picture becomes bluish as if it
receives blue light. The lower you set the level, the
picture becomes darker with blue fading as if yellow
is added.
Tap [Back].
The Menu screen is displayed again.
To exit the menu
Tap [Exit]. The screen displayed before you entered the Menu screen is
displayed.
60 GB
Changing the printer preferences (Options)
You can change the printer preferences and adjust the LCD screen contrast of
the printer.
1
Tap [Options] in the Menu
screen (page 57) .
The Options window is displayed.
Tap the setting items you want
to select.
The yellow circle indicates the
setting item has been selected.
(*: Default settings)
Note
You cannot select the menu items that cannot be changed.
Items
Settings
Beep
On*
The warning and operation sound beeps.
Off
No warning or operation sound beeps.
Date/Clock
Setting
You can set the internal clock to record the date you saved
the image in the “Memory Stick” or PC card.
1 Tap [Setting] to enter the clock setting mode.
2 Tap [v] /[V] to set the year.
Tap [v] to increase the number and tap [V] to decrease
the number.
3 Tap the month box (for NTSC) or the day box (for the
PAL) and then tap [v] /[V] to set the month or day.
4 Set the day or month, the hour and minutes in the same
way.
5 Tap [Enter] to start the internal clock.
Note
If you unplug the AC power cord, the clock setting will become
invalid within a few hours. In this case, please set the clock again.
Continued
61 GB
Advanced printing operations
2
Setting up the printer (MENU)
3
Items
Settings
Display Contrast
Drag the adjustment slider or tap [b]/[B] or
anywhere on the bar to adjust the LCD display
contrast level. The adjusted level holds effective until
you change the level.
Tap [Back].
The Menu screen is displayed again.
To exit the menu
Tap [Exit]. The screen displayed before you entered the Menu screen is
displayed.
62 GB
Viewing a slide show
You can perform a slide show of the images saved in a “Memory Stick” or PC
card.
1
Tap [Slide Show] in the Menu
screen (page 57).
The Slide Show screen is displayed.
In the Switch Time line, tap
[Fast] to switch images quickly
or [Slow] to switch them
slowly.
3
Tap [Execute].
The images in the “Memory Stick” or PC card are displayed one after
another in the selected switch time like a slide show.
To stop the slide show
Tap anywhere on the screen. The screen that has been displayed before you
select the Menu appears.
Notes
•When you select [Slow] in the Switch Time, it may take long for an image to be
displayed depending on the image.
•You cannot view the slide show while the Creative Print or Effect menu is selected.
•You cannot display the images that are not displayed as thumbnails in the image list
because they are damaged or for some other reason.
63 GB
Advanced printing operations
2
Deleting images
You can delete selected images in the “Memory Stick” or PC card. You can also
format the “Memory Stick.”
Notes
• During deleting or formatting, do not turn off the power or remove the “Memory
Stick” or PC card from the insertion slot. The “Memory Stick” or PC card may be
damaged.
• If the “Memory Stick” or PC card is in write protect status, you cannot delete images
or format the “Memory Stick.”
• When you select [Deleting Image], you cannot delete an image protected or preset by
DPOF.
• An image, once deleted, will be lost forever. Before deleting an image, double-check
that it is the right one.
• When formatting a “Memory Stick,” all the files including the image files will be
deleted.
• You cannot format a PC card.
• You cannot delete an image while the Creative Print or Effect menu is selected.
• You cannot format or delete an image in the “Memory Stick-ROM”.
Deleting the selected images
You can delete selected images in the “Memory Stick” or PC card.
1
Tap [Delete Image] in the
Menu screen (page 57).
The Delete Image screen is
displayed.
2
Tap [Deleting Image].
The image list is displayed.
64 GB
3
Tap the image that you want
to delete.
The selected image is displayed in
yellow background with a trash
icon. To delete multiple images at a
time, repeat this step.
To cancel deletion
Tap [Exit].
Advanced printing operations
4
Tap [Execute] .
The confirmation message is displayed.
5
Tap [Yes] to delete the selected image or [No] to cancel
deletion.
The selected image is deleted and the image list is displayed.
6
To exit the Menu, tap [Exit].
The screen displayed before you enter the Menu screen is displayed.
Formatting a “Memory Stick”
You can format a “Memory Stick.” In step 2 in “Deleting the selected images” ,
tap [Memory Stick Format]. When the confirmation dialog box is displayed,
tap [Yes] to proceed with formatting or tap [No] to cancel formatting.
Note
When you format a “Memory Stick”, all the images inside are deleted.
65 GB
Printing from your computer
Using your printer with Windows computers
The supplied DPP-EX7 printer driver enables you to print an image stored on
your computer with the Digital Photo Printer DPP-EX7. To print an image
from the computer, you need commercially available printing application
software.
System requirements
To use the supplied software, you need a computer that meets the following
system requirements:
OS:
Microsoft Windows 98/Windows 98SE/Windows Me/
Windows 2000 Professional/Windows XP Home
Edition/Windows XP Professional should be
pre-installed.
Note
The operating system should be factory-installed. We cannot
guarantee the operations for the above operating systems if they
are upgraded from a former version of Windows.
CPU:
RAM:
Hard disk space:
Port:
Drive:
MMX Pentium 233 MHz or above is recommended.
64 MB or more is recommended.
200 MB or more is recommended. (It differs depending
on the number of copies to be printed.)
A USB port should be installed as standard.
CD-ROM drive (for software installation)
Notes
• We cannot guarantee printer operations when a hub is used or when two or more
USB devices including other printer are connected to your computer.
• If you connect more than one DPP-SV88/SV77/SV55/MP1/EX7/EX5 printer at the
same time, you cannot operate the printer.
• You cannot operate the printer from another USB device being used simultaneously.
• Do not remove or connect the USB cable from or into the printer during the data
communication or printing. The printer may not work properly.
• The printer does not support system standby/hibernate mode of the computer.
During printing, do not make your computer change to system standby/hibernate
mode.
• We cannot guarantee operations with all the personal computers with the system
requirements.
66 GB
Installing the printer driver
Install the printer driver contained on the supplied CD-ROM to your
computer.
1
2
Make sure that the printer is not connected to the computer.
Turn on your computer and start Windows.
Notes
• Be sure to close all running programs before installing the software.
• The dialog boxes in this section are those in Windows XP Professional, unless
otherwise specified. The installation procedures and the dialog boxes shown
differ depending on the operation system.
3
Insert the supplied CD-ROM
into the CD-ROM drive of your
computer and double-click
“Setup” in the CD-ROM.
Notes
• If you connect the printer to your computer before installing the driver, the
dialog box to request the driver is displayed. If this occurs, click “Cancel” to
close the dialog box. Then remove the printer from your computer and redo the
installation procedures.
• If you cancel the installation midway, do the installation procedures from the
step 3.
• If the installation fails, remove the printer from your computer, restart your
computer, and then do the installation procedures from the step 3.
Continued
67 GB
Printing from your computer
•When installing or uninstalling the software in Windows® 2000
Professional, log on Windows as the user name of “Administrator” or
“Power user”.
•When installing or uninstalling the software in Windows® XP
Professional/Home Edition, log on as a user name with the “Computer
administrator” user account.
Using your printer with Windows computers
The “Sony DPP-EX5/EX7 Setup”
dialog box appears.
4
Click “Next” to start installation.
Installation continues. When it is
completed, the setup compete dialog
box is displayed.
5
6
Click “Finish”.
7
Turn on the printer and then
connect the USB connectors of
the printer and your computer.
Remove the CD-ROM from
your computer.
Note
Make sure to turn on your printer before connection.
8
Follow the instructions on the screen to set up the printer
depending on the operating system you use.
The printer will be automatically set up.
Notes
• If you cancel the installation midway, do the installation procedures from the step 3.
• If the installation fails, remove the printer from your computer, restart your
computer, and then do the installation procedures from the step 3.
• After installation, the “Sony DPP-EX7” is not set as the default printer. Set the printer
you use for each application.
• The supplied CD-ROM will be required when you re-install or uninstall the printer
driver. Keep it in good order for possible future use.
• Before you use the printer, read the Readme file (the Readme folder of the CDROMcEnglish foldercReadme.txt).
68 GB
To check the installation
Open the “Printers and Faxes”
(Windows XP Home Edition/XP
Professional only) or “Printers” from
the “Control Panel”. When the “Sony
DPP-EX7” is displayed in the “Printers
and Faxes” or “Printers” window, the
DPP-EX7 has successfully installed.
When using the Windows Me
The “Add New Hardware Wizard” may be displayed during installation. If
this occurs, follow the following procedures to proceed with installation:
Printing from your computer
1 Check “Automatic search for a better
driver” and then click “Next”. Insert
the supplied CD-ROM into the CDROM drive of your computer.
The dialog box to select the driver
language is displayed.
2 Click the language of the driver you
need to install, and then click “OK”.
3 Click “Finish”.
4 Remove the supplied CD-ROM from
the CD-ROM drive of your computer.
Continued
69 GB
Using your printer with Windows computers
Uninstalling the software
When the software becomes unnecessary, remove the software from your
computer’s hard disk as follows:
1
2
Disconnect the USB cable from your printer and the computer.
3
Right-click on “Sony DPP-EX7” in the “Printers and Faxes” or
“Printers” window and select “Delete” from the short-cut
menu.
Open the “Printers and Faxes” (Windows XP Home Edition/XP
Professional only) or “Printers” from the “Control Panel”.
The confirmation dialog box is displayed.
4
Click “Yes”.
The relevant files are removed from your computer’s hard disk.
Printing from an application software
You can use the “Print ”command of an application software to print an image
from your computer with the Digital Photo Printer DPP-EX7.
When using the Windows XP Home Edition/Professional, you can use My
Pictures to print an image (page 73).
Notes
• Before printing, make sure to connect the USB connectors of the printer and the
computer. If you connect it after you start printing, the printer or the computer
may not work properly.
• This section explains the settings and operations with a typical application as an
example. Depending on the application, print settings and operations may differ.
For the details, refer to the manual of your application.
• The dialog boxes in this section are those in Windows XP Professional. They may
differ depending on the operation system.
• To obtain the expected print performances, we suggest you use an application
software that allows you to check the print preview. Use the application software to
make the image size to 1644 x 2466 (dots) for the Post Card (4 x 6 inch) size, 1464 x
2064 (dots) for the 3.5 x 5 inch size, and 1137 x 1516 (dots) for the Small (3.5 x 4 inch)
size. Also make the resolution to 403 dpi. Even after these adjustments, an image
may be cut off or proper printed performances may not be obtained depending on
the application software you use. If this occurs, adjust the image size smaller.
70 GB
1
Start the application software that you use for printing, and
select the image to be printed.
2
Click “Page Setup” from the “File” menu of the application.
The “Page Setup” dialog box appears.
3
Set the printer.
The dialog box differs depending on
the application.
1 Click “Printer” .
The “Page Setup” dialog box is
displayed.
Printing from your computer
2 Select “Sony DPP-EX7” as the
name of the printer.
3 Click “Properties”.
The document properties
window is displayed.
4 In the “Layout” tab, select the
Orientation of an image either
from “Portrait” to print it in
portrait (tall) format or
“Landscape” to print it in
landscape (wide).
4
6
Continued
71 GB
Using your printer with Windows computers
5 Click “Paper Type” tab and then
set the paper according to the
print paper size you would like
to use for printing.
Paper Type
Select the paper size either from “Post card”, “3.5 x 5
inch” or “Small” according to the print paper size you
use.
margin
When you select “Post card” or “3.5 x 5 inch” as the
paper, select the print margin either from “with border”
or “borderless”. (When you select “Small” paper, you
cannot select borderless print.)
6 Click the “Layout” tab again and
click “Advanced” in the dialog
box in step 4.
The advanced options window is
displayed.
7 Set the printer in details:
OverCoat
You can select finish from either “Glossy” or
“Texture”.
Color Correction You can set color tones, density and sharpness levels.
4
72 GB
Click “OK”.
5
Click “Print” from the “File”
menu of the application.
The “Print” dialog box appears.
6
Set the print range and copies.
Page Range
Number of copies Enter the number of copies to be printed.
Cancel
7
Stops printing.
Click “Print”.
The printer starts printing. The DPP-EX7 printer monitor is displayed
showing the printing process.
To print from My Pictures (when using the Windows XP Home
Edition/Professional only)
1 Insert the images that you want to print into “My Pictures”.
2 Select “My Pictures” from the “Start” menu.
The “My Pictures” window is displayed.
3 Select the folder that you want to
print and then click “Print this
picture”.
The photo printing wizard is
displayed.
Continued
73 GB
Printing from your computer
In “Pages” text box, enter the page numbers to start
and end printing. To print all the pages, select “All”.
To print the current page, select “Current Page”.
Using your printer with Windows computers
4 Click “Next”.
The picture selection window is
displayed.
5 Check the images that you want to
print and then click “Next”.
Please remove the checks for the
images that you do not want to print.
6 Select “DPP-EX7” as the printer you
use and then click “Printing
Preferences”.
The document properties window in
step 4 in page 71 is displayed.
Set the layout , paper type and the
printer details in the same way as in
the steps 4 through 7 on pages 71
and 72.
7 Click “OK”.
The photo printing wizard is
displayed again.
8 Click “Next”.
9 Select the layout and print quantity
and then click “Next”.
74 GB
The data is transferred to the printer
for printing. To stop printing, click
“Cancel Printing”.
10 When the completing photo printing
wizard dialog box is displayed, click
“Finish”.
To stop printing
Printing from your computer
When a “printing” dialog box is on the screen
Click the “Stop” button or the “Cancel” button.
The printing job is canceled and the dialog box is closed.
When the data has already transferred to the printer queue
1 Open the “Printers and Faxes” (Windows XP Home Edition/XP
Professional only) or “Printers” from the “Control Panel”.
2 Double-click the “Sony DPP-EX7” icon.
The “Sony DPP-EX7” window is displayed. In the window, the
documents in the queue for printing are listed.
3 Click the document you want to stop printing.
4 Click “Stop” or “Cancel” from the “Document” menu.
The document is removed from the list and the printing job is canceled.
For the details, refer to the Windows documentation.
Note
If printing has already started and the print paper has already been loaded, do not
cancel printing. Paper jam may occur. Please wait until the printing is completed.
75 GB
Using your printer with Macintosh computers
The supplied DPP-EX7 printer driver enables you to print an image stored on
your computer with the Digital Photo Printer DPP-EX7. To print an image
from the computer, you need commercially available printing application
software.
System requirements
To use the supplied software, you need a Macintosh computer that meets the
following system requirements.
OS:
Port:
RAM:
Hard disk space:
Drive:
Mac OS 8.6/9.0/9.1/9.2/X (v10.1/v10.2) should be preinstalled.
A USB port should be installed as standard.
128 MB or more is recommended.
100 MB or more is recommended. (It differs depending
on the number of copies to be printed.)
CD-ROM drive (for software installation)
Notes
• We cannot guarantee the printer operations when a hub is used or when two or more
USB devices are connected to your computer.
• If you connect more than one DPP-SV88/SV77/SV55/MP1/EX7/EX5 printer at the
same time, you cannot operate the printer.
• You cannot operate the printer from another USB device being used simultaneously.
• Do not remove or connect the USB cable from or into the printer during the data
communication or printing. The printer may not work properly.
• We cannot guarantee operations with all the personal computers with the system
requirements.
76 GB
Using your printer with Macintosh computers
Installing the printer driver
When using Mac OS 8.6/9.0/9.1/9.2
1
2
Make sure that the printer is not connected to the computer.
Turn on and start your Macintosh.
Note
Be sure to close all running programs before installing the software.
Insert the supplied CD-ROM into the CD-ROM drive of your
computer.
4
Double-click the “Mac OS 8.69.x” folder.
5
Select the software language
by double-clicking the
corresponding folder.
Printing from your computer
3
The selected language folder opens.
6
Double-click “DPP-EX5_EX7
Installer”.
7
Click “Install”.
Installation starts. When the
installation is completed, the dialog
box to notify the successful
installation is displayed.
Continued
77 GB
Using your printer with Macintosh computers
8
Remove the supplied CD-ROM from the CD-ROM drive of your
computer.
Notes
• If you cancel the installation midway, do the installation procedures from the step 4.
• If the installation fails, remove the printer from your computer, restart your
computer, and then do the installation procedures from the step 4
• The supplied CD-ROM will be required when you re-install or uninstall the printer
driver. Keep it in good order for possible future use.
Uninstalling the printer driver
When the software becomes unnecessary, remove the software as follows: In
step 6, click “Uninstaller”.
When using Mac OS X (v10.1/v10.2)
1
2
Make sure that the printer is not connected to the computer.
Turn on and start your Macintosh.
Note
Be sure to close all running programs before installing the software.
78 GB
3
Insert the supplied CD-ROM into the CD-ROM drive of your
computer.
4
Double-click the “Mac OS X
v10.1-10.2” folder.
5
Double-click
“DPPEX5_EX7.pkg”.
6
Click
.
Notes
When you are using Mac OS X (v10.2),
this dialog box will be not displayed.
7
Printing from your computer
Enter the name and
password of the computer
administrator, and then
click “OK”.
For the name and password,
refer to the computer
administrator.
8
Click “Continue”.
9
Click the location you install
the driver and then click
“Continue”.
Continued
79 GB
Using your printer with Macintosh computers
10 Click “Install”.
Installation starts. When it is
completed, the dialog box to notify
the successful installation is
displayed.
Note
If the driver has been previously
installed, the “Upgrade” is displayed
instead of “Install”. To delete the past
installation information, delete “/
Library/Receipts/DPPEX5_EX7.pkg”.
11 Click “Close”.
12 Remove the supplied CD-ROM
from the CD-ROM drive of your
computer.
Notes
• If you cancel the installation midway, do the installation procedures from the step 4.
• If the installation fails, remove the printer from your computer, restart your
computer, and then do the installation procedures from the step 4
• The supplied CD-ROM will be required when you re-install or uninstall the printer
driver. Keep it in good order for possible future use.
Uninstalling the printer driver
When the software becomes unnecessary, remove the software as follows:
1
2
Disconnect the USB cable from your printer and the computer.
Open “Print Center”, select “DPP-EX7” from the printer list and
then click “Delete”.
Note
The “Print Center” is located in the “Utilities” folder of the “Application” folder.
80 GB
Printing from an application software
You can use an application software to print images stored in your computer
with the Digital Photo Printer DPP-EX7.
Notes
1
Connect the printer to your computer and turn on the printer.
In a while, the printer is detected and ready for printing. When the printer
is ready, the “DPP-EX5” is displayed in the printer list of the “Print
Center”.
2
Start the application software that you use for printing, and
select the image to be printed.
When using Mac OS 9.x
Open “Chooser” from the Apple menu, click “DPP-EX7”, and then close
the “Chooser”.
3
Click “Page Setup”
from the “File” menu
of the application.
The “Page Setup” dialog
box appears.
Continued
81 GB
Printing from your computer
• Before printing, make sure to connect the USB connectors of the printer and the
computer. If you connect it after you start printing, the printer or the computer
may not work properly.
•This section explains the settings and operations with a typical application as an
example. Depending on the application, print settings and operations may differ.
For the details, refer to the manual of your application.
•The dialog boxes in this section are those in Mac OS X (v10.2). They may differ
depending on the operation system.
•To obtain the expected print performances, we suggest you use an application
software that allows you to check the print preview. Use the application software to
make the image size to 1644 x 2466 (dots) for the Post Card (4 x 6 inch) size, 1464 x
2064 (dots) for the 3.5 x 5 inch size, and 1137 x 1516 (dots) for the Small (3.5 x 4 inch)
size. Also make the resolution to 403 dpi. Even after these adjustments, an image
may be cut off or proper printed performances may not be obtained depending on
the application software you use. If this occurs, adjust the image size smaller.
Using your printer with Macintosh computers
4
5
Choose the print settings.
Settings
Select “Page Attributes”.
Format for
Select “DPP-EX7” from the drop-down list box.
Paper Size
Select either of the following paper size from the dropdown list box.
• Post card: When you use the Post Card (4 x 6 inch) size
print paper to make a print with borders.
• Post card (borderless): When you use the Post Card
(4 x 6 inch) size print paper to make a print without
border.
• 3.5 x 5 inch: When you use the 3.5 x 5 inch size print
paper to make a print with borders.
• 3.5 x 5 inch (borderless): When you use the 3.5 x 5 inch
size print paper to make a print without borders.
• Small: When you use the Small (3.5 x 4 inch) size
print paper to make a print with borders.
Click “OK” to close the dialog
box and select “Print” from the
“File” menu.
The “Print” dialog box appears.
6
Select the menu from the dropdown list box and make the
print settings.
Menu
Copies & Pages
82 GB
Item
Setting
Pages
To print all the pages, select “All”. To
print part of the pages, specify the pages to
start and end printing.
Copies
Enter the number of copies to be printed.
Layout
Select the layout direction.
General
Select OverCoat either from “Glossy” or “Texture”.
Color Correction
You can set color tones, density and sharpness.
Preview
Displays a preview of the image for printing.
7
Click “Print”.
Printing starts. To stop printing, click “Cancel”.
Note
If printing has already started and the print paper has already been loaded, do not
cancel printing. Paper jam may occur. Please wait until the printing is completed.
When an error occurs during printing in the Mac OS X (v10.1/v10.2)
If an error occurs, follow the procedures.
1
If the right dialog box is
displayed, click “Show
Printer”.
Printing from your computer
The error description is displayed.
Note
When you are using Mac OS X (v10.1),
click “Show Queue”.
2
• To stop printing: Click
“Delete Job”.
• To resume printing: Click
“Stop Job”.
When you select “Stop Job”, the
following dialog box is displayed.
3
Remove the error and select
the job from the list box and
then click “Resume”.
Note
When you are using Mac OS X (v10.1),
click “Retry”.
83 GB
Additional information
Precautions
On safety
• Operate the printer on 120 V AC, 60
Hz (for the 120V area) or 220 to 240 V
AC, 50/60 Hz (for the models for
other areas) only.
• Be careful not to set or drop any
heavy objects on the power cord, or
to damage the power cord in any
way. Never operate this printer with
a damaged power cord.
• Should any solid object or liquid fall
into the cabinet, unplug the printer
and have it checked by qualified
personnel before operating it any
further.
• Never disassemble the printer.
• To disconnect the power cord, pull it
out by the plug. Never pull the
power cord itself.
• When the printer is not going to be
used for an extended period of time,
disconnect the power cord from the
wall outlet.
• Do not handle the printer roughly.
• To reduce the risk of electrical shock,
always unplug the printer from the
electrical outlet before cleaning and
servicing the printer.
• Take care not to scratch or damage
your printer’s LCD screen. Always
use the supplied stylus or a plastictipped pointer to tap on the screen.
Do not use a real pen, pencil, or
other sharp object on the screen.
• Your printer’s screen is made of
glass. Do not drop or submit your
printer to external shock.
84 GB
On installation
• Avoid placing the printer in a
location subject to:
– vibration
– high humidity
– excessive dust
– direct sunlight
– extremely high or low
temperatures
• Do not use electrical equipment near
the printer. The printer will not work
properly in electromagnetic fields.
• The printer is designed to operate
horizontally. Never attempt to
operate the printer in a tilted
position.
• Do not place heavy objects on the
printer.
• Leave enough room around the
printer so that the ventilation holes
are not blocked. Blocking these holes
may cause internal heat build-up.
On moisture condensation
On cleaning
If the printer is brought directly from a
cold location to a warm location or
placed in an extremely warm or humid
room, moisture may condense inside the
unit. In such cases the printer will
probably not work properly and may
even develop a fault if you persist in
using it. If moisture condensation
occurs, turn off the power and do not
use the printer for at least one hour.
Clean the cabinet, panel and controls
with a soft dry cloth, or a soft cloth
lightly moistened with a mild detergent
solution. Do not use any type of solvent,
such as alcohol or benzine, which may
damage the finish.
On cleaning of the LCD display, please
see page 12.
On transport
If duplicating documents with the
printer, pay special attention to the
following:
• Duplication of banknotes, coins, or
securities is against the law.
• Duplication of blank certificates,
licenses, passports, private securities,
or unused postal stamps is also
against the law.
• TV program, films, video tapes,
others’ portraits or other materials
may be copyrighted. Unauthorized
video printing of such materials may
infringe the provisions of the
copyright law.
85 GB
Additional information
When you transport the printer, remove
the print cartridge, paper tray, the
“Memory Stick” or PC card from the
printer and put the printer and its
peripherals in the original box with the
protective packaging.
If you no longer have the original box
and packing parts, use similar packing
material so that the printer will not be
damaged while being transported.
On restrictions on duplication
About the “Memory Stick”
What is “Memory Stick”?
“Memory Stick” is small, lightweighted, and next-generation IC
storage media with a larger capacity
than a floppy disc. You can use the
“Memory Stick” to exchange data
among “Memory Stick” compatible
devices. In addition, you can use the
“Memory Stick” as a removable external
storage device to save your data.
Types of “Memory Stick”
Following types of “Memory Stick” are
available for versatile purposes.
• “Memory Stick”: “Memory Stick”
can store all types of data except for
the one that requires the
“MagicGate” copyright protection
technology.
• “Memory Stick (with memory
select function)”: “Memory Stick
(with memory select function)”
incorporates multiple 128MB
memory units, which can be selected
by a user via a mechanical switch on
the reverse side of the media. Each
memory unit can be used to
categorize various types of data.
You cannot select multiple memory
units together or continuously.
• “MagicGate Memory Stick” :
“MagicGate Memory Stick ”
employs the “MagicGate” copyright
protection technology.
86 GB
• “Memory Stick PRO” : “Memory
Stick PRO” employs the
“MagicGate” copyright protection
technology and can be used only
with “Memory Stick PRO” compliant
devices.
• “Memory Stick-ROM”: “Memory
Stick-ROM” is the read-only
“Memory Stick” storing the data.
You cannot save or delete its data.
On “Memory Stick Duo”
“Memory Stick Duo” is smaller than the
standard-sized “Memory Stick”. When
inserted into the Memory Stick Duo
adaptor, the “Memory Stick Duo” is the
same size as the standard-sized
“Memory Stick”, and can be used with
“Memory Stick” compliant devices.
• When using the “Memory Stick Duo”
on the printer, make sure to insert
the “Memory Stick Duo” into the
Memory Stick Duo adaptor and then
insert the adaptor containing the
“Memory Stick Duo” into the
printer.
• Before using the “Memory Stick
Duo”, check the correct direction to
insert the “Memory Stick Duo”. If
you attempt to insert it in a wrong
direction, the “Memory Stick Duo”
and the printer may be damaged.
• Never insert the Memory Stick Duo
adaptor that contains no “Memory
Stick Duo” into a “Memory Stick”compatible device. If you do, the
device may be damaged.
Types of “Memory Stick”
that the printer can use
With the printer, you can do the
following operations for each type of
“Memory Stick”:
Write/Delete/
Format
OK
OK
“MagicGate Memory
Stick”/“MagicGate
Memory Stick Duo”*2
OK*1
OK*1
“Memory Stick PRO”
OK*1
OK*1
“Memory Stick-ROM”
OK
NO
“Memory Stick”/
“Memory Stick (with
memory select
function)”/“Memory
Stick Duo”*2
*1 The printer cannot read/write the data subject to
“MagicGate” copyright protection.
The data read/write speed differs
depending on the combination of the
“Memory Stick” and the device you use.
What is “MagicGate”?
“MagicGate” is the copyright protection
technology that works when both the
“Memory Stick” and the device employ
the technology. The “MagicGate”compatible device and the “MagicGate
Memory Stick” attest that each other
supports the “MagicGate” technology
and encode the data they exchange.
The printer does not support the
“MagicGate” standards and cannot read
or write the data subject to the
“MagicGate” copyright protection.
Notes on use
*2 Use the adaptor designed for the “Memory Stick
Duo” you use.
We cannot guarantee the operations of all the “Memory
Stick” media.
• When you slide the write protect
switch to the write protect position,
you cannot record, edit, or delete the
data.
• When you slide the write protect
switch of the “Memory Stick Duo”,
use a thin-pointed device.
Connector
Write
enable
position
Write
protect
position
LOCK
LOCK
Place the label here
Continued
87 GB
Additional information
Read
On data read/write speed
About the “Memory Stick”
• Avoid removing the “Memory Stick”
from the printer while the printer is
reading or writing data.
• Data may be damaged in such
occasions:
– “Memory Stick” is removed or the
printer is turned off while the
printer is reading or writing the
“Memory Stick” data.
– “Memory Stick is used in a location
subject to electrostatic or electronic
noises.
• We recommend that you save
backup of the important data.
• Attach the label designed for the
“Memory Stick” only to the place for
the label.
• When attaching the label, attach it to
the place specified for the label.
Make sure that the label does not
overlap.
• When storing and carrying the
“Memory Stick”, keep it in its
original case to ensure protection of
important data.
• Avoid touching the connector of the
“Memory Stick” or contacting it with
a metal object.
• Do not drop, bend, or submit the
“Memory Stick” to external shock.
• Do not disassemble or modify the
“Memory Stick”.
• Avoid getting liquids on the
“Memory Stick” or using it in areas
subject to high humidity.
88 GB
• Avoid using or storing the “Memory
Stick” in a location subject to:
– extremely high temperature such as
the hot inside of a car or the
outdoors exposed to direct sunlight,
or a place near a heater.
– direct sunlight
– high humidity
– corrosive substances
• When formatting a “Memory Stick”,
use the format function of the printer
or your digital still camera. If you
format a “Memory Stick” with your
computer, images may not be
displayed properly.
About the PC card
The printer can read and write a PC card
(PCMCIA ATA compatible type II flash
memory cards with a power
specification of 5V or 3.3/5V). By using
a commercially available PC card
adaptor, you can also use Smart Media
and other types of compact flash
memory cards.
Notes on use
– direct sunlight
– high humidity
– corrosive substances
– excessive dust
– electrostatic or electronic noises
– magnetic fields
89 GB
Additional information
• You cannot use PC cards with a
power specification of 3V (3.3V)
only.
• Do not insert other types of PC card
into the printer’s insertion slot. The
printer may be damaged.
• Do not drop, bend, or submit the PC
card to external shock.
• Do not disassemble or modify the PC
card.
• Avoid getting liquids on the PC card
or using them in areas subject to high
humidity. Otherwise, data may be
rendered unreadable.
• Avoid using or storing the PC card
in a location subject to:
– extremely high temperature such as
the hot inside of a car or the
outdoors exposed to a direct
sunlight, or a place near a heater.
• When storing and carrying the PC
card, keep it in its original case to
ensure protection of important data.
• Avoid removing the PC card from
the insertion slot or turning off the
power of the printer while the
printer is accessing the PC card.
Otherwise, data may be rendered
unreadable.
• When using a compact flash card or
Smart Media, use a commercially
available PC card adaptor that is
compatible with the card. Insert the
card into the adaptor and then insert
it into the printer. For how to install
the card and adaptor, refer to the
operating instructions of the PC card
adaptor.
• Avoid inserting or removing the
compact flash card or Smart Media
into or out of the PC card adaptor
while the PC card adaptor is inserted
in the printer. The data may be
rendered unreadable or erased.
Troubleshooting
If you run into any problems using the
printer, use the following guidelines to
solve the problem. If the problem
persists, consult your Sony dealer.
When you are printing from your
computer, also refer to the computer
manual.
Cannot operate the printer after the
power switch is turned on.
m Connect the AC power cord to an
AC outlet securely.
The LCD screen of the printer
displays no images.
m Insert a “Memory Stick” or PC card
securely. Check that images
recorded by a digital still camera or
other device are recorded.
m Make sure that the PC input
indicator is not lit.
m Press the INPUT SELECT button to
turn on the “MEMORY STICK” or
PC CARD indicator.
Cannot print.
m Insert the correct set of print
cartridge and print paper.
m Check that the paper tray has paper.
m The thermal head may be
overheated. Leave the printer until
the head cools down and the printer
resumes printing.
m Remove the jammed paper, if any.
90 GB
An image in the image list is not
properly displayed or printed.
m If the image is displayed but can not
be printed, the file used for printing
is damaged.
m If the mark shown on
the right is displayed
in the image list, the
image is a JPEG file
created with your
computer, or the
thumbnail data of the
image is damaged.
Tap the mark and if a preview
image is displayed, you can print
the image. If the same mark is
displayed again as a preview, the
image is stored in an incompatible
file format that the DPP-EX7 does
not support or the image itself is
damaged.
m An image which is damaged or has
some kind of problem will not
appear in the image list. A file error
message appears. If there are no
images stored in the “Memory
Stick” or PC card, the no file
message appears on the display.
m If an image is not compatible with
DCF (Design rule for Camera File
system), it may not be printed with
the printer even if it is displayed on
the PC monitor.
m The printer can handle and display
up to 9,999 image files. If there are
more than 9,999 images stored in the
“Memory Stick” or PC card, use the
computer to display and handle the
remaining images.
m Depending on the type of digital
still camera used, the aspect ratio of
the recorded image differs, so the
image may not be printed covering
the entire printable area.
m Depending on the type of digital
still camera used, preview images
may be displayed along with the
primary images in the thumbnail
list. The printed quality of the
preview images will not be as good
as the primary images. Note that if
you delete the preview images, the
data for the primary images may be
damaged.
m Check that you are following the
correct procedures.
Cannot remove the print cartridge.
m Turn the printer off then on. After
the motor sound stops, try to
remove the cartridge.
If this does not solve the problem,
contact Sony service facilities or
your Sony dealer.
The
or
indicator is lit or an
error message is displayed.
m Follow the instructions on the
screen.
There is a white line or dots in the
printed pictures.
m The print head or paper path may
be soiled. Use the supplied cleaning
kit to clean the head and path (page
92).
m Some types of PC card adaptor that
are not compatible with PCMCIA
ATA cannot be used with this
printer.
m When you name or rename an
image file on your computer and its
file name includes characters other
than alphanumeric characters, the
file name may not be displayed
correctly or the image may not be
displayed (read error) on the
printer.
Continued
91 GB
Additional information
m Depending on the type of digital
still camera used, the image may be
stretched vertically if it has been
rotated or processed using your
digital still camera. This is not
because of trouble with the printer,
but because the image was rewritten
using your digital still camera.
The beeps sound.
Troubleshooting
If paper jams
If the print paper jams, the
paper error indicator lights and an error
message is displayed. Printing stops. Turn the printer off and remove the
jammed paper from the paper outlet or take out the paper tray to remove the
jammed paper.
Take out the paper tray
to remove the jammed
paper.
Pull out the
jammed paper
slowly.
Note
If you cannot remove the jammed paper, contact your Sony dealer.
Cleaning the inside of the printer
If white lines or dots are printed on the pictures, use the supplied cleaning
cartridge and paper to clean inside the printer.
Notes
•Make cleaning only when there are white lines or dots on the print.
• When you can obtain proper printing performances, cleaning will not improve the
printed picture quality.
• With the supplied cleaning kit, you can make cleaning for the maximum of about 20
times. As the number of cleaning times increases, the cleaning paper loses its
cleaning effect.
• Do not place the cleaning paper on the print paper, which may cause paper jam or
other troubles.
• If a cleaning does not improve printed picture quality, please make cleaning a
couple of times.
• You can also make cleaning with the protective sheet contained in the printing pack
designed for the DPP-EX7. To use the protective sheet for cleaning, insert the paper
with its imprint surface facing down into the tray.
92 GB
Open the cartridge compartment lid and remove the print
cartridge (page 18).
2
Insert the supplied
cleaning cartridge (white)
into the printer and close
the cartridge compartment
lid.
3
Remove the paper tray from the printer. If there is print paper
in the tray, remove the print paper from the tray.
4
Remove the 3.5 x 5 inch
paper adaptor and stand
the partition up. Place
the supplied cleaning
paper with the no-imprint
side facing up and the
arrow pointing in the
same direction as the
arrow in the tray. Insert
the paper behind the
partition.
5
3.5 x 5 inch
paper
adaptor
Arrows in
the reverse
side
Partition
Set the paper tray into the printer and press the PRINT button.
The cleaning cartridge and cleaning paper will clean inside the printer.
After the cleaning is finished, the cleaning paper is automatically ejected.
6
Remove the cleaning cartridge and cleaning paper from the
printer and set the print cartridge and print paper.
Keep the cleaning cartridge and cleaning paper together. With a sheet of
cleaning paper, you can make cleaning for the maximum of about 20
times.
93 GB
Additional information
1
Specifications
Printing method
Dye sublimation printing (Yellow/
Magenta/Cyan 3 pass)
Resolution
403 (H) x 403 (V) dpi
Image processing per dot
256 levels (8 bits for each Yellow/
Magenta/Cyan), approx. 16,770,000 colors
Printing size
Post Card (4 x 6 inch) size:
101.6 x 152.4 mm (maximum,
borderless)
3.5 x 5 inch size:
89 x 127 mm (maximum, borderless)
Small (3.5 x 4 inch) size:
71.7 x 95.5 mm (maximum)
Printing time (per sheet)
Post Card (4 x 6 inch) size:
approx. 90 seconds
3.5 x 5 inch size:
approx. 75 seconds
Small (3.5 x 4 inch) size:
approx. 60 seconds
(excluding the time for data processing
and data transferring from the personal
computer or “Memory Stick” or PC card)
Input/output connectors
USB connector (1)
Slot
“Memory Stick” insertion slot (1)
PC card insertion slot (PCMCIA II) (1)
Compatible image file formats*1
DCF*2: Exif Ver. 2.1/2.2*3,
JPEG compatible, TIFF4-RGB (noncompressed)
JPEG: 4:4:4, 4:2:2, 4:2:0 (baseline JPEG)
BMP: 24 bits full color, Windows format
JFIF
(Note that some versions of the file
formats may not be compatible.)
Recording image format
DCF compatible: Exif ver. 2.2, JPEG
compatible
Maximum number of pixels to be
handled
JPEG:
6,400(H) x 4,800(V)
BMP:
5,400(H) x 4,050(V)
TIFF:
4,800(H) x 3,600(V)
Maximum number of files to be handled
9999 files per a “Memory Stick” or PC
card media
Print cartridge/Print Paper
See “Preparing the printing pack” on
page 17.
LCD display
3.8 inch transparent STN color display
320 x 240 x RGB
Power requirements
120 V AC, 60 Hz, 1.12 A
(for the 120 V areas)
220 - 240 V AC, 50/60 Hz, 0.6A
(for 220 to 240 V areas)
Power consumption (standby mode)
Approximately 1 W
94 GB
Operating temperature
5 ˚C to 35 ˚C (41 ˚F to 95 ˚F)
Dimensions
Approx. 242 x 87 x 267 mm
(w/h/d, excluding protruding parts)
(9 5/8 x 3 1/2 x 10 5/8 inches)
(363 mm (14 3/8 inches) of depth when
the paper tray is installed.)
*1: Some special file types are not
compatible.
*2: “DCF” stands for Design rule for
Camera File system.
*3: “Exif” is an image file format containing
an image data added with its thumbnail
data for viewing, shot date data and the
shooting conditions data.
*4: The printer functions may be limited for
a TIFF file.
Mass
Approx. 2.4 kg (5 lb 5 oz)
(excluding the 0.1 kg (4 oz) paper tray)
Supplied accessories
See “Unpacking the printer” on page 8.
Additional information
Design and specifications are subject to
change without notice.
Customer support home page
The latest support information is available at the following homepage
addresses:
For the customers in the U.S.A.:
http://www.sel.sony.com/SEL/service/conselec/
For the customers in Canada:
http://www.sony.ca/service
For the customers in Europe:
http://www.sony-imaging.com/support
For the customers in Singapore:
http://www.css.ap.sony.com
95 GB
Glossary
Auto Fine Print 2
The function automatically corrects
the picture quality so that an image
may be printed in more vivid, clear
and beautiful pictures. It is
especially effective for a darker
image with low contrast. The
pictures are corrected to reproduce
natural skin colors, vivid tree leaf
green, or clear sky blue.
DCF (Design rule for Camera File
system)
The standard specified by JEIDA
(Japan Electronic Industry
Development Association) to
maintain the file exchangeability and
compatibilities between digital still
cameras and related products.
DPOF (Digital Print Order Format)
The format used to record the
information necessary for
automatically printing images shot
by a digital still camera at a printing
shop or with a home-use printer. The
printer supports DPOF printing and
can automatically print the preset
number of copies of the DPOF preset
images.
Exif 2.2 (Exif Print)
Exif (Exchangeable image file format
for digital still cameras) Print is a
global standard for digital photo
printing. A digital still camera
supporting Exif Print stores the data
relevant to the conditions of shooting
as each shot is taken. The printer
utilises the Exif Print data stored in
each image file to ensure the printed
result matches the original shot as
closely as possible*1.
*1 When the “Auto Fine Print 2” is
enabled and an image (JPEG file) is
shot by an Exif Print (Exif 2.2)compatible digital still camera, the
image is automatically adjusted to its
optimum picture quality and printed.
“Memory Stick”
A next-generation, compact, light,
removable storage media used with
a digital still camera, video camera,
or PC. In its compact body, it can
record a larger volume of data than a
floppy disc can. You can use it to
exchange data among “Memory
Stick” ready devices and also use it
as removable and external storage
medium.
Thumbnails
Miniature images for representing
the original images that are stored in
the image files taken by a digital still
camera. The printer uses thumbnails
in the image list.
96 GB
Index
Symbols
D
M
3.5 x 5 inch size 17
Date Print 59
DCF 96
Deleting images 64
Displaying another page
24
DPOF 28, 96
Dragging 13
“Memory Stick”
Inserting/removing 14
Notes on use 89
Usable types 86
Write protection 89
Menu screen 57
Message tool 55
Moisture condensation
85
A
AC power cord 15
Adjusting the image
position and size 32, 40
ALL/DPOF 28
Auto Fine Print 2 58, 96
B
Beep 61
Border/Borderless print
59
C
Edit 32
Effect menu 30
Entering a message
39, 51
Entering characters 50
Exif Print 6, 96
F
Features 6
Filter 35
Formatting the “Memory
Stick” 65
G
Glossy 59
I
Index Print 46
INPUT SELECT 16, 23
Installing the software
Macintosh 77
Windows 67
L
O
Operation panel 12
Options 61
P
Paper error indicator
22, 92
Paper jams 92
Paper tray 10, 20
PC Card
Inserting/removing 15
Note on use 89
Pencil tool 49
Post Card size 17
POWER button
18, 23, 25, 28
Preview image 24
PRINT button 24, 26
Print cartridge 17, 18
Print mark 28
Print paper 17, 20
Print Setting 58
LCD display contrast 62
Continued
97 GB
Additional information
Calendar 41, 42
Canceling the selection
25
Card 38
Cartridge compartment
lid 18
Cartridge error indicator
18
Cleaning the printer 92
Clock setting 61
Color Setting 60
Connecting
AC power cord 15
Computer 16
Creative Print menu 36
Cursor 23
Cut out tool 54
E
Index
Printing
All or DPOF images 28
an image 23
Calendar 41
Cards 38
From a Macintosh
computer 81
From a Windows
computer 70
Index prints 46
Multiple images 25
Split images 43
Sticker 44
Printing pack 17
Printing surface 21
S
Saving an image 31, 37
Selecting an image
25, 39
Setting the calendar 42
Setting the print quantity
26
Slide Show 63
Small size 17
Specifications 94
Split Images 43
Stamp tool 53
Sticker 44
Stylus 13
Supplied accessories 8
System requirements
Macintosh 76
Windows 66
T
Tapping 13
Template 38
Texture 59
Thumbnails 90, 96
Tool 48
Troubleshooting 90
Type tool 50
U
Uninstalling the software
70, 78, 80
USB connector 16
98 GB
Printed on 70% recycled paper.
Sony Corporation
Printed in Japan
