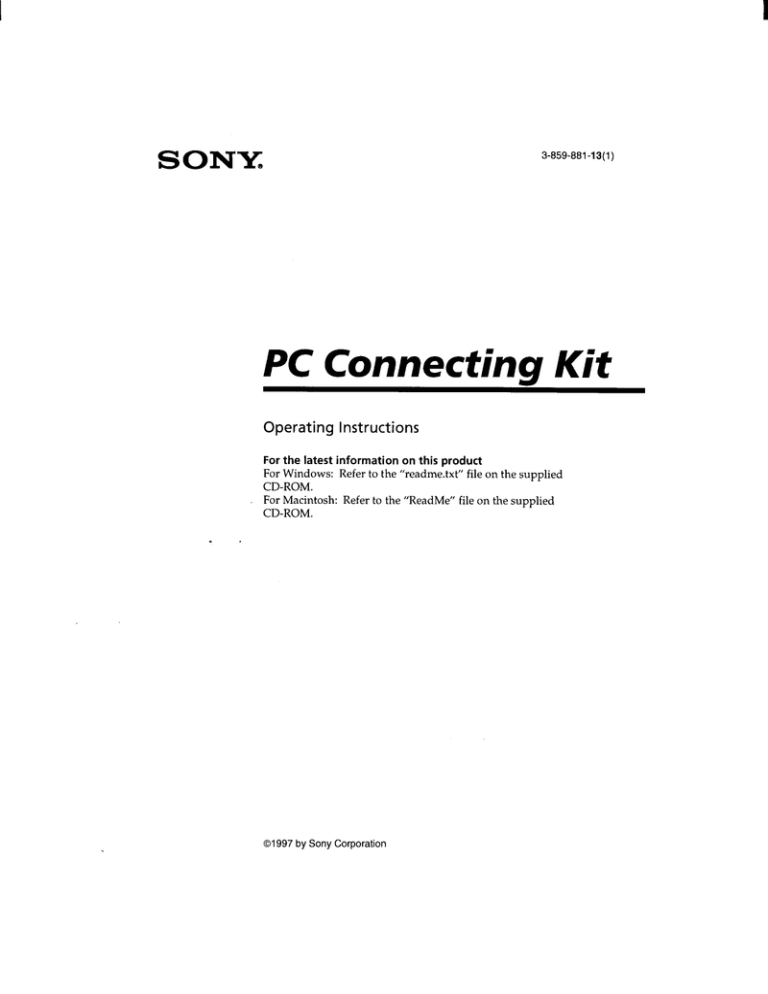

< ONY. 3-859-881-13(1)
®
РС Connecting Kit
Operating Instructions
For the latest information on this product
For Windows: Refer to the “readme.txt” file on the supplied
CD-ROM.
For Macintosh: Refer to the “ReadMe” file on the supplied
CD-ROM.
©1997 by Sony Corporation
Notice for users
Program ©1997 Sony Corporation/
Documentation ©1997 Sony
Corporation
All rights reserved. This manual or the
software described herein, in whole or
in part, may not be reproduced,
translated or reduced to any machine
readable form without prior written
approval from Sony Corporation.
IN NO EVENT SHALL SONY
CORPORATION BE LIABLE FOR
ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL
DAMAGES, WHETHER BASED ON
TORT, CONTRACT, OR OTHERWISE,
ARISING OUT OF OR IN
CONNECTION WITH THIS
MANUAL, THE SOFTWARE OR
OTHER INFORMATION
CONTAINED HEREIN OR THE USE
THEREOF.
By breaking the seal of the envelope of
the CD-ROM package, you accept all
the terms and conditions of this
agreement. If you do not accept these
terms and conditions, please return
this disk envelope unopened, along
with the rest of the package,
immediately to the dealer where you
obtained it.
Sony Corporation reserves the right to
make any modification to this manual
or the information contained herein at
any time without notice.
The software described herein may
also be governed by the terms of a
separate user license agreement.
User registration
To receive the customer services,
complete and return the registration
card included in your package.
For the latest information
For the latest information on this
product, refer to the following:
For Windows:
“readme.txt” file on the supplied
CD-ROM, using the Windows
“Notepad” program. (You can open
the file by clicking [Start],
[Programs], [Sony] and then
[Supplement]. )
For Macintosh:
“ReadMe” file on the supplied CD-
ROM using the Simple Text.
Trademarks
* IBM and PC/AT are registered
trademarks of International Business
Machines Corporation.
Microsoft and Windows are
trademarks of Microsoft
Corporation, registered in the U.S.A.
and other countries.
* Apple, Macintosh and Power PC are
trademarks of Apple Computer Inc.
registered in the U.S.A. and other
countries.
QuickTime is a trademark of Apple
Computer Inc.
Adobe and Photoshop are
trademarks of Adobe Systems
Incorporated.
PhotoStudio is a registered
trademark of ArcSoft, Inc.
All other trademarks and registered
trademarks are trademarks or
registered trademarks of their
respective holders.
About this manual
This instruction manual is divided into two sections:
e
The former section explains how to use
the PC Connecting Kit for Windows:
Before you begin (page 8)
Explains features of the PC connecting
kit. Also explains the system
requirements for using this product.
Setting up (page 13)
Explains how to install the software,
set the Digital Still Camera and connect
the Camera to your PC.
Sony Digital Still Camera Album Utility
Capturing an image (page 23)
Explains how to save the camera
images onto hard disk in album or
another file format and then display
the images on the hard disk. Also
explains how to acquire an image from
the devices which support TWAIN
protocol into yóur PC.
Editing an image (page 54)
Explains how to change album
thumbnail and comments, copy and
delete an image, print and transfer an
image and other editing features.
Sony DSC-F1 TWAIN 1.5
Using the TWAIN data source (page 69)
Explains how to transfer a camera
image to an application which
supports TWAIN protocol.
Others (page 71)
Gives additional information.
The latter section explains how to use
the PC Connecting Kit for Macintosh:
Before you begin (page 78)
Explains features of the PC connecting
kit. Also explains the system
requirements for using this product.
Setting up (page 82)
Explains how to connect the software
to your Macintosh. Also explains how
to set the Digital Still Camera and
connect the Camera to you Macintosh.
Sony Digital Still Camera Album Utility
Capturing an image (page 86)
Explains how to save the camera
images onto hard disk in album or
another file format and then display
the images on the hard disk.
Editing an image (page 113)
Explains how to sort the images,
change a comment, zoom and rotate an
image, review the image information,
print and transfer an image and other
editing features.
Sony Digital Still Camera Plug-in
Using the Plug-in (page 123)
Explains how to transfer a camera
image into the application which
supports Adobe Photoshop Plug-in.
Others (page 125)
Gives additional information
Note
Explanations in this manual assume that you are familiar with basic Windows and Macintosh
operations. For how to use your computer and operating systems, please refer to the
respective manuals.
Table of contents
About this manual .................e.eserrerecceros 3
Getting started eee 6
Before you begin
Features .……..….….…rusraseseassancransenrensencesenees 8
System requirements .............wcw......... 12
Setting up
Determining how to connect the Digital
Still Camera essen 13
Connecting via cable ...............—.—....... 14
Connecting via infrared port ............. 19
Sony Digital Still Camera
Album Utility
Capturing an image
Starting “Sony Digital Still Camera
Album Utility” 23
About the Menus ………rsessesssenceeur 24
Using the tool bar ae 29
Changing system settings ................... 30
Opening the camera images ............... 31
Opening the image from
the album ............. encerio 31
Opening the image directly ......... 34
Saving the camera images in album . 35
Opening and saving the camera
IMAGES .……..csrerrsanserseenaencencenen encens 35
Saving all the camera images
without opening them .................. 37
Saving the selected camera images
without opening them ................. 38
Saving the camera images as another
file format ..............=.ereeeo e 40
Opening and saving the camera
images .............cmenicinina Dare ene. 40
Saving all the camera images
without opening them .................. 43
Saving the selected camera images
without opening them .................. 45
Opening an album of the hard disk .. 47
Opening an image file directly .......... 50
Capturing an image from TWAIN
device coor, 53
Editing an album
Changing the album front cover ....... 54
Changing the caption ...................—.—.. 55
Moving albums or images
(drag and drop) ..................e......... 56
Copying an image to another album 57
Copying with the File menu .............. 59
Deleting images or albums ................. 60
Searching for images .................—......... 61
Printing images ..............e..seercerrneeneoo 62
Changing the image display size ...... 64
Rotating an image .............. e... 65
Reviewing the image information ..... 66
Transferring an image to
the camera -................ecemmnenerernennc.. 67
Sony DSC-F1 TWAIN 1.5
Using the TWAIN data source
Transferring camera images to an
application which supports the
TWAIN protocol ...............—........... 69
Others
Troubleshooting .............................. 71
Index TO 74
Before you begin
Features ….………...….…ersceseencenaençensnnsnnn 78
System requirements …….…….……crses 81
Setting up
Step 1: Installing the software ........... 82
Step 2: Connecting the Digital Still
Camera ...............eeeieocrnen een 84
Step 3: Setting up the Digital Still
Camera ...........ermeceinerenceeee rene. 85
Sony Digital Still Camera
Album Utility
Capturing an image
Starting "Sony Digital Still Camera
Album Utility” «ccc 86
About the menus ……….………sersesresse 87
Using the tool bar ..............——......ee.... 91
Setting the Preferences ........................ 92
Opening the camera images ............... 94
Opening the image from
the album ccc, 94
Opening the image directly ......... 97
Saving the camera images in album . 98
Opening and saving the camera
IMAGES L….orccrrscrensenmrancenaesncentensensrennes 98
Saving all the camera images
without opening them ................ 100
Saving the selected camera images
without opening them ................ 101
Saving the camera images as another
file type wove ne 103
Opening and saving the camera
IMAGES covet ee 103
Saving all the camera images
without opening them ................ 105
Saving the selected camera images
without opening them ................ 106
Opening an album of the hard disk 109
Opening an image file directly ........ 111
Editing an image
Changing the comment..................... 113
Sorting the images ass 114
Copying an image to another
album ers rer 115
Deleting images ……….…sersensresssernee 116
Printing images …………esessesncencencess 117
Changing the image display size .... 119
Rotating an image .................e.eenennon. 120
Reviewing the image information... 121
Transferring an image to
the camera ........... 22.2 122
Sony Digital Still Camera
Plug-in
Using the Plug-in
Transferring camera images to your
application... 123
Others
Troubleshooting ses 125
Index — ...eÑÑ.ereeeneeeeereeana ceo rear ao ear. 127
Getting started
The items used in this product are supplied in the
Digital Still Camera DSC-F1 package together with the
other supplied accessories. Unpack the package and
pick up the following items:
Hybrid CD-ROM for IBM PC/AT compatible
PC and Macintosh (including
PhotoStudio) (1)
Operating instructions for PC Connecting Kit
(1)
Registration card (1)
For Windows
Operating Instructions
8
Before you begin
|
Features
The PCConnecting Kit for Windows comprises the
connecting cableand the CD-ROM, whichincludes
thefollowing:
H Installer (Setup.exe)
Installs thefollowing:
CJ Application software “Sony Digital Still Camera
Album Utility Version 1.5”
Capturesimages from the Sony Digital Still
Camera DSC-F1 and edits them:
* Captures Digital Still Cameraimages with or
withoutopeningthemand copiesthemonto the
hard diskin the desired fileformat.
Offersa variety ofalbumandimage editing
functions: moves the positionofanimageinan
album, copiesimages toanotheralbum, deletes
images, searches forimages, zoomsand rotates
images, printsanimage, and transfersanimage
froma hard disk. You canalso capturean
image froma TWAIN device suchasa digital
imagescanner.
O TWAIN data source driver “Sony DSC-F1 TWAIN
` ; 1.5”
Enables direct capturing ofimages fromthe
Digital Still Cameraintoanapplication which
supports the TWAIN protocol.
M Installer (Infrared\Setup.exe)
Installs the following:
(3 Microsoft Windows 95 Infrared
Communications Driver Version 2.0
Enablesinfrared datacommunicationbetween the
Digital Still Camera DSC-F1 and your PC, which
is equipped with theinfrared communication
hardware oradapter. Pleaseinstall thisdriverifit
isnotinstalled onthe Windows 95 operating
system of your PC. Forinformation using the
driversoftware,seethereleasenotes or Help
onlinedocument.
Before you begin
Æ installer (Pstudio\Setup.exe)
Installs the following:
(The image editing program “PhotoStudio”
See the “PhotoStudio” Helpand Readme online
documents, for thesoftwarecontentsand
operations whicharenotincludedin thismanual.
Image filing system of the Album
Utility
The “Sony Digital Still Camera album Utility” handles
theimagesinauniquealbum filing system—“ Album”
format. You canalso handletheimagesasstandard
file formats such as BMP, TIFF or JPEG.
5
D
=
O
ve
(D
<
O
E
o
D
©,
=
Album format
When the Digital Still Camera images are copied onto
the hard diskorotherstoragedevice, they arestored
in the original filing system shown below, whichis
called the “Album” format. The “Album” format
enables savinganimage ina small filesize without
degrading its picture quality. Sincethe “Album”
formatistheoriginalfiling system, you cannotopen
an Album format file withotherapplications.
ES E
В a
Notes
e Donotdeletenor F
change the namesof == vo
foldersorfilesunder © — a
the PIC_CAM *
directory. Doing so
will prevent thecontrol
fileinsidethedirectory
fromactivatingand the
“Sony Digital Still | RPO
Camera Album Utility” Ti eam | ro
fromdisplaying the | iZ
image. ЗБ
® Incase the Dscalbum 3 rapero
folderisrenamed or aix
movedtoanother
directory, itcannotbe ex
located with[Open
Folder] in the File Album folder
menu ofthe “Sony Thefoldernamed withan8-digit
Digital Still Camera numbercontainingthemaximumof
Album Utility.” You 30 PIC+++x+ folders. Itis the only
canlocate thefolder folderwhose name userscan
with [Find Folder]in register.
the Option menu.
Dscalbum folder
located on the
rootdirectory.
—Thelistoffiles
containedin the
selected album.
PEERTARE TESEI IETLED ОЙ
CEE ENT UA E E UNSUNG: SUE FO. AVEC:
Albums
Eachfoldercan
containupto200
imagefiles
(ртр).
Beforeyoubegin | 9
10
Features
Thumbnail
Stands foreachimagein
thealbumlistorimage
list.
Before you begin
The Albumis displayedas follows:
Album list
Albumicons contained in
thealbumtfolder ( +++...)
arelistedwiththe —
thumbnail. Eachalbumin
theliststands for the
PICG++*+ folder.
Image list
Thethumbnailsofimages
containedintheselected
album folder (PIC #++++) are
listed. Eachimagein thelist
stands for a PMP file. You
canselectand openany
image.
Theselectedimageis
displayed in full size.
Other file formats
Thumbnail
Album icon
Youcanalsosaveordisplay theimagesinstandards
file formats: BMP (bitmap), TIFF, and JPEG formats.
Operation flow chart
Setting Up (page 13)
Connect the Digital Still Camera with the PC via cable orinfrared portand =
installthesoftware. o
=
®
<
O
с
с
D
O,
=
Start the “Sony Digital Still Camera Album Utility” Start a TWAIN
(page 23) application
== 69)
+ +
| Open the Camera Image | | Store the Camera Image
(page 31) without opens it
+
Select the images to be Store all the Store ve
stored in the hard disk
Select the “Sony
DSC-F1 TWAIN 1.5”
—
Transfer camera
images to a TWAIN
application
camera selected
images images
+ +
\
Save
Save To Album (page 35) Select the file type (page 40)
Save in BMP, TIFF, or JPEG
+
E Open the image stored in the hard disk (page 47)
Selecttheimageinthe imagelistorspecifytheimagefiletobe
opened.
+
Edit an image/Print an image/Transfer an image to the
Camera (page 54)
Youcaneditanimage: changing album thumbnail, moving,
copying, deleting, printingan image, enlargingand
diminishinganimage, rotatinganimage. Youcanalsotransfer
animage to the Digital Still Camera.
Beforeyoubegin | 11
12
System requirements
Note
DependingonthePC, the
selectableserial speeds
(bps) are limited.
Before you begin
YourPCandsystemsoftwaremustmeetthe
following minimum requirements to use this product:
* IBM PC/AT or compatible
— CPU:803865X 66MHzand above
— RAM: 16MB or more
es OS: Microsoft Windows 3.1 or Windows 95
* Hard diskspace:40MBormoredepending onthe
sizeand number ofimages youstore.
* Acolormonitorwithavideo boardorvideo driver
todisplay 640 x480 pixelsand 256 colorsorbetter.
(A video board with 16,770,000 colorsis
recommended.)
* CD-ROM drive
e RS-232Cport (serial speed selectableamong
9600bps/19200bps /38400bps) orinfrared port
Setting up
Determining how to connect the
Digital Still Camera
Operation flow in
connecting via cable
1
Installing the “Sony
Digital Still Camera
Album Utility,” “Sony
DSC-F1 TWAIN 1.5”,
and “PhotoStudio.”
Connecting the Digital
Still Camera.
Setting up the Digital
Still Camera-setting
the menu and making
the camera ready for
communication.
—
Operation flow in
connecting via infrared
port
1
Installing the “Sony
Digital Still Camera
Album Utility,” “Sony
DSC-F1 TWAIN 1.5”,
and “PhotoStudio.”
Installing Microsoft
Windows 95 Infrared
Communications
Driver
Connecting the Digital
Still Camera.
Setting up the Digital
Still Camera-setting
the menu and making
the camera ready for
communication.
Before using this software to capture the Digital Still
Camera Images onto your PC, the Camera and your
PC should be properly connected and the necessary
software modules should be correctly installed in your
PC. Asillustrated below, there are two options for
connecting the Digital Still Camera with your PC.
Determine which option you use and follow the
necessary steps:
Connecting via cable
Use the connecting cable supplied to connect the
Digital 1/0 port of the Digital Still Camera with the
serial port of your PC:
Digital Still
Camera DSC-F1 Connecting cable Your PC
mE (supplied)
al 1 | Г
to DIGITAL to serial port (=
I/O port
Follow the steps explained in “Connecting via cable”
(page 14).
Connecting via infrared port
Use the infrared ports to transfer the images between
the Digital Still Camera and the PC:
Digital Still
Camera DSC-F1
Follow the steps explained in “Connecting via infrared
port” (page 19).
Setting up
u
m
=
=
©
=
©
13
14
Connecting via cable
Important notice to
the users who have
installed the previous
version (Version 1.0)
of “Sony Digital Still
Camera Album
Utility”
Before installing the
Version 1.5 of the
software, make sure to
uninstall the Version
1.0 of the software with
the CD-ROM supplied
with the Version 1.0.
If the [Sony DSC Setup]
dialog box does not
appear
1
3
Click the [Start] button
on the taskbar, point to
[Settings], and then
click [Control Panel].
Double-click the [Add /
Remove Programs]
icon.
Click [Install].
4 Click [Install Program].
Setting up
1 Installing “Sony Digital Still Camera
Album Utility” and “Sony DSC-F1
TWAIN 1.5”
To handle Digital Still Camera images on your PC, use
the installer to install “Sony Digital Still Camera
Album Utility” and “Sony DSC-F1 TWAIN 1.5.”
Under Windows 95
Turn on your PC and start up Windows 95.
2 Insert the supplied CD-ROM into the CD-ROM
drive on your PC.
The [Sony DSC Setup] dialog box appears.
3 Select the drive and directory in which the album
utility software is installed.
The destination drive and directory
The drive and directory are by default set to “C:/
SONY_DSC.” Usually, use the default ones. If you
want to install the software to another drive or
directory, type the drive or directory name in the
text box.
The install options
Copying all programs:
Usually select this option.
Copying only selected program:
Select this option when you install necessary
program only or the disk space is limited.
4 Click [Install].
The confirmation window for installation appears.
5 Click [Yes].
Installation starts up. When all or selected files
and programs are copied, the dialog box appears.
6 Click [OK].
The installation is completed.
Note
In case you move the
software to another drive
or directory after it is
installed, make sure to
uninstall the software
and then install it again.
Do not use the Explorer
or File Manager to move
the software files.
Uninstalling the software
When the software becomes unnecessary, remove all
the software files from your hard disk as follows:
1 Follow the steps 1 and 2 on page 14 to display the
[Sony DSC Setup] dialog box.
2 Click [Uninstall].
The component files are deleted from your hard
disk.
3 Click [Exit].
Under Windows 3.1
1 Turnon your PC and start up Windows 3.1.
2 Insert the supplied CD-ROM into the CD-ROM
drive on your PC.
3 Open the Program Manager or File Manager and
choose [Run] in the [File] menu.
The [Run] dialog box appears.
4 In the command line entry box, type the drive
letter for your CD-ROM drive followed by a colon
() and a backslash (\), and the word “setup.exe.”
For example, if your CD-ROM drive is on drive D:
“d:\setup.exe”
5 Click [OK].
The dialog box closes and the [Sony DSC Setup]
dialog box appears.
6 Click [Install] .
Setup program starts up. The confirmation dialog
appears.
7 Click [Yes] .
The dialog notifying that the installation is
completed appears. -
8 Click [OK] .
Uninstalling the software
Follow the steps of “Uninstalling the software” of
Windows 95 above.
un
D
m
+
=
o
с
5
continued
Settingup | 15
A ООО ООЕАЛН
Connecting via cable
2 Installing “PhotoStudio”
To edit the Digital Still Camera images on your PC,
use the installer to install “PhotoStudio” onto your
hard disk.
Under Windows 95
1 Turnon your PC and start up Windows 95.
2 Insert the supplied CD-ROM into the CD-ROM
drive on your PC.
The [Sony DSC Setup] dialog box appears.
3 Click [Cancel].
The screen returns to Windows 95.
4 Click the [Start] button and then click [Run].
The [Run] dialog box appears.
5 In the command line entry box, type the drive
letter for your CD-ROM drive followed by a colon
(:) and a backslash (\), and the word
“pstudio\setup.exe.” For example, if your CD-
ROM drive is on drive D:
- | “d:\pstudio\setup.exe”
O Click [Install].
The [PhotoStudio Installation] starts up. After the
installation is completed, the “Setup Exit
Message” appears.
7 Click [OK].
Under Windows 3.1
1 Turnon your PC and start up Windows 3.1.
2 Insert the supplied CD-ROM into the CD-ROM
drive on your PC.
3 Open the Program Manager or File Manager and
choose [Run] in the [File] menu.
The [Run] dialog box appears. Follow the steps 5
and 6 of installing under Windows 95.
16 Setting up
Notes
* Turn off the power on
3 Connecting the Digital Still Camera
your PC and Digital
Still Camera before Digital Still
connection. Camera
* Do not turn off the Connecting cable Your PC
(supplied)
power of the camera
nor disconnect the
cable during
transmitting the data,
which may cause a
un
D
=
=
o
=
©
transmission failure. to DIGITAL
* Use only the supplied I/O port
connecting cable.
Other brands of cables Use the supplied connecting cable to connect the serial
may cause port on your PC and the DIGITAL I/O port on the
malfunctions. Digital Still Camera DSC-F1.
* The supplied
connecting cable is for
the Sony Digital Still To resume data transmission
Camera DSC-F1 only. In case the data transmission is interrupted (and the
It cannot be used to Digital Still Camera becomes disabled), resume the
connect other cameras. transmission as follows :
* Insert the connecting ” o
cable carefully into the 1 Close all the windows of Sony Digital Still
port, making sure that Camera Album Utility” being displayed on the PC
the port goes in straight monitor.
and is firmly seated. o
When inserting the The buttons of the Digital Still Camera become
cable into the Digital enabled.
VO ata he 2 Turnthe POWER / Function dial of the Digital Still
A mark of the cable Camera to “OFF.
with that of the port. 3 Turn the POWER/ Function dial to “CAMERA” ог
* Keep metal objects “PLAY.”
away from the
connector pins to avoid 4 Transmit the data again.
short circuits.
* We suggest you use the
Digital Still Camera
with the AC power
adapter.
continued
Settingup | 17
E НОЛАН — — " " " -"-"_"_ _ _ _ _ _ _ _ _ _ "_ _ "_" " "=
Connecting via cable
4 Setting up the Digital Still Camera
Before you start data communications between the PC
and the Digital Still Camera, set up the Digital Still
Camera as follows. For the details, refer to the
instruction manuals of the Digital Still Camera
DSC-F1.
MENU/EXECUTE POWER/ Function
jog dial
Digital Still
Camera
DSC-F1
1 Set the POWER/Function dial to “PLAY.”
2 To activate the data transmission via the
connecting cable, set the menu as follows:
Menu Select
WIRELESS OFF
* The SERIAL menu SERIAL* The same serial speed as selected in
defines the serial speed the [Settings] dialog box of the “Sony
via the connecting Digital Still Camera Album Utility.”
cable.
CAMERA MENU CAMERA MENU
SERIAL SPEED
9600
Note
During the data
communication in process,
do not change the position The Digital Still Camera is ready for
o qe POWER/ Function communication via cable.
ial.
18 Setting up
Connecting via infrared port
Important notice to
the users who have
installed the previous
version {Version 1.0)
of “Sony Digital Still
Camera Album
Utility”
Before installing the
Version 1.5 of the
software, make sure to
uninstall the Version
1.0 of the software
with the CD-ROM
supplied with the
Version 1.0.
Tip
You can check to see if
this driver software is
installed by opening the
Control Panel and looking
for “Infrared Monitor.”
Note
You need the infrared
communigation device to
use this driver software.
1 Installing “Sony Digital Still Camera
Album Utility” and “Sony DSC-F1
TWAIN 1.5”
To handle Digital Still Camera images on your PC,
use the installer to install “Sony Digital Still Camera
Album Utility” and “Sony DSC-F1 TWAIN 1.5.” The
installation process is the same as that for connecting
via cable. Follow the steps explained in pages 14 and
15.
un
m
+
—
=
0
с
"с
2 Installing “PhotoStudio”
To edit the Digital Still Camera images on your PC,
use the installer to install “PhotoStudio” onto your
hard disk. The installation process is the same as that
for connecting via cable. Follow the steps explained
in page 16.
3 Installing Microsoft Windows 95
Infrared Communications Driver
To perform infrared communications with the Digital
Still Camera, use the installer to install “Microsoft
Windows 95 Infrared Communications Driver
Version 2.0.” Install this driver software if it is not
installed on the Windows 95 of your PC. You can use
this driver under Windows 95 only. When using
Window 3.1, do not install this driver.
Under Windows 95
1 Turn on your PC and start up Windows 95.
2 Insert the supplied CD-ROM into the CD-ROM
drive on your PC.
The [Sony DSC Setup] dialog box appears.
3 Click [Cancel].
The screen returns to Windows 95.
4 Click the [Start] button and then click [Run].
The [Run] dialog box appears.
continued
Settingup | 19
20
E ССССССОСЕ
Connecting via infrared port
Note
If the built-in infrared
communications device
1s set to OFF, you cannot
set the port number on
the screen. Refer to the
PC manual to set it to
ON.
Setting up
5 In the command line entry box, type the drive
letter for your CD-ROM drive followed by a colon
() and a backslash (\), and the word
“infrared \setup.exe.” For example, if your CD-
ROM drive is on drive D:
“d:\infrared \setup.exe”
6 Click [OK].
The [Infrared Device Wizard] starts up. Follow the
instructions on your screen, referring to the
“Setting the infrared device wizard” on the
following, to continue the setup process.
Setting the Infrared Device Wizard
Hardware manufacturer and the model name
* When using a lap-top or desktop PC with the
built-in infrared communications device, select
“Lap-top/Desktop built-in infrared port.”
* When using a PC with an infrared adapter
connected to the R5-232C port, select the
manufacturer and model names of the adapter.
* When you cannot find your adapter in the list,
select “Disk.” In case no disk is attached, contact
the manufacturer of the adapter.
OPort to which the infrared driver is installed
Select the port to which the infrared device is
physically connected.
* When using a lap-top or desktop PC with the
built-in infrared communications device, select the
port number allocated to the infrared
communications device.
* When using a PC with an infrared adapter
connected to the RS-232C port, select the RS-232C
port number.
O Simulation (virtual) port
Select the port number supported by the infrared
communications driver. Usually use the default
port number. In the Settings dialog box of an
infrared communications application such as the
“Sony Digital Still Camera Album Utility,” the same
port number as set here should be specified.
Notes
Place the infrared ports
of the camera and PC
within the controllable
area. Do not place
them too far nor too
close, which may
interrupt transferring
Or cause noises.
Do not cover the
infrared ports with
your hand or any other
objects.
Infrared rays cannot
pass through a wall,
opaque glass, etc. If
they pass through
glass, etc., the
controllable distance
becomes short.
Do not turn off the
power of the camera or
interfere with
communication during
transmitting the data,
which may cause a
transmission failure.
We suggest you use the
Digital Still Camera
with the AC power
adapter.
Also refer to the online
manual of the Infrared
Data Communications
Driver.
Uninstalling the software
When the software becomes unnecessary, remove all
the software files from your hard disk as follows:
1 Select [Add/Remove Programs] in the Control
Panel.
2 Select “Infrared Support for Windows 95 Version
2.0” in the [Add/Remove Programs Properties]
and double-click [Add/Remove].
4 Connecting the Digital Still Camera
Your PC
Digital Still
Camera
DSC-F1
O Place the infrared port located on the front panel of
the Digital Still Camera DSC-F1 and that of your PC
face to face so that you can transmit image data
from the camera to the PC or vice versa.
(Controllable area is about 4 - 12 inches (10 - 30 cm)
in terms of straight line distance and 15 degrees
right, left, up and down each in terms of conical
angle.)
O Check the Status tag of the Infrared Monitor in the
Control Panel to see if the infrared device is
detected.
The figure above is an example of connecting the
Digital Still Camera with a PC with the built-in
infrared communications device. You can also use a
PC equipped with an infrared adapter.
continued
Setting up
wv
D
=
=.
=
0
<
©
21
DL
Connecting via infrared port
To resume data transmission
In case the data transmission is interrupted (and the
Digital Still Camera becomes disabled), resume the
transmission as follows :
1 Close all the windows of “Sony Digital Still
Camera Album Utility” being displayed on the PC
monitor.
The buttons of the Digital Still Camera become
enabled.
2 Turn the POWER /Function dial of the Digital Still
Camera to “OFF.”
Turn the POWER / Function dial to “CAMERA.”
Transmit the data again.
= ©
5 Setting up the Digital Still Camera
Before you start data communications between the PC
and the Digital Still Camera, set up the Digital Still
Camera as follows. For the details, refer to the
instruction manuals of the Digital Still Camera
DSC-F1.
MENU/EXECUTE POWER / Function
jog dial dial |
Digital Still
Camera
DSC-F1
Notes
* Do not set the 1 Setthe POWER/Function dial to “PLAY.”
Еленой Ч! 2 To activate the data transmission via the infrared
may occur data port, set the WIRELESS menu to ON. (Setting with
transmission error. the SERIAL menu is not necessary.)
* During the data
communication in CAMERA MENU
process, do not change
the position of the WIRELESS
POWER /Function dial. OFF
The Digital Still Camera is ready for
communication via cable.
22 Setting up
a
ar
E
Ca ptu ring an imag e —
Starting “Sony Digital Still Camera
Album Utility”
Using Windows 95
1 Start up Windows 95 on your PC.
2 Clickthe[Start]buttononthetaskbar.
3 Point to [Programs] and to [Sony], and then click
[Sony Digital Still Camera Album Utility].
The “Sony Digital Still Camera Album Utility”
startsup.
BONY
A
o
©
mE
=
=
©
y
3
Digital Still Camera. 2
®
Themainwindow appears.
Quitting the “Sony Digital Still Camera Album
Utility”
Select [Exit] in the File menu.
Using Windows 3.1
1 StartWindows3.1andrunthe Program Manager
and double-click “Sony” group.
2 Double-click “Sony Digital Still Camera Album
Utility” iconand select [Open] in the Icon menu.
Quitting the “Sony Digital Still Camera Album
Utility”
Select [Exit]in the Filemenu.
Capturinganimage | 23
About the menus
The “Sony Digital Still Camera Album Utility”
consists of the following menus. For frequently used
menuitems, you canusethetool barbuttons (page
29).
File menu
Open Folder Opens analbum folder that is stored in the hard diskor MO
diskand displaysimagesofthealbum.
Open Selected Album or Image Opensand displaystheselected aïlbum(s) orimage(s)ata
time.
Open File Opens and displays an image file from the hard diskor MO
- . disk. The available file types are BMP, TIFF, JPEG and PMP
(Album).
Close Closes the currently activewindow.
Save Saves theimagerotated in thealbum.
Save As Saves thecurrently selected image withanother filename
ontotheselected folder. Theavailable file types are BMP,
TIFF, and JPEG.
Save To Album Saves the image(s) selected in the image listora BMP, TIFF,
or JPEG file onto the albumin the hard disk.
ExportImages Saves the-image(s) selected intheimagelistonto the desired
folder. The available file types are BMP, TIFF, and JPEG.
Acquire Acquiresanimage file from the TWAIN source.
SelectSource Selectsa TWAIN sourcesuchasa digital scanner.
PrintSetup Selects themodelnameoftheprinter, paper, and other
settings. (The printer driverneeds to be installed priorto
printing.)
Print Displays the dialog boxto printanalbumlist, imagelist, and
image.
Exit Exits “Sony Digital Still Camera Album Utility.”
24 Capturing an image
Edit menu
e
q
Copy Copiesthe selectedimage to theclipboard. o
Paste Pastesanimageoftheclipboard. (You cannotuse thiscommand =.
ifnoimageisintheclipboard.) a
Delete Deletes the selected albums orimagesofanalbum. 2
Select All Selects all thealbumsinthealbumlistoralltheimagesin the =
imagelist. o
©
SelectNone Cancelsthe selectionin thealbumlistorimage list. D
Camera menu
Open Camera Opensand displays thecamera image listortheimageon the
monitor.
Copy To Album Savesalltheimagesorselectedimagesofthecamera tothe
- album on the hard diskin thealbum formatwithoutopening
them.
ExportCameralmages Savesalltheimagesorselected images of thecameratothe
desired folder on the hard disk in the BMP, TIFF or JPEG file
type withoutopening them.
Copy toCamera Transfers theimages from thehard disk to the camera.
continued
Capturinganimage | 25
About the menus
Display menu
Tool Bar Displays (with acheck mark) or hide (withouta check mark) the tool
bar.
Status Bar Displays (witha check mark) or hide (withouta check mark) the
statusbar.
Image menu (When an image is displayed)
Cheats) Stil
Information Displaystheinformationabouttheopened imageorselected
- - imageintheimagelist.
Rotate Left Rotatestheimage 90degrees counterclockwise.
Rotate Right Rotates theimage90 degrees clockwise.
Flip Rotatestheimage 180 degrees.
Zoom In Enlargesthe displayed imagesize.
Zoom Out Reducesthedisplayed imagesize.
Show Edit Frame Displays the frame for trimminga partoftheimage.
BestFit640 x480
Adjusts the size of the image to fit into 640 x 480 pixels. The image
is enlarged or reduced without changing its aspect ratio.
26 Capturing an image
РРР
About the menus
Window menu
fa Sure ER Shi
Cascade Displays windowslike cascades.
Tile Displays windows liketiles.
Help menu
Help Calls up the online Help window.
Search for Helpon Searches for Help onthe keywords and topics you enter.
About Album Utility Displays the version number of this program.
Keyboard shortcuts
The descriptions including “Ctrl + C,” “Shift + F5” and “Alt + F4” next to the file
menustand for keyboard shortcuts. ('+” means pressing thetwobuttonsatthe
same timeand Fmeansa function key.)
28 Capturing an image
Using the tool bar
The toolbar shortcuts to frequently used menuitems.
Opensand displays the cameraimageson the monitor.
Saves the camera images to theaïlbumonthe hard diskin thealbum format without
opening them.
Saves the camera images to the desired folder on the hard diskinthe BMP, TIFF, or
JPEG format withoutopening them.
A Transferstheimagestothecamera.
Opens and displays the album stored in the hard disk.
CM
©
>
=
=,
3
O
y
3
3
a
o
®
Opensand displays the multipleimages selected in the imagelistsimultaneously.
Opens and displays the image file of the PMP (album), BMP, TIFF, or JPEG file type
stored inthe hard disk.
Savestheselectedimage to thealbumon thehard disk.
a Savestheselected image in the desired folder on the hard diskin the BMP, TIFF, or
2] JPEGfiletype.
Displays the dialog box to printanimage,imagelist, or albumlist.
Copiestheselected imageto theclipboard.
Pastesanimage of the clipboard. (You cannotuse thiscommandifnoimageisin the
clipboard.)
Displays theinformation abouttheopenedimageorselectedimagein theimagelist.
Rotatesanimage 90 degreesin thecounterclockwise direction.*
Rotatesanimage 90 degreesin theclockwisedirection.*
Rotateanimage 180 degrees.*
Enlargesthedisplayed imagesize.**
Reducesthedisplayed imagesize.**
Displaysthe frame fortrimmingapartoftheimage. *
Adjusts the size of the image to fit into 640 x 480 pixels. The image is magnified or reduced
without changing its aspect ratio.
Tosavetheimagerotated, select [Save] inthe File menu.
Youcanchange the display size only; youcannotsaveanimagezoomed inorout.
Capturinganimage | 29
Changing system settings
Notes
* The SERIAL menu
defines theserialspeed
via theconnecting
cable.
e Youmaynotbeableto.
selecttheserial speed
fromtheavailable
options according to
your PC. Refer to your
PC's manual forthe
availableserial speeds.
* Whenusingthe
infrared port, youdo
nothavetosetthe
SerialSpeed.
30 Capturing an image
Setthe programsettingsaccording to your PCand
monitor.
1 Startthe “Sony Digital Still Camera Album
2
Utility.”
Select [Settings] in the Option menu.
The [Settings] dialog box appears. Settheitems.
| sp I Es:
Serial Port - Serial Speed ———
C Manual 7 19200695
& COML © 38400
@ COM2
е сомз
A COMA
@ COMS
‘ I~ Notify when image is Dropped
SerialPort Select{ Automaticdetection]to
automatically setthe proper serial port.
Youcanalsoselect{Manual]and select the
available COM port which the camerais
connected. When using the infrared port,
selectthe same port numberas the
simulation port specified in the Infrared
Device Wizard.
SerialSpeed Settheserialspeedasselectedinthe
SERIAL menu of the DSC-F1 when
connecting via cable. Certain setting may
be disabled dueto limitationinherentto
yourcomputersystem.
Imagesper Selectthenumberof the thumbnail images
List displayed perrow inthealbumlistand
imagelist. Usually, select [Automatic] to
display as many images as possible. You
canalsoselect[Mänual]toselectthe
number.
Notifywhen Checkthecheckboxto display the
imageis confirmation message when you
Dropped draganddropanimage.
Click [OK].
Thesettingsarechanged.
Opening the camera images
To view images in the Digital Still Camera DSC-F1,
openthecameraimages. Youcanopentheimages
directly by specifying theimagenumber.
Before you start
Makesure you have donethe necessary preparations
asdescribed in pages 13 through 22.
Opening the image from the album
1 Select [Open Camera) inthe Camera menu orclick
P
onthetoolbar.
Thetollowing dialogboxappears.
Open Camera
Open Image List
Start with image number
€ Open Single Image
Open image muraber
Theimagetobedisplayed atthebeginning.
The total number of theimages stored in the camera
2 Click [Open Image List] and input the image
numberwhichyou wanttostarttheimagelist
withinthe [Start withimage number] box.
Usethenumerickeystospecifytheimagenumber
orclickuparrowtoincreaseordownarrow to
decreasethenumber.
3 Click [Open].
Theselected imagesaretransferred fromthe
camera (the camera icon is displayed inred) and
theimagelistof thecamerais displayed.
continued
MN
>
©
r=
=
=.
5
O
Q
5
3
D
Q
®
Capturing an image
31
E
Opening the camera images
Switching the comment
and date display of an
Selecteither [Show
Caption] or [Show Date]
inthe Options menu.
Youcanchangethe
caption.
Displaying other
thumbnails
When hidden pages exist,
thescrollbarappears.
Toscrollrowsona page,
click eitherupor down
arrow. Image number
Toscrollpageby page, Caption or date display
clicksomewherebetween Status bar
thearrowand thehandle. Camera icon
Todisplay thedesired Thefollowing icons onanimagestand for:
page quickly, drag the _
handle. Selected asalbum frontcover. Youcanchange
thealbum frontcover with [Set Album Cover]
Status bar in theOption menu (see page 54).
Thestatusbarshows 5 Protected fromaccidental erasureand editing
programinformation, 7 (seepage66).
suchasthe progressofa
timeconsumingtask.
Depending onwindow 4 Clickthe image(s) you wantto open (theselected
content, informationsuch image frame becomes yellow) and select [Open
asfile pathname, Selected Album or Image] in the File menu. Or,
numberofimagesand - |
imagesizeis displayed. double-clicktheimageorclick onthetoolbar.
Theselected images aredisplayed in fullsize.
32 Capturing animage
How to select images in the image list
O Selecting an image
Click the desired thumbnail of theimage; theimage
isselected. Clickanother thumbnailand that
imageisselected instead of the previousimage.
OF Selecting multiple images
Toselecttheimages eachisolated: Press and hold
down theCtrlkey as youclick theleftbutton
ofthemouseonthedesired images.
Toselecttheimagesin succession: Pressand hold
down theShift key as youclick theleftbutton
ofthemouseonthedesiredimages.
Toselectalltheimagesintheimagelist: Select
[Select All} in the Edit menu.
Tocanceltheselection: Clicktherightbuttonof
themouseontheselected image. Select [Select
None] inthe Edit menu to cancel the selection
ofalltheimages.
Toopenthemultipleselected images: Double-
clicktheleftbutton of the mouseononeofthe
selected imagesas you hold down theShiftor
Ctrl key. Or select [Open Selected Album /
Image] in the Filemenu; all theselected
imagesareopened.
Closing an album list, image list or image
Select [Close] inthe Filemenu or click the closebutton.
Theselected window is closed.
Switching the active window
Analbumlistwindow, animagelistwindowand an
image window are displayed in cascade. You can
switchtheactive window (the window selected and
displayed front) using thefollowing:
* Clickthe desired window listedin the Option pull-
down menu.
* Clicka partofthe desiredwindow. Youcaneasily
selectthewindow by selecting [Tile] inthe Window
menu todisplayall the windowsintile.
* Pointto in thealbumlistandimage list
windowsor min animage window in thetitlebar
and click [Next Window] until thedesired window
displaysactive. .
continued
Capturing an image
AN
д)
©
>
<
=.
3
o
о
3
3
o
oO
©
33
34
Opening the camera images
Capturinganimage
Opening the image directly
1
Select [Open Camera] inthe Cameramenuor click
onthetoolbar.
The followingdialogboxappears.
Bpen Camerz
Start with image numb er I:
i
E
{© Open Single Image
Open image number
Theimagecurrently displayed on thecamera.
Click [OpenSingle Image] and inputtheimage
number whichyouwantto openinthe [Open
imagenumber] box.
Use thenumerickeystospecify theimage number
or click uparrowto increase or downarrow to
decrease thenumber.
Click [Open].
Theselectedimagesaredisplayedin full size.
Saving the camera images in album
To quickly handle and process camera images on your
PC, save the selected camera images in album of the
hard disk with or without opening them. The album
is stored in the album folder of the Dscalbum folder in
the each drive's root directory.
Opening and saving the camera images
1 Follow the steps 1 through 3 of “Opening the
camera images” (page 31) to display the image list
OM
Q
©
r=
c
=
=
O
y
=
of the camera. 3
wn
o
2 Click the thumbnails of the desired images. To
- save all the images, select [Select All] in the Edit
menu.
The frame of the selected image is highlighted in
yellow.
3 Select [Save To Album) in the File menu or click
on the tool bar.
The following dialog box appears.
continued
Capturinganimage | 35
36
Ee ОПООООООО ПОЛОН
Saving the camera images in album
Deleting and renaming
an album folder
Select the desired album
folder in the [Folder] list
box and click [Delete] or
[Rename].
Stopping saving
midway
Press the [Esc] key. (You
cannot stop saving in the
infrared data
communication.)
Note
After saving an image, do
not change the name of
the file or folder nor
delete them with the
Explore. Doing so will
prevent displaying an
album on the monitor.
When you should delete
an image, select [Delete]
in the Edit menu of the
“Sony Digital Still
Camera Album Utility.”
Capturing animage
: or po Tr Alb rm
PIC00002
КЕНО
|
Album cover thumbnail
Making a new album folder
In the [Folder] list box, album folders contained in
the Dscalbum folder of the root directory are listed
with the album caption. To add a new album
folder to the list, click [New] under the list box. In
the [Album Title] dialog box, input the new folder
name and click [OK].
Making a new album
In the [Album] list box, albums contained in the
selected album folder are listed. Each album
folder can store the maximum of 30 albums,
including no more than one empty album.
Therefore, you can add only one new album,
namely an empty album without album cover
thumbnail. To make the new album “PIC+++++ (+:
number), click [New] under the list box.
Select the destination album folder and album to
which the images are to be saved and click [OK].
Each image is stored in the specified album with a
file name “psn**+++”7 (*: number).
Note . . .
When the image list or Saving all the camera images without
images of the camera are opening them
displayed, close them
before selecting [Save To
1 Select [Save To Album] in the Camera menu or
Album]. F
MN
o
5
Lana
с
=.
=
o
Deleting and renaming
an album folder : ma
Select the desired album [Selection 3
folder in the [Folder] list -| © AN Images Teal e
box and click [Delete] or | C Selected Images
Rename]. : —
| J € Sckct Month/Day/Year ; ;
O sei Ranes пон [СМ то
Select Last Image Only
The total number of the images stored in the camera
Album cover thumbnail
2 Click the option button of [All Images] in the
[Selection] block and click [OK].
Making a new album folder
In the [Folder] list box, album folders contained in
the Dscalbum folder of the root directory are listed
with the album caption. To add a new album
folder to the list, click [New] under the list box. In
the [Album Title] dialog box, input the new folder
name and click [OK].
Making a new album
In the [Album] list box, albums contained ih the
selected album folder are listed. Each album folder
can store the maximum of 30 albums, including no
more than one empty album. Therefore, you can
add only one new album, namely an empty album
without album cover thumbnail. To make the new
album “PIC+++++7 (+: number), click [New] under
the list box.
continued
Capturinganimage | 37
38
ПО)
Saving the camera images in album
Stopping saving midway
Press the [Esc] key. (You
cannot stop saving in the
infrared data
communication.)
Note
After saving an image, do
not change the name of
the file or folder nor
delete them with the
Explore. Doing so will
prevent displaying an
album on the monitor.
When you should delete
an image, select [Delete]
in the Edit menu of the
“Sony Digital Still Camera
Album Utility.”
Note
When the image list or
images of the camera are
displayed, close them
before selecting [Save To
Album].
Capturing an image
3 Select the destination album folder and album to
which the images are saved and click [OK].
Each image is stored in the specified album with a
file name “psn**+*+” (*: number).
Saving the selected camera images
without opening them
1 Select [Save To Album] in the Camera menu or
click [gf] on the tool bar.
| [Selection
С: АН baages Tetal 8
© Selecied Images
| (*: Select Month/Day/Year [¢ 4 1 В Е !
C Select Range Frem Te
C Select Last Image Only
Specifying the images to be stored
Album cover thumbnail
2 Click the option button of [Selected Images] in the
[Selection] block.
3 Select the images to be saved.
Select Month/ Click up or down arrow or directly input
Day /Year the date. All the images stored in the
date are to be saved.
Click up or down arrow or directly input
the image numbers of the first (From)
and last (To) images to be saved. All the
images between the specified numbers
. are to be saved. If you want to save only
one image, specify the same image
number for both the boxes.
Select Range
Select Last
Image Only
The last image stored is to be saved.
Deleting and renaming
an album folder
Select the desired album
folder in the [Folder] list
box and click [Delete] or
[Rename].
Stopping saving midway
Press the [Esc] key. (You
cannot stop saving in the
infrared data
communication.)
Note
After saving an image, do
not change the name of
the file or folder nor
delete them with the
Explore. Doing so will
prevent displaying an
album on the monitor.
When you should delete
an image, select [Delete]
in the Edit menu of the
“Sony Digital Still Camera
Album Utility.”
Making a new album folder
In the [Folder] list box, album folders contained in
the Dscalbum folder of the root directory are listed
with the album caption. To add a new album
folder to the list, click [New] under the list box. In
the [Album Title] dialog box, input the new folder
name and click [OK].
Making a new album
In the [Album] list box, albums contained in the
selected album folder are listed. Each album folder
can store the maximum of 30 albums, including no
more than one empty album. Therefore, you can
add only one new album, namely an empty album
without album cover thumbnail. To make the new
album “PIC+++++7 (+: number), click [New] under
the list box.
Select the destination album folder and album to
which the images are saved and click [OK].
Each image is stored in the specified album with a
file name “psn**++7 (*: number).
Capturing an image
MN
Q
©
mb
с
=,
=
O
5
=
3
Q
0
D
39
40
Saving the camera images as another
file format
Capturing animage
To quickly handle and process camera images on your
PC, save the selected camera images as standard file
format including BMP, TIFF or JPEG with or without
opening them.
Selecting the file type
BMP The bitmap format supported generally by Windows.
The file extension is “.bmp.”
TIFF Stands for Tagged Image File Format, which is
widely used to store a bitmap image of various
resolutions. The file extension is “.tif.”
JPEG Stands for the group named “Joint Photographic
Experts Group,” who standardized the compression
system of the still image. The image is compressed in
a small data size, but the original image cannot be
perfectly reproduced. The file extension is “.jpg.”
Opening and saving the camera images
1 Follow the steps 1 through 3 of “Opening the
camera images” (page 31) to display the image list
of the camera.
2 Click the thumbnails of the desired images. To
save all the images, select [Select All] in the Edit
menu.
The frame of the selected image is highlighted in
yellow.
3 Select [Export Images] in the File menu or click [aa
on the tool bar.
ка |
The following dialog box appears.
PNEI_S_2\NEWDLG\
0
9
©
~~
c
=
3
Q
y
3
3
o
©
D
Currently selected folder
Displays the folders of one level upper the
currently selected folder in the list box.
À Select the destination drive and folder in which the
images are to be saved and file type.
To select the drive: Click the desired drive in the
[Drive] list box.
To select the folder: Double-click the desired
folder in the [Folder] list box so that the
folder is displayed as currently selected
folder above the list box.
To select the file type: Click the file type in the
[Save as type] drop-down list box.
Making a new folder
In the [Folder] list box, folders contained in the
currently selected folder are listed. To add a new
folder to the list, click [Create New Folder]. In the
[Set Folder Name] dialog box, input the new folder
name and click [OK].
continued
Capturinganimage | 41
|
Saving the camera images as another file format
Stopping saving midway 5 Click [OK].
Press the [Esc] key. (You Each i is stored in th fied folder in th
cannot stop saving in the ach image is stored in the specified folder in the
infrared data specified file type with a file name “psn»*+++”
communication.) (++: serial number). The file is automatically
numbered in serial starting from one larger
Note number than the largest number of the files
If you select TIFF, the file already stored in the currently selected folder.
1s created in Class R.
Saving in JPEG file type
When you select [JPEG] file type and click [OK],
the dialog box to define the image quality
(compression ratio) appears. You can select the
image quality within the range from 1 to 100.
¡MUERTES
Usually, the larger number you select, the lower
compression ratio with the better image quality
you get. The file size, however, becomes larger.
Click [OK] to save the image.
42 Capturing animage
Saving all the camera images without
opening them
Select [Export Camera Images] in the Camera
menu or click [ZH on the tool bar.
The following dialog box appears.
MN
Folder C:\TEMPM\E1 _5_2\NEWDL G\ 3
mb
с
=.
=
OQ
9
1 J =
[Selection 3
© All Images Total® Q
© Selected Images >
@ Sekct Monil/DayVrar | [6 4 ; /
# Select Range From To
Select Last Image Only
Currently selected folder
The total number of images stored in the camera
Displays the folders of one level upper the
currently selected folder in the list box.
2 Click the option button of [All Images] in the
[Selection] block.
3 Select the destination drive and folder in which the
images are to be saved and file type.
To select the drive: Click the desired drive in the
[Drive] list box.
To select the folder: Double-click the desired
folder in the [Folder] list box so that the
folder is displayed as currently selected
folder above the list box.
To select the file type: Click the file type in the
[Save as type] drop-down list box.
continued
Capturinganimage | 43
Saving the camera images as another file format
Making a new folder
In the [Folder] list box, folders contained in the
currently selected folder are listed. To add a new
folder to the list, click [Create New Folder]. In the
[Set Folder Name] dialog box, input the new folder
name and click [OK].
4 Click [OK].
Each image is stored in the specified folder in the
specified file type with a file name “psn*”
(++. serial number). The file is automatically
numbered in serial starting from one larger
number than the largest number of the files
already stored in the currently selected folder.
Stopping saving Saving in JPEG file type
midway When you select [JPEG] file type and click [OK],
Press the [Esc] key. (You the dialog box to define the image quality
cannot stop saving in the
infrared data (compression ratio) appears. You can select the
communication.) image quality within the range from 1 to 100.
EEE TEO
Note
If you select TIFF, the file
is created in Class R. |
Usually, the larger number you select, the lower
compression ratio with the better image quality
you get. The file size, however, becomes larger.
Click [OK] to save the image.
44 Capturing an image
Saving the selected camera images
without opening them
1 Select [Export Camera Images] in the Camera
menu or click [EH on the tool bar.
Folder CATEMPNE] S$ _2\NEWDLG\
— Selection
(+ AN Images Total
© Selected Images
(5 Select Month/Day/Year [s 8 f 12 4 ;
(Select Last Image Only
Currently selected folder
The total number of images stored in the camera
Displays the folders of one level upper the
currently selected folder in the list box.
2 Click the option button of [Selected Images] in the
[Selection] block.
3 Select the images to be saved.
Select Month/ Click up or down arrow or directly input
Day/ Year the date. All the images stored in the
date are to be saved.
Select Range Click up or down arrow or directly input
the image numbers of the first (From)
and last (To) images to be saved. All the
images between the specified numbers
are to be saved. If you want to save only
one image, specify the same image
number for both the boxes.
Select Last The last image stored is to be saved.
Image Only |
continued
Capturing an image
MN
©
o
rk
c
=
3
O
9
3
3
D
O
®
45
ET
Saving the camera images as another file format
4 Select the destination drive and folder in which the
images are to be saved and file type.
To select the drive: Click the desired drive in the
[Drive] list box.
To select the folder: Double-click the desired
folder in the [Folder] list box so that the
folder is displayed as currently selected
folder above the list box.
To select the file type: Click the file type in the
[Save as type] drop-down list box.
Making a new folder
In the [Folder] list box, folders contained in the
currently selected folder are listed. To add a new
folder to the list, click [Create New Folder]. In the
[Set Folder Name] dialog box, input the new folder
name and click [OK].
5 Click [OK].
Each image is stored in the specified folder in the
specified file type with a file name “psn*=
(+++: serial number). The file is automatically
numbered in serial starting from one larger
- - number than the largest number of the files
already stored in the currently selected folder.
Saving in JPEG file type
When you select [JPEG] file type and click [OK],
the dialog box to define the image quality
(compression ratio) appears. You can select the
image quality within the range from 1 to 100.
Er
Stopping saving midway
Press the [Esc] key. (You
cannot stop saving in the
infrared data Usually, the larger number you select, the lower
communication.) compression ratio with the better image quality
you get. The file size, however, becomes larger.
Click [OK] to save the image.
Note
If you select TIFF, the file
is created in Class R.
Capturing an image
Opening an album of the hard disk
Important notice to You can open the image from the album folder, stored
the users who have from the Digital Still Camera onto the hard disk in the
used the previous album format.
version {Version 1.0)
of the “Sony Digital
Still Camera Album 1 select [Open Folder] in the File menu or click FE]
on the tool bar.
Utility”
The folders created by
the previous version of
the software cannot be
located with the [Open
Folder] command. To
locate the folders,
select [Find Folder] in
the Option menu.
A
y
©
+
c
=.
=
©
y
3
3
o
©
®
Changing the drive
Click the desired drive in
the [Drive] list box so that
the album folders | |
contained in the selected 2 Click the desired album folder in the [Folder] list
drive are listed in the box and click [OK].
[Folder] list box. The album thumbnails of the selected album folder
Deleting and renaming are displayed.
an album folder С
Select the desired album
folder in the [Folder] list
box and click [Delete] or
[Rename].
Thumbnail of the album contained in the selected album
folder В -
continued
Capturinganimage | 47
DE
Opening an album of the hard disk
3 Double-click the desired album thumbnail.
Switching the comment
and date display of an The image list of the selected album appears.
Select either [Show
Caption] or [Show Date] in
the Option menu. You can
change the caption.
Displaying other
thumbnails
When hidden pages exist,
the scroll bar appears.
To scroll rows on a page,
click either up or down
arrow.
To scroll page by page,
click somewhere between
the arrow and the handle.
To display the desired . Status bar
page quickly, drag the Caption or date display
handle. Image number
Serial number of the images store in the hard disk
tatus b à .
> status ar shows The following icons on an image stand for:
program information, Selected as album front cover. You can change
such as the progress of a
the album front cover with [Set Album Cover]
time consuming task. in the Option menu (see page 54).
Depending on window
content, information such 5 Protected from accidental erasure and editing
as file path name, number a (see page 66).
of images and image siz
is displayed. ;
4 Click the image(s) you want to open (the selected
image frame becomes yellow) and select [Open
Selected Album or Image] in the File menu. Or,
double-click the image or click [£3] on the tool bar.
For various ways to select images in the image list,
refer to page 33. The selected images are displayed
in full size.
48 Capturing animage
Closing an album list, image list or images
Click [Close] in the File menu.
Saving the image
You can save the images in album or other file types.
Refer to “Saving the camera images in album” to save
them in album format, or “Saving the camera images
as another file format” to save them in standard file
type including BMP, TIF, and JPEG.
Capturing animage
С
y
"С
+
<
2.
3
©
©
=
3
D
©
®
49
Opening an image file directly
50 Capturing an image
You can open an image stored in the hard disk by
designating its file name. In addition to a PMP (album
format) file, you can open a BMP, TIF or JPEG file.
1 Select [Open File] in the File menu or click |#{ i
the tool bar.
The following dialog box appears.
The selected folder
2 Select the image file you want to open.
To select the drive: Click the desired drive in the
[Drives] drop-down list box.
To select the folder: Click the desired folder in the
[Directories] list box.
To select the file type: Click the desired file type in
the [List Files of Type] drop-down list
box. The files of the selected file type
are listed in the [File name] list box.
Select [All Files] to display the files of all
the types.
To select the file name: Click the desired file name
in the [File Name] list box or input the
file name directly in the text box.
3 Click [OK].
The selected image is displayed in full size.
Closing an image
Select [Close] in the File menu or click the close
button. The selected window is closed.
(\
©
©
—
=
=.
3
o
y
=
3
D
O
®
Saving the image in album
You can save the image on the hard disk in an album
in the same way as the camera images. “Opening and
saving the camera images” of the “Saving the camera
images in album” on page 35.
Saving the image as another file format
1 Select [Save As] in the File menu.
‘The following dialog box appears.
Ea ратоо, Hegre
The selected folder
2 Select the destination drive and folder in which
the images are to be saved and file name.
To select the drive: Click the desired drive in the
[Drives] drop-down list box.
To select the folder: Click the desired folder in the
[Directories] list box.
continued
Capturinganimage | 51
52
SU
Opening an image file directly
Capturing animage
To select the file type: Click the desired file type in
the [List Files of Type] drop-down list
box.
To select the file name: Click the desired file name
in the [File Name] list box or input the
file name directly in the text box.
Click [OK].
The image is saved in the selected destination
folder in the fie format.
Saving in JPEG file type
When you select [JPEG] file type and click [OK],
the dialog box to define the image quality
(compression ratio) appears. You can select the
image quality within the range from 1 to 100.
: JPEG Quality a.
Usually, the larger number you select, the lower
compression ratio with the better image quality
you get. The file size, however, becomes larger.
Capturing an image from TWAIN
device
What is TWAIN?
TWAIN is the standards
software protocol for
communication between
an application software
and a picture-capturing
device such as a scanner.
You can capture an image from a device that supports
TWAIN protocol.
1 Select [Select Source] in the File menu.
The [Select Source] dialog box appears.
2 Select the desired device and click [Select].
Select [Acquire] in the File menu.
4 Follow the users' manual of the TWAIN device to
acquire an image.
Capturing an image
e
y
o
~~
=
a}
3
Q
y
3
3
o
©
®
53
Changing the album front cover
Intheimagelistwindow, the thumbnail with the
iconisassigned asthealbum front cover. Youcan
change thealbumfront coverasfollows:
1 Display theimageliststored inthe camera or hard
disk whosealbum front cover you wantto change.
See “Opening the cameraimages” (page 31) or
“Openinganalbumofthehard disk” (page 47) for
details.
2 Click thethumbnail youwanttoassignas the
album front coverimage.
Theselected thumbnailis highlighted.
3 Select[Set Album Coverlinthe Optionmenu.
The bad icon, representing thealbum front cover,
isattached totheselectedimage.
Selected
4 Display the Album list window.
Theselectedimageinstep2isdisplayed asalbum
frontcover.
Changed
album
front
cover
4 Editing an image
Changing the caption
Tips Youcanchange thecommentofalbumsorimages.
* Youcaninputupto14 The procedure below describeshow to change the
characters foracaption. {
Y imagecomment. (You can changethealbum
* Youcanalsoinputa
captioninthe Image commentinthesameway.)
Informationdialog box. |
pe display thedialog 1 Displaytheima gelistofacamera or diskalbum. a
[Information]in the See “Opening the cameraimages” (page31)or a
Image menuorclick (7 “Opening analbumofthe hard disk” (page 47) for =
onthetoolbar. details. 3
When the date is 2 Clickthe captionboxunderneath theimage 5
displayed thumbnail whose caption you wantto change. 3
Select[Show Caption]in The [Image Caption] dialog boxappears.
the Option menu. The (Image Caption] 5 PP >
date display iisreplaced
withthecaption display.
Caption
dialog box
Caption
box
3 Typethecaptioninthedialogboxand click [OK].
— The captionis changed.
Inputted
caption
Editinganimage | 55
Moving albums or images
(drag and drop)
Note
Youcannotmovea
cameraimage.
Exchanging two images
Inthestep2,dragthe
image while pressing the
Ctrlkey. Thetwoimages,
thedraggedimageand
theoriginalimage ofthe
destination,exchange
positions, moving no
otherimages.
Note
Whenyouselect [Notify
whenimageis Dropped]
inthe Settings dialog box
(page30), the confirmation
dialogboxappearsinthe
step 3. Click [OK] to drop
thealbumortheimage.
Editinganimage
Youcanchange the positionofanalbumin thealbum
listoranimageintheimagelist stored inthe hard
disk.
The procedurebelow describeshowtomovean
image. (Youcanmoveanalbuminthesameway.)
1 Display theimageliststored in the hard disk.
See “Opening analbumof the hard disk” (page
47) for details.
2 Dragthedesiredimage.
Thedragpointer $"movesaccordingtothe
dragging direction. Accordingtothepointer |
move tothe position where you wantto dropthe
image.
3 Droptheimage.
Theimageismovedtothe position, pushing
forward orbackward theoriginalimageand the
otherimages.
Copying an image to another album
You cancopyanimage of analbumtoanotheralbum.
When copying, arrange the twoalbumwindowsin
Це.
1 Display theimagelist of the camera orhard disk
whichincludestheimagetobe copied and then
theimagelistto which you want to copy the
m
image. =
See “Opening the camera images” (page31)or 3
“Opening analbum of the hard disk” (page 47) for o
details. =
Thetwoimagelist windowsare displayed in 3
cascade. ©
2 Select [Tile] inthe Window menu.
Thetwoimagelistwindowsaredisplayedintile.
continued
Editinganimage | 57
E |
Copying an image to another album
3 Drag the desired image.
Note
When you select [Notify
whenimageis Dropped] 4 Movethe dragging pointer Mtothealbumto
(rape E. dialog box whichyouwantto copy theimage then drop the
confirmationdialog box mage.
appearsinthestep3. Theimageiscopiedasthelastimageofthe
Click [OK] to drop the destinationalbum.
albumortheimage.
Displaying the windows
in cascade again
Select {Cascade]inthe
Window menu.
Copiedimage
58 Editinganimage
Copying with the File menu
Display thealbum list orimagelistand click the
thumbnail which you want to copy.
2 Select [Save To Album] in the File menu or click
onthetoolbar.
The following dialogboxappears.
: apy To Album
Abum
m
=
=.
5
©
y
3
3
a
O
®
|
Albumcover thumbnail
Making a new album folder
Inthe [Folder] listbox, album folders contained in
the Dscalbum folder of therootdirectory arelisted
withthealbum caption. Toadd anew album
folder to thelist, click [New] under thelist box. In
the [Album Title] dialog box, input thenew folder
name and click [OK].
Making a new album
Inthe [Album] list box, albums contained in the
selected album folder arelisted. Each album folder
— can store the maximum of 30 albums, including no
more than one empty album. Therefore, you can
add only onenew album, namely an empty album
withoutalbum cover thumbnail. To make the new
album “PIC++++ (+: number), click [New] under
thelistbox.
3 Selectthedestinationalbum folderand albumto
which theimages are to besavedand click [OK].
Eachimageisstoredinthespecifiedalbumwitha
filename “psn *+*** (+: number).
Editinganimage | 59
60
Deleting images or albums
Notes
Whendeletingan
image, double-check
thatitistheright
image. Oncedeleted,
theimageis lost
forever.
Youcannotdelete
protectedimages. To
delete them, first cancel
theprotectsettingin
theImage Information
dialog box (page 66).
Editing an image
Youcandeletealbums orimagesinanalbum.
1
Open thealbumlistorimagelistofthecameraor
hard diskwhichincludes thealbum(s) orthe
image(s)tobedeleted.
See “Opening the camera images” (page31) or
“Opening analbumofthe hard disk” (page47) for
details.
Todeleteanalbum, click thedesired album
thumbnailinthealbumlist;to deleteanimage,
click the desired image thumbnail intheimage
list.
Youcanselect multiplethumbnailsata time. The
selectedalbumsorimagesarehighlighted.
Select [Delete]inthe Editmenu.
The confirmationdialogboxappears.
vera Alburm
A ann Tara aa A лайн а,
Click [Yes].
Thealbumsorimagesaredeleted.
Searching for images
Youcansearch forimages using the searching keys of
recordeddateandediteddate.
1 Open the image list of the camera or hard disk
whichincludes theimage you wanttosearch.
See “Opening thecameraimages” (page31) or
“Opening analbumof thehard disk” (page 47) for
details.
2 Select[Find Images]intheOption menu.
The [Find Images] dialogboxappears.
m
o.
+
5
©
о
5
3
O
©
Month Da Year
FF pocerded On (“Before CAfer
m ba 0p C Before C'Afler [| [] [| RE
Recorded Date Edited Date Caption
3 Selectthe searching key by clicking [Recorded
Date] and /or [Edited Date].
4 Inputtherecorded oredited date. Selectthe
searching optionamong “On” (thesamedate),
“Before” (beforethedate)and “After” (afterthe
date).
5 Click [Find].
Thesearchingstartsup. Theimagessearched are
listed intheboxwithitsrecorded date, edited
date, and caption.
Manth
Da Year
Е Recorded On "Before After
r plied CO (“Before C After [ [] [| В
Recorded Date Edited Daie Captian
06091997 StarWars
6 Click [OK] to close the dialog box.
Editinganimage | 61
Options menu
MN
o
o
e
=
=.
Set Album Cover Sets the selected imageintheimagelistasthealbum's front a
cover. Youcanonlyselectasingleimage forthe cover. ©
Show Date Displays therecorded date foreachimage whentheimagelistis =
displayed inthe window. 3
Show Caption Displays the caption foreachimageinanalbumwhentheimage Y
listisdisplayedin thewindow.
Find Images Searches for images from yourimage list by entering thesearch
keys.
Find Folder Searches for album folders created using older version of this
software.
Touchup Adjusts thecolors and contrastof themonitor to eliminate the
color differences betweentheimagedataand themonitor®.
Settings Sets theapplication preferences, suchas theserial portand
. . speed.
* Adjusting the colors and the contrast of the
monitor
Usually no adjustment is necessary. Only when the color
balance degrades under the conditions of use, such as climate
and time, adjust the color and contrast as follows:
Colors: Move the scroll bar to the point where you can find that
the colors of the right and left sides match as much as
possible for red, green, and blue.
Contrast (rate of gamma): Usually set to 1.0. When you adjust
the color of the monitor, the rate of gamma that is
specifically for the monitor can be adjusted to a certain
Capturinganimage | 27
CL АОН ОН
Printing images
You canprintanalbumlist,animagelist, oranimage.
1 Turnonthe poweroftheprinterand makeit
ready for printing.
2 Display the window you want to print.
To print Do this
an album list Select [Open Camera] in the Camera
menu or [Open Folder] in the File
menu or click or in the tool
bar.
an image list Double-click the desired album in the
album list.
an image Double-click the desired image in the
image list, or select [Open File] in the
File menu or click 1 in the tool bar to
designate the image lle to be opened.
Note
Before youstartprinting, 3 Select[Print Setup]intheFilemenu.
the printerdriver should :
be installed in your hard The [Print Setup] dialogboxappears. Seteach
disk. itemaccording to your printer.
Setting more details
Click [Options] to display
thePrinterProperties
window where youcan
setmoredetailsofthe
printer'sspecifications.
Printer The printer whose driver is selected is
displayed as the [Default printer]. Usually
select [Default printer]. To select another
printer, click [Specific printer] and select the
one from the drop-down list box.
Orientation Select the orientation of the paper when
printed between [Portrait] and [Landscape].
Paper Select the paper size in [Size], the paper
feeder cassette type or manual feeder in
[Source].
62 Editinganimage
4 Click [OK].
5 Select [Print] in the File menu or click
toolbar.
The [Print] dialogboxappears.
m
a
=.
=
O
o
=
Thumbnailimage =
Setthefollowing: o
Ф
Size Select the output size between [Fit to
Page] (printing as large as the print paper
allows) and [Actual Size] (printing as
shown in the thumbnail image).
Sheets Select the print quantity by clicking the
up arrow button to increase the number
and the down arrow button to decrease
the number.
- . Brightness Usually use the default level (0). When
the image is too dark, click the right
arrow button or drag the handle to the
right to increase brightness.
To decrease brightness, click the left
arrow button or drag the handle to the
left.
Initialize Set the Brightness to the default level (0).
6 click [OK].
Printing starts up.
Editinganimage | 63
Changing the image display size
Youcanenlarge(zoomin) and reduce(zoomout)an
image displayed on the monitor.
Display the image of a camera or hard disk which you
wantto changethe display size. See “Opening the
cameraimages” (page31) or “Opening analbum of
thehard disk” (page47) for details.
i =
Enlarging an image
Notes
* Thezoom-infactorcan Select [Zoom In] in the Image menu or click |Zalinthe
beeither 200%, 400%, toolbar. Thedisplay sizeof theimageisenlarged.
800% or1600%. The
zoom-outfactoris
either50% or25%.
However, if youselect
high rateof percentage,
someimages may not
be properly displayed
duetothedisplay
driver'slimit.
* Whenyouzoominand
outanimage, only the
image displayedonthe
monitoris changed but naa .
theoriginalimagedoes Diminishing an image
notchange.
64 Editing an image
Rotating an image
Note
Whenyourotatean
image, only theimage
displayed on themonitor
isrotated butthe original
imagedoesnotchange.
Tosavetheoriginalimage
rotated, select [Save]in
theFilemenu.
Youcanrotateanimage, whichisuseful toviewan
imagerecorded withthe camera oriented sideways.
Display the image of a camera or hard disk which you
wantto change theangle. See “Opening thecamera
images” (page31)or “Openinganalbumof the hard
disk” (page47) for details.
m
o
+
5
©
о)
5
3
©
D
Rotating an image in
clockwise direction
Select [RotateRight]inthe
Image menu orclick [§@]in
thetoolbar. Eachtimeyou
selectthemenuortool,the
imageisrotated 90 degreesin
theclockwisedirection.
Rotating an image in
counterclockwise direction
Select [Rotate Left] inthe
Image menu or click lin
thetoolbar. Eachtime you
selectthemenuortool, the
imageisrotated 90 degreesin
thecounterclockwise
direction.
Rotation an image 180
degrees
Select [Flip] in the Image
menu or click |
bar. Eachtimeyouselectthe
menu ortool, theimageis
rotated 180degrees.
Editinganimage | 65
CT
Reviewing the image information
Youcanview theimageinformationandrevisesome
oftheitems.
1 Display theimageorselecttheimageintheimage
listwhose information you wanttoreview.
See “Opening thecamera images” (page31)or
“Openinganalbumofthehard disk” (page 47) for
details.
2 Select [Information]inthe Image menuorclick
inthetoolbar.
Thefollowing dialogboxappears.
DENIS
: Shutier Speed
; Flash OFF
| Recorded Date 06/02/1997 10:31
‘ Edited Date fe |rfez 11997 ] в |]
| Caption | |
[Ci Pretecied
3 Reviewthe settings when theimageis recorded.
Image Quality* The image quality mode (compression
ratio) when the image is recorded:
FINE/STANDARD/SNAPSHOT
Shutter Speed* The shutter speed when the image is
recorded.
Flash* The flash is used (ON) or not used (OFF)
when the image is recorded.
Recorded Date* The date when the image is recorded.
Edited Date You can manually input the date when
the image is transferred or edited.
Caption You can input a caption in the text box.
Protected Check to set the protection($). Do not
check to release the protection to edit or
delete the image.
* You cannot change from the PC.
4 Click [OK] to close the window.
66 Editinganimage
Transferring an image to the camera
You can transfer a BMP, TIFF, JPEG or PMP image file
tothecamera. Sincetheimagebeingstored inthe
cameraislimited to640 x480pixels,alargerimage
should bediminished or trimmed.
1 Display theimage tobe transfer tothe camera.
m
a
=.
3
O
©
3
3
D
O
®
JES
Note 2 * To adjust the image to fit 640 x 480 pixels
Whentransferringa
smallerimage, select Select[BestFit640 x480]intheImagemenuor
[BestFit640 x480]inthe click in the toolbar. Theimageis resized to
Image menu. 640 x480 pixels. Skip thesteps3and4.
y - * To trim the image to 640 x 480 pixels or smaller
Transferring an image
in the image list Select [Show Edit Frame] or click
Intheimagelist, select bar. Theeditframeappears.
theimage(s) tobe |
transferred. Thenselect LE A
[Copy to Camera]Jin the a
Camera menu. The
selected imageisor
imagesareadded tothe
camera withlandscape
position. Rotatethe
imageif necessary.
d— Edit
ы | frame
om RT В E A TET SE EE ES
3 Movetheeditframeto assign theareatobe
transferred.
Toadjustthe framesize, drag its corner. Tomove
theframeitself, drag somewhereon the frame
exceptforcorners.
continued
Editinganimage | 67
ZA
Transferring an image to the camera
4 Select [Copy]in the Editmenuorclick |
toolbar to copy theimageinsidetheeditframeto
the clipboard.
Then select [Paste] in the Edit menu or click
thetoolbarto pastetheclipboardimageto the
window.
Theeditedimageisdisplayed.
Note D Select [Copy to Camera] in the Cameramenu or
For theimage quality, click[ aa] onthetoolbar.
fer to theinstructi . o
Manual of the D igital Still Thedialog box defining the image quality (FINE,
Camera DSC-FI. STANDARD, and SNAPSHOT) appears.
6 Selecttheimage quality.
The confirmationwindow appears.
7 Click [OK].
Theimageis compressed intheselected image
quality and transferred to the camera.
68 Editinganimage
Using the TWAIN data source
Transferring camera images to an
application which supports the TWAIN
protocol
What is TWAIN?
TWAIN is the standards
software protocol for
communication between
an application software
and a picture-capturing
device such as a scanner.
For access to the camera
from the TWAIN
application, refer to the
users’ manual of the
application you are using.
Checking the system
settings
Click mum on the tool
bar. The settings window
appears where you can
check to see that the
items are set according to
the system settings you
use.
(See “Changing system
settings” on page 30.)
By switching the data source driver to “Sony DSC-F1
TWAIN 1.5,” you can transfer a camera image directly
to the PhotoStudio or another application which
supports the TWAIN protocol.
Before you begin
e Do the necessary preparations as described in pages
13 through 22.
* Start the application and display its main menu
window.
* Quit the “Sony Digital Still Camera Album Utility”
if it has been started. (You cannot start the “Sony
DSC-F1 TWAIN 1.5” while the “Sony Digital Still
Camera Album Utility” is accessing the camera.)
1 Select [Select Source] in the File menu. (The file
menu name differs depending on the application.)
The [Select Source] dialog box appears.
с
и.
=
O
+
=>
1)
>
=
e
vu
+
q
и
O
с
Бы, 1
A
©
2 Select [Sony DSC-F1 TWAIN 1.5] and click [Select].
3 Select [Acquire] in the File menu. (The file menu
name differs depending on the application.)
The Sony DSC-F1 TWAIN 1.5 main menu window
appears.
continued
Usingthe TWAIN datasource | 69
70
8)
Transferring a camera image to an application which supports
the TWAIN protocol
Using the TWAIN data source
The image list appears immediately.
Transfer button
5 Click the images which you want to transfer to the
application, then click
The selected images are transferred to the
application and the application window appears
again.
To transfer another image
Repeat steps 3 through 5.
Others
E
Troubleshooting
After trying the following remedies, if the problem
persists, please consult “Sony Customer Technical
Support.” Also refer to the operating instructions of
the Digital Still Camera DSC-F1.
An error occurs during data transmission via cable.
* The connecting cable between the PC and the
Digital Still Camera is not fitted properly.
> Connect the cable properly. (page 17)
* The power of the Digital Still Camera is not turned
on.
> Set the POWER / Function dial of the Digital Still
Camera to “PLAY.” (page 18)
* The WIRELESS setting of the Digital Still Camera is
not proper.
> Select “OFF” in the WIRELESS menu of the
Digital Still Camera. (page 18)
O
me
>
D
«=
un
* The serial speed of your computer does not match
Note
The SERIAL menu’ that of the Digital Still Camera. | |
defines the serial speed > Select the same serial speed in the Settings dialog
via the connecting cable. box as set in the SERIAL menu of the Digital Still
- | Camera. (page 18)
> Check that the serial speed selected in the Settings
dialog box matches that of your PC. Some PC
does not support all of the serial speed options.
(page 30)
The Serial Port in the Settings dialog box is not
properly assigned.
> Assign the Serial Port to which the connecting
cable is inserted. (page 30)
* The Serial Port selected in the Settings dialog box
may be used by another communication software.
> Check which serial port the communication
software is used and assign another serial port for
either the “Sony Digital Still Camera Album
Utility” or the communication software.
continued
Others | 71
72
Troubleshooting
Notes
* You can check the
simulation port number
and the port which the
infrared device is
installed: Double-click
the [Infrared Monitor]
icon in the Control
Panel and click the
Option tag.
* The hardware port
number and simulation
port number differ. Set
each port number
correctly.
Others
An error occurs during infrared data transmission
* The WIRELESS setting of the Digital Still Camera is
not proper.
> Select “ON” in the WIRELESS menu of the Digital
Still Camera. (page 22)
* The power of the Digital Still Camera is not turned
on or set to “CAMERA.”
> Set the POWER/ Function dial of the Digital Still
Camera to “PLAY.” (page 22)
* The infrared device or driver is not properly
installed.
> Check to see if the infrared hardware is built in
your PC or an infrared adapter is properly
connected to the proper hardware port number.
+ Check to see if the infrared driver is installed in
the hard disk. You can check the driver by
opening the Option tag of the [Infrared Monitor]
in the Control Panel.
* The Serial Port in the Settings dialog box is not
properly assigned.
2 Assign the proper simulation port in the Infrared
Device Wizard. (page 20)
> Check to see that the Serial Port in the Settings
dialog box of the “Sony Digital Still Camera
Album Utility” is properly assigned. (page 30)
* The infrared ports of the Digital Still Camera and the
PC are not properly oriented.
+ Place the two ports within the controllable area.
Remove an obstacle which may interrupt the
infrared communications, if any. Also check the
Status tag of the [Infrared Monitor] in the Control
Panel to see if the infrared device is detected.
(page 21)
The application does not work properly.
> Turn of the Digital Still Camera and quit the
application. Then turn on the Camera and restart
the application to see if the software and the Camera
work properly.
Cannot open the camera album.
* You cannot access the Digital Still Camera from two
or more applications at a time.
> Quit the other applications once and start “Sony
Digital Still Camera Album Utility.” Then try to
access the camera.
The “Sony DSC-F1 TWAIN 1.5” does not work
properly (when the screen saver is working).
+ Do not use the screen saver when you use “Sony
DSC-F1 TWAIN 1.5.” If the screen saver is working,
the screen will not be updated while transferring
camera images. However, this is not a malfunction
and the screen will return to normal after the
transfer.
O
mE
=
®
== €
un
Others | 73
Index
A
Adjusting the colors
and the contrast of
the monitor 27
Adjusting the image to
fit 640 x 480 pixels 67
Album format 9
Album list 10
B
BMP 40
C
Caption 55, 66
Capturing an image
from TWAIN device
53
Cascade 57
Changmg the album
front cover 54
Changing the caption
55
Changing the system
settings 30
Connecting
via cable 17
via infrared port 21
Copying an image 57
Copying with the File
menu 59
Others
D
Deleting and renaming
an album folder 36
Deleting images or .
albums 60
DIGITAL I/O port 17
Diminishing an image
64
Drag and drop 56
Drag pointer 56
E
Edit frame 67
Enlarging an image 64
F, G, H
Features 8
File type 40
Image 10
Image filing system 9
Image information 66
Image list 10
Infrared Device Wizard
20
Infrared Monitor 19, 71
Installer 8
Installing 14
Microsoft Windows
95 Infrared
Communications
Drive 19
PhotoStudio 16
Sony Digital Still
Camera Album
Utility 14
J
JPEG 40
M, N
Making a new album 36
Making a new album
folder 36
Making a new folder 41
Menu
Camera menu 25
Display menu 26
Edit menu 25
File menu 24
Help menu 28
Image menu 26
Options menu 27
Window menu 28
Moving albums or
images 56
O
Opening the camera
images 31
Opening an image file
directly 50
Opening an image list
of the hard disk 47
Opening and saving the
camera images 35
Operation flow chart 11
P
PIC_CAM 9
Print Setup 62
Printing 62
Protection setting 66
Q
Quitting-the “Sony
Digital Still Camera
Album Utility” 23
R
Rotating an image 65
S
Saving
Opening and saving
the camera images
35, 40
Saving all the camera
images without
opening them 37,
43
Saving an image as
another file format
51
Saving the camera
images as anther
file format 40
Saving the camera
images in album
35
Saving in JPEG file
type 42
Saving the selected
camera images
without opening
them 38, 45
Searching for images 61
Selecting an image 33
Selecting multiple
images 33
SERIAL menu 18
Serial port 17, 30
Serial speed 30
Setting up the Digital
Still Camera 18, 22
Sony DSC-F1 TWAIN
1.5 69
Starting “Sony Digital
Still Camera Album
Utility” 23
Status bar 32
Stopping saving
midway 36
Switching the active
window 33
Switching the comment
and date display of
animage 32
System requirements 12
System settings 30
T
Thumbnail 10
TIFF 40
Tile 57
Transferring an image to
the camera 67
Transferring an image in
an image list 67
Transferring camera
images to a TWAIN
application 69
Troubleshooting 71
TWAIN 53, 69
U
Using the tool bar 29
Z
Zoom In 64
Zoom Out 64
Others
O
+
=
D
=
wn
75
For Macintosh
Operating Instructions
Before you begin
Features
What is Plug-in?
ThePlug-inisaninterface
whichallowsimagedata
transfer fromaninput
devicesuchasadigital
scannerand digital still
camera toanapplication.
Tocaptureanimageofa
particulardeviceintoa |
particularapplication,
youneed toinstallthe
Plug-inmodule
compatiblewithboththe
deviceand the
application.
Before you begin
The PC Connecting Kit for Macintosh comprises the
connecting cableand the CD-ROM, whichincludes
thefollowing:
Application software “Sony Digital
Still Camera Album Utility”
DSC-F1 Album
Capturesimages fromthe Sony Digital Still
Camera DSC-F1 and edits them:
e Captures DigitalStill Camera images withor
withoutopeningthemand copiesthemontothe
hard disk in the desired file type-PICT, JPEG or
thesoftwareoriginalalbum(CAMS) filetype.
* Thesoftwareoffersa variety ofalbumand
imageediting functions: moves the position of
imagesinanalbum, copiesimagestoadifferent
album, deletesimages, and zooms and rotates
images.
UN)
ha ll]
Sony Digital Still Camera Camera Pl ug-in”
Plug-in module “Sony Digital Still
Enables directcapturing ofimages fromthe
Digital Still Camera into PhotoStudio oranother
application which supports Photoshop Plug-in.
Image-editing software
“PhotoStudio-DsC”
PhotoStudio-DSC
See the “PhotoStudio” Helpand Readmeonline
documents, forthesoftwarecontentsand
operations whicharenotincluded in this manual.
*Thumbnail
Stands foreachimagein
thealbumlistorimage
list.
Image filing system of the Album
Utility
The “Sony Digital Still Camera album Utility” handles
theimagesinauniquealbum filing system—" Album”
format. You canalso handle theimagesasstandard
file formats— JPEG and PICT.
Album format
When the Digital Still Camera images are copied onto
the hard diskorotherstoragedevice, they arestored
inthe original filingsystemshown below, which is
called the “Album” format. The “Album” format
enablesdisplaying theimagesasshownbelow. The
folder containing theimagesinthisalbumstructureis
called a “Album Folder.”
Image list
A page containing fifteen
thumbnails*ofthealbum
contained inthe Digital
Still Camera or thehard
diskis displayed. You
canselectanyimage.
Theselectedimageis
displayed in full size.
Before you begin
œ
=
©
==
®
<
©
=
=
®
O,
5
79
|
Features
Operation flow chart
Setting Up (page 82)
Connect the Digital Still Camera with the PCand install the software.
+
Start the “Sony Digital Still Camera Album Utility” Start a Plug-in
(page 86) application
(page 123)
+ ¥ +
| Open the Camera Image | | Store ‚the Camera и Select the “Sony
without ening it
(page 94) P 9 Digital Still Camera
+ Plug-in”
Select the images to be Store all the| | Store only $
stored in the hard disk camera selected
images images Transfer camera
images to a Plug-in
+ 4 application
\
Save
Save To Album (page 98) [Select the file type (page 103)
- - Save in PICT or JPEG
A
+
| Open the image stored in the hard disk (page 109)
Selecttheimageintheimage listor specify theimage file tobe
opened.
+
Edit an image/Print an image/Transfer an image to the
Camera (page 113)
Youcaneditanimage: changing imagecomments, moving,
copying, deleting, printingan image, enlargingand
diminishingan image, rotating animage. Youcanalsotransfer
animage tothe Digital Still Camera.
80 | Beforeyoubegin
System requirements
Note
For stable operationof
thesoftware, wesuggest
youusethelatest version
oftheoperating system;
especiallyinserial
communication, a
remarkableimprovement
hasbeenachieved.
Your computerand systemsoftwaremustmeet the
following minimum requirements to use this product:
* An Apple Macintosh computer witha 68030
processor orlatermodel /PowerPC601 or later
model |
* OS: Applesystemsoftware version7.1 orhigher
e Extension: QuickTime version 1.5 or higher for the
Sony Digital Still Camera Plug-in
* RAM: 8MBor more for Sony “Digital Still Camera
Album Utility” (16MBisrecommended.)
* Application memory for the “Sony Digital Still
Camera Plug-in: theapplication'sSuggested size
plus 3000KBto the Preferred size of the Memory
Requirements
* 40MBormoreavailable hard diskspace
* Acolormonitorwithavideo boardorvideo driver
to display 640 x480pixelsand 256 colorsorbetter.
(16,770,000 full colorisrecommended.)
* Modemorprinter port
e CD-ROM drive
Before you begin
о
=
9
<
о
с
O,
5
81
Setting up
IE "_ _—————————"—" "-" " " " "— "—" "_ _ _ _ " "—" "7"
Step 1: Installing the software
To transfer Digital Still Camera images onto your PC,
install the “Sony Digital Still Camera Album Utility, ”
and/or “Sony Digital Still Camera Plug-in” and
“PhotoStudio-DSC” onto your hard disk.
1 Start up your Macintosh.
2 Insert the CD-ROM supplied into the CD-ROM
drive.
3 Install the “Digital Still Camera Album Utility. ”
Drag the “Sony Digital Still Camera Album
Utility” icon onto your hard disk.
DSC-F! Album
“Sony Digital Still Camera Album Utility” icon
" 4 File Edit View Label $pecial ; D
v4
La Si a ener es 5 в т ==" Macintosh HO |
DSCF1 Album
DSC-F1 Album
Sony Digital Still Camera
4 Install “PhotoStudio DSC” 8
When you are using the Power
Macintosh, copy the “PhotoStudio
Photostudio-DsC for PowerPe_- DSC for PowerPC” folder to your
hard disk.
A When you are using the 68K
ots a Macintosh, copy the “PhotoStudio
DSC for 680x0” folder to your hard
disk.
For the details on installation, refer to the
“PhotoStudio-DSC-online documentation.”
82 Setting up
Note и o A
The folder name to which D Install the Sony Digital Still Camera Plug-in.
the “Sony Digital Still led Open the “PhotoStudio DSC for PowerPC”
amera Plug-in” is copie 5 и й
differs depending on the taa ET ae OT PhotoStudio DSC for 680x0
application you use. Lal... folder, and then open the “Plug-ins”
For example, when you folder (ti .
use Adobe PhotoShop 3.0, Phog-ins
the plug-in should be ‚ Drag the “Sony Digital Still Camera Plug-in" icon
copied onto the Acquire и 4 ,
Import folder of the Plug- . El onto the “Acquire” folder in the
ins folder. “Plug-ins” folder.
For the details, refer to the . и . : o
user's manual of the With the “Sony Digital Still Camera Plug-in
application. copied, you can capture images from the Sony
Digital Still Camera DSC-F1.
" $ File Edit View Label Special >
Sony ESE Photostudio - CSC
PhoteStudio-DSC for 680x0 Sony -DSC-online
e
D
~~
=.
=
o
с
©
Flug-ins
as
Acquire Export Filters
Acquire folder
Settingup | 83
84
Step 2: Connecting the Digital Still
Camera
Notes
* Turn off the power on
your computer and
Digital Still Camera
before connection.
* Do not turn off the
power of the camera
nor disconnect the cable
during transmitting the
data, which may cause a
transmission failure.
* Use only the supplied
connecting cable. Other
brands of cables may
cause malfunctions.
* The connecting cable
supplied is for the Sony
Digital Still Camera
DSC-F1 only. It cannot
be used to connect other
cameras.
* Insert the connecting
cable carefully into the
port, making sure that
the port goes in straight
andis firmly seated.
When inserting the
cable into the Digital
1/0 port of the Digital
Still Camera, match the
A mark of the cable *
with that of the port.
* Keep metal objects
away from the
connector pins to avoid
short circuits.
* We suggest you use the
Digital Still Camera
with the AC power
adapter.
* Also refer to the
instructions manual of
your Macintosh.
Setting up
Digital Still
Camera
Connecting cable Your Macintosh
(supplied)
to DIGITAL
1/O port
4 \
Connect the connecting cable to the cable
adapter (supplied) and then to the
modem or printer port.
Connecting cable Cable adapter
A
Ш to the
TE cf 1s wp modem or
printer port
Use the supplied connecting cable to the modem/
printer port via the cable adapter to the DIGITAL
1/0 port on the Digital Still Camera DSC-F1. For a
Macintosh with the built-in modem, use the printer
port.
To resume data transmission
In case the data transmission is interrupted (and the
Digital Still Camera becomes disabled), resume the
transmission as follows :
1 Close all the windows of “Sony Digital Still
Camera Album Utility” being displayed on the
Macintosh monitor.
The buttons of the Digital Still Camera become
enabled.
2 Turn the POWER /Function dial of the Digital Still
Camera to “OFF.”
Turn the POWER /Function dial to “PLAY.”
Transmit the data again.
a ©
Step 3: Setting up the Digital Still
Camera
* The SERIAL menu
defines the serial speed
via the connecting
cable. . .
** “38400” means 38,400
bps.
Note
During the data
communication in
process, do not change
the position of the
POWER / Function dial.
Before you start data communications between the PC
and the Digital Still Camera, set up the Digital Still
Camera as follows. For the details, refer to the
instruction manuals of the Digital Still Camera
DSC-F1.
MENU/EXECUTE POWER / Function
jog dial dial |
Digital Still
Camera
DSC-F1
1 Set the POWER /Funetion dial to “PLAY.”
2 To activate the data transmission via the
connecting cable, set the menu as follows:
Menu Select
WIRELESS OFF
SERIAL* 38400**
CAMERA MENU CAMERA MENU
SERIAL SPEED
The Digital Still Camera is ready for
communication via cable.
Setting up
wn
D
me
=
Oo
<
©
85
36
Cap apturing an image. mes
Starting “Sony Digital
Still Camera Album
“I. ”
Uti | ity To capture images from the Digital Still Camera into
your Macintosh, start the “Sony Digital Still Camera
Note | Album Utility.”
When using the “Sony .
Digital Still Camera Plug- Tip
in” module to transfer To open as many windows as possible, we suggest you
camera images into an allocate as much memory as possible to the “Sony Digital
application which Still Camera Album Utility.”
supports the PhotoShop
Plug-in protocol, the steps 1 Start up Macintosh
here are not necessary
(see page 123).
2 Double-click the “Sony Digital Still Camera Album
Utility” icon.
" & File Edit View Label Special Z E”
an
“Sony Digital Still Camera Album Utility” icon
The “Sony Digital Still Camera Album Utility”
starts up.
Digital Stil ea
The menu bar of the
“Sony Digital Still Camera
Album Utility” appears. +
r
%! File Edit Album Image Window 2 ©”
Quitting the “Sony Digital Still Camera Album
Utility”
Select [Quit] in the File menu.
Capturing animage
About the menus
“Sony Digital Still Camera Album Utility” consists of
the following menus. You can also use the tool bar
icons to proceed with part of the menu operations
(page 91).
File menu
Prind Setup
Print o
©
+
с
=.
e
Open Album Opens an album that is stored in the hard disk or MO disk and
displays images of the album. 3
Open Selected Image Opens and displays the selected image(s) in the image list at a 3
| time. o
Open Image File Opens and displays an image file from the hard disk or MO ®
disk. The available file types are PICT, JPEG and Album
(CAMS).
Close Closes the currently active window.
Save File Saves the image rotated in the album.
Save As Saves the currently selected image with another file name as a
PICT or JPEG file onto the selected folder.
Save in Album Saves the image(s) selected in the image list onto the album in
the hard disk.
Save as File Saves the currently selected image in the image list as a PICT or
JPEG file onto the desired folder. :
Print Setup Selects the model name of the printer, paper, and other settings.
(The printer driver needs to be installed prior to printing. )
Print Displays the dialog box to print an image.
Quit Exits “Sony Digital Still Camera Album Utility.”
continued
Capturinganimage | 87
88
DA.
About the menus
Edit menu
Copy
Select All
Select None D
Undo Undoes the most recent zooming or rotation command.
Copy Copies the selected image or comment to the clipboard.
Paste Pastes the comment of the clipboard. (You cannot use this command if
nothing 1s in the clipboard. )
Select All Selects all the images in the image list.
Select None Cancels the selection in the album list or image list.
Camera menu
" & File Edit BETTER Display Image Window Option ze )
Open Camera's Image
Save in Album
Save as File
Open Camera's Image Opens and displays the camera images on the monitor.
Save in Album Saves all the images or selected images of the camera to the
album on the hard disk in the album format without opening
them.
Save as File Saves all the images or selected images of the camera to the
desired folder on the hard disk in JPEG or PICT file type
without opening them.
Save to Camera Transfers the images on the hard disk to the camera.
Capturing animage
Display menu
r th
Image Window Option ud В
200т #+
Zoom Out æ-
File Edit Camera
Zoom In Enlarges the image display size.
Zoom Out Reduces the image display size.
Image menu
e File Edit Camera Display Window Option
Display Frame 646 « AG0
Display Frame 400 x 640
Rotate Clockwise 90 degrees
Rotate Counter-Clockwise 90 degrees
Rotate 180 degrees
Display Frame 640 x 480 Displays the frame for trimming an image in
landscape.
Display Frame 480 x 640 Displays the frame for trimming an image in portrait.
Rotate Clockwise 90 degrees Rotates the image 90 degrees clockwise.
Rotate Counter-Clockwise 90 degrees Rotates the image 90 degrees counterclockwise.
Rotate 180 degrees Rotates the image 180 degrees.
- ЧЕ
0
o
vo
E
<
=.
3
O
о)
3
3
D
O
®
Window menu
r
® file Edit Camera Display image
Go to Fifst Page
Go Lo Previous Раде
Go to Next Page
Go to Last page
Y Image List in Album : Testálbum
Go to First Page Displays the first page of the image list.
Go to Previous Page Displays one page before the current page of the
image list. Ш |
Go to Next Page Displays one page after the current page of the image
list.
Go to Last Page Displays the last page of the image list.
continued
Capturinganimage | 89
E o
About the menus
Option menu
" @ File Edit Camera Display Image window 2 =
Image Information 31
Shaw Filename
Show Recorded Date
Show Comment
Delete Image
Select Representative
Update to Current Album
Preferences,
Image Information Displays the image information window of the
currently displayed image.
Show Filename Displays the file name for each image of the image list.
Show Recorded Date Displays the date recorded by the Digital Still Camera
for each image of the image list.
Show Comment Displays the comment for each image of the image list.
Delete Image Delete the image(s) selected in the image list.
Select Representative Register the representative image of an album.
Update to Current Album Displays the updated image list. Select this command
after you turn off the Digital Still Camera, record the
images and then turn it on.
Preferences Displays the window to set the software to
decompress the camera images, select the image
transfer method, and customize some menu items.
Keyboard shortcuts
The key descriptions next to the file menu stand for keyboard shortcuts.
90 Capturing animage
Using the tool bar
The tool bar shortcuts to frequently used menu items.
When an image list is displayed
Tool Bar
Image List in Camera : PICO0000
Displays the first page.
Displays the previous page.
Displays the next page.
Displays the last page.
Displays the file name for each image of the
image list.
MN
q
©
m
Displays the recorded date for each image of the
image list.
Displays the comment for each image of the
image list.
abew! ue Guun
When an image is displayed
Tool Bar
Displays an Image Information dialog box of the
* You can change the image currently displayed or selected in the
display size only; you image list window.
cannot save an Image
zoomed in or out. To
undo the zooming,
select [Undo] in the
Zooms in an opened image.”
Zooms out an opened image.*
Edit menu. Rotates an image 90 degrees in the clockwise
** To save the image direction.**
rotated, select [Save] in Rotates an image 90 degrees in the
the File menu. To counterclockwise direction.**
undo the rotation,
select [Undo] in the
Edit menu.
Rotates an image 180 degrees.**
Capturinganimage | 91
Setting the Preferences
Customizing the menu Before you start using the “Sony Digital Still Camera
Assigning a special Album Utility, ” set the preferences to comply the
operational purpose to a software with the Sony Digital Still Camera DSC-F1.
menu is called You can select the software to decompress a JPEG
Customizing.” In the ; th st ferred to th
“Sony Digital Still image, the way an image is transferred to the camera,
Camera Album Utility,” and customise some menu items.
you can customize the
two menu items-“Open
Camera's Image” and
In case colors of the image captured are not displayed
normally or a communication error occurs frequently,
“Save Camera's Image” — check the preferences.
by specializing the
NU to be opened and 1 Select [Preferences] in the Option menu.
The Preferences window appears.
general | others ]
Pd Use QuickTime for decompressing index image.
Pd Use QuickTime for decompressing full size image.
BJ Fit in size on saving small image .
—
* QuickTime 2 Click the [general] tab to set the following:
decompresses JPEG o a ,
images more quickly 9 Use QuickTime for decompressing index image.
than the original
software does. In case Check the check box when you use QuickTime to
colors of the image are decompress JPEG images and to display the image
not displayed normally, list on the monitor. Do not check when you use
use the original the original software.*
software.
(9 Use QuickTime for decompressing full size image.
Check the check box when you use QuickTime to
decompress a JPEG image and to display the
image in full size on the monitor. Do not check
when you use the originalsoftware.*
O Fit in size on saving small image.
Check the check box when you fit a small image to
640 x 480 pixels to transfer it to the camera.
92 Capturing animage
[general | others |
[OJ Customize the menu ‘Open Camera's Image’
(O) Always last image in play mode
O Always last page in play mode
[J Customize the menu ‘Save Camera's Image’
(O Always fram last one in play made ta lase one
O Alvays last image
O Customise the menu ‘Open Camera's Image’
When this option is checked, the dialog box
specifying the images to be opened with the
[Open Camera's Image] menu will not appear.
Select the images to be always opened among the
two image options.
J Customise the menu ‘Save Camera's Image’
When this option is checked, the dialog box
specifying the images to be saved with the [Save
Camera's Image] menu will not appear. Select the
images to be always saved among the two image
options.
4 Click [OK] to close the preferences window.
Capturing an image
MN
о
OC
+
<
=
3
‘2
a
3
3
5
oO
®
93
Opening the camera images
Note
If there is only one page
stored, the pull-down list
does not appear.
94 Capturing animage
To view images in the Digital Still Camera DSC-F1,
open the camera album. You can open the image from
the album or open the image directly by specifying its
image number.
Before you start
Make sure you have done the necessary preparations
as described in pages 82 through 85.
Opening the image from the album
1 Select [Open Camera's Image] in the Camera
menu.
The following window appears.
(9) Image List (Open J
O Image
E m
Image No.: | Page | :1001- 015 y |
No. of Pages : 2 fore
Total number of pages
Page number
Image numbers
2 Click [Image List] and click the down arrow
button to select the page to be displayed in the
pull-down page number list.
On the right of the page number, the image
numbers contained in the page are displayed.
3 Click [OK].
The images on the selected page are transferred
from the camera and displayed.
Switching the file name,
recorded date and
comment display of an
Select either [Show
Filename], [Show
Recorded date} or [Show
Comment] in the Option
menu. Or click the
corresponding icon on
the tool bar. (You can
change the comments.)
Displaying other
thumbnails
When hidden pages exist,
select [Go to First Page],
[Go to Previous Pagel,
[Go to Next Page] or [Go
to Last Page] in the
Window menu. Or click
the corresponding icon
on the tool bar.
Comment, file name, or date display
If image is protected from accidental erasure
and edition, the protect icon ( &) is attached
here.
4 Click the image(s) you want to open (the selected
image frame becomes yellow) and select [Open
Selected Image] in the File menu. Or, double-click
the image.
The selected images are displayed in full size.
continued
M
jab]
©
+
abew ue Guun
Capturing animage
95
Opening the camera images
How to select and cancel images in the image list
O Selecting an image
Click the desired thumbnail of the image list; the
image is selected. Click another thumbnail and
that image is selected instead of the previous
image. To cancel the selection, click somewhere in
the background without an thumbnail.
A Selecting multiple images
To select multiple images: Press and hold down
the Shift key as you click the desired images.
To select all the images in the image list: Select
[Select All] in the Edit menu.
To cancel the selection: Press and hold down the
Shift key as you click the selected images. The
selection is canceled. To cancel the selection
of all the images, select [Select None] in the
Edit menu.
To open all the selected images: While pressing
the Shift key, double-click one of the selected
images. Or select [Open Selected Image] in
the File menu.
Closing an album list, image list or image
. Select [Close] in the File menu or click the close
button. The selected window is closed.
Switching the active window
You can switch the active window using the following
methods:
* Click a part of the desired window.
* Click the desired file listed in the Window menu.
The image files currently opened.
96 Capturing animage
Opening the image directly
1 Select [Open Camera' s Image] in the Camera
menu.
The following dialog box appears.
i Open Camera's Image Ze
O Image tist
® Image
Image No. :
No. of Images : |
The total number of images
The image currently displayed on the camera
2 Click [Image] and input the image number which
you want to open in the [Image No.] box.
3 Click [Open].
The selected images are displayed in full size.
a mt de e Camera: Dé de .— 2 TT
Closing an album list, image list or image
Select [Close] in the File menu or click the close
button. The selected window is closed.
Capturing an image
MN
y
"С
+
=
=.
3
Q
vu
3
=
O
©
97
Saving the camera images in album
The order of the images
to be saved
Theimagesaresavedin
thealphanumerical order
of the filenames:
* Whenthefilenameor
recorded dateis
displayed underneath
eachimage, theimages
areautomatically
named (IMAGE001,
IMAGE002...) and
savedinthesameorder
asinthecamera.
* Whenthecommentis
displayed, the -
commentofeachimage
becomesitsfilename
and theimagesare
stored inthe
alphanumericalorder
ofthecomments.
Youcanchangetheorder
oftheimages later (page
114).
Notes
* Youcanselectallthe
images ofallthe pages
withoutregard tothe
pagebeing displayed.
e Forhowtoselect
multipleimages, see
page96.
98 Capturing animage
To quickly handieand process camera images on
yourPC, savetheselected camera imagesinalbumof
thehard diskwithorwithoutopeningthem.
Opening and saving the camera images
1 Followthe steps 1 through3 of “Opening the
cameraimages” (page 94) todisplay theimagelist
ofthecamera.
2 Click the thumbnails of the desired images. To
savealltheimages, select [Select All] inthe Edit
menu.
The frame of theselected imageis highlighted in
yellow.
Saving in a different
drive
Click [Desktop] to display
the available drivesin the
list, from which youcan
select thedesired drive.
Making a new album
folder
Click [New]. The dialog
todefineanew album
foldernameappears.
Typethenew foldername
and click [Create].
Note
When the commentis
displayed intheimage
list, the comment ofeach
imagebecomesthefile
nameand theimagesare
copied and placed inthe
hard diskaccording tothe
alphanumerical order of
their file names.
3 Select [Savein Album] in the File menu.
The following window appears.
Select Album Folder:
[S Hawaii y © Macintosh HD
(ser)
Desktop
New
al
[ Select: Hawaii )
The destination folder where the camera
imagesare to be saved.
When youclick [New], a new folder is created underthis
folder.
4 Selectthe destinationalbum folder and click
[Select].
Theselected cameraimagesaresaved inthe
destinationalbum folderwitha filename
“IMAGE” (+x; serial number).
Stopping saving midway
Pressthe [ Jand [.]keystogether.
continued
Capturing an image
e.
0
o
er
=
=.
=
O
о
5
3
D
O
®
99
Saving the camera images in album
Note
When theimagelistor
imagesofthecameraare
displayed, close them
beforeselecting [Savein
Album].
Saving in a different
drive
Click [Desktop] to display
the available drivesinthe
list, from which youcan
selectthedesired drive.
Making a new album
folder :
Click [New]. The dialog
todefinea new album
foldernameappears.
Typethenew folder
nameand click [Create].
Note
When thecommentis
displayed intheimage
list, thecommentofeach
imagebecomesthefile
nameand theimagesare
copied and placed inthe
hard diskaccording to
thealphanumericalorder
of their filenames.
Capturing animage
Saving all the camera images without
opening them
1 Select [Savein Album] inthe Camera menu.
Thefollowingwindow appears.
se os Save Camera ima 0 e pe mmm EEE E ER
(6) All Images
O Selected Images -
(Cancer )
(O Image Но.
© Unly Last Image
O Fecorded Date
2 Select [All Images] and click [OK].
Thefollowing window appears.
Select Album Folder:
LES Hawaii Y > Macintosh HD
Lu
ir
Lind
5
+
i
Desktop
5) (белее!
|
( Select: Hawai )
The destination folder where the camera
imagesaretobesaved.
When youclick[New],anew folderis created under this
folder.
3 Selectthe destination album folder and click
[Select].
Theselected camera imagesaresavedin the
destinationalbum folderwitha filename
“IMAGE” (##*: serial number).
Stopping saving midway
Pressthe [ land [.]keystogethér.
Note . .
When theimagelistor Saving the selected camera images
imagesofthecameraare without opening them
before electinglSavein 1 Select[Savein AlbumlintheCamera menu.
Album].
The [SaveCamera Image] window appears.
2 Click [Selected Images]and selectoneofthethree
optionstospecify theimages tobesaved.
J Image No.
Input theimage numbers of the firstand last
imagestobesaved. Alltheimagesbetween
thespecified image numbersaresaved.
O) All Images о
@ Selected Images о
© Image No. -
No. of Images : 22
O only Last Image o
O Recorded Date ©
с
=,
=
OJ Only Last Image Q
. . y
Theimagerecorded mostrecently issaved. 3
. 3
Q
QC All Images ©
(9 Selected Images ‘
O Image No.
@ Only Last Image
O Recorded Date
(J Recorded Date
Input the date (month/day/year). All the
imagesrecorded onthespecified dateare
saved.
== Save Camera Image == ==
O All Images =
(O Selected images - EC =
Cancet
O Image No.
© Only Last Image
(@ Recorded Date 6] /
continued
Capturinganimage | 101
102
E
Saving the camera images in album
Saving in a different
drive
Click [Desktop] to display
theavailabledrivesin the
list, from which youcan
selectthe desired drive.
Making a new album
folder
Click [New]. The dialog
todefineanew album
foldernameappears.
Typethenew foldername
and click [Create].
Note
Whenthecommentis
displayed in theimage
list, thecomment ofeach
image becomesthe file
nameandtheimagesare
copiedand placed inthe
hard diskaccording to the
alphanumericalorder of
their filenames.
Capturing animage
3 Click [OK].
The following window appears.
Select Album Folder:
[= Hawaii Y | = Macintosh HO
e EOL
Desktop
=
> EEE
( Select: Hawaii ) EE
Thedestination folderwherethe camera
images are tobe saved.
When youclick [New], a new folder is created under this
folder.
4 Selectthe destinationalbum folder and click
[Select].
The selected cameraimagesare saved iinthe
destinationalbum folder witha filename
“IMAGE (+++; serial number).
Stopping saving midway
Pressthe [ ]Jand [Jkeystogether.
Saving the camera images as another
file type
Toquickly handleand process cameraimages on
your PC, savetheselected cameraimagesasstandard
file ty pe-PICT or JPEG-with orwithoutopening
them.
Selecting the file type
PICT The image format supported generally by
Macintosh. Most of the Macintosh image-editing
applications support this type.
JPEG Stands for the group named “Joint Photographic
Experts Group,” who standardized the
compression system of the still image. The image
is compressed in a small data size, but the original
image cannot be perfectly reproduced.
The order of the images . " -
to be saved Opening and saving the camera images
Theimagesaresavedin
thealphanumericalorder
of the filenames:
* Whenthefilenameor
recorded dateis
displayed underneath
eachimage, thetmages
areautomatically
named (IMAGE001,
IMAGE002...)and
saved inthesameorder
asinthecamera.
* Whenthecommentis
displayed, thecomment
ofeachimage becomes
its filename and the
imagesarestoredinthe
alphanumericalorder
ofthecomments.
Youcanchange theorder
oftheimageslater (page
1 Followthe steps 1 through3of “Opening the
camera images” (page 94) to display the imagelist
MN
o)
С
+
с
= и
5
0
ofthecamera. =
3
9)
o
D
114). 2 Clickthethumbnails of the desired images. To
savealltheimages, select [Select All] inthe Edit
Notes menu.
* Youcanselectallthe Thef ftheselectedi ishiehliehted:
imagesofallthepages eframeoftheselectedimageis highlightedin
withoutregard tothe yellow. | |
pagebeingdisplayed.
e Forhowtoselect
multipleimages, see
page9%o. continued
Capturinganimage | 103
104
Saving the camera images as another file type
Saving in a different
drive
Click [Desktop] to display
theavailabledrivesin the
list, rom which you can
selectthe desired drive.
Making a new album
folder
Click [New]. The dialog
to defineanew album
foldernameappears.
Typethenew foldername
andclick[Create].
Selecting the file type
Click the downarrow
button nextto File Type
and selectthedesired file
type fromthe pull-down
list.
Note
Whenthecommentis
displayedintheimage
list, thecommentofeach
image becomes the file
nameandtheimagesare
copied and placed inthe
hard disk according to the
alphanumerical orderof
their filenames.
Capturing an image
3 Select [Saveas File] inthe File menu.
The following window appears.
Select Folder to Save:
[€ San Francisco * | > Macintosh HD
iH Е Рес
Desktop
| (eam)
> Po
[ Select: San Francisco ) Lem - J
File Type:
Thedestinationfolderwherethe camera
imagesaretobesaved.
When you click [New], anew folderis created under this
folder.
4 Selectthedestinationfolderand file typeinwhich
theimagesaretobesaved and click [Select].
Theselected camera imagesaresavedinthe
destinationalbumfolderasaspecified filetype
witha name “IMAGE +++” (++*: serial number).
Stopping saving midway
Pressthe [ Jand [.]Jkeystogether.
Saving in JPEG file type
When you select [JPEG] filetype, the window to
© Maximum Quality (Larg
O High Quality
(O Standard Quality
O Low Quality (Small)
Usually, the higherimage quality you select, thelarger
filesizewiththelowercompression ratio you get.
Selecttheimage quality option and click [OK].
Note . . .
Whentheimagelistor Saving all the camera images without
imagesofthecameraare opening them
displayed, close th 11e
beforeselecting[Saveas 1 select [SaveasFile] in the Camera menu.
File]. Thefollowing window appears.
RA Save Camera image Az
® All images |
O Selected images :
@ Image No,
O Only Last tmage
O Fecordad Date
Saving in a different 2 Select [All Images] and click [OK].
rive
Click [Desktop] to display Thefollowing window appears.
theavailabledrivesinthe
list, from which youcan Select Folder to Save: sue
selectthedesired drive. |€3 San Francisco y | © Macintosh HD A
< y
Making a new album e Ejros v
folder =
Click [New]. The dialog 5
todefinea new album New o
folder name appears. REE A LB darn y
Typethe new folder name = >
and click [Create]. I
- - [ Select: San Francisco ) = 3
O
Selecting the file type File Type: [PICT [+] m
Click thedownarrow
buttonnexttoFileType Lb
and select the desired file The destination folder wherethecamera
type fromthe pull-down magesdretobesaved.
list. Whenyouclick [New], anew folderis created under this
folder.
Note : . :
When the commenti 3 Selectthedestination folderand file typeinwhich
displayed in theimage theimagesaretobesaved and click [Select].
list, the commentofeach Theselected cameraimagesaresaved inthe
mage becom aro destinationalbum folder asa specified filetype
copied andplacedinthe witha name “IMAGE ++" (we: serial number).
hard diskaccording tothe | . |
alphanumericalorderof Stopping saving midway
their filenames. Pressthe [ ]and [Jkeystogether.
continued
Capturinganimage | 105
106
Saving the camera images as another file type
Note
When theimagelistor
images of thecameraare
displayed, closethem
beforeselecting [Saveas
File].
Capturing an image
Saving in JPEG file type
When youselect [JPEG] filetype, the window to
O Maximum Quality (Larg
O High Quality
@ Standard Quality
O Low Quality (Small) |
Usually, thehigherimage quality you select, thelarger
filesizewith thelowercompressionratio youget.
Selecttheimage quality optionand click [OK].
Saving the selected camera images
without opening them
1 Select [Saveas File]in the Camera menu.
The [SaveCamera Image] window appears.
2 Click [Selected Images]andselectoneof the three
options tospecify theimagestobesaved.
О Image No.
Input theimage numbers of the firstand last
imagestobesaved. Alltheimagesbetween the
specified image numbersaresaved.
O All Images =—
(6) Selected Images ———
@ Image No. -
No. of Images : 22
© Only Last image
O Recorded Date
J Only Last Image
Theimagerecorded mostrecently issaved.
oJ
(O) All images
Selected Images .
© :
O image No.
(9) Only Last image
O Recorded Date
Saving in a different
drive
Click [Desktop] to display
theavailabledrivesin the
list, from which youcan
selectthe desired drive.
Making a new album
folder
Click [New]. The dialog
todefineanew album
foldernameappears.
Typethe new foldername
and click [Create].
Selecting the file type
Clickthe downarrow
button nextto File Type
and select the desired file
type from the pull-down
list.
Note
Whenthecommentis
displayed intheimage
list, the comment ofeach
imagebecomesthefile
nameand theimagesare
copied and placed inthe
hard diskaccording tothe
alphanumerical orderof
their filepames.
[J Recorded Date
Input the date (month/day/year). All the
images recorded onthespecified dateare
saved.
O Al Images
(9) Selected Images
O Image No.
O Only Last Image
@ Recorded Date
EJ @y [7]
3 Click [OK].
Thefollowing windowappears.
Select Folder to Save:
[a san Francisco Y |
ES
“I
( Select: San Francisco ]
Dec
File Type:
E Macintosh НО
imagesaretobesaved.
Thedestination folderwherethecamera
When youclick [New], a new folderis created under this
folder.
4 Selectthedestinationfolderand file typein which
theimagesareto besaved and click [Select].
Theselected cameraimagesaresaved inthe
destinationalbumfolderasa specified filetype
witha name “IMAGE ##+” (##+: serial number).
Stopping saving midway
Pressthe [ ]and [.Jkeys together.
inet a)
O
E
re
New =
renee arenes as a
С 1
Tinte =
0
o
VD
continued
Capturinganimage | 107
|
Saving the camera images as another file type
Saving in JPEG file type
When you select [JPEG] file type, thewindow to
definetheimage quality (compression ratio) appears.
O Maximum Quality (Larg
Cencel
O High Quatity
@ Standard Quality
O Low Quality (Small)
Usually, thehigherimage quality youselect, thelarger
filesize withthelower compression ratio you get.
Select theimage quality optionand click [OK].
108 Capturing animage
Opening an
Changing the drive
Click [Desktop] to
display theavailable
drivesin thelist, from
whichyoucanselectthe
desired drive.
Switching the file name,
recorded date and
comment display of an
Selecteither [Show
Filename], [Show
Recorded date] or{Show
Comment]in the Option
menu. Or click the
correspondingicononthe
toolbar. (Youcanchange
thecomments.)
Displaying other
thumbnails
Whenhidden pages exist,
select [Goto First Page],
[Goto Previous Page],
[Go to Next Page] or [Go
to LastPage]inthe
Window menu. Or click
thecorrespondingiconon
thetoolbar.
album of the hard disk
Youcanopentheimagefromthealbum folder, stored
fromtheDigitalStill Camera onto the hard diskin the
albumformat.
1 Select [Open Album] in the File menu.
Thefollowing dialogboxappears.
Select Album Folder:
9 Hawaii ¥
a IMAGES
ae) IMAGEOO2
E Macintosh HD
Desktop
ar IMAGEOO7
( Select: Hawaii
Theselected album holder
2 Click the desired album folderand click [Select].
Theimagelistoftheselectedalbumappears.
Comment, file name or recorded date
Image number
Serial number oftheimagesstorein the hard disk
3 Selecttheima ge(s) you wantto open.
Theframeoftheselectedima ge becomes yellow.
For various waysto select images intheimagelist,
refertopage96.
continued
MN
0
©
~~
<
=,
3
OQ
©
3
3
o
oO
®
Capturing an image
109
EL.
Opening an album of the hard disk
4 Select [Open Selected Image] in the File menu or
double-clicktheimage.
Theselectedimagesaredisplayedin fullsize.
CIONES ala Aa ITT
— y ае т °
Closing an image
Click [Close] in the File menu.
110 | capturing animage
Opening an image file directly
Youcanopenanimagestored in the hard disk by
designating its file name. Inadditiontoa file ofan
album format, you can open a PICT or JPEG file.
1 Select [Open Image File] in the File menu.
The following dialog boxappears.
Changing the drive E> Macintosh HD
Click [Desktop] to display IMAGECO1
theavailabledrivesinthe
list, from which youcan
select the desired drive.
Desktop
2 Selectthe Image file you wanttoopenand click
[Open].
M
y
o
er
<
=.
3
O
о
3
3
y
O
©
Closing an image
Click [Close] in the File menu.
continued
Capturinganimage | 111
BE PLL; Lo;o—];;];;;—;—ooLLD—;t——];—;————]————;];]—;;]D—;o.D];—];_;———;";;]———————Z—;—];—;—;
Opening an image file directly
Saving in a different
drive
Click [Desktop] to
display theavailable
drivesin thelist, from
which youcan selectthe
desired drive.
Making a new album
folder
Click [New]. The dialog
todefineanew album
foldernameappears.
Typethenew folder
nameand click [Create].
Selecting the file type
Clickthedown arrow
buttonnexttoFileType
and select the desired file
type fromthe pull-down
list.
Notes
e Whenthedestination .
albumalready has
image files, theorder
oftheimagebeing
copieddependsonthe
existing filenames.
Incasethefile nameof
animagetobecopied
isthesameas thatof
anexistingimage file,
thedialog boxasking
tochangethefilename
oftheimagetobe
copied appears.
Capturing animage
Saving the opened image in album
Youcansavetheimageonthehard diskinanalbum
inthesame way as the camera images. Refer to
“Openingand saving the cameraimages” of the
“Saving thecameraimagesinalbum” onpage98.
Saving the opened image as another file format
1 Select [Save As] inthe File menu.
The following dialogboxappears.
= San Francisco 7 |
> Macintosh HD
o Бек
Desktop
New
bd
Save As:
Untitled | | Save |
File Type: | PICT Y
The destination folder
Clicking thedownarrowdisplays pull-down
listof folders.
list of other folders.
Theimagesstoredin the destination folder.
2 Selectthe destination folder and filenamein which
theimagesare to be saved and click [OK].
The image is savedin the destination folderinthe
selected fieformat.
Saving in JPEG file type
When you select [JPEG] filetype, the windowto
O Maximum Quality (Larg
O High Quality
(9 Standard Quality
O Low Quality (Small)
Usually, the higherimage quality you select, thelarger
filesize withthelower compression ratio you get.
Selecttheimage quality option and click [OK].
у
Changing the comment
When the date or file
name is displayed
Select [Show Comment]
in the Album menu or
bar. The display is
replaced with the
comment.
Tips
* You can input up to 14
letters and numbers in
a comment.
* When a full-size image
is displayed, you can
also input comments
in the Image
Information window.
To display the
window, select [Image
Information] in the
Option menu or click
Qj on the tool bar.
* You can copy and
paste the comment.
After inputting the
comment, select
[Copy]. Then click the
destination comment
box and select [Paste]
in the Edit menu.
You can change the comment of images.
1 Display the image list of a camera or hard disk.
See “Opening the camera images” (page 94) or
“Opening an album of the hard disk” (page 109)
for details.
2 Click the comment box of the image whose
comment you want to change.
The comment box is highlighted.
m
Q
=
Comment box
эбеши ие bul
3 Type the comment in the comment box.
4 Press the enter or return key.
The comment is changed.
Changed comment
Editinganimage | 113
Sorting the images
How the file name of
each image is named
When the camera images
are copied onto the hard
disk, each image is named
as follows:
* When the file name or
recorded date is
displayed underneath
each image in the
image list, the images
are automatically
named (IMAGE001,
IMAGE002...)
according to the order
stored in the camera.
* When the comment is
displayed, the
comment of each image
becomes its file name
and the images are
stored in the
alphanumerical order
of the comments.
Tips for inputting a
comment as a file name
You can input up to 14
numbers and letters in a
comment. To manage the
image files, we suggest
you mix the letters and
numbers.
For example, use letters to
divide the images into
groups and use numbers
to sort them within each
group as follows:
Children001
Children002
Children003...
Sea001
Sea002
Sea003....
Sky001
Sky002
Sky003...
Editing an image
The images in album of the hard disk are positioned
according to the alphanumeric order of their file
names. You can rename and sort them using the
following two methods:
Sorting the images by renaming and
copying to a new album
1 Display the image list on the hard disk.
See “Opening an album of the hard disk” (page
109) for details.
2 Select [Show Comment] in the Option menu or
click ¡sae on the tool bar.
3 Input comments (page 113).
The comment for each image will become its file
name when it is copied to an album. Input a
comment so that the image will be placed in the
desired position when sorted first in the numerical
order and then in the alphabetical order.
4 Select [Select All] in the Edit menu.
All the images are selected.
5 Select [Save in Album] in the File menu.
The [Select Album Folder] window appears.
6 Click [New], define a folder name, and then click
[Create].
A new album folder is created.
7 Click [Select].
All the images are sorted according to the file
name and copied to the new album. Drag and
drop the unnecessary album into the trash.
Renaming the files in the finder
You can also change names of the image files in the
Macintosh finder. Click the file name and type a new
file name so that the file is placed in the desired
position in the album.
Copying an image to another album
You can copy an image of an album to another
album.
1 Display the image list of the camera or hard disk
which includes the image to be copied and then
the image list to which you want to copy the
image.
See “Opening the camera images” (page 94) or
“Opening an album of the hard disk” (page 109)
for details.
2 Select the image to be copied.
To copy multiple images, press and hold down
the Shift key as you click the desired images.
Tip
You can use the File
menu to copy the selected
item(s). In step 3, select
[Save in Album] or [Save
as File] in the File menu.
For the details, refer to
“Saving the camera
images in album” (page
98) or “Saving the camera
images as another file
type” (page 103). 1
3 Drag the selected image.
m
o
+
==
1Q
Q
и)
3
O
[le]
0
Note
The position where the
image is copied depends
on its file name.
Dragging pointer
4 Move the dragging pointer $7 to the album to
Which you want to copy the image then drop the
image.
The image is copied to the destination album.
Copying in the finder
You can also copy images or albums in the Macintosh
finder. Press and hold down the option key and drag
them to the destination folder.
Editinganimage | 115
Deleting images
Notes
* When deleting an
image, double-check
that it is the right image.
Once deleted, the image
is lost forever.
* You cannot delete
protected images. To
delete them, first cancel
the protect setting in the
Image Information
dialog box (page 121).
Note
When you delete images
or albums in the finder,
the protected images are
also deleted.
116 Editing an image
You can delete images in an album.
1 Display the image list of a camera or hard disk
which includes the image(s) to be deleted.
See “Opening the camera images” (page 94) or
“Opening an album of the hard disk” (page 109)
for details.
2 Select the image(s) to be deleted in the image list.
The frame of the selected image becomes yellow.
To delete multiple images, press and hold down
the Shift key as you click the desired images.
Selected image
3 Select [Delete Image] in the Option menu.
The confirmation window appears.
4 Click [OK].
The images are deleted.
Deleting in the finder
You can also delete images or albums by dragging
them to the trash in the Macintosh finder.
Printing images
Note
Before you start printing,
the proper printer driver
should be installed in the
hard disk.
You can print a full-sized image. The explanations
here are based on the case when the Sony Digital
Color Printer DPP-M55 is used. When using a
different printer, refer to the manual of your printer.
1 Turn on the power of the printer and select the
printer with the Chooser.
2 Display the full-sized image to be printed.
See “Opening the camera images” (page 94) or
“Opening an album of the hard disk” (page 109)
for details.
3 Select [Print Setup] in the File menu.
The following window appears. Set each item
according to your printer.
Sony DPP-MS5 Ver. 1.0,5 !
Paper : @ Standard / Sticker |
orientation : If) Enlarge/Reduce(%) [1007] %
The window is an example. It differs depending on the
printer selected with the Chooser.)
m
QQ
+
5
(Le)
o
3
3
o
O
®
Orientation Select the orientation of the paper
when printed.
Enlarge/Reduce When you want to print an image
enlarged or reduced, input the
factor in percentage.
4 Click [OK].
continued
Editinganimage | 117
118
Printing images
Editing animage
5 Select [Print] in the File menu.
The following window appears.
Sony OPP-MSS Шег. 1.0.5
PageNo.: @ [1 To [1 ]
O al
(Preview }
Print aty: [1]
DJeolorsyne E Rendering: "Photo y | Matching: | Normal v
+ Hard; Printer Profes en IRE TU FO | Spttinaos
MN tem Presas, Array 147 COC Sin
BJ Fit to Page
(*The window is an example. It differs depending on the
printer selected with the Chooser.)
O Set the necessary items for printing.
Page No.
Specify the ranges of pages to be
printed. Input the first and the last
pages to be printed. To print all the
pages, select [All].
Print Qty
Specify the number of copies to be
printed.
Fit to page
Check this option when you want to
print an image to best fit in the paper
size selected in the [Print Setup]
window.
Preview
Check this option to display the
thumbnail of the images to be
printed.
Option
Check this option when you want to
set in more details for the printer's
specifications.
7 Click [OK].
Printing starts up.
Changing the image display size
Note
When you zoom in or out
an image, only the image
displayed on the monitor
is changed. You cannot
save the image zoomed in
or out. .
Undoing the zooming
Select [Undo] in the Edit
menu.
You can enlarge (zoom in) and reduce (zoom out) an
image displayed on the monitor.
Display the full-sized image of a camera or hard disk
which you want to change the display size. See
“Opening the camera images” (page 94) or “Opening
an album of the hard disk” (page 109) for details.
MEE E. о
Enlarging an image
Select [Zoom In] in the Display menu or click
the tool bar. The
RT APNE SOT +
TRH =
Select [Zoom Out] in the Display menu or click [4 i
the tool bar. The display size of the image is reduced.
Editing an image
гп
o.
&
3
o
о
5
3
O
®
119
120
Rotating an image
Note
When you rotate an
image, only the image
displayed on the monitor
is rotated but the original
image does not change.
To save the original image
rotated, select [Save File]
in the File menu.
Undoing the rotation
Select [Undo] in the Edit
menu.
Editing animage
You can rotate an image, which is useful to view an
image recorded with the camera oriented side ways.
Display the full-sized image of a camera or hard disk
which you want to change the angle. See “Opening
the camera images” (page 94) or “Opening an album
of the hard disk” (page 109) for details.
Rotating an image in clockwise direction
Select [Rotate Clockwise 90
degrees] in the Image menu
or click {gàf in the tool bar.
Each time you select the
menu or tool, the image is
rotated 90 degrees in the
clockwise direction.
Rotating an image in counterclockwise direction
Select [Rotate Counter-
Clockwise 90 degrees] in the
Image menu or click [ed in
the tool bar. Each time you
select the menu or tool, the
image is rotated 90 degrees in
the counterclockwise
direction.
Rotation an image 180 degrees
Select [Rotate 180 degrees] in
the Image menu or click 8
in the tool bar. Each time you
select the menu or tool, the
image is rotated 180 degrees.
Reviewing the image information
Note
You can display the image
information for an album
image only. For a PICT or
JPEG image file, you
cannot display the
information.
You can review settings when the image is recorded
in the Image Information window. You can also set
the protection, revise the edited date, or input
comments.
1 Display the full-sized image whose information
you want to review.
See “Opening the camera images” (page 94) or
“Opening an album of the hard disk” (page 109)
for details.
2 Select {Image Information] in the Option menu or
click ¡in the tool bar.
The following window appears.
Cirvites medió ей, NTE
| SH ve da: + tad 1” Me dE ass
Méwisde 8 14 17 во ноже rm
puis met cee внаем! 2
fr =
O
" E * ©
3 Review or revise the settings: 3
Protect Check to set the protection. Do not check 3
to release the protection to edit or delete Q
the image.
Image Quality" The image quality mode (compression
ratio) when the image is recorded:
FINE/STANDARD/SNAPSHOT
Recorded date* The date when the image is recorded.
Edited date You can manually input the date when
the image is transferred or edited.
Shutter speed* The shutter speed when the image is
recorded.
Flash * The flash is used (ON) or not used (OFF)
when the image is recorded.
Comment You can input a comment in the text box.
* You cannot change from your Macintosh.
4 Click [OK] to close the window.
Editinganimage | 121
122
Transferring an image to the camera
Note
For the image quality,
refer to the instruction
manual of the Digital Still
Camera DSC-F1.
Editing animage
You can transfer a PICT, JPEG or an album-type image
file to the camera.
1 Display the full-sized image to be transfer to the
camera.
2 Select [Save to Camera] in the Camera menu.
The window defining the image quality (FINE,
STANDARD, and SNAPSHOT) appears.
3 Select the image quality and click [OK].
The image is compressed in the selected image
quality and transferred to the camera.
Transferring a large image
Since the image being stored in the camera is limited
to 640 x 480 pixels, a larger image is reduced
automatically and transferred to the camera. To cut
out part of the image without reducing, select [Display
Frame 640 x 480] (in landscape) or [Display Frame
480 x 640] (in portrait) in the Image menu. Move the
edit frame to crop the area to be transferred and the
follow the steps 2 and 3.
a ——:
- Edit frame
Transferring a small image
When the option “Fit in size ont saving small image” is
checked in the Preferences window, a small image will
be enlarged to 640 x 480 pixels and transferred to the
camera. When the option is not checked, a small
image will be transferred as it is.
har REO
| Using the Plug-in oo - ;
Transferring camera images to your
application
You can transfer Digital Still Camera images directly
to the supplied software “PhotoStudio” or other
applications which support the Adobe PhotoShop
Plug-in.
Before you start
* Make sure you have done the necessary
preparations as described in pages 82 through 85.
* Set the application memory as large as possible.
(The minimum Memory Requirements: the
Suggested size plus 3000KB to the Preferred size)
1 Start up PhotoStudio or other application.
2 Select [Acquire] and then [Sony Digital Still
Camera] in the [File] menu. (Menu names differ
depending on the application.)
After your Macintosh accesses the Digital Still
Camera, the image list window appears.
с
wv,
3
©
„=
>
©
2
©
o
=
Date or comment display
continued
UsingthePlug-in | 123
E
Transferring camera images to your application
Using the tool bar
Displays the first page.
Displays the previous page.
Displays the next page.
Displays the last page.
Displays the recorded or imported date.
Displays the comment of the image.
Transfers the selected image(s) to an
application.
Closes the window.
3 Select the image to be transferred.
Depending on the application, you can transfer
multiple images at a time; When you transfer
multiple images, press and hold down the shift
key as you click the desired images.
4 Click fi
images,
or double-click one of the selected
The selected image is or images are transferred to
the application.
To transfer other images
Repeat steps 2 and 4.
124 Using the Plug-in
Others
Troubleshooting
Note
The SERIAL menu
defines the serial speed
via the connecting cable.
After trying the following remedies, if the problem
persists, please consult “Sony Customer Technical
Support.” Also refer to the operating instructions of
the Digital Still Camera DSC-F1.
An error message appears or an error occurs.
* The connecting cable between your Macintosh and
the Digital Still Camera is not fitted properly.
+ Connect the cable properly. (page 84)
* The power of the Digital Still Camera is not turned
on.
> Set the POWER / Function dial of the Digital Still
Camera to “PLAY.” (page 85)
* The WIRELESS and SERIAL menu settings of the
Digital Still Camera is not proper.
+ Select “OFF” in the WIRELESS menu and “38400”
in the SERIAL menu of the Digital Still Camera.
(page 85)
* The same modem or printer port may be used by
another communication software.
+ Check which port the communication software
uses and assign another port for either the “Sony
Digital Still Camera Album Utility” or the
communication software.
* The Apple Talk is set to ON.
> Turn off the Apple Talk to use the printer port.
* Another communication software quits without
releasing the model or printer port and the port
becomes disabled.
Restart the Macintosh.
* There may be some problem with the application,
Macintosh or Digital Still Camera.
> Quit the application and turn off your Macintosh
and the Digital Still Camera. And turn on the
Macintosh and the Camera. Then start the
application to see if the application works
properly.
* The memory space allocated to the “Sony Digital
Still Camera Album Utility” is too small.
> Allocate a larger memory space to the “Sony
Digital Still Camera Album Utility.”
continued
Others | 125
EE LL O L———L—T—D—oL or LDL LLL—D—]—;—;—;———;———;——];;;]]—;]o;[ ¡L]];—]]—;————;——————————
Troubleshooting
The Plug-in does not work properly.
* The memory space allocated to the Plug-in is too
small.
> Allocate a larger memory space to the application.
* The Plug-in may be incompatible with some of the
extensions.
> Start up your Macintosh, holding down the Shift
key to disable all extensions. Check that the
application works properly with System only.
Then restart your Macintosh, holding down the
Space bar to display the Extensions Manager
control panel. Turn off or on problematic
extensions in the panel to verify which is
incompatible with the Plug-in.
Cannot open the camera images.
* You cannot access the Digital Still Camera from two
or more applications at a time.
> Quit the other applications once and start the
“Sony Digital Still Camera Album Utility.” Then
try to access the camera.
Cannot select multiple images in an image list.
* The caps lock key is depressed.
+ Release the caps lock key.
Cannot display part of thumbnail.
> Click part of the thumbnail.
126 | Others
Index
A, B
Album format 79
C
Comment 113, 121
Connecting the Digital
Still Camera 84
Copying an image 115
Customizing the menu
92
D
Deleting images 116
DIGITAL 1/0 port 84
Displaying other
thumbnails 95
E
Edit frame 122
Enlarging an image 119
FG H.
Features 78
File type 103
!
Image filing system 79
Image information 121
Installing the software
82
J, K, L
JPEG 103
M, N
Making a new album
folder 99
Menus 87
Camera menu 88
Display menu 89
Edit menu 88
File menu 87
Image menu 89
Option menu 90
Window menu 89
O
Opening
an album of the hard
disk 109
an image file directly
111
the camera image
directly 97
the camera image list
94
Operation flow chart 80
P
PhotoStudio-DSC 78
PICT 103
Plug-in 78, 123
Preferences 92
Printing images 117
Protect setting 121
Q
QuickTime 92
R
Reducing an image 119
Rotating an image 120
S
Saving
Opening and saving
the camera images
98, 103
Saving the camera
images without
opening them
100, 105
Saving the camera
images as another
file type 103
Saving the camera
images in album
98
Saving the opened
image as another
file format 112
Selecting images 96
SERIAL menu 85
Setting up the Digital
Still Camera 84, 85
Sorting the images 114
Starting the software
86
System requirements
81
T
The order of the images
to be saved 98, 103
Thumbnail 79
Transferring
an image to the
camera 122
a camera images to
Plug-in application
123
U, V
Using the tool bar
91, 124
W, X, Y, Z
WIRELESS 85
Others
127
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
