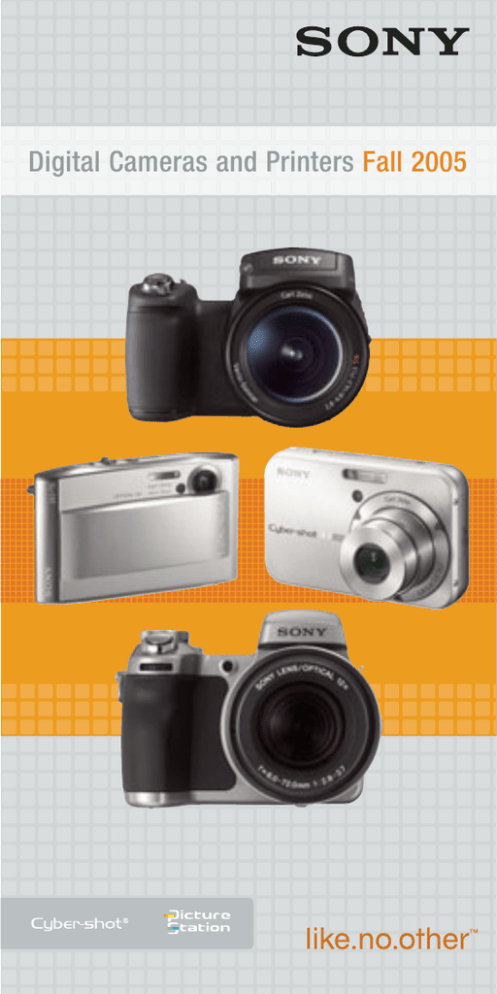

Digital Cameras and Printers Fall 2005
Digital
from the ground up.
Whether you’re taking your first steps into digital
photography or you’re an experienced shooter, Sony
anticipates your needs and exceeds your expectations.
With Sony Cyber-shot® cameras, you’ll enjoy flawless
imaging and exciting new ways to share your pictures
any time, anywhere. You’ll experience intuitive handling
with split-second response. And you’ll discover designs
so compact and slender, you can take them wherever
you go.
Sony innovation in digital cameras is no accident.
It comes from a mastery of all things digital, from the
sensors that capture your picture to the processor that
manages it to the media that stores it to the batteries
that power the entire system. And because Sony is not
limited by a film camera mentality, we’re free to create
digital cameras that change the way you see the world.
So if you’re researching digital cameras, we’ve put
everything you need to know into a single word. Sony.
The Bigger The Imager, The Better The Image
Sony’s DSC-R1 incorporates a professional-grade APS-C class image sensor.
At 21.5 x 14.4 mm it’s literally twelve times the area of a typical sensor! So you get
superb sensitivity, reduced image noise and an amazing 10.3 megapixels of resolution.
Other cameras with APS-C class sensors must depend on an optical viewfinder for
framing. Thanks to Sony CMOS technology, the R1 is the world’s first APS-C class sensor
with the immediacy and accuracy of a Live Preview of the scene. You can see Live
Preview on either the LCD monitor or using the through-the-lens electronic viewfinder.
The APS-C class image
sensor of the DSC-R1
has a whopping 12 times
the area of the typical
1/2.5" sensor.
Take In The Wider View
Because the DSC-R1 needs no optical viewfinder, it also doesn’t need the bulky mirror
and pentaprism such viewfinders can require. As a result, Sony is free to integrate a
more compact lens that can capture a tremendous range in field of view. The Carl
Zeiss® Vario-Sonnar® 5x zoom lens extends from an ultra-wide 24 mm all the way
to 120 mm (35mm equivalent). So you can get scenic and group photos beyond the
reach of most APS-class camera/lens combinations.
At 24 mm, the wide end of
the DSC-R1 lens enables you
to get dramatic scenic shots
and landscapes beyond the
reach of the typical 28 mm
wide end of an APS-class
camera/lens combination
(inset frame). Focal lengths
are 35mm equivalent. Sample
photo for illustration purposes.
The Legendary Lenses Of Carl Zeiss
Carl Zeiss® lenses are prized by professional photographers for their superior sharpness,
crisp contrast and gorgeous color. Sony Cyber-shot® cameras incorporate renowned
Vario-Tessar® and Vario-Sonnar® lens designs that are optimized for the specific
demands of digital shooting.
Shoot At The Speed Of Life
Life moves fast. If you’re not on your toes, the most memorable moments can pass
you by. That’s why every Sony camera incorporates the Real Imaging Processor™ LSI.
That’s how Sony cameras typically start in less than one second. And shutter lag is
typically 0.009 second! (Times vary by camera.)
Super Zoom
Perfect for sports photography, the 12x zoom lens of the DSC-H1 has the power to bring
distant subjects up close. Then you can pull back wide for impressive landscapes and
group photos.
Wide
3x
7x
4x
The 12x zoom of the
DSC-H1 brings you
closer to the action.
12x
The Stability You Seek
Sony understands that 12x zoom can magnify the effect of camera shake,
blurring pictures at all but the highest shutter speeds. That’s why the DSC-H1
also incorporates Sony’s powerful Super SteadyShot® optical image stabilization.
You get clearer pictures under demanding conditions: telephoto and longerduration low-light exposures.
The Great Big Screen
A digital camera’s LCD monitor is your window on the world. Sony incorporates big
2.0", 2.5" and even 3.0" LCD screens! Bigger on-screen displays make it easier to
shoot. And larger screens make it more gratifying to share your pictures with the
whole gang.
The giant 3-inch LCD
monitor of our DSC-N1
is the perfect way to
share your pictures.
Lights! Camera! MPEG Movies!
Because life doesn’t always stand still, most every Cyber-shot® camera can also shoot
high-resolution movies with sound. In selected movie modes, the recording time is
limited only by the capacity of the media. You can even capture about 2 GB of video
in a single take!
Simultaneous Movie and Still
If you can’t choose between movies and stills, shoot both at the same time! Hybrid
Recording on the DSC-M1 captures five seconds of video from BEFORE you press
the shutter, a still picture, plus three seconds after!
You Can’t Be Too Thin
While bulky cameras tend to stay on the shelf, Sony cameras are so small, light and
thin, you’ll want to take them everywhere you go. So they’re always ready for those
priceless, spur-of-the-moment shots. Our DSC-P200 is just one inch thin – and our
incredible T5 and T7 are even thinner!
Hundreds Of Pictures In Your Pocket
Want to show pictures of the kids? Want to watch co-workers drool over your vacation
photos? Sony’s DSC-N1 can store and share your pictures as never before. Our
pocket album function holds hundreds of VGA-size images, conveniently organized
by date. The slide show function lets you display your pictures with your own selection
of MP3 background music and transition effects!
Now everyone can see
what you did on your
Summer vacation.
Sony’s pocket album
function stores hundreds
of VGA-size images,
neatly filed by date.
Keep On Clicking
Digital cameras are notorious for “eating” batteries. That’s why Sony responds with the
extra longevity of NiMH and InfoLithium® batteries. That’s why Sony designed our Real
Imaging Processor™ LSI to save power. And that’s how Sony Stamina™ series cameras
get hundreds more shots before you need to recharge batteries! Sony keeps you clicking
long after other cameras have quit.
Easy Does It
The better you understand a camera’s controls, the better your pictures will be. When
you pick up a Sony camera, the shutter button is always where your right index finger
will be. Sony designed exceptionally large, clear menus for our LCD monitors. And
every operating mode is easy.
As You Like It
No matter what type of photographer you are, chances are there’s a Sony Cyber-shot®
camera that’s exactly right for you. Family types enjoy shooting and sharing with the
DSC-N1. First-timers appreciate the easy operation of our S40. Style sophisticates
love our sleek T7, T5 and P200. And serious shooters go for the sheer performance
of our R1 and V3.
DSC-S40
4.1
3x
MEGAPIXELS
OPTICAL ZOOM
Alkaline
Digital Camera
BATTERIES
The battery life to keep up with your lifestyle.
4.1 Megapixel Super HAD™ CCD with exclusive Sony technology for superb resolution,
sensitivity and clarity.
Carl Zeiss® Vario-Tessar® 3x optical zoom lens combines exceptional picture quality and
ultra-sleek design.
Incredible battery stamina: up to 110 shots with supplied alkalines; up to 550 shots with
optional NiMH rechargeables!*
Sony’s own Real Imaging Processor™ LSI for fast startup, fast shot-to-shot times and
extended battery stamina.
32 MB internal memory; shoot without a flash memory card.**
Slot for optional Memory Stick® and Memory Stick PRO™ media
to save more pictures, copy them for friends.
MPEG Movie VX Fine mode captures smooth video clips of
exceptional quality (with optional Memory Stick PRO™ media).
2X Precision Digital Zoom without the jagged picture edges
of other designs, resulting in smoother images.
1.5" LCD monitor makes it easy to frame shots and review
pictures (77K pixels).
14-bit Digital EXtended Processor (DXP) for extended dynamic
contrast and detail.
Multi-Pattern Measuring is not thrown off by a single bright
highlight or deep shadow for great exposure, automatically.
Auto Daylight Synchro Fill Flash identifies subjects in backlight
or shadow and fires for optimum exposure.
AA Alkaline batteries
USB cable
Wrist strap
Software CD-ROM
Monitor picture simulated.
*Actual battery life may vary upon usage patterns.
** A portion of the memory is used for data management functions. Actual available memory for storage is 30MB.
DSC-S60
DSC-S90
Digital Cameras
4.1
3x
MEGAPIXELS
OPTICAL ZOOM
Alkaline/NiMH
BATTERIES
Your pictures deserve the big-screen
treatment.
Large, 2" (DSC-S60) or 2.5" (DSC-S90) LCD monitors with 115K pixels make framing and
sharing pictures easy.
4.1 Megapixel Super HAD™ CCD with exclusive Sony technology for superb resolution,
sensitivity and clarity.
Carl Zeiss® Vario-Tessar® 3x optical zoom lens combines exceptional picture quality
and ultra-sleek design.
Incredible battery stamina: up to 420 shots with NiMH rechargeables (optional for DSC-S60,
supplied for DSC-S90).*
Sony’s own Real Imaging Processor™ LSI for fast startup, fast shot-to-shot times
and extended battery stamina.
†
Works with the optional CSS-SA Cyber-shot Station™ cradle
for instant connection to your computer and power.
32 MB internal memory; shoot without a flash memory card.**
Slot for optional Memory Stick® and Memory Stick PRO™ media
to save more pictures, copy pictures for friends.
MPEG Movie VX Fine mode captures smooth video clips of
exceptional quality (with optional Memory Stick PRO™ media).
†
Manual exposure mode with 46-step Shutter speed and 2-step
Aperture control.
Live Histogram display makes it easier than ever to analyze your
shots for correct exposure.
Add 30mm thread filters and wide or tele conversion lenses with
the optional VAD-PEB adaptor.
NH-AA-DA Rechargeable AA
batteries (supplied with DSC-S90,
optional for DSC-S60)
BC-CS2 battery charger
(DSC-S90 only)
AA Alkaline batteries
(DSC-S60 only)
AV/USB multi-connector cable
Wrist strap
Software CD-ROM
Monitor picture simulated.
†DSC-S90 only. *Actual battery life may vary upon usage patterns.
** A portion of the memory is used for data management functions. Actual available memory for storage is 30MB.
DSC-W5
DSC-W7
Digital Cameras
5.1/7.2
3x
MEGAPIXELS
OPTICAL ZOOM
NiMH
RECHARGEABLE BATTERIES
Benchmarks in resolution, convenience
and control.
5.1 Megapixel (DSC-W5) or 7.2 Megapixel (DSC-W7) Super HAD™ CCD with exclusive
Sony technology for superb resolution, sensitivity and clarity.
Carl Zeiss® Vario-Tessar® 3x optical zoom lens combines exceptional picture quality
and ultra-sleek design.
Ideal form factor with rangefinder-type, eye-level optical viewfinder for traditional
shooting style.
Extra-large, high-resolution 2.5" LCD monitor with 115K pixels makes framing and
reviewing pictures easy.
Sony’s own Real Imaging Processor™ LSI for fast startup, fast shot-to-shot times
and extended battery stamina.
†
32 MB internal memory; shoot without a flash memory card.*
Slot for optional Memory Stick® and Memory Stick PRO™ media
to save more pictures, copy pictures for friends.
MPEG Movie VX Fine mode captures smooth video clips of
exceptional quality (with optional Memory Stick PRO™ media).
Live Histogram display makes it easier than ever to analyze your
shots for correct exposure.
Manual exposure mode with 46-step Shutter speed and 2-step
Aperture control.
Add 30mm thread filters and wide or tele conversion lenses with
the optional VAD-WA adaptor.
Rechargeable AA NiMH batteries for long lasting power; supplied
BC-CS2 charger.
NH-AA-DA rechargeable
NiMH AA batteries
BC-CS2 battery charger
A/V and USB cables
Wrist strap
Software CD-ROM
Monitor picture simulated.
†DSC-W7 only.
* A portion of the memory is used for data management functions. Actual available memory for storage is 30MB.
DSC-P200
Digital Camera
7.2
3x
MEGAPIXELS
OPTICAL ZOOM
InfoLithium
®
RECHARGEABLE BATTERY
Superlative resolution in a supremely
compact design.
7.2 Megapixel Super HAD™ CCD with exclusive Sony technology for superb resolution,
sensitivity and clarity.
Carl Zeiss® Vario-Tessar® 3x optical zoom lens combines exceptional picture quality
and ultra-sleek design.
Outstanding picture-taking technology in a sleek, beautifully crafted camera you can
take anywhere – just 1" thin to fit most any pocket or purse.
Large, 2" LCD monitor with 134K pixels make it easy to frame shots and review pictures.
Sony’s own Real Imaging Processor™ LSI for fast startup, fast shot-to-shot times
and extended battery stamina.
Works with the optional CSS-PHB Cyber-shot Station™ cradle
for instant connection to your computer and power.
Manual exposure mode with 46-step Shutter speed and 2-step
Aperture control.
Multi-Pattern Measuring is not thrown off by a single bright
highlight or deep shadow for great exposure, automatically.
Live Histogram display makes it easier than ever to analyze your
shots for correct exposure.
Add 30mm thread filters and wide or tele conversion lenses with
the optional VAD-PHC adaptor.
14-bit Digital EXtended Processor (DXP) for extended dynamic
contrast and detail.
Designed for use with rechargeable InfoLithium® battery (included)
for long-lasting power without “memory effect;” enables timeremaining display.
NP-FR1 InfoLithium®
rechargeable battery
AC-LS5 AC adaptor/in-camera
charger
AV/USB multi-connector cable
Wrist strap
MSA-32A Memory Stick® Media
(32 MB)*
Software CD-ROM
Monitor picture simulated.
* A portion of the memory is used for data management functions. Actual available memory for storage is 30MB.
DSC-T5
Digital Camera
5.1
3x
MEGAPIXELS
OPTICAL ZOOM
InfoLithium
®
RECHARGEABLE BATTERY
Tall, talented and fashionably thin.
Ultra-thin vertical design with superb 5.1 Megapixel Super HAD™ CCD and Carl Zeiss®
Vario-Tessar® lens.
Barely the size of a deck of cards and less than 7/8" thin; sleek lens door doubles as
on/off switch.
Carl Zeiss® Vario-Tessar® 3x optical zoom lens combines exceptional picture quality
with unique internal design so it never extends from the camera body.
Extra-large 2.5" LCD monitor with 230K pixels; transflective design remains visible even
in bright sunlight.
Sony’s own Real Imaging Processor™ LSI for fast startup, fast shot-to-shot times
and extended battery stamina.
32 MB internal memory; shoot without a flash memory card.*
Fashionable, two-tone design features chrome or brushed textures
in Silver, Black, Gold or Red.
3x Optical/2x digital/6x total zoom brings even far-away subjects
up close.
Clear Photo LCD for higher resolution, contrast and brightness,
40% better color than Sony’s previous LCDs.
Magnifying Glass Mode can focus to within 0.4" (1 cm), displaying
images at 3.3X actual size for spectacular macro shots.
Slot for optional Memory Stick Duo™ and Memory Stick PRO Duo™
media; integrated tripod socket.
Designed for use with rechargeable InfoLithium® battery (included)
for long-lasting power without “memory effect;” enables timeremaining display.
NP-FT1 InfoLithium®
rechargeable battery
BC-CS3 battery charger
AV/USB/DC-in multi-cable
Wrist strap
Software CD-ROM
Monitor picture simulated.
* A portion of the memory is used for data management functions. Actual available memory for storage is 30MB.
DSC-T7
Digital Camera
5.1
3x
MEGAPIXELS
OPTICAL ZOOM
InfoLithium
®
RECHARGEABLE BATTERY
Incredible performance, incredibly thin.
The world’s most compact zoom camera: less than 0.6" thin, less than 3.8 cubic inches
in volume!
5.1 Megapixel Super HAD™ CCD with exclusive Sony technology for superb resolution,
sensitivity and clarity.
Carl Zeiss® Vario-Tessar® 3x optical zoom lens combines exceptional picture quality
with unique internal design so it never extends from the camera body.
Extra-large 2.5" LCD monitor with 230K pixels; transflective design remains visible even
in bright sunlight.
Smooth operation: lens door doubles as on/off switch.
Sony’s own Real Imaging Processor™ LSI for fast startup, fast
shot-to-shot times and extended battery stamina.
3x Optical/2x digital/6x total zoom brings even far-away subjects
up close.
Clear Photo LCD for higher resolution, contrast and brightness,
40% better color than Sony’s previous LCDs.
Magnifying Glass Mode can focus to within 0.4" (1 cm), displaying
images at 3.3X actual size for spectacular macro shots.
Multi-pattern measuring is not thrown off by a single bright
highlight or deep shadow for great exposure, automatically.
Memory Stick Duo™ and Memory Stick PRO Duo™ media are
ultra-compact, portable and rugged.
Designed for use with rechargeable InfoLithium® battery (included)
for long-lasting power without “memory effect;” enables timeremaining display.
NP-FE1 InfoLithium®
rechargeable battery
BC-CS3 battery charger
Interface adaptor
Camera holder with tripod socket
A/V and USB cables
Neck strap
MSA-M32A Memory Stick Duo™
media (32 MB)*
MSAC-M2 Memory Stick Duo™
Adaptor
Software CD-ROM
Monitor picture simulated.
* A portion of the memory is used for data management functions. Actual available memory for storage is 30MB.
Media
Representative
Shot Storage*
Memory Stick® Media
32 MB
64 MB
128 MB
Memory Stick PRO™ Media
256 MB
512 MB
1 GB
2GB
4GB††
JPEG Standard
3888 x 2592 (10 MP)
12
25
51
92
188
384
789
1622
3264 x 2448 (8 MP)
15
30
60
109
223
456
934
1847
3072 x 2304 (7 MP)
18
36
73
132
268
548
1125
2223
2560 x 1920 (5 MP)
23
48
96
174
354
723
1482
2928
2304 x 1728 (4 MP)
30
60
121
216
440
898
1841
3638
2048 x 1536 (3 MP)
37
74
149
264
537
1097
2250
4447
1920 x 1800 (2 MP;
16:9 Wide)
61
123
246
446
907
1852
3798
7596
1280 x 960 (1 MP)
93
187
376
649
1320
2694
5524
10915
640 x 480 (VGA)
491
985
1975
3571
7261
14821
30385
60036
3888 x 2592 (10 MP)
6
12
25
46
94
192
394
811
3264 x 2448 (8 MP)
8
16
32
59
121
247
506
1000
3072 x 2304 (7 MP)
9
18
37
67
137
279
573
1132
2560 x 1920 (5 MP)
12
25
51
92
188
384
789
1559
2304 x 1728 (4 MP)
16
32
65
119
242
494
1012
2001
2048 x 1536 (3 MP)
20
41
82
148
302
617
1266
2501
1920 x 1800 (2 MP;
16:9 Wide)
33
66
133
238
484
988
2025
4050
1280 x 960 (1 MP)
50
101
202
357
726
1482
3038
6003
640 x 480 (VGA)
196
394
790
1428
2904
5928
12154
24014
MPEG Movie Video Mail**
22:42
45:39
1:31:33
2:51:21
5:47:05
11:44:22
24:18:25
48:01:40
MPEG Movie EX**
5:52
11:48
23:39
42:47
1:27:01
N/A
N/A
N/A
MPEG Movie VX**
1:27
2:56
5:54
10:42
21:47
44:27
1:31:09
3:00:06
MPEG Movie VX Fine**
N/A
N/A
N/A
2:57
6:02
12:20
25:19
50:01
MPEGMovie 4 TV
640 x 480, 30 fps†
1:29
2:59
5:59
10:50
22:01
44:20
1:27:35
N/A
MPEGMovie 4 TV
320 x 240, 30 fps†
4:20
8:49
17:42
32:00
1:05:04
2:16:45
4:19:58
N/A
MPEGMovie 4 TV
320 x 240, 15 fps†
15:30
31:07
1:02:23
1:52:48
3:49:21
7:32:35
15:15:06
N/A
JPEG Fine
* Actual storage varies by camera. ** MPEG Movie Capacity in Hours:Minutes:Seconds. Actual storage varies by camera.
†
Does not include hybrid recorded video. Time will vary according to images recorded.
Due to FAT32 Limitations, maximum size for a single MPEG Movie file is approximately 2GB.
††
Complete the picture with Sony accessories!
To get the most out of digital photography, get connected
with Sony accessories. Increase your range with lens
adapters. Expand your creative horizons with filters.
Keep the power flowing with additional batteries. And
protect your camera with a custom-designed carrying
case! Sony accessories make it happen.
Sony Electronics, Inc. Digital Imaging & Information Technology Group, 16530 Via Esprillo Drive, San Diego, CA 92127
1-800-295-7669 www.sony.com/di
© 2005 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. Features
and specifications are subject to change without notice. Non-metric weights and measures are approximate. TV reception is simulated.
Sony, Cyber-shot, Cyber-shot Station, Hologram AF, InfoLithium, Stamina, Like No Other, Memory Stick, Memory Stick Duo, Memory Stick
PRO, Memory Stick PRO Duo, the Memory Stick logo, NightShot, Smart Zoom, SteadyShot and Super HAD are trademarks of Sony.
Carl Zeiss, Vario-Sonnar, and Vario-Tessar are trademarks of Carl Zeiss. All other trademarks are property of their respective owners.
* Available storage capacity of Memory Stick® and Memory Stick PRO™ media may vary. A portion of the memory is used for data management
functions. Actual available memory in MBs is 16=15, 32=30, 64=61, 128=123, 256=220, 512=460, 1GB=940MB, 2GB=1.85GB,
4GB=3.66GB. Memory Stick transfer speeds vary by and are dependent upon the host hardware device.
CA4910W
DPP-FP30
DPP-FP50
16
MILLION
COLORS
4"x6"
PRINT SIZE
Digital Photo Printers
QUALITY PROCESSOR
Sony brings lab-quality printing home!
Lab-quality prints at home with fabulous dye sublimation picture quality. Prints resist
moisture, fingerprints.
Preview images on your television (DPP-FP50 only).
PC free printing with creative printing options.
PictBridge® compatibility for direct printing via USB interface with compatible cameras.
Versatile printing directly from a camera’s Memory Stick®, Secure Digital™, CompactFlash®
media, or other media with adaptor (DPP-FP50 only).
16.7 million colors.
SuperCoat 2 protective lamination resists color shift, fading,
moisture and fingerprints!
Prints in two sizes: borderless 4 x 6" and borderless
3-1/2 x 5".
Paper tray
Software CD ROM
Video cable (DPP-FP50 only)
Fast: FP50 prints a 4 x 6" image in about 60 seconds from a PC,
including processing time (FP30: 90 seconds).
PC printing via USB interface.
Wireless remote control
(DPP-FP50 only)
40-sheet print pack
(DPP-FP30 only)
10-sheet print pack
(DPP-FP50 only)
AC Adaptor
DSC-N1
8.1
3x
MEGAPIXELS
OPTICAL ZOOM
Li-Ion
Digital Camera
RECHARGEABLE BATTERY
Stylish shooting meets the perfect picture
showcase.
8.1 Megapixel Super HAD™ CCD with exclusive Sony technology for superb resolution,
sensitivity and clarity.
Sleek, stylish design with enormous 3.0" LCD monitor that makes it easy to read menus,
share images with friends.
Pocket album function on-board storage for approximately 500 images (VGA size); each
picture you take automatically goes into the album!
Slide show function with your choice of transition effects and your own background music.
Easy, elegant touch-screen access to your Pocket Album pictures; simple search
by date and time.
26 MB internal memory for full-resolution pictures; shoot without
a flash memory card.*
Clear Photo LCD for higher resolution, contrast and brightness,
40% better color than Sony’s previous LCDs.
Carl Zeiss® Vario-Tessar® 3x optical zoom lens combines
exceptional picture quality and ultra-sleek design.
Sony’s own Real Imaging Processor™ LSI for fast startup, fast
shot-to-shot times and extended battery stamina.
Add captions, stamps and drawings with the supplied stylus and
direct, on-screen Paint feature.
Slot for optional Memory Stick Duo™ and Memory Stick PRO Duo™
media: save more pictures, copy them for friends.
Lithium Ion rechargeable battery.
NP-BG1 Lithium Ion
rechargeable battery
BC-CSG external battery charger
AV/USB/DC-in multi-cable
Wrist strap
Stylus
Software CD-ROM
Monitor picture simulated.
* A portion of the memory is used for data management functions. Actual available memory for storage is 26MB.
DSC-M1
5.1
3x
MEGAPIXELS
OPTICAL ZOOM
InfoLithium
Digital Camera
®
RECHARGEABLE BATTERY
Equally brilliant for digital pictures &
MPEG4 video.
Vertical orientation and articulated design optimized for capturing both MPEG4 video and
still pictures.
“Mode-less recording” with dedicated, oversized function keys for direct still image or
MPEG4 video capture.
Hybrid Recording: simultaneously captures still picture, plus five seconds of video
BEFORE you press the shutter and three seconds after!
Free angle LCD twists so you can put yourself in the picture; folds out for compact
playback, folds back for extra protection in transit.
Extra-large 2.5" LCD monitor, amazing in such a small camera, makes it easy to read
menus, share images with friends.
Carl Zeiss® Vario-Tessar® 3x optical zoom lens combines
exceptional picture quality with unique internal design so it
never extends from the camera body.
5.1 Megapixel Super HAD™ CCD with exclusive Sony technology
for superb resolution, sensitivity and clarity.
MPEGMovie4TV recording captures full-screen video at up to
30 fps with stereo sound; provides 50% more horizontal
resolution with 1/4 the file size.
Supplied UC-MA Cyber-shot Station™ USB Cradle for quick,
one-step connection to a PC, a television and AC power.
Magnifying Glass Mode can focus to within 0.4" (1 cm), displaying
images at 3.3X actual size for spectacular macro shots.
Memory Stick Duo™ and Memory Stick PRO Duo™ media are
ultra-compact, portable and rugged.
Designed for use with rechargeable InfoLithium® battery (included)
for long-lasting power without “memory effect;” enables timeremaining display.
NP-FT1 InfoLithium®
rechargeable battery
AC-LM5 AC adaptor/
in-camera charger
UC-MA Cyber-shot® Station
USB Cradle
Stereo A/V and USB cables
Wrist strap
MSA-M32A Memory Stick
Duo™ media (32 MB)*
MSAC-M2 Memory Stick
Duo™ Adaptor
Software CD-ROM
Monitor picture simulated.
* A portion of the memory is used for data management functions.
Actual available memory for storage is 30MB.
DSC-H1
Digital Camera
5.1
12x
MEGAPIXELS
OPTICAL ZOOM
NiMH
RECHARGEABLE BATTERIES
Get closer than ever with an optically
stabilized 12x zoom lens.
12x optical zoom lens pulls in far closer to distant subjects or pulls back for the wide shot.
Super SteadyShot® Optical Image Stabilization fights motion blur, even during longer
exposures at full zoom.
5.1 Megapixel Super HAD™ CCD with exclusive Sony technology for superb resolution,
sensitivity and clarity.
Ideal form factor with eye-level through-the-lens electronic viewfinder for traditional
shooting style.
Extra-large, high-resolution 2.5" LCD monitor with 115K pixels makes framing and
reviewing pictures easy.
Sony's own Real Imaging Processor™ LSI for fast startup, fast
shot-to-shot times and extended battery stamina.
MPEG Movie VX Fine mode captures smooth video clips of
exceptional quality (with optional Memory Stick PRO™ media).
32 MB internal memory; shoot without a flash memory card.*
Slot for optional Memory Stick® and Memory Stick PRO™
media to save more pictures, copy pictures for friends.
12x Optical/2x digital/24x total zoom brings even far-away subjects
up close.
Add 58mm thread filters and wide or tele conversion lenses.
Rechargeable AA NiMH batteries for long lasting power; supplied
BC-CS2 charger.
NH-AA-DA rechargeable
NiMH AA batteries
BC-S2 battery charger
Lens hood
Filter/conversion lens adaptor
A/V and USB cables
Shoulder strap
Software CD-ROM
Monitor picture simulated.
* A portion of the memory is used for data management functions. Actual available memory for storage is 30MB.
DSC-V3
7.2
4x
MEGAPIXELS
OPTICAL ZOOM
InfoLithium
Digital Camera
®
RECHARGEABLE BATTERY
The palm-sized camera for serious
photographers.
7.2 Megapixel Super HAD™ CCD with exclusive Sony technology for superb resolution,
sensitivity and clarity.
Carl Zeiss® Vario-Sonnar® 4x optical zoom lens combines exceptional quality with
extraordinary zoom range.
Flexible exposure modes: Aperture Priority, Shutter Priority, Program Shift and full manual.
NightShot® infrared system and NightFraming make it possible to take the low- or nolight pictures that other cameras can’t.
Extra-large, high-resolution 2.5" LCD monitor makes framing and reviewing pictures easy.
Full Manual Exposure with 46-step shutter speed and 13-step
aperture control.
5 Area Multi-Point Auto Focus with manually movable AF point,
14-step manual and Spot Focus option.
Hot Shoe and ACC terminal for external flash, remote controls,
sync with third-party studio flash systems.
Compatible with optional VAD-VHA lens adaptor for filters and
optional wide or tele conversion lenses.
RAW mode and data converter software captures data directly
from the CCD before any in-camera processing.
Dual Media capability accepts optional Memory
optional Compact Flash® Type I media.
Stick®
media,
Designed for use with rechargeable InfoLithium® battery (included)
for long-lasting power without “memory effect;” enables timeremaining display.
NP-FR1 InfoLithium®
rechargeable battery
AC-LS5 AC adaptor/
in-camera charger
A/V and USB cables
Shoulder strap
Software CD-ROMs
Monitor picture simulated.
DSC-R1
Digital Camera
10.3
5x
MEGAPIXELS
OPTICAL ZOOM
InfoLithium
®
RECHARGEABLE BATTERY
The bigger the imager, the better the image.
Professional-quality image sensor and remarkably wide zoom lens in a compact,
lens-integral body.
World’s first camera to combine an APS-C class image sensor and Live Preview
of the scene.
Sony 10.3 megapixel CMOS image sensor, 21.5 x 14.4 mm (APS-C class) for superbly
high sensitivity, low noise.
Live Preview of the scene in LCD monitor and TTL viewfinder shows 100% framing
accuracy, exposure, depth of field.
Carl Zeiss® Vario-Sonnar® 5x zoom lens with exclusive T* (T-star) coatings for high
contrast, superb detail.
Extraordinary combination of 24 mm wide angle, 5x zoom to
120 mm telephoto (35mm equivalent) and APS-C class sensor.
Three color modes: Standard sRGB, Vivid sRGB (emulates reversal
film) and Adobe® RGB for advanced applications.
Flexible manual exposure: F2.8-16; 30 sec. to 1/2000; Bulb
exposure to 3 min.; tunable white balance.
Advanced Gradation Control System enhances dynamic range,
avoids crushed blacks and clipped highlights.
Free-angle 2.0" LCD monitor makes it easy to take shots above
or far below eye level or around the corner!
Advanced monitor/viewfinder displays with grid lines, zebra stripes,
histogram, dedicated area for exposure information.
RAW mode captures unprocessed image data.
Hot Shoe, ACC terminal for external flashes, accessories.
NP-FM50 InfoLithium®
rechargeable battery
AC-L15 AC adaptor/
in-camera charger
Lens hood
Lens cap with strap
Video and USB cables
Shoulder strap
Software CD-ROMs
Monitor picture simulated.
C a m e ra
Lens & Imager
Sony Image Sensor
1/2.7" CCD
1/2.7" CCD
1/2.7" CCD
1/1.8" CCD
1/1.8" CCD
1/1.8" CCD
1/2.5" CCD
1/2.5" CCD
1/1.8" CCD
1/2.5" CCD
1/2.5" CCD
1/1.8" CCD
21.5 x 14.4 mm
CMOS
Megapixel
4.1 MP
4.1 MP
4.1 MP
5.1 MP
7.2 MP
7.2 MP
5.1 MP
5.1 MP
8.1 MP
5.1 MP
5.1 MP
7.2 MP
10.3 MP
Lens/Optical Zoom
Carl Zeiss, 3x
Carl Zeiss, 3x
Carl Zeiss, 3x
Carl Zeiss, 3x
Carl Zeiss, 3x
Carl Zeiss, 3x
Carl Zeiss, 3x
Carl Zeiss, 3x
Carl Zeiss, 3x
Carl Zeiss, 3x
Sony, 12x
Carl Zeiss, 4x
Carl Zeiss, 5x
Aperture
f2.8-5.2
f2.8-5.2
f2.8-5.2
f2.8-5.2
f2.8-5.2
f2.8-5.2
f3.5-4.4
f3.5-4.4
f2.8-5.4
f3.5-4.4
f2.8-3.7
f2.8-4.0
f2.8-4.8
Focal Length
5.1-15.3 mm
6-18 mm
6-18 mm
7.9-23.7 mm
7.9-23.7 mm
7.9-23.7 mm
6.7-20.1 mm
6.33-19 mm
8.7-23.5 mm
6.7-20.1 mm
6-72 mm
7.0-28 mm
14.3-71.5 mm
35mm Equivalency
32-96 mm
38-113 mm
38-113 mm
38-114 mm
38-114 mm
38-114 mm
38-114 mm
36-108 mm
38-114 mm
38-114 mm
36-432 mm
34-136 mm
24-120 mm
Smart Zoom™ Function
0-10X (VGA)
0-10X (VGA)
0-10X (VGA)
0-12X (VGA)
0-14X (VGA)
0-14X (VGA)
0-12X (VGA)
0-12X (VGA)
0-15X (VGA)
N/A
0-48X (VGA)
0-19X (VGA)
0-15X (1 MP)
Precision Digital Zoom
2x (6x Ttl)
2x (6x Ttl)
2x (6x Ttl)
2x (6x Ttl)
2x (6x Ttl)
2x (6x Ttl)
2x (6x Ttl)
2x (6x Ttl)
2x (6x Ttl)
2x (6x Ttl)
2x (24x Ttl)
2x (8x Ttl)
2x (10 Ttl)
Multi-Point AF
Auto, 5 Area
Auto, 5 Area
Auto, 5 Area
Auto, 5 Area
Auto, 5 Area
Auto, 5 Area
Auto, 5 Area
Auto, 5 Area
Auto/Manual,
5 Area
Auto/Manual,
5 Area
Auto, 3 Area
Auto, 5 Area
Auto/Manual,
5 Area
AF Illuminator Light
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Hologram AF
Yes
Manual Focus
N/A
Yes, 5-step
Yes, 5-step
Yes, 5-step
Yes, 5-step
Yes, 5-step
Yes, 5-step
Yes, 5-step
Yes, 5-step
Yes, 5-step
Yes, 5-step
Yes, 14-step
Yes,
Continuous Ring
NightShot ® System/
NightFraming
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Yes/Yes
N/A
White Balance
5 Preset
5 Preset
5 Preset
5 Preset
5 Preset
5 Preset
6 Preset
6 Preset
6 Preset
6 Preset
5 Preset
6 Preset,
manual
6 Preset,
manual
Aperture Range
Auto
f2.8-5.2
2-step
f2.8-5.2
2-step
f2.8-5.2
2-step
f2.8-5.6
2-step
f2.8-5.6
2-step
f2.8-5.2
2-step
f3.5-5.6
2-step
f3.5-5.6
2-step
f3.5-5.6
2-step
f3.5-5.6
10-step
f2.8-3.7
10-step
f2.0-8.0
16-step
f2.8-16.0
Shutter Speed Range
Auto
1/8-1/1000
46-step
30-1/1000
46-step
30-1/1000
46-step
30-1/1000
46-step
30-1/1000
46-step
30-1/1000
Auto
1-1/1000
Auto
1-1/1000
Auto
1-1/1000
Auto
1-1/1000
46-step
30-1/1000
46-step
30-1/1000
49-step to
1/2000, Bulb
Manual Exposure
N/A
Adj. Shutter/Ap
Adj. Shutter/Ap
Adj. Shutter/Ap
Adj. Shutter/Ap
Adj. Shutter/Ap
N/A
N/A
Adj. Shutter/Ap
N/A
Adj. Shutter/Ap
Adj. Shutter/Ap
Yes,
w/EV indicat o r
Scene Modes
6 mode
7 mode
7 mode
7 mode
7 mode
9 mode
10 mode
10 mode
8 mode
9 mode
6 mode
7 mode
4 mode
Flash Effective Range
6"-12'6"
(0.2-3.8 m)
1'8"-12'6"
(0.5-3.8 m)
1'8"-12'6"
(0.5-3.8 m)
1"-14'9"
(0.3-4.5 m)
1"-14'9"
(0.3-4.5 m)
8"-11'6"
(0.2-3.5 m)
4"-8'
4"-7'6"
(0.1-2.5 m) (Wide) (0.1-2.3 m)
1'-5'7"
(0.3-1.7 m)
1'-5.5'
(0.3-1.7 m)
1'-22'4"
(0.3-6.8 mm)
1.3-8'
(0.4-2.5 m)
1.6-13'1"
(0.5-4 m) (Wide)
LCD
1.5" 77K pixel
2" 115K pixel
2.5" 115K pixel
2.5" 115K pixel
2.5" 115K pixel
2" 134K pixel
2.5" 230K pixel
2.5" 230K pixel
3.0" 230K pixel
2.5" 123K pixel
2.5" 115K pixel
2.5" 123K pixel
2.0" 134K pixel
Eye level Viewfinder
Optical
Optical, True Zoom Optical, True Zoom Optical, True Zoom Optical, True Zoom Optical, True Zoom N/A
N/A
N/A
N/A
115K EVF LCD,
TTL
Optical, True Zoom 235K EVF LCD,
TTL
Histogram Display
N/A
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes, PB RGB
10MP Image
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
3888 x 2592
8MP Image
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
3264 x 2448
N/A
N/A
N/A
N/A
7MP Image
N/A
N/A
N/A
N/A
3072 x 2304
3072 x 2304
N/A
N/A
N/A
N/A
N/A
3072 x 2304
3264 x 2176
5MP Image
N/A
N/A
N/A
2592 x 1944
2592 x 1944
2592 x 1944
2592 x 1944
2592 x 1944
2592 x 1944
2592 x 1944
2592 x 1944
2592 x 1944
2784 x 1856
4MP Image
2304 x 1728
2304 x 1728
2304 x 1728
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
3MP Image
2048 x 1536
2048 x 1536
2048 x 1536
2048 x 1536
2048 x 1536
2048 x 1536
2048 x 1536
2048 x 1536
2048 x 1536
2048 x 1536
2048 x 1536
2048 x 1536
2160 x 1440
1MP Image
1280 x 960
1280 x 960
1280 x 960
1280 x 960
1280 x 960
1280 x 960
1280 x 960
1280 x 960
1280 x 960
1280 x 960
1280 x 960
1280 x 960
1296 x 864
VGA Image
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
N/A
3:2 Image
2304 x 1536
2304 x 1536
2304 x 1536
2592 x 1728
3072 x 2048
3072 x 2048
2592 x 1728
2592 x 1728
3264 x 2176
2592 x 1728
2592 x 1728
3072 x 2048
All Images
Burst Mode frames/fps
4-shot, 1.4 fps
(4MP)
4-shot, 1.4 fps
(4MP)
4-shot, 1.4 fps
(4MP)
9-shot, 1.4 fps
(5MP)
9-shot, 1.4 fps
(7MP)
5-shot, 0.9 fps
(7MP)
9-shot, 1.4 fps
(5MP)
9-shot, 1.4 fps
(5MP)
4-shot, 3 fps
(8MP)
4-shot, 3 fps
(5MP)
9-shot, 1.4 fps
(5MP)
8-shot, 2.5 fps
(7MP)
3-shot, 3 fps
(10MP)
Auto Exposure Bracketing
N/A
N/A
N/A
N/A
N/A
N/A
Yes
Yes
Yes
Yes
Yes
Yes
Yes
MPEG Movie Modes
VX Fin/Std, VM
VX Fin/Std, VM
VX Fin/Std, VM
VX Fin/Std, VM
VX Fin/Std, VM
VX Fin/Std, VM
VX Fine
VX Fin/Std, VM
VX Fin/Std, VM
MPEG MOVIE 4TV
VX Fin/Std, VM
VX Fin/Std, VM
N/A
Multi-Burst Mode
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
N/A
Playback Zoom
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Yes, 1.1X-5X
Trimming/Resizing
Yes/Yes
Yes/Yes
Yes/Yes
Yes/Yes
Yes/Yes
Yes/Yes
Yes/Yes
Yes/Yes
Yes/Yes
Yes/Yes
Yes/Yes
Yes/Yes
Yes/Yes
MPEG Cue/Rev/Divide
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
N/A
™
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Connections
USB
AV/USB via
Multi-use
AV/USB via
Multi-use
AV/USB
AV/USB
AV/USB via
Multi-use, Pwr
Multi-Connector
Interface Adaptor
Multi-Connector
Multi-Connector
AV/USB
AV/USB/Pwr/Acc
Video/USB/Pwr
Battery Compatibility
2 AA Alkaline,
NiMH
2 AA Alkaline,
NiMH
2 AA Alkaline,
NiMH
2 AA Alkaline,
NiMH
2 AA Alkaline,
NiMH
InfoLithium FR
InfoLithium FT
InfoLithium FE
Lithium Ion
NP-BG1
InfoLithium FT
2 AA Alkaline,
NiMH
InfoLithium FR
InfoLithium® FM
Camera
LCD/Viewfinder
Recording
Playback
PictBridge Compatibility
General
®
®
®
®
®
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
