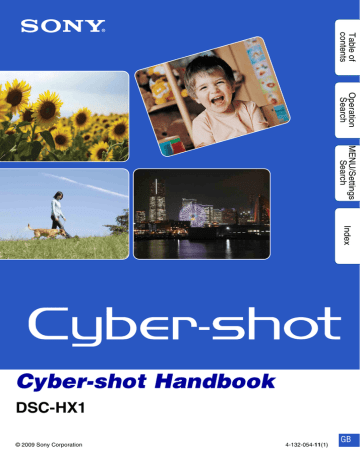

Cyber-shot Handbook
DSC-HX1
© 2009 Sony Corporation
4-132-054-11(1)
GB
Table of
contents
How to use this handbook
Click on a button at upper right to jump to the corresponding page.
This is convenient when searching for a function you want to view.
Operation
Search
Search for information by operation.
MENU/Settings
Search
Search for information in a listing of
MENU/Settings items.
Marks and notations used in this handbook
MENU/Settings
Search
Index
Search for information by keyword.
Operation
Search
Table of
contents
Search for information by function.
The default setting is indicated by
Index
In this handbook, the sequence of
operations is shown by arrows (t).
Operate the camera in the order indicated.
Marks are shown as they appear in the
camera’s default setting.
.
Indicates cautions and limitations relevant
to the correct operation of the camera.
Indicates information that is useful to know.
2GB
Notes on the types of “Memory Stick”
media that you can use (sold
separately)
“Memory Stick Duo” media:
You can use a “Memory Stick
Duo” media with the camera.
Other memory cards cannot be used
When using a “Memory Stick Duo”
media with “Memory Stick” media
compatible equipment
You can use the “Memory Stick Duo” media
by inserting it into the “Memory Stick Duo”
media Adaptor (sold separately).
Notes on the battery pack
• Charge the battery pack (supplied) before using
the camera for the first time.
• You can charge the battery pack even if it is not
completely discharged. In addition, even if the
battery pack is not fully charged, you can use the
partially charged capacity of the battery pack as
is.
• If you do not intend to use the battery pack for a
long time, use up the existing charge and
remove it from the camera, then store it in a
cool, dry place. This is to maintain the battery
pack functions.
• For details on the usable battery pack, see
page 171.
• Do not hold the camera by taking hold of the
LCD screen.
Index
“Memory Stick
Duo” media
Adaptor
Black, white, red, blue or
green dots
MENU/Settings
Search
• For details on “Memory Stick Duo” media, see
page 169.
• The LCD screen and the LCD finder are
manufactured using extremely high-precision
technology so over 99.99% of the pixels are
operational for effective use. However, some
tiny black and/or bright dots (white, red, blue or
green) may appear on the LCD screen. These
dots are a normal result of the manufacturing
process and do not affect the recording.
Operation
Search
“Memory Stick”
media: You cannot use a
“Memory Stick” media
with the camera.
Notes on the LCD screen, the LCD
finder and lens
Table of
contents
Notes on using the camera
• Exposing the LCD screen, the LCD finder or the
lens to direct sunlight for long periods may
cause malfunctions. Be careful when placing the
camera near a window or outdoors.
• Do not press against the LCD screen. The screen
may be discolored and that may cause a
malfunction.
• Images may trail across on the LCD screen in a
cold location. This is not a malfunction.
• Be careful not to bump the movable lens, and be
careful not to apply force to it.
Note when playing movies on other
devices
This camera utilizes MPEG-4 AVC/H.264 Main
Profile to record movies. Therefore, movies
recorded using this camera cannot be played on
devices that do not support MPEG-4 AVC/H.264.
The images used in this Handbook
The images used as examples in this Handbook are
reproduced images, and are not actual images shot
using this camera.
3GB
Notes on using the camera
MENU/Settings
Search
Shooting
Operation
Search
How to use this handbook····································· 2
Notes on using the camera ··································· 3
Operation Search ·················································· 7
MENU/Settings Search ······································· 10
Identifying parts··················································· 15
Using the mode dial ············································ 16
Using the jog dial················································· 17
Changing the DISP (screen display) setting ······· 18
Using the internal memory ·································· 20
Table of
contents
Table of contents
Index
Intelligent Auto Adjustment ································· 21
Scene Selection ·················································· 22
Easy Shooting ····················································· 24
Manual Exposure Shooting ································· 26
Shutter Speed Priority Shooting·························· 27
Aperture Priority Shooting ··································· 28
Program Auto ······················································ 29
Hand-held Twilight ·············································· 30
Anti Motion Blur··················································· 31
Sweep Panorama················································ 32
Movie Mode························································· 34
Smile Shutter······················································· 35
Zoom ··································································· 36
Self-Timer···························································· 37
Macro ·································································· 38
Flash ··································································· 39
Focus ·································································· 40
High-speed burst shooting/Exposure bracket ····· 42
EV ······································································· 44
ISO ······································································ 45
4GB
Viewing still images············································· 46
Playback zoom···················································· 47
Image Index ························································ 48
Delete·································································· 49
Viewing movies ··················································· 50
Operation
Search
MENU (Shooting)
Table of
contents
Viewing
MENU items (Shooting) ······································ 10
MENU items (Viewing) ········································ 12
MENU/Settings
Search
MENU (Viewing)
Index
Settings
Setting items ······················································· 13
TV
Viewing images on a TV with SD (Standard
Definition) ·························································· 129
Viewing images on an HD (High Definition) TV ····130
Computer
Enjoying your Windows computer····················· 135
Installing the software (supplied)······················· 137
On “PMB (Picture Motion Browser)” (supplied) ····138
Enjoying images on your computer··················· 139
Using the “Music Transfer” (supplied) ··············· 143
Using your Macintosh computer························ 144
Viewing “Cyber-shot Step-up Guide” ················ 147
5GB
Printing still images ··········································· 148
Printing images directly using a PictBridge
compliant printer················································ 149
Printing at a shop ·············································· 151
Troubleshooting ················································ 152
Warning indicators and messages ···················· 162
Using the camera abroad — Power sources ···· 168
On the “Memory Stick Duo” media···················· 169
On the InfoLITHIUM battery pack ····················· 171
On the battery charger ······································ 172
MENU/Settings
Search
Others
Operation
Search
Troubleshooting
Table of
contents
Printing
Index
Index
Index ································································· 173
6GB
Leaving the settings to Intelligent Auto Adjustment ······························· 21
the camera
Scene Selection ··················································· 22
Table of
contents
Operation Search
Scene Recognition ·············································· 62
Manual Exposure Shooting ······························ 26
Shutter Speed Priority Shooting ······················ 27
Aperture Priority Shooting ································· 28
Program Auto ······················································· 29
Shooting panoramic
images
Sweep Panorama ················································ 32
Shooting food
arrangements
Gourmet ································································· 22
Shooting close to
objects
Macro ······································································ 38
Shooting moving
objects
Advanced Sports Shooting ······························· 22
Movie Mode··························································· 34
High-speed burst shooting/Exposure bracket
Index
Shooting images
manually
MENU/Settings
Search
Portrait ···································································· 22
Twilight Portrait ···················································· 22
Smile Shutter ························································ 35
Scene Recognition ·············································· 62
Face Detection ····················································· 65
Anti Blink ································································ 68
Red Eye Reduction ············································· 69
Operation
Search
Shooting portraits
·················································································· 42
7GB
Shooting without blur
Scene Recognition ·············································· 62
DRO········································································· 70
Anti Motion Blur ···················································· 31
Slow Synchro (Flash On) ·································· 39
ISO ··········································································· 45
Histogram ······························································ 19
EV ············································································ 44
Changing focus
position
Focus ······································································ 40
Face Detection ····················································· 65
Changing image size
Image Size····························································· 54
Deleting images
Delete ································································ 49, 94
Format ·································································· 121
Displaying enlarged
images
Playback zoom ····················································· 47
Trimming ································································ 91
Editing images
Retouch ·································································· 91
Multi-Purpose Resize ········································· 93
Index
Adjusting exposure
MENU/Settings
Search
Shooting in dark places High Sensitivity····················································· 22
Operation
Search
Shooting with backlight Forced flash ·························································· 39
Table of
contents
High Sensitivity····················································· 22
Hand-held Twilight ·············································· 30
Anti Motion Blur ···················································· 31
2-second delay self-timer ·································· 37
ISO ··········································································· 45
SteadyShot ···························································· 77
Playing back a series of Continuous Playback·········································· 79
images in order
Slideshow with music ········································· 80
8GB
Easy Shooting ······················································ 24
Printing images with
the date
Using the “PMB (Picture Motion Browser)”
Changing date and
time settings
Area Setting ························································ 127
Date & Time Setting·········································· 128
Initializing settings
Initialize································································· 111
Printing images
Printing still images ··········································· 148
Viewing on TVs
Viewing images on a TV with SD
(Standard Definition)········································· 129
Viewing images on a HD (High Definition)
TV ··········································································· 130
Information about
optional accessories
“Cyber-shot Step-up Guide” ··························· 147
Table of
contents
Shooting/Viewing with
easy-to-see indicators
················································································ 138
Operation
Search
MENU/Settings
Search
Index
9GB
Table of
contents
MENU/Settings Search
MENU items (Shooting)
You can select the various shooting functions easily from the MENU button.
1 Press the MENU button to display the menu screen
Control button
Operation
Search
2 Select the desired menu item with v/V/b/B on the
control button
3 Press the MENU button to turn off the menu screen
In the table below, indicates a function is available and — that it is unavailable. Click each
item in the menu items to jump to the corresponding page.
Mode dial
Menu items
—
—
—
—
—
—
Movie shooting mode
—
—
—
—
—
—
Shooting Direction
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Image Size
Flash
—
White Balance
—
—
Metering Mode
—
—
Bracket Set
—
—
*
—
—
*
—
—
—
—
—
—
—
—
*
—
—
—
Scene Recognition
—
Smile Detection Sensitivity
—
—
Face Detection
—
—
—
—
—
—
*
—
Flash Level
—
—
—
—
—
—
—
Anti Blink
—
—
—
*
—
—
—
—
—
*
—
—
—
Red Eye Reduction
—
—
—
—
DRO
—
—
—
—
—
—
—
Noise Reduction
—
—
—
—
—
—
—
Color Mode
—
—
—
—
—
—
Color Filter
—
—
—
—
—
—
Color Saturation
—
—
—
—
—
—
Contrast
—
—
—
—
—
—
Sharpness
—
—
—
—
—
—
SteadyShot
—
—
(Settings)
Index
Scene Selection
MENU/Settings
Search
MENU button
*
—
—
* The operation is limited according to the selected Scene Selection mode.
10GB
Continued r
Note
Table of
contents
• Only the items that are available for each mode are displayed on the screen.
Operation
Search
MENU/Settings
Search
Index
11GB
MENU items (Viewing)
1 Press the
(Playback) button to switch to
playback mode
(Playback)
button
Control
button
Table of
contents
You can select the various viewing functions easily from the MENU button.
2 Press the MENU button to display the menu screen
Operation
Search
3 Select the desired menu item with v/V/b/B on the
control button
4 Press z on the center of the control button
MENU button
View Mode
Menu items
Internal
Memory
“Memory Stick Duo” media
Date View
Event View
Folder View
Folder View
—
—
—
—
—
—
(Slideshow)
(Date List)
(Event List)
—
—
(View Mode)
Index
Favorites
MENU/Settings
Search
In the table below, indicates a function is available and — that it is unavailable.
Click each item of the menu items to jump to the corresponding page.
—
(Filter by Faces)
(Change Main Image)
—
(Add / Remove
Favorites)
(Display Burst Group)
—
—
—
—
—
—
—
—
—
(Retouch)
(Multi-Purpose
Resize)
(Delete)
—
(Protect)
DPOF
—
(Print)
(Rotate)
(Select Folder)
—
—
—
—
(Settings)
Notes
• Only the items that are available for each mode are displayed on the screen.
• When the mode dial is set to
(Easy Shooting), if you press MENU, the delete screen appears. You
can select between [Delete Single Image] or [Delete All Images].
12GB
Setting items
(Settings) screen.
1 Press the MENU button to display the setting screen
Control button
3 Select the desired category with v/V, press B to
select each item, then z
4 Select the desired setting, then press z
MENU button
Categories
Shooting Settings
MENU/Settings
Search
Click each items of the menu items to jump to the corresponding page.
Operation
Search
2 Select
(Settings) with V on the control button,
then press z on the control button to display the
setup screen
Table of
contents
You can change the settings on the
Items
AF Illuminator
Grid Line
Digital Zoom
Conversion Lens
Flash Sync.
Auto Orientation
Index
Auto Review
Expanded Focus
Custom Button
Main Settings
Beep
Language Setting
Function Guide
Initialize
Demo Mode
HDMI Resolution
CTRL FOR HDMI
COMPONENT
Video Out
Wide Zoom Display
USB Connect
Download Music
Format Music
“Memory Stick” Tool
Format
Create REC.Folder
Change REC.Folder
Delete REC.Folder
Copy
File Number
13GB
Continued r
Categories
Format
File Number
Clock Settings
Area Setting
Date & Time Setting
Table of
contents
Internal Memory Tool
Items
Notes
Operation
Search
• [Shooting Settings] appears only when settings have been entered from shooting mode.
• [“Memory Stick” Tool] appears only when a “Memory Stick Duo” media is inserted in the camera, while
[Internal Memory Tool] appears only when a “Memory Stick Duo” media is not inserted.
MENU/Settings
Search
Index
14GB
Table of
contents
Identifying parts
Operation
Search
MENU/Settings
Search
A ON/OFF (Power) button
B Mode dial (16)
C
/
(Burst /Bracket) button (42)
D Shutter button
E For shooting: W/T (Zoom) lever (36)
For viewing:
(Index) lever/
(Playback zoom) lever (48, 47)
O Stereo microphone
G Self-timer lamp/
Smile Shutter lamp/
AF illuminator
P Finder
H Lens
I Flash
J Finder adjustment dial
K FINDER/LCD button
L Hook for shoulder strap
M DC IN jack/DC IN jack cover
N Multi connector
Q
(Playback) button (46)
Index
F FOCUS button (40)
R LCD screen
S
(Delete) button (49)
T
(Custom) button (107)
U Jog dial (17)
V Hook for shoulder strap
W MENU button (10)
X Control button
Menu on: v/V/b/B/z
Menu off: DISP/ / /
Y Speaker
Z Battery insertion slot
wj Battery eject lever
wk “Memory Stick Duo” media slot
wl Access lamp
e; Battery/ “Memory Stick Duo” media
cover
ea Tripod receptacle
es RESET button
15GB
Set the mode dial to the desired function.
Mode dial
Table of
contents
Using the mode dial
Operation
Search
(Easy Shooting)
(Program Auto)
Allows you to shoot with the settings adjusted automatically
(page 21).
Allows you to shoot/view still images with easy-to-see indicators
(page 24).
Allows you to shoot with the exposure adjusted automatically (both
the shutter speed and the aperture value) (page 29). You can set
various functions using the menu.
Allows you to shoot after adjusting the shutter speed manually
(page 27).
(Aperture Priority
Shooting)
Allows you to shoot after adjusting the aperture value manually
(page 28).
(Manual Exposure
Shooting)
Allows you to shoot after adjusting the exposure manually (both the
shutter speed and the aperture (F value)) (page 26). You can set
various functions using the menu.
(Anti Motion Blur)
Allows you to shoot with reduced blur without using the flash when
composing burst shots taken in high-speed (page 31).
(Hand-held Twilight)
Allows you to shoot with reduced blur in low light scenes without
tripod when composing burst shots taken in high-speed (page 30).
(Sweep Panorama)
Allows you to shoot a panoramic image after composing images
(page 32).
(Scene Selection)
Allows you to shoot with preset settings according to the scene
(page 22).
(Movie Mode)
Index
(Shutter Speed
Priority Shooting)
MENU/Settings
Search
(Intelligent Auto
Adjustment)
Allows you to record movies with audio (page 34).
16GB
The jog dial is used to change the setting values when shooting in Manual Exposure Shooting,
Shutter Speed Priority Shooting, Aperture Priority Shooting, Program Auto, ISO sensitivity
adjustment, the focus method adjustment or the EV adjustment. By turning the jog dial, you can
easily view the next/previous image. You can also adjust the EV settings in
(Intelligent
Auto Adjustment) or
(Scene Selection).
In
(Advanced Sports Shooting), you can set the EV and ISO settings with the jog dial.
Jog dial
Selecting the
setting value
The item to set is displayed larger.
2 Turn the jog dial to select the setting value
Turn right to increase the value, turn left to decrease the value.
MENU/Settings
Search
1 Press the jog dial to select an item in the shooting screen
Operation
Search
Selecting
the item
Table of
contents
Using the jog dial
Note
Index
• Items displayed in gray cannot be set by pressing the jog dial.
17GB
1 Press DISP (screen display) on the control button
Table of
contents
Changing the DISP (screen
display) setting
2 Select the desired mode with the control button
Bright +
Histogram
Sets screen brighter and displays a graph of the
image brightness.
Image information is also displayed during
playback.
Sets screen brighter and displays the
information.
Normal
Sets screen to standard brightness and displays
the information.
Index
Bright
MENU/Settings
Search
Sets screen brighter and displays only images.
Operation
Search
Bright +
Image Only
Note
• If you view images in bright outside light, adjust the screen brightness up. However, the battery power
may decrease faster under such condition.
18GB
Histogram
Table of
contents
A histogram is a graph showing the brightness of an image. The graph display indicates a bright
image when skewed to the right side, and a dark image when skewed to the left side.
A Number of pixels
B Brightness
A
Bright
1 Press DISP (screen display) on the control button, then select [Bright +
Histogram]
Index
• The histogram also appears when playing back a single-image, but you cannot adjust the exposure.
• The histogram does not appear when:
– Recording movies
– Playing back movies
– Viewing vertical orientation images
– Rotating still images
– Shooting with Sweep Panorama
– Viewing images shot with Sweep Panorama
– Viewing main images
• A large difference in the histogram displayed during shooting and playback may occur when:
– The flash strobes
– The shutter speed is slow or fast
• The histogram may not appear for images recorded using other cameras.
MENU/Settings
Search
Notes
Operation
Search
B
Dark
19GB
The camera has approximately 11 MB of internal memory. This memory is not removable. Even
when there is no “Memory Stick Duo” media inserted in the camera, you can record images
using this internal memory.
B
Internal
memory
When there is no “Memory Stick Duo” media
inserted
[Recording]: Images are recorded using the internal
memory.
[Playback]: Images stored in the internal memory are played
back.
[Menu, Settings, etc.]: Various functions can be
performed on images in the internal memory.
We recommend that you copy (back up) data without error using one of the following methods.
Index
On image data stored in the internal memory
MENU/Settings
Search
B
Operation
Search
When a “Memory Stick Duo” media is inserted
[Recording]: Images are recorded on the “Memory Stick
Duo” media.
[Playback]: Images on the “Memory Stick Duo” media are
played back.
[Menu, Settings, etc.]: Various functions can be
performed on images on the “Memory Stick Duo” media.
Table of
contents
Using the internal memory
To copy (back up) data on a hard disk of your computer
Perform the procedure on pages 139 to 140 without a “Memory Stick Duo” media inserted in the
camera.
To copy (back up) data on a “Memory Stick Duo” media
Prepare a “Memory Stick Duo” media with sufficient free capacity, then perform the procedure
explained in [Copy] (page 125).
Notes
• You cannot transfer image data on a “Memory Stick Duo” media to the internal memory.
• By making a USB connection between the camera and a computer with a cable for multi-use terminal,
you can transfer data stored in the internal memory to a computer. However you cannot transfer data on a
computer to the internal memory.
20GB
Allows you to shoot still images with the setting adjusted automatically.
1 Set the mode dial to
(Intelligent Auto Adjustment)
Table of
contents
Intelligent Auto Adjustment
2 Shoot with the shutter button
Note
zOn Scene Recognition
Operation
Search
• Flash mode is set to [Flash Auto] or [Flash Off].
Scene Recognition operates in Intelligent Auto Adjustment mode. This function lets the
camera automatically recognize the shooting conditions and shoot the image.
The camera recognizes (Twilight),
(Twilight Portrait),
(Twilight using a tripod),
(Backlight),
(Backlight Portrait),
(Landscape), (Macro) or
(Portrait), and
displays an icon on the LCD screen when the scene is recognized.
For details, see page 62.
Index
zIf you shoot a still image of a subject that is difficult
MENU/Settings
Search
Scene Recognition icon
to focus on
• The shortest shooting distance is approximately 1 cm (13/32 inches) (W), 150 cm (4 feet
11 1/8 inches) (T) (from the lens).
• When the camera cannot focus on the subject automatically, the AE/AF lock indicator changes to
flash slowly and the beep does not sound. Either recompose the shot or change the focus setting
(page 40).
• Focusing may be difficult in the following situations:
– It is dark and the subject is in distance
– The contrast between the subject and the background is poor
– The subject is seen through glass
– The subject is moving quickly
– There is reflective light or shiny surfaces
– The subject is flashing
– The subject is backlit
21GB
Table of
contents
Scene Selection
Allows you to shoot with preset settings according to the scene.
1 Set the mode dial to
(Scene Selection)
2 Select the desired mode t z on the control button
If you want to switch to another scene, press the MENU button.
Operation
Search
(High Sensitivity) Allows you to shoot images without a
flash under low light conditions,
reducing blur.
Allows you to shoot with backgrounds blur away, and
the subject is sharpened.
(Advanced
Sports Shooting)
Allows you to shoot subjects with fast movements such
as sports.
While the shutter is pressed halfway, the movement of
the subject is predicted and the focus will be adjusted.
(Landscape)
MENU/Settings
Search
(Portrait)
Allows easy shooting of distant scenes by focusing in
the distance. Shoots vivid blue sky and flora colors.
Index
(Twilight Portrait) Allows you to shoot sharp images of people with the
night view in the background without compromising the
atmosphere.
(Twilight)
Allows you to shoot night scenes at far distance without
losing the dark atmosphere of the surroundings.
(Gourmet)
Allows you to shoot food arrangements in delicious and
bright color.
(Beach)
(Snow)
(Fireworks)
Allows you to record the blue of the water clearly when
shooting seaside or lakeside scenes.
Allows you to record clear images preventing sunken
colors in snowy scenes or other places where the whole
screen appears white.
Allows you to record fireworks in all their splendor.
22GB
Continued r
Note
Functions you can use in Scene Selection
Operation
Search
For shooting an image appropriately according to the scene condition, a combination of
functions is determined by the camera. indicates a function is available, and — that it is
unavailable. The icons below [Flash] indicate the available flash modes.
Some functions are not available, depending on the Scene Selection mode.
Self-Timer
—
Macro On
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
*
Burst/Bracket
—
ISO
—
White Balance
**
—
—
—
Red Eye Reduction
—
—
Anti Blink
—
—
* [Off] for [Face Detection] cannot be selected.
** [Flash] for [White Balance] cannot be selected.
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Index
SteadyShot
—
—
—
MENU/Settings
Search
Flash
Face Detection/
Smile Shutter
Table of
contents
• When you shoot images using
(Twilight Portrait), (Twilight) or
(Fireworks) mode, the shutter
speed is slower and the images tend to blur. To prevent blurring, the use of a tripod is recommended.
23GB
Table of
contents
Easy Shooting
Allows you to shoot still images using the minimum necessary functions.
The settings you can change are [Image Size], [Self-Timer] and [Flash].
The text size increases and indicators become easier to see.
1 Set the mode dial to
(Easy Shooting)
Operation
Search
2 Shoot with the shutter button
Note
• The battery power decreases faster because the screen brightness increases automatically.
zChanging Image Size, Self-Timer and Flash settings
MENU t [Image Size] t z on the control button t desired
mode t z
Select between [Large] or [Small] size.
Self-Timer:
on the control button t desired mode
Select between [Self-Timer 10sec] or [Self-Timer Off] mode.
Flash:
on the control button t desired mode
Select between [Flash Auto] or [Flash Off] mode.
MENU t [Flash] t z t desired mode t z
Select between [Auto] or [Off] mode.
MENU/Settings
Search
Image Size:
Index
zOn Scene Recognition
Scene Recognition operates in Easy Shooting mode. This function lets the camera
automatically recognize the shooting conditions and shoot the image.
Scene Recognition icon
The camera recognizes (Twilight),
(Twilight Portrait),
(Twilight using a tripod),
(Backlight),
(Backlight Portrait),
(Landscape), (Macro) or
(Portrait) and
displays an icon on the LCD screen when the scene is recognized.
For details, see page 62.
24GB
Continued r
When you press the
(Playback) button with the mode dial set to
(Easy Shooting),
the playback screen text becomes larger and easier to see. In addition, the functions that can
be used are limited.
(Delete) button:
MENU button:
• View Mode is set to [Folder View]. If you set the mode dial to a mode other than
(Easy
Shooting), then playback images, the images are displayed in the preselected View Mode.
Operation
Search
You can delete the currently displayed image.
Select [OK] t z
You can delete the currently displayed image with [Delete Single
Image], delete all images in a folder with [Delete All Images].
Table of
contents
zOn Easy Viewing mode
MENU/Settings
Search
Index
25GB
You can shoot still images at a desired exposure after adjusting shutter speed and the aperture (F
value) manually.
The camera maintains the setting even when the power is turned off. Once you set a value, you
can reproduce the same exposure by simply setting the mode dial to
(Manual Exposure
Shooting).
(Manual Exposure
F value
2 Press the jog dial to select ISO, shutter speed or
aperture (F value)
Operation
Search
1 Set the mode dial to
Shooting)
Table of
contents
Manual Exposure Shooting
Each time you press the jog dial, the selectable items change.
4 Shoot with the shutter button
Shutter speed
EV value
Notes
• If the proper exposure is not obtained after making the settings, the setting value indicators on the screen
flash when the shutter button is pressed halfway down. You can shoot in this condition, but we
recommend that you adjust the flashing value again.
• The flash is set to [Flash On] or [Flash Off].
(F value)
Index
zIf you set the shutter speed and the aperture
MENU/Settings
Search
3 Turn the jog dial to set the value
The difference between the exposure set manually and proper exposure judged by the
camera appears on the screen as an EV value. You can use this value to judge the brightness
of the image. 0EV indicates the value set manually is judged the most suitable by the
camera. EV with “+” indicates image overexposure, EV with “–” indicates underexposure.
26GB
You can shoot still images after adjusting the shutter speed manually.
1 Set the mode dial to
(Shutter Speed Priority Shooting)
Table of
contents
Shutter Speed Priority Shooting
2 Press the jog dial
3 Turn the jog dial to select the shutter speed value
Operation
Search
You can select a shutter speed from 1/4000 to 30 seconds.
You can set the EV or ISO setting with the jog dial.
4 Shoot with the shutter button
Shutter speed
• The flash is set to [Flash On] or [Flash Off].
• When the shutter speed is fast, the amount of flash light may be insufficient even if you fire the flash.
• If the proper exposure is not obtained after making the settings, the setting value indicators on the screen
flash when the shutter button is pressed halfway down. You can shoot in this condition, but we
recommend that you adjust the flashing values again.
MENU/Settings
Search
Notes
zThe setting range of the shutter speed
Aperture (F value)
1/2000 to 30 seconds
Index
1/4000 to 30 seconds
Zoom scale
(Wide)
(Zoom)
A Approx. ×1.4
B Approx. ×20
• Shutter speed of one second or longer are indicated by ["], for example, 1".
• When you set the shutter speed slower, using a tripod is recommended to prevent the effects of
vibration.
• If you select slow shutter speeds, it takes time to process the data.
• If the shutter speed is set at 1/3 second or slower, the NR slow shutter function activates
automatically to reduce the picture noise and
appears.
zAbout the shutter speed
When you set the shutter speed faster, moving objects such as
running people, cars or splashing water, etc., appear stopped.
When you set the shutter speed slower, the traces of moving objects
such as a river current etc., appear. You can shoot more natural live
action images.
27GB
Table of
contents
Aperture Priority Shooting
You can manually adjust the amount of light that passes through the lens.
1 Set the mode dial to
(Aperture Priority Shooting)
2 Press the jog dial
3 Turn the jog dial to select the aperture (F value)
4 Shoot with the shutter button
Operation
Search
You can select an aperture (F value) from F 2.8 to F 8.0.
The shutter speed is automatically adjusted from 1/2000 to 8
seconds.
You can set the EV or ISO setting with the jog dial.
Aperture (F value)
zAbout the aperture priority
Index
The lower the aperture (F value), the wider the hole that lets light
pass through. The depth of focus decrease, and everything except
objects within a narrow range of distance will be out of focus. This is
good for portraits, etc.
MENU/Settings
Search
Notes
• The flash is set to [Flash On], [Slow Synchro (Flash On)] or [Flash Off].
• If the proper exposure is not obtained after making the settings, the setting value indicators on the screen
flash when the shutter button is pressed halfway down. You can shoot in this condition, but we
recommend that you adjust the flashing values again.
The higher the aperture (F value), the smaller the hole that lets light
pass through. Both objects relatively close and far away from the lens
will appear sharp. This is good for landscapes, etc.
28GB
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the
aperture (F value)). Also you can select various settings using the menu.
1 Set the mode dial to
Table of
contents
Program Auto
(Program Auto)
2 Shoot with the shutter button
You can change the aperture (F value) and shutter speed combination while keeping the
exposure fixed.
2 Turn the jog dial
“ ” on the screen changes to “
” and the shooting mode changes to program shift.
3 Turn the jog dial to select the aperture (F value)
and shutter speed combination
You can set the EV or ISO setting with the jog dial.
MENU/Settings
Search
1 Press the jog dial
Operation
Search
Program shift
4 Shoot with the shutter button
Shutter speed/
aperture (F value)
Notes
Index
To cancel program shift, turn the jog dial to return the
indication to “ ”.
• You cannot shift the aperture value and shutter speed combination when the shutter button is pressed
halfway down.
• According to the brightness of the environment, the program shift may not be used.
• Set the mode dial to the one other than “ ” or turn off the power to cancel the setting you made.
• When the brightness changes, the aperture (F value) and shutter speed also change while maintaining the
shift amount.
• When the flash mode setting is changed, program shift is canceled.
29GB
Although night scenes tend to blur by camera shake, this mode allows you to shoot night scenes
with less noise and blur without using a tripod. A series of high-speed burst shots are taken with
one full press of the shutter button, and image processing is applied to reduce blur and noise.
1 Set the mode dial to
Table of
contents
Hand-held Twilight
(Hand-held Twilight)
Notes
MENU/Settings
Search
• The shutter sound beeps 6 times and an image is recorded.
• Reducing blur is less effective in the following situations:
– Image with erratic movement
– Image with a main subject too close to the camera
– Image with little contrast such as sky, sandy beach, or lawn
– Image with constant change such as waves or water falls
• Smile Shutter cannot be used in Hand-held Twilight.
Operation
Search
2 Shoot with the shutter button
Index
30GB
This is suitable for indoor shots without using the flash to reduce the subject blur. A series of
high-speed burst shots are taken with one full press of the shutter button, and image processing is
applied to reduce subject blur and noise.
1 Set the mode dial to
Table of
contents
Anti Motion Blur
(Anti Motion Blur)
Notes
MENU/Settings
Search
• The shutter sound beeps 6 times and an image is recorded.
• Reducing blur does not effective in the following situations:
– Image with erratic movement
– Image with a main subject too close to the camera
– Image with little contrast such as sky, sandy beach, or lawn
– Image with constant change such as waves or water falls
• Smile Shutter cannot be used in Anti Motion Blur.
Operation
Search
2 Shoot with the shutter button
Index
31GB
Table of
contents
Sweep Panorama
Allows you to create a panoramic image from composed images.
You can create both up and down, both right and left panoramic images.
1 Set the mode dial to
(Sweep Panorama)
Hold the camera at the position where you can see the LCD
screen clearly.
This part will not be taken
3 Pan the camera following the indication on
the screen
Guidance
bar
Notes
Index
• If you cannot pan the camera across the entire subject within the given time, a gray area occurs in the
composed image. If this happens, move the camera fast to record a full panoramic image.
• Since several images are stitched together, the stitched part will not be recorded smoothly.
• You cannot create panoramic images in the following situations:
– You pan the camera too fast or too slow
– There is too much camera shake
– You pan the camera in a different direction from the setting
• Under low light conditions, panoramic images may be blurred.
MENU/Settings
Search
The guidance bar is displayed as camera moves.
When a guidance bar reaches to the end, the shooting
stops and panoramic images are recorded.
Operation
Search
2 Fully press the shutter button
zChanging the shooting direction or image size of a
panoramic image
Shooting Direction: MENU t [Shooting Direction] t z on the control button t
select [Right], [Left], [Up] and [Down] t z
Image Size:
MENU t [Image Size] t z on the control button t select
[Standard] or [Wide] t z
32GB
Continued r
Horizontal direction
You can scroll panoramic images by pressing z on the control button while panoramic
images are played back.
Shows the displayed area of the
whole panoramic image
Control button
Adjustability
z
Playback scrolling images/
stop
• Press z to display the
whole image while
stopping scrolling.
b/B
Scrolling images in the
horizontal position
v/V
Scrolling images in the
vertical position
Index
zPlaying back for panoramic images
MENU/Settings
Search
Radius as short as possible
Operation
Search
Vertical direction
• Pan the camera in an arc with a constant velocity.
• Pan the camera in the same direction as the indication
on the LCD screen. If the camera shakes during the
panning, the joint may not be recorded smoothly.
• Determine the scene and press the shutter button
halfway, so that you can lock the exposure and white
balance.
• When the whole angle of panoramic shooting and the
locked angle are extremely different in brightness,
color and focus, the shooting will not be successful. If
this happens, change lock angle and shoot again.
• Sweep Panorama is not suitable for the following
situations:
– Objects are moving
– Objects are too close to the camera
– Image with a repeating pattern such as tiles and
image with little contrast such as sky, sandy beach,
or lawn
– Image with constant change such as waves or water
falls
• Under lights that flicker such as fluorescent light, the
brightness or color of the combined image is not
always the same.
Table of
contents
zTips for shooting a panoramic image
• Panoramic images are played back with the supplied software “PMB” (page 138).
33GB
Allows you to record movies with audio.
1 Set the mode dial to
(Movie Mode)
Table of
contents
Movie Mode
2 Press the shutter button fully down
3 To stop recording, press the shutter button fully down again
Operation
Search
MENU/Settings
Search
Index
34GB
Table of
contents
Smile Shutter
When the camera detects a smile, the shutter is released automatically.
1 Press
(Custom) button
2 Wait detecting a smile
3 To stop shooting, press
(Custom) button again
Face Detection frame
• Shooting using the Smile Shutter ends automatically when either the “Memory Stick Duo” media or
internal memory becomes full.
• Smiles may not be detected correctly depending on the conditions.
• You cannot use the digital zoom function.
• When
(Advanced Sports Shooting),
(Landscape), (Twilight), (Gourmet), or (Fireworks)
mode is selected in Scene Selection or
(Sweep Panorama),
(Hand-held Twilight) or
(Anti
Motion Blur) is selected, you cannot use the Smile Shutter function.
• You cannot use the Smile Shutter if you set [Metering Mode] or [White Balance] to the (Custom)
button. Set [Smile Shutter] with the [Custom Button] in
(Shooting Settings) (page 107).
Do not cover the eyes with the bangs.
Do not obscure the face by hat, masks, sunglasses, etc.
2 Try to orient the face in front of the camera and be as
level as possible. Keep the eyes narrowed.
3 Give a clear smile with an open mouth. The smile is
easier to detect when the teeth are showing.
1
Index
zHints for better capturing of smiles
MENU/Settings
Search
Smile Detection Sensitivity
indicator
Notes
Operation
Search
When the smile level exceeds the b point on the indicator, the
camera records images automatically.
If you press the shutter button during Smile Shutter, the camera
shoots the image, then returns to Smile Shutter mode.
• The shutter operates when any person whose face is being detected smiles.
• You can select or register the selected subject for face detection with [Face Detection]. When the
selected-face is registered in the camera memory, Smile Detection is performed only for that face.
To perform smile detection for a different face, change the selected face with z on the control
button (page 65).
• If a smile is not detected, set the [Smile Detection Sensitivity] in setting menu.
35GB
You can enlarge the image when shooting. The camera’s optical zoom function can enlarge
images up to 20×.
1 Turn the W/T (Zoom) lever
Table of
contents
Zoom
T side
Turn the lever to T side to zoom in, and to W side to zoom out.
W side
MENU/Settings
Search
Notes
• The operating sound of the lens might be recorded while shooting a movie. A beep sound of other buttons
such as the jog dial or W/T (Zoom) lever might be recorded.
• Even if you turn the lever fully, the camera zooms slowly while shooting a movie.
• Zoom is not valid when shooting in
(Sweep Panorama).
Operation
Search
• Turning the lever slightly zooms slowly and turning the lever fully
zooms fast.
• When the zoom scale exceeds 20×, see page 101.
Index
36GB
1 Press
(Self-Timer) on the control button
2 Select the desired mode with the control button
(Self-Timer
Table of
contents
Self-Timer
Does not use the self-timer.
Off)
Sets the 10-second delay self-timer.
When you press the shutter button, the self-timer lamp flashes and a
beep sounds until the shutter operates.
To cancel, press again.
(Self-Timer
2sec)
Sets the 2-second delay self-timer.
• In Easy Shooting mode, you can select only [Self-Timer 10sec] or [Self-Timer Off].
• The self-timer is not valid when shooting in
(Advanced Sports Shooting) or
(Sweep Panorama).
zReducing blurring with the 2-second self-timer
MENU/Settings
Search
Notes
Operation
Search
(Self-Timer
10sec)
• Use the 2-second delay self-timer to prevent blur of an image. The shutter is released 2 seconds after
you press the shutter button, which reduces camera shake.
Index
37GB
Use this setting to capture beautiful close-up images of small subjects such as insects or flowers.
1 Press
(Macro) on the control button
Table of
contents
Macro
2 Select the desired mode with the control button
Adjusts the focus automatically from distant subjects to close-up.
• Normally, put the camera in this mode.
(Macro On)
Adjusts the focus with priority on close-up subjects. Set Macro On
when shooting close subjects.
• Setting the zoom all the way to the W side is recommended.
Operation
Search
(Auto)
Notes
MENU/Settings
Search
• The Auto Focus speed becomes slower when you shoot images in the Macro mode.
• Macro mode is fixed to [Auto] when the camera is in Intelligent Auto Adjustment mode or in Movie
Mode.
Index
38GB
1 Press
(Flash) on the control button
2 Select the desired mode with the control button
Table of
contents
Flash
(Flash Auto) Flashes when there is insufficient light or backlight.
(Flash On)
(Flash Off)
Flash always operates.
The shutter speed is slow in a dark place to clearly shoot the
background that is out of flash light.
Flash does not operate.
Operation
Search
(Slow
Synchro (Flash
On))
Flash always operates.
Notes
The flash strobes twice. The first flash adjusts the light quantity.
While charging the flash,
is displayed.
You cannot use the flash during burst or bracket shooting.
[Flash On] and [Slow Synchro (Flash On)] are not available when the camera is in Intelligent Auto
Adjustment mode.
• In Easy Shooting mode, you can select only [Flash Auto] or [Flash Off].
• In
(Sweep Panorama),
(Hand-held Twilight), or
(Anti Motion Blur), flash is set to [Flash
Off].
• In (Manual Exposure Shooting), (Aperture Priority Shooting), or (Shutter Speed Priority
Shooting), you can select only [Flash On] or [Flash Off].
photos
Index
zWhen the “White circular spots” appears in flash
MENU/Settings
Search
•
•
•
•
This is caused by particles (dust, pollen, etc.) floating close to the lens. When they are
accentuated by the camera’s flash, they appear as white circular spots.
Camera
Subject
Particles (dust, pollen, etc.)
in the air
How can the “White circular spots” be reduced?
• Light the room and shoot the subject without a flash.
• Select
(High Sensitivity) mode in Scene Selection. ([Flash Off] is automatically selected.)
• Even though you selected
(Anti Motion Blur)
(High Sensitivity) mode in Scene Selection,
the shutter speed might be slower under low-light conditions, or in a dark place. In that case, use a
tripod or hold your arms firmly at your side after pressing the shutter button.
39GB
You can change the focus method. Use the menu when it is difficult to get the proper focus in
auto focus mode.
AF stands for “Auto Focus,” a function that adjusts the focus automatically.
Table of
contents
Focus
1 Press the FOCUS button
(Multi AF)
• When the Face Detection function is active, AF operates with priority on
faces.
(Center AF)
Focuses on a subject in the center of the
finder frame automatically. Using the AF
lock function together, you can compose the
image the way you want.
Focuses on an extremely small subject or a narrow area.
Flexible Spot AF lets you shoot in the desired image composition.
(Semi
Manual)
Automatically and quickly focuses on the area around a set
distance. Focuses on a subject in all ranges of the finder frame
automatically.
Index
(Flexible
Spot AF)
MENU/Settings
Search
Focuses on a subject in all ranges of the
finder frame automatically.
When you press the shutter button halfway
down in still image shooting mode, a green
frame is displayed around the area that is in
focus.
Operation
Search
2 Select the desired mode with the control button and press z
• This mode is useful when repeatedly shooting a subject at the same
distance.
(Manual
Focus)
Allows you to focus on the subject manually.
Notes
• When you use [Digital Zoom] or [AF Illuminator], the AF range finder frame is disabled and appears in a
dotted line. In this case, the camera focuses on the subjects at the center of the screen.
• You cannot use face detection when you set a focus mode other than [Multi AF].
• You can select only [Multi AF] or [Manual Focus] when shooting movies.
• Focus setting is fixed to [Multi AF] while using
(Hand-held Twilight),
(Anti Motion Blur), or
Smile Shutter.
40GB
Using Flexible Spot AF
1 Press the control button to adjust the position of
the AF range finder frame where you want to
focus, then press z
AF range finder frame
(yellow: adjustable/white:
fixed)
Note
Operation
Search
To reset the setting, press z in the center again.
You can adjust the rough position by using the jog dial.
Table of
contents
This is useful when you shoot using a tripod and the subject not in the center of the frame.
• Once you change the focus method, the AF range finder frame you set up is cleared.
This is useful when it is difficult to get the proper focus, such as shooting images through a
window.
1 Press the control button to adjust to the distance
where you want to focus by using the manual
focus bar, then press z
Manual focus bar
Focus range 1 cm to ∞
Index
To reset the setting, press z in the center again.
You can adjust the rough position by using the jog dial.
MENU/Settings
Search
Using Semi Manual/Manual Focus
Notes
• If the focus distance is set very close, the image may show dust or fingerprints on the lens. Wipe the lens
with a soft cloth, etc.
• The focus distance range is limited according to the zoom scaling or the setting of the [Conversion Lens].
• Once you change the focus method, the distance of the Manual Focus you set up is cleared.
• Distance setting information in Semi Manual/Manual Focus is approximate. If you point the lens up or
down, the error increases.
41GB
You can select normal (single-image), burst or exposure bracket from [REC Mode].
1 Press the
/
Table of
contents
High-speed burst shooting/
Exposure bracket
(Burst/Bracket) button
Operation
Search
2 Select a shooting mode with the control button and press z
Shoots a single image.
(Burst(High))
Shoots up to 10 images in succession.
(Burst(Mid))
Shoots up to 5 images in succession.
(Burst(Low))
Shoots up to 2 images in succession.
(Bracket)
Shoots a series of 3 images with the exposure values automatically
shifted. For details on the bracket setting, see page 61.
Notes
Index
• Exposure bracket mode is not available during Intelligent Auto
Adjustment, Easy Shooting, Movie Mode, Hand-held Twilight, Anti
Motion Blur, Sweep Panorama, or Smile Shutter.
• The flash is set to [Flash Off].
• The focus and white balance are adjusted for the first image, and these
settings are also used for the other images.
• When you adjust the exposure manually, the exposure is shifted based on
the adjusted brightness.
• The recording interval becomes longer according to the shooting
conditions.
• If the subject is too bright or too dark, you may not be able to shoot
properly with the selected bracket step value.
• [VGA] image size will be set while recording on internal memory.
MENU/Settings
Search
(Normal)
High-speed burst shooting
Shoots up to 10 images in succession while you press and hold down the shutter button.
1 Select [Burst(High)], [Burst(Mid)] or [Burst(Low)] for [REC Mode]
2 Press the shutter button
Notes
• Burst shooting is not available during Easy Shooting, Hand-held Twilight, Anti Motion Blur, Sweep
Panorama, Movie Mode, or Smile Shutter.
• The flash is set to [Flash Off].
• When burst shooting with the self timer, a series of a maximum of 5 images is shot.
• In slow shutter speed conditions, the burst of shots per second may be decreased.
• When the battery level is low, or when the internal memory or “Memory Stick Duo” media is full, the
burst shooting stops.
• The focus, white balance and exposure are fixed to be adjusted for the first image.
• [VGA] image size will be set while recording on internal memory.
42GB
Continued r
images
After shooting high-speed burst images, the shots images are displayed in frames on the
LCD screen. When all the images are fitted in the frames, recording completes.
You can stop the recording by selecting [OK] with z on the control button.
When stopped, the image displayed in index and images in the image processing are
recorded.
Burst shots are recorded in a group and you can play them back automatically.
Operation
Search
zPlaying back grouped burst images
Table of
contents
zAbout the recording of high-speed burst shooting
Display Main Image Only
Display All
Index
The burst images can be displayed in a list.
1 Press z on the control button
Burst groups are displayed as thumbnail images
2 Select images with b/B
Display or hide the index with V and press z to go back to single
playback
MENU/Settings
Search
When a face is detected in burst images, a most suitable image is
displayed as a main image. When a face is not detected, the first image
will become a main image. The main image can be changed.
• [Date View] and [Event View] can group burst images.
43GB
You can adjust the exposure manually in 1/3 EV steps in a range of –2.0 EV to +2.0 EV.
1 Press the jog dial to select the EV setting
Table of
contents
EV
2 Turn the jog dial to select desired EV setting
• In Easy Shooting mode, the EV setting cannot be adjusted.
• If you shoot a subject in extremely bright or dark conditions, or when you use the flash, the exposure
adjustment may not be effective.
You can create various images by adjusting the exposure and the ISO sensitivity. Exposure
is the amount of light that the camera will receive when you release the shutter.
Exposure:
Shutter speed = Length of time the camera receives light
Aperture = Size of the opening allowing light to pass through
Index
ISO sensitivity (Recommended Exposure Index)
= Recording sensitivity
MENU/Settings
Search
zAdjusting the exposure for better looking images
Operation
Search
Notes
Overexposure = too much light
Whitish image
Lower EV setting –
Correct exposure
Higher EV setting +
Underexposure = too little light
Darker image
44GB
Adjusts the luminous sensitivity.
1 Press the jog dial to select the ISO sensitivity
Table of
contents
ISO
2 Turn the jog dial to select desired value
/
/
/
Sets the ISO sensitivity automatically.
/
/
You can reduce image blurring in dark locations or moving subjects
by increasing ISO sensitivity (select a larger number).
• You can select only from [ISO AUTO], [ISO 125] to [ISO 800] when the recording mode is in the
following situations:
– Burst or bracket shooting
– [DRO] is set to [DRO plus]
–
(Advanced Sports Shooting) mode
• The higher the ISO sensitivity, the noisier the image becomes.
• In the Scene Selection, the ISO setting is automatically set except in
(Advanced Sports Shooting).
MENU/Settings
Search
Notes
Operation
Search
(Auto)
zAdjusting ISO Sensitivity (Recommended Exposure
ISO sensitivity is a speed rating for recording media that incorporates an image sensor that
receives light. Even when the exposure is the same, images differ depending on the ISO
sensitivity.
Index
Index)
High ISO sensitivity
Records a bright image even in dark locations while increasing
shutter speed to reduce blur.
However, the image tends to become noisy.
Low ISO sensitivity
Records a smoother image.
However, when the exposure is insufficient, the image may become
darker.
45GB
1 Press the
(Playback) button to switch to playback mode
2 Select an image with the control button
Table of
contents
Viewing still images
You can select an image with the jog dial.
Notes
Operation
Search
• You may not be able to play back some images shot using other cameras. Play such images in Folder
View (MENU t [View Mode] t [Folder View]).
• When the mode dial is set to
(Easy Shooting), the images are played back in Folder View, and the
available function are limited. If you want to use all viewing functions, set the mode dial to a mode other
than
.
zViewing images taken with a different camera
“Playback only registered images”: Images are played in the selected View Mode.
Some images taken with other cameras may not be played at this time.
MENU/Settings
Search
The screen to select a viewing method is displayed if you plug into this camera a “Memory
Stick Duo” media containing both images taken with this camera and images taken with
another camera.
“Playback all images with folder view”: The camera switches to Folder View and
plays all images.
Index
46GB
Table of
contents
Playback zoom
Plays back the enlarged image.
1 Turn the
(Playback zoom) lever to the T side during
still image playback
2 Adjust the position with the control button
3 Change the zoom scale with
(Playback zoom) lever
Turn the (Playback zoom) lever to the T side to zoom in, W side
to zoom out.
Press z to cancel playback zoom.
Shows the displayed
area of the whole image
zTo save enlarged images
You can save an enlarged image by using the trimming function.
Press MENU t [Retouch] t [Trimming]
When you turn the jog dial while playing back still images, you can view the enlarged next/
previous image.
Index
zTo view the next/previous image while zooming
MENU/Settings
Search
Note
• A panoramic image is displayed in full screen.
Operation
Search
The image is enlarged twice the previous size, at the center of the
image.
However, enlarged view will return to normal view in the following cases:
– an image of different size is displayed next
– an image in different orientation is displayed next
– an image of different aspect ratio is displayed next
– a movie file is displayed next
– the main image in a burst group is displayed next
47GB
Displays multiple images at the same time.
1 Press the
2 Turn the
(Playback) button to switch to playback mode
Table of
contents
Image Index
(Index) lever to the W side to display the image index screen
3 To return to the single-image screen, select an image with the control
button, then press z
Note
• When the mode dial is set to
Operation
Search
Turn the lever again to display an index screen with even more images.
You can select the next/previous image with the jog dial.
(Easy Shooting), you cannot view images in index mode.
Select the left side bar with the control button, then select the
desired date/event/folder with v/V.
MENU/Settings
Search
zDisplaying images of the desired date/event/folder
Index
48GB
Allows you to select unwanted images for deletion. You can also delete images from the MENU
button (page 94).
1 Press the
2
Table of
contents
Delete
(Playback) button to switch to playback mode
(Delete) button t desired mode t z on the control button
Deletes the currently displayed image in single-image
mode.
Multiple Images
Allows you to select and delete multiple images.
Do as the following after step 2.
2MENU t [OK] t z
All in This Folder
All in Date Range
All in Event
All Except Main Image
All In This Group
Deletes all images in the selected folder, date range, event
group or burst group at once.
After step 2, Press [OK] t z.
Exit
Cancels the deletion.
Index
Notes
• When the mode dial is set to
• When View Mode is set to
MENU/Settings
Search
1Select an image then press z
Repeat the above steps until there are no more images to
be deleted. Select an image with a
mark again to
release the
mark.
Operation
Search
This Image
(Easy Shooting), you can delete only the currently displayed image.
(Favorites), you cannot delete images.
zYou can switch between index and single-image
mode when selecting images
Turn the zoom lever to the T ( ) side in the index mode to
return to the single-image mode, and turn the zoom lever to the
W ( ) side to return to the index mode.
• You can also switch between index and single-image mode in [Add /
Remove Favorites], [Protect] or [DPOF].
49GB
1 Press the
Table of
contents
Viewing movies
(Playback) button to switch to playback mode
2 Select a movie with the control button
3 Press z
Movie playback starts.
Playback feature
z
Pause
B
Fast forward
b
Fast rewind
V
Displays the control panel
Operation
Search
Control button
MENU/Settings
Search
Note
• You may not be able to play back some images shot using other cameras.
Displaying the control panel
Display the control panel, you can control slow movie playback and adjust the volume.
1 Press V on the control button
Index
The control panel appears.
2 Select a desired button with b/B, and press z
0:00:00
Button
Available functions
Rewind
Playback/Pause
Fast forward
Play slow
Volume control
Close the control panel
50GB
Continued r
Select the image you want to display using b/B on the control button, and press z.
The Playback bar appears, you can check a playback position of a movie.
Table of
contents
zOn the movie viewing screen
,
,
, or
appears on the movie viewing screen.
The icon displayed may vary depending on image size and quality.
Operation
Search
Playback bar
MENU/Settings
Search
Index
51GB
Allows you to shoot movies with preset settings according to the scene.
1 Set the mode dial to
2 MENU t
(Auto)
(Movie shooting mode) t desired mode
Adjusts the setting automatically.
Shoots movies with high sensitivity under low light conditions.
Operation
Search
(High
Sensitivity)
(Movie Mode)
Table of
contents
Movie shooting mode
MENU/Settings
Search
Index
52GB
Set the direction to pan the camera when you shoot a Sweep Panorama images.
1 Set the mode dial to
[Sweep Panorama]
Table of
contents
Shooting Direction
2 MENU t [Shooting Direction] t desired direction
Pan from left to right.
(Left)
Pan from right to left.
(Up)
Pan from down to up.
(Down)
Pan from up to down.
Operation
Search
(Right)
MENU/Settings
Search
Index
53GB
The image size determines the size of the image file that is recorded when you take a image.
The larger the image size, the more detail will be reproduced when the image is printed on largeformat paper. The smaller the image size, the more images can be recorded. Select the image size
that matches the way you will view your images.
1 MENU t
Table of
contents
Image Size
(Image Size) t desired size
Image size
Usage guidelines
Printing
Less
Fine
More
Rough
(3456×2304) 3:2 aspect ratio as in photo prints and
postcards
Less
Fine
(3456×1944) For viewing on a high-definition TV
Less
Fine
More
Rough
(2592×1944) For prints up to A4 size
(2048×1536) For prints up to L/2L size
For e-mail attachments
Index
(640×480)
MENU/Settings
Search
(3456×2592) For prints up to A3+ size
No. of
images
Operation
Search
When shooting still images
(1920×1080)
Note
• When you print images recorded with 16:9 aspect ratio, both edges may be cut off.
54GB
In Easy Shooting mode
Shoots images in [9M] size.
Small
Shoots images in [3M] size.
Table of
contents
Large
When shooting the Sweep Panorama images
Shoot the Sweep Panorama images using
standard size.
(Wide)
(Vertical direction: 4912×1920)
(Horizontal direction: 7152×1080)
Shoot the Sweep Panorama images using wide
size.
The larger the image size, the higher the image quality. The higher the amount of data used per
second (average bit rate), the smoother the playback image.
The movies shot with this camera will be recorded in MPEG-4 AVC/H.264, Approx. 30fps,
Progressive, AAC, mp4 format.
Movie image size
Usage guidelines
(1440×1080(Fine))
12 Mbps
Shoot highest quality movie for
display on HDTV (1080).
(1440×1080(Standard))
7 Mbps
Shoot standard quality movie for
display on HDTV (1080).
(1280×720)
6 Mbps
Shoot standard quality movie for
display on HDTV (720).
(VGA)
3 Mbps
Shoot at an image size suitable for
WEB upload.
Index
Average bit rate
MENU/Settings
Search
When shooting movies
Operation
Search
(Standard)
(Vertical direction: 3424×1920)
(Horizontal direction: 4912×1080)
Notes
• A telephoto image results when the [VGA] image size is selected for movies.
• You can record movies with an image size of [1440×1080(Fine)], [1440×1080(Standard)], or
[1280×720] on “Memory Stick PRO Duo” media. When using recording media other than “Memory
Stick PRO Duo” media, set the movie image size to [VGA].
55GB
Continued r
A digital image is made up of a collection of small dots called pixels.
If it contains a large number of pixels, the image becomes large, it takes up more memory,
and the image is displayed in fine detail. “Image size” is shown by the number of pixels.
Although you cannot see the differences on the screen of the camera, the fine detail and data
processing time differ when the image is printed or displayed on a computer screen.
Image size: 9M
3456 pixels × 2592 pixels = 8,957,952 pixels
2 Image size: VGA
640 pixels × 480 pixels = 307,200 pixels
1
Pixels
Many pixels
(Fine image quality and large file size)
Few pixels
(Rough image quality but small file size)
MENU/Settings
Search
Pixel
Operation
Search
Description of the pixels and the image size
Table of
contents
zOn “image quality” and “image size”
Index
56GB
In Easy Shooting mode, you can select the Flash setting also from the MENU button.
1 Set the mode dial to
(Easy Shooting)
Table of
contents
Flash
2 MENU t [Flash] t z on the control button
3 Select the desired mode t z
Flash strobes when there is insufficient light or backlight.
Off
Does not use the flash.
Operation
Search
Auto
MENU/Settings
Search
Index
57GB
Adjusts color tones according to the surrounding light conditions. Use this function if image
color appears unnatural.
1 MENU t
Table of
contents
White Balance
(White Balance) t desired mode
(Auto)
(Daylight)
Adjusts for outdoors conditions on a fine day, evening
views, night scenes, neon signs, fireworks, etc.
(Cloudy)
Adjusts for a cloudy sky or a shady location.
n (Incandescent)
Adjusts for places under incandescent lamp, or under bright
lighting, such as in a photo studio.
Adjusts for the flash conditions.
(One Push)
Adjusts the white balance depending on the light source.
The white color memorized in [One Push Set] mode
becomes the basic white color. Use this mode when [Auto]
or other modes cannot be set the color properly.
(One Push Set)
Memorizes the basic white color which will be used in [One
Push] mode.
Index
(Flash)
MENU/Settings
Search
(Fluorescent Light 1) [Fluorescent Light 1]: Adjusts for white fluorescent lighting.
(Fluorescent Light 2) [Fluorescent Light 2]: Adjusts for natural white fluorescent
(Fluorescent Light 3) lighting.
[Fluorescent Light 3]: Adjusts for day white fluorescent
lighting.
Operation
Search
Adjusts the white balance automatically so that the colors
appear natural.
Notes
• [White Balance] cannot be adjusted in Intelligent Auto Adjustment, or Easy Shooting mode.
• In Scene Selection mode, you can change the white balance setting only in
(High Sensitivity) or
(Gourmet) mode.
• You cannot adjust [Flash] in [White Balance] during Sweep Panorama, Hand-held Twilight, Anti Motion
Blur, or Movie Mode, or when Scene Selection is set to
(High Sensitivity) mode.
• Under fluorescent lights that flicker, the white balance function may not work correctly even though you
select [Fluorescent Light 1], [Fluorescent Light 2], or [Fluorescent Light 3].
• When shooting with a flash in other than [Flash] mode, [White Balance] is set to [Auto].
• When flash is [Flash On] the white balance can only be adjusted to [Auto], [Flash], [One Push], or [One
Push Set].
• [One Push Set] is unable to be selected while charging the flash.
58GB
Continued r
The apparent color of the subject is affected by the lighting conditions.
The color tones are adjusted automatically in the Intelligent Auto Adjustment mode, but you
can adjust color tones manually using the White Balance function.
Daylight
Cloudy
Fluorescent
Incandescent
Characteristics of
light
White (standard)
Bluish
Green-tinged
Reddish
1 Frame a white object such as a piece of paper filling the screen under the
same lighting conditions as you will shoot the subject
2 MENU t [White Balance] t [One Push Set] t z on the control button
Notes
• If the
indicator flashes while shooting, the white balance is either not set or cannot be set. Use
automatic white balance.
• Do not shake or strike the camera while [One Push Set] is in progress.
• When flash mode is set to [Flash On] or [Slow Synchro (Flash On)], the white balance is adjusted to the
condition with the flash emitting.
• The basic white color will be used when [Color Filter] is set to [Off].
Index
3 The screen momentarily turns black, and when the white balance has
been adjusted and stored in the memory, the recording screen is
displayed again
MENU/Settings
Search
To capture the basic white color in [One Push
Set] mode
Operation
Search
Weather/lighting
Table of
contents
zEffects of lighting conditions
zUsing the custom button
You can easily set the White Balance if you set it to the custom button (page 107).
59GB
Selects the metering mode that sets which part of the subject to measure to determine the
exposure.
1 MENU t
Table of
contents
Metering Mode
(Metering Mode) t desired mode
(Center)
Measures the center of the image, and determines the exposure
based on the brightness of the subject there (Center-weighted
metering).
(Spot)
Measures only a part of the subject
(Spot metering). This function is useful
when the subject is backlit or when
there is strong contrast between the
subject and the background.
Spot metering cross
hairs
Positions on the subject
MENU/Settings
Search
Divides into multiple regions and measures each region. The
camera determines a well-balanced exposure (Multi-pattern
metering).
Operation
Search
(Multi)
Notes
Index
• When the mode dial is set to
(Intelligent Auto Adjustment),
(Easy Shooting) and
(Scene
Recognition), you cannot set the [Metering Mode].
• In Movie Mode, [Spot] cannot be selected.
• If you set the Metering Mode to other than [Multi], the Face Detection function cannot be used.
• When using spot metering or center-weighted metering, setting [Focus] to [Center AF] is recommended
to focus on the metering position.
• The Metering Mode is fixed to [Multi] while the Smile Shutter function is activated.
zTo use the custom button
You can easily set the Metering Mode if you set it to the custom button (page 107).
60GB
You can set the type of the bracket shooting using / (Burst/Bracket) button. In the bracket
shooting mode, you can record a series of 3 images with the setting changed. You can select the
most suitable image afterwards.
Table of
contents
Bracket Set
1 MENU t [Bracket Set] t desired mode
(EXP±0.7)
(EXP±1.0)
(White
Balance)
Records a series of 3 images with the exposure shifted in the
following order: bright, standard, and dark.
The larger the bracket step value, the larger the shift of the
exposure value.
Records a series of 3 images with the white balance shifted in the
following order: current color tone, toward blue, and toward red.
(Color Mode)
Records a series of 3 images with the color mode shifted in the
following order: Normal, Real, and Vivid.
• When you set [Color Saturation], the color mode is shifted based on the
selected color saturation.
• You cannot select [White Balance] and [Color Mode] when the Scene Selection is set.
MENU/Settings
Search
• When you set [White Balance] to other than [Auto], the color tone is
shifted based on the selected white balance.
Operation
Search
(EXP±0.3)
Index
61GB
The camera automatically detects shooting conditions, and then takes the shot.
When a face is detected, the ISO sensitivity is increased according to the face movement to
reduce subject blur (Face Motion Detection).
The camera recognizes the following types of scenes. When the camera determines the
optimal scene, it displays the corresponding icon.
(Twilight),
(Twilight Portrait),
(Twilight using a tripod),
(Backlight Portrait),
(Landscape),
(Macro),
(Portrait)
(Backlight),
1 Set the mode dial to
2 MENU t
MENU/Settings
Search
Example of an image where
Backlight has activated
Operation
Search
Scene Recognition icon
Table of
contents
Scene Recognition
(Intelligent Auto Adjustment)
(Scene Recognition) t desired mode
(Advanced)
When the camera recognizes the scene, it switches to the optimal
settings and shoots the image.
When the camera recognizes the scene, it switches to the optimal
settings. If the camera recognizes (Twilight), (Twilight
Portrait),
(Twilight using a tripod), (Backlight) or
(Backlight Portrait), it automatically changes the setting and
shoots another image.
Index
(Auto)
• If 2 images are shot, of
(Advanced) turns to green.
• If 2 images are recorded, Auto Review displays them tiled vertically.
• When [Anti Blink] is displayed, 2 images are taken automatically and
the image with eyes are open is selected automatically. For details on the
Anti Blink function, see “What is the Anti Blink function?”.
Notes
• Scene Recognition does not function when using digital zoom.
• When the [REC Mode] is set to burst, or when the Smile Shutter function is activated, Scene Recognition
is fixed to [Auto].
• The available flash settings are [Flash Auto] and [Flash Off].
•
(Twilight using a tripod) scenes sometimes cannot be recognized in an environment where vibrations
are transferred to the camera even though it is fixed on a tripod.
• Sometimes a slow shutter results when a scene is recognized as a
(Twilight using a tripod). Keep the
camera still during shooting.
• The Scene Recognition icon appears regardless of the screen display settings.
• These scenes may not be recognized depending on the situation.
62GB
Continued r
In [Advanced], when the camera recognizes a difficult-to-shoot scene ( (Twilight),
(Twilight Portrait),
(Twilight using a tripod), (Backlight) and (Backlight Portrait)),
it changes the settings as follows and shoots two images with different effects, allowing you
to select the one you like.
Shoots with [Slow Synchro (Flash On)].
Shoots by increasing sensitivity to reduce
blur.
Shoots based on the face illuminated in
flash with [Slow Synchro (Flash On)].
Shoots by increasing sensitivity based on
the face to reduce blur.
Shoots with [Slow Synchro (Flash On)].
Shoots without increasing sensitivity
from the slow shutter.
Shoots with flash.
Shoots by adjusting the background
brightness and contrast (DRO plus).
Shoots based on the face illuminated by
flash.
Shoots by adjusting the face and
background brightness and contrast
(DRO plus).
* When flash is set to [Auto].
MENU/Settings
Search
The second image
Operation
Search
The first image*
Table of
contents
zImages shot with [Advanced]
zWhat is the Anti Blink function?
Index
When set to [Advanced] and the camera recognizes
(Portrait), the camera automatically
takes 2 shots* and an image with open eyes is automatically selected. If eyes are closed in
both images, the message “Blinked eye detected” is displayed and only the first image is
recorded.
* Except when flash is lit or slow shutter is activated.
63GB
Sets the sensitivity of the Smile Shutter function for detecting smiles.
1 MENU t
(Smile Detection Sensitivity) t desired mode
(Big Smile)
(Slight Smile)
Detects a big smile.
Detects a normal smile.
Detects even a slight smile.
Notes
MENU/Settings
Search
• Smiles may not be detected correctly depending on the conditions.
• You cannot adjust the Smile Detection Sensitivity when Easy Shooting, Sweep Panorama, Hand-held
Twilight, Anti Motion Blur, or Movie Mode is selected.
• You can change the Smile Detection Sensitivity setting when
(High Sensitivity),
(Portrait),
(Twilight Portrait),
(Beach) or (Snow) mode is selected in Scene Selection mode.
Operation
Search
(Normal
Smile)
Table of
contents
Smile Detection Sensitivity
Index
64GB
Selects whether to use the Face Detection function or not, and also selects the priority subject for
adjusting the focus when using the function.
Detects the faces of your subjects and adjusts the Focus, Flash, EV (Exposure), White Balance
and Red Eye Reduction settings automatically.
Table of
contents
Face Detection
Face Detection frame (Orange)
Face Detection frame (White)
(Off)
(Auto)
(Face Detection) t desired mode
Does not use Face Detection function.
Selects the face the camera is to automatically focus on.
(Child
Priority)
Detects and shoots with priority on child’s face.
(Adult
Priority)
Detects and shoots with priority on adult’s face.
• [Face Detection] cannot be selected in Easy Shooting, Sweep Panorama or Movie Mode.
• You can select [Face Detection] only when the focus mode is set to [Multi AF] or the metering mode is
set to [Multi].
• The Face Detection function does not work when using the digital zoom.
• Up to 8 faces of your subjects can be detected. However, only up to 4 faces of your subjects can be
detected when
(Portrait) mode is selected in the Scene Selection mode.
• Adults and children may not be recognized correctly depending on the conditions.
• During Smile Shutter shooting, [Face Detection] is automatically set to [Auto] even if it is set to [Off].
Index
Notes
MENU/Settings
Search
1 MENU t
Operation
Search
When the camera detects more than one subject, the camera will judge which is the main
subject and set focus by priority. The Face Detection frame for the main subject will turn
orange. The frame for which the focus is set will turn green by pressing the shutter button
halfway down.
65GB
Continued r
Normally the camera automatically selects the face to focus on according to the [Face
Detection] setting, but you can also select and register a face to be given priority.
1Press z on the control button during Face Detection. The leftmost face is registered as
the priority face, and the frame changes from
to an orange frame ( ).
Operation
Search
Face Priority Frame Off
Table of
contents
zRegistering the priority face (Selected-face Memory)
2Each time you press z, the priority face moves one face to the right. Press z repeatedly
until the orange frame ( ) is on the face you want to register.
Index
• When you remove the battery from the camera, the face registration is reset.
• When the registered face disappears from the LCD screen, the camera returns to the setting selected
by [Face Detection]. When the registered face is shown on the LCD screen again, the camera
focuses on the registered face.
• It may not be possible to detect the registered face correctly depending on the surrounding
brightness, the subject’s hairstyle, etc. In this case, register the face again under the conditions
where the image will be shot.
• When the Smile Shutter function is used with the Face Detection frame registered, Smile Detection
is performed only on the registered face.
• In Easy Shooting mode, the priority face cannot be registered.
MENU/Settings
Search
3To cancel the face registration (Off), move the orange frame to the rightmost face, then
press z again.
zMaking faces easier to detect
• Use an appropriate lighting level.
• Make sure the subjects’ faces are not hidden by hats, masks,
sunglasses, etc.
• Make sure the subjects are facing the camera.
66GB
Adjusts the amount of flash light. The flash level can be set in 1/3 EV increments.
1 MENU t 0EV (Flash Level) t desired mode
Table of
contents
Flash Level
Notes
Operation
Search
• You can select the Flash Level only when the mode dial is set to (Program Auto), (Shutter Speed
Priority Shooting), (Aperture Priority Shooting) or (Manual Exposure Shooting).
• The value is not displayed on the screen. It is indicated as or .
• If the subject is too bright or dark, this adjustment may have no effect.
MENU/Settings
Search
Index
67GB
When Scene Selection is set to
(Portrait) while you are shooting an image, the camera
automatically shoots two images consecutively. The camera will select, display and record the
image which the eyes are not blinked automatically.
1 Set the mode dial to
(Scene Selection)
(Portrait)
3 MENU t
(Anti Blink) t desired mode
(Auto)
When Face Detection is active, the Anti Blink function operates so
that images with the subject’s eyes open are recorded.
(Off)
Does not use the Anti Blink function.
• Anti Blink does not function in the following situations.
– When using the flash
– During burst or bracket shooting
– When the Face Detection function does not work
– When the Smile Shutter function is activated
• Sometimes Anti Blink function does not work depending on the situation.
• When the Anti Blink function is set to [Auto] but only images with the subject’s eyes closed are
recorded, the message “Blinked eye detected” is displayed on the LCD screen. Shoot again as necessary.
MENU/Settings
Search
Notes
Operation
Search
2 Select
Table of
contents
Anti Blink
Index
68GB
The flash strobes two or more times before shooting to reduce the red-eye phenomenon when
using the flash.
(Red Eye Reduction) t desired mode
When the Face Detection function is activated, the flash strobes
automatically to reduce the red-eye phenomenon.
(On)
The flash always strobes to reduce the red-eye phenomenon.
(Off)
Does not use Red Eye Reduction.
Notes
Index
• You cannot adjust the Red Eye Reduction when during Easy Shooting, Sweep Panorama, Hand-held
Twilight, Anti Motion Blur, Movie Mode, or when Smile Shutter is selected.
• To avoid blurring of images, hold the camera firmly until the shutter is released. It usually takes a second
after you press the shutter button. Be also sure not to allow the subject to move during this period.
• Red Eye Reduction may not produce the desired effects. It depends on individual differences and
conditions, such as distance to the subject, or if the subject looked away from the pre-strobe.
• If you do not use the Face Detection function, Red Eye Reduction does not work, even when you select
[Auto].
MENU/Settings
Search
(Auto)
Operation
Search
1 MENU t
Table of
contents
Red Eye Reduction
zWhat causes the red-eye phenomenon?
Pupils become dilated in dark environments. Flash light is reflected off the blood vessels at
the back of the eye (retina), causing the “red-eye” phenomenon.
Camera
Eye
Retina
Other ways to reduce red-eye
• Select (High Sensitivity) mode in Scene Selection. (The flash is set to [Flash Off] automatically.)
• When the eyes of the subject turn out red, correct the image with [Retouch] t [Red Eye
Correction] on the viewing menu or with the supplied software “PMB”.
69GB
The camera analyzes the shooting scene and automatically corrects the brightness and contrast to
improve the image quality.
DRO stands for “Dynamic Range Optimizer,” a function that automatically optimizes the
difference between light and dark parts of an image.
1 MENU t
Table of
contents
DRO
(DRO) t desired mode
(DRO
standard)
(DRO plus)
Does not adjust.
Adjusts the brightness and contrast of the images automatically.
Operation
Search
(Off)
Adjusts image brightness and contrast automatically and strongly.
• You can set DRO only when the mode dial is selected to (Program Auto), (Shutter Speed Priority
Shooting), (Aperture Priority Shooting) or (Manual Exposure Shooting).
• Depending on shooting conditions, it may not be possible to obtain correction effects.
• Only [ISO AUTO] or values from [ISO 125] to [ISO 800] can be set for the ISO value when [DRO plus]
is set.
MENU/Settings
Search
Notes
Index
70GB
Adjusts the resolution/noise balance of the recording images.
1 MENU t [Noise Reduction] t desired mode
(–)
Weakens noise reduction. This setting puts emphasis on resolution
of images.
Strengthens noise reduction. This setting puts emphasis on
elimination of noise.
Operation
Search
(Standard)
(+)
Table of
contents
Noise Reduction
Notes
MENU/Settings
Search
• You can set Noise Reduction only when the mode dial is selected to (Program Auto), (Shutter Speed
Priority Shooting), (Aperture Priority Shooting) or (Manual Exposure Shooting).
• Depending on the settings at the time of recording, the Noise Reduction level cannot be adjusted.
Index
71GB
You can change the brightness of the image, accompanied by effects.
1 MENU t
(Color Mode) t desired mode
(Vivid)
Sets the image to bright and deep color.
(Real)
Sets the image similar to real color.
(Sepia)
Sets the image to sepia color.
(B & W)
Sets the image to black and white.
MENU/Settings
Search
Sets the image to standard color.
Operation
Search
(Normal)
Table of
contents
Color Mode
Index
Notes
• You cannot select Color Mode in the following situation:
– Shooting with Intelligent Auto Adjustment
– Shooting with Scene Selection
– Shooting with Sweep Panorama
– Shooting with Hand-held Twilight
– Shooting with Anti Motion Blur
– Easy Shooting
• You can select only [Normal], [Sepia] or [B & W] when shooting movies.
• When [Bracket Set] is set to [Color Mode], [Normal] is set.
72GB
You can add color effects to images as if you use a color filter.
1 MENU t [Color Filter] t desired mode
Makes the color which emphasizes red of dusk,
etc.
(Green)
Makes the color which emphasizes green of
tender and young leaves, etc.
(Blue)
Makes the color which emphasizes blue of sky
and sea, etc.
(Warm)
Makes image colors of people and landscapes,
etc., warm.
(Cool)
Makes image colors of people and landscapes,
etc., cool.
Index
(Red)
MENU/Settings
Search
Does not use the color filter.
Operation
Search
(Off)
Table of
contents
Color Filter
Note
• You can set Color Filter only when the mode dial is selected to (Program Auto), (Shutter Speed
Priority Shooting), (Aperture Priority Shooting), (Manual Exposure Shooting) or
(Sweep
Panorama).
73GB
Adjusts the brightness (Color Saturation) of the image.
1 MENU t [Color Saturation] t desired mode
(–)
Produces muted colors.
Produces bright colors.
Note
• You can set Color Saturation only when the mode dial is selected to (Program Auto), (Shutter
Speed Priority Shooting), (Aperture Priority Shooting), (Manual Exposure Shooting) or
(Sweep Panorama).
Operation
Search
(Standard)
(+)
Table of
contents
Color Saturation
MENU/Settings
Search
Index
74GB
Table of
contents
Contrast
Adjusts the contrast of the image.
1 MENU t [Contrast] t desired mode
(–)
Reduces the contrast.
(+)
Enhances the contrast.
Note
• You can set Contrast only when the mode dial is selected to (Program Auto),
Shooting), (Aperture Priority Shooting), (Manual Exposure Shooting) or
(Shutter Speed Priority
(Sweep Panorama).
Operation
Search
(Standard)
MENU/Settings
Search
Index
75GB
Adjusts the sharpness of the image.
1 MENU t [Sharpness] t desired mode
(–)
Softens the image.
Sharpens the image.
Note
• You can set Sharpness only when the mode dial is selected to (Program Auto), (Shutter Speed
Priority Shooting), (Aperture Priority Shooting), (Manual Exposure Shooting) or
(Sweep
Panorama).
Operation
Search
(Standard)
(+)
Table of
contents
Sharpness
MENU/Settings
Search
Index
76GB
Selects the anti-blur mode.
1 MENU t
(SteadyShot) t desired mode
Activates the anti-blur function when pressing the shutter button
halfway down.
(Continuous)
Always activates the anti-blur function. You can stabilize images
even when zooming up a far subject.
(Off)
Does not use anti-blur mode.
Operation
Search
(Shooting)
Table of
contents
SteadyShot
Notes
zHints for preventing blur
Index
The camera moved accidentally when you took the image. This is called “Camera shake.”
On the other hand, if the subject moved when you took the image, it is called “subject blur.”
Besides, camera shake and subject blur occur frequently under low-light or slow shutter
speed conditions, such as those encountered in
(Twilight Portrait) or (Twilight) mode.
In such case, shoot with the below tips in mind.
MENU/Settings
Search
• In Intelligent Auto Adjustment, Easy Shooting mode or Scene Selection is set to (Gourmet) mode,
[SteadyShot] is fixed to [Shooting].
• [SteadyShot] is fixed to [Continuous] while
(Sweep Panorama), or the Smile Shutter function is
activated.
• For movies, you can set [Continuous] or [Off] only. The default setting for movies is [Continuous].
• The battery charge is used up more quickly in [Continuous] mode than in [Shooting] mode.
Camera shake
Your hands or body shake while you hold the
camera and press the shutter button, and the
entire screen is blurred.
• Use a tripod or place the camera on a flat surface to
hold the camera steady.
• Shoot with a 2-second delay self-timer and
stabilize the camera by holding your arms firmly at your side after pressing the shutter button.
Subject blur
Even though the camera is steady, the subject
moves during the exposure so the subject is shot
blurred when the shutter button is pressed.
Camera shake is reduced automatically using
the anti-blur function. However, the function
does not effectively reduce subject blur.
• Select
(Anti Motion Blur) and
(High Sensitivity) mode in Scene Selection.
• Select a higher ISO sensitivity to make the shutter speed faster, and press the shutter button before
the subject moves.
77GB
Images are automatically played back in succession.
1 Press the
(Playback) button to switch to playback mode
2 MENU t
button
(Slideshow) t desired slideshow t z on the control
Playbacks all the images in succession. For details see page 79.
(Slideshow
with music)
Playbacks images along with effects and music. You can set the
how to playback in the setting display. For details see page 80.
Operation
Search
(Continuous
Playback)
Table of
contents
Slideshow
MENU/Settings
Search
Index
78GB
All images are continuous played back automatically.
1 Select the desired image for playing with the control button
2 MENU t
Table of
contents
Continuous Playback
(Slideshow) t [Continuous Playback] t z
z
Pause
v
Sets the display settings.
V
Displays the volume control screen. Adjust the volume
with v/V.
b
Forwards image
B
Rewinds image
Note
• When [Display Burst Group] is [On], only the first image is displayed.
zViewing panoramic images during continuous
MENU/Settings
Search
Playback feature
Operation
Search
Control button
playback
Index
The whole panoramic image is displayed for 3 seconds.
You can scroll a panoramic image by pressing z.
Press z again while scrolling, the screen returns to the whole panoramic image and
continuous playback stops.
79GB
You can playback shot images along with effects or music. You cannot playback panoramic
images.
(Playback) button to switch to playback mode
2 MENU t
button
(Slideshow) t [Slideshow with music] t z on the control
Displays the setting screen.
3 Select a desired setting
4 [Start] t z
Operation
Search
1 Press the
Table of
contents
Slideshow with music
5 Press z to end the slideshow
Playback images
Selects the group of images to be shown.
Plays a slideshow of all the still images in order.
This Date
Plays a slideshow of still images with the currently selected date
range when the view mode is
(Date View).
This Event
Plays a slideshow of still images in the currently selected event
group when the view mode is
(Event View).
Favorites 1-6
Plays a slideshow of still images in the currently selected favorites
number, when the view mode is
(Favorites).
Folder
Plays a slideshow of still images in the currently selected folder
when the view mode is
(Folder View).
Index
All
MENU/Settings
Search
Note
• You cannot playback panoramic images with [Slideshow with music].
Notes
• This setting is fixed to [Folder] when the internal memory is used to record images.
• This setting is fixed to the selected favorite group when the view mode starts from [Favorites].
• When [Display Burst Group] is [Display Main Image Only], only the main image is displayed. When the
Effects are set to other than [Simple], the main image and images before and after the main image are
displayed.
80GB
Effects
A simple slideshow switching still images at a preset interval.
The playback interval is adjustable in [Interval] and you can
thoroughly enjoy your images.
Nostalgic
A moody slideshow reproducing the atmosphere of a movie scene.
Stylish
A stylish slideshow proceeding at a middle tempo.
Active
A high-tempo slideshow suitable for active scenes.
Operation
Search
Simple
Notes
Music
Does not use BGM.
Music1
The default setting for a [Simple] slideshow.
Music2
The default setting for a [Nostalgic] slideshow.
Music3
The default setting for a [Stylish] slideshow.
Music4
The default setting for a [Active] slideshow.
Index
Specifies the music to be played during slideshows. You can select more than one background
music track. During Slideshow plays, press V on the control button to display the volume control
screen, then press v/V to adjust the volume.
MENU/Settings
Search
• For movies, the trimmed images are displayed if the playback time is long.
• In [Nostalgic], [Stylish] and [Active], when there are 3 or more images in a burst group, and [Display
Burst Group] is set to [Display Main Image Only], 3 images including the main image are played back.
• When the Effects are set to [Simple] or there is no more than 3 continuous images, only the main image
is displayed. When [Display Burst Group] is [Display All], all images are displayed, regardless of the
[Effects] setting.
Mute
Table of
contents
Selects the playback speed and mood for slideshows.
Note
• The sound of movies is not activated.
Interval
Sets the screen switching interval. The setting is fixed to [Auto] when [Simple] is not selected as
the [Effects].
1 sec
Sets the display interval of images for a [Simple] slideshow.
3 sec
5 sec
10 sec
Auto
The interval is set to suit the selected [Effects] item.
81GB
Continued r
Note
Repeat
Table of
contents
• When you play back the movies, the interval setting is invalid.
Turns slideshow repeat on or off.
Plays back images in a continuous loop.
Off
After all the images have been played back, the slideshow ends.
zSelecting background music
• You can record up to four pieces of music on the camera (The 4 preset pieces (Music1 – Music4)
can be replaced with the ones you transferred).
• A maximum length of each music file for music playback of the camera is about 5 minutes.
• If you cannot play back a music file due to damage or other malfunctions of the file, execute
[Format Music] (page 120) and transfer the music again.
MENU/Settings
Search
You can transfer a desired music file from your CDs or MP3 files to the camera to play back
during slideshow. To transfer music, install the “Music Transfer” software (supplied) to
your computer. For details, see pages 143 and 146.
Operation
Search
On
Index
82GB
This feature selects the date to be played back when using Date View.
Step 2 is unnecessary when [Date View] is already set.
1 Press the
3 MENU t
(Playback) button to switch to playback mode
(View Mode) t
(Date View) t z on the control
(Date List) t z
4 Select the date you want to display t z
Operation
Search
2 MENU t
button
Table of
contents
Date List
Note
• This item is not displayed when the internal memory is used to record images.
• Select the month you want to display with / .
• To exit from Date List, select
with the control button, then
press z.
MENU/Settings
Search
zOn the Date List screen
Index
83GB
This feature selects the event group to be played back when using Event View.
You can enter a desired event name for each group using the “PMB” software (supplied). For
details on entering the event name, see the “PMB Guide.”
Step 2 is unnecessary when [Event View] is already set.
1 Press the
Table of
contents
Event List
(Playback) button to switch to playback mode
(View Mode) t
3 MENU t
(Event List) t z
(Event View) t z on the control
Operation
Search
2 MENU t
button
4 Select the event group you want to display t z
• This item is not displayed when the internal memory is used to record images.
zOn the Event List screen
Index
• The month indicator on the right of the screen displays the event
month located at the top of the screen. Select the event month you
want to display with / . You can also turn to the month of the
Event List with the jog dial.
• To exit from Event List, select
with the control button, then
press z.
MENU/Settings
Search
Note
84GB
Table of
contents
View Mode
Allows you to select the display format for viewing multiple images.
1 Press the
(Playback) button to switch to playback mode
2 MENU t
(View Mode) t desired mode t z on the control button
(Event View)
Analyzes the dates shots and frequency, automatically organizes
the images into groups and displays them.
Select [Event List] from the menu to select the event group to view.
(Favorites)
Displays images registered as Favorites.
Select the number of the Favorites you
want to display.
(Folder View) Images are displayed, organized by folders.
When a recording folder is already created, select [Select Folder]
from the menu to select a folder to view.
• When using the internal memory, the view mode is set to [Folder View].
• When images recorded with other cameras cannot be played back on this camera, view the images in
[Folder View].
Index
Notes
MENU/Settings
Search
Displays images by the date.
Select [Date List] from the menu to select a specific date with a
calendar display.
Operation
Search
(Date View)
zViewing images taken with a different camera
The following message is displayed if you plug into this camera a “Memory Stick Duo”
media containing both images taken with this camera and images taken with another
camera.
“Playback only registered images”:
Images are played in the selected View Mode. Some images taken with other cameras may
not be played at this time.
“Playback all images with folder view”:
The camera switches to Folder View and plays all images.
85GB
Continued r
[Event View] is the function that the camera analyzes the dates shots and frequency,
automatically organizes the images into groups and displays them. You can give convenient
names to each event when using the supplied “PMB” software.
Table of
contents
zOn [Event View]
Pet shots
Travel shots
Operation
Search
Wedding ceremony shots
Event
Event
Event
Pet
* No photo taken
Travel
Wedding
MENU/Settings
Search
Passage of
time
Index
86GB
This feature filters images and displays them.
1 Press the
(Playback) button to switch to playback mode
2 MENU t
button
(Filter by Faces) t desired mode t z on the control
Images are not filtered.
(All people)
Images are filtered according to specified conditions and then
displayed.
(Children)
Operation
Search
(Off)
Table of
contents
Filter by Faces
(Infants)
Notes
•
•
•
•
This item is not displayed when the internal memory is used to record images.
When the View Mode is set to [Folder View], you cannot use the Filter by Faces function.
Sometimes images are mistakenly displayed or hidden.
Sometimes filtering cannot be performed with images shot using other cameras.
MENU/Settings
Search
(Smiles)
Index
87GB
You can change the main image of the burst group to your desired image.
1 Press the
(Playback) button to switch to playback mode
Table of
contents
Change Main Image
2 Select the main image from the burst images
3 MENU t
(Change Main Image) t [OK] t z on the control button
• [Change Main Image] only displays in burst group playback.
Operation
Search
Note
MENU/Settings
Search
Index
88GB
Select your favorite images and add/remove them from groups as Favorites.
The
mark is displayed for registered images.
1 Press the
Table of
contents
Add / Remove Favorites
(Playback) button to switch to playback mode
3 Select the favorites group number t z
4 MENU t [OK] t z
(This Image)
Registers or removes the currently displayed image to/from
Favorites.
Allows you to select and register/remove multiple images to/from
Favorites.
Do as the following after step 3.
1Select an image then press z
Repeat the above steps until there are no more images to be
added/removed. Select an image with a
mark to release the
mark.
MENU/Settings
Search
(Multiple
Images)
Operation
Search
2 MENU t
(Add / Remove Favorites) t desired mode t z on the
control button
2MENU t [OK] t z
(Remove All in
Date Range)
(Remove All in
Event)
(Remove All in
Favorites)
Index
(Add All in Date Registers all images in the selected date range or event group to
Range)
Favorites at once in index mode.
(Add All in Event)
Removes all images from Favorites at once in index mode.
Notes
• This item is not displayed when the internal memory is used to record images.
• When the View Mode is set to [Folder View], you cannot add or remove images as Favorites.
89GB
Groups burst images. You can select to display only the main image or all images in a group.
1 Press the
2 MENU t
button
(Playback) button to switch to playback mode
Table of
contents
Display Burst Group
(Display Burst Group) t desired setting t z on the control
(Display All)
Displays the main image only.
Displays all the burst images.
Operation
Search
(Display Main
Image Only)
Notes
zChanging the main image
The main image is selected by this camera, but you can change it to your favorite one
(page 88).
MENU/Settings
Search
• When you burst images and group only one image, the group will be canceled and the image is displayed
as single-image.
• You can group the burst images only when [View Mode] is set to [Date View] or [Event View].
Index
90GB
Table of
contents
Retouch
Adds effects or makes corrections to a recorded image and records it as a new file.
The original image is retained.
1 Press the
2 MENU t
(Playback) button to switch to playback mode
(Retouch) t desired mode t z on the control button
(Trimming)
Playback zoom is performed on
the image and part of the image is
cropped.
Turn the W/T (Zoom) lever to the
T side to zoom in and turn to the W
side to zoom out
2 Set the zoom point with the control
button
3 MENU t select an image size to
save t z
4 [OK] t z
• The quality of trimmed images may
deteriorate.
• The image size that you can trim
may vary depending on the image.
Operation
Search
3 Perform retouching according to the operation method in each mode
1
MENU/Settings
Search
Corrects the red-eye phenomenon
caused by flash.
Index
(Red Eye
Correction)
Select [OK] with the control
button t z
• You may not be able to correct the
red-eye phenomenon depending on
the image.
1
(Unsharp
masking)
Sharpens the image within a
chosen frame.
Select the area (frame) of the
desired image to retouch with the
control button t MENU
2 [OK] t z
• Depending on the image, sufficient
correction may not be applied and
the image quality may deteriorate.
1
(Soft Focus)
Blurs the periphery around a
chosen point to signalize a
subject.
Select the center point of the
desired image to retouch with the
control button t MENU
2 Select the level of retouch t z
3 Adjust the desired range to retouch
with the W/T (Zoom) lever t
[OK] t z
1
91GB
Continued r
(Partial Color)
Select the center point of the
desired image to retouch with the
control button t MENU
2 Adjust the desired range to retouch
with the W/T (Zoom) lever t
[OK] t z
1
Applies a fisheye effect around a
chosen point.
Select the center point of the
desired image to retouch with the
control button t MENU
2 Select the level of retouch t z
3 [OK] t z
1
Adds starburst effects to light
sources.
Select the level of retouch with the
control button t z
2 Adjust the desired length to retouch
with the W/T (Zoom) lever t
[OK] t z
1
(Radial Blur)
Decides the center point for
expressing movement in the still
image.
Index
Select the center point of the
desired image to retouch with the
control button t MENU
2 Adjust the desired range to retouch
with the W/T (Zoom) lever t
[OK] t z
1
(Retro)
MENU/Settings
Search
(Cross Filter)
Operation
Search
(Fisheye
Lens)
Table of
contents
Surrounds a chosen point in
monochrome to signalize a
subject.
Softens the image by blurring the
focus and lowering the
surrounding light so that it appears
as if it was taken by an old camera.
Select the level of retouch with the
control button t z
2 Adjust the desired range to retouch
with the W/T (Zoom) lever t
[OK] t z
1
(Happy Faces) This feature puts a smile on a
person’s face.
Select the level of retouch with the
control button t z
2 [OK] t z
• Retouching may not be possible
depending on the image.
1
Note
• Movies and panoramic images cannot be retouched.
92GB
You can change the aspect ratio and size of the shooting images, then record them as the new
files.
You can convert images to the 16:9 aspect ratio for high definition viewing and to the VGA size
for blog or e-mail attachments.
1 Press the
Table of
contents
Multi-Purpose Resize
(Playback) button to switch to playback mode
3 Zoom to the range you want to trim with the W/T (zoom) lever
Operation
Search
2 MENU t
(Multi-Purpose Resize) t desired mode t z on the
control button
4 Specify the area you want to trim with the control button
(HDTV)
Changes the aspect ratio from 4:3/
3:2 to 16:9 and saves as 2M size.
(Blog/E-mail)
Changes the aspect ratio from
16:9/3:2 to 4:3 and saves as VGA
size.
Index
Notes
MENU/Settings
Search
5 MENU t [OK] t z
• You cannot resize movies.
• Images shot in VGA size cannot be resized to [HDTV] size.
• Enlarging the image and multi resizing can reduce the image quality.
93GB
Allows you to select unwanted images for deletion. You can also delete images using the
(Delete) button (page 49).
1 Press the
2 MENU t
Table of
contents
Delete
(Playback) button to switch to playback mode
(Delete) t desired mode t z on the control button
(This Image)
Deletes the currently displayed image in single-image mode.
(Multiple Images) You can select and delete multiple images.
Do as the following after step 2.
2MENU t [OK] t z
Deletes all images in the selected folder, date range, event group or
burst group at once.
Index
(All in This
Folder)
(All in Date
Range)
(All in Event)
(All In This
Group)
(All Except Main
Image)
MENU/Settings
Search
1Select an image then press z
Repeat the above steps until there are no more images to be
deleted. Select an image with a
mark to release the
mark.
Operation
Search
3 [OK] t z
Notes
• When the mode dial is set to
(Easy Shooting), you can select between [Delete Single Image] or
[Delete All Images].
• When the View Mode is set to [Favorites], you cannot delete images.
94GB
Protects recorded images against accidental erasure.
The
mark is displayed for registered images.
1 Press the
(Playback) button to switch to playback mode
2 MENU t
(Protect) t desired mode t z on the control button
(Multiple
Images)
Protects the currently displayed image in single-image mode.
You can select and protect multiple images.
Do as the following after step 2.
2MENU t [OK] t z
zTo cancel the protection
Select the image for which you want to cancel protection, and unlock it by pressing z on
the control button as the same procedure to protect it.
The
indicator disappears, and the protection is released.
MENU/Settings
Search
1Select an image then press z
Repeat the above steps until there are no more images to be
protected. Select an image with a
mark to release the
mark.
Operation
Search
(This Image)
Table of
contents
Protect
Index
95GB
DPOF (Digital Print Order Format) is a function that allows you to specify the images of
“Memory Stick Duo” media that you want to print out later.
The
(Print order) mark is displayed for registered images.
(Playback) button to switch to playback mode
2 MENU t
t desired mode t z on the control button
(This Image)
(Multiple
Images)
Orders printing the currently displayed image in single-image
mode.
You can select and order printing multiple images.
Do as the following after step 2.
2MENU t [OK] t z
Notes
• The
(Print order) mark cannot be added to movies or to images in the internal memory.
• You can add a
(Print order) mark to a maximum 999 images.
Select the image to clear the DPOF registration, then press z on the control button in the
same procedure as when making a DPOF mark.
The
mark disappears and the DPOF registration is cleared.
Index
zClearing the DPOF mark
MENU/Settings
Search
1Select an image then press z
Repeat the above steps until there are no more images to be
printed. Select an image with a
mark to release the
mark.
Operation
Search
1 Press the
Table of
contents
DPOF
96GB
Rotates a still image. Use this to display a horizontal orientation image in vertical orientation.
(Playback) button to switch to playback mode
2 MENU t
(Rotate) t z on the control button
Operation
Search
1 Press the
Table of
contents
Rotate
3 Rotate the image with [ / ] t b/B
Notes
• You cannot rotate movies or protected still images.
• You may not be able to rotate images shot with other cameras.
• When viewing images on a computer, the image rotation information may not be reflected depending on
the software.
MENU/Settings
Search
4 [OK] t z
Index
97GB
When multiple folders are created in “Memory Stick Duo” media, this selects the folder
containing the image you want to play back.
Step 2 is unnecessary when [Folder View] is already set.
1 Press the
3 MENU t
(Playback) button to switch to playback mode
(View Mode) t
(Folder View) t z on the control
(Select Folder) t z
4 Select the folder with b/B
Operation
Search
2 MENU t
button
Table of
contents
Select Folder
5 [OK] t z
zViewing images across multiple folders
Index
When multiple folders are created, the following indicators appear on the first and last
images in the folder.
: Moves to the previous folder
: Moves to the next folder
: Moves to either the previous or next folders
MENU/Settings
Search
Note
• This item is not displayed when the internal memory is used to record images.
98GB
The AF Illuminator supplies fill light to focus more easily on a subject in dark surroundings.
The AF Illuminator emits red light allowing the camera to focus easily when the shutter button is
pressed halfway, until the focus is locked. The
indicator appears at this time.
Table of
contents
AF Illuminator
1 Set the camera to shooting mode
Auto
Uses the AF Illuminator.
Off
Does not use AF Illuminator.
Index
• Focus is achieved as long as the AF Illuminator light reaches the subject, regardless of whether light fails
to reach the center of the subject.
• You cannot use the AF Illuminator when:
– Shooting with
(Sweep Panorama)
– [Focus] is set to [Semi Manual] or [Manual Focus]
– [Conversion Lens] is set to [Tele]
–
(Advanced Sports Shooting),
(Landscape) mode, (Twilight) mode or (Fireworks) mode is
selected in the Scene Selection mode
• When you use AF Illuminator, the normal AF range finder frame is disabled and a new AF range finder
frame is displayed by a dotted line. AF operates with priority on subjects located near the center of the
frame.
• The AF Illuminator emits very bright light. Although there is no health hazard, do not look directly into
the AF Illuminator emitter at close range.
MENU/Settings
Search
Notes
Operation
Search
2 MENU t
(Settings) t
(Shooting Settings) t [AF Illuminator] t
desired mode t z on the control button
99GB
With reference to the grid lines, you can easily set a subject in a horizontal/vertical position.
1 Set the camera to shooting mode
Table of
contents
Grid Line
2 MENU t
(Settings) t
(Shooting Settings) t [Grid Line] t
desired mode t z on the control button
Displays the grid lines. The grid lines are not recorded.
Off
Does not display the grid lines.
Operation
Search
On
MENU/Settings
Search
Index
100GB
Selects the Digital Zoom mode. The camera enlarges the image using optical zoom (up to 20×).
When the zoom scale is exceeded, the camera uses either smart or precision digital zoom.
Table of
contents
Digital Zoom
1 Set the camera to shooting mode
Smart (
)
Precision (
)
Enlarges all image sizes by the total zoom scale of approximately
40×, including the optical zoom 20×. However, note that the picture
quality deteriorates when the optical zoom scale is exceeded
(Precision digital zoom).
Does not use the digital zoom.
Notes
Index
• Digital zoom is not available in the following cases:
–
(Advanced Sports Shooting) is selected in the Scene Selection mode
– Shooting movies
– The Smile Shutter is working
– Shooting with
(Sweep Panorama)
• The smart zoom is not available when the image size is set to [9M], [3:2(8M)] or [16:9(6M)].
• The Face Detection function does not work when using the digital zoom.
MENU/Settings
Search
Off
Enlarges the image digitally within the range where the image will
not be distorted, according to the image size (Smart zoom).
Operation
Search
2 MENU t
(Settings) t
(Shooting Settings) t [Digital Zoom] t
desired mode t z on the control button
Total zoom scale when using smart zoom
(including optical zoom 20×)
The supported zoom ratio differs depending on the image size.
Size
Total zoom scale
5M
Approx. 26×
3M
Approx. 33×
VGA
Approx. 108×
16:9(2M)
Approx. 36×
101GB
Sets for achieving appropriate focus when attaching a conversion lens (sold separately).
1 Set the camera to shooting mode
Table of
contents
Conversion Lens
2 MENU t
(Settings) t
(Shooting Settings) t [Conversion Lens]
t desired mode t z on the control button
Off
)
Attaches a tele conversion lens.
Does not attach a lens.
Notes
MENU/Settings
Search
Index
• When using the flash, the flash light may be blocked, causing the shadow to appear.
• A reflected image of the lens may appear in images due to reflection between this lens and the conversion
lens.
• The macro setting is fixed to [Auto].
• The available zoom area is limited.
• The available focusing area is limited.
• AF Illuminator does not emit light.
• You cannot select Semi Manual.
• If you shoot images with a conversion lens, the camera may also focus on close subjects in
(Landscape) mode and (Twilight) mode.
• If you shoot images with a conversion lens, you may not be able to record images in (Fireworks) mode
with its optimal effect.
• Refer also to the operating instructions supplied with your conversion lens.
• [Conversion Lens] is set to [Off] in
(Sweep Panorama).
Operation
Search
Tele (
102GB
Select the timing that the flash strobes.
1 MENU t
(Settings) t
(Shooting Settings) t [Flash Sync.] t
desired mode t z on the control button
Rear (REAR)
Since the flash strobes right before the shutter is
closed, this allows you to reflect the trail of a
light or movement afterimage on a subject. Use
for a moving subject, etc.
Notes
• When the shutter speed is too fast, the [Rear] setting effect may not be available.
• When the Red Eye Reduction is selected, the red-eye reduction effect may not be available at slower
shutter speeds in the [Rear] setting.
MENU/Settings
Search
Since the flash strobes right after the shutter is
released, this allows you to get your shot closer
to the time you release the shutter. Normally,
use this setting.
Operation
Search
Front
Table of
contents
Flash Sync.
Index
103GB
When the camera is rotated to shoot a portrait (vertical) image, the camera records its position
change and displays the image in the portrait position.
Table of
contents
Auto Orientation
1 Set the camera to shooting mode
On
Records the image with the correct orientation.
Off
Does not use Auto Orientation.
Operation
Search
2 MENU t
(Settings) t
(Shooting Settings) t [Auto Orientation]
t desired mode t z on the control button
Notes
zRotating images after recording
• If the orientation of an image is incorrect, you can use the [Rotate] on the menu screen to display the
image in portrait position.
MENU/Settings
Search
• Black is displayed to the left and right of vertical orientation images.
• Depending on the shooting angle of the camera, the orientation of the image may not be recorded
correctly.
• You cannot use Auto Orientation in Movie Mode.
Index
104GB
Displays the recorded image on the screen for approximately 2 seconds immediately after
shooting a still image.
Table of
contents
Auto Review
1 Set the camera to shooting mode
On
Uses the Auto Review.
Off
Does not use Auto Review.
• When you press the shutter button halfway down, the display of the recorded image disappears and
you can shoot another image immediately, even if Auto Review is set to [On].
zContinuing to view an Auto Review image
MENU/Settings
Search
zShooting another image without delay
Operation
Search
2 MENU t
(Settings) t
(Shooting Settings) t [Auto Review] t
desired mode t z on the control button
• When you keep the shutter button pressed down after shooting, the Auto Review image remains
displayed for as long as the shutter button remains pressed down.
Index
105GB
Expands the center of the screen double in Manual Focus mode.
1 MENU t
(Settings) t
(Shooting Settings) t [Expanded Focus]
t desired mode t z on the control button
Expands double.
Off
Does not expand.
Operation
Search
On
Table of
contents
Expanded Focus
MENU/Settings
Search
Index
106GB
Set the commonly-used function to the
(Custom) button.
1 MENU t
(Settings) t
(Shooting Settings) t [Custom Button]
t desired mode t z on the control button
Sets the Smile Shutter.
White Balance
Sets the White Balance.
Metering Mode
Sets the Metering Mode.
Operation
Search
Smile Shutter
Table of
contents
Custom Button
MENU/Settings
Search
Index
107GB
Selects or turns off the sound produced when you operate the camera.
1 MENU t
(Settings) t
(Main Settings) t [Beep] t desired
mode t z on the control button
Turns on the shutter sound when you press the shutter button.
High
Low
Turns on the beep/shutter sound when you press the control/shutter
button.
If you want to lower the volume, select [Low].
Off
Turns off the beep/shutter sound.
MENU/Settings
Search
Note
• When the camera is connected to a TV using the HDMI cable (sold separately), the beep sound is fixed to
[Shutter].
Operation
Search
Shutter
Table of
contents
Beep
Index
108GB
Selects the language to be used in the menu items, warnings and messages.
1 MENU t
(Settings) t
(Main Settings) t [Language Setting] t
desired mode t z on the control button
Table of
contents
Language Setting
Operation
Search
MENU/Settings
Search
Index
109GB
You can select whether or not function guide is displayed when you operate the camera.
1 MENU t
(Settings) t
(Main Settings) t [Function Guide] t
desired mode t z on the control button
Displays the function guide.
Off
Does not display the function guide.
Operation
Search
On
Table of
contents
Function Guide
MENU/Settings
Search
Index
110GB
Initializes the setting to the default setting.
Even if you execute this function, the images are retained.
1 MENU t
(Settings) t
t z on the control button
Table of
contents
Initialize
(Main Settings) t [Initialize] t [OK]
Operation
Search
Note
• Be sure not to turn off the camera while initializing.
MENU/Settings
Search
Index
111GB
You can set whether to use a demonstration of the Smile Shutter and Scene Recognition.
When there is no need to view a demonstration, set to [Off].
Table of
contents
Demo Mode
1 MENU t
(Settings) t
(Main Settings) t [Demo Mode] t
desired mode t z on the control button
(Intelligent Auto Adjustment)
On
Demonstrates the Scene Recognition and Smile Shutter mode.
Off
Does not perform a demonstration.
1 Point the camera at the subject
When Scene Recognition is performed, the icon and a description of the recognized scene
appear on the screen.
2 Press the shutter button
The image is recorded as a normal shooting.
MENU/Settings
Search
View a demonstration of Scene Recognition
Operation
Search
2 Set the mode dial to
View a demonstration of Smile Shutter
(Custom) button
2 Point the camera at the subject
Index
1 Press
The camera automatically operates the shutter when a smiling face is detected, but no image
is recorded.
3 Press
(Custom) button again to exit the demo mode
Notes
•
•
•
•
[Custom Button] is fixed to [Smile Shutter] in [Demo Mode].
[Auto Review] is fixed to [On].
When demonstrating the Scene Recognition mode, the setting is fixed to [Auto].
Although you can release the shutter in Smile Shutter demo mode, no image is recorded.
112GB
When you connect the camera to an HD (High Definition) TV with HDMI terminals using an
HDMI cable (sold separately), you can select HDMI Resolution to output images to the TV.
1 MENU t
(Settings) t
desired mode
Table of
contents
HDMI Resolution
(Main Settings) t [HDMI Resolution] t
1080i
Outputs with HD (High Definition) image quality (1080i).
480p/576p
Outputs with SD (Standard Definition) image quality (480p/576p).
• When [Video Out] is [NTSC], the resolution is output as 480p
and when [PAL], the resolution is output as 576p.
Notes
• If the screen does not appear correctly, select [1080i] or [480p/576p] according to the connected TV.
• Set [Video Out] to select the HDMI Resolution according to the connected TV’s color system.
MENU/Settings
Search
Set the output resolution automatically according to the information
of the connected device.
Operation
Search
Auto
Index
113GB
This setting allows TV’s remote control of a camera that is connected to a “BRAVIA” Sync TV
using an HDMI cable (sold separately). For details on “BRAVIA” Sync, see page 132.
Table of
contents
CTRL FOR HDMI
1 MENU t
(Settings) t
(Main Settings) t [CTRL FOR HDMI] t
desired mode t z on the control button
Allows remote controlled operation.
Off
Disallows remote controlled operation.
Note
Operation
Search
On
• You can perform the operation of the camera with the remote controller of your TV by connecting your
camera to a “BRAVIA” Sync compatible TV.
MENU/Settings
Search
Index
114GB
Selects the video signal output type from SD and HD(1080i) when you connect the camera and
TV using an HD Output Adaptor Cable (sold separately), according to the TV connected. Use a
Type2d-compliant HD Output Adaptor Cable (sold separately).
Table of
contents
COMPONENT
1 MENU t
(Settings) t
(Main Settings) t [COMPONENT] t
desired mode t z on the control button
Select this item to connect the camera to a 1080i-capable High
Definition TV.
SD
Select this item to connect the camera to a TV that is not
compatible with an HD(1080i) signal.
Operation
Search
HD(1080i)
MENU/Settings
Search
Index
115GB
Sets the video signal output according to the TV color system of the connected video equipment.
The TV color systems differ depending on the country and region.
To view images on a TV screen, check the TV color system of the country or region of use
(page 134).
NTSC
Sets the video output signal to NTSC mode (e.g., for the USA,
Japan).
PAL
Sets the video output signal to PAL mode (e.g., for Europe, China).
Operation
Search
1 MENU t
(Settings) t
(Main Settings) t [Video Out] t desired
mode t z on the control button
Table of
contents
Video Out
MENU/Settings
Search
Index
116GB
During playback on High Definition TV, still images at a 4:3 and 3:2 aspect ratio are played at a
16:9 aspect ratio. In this case the top and bottom of the image will be slightly cropped.
TV screen with Wide Zoom
Display
On
Plays at a 16:9 aspect ratio.
Off
Does not use Wide Zoom Display.
Notes
Index
• Wide Zoom Display is not available for panoramic images, movies, 16:9 images and portrait (vertical)
images.
• The image displayed on the LCD screen of the camera does not change.
• Wide Zoom Display is not available when the camera is connected to the TV with the cable for multi-use
terminal (supplied).
MENU/Settings
Search
1 MENU t
(Settings) t
(Main Settings) t [Wide Zoom Display]
t desired mode t z on the control button
Operation
Search
Camera LCD screen
display
Table of
contents
Wide Zoom Display
117GB
Selects the USB mode when connecting the camera to a computer or a PictBridge compliant
printer using the cable for multi-use terminal (supplied).
Table of
contents
USB Connect
1 MENU t
(Settings) t
(Main Settings) t [USB Connect] t
desired mode t z on the control button
PictBridge
Connects the camera to a PictBridge compliant printer.
PTP/MTP
When you connect the camera to a computer, the AutoPlay Wizard
appears, and the still images in the recording folder on the camera
are imported to the computer. (with Windows Vista/XP,
Mac OS X)
Mass Storage
Establishes a Mass Storage connection between the camera and a
computer or other USB device.
Notes
Index
• If you cannot connect the camera to a PictBridge compliant printer with the [Auto] setting, select
[PictBridge].
• If you cannot connect the camera to a computer or a USB device with the [Auto] setting, select [Mass
Storage].
• When [USB Connect] is set to [PTP/MTP], you cannot export movies to a computer. To export movies to
a computer, set [USB Connect] to [Auto] or [Mass Storage].
MENU/Settings
Search
The camera recognizes automatically and sets up communication
with a computer or PictBridge compliant printer.
Operation
Search
Auto
118GB
You can use “Music Transfer” in the CD-ROM (supplied) to change background music tracks.
1 MENU t
(Settings) t
on the control button
(Main Settings) t [Download Music] t z
Table of
contents
Download Music
The message “Connect to PC” appears.
3 Follow the instructions on the screen to change music files
Operation
Search
2 Make a USB connection between the camera and a computer, then start
“Music Transfer”
MENU/Settings
Search
Index
119GB
You can delete all the background music files stored in the camera. It can be used in cases such
as when the background music files are damaged and cannot be played.
1 MENU t
(Settings) t
t z on the control button
Table of
contents
Format Music
(Main Settings) t [Format Music] t [OK]
camera
You can use “Music Transfer” in the CD-ROM (supplied) to reset music files to the preset
ones.
2Start “Music Transfer”, then restore the default music
• For details on using “Music Transfer”, see the help in “Music Transfer”.
MENU/Settings
Search
1Make a USB connection between the camera and a computer
Operation
Search
zRestoring the music preset at the factory to the
Index
120GB
Formats the “Memory Stick Duo” media or the internal memory. A commercially available
“Memory Stick Duo” media is already formatted, and can be used immediately.
Table of
contents
Format
1 MENU t
(Settings) t
(“Memory Stick” Tool) or
(Internal
Memory Tool) t [Format] t [OK] t z on the control button
Operation
Search
Note
• Note that formatting permanently erases all data including even protected images.
MENU/Settings
Search
Index
121GB
Creates a folder in “Memory Stick Duo” media for recording images.
Images are recorded in the newly created folder until you create another folder or select another
recording folder.
Table of
contents
Create REC.Folder
1 MENU t
(Settings) t
(“Memory Stick” Tool) t [Create
REC.Folder] t [OK] t z on the control button
• After a new folder is created, you can change the storage destination folder (page 123) and select the
folder for viewing images (page 98).
MENU/Settings
Search
zOn the folders
Operation
Search
Notes
• This item is not displayed when the internal memory is used to record images.
• When you insert a “Memory Stick Duo” media that was used with other equipment into the camera and
shoot images, a new folder may be automatically created.
• Up to 4,000 images can be stored in one folder. When the folder capacity is exceeded, a new folder is
automatically created.
Index
122GB
Changes the folder in “Memory Stick Duo” media that is currently used for recording images.
1 MENU t
(Settings) t
REC.Folder]
(“Memory Stick” Tool) t [Change
Table of
contents
Change REC.Folder
2 Select a folder with b/B on the control button
Notes
MENU/Settings
Search
• This item is not displayed when the internal memory is used to record images.
• The following folder cannot be selected as a recording folder.
– “100” folder
– A folder with a number that has only either “sssMSDCF” or “sssANV01”
• You cannot move recorded images to another folder.
Operation
Search
3 [OK] t z
Index
123GB
Deletes a folder for recording images in “Memory Stick Duo” media.
1 MENU t
(Settings) t
REC.Folder]
(“Memory Stick” Tool) t [Delete
Table of
contents
Delete REC.Folder
2 Select a folder with b/B on the control button
Notes
MENU/Settings
Search
• This item is not displayed when the internal memory is used to record images.
• If you delete the folder set as the recording folder using [Delete REC.Folder], the folder that has the
largest folder number is selected as the next recording folder.
• You can delete only empty folders. If a folder contains images, or files that cannot be played back by the
camera, first delete these images and files, and then delete the folder.
Operation
Search
3 [OK] t z
Index
124GB
Copies all images in the internal memory to a “Memory Stick Duo” media.
1 Insert a “Memory Stick Duo” media with sufficient free capacity into the
camera
(“Memory Stick” Tool) t [Copy] t [OK]
Notes
MENU/Settings
Search
• Use a fully charged battery pack. If you attempt to copy image files using a battery pack with little
remaining charge, the battery pack may run out, causing copying to fail or possibly corrupting the data.
• Images cannot be copied individually.
• The original images in the internal memory are retained even after copying. To delete the contents of the
internal memory, remove the “Memory Stick Duo” media after copying, then format the internal memory
([Format] in [Internal Memory Tool]).
• A new folder is created on the “Memory Stick Duo” media and all the data will be copied to it. You
cannot choose a specific folder and copy images to it.
Operation
Search
2 MENU t
(Settings) t
t z on the control button
Table of
contents
Copy
Index
125GB
Selects the method used to assign file numbers to images.
1 MENU t
(Settings) t
(“Memory Stick” Tool) or
(Internal
Memory Tool) t [File Number] t desired mode t z on the control
button
Reset
Starts from 0001 each time the folder is changed. (When the
recording folder contains a file, a number one higher than the
largest number is assigned.)
MENU/Settings
Search
Assigns numbers to files in sequence even if the recording folder or
the “Memory Stick Duo” media is changed. (When the replaced
“Memory Stick Duo” media contains a file with a number higher
than the last assigned number, a number one higher than the largest
number is assigned.)
Operation
Search
Series
Table of
contents
File Number
Index
126GB
Adjusts the time to the local time of a selected area.
1 MENU t
(Settings) t
(Clock Settings) t [Area Setting] t
desired setting t z on the control button
You use the camera in your area.
When the currently set area differs from your home area, you must
make the Area Setting.
Destination
You use the camera set to the time at your destination.
Set the destination area.
Setting a frequently visited destination lets you easily adjust the time when you visit that
destination.
1Select the area part for [Destination], then press z on the control button
Index
Daylight Savings icon
If [Daylight Savings] is set to
[On], the icon turns white.
MENU/Settings
Search
zChanging Area Setting
Operation
Search
Home
Table of
contents
Area Setting
2Select an area with b/B on the control button, and select Daylight Savings time with
v/V
127GB
Sets the date and time again.
1 MENU t
(Settings) t
(Clock Settings) t [Date & Time Setting]
t desired setting t z on the control button
You can select the date and time display format.
Daylight Savings
You can select Daylight Savings On/Off.
Date & Time
You can set the date and time.
Note
MENU/Settings
Search
• The camera does not have a feature for superimposing dates on images. By using “PMB” in the CDROM (supplied), you can print or save images with the date.
Operation
Search
Date & Time Format
Table of
contents
Date & Time Setting
Index
128GB
You can view images on a TV with SD (Standard Definition) by connecting the camera to a TV.
The connection varies according to the type of TV the camera is connected to.
Refer also to the operating instructions supplied with the TV.
1 Turn off both the camera and the TV
VIDEO AUDIO
Yellow
1 To audio/video input jacks
MENU/Settings
Search
2 Connect the camera to the TV with the cable for multi-use terminal
(supplied)
Operation
Search
Viewing images by connecting the camera to a TV
with the supplied cable for multi-use terminal
Table of
contents
Viewing images on a TV with SD
(Standard Definition)
(Playback) button
Red
Index
White
Cable for multi-use
terminal (supplied)
2 To the multi connector
3 Turn on the TV and set the input
4 Press
(Playback) button to turn on the camera
Images shot with the camera appear on the TV. Select the desired image with the control
button.
Notes
• When using the camera abroad, it may be necessary to switch the video signal output to match that of
your TV system (page 116).
• The shooting image will not be displayed on the TV when the movie is shot under the condition of the
camera and TV connected.
• When output to TV, easy viewing is invalid.
129GB
You can view high definition images on an HD (High Definition) TV by connecting the camera
to an HD (High Definition) TV with an HDMI cable (sold separately) or an HD Output Adaptor
Cable (sold separately). The connection varies according to the type of TV the camera is
connected to. Refer also to the operating instructions supplied with the TV.
2 Connect the camera to the TV with an HDMI cable (sold separately) or an
HD Output Adaptor Cable (sold separately)
Operation
Search
1 Turn off the camera and the TV
Table of
contents
Viewing images on an HD (High
Definition) TV
Notes
MENU/Settings
Search
• Images shot in [VGA] image size cannot be played back in HD format.
• When shooting movies in the condition with the camera and a TV connected using an HDMI cable (sold
separately) or an HD Output Adaptor Cable (sold separately), the image being shot is not displayed in the
TV side.
• When output to TV, easy viewing is invalid.
• When using the camera abroad, it may be necessary to switch the video signal output to match that of
your TV system (page 116).
zViewing images shot with an image size other than
) full screen on an HD (High
Index
16:9 (
,
Definition) TV
• When you select [Multi-Purpose Resize] in the viewing menu, the aspect ratio can be converted to
16:9 and saved as a new file for viewing on an HD (High Definition) TV.
• You can play back an image with a 16:9 aspect ratio using [Wide Zoom Display] in the setting
menu.
zOn “PhotoTV HD”
This camera is compatible with the “PhotoTV HD” standard.
By connecting Sony PhotoTV HD-compatible devices using an HDMI cable (sold
separately) or an HD Output Adaptor Cable (sold separately), a whole new world of photos
can be comfortably enjoyed in breathtaking Full HD quality.
• “PhotoTV HD” allows for a highly-detailed, photo-like expression of subtle textures and colors.
• The settings are also required to be made on the TV. For playing movies, set the display setting of
your TV to Video for optimal image quality.
For details, refer to the operating instruction of the TV.
130GB
Table of
contents
Viewing an image by connecting the camera to an
HD (High Definition) TV with an HDMI cable (sold
separately)
Connect the camera to an HD (High Definition) TV which has an HDMI terminal with a HDMI
cable (sold separately).
2 Connect the camera to the TV with the HDMI Cable (sold separately)
(Playback) button
1 To the HDMI
terminal
HDMI adaptor
(supplied)
2 To the multi connector
HDMI Cable
(sold separately)
MENU/Settings
Search
HDMI terminal
Operation
Search
1 Attach an HDMI adaptor (supplied) to an HDMI Cable (sold separately)
3 Turn on the TV and set the input
(Playback) button to turn on the camera
The shooting images are displayed on the TV. Select an image with the control button.
Index
4 Press
Notes
• Set [HDMI Resolution] to [Auto] or [1080i] in
(Main Settings) (page 113).
• [Beep] is fixed to [Shutter].
• Do not connect the device output terminal to the output terminal of other devices. The images and sounds
will not be output. Also, this may result in malfunction.
• Some devices may not work properly.
• Use an HDMI cable with the HDMI logo mark.
131GB
Viewing images on a “BRAVIA” Sync TV
Table of
contents
When connecting the camera to a “BRAVIA” Sync compatible TV with the HDMI cable (sold
separately), you can playback images on your camera by the TV’s remote control on the TV.
1 Connect the camera to a TV with an HDMI cable (sold separately)
2 Turn on the TV and set the input
(Playback) button to turn on the camera
4 Press the link menu button on the TV’s remote control and select the
desired mode
Descriptions
Slideshow with music
Plays back a slideshow of images with music.
Single Image
Displays images one by one.
Displays multiple images at the same time.
Wide Zoom Display
During a single-image playback on TV, still images at 4:3 and 3:2 aspect
ratios are played at a 16:9 aspect ratio. In this case the top and bottom of the
image will be slightly cropped.
Delete
Deletes images.
Change Main Image
You can change the main image of the burst group to your desired image in
the group.
Playback zoom
Plays back the enlarged image.
Rotate
Rotates a still image.
Filter by Faces
Images are filtered then displayed.
View Mode
Selects the display format for viewing multiple images.
Exit
Close the link menu.
Index
Image Index
MENU/Settings
Search
Operation items
Operation
Search
3 Press the
Notes
• The displayed operation items may vary depending on the situation.
• You can perform the operation of the camera with the remote controller of your TV by connecting your
camera to a “BRAVIA” Sync compatible TV.
• If you can not connect, set [CTRL FOR HDMI] to [On] in
(Main Settings).
• When you connect the camera to other company’s TV, the remote control of the TV may activate the
camera incorrectly. Select [On] in [CTRL FOR HDMI] on
(Main Settings) in the menu.
132GB
Table of
contents
Viewing an image by connecting the camera to an
HD (High Definition) TV with an HD Output
Adaptor Cable (sold separately)
You can view an image recorded on the camera by connecting the camera to an HD (High
Definition) TV with the HD Output Adaptor Cable (sold separately). Use a Type2d-compliant
HD Output Adaptor Cable (sold separately).
Green/Blue/Red
White/Red
2 To the multi connector
Index
HD Output Adaptor
Cable (sold
separately)
MENU/Settings
Search
1 To audio/video input jacks
(Playback) button
COMPONENT AUDIO
VIDEO IN
Operation
Search
1 Connect the camera to an HD (High Definition) TV with an HD Output
Adaptor Cable (sold separately)
2 Turn on the TV and set the input
3 Press the
(Playback) button to turn on the camera
The shooting images are displayed on the TV. Select an image with the control button.
Note
• Set [COMPONENT] to [HD(1080i)] beforehand (page 115).
133GB
On TV color systems
PAL system
Australia, Austria, Belgium, China, Czech Republic, Denmark, Finland, Germany, Holland,
Hong Kong, Hungary, Italy, Kuwait, Malaysia, New Zealand, Norway, Poland, Portugal,
Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand, United Kingdom, etc.
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Guiana, Iran, Iraq, Monaco, Russia, Ukraine, etc.
MENU/Settings
Search
PAL-M system
Brazil
Operation
Search
NTSC system
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica, Japan,
Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A., Venezuela, etc.
Table of
contents
If you want to view images on a TV screen, you need a TV with a video input jack and the cable
for multi-use terminal. The color system of the TV must match that of the digital still camera.
Check the following lists for the TV color system of the country or region where the camera is
used.
Index
134GB
For details on using a Macintosh computer, refer to “Using your
Macintosh computer” (page 144).
MENU/Settings
Search
• Installing the software as follows:
– “PMB”
– “Music Transfer”
Operation
Search
Install the software (supplied) first (page 137)
Table of
contents
Enjoying your Windows
computer
Connecting the camera to your computer
(page 139)
Index
• Enjoying images using “PMB” and “Music Transfer” as follows:
– Importing images to your computer
– Exporting images to the camera
– Entering the desired event name to [Event List] on the camera
– Editing images
– Displaying the shooting locations of still images on maps online (this
requires an Internet connection)
– Creating a disc with the images shot (this requires CD or DVD disc
writing drive)
– Printing or saving still images with the date
– Uploading images to a media service (this requires an Internet
connection)
– Changing Music for slideshow (using “Music Transfer”)
Additional information on this product and answers to frequently asked questions can
be found at the Sony Customer Support Website.
http://www.sony.net/
135GB
Recommended computer environment
Others
For importing
images
Microsoft Windows 2000
Professional SP4,
Windows XP* SP3/
Windows Vista SP1**
MENU/Settings
Search
Microsoft Windows XP*
CPU: For playing/editing still images:
SP3/Windows Vista SP1** Intel Pentium III 800 MHz or faster
For playing/editing the High Definition
movies:
[1440×1080(Fine)]: Intel Core Duo 2.0
GHz or faster/ Intel Core 2 Duo 1.66 GHz
or faster
[1440×1080(Standard)]: Intel Pentium D
2.8 GHz or faster/ Intel Core Duo
1.66 GHz or faster/ Intel Core 2 Duo
1.20 GHz or faster
Memory: 512 MB or more (For playing/
editing the High Definition movies: 1 GB
or more)
Hard Disk: Disk space required for
installation—approximately 500 MB
Display: Screen resolution: 1,024 × 768
dots or more
Video memory: 32 MB or more
(Recommended: 64 MB or more)
Operation
Search
For using “PMB”
and “Music
Transfer”
Table of
contents
OS (pre-installed)
USB jack: Provided as standard
Index
* 64-bit editions and Starter (Edition) are not supported.
** Starter (Edition) is not supported.
Notes
• The computer environment must also satisfy the operating requirements of the OS.
• Operation is not assured in an environment based on an upgrade of the operating systems described
above or in a multi-boot environment.
• Operations are not guaranteed for all the recommended computer environments mentioned above.
• If you connect two or more USB devices to a single computer at the same time, some devices, including
the camera, may not operate, depending on the types of USB devices you are using.
• Operations are not guaranteed when using a USB hub.
• Connecting the camera using a USB interface that is compatible with Hi-Speed USB (USB 2.0
compliant) allows advanced transfer (high speed transfer) as the camera is compatible with Hi-Speed
USB (USB 2.0 compliant).
• There are four modes for a USB connection when connecting a computer, [Auto] (default setting), [Mass
Storage], [PictBridge] and [PTP/MTP] modes. This section describes the [Auto] and [Mass Storage] as
examples. For details on [PictBridge] and [PTP/MTP], see page 118.
• When your computer resumes from a suspend or sleep mode, communication between the camera and
your computer may not recover at the same time.
136GB
You can install the supplied software (“PMB”, “Music Transfer”) using the following procedure.
1 Turn on your computer, and insert the CD-ROM
(supplied) into the CD-ROM drive
Table of
contents
Installing the software (supplied)
The installation menu screen appears.
2 Click [Install]
Operation
Search
• If it does not appear, double-click [Computer] (in Windows XP, [My
Computer]) t
(SONYPICTUTIL).
• If the AutoPlay screen appears, select “Run Install.exe” and follow the
instructions that appear on the screen to proceed with the installation.
The “Choose Setup Language” screen appears.
3 Select the desired language, then click [Next]
4 Read the license agreement carefully. If you agree, click the radio button
( changes to ) then [Next]
5 Follow the instructions on the screen to complete the installation
• When the restarting confirmation message appears, restart the computer following the instructions on
the screen.
• DirectX may be installed depending on the system environment of your computer.
MENU/Settings
Search
The “License Agreement” screen appears.
6 Remove the CD-ROM after the installation is complete
Index
The short cut icons for
“PMB” and
“PMB Guide” are created on the desktop.
Double-click these icons to start the software.
Note
• Log on as Administrator.
137GB
You can use still images and movies from the camera more than ever by taking advantage of the
software. This section summarizes the “PMB”. For details, see the “PMB Guide.”
With the “PMB”:
1 Double-click the
(PMB Guide) icon on the desktop
Index
Starting the “PMB Guide”
MENU/Settings
Search
• You can import images shot with the camera to the computer and display them on the computer.
• You can export images in your computer to a “Memory Stick Duo” media, and display them on the
camera.
• You can enter the desired event name to [Event List] in the “Memory Stick Duo” media, and display
them on the camera.
• You can organize images on the computer on a calendar by shooting date to view them.
• You can retouch (Red Eye Correction, etc.), search for faces, print, send still images as e-mail
attachments, and change the shooting date.
• You can display information on the positions where you shot the images on a map. (This requires an
Internet connection.)
• You can print or save the still images with the date.
• You can create a data disc using a CD burner drive or DVD burner drive.
• You can upload the image to a media service. (This requires an internet connection.)
Operation
Search
“PMB” overview
Table of
contents
On “PMB (Picture Motion
Browser)” (supplied)
To access “PMB Guide” from the start menu, click [Start] t [All Programs] t [Sony Picture
Utility] t [Help] t [PMB Guide].
Starting and exiting the “PMB”
1 Double-click the
(PMB) icon on the desktop
To access “PMB” from the start menu, Click [Start] t [All Programs] t [Sony Picture Utility]
t [PMB].
The confirmation message of the information tool appears on the screen when starting the
“PMB” for the first time. Select [Start].
• This function informs you of news, such as software updates. You can change the setting later.
2 Click the
button on the top right corner of the screen to exit the “PMB”
138GB
For details on the “PMB” functions, see the “PMB Guide”.
Table of
contents
Enjoying images on your
computer
Connecting the camera to the computer
1 Insert a “Memory Stick Duo” media with recorded images into the camera
2 Insert the sufficiently charged battery pack into the camera, or connect the
camera to a wall outlet (wall socket) with the AC Adaptor (sold separately)
(Playback) button
4 Connect the camera to your computer
“Connecting…” appears on the screen of the camera.
• When a USB connection is established for the first time, your computer automatically runs a program
to recognize the camera. Wait for a while.
MENU/Settings
Search
3 Turn on the computer, then press
Operation
Search
When importing images from the internal memory, step 1 is unnecessary.
1 To a USB jack
Index
2 To the multi
connector
Cable for multi-use terminal
Notes
• When you import/export images from/to your computer using a battery pack with little remaining charge,
transferring may fail or image data may become corrupted if the battery pack shuts down too soon.
•
is displayed on the screen during the communication session. Do not operate the computer while the
indicator is displayed. When the indicator changes to
, you can start using the computer again.
• If “Mass Storage” does not appear, set [USB Connect] to [Mass Storage] (page 118).
139GB
Importing images to a computer
The [Import Media Files] screen of “PMB” appears automatically.
• If the AutoPlay Wizard appears, close it.
Table of
contents
1 Make a USB connection between the camera and a computer
2 Click the [Import] button to import images
The computer starts importing images.
3 View images on your computer
When importing is complete, the “PMB” starts.
Thumbnails of the imported images are displayed.
Operation
Search
• By default, images are imported into a folder created in “Pictures” (in Windows XP, “My Pictures”)
that is named with the event name of [Event List].
• The “Pictures” (in Windows XP, “My Pictures”) folder is set
as the default folder in “Viewed folders.”
Organize images on the computer on a calendar by shooting date to
view them. For details on the “PMB”, see the “PMB Guide.”
Index
Example: Month display
screen
MENU/Settings
Search
zViewing images using “PMB”
Importing images to a computer without using “PMB”
When the AutoPlay Wizard appears in step 1, click [Open folder to view files] t [OK] t
[DCIM] t copy the desired images to the computer.
140GB
Exporting images to view on the camera
Table of
contents
You can export images in your computer to a “Memory Stick Duo” media, and view them on the
camera. This section describes the procedure for automatically selecting and exporting images
that have not been exported to “Memory Stick Duo” media in the camera.
The images can also be exported manually. For details, see the “PMB Guide.”
1 Make a USB connection between the camera and a computer
3 Click
Operation
Search
• If the AutoPlay Wizard appears, close it.
2 Double-click
(PMB) on the desktop to start up “PMB”
on the top of the screen
The easy export screen appears.
4 Click [Export]
mark is displayed on the LCD screen.
Notes
• You cannot play back some images depending on the image size.
• No guarantees are made for playing back, on this camera, files containing images which were processed
on a computer or images which were shot using other cameras.
• This method cannot be used to export movies. Movies should be exported to the camera manually.
MENU/Settings
Search
• When you play back exported images on this camera, the
Deleting the USB connection
•
•
•
•
Disconnecting the cable for multi-use terminal.
Removing a “Memory Stick Duo” media.
Inserting a “Memory Stick Duo” media into the camera after copying images from the internal memory.
Turning off the camera.
1 Double-click the disconnect icon on the
tasktray
2 Click
Index
Perform the procedures from step 1 to 3 below before:
Windows Vista
(USB Mass Storage Device) t [Stop]
Windows XP
3 Confirm the device on the confirmation
window, then click [OK]
Disconnect icon
141GB
The image files recorded with the camera are grouped
as folders on the “Memory Stick Duo” media or the
internal memory.
Example: viewing folders on
Windows Vista
Operation
Search
AFolder containing image data recorded using a
camera not equipped with the folder creating
function.
BFolder containing still image data recorded using the
camera.
CFolder containing movie data recorded using the
camera.
Table of
contents
Image file storage destinations and file names
MENU/Settings
Search
Notes
Index
• You cannot record any images to the “100MSDCF” or “100ANV01” folders. The images in these folders
are available only for viewing.
• You cannot record/play back any images of the “MISC” folder.
• Image files are named as follows:
– Still image files: DSC0ssss.JPG
– Movie files
1080×720: MAH0ssss.MP4
VGA: MAQ0ssss.MP4
– Index image files that are recorded when you record movies
1080×720: MAH0ssss.THM
VGA: MAQ0ssss.THM
ssss stands for any number within the range from 0001 to 9999. The numerical portions of the
name of a movie file recorded in Movie Mode and its corresponding index image file are the same.
• For more information about folders, see pages 98, 122, 123 and 124.
142GB
You can change the music files that are preset at the factory to the desired music files using
“Music Transfer” in the CD-ROM (supplied). You can also delete these files whenever you
want.
The music formats you can transfer with “Music Transfer” are listed below:
• MP3 files stored on the hard disk drive of your computer
• Music on CDs
• Preset-music saved on the camera
(Settings) t
(Main Settings) t [Download Music]
2 Press z on the control button
The message “Connect to PC” appears.
3 Make a USB connection between the camera and your computer
4 Start “Music Transfer”
MENU/Settings
Search
1 MENU t
Operation
Search
Changing Music using “Music Transfer”
Table of
contents
Using the “Music Transfer”
(supplied)
5 Follow the instructions on the screen to change music files
camera
Index
zRestoring the music preset at the factory to the
Execute [Restore to Preset Tracks] in step 5.
All music files return to the preset-music, and [Music] in the [Slideshow] menu is set to
[Mute].
• You can reset the music files to the preset ones using [Initialize] (page 111), however, other settings
will also be reset.
• For details on using “Music Transfer”, see the help in “Music Transfer”.
143GB
You can copy images to your Macintosh computer. “PMB” is not compatible with Macintosh
computers. When images are exported to the “Memory Stick Duo” media, view them in the
Folder View mode (page 85).
Table of
contents
Using your Macintosh computer
Recommended computer environment
Others
Mac OS 9.1/9.2/
USB jack: Provided as standard
Mac OS X (v10.1 to v10.5)
For using “Music
Transfer”
Mac OS X (v10.3 to v10.5) Memory: 64 MB or more (128 MB or
more is recommended)
Hard Disk: Disk space required for
installation—approximately 50 MB
Notes
Index
• Operations are not guaranteed for all the recommended computer environments mentioned above.
• If you connect two or more USB devices to a single computer at the same time, some devices, including
the camera, may not operate depending on the types of USB devices you are using.
• Operations are not guaranteed when using a USB hub.
• Connecting the camera using a USB interface that is compatible with Hi-Speed USB (USB 2.0
compliant) allows advanced transfer (high speed transfer) as the camera is compatible with Hi-Speed
USB (USB 2.0 compliant).
• There are four modes for a USB connection when connecting a computer, [Auto] (default setting), [Mass
Storage], [PictBridge] and [PTP/MTP] modes. This section describes the [Auto] and [Mass Storage] as
examples. For details on [PictBridge] and [PTP/MTP], see page 118.
• When your computer resumes from the suspend or sleep mode, communication between the camera and
your computer may not recover at the same time.
MENU/Settings
Search
For copying
images
Operation
Search
OS (pre-installed)
Additional information on this product and answers to frequently asked questions can
be found at the Sony Customer Support Website.
http://www.sony.net/
144GB
Importing and viewing images on a computer
1 Insert a “Memory Stick Duo” media with recorded images into the camera
Table of
contents
When importing images from the internal memory, step 1 is unnecessary.
2 Insert the sufficiently charged battery pack into the camera, or connect the
camera to a wall outlet (wall socket) with the AC Adaptor (sold separately)
(Playback) button on
4 Connect the camera to your computer
Operation
Search
3 Turn on the Macintosh computer, then press the
the camera
1 To a USB jack
Cable for multi-use terminal
MENU/Settings
Search
2 To the multi
connector
5 Double-click the newly recognized icon t [DCIM] t the folder where the
images you want to import are stored
The image files are copied to the hard disk.
• For details on the storage location of the images and file names, see page 142.
Index
6 Drag and drop the image files to the hard disk icon
7 Double-click the hard disk icon t the desired image file in the folder
containing the copied files
Displays the images.
Deleting the USB connection
Drag and drop the drive icon or the icon of the “Memory Stick Duo” media to the “Trash” icon
beforehand when you perform the procedures listed below, or the camera is disconnected from
the computer.
•
•
•
•
Disconnecting the cable for multi-use terminal.
Removing a “Memory Stick Duo” media.
Inserting a “Memory Stick Duo” media into the camera.
Turning off the camera.
145GB
Changing Music using “Music Transfer”
1 Turn on your Macintosh computer, and insert the CD-ROM (supplied) into
the CD-ROM drive
2 Double-click
(SONYPICTUTIL)
Operation
Search
• MP3 files stored on the hard disk drive of your computer
• Music on CDs
• Preset-music saved on the camera
Table of
contents
You can change the music files that are preset at the factory to the desired music files using
“Music Transfer” in the CD-ROM (supplied). You can also delete these files whenever you
want.
The music formats you can transfer with “Music Transfer” are listed below:
3 Double-click the [MusicTransfer.pkg] file in [Mac] folder
4 MENU t
(Settings) t
(Main Settings) t [Download Music]
5 Press z on the control button
The message “Connect to PC” appears.
6 Make a USB connection between the camera and Macintosh computer
7 Start “Music Transfer”
MENU/Settings
Search
The installation of the software starts.
8 Follow the instructions on the screen to change music files
• Shut down all other application software before you install “Music Transfer”.
• For installation, you need to log on as an Administrator.
Index
Notes
zRestoring the music preset at the factory to the
camera
Execute [Restore to Preset Tracks] in step 8.
All Music files return to the preset-music, and [Music] in the [Slideshow] menu is set to
[Mute].
• You can reset the Music files to the preset ones using [Initialize] (page 111), however, other settings
will also be reset.
• For details on using “Music Transfer”, see the help in “Music Transfer”.
146GB
“Cyber-shot Step-up Guide” further introduces how to use the camera and optional accessories.
Table of
contents
Viewing “Cyber-shot Step-up
Guide”
Viewing on Windows
1 Double-click
(Step-up Guide) on the desktop
To access “Step-up Guide” from the start menu, click [Start] t [All Programs] t [Sony
Picture Utility] t [Step-up Guide].
1 Copy the [stepupguide] folder in the [stepupguide] folder to your computer
2 Select [stepupguide], [language] and then [GB] folder stored in the CDROM (supplied), and copy all the files in the [GB] folder to the [img] folder
in the [stepupguide] folder that you copied to your computer in step 1
(Overwrite the files in the [img] folder with the files from the [GB] folder)
Index
3 After copying is complete, double-click “stepupguide.hqx” in the
[stepupguide] folder to uncompress it, then double-click the generated file
“stepupguide”
MENU/Settings
Search
Viewing on Macintosh
Operation
Search
When you install “Cyber-shot Handbook”, “Cyber-shot Step-up Guide” is also installed.
Note
• If an uncompress tool for HQX file is not installed, install the Stuffit Expander.
147GB
You can print still images by the following methods.
Table of
contents
Printing still images
Printing directly using a PictBridge compliant
printer (page 149)
You can print images with a “Memory Stick” media compliant printer.
For details, see the operating instructions supplied with the printer.
MENU/Settings
Search
Printing directly using a “Memory Stick” media
compliant printer
Operation
Search
You can print images by connecting the camera directly to a PictBridge
compliant printer.
Printing using a computer
Index
You can import images to a computer using the supplied “PMB” software in
the CD-ROM (supplied) and print the images.
You can insert the date on the image and print it. For details, see the “PMB
Guide.”
Printing at a shop (page 151)
You can take a “Memory Stick Duo” media containing images shot with
the camera to a photo printing service shop. You can make a
(Print
order) mark on the images which you want to print out in advance.
Note
• When you print images shot in [16:9] mode, both edges may be cut off.
148GB
Even if you do not have a computer, you can print images shot using the camera by connecting
the camera directly to a PictBridge compliant printer.
Notes
• You cannot print movies.
• You cannot print panoramic images depending on the printer.
Prepare the camera for USB connection to the printer, using the cable for multi-use terminal.
1 Insert the sufficiently charged battery pack into the camera
2 Connect the camera to the printer
1To the USB jack
MENU/Settings
Search
Preparing the camera
Operation
Search
“PictBridge” is based on the CIPA standard. (CIPA: Camera & Imaging
Products Association)
Table of
contents
Printing images directly using a
PictBridge compliant printer
Index
2 To the multi
connector
Cable for multi-use terminal
3 Turn on the printer
indicator
After the connection is made, the
indicator appears on the screen.
If the
indicator flashes on the screen of the camera (error
notification), check the connected printer.
Note
• If it was impossible to connect to the printer, be sure to set [USB Connect] under
[PictBridge].
(Main Settings) to
149GB
Printing
(Print) t desired mode t z on the control button
This Image
Prints the currently displayed image in single-image mode.
Multiple Images
You can select and print multiple images.
Do as following after step 2.
2MENU t [OK] t z
2 Desired item t [OK] t z
Quantity
Operation
Search
1Select an image then press z
Repeat the above steps until there are no more images to be
printed.
Table of
contents
1 MENU t
Selects the number of copies of the specified image to be printed.
Layout
Selects the number of images you want to print side by side on a
sheet.
Size
Selects the size of the printing sheet.
Date
Selects [Date] or [Day&Time] to insert the date and time on
images.
Note
• Do not disconnect the cable for multi-use terminal while the
appears on the screen.
Index
• When you choose [Date], the date will be inserted in the order you select
by [Date & Time Setting] of the camera. This function may not be
provided depending on the printer.
MENU/Settings
Search
• The designated number of images may not all fit onto a single sheet
depending on the quantity of images.
(PictBridge Connecting) indicator
150GB
You can take a “Memory Stick Duo” media containing images shot with the camera to a photo
printing service shop. As long as the shop supports photo printing services conforming to the
DPOF, you can make a
(Print order) mark on images in advance in viewing menu.
Table of
contents
Printing at a shop
Notes
Operation
Search
MENU/Settings
Search
• You cannot print images stored in the internal memory at a print shop directly from the camera.
Copy the images to a “Memory Stick Duo” media, then take the “Memory Stick Duo” media to the print
shop (page 125).
• Consult your photo printing service shop as to what types of “Memory Stick Duo” media they handle.
• If a “Memory Stick Duo” media is not handled by your photo printing service shop, copy the images you
want to print out to another medium such as a CD-R and take it to the shop.
• The “Memory Stick Duo” media Adaptor (sold separately) may be necessary. Consult your photo
printing service shop.
• Before you take image data to a shop, always copy (back up) your data to a disk.
• You cannot set the number of prints.
• When you want to superimpose dates on images, consult your photo printing service shop.
Index
151GB
If you experience trouble with the camera, try the following solutions.
1 Check the items on pages 153 to 161.
Table of
contents
Troubleshooting
If a code such as “C/E:ss:ss” appears on the screen, see
page 162.
If you do the operation above, the date and time setting is cleared.
4 Consult your Sony dealer or local authorized Sony service
facility.
Index
On repairing cameras with internal memory or music files function included, data in the camera
may be checked on minimum necessity to verify and improve the malfunction symptoms. Sony
will not copy or save any of those data.
MENU/Settings
Search
3 Press the RESET button using a fine-tipped object, and turn on
the power (page 15).
Operation
Search
2 Remove the battery pack, wait for about one minute, re-insert
the battery pack, then turn on the power.
Additional information on this product and answers to frequently asked questions can
be found at our Customer Support Website.
http://www.sony.net/
Click one of the following items to jump to the page explaining the symptom and cause or the
appropriate corrective action.
Battery pack and power ................ 153
Internal memory ............................. 159
Shooting still images/movies ....... 154
Printing ........................................... 159
Viewing images .............................. 157
PictBridge compliant printer......... 160
Deleting........................................... 157
Others ............................................. 161
Computers ...................................... 158
Warning indicators and messages
......................................................... 162
“Memory Stick Duo” media........... 159
152GB
Battery pack and power
• Insert the battery pack correctly by pushing the battery eject lever.
Table of
contents
Cannot insert the battery pack.
Cannot turn on the camera.
Operation
Search
• After inserting the battery pack into the camera, it may take a few moments for the camera to power
up.
• Insert the battery pack correctly.
• The battery pack is discharged. Insert a charged battery pack.
• The battery pack is dead (page 171). Replace it with a new one.
• Use a recommended battery pack.
The power turns off suddenly.
The remaining charge indicator is incorrect.
Index
• The battery charge will quickly get used up and the actual remaining battery charge will be lower than
the indicator in the following cases:
– When you use the camera in an extremely hot or cold location
– When you use the flash and zoom frequently
– When you repeatedly turn the power on and off
– When you set the screen brightness higher using DISP (screen display) settings
• A discrepancy arose between the remaining charge indicator and the actual remaining battery charge.
Fully discharge the battery pack once, then charge it to correct the indication.
• The battery pack is discharged. Insert a charged battery pack.
• The battery pack is dead (page 171). Replace it with a new one.
MENU/Settings
Search
• Depending on the camera and battery temperature, the power may turn off automatically to protect
the camera. In this case, a message is displayed on the LCD screen before the power turns off.
• If you do not operate the camera for about three minutes while the power is on, the camera turns off
automatically to prevent wearing out the battery pack. Turn on the camera again.
• The battery pack is dead (page 171). Replace it with a new one.
Cannot charge the battery pack.
• You cannot charge the battery pack using the AC Adaptor (sold separately). Use the battery charger
to charge the battery.
The CHARGE lamp flashes while charging the battery.
• Remove and reinsert the battery pack, making sure it is installed correctly.
• The temperature may be inappropriate for charging. Try charging the battery pack again within the
proper charging temperature range (10 °C to 30 °C (50 °F to 86 °F)).
• Refer to page 172 for details.
153GB
Shooting still images/movies
Table of
contents
The image not clear on the finder.
• Adjust the diopter scale properly using the finder adjustment dial.
Cannot record images.
Index
• The Sweep Panorama function does not work at the following. Shoot in a certain speed according to
the guidance bar.
– The speed of the camera moving is too fast or too slow
– Shoot in a different direction from what you set for
• If there is too much camera shake during panning, the shooting stops. Hold the camera firmly when
shooting.
MENU/Settings
Search
Sweep Panorama function does not work.
Operation
Search
• Check the free capacity of the internal memory or “Memory Stick Duo” media. If it is full, do one of
the following:
– Delete unnecessary images (page 49)
– Change the “Memory Stick Duo” media
• You cannot record images while charging the flash.
• When shooting a still image, set the mode dial to other than
(Movie Mode).
• Set the mode dial to
(Movie Mode) when shooting movies.
• You can record movies with an image size of [1440×1080(Fine)], [1440×1080(Standard)], or
[1280×720] on “Memory Stick PRO Duo” media. When using recording media other than “Memory
Stick PRO Duo” media, set the movie image size to [VGA].
• The lens cap is attached. Remove it.
• The camera is in Smile Shutter demonstration mode. Set [Demo Mode] to [Off].
Smile Shutter function does not work.
• No image is shot if a smiling face is not detected.
• [Demo Mode] is set to [On]. Set [Demo Mode] to [Off] (page 112).
The subject is not visible on the screen.
• The camera is set to the playback mode. Press
• Press the FINDER/LCD button.
(Playback) button to switch to the shooting mode.
Anti-blur function does not work.
• The anti-blur function does not work when
appears on the display.
• The anti-blur function may not work properly when shooting night scenes.
• Shoot after pressing the shutter button halfway down; do not press it fully down suddenly.
• Confirm that the [Conversion Lens] setting is correct (page 102).
Recording takes a long time.
• When the shutter speed becomes slower than a certain speed in low light conditions, the NR (Noise
Reduction) slow shutter function is activated automatically to reduce the image noise. Under such
conditions, recording takes a long time.
• The Anti Blink function is working. Reset [Anti Blink] to [Off] (page 68).
154GB
Continued r
The image is out of focus.
Cannot select the Face Detection function.
• You can select Face Detection only when the focus mode is set to [Multi AF] and the metering mode
is set to [Multi].
MENU/Settings
Search
• You cannot use the smart zoom depending on the image size (page 101).
• You cannot use the zoom when the Sweep Panorama shooting.
• You cannot use the digital zoom when:
– Shooting movies
– The Smile Shutter is working
–
(Advanced Sports Shooting) mode in the Scene Selection is selected
Operation
Search
Zoom does not work.
Table of
contents
• The subject is too close. When shooting, make sure to position the lens farther away from the subject
than the shortest shooting distance (approximately 1 cm (13/32 inches) (W)/150 cm (4 feet
11 1/8 inches) (T) from the lens).
•
(Landscape), (Twilight) or (Fireworks) mode is selected in the Scene Selection when
shooting still images.
• When
(Advanced Sports Shooting) mode is selected, the subject being too close may be out of
focus.
• The Semi Manual or Manual Focus is selected. Select the auto focus mode (page 40).
• Confirm that the [Conversion Lens] setting is correct (page 102).
The flash does not work.
Index
• You cannot use the flash when:
– [REC Mode] is set to burst or exposure bracket (page 42)
–
(High Sensitivity),
(Advanced Sports Shooting), (Twilight) or (Fireworks) mode is
selected in the Scene Selection
– Shooting movies
– The mode dial is set to
(Sweep Panorama),
(Hand-held Twilight) and
(Anti Motion
Blur)
• Set the flash to (Flash On) (page 39) when the Scene Selection mode is set to (Landscape),
(Gourmet),
(Beach) or (Snow) mode.
• Set (Flash On) when followings:
– The mode dial is set to , or
Fuzzy white circular spots appear in images shot using the flash.
• Particles (dust, pollen, etc.) in the air reflected the flash light and appeared in the image. This is not a
malfunction.
The close-up shoot function (Macro) does not work.
•
(Advanced Sports Shooting), (Landscape), (Twilight) or (Fireworks) mode is selected in
the Scene Selection.
• Macro mode is set to [Auto] when the camera is in
(Intelligent Auto Adjustment) or in
(Movie Mode).
Macro shooting cannot be turned off.
• There is no function for forcibly turning off macro shooting. In [Auto] mode, telephoto shooting is
possible even in the macro shooting condition.
155GB
Continued r
The date and time are not displayed on the LCD screen.
Cannot insert dates on images.
• This camera does not have a feature for superimposing dates on images. By using “PMB”, you can
print or save images with the date (page 138).
• The exposure is incorrect. Correct the exposure (page 44).
The LCD screen is too dark or too bright.
Operation
Search
The F value and shutter speed flash when you press and hold the shutter button
halfway down.
Table of
contents
• While shooting, the date and time are not displayed. They are displayed only during playback.
• Adjust the brightness of the backlight (page 18).
• You are shooting a subject with a light source behind the subject. Select the Metering Mode (page 60)
or adjust the exposure (page 44).
The image is too bright.
• Adjust the exposure (page 44).
MENU/Settings
Search
The image is too dark.
The image colors are not correct.
Index
• Set [Color Mode] to [Normal] (page 72).
• Set [Color Filter] to [Off] (page 73).
• Adjust the White Balance (page 58).
Noise appears in the image when you view the screen in a dark place.
• The camera is attempting to increase the visibility of the screen by temporarily brightening the image
under conditions of low illumination. There is no effect on the recorded image.
The eyes of the subject come out red.
• Set [Red Eye Reduction] to [Auto] or [On] (page 69).
• Shoot the subject at a distance closer than the flash range using the flash.
• Light the room and shoot the subject.
• Retouch the image using [Retouch] t [Red Eye Correction] in viewing menu, or correct using
“PMB”.
Dots appear and remain on the screen.
• This is not a malfunction. These dots are not recorded.
Cannot shoot images in succession.
• The internal memory or “Memory Stick Duo” media is full. Delete unnecessary images (page 49).
• The battery level is low. Insert charged battery pack.
The same image is shot several times.
• [REC Mode] is set to burst or bracket, set to [Normal] (page 42). Or, [Scene Recognition] is set to
[Advanced] (page 62).
156GB
Viewing images
Operation
Search
• Press the
(Playback) button.
• The folder/file name has been changed on your computer.
• No guarantees are made for playing back, on this camera, files containing images which were
processed on a computer or images which were shot using other cameras.
• The camera is in USB mode. Delete the USB connection (page 141).
• You may not be able to play back some images stored on the “Memory Stick Duo” media shot using
other cameras. Play such images in Folder View (page 85).
• This is caused by copying images on your computer to the “Memory Stick Duo” media without using
the “PMB”. Play such images in Folder View (page 85).
Table of
contents
Cannot play back images.
The date and time are not displayed.
The image appears rough right after playback starts.
• This may happen due to image processing. This is not a malfunction.
Left and right sides of the screen are shown in black.
MENU/Settings
Search
• The screen display is set to display images only. Press the DISP (screen display) button to display
information (page 18).
• [Auto Orientation] is set to [On] (page 104).
Cannot display images in index mode.
(Easy Shooting). Set the mode dial to other modes to play back images.
Index
• The mode dial is set to
Cannot hear music during slideshow.
• Transfer music files to the camera with “Music Transfer” (page 143).
• Confirm that the volume setting and slideshow setting are correct.
• Slideshow is played back with [Continuous Playback]. Select [Slideshow with music] and play back.
The image does not appear on the TV.
• Check [Video Out] to see if the video output signal of the camera is set to the color system of your TV
(page 116).
• Check whether the connection is correct (page 129).
• If the USB connector of the cable for multi-use terminal is connected to another device, disconnect it
(page 141).
• When shooting movies in the condition with the camera and a TV connected, the image being shot is
not displayed in the TV side.
Deleting
Cannot delete an image.
• Cancel the protection (page 95).
157GB
Computers
• Check “Recommended computer environment” on page 136 for Windows, and page 144 for
Macintosh.
Table of
contents
Computer OS compatibility with camera is unknown.
“Memory Stick PRO Duo” media is not recognized by a computer with a “Memory
Stick” media slot.
• When the battery level is low, insert the charged battery pack or use the AC adaptor (sold separately).
• Set [USB Connect] to [Auto] or [Mass Storage] (page 118).
• Use the cable for multi-use terminal (supplied).
• Disconnect the cable for multi-use terminal from both the computer and the camera, and connect it
again firmly.
• Disconnect all equipment other than the camera, the keyboard and the mouse from the USB
connectors of your computer.
• Connect the camera directly to your computer without passing through a USB hub or other device.
• Connect the camera and your computer correctly making a USB connection (page 139).
• When you shoot images with a “Memory Stick Duo” media formatted by a computer, you may not be
able to import the images to a computer. Shoot using a “Memory Stick Duo” media formatted by the
camera (page 121).
Index
Cannot import images.
MENU/Settings
Search
Your computer does not recognize the camera.
Operation
Search
• Check that the computer and the “Memory Stick” media Reader/Writer support “Memory Stick PRO
Duo” media. Users of computers and “Memory Stick” media Readers/Writers made by manufacturers
other than Sony should contact those manufacturers.
• If “Memory Stick PRO Duo” media is not supported, connect the camera to the computer (pages 139
and 145). The computer recognizes the “Memory Stick PRO Duo” media.
After making a USB connection, “PMB” does not start automatically.
• Make the USB connection after the computer is turned on.
Cannot play back images on your computer.
• If you are using “PMB”, refer to “PMB Guide” (page 138).
• Consult the computer or software manufacturer.
The image and sound are interrupted by noise when you view a movie on a
computer.
• You are playing back the movie directly from the internal memory or the “Memory Stick Duo”
media. Import the movie to the hard disk of your computer, then play back the movie from the hard
disk (page 139).
Cannot print an image.
• Refer to the operation manual of the printer.
158GB
Continued r
Images once exported to a computer cannot be viewed on the camera.
Table of
contents
• Export them to a folder recognized by the camera, such as “101MSDCF” (page 142).
• When using software other than “PMB”, the information may not be updated correctly, so images
may turn blue or otherwise not be displayed correctly. This is not a malfunction.
• When blue images appear, view them in the Folder View mode or delete them with the camera.
“Memory Stick Duo” media
• Insert the “Memory Stick Duo” media in the correct direction.
You have formatted a “Memory Stick Duo” media by mistake.
Operation
Search
Cannot insert a “Memory Stick Duo” media.
• All the data on the “Memory Stick Duo” media is deleted by formatting. You cannot restore it.
Cannot playback or record images using the internal memory.
• There is a “Memory Stick Duo” media inserted in the camera. Remove it.
Cannot copy the data stored in the internal memory to a “Memory Stick Duo”
media.
MENU/Settings
Search
Internal memory
• The “Memory Stick Duo” media is full. Copy to a “Memory Stick Duo” media with sufficient
capacity.
Index
Cannot copy the data on the “Memory Stick Duo” media or the computer to the
internal memory.
• This feature is not available.
Printing
See “PictBridge compliant printer” together with the following items.
Images are printed with both edges cut off.
• Depending on your printer, all the edges of the image may be cut off. Especially when you print an
image shot with the image size set to [16:9], the lateral end of the image may be cut off.
• When printing images using your printer, cancel the trimming or borderless settings. Consult the
printer manufacturer as to whether the printer provides these functions or not.
• When having images printed at a digital print shop, ask the shop whether they can print the images
without cutting off both edges.
Cannot print images with the date.
• Using “PMB”, you can print images with date (page 138).
• The camera does not have a feature for superimposing dates on images. However, because the images
shot with the camera include information on the recording date, you can print images with the date
superimposed if the printer or the software can recognize Exif information. For compatibility with
Exif information, consult the manufacturer of the printer or the software.
• If you use a photo printing service, ask them to superimpose the dates on images.
159GB
PictBridge compliant printer
Cannot print images.
MENU/Settings
Search
• Check that the camera and the printer are properly connected using the cable for multi-use terminal.
• Turn on the printer. For details, refer to the operating instructions supplied with the printer.
• If you select [Exit] during printing, images may not be printed. Disconnect and connect the cable for
multi-use terminal again. If you still cannot print your images, disconnect the cable for multi-use
terminal, turn the printer off and then on, then connect the cable for multi-use terminal again.
• Movies cannot be printed.
• Images shot using other cameras, or images modified with a computer may not be printed.
• Panoramic images may not be printed depending on the printer or may print in cutted off panoramic
image.
Operation
Search
• The camera cannot be connected directly to a printer that is not compliant with the PictBridge
standard. Consult the printer manufacturer as to whether the printer is compliant with PictBridge or
not.
• Check that the printer is turned on and can be connected to the camera.
• Set [USB Connect] to [PictBridge] (page 118).
• Disconnect and connect the cable for multi-use terminal again. If an error message is indicated on the
printer, refer to the operating instructions supplied with the printer.
Table of
contents
A connection cannot be established.
Printing is canceled.
• Confirm that you have disconnected the cable for multi-use terminal before the
Connecting) mark disappears.
(PictBridge
Index
Cannot insert the date or print images in the index mode.
• The printer does not provide these functions. Consult the printer manufacturer as to whether the
printer provides these functions or not.
• The date may not be inserted in the index mode depending on the printer. Consult the printer
manufacturer.
“---- -- --” is printed on the date-inserted part of the image.
• The image does not have the recording data so the date cannot be inserted. Set [Date] to [Off] and
print the image again (page 150).
Cannot select the print size.
• Consult the printer manufacturer as to whether the printer can provide the desired size.
Cannot print the image at the size selected.
• When you use paper of a different size after connecting the printer to the camera, disconnect and then
reconnect the cable for multi-use terminal.
• The print setting of the camera differs from that of the printer. Change the setting of either the camera
(page 150) or the printer.
Cannot operate the camera after cancelling printing.
• Wait for a while as the printer is carrying out the cancellation. It may take some time depending on
the printer.
160GB
Others
• The built-in microcomputer is not working properly. Remove the battery pack, and then, after one
minute, insert the battery pack and turn on the camera. If this does not work, reset the camera
(pages 15 and 152).
Table of
contents
The power is on, but the camera does not work.
The lens gets fogged.
The camera turns off with the lens portion extended.
• The battery pack is discharged. Replace it with a charged battery pack, then turn the camera on again.
• Do not attempt to force the lens that has stopped moving.
• This is not a malfunction.
The clock set screen appears when you turn on the camera.
• Set the date and time again (page 128).
• The internal rechargeable backup battery has discharged. Insert a charged battery, and set aside for
24 hours or more with the power left off.
• Change the settings by MENU t [Settings] t [Clock Settings] t [Date & Time Setting].
Index
You want to change the date or time.
MENU/Settings
Search
The camera becomes warm when you use it for a long time.
Operation
Search
• Moisture condensation has occurred. Turn off the camera and leave it for about an hour before using
it.
The date or time is incorrect.
• The Area Setting is set to a different location than your current location. Change the setting by
MENU t [Settings] t [Clock Settings] t [Area Setting].
The image taken in high-zoom is distorted.
• The image may become distorted when the weather is unstable, due to haze. This is not a malfunction.
Because the image cannot be checked during recording, Sony recommends playing back the image
magnified on the screen to check after the recording is finished.
161GB
Table of
contents
Warning indicators and
messages
Self-diagnosis display
• There is trouble with the camera’s hardware. Turn the power off and on again.
C:13:ss
• The camera cannot read or write data on the “Memory Stick Duo” media. Try turning off and on the
camera again, or taking out and inserting the “Memory Stick Duo” media several times.
• The internal memory has experienced a format error, or an unformatted “Memory Stick Duo” media
is inserted. Format the internal memory or the “Memory Stick Duo” media (page 121).
• The inserted “Memory Stick Duo” media cannot be used with the camera, or the data is damaged.
Insert a new “Memory Stick Duo” media.
MENU/Settings
Search
C:32:ss
Operation
Search
If a code starting with a letter of the alphabet appears, the self-diagnosis function on the camera
is working. The last two digits (indicated by ss) will differ depending on the state of the
camera.
If you cannot solve the problem even after trying the following corrective actions a few times,
the camera may need repair.
Contact your Sony dealer or local authorized Sony service facility.
Index
E:61:ss
E:62:ss
E:91:ss
• A camera malfunction has occurred. Press the RESET button (pages 15 and 152), then turn the power
on again.
Messages
If the following messages appear, follow the instructions.
• The battery level is low. Charge the battery pack immediately. Depending on the conditions of use or
the type of battery pack, the indicator may flash even though there are still 5 to 10 minutes of
remaining battery time left.
For use with compatible battery only
• The battery inserted is not the NP-FH50 (supplied) “InfoLITHIUM” battery pack.
162GB
Continued r
System error
Table of
contents
• Turn the power off and then on again.
Camera overheating
Allow it to cool
• The camera temperature has risen. The power may turn off automatically, or you may be unable to
record movies. Leave the camera in a cool location until the temperature drops.
Operation
Search
Internal memory error
• Turn the power off and then on again.
Reinsert the “Memory Stick”
MENU/Settings
Search
• Insert the “Memory Stick Duo” media correctly.
• The inserted “Memory Stick Duo” media cannot be used in the camera (page 169).
• The “Memory Stick Duo” media is damaged.
• The terminal section of the “Memory Stick Duo” media is dirty.
“Memory Stick” type error
• The inserted “Memory Stick Duo” media cannot be used in the camera (page 169).
This “Memory Stick” may not record or play
• The inserted “Memory Stick Duo” media cannot be used in the camera (page 169).
Index
Cannot access “Memory Stick”
Access denied
• You are using the “Memory Stick Duo” media with the access controlled.
Error formatting internal memory
Error formatting “Memory Stick”
• Format the media again (page 121).
“Memory Stick” locked
• You are using the “Memory Stick Duo” media with the write-protect switch, and the switch is set to
the LOCK position. Set the switch to the recording position.
No memory space on “Memory Stick”
No memory space on internal memory
• Delete unnecessary images or files (page 49).
Read only “Memory Stick”
• The camera cannot record or delete images on this “Memory Stick Duo” media.
163GB
Continued r
No images
Table of
contents
• No images that can be played back have been recorded in the internal memory.
• No images that can be played back have been recorded in this folder of the “Memory Stick Duo”
media.
• When images recorded with other cameras cannot be played back on this camera, view the images in
Folder View mode (page 85).
No still images
File found which was not recognized
• You tried to delete a folder containing a file that cannot be played on this camera. Delete the file with
a computer and then delete the folder.
• You tried to delete an image or movie being played with the View Mode set to Favorites. Be sure to
change to another View Mode as deletions are not allowed when the View Mode is set to Favorites.
• You cannot display the panoramic image for [3424×1920] size while HD (High Definition) output.
Self-Timer is invalid
MENU/Settings
Search
Invalid operation
Operation
Search
• The selected folder does not contain a file that can be played back in a slideshow.
• There are no images that can be filtered by faces.
• The self-timer is unavailable under these settings.
• A folder with the same first three digit number already exists on the “Memory Stick Duo” media (for
example: 123MSDCF and 123ABCDE). Select another folder, or create a new folder (pages 122,
123).
Index
Folder error
Cannot create more folders
• The folder with a name beginning with “999” exists on the “Memory Stick Duo” media. You cannot
create any folders if this is the case.
Empty folder contents
• You tried to delete a folder containing one or more files. Delete all of the files and then delete the
folder.
No folder
• You tried to delete a folder that does not exist.
Folder protected
• You tried to delete a read-only folder that was made by PC or an other device.
File error
• An error occurred while the image was playing back.
No guarantees are made for playing back, on this camera, files containing images which were
processed on a computer or images which were shot using other cameras.
164GB
Continued r
Read only folder
File protected
Table of
contents
• You have selected a folder that cannot be set as a recording folder on the camera. Select another
folder (page 123).
• Release the protection (page 95).
Image size over limit
Operation
Search
• You are playing back an image with size that cannot be played back on the camera.
Unable to detect face for retouch
• You may not be able to retouch the image depending on the image.
• Camera shake may occur due to insufficient light. Use the flash, turn on the anti-blur function, or
mount the camera on a tripod to secure the camera.
1440×1080 (Fine) is not available
1440×1080 (Standard) is not available
1280×720 is not available
MENU/Settings
Search
(Vibration warning indicator)
• [1440×1080(Fine)], [1440×1080(Standard)] and [1280×720] size movies can be recorded only using
“Memory Stick PRO Duo” media. Insert “Memory Stick PRO Duo” media or set the image size to a
size [VGA].
Index
Turn the power off and on again
• The lens malfunction.
Maximum number of images already selected
• Up to 100 files can be selected when using [Multiple Images].
• Up to 999 files can be selected when using [All in Date Range], [All in Event], [All in Favorites] or
[All in This Folder].
• Up to 999 files can be registered as favorites images, and you can add
(Print order) marks to up
to 999 files. Cancel the selection.
Low battery power
• When copying a image recorded in the internal memory to the “Memory Stick Duo” media, use a
fully charged battery.
Printer busy
Paper error
No paper
Ink error
Low ink
No ink
• Check the printer.
Printer error
• Check the printer.
• Check if the image you want to print is corrupted.
165GB
Continued r
Processing...
Table of
contents
• The data transmission to the printer may not be completed yet. Do not disconnect the cable for multiuse terminal.
• The printer is canceling the current print job. You cannot print until it is finished. This may take time,
depending on the printer.
• Delete the music file, or replace it with an uncorrupted music file.
• Execute [Format Music], then download a new music files.
• You are using “Music Transfer” installed from the CD-ROM supplied with other camera. Install
“Music Transfer” from the CD-ROM supplied with this camera.
MENU/Settings
Search
Error Formatting Music
Operation
Search
Error Playing Music
• Execute [Format Music].
Operation cannot be executed for movie files
• You have selected a function that is not available for movies.
Operation cannot be executed in unsupported files
• Processing and other editing functions of the camera cannot be performed on image files that have
been processed using a computer or images that were recorded with other cameras.
• Some functions are restricted while the camera is connected to a PictBridge compliant printer.
Index
Operation cannot be executed when using a PictBridge connection
Recovering image management file…
• The camera restores the date information etc. in cases where images have been deleted on a PC, etc.
• The number of images exceeds that for which date or event management by the camera is possible.
Delete images from the Date View or Event View.
No internal memory space remaining
Delete images?
• The internal memory is full. To record to the internal memory, select [Yes] and delete unwanted
images.
Image management file error
Cannot recover
• Import all of the images to the computer with “PMB”, and format the “Memory Stick Duo” media or
the internal memory (page 121).
When you cannot import all of the images to the computer with “PMB”, import all of the images to
the computer without using “PMB” (page 140).
To view the images again with the camera, export the imported images to the camera with “PMB.”
166GB
Continued r
Recording function unavailable due to high internal temperature
• When you record movies for a long time, the camera temperature rises. In this case, stop recording
movies.
Table of
contents
• The camera temperature has risen. You cannot record images until the temperature has dropped.
Recording has stopped due to increased camera temperature
Operation
Search
• Recording has stopped due to a rise in temperature while recording a movie. Please wait until the
temperature goes down.
MENU/Settings
Search
Index
167GB
You can use the camera, the battery charger (supplied), and the AC Adaptor (sold separately) in
any country or region where the power supply is within 100 V to 240 V AC, 50 Hz/60 Hz.
Table of
contents
Using the camera abroad —
Power sources
Note
Operation
Search
• Do not use an electronic transformer (travel converter), as this may cause a malfunction.
MENU/Settings
Search
Index
168GB
A “Memory Stick Duo” media is a compact, portable IC recording medium. The types of
“Memory Stick Duo” media that can be used with the camera are listed in the table below.
However, proper operation cannot be guaranteed for all “Memory Stick Duo” media functions.
Recording/Playback
Memory Stick Duo (without MagicGate)
Memory Stick Duo (with MagicGate)
a*1
a*2
MagicGate Memory Stick Duo
Memory Stick PRO Duo
a*1*2
a*2*3
Memory Stick PRO-HG Duo
a*2*3*4
Operation
Search
“Memory Stick” media type
Table of
contents
On the “Memory Stick Duo”
media
MENU/Settings
Search
*1 High-speed data transfer using a parallel interface is not supported.
*2 “Memory Stick Duo” media, “MagicGate Memory Stick Duo” media and “Memory Stick PRO Duo”
media are equipped with MagicGate functions. MagicGate is copyright protection technology that uses
encryption technology. Data recording/playback that requires MagicGate functions cannot be performed
with the camera.
*3 [1440×1080(Fine)], [1440×1080(Standard)], or [1280×720] size movies can be recorded.
*4 This camera does not support 8-bit parallel data transfer. It performs the same 4-bit parallel data transfer
as the “Memory Stick PRO Duo” media.
Notes
Index
• This product is compatible with “Memory Stick Micro” media (“M2”). “M2” is an abbreviation for
“Memory Stick Micro” media.
• A “Memory Stick Duo” media formatted with a computer is not guaranteed to operate with the camera.
• Data read/write speeds differ depending on the combination of the “Memory Stick Duo” media and the
equipment used.
• Do not remove the “Memory Stick Duo” media while reading or writing data.
• Data may be corrupted in the following cases:
– When the “Memory Stick Duo” media is removed or the camera is turned off during a read or write
operation
– When the “Memory Stick Duo” media is used in locations subject to static electricity or electrical noise
• We recommend backing up important data.
• Do not press down hard when you write down on the memo area.
• Do not attach a label on the “Memory Stick Duo” media itself nor on a “Memory Stick Duo” media
Adaptor.
• When you carry or store the “Memory Stick Duo” media, put it in the case supplied with it.
• Do not touch the terminal section of the “Memory Stick Duo” media with your hand or a metal object.
• Do not strike, bend or drop the “Memory Stick Duo” media.
• Do not disassemble or modify the “Memory Stick Duo” media.
• Do not expose the “Memory Stick Duo” media to water.
• Do not leave the “Memory Stick Duo” media within the reach of small children. They might accidentally
swallow it.
• Do not insert anything other than a “Memory Stick Duo” media into the “Memory Stick Duo” media slot.
Doing so will cause a malfunction.
• Do not use or store the “Memory Stick Duo” media under the following conditions:
– High temperature locations such as the hot interior of a car parked in direct sunlight
– Locations exposed to direct sunlight
– Humid locations or locations with corrosive substances present
169GB
Continued r
“Memory Stick PRO Duo” media with a capacity up to 16 GB have been confirmed to operate
properly with the camera.
Notes on using “Memory Stick Micro” media (sold separately)
Index
• To use a “Memory Stick Micro” media with the camera, be sure to insert the “Memory Stick Micro”
media into an “M2” Adaptor as large as of Duo size. If you insert a “Memory Stick Micro” media into the
camera without an “M2” Adaptor as large as of Duo size, you might not be able to remove it from the
camera.
• Do not leave the “Memory Stick Micro” media within the reach of small children. They might
accidentally swallow it.
MENU/Settings
Search
Notes on using “Memory Stick PRO Duo” media (sold
separately)
Operation
Search
• To use a “Memory Stick Duo” media with a “Memory Stick” media compliant device, be sure to insert
the “Memory Stick Duo” media into a “Memory Stick Duo” media Adaptor. If you insert a “Memory
Stick Duo” media into a “Memory Stick” media compliant device without a “Memory Stick Duo” media
Adaptor, you might not be able to remove it from the device.
• When inserting a “Memory Stick Duo” media into a “Memory Stick Duo” media Adaptor, make sure the
“Memory Stick Duo” media is inserted facing in the correct direction, then insert it all the way in.
Incorrect insertion may result in a malfunction.
• When using a “Memory Stick Duo” media inserted into a “Memory Stick Duo” media Adaptor with a
“Memory Stick” media compliant device, make sure that the “Memory Stick Duo” media Adaptor is
inserted facing the correct direction. Note that improper use may damage the equipment.
• Do not insert a “Memory Stick Duo” media Adaptor into a “Memory Stick” media compliant device
without a “Memory Stick Duo” media attached. Doing so may result in malfunction of the unit.
Table of
contents
Notes on using the “Memory Stick Duo” media Adaptor (sold
separately)
170GB
You cannot use the battery pack other than the “InfoLITHIUM” battery pack (NP-FH50) for this
camera. There is the
mark on the “InfoLITHIUM” battery pack.
On charging the battery pack
• We recommend charging the battery pack in an ambient temperature of between 10 °C to 30 °C (50 °F to
86 °F). The battery pack may not be fully charged in temperatures outside this range.
• Battery performance decreases in low temperature surroundings and the operational time of the battery
pack is shorter. We recommend putting the battery pack in a pocket close to your body to warm it up and
insert it in the camera immediately for longer battery pack use.
• The battery pack will run out quickly if you use the flash or zoom frequently.
• We recommend having spare battery packs handy for two or three times the expected shooting time, and
making trial shots before taking the actual shots.
• Do not expose the battery pack to water. The battery pack is not water-resistant.
• Do not leave the battery pack in extremely hot places, such as in a car or under direct sunlight.
When the battery runs off though the remaining battery is sufficient, charge the battery after fully used. The
correct battery level will be displayed.
The remaining charge indicator may not be displayed correctly in the following situation:
– Using the camera for a long time in high temperature
– Leaving the camera with fully charged battery
– Using a heavily used battery
Index
On the remaining charge indicator
MENU/Settings
Search
Effective use of the battery pack
Operation
Search
The “InfoLITHIUM” battery pack is the lithium battery pack which has the information about
data communication of the battery usage.
The “InfoLITHIUM” battery pack calculates the power consumption depending on the camera
usage and shows the battery life on the minute time scale.
Table of
contents
On the InfoLITHIUM battery pack
How to store the battery pack
• Fully discharge the battery pack before storing and store it in a cool, dry place. To maintain the battery
pack’s function, fully charge the battery pack and then fully discharge it on the camera at least once a
year while storing.
• To use the battery pack up, leave the camera in slideshow playback mode until the power goes off
(page 78).
On battery life
• The battery life is limited. Battery capacity decreases over time and through repeated use. If decreased
usage time between charges becomes significant, it is probably time to replace it with a new one.
• The battery life varies according to how it is stored and the operating conditions and environment in
which each battery pack is used.
171GB
Operation
Search
MENU/Settings
Search
• Only NP-FH type battery packs can be charged in the battery charger (supplied). Batteries other than the
specified kind may leak, overheat, or explode if you attempt to charge them, posing a risk of injury from
electrocution and burns.
• Remove the charged battery pack from the battery charger. If you leave the charged battery pack in the
charger, battery life may be shortened.
• The CHARGE lamp of the supplied battery charger flashes in either way:
– Fast flashing: Turns the light on and off repeatedly at the interval of 0.15 seconds
– Slow flashing: Turns the light on and off repeatedly at the interval of 1.5 seconds
• When the CHARGE lamp flashes fast, remove the battery pack being charged, and then insert the same
battery pack into the battery charger securely again. When the CHARGE lamp flashes fast again, this
may indicate a battery error or that a battery pack other than the specified type has been inserted. Check
that the battery pack is the specified type. If the battery pack is the specified type, remove the battery
pack, replace it with a new one or another one and check if the battery charger operates correctly. If the
battery charger operates correctly, a battery error may have occurred.
• When the CHARGE lamp flashes slowly, it indicates that the battery charger stops charging temporarily
on standby. The battery charger stops charging and enters the standby status automatically when the
temperature is outside of the recommended operating temperature. When the temperature gets back
within the appropriate range, the battery charger resumes charging and the CHARGE lamp lights up
again. We recommend charging the battery pack in an ambient temperature of between 10 °C to 30 °C
(50 °F to 86 °F).
Table of
contents
On the battery charger
Index
172GB
Connecting
Computer ....................................................................139
Printer ...........................................................................149
A
TV ..................................................................................129
Contrast .................................................................................75
Adjusting EV ......................................................................44
Control button ....................................................................15
Advanced Sports Shooting ...........................................22
Conversion Lens .............................................................102
AF Illuminator ...................................................................99
Copy .....................................................................................125
Anti Blink ......................................................................63, 68
Create REC.Folder .........................................................122
Anti Motion Blur ..............................................................31
Cross Filter ..........................................................................92
Aperture ................................................................................44
CTRL FOR HDMI .........................................................114
Aperture Priority Shooting ...........................................28
Custom Button .................................................................107
Operation
Search
Add / Remove Favorites ................................................89
Table of
contents
Index
Area Setting ......................................................................127
D
Auto Review .....................................................................105
Date.......................................................................................150
Date & Time Setting .....................................................128
Date List ...............................................................................83
Battery charger ................................................................172
Delete ...............................................................................49, 94
Battery pack ......................................................................171
Delete REC.Folder .........................................................124
Beach .....................................................................................22
Demo Mode ......................................................................112
Beep ......................................................................................108
Digital Zoom ....................................................................101
Bracket ..................................................................................42
DISP .......................................................................................18
Bracket Set ..........................................................................61
Display Burst Group .......................................................90
“BRAVIA” Sync ............................................................132
Download Music .............................................................119
BRK ........................................................................................42
DPOF .....................................................................................96
Burst .......................................................................................42
DRO .......................................................................................70
C
E
CD-ROM ............................................................................137
Easy Shooting ....................................................................24
Center AF .............................................................................40
Easy Viewing mode.........................................................25
Center-weighted metering ............................................60
EV ...........................................................................................44
Change Main Image ........................................................88
Event List .............................................................................84
Change REC.Folder.......................................................123
Exposure ...............................................................................44
Changing the display.......................................................18
Exposure bracket ..............................................................42
Index
B
MENU/Settings
Search
Auto Orientation .............................................................104
Clock Settings ..................................................................128
Color Filter ..........................................................................73
F
Color Mode .........................................................................72
Face Detection ...................................................................65
Color Saturation ................................................................74
Face Motion Detection ...................................................62
COMPONENT ................................................................115
File Number ......................................................................126
Computer ............................................................................135
Filter by Faces ....................................................................87
Exporting images.....................................................141
Fireworks .............................................................................22
Importing images.............................................140, 145
Fisheye Lens .......................................................................92
Macintosh ...................................................................144
Flash Level ..........................................................................67
Recommended environment .......................136, 144
Flash .................................................................................39, 57
Windows .....................................................................135
Flash Sync. ........................................................................103
Focus ......................................................................................40
173GB
Folder
Metering Mode ..................................................................60
Mode dial .............................................................................16
Creating .......................................................................122
Movie Mode........................................................................34
Deleting .......................................................................124
Movie shooting mode .....................................................52
Selecting ........................................................................98
Multi AF ...............................................................................40
Format Music ...................................................................120
Multi connector .......................................129, 139, 145, 149
Format .................................................................................121
Multi-pattern metering ...................................................60
Function Guide ................................................................110
Multi-Purpose Resize......................................................93
Music .....................................................................................81
Music Transfer .........................................................143, 146
Gourmet ................................................................................22
Grid Line ............................................................................100
H
N
Noise Reduction ................................................................71
NTSC ...................................................................................116
Happy Faces........................................................................92
O
HD(1080i) ..........................................................................115
Optical zoom ..............................................................36, 101
HDMI Resolution ...........................................................113
OS ..................................................................................136, 144
High-speed burst shooting ............................................42
P
Histogram.............................................................................19
PAL.......................................................................................116
MENU/Settings
Search
Hand-held Twilight..........................................................30
High Sensitivity .................................................................22
Operation
Search
G
Table of
contents
Changing .....................................................................123
Partial Color ........................................................................92
PC ..........................................................................................135
Identifying parts ................................................................15
PictBridge ..................................................................118, 149
Image Index ........................................................................48
Pixel ........................................................................................56
Image quality ......................................................................56
Playback ...............................................................................46
Image Size ...........................................................................54
Playback zoom ...................................................................47
Initialize ..............................................................................111
PMB .....................................................................................138
Install ...................................................................................137
Portrait ...................................................................................22
Intelligent Auto Adjustment ........................................21
Precision digital zoom ..................................................101
Internal memory ................................................................20
Print ................................................................................96, 148
ISO ....................................................................................44, 45
Print order mark ..............................................................151
L
Index
I
Printing directly ...............................................................149
Program Auto .....................................................................29
Landscape ............................................................................22
Protect ....................................................................................95
Language Setting ............................................................109
PTP/MTP ...........................................................................118
LCD Screen .........................................................................18
R
M
Radial Blur ..........................................................................92
Macintosh computer ......................................................144
Red Eye Correction .........................................................91
Macro .....................................................................................38
Red Eye Reduction ..........................................................69
Manual Exposure Shooting ..........................................26
Retouch .................................................................................91
Mass Storage ....................................................................118
Retro .......................................................................................92
“Memory Stick Duo” media ......................................169
Rotate .....................................................................................97
MENU ...................................................................................10
Menu screen ........................................................................10
174GB
W
Scene Recognition............................................................62
Warning indicators and messages ...........................162
Scene Selection..................................................................22
White Balance ....................................................................58
Screen ....................................................................................18
Wide Zoom Display ......................................................117
SD ..........................................................................................115
Windows computer ........................................................135
Select Folder .......................................................................98
Self-diagnosis display ...................................................162
Z
Self-Timer ............................................................................37
Zoom ......................................................................................36
Sharpness .............................................................................76
Shooting
Movie..............................................................................34
Operation
Search
Settings ..................................................................................13
Table of
contents
S
Still image.....................................................................21
Shutter Speed Priority Shooting .................................27
Slideshow .............................................................................78
Slow Synchro (Flash On) ..............................................39
Smart zoom .......................................................................101
Smile Detection Sensitivity ..........................................64
Smile Shutter ......................................................................35
MENU/Settings
Search
Shutter speed ......................................................................44
Snow.......................................................................................22
Soft Focus ............................................................................91
Spot metering .....................................................................60
SteadyShot ...........................................................................77
Index
Software ..............................................................137, 138, 143
Sweep Panorama ...............................................................32
T
Travel converter ..............................................................168
Trimming .............................................................................91
Troubleshooting ..............................................................152
TV .........................................................................................129
Twilight.................................................................................22
Twilight Portrait ................................................................22
U
Unsharp masking ..............................................................91
USB Connect ....................................................................118
Using the camera abroad .............................................168
V
VGA .................................................................................54, 55
Video Out ...........................................................................116
View Mode ..........................................................................85
175GB
Notes on the License
Index
The software that is eligible for the following GNU General Public License (hereinafter referred
to as “GPL”) or GNU Lesser General Public License (hereinafter referred to as “LGPL”) are
included in the camera.
This informs you that you have a right to have access to, modify, and redistribute source code for
these software programs under the conditions of the supplied GPL/LGPL.
Source code is provided on the web. Use the following URL to download it.
http://www.sony.net/Products/Linux/
We would prefer you do not contact us about the contents of source code.
MENU/Settings
Search
On GNU GPL/LGPL applied software
Operation
Search
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR
THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO
(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”)
AND/ OR
(ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A
PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED
OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY
BE OBTAINED FROM MPEG LA, L.L.C. SEE <HTTP://MPEGLA.COM>
Table of
contents
“C Library”, “Expat” and “zlib” software are provided in the camera. We provide this software
based on license agreements with their owners of copyright. Based on requests by the owners of
copyright of these software applications, we have an obligation to inform you of the following.
Please read the following sections.
Read “license1.pdf” in the “License” folder on the CD-ROM. You will find licenses (in English)
of “C Library”, “Expat” and “zlib” software.
Read “license2.pdf” in the “License” folder on the CD-ROM. You will find licenses (in English)
of “GPL”, and “LGPL” software.
To view the PDF, Adobe Reader is needed. If it is not installed on your computer, you can
download it from the Adobe Systems web page:
http://www.adobe.com/
Regarding the license for “Music Transfer” included on the
CD-ROM (supplied)
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and
Thomson.
176GB
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
