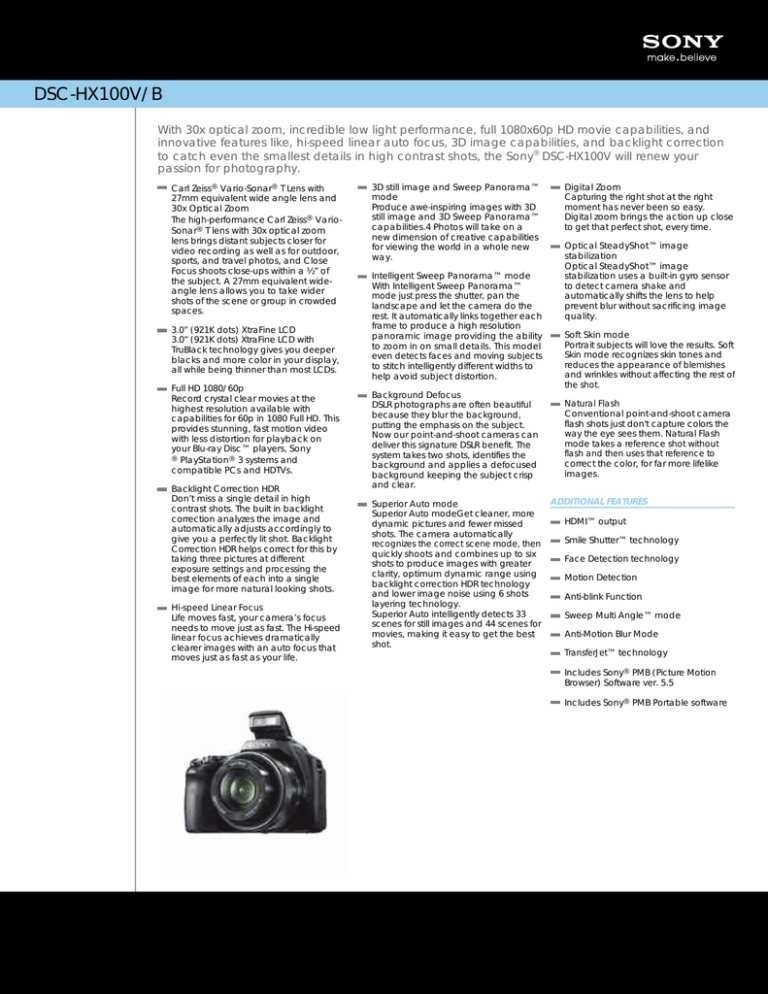

DSC-HX100V/B
With 30x optical zoom, incredible low light performance, full 1080x60p HD movie capabilities, and
innovative features like, hi-speed linear auto focus, 3D image capabilities, and backlight correction
to catch even the smallest details in high contrast shots, the Sony® DSC-HX100V will renew your
passion for photography.
Carl Zeiss® Vario-Sonar® T Lens with
27mm equivalent wide angle lens and
30x Optical Zoom
The high-performance Carl Zeiss® VarioSonar® T lens with 30x optical zoom
lens brings distant subjects closer for
video recording as well as for outdoor,
sports, and travel photos, and Close
Focus shoots close-ups within a ½ ” of
the subject. A 27mm equivalent wideangle lens allows you to take wider
shots of the scene or group in crowded
spaces.
3.0” (921K dots) XtraFine LCD
3.0” (921K dots) XtraFine LCD with
TruBlack technology gives you deeper
blacks and more color in your display,
all while being thinner than most LCDs.
Full HD 1080/60p
Record crystal clear movies at the
highest resolution available with
capabilities for 60p in 1080 Full HD. This
provides stunning, fast motion video
with less distortion for playback on
your Blu-ray Disc™ players, Sony
® PlayStation ® 3 systems and
compatible PCs and HDTVs.
Backlight Correction HDR
Don’t miss a single detail in high
contrast shots. The built in backlight
correction analyzes the image and
automatically adjusts accordingly to
give you a perfectly lit shot. Backlight
Correction HDR helps correct for this by
taking three pictures at different
exposure settings and processing the
best elements of each into a single
image for more natural looking shots.
Hi-speed Linear Focus
Life moves fast, your camera’s focus
needs to move just as fast. The Hi-speed
linear focus achieves dramatically
clearer images with an auto focus that
moves just as fast as your life.
3D still image and Sweep Panorama™
mode
Produce awe-inspiring images with 3D
still image and 3D Sweep Panorama™
capabilities.4 Photos will take on a
new dimension of creative capabilities
for viewing the world in a whole new
way.
Intelligent Sweep Panorama™ mode
With Intelligent Sweep Panorama™
mode just press the shutter, pan the
landscape and let the camera do the
rest. It automatically links together each
frame to produce a high resolution
panoramic image providing the ability
to zoom in on small details. This model
even detects faces and moving subjects
to stitch intelligently different widths to
help avoid subject distortion.
Background Defocus
DSLR photographs are often beautiful
because they blur the background,
putting the emphasis on the subject.
Now our point-and-shoot cameras can
deliver this signature DSLR benefit. The
system takes two shots, identifies the
background and applies a defocused
background keeping the subject crisp
and clear.
Superior Auto mode
Superior Auto modeGet cleaner, more
dynamic pictures and fewer missed
shots. The camera automatically
recognizes the correct scene mode, then
quickly shoots and combines up to six
shots to produce images with greater
clarity, optimum dynamic range using
backlight correction HDR technology
and lower image noise using 6 shots
layering technology.
Superior Auto intelligently detects 33
scenes for still images and 44 scenes for
movies, making it easy to get the best
shot.
Digital Zoom
Capturing the right shot at the right
moment has never been so easy.
Digital zoom brings the action up close
to get that perfect shot, every time.
Optical SteadyShot™ image
stabilization
Optical SteadyShot™ image
stabilization uses a built-in gyro sensor
to detect camera shake and
automatically shifts the lens to help
prevent blur without sacrificing image
quality.
Soft Skin mode
Portrait subjects will love the results. Soft
Skin mode recognizes skin tones and
reduces the appearance of blemishes
and wrinkles without affecting the rest of
the shot.
Natural Flash
Conventional point-and-shoot camera
flash shots just don't capture colors the
way the eye sees them. Natural Flash
mode takes a reference shot without
flash and then uses that reference to
correct the color, for far more lifelike
images.
ADDITIONAL FEATURES
HDMI™ output
Smile Shutter™ technology
Face Detection technology
Motion Detection
Anti-blink Function
Sweep Multi Angle™ mode
Anti-Motion Blur Mode
TransferJet™ technology
Includes Sony® PMB (Picture Motion
Browser) Software ver. 5.5
Includes Sony® PMB Portable software
DSC-HX100V/B
Specifications
Convenience Features
Power Save Mode: Standard / Stamina / Off
Red-Eye Reduction: Auto / On / Off
Erase/Protect: Erase: Single / Select / Date /
Folder / MP4 / AVCHD, Protect: Single / Select
LCD Display
Histogram: Yes
LCD Type: 3.0" XtraFine LCD with TruBlack
technology (921K dots)
Grid Display: Yes (Off / On)
Angle Adjustment: Yes
Brightness Control: 5 steps
Flash
Flash Coverage: ISO Auto: Approx. 0.3-Approx.
12.7m
(Approx. 0.984'-Approx. 41.7') (W)
/ Approx. 2.0-Approx. 5.9m (Approx. 6.56'Approx. 19.4') (T), ISO3200: up to Approx.
18.0m (Approx. 59.1) (W) / Approx. 8.4m
(Approx. 27.6') (T)
Flash Modes: Auto / Flash On / Slow Synchro /
Rear Slow Synchro / Flash Off
Viewfinder
Type: 0.2" (0.5cm) FLC (Ferroelectric Liquid
Crystal) (201,600 pixels)
Diopter Adjustment: Yes
Optics/Lens
Aperture: iAuto (F2.8-F6.3 (W) / Program Auto
(F2.8-F6.3 (W) / Speed Priority (F2.8-F6.3 (W) /
Aperture Priority (F2.8-F8.0 (W) / Manual (F2.8F8.0 (W)
Filter Diameter: No
Smart Zoom® Technology: 10M: Approx. 37x
(Total),
5M: Approx. 53x (Total), VGA: Approx. 216x
(Total), 16:9 (2M): Approx. 72x (Total)
Digital Zoom: Smart Zoom / Precision Digital
Zoom / Off
Optical Zoom: 30x
Minimum Focus Distance: iAuto (W: Approx. 1cm
(0.03') to Infinity, T: Approx. 200cm (6.56') to
Infinity)
Focal Length (35mm equivalent): Still 16:9: 29870mm, Still 4:3: 27-810mm, Movie 16:9: 29870mm (Standard mode), 30-900mm (Active
mode), Movie 4:3: 36-1080mm (Standard
mode), 37-1110mm (Active mode)
Lens Construction: 11 elements in 10 groups
(including 1ED glass element and 1aspheric
element)
Lens Type: Carl Zeiss® Vario-Sonnar T®
Aperture (Max.): F2.8 (W)-5.6 (T)
Aspheric Elements: 1
Power
Battery Type: LITHIUM ION NP-FH50 6.8V
Battery Capacity: typical: 6.1Wh (900mAh),
minimum: 5.9Wh (870mAh)
Power Consumption (in Operation): Approx. 1.3W
Power Requirements: AC Adaptor: AC 100V to
240V, 50/60 Hz, 18W
In-Camera Editing: Trimming / Red Eye
Correction / Unsharp Masking
Face Detection: 8 Faces (Auto / Off / Child
Priority / Adult Priority / Key Selected Face
Memory)
Anti Motion Blur: Yes
Background Defocus: Yes
Blink Detection: Yes
Dustproof: No
Embedded GPS: Yes
Intelligent Auto: Yes
Shockproof: No
Smile Shutter™ technology: Yes
Superior Auto: Yes
Sweep Panorama: Intelligent Sweep Panorama /
3D Sweep Panorama / Sweep Multi Angle
Tracking Focus: Off / Auto
Waterproof: No
Drive System
Burst Mode: Approx 10 fps at 16.2MP (Maximum
10 shots)
Self-timer: Off / 10sec. / 2sec. / portrait1 /
portrait2
Shutter Speeds: iAuto (2"" - 1/4000) / Program
Auto (1"" - 1/4000) / Shutter Priority (30"" 1/4000) / Aperture Priority (8"" - 1/2000) /
Manual (30"" - 1/4000)
Interface
PictBridge Compatible: No
TransferJet: Send: Yes (Single / Select , U2
Version), Receive: Yes (U2 Version)
SD Output: Yes
USB Port(s): Yes - Multi Use Terminal
Memory Card Slot: MS Duo and SD/SDHC/SDXC
Compatible
Party Shot Compatible: No
Imaging Sensor
Processor: BIONZ™
Imaging Sensor: 1/2.3" (7.77mm) "Exmor R"
CMOS Sensor
Effective Picture Resolution: 16.2MP
Pixel Gross: 16.8MP
Color Filter System: RGB primary color filters
Exposure System
D-Range Optimizer: Standard
ISO: Auto / 100 / 125 / 160 / 200 / 250 / 320 /
400 / 500 / 640 / 800 / 1000 / 1250 / 1600 /
2000 / 2500 / 3200
Noise Reduction: Clear RAW NR / NR Slow Shutter
Scene Mode(s): High Sensitivity / Soft snap /
Landscape / Twilight Portrait / Twilight /
Gourmet / Beach / Snow / Fireworks / Pet /
Soft Skin / Handheld Twilight / Anti Motion Blur
White Balance Mode: Auto (Intelligent) /
Daylight / Cloudy / Fluorescent 1 (White
Fluorescent Lighting) / Fluorescent 2 (Natural
White Fluorescent Lighting) / Fluorescent 3 (Day
White Fluorescent Lighting) / Incandescent /
Flash / One Push / White Balance Sift
Exposure Compensation: Plus / Minus 2.0EV, 1 /
3EV step
Metering Modes: Multi Pattern / Center Weighted /
Spot
Recording
Media Type: optional “Memory Stick Duo” (No
movie recording), optional “Memory Stick PRO
Duo” (Mark 2 only for movie recording),
optional “Memory Stick PRO-HG Duo”,
optional SD Memory Card (Class 4 or higher),
optional SDHC Memory Card (Class 4 or
higher), optional SDXC Memory Card (Class 4
or higher)
Microphone/Speaker: Stereo / Mono
Still Image Max Effective Resolution: Approx. 16.2
Megapixels
Panorama Still Image Size: 2D: 7,152 x 1,080
(183deg) / 4,912 x 1,080 (126deg) / 4,912 x
1,920 (130deg) / 3,424 x 1,920 (90deg); 3D:
7,152 x 1,080 (183deg) / 4,912 x 1,080
(126deg) / 4,912 x 1,920 (130deg) / 3,424 x
1,920 (90deg) /
1,920 x 1,080 (49deg)
Still Image Size 16:9: 12M (4,608 x 2,592) / 2M
(1,920 x 1,080)
Still Image Size 4:3: 16M (4,608 x 3,456), 10M
(3,648 x 2,736), 5M (2,592 x 1,944), VGA (640 x
480); 3D: 16M (4,608 x 3,456) / 16:9 (12M)
(4,608 x 2,592)
Video Format: AVCHD 60i / 60p / MP4 / MPEG-4
AVC(H.264)
Sweep Multi Angle Image Size: 1,920 x 1,080
(15views)
Still Image Mode: JPEG
Still Image Size 3:2: No
Photo Capture from Movie: Yes
Dual Record: Yes
Audio Format: Dolby Digital (AC-3) / MPEG-4
AAC-LC
Focus Control
AF Illuminator: Auto / Off
AF Modes: 9 points AF (Under Face Undetected) /
Center Weighted AF / Flexible Spot AF / Manual
Dimensions
Weight: 1lb 4.3 oz. (574.3g)
Measurements: W x H x D: 4 5/8" x 3 4/8" x 3
5/8" (119.0mm x 88.9mm x 93.0mm)
Color: Black
UPC Code: 027242808782
1. PMB requires Microsoft® Windows® XP SP3/ Windows Vista
® SP2/Windows 7 environments not supported. Not supported by
Mac OS® .
2. Uploading directly to the web requires PMB Portable software and USB
cable (included), and PC with internet connectivity. Windows® XP
SP3 64-bit and Starter Edition and Windows Vista® Starter Edition
environments not supported.
3. Movie recording is limited to 29 minute segments.
4. 3D viewing requires 3D HDTV, a high speed HDMI™ cable (supporting
at least 10.2 Gbps) and 3D glasses (all sold separately).
5. TransferJet™ enabled media (sold separately) and TransferJet™
technology required in both devices. Interoperability and
compatibility among TransferJet™ enabled devices may vary.
6. HD Viewing requires an HD output adapter cable (VMC-MHC1 sold
separately) and compatible HDTV.
© 2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony, Cyber-shot, Optical
SteadyShot, BIONZ, Xtra Fine LCD, Smile Shutter, TransferJet, Exmor R,
Sweep Multi Angle, Smile Shutter, and DVDirect logo are trademarks of
Sony. PlayStation is a trademark of Sony Computer Entertainment.
Microsoft, Windows, and Windows Vista are trademarks of Microsoft
Corporation. Blu-ray Disc is a trademark. HDMI is a trademark of HDMI
Licensing LLC. iMovie, Mac, and the Works with iMovie logo and the Mac
logo are trademarks of Apple Computer, Inc. All other trademarks are
trademarks of their respective owners.
Software
Supplied Software: Windows® : PMB (Picture
Motion Browser) Ver. 5.5, PMB Portable
Advanced Features
Image Stabilization: Optical SteadyShot™
Image Stabilization with Active Mode
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Please visit the Dealer Source for more information
at www.sony.com/dealersource
Last Updated: 03/07/2011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
