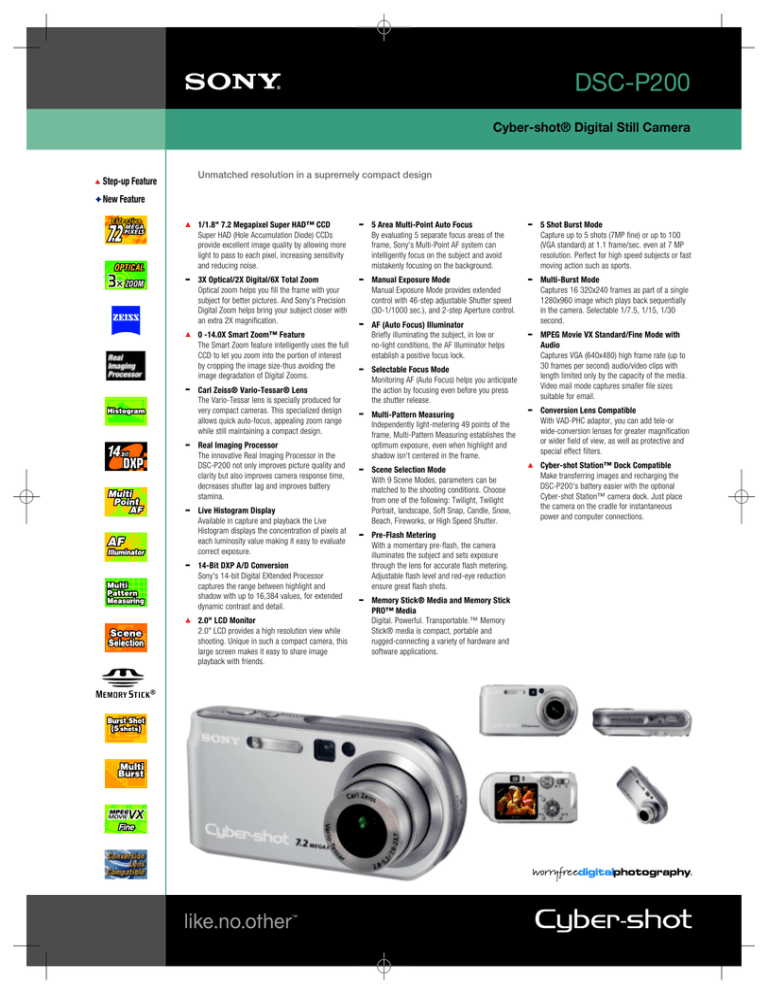

Sony DSC-P200 Specification

Sony DSC-P200 Specification
Cyber-shot® Digital Still Camera
Unmatched resolution in a supremely compact design
Step-up Feature
' New Feature
1/1.8" 7.2 Megapixel Super HAD™ CCD
Super HAD (Hole Accumulation Diode) CCDs
provide excellent image quality by allowing more
light to pass to each pixel, increasing sensitivity
and reducing noise.
3X Optical/2X Digital/6X Total Zoom
Optical zoom helps you fill the frame with your
subject for better pictures. And Sony's Precision
Digital Zoom helps bring your subject closer with
an extra 2X magnification.
0 -14.0X Smart Zoom™ Feature
The Smart Zoom feature intelligently uses the full
CCD to let you zoom into the portion of interest
by cropping the image size-thus avoiding the
image degradation of Digital Zooms.
Carl Zeiss® Vario-Tessar® Lens
The Vario-Tessar lens is specially produced for
very compact cameras. This specialized design
allows quick auto-focus, appealing zoom range
while still maintaining a compact design.
Real Imaging Processor
The innovative Real Imaging Processor in the
DSC-P200 not only improves picture quality and
clarity but also improves camera response time,
decreases shutter lag and improves battery
Live Histogram Display
Available in capture and playback the Live
Histogram displays the concentration of pixels at
each luminosity value making it easy to evaluate
correct exposure.
14-Bit DXP A/D Conversion
Sony's 14-bit Digital EXtended Processor
captures the range between highlight and
shadow with up to 16,384 values, for extended
dynamic contrast and detail.
2.0" LCD Monitor
2.0" LCD provides a high resolution view while
shooting. Unique in such a compact camera, this
large screen makes it easy to share image
playback with friends.
5 Area Multi-Point Auto Focus
By evaluating 5 separate focus areas of the
frame, Sony's Multi-Point AF system can
intelligently focus on the subject and avoid
mistakenly focusing on the background.
Manual Exposure Mode
Manual Exposure Mode provides extended
control with 46-step adjustable Shutter speed
(30-1/1000 sec.), and 2-step Aperture control.
AF (Auto Focus) Illuminator
Briefly illuminating the subject, in low or
no-light conditions, the AF Illuminator helps
establish a positive focus lock.
Selectable Focus Mode
Monitoring AF (Auto Focus) helps you anticipate
the action by focusing even before you press
the shutter release.
Multi-Pattern Measuring
Independently light-metering 49 points of the
frame, Multi-Pattern Measuring establishes the
optimum exposure, even when highlight and
shadow isn't centered in the frame.
Scene Selection Mode
With 9 Scene Modes, parameters can be
matched to the shooting conditions. Choose
from one of the following: Twilight, Twilight
Portrait, landscape, Soft Snap, Candle, Snow,
Beach, Fireworks, or High Speed Shutter.
Pre-Flash Metering
With a momentary pre-flash, the camera
illuminates the subject and sets exposure
through the lens for accurate flash metering.
Adjustable flash level and red-eye reduction
ensure great flash shots.
Memory Stick® Media and Memory Stick
PRO™ Media
Digital. Powerful. Transportable.™ Memory
Stick® media is compact, portable and
rugged-connecting a variety of hardware and
software applications.
5 Shot Burst Mode
Capture up to 5 shots (7MP fine) or up to 100
(VGA standard) at 1.1 frame/sec. even at 7 MP
resolution. Perfect for high speed subjects or fast
moving action such as sports.
Multi-Burst Mode
Captures 16 320x240 frames as part of a single
1280x960 image which plays back sequentially
in the camera. Selectable 1/7.5, 1/15, 1/30
MPEG Movie VX Standard/Fine Mode with
Captures VGA (640x480) high frame rate (up to
30 frames per second) audio/video clips with
length limited only by the capacity of the media.
Video mail mode captures smaller file sizes
suitable for email.
Conversion Lens Compatible
With VAD-PHC adaptor, you can add tele-or
wide-conversion lenses for greater magnification
or wider field of view, as well as protective and
special effect filters.
Cyber-shot Station™ Dock Compatible
Make transferring images and recharging the
DSC-P200's battery easier with the optional
Cyber-shot Station™ camera dock. Just place
the camera on the cradle for instantaneous
power and computer connections.
Cyber-shot® Digital Still Camera
additional features
PictBridge™ Compatibility
Rechargeable InfoLithium® Battery
3:2 Aspect Ratio Mode
Adjustable Color Saturation/Contrast
Audio/Video Output
Clear Color/Clear Luminance NR
MPEG1 Cue, Review and Divide
Multi-Use Terminal
Supports High Speed USB 2.0
Recording Media: Memory Stick® Media,
Memory Stick PRO™ Media
White Balance: Auto, Daylight, Cloudy,
Fluorescent, Incandescent, Flash, One-push
Picture Effects: Sepia, Black & White
Scene Modes: Beach, Candle, Fireworks, High
Speed Shutter, Landscape, Snow, Soft
Snap, Twilight, Twilight Portrait
Self Timer: Yes, 10 Seconds
Memory Stick Pro™ Media Compatibility:
Tested to support up to 4GB media capacity;
does not support Access Control security
Still Image Mode(s): JPEG (Fine/Standard),
Burst, Multi-Burst
Red-Eye Reduction: On/Off
Burst Mode: 5 Shot (7 MP JPEG fine), 100 Shot
VGA (JPEG std.), 1.1fps
Movie Mode(s): MPEG VX Fine with Audio (640
x 480 at 30fps), (MPEG VX Fine requires
Memory Stick PRO media), MPEG VX
Standard with Audio (640 x 480 at 16fps),
Video Mail (160 x 112 at 8fps) with Audio
Imaging Device: 1/1.8" 7.2 Megapixel Effective
Super HAD™ CCD
Macro Mode: 2.4" (6cm)
USB Port(s): Yes (Supports USB 2.0 2 )
Output(s): Yes, Multi-pin connector,NTSC/PAL
Microphone/Speaker: Yes/Yes
LCD: 2.0" 134K Pixels TFT LCD Screen
Lens Construction: 7 Elements in 5 Groups, 3
Aspheric Elements
Flash Effective Range: 7-7/8" - 11' 6"
Flash Modes: Auto/Forced On/Forced Off/Slow
Zoom: 3X Optical, 0-14.0X (at VGA Resolution),
Precision, 0-2.0X range, 6X total
Focal Length: 7.9 - 23.7mm
35mm Equivalent: 38 - 114mm
Aperture: f2.8 - f5.2
Focus: 5 Area Multi-Point AF, Center AF,
5-Step Manual
Focal Distance: Minimum: 19.7" (50cm)
Shutter Speed: Auto: 1/8-1/2000 sec.;
Program Auto: 1-1/2000 sec.; Manual:
30-1/1000 sec.
Aperture Range: f2.8 - 5.6 (W), f5.4 - f10 (T)
Exposure Compensation:±2.0 EV, 1/3 EV Steps
ISO: Auto, 100, 200, 400
Battery Type: InfoLithium® (NP-FR1)
Limited Warranty: 1 Year Parts & Labor
Supplied Software: Picture Package™ for Sony
v1.6 (Windows), Pixela™ ImageMixer VCD2
(Macintosh), SPVD-012.1 USB Driver,
Cyber-shot Life tutorial (Windows)
Operating System Compatibility: Microsoft®
Windows® 98, 98SE, 2000 Professional,
Me, XP Home and Professional; Macintosh®
OS 9.1/9.2/X (10.0, 10.1, 10.2, 10.3)
Filter Diameter: 30mm (by required VAD-PHC
Weight: 5 oz (144 g) Body; 6 oz (180 g)Body
w/Battery, Media, Wrist Strap
Dimensions (WHD): 4 1/11" x 2" x 1 1/10"
(104 x 51.5 x 27.9mm)
Supplied Accessories: Rechargeable
InfoLithium® Battery (NP-FR1)
Battery Charger (AC-LS5)
A/V and USB Cables
Wrist Strap
32MB Memory Stick® Media (MSA-32A)
Software CD-ROM
UPC Code: 0272426713310
service and warranty
Limited Warranty: 1 Year Parts & Labor
optional accessories
Cyber-shot Station (CSS-PHB)
Value Kit (ACC-CFR)
InfoLithium® Rechargeable Battery (NP-FR1)
Compact AC Travel Charger (BC-TR1)
Conversion Lens Adaptor Mount (VAD-PHC)
Wide Angle Conversion Lens3 (VCL-DH0730)
Super Telephoto Conversion Lens3
Telephoto Conversion Lens3 (VCL-DH1730)
External Slave Flash w/ Bracket (HVL-FSL1B)
"Just Fit" Carrying Case (LCM-PHA)
General Carrying Case (LCS-CSD)
Custom Fit Leather Carrying Case (LCS-PHE)
Deluxe Casual Carrying Case (LCS-PHC)
Travel Tripod (VCT-MTK)
Lightweight Tripod (VCT-1500L)
Memory Stick® Media Carrying Case (LCH-MA)
Memory Stick® Media (MSA-128A)
Memory Stick PRO™ Media (MSX-256N)
Memory Stick PRO™ Media (MSX-512N)
Memory Stick PRO™ Media (MSX-1GN)
Memory Stick PRO™ Media (MSX-2GN)
Memory Stick PRO™ Media (MSX-4GN)
Memory Stick PRO™ Media USB Adaptor
Multi-slot Memory Stick Adaptor (MSAC-USM1)
1. Recording numbers are approximate and will vary depending upon the images. Available storage capacity of Memory Stick and Memory Stick PRO media may vary.
2. Not all products with USB connectors may communicate with each other due to chipset variations.
3. VAD-PHC Conversion Lens Adaptor Mount Required
©2005 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Cyber-shot, Cyber-shot Station, Digital, Powerful, Transportable, InfoLithium, Memory
Stick, the Memory Stick logo, Memory Stick PRO, Smart Zoom and Super HAD are trademarks of Sony. Carl Zeiss and Vario-Tessar are trademarks of Carl Zeiss. Microsoft and Windows are registered trademarks of Microsoft
Corporation. Macintosh is a trademark of Apple Computer. PictBridge is a trademark of CIPA. All other trademarks are property of their respective owners.
Features and specifications subject to change without notice. Non-metric weights and measures are approximate.
Please visit the Dealer Network for more information at
Sony Electronics Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-800-222-7669 •
Last Updated 2005-06-20
