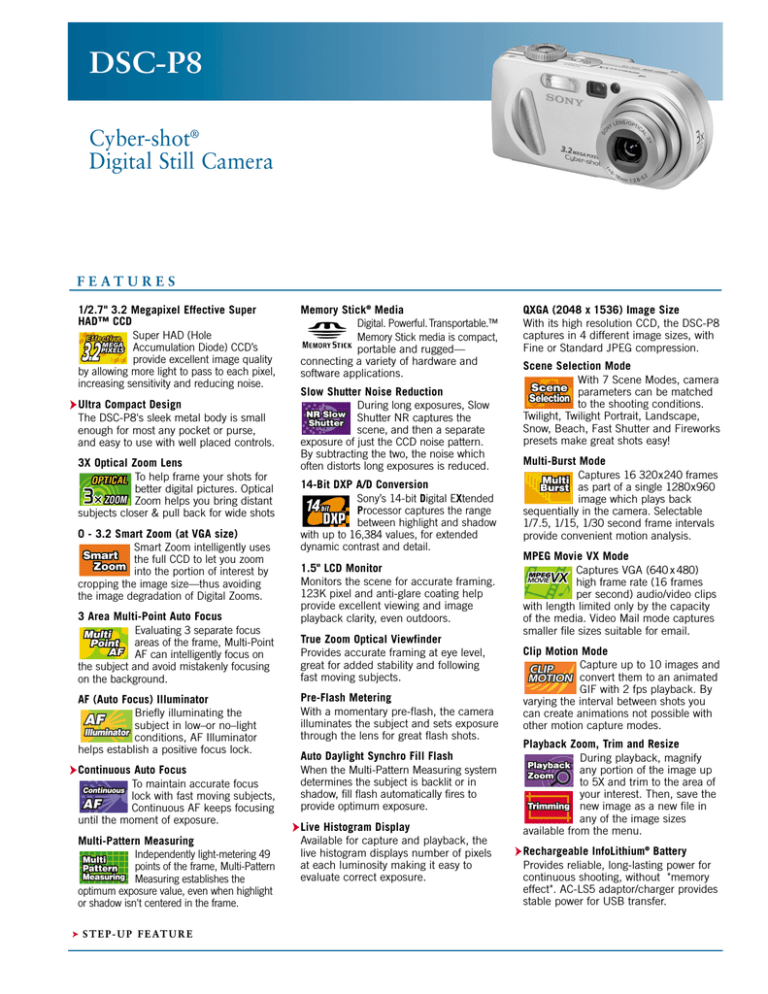

DSC-P8 Cyber-shot® Digital Still Camera F E AT U R E S 1/2.7" 3.2 Megapixel Effective Super HAD™ CCD Super HAD (Hole Accumulation Diode) CCD’s provide excellent image quality by allowing more light to pass to each pixel, increasing sensitivity and reducing noise. ➤Ultra Compact Design The DSC-P8's sleek metal body is small enough for most any pocket or purse, and easy to use with well placed controls. 3X Optical Zoom Lens To help frame your shots for better digital pictures. Optical Zoom helps you bring distant subjects closer & pull back for wide shots 0 - 3.2 Smart Zoom (at VGA size) Smart Zoom intelligently uses the full CCD to let you zoom into the portion of interest by cropping the image size—thus avoiding the image degradation of Digital Zooms. 3 Area Multi-Point Auto Focus Evaluating 3 separate focus areas of the frame, Multi-Point AF can intelligently focus on the subject and avoid mistakenly focusing on the background. AF (Auto Focus) Illuminator Briefly illuminating the subject in low–or no–light conditions, AF Illuminator helps establish a positive focus lock. ➤Continuous Auto Focus To maintain accurate focus lock with fast moving subjects, Continuous AF keeps focusing until the moment of exposure. Multi-Pattern Measuring Independently light-metering 49 points of the frame, Multi-Pattern Measuring establishes the optimum exposure value, even when highlight or shadow isn't centered in the frame. ➤ S T E P - U P F E AT U R E Memory Stick® Media Digital. Powerful. Transportable.™ Memory Stick media is compact, portable and rugged— connecting a variety of hardware and software applications. Slow Shutter Noise Reduction During long exposures, Slow Shutter NR captures the scene, and then a separate exposure of just the CCD noise pattern. By subtracting the two, the noise which often distorts long exposures is reduced. 14-Bit DXP A/D Conversion Sony’s 14-bit Digital EXtended Processor captures the range between highlight and shadow with up to 16,384 values, for extended dynamic contrast and detail. 1.5" LCD Monitor Monitors the scene for accurate framing. 123K pixel and anti-glare coating help provide excellent viewing and image playback clarity, even outdoors. True Zoom Optical Viewfinder Provides accurate framing at eye level, great for added stability and following fast moving subjects. Pre-Flash Metering With a momentary pre-flash, the camera illuminates the subject and sets exposure through the lens for great flash shots. Auto Daylight Synchro Fill Flash When the Multi-Pattern Measuring system determines the subject is backlit or in shadow, fill flash automatically fires to provide optimum exposure. ➤Live Histogram Display Available for capture and playback, the live histogram displays number of pixels at each luminosity making it easy to evaluate correct exposure. QXGA (2048 x 1536) Image Size With its high resolution CCD, the DSC-P8 captures in 4 different image sizes, with Fine or Standard JPEG compression. Scene Selection Mode With 7 Scene Modes, camera parameters can be matched to the shooting conditions. Twilight, Twilight Portrait, Landscape, Snow, Beach, Fast Shutter and Fireworks presets make great shots easy! Multi-Burst Mode Captures 16 320x240 frames as part of a single 1280x960 image which plays back sequentially in the camera. Selectable 1/7.5, 1/15, 1/30 second frame intervals provide convenient motion analysis. MPEG Movie VX Mode Captures VGA (640 x 480) high frame rate (16 frames per second) audio/video clips with length limited only by the capacity of the media. Video Mail mode captures smaller file sizes suitable for email. Clip Motion Mode Capture up to 10 images and convert them to an animated GIF with 2 fps playback. By varying the interval between shots you can create animations not possible with other motion capture modes. Playback Zoom, Trim and Resize During playback, magnify any portion of the image up to 5X and trim to the area of your interest. Then, save the new image as a new file in any of the image sizes available from the menu. ➤Rechargeable InfoLithium ® Battery Provides reliable, long-lasting power for continuous shooting, without "memory effect". AC-LS5 adaptor/charger provides stable power for USB transfer. DSC-P8 A D D I T I O N A L F E AT U R E S 2 Shot Burst Mode Adjustable Color Saturation/Contrast Clear Color/Clear Luminance NR MPEG1 Cue, Review and Divide 3:2 Aspect Ratio Mode Video Output (PAL/NTSC Selectable) 4 Mode In-Camera Picture Effects 5 Step Manual preset focus S P E C I F I C AT I O N S Imaging Device: 1/2.7" 3.2 Megapixel Effective Super HAD™ CCD Recording Media: Memory Stick® Media, Memory Stick PRO™ Media Zoom: 3X Optical, 3.2X Smart Zoom (at VGA size), 9.6X Total Filter Diameter: N/A Focal Length: 6 - 18mm 35mm Equivalent: 39 - 117mm Aperture: f2.8 - 5.6 Focus: 3 Area Multi-Point AF, 5 Step Manual Preset Minimum Focus Distance: 19.7" (50 cm) Macro Focus Distance: 3.9" (10 cm) Shutter Speed: Auto, 1/30 – 1/2000 sec, Twilight 2 sec – 1/2000 Manual Exposure: ±2.0 EV, 1/3 EV Steps Color LCD: 1.5" 123K Pixels Low Temperature Polysilicon TFT Flash Modes: Auto/Forced On/Forced Off/Slow Synchro, Red-eye Reduction On/Off White Balance: Auto, Daylight, Cloudy, Fluorescent, Incandescent Picture Effects: Black & White, Solarize, Sepia, Negative Art ISO: Auto, 100, 200, 400 Scene Modes: Twilight, Twilight Portrait, Landscape, Beach, Snow, Fireworks, Fast Shutter Self Timer: Yes, 10 Seconds Video Output: Yes, NTSC/PAL Selectable Still Image Modes: JPEG (Fine/Std.), Burst, Email, Voice Memo Maximum File Resolution: 2048 x 1536 MPEG Movie Modes: MPEG VX (640x480, 16fps, with audio) MPEG Video Mail (160x112, 8 fps with audio) Clip Motion: Normal (160 x120), Mobile (80x72) Microphone/Speaker: Yes/Yes USB Terminal: Yes, Supports USB 2.0 Memory Stick PRO™ Media Compatibility: Tested to support up to 1GB media capacity; does not support high speed transfer function; does not support Access Control security function Battery Type/Capacity: InfoLithium NP-FC11 780 mAh Rated Supplied Software: Pixela™ Image Mixer Software for Sony v1.5, USB Driver SPVD-008 OS Compatibility: Microsoft® Windows® 98/98SE/Me/2000 Professional/XP Home/Pro; Macintosh® OS 8.5.1/8.6/9.0/9.1/9.2 Supplied Accessories: NP-FC11 InfoLithium® Rechargeable Battery, AC-LS5 AC Adaptor/In-camera Charger, A/V and USB Cables, Wrist strap, MSA-16A 16MB Memory Stick® Media, Software CD-ROM Dimensions (W/H/D): 4 1/4" x 2" x 1 7/16" (105 x 51.5 x 35.8mm) Weight: 7.5 oz (206g) (w/Battery, Memory Stick® Media, Strap) Sony Electronics Inc. 16765 West Bernardo Drive San Diego, Ca 92127 www.sony.com/di JPEG Still Image Mode Fine/Standard Picture Quality Memory Stick® 2048x1536 Media1 (3MP) 16MB 32MB 64MB 128MB 2048x1360 (3:2) 1632x1224 (2MP) 1280x960 (1MP) 640x480 (VGA) 10/18 20/37 41/74 82/149 10/18 20/37 41/74 82/149 16/30 33/61 66/123 133/246 24/46 50/93 101/187 202/376 97/243 196/491 394/985 790/1,975 148/264 302/537 617/1,097 148/264 302/537 617/1,097 238/446 484/907 988/1,852 357/649 726/1,320 1,482/2,694 1,428/3,571 2,904/7,261 5,928/14,821 Memory Stick PRO™ Media1 256MB 512MB 1GB MOTION CAPTURE MODES Maximum Recording Time (minutes/seconds) MPEG Movie Clip Motion (Images) 160x112 80x72 16 Frame Multi-Burst Memory Stick® Media 640x480 160x112 (VX Mode) (Mail Mode) 16MB 32MB 64MB 128MB 42sec 87sec 176sec 5m 54s 11m 13s 22m 43s 45m 40s 91m 34s 88 178 358 718 486 982 1,971 3,951 24/46 50/93 101/187 202/376 10m 41s 21m 44s 44m 23s 165m 35s 336m 43s 687m 19s 1,190 2,420 4,940 3,571 7,261 14,821 357/649 726/1,320 1,482/2,694 (Normal-10f) (Mobile-2f) 1280x960 (Fine/Std) Memory Stick PRO™ Media 256MB 512MB 1GB BATTERY LIFE (Approx) Battery Recording-# Shots* Recording-Minutes* Viewing** Fully Charged LCD On/Off LCD On/Off No. Images/Batt. Life NP-FC11 200/250 100min/125min 3850/180min *Under Average Conditions: Normal Mode (JPEG), Picture quality Fine; Shooting each image at 30 second intervals; Zoom is alternated from Wide to Telephoto ends; Flash operated every other shot; Power is turned on/off after every 10 shots; Actual results may vary on conditions of use. **Viewing single images consecutively, at about 3 second interval. OPTIONAL ACCESSORIES ACC-CSFC Starter Kit (LCS-CSFC, NP-FC11, MSAC-A8) NP-FC11 InfoLithium® Battery AC-LS5 AC Adaptor/In-camera Charger LCS-PHA Deluxe Soft Leather Carrying Case LCS-PX Deluxe Semi-Soft Carrying Case LCS-CSB Sport Style Carrying Case LCS-CP2 General Carrying Case HVL-FSL1A External Slave Flash w/Bracket VAD-PHA Conversion Lens Adaptor Mount VCL-DH0730 Wide Angle Conversion Lens* VCL-DH1730 Telephoto Conversion Lens* VF-30CPKS Polarizing Filter Kit* VF-30NK Neutral Density Filter Kit* VF-30SC Special Effects Filter Kit* * VAD-PHA Conversion Lens Adaptor Mount Required MSA-32A, MSA-64A, MSA-128A Memory Stick® Media MSA-128S2 Memory Stick® Media with Select Function (256MB total) MSX-256, MSX-512, MSX-1G Memory Stick PRO™ Media MSAC-HGA8 Memory Stick® media Carrying Case MSAC-US70 Memory Stick PRO™ Media USB Adaptor/Mouse MSAC-US20 Memory Stick PRO™ Media USB Adaptor MSAC-PC3 Memory Stick PRO™ Media PC Card Adaptor VMC-14UMB Replacement USB cable VCT-MTK Travel Tripod VCT-R640 Lightweight Tripod MPK-PHA Marine Pack ©2003 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Cyber-shot, Digital. Powerful. Transportable, InfoLithium, Memory Stick, Memory Stick PRO, the Memory Stick logo, and Super HAD are trademarks of Sony. Microsoft and Windows are trademarks of Microsoft Corporation. Macintosh is a trademark of Apple Computer, Inc. All other trademarks are property of their respective owners. Features and specifications subject to change without notice. Nonmetric weights and measures are approximate. 1 Available storage capacity of Memory Stick and Memory Stick PRO media may vary. A portion of the memory is used for data management functions.
