Sony DSC-P93 Specification

Sony DSC-P93 Specification
®

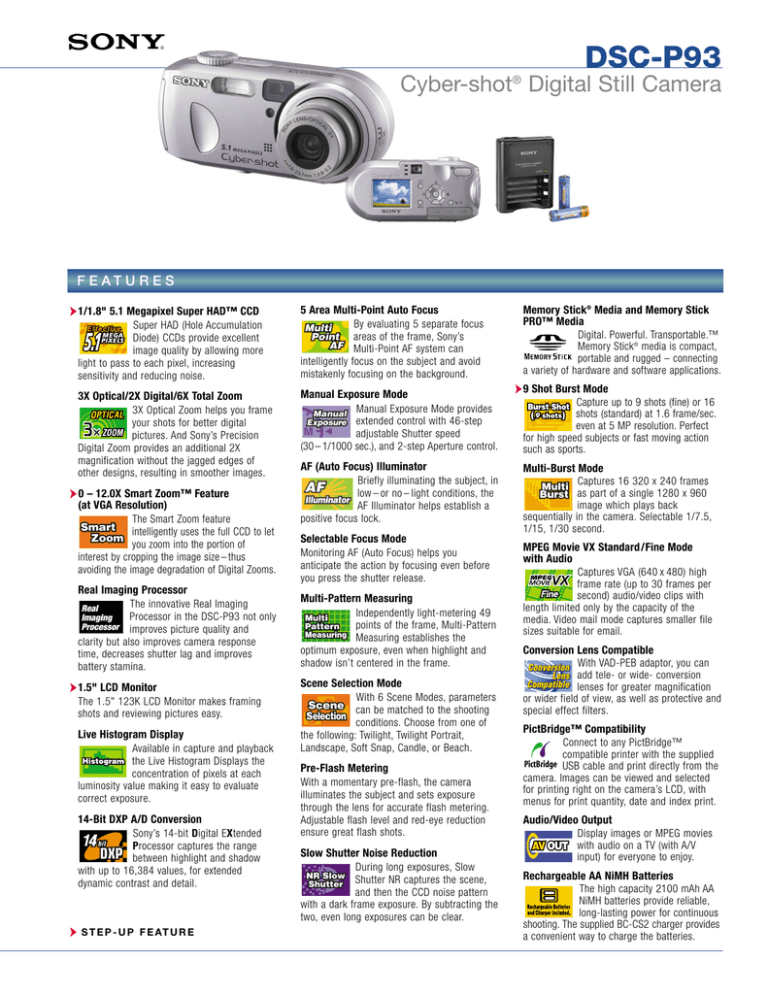

DSC-P93
Cyber-shot Digital Still Camera
®
F E AT U R E S
➤1/1.8" 5.1 Megapixel Super HAD™ CCD
Super HAD (Hole Accumulation
Diode) CCDs provide excellent
image quality by allowing more
light to pass to each pixel, increasing
sensitivity and reducing noise.
3X Optical/2X Digital/6X Total Zoom
3X Optical Zoom helps you frame
your shots for better digital
pictures. And Sony’s Precision
Digital Zoom provides an additional 2X
magnification without the jagged edges of
other designs, resulting in smoother images.
➤0 – 12.0X Smart Zoom™ Feature
(at VGA Resolution)
The Smart Zoom feature
intelligently uses the full CCD to let
you zoom into the portion of
interest by cropping the image size – thus
avoiding the image degradation of Digital Zooms.
Real Imaging Processor
The innovative Real Imaging
Processor in the DSC-P93 not only
improves picture quality and
clarity but also improves camera response
time, decreases shutter lag and improves
battery stamina.
➤1.5" LCD Monitor
The 1.5" 123K LCD Monitor makes framing
shots and reviewing pictures easy.
Live Histogram Display
Available in capture and playback
the Live Histogram Displays the
concentration of pixels at each
luminosity value making it easy to evaluate
correct exposure.
14-Bit DXP A/D Conversion
Sony’s 14-bit Digital EXtended
Processor captures the range
between highlight and shadow
with up to 16,384 values, for extended
dynamic contrast and detail.
➤ STEP-UP
F E AT U R E
5 Area Multi-Point Auto Focus
By evaluating 5 separate focus
areas of the frame, Sony’s
Multi-Point AF system can
intelligently focus on the subject and avoid
mistakenly focusing on the background.
Manual Exposure Mode
Manual Exposure Mode provides
extended control with 46-step
adjustable Shutter speed
(30 – 1/1000 sec.), and 2-step Aperture control.
AF (Auto Focus) Illuminator
Briefly illuminating the subject, in
low – or no – light conditions, the
AF Illuminator helps establish a
positive focus lock.
Selectable Focus Mode
Monitoring AF (Auto Focus) helps you
anticipate the action by focusing even before
you press the shutter release.
Multi-Pattern Measuring
Independently light-metering 49
points of the frame, Multi-Pattern
Measuring establishes the
optimum exposure, even when highlight and
shadow isn’t centered in the frame.
Scene Selection Mode
With 6 Scene Modes, parameters
can be matched to the shooting
conditions. Choose from one of
the following: Twilight, Twilight Portrait,
Landscape, Soft Snap, Candle, or Beach.
Pre-Flash Metering
With a momentary pre-flash, the camera
illuminates the subject and sets exposure
through the lens for accurate flash metering.
Adjustable flash level and red-eye reduction
ensure great flash shots.
Slow Shutter Noise Reduction
During long exposures, Slow
Shutter NR captures the scene,
and then the CCD noise pattern
with a dark frame exposure. By subtracting the
two, even long exposures can be clear.
Memory Stick® Media and Memory Stick
PRO™ Media
Digital. Powerful. Transportable.™
Memory Stick® media is compact,
portable and rugged – connecting
a variety of hardware and software applications.
➤9 Shot Burst Mode
Capture up to 9 shots (fine) or 16
shots (standard) at 1.6 frame/sec.
even at 5 MP resolution. Perfect
for high speed subjects or fast moving action
such as sports.
Multi-Burst Mode
Captures 16 320 x 240 frames
as part of a single 1280 x 960
image which plays back
sequentially in the camera. Selectable 1/7.5,
1/15, 1/30 second.
MPEG Movie VX Standard /Fine Mode
with Audio
Captures VGA (640 x 480) high
frame rate (up to 30 frames per
second) audio/video clips with
length limited only by the capacity of the
media. Video mail mode captures smaller file
sizes suitable for email.
Conversion Lens Compatible
With VAD-PEB adaptor, you can
add tele- or wide- conversion
lenses for greater magnification
or wider field of view, as well as protective and
special effect filters.
PictBridge™ Compatibility
Connect to any PictBridge™
compatible printer with the supplied
USB cable and print directly from the
camera. Images can be viewed and selected
for printing right on the camera’s LCD, with
menus for print quantity, date and index print.
Audio/Video Output
Display images or MPEG movies
with audio on a TV (with A/V
input) for everyone to enjoy.
Rechargeable AA NiMH Batteries
The high capacity 2100 mAh AA
NiMH batteries provide reliable,
long-lasting power for continuous
shooting. The supplied BC-CS2 charger provides
a convenient way to charge the batteries.
DSC-P93
Cyber-shot® Digital Still Camera
A D D I T I O N A L F E AT U R E S
3:2 Aspect Ratio Mode
Adjustable Color/Saturation/Hue
Auto Daylight Sychro Fill Flash
Clear Color/Clear Luminance NR
MPEG1 Cue, Review and Divide
Supports High Speed USB 2.0
S P E C I F I C AT I O N S
Imaging Device: 1/1.8" 5.1 Megapixel Super HAD™ CCD
Recording Media: Memory Stick® Media, Memory Stick PRO™ Media
Lens Construction: 5 Elements in 7 Groups, 2 Aspheric Elements
Zoom: 3X Optical
Smart Zoom™ Feature: 0 – 4.0X (at VGA Resolution), 12X Total
Digital Zoom: Precision, 0 – 2.0X Range, 6X Total
Filter Diameter: 30mm, by required VAD-PEB adaptor
Focal Length: 7.9 – 23.7mm
35mm Equivalent: 38 – 114mm
Aperture Range: f2.8 – f5.6 (W); f5.2 – f10 (T)
Auto Focus: 5 Area Multi-Point AF, Center AF, 5-Step Manual
Minimum Focus Distance: 19.7" (50cm)
Macro Mode: 3.9" (10cm)
Shutter Speed: 1/8 – 1/1000 sec. (auto)
2 – 1/1000 sec. (twilight)
30 – 1/1000 sec. (manual)
Exposure Compensation: +/- 2.0 EV, 1/3 EV steps
Color LCD: 1.5" 123K Pixel LCD Screen
Flash Modes: Auto/Forced On/Forced Off/Slow Synchro
Red-Eye Reduction: On/Off
Flash Effective Range: 1.6 – 12.5 ft. (0.5 – 3.8m)
White Balance: Auto, Daylight, Cloudy, Fluorescent, Incandescent
Burst Mode: 9 Shot (JPEG fine), 16 Shot (JPEG std.), 1.6fps
Picture Effects: Sepia, Black & White
ISO: Auto, 100, 200, 400
Scene Modes: Twilight, Twilight Portrait, Landscape, Soft Snap, Candle, Beach
Self-Timer: Yes, 10 Seconds
Audio/Video Output: Yes, NTSC/PAL Selectable
Still Image Modes: Normal (JPEG Fine/Standard), Burst, Multi-Burst
MPEG Movie Modes: MPEG VX Fine with Audio (640 x 480 at 30fps),
(MPEG VX Fine requires Memory Stick PRO media)
MPEG VX Standard with Audio (640 x 480 at 16fps),
Video Mail (160 x 112 at 8fps) with Audio
Microphone/Speaker: Yes/Yes
USB Terminal: Yes, Supports USB 2.0
Memory Stick PRO™ Media Compatibility: Tested to support up to 1GB media
capacity; does not support Access Control security function
Compatible Battery: “AA” NiMH, Alkaline
Supplied Software: Picture Package™ for Sony v1.0 (Windows), Pixela™
ImageMixer VCD2 (Macintosh), SPVD-012.1 USB Driver,
Cyber-shot Life tutorial (Windows)
OS Compatibility: Microsoft® Windows® 98/98SE/Me/ 2000/XP Home/XP Pro
Macintosh® OS 9.1/9.2/X (10.0, 10.1, 10.2, 10.3)
Supplied Accessories: NH-AA-DA Rechargeable AA Batteries, BC-CS2 Battery
Charger, A/V and USB Cables, Wrist Strap, MSA-32A 32MB
Memory Stick® Media, Software CD-ROM
Dimensions: 4 5⁄ 8" x 2 1⁄ 8" x 1 3⁄ 8" (117 x 54 x 36mm)
Weight: 6.4 oz (175g) Body; 8.6 oz. (236g) Body w/Batteries, Media, Wrist Strap
JPEG STILL IMAGE MODE
Fine/Standard Picture Quality
Memory Stick®
Media1
16MB
32MB
64MB
128MB
2592x1944
(5.1 MP)
2592x1728
(3:2)
2048x1536
(3 MP)
1280x960
(1 MP)
640x480
(VGA)
6/11
12/23
25/48
51/96
6/11
12/23
25/48
51/96
10/18
20/37
41/74
82/149
24/46
50/93
101/187
202/376
97/243
196/491
394/895
790/1,975
92/194
188/354
384/723
92/194
188/354
384/723
148/264
302/537
617/1,097
357/649
726/1,320
1,482/2,694
1,428/3,571
2,904/7,261
5,928/14,821
Memory Stick
PRO™ Media1
256MB
512MB
1GB
MPEG MOVIE MODE
Maximum Storage Time
Memory Stick®
Media
MPEG VX
(640x480) Fine
MPEG VX
(640x480) Standard
Video Mail
(160x112)
16MB
–
42s
11m 36s
32MB
–
1m 27s
23m 30s
64MB
–
2m 54s
47m 15s
128MB
–
5m 54s
1h 34m 45s
256MB
2m 57s
10m 42s
2h 51m 21s
512MB
6m 2s
21m 47s
5h 48m 28s
12m 20s
44m 27
11h 51m 21s
Memory Stick
Pro™ Media
1GB
OPTIONAL ACCESSORIES
ACC-CN3P/ACC-CN3M Starter Kit
NH-AA-2DA Rechargeable NiMH Batteries (2pk)
VAD-PEB Conversion Lens Adaptor Mount
VCL-DH0730 Wide Angle Conversion Lens*
VCL-DH2630 Super Telephoto Conversion Lens*
VCL-DH1730 Telephoto Conversion Lens*
VF-30CPKS Polarizing Kit Filter*
HVL-FSL1B External Slave Flash w/ Bracket
MPK-PEA Marine Pack
LCM-PEA “Just Fit” Carrying Case
LCS-CSD General Carrying Case
LCH-MA Memory Stick® Media Carrying Case
MSA-32A, MSA-64A, MSA-128A Memory
Stick® Media
MSA-128S2 Memory Stick® Media with Select
Function (256MB total)
MSA-256, MSX-512, MSX-1G Memory Stick
PRO™ Media
MSAC-US30 Memory Stick PRO™ Media USB
Adaptor
* VAD-PEB Conversion Lens Adaptor Mount
Required
CAMERA WITH OPTIONAL ACCESSORIES
®
Sony Electronics Inc.
16765 West Bernardo Drive
San Diego, CA 92127
www.sony.com/di
For more information:
1.800.352.SONY
©2004 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony, Cyber-shot, Digital, Powerful, Transportable, Memory Stick, the Memory Stick logo, Memory Stick PRO,
Smart Zoom and Super HAD, are trademarks of Sony. Microsoft and Windows are registered trademarks of
Microsoft Corporation. Macintosh is a trademark of Apple Computer. PictBridge is a trademark of CIPA. All
other trademarks are property of their respective owners. Features and specifications subject to change without notice. Non-metric weights and measures are approximate.
1
Available storage capacity of Memory Stick and Memory Stick PRO media may vary. A portion of the
memory is used for data management functions. Actual available memory in MBs is:16=15, 32=30, 64=61,
128=123, 256=220, 512=460, 1GB=940MB
