Sony DSC-T700/H Specification

Sony DSC-T700/H Specification

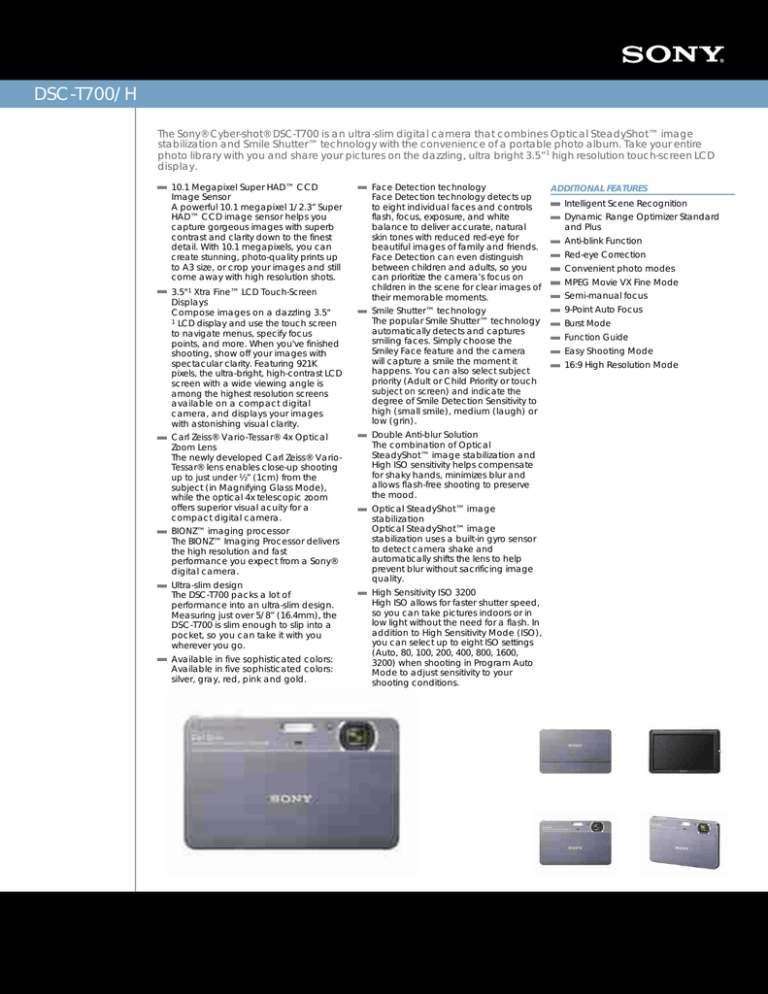

DSC-T700/H
The Sony® Cyber-shot® DSC-T700 is an ultra-slim digital camera that combines Optical SteadyShot™ image
stabilization and Smile Shutter™ technology with the convenience of a portable photo album. Take your entire
photo library with you and share your pictures on the dazzling, ultra bright 3.5”1 high resolution touch-screen LCD
display.
10.1 Megapixel Super HAD™ CCD
Image Sensor
A powerful 10.1 megapixel 1/2.3” Super
HAD™ CCD image sensor helps you
capture gorgeous images with superb
contrast and clarity down to the finest
detail. With 10.1 megapixels, you can
create stunning, photo-quality prints up
to A3 size, or crop your images and still
come away with high resolution shots.
3.5"1 Xtra Fine™ LCD Touch-Screen
Displays
Compose images on a dazzling 3.5"
1 LCD display and use the touch screen
to navigate menus, specify focus
points, and more. When you've finished
shooting, show off your images with
spectacular clarity. Featuring 921K
pixels, the ultra-bright, high-contrast LCD
screen with a wide viewing angle is
among the highest resolution screens
available on a compact digital
camera, and displays your images
with astonishing visual clarity.
Carl Zeiss® Vario-Tessar® 4x Optical
Zoom Lens
The newly developed Carl Zeiss® VarioTessar® lens enables close-up shooting
up to just under ½ ” (1cm) from the
subject (in Magnifying Glass Mode),
while the optical 4x telescopic zoom
offers superior visual acuity for a
compact digital camera.
BIONZ™ imaging processor
The BIONZ™ Imaging Processor delivers
the high resolution and fast
performance you expect from a Sony®
digital camera.
Ultra-slim design
The DSC-T700 packs a lot of
performance into an ultra-slim design.
Measuring just over 5/8” (16.4mm), the
DSC-T700 is slim enough to slip into a
pocket, so you can take it with you
wherever you go.
Available in five sophisticated colors:
Available in five sophisticated colors:
silver, gray, red, pink and gold.
Face Detection technology
Face Detection technology detects up
to eight individual faces and controls
flash, focus, exposure, and white
balance to deliver accurate, natural
skin tones with reduced red-eye for
beautiful images of family and friends.
Face Detection can even distinguish
between children and adults, so you
can prioritize the camera’s focus on
children in the scene for clear images of
their memorable moments.
Smile Shutter™ technology
The popular Smile Shutter™ technology
automatically detects and captures
smiling faces. Simply choose the
Smiley Face feature and the camera
will capture a smile the moment it
happens. You can also select subject
priority (Adult or Child Priority or touch
subject on screen) and indicate the
degree of Smile Detection Sensitivity to
high (small smile), medium (laugh) or
low (grin).
Double Anti-blur Solution
The combination of Optical
SteadyShot™ image stabilization and
High ISO sensitivity helps compensate
for shaky hands, minimizes blur and
allows flash-free shooting to preserve
the mood.
Optical SteadyShot™ image
stabilization
Optical SteadyShot™ image
stabilization uses a built-in gyro sensor
to detect camera shake and
automatically shifts the lens to help
prevent blur without sacrificing image
quality.
High Sensitivity ISO 3200
High ISO allows for faster shutter speed,
so you can take pictures indoors or in
low light without the need for a flash. In
addition to High Sensitivity Mode (ISO),
you can select up to eight ISO settings
(Auto, 80, 100, 200, 400, 800, 1600,
3200) when shooting in Program Auto
Mode to adjust sensitivity to your
shooting conditions.
ADDITIONAL FEATURES
Intelligent Scene Recognition
Dynamic Range Optimizer Standard
and Plus
Anti-blink Function
Red-eye Correction
Convenient photo modes
MPEG Movie VX Fine Mode
Semi-manual focus
9-Point Auto Focus
Burst Mode
Function Guide
Easy Shooting Mode
16:9 High Resolution Mode
DSC-T700/H
Specifications
General
Megapixel: 10.1 Megapixels
Imaging Device: 1/2.3 type(7.70mm) Super
HAD CCD
Recording Media: Optional Memory Stick
PRO Duo™ Media
Convenience
White Balance: Auto / Daylight / Cloudy /
Fluorescent 1 (White Fluorescent
Lighting) / Fluorescent 2 (Natural White
Fluorescent Lighting) / Fluorescent 3 (Day
White Fluorescent Lighting) /
Incandescent / Flash / Underwater White
Balance Mode - Auto, Underwater 1,
Underwater 2, Flash
Self Timer: Yes (10 seconds, 2 seconds, Off)
Memory Stick PRO™ Media Compatibility:
Tested to support up to 16GB Memory
Stick DUO PRO™ media capacity1 ; does
not support Access Control security
function.
Still Image Mode(s): Normal (JPEG) / Burst
(JPEG) / Bracketing (JPEG) - AE(Plus /
Minus 0.3EV / 0.7EV / 1.0EV)
Red-Eye Reduction: Auto / On / Off
Burst Mode: Max 100 shots at approx.1.6 fps
Date/Time Stamp: No/ No
Media/Battery Indicator: Yes/Yes
Color Mode(s): Normal / Vivid / Sepia / B&W
Convenience Features
Real Imaging Processor™ Technology:
BIONZ™
AF Illuminator Light: Auto / Off
PictBridge Compatible: Single / Select /
Date / Event / Favorites / Folder
Multi-Pattern Measuring: Yes
Scene Mode(s): Auto Adjustment / Easy
Shooting / Program Auto / Movie / High
Sensitivity / Twilight / Twilight Portrait / Soft
Snap / Landscape / Beach / Snow /
Fireworks / Hi-speed Shutter /
Underwater / Gourmet / Auto Adjustment
Movie Mode(s): 640(Fine) (VX Fine, 640 x
480, Approx.30fps) / 640 (Standard)(VX
Standard, 640 x 480, Approx.16.6fps) / 320
(QVGA, 320 x 240, Approx.8.3fps)
Power Save Mode: Yes (after approx. 3 min.
of inactivity)
In-Camera Editing: Trimming / Red Eye
Correction / Soft Focus / Partial Color /
Fisheye Lens / Cross Filter / Retro / Radial
Blur / Unsharp Masking / Smile
Super SteadyShot® optical image
stabilization: Yes
Inputs and Outputs
Accessory Terminal: Multi connector
Audio/Video Output(s): Yes via Mutli-Use
Connector
Flash Mode(s): Auto / Flash On / Slow
Syncro / Flash Off
Optics/Lens
Focal Length: 6.18-24.7mm
35mm Equivalent: 35-140mm
Focus: 9 points / Center Weighted AF / Spot
AF / Flexible Spot AF / Semi Manual
(1.0m / 3.0m / 7.0m / unlimited distance)
Aperture Range: Auto(F3.5-F10) / Program
Auto(F3.5-F10)
Shutter Speed: Auto(1/4 - 1/1,000) / Program
Auto(1" - 1/1,000)
Exposure Compensation: Plus / Minus 2.0EV,
1 / 3EV step
ISO: Auto / 80 / 100 / 200 / 400 / 800 / 1600 /
3200
Filter Diameter: No
Digital Zoom: Smart Zoom / Precision Digital
Zoom / Off
Optical Zoom: 4x
Macro Mode: Auto Macro / Macro On /
Close Focus Enabled
Total Zoom: Approximately 8x
Face Detection: Detects up to 8 Faces - with
Touch Priority / Auto Priority / Child Priority /
Adult Priority
Power
Battery Type: LITHIUM ION / InfoLITHIUM D
type 3.6V
Battery Capacity: 3.6V / 2.4wh(680mAh)
Software
Supplied Software: Windows: Picture Motion
Browser Vers 3.0.02 + USB Driver
Operating System Compatibility: Microsoft®
2000 Professional, XP Home and
Professional; Macintosh® OS 9.1/9.2/OS X
(10.1-10.5)
Dimensions
Weight: Approx. 4.8oz (135g)
Measurements: W x H x D: 3 3/4" x 2 3/8" x
21/32" (95.0mm x 58.4mm x 16.4mm)
Service and Warranty Information
Limited Warranty Term: 1 Year Parts & Labor
Supplied Accessories
Rechargeable Battery Pack NP-BD1
Battery Charger BC-CSD
Multi Connector Cable USB/AV
Power Cord Except U2 / CA2
Wrist Strap
Paint Pen
CD-ROM Software
Station Plate F
Optional Accessories
Accessory Kit (ACC-CLGB)
Rechargeable Lithium-Ion Battery (NP-BG1)
USB Port(s): Yes - USB2.0 Hi-Speed
HD Output: Yes (1080i)
GPS Unit Kit (GPS-CS1KA)
Memory Stick PRO Duo™ Media (MSX-512S)
Hardware
Memory
Memory
Memory
Memory
Memory
Memory
LCD: 3.5" Xtra Fine LCD 921k
Viewfinder: No
Lens Construction: 12 elements in 10 groups
(including 4 aspheric elements,1 prism)
Microphone/Speaker: Yes / Yes
Lens Type: Carl Zeiss® Vario-Tessar®
Docking Station: Yes, via optional HD cradle
(CSS-HD2)
Operating Conditions
Flash Effective Range: ISO Auto: Approx.0.08Approx.4.3m (Approx.0.26'-Approx.14.1')
(W) / Approx.0.5-Approx.3.4m
(Approx.1.64'-Approx.11.2')(T), ISO3200: up
to Approx.8.6m (Approx.28.2')(W) /
Approx.6.8m (Approx.22.3')(T)
Stick
Stick
Stick
Stick
Stick
Stick
PRO Duo™ Media (MSX-1GST)
PRO Duo™ Media (MS-MT2G)
PRO Duo™ Media (MS-MT4G)
PRO Duo™ Media (MS-MT8G)
PRO Duo™ Media (MS-MT16G)
Duo™ Adaptor (MSAC-M2)
Memory Stick Duo™ USB Adaptor (MSACUS40)
Color: Gray
UPC Code: 027242735996
1.Viewable area, measured diagonally
2. When imported using the Easy Exporter function in the Sony® Picture Motion Browser software.
3.Eight preset music tracks stored in internal memory. Imported music tracks can be up to five
minutes long. When using Music Transfer to download music, tracks longer than five minutes will be
reduced to five minutes when uploading to the Cyber-shot® camera.
4.Requires Windows 2000 Professional SP4, Windows XP SP2, or Windows Vista. Not supported by Mac
OS.
5.A portion of memory is used for data management.
6.HD Viewing requires an HD output adapter cable (VMC -MHC1 included) or Cyber-shot Station®
(CSS-HD2, sold separately) cradle and HDTV.
7. PMB Portable requires USB cable (included) and PC with internet connectivity (not included)
8.Actual battery life may vary based on product settings, usage patterns, battery and environmental
conditions.
9.Shooting at high frame rate of up to 30 frames per second requires Memory Stick PRO Duo ™ media
(sold separately).
© 2008 Sony Electronics, Inc.
All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony,
Cyber-shot, Cyber-shot Station, Xtra Fine, BIONZ, Smile Shutter, Steadyshot, Memory Stick Duo,
Memory Stick PRO Duo, HDNA, Super HAD, Stamina, and the Sony, Cyber-shot, SteadyShot, Smile
Shutter, Face Detection, BIONZ, Full 1080 and HDNA logos are trademarks of Sony. All other trademarks
are trademarks of their respective owners. Non-metric weights and measurements are approximate
and may vary.
Please visit the Dealer Network for more information at
www.sony.com/dn
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Last Updated: 04/01/2009
