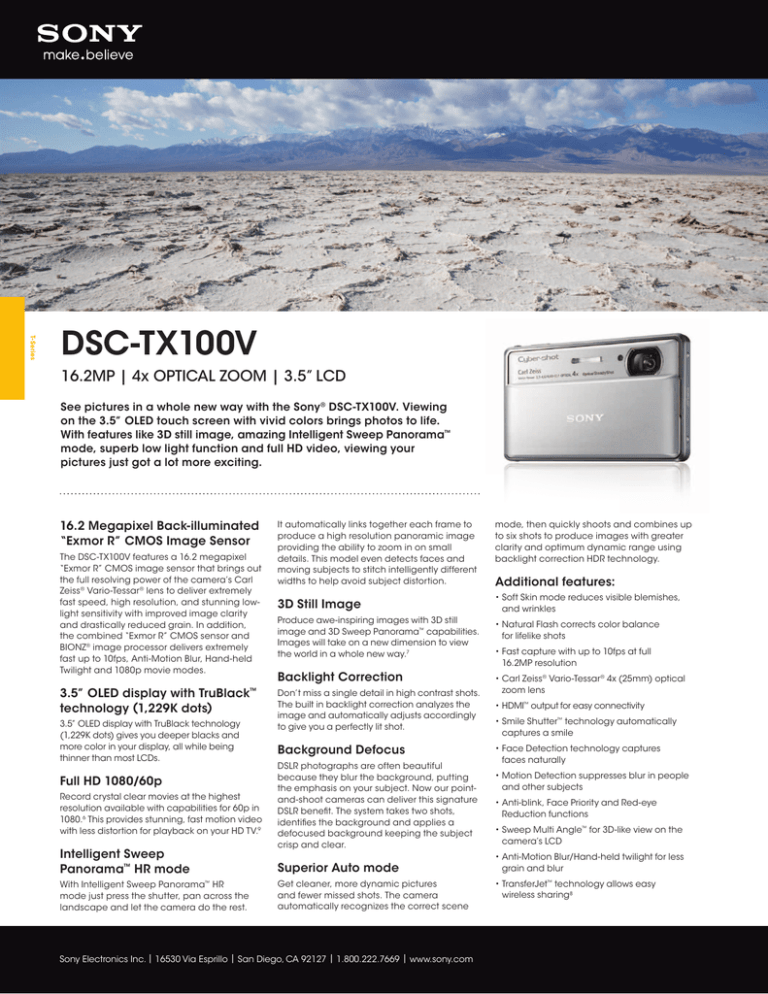

Sony DSC-TX100V/R Specification

Sony DSC-TX100V/R Specification
16.2MP | 4x OPTICAL ZOOM | 3.5” LCD
See pictures in a whole new way with the Sony® DSC-TX100V. Viewing
on the 3.5” OLED touch screen with vivid colors brings photos to life.
With features like 3D still image, amazing Intelligent Sweep Panorama™
mode, superb low light function and full HD video, viewing your
pictures just got a lot more exciting.
16.2 Megapixel Back-illuminated
“Exmor R” CMOS Image Sensor
The DSC-TX100V features a 16.2 megapixel
“Exmor R” CMOS image sensor that brings out
the full resolving power of the camera’s Carl
Zeiss® Vario-Tessar ® lens to deliver extremely
fast speed, high resolution, and stunning lowlight sensitivity with improved image clarity
and drastically reduced grain. In addition,
the combined “Exmor R” CMOS sensor and
BIONZ® image processor delivers extremely
fast up to 10fps, Anti-Motion Blur, Hand-held
Twilight and 1080p movie modes.
3.5” OLED display with TruBlack™
technology (1,229K dots)
3.5” OLED display with TruBlack technology
(1,229K dots) gives you deeper blacks and
more color in your display, all while being
thinner than most LCDs.
Full HD 1080/60p
Record crystal clear movies at the highest
resolution available with capabilities for 60p in
1080.6 This provides stunning, fast motion video
with less distortion for playback on your HD TV.9
Intelligent Sweep
Panorama™ HR mode
With Intelligent Sweep Panorama™ HR
mode just press the shutter, pan across the
landscape and let the camera do the rest.
It automatically links together each frame to
produce a high resolution panoramic image
providing the ability to zoom in on small
details. This model even detects faces and
moving subjects to stitch intelligently different
widths to help avoid subject distortion.
Additional features:
3D Still Image
• Soft Skin mode reduces visible blemishes,
and wrinkles
Produce awe-inspiring images with 3D still
image and 3D Sweep Panorama™ capabilities.
Images will take on a new dimension to view
the world in a whole new way.7
Backlight Correction
Don’t miss a single detail in high contrast shots.
The built in backlight correction analyzes the
image and automatically adjusts accordingly
to give you a perfectly lit shot.
Background Defocus
DSLR photographs are often beautiful
because they blur the background, putting
the emphasis on your subject. Now our pointand-shoot cameras can deliver this signature
DSLR benefit. The system takes two shots,
identifies the background and applies a
defocused background keeping the subject
crisp and clear.
Superior Auto mode
Get cleaner, more dynamic pictures
and fewer missed shots. The camera
automatically recognizes the correct scene
Sony Electronics Inc. | 16530 Via Esprillo | San Diego, CA 92127 | 1.800.222.7669 |
mode, then quickly shoots and combines up
to six shots to produce images with greater
clarity and optimum dynamic range using
backlight correction HDR technology.
• Natural Flash corrects color balance
for lifelike shots
• Fast capture with up to 10fps at full
16.2MP resolution
• Carl Zeiss® Vario-Tessar® 4x (25mm) optical
zoom lens
• HDMI™ output for easy connectivity
• Smile Shutter™ technology automatically
captures a smile
• Face Detection technology captures
faces naturally
• Motion Detection suppresses blur in people
and other subjects
• Anti-blink, Face Priority and Red-eye
Reduction functions
• Sweep Multi Angle™ for 3D-like view on the
camera’s LCD
• Anti-Motion Blur/Hand-held twilight for less
grain and blur
• TransferJet™ technology allows easy
wireless sharing8
T-SERIES Digital Still Camera
Camera Type
Image Device
Effective Pixels Resolution
Sleek and stylish with 3.5” OLED touch screen
1/2.3” (7.77mm) “Exmor R” CMOS sensor
Lens Type
Optical Zoom
Digital Zoom
Total Zoom
Carl Zeiss® Vario-Tessar ®
12 elements in 10 groups
(including 6 aspheric elements, 1 prism)
iAuto (F3.5-F6.3v (W)) / Program Auto (F3.5-F6.3v (W))
Still 16:9: 27-108mm / Still 4:3: 25-100mm /
Movie 16:9: 27-108mm / Movie 4:3: 33-132mm
Smart Zoom / Precision Digital Zoom / Off
Approximately 16x with Precision Digital Zoom
LCD Type
3.5” OLED display w/TruBlack™ technology (1,229K dots)
Media Slot
MS PRO Duo™ media / SD/SDHC media10
16:9 12M (4,608 x 2,592) / 2M (1,920 x 1,080); 4:3 16M
(4,608 x 3,456), 10M (3,648 x 2,736), 5M (2,592 x 1,944),
VGA (640 x 480), 3D: 16M (4,608 x 3,456) / 16:9 (12M)
(4,608 x 2,592); Panorama 2D: 7,152 x 1,080 (238deg) /
4,912 x 1,080 (163deg) / 4,912 x 1,920 (172deg) / 3,424
x 1,920 (120deg), 3D: 7,152 x 1,080 (238deg) / 4,912 x
1,080 (163deg) / 4,912 x 1,920 (172deg) / 3,424 x 1,920
(120deg) / 1,920 x 1,080 (64deg)
1,920 x 1,080(PS) Approx. 28Mbps Approx. 60fps
Progressive / 1,920 x 1,080 (FX) Approx. 24Mbps
Approx. 60fps interlace / 1,920 x 1,080 (FH) Approx.
17Mbps Approx. 60fps interlace / 1,440 x 1,080 (HQ)
Approx. 9Mbps Approx. 60fps interlace / 1,440 x 1,080
Approx. 12Mbps Approx. 30fps, Progressive / 1,280 x
720 Approx. 6Mbps Approx. 30fps, Progressive / 640 x
480 (VGA) Approx. 3Mbps Approx. 30fps, Progressive
Stereo / Mono
Optics & Lens
Lens Construction
Aperture Range
Focal Length
35mm Equivalency
LCD & Viewfinder
Still Images
Microphone / Speaker
Intelligent Auto Focus
Macro Mode
Exposure Metering
Exposure Compensation
Backlight Correction HDR
Dynamic Range Optimizer
White Balance
9 points AF / Center Weighted AF / Spot AF /
Flexible Spot AF (Touch)
iAuto (W: Approx. 1cm (0.39’) to Infinity, T: Approx.
50cm (1.64’) to Infinity) / Program Auto (W: Approx.
8cm (0.26’) to Infinity, T: Approx. 50cm (1.64’) to Infinity)
Multi Pattern / Center Weighted / Spot
Plus / Minus 2.0EV, 1 / 3EV step
Auto / 125 / 200 / 400 / 800 / 1600 / 3200
Auto / Daylight / Cloudy / Fluorescent 1 (White
Fluorescent Lighting) / Fluorescent 2 (Natural
White Fluorescent Lighting) / Fluorescent 3
(Day White Fluorescent Lighting) / Incandescent
/ Flash / One Push
Shutter Speed
Burst Mode
iAuto (2” - 1/1,600) / Program Auto (1” - 1/1,600)
Approx. 10 fps at 16.2MP (Maximum 10 shots)
Flash Type
ISO Auto: Approx. 0.08m-Approx. 5.1m (Approx.
0.26’-Approx. 16.73’) (W) / Approx. 0.5m-Approx.
4.0m (Approx. 1.64’-Approx. 13.12’) (T), ISO3200: up
to Approx. 7.2m (Approx. 23.62) (W) / Approx. 5.7m
(Approx. 18.70’) (T)
Auto / On / Slow Syncro / Off
Flash Effective Range
Flash Mode
Superior Auto
Intelligent Auto
Face Detection
Motion Detection
Blink Detection
Smile Shutter™ Technology
In-Camera Editing
TransferJet™ Technology
36 scenes still / 36 scenes movie
High Sensitivity / Twilight / Twilight Portrait / Soft
Snap / Landscape / Beach / Snow / Fireworks /
Hi-Speed Shutter / Gourmet / Pet
Optical SteadyShot™ image stabilization
Sweep Panorama™ HR
(Horizontal / Vertical up to 238-degrees)
Hand-held Twilight / Anti-Motion Blur /
Backlight Correction HDR
3D still image / 3D Panorama / Sweep Multi Angle
8 Faces (Auto / Touch / Child Priority / Adult Priority)
Off / 10sec. / 2sec./ portrait1 / portrait2
Trimming / Red Eye Correction / Unsharp Masking
HD Video
SD Video
Yes - USB 2.0 Hi-Speed
Scene Modes
Image Stabilization
Multi-shot layering
Inputs & Outputs
Supplied Battery
Lithium-ion NP-BN1 3.6V
Battery Life (Approx.)27
Number of Images
Weights & Measurements
Dimensions (Approx.)
Weights (Approx.)
Supplied Software
Operating System
Service & Warranty
3 7/8” x 2 3/8” x 23/32” (97.0mm x 58.5mm x 17.8mm)
Body: Approx. 4.6 oz. (131g), With battery and
Memory Stick media: Approx. 5.2 oz. (147g)
Picture Motion Browser Ver 5.5, PMB Portable 5.5
(for Windows), PMB Portable 1.3 (for Macintosh)1
PMB and PMB Portable: Microsoft Windows XP SP3,
Windows Vista SP2, Windows 7. PMB Portable also
compatible with Macintosh OS® X (v10.4 - 10.6)
Limited Term Warranty
Limited 1 Year Parts & Labor
Battery Charger
USB Cable
Wrist Strap
NP-BN1 3.6V
Supplied Accessories
1. PMB requires Microsoft® Windows® XP SP3/ Windows Vista® SP2/Windows 7. Software not supported
by Mac OS. Movie format is compatible with iMovie® ‘09 or later versions.
6. Records in 29 minute segments.
7. Requires 3D HDTV, HDMI™ cable (at least 10.2 Gbps) and active 3D glasses (all sold separately).
8. TransferJet™ enabled media (sold separately) and TransferJet technology required in both devices.
9. HD viewing requires HD output adapter cable VMC-MD3 (sold separately) and HDTV with
equivalent display capability.
10. When using movie mode Memory Stick PRO Duo with MARK2 logo, Memory Stick PRO-HG, Class
4 or higher for SD/SDHC/SDXC media are recommended.
27. Actual results may vary based on product settings, usage patterns and environmental conditions.
Battery capacity decreases over time and use.
3.5” LCD
© 2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, Sony make.believe logo, Cyber-shot, Optical SteadyShot, BIONZ, Xtra Fine LCD,
Clear Photo, Clear Photo LCD Plus, SteadyShot, Memory Stick PRO-HG, InfoLITHIUM, Party-Shot, AVCHD, Exmor, TruBlack, TransferJet, Exmor R, Smile Shutter, DVDirect, BRAVIA, Memory Stick PRO Duo, Memory
Stick Duo and the Memory Stick logo are trademarks of Sony. PlayStation is a trademark of Sony Computer Entertainment. Microsoft, Windows, and Windows Vista are trademarks of Microsoft Corporation.
Mac OS and Macintosh are trademarks of Apple Computers, Inc. Blu-ray Disc is a trademark. HDMI is a trademark of HDMI Licensing LLC. All other trademarks are trademarks of their respective owners.
